Remote Sens. 2017, 9(2), 133; doi:10.3390/rs9020133

Article
A MODIS-Based Novel Method to Distinguish Surface Cyanobacterial Scums and Aquatic Macrophytes in Lake Taihu
Qichun Liang 1,2, Yuchao Zhang 1,3,*, Ronghua Ma 1,3, Steven Loiselle 4, Jing Li 1,2 and Minqi Hu 1,2
1
Key Laboratory of Watershed Geographic Sciences, Nanjing Institute of Geography and Limnology, Chinese Academy of Sciences, Nanjing 210008, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Jiangsu Collaborative Innovation Center of Regional Modern Agriculture & Environmental Protection, Huaiyin Normal University, Huai’an 223300, China
4
Dipartimento di Biotecnologie, Chimica e Farmacia, University of Siena, CSGI, Via Aldo Moro 2, Siena 53100, Italy
*
Correspondence: Tel.: +86-25-8688-2165
Academic Editors: Yunlin Zhang, Claudia Giardino, Linhai Li, Deepak R. Mishra, Richard Gloaguen and Prasad S. Thenkabail
Received: 30 August 2016 / Accepted: 26 January 2017 / Published: 6 February 2017

Abstract

:
Satellite remote sensing can be an effective alternative for mapping cyanobacterial scums and aquatic macrophyte distribution over large areas compared with traditional ship’s site-specific samplings. However, similar optical spectra characteristics between aquatic macrophytes and cyanobacterial scums in red and near infrared (NIR) wavebands create a barrier to their discrimination when they co-occur. We developed a new cyanobacteria and macrophytes index (CMI) based on a blue, a green, and a shortwave infrared band to separate waters with cyanobacterial scums from those dominated by aquatic macrophytes, and a turbid water index (TWI) to avoid interference from high turbid waters typical of shallow lakes. Combining CMI, TWI, and the floating algae index (FAI), we used a novel classification approach to discriminate lake water, cyanobacteria blooms, submerged macrophytes, and emergent/floating macrophytes using MODIS imagery in the large shallow and eutrophic Lake Taihu (China). Thresholds for CMI, TWI, and FAI were determined by statistical analysis for a 2010–2016 MODIS Aqua time series. We validated the accuracy of our approach by in situ reflectance spectra, field investigations and high spatial resolution HJ-CCD data. The overall classification accuracy was 86% in total, and the user’s accuracy was 88%, 79%, 85%, and 93% for submerged macrophytes, emergent/floating macrophytes, cyanobacterial scums and lake water, respectively. The estimated aquatic macrophyte distributions gave consistent results with that based on HJ-CCD data. This new approach allows for the coincident determination of the distributions of cyanobacteria blooms and aquatic macrophytes in eutrophic shallow lakes. We also discuss the utility of the approach with respect to masking clouds, black waters, and atmospheric effects, and its mixed-pixel effects.
Keywords:
Cyanobacteria and macrophytes index; Floating algae index; Cyanobacteria blooms; aquatic macrophytes; Lake Taihu; MODIS

1. Introduction

Cyanobacteria dominated blooms are ubiquitous in many freshwater ecosystems affected by human activities, increasing in frequency and distribution since the 1940s [1,2]. These blooms have multiple adverse impacts on local environments and economy, with a classic example being the extensive and long-lasting bloom in Lake Taihu in 2007 [3].
Aquatic macrophytes support critical ecological services in most shallow lakes by providing the habitat for a diverse and economically important faunal community, sequestering carbon and nutrients, as well as stabilizing sediment and shorelines [4,5,6]. Many studies indicate that eutrophication may lead to a reduction in macrophyte coverage as competition for available light and nutrients is impacted by an increase in phytoplankton, suspended detritus and periphyton [7]. Macrophyte coverage can indicate catchment scale and lake scale impacts of climate change on storm frequency, lake temperature, and sediment inflow [8]. The distributional changes in the coverage of aquatic vegetation and cyanobacterial scums can be considered an indicator of lake ecosystem conditions. The availability of accurate long-term information of the distribution of cyanobacterial scums and aquatic macrophytes can be a fundamental tool to lake management.
In reality, in situ measurements are often inappropriate to deal with the complex temporal and spatial dynamics of cyanobacterial scums, due to rapid vertical migration [9] and very fast replication [10], while the study of aquatic macrophytes requires a seasonal approach. In recent decades, remote sensing became a fundamental tool to explore the spatial and temporal behavior of aquatic ecosystems. Many studies have successfully used optical remote sensing to map algal blooms [11,12,13] and aquatic macrophytes [14,15,16] in coastal, lacustrine, and lagoon environments.
Remote sensing of cyanobacterial scums includes indirect approaches using water quality parameters such as transparency and direct approaches based on photosynthetic pigments concentrations (chlorophyll-a and phycocyanobilin) and spectrum shape characteristics (Table 1) [17]. These chlorophyll-a algorithms become problematic in the event of surface scums, where thick foams and complex chemical constituents are present [18], and have led to the development of new qualitative approaches. Algorithms using near infra-red (NIR) bands have shown particular promise, based on the red-edge effect to vegetation of blooms [18] including single band [19,20,21,22], band ratio [23,24,25,26,27,28,29] and band difference [30,31], and some land vegetation indices such as Normalized Difference Vegetation Index [25,32,33,34,35] and Enhanced Vegetation Index [25,36]. NIR bands are also the basis for spectral shape methods, which use a computational equivalent to the second derivative [37], including Fluorescent Line Height [38], Maximum Chlorophyll Index [39], Spectral Shape index [40,41,42], Cyanobacterial Index [37,43], Maximum Peak-Height algorithm [44,45], Floating Algae Index [46,47,48,49,50], and a Classification And Regression Tree [51].
Methods for identifying aquatic macrophytes by remote sensing have also undergone important developments (Table 2), including unsupervised classifier [52,53,54,55,56,57], supervised classifier [58,59], classification trees [60,61,62,63,64,65,66,67] and remote sensing combined with ancillary data [68,69]. Ratios of band reflectances or band transformations (e.g., normalized difference index) based on the spectral characteristics of macrophytes in the visible and NIR wavelengths can be used for macrophyte detection and classification.
Due to their similar spectral characteristics, especially in red and NIR wavelengths, it is often difficult to distinguish cyanobacterial scums and aquatic macrophytes by remote sensing. According to Gao’s [70] and Rogers and Kearney’s [71] results that short-wave infrared (SWIR) bands were sensitive to vegetation liquid water, Oyama [67] used SWIR bands of Landsat TM for distinguishing cyanobacterial scums and aquatic macrophytes, with the floating algae index (FAI) and normalized difference water index (NDWI) in Japanese lakes. However, extremely thick cyanobacterial surface scums in Lake Taihu with relatively sparse aquatic macrophytes present a more complex condition. Furthermore, SWIR is sensitive to conditions of elevated turbidity, a common characteristic of most shallow lakes. The approach combined vegetation presence frequency (VPF) and FAI, suggested by Liu [68], suffered from similar challenges from highly turbid or highly absorbing “black” waters. Otherwise, this VPF method could not be utilized for routine monitoring because it is one of the retrospective evaluation approaches.
Compared to Landsat TM/ETM+ , MERIS, and MODIS imagery provide advantages for large lakes due to their short overpass period and good spatial resolution [72,73]. MERIS, accessible until April 2012, provided important insights into the concentrations of optically active substances in large lakes [45,74]. MODIS (1999–present for Terra, 2002–present for Aqua) provides frequent (daily) and synoptic global observations and is equipped with several medium-resolution bands ("sharpening" bands designed for land use), and is also the prototype for VIIRS (the Visible Infrared Imager/Radiometer Suite) [75,76], allowing MODIS algorithms to inform algorithm development for VIIRS.
In the present study, we develop and validate a new approach to distinguish lake water, cyanobacterial scums and different aquatic macrophytes in complex aquatic and atmospheric optical conditions and mixed-pixel effects.

2. Study Area and Data

2.1. Lake Taihu

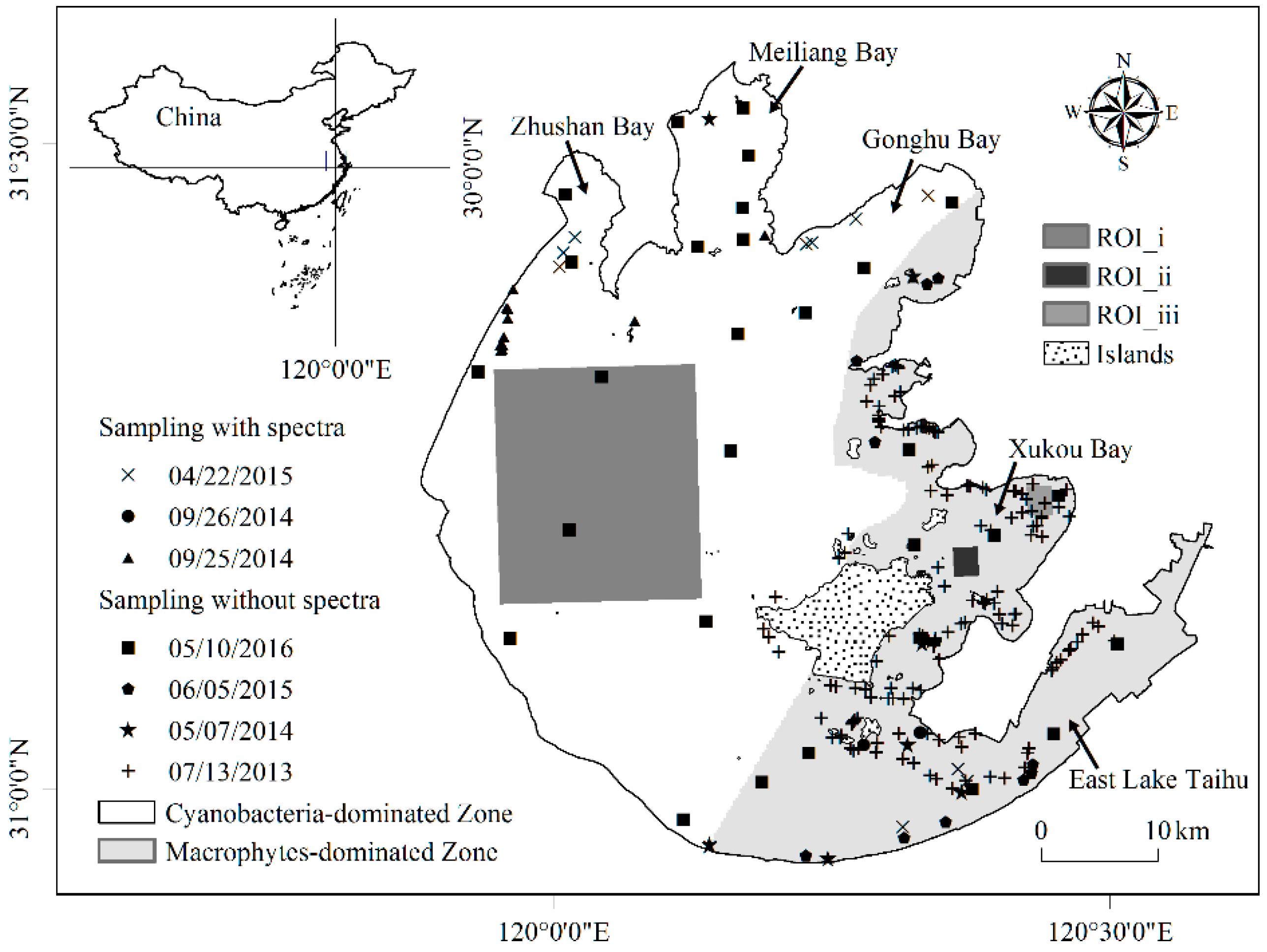

Lake Taihu, the third largest freshwater lake in China, is located in the Yangtze River Delta (latitude 30°55′40″–31°32′58″N; longitude 119°52′32″–120°36′10″E, Figure 1). The lake has a surface area of 2338 km2, a maximum and average depth of 2.6 and 1.9 m, respectively, with a mean water residence time of approximately 309 days [77]. Due to the rapid economic growth through urbanization and industrialization of Lake Taihu basin, increasing eutrophication and recurrent cyanobacterial scums (Microcystis) have occurred in recent years, posing a significant threat to millions of people relying on the lake for drinking water supply [78]. Harmful cyanobacterial scums regularly occur in the northern Meiliang, Zhushan, and Gonghu bays and on the western lakeshore [19]. The eastern and southern lake areas are characterized by extensive areas of macrophytes, where turbidity is low and cyanobacterial scums are rare [68,79]. Thus many researchers always divided Lake Taihu into cyanobacteria-dominated zone and a macrophytes-dominated zone [64,65,66]. On the basis of havitat, aquatic macrophytes can always be subdivided as emergent, floating-leaved, and submerged macrophytes [80]. Fourteen dominant species of aquatic macrophytes were identified in historical surveys in Lake Taihu (Table 3), including two emergent species, three floating species and nine submerged species [81]. In recent field investigations between 2013–2016, submerged macrophytes (i.e., Potamogeton crispus) have re-appeared in areas where they have been absent for more than a decade, Zhushan and Meiliang Bays.

2.2. Field Data

Two hundred and sixty six in situ investigations were carried out in July and August of 2013, May of 2014, June of 2015, and May of 2016 (Figure 1), covering the whole lake. Of the investigations 82.7% were located in the bays, especially in the eastern lake, always covered with aquatic macrophytes or cyanobacterial scums. The name and classification (emergent, floating, and submerged macrophytes) of aquatic vegetation, GPS and photographs of each site were recorded, and the percentage coverage of the aquatic macrophytes were estimated by eye from the boat during field investigations. Otherwise, 37 in situ water leaving reflectance spectra Rrs(λ) were measured in September of 2014 and April of 2015.
We measured the Rrs(λ) for two emergent macrophytes (Zizania caduciflora; Phragmites australis), one floating macrophytes (Nymphoides peltatum) and two submerged macrophytes (Potamogeton crispus; Potamogeton maackianus). In situ Rrs(λ) were measured with a FieldSpec FR spectroradiometer (Analytical Spectral Devices, Boulder, CO) with the wavelength range from 350 to 2500 nm following the NASA Ocean Optics protocols [82]. As recommended by Mobley [83], a viewing geometry with an azimuth of 135° and zenith of 40°, was used to avoid water surface reflection from direct sun. Each water spectrum was sampled 90° azimuth with respect to the sun and with a viewing angle of 45°. The detector integration time was either 136 ms or 272 ms. A separate dark reading was obtained each time the integration time was changed. The measurement sequence, repeated five times for each measurement, began with a measurement of a standard 25 cm × 25 cm plaque (25% reflectivity), water and sky radiances (each preceded by a dark offset reading). The water surface reflectance factor ρ was assumed to be 0.028 but clearly depended on sky conditions, wind speed, and solar zenith angle [83]. The viewing direction of 40° and 135° from the sun was considered a reasonable compromise. This method has been used successfully in sea and inland lakes studies in conditions where wind speeds less than 5 m/s [83,84,85,86]. The viewing direction was set by adjusting the instrument angle to minimize the effects of sun glint and non-uniform sky radiance while also avoiding instrument shading. Measurements were made from a location that minimized shading, reflections from superstructure, ship’s wake, associated foam patches and whitecaps, and specular reflection of sunlight.

2.3. Satellite Image Data Processing

MODIS Level-0 data collected by Aqua (2010–2016) covering the study region were obtained from the NASA Goddard Space Flight Center through its Ocean Biology Processing Group (OBPG) [87]. We used five bands from 469 nm to 1240 nm designed for land and atmosphere use, with a lower dynamic range than the ocean bands, and therefore unlikely to saturate in the highly turbid conditions of this shallow lake. The ground resolution of the 645 and 859 nm band is 250 m, and 500 m for the bands at 469, 555, and 1240 nm.
MODIS data were processed using SeaDAS (version 7.0). First, the data were converted to calibrated radiance (Level-1B). A key challenge remains in Case II waters, to perform a full atmospheric correction where significant errors in visible range occur for turbid waters with classic atmospheric correction methods, such as Gordon and Clark [88], Ruddick, Ovidio, and Rijkeboer [89], Wang and Shi [90], and Bailey, Franz, and Werdell [91] etc. Therefore, to avoid this problem, a partial atmospheric correction to correct for the gaseous absorption (mainly by ozone) and Rayleigh (molecular) scattering effects was applied to the Level-1B data, resulting in Rayleigh corrected reflectance (Rrc, dimensionless):
R r c ( λ ) = ρ t ( λ ) ρ r ( λ ) = ρ a ( λ ) + π × t ( λ ) × t 0 ( λ ) × R r s ( λ )
where ρ t is the top of atmosphere (TOA) reflectance after adjustment of the atmospheric (gas) absorption, ρ r is the reflectance due to Rayleigh scattering, ρ a is the reflectance due to aerosol scattering and aerosol-Rayleigh interactions, t and t 0 are diffuse transmittance from the image pixel to the satellite and from the sun to the image pixel, respectively. Note that ρ a , t , and t 0 are functions of aerosol type, aerosol optical thickness, and solar/viewing geometry. The above formulation assumes negligible contributions from whitecaps and sun glint.
The Rrc data were mapped to a cylindrical equidistant projection for further analysis. First, the Rrc data at 645 nm, 555 nm, and 469 nm were used to compose the Red-Green-Blue true color images to screen for clouds and sun glint. After visual inspection, a total of 176 data granules between 2010 and 2015 (Table 4) were found to contain no cloud cover and sun glint, therefore suitable for thresholds determination and method development.
To further validate the results, we used the aquatic macrophyte distributions done by Luo [66] using HJ-CCD images. HJ-1A and HJ-1B satellites were launched by the China Center for Resources Satellite Data and Application (CRESDA) on September 2008, have a high revisit time (2 days) and wavebands (B1: 430–520; B2: 520–600; B3: 630–690; B4: 760–900 nm) that are appropriate for vegetation mapping. According to Luo’s article [66], radiometric calibrations were made first using coefficients provided with the image (e.g., gains and offsets), then the atmospherically corrected images were geometrically corrected against a historical Landsat TM image with geometric accuracy of <0.5 pixel, and lastly the FLAASH module was applied for atmospheric correction. All of the lake except Gonghu Bay and the eastern lake was masked in Luo’s research.

3. Methods

3.1. Spectral Features of Lake Water, Cyanobacterial Scums, and Aquatic Macrophytes

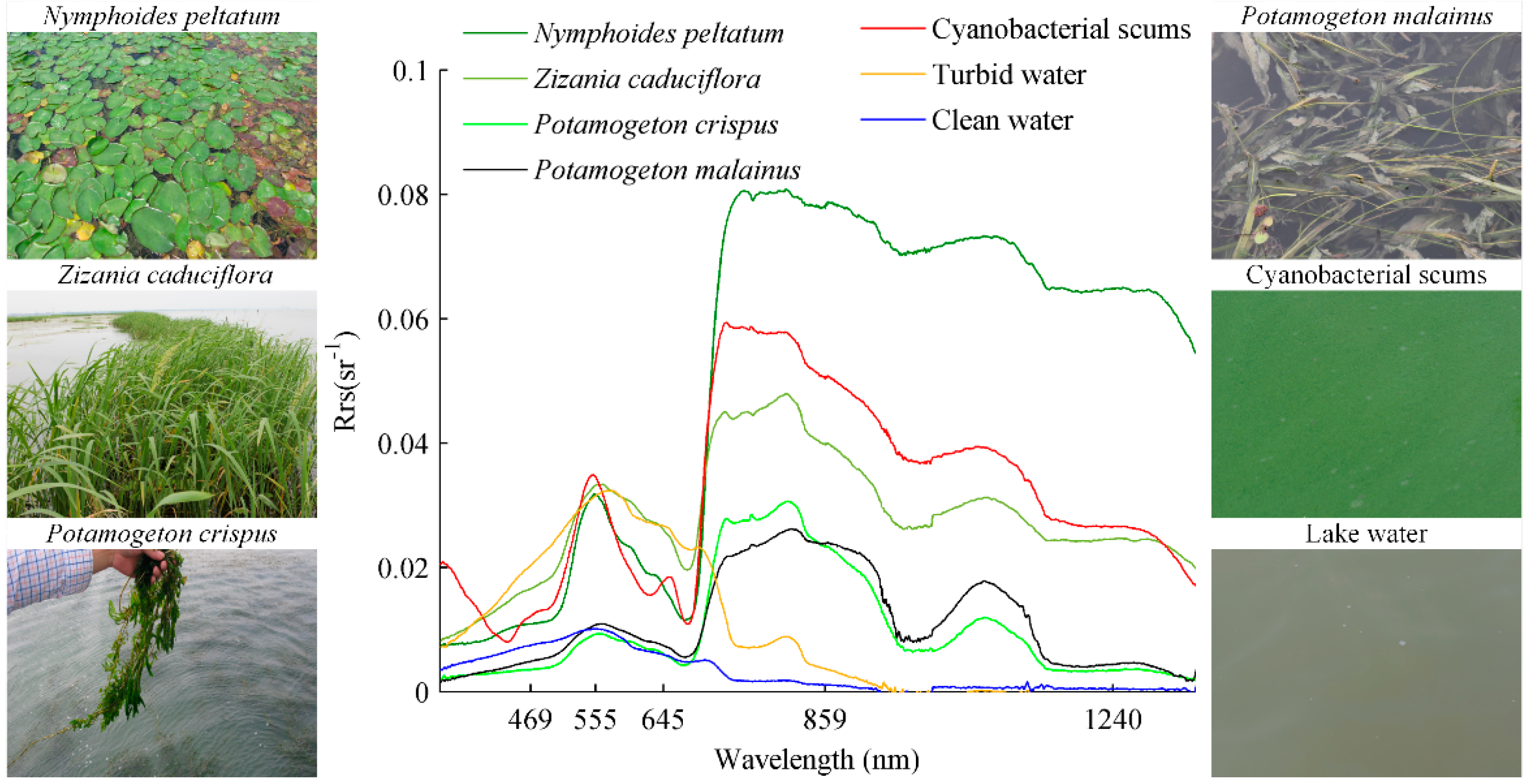

Spectra for clear lake water had the maximum reflectance at the wavelengths between 550–580 nm (Figure 2). Reflectance decreased sharply on both sides of the maximum, with reflectance at 500 nm higher than at 650 nm [92]. The reflectance spectra of turbid waters were typical, with a low reflectance in blue range and high reflectance in green range, owing to the absorption by dissolved organic matter and tripton as well as backscattering by particulate matter [93]. Reflectance in the red region (600–700 nm) had two minima around 620 nm and 675 nm, associated to phycocyanobilin and chlorophyll-a absorption [94,95]. A distinct peak around 700 nm shifted from 690 nm at low chlorophyll-a concentrations to 715 nm at high chlorophyll-a concentrations, which resulted from both high backscattering and minimum absorption by all optically active constituents, including pure water [96]. For low chlorophyll-a and high suspended sediments, this peak was reduced. The scattering by all particulate matter controlled the variations of NIR reflectance [93].
The reflectance spectra of cyanobacterial scums not only had the typical chlorophyll-a and phycocyanobilin absorption at 442, 665, and 620 nm respectively, but also an increase in wavelengths ranging from 700 and 1800 nm with chlorophyll-a concentrations compared to that at visible and longer than 1900 nm range [67]. This is similar to reflectance spectra of aquatic macrophytes.
For aquatic macrophytes, high reflectance values at the NIR region are mainly due to the cellular structure in the leaves [97]. A small absorption around 970 nm has been associated to water content [14], and is similar to that observed in the reflectance spectra of cyanobacterial scums [67]. All aquatic macrophytes investigated in Lake Taihu have similar reflectance spectra with pigment concentration and cellular structure responsible for observable differences [16]. Submerged macrophytes have lower reflectance values across the whole range due to the water absorption [16].

3.2. A New Classification Method for MODIS

3.2.1. CMI, FAI, and TWI

Considering the similar NIR reflectance spectra between cyanobacterial scums and aquatic macrophytes, indices based on other wavelengths were necessary to distinguish them. Compared to aquatic macrophytes, the Rrc spectra of cyanobacterial scums have a distinguishable peak at 555 nm and an obvious minimum at 469 nm (Figure 3). We note that the Rrc data used removed Rayleigh scattering effects but not aerosol or other atmospheric effects. The use of the 1240 nm band to construct a baseline with 469 nm removed additional impacts from atmospheric effects. This suggests that the difference between Rrc(555) and baseline between 469 nm and 1240 nm, can be used to distinguish cyanobacterial scums and aquatic macrophytes. The resulting Cyanobacteria and Macrophytes Index (CMI) was defined as:
C M I = R r c , G R E E N R r c , B L U E [ R r c , S W I R R r c , B L U E ] × ( λ G R E E N λ B L U E ) / ( λ S W I R λ B L U E )
following a baseline subtraction similar to the FAI index [46] with clearly different band combinations.
FAI, widely used for detecting floating algae in lakes [47,50] was expanded in this study to identify different types of aquatic macrophytes as well as floating algae. FAI was originally developed using MODIS red, NIR, and SWIR bands,
F A I = R r c , N I R R r c , R E D [ R r c , S W I R R r c , R E D ] × ( λ N I R λ R E D ) / ( λ S W I R λ R E D )
When very high suspended sediments are present, they can dominate the optical signal, leading both CMI and FAI to identify areas of high turbidity as cyanobacterial scums. To avoid this, we created a Turbid Water Index (TWI), following algorithm approaches for suspended solids in Case II waters [98]:
T W I = R r c , R E D R r c , S W I R
For MODIS, these are λ B L U E = 469 nm, λ G R E E N = 555 nm, λ R E D = 645 nm, and λ S W I R = 1240 nm.

3.2.2. Classification Tree

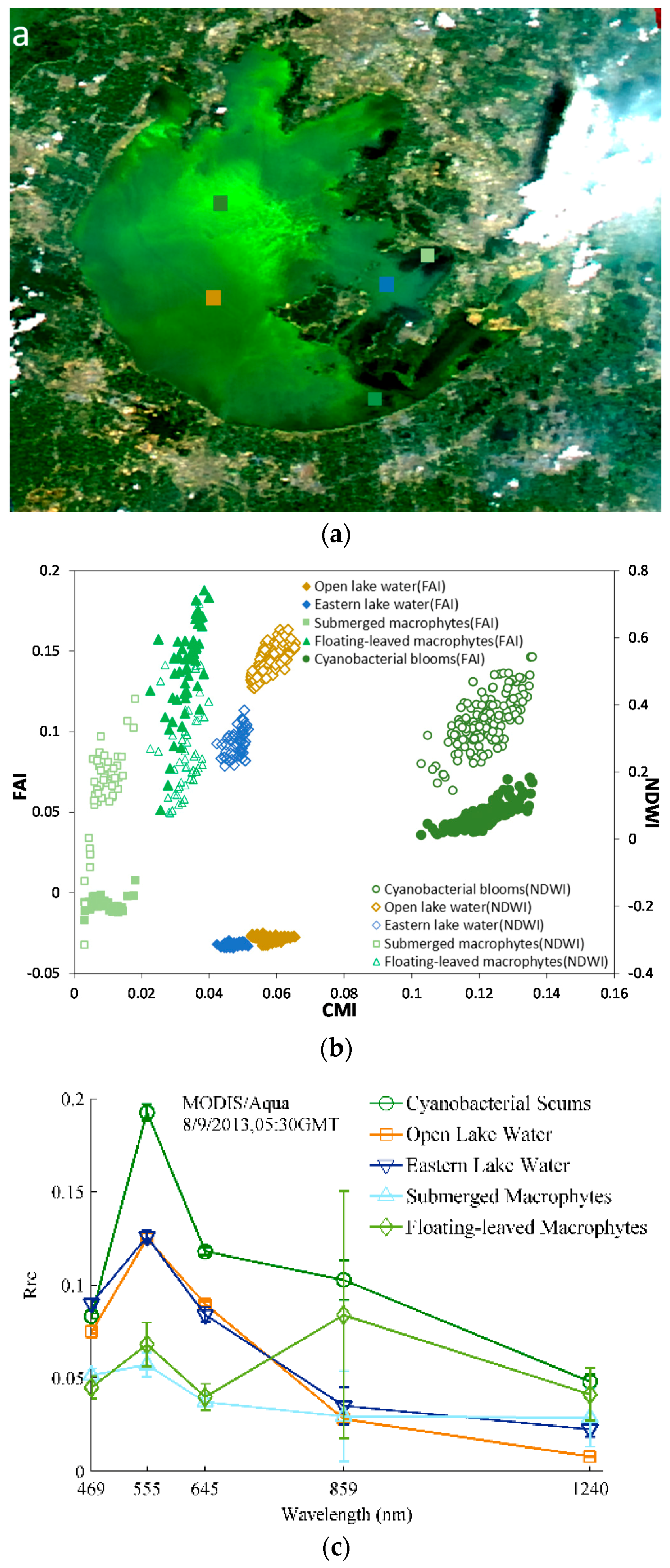

The relationship between CMI, FAI, and NDWI [67] from typical lake waters (Figure 3) showed CMIcyano > CMIwater > CMIfloat > CMIsub. While CMI of floating macrophytes was much lower than that of cyanobacterial scums, respective FAIs overlapped significantly. Likewise, the FAI of the open lake water and clean water with submerged macrophytes in Xukou Bay were similar. Due to Oyama’s research, NDWI showed a much better capability to distinguish cyanobacterial scums and aquatic macrophytes using Landsat TM/ETM+ [67]. Figure 3b indicated that NDWI of cyanobacterial scums, aquatic macrophytes, and lake water mixed together based on MODIS data. The impact of high concentrations of suspended solids on water reflectance at green, red, and NIR range was evident, as was its impact on CMI and FAI in turbid waters.
A classification decision tree based on these relationships was constructed with five steps (Figure 4). Step 1: identify and remove pixels of turbid water by TWI; Step 2: chose the CMI and FAI thresholds due to the pixel location (cyanobacteria-dominated or macrophytes-dominated zone); Step 3: identify which is existing in the pixel, cyanobacterial scum or aquatic macrophytes by CMI threshold; Step 4: if cyanobacterial scum exists, identify lake waters using FAI = −0.004; Step 5: if aquatic macrophytes exists, distinguish between floating and emergent/submerged macrophytes using FAI threshold.

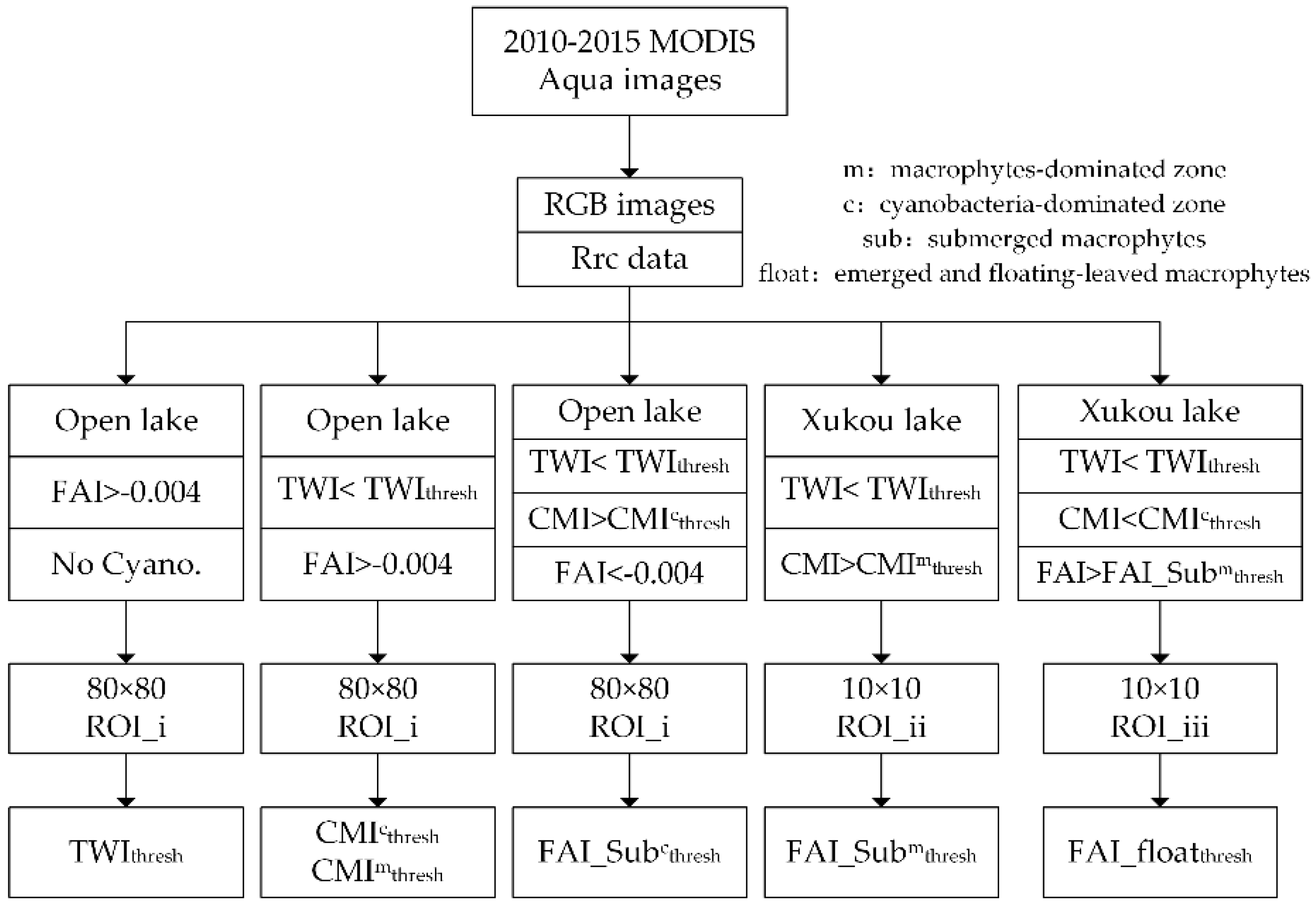

Three regions of interest (ROI_i, ROI_ii, and ROI_iii) respectively in open lake and Xukou Bay of Lake Taihu were used to determine threshold values from MODIS Rrc data directly (Figure 5). It should be noted that the values from in situ reflectance measurements could not be used for threshold development directly due to the complex optical conditions of the waterbody and impossibility to apply a comparative full atmospheric correction.

3.2.3. Accuracy Assessment and Validation

Three approaches were used to validate our new classification tree: first, in situ remote sensing reflectance spectra were used to compare CMI to FAI and NDWI; second, user’s accuracy, overall accuracy [99] and normalized accuracy [100] were calculated by comparing the satellite-derived distribution to the ground-truth results during 2013 and 2016; thirdly, aquatic macrophytes distributions derived from MODIS imageries were compared to those from 30 m spatial-resolution HJ-CCD imageries.
User’s accuracy ( p u ( i ) ) is a measure of the commission error associated with a class and is derived from the number of pixels correctly allocated to a class relative to the total number of pixels predicted to belong to that class in the accuracy assessment,
p u ( i ) = p c ( i ) p t ( i )
where p c ( i ) is the number of correctly classified pixels of type i , and p t ( i ) is the number of total pixels of type i based on the ground-truth measurements.
The overall accuracy ( p o ) was defined as the percentage of samples that were classified correctly and calculated using the following equation,
p o = i = 1 n p c ( i ) p t
where n is the total number of types that were classified, p c ( i ) is the number of correctly classified pixels of type i , and p t is the total number of pixels in the validation data set.
An iterative proportional fitting procedure which forces each row and column in the matrix to sum to one was used to normalized error metrics [100,101]. This process then changes the cell values along the major diagonal of the matrix (correct classifications) and therefore a normalized overall accuracy can be computed for each matrix by summing the major diagonal and dividing by the total of the entire matrix. The normalized accuracy is considered as a better representation of accuracy than the overall accuracy computed from the original matrix because it contains information about the off-diagonal cell values [100].

3.3. Classification Method for HJ-CDD Data

A spectral indices ( B 4 j = 1 3 B j ) / ( B 4 + j = 1 3 B j ) (SF1), the second principal components (SF2) and the difference between the greenness index and the brightness index from the tasseled-cap transform (SF3) were used to construct Luo’s classification tree using HJ-CDD data [66]. First, SF1 was utilized to detect emergent mocrophytes, then floating-leaved macrophytes were identified by SF2, and SF3 discriminated submerged macrophytes and open water lastly. The thresholds of SFs in the classification tree were determined by corresponding field investigation data.

3.4. Analysis Methods

3.4.1. Atmospheric Effects

Considering MODIS Rayleigh corrected reflectance used in our research, in order to estimate atmospheric effects on CMI, we simulated the influence of the different atmospheric conditions on CMI using in situ reflectance measurements and an atmospheric radiance transfer model in the absence of whitecaps and sun glint (Equation 1). Aerosol optical thickness (0–1 at intervals of 0.2), six aerosol types (r30, 50, 70, 75, 80, and 85) and six typical solar/viewing geometry of Lake Taihu (oc1: solz = 40°, senz = 20°, phi = 40°; oc2: solz = 40°, senz = 20°, phi = −120°; oc3: solz = 40°, senz = 40°, phi = 40°; oc4: solz = 40°, senz = 40°, phi = −120°; oc5: solz = 60°, senz = 20°, phi = −120°; oc6: solz = 60°, senz = 20°, phi = 40°) were extracted from SeaDAS LUTs.

3.4.2. Mixed Pixels Effects

The best spatial resolution of MODIS data is 250 m, which is much rougher than that of Landsat TM/ETM+ and HJ-CCD. In order to assess mixed pixels effects on thresholds of CMI and FAI, a MODIS image with both of the cyanobacterial scums and all the kinds of macrophytes should be chosen in the following analysis. We therefore took the MODIS image on 9 August 2013 for an example to investigate the influence of mixed pixels on the thresholds of CMI and FAI by varying the fraction of cyanobacteria blooms, submerged macrophytes or emergent/floating macrophytes from 0% to 100% at intervals of 10%. However, first, the 5 × 5 pixels covering with only one of lake water, cyanobacteria blooms, submerged macrophytes or emergent/floating macrophytes were detected based on in situ investigations in 2013. Also, the average upper 25% values of CMI and FAI were determined as the pure pixel thresholds for cyanobacterial scums or emergent/floating macrophytes. The average lower 25% values of CMI and FAI were decided as the pure pixel threshold for submerged macrophytes. Then the CMI and FAI means of 5 × 5 lake water pixels were used as the pure lake water thresholds. A simple linear model was chosen with two endpoints: one was pure lake water, and the other was pure cyanobacterial scums, submerged macrophytes or emerged/floating-leaved macrophytes.

4. Results

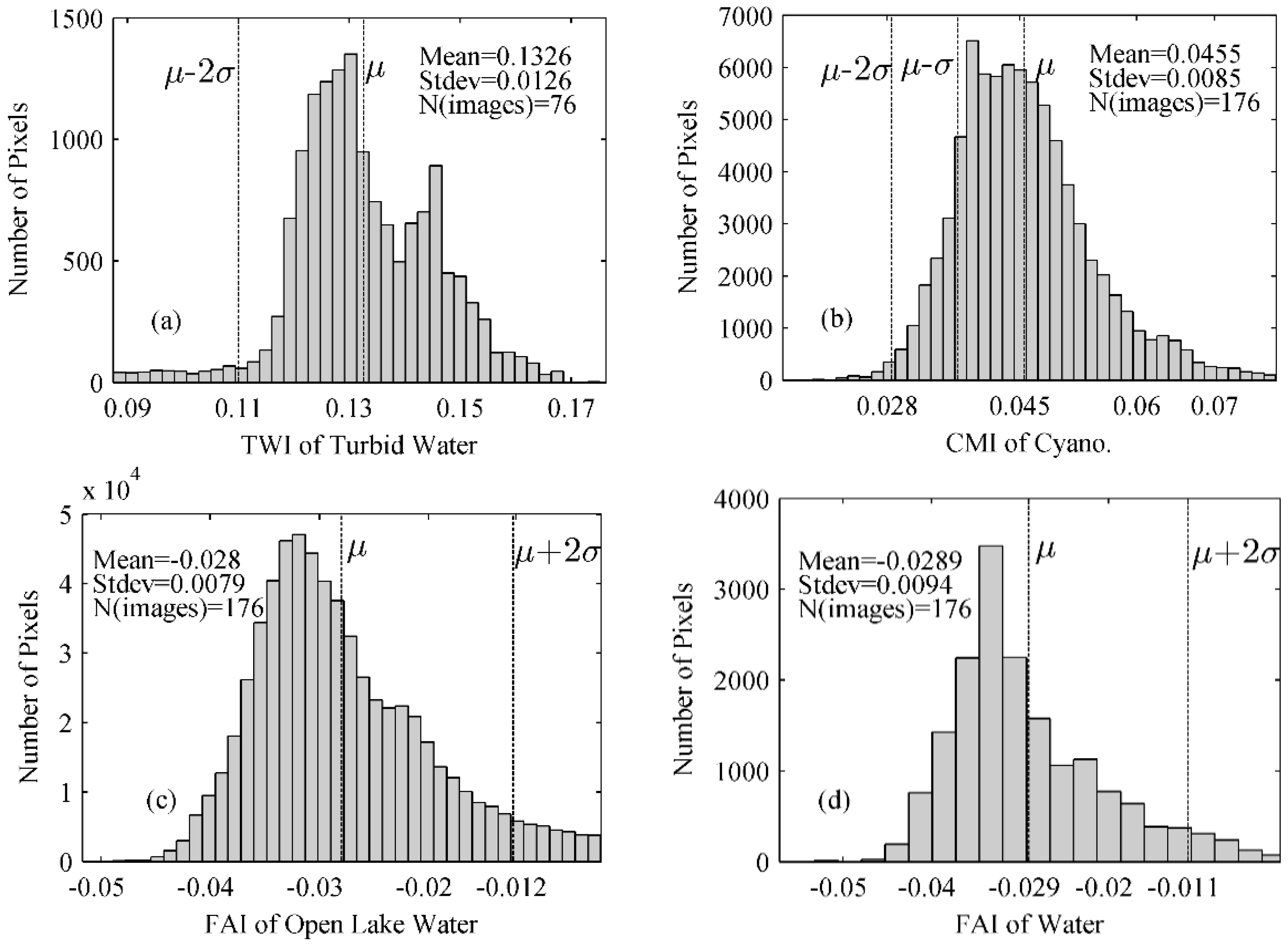

4.1. Thresholds

4.1.1. TWI Threshold Determination for Turbid Waters

Considering the location and timing of elevated turbidity in Lake Taihu, a region of interest (ROI_i) with 80 × 80 pixels in the open lake was chosen and 76 images from December to February were visually checked for cyanobacterial scums and aquatic macrophytes. All pixels, with FAI > −0.004, were put together to determine TWI thresholds (Figure 6a). Based on the near normal distribution with a mean (μ) and standard deviation (σ) of 0.1326 and 0.0126, the TWI threshold for turbid waters was 0.107 (μ − 2σ).

4.1.2. CMI Threshold Determination for Distinguishing Aquatic Macrophytes and Cyanobacterial Scums

Based on the existed FAI threshold for cyanobacterial scums in Lake Taihu, FAI > −0.004 [47], the CMI threshold was based on 176 images from ROI_i, which satisfied TWI ≤ 0.107 and FAI > −0.004 at the same time. The CMI distribution of cyanobacterial scums pixels was also in a normal fashion with μ = 0.0455 and σ = 0.0085 (Figure 6b). The priori knowledge on Lake Taihu shows that the macrophytes-dominated zones are located in the east sections of the lake [65]. In order to minimize the false positive, we used two different CMI thresholds for detecting cyanobacterial scums in cyanobacteria-dominated zone and macrophytes-dominated zone (Figure 1). For cyanobacteria-dominated zones, we chose 0.0285(μ − 2σ) as the CMIathresh, and for non-cyanobacteria-dominated zones we chose a more strict 0.0455(μ) as CMIgthresh.

4.1.3. FAI Threshold Determination for Detection Different Types of Aquatic Macrophytes

The published FAI threshold of −0.004 was used to distinguish cyanobacterial scum and water [47]. As FAI can also discriminate different types of aquatic macrophytes (Figure 3), and considering the small area of emergent macrophytes and coarse spatial resolution of MODIS, we combined emergent and floating macrophytes in one group. It should be noted that water quality in the macrophytes-dominated zone was much better than that in the cyanobacteria-dominated zone [79]. We decided to use two thresholds FAI_subathresh and FAI_subgthresh in these two zones to discriminated waters and aquatic macrophytes respectively. FAI_subathresh was based on ROI_i (Figure 6c) where TWI < 0.107, CMI < 0.0285 and FAI < −0.004. Similarly, FAI_subgthresh was determined from ROI_ii (Figure 6d), where TWI < 0.107, CMI < 0.0455 and FAI < −0.004. FAI_subathresh and FAI_subgthresh were −0.0122 and −0.011 (μ − 2σ) respectively. In the same way, ROI_iii in Xukou Bay was used to determine the FAI threshold of 0.05 for submerged and emergent/floating macrophytes, interestingly the same FAI value used by Oyama with Landsat TM/ETM [67].
All of the thresholds have been summarized in Table 5.

4.2. Validation by in Situ RRS Measurements

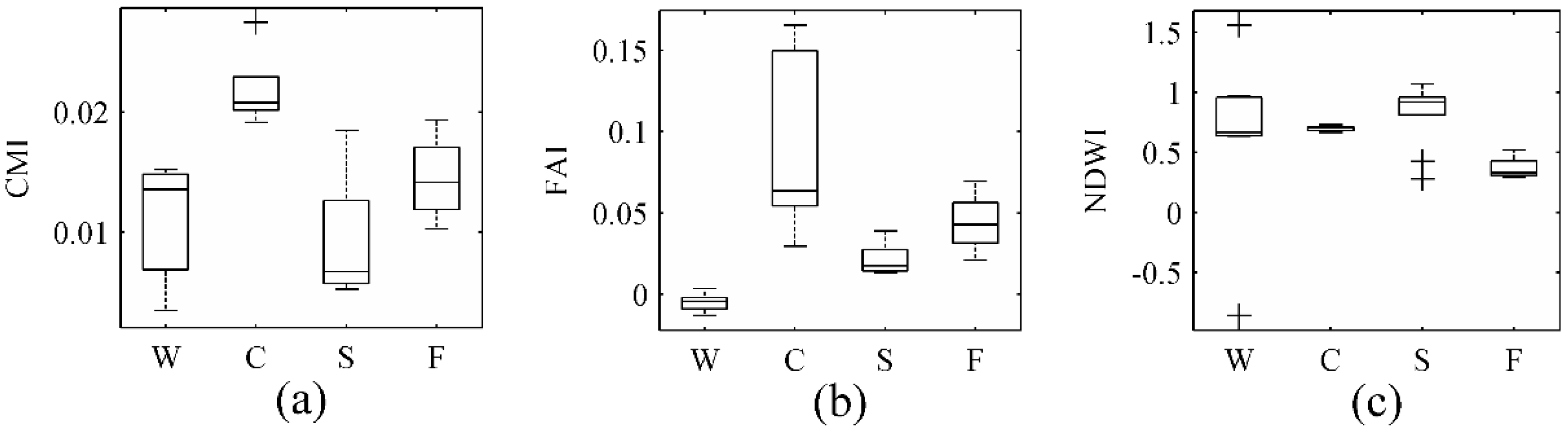

We first validated the applicability of CMI, FAI, and NDWI to distinguish lake water, cyanobacterial scums, submerged macrophytes, and emergent/floating macrophytes using in situ reflectance spectra of 2014 and 2015. All of these indices were calculated by in situ measured reflectance in simulated MODIS bands (Figure 7).
FAI was effective at separating lake water and others, but less useful for distinguishing cyanobacterial scums and aquatic macrophytes (Figure 7b). In contrast, CMI showed significant differences between the cyanobacterial scums and aquatic macrophytes, but was less useful for detecting open lake waters (Figure 7a). The modelled MODIS band 2 (841–876 nm) and band 6 (1628–1652 nm) from in situ spectra were chosen to estimate NDWI, which also showed a good separation between cyanobacterial scums and floating-leaved macrophytes from Figure 7c as that achieved using Landsat TM/ETM+ [67]. However, if MODIS Rrc data were used, NDWI was less useful due to Figure 3b. This may be the result of very thick cyanobacterial scums, relative disperse and sparse aquatic macrophytes, and turbid waters as well as the spectral differences between MODIS and Landsat TM. This validation by in situ Rrs indicated the improved effectiveness of combining CMI and FAI.

4.3. Validation by Field Investigation

To verify the stability and accuracy of the new method, we validated the predicted results with synchronous ground-truth investigations in Lake Taihu (Table 6). From 2013–2016, the user’s accuracy of the submerged macrophytes, emergent and floating macrophytes, cyanobacterial scums and lake water was 83%–89%, 79%–83%, 75%–92% and, 92%–100% respectively, and the overall classification accuracy each year was 87%, 92%, 80%, and 86%, respectively. Based on the off-diagonal matrix values, the normalized accuracy was lower than the overall classification accuracy, which was 86.2%, 62.6%, 56.5%, and 81.0% for 2013–2016 respectively. In total, the overall classification accuracy and normalized accuracy was almost similar, 86.0% and 86.8% respectively. The classification accuracy was influenced by: the number and spatial distribution of ground-truth data [68] and the spatial resolution of MODIS where mixed pixels effects could lower the overall accuracy.

4.4. Validation by HJ-CCD Data

High-spatial resolution HJ-CCD data were used to validate spatial distributions of water, cyanobacterial scums and different aquatic macrophytes for 9 and 16 August, and 16 and 26 September 2013 (Figure 8). Aquatic vegetation spatial distributions on 16 August and 26 September 2013 were provided only in the eastern part of Lake Taihu by Luo’s CT method [66] using HJ-CCD data. The two datasets showed consistent spatial distributions of aquatic macrophytes in the macrophytes-dominated areas: in the south shore of Gonghu Bay, there existed many submerged macrophytes and sparse floating macrophytes; submerged macrophytes dominated Xukou Bay; floating macrophytes were mainly located in the East lake especially in summer. However, emergent macrophytes distributed dispersedly close to the shores were more difficult for MODIS data to identify.
The expected temporal consistency was met, as submerged and emergent/floating macrophytes in the macrophytes-dominated zone were 174.5 and 178.3 km2 on 16 August, and 255.7 and 105.6 km2 on 26 September, respectively and their location was consistent (Figure 8). Cyanobacterial scums showed a much larger variation, changing from 68.4 to 0.75 km2 over the same period.

5. Discussion

5.1. Data Quality versus Data Quantity

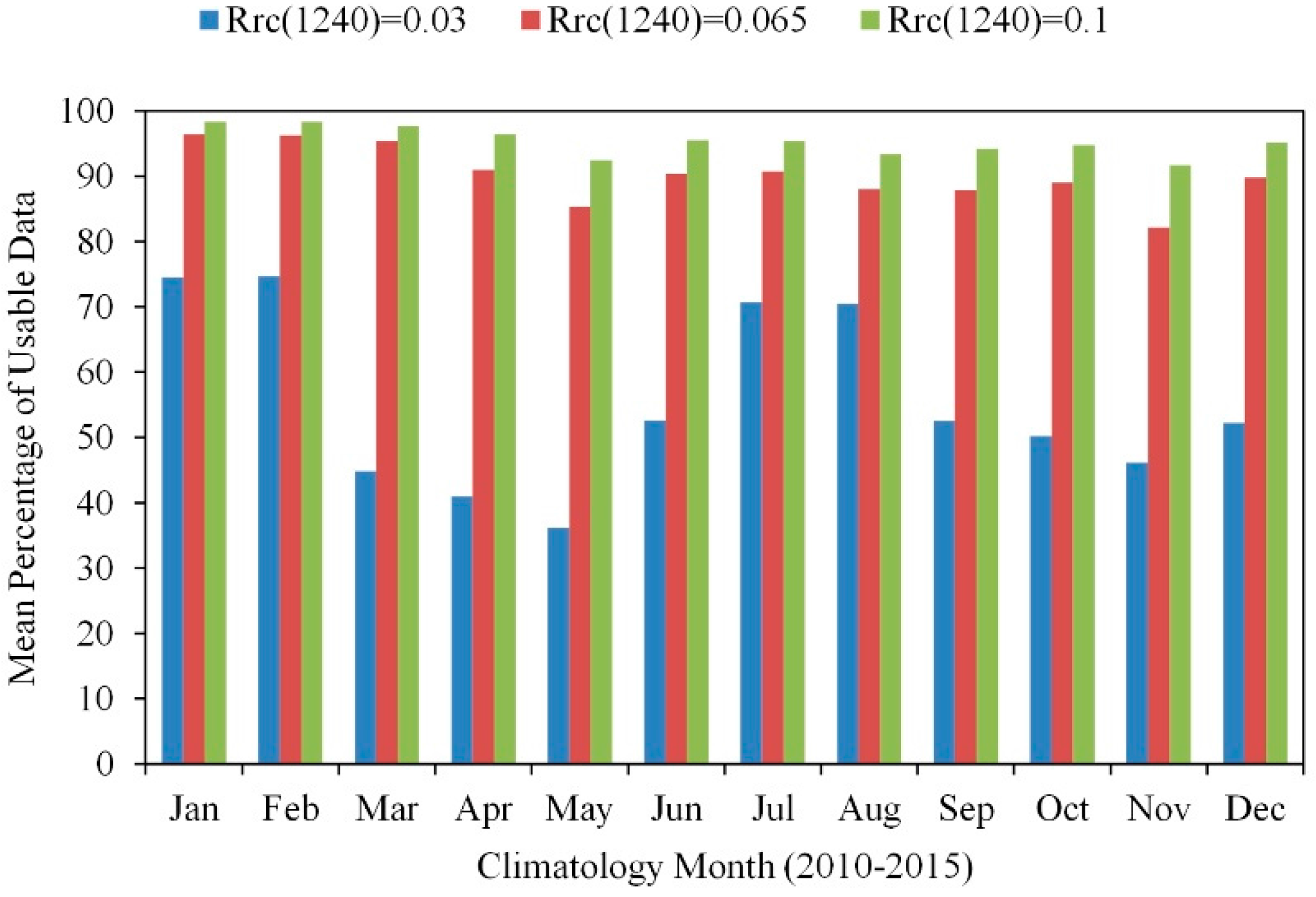

Time-series and trend analyses for aquatic vegetation, both macro and micro, in inland water bodies have been difficult to examine using satellite ocean color data due to challenging atmospheric conditions (e.g., clouds, thick aerosols, and sun glint) [72]. This complicates the separation of in-water reflectance from the top of atmospheric reflectance. The use of Rrc(869) > 0.027 to screen cloud pixels and low quality data significantly reduced data availability for Lake Taihu even under cloud-free and glint-free conditions [72]. Not only thick aerosols but also cyanobacteria blooms and aquatic macrophytes can increase reflectance in the near infra-red and shortwave infra-red wavelengths. For turbid waters, Wang and Shi recommended a cloud threshold of Rrc(1240) = 0.0235 and Rrc(1640) = 0.0215 [102], while Hu suggested Rrc(1640) = 0.03 [47]. None of these are suitable for the complex atmospheric, aquatic, and ecological conditions of Lake Taihu, where thick aerosols, sun glint, cyanobacteria blooms, aquatic macrophytes, and elevated turbidity all co-exist. In order to avoid false positive cloud masking from cyanobacteria blooms and aquatic macrophytes, we utilized Qi’s Rrc(555) > 0.25 [72] and Rrc(1240) > 0.10 as constraint conditions for cloud masking. This resulted in >90% valid data coverage per image for every climatological month (Figure 9). In comparison, the mean valid data coverage for the Rrc(1240) < 0.0235 threshold was 35%–74%.

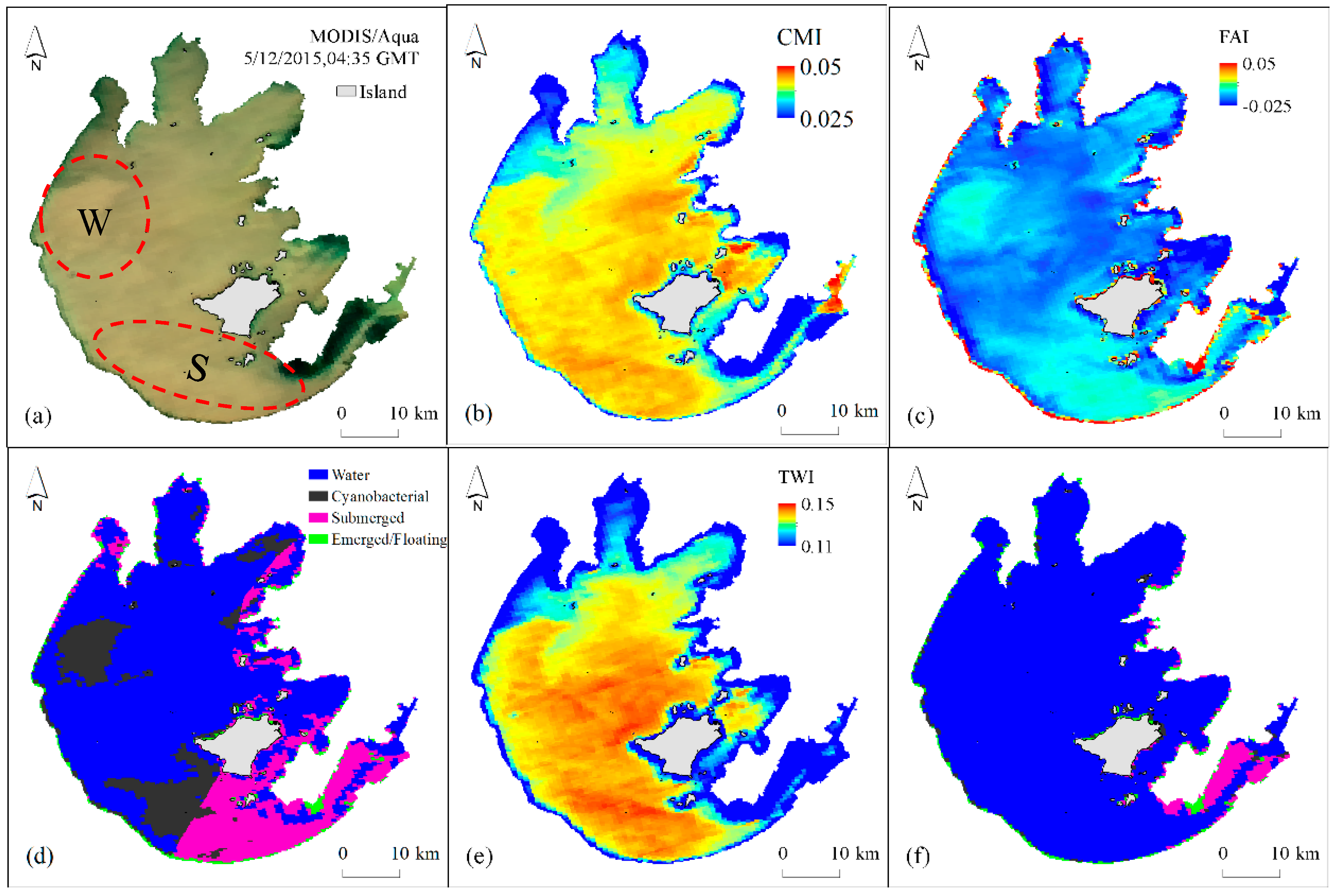

5.2. Use in Highly Turbid Waters

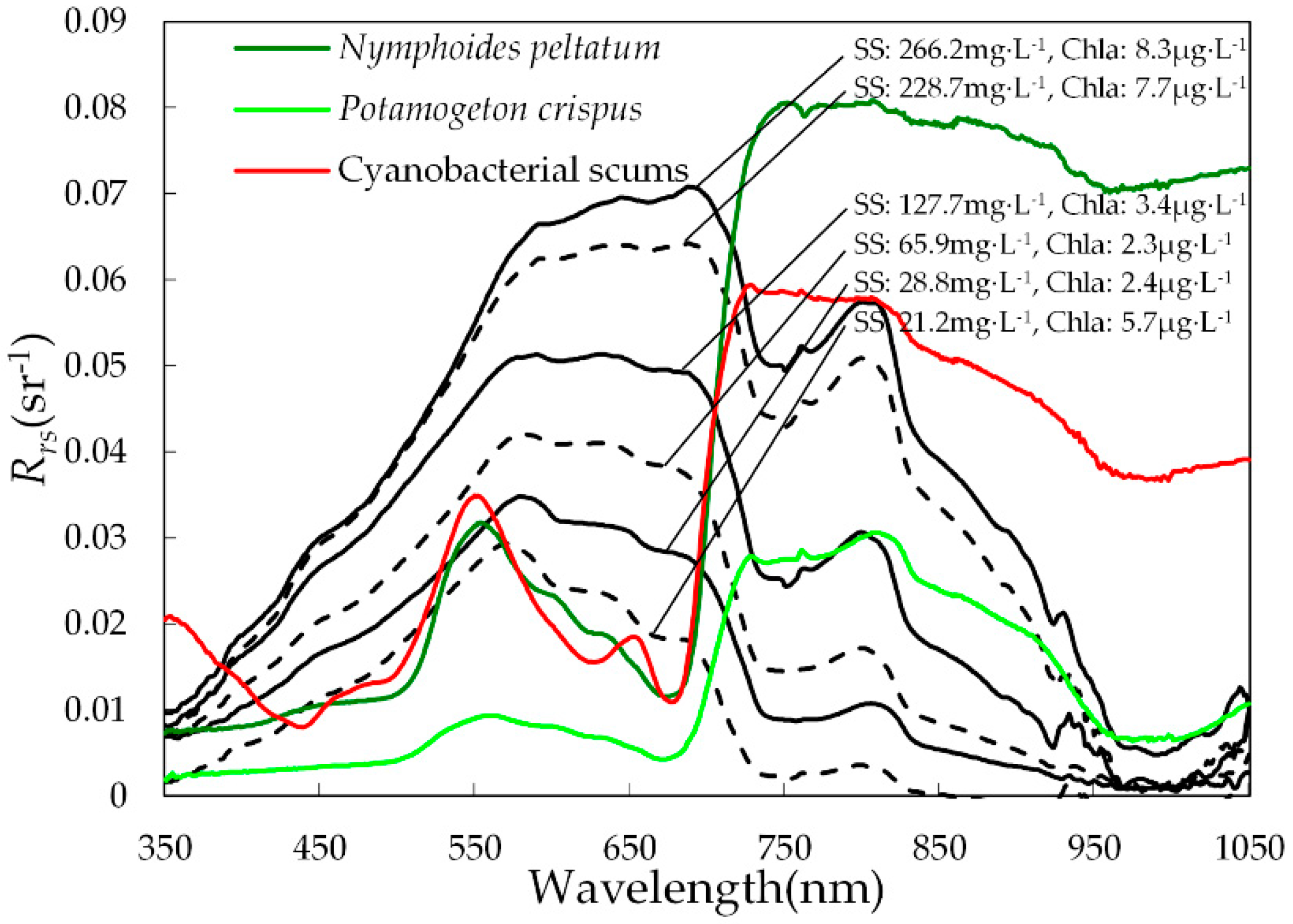

For shallow and turbid Lake Taihu, re-suspended solids have a major impact on visible and near infra-red reflectance spectra [103]. A comparison of reflectance spectra from cyanobacteria blooms, typical aquatic macrophytes, and turbid waters with different suspended solid (SS) concentrations shows that CMIs increased at higher suspended solid concentrations (Figure 10), impacting the detection of cyanobacteria blooms and emergent/floating macrophytes. Figure 11 is an example showing that the turbid water index, TWI, avoided these misclassifications, even under high wind and high turbidity conditions. MODIS RGB image (Figure 11a) showed lake water in the open lake was yellow and very turbid especially close to the west (W) and south (S) lakeshores, correspondingly CMI(W: 0.040 ± 0.003; S: 0.043 ± 0.003) and FAI (W: –0.006 ± 0.008; S: 0.0001 ± 0.008) of high turbid water were much higher than the other regions (Figure 11b,c). Therefore, high turbid water could be misclassified to cyanobacterial scums in cyanobacteria-dominated zone and submerged macrophytes in macrophyte dominated zones (Figure 11d). (W: 0.141 ± 0.014; S: 0.147 ± 0.010) As our new method considered the disturbance from turbid water via TWI (Figure 11f), original false positives for cyanobacteria blooms were rejected.

5.3. Impact of Black Waters

Black waters are another typical environmental phenomenon in eutrophic lakes, often associating to lake areas with cyanobacteria blooms and macrophyte stands [104]. They are characterized by high absorption due to elevated concentrations of colored dissolved organic matter (CDOM) [104,105]. In Lake Taihu, further studies on the 2007 algal bloom event indicated that the intrusion of a black water bloom in the main water intake of Wuxi City was the key cause of the water source crisis [106]. Studies show that Zhanshan Bay, Meiliang Bay, and Gonghu Bay were the main sensitive area to black waters in Lake Taihu [104,107,108], all areas of high-frequency cyanobacterial scums [47]. Attempts to use remote sensing to detect black waters have found that interference by cyanobacteria blooms and submerged macrophytes can be significant [105]. Field observations indicate that black waters in Lake Taihu have limited spatial and temporal scope, usually persisting for less than five days. They occur in areas of submerged macrophytes (i.e., Potamogeton crispus) from March to May [109]. By integrating the static location and growth period of submerged macrophytes, the possible interference of black waters on the remote sensing of macrophyte and bloom was achieved.

5.4. Atmospheric Effects

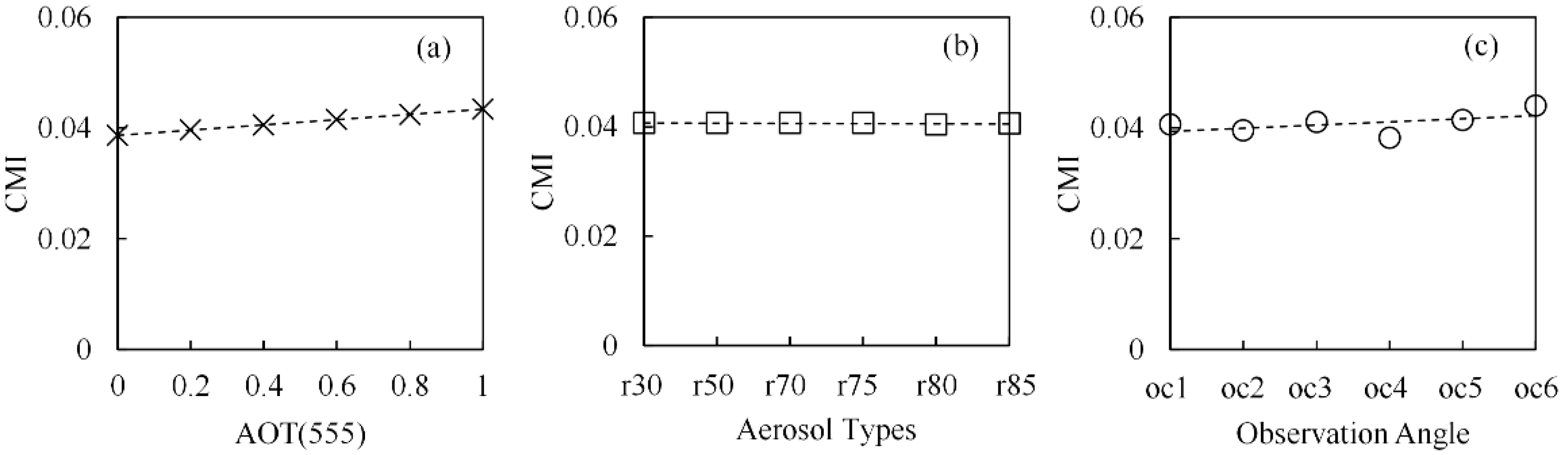

The impact of aerosol thickness, aerosol type, and solar/viewing geometry on classification indices was variable. The CMI value was supposed as 0.04 at AOT(555) = 0, aerosol type = r30, solz = 40°, senz = 20°, and phi = 40°. CMI was least sensitive to aerosol thickness, as only 12.1% changed when AOT(555) varied from 0 to 1 (Figure 12a). Although the effects of aerosol thickness in shorter wavelengths are stronger than those in longer wavelengths [110], the baseline subtraction of CMI, like FAI, helped reduce the effects from different aerosol thicknesses. CMI changed <0.5% and <15.2% with different aerosol types and solar/viewing geometry, respectively (Figure 12b,c). FAI has been shown to be less sensitive to changes in aerosol and observing conditions [46].

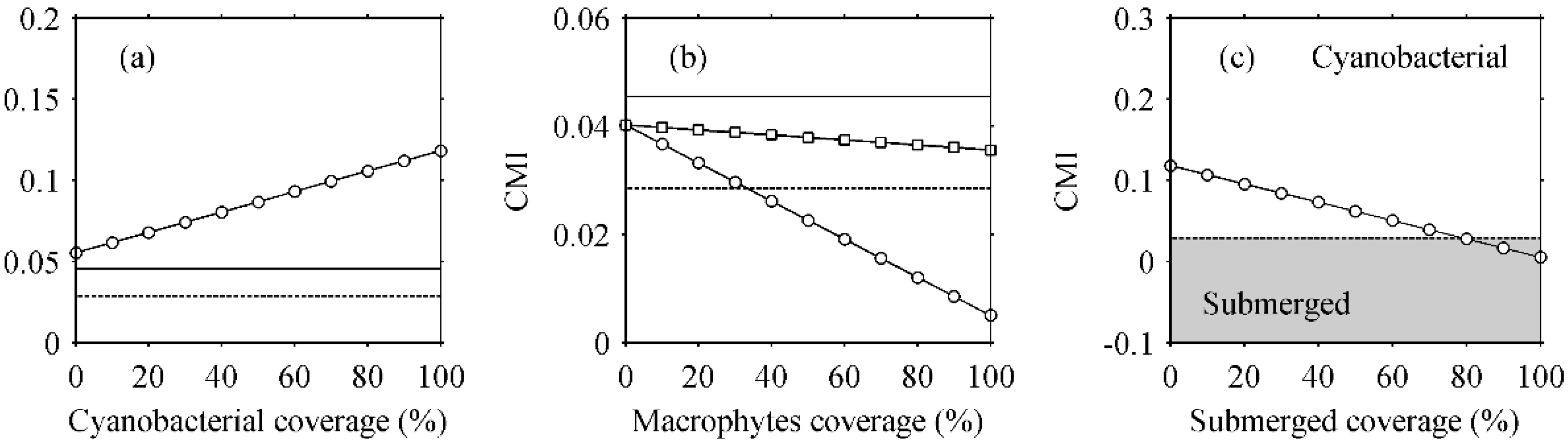

5.5. Mixed Pixels Effects

Differences between the classification and ground-truth observations (Table 4) are likely to have resulted from scale effects. Mixed MODIS pixels containing both open lake water and cyanobacteria blooms or aquatic macrophytes were validated in field observations. Figure 13a shows that CMI values of different fractions of cyanobacteria blooms were above the CMI thresholds of 0.0455 in macrophytes-dominated zones and 0.0285 in cyanobacteria-dominated zones. This confirmed that the CMI thresholds detected cyanobacteria blooms correctly regardless of where cyanobacterial scums occurred. The CMI threshold of 0.0455 allowed for the identification of aquatic macrophytes in macrophytes-dominated zones (Figure 13b), not only emergent/floating macrophytes but also submerged macrophytes. In cyanobacteria-dominated zone, however, the CMI threshold of 0.0285 misclassified emergent/floating macrophytes as cyanobacteria blooms, and similarly submerged macrophytes were detected as cyanobacteria when submerged macrophytes coverage was lower than 33.3%. Usually, few emergent/floating macrophytes grow in cyanobacteria-dominated zones of Lake Taihu [111]. Due to this, we analyzed the influence of the CMI threshold of 0.0285 on the detection of the pixel mixing with cyanobacteria blooms and submerged macrophytes (Figure 13c). Submerged macrophytes were classified correctly only when their fraction was more than 79.2%. In macrophyte-dominated zones, the CMI threshold of 0.0455 distinguished cyanobacteria blooms and aquatic macrophytes perfectly; but in cyanobacteria-dominated zones, the CMI threshold of 0.0285 was more appropriate for bloom detection.

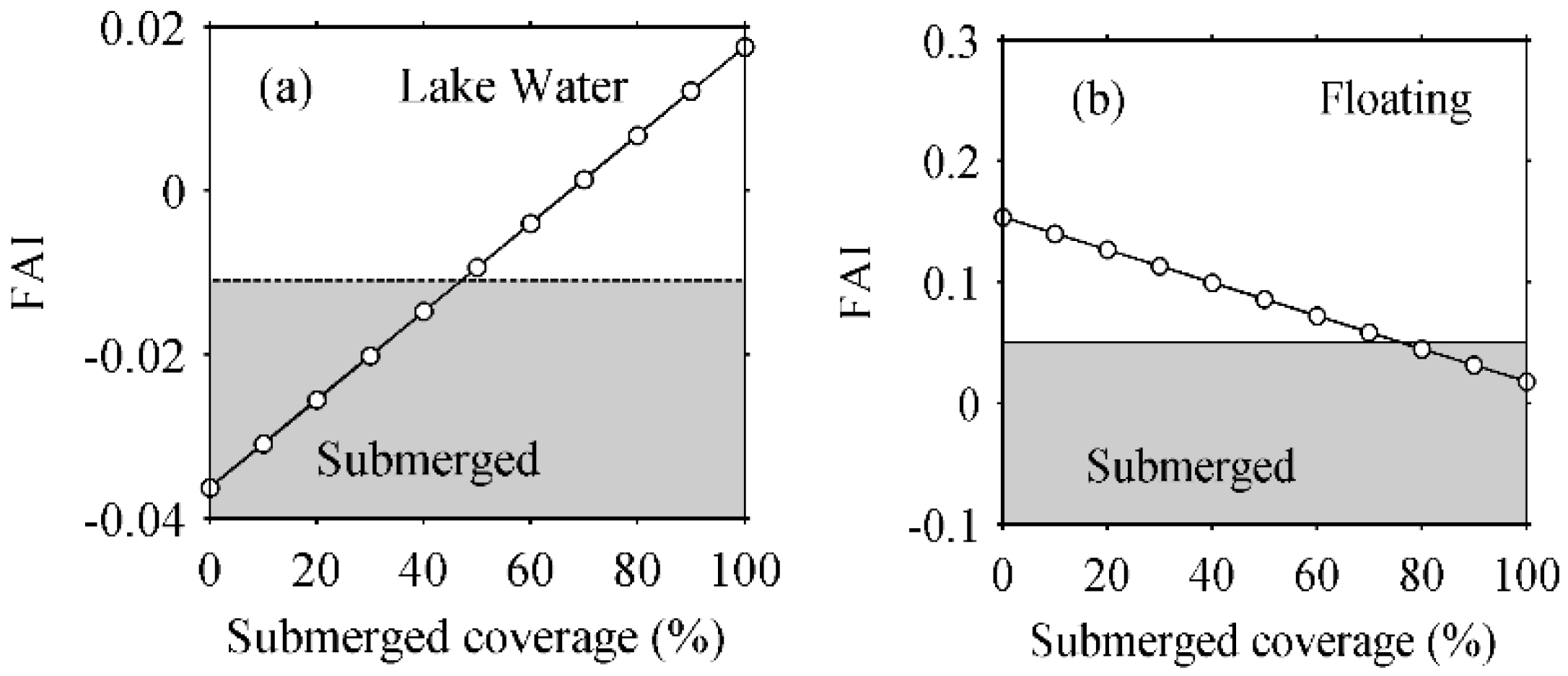

The FAI threshold of –0.011 correctly detected submerged macrophytes from lake water when their fractions were larger than 47.0% (Figure 14), and when the fraction of emergent/floating macrophytes was more than 23.8%, the mixed pixel could be classified as emergent/floating macrophytes due to the FAI threshold of 0.05.

6. Conclusions

In this study, a new method to examine the spatial distribution of cyanobacterial scums and macrophyte vegetation dominated areas of optically complex shallow lakes was developed. The approach was validated by in situ reflectance spectra, field investigations and high spatial resolution HJ-CCD data. The results show an overall classification accuracy of 86% and a normalized classification accuracy of 86.8% with a specific accuracy of 88%, 79%, 85%, and 93% for submerged macrophytes, emergent/floating macrophytes, cyanobacterial scums, and lake water, respectively. The possibility to separate open lake water, areas dominated by cyanobacterial scums and those with different aquatic macrophytes opens new possibilities to explore the impacts of large scale changes in lake and catchment management.
The MODIS indices were first developed; TWI, CMI, and FAI were tested in the highly complex atmospheric and aquatic optical conditions of a large highly eutrophic and shallow lake in southeast China. The classification method addressed first areas of high turbidity (TWI), then separated pixels into lake waters with cyanobacterial scums or aquatic macrophytes (CMI). Lastly, FAI thresholds were used to separate cyanobacterial scums and lake water, and to classify the remaining areas into submerged macrophytes, emergent/floating macrophytes or lake water.
The new method provided high accuracy, low sensitivity to changing atmospheric conditions, high background reflectance (turbidity) or absorption (black waters), and mixed-pixels effects. The overall approach to combining specific indices in a decision tree to identify and separate lake areas with dominant optical properties can easily be extended to other lake ecosystems. The indices applied in the present study are those most appropriate to shallow eutrophic lakes, therefore most directly applicable to these more complex waterbodies. In deeper or less impacted lakes, the use of turbidity indices (TWI) is not appropriate, and more specific indices related to the lake- specific dominant optical components (e.g., CDOM) should be used. Furthermore, additional testing would be required for lakes with significantly different types of macrophytes or where macrophytes and algae are both present. Further validation to test the applicability of the new method using other satellite sensors would extend the use of this approach.

Acknowledgments

This work was supported by Key Program of the National Natural Science Foundation of China (Grant No. 41431176 & No. 41671371), the National Natural Science Foundation of China (Grant No. 41471287), National Key Technology Research and Development Program of the Ministry of Science and Technology of China during the ‘‘12th Five-Year Plan” (Grant No. 2015BAD13B06) and the ESA-MOST (China) Dragon 4 Cooperation Program project 32442. Field data were provided by Scientific Data Sharing Platform for Lake and Watershed, Nanjing Institute of Geography and Limnology, Chinese Academy of Sciences. The Rrc data of MODIS images were processed and provided by Chuanmin Hu and his optical oceanography laboratory, University of South Florida. We also express our gratitude to Minwei Zhang for his support on atmospheric transfer simulation.

Author Contributions

Y.Z. and Q.L. developed the idea for the study and its design. Q.L., J.L. and M.H. were responsible for the construction and validation of the dataset. Q.L., Y.Z., R.M. and S.L. shared in the analysis and development of the discussion. Q.L., Y.Z. and S.L. finalized the manuscript. All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
