Open AccessTechnical Note
Remote Sens. 2016, 8(9), 786; doi:10.3390/rs8090786

Ground-Control Networks for Image Based Surface Reconstruction: An Investigation of Optimum Survey Designs Using UAV Derived Imagery and Structure-from-Motion Photogrammetry

1
School of Animal, Rural and Environmental Sciences, Nottingham Trent University, Brackenhurst Campus, Southwell, Nottinghamshire NG25 0QF, UK
2
Department of Natural Sciences, University of Derby, Kedleston Road, Derby DE22 1GB, UK
*
Author to whom correspondence should be addressed.
Academic Editors: Norman Kerle, Richard Gloaguen and Prasad S. Thenkabail
Received: 5 July 2016 / Revised: 7 September 2016 / Accepted: 19 September 2016 / Published: 21 September 2016
View Full-Text   |   Download PDF [6338 KB, uploaded 22 September 2016]   |

Abstract

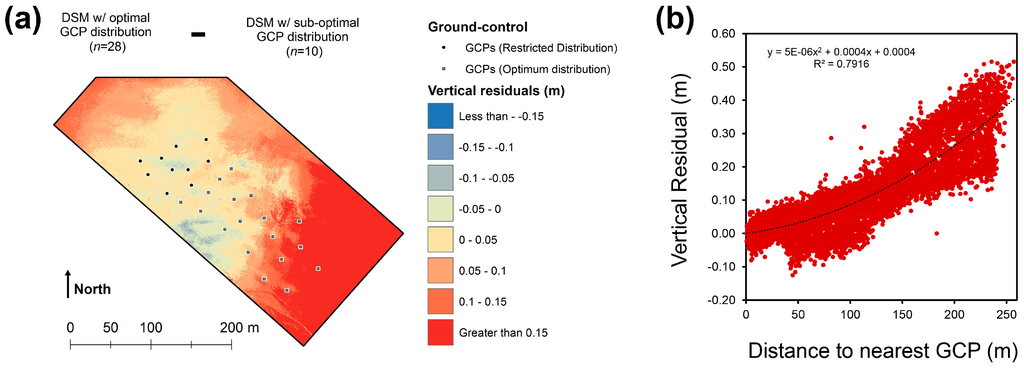

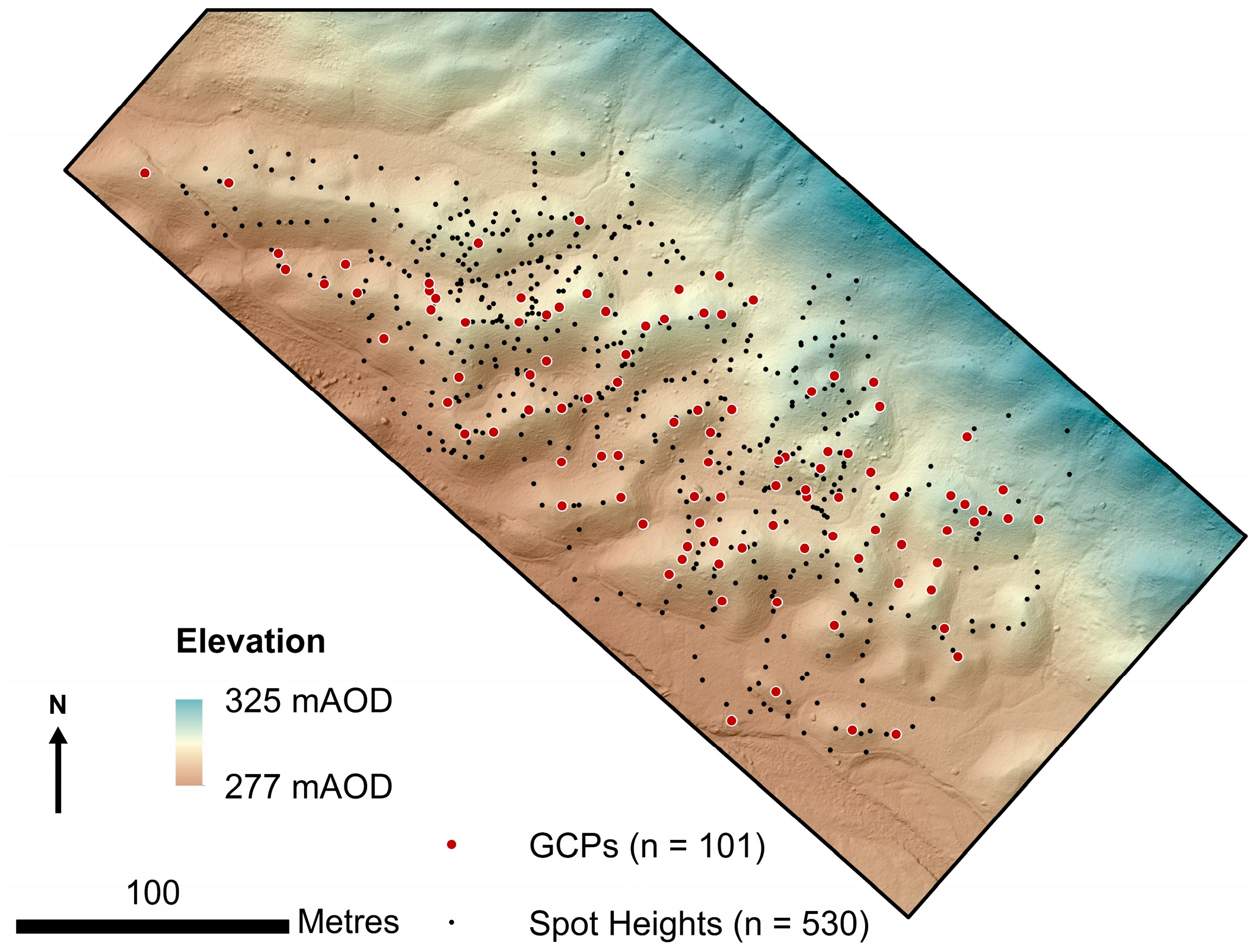

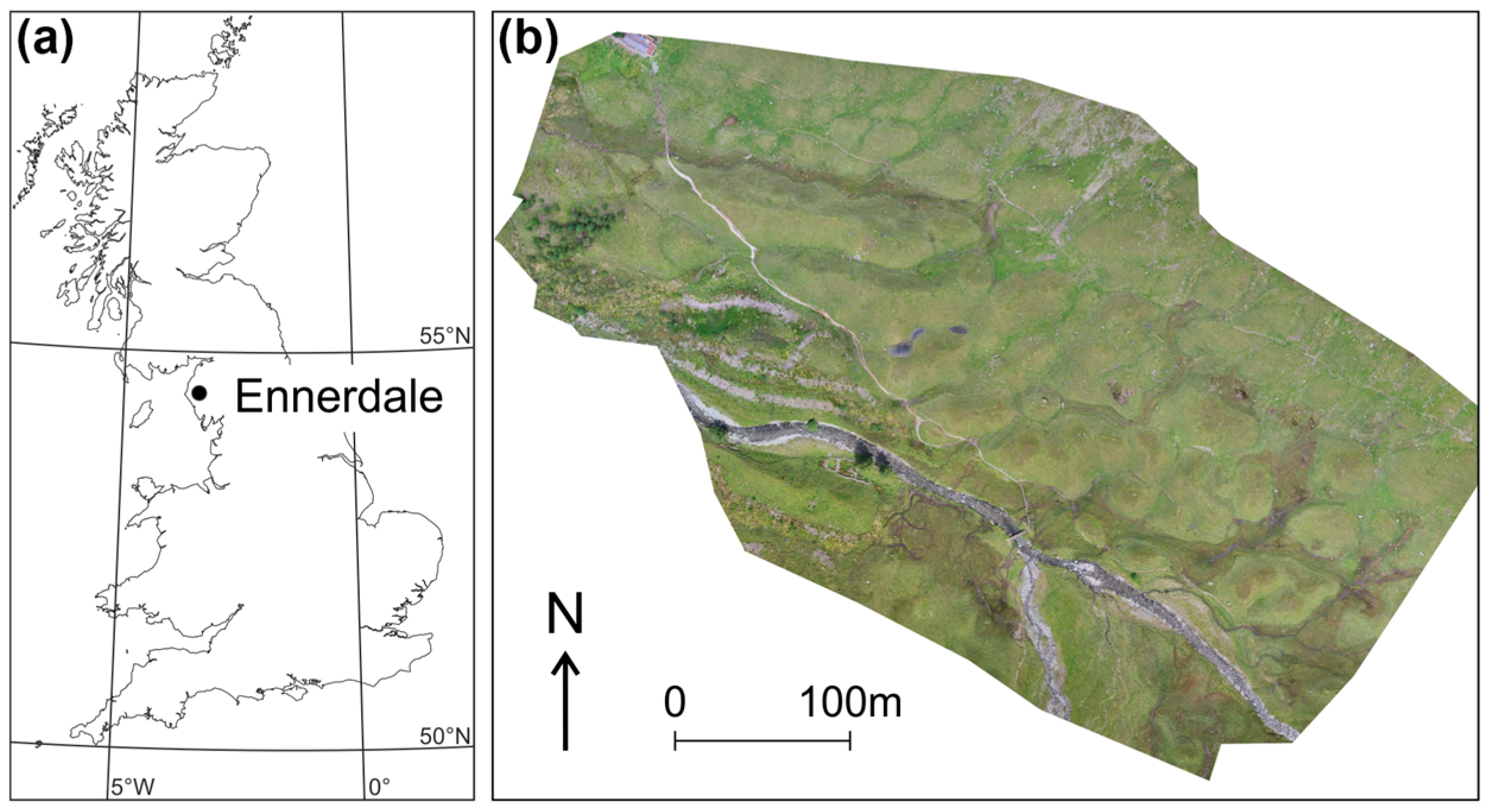

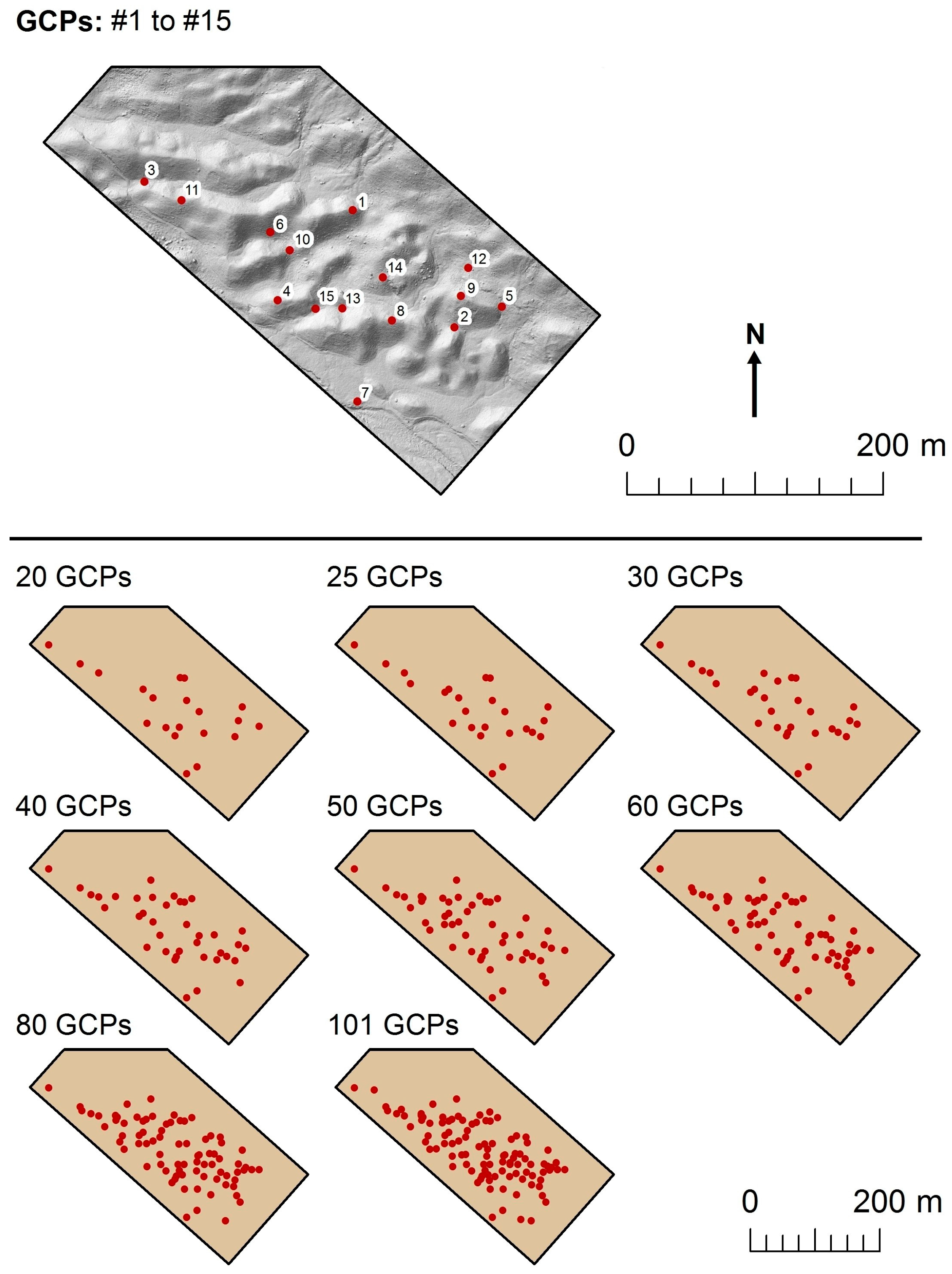

The use of small UAV (Unmanned Aerial Vehicle) and Structure-from-Motion (SfM) with Multi-View Stereopsis (MVS) for acquiring survey datasets is now commonplace, however, aspects of the SfM-MVS workflow require further validation. This work aims to provide guidance for scientists seeking to adopt this aerial survey method by investigating aerial survey data quality in relation to the application of ground control points (GCPs) at a site of undulating topography (Ennerdale, Lake District, UK). Sixteen digital surface models (DSMs) were produced from a UAV survey using a varying number of GCPs (3-101). These DSMs were compared to 530 dGPS spot heights to calculate vertical error. All DSMs produced reasonable surface reconstructions (vertical root-mean-square-error (RMSE) of <0.2 m), however, an improvement in DSM quality was found where four or more GCPs (up to 101 GCPs) were applied, with errors falling to within the suggested point quality range of the survey equipment used for GCP acquisition (e.g., vertical RMSE of <0.09 m). The influence of a poor GCP distribution was also investigated by producing a DSM using an evenly distributed network of GCPs, and comparing it to a DSM produced using a clustered network of GCPs. The results accord with existing findings, where vertical error was found to increase with distance from the GCP cluster. Specifically vertical error and distance to the nearest GCP followed a strong polynomial trend (R2 = 0.792). These findings contribute to our understanding of the sources of error when conducting a UAV-SfM survey and provide guidance on the collection of GCPs. Evidence-driven UAV-SfM survey designs are essential for practitioners seeking reproducible, high quality topographic datasets for detecting surface change. View Full-Text
Keywords: unmanned aerial vehicle (UAV); Structure-from-Motion (SfM); ground-control points (GCPs); digital surface model (DSM); Ennerdale unmanned aerial vehicle (UAV); Structure-from-Motion (SfM); ground-control points (GCPs); digital surface model (DSM); Ennerdale
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
