Remote Sensing of Deformation of a High Concrete-Faced Rockfill Dam Using InSAR: A Study of the Shuibuya Dam, China

1
State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, China
2
Global Navigation Satellite System Research Centre, Wuhan University, Wuhan 430079, China
*
Author to whom correspondence should be addressed.
Academic Editors: Zhong Lu, Magaly Koch and Prasad S. Thenkabail
Received: 8 December 2015 / Revised: 26 January 2016 / Accepted: 11 March 2016 / Published: 17 March 2016
View Full-Text   |   Download PDF [6053 KB, uploaded 17 March 2016]   |

Abstract

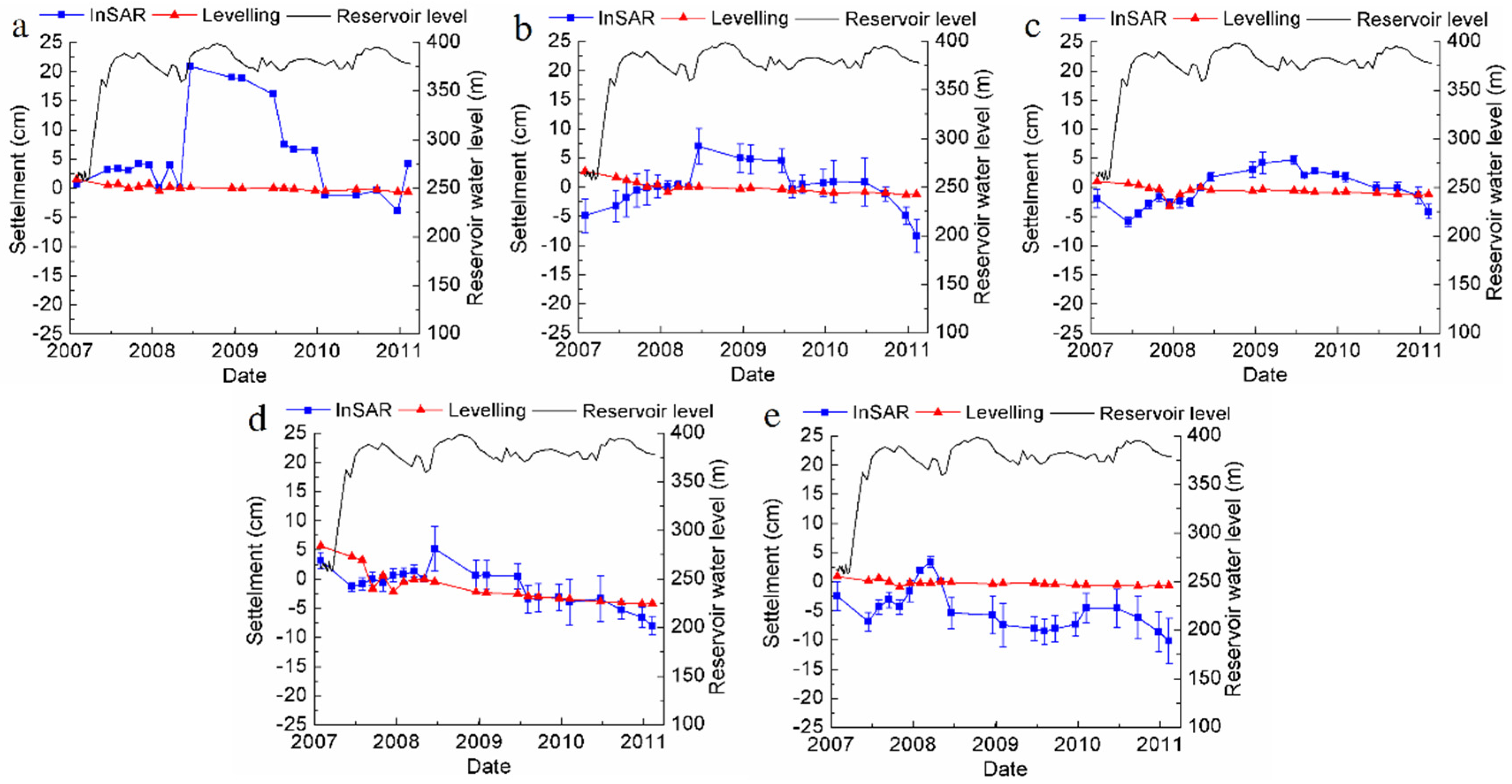

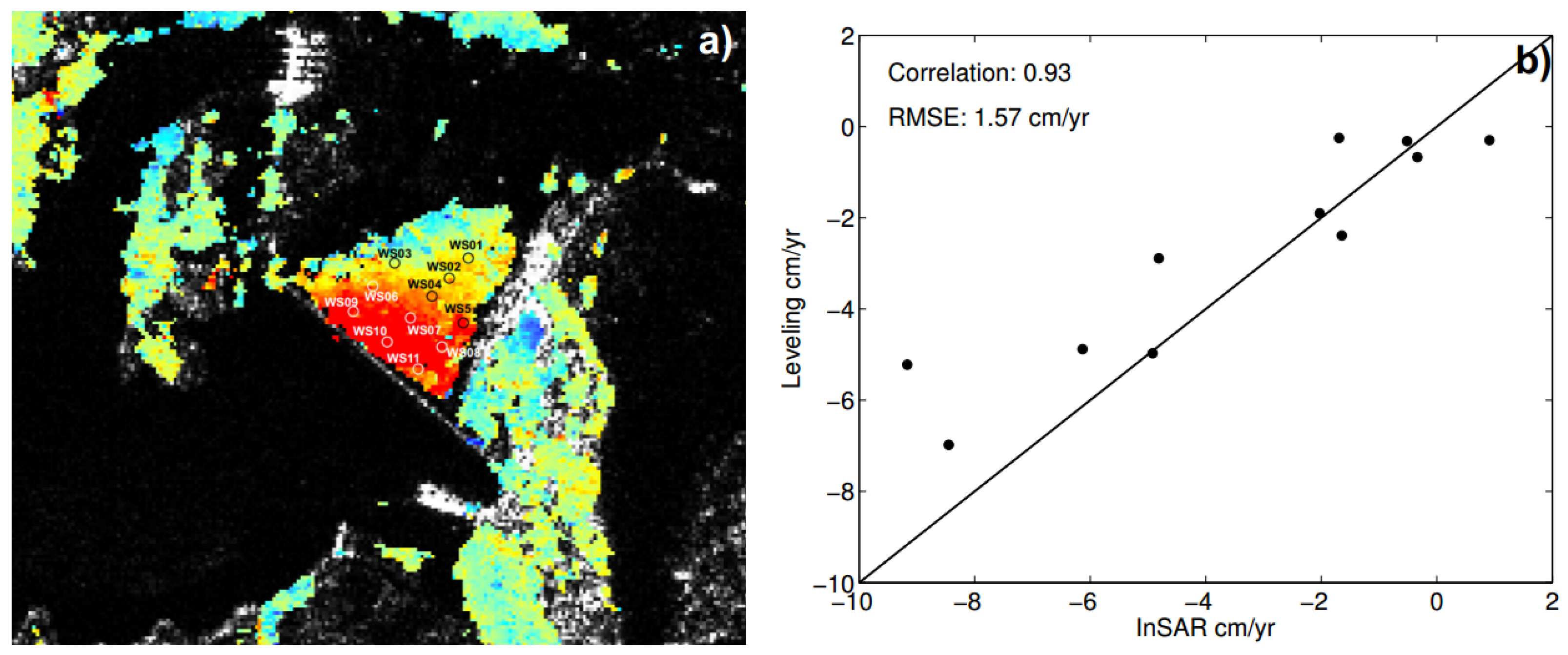

Settlement is one of the most important deformation characteristics of high concrete faced rockfill dams (CFRDs, >100 m). High CFRDs safety would pose a great threat to the security of people’s lives and property downstream if this kind of deformation were not to be measured correctly, as traditional monitoring approaches have limitations in terms of durability, coverage, and efficiency. It has become urgent to develop new monitoring techniques to complement or replace traditional monitoring approaches for monitoring the safety and operation status of high CFRDs. This study examines the Shuibuya Dam (up to 233.5 m in height) in China, which is currently the highest CFRD in the world. We used space-borne Interferometric Synthetic Aperture Radar (InSAR) time series to monitor the surface deformation of the Shuibuya Dam. Twenty-one ALOS PALSAR images that span the period from 28 February 2007 to 11 March 2011 were used to map the spatial and temporal deformation of the dam. A high correlation of 0.93 between the InSAR and the in-situ monitoring results confirmed the reliability of the InSAR method; the deformation history derived from InSAR is also consistent with the in-situ settlement monitoring system. In addition, the InSAR results allow continuous investigation of dam deformation over a wide area that includes the entire dam surface as well as the surrounding area, offering a clear picture continuously of the dam deformation. View Full-Text
Keywords: InSAR; time series analysis; Concrete Face Rockfill Dam; settlement monitoring; ALOS/PALSAR; Shuibuya; in-situ measurement InSAR; time series analysis; Concrete Face Rockfill Dam; settlement monitoring; ALOS/PALSAR; Shuibuya; in-situ measurement
Figures

Figure 1
