Remote Sens. 2016, 8(11), 908; doi:10.3390/rs8110908

Towards Slow-Moving Landslide Monitoring by Integrating Multi-Sensor InSAR Time Series Datasets: The Zhouqu Case Study, China

1
College of Resources and Environmental Science, Hunan Normal University, Changsha 410081, China
2
School of Geosciences and Info-Physics, Central South University, Changsha 410083, China
3
Department of Land Surveying and Geo-Informatics, The Hong Kong Polytechnic University, Hong Kong 999077, China
*
Author to whom correspondence should be addressed.
Academic Editors: Zhong Lu, Xiaofeng Li and Prasad S. Thenkabail
Received: 31 August 2016 / Revised: 10 October 2016 / Accepted: 28 October 2016 / Published: 2 November 2016
(This article belongs to the Special Issue Multi-Sensor and Multi-Data Integration in Remote Sensing)
View Full-Text   |   Download PDF [19403 KB, uploaded 2 November 2016]   |

Abstract

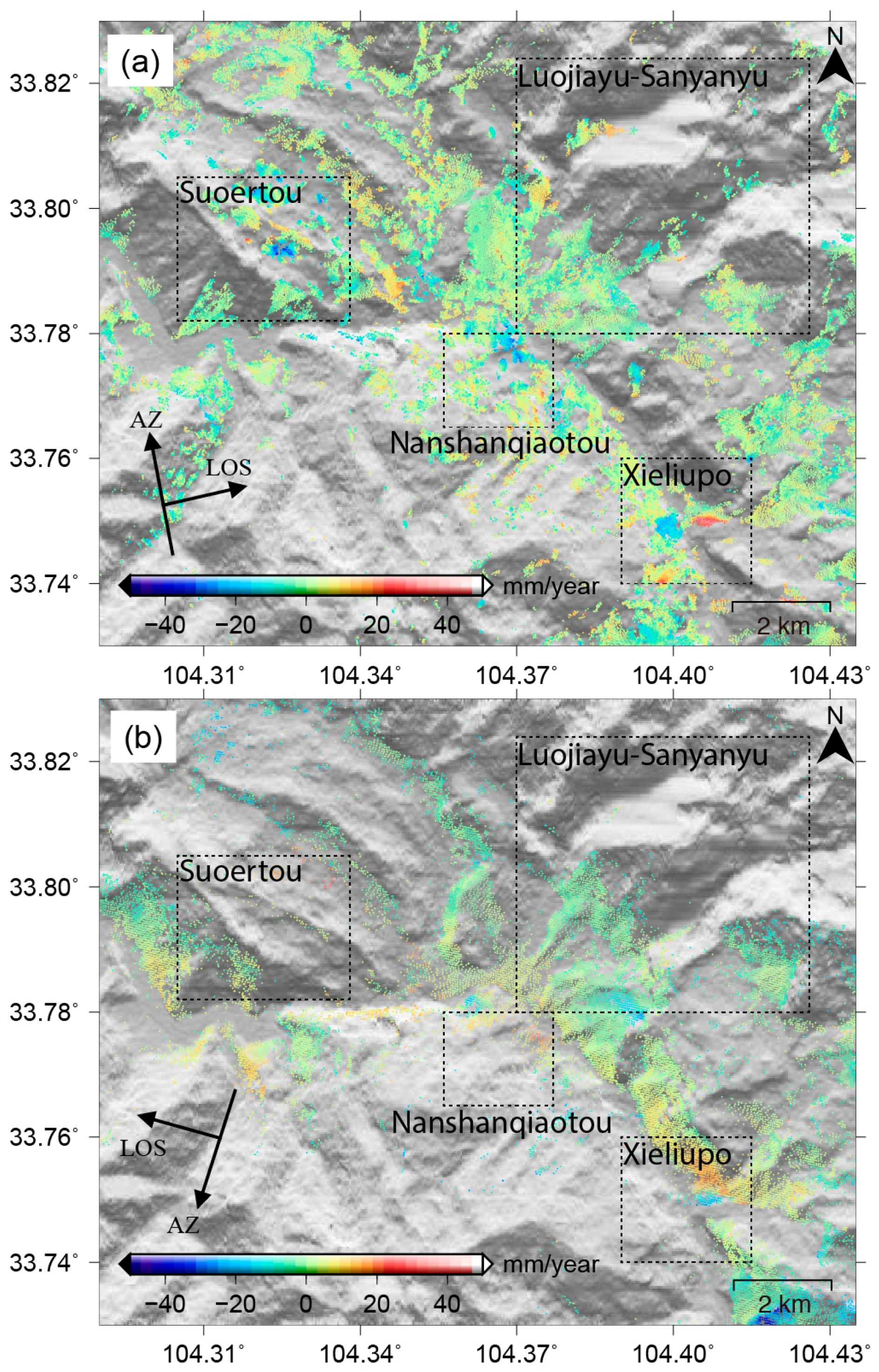

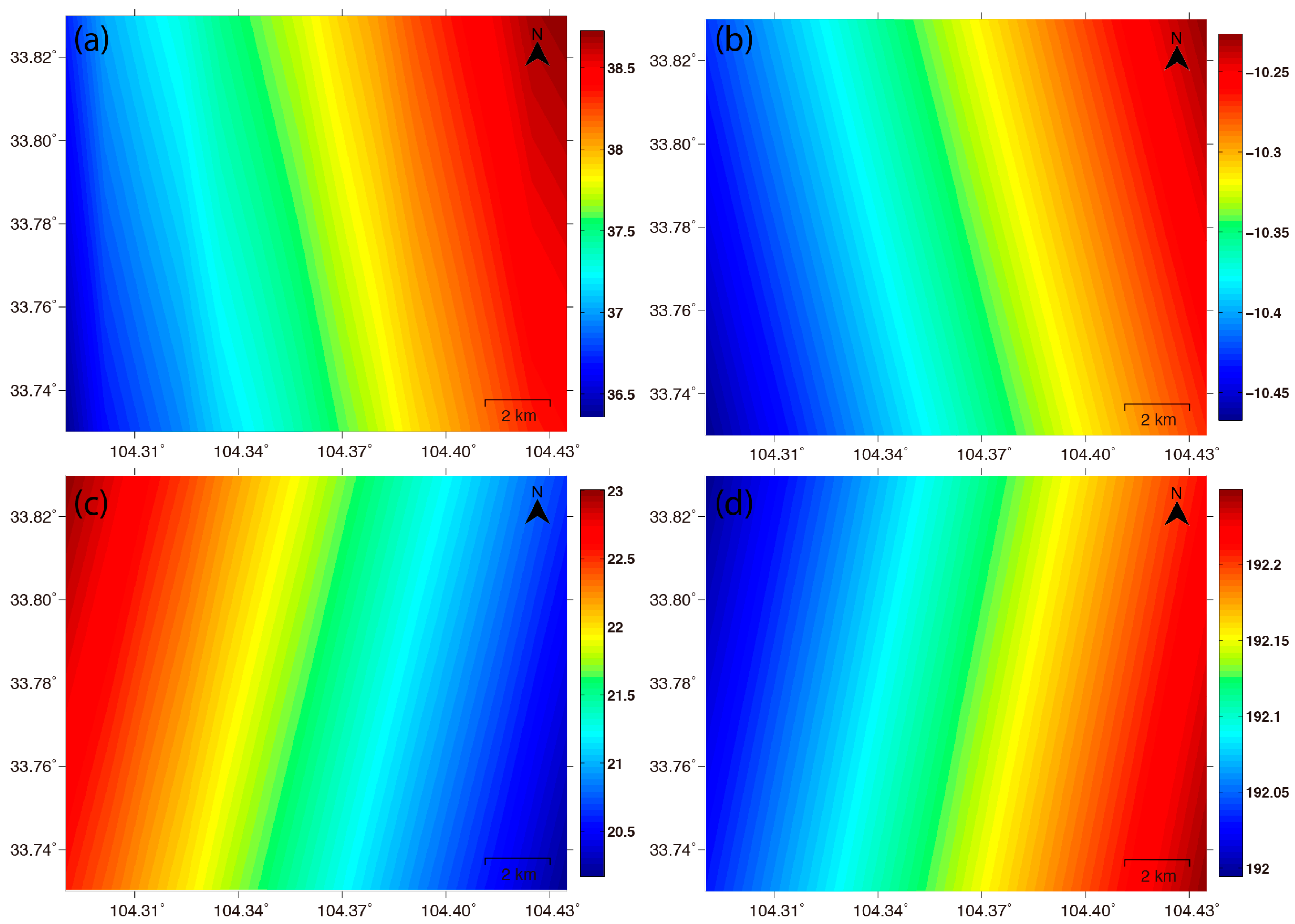

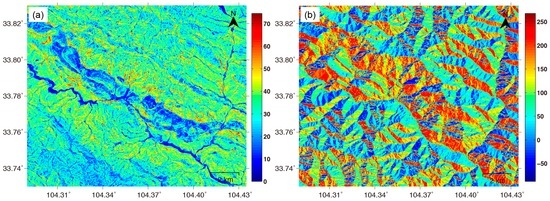

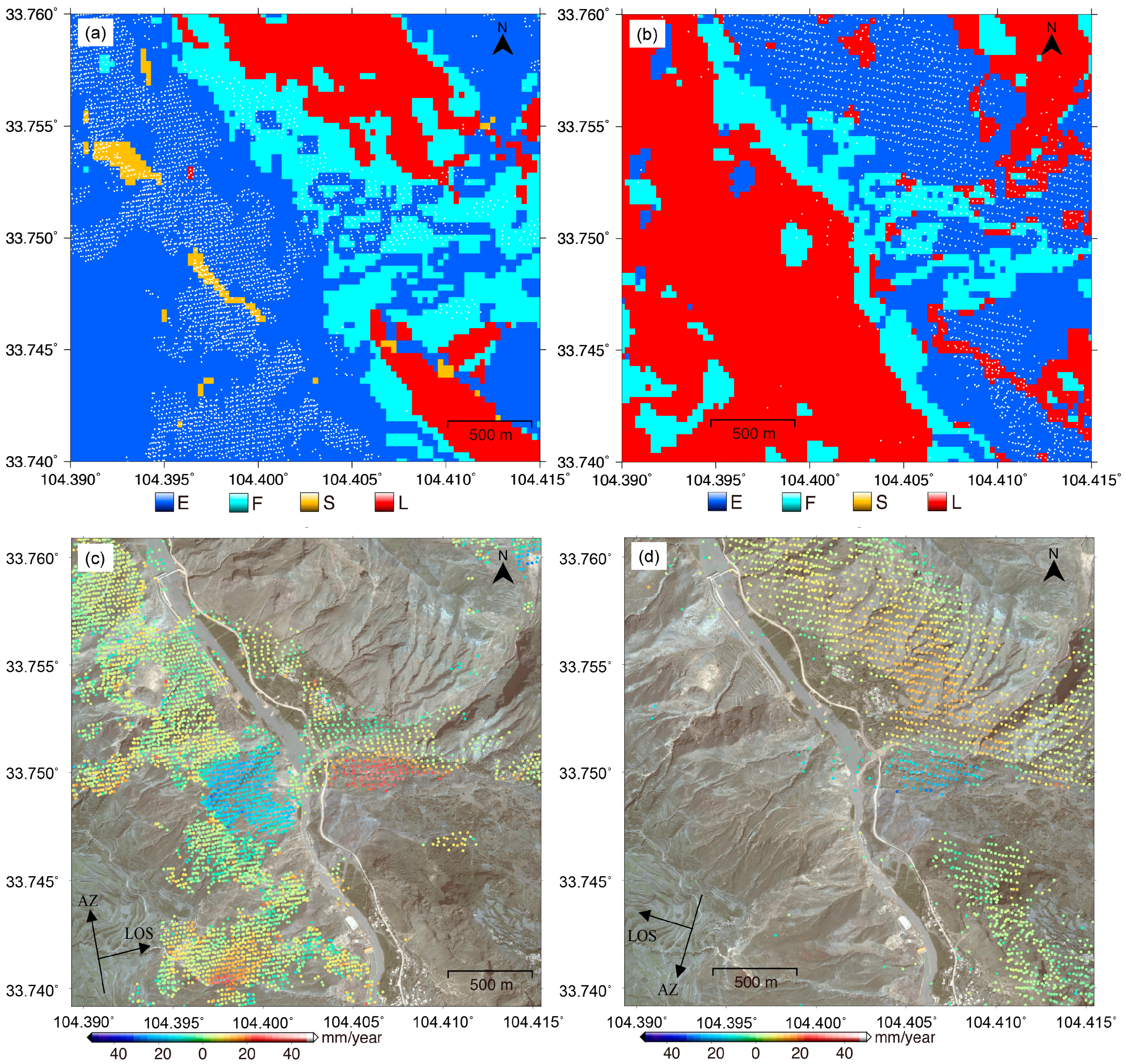

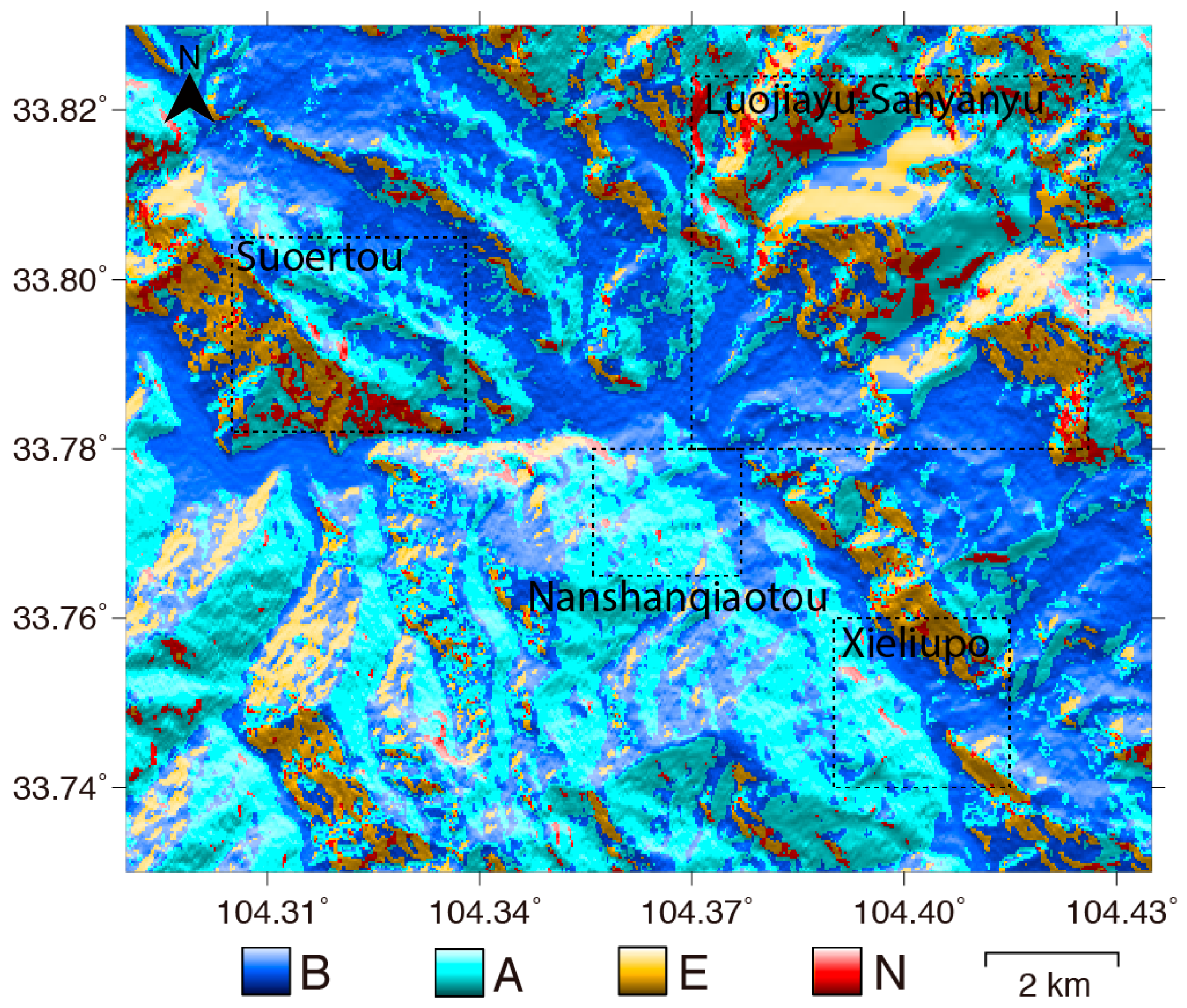

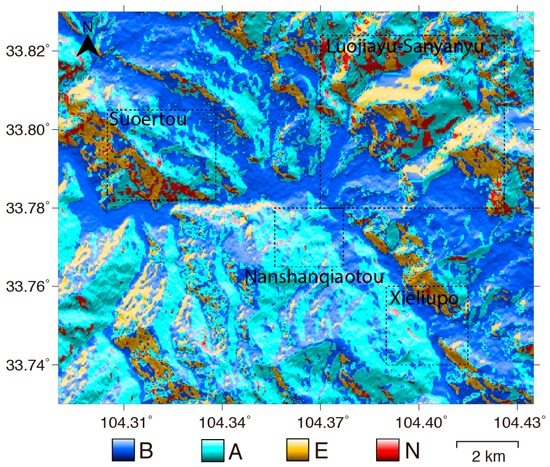

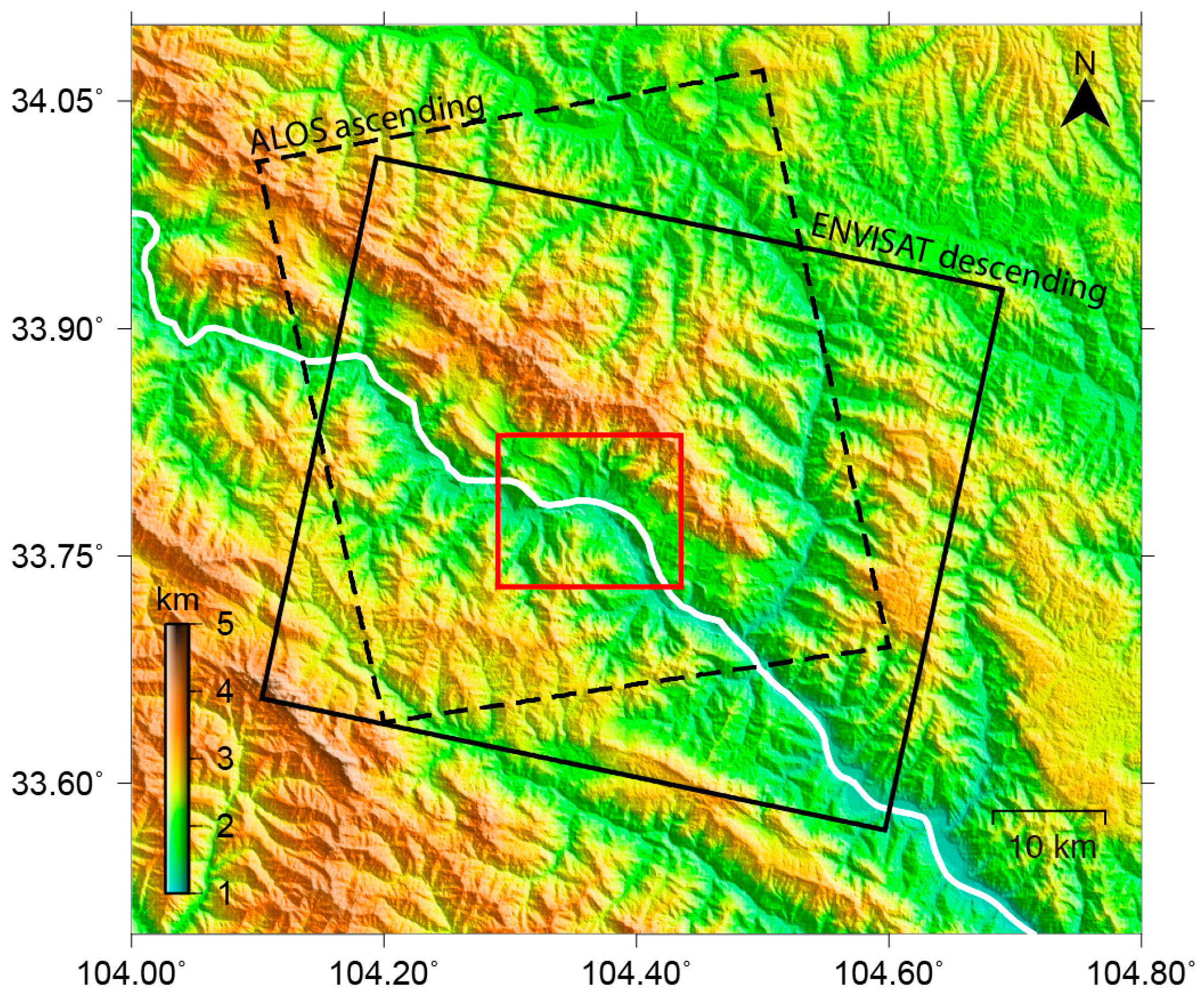

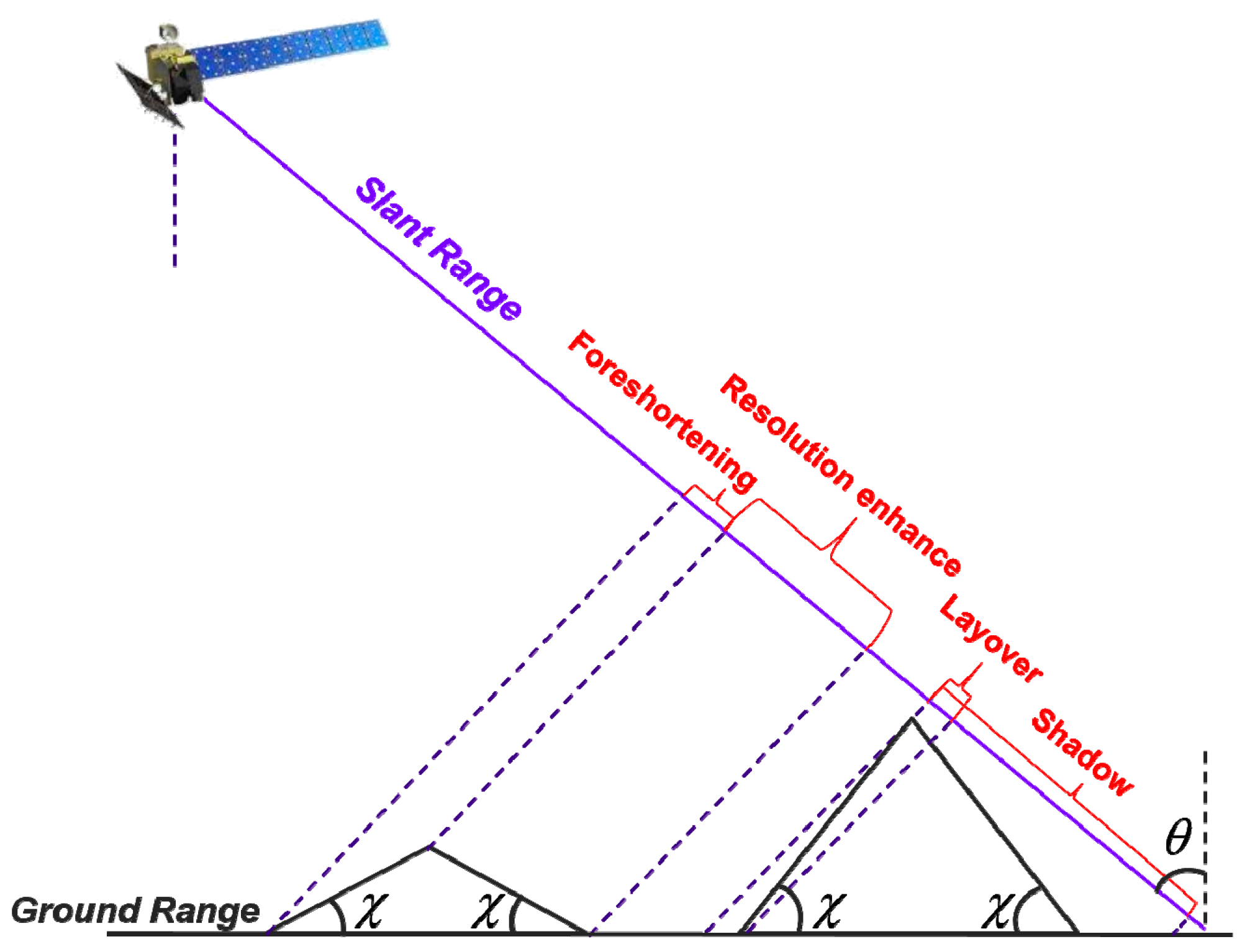

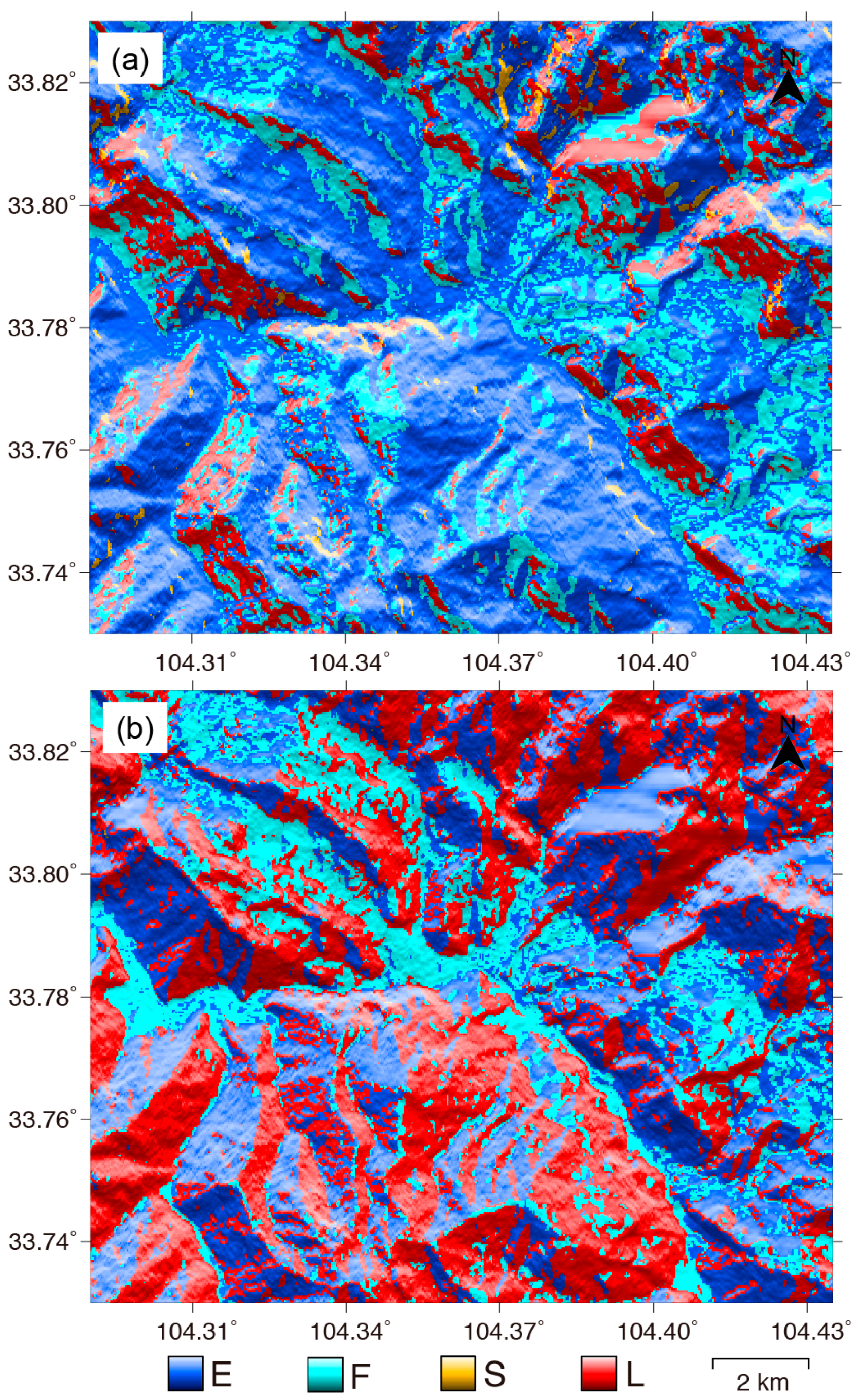

Although the past few decades have witnessed the great development of Synthetic Aperture Radar Interferometry (InSAR) technology in the monitoring of landslides, such applications are limited by geometric distortions and ambiguity of 1D Line-Of-Sight (LOS) measurements, both of which are the fundamental weakness of InSAR. Integration of multi-sensor InSAR datasets has recently shown its great potential in breaking through the two limits. In this study, 16 ascending images from the Advanced Land Observing Satellite (ALOS) and 18 descending images from the Environmental Satellite (ENVISAT) have been integrated to characterize and to detect the slow-moving landslides in Zhouqu, China between 2008 and 2010. Geometric distortions are first mapped by using the imaging geometric parameters of the used SAR data and public Digital Elevation Model (DEM) data of Zhouqu, which allow the determination of the most appropriate data assembly for a particular slope. Subsequently, deformation rates along respective LOS directions of ALOS ascending and ENVISAT descending tracks are estimated by conducting InSAR time series analysis with a Temporarily Coherent Point (TCP)-InSAR algorithm. As indicated by the geometric distortion results, 3D deformation rates of the Xieliupo slope at the east bank of the Pai-lung River are finally reconstructed by joint exploiting of the LOS deformation rates from cross-heading datasets based on the surface–parallel flow assumption. It is revealed that the synergistic results of ALOS and ENVISAT datasets provide a more comprehensive understanding and monitoring of the slow-moving landslides in Zhouqu. View Full-Text
Keywords: landslides; InSAR; Zhouqu; multi-sensor; geometric distortion; 3D deformations landslides; InSAR; Zhouqu; multi-sensor; geometric distortion; 3D deformations
