Remote Sens. 2015, 7(10), 14055-14078; doi:10.3390/rs71014055

A Natural-Rule-Based-Connection (NRBC) Method for River Network Extraction from High-Resolution Imagery

1
Department of Geography, University of Western Ontario, London, ON N6A 5C2, Canada
2
Fluvial Systems Research Inc., White Rock, BC V4B 0A7, Canada
3
Aquatic Research and Monitoring Section, Ontario Ministry of Natural Resources and Forestry, Trent University, Peterborough, ON K9J 7B8, Canada
*
Author to whom correspondence should be addressed.
Academic Editors: Deepak R. Mishra, Eurico J. D’Sa, Sachidananda Mishra, Xiaofeng Li and Prasad S. Thenkabail
Received: 19 August 2015 / Revised: 19 September 2015 / Accepted: 10 October 2015 / Published: 26 October 2015
(This article belongs to the Special Issue Remote Sensing of Water Resources)
View Full-Text   |   Download PDF [2232 KB, uploaded 27 October 2015]   |

Abstract

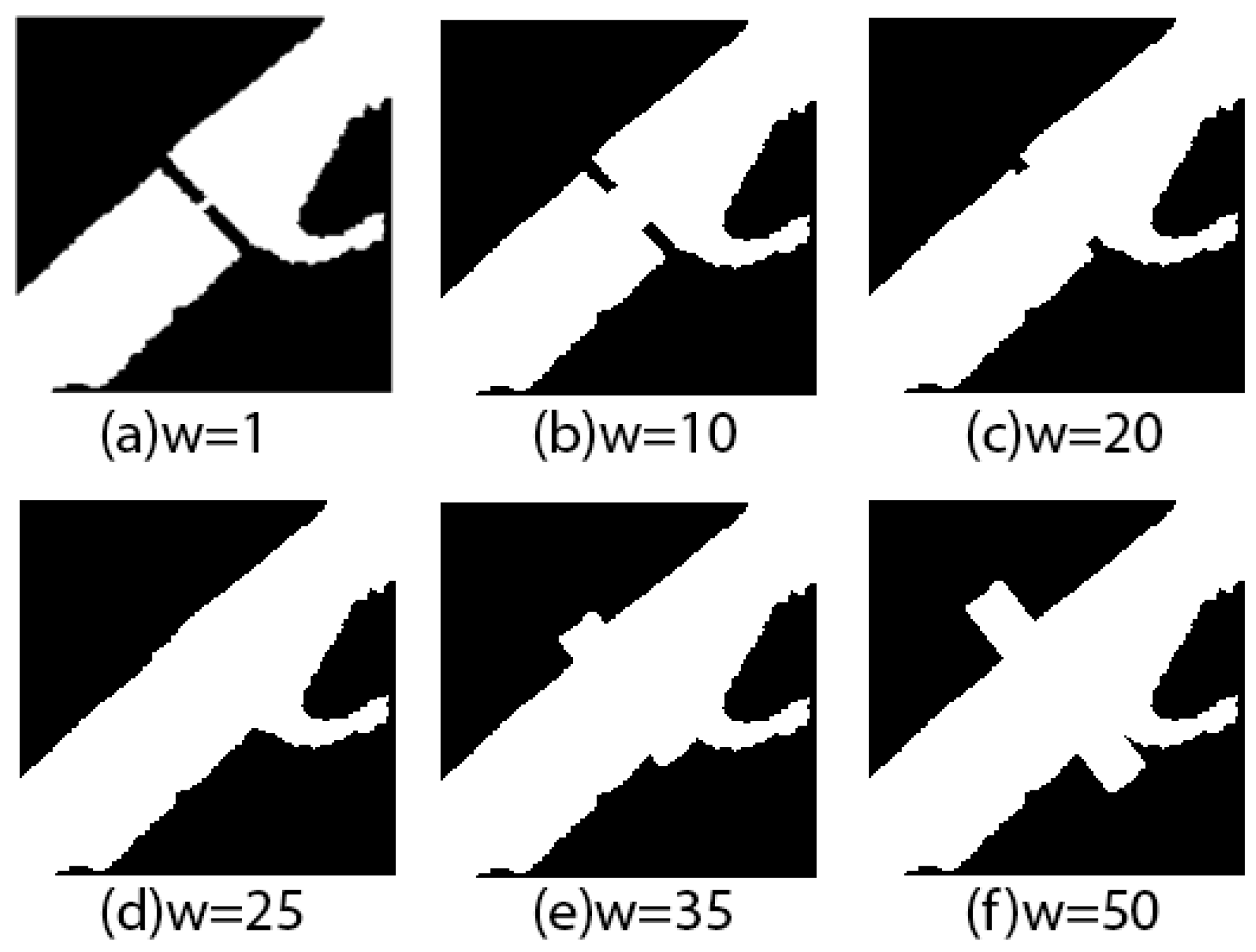

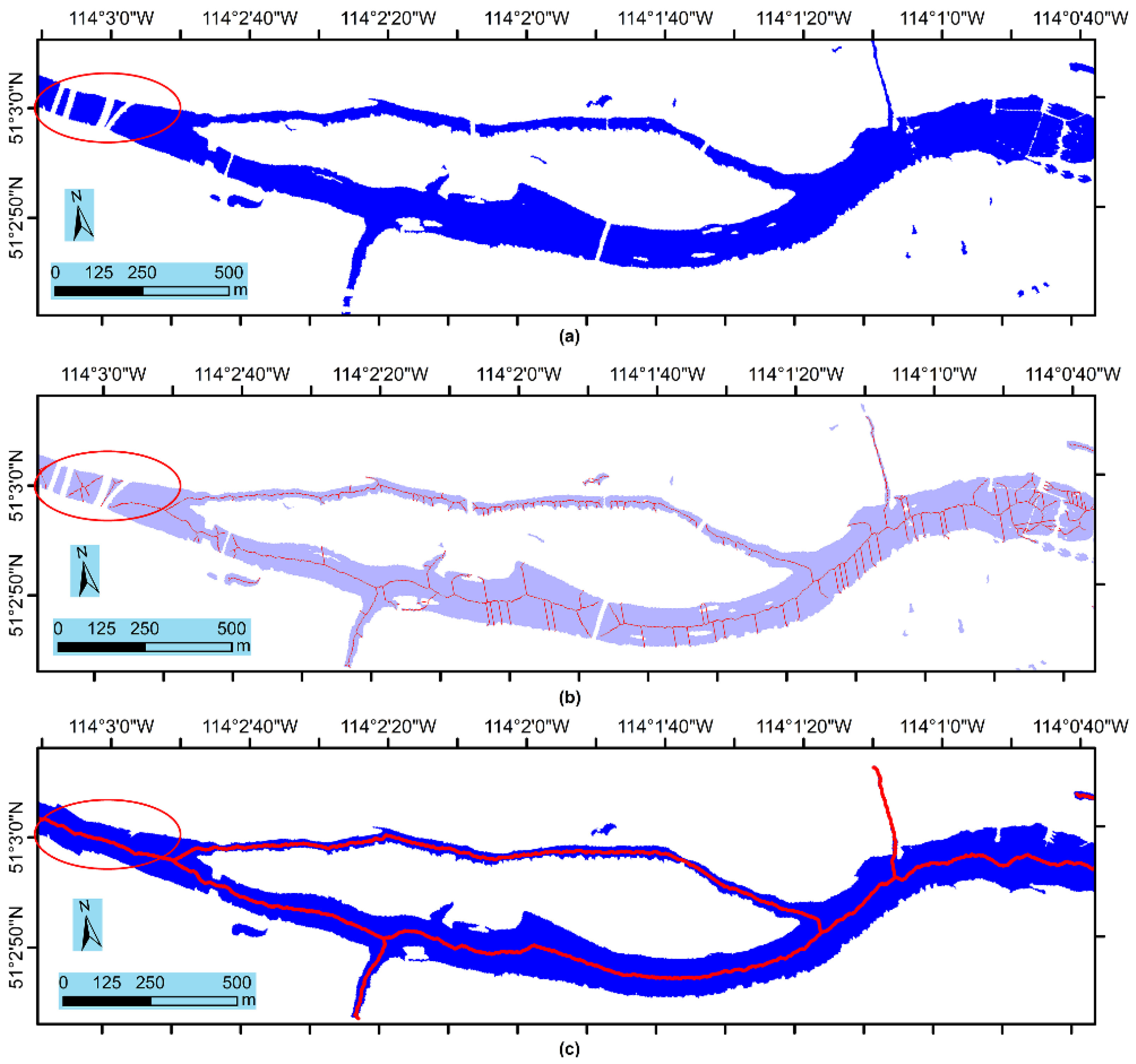

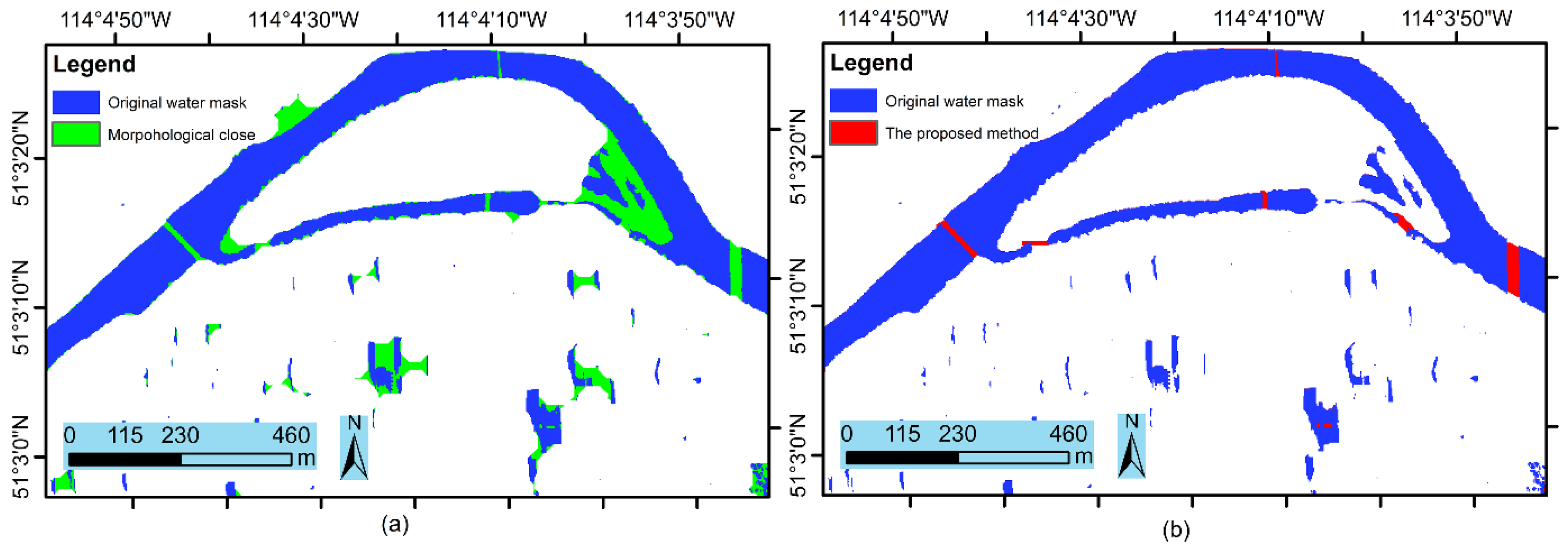

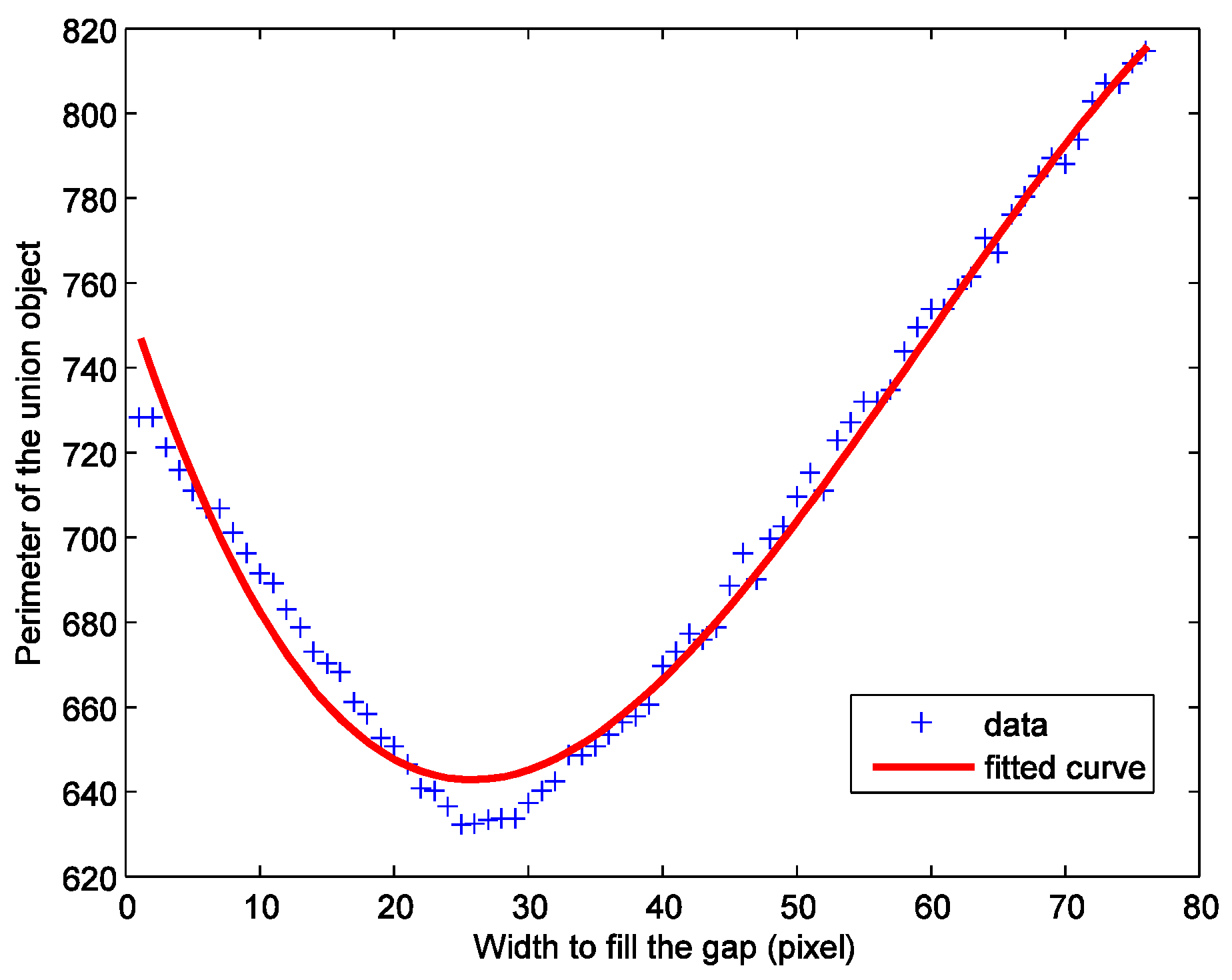

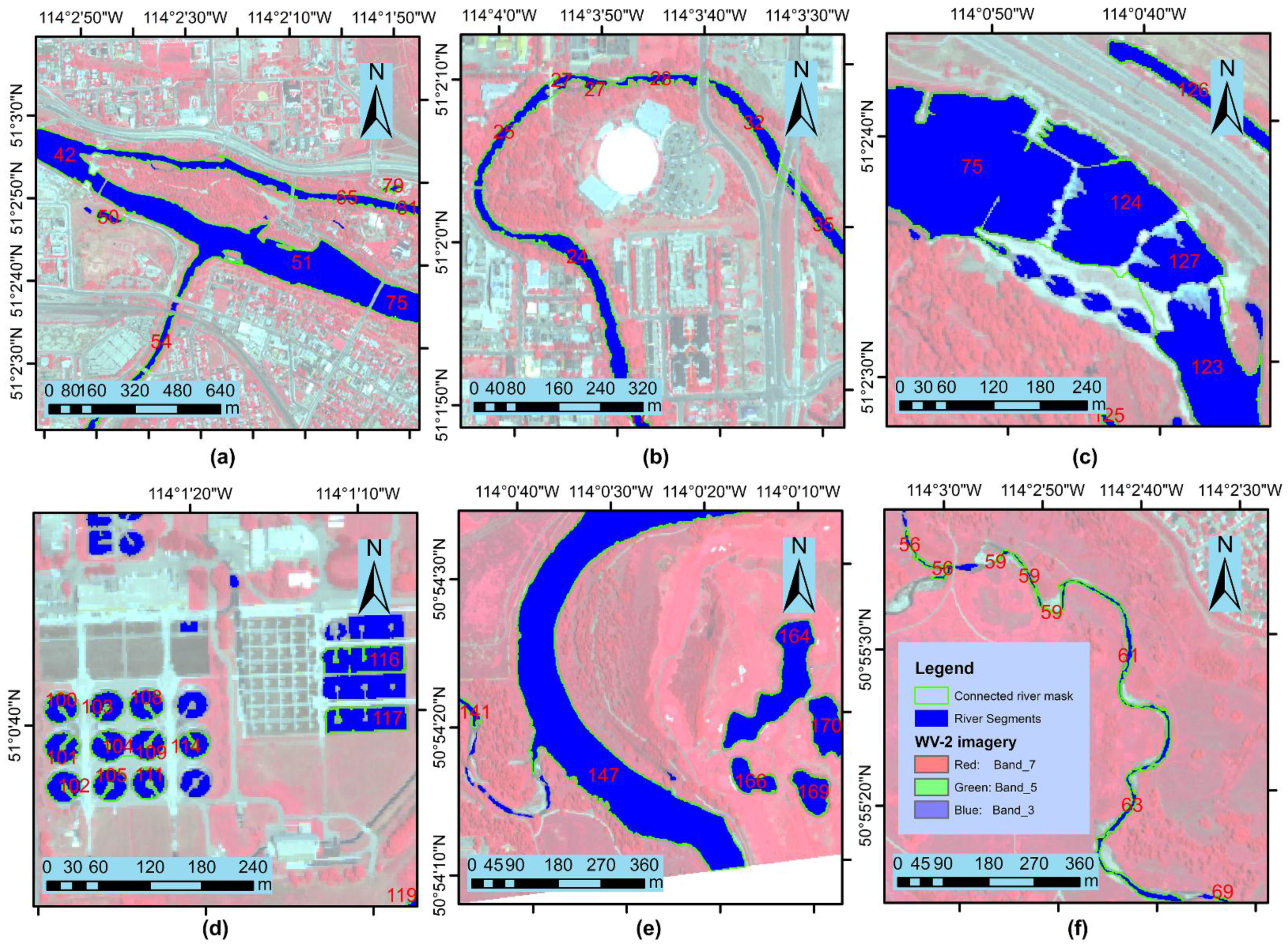

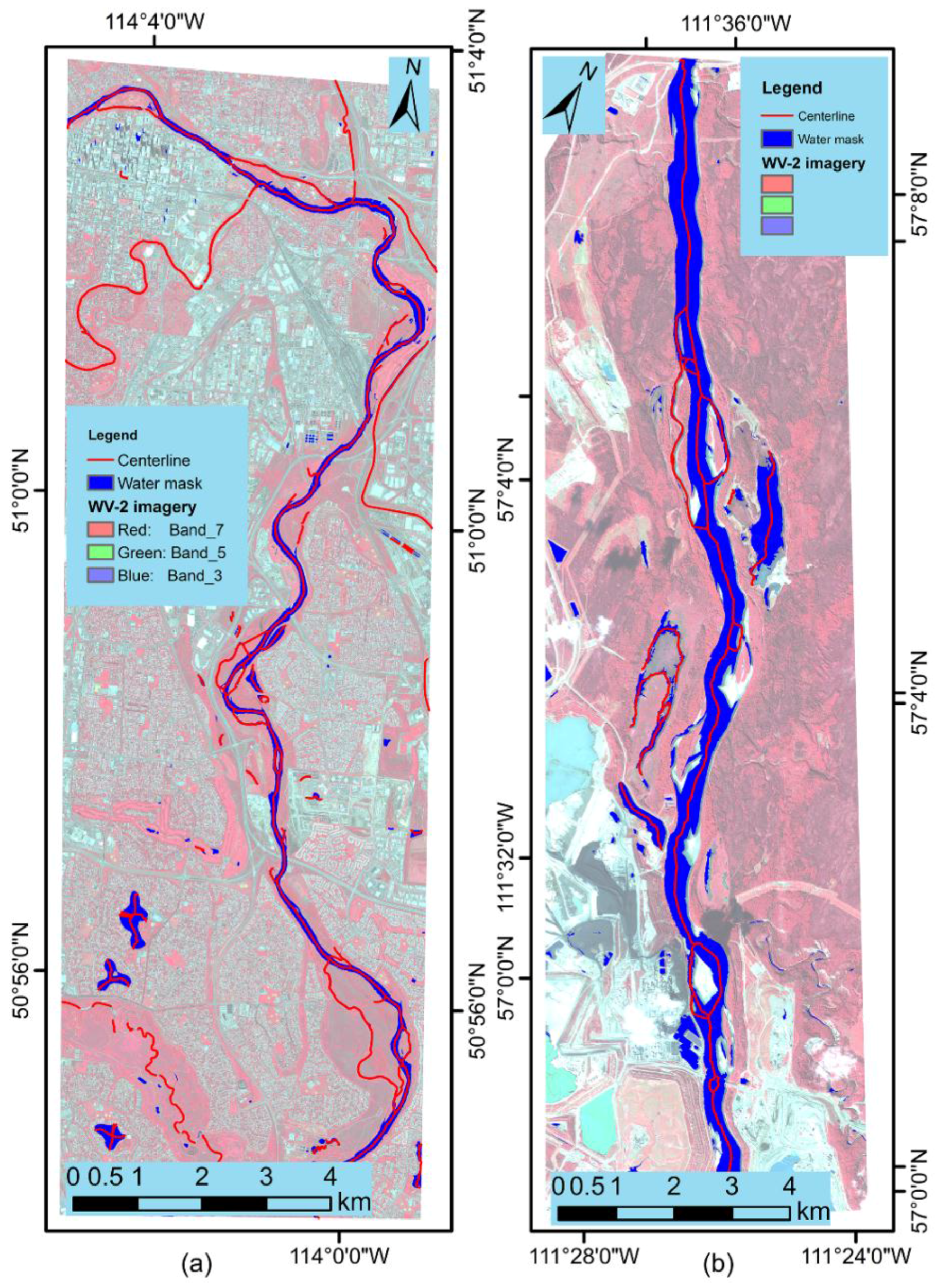

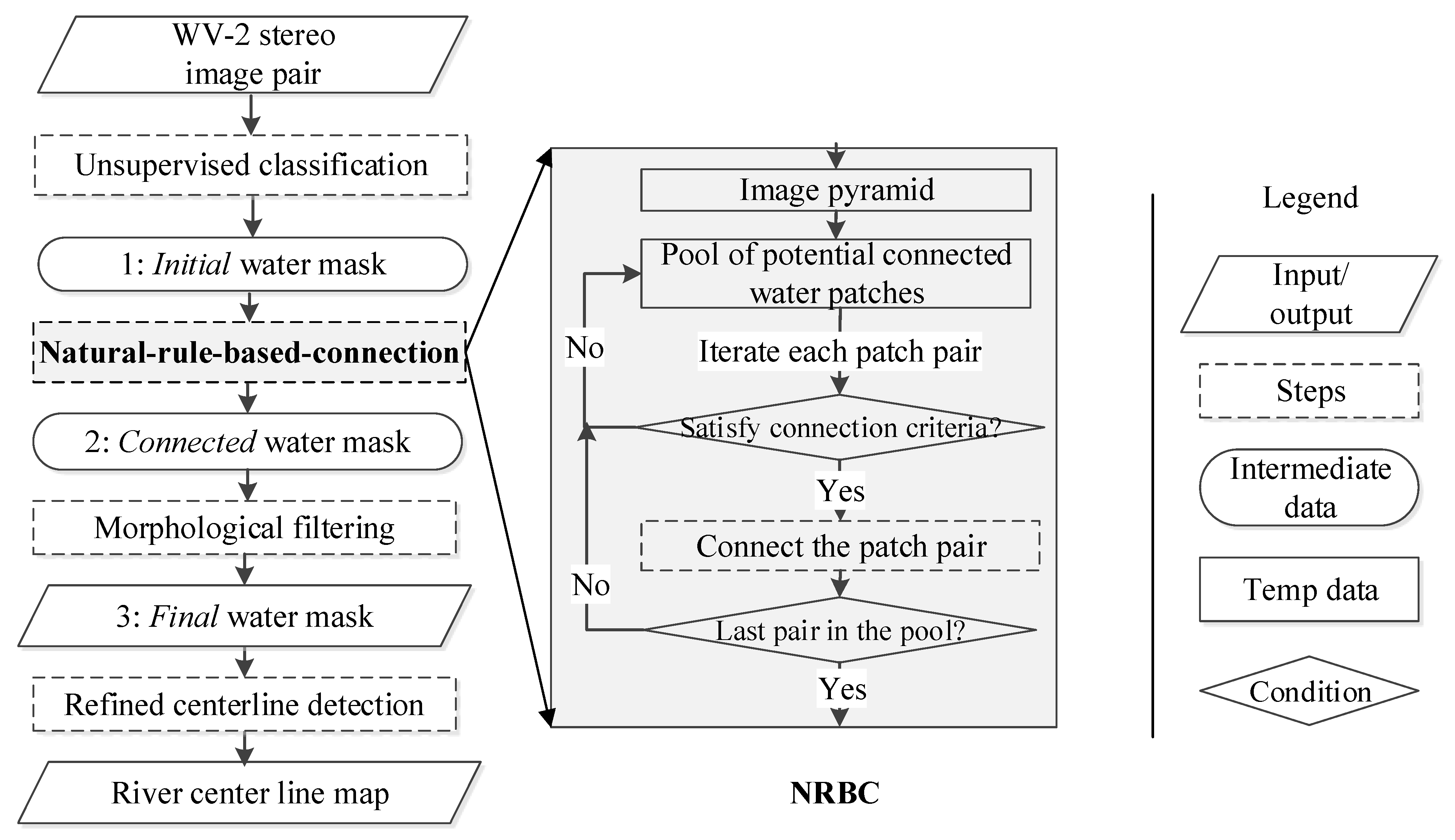

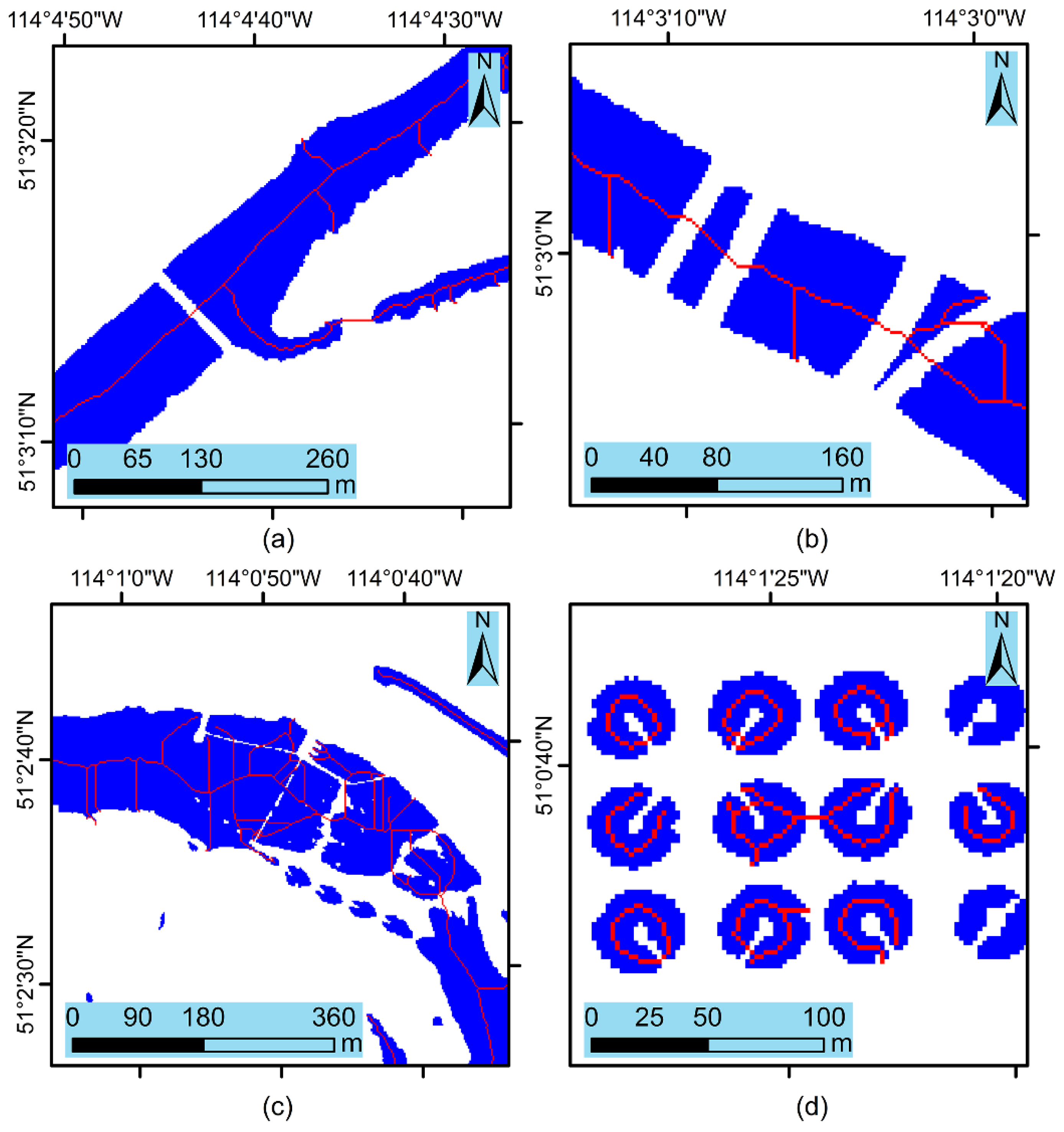

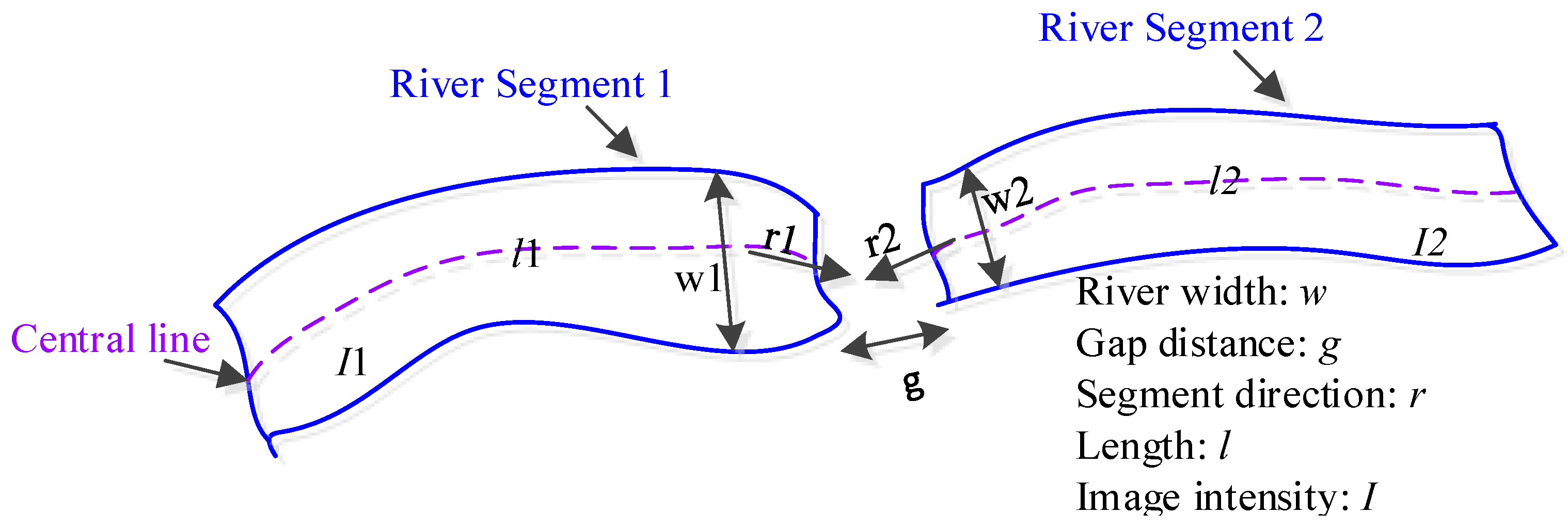

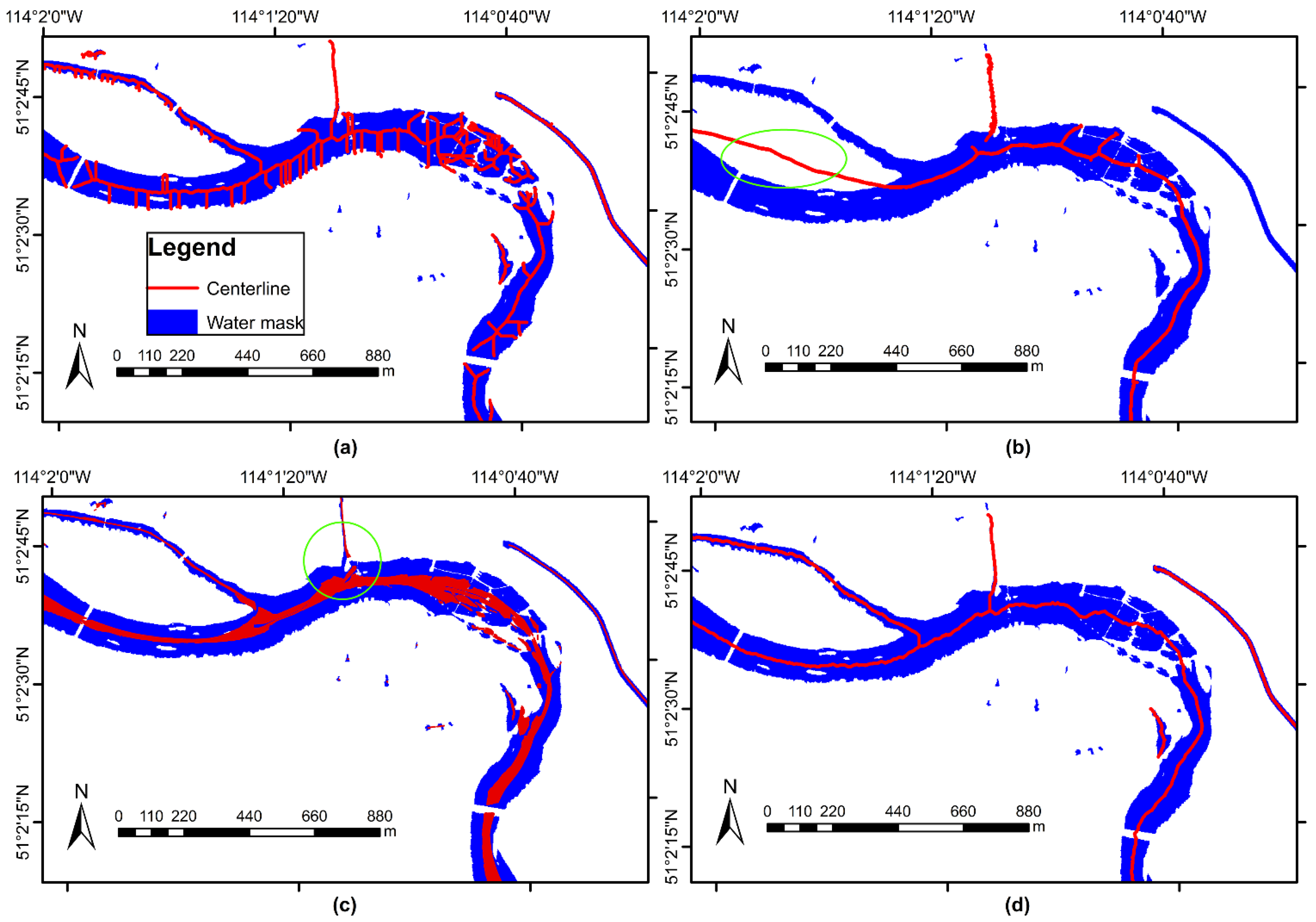

This study proposed a natural-rule-based-connection (NRBC) method to connect river segments after water body detection from remotely sensed imagery. A complete river network is important for many hydrological applications. While water body detection methods using remote sensing are well-developed, less attention has been paid to connect discontinuous river segments and form a complete river network. This study designed an automated NRBC method to extract a complete river network by connecting river segments at polygon level. With the assistance of an image pyramid, neighbouring river segments are connected based on four criteria: gap width (Tg), river direction consistency (Tθ), river width consistency (Tw), and minimum river segment length (Tl). The sensitivity of these four criteria were tested, analyzed, and proper criteria values were suggested using image scenes from two diverse river cases. The comparison of NRBC and the alternative morphological method demonstrated NRBC’s advantage of natural rule based selective connection. We refined a river centerline extraction method and show how it outperformed three other existing centerline extraction methods on the test sites. The extracted river polygons and centerlines have a multitude of end uses including rapidly mapping flood extents, monitoring surface water supply, and the provision of validation data for simulation models required for water quantity, quality and aquatic biota assessments. The code for the NRBC is available on GitHub. View Full-Text
Keywords: river; water body; feature detection; segment connection; center line river; water body; feature detection; segment connection; center line
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zeng, C.; Bird, S.; Luce, J.J.; Wang, J. A Natural-Rule-Based-Connection (NRBC) Method for River Network Extraction from High-Resolution Imagery. Remote Sens. 2015, 7, 14055-14078.
