Remote Sens. 2014, 6(5), 3944-3964; doi:10.3390/rs6053944

Framework of Jitter Detection and Compensation for High Resolution Satellites

1,* , 1
1 College of Surveying and Geo-Informatics, Tongji University, 1239 Siping Road, Shanghai 200092, China 2 Satellite Surveying and Mapping Application Center (SASMAC), National Administration of Surveying, Mapping and Geoinformation(NASG), National Geographic Information Technology Industrial Park, Airport East Road, Shunyi District, Beijing 101300, China
* Author to whom correspondence should be addressed.
Received: 4 March 2014 / Revised: 8 April 2014 / Accepted: 16 April 2014 / Published: 2 May 2014
(This article belongs to the Special Issue Satellite Mapping Technology and Application)
View Full-Text   |   Download PDF [1426 KB, uploaded 19 June 2014]   |   Browse Figures

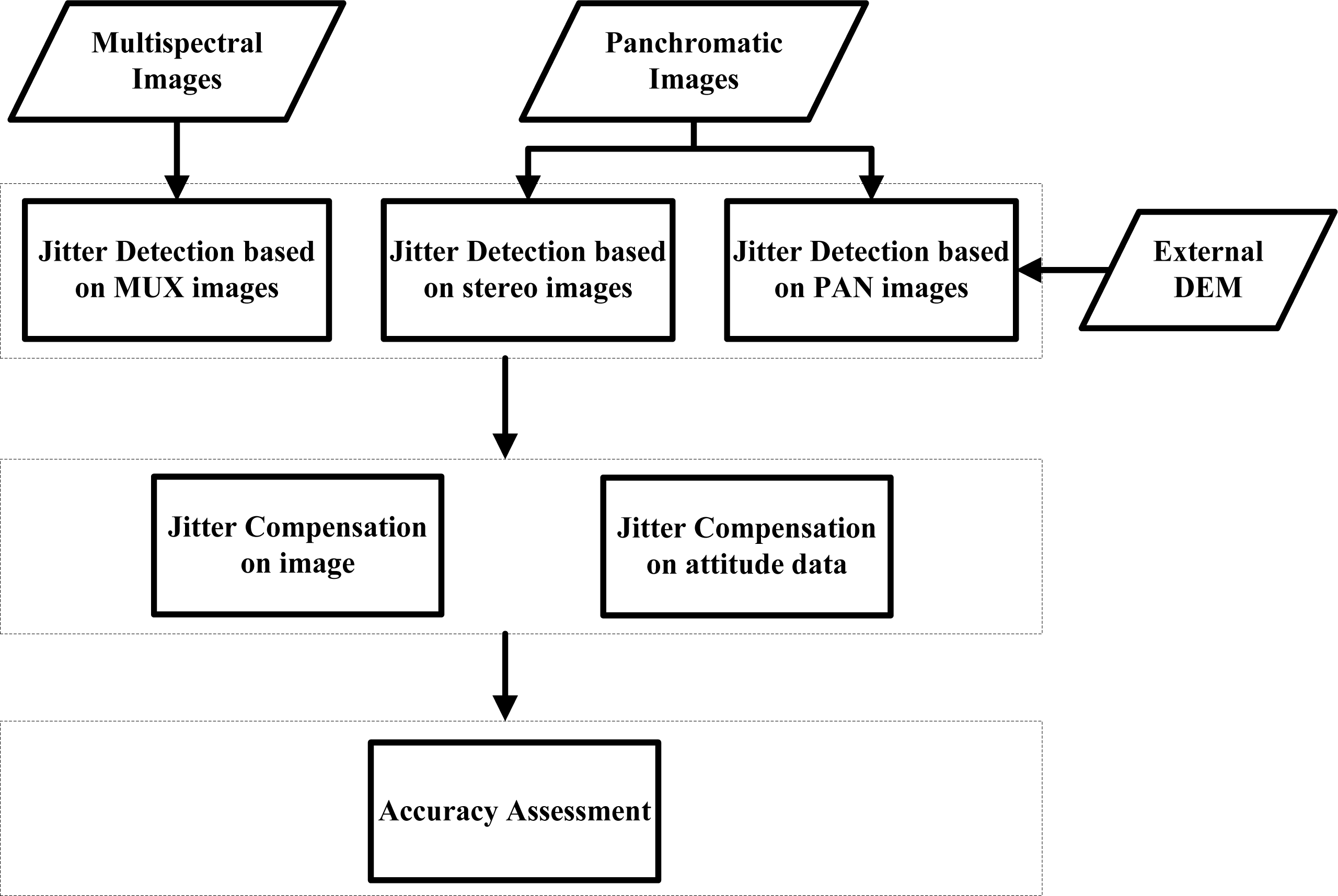

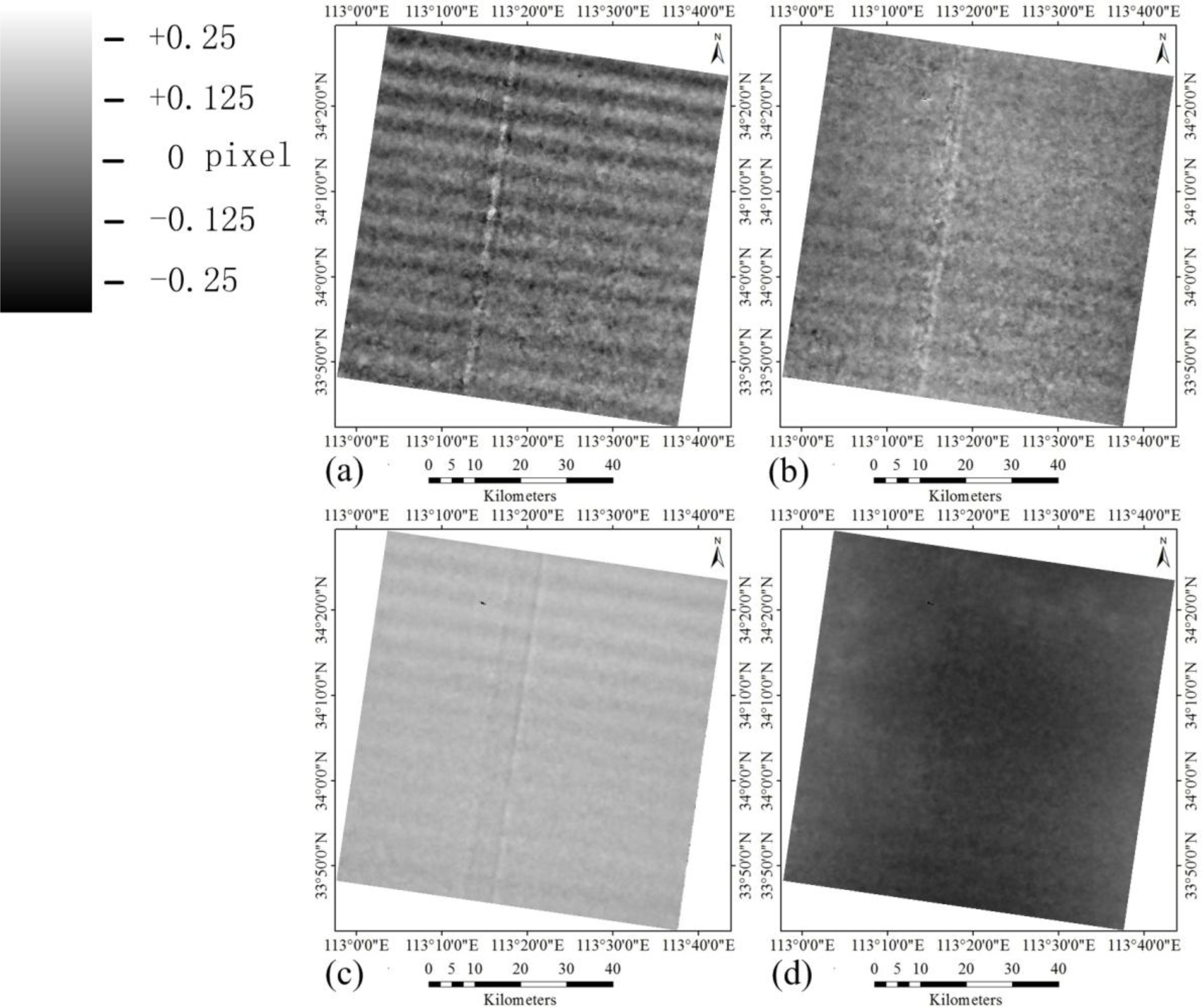

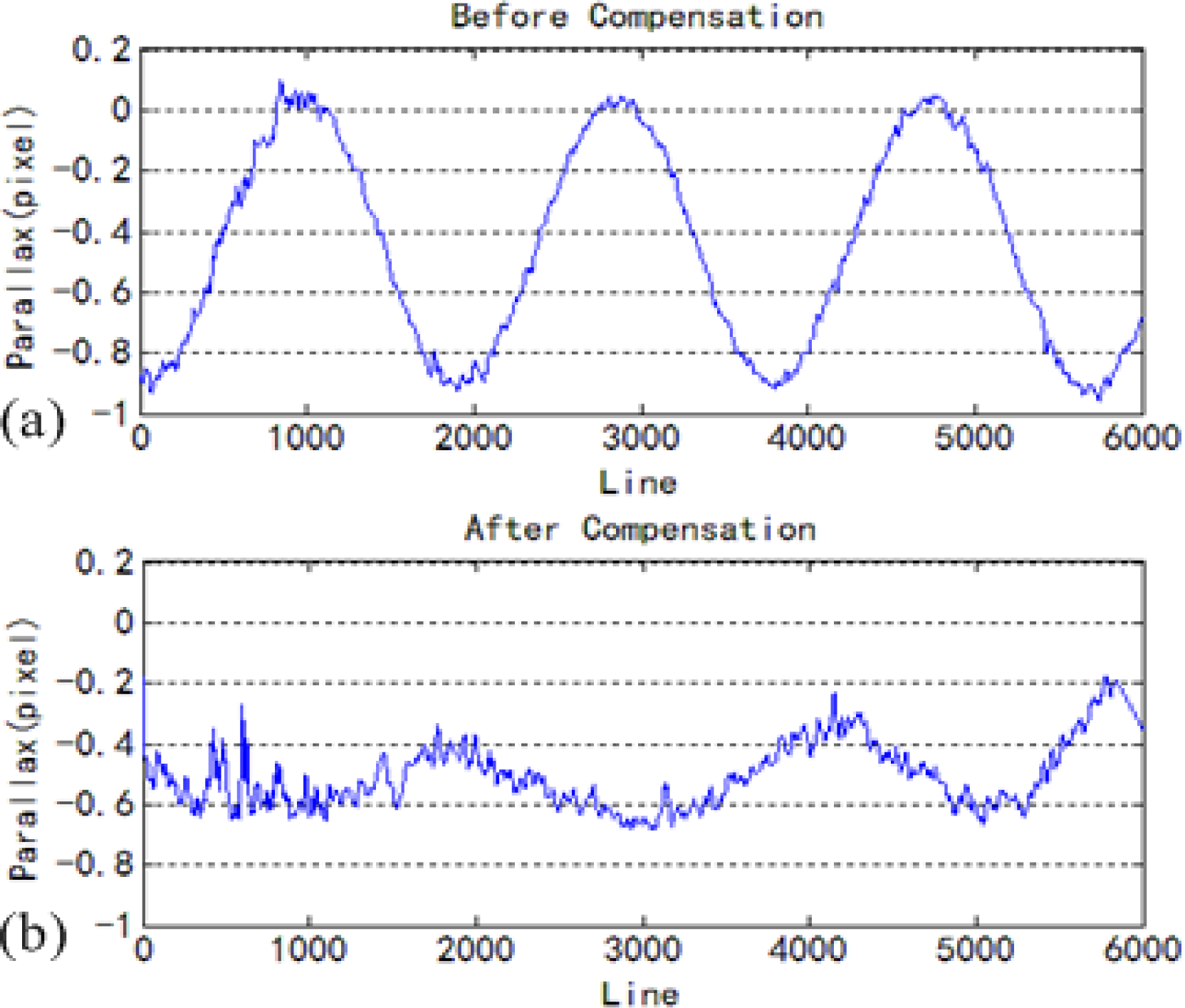

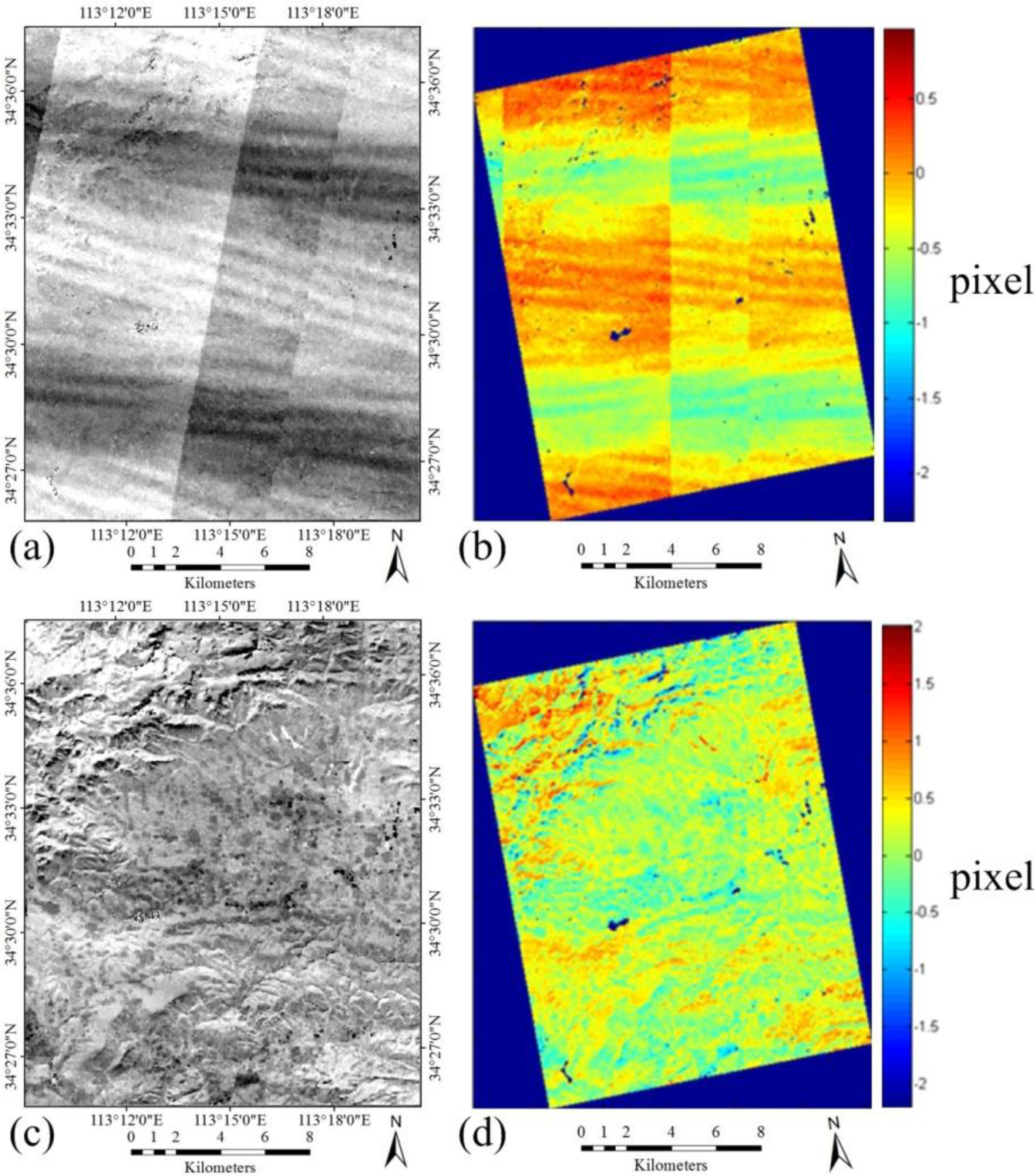

Attitude jitter is a common phenomenon in the application of high resolution satellites, which may result in large errors of geo-positioning and mapping accuracy. Therefore, it is critical to detect and compensate attitude jitter to explore the full geometric potential of high resolution satellites. In this paper, a framework of jitter detection and compensation for high resolution satellites is proposed and some preliminary investigation is performed. Three methods for jitter detection are presented as follows. (1) The first one is based on multispectral images using parallax between two different bands in the image; (2) The second is based on stereo images using rational polynomial coefficients (RPCs); (3) The third is based on panchromatic images employing orthorectification processing. Based on the calculated parallax maps, the frequency and amplitude of the detected jitter are obtained. Subsequently, two approaches for jitter compensation are conducted. (1) The first one is to conduct the compensation on image, which uses the derived parallax observations for resampling; (2) The second is to conduct the compensation on attitude data, which treats the influence of jitter on attitude as correction of charge-coupled device (CCD) viewing angles. Experiments with images from several satellites, such as ASTER (Advanced Spaceborne Thermal Emission and Reflection Radiaometer), LRO (Lunar Reconnaissance Orbiter) and ZY-3 (ZiYuan-3) demonstrate the promising performance and feasibility of the proposed framework.
Keywords: jitter detection; compensation; parallax observation; high resolution satellite jitter detection; compensation; parallax observation; high resolution satellite
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
MDPI and ACS Style

Tong, X.; Ye, Z.; Xu, Y.; Tang, X.; Liu, S.; Li, L.; Xie, H.; Wang, F.; Li, T.; Hong, Z. Framework of Jitter Detection and Compensation for High Resolution Satellites. Remote Sens. 2014, 6, 3944-3964.
