Frequent Unscheduled Updates of the National Base Map Using the Land-Based Mobile Mapping System
Jinsang Hwang 1, Hongsik Yun 1,*, Taejun Jeong 1,*, Yongcheol Suh 2 and He Huang 3,4
1
Department of Civil & Environmental Engineering, Sungkyunkwan University, Chun Chun Dong 300, Suwon 440-746, Korea; E-Mail: gpsboy@skku.edu
2
Department of Spatial Information Engineering, Pukyong National University, Busan 608-737, Korea; E-Mail: suh@pknu.ac.kr
3
School of Surveying and Mapping Engineering, Beijing University of Civil Engineering and Architecture, Zhanlanguan Road, Xicheng District, Beijing 100044, China; E-Mail: huanghe@bucea.edu.cn
4
Key Laboratory for Urban Geomatics of National Administration of Surveying, Mapping and Geoinformation, Beijing 100044, China
*
Authors to whom correspondence should be addressed; E-Mails: yoonhs@skku.edu (H.Y.); tjun97@skku.edu (T.J.); Tel.: +82-31-290-7536; Fax: +82-31-290-7549.
Received: 29 March 2013; in revised form: 10 May 2013 / Accepted: 13 May 2013 /
Published: 17 May 2013

Abstract

: This paper focuses on the use of the Land-based Mobile Mapping System (LMMS) for the unscheduled updates of a National Base Map, which has nationwide coverage and was made using aerial photogrammetry. The objectives of this research are to improve the weak points of LMMS surveying for its application to the updates of a National Base Map (NBM), which has rigorous accuracy and quality standards. For this, methods were suggested for the (1) improvement of the accuracy of the Global Positioning System/Inertial Navigation System (GPS/INS) in the long-term exposure of environments with poor GPS reception; (2) elimination of mutual deviations between LMMS data obtained in duplicate to meet resolution standards; (3) devising an effective way of mapping objects using LMMS data; and (4) analysis of updatable regions and map layers via LMMS. To verify the suggested methods, experiments and analyses were conducted using two LMMS devices in four target areas for unscheduled updates of the National Base Map.
Keywords:
Land-based Mobile Mapping System (LMMS); National Base Map; frequent unscheduled map updates

1. Introduction

A National Base Map (NBM) generally covers most areas of a given nation and is closely linked to data on the main objects of a nation, including land development and the national quality of life. Being an important resource for the development and management of a nation, it requires a high degree of accuracy and continuous updates.

National Base Maps are regularly constructed and updated using aerial photogrammetry in many countries. Therefore, the work principles, standards and allowable accuracy levels for National Base Maps depend on aerial photogrammetry regulations, and the updates of large areas takes place every few years, depending on the economic feasibility of aerial photogrammetry.

The current National Base Map production system requires modification of the map updates process due to the following external factors: (1) More frequent map updates are required due to the surge in the demand for geographic information from the private sector, based on the activities of location-based services (LBS). The proliferation of smartphones and wide-area wireless Internet access makes it possible to use many kinds of LBS. (2) Higher-quality geographic information that represents detailed features of roads is required because the public uses roads daily due to the popularity of automated navigation systems, but such information is difficult to construct using aerial photogrammetry. These reasons led to the development of a new method of performing the frequent unscheduled updates of National Base Maps, to more quickly update the features of the map.

In this study, the Land-based Mobile Mapping System (LMMS) was selected as a new tool for map updates because it has many advantages that enable fast and precise map updates. The objectives of this research are to find a method of updating National Base Maps via LMMS, to shorten the map updating period, and to build more detailed geographic information on objects on and near roads.

The University of Ohio introduced LMMS technology in 1991 with its development of the first LMMS, GPSVan™ [1]. The concept, composition and data processing flow of LMMS has been described in many studies [24]. LMMS research has been ongoing for over 20 years, and has reached the industrialization phase. The accuracy level of LMMS surveys is very high in open areas; and VISAT™, which the University of Calgary in Canada developed, has an accuracy level with an absolute error of 30 cm and a relative error of 10 cm within a corridor of 30 m [5]. Kaartinen et al. [6] tested the performance of various LMMS equipped with mobile laser scanner on established urban test field. With all LMMS properly calibrated, the elevation accuracy was better than 3.5 cm up to a range of 35 m. The best system achieved a planimetric accuracy of 2.5 cm over a range of 45 m. This high accuracy level of LMMS has led to its application in many surveying and mapping areas.

In the early 2000s, despite the high accuracy level of LMMS, further development was deemed necessary to meet diverse surveying and mapping needs [7]. Today, much research is being conducted on the application of LMMS to the construction of geographical information databases, with the introduction of a mobile laser scanner and the development of many different software applications for LMMS. For example, Ishikawa et al. [8] conducted research to automatically produce road data by linking data from the mobile laser scanner and the digital camera of the LMMS. Haala et al. [9] studied a method of producing 3D point data in a downtown area using the land-based MMS of a mobile laser scanner as a sensor attached to a vehicle. Jaakkola et al. [10] proposed automatic methods of road surface modeling using laser-based mobile mapping. Petrie [2,11] organized various LMMS equipment and relevant services, as well as equipment suppliers, to build a 3D geographical information database. Rau et al. [12] showed a single-step system calibration method for direct sensor orientation of an LMMS. Madeira et al. [13] suggested a sensor integration method for a low-cost LMMS to maintain quality georeferencing information. In some studies, many kinds of platforms for mobile mapping system (MMS) were introduced [3,14,15]. These researchers showed that a technological foundation for the industrial use of LMMS technology for surveying and mapping has been established.

Recent studies related to LMMS have addressed its availability and advantages for producing geographic information, but few studies have used LMMS to update National Base Maps. A detailed study was required to assess if LMMS could meet the relevant regulations and standards of National Base Map production, which were based on the standards of aerial photogrammetry. Also, further research to overcome the degradation of the accuracy of Global Positioning System/Inertial Navigation System (GPS/INS) measurement in downtown areas was required. Furthermore, there were requirements to identify the types of map layers that can be updated via LMMS, analyze the performance criteria for the equipment that comprise LMMS, and set the standards for the application of LMMS data. In this research, a comprehensive study was conducted on these topics that concern the frequent unscheduled updates of National Base Maps using LMMS. Two LMMS equipment were used to demonstrate the frequent unscheduled updates of National Base Maps for four study areas in Korea.

2. Acquisition of Research Data

In this research, several studies on the use of LMMS for the frequent unscheduled updates of National Base Maps were performed. LMMS data were gathered using two types of LMMS equipment with different sensor configurations: one using a mobile laser scanner, and the other using a digital camera, as the main mapping sensor. Also, National Base Map data of Korea was collected to demonstrate the viability of frequent unscheduled map updates.

2.1. Used Land-Based Mobile Mapping System (LMMS) Equipment and Study Area

The two LMMS equipment that were used in this study utilize a GPS/INS system to measure position and altitude. However, their main mapping sensors are different: one uses a mobile laser scanner, and the other, a digital camera. Figure 1 shows the sensor composition and the main product of the two LMMS equipment: Figure 1(a) shows the arrangement of the mobile laser scanner LMMS, and Figure 1(b) shows the arrangement of the digital camera LMMS. The sensor specifications for the data collection using LMMS are presented in Table 1.

LiDAR point cloud data and geo-referenced images were gathered in four study areas using the two LMMS equipment, and were utilized to update the National Base Map. There were diverse objects and different types of GPS signal reception environments in the study areas (Hyangnam, Suwon, Gangnam and Yeoido), so it was possible to analyze the probability of applying LMMS surveying to National Base Map updates, and to study the methods of overcoming accuracy degradation in the long-term exposure of environments with poor GPS reception. Figure 2 shows samples of the LMMS data captured by each system.

2.2. Characteristics of the Maps for Updating with Land-Based Mobile Mapping System (LMMS) Data

The National Base Map of South Korea was used for the experimental map updates utilizing LMMS data. It has a 1:5,000 scale, and its major specifications are shown in Table 2. Most land-covered areas in Korea were mapped using aerial photogrammetry, excluding flight-restricted areas such as the North-South Korea border area, maps of which were produced using high-resolution satellite imagery. For administrative purposes, a 1:1,000-scale map was also produced. It has stricter accuracy standards than the 1:5,000-scale map and was made primarily for urban areas. The maps refer to the terrestrial reference frame of ITRF2000 (Epoch 2002.0) and the reference ellipsoid of GRS80, and Transverse Mercator map projection was used to compute the plane coordinates.

The accuracy and quality of the National Base Map is strictly controlled by relevant regulations. In each project, samples of the produced map should be examined to check omitted features, assess the accuracy of the map and evaluate the suitability of the representation of the features according to the regulations. Table 3 shows the regulations for the accuracy for the National Base Map production in South Korea.

In South Korea, the frequent unscheduled update of the National Base Map was performed mainly using the as-built drawings of constructions that changed the shape of the area. Frequent unscheduled updating based on as-built drawings has the advantage of excluding or using less land surveying, but has the disadvantage of requiring extensive administrative and long processing times. Another disadvantage of using as-built drawings is the decrease in the quality of the map, since the features shown on the as-built drawings may not satisfy the specifications of the National Base Map and may fail to update the area surrounding the construction by omission. Therefore, to maintain the accuracy and quality of the map and to update the map in a timely manner by complementing the drawbacks using the as-built drawings method, a new method of revising the National Base Map using LMMS was developed.

3. Improvement of the Accuracy of Land-Based Mobile Mapping System (LMMS) Surveying

3.1. Problems

The positioning system of LMMS is a GPS/INS system composed of GPS, INS, Distance Measurement Instrument (DMI), etc. The system plays the role of a geo-referencing mapping sensor etc., so the accuracy of LMMS surveying is governed by the GPS/INS system in use. GPS/INS systems can precisely determine the position and altitude of LMMS mapping sensors, which makes accurate object surveying with LMMS possible. However, the following two problems must be overcome.

First, the accuracy of GPS/INS is degraded in environments with poor GPS reception. There are many indicative factors of GPS data quality [16], and one of the most important of these is the number of received GPS signals. This number frequently drops to below four in downtown areas, thus degrading the accuracy of the GPS positioning result, which plays an important role in GPS/INS integration. In the research of Kennedy et al. [17], during the use of a GPS/INS equipped with DMI, the HG1700 produced by Honeywell and the OEM4-G2 GPS board produced by Novatel, an elevation error of at least 0.5 m and a plane error of at least 1.5 m occurred when the GPS signal reception was disconnected for more than 60 seconds. Also, in the research of Haala et al. [9], 20% of the measurement results on a narrow road in a downtown area where the GPS signal reception environment was very poor had an error of 1 m or more. The accuracy of the GPS/INS integration result is low in an area with poor GPS reception, which leads to the degradation of LMMS surveying and its failure to meet the level of accuracy required for the National Base Map.

Second, the redundant data collection to achieve enough resolution for mapping can lead to data deviations. The deviations could occur in the LMMS data that were obtained in duplicate, even though the data were captured in an environment with good GPS signal reception, due to the limitation of the accuracy of the GPS/INS integration result. The deviations were generally less than 0.5 m, but they caused such difficulty in the map production and so degraded the relative accuracy of the mapping results that a method of eliminating them became necessary.

3.2. Methods

An adopted method of improving the accuracy of LMMS data was the correction of the GPS/INS integration result using minimal control and tie points, followed by the reprocessing of the LMMS data based on the corrected GPS/INS integration data. The premise of the method was that GPS/INS errors are systematic and could be modeled with minimal control and tie points. Thus, an experiment was conducted to first verify the tendency of GPS/INS errors, and then to develop the correction method.

The tendency of the GPS/INS integration results to have absolute errors was analyzed using the GPS/INS data that were gathered with LMMS 2, as shown in Figure 1(b), in the area where it was possible to receive sufficient GPS signals. The data were processed in two ways to generate reference data and simulated data. The reference data were processed using all the gathered data via tightly coupled integration. For the simulated data, all the GPS data from a specific section were deleted to simulate a complete GPS outage environment, after which the integration was processed. The GPS/INS integration errors in the GPS outage environment were analyzed by comparing the reference data with the simulated data from the section, as shown in Figure 3.

According to the results shown in Figure 3(b), the position errors tended to have a positive linear correlation with the driving distance after the GPS outage. The position errors were originally predicted to be positively correlated with the time after the GPS outage, because the irregularities occurred in relation to the time, as shown in Figure 3(a). These results indicate that to reduce GPS/INS errors, the minimum control points can be evenly applied in terms of the distance. Figure 3(c,d) shows the correlation of the attitude errors with the driving time and distance after the GPS outage, and that the attitude errors did not significantly increase with the roll and pitch values, though relatively consistently larger heading errors occurred. The average heading error was −2.75 degrees and had a deviation of approximately 0.30 degrees. If a consistent correction of −2.75 degrees were applied to the heading result, the residual 0.30 degrees might have occurred and caused an approximately 0.2 m in-plane error over a distance of 40 m, which is within the permissible error range in the map production regulations of South Korea. Thus, the experiment results showed that the attitude errors can be modified by applying the minimum number of control points.

Second, the tendency for deviations to occur in doubly collected LMMS data was analyzed. Because the LMMS data were geo-referenced with GPS/INS data, the deviations indicate relative errors in the GPS/INS integration results. LMMS data was collected with LMMS 1, as shown in Figure 1(a). Fifty samples were collected from the LiDAR point cloud that gathered on a 200 m road via round-tripped LMMS. The samples had deviations from the 3D coordinates of the LiDAR points, and the tendency of the deviations to occur was analyzed in the time and distance domain. The analysis results are shown in Figure 4. They indicate that all the deviations in the elevation and planar coordinates had linearly propositional relationships with the distance and the time. These results mean that the tendency of relative errors to occur in GPS/INS integration results can be modeled using a minimum number of control points. Also, duplicate LMMS data can be adjusted by applying the corrected GPS/INS results.

The method of improving LMMS data was proposed based on the experiment result on the tendency of GPS/INS errors to occur. It was assumed that most errors could be modeled and removed using a minimal number of control points if they have a certain tendency. The proposed method is described in Figure 5, and its verification is discussed in Section 3.3.

In the method, general LMMS processing was first conducted according to the following order: INS pre-processing, GPS/INS tight coupling and direct geo-referencing of LMMS data. Then the LMMS coordinates on the control or tie points were measured via close-range photogrammetry or laser surveying using the geo-referenced LMMS data. Next, the correction parameters were calculated using the differences between the measured LMMS coordinates and the reference coordinates (the gathered coordinates of the control or tie points). Of the many types of correction parameters, four were used in this study: the heading correction value and 3D initial coordinates. The parameters were applied to GPS/INS observables in the correction application stage. The INS observables were reprocessed by applying the heading corrections, and accurate 3D initial coordinates were inserted in the time series of the GPS coordinates. Then GPS/INS loose coupling was conducted using the updated GPS/INS observables. Finally, the LMMS data were geo-referenced again based on the GPS/INS loose coupling results.

3.3. Verification of the Method

The absolute accuracy of LMMS data was improved using control points. The LMMS data were gathered in the four study areas, three of which have environments with poor GPS signal reception because of the density of high buildings. Many control and check points were accurately surveyed with portable ground surveying equipment and were used to improve LMMS data and evaluate the improvements. The distance between the control points was varied to find the minimal number of points needed to improve all the gathered LMMS data. The minimal number of control points was very important in this study because the method would have become redundant had the minimal number of control points been too large.

Figure 6 shows the results of the experiments conducted in Yeoido. The diagrams of the plane errors changed in accordance with the interval between the control points. The error refers to the Circular Error Probability and was calculated from the LMMS survey that was conducted on two roads, one of which had a good GPS signal reception environment, and the other, a bad GPS signal reception environment.

In Figure 6, the driving path of the LMMS on the road with a good GPS signal reception environment is marked as Trajectory 1, and the other path, as Trajectory 2. Significant errors occurred in the areas around the roads on Trajectory 2, as shown in Figure 6(a). In contrast, Figure 6(b–d) shows a significant decrease in the positioning errors with the adjustments made on the GPS/INS integration using the control points. In the adjustment of the GPS/INS integration results, several intervals between the control points were applied, from about 50 m to about 200 m, to determine the maximum length of the intervals. This was required to calculate the minimum number of control points needed to ensure the accuracy of the LMMS survey. As shown in Figure 6(b–d), the control points were surveyed at the intervals to make the map production more accurate.

Figure 7 shows the results of all the experiments that showed variations in the LMMS surveying error in the cases wherein non-control points were used and in the cases wherein control points were used at 50–200 m intervals. The figure shows that the number of errors was significantly reduced by applying the minimum number of control points at about 200 m intervals, and that the smaller the interval was, the more accurate the surveying results were in general. The actual accuracy of the method, however, was not strictly dependent on the frequency of control points. These effects were evident in Kangnam and Yeouido, which have long sections with poor GPS environments.

Figures 6 and 7 show the effect of the method on the improvement of the accuracy of LMMS data. However, the method is costly for the survey of control points. The feasibility of the method can be determined based on the adequacy of its cost. For this, the cost of updating the map with LMMS data was calculated, improved by the proposed method, and compared with the map updating cost using the as-built drawings of constructions. The difference was insignificant, and the proposed method was shown to be feasible for the updating of the National Base Map.

Then, the deviation between the duplicate LMMS data was removed using the method shown in Figure 5 and minimal tie points. Figure 8 shows the effect of the method. The LiDAR point cloud data on the 200 m road was corrected using the modeled tendency of the GPS/INS results to have relative errors. In this process, only six tie points were used to model the relative error tendency. Figure 8(a) shows that deviations of about 0.4 m occurred in the duplicate data in each planar and elevation direction, but most of them were removed by applying the minimum number of tie points. The result is shown in Figure 8(b).

4. Map Updating Method Using Land-Based Mobile Mapping System (LMMS) Data

This study on a method of updating the National Base Map using LMMS data was needed to meet relevant regulations and standards of National Base Map production, which were based on the standards of aerial photogrammetry. To carry out the practical research, frequent unscheduled National Base Map updates were made in the study areas, and the results were used in the study on (1) mapping methods by type of object; (2) analysis of the updatable area of the map via LMMS surveying; and (3) analysis of the types of map layers that can be updated via LMMS.

4.1. Mapping Methods by Type of Object

The surveying methods that were used for the mapping objects are shown in Figure 9. One of them is close-range photogrammetry using stereo images (Figure 9(a)), and another is 3D screen digitization using a LiDAR point cloud (Figure 9(b)). The latter was more suitable for mapping objects, considering work efficiency and accuracy, because the former was unsuitable for objects with softly curved shapes that made it hard to identify conjugate points in their stereo images.

In the case of mapping utilities displayed as symbols and placed at a point on the map, the close-range photogrammetric surveying method was adequate, considering work efficiency. In the case of mapping objects that were featured as polylines on the map, the 3D screen digitization method was adequate. For mapping landforms, there was a requirement to generate a digital elevation model (DEM) using a filtered LiDAR point cloud. Contour lines and spot heights were extracted from the generated DEM. Figure 10(b,c) shows the adequate mapping methods by feature type using the processed LMMS data (shown in Figure 10(a)).

In Figure 10(b1,c1), the process of generating the contour line spot height is shown. In the process, first, the LiDAR point clouds were classified as the points on the ground surface and the other points similar to ①; second, only points on the ground surface were selected, as in ②; and then the Triangulated Irregular Network (TIN) data was produced, as in ③. Finally, as in the last stage of ④, the contour lines and the spot height were extracted from the TIN data, and the contour lines were equalized to meet the standards for the National Base Map, as shown in Figure 10(c1).

The results of the demonstrated frequent unscheduled updates of the National Base Map are shown in Figure 10(d). The gray features were mapped in previous new productions, and the other colored features were mapped in the updates in this study via LMMS. The figure shows that most of the objects on or near the roads were captured using LMMS data.

In this study, automated feature extraction methods were not applied because they were less than 100% complete. The practical application of LMMS to map updates to meet relevant regulations and standards of the National Base Map production was focused on. Thus, manual feature extraction methods were mainly used. The adoption of automated methods, such as the following, for more efficient and cost-effective map updates must be studied, though.

Many researches have been conducted to develop automated feature extraction methods using digital images and LiDAR point clouds. For example, Vosselman and Liang [18] introduced an automated method of detecting road edges from high-resolution aerial LiDAR data. The key concepts of the method were the detection of the occurrence of small height jumps on road sides, neighbouring adjacent LiDAR points and filtering based on the heights. The analysis result of the study showed that the completeness varied between 50% and 86% and that the accuracy was about 0.18 m. Zhu et al. [19] developed the Road Extraction Assisted by Laser (REAL) method of automatically extracting city roads through a shadow path using both digital aerial images and aerial LiDAR data. Yang et al. [20,21] proposed a method of automatically extracting road markings and street-scene objects from mobile LiDAR data. The method used 2D feature images that were generated by interpolating mobile LiDAR data for the detection of the boundary lines of the target objects. The LiDAR data included in the boundary was analyzed to detect the target objects.

4.2. Analysis of the Updatable Area of the Map via Land-based Mobile Mapping System (LMMS) Surveying

There are natural limitations in the LMMS surveying range, unlike in the aerial photogrammetry range, due to the surveying sensor platform that is being operated on the ground. Therefore, to evaluate the applicability of LMMS to the frequent updates of the National Base Map, the LMMS-updatable area of the map should be analyzed. For this, the maximum surveying range relative to the position of the LMMS should be determined.

In this study, the LMMS-updatable area of the map was studied using the results of the analysis of the maximum range of the main LMMS surveying methods, i.e., of laser surveying and close-range photogrammetric surveying. Figure 11 shows the analysis results for the maximum range of the laser surveying and the change in the possibility of precision mapping based on the average spacing of the LiDAR point cloud that was built with a laser scanner.

The maximum surveying range of the laser scanner (Lynx Mobile Mapper V200) that was used in this study was 200 m in the specifications. Considering the adequate point density for precise mapping, however, the maximum surveying range was reduced to about 40 m. If the surveying range was more than 40 m, the average spacing between the LiDAR points would have exceeded 0.1 m, which increased the difficulty of precision mapping, as shown in the right picture in Figure 11, because of the low point density. Also, had there been obstacles such as parked cars and fences, the surveying range would have been further reduced, as shown in the left picture in Figure 11. The value “40 m” was not absolute but experimental, and so could be changed depending on the types of lasers that were used, the values of the operating parameters and the standards required for map production.

The change in the accuracy of photogrammetric surveying based on the distance between the digital camera and the objects is shown in the graph in Figure 12. The graph indicates that the size of the errors increased as the distance increased. It was also found that the error was below 0.5 m within a distance of 40 m. Had the distance been beyond 40 m, gross errors would often have occurred, and it would have been more difficult to precisely measure the image coordinates of the conjugate points because of the low resolution, as shown in the right picture in Figure 12.

Regarding the study results, the maximum LMMS surveying range can be determined depending on the accuracy of the surveying method and the required resolution of the LMMS data. In the LMMS that was used in this study, the maximum surveying range was about 40 m, which depended on the performance of the sensors and the requirements in the regulations for the National Base Map. This result means that maps of most areas near roads or railways can be updated using LMMS, but complementary field surveying is needed for areas where there are obstacles between the LMMS device and the target objects, as shown in the left picture in Figure 11.

4.3. Analysis for the Types of Map Layers that can be Updated via Land-Based Mobile Mapping System (LMMS)

The types of layers that can be updated via LMMS were analyzed based on the maximum surveying range and other characteristics of LMMS. This analysis was important because the results defined the applicability of LMMS to National Base Map updates, and can be used to formulate LMMS surveying specifications using a different technology or that comply with different regulations.

As shown in Figure 13, buffer analysis and line-of-sight analysis were used in this study, and a ready-made digital map was used as the analysis target. The analysis was conducted to check the quantity of objects that can be surveyed via LMMS with respect to their shape, position and properties, from the whole object that is included in each layer. If over 80% of the objects in a layer could be surveyed via LMMS, the layer was classified as updatable via LMMS. The possibility of surveying an object via LMMS was assessed by checking the line-of-sight visibility between the object and the road centerline. If each node point of the object was visible from the road centerlines located within a 40 m radius from it, the object was classified as applicable to LMMS.

Table 4 shows the major layers of the 1/5,000-scale digital map (Korean National Base Map) data and the 1/1,000-scale digital map that can be updated via LMMS. The National Base Map has 17 types of layers; and the highly applicable 1:1,000-scale digital map has 35 types of layers that are updatable via LMMS, and its main features represent objects on or near roads. Though there are few types of layers, the areas that require frequent updates usually include new road construction areas and housing development areas, which are close to roads and are easily accessible to vehicles. Thus, it was found that LMMS can be used for frequent updates of the National Base Map and main digital maps.

5. Conclusions

This study was conducted to apply the Land-based Mobile Mapping System (LMMS) to the updates of the National Base Map, which has been made via aerial photogrammetry and managed with high precision and quality. For this, a method was proposed to improve the weak points of LMMS, such as the low accuracy within the bad Global Positioning System (GPS) signal reception area and mutual deviations between LMMS data obtained in duplicate. Next, an effective feature mapping method using LMMS data was proposed, and the updatable area and map layer types were analyzed to prove that LMMS enables the updates of the National Base Map.

Using the proposed LMMS data correction method, an absolute position error of maximum 1.5 m, which would have appeared in the LMMS data obtained from bad GPS signal reception area, was reduced to an average of 10 cm or less with minimum control points placed at approximately 200 m intervals. In addition, an average deviation of 0.4 m, which would have appeared among duplicate LMMS data obtained from the 200 m-long road, was reduced to several centimeters using six tie points.

The maximum surveying range of the LMMS used in this study was about 40 m considering required resolution and accuracy of the LMMS data; the required density of LiDAR point cloud was over 100 points per square meter for mapping the shape of the objects, and the accuracy of close-range photogrammetric surveying could meet the standards of 1:1,000-scale digital map within a corridor of 40 m. Through the line-of-sight analysis and buffer analysis regarding the maximum surveying, it was found that the 16 types of layers in the Korean National Base Map and 35 types of layers in a 1:1,000-scale map could be updated via LMMS surveying.

  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Ellum, C.; El-Sheimy, N. Land-based mobile mapping systems. Photogramm. Eng. Remote Sensing 2002, 68, 13–17.
  2. Petrie, G. An introduction to the technology mobile mapping systems. Geoinformatics Mag 2010, 13, 32–43.
  3. El-Sheimy, N. An Overview of Mobile Mapping Systems. In Proceedings of From Pharaohs to Geoinformatics FIG Working Week 2005 and GSDI-8, Cairo, Egypt, 16–21 April 2005.
  4. Graham, L. Mobile mapping systems overview. Photogramm. Eng. Remote Sensing 2010, 76, 222–228.
  5. Tao, C.V.; Chapman, M.A.; Chaplin, B.A. Automated processing of mobile mapping image sequences. ISPRS J. Photogramm 2001, 55, 330–346, doi:10.1016/S0924-2716(01)00026-0.
  6. Kaartinen, H.; Hyyppä, J.; Kukko, A.; Jaakkola, A.; Hyyppä, H. Benchmarking the performance of mobile laser scanning systems using a permanent test field. Sensors 2012, 12, 12814–12835, doi:10.3390/s120912814.
  7. Tao, C.V. Mobile mapping technology for road network data acquisition. J. Geospat. Eng 2000, 2, 1–13.
  8. Ishikawa, K.; Takiguchi, J.; Amano, Y. A Mobile Mapping System for Road Data Capture Based on 3D Road Model[C]. In Proceedings of 2006 IEEE International Conference on Control Applications, Munich, Germany, 4–6 October 2006; pp. 638–643.
  9. Haala, N.; Peter, M.; Kremer, J.; Hunter, G. Mobile LiDAR Mapping for 3D Point Cloud collection in Urban Areas: A Performance Test. In Proceedings of XXI ISPRS Congress, Beijing, China, 3–11 July 2008.
  10. Jaakkola, A.; Hyyppä, J.; Hyyppä, H.; Kukko, A. Retrieval algorithms for road surface modelling using laser-based mobile mapping. Sensors 2008, 8, 5238–5249, doi:10.3390/s8095238.
  11. Petrie, G.; Walker, A.S. Airborne digital imaging technology: A new overview. Photogramm. Rec 2007, 22, 95–105.
  12. Rau, J.Y.; Habib, A.F.; Kersting, A.P.; Chiang, K.W.; Bang, K.I. Direct sensor orientation of a land-based mobile mapping system. Sensors 2011, 11, 7243–7261, doi:10.3390/s110707243.
  13. Madeira, S.; Gonçalves, J.A.; Bastos, L. Sensor integration in a low cost land mobile mapping system. Sensors 2012, 12, 2935–2953, doi:10.3390/s120302935.
  14. Kukko, A.; Kaartinen, H.; Hyyppä, J.; Chen, Y. Multiplatform mobile laser scanning: Usability and performance. Sensors 2012, 12, 11712–11733, doi:10.3390/s120911712.
  15. Manandhar, D.; Shibasaki, R. Auto-extraction of urban features from vehicle-borne laser data. ISPRS J. Photogramm 2002, 34, 650–655.
  16. Lee, D.; Cho, J.; Suh, Y.; Hwang, J.; Yun, H. A new window-based program for quality control of GPS sensing data. Remote Sens 2012, 4, 3168–3183.
  17. Kennedy, S.; Hamilton, J.; Martell, H. Architecture and System Performance of SPAN of NovAtel’s GPS/INS Solution. In Proceeding of the IEEE/ION PLANS 2006, San Diego, CA, USA, 25–27 April 2006; pp. 266–274.
  18. Vosselman, G.; Liang, Z. Detection of curbstones in airborne laser scanning data. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci 2009, 37, 111–116.
  19. Zhu, P.; Lu, Z.; Chen, X.; Honda, K.; Eiumnoh, A. Extraction of city roads through shadow path reconstruction using laser scanning. Photogramm. Eng. Remote Sensing 2004, 70, 1433–1440.
  20. Yang, B.; Wei, Z.; Li, Q.; Li, J. Automated extraction of street-scene objects from mobile LiDAR point clouds. Int. J. Remote Sens 2012, 33, 5839–5861.
  21. Yang, B.; Fang, L.; Li, Q.; Li, J. Automated extraction of road markings from mobile LiDAR point clouds. Photogramm. Eng. Remote Sensing 2012, 78, 331–338.
Remotesensing 05 02513f1
Figure 1. Compositions and main products of the used Land-based Mobile Mapping System (LMMS) equipment.

Click here to enlarge figure

Figure 1. Compositions and main products of the used Land-based Mobile Mapping System (LMMS) equipment.
Remotesensing 05 02513f1
Remotesensing 05 02513f2

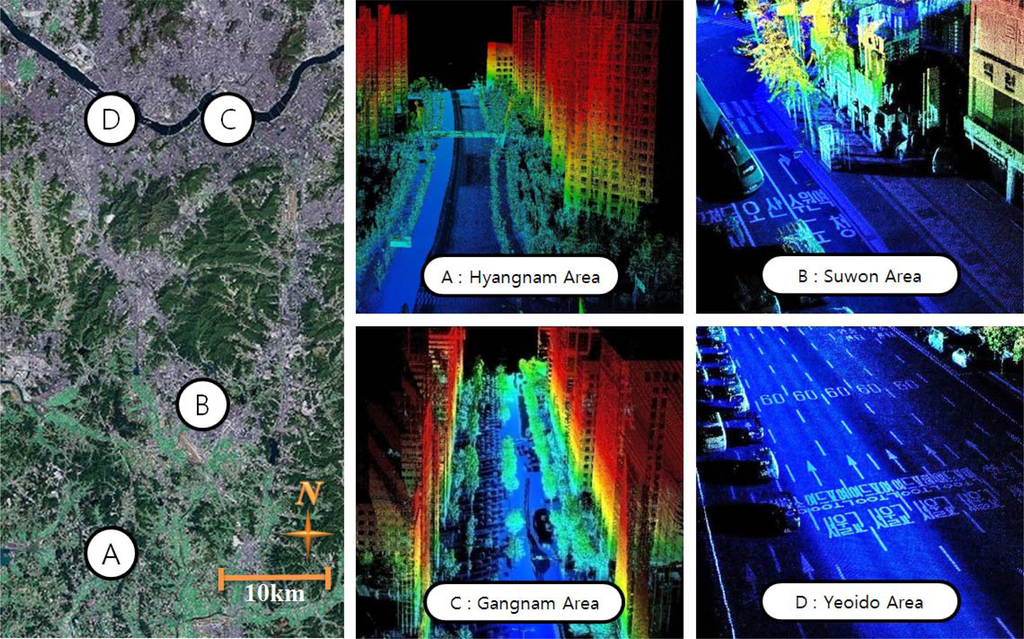

Figure 2. Samples of the LiDAR point cloud data that were captured using the LMMS 1 equipment.

Click here to enlarge figure

Figure 2. Samples of the LiDAR point cloud data that were captured using the LMMS 1 equipment.
Remotesensing 05 02513f2
Remotesensing 05 02513f3

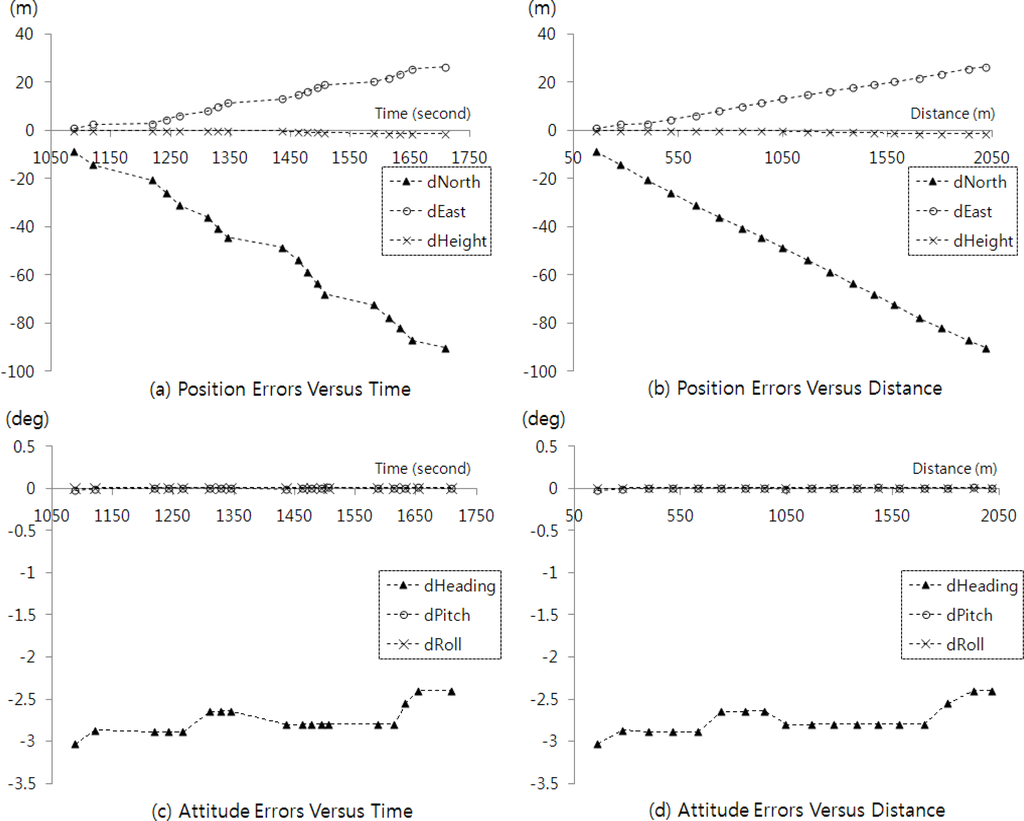

Figure 3. Tendencies of the Global Positioning System/Inertial Navigation System (GPS/INS) position and altitude errors after the GPS outage. (a) Position errors vs. time. (b) Position errors vs. distance. (c) Attitude errors vs. time. (d) Attitude errors vs. distance.

Click here to enlarge figure

Figure 3. Tendencies of the Global Positioning System/Inertial Navigation System (GPS/INS) position and altitude errors after the GPS outage. (a) Position errors vs. time. (b) Position errors vs. distance. (c) Attitude errors vs. time. (d) Attitude errors vs. distance.
Remotesensing 05 02513f3
Remotesensing 05 02513f4
Figure 4. Tendency of deviations between duplicate LMMS data to occur. (a) Tendency in the distance domain. (b) Tendency in the time domain.

Click here to enlarge figure

Figure 4. Tendency of deviations between duplicate LMMS data to occur. (a) Tendency in the distance domain. (b) Tendency in the time domain.
Remotesensing 05 02513f4
Remotesensing 05 02513f5

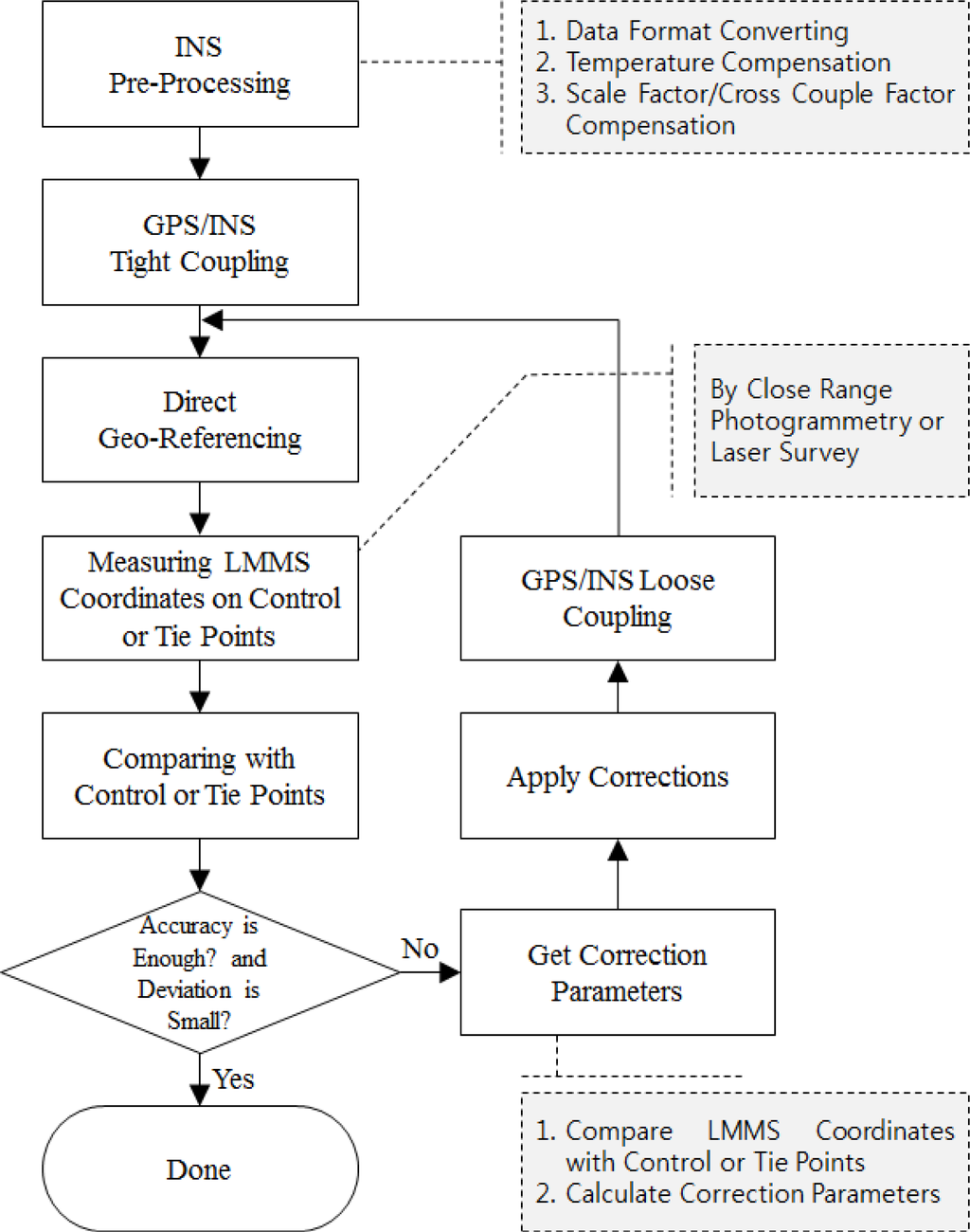

Figure 5. Method of improving the accuracy of LMMS data using minimal control or tie points.

Click here to enlarge figure

Figure 5. Method of improving the accuracy of LMMS data using minimal control or tie points.
Remotesensing 05 02513f5
Remotesensing 05 02513f6

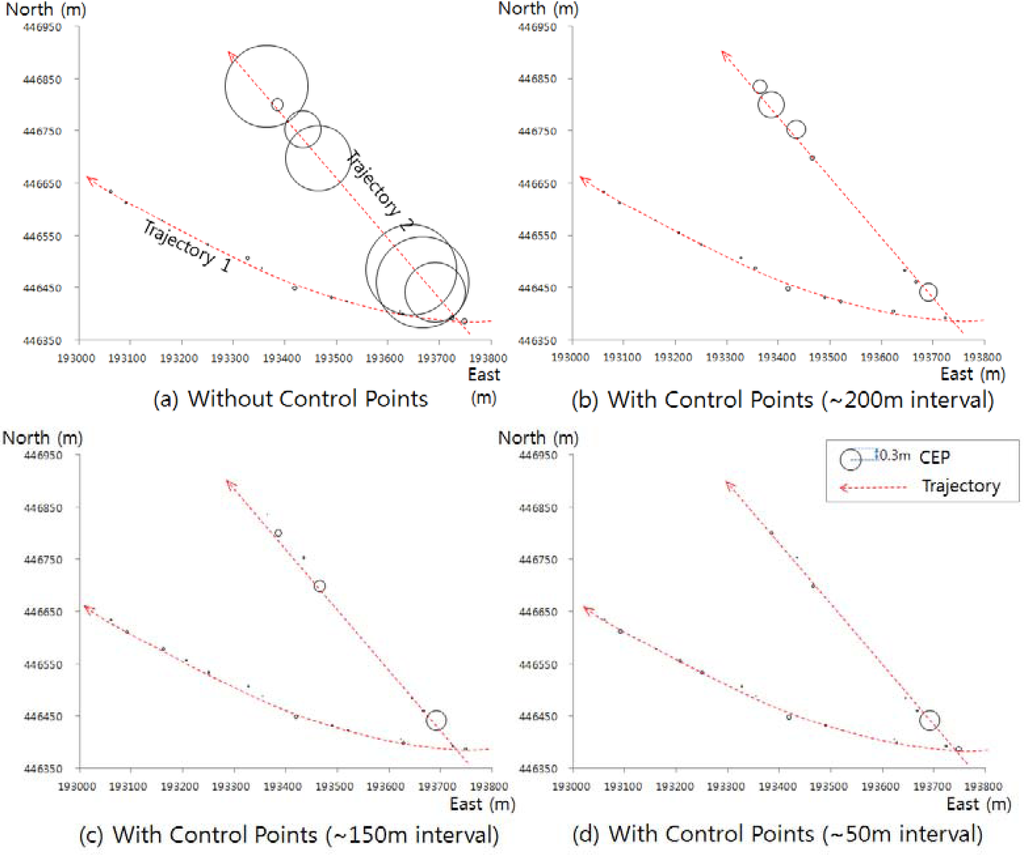

Figure 6. Changes in the LMMS survey accuracy according to the intervals between the control points. Trajectory 1 has a good environment for Global Positioning System (GPS) signal reception, unlike Trajectory 2.

Click here to enlarge figure

Figure 6. Changes in the LMMS survey accuracy according to the intervals between the control points. Trajectory 1 has a good environment for Global Positioning System (GPS) signal reception, unlike Trajectory 2.
Remotesensing 05 02513f6
Remotesensing 05 02513f7

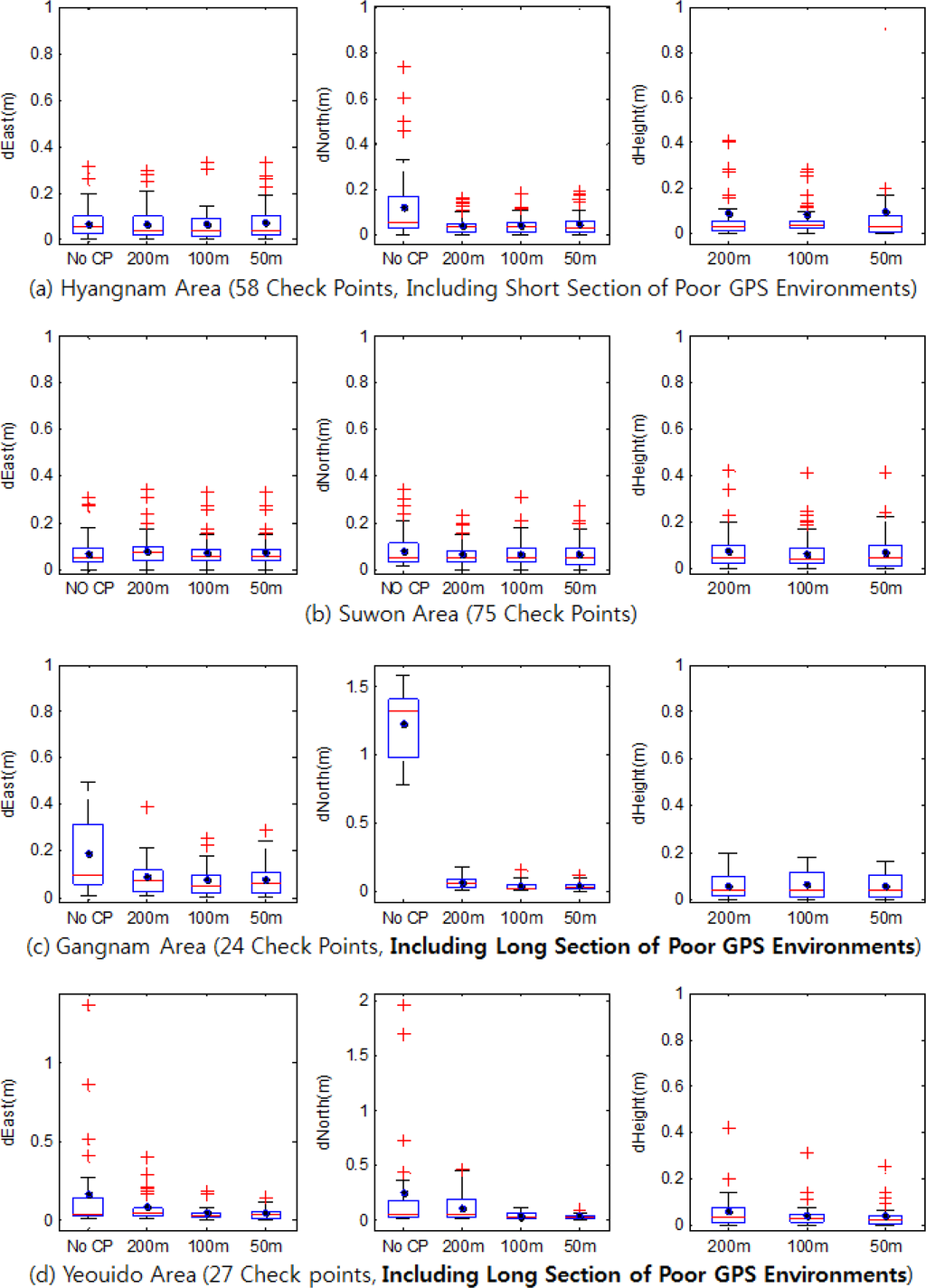

Figure 7. Results of the assessment of the accuracy of LMMS surveying that was conducted in the four study areas. The method of improving the accuracy of the GPS/INS integration results via the minimum number of control points was applied to the LMMS surveying results. The changes in the errors according to the intervals between the control points are shown in each graph.

Click here to enlarge figure

Figure 7. Results of the assessment of the accuracy of LMMS surveying that was conducted in the four study areas. The method of improving the accuracy of the GPS/INS integration results via the minimum number of control points was applied to the LMMS surveying results. The changes in the errors according to the intervals between the control points are shown in each graph.
Remotesensing 05 02513f7
Remotesensing 05 02513f8

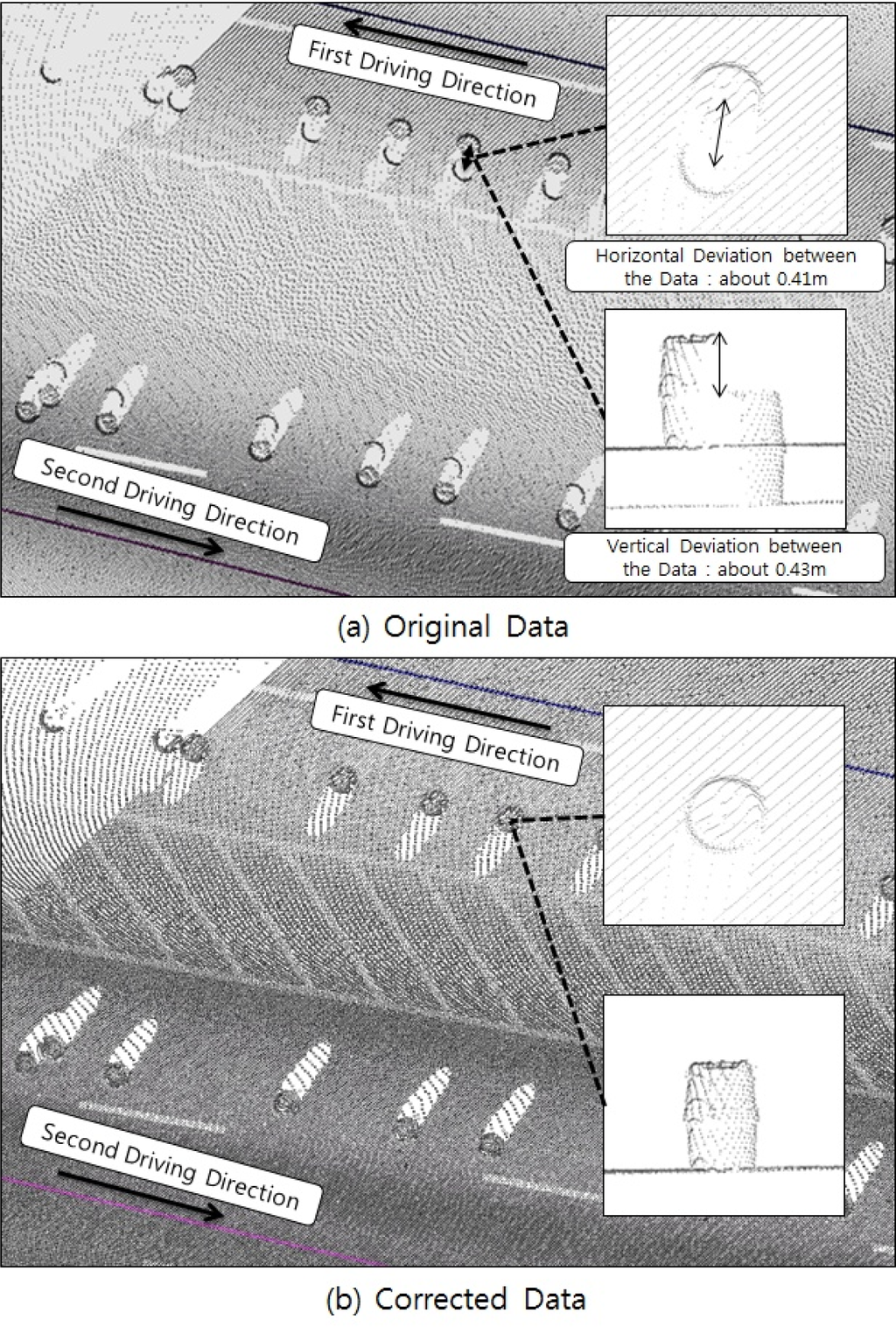

Figure 8. Effects of the method of removing deviations between duplicate LMMS data by applying the minimum number of tie points. (a) LiDAR point cloud gathered by the round-tripped LMMS, with deviations in the data. (b) Corrected data in which most deviations were removed by applying the method.

Click here to enlarge figure

Figure 8. Effects of the method of removing deviations between duplicate LMMS data by applying the minimum number of tie points. (a) LiDAR point cloud gathered by the round-tripped LMMS, with deviations in the data. (b) Corrected data in which most deviations were removed by applying the method.
Remotesensing 05 02513f8
Remotesensing 05 02513f9

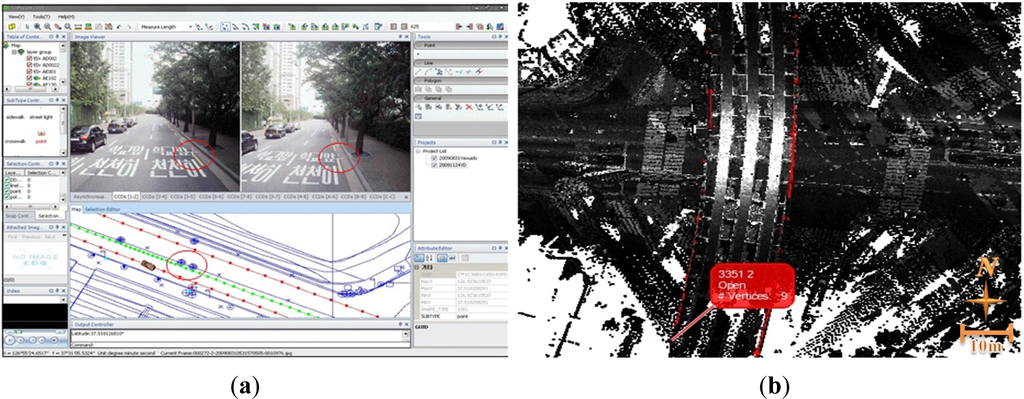

Figure 9. Surveying methods used for the mapping objects. (a) Close range photogrammetric surveying using stereo image; (b) 3D screen digitizing using LiDAR point clouds.

Click here to enlarge figure

Figure 9. Surveying methods used for the mapping objects. (a) Close range photogrammetric surveying using stereo image; (b) 3D screen digitizing using LiDAR point clouds.
Remotesensing 05 02513f9
Remotesensing 05 02513f10

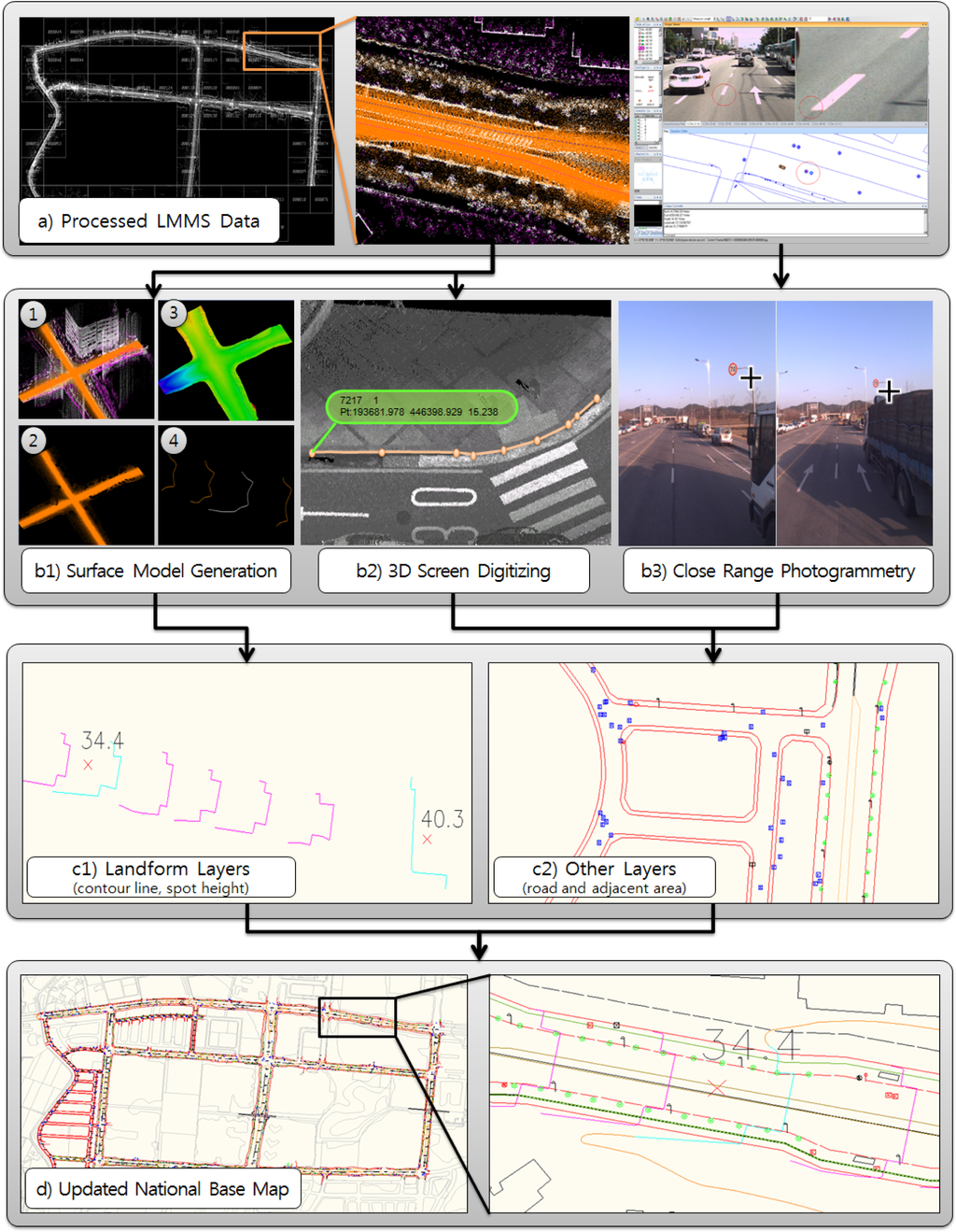

Figure 10. Mapping methods by type of features and results of the demonstrated National Base Map updates. (a) Processed LMMS data via geo-referencing and correction using control and tie points. (b) Mapping methods by type of features. (c) Generated map objects. (d) Map updates result.

Click here to enlarge figure

Figure 10. Mapping methods by type of features and results of the demonstrated National Base Map updates. (a) Processed LMMS data via geo-referencing and correction using control and tie points. (b) Mapping methods by type of features. (c) Generated map objects. (d) Map updates result.
Remotesensing 05 02513f10
Remotesensing 05 02513f11

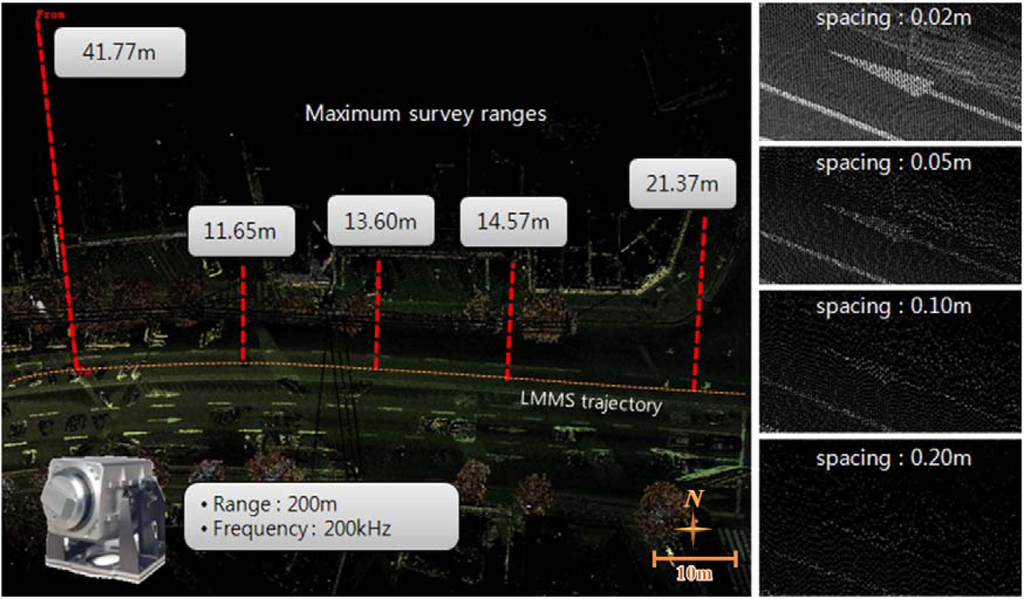

Figure 11. Samples of the maximum survey ranges in laser surveying (Left) and change in the possibility of precise mapping via the average spacing between the LiDAR points (Right).

Click here to enlarge figure

Figure 11. Samples of the maximum survey ranges in laser surveying (Left) and change in the possibility of precise mapping via the average spacing between the LiDAR points (Right).
Remotesensing 05 02513f11
Remotesensing 05 02513f12
Figure 12. Changes in the average error size in photogrammetric surveying based on the distance between the digital camera and the objects (Left), and change in the possibility of precise mapping via the image resolution (Right).

Click here to enlarge figure

Figure 12. Changes in the average error size in photogrammetric surveying based on the distance between the digital camera and the objects (Left), and change in the possibility of precise mapping via the image resolution (Right).
Remotesensing 05 02513f12
Remotesensing 05 02513f13
Figure 13. Types of map layers that can be updated with LMMS data. (a) Results of the buffer analysis and line-of-sight analysis. (b) Concept of the line-of-sight analysis. (c) Sample investigation using LMMS data.

Click here to enlarge figure

Figure 13. Types of map layers that can be updated with LMMS data. (a) Results of the buffer analysis and line-of-sight analysis. (b) Concept of the line-of-sight analysis. (c) Sample investigation using LMMS data.
Remotesensing 05 02513f13
Table Table 1. Specifications of the LMMS equipment that were used for the data collection.

Click here to display table

Table 1. Specifications of the LMMS equipment that were used for the data collection.
EquipmentMain SensorCharacteristicsSpecifications
Laser-scanner-centered LMMS (LYNX mobile mapper, Optech Inc. [4])Laser scannerMaximum range100 m
Range precision7 mm (1 sigma)
Scan rate100 Hz
Field of view360°

GPS/INS systemCompositionGPS, INS and DMI
Error rangeX and Y position: 0.1 m
(GPS outage, 60 s)Z position: 0.07 m
Roll and pitch: 0.005°
True heading: 0.015°

Digital-camera-centered LMMS (GEOTWO Van, GEOTWO Co., Ltd., Gyunggi, Korea)Digital cameraResolution2,048 × 2,048
Frame rate7.5 Hz
Shutter typeGlobal shutter
Quantity8
Lens typeMegapixel fixed lens

GPS/INS systemCompositionGPS, INS and DMI
Error rangeX and Y position: 0.15 m
(GPS outage, 60 s)Z position: 0.1 m
Roll and pitch: 0.005°
True heading: 0.018°
Table Table 2. Major specifications of the National Base Map of South Korea.

Click here to display table

Table 2. Major specifications of the National Base Map of South Korea.
ItemSpecifications
Scales and layouts
  • Scale: 1–5,000

  • Size: 1′30″ × 1′30″

  • Coverage: Nationwide

Accuracy standards (allowable error in meters)
  • New production: 3.50 m (horizontal) and 1.67 m (vertical)

  • Updating production: 5.00 m (horizontal) and 2.50 m (vertical)

Layer systems
*Types (numbers of layers)
  • Railways (19), Rivers (67), Roads (95), Buildings (147), Land types (49), Facilities (79), Topographies (45), Administration and administrative boundaries (28), Cartographic notations (53)

Methods of new map production
  • General areas: Aerial photogrammetry surveying

  • Flight-restricted areas: Satellite imagery surveying

Methods and periods of revised map production
  • Periodic scheduled updates: Every two years via aerial photogrammetric surveying

  • Frequent unscheduled updates: Using as-built drawings that are revised as needed between periodic scheduled updates

Table Table 3. Regulations for maintaining the accuracy of the National Base Map of South Korea.

Click here to display table

Table 3. Regulations for maintaining the accuracy of the National Base Map of South Korea.
ItemMap Scale
Note
1/5,000 or Larger1/1,000 or Smaller
New productionPlane errorWithin 0.5 mmWithin 0.7 mmMap distance
ElevationSpot heightWithin Δ h/4Within Δ h/3Δ h: Intervals of intermediate contours
ErrorContour lineWithin Δ h/2
UpdatesPlane errorWithin 0.7 mmWithin 1.0 mmMap distance
ElevationSpot heightWithin Δ h/3Within Δ h/2Δ h: Intervals of intermediate contours
ErrorContour lineWithin Δ h/2
Table Table 4. Map layers that can be completely updated via LMMS.

Click here to display table

Table 4. Map layers that can be completely updated via LMMS.
ClassificationMap LayersGeometry Types in Scales
1:1,0001:5,000

BuildingApartmentPolygonPolygon
TrafficRoad BoundaryPolygonPolygon
Road CenterlineLineLine
PedestrianLineLine
CrosswalkPolygonNone
Safety ZonePolygonNone
ViaductPolygonPolygon
BridgePolygonPolygon
IntersectionPolygonNone
OverpassPolygonPolygon
InterchangePolygonPolygon
TunnelPolygonPolygon
Tunnel EntranceLineLine
Bus StationPointNone
LightsPointNone

FacilityPower Poles/Communications PolesPointNone
ManholesPointNone
HydrantPointNone
Public TelephonePointNone
MailboxPointNone
Bulletin BoardPointNone
SignPointNone
Gas StationPointNone
Parking LotPolygonPolygon
