Structural and Geomechanical Analysis of Natural Caves and Rock Shelters: Comparison between Manual and Remote Sensing Discontinuity Data Gathering

by
Abdelmadjid Benrabah
1,
Salvador Senent Domínguez
1,
Fernando Carrera-Ramírez
2,
David Álvarez-Alonso
3,
María de Andrés-Herrero
3 and
Luis Jorda Bordehore
1,*
1
ETSI Caminos, Canales y Puertos, Universidad Politécnica de Madrid, C/Prof. Aranguren, s/n, 28040 Madrid, Spain
2
RAC, Rock Art Conservation and Management, 36202 Vigo, Spain
3
Department of Prehistory, Ancient History and Archaeology, Complutense University of Madrid, C/Profesor Aranguren, 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
Remote Sens. 2024, 16(1), 72; https://doi.org/10.3390/rs16010072
Submission received: 5 November 2023 / Revised: 7 December 2023 / Accepted: 13 December 2023 / Published: 23 December 2023
(This article belongs to the Special Issue Remote Sensing in Environmental Modelling)
Browse Figures
Review Reports Versions Notes

Abstract

:
The stability of many shallow caves and rock shelters relies heavily on understanding rock discontinuities, such as stratification, faults, and joints. Analyzing these discontinuities and determining their orientations and dispersion are crucial for assessing the overall stability of the cave or shelter. Traditionally, this analysis has been conducted manually using a compass with a clinometer, but it has certain limitations, as only fractures located in accessible areas like the lower part of cave walls and entrances are visible and can be assessed. Over the past decade, remote sensing techniques like LiDAR and photogrammetry have gained popularity in characterizing rocky massifs. These techniques provide 3D point clouds and high-resolution images of the cave or shelter walls and ceilings. With these data, it becomes possible to perform a three-dimensional reconstruction of the cavity and obtain important parameters of the discontinuities, such as orientation, spacing, persistence, or roughness. This paper presents a comparison between the geomechanical data obtained using the traditional manual procedures (compass readings in accessible zones) and a photogrammetric technique called Structure from Motion (SfM). The study was conducted in two caves, namely, the Reguerillo Cave (Madrid) and the Cova dos Mouros (Lugo), along with two rock shelters named Abrigo de San Lázaro and Abrigo del Molino (Segovia). The results of the study demonstrate an excellent correlation between the geomechanical parameters obtained from both methods. Indeed, the combination of traditional manual techniques and photogrammetry (SfM) offers significant advantages in developing a more comprehensive and realistic discontinuity census.

1. Introduction

The stability of slopes and underground excavations is controlled by various structural features, such as stratification, faults, and joints [1,2,3,4], as well as rock properties and weathering. Furthermore, a proper classification of discontinuities is key to assessing the stability of caves and shelters [5]. In general, geotechnical experts ascertain the mechanisms of deformations and quantities of folds in rock using landscape investigation to collect and document the orientation data of the rock mass using a compass equipped with a clinometer, scanline survey, and measuring tape [6,7,8]. In recent decades, the use of remote sensing analysis and digital geological surveys has provided more information regarding various rock mass discontinuities [9,10].
The manual technique using a compass is still widely employed, but it possesses constraints as the data collection process relies on visual inspection and manual quantification, which are contingent on the expertise and assessment of the engineers and geologists [11,12] and the accessibility of the sites. For example, large caves present important problems related to access to roofs and walls for collecting structural data, and only in lower areas can the geomechanical characterization be carried out. Frequently, this tends to result in biased outcomes and, consequently, inadequate evaluations of hazard susceptibility ratings and the potential risks associated with unstable rocks [13,14].
The advancement of remote sensing imaging technologies (terrestrial laser scanning (TLS) and photogrammetry) has facilitated the acquisition of 3D data of the terrain surface with exceptional precision in a reduced timescale and has provided expanded geographical coverage [15,16,17].
The two main remote data collection techniques are Interferometric Synthetic Aperture Radar (InSAR) and Light Detection and Ranging (LiDAR) [16,18]. InSAR enables high-precision measurements of terrain surface movements to be obtained [15], which are primarily utilized for landslide monitoring and detection [19]. On the other hand, LiDAR captures a 3D point cloud representation of the terrain surface, which offers the possibility of working with geometrical surface information. The comparison between point clouds acquired during different time frames also enables the monitoring and detection of landslides [20,21].
In addition to the previous remote data collection techniques, digital photography has experienced substantial progress through the evolution of photogrammetry methods. One such technique is Structure from Motion (SfM), which enables the reconstruction of surfaces using 3D point clouds derived from digital photographs. SfM is recognized as an automated, high-resolution, and cost-effective photogrammetry approach rooted in the principles of stereoscopic photogrammetry (reconstructing 3D structures from image superposition). Originally stemming from artificial vision and the development of automated algorithms for digital image correlation (DIC), SfM deviates from conventional photogrammetry by automatically solving scene geometry, camera positions, and orientations without the need to establish a pre-defined control point network with known 3D coordinates. The process involves solving collinearity equations from many conjugated points (common image points) identified during the automatic correlation phase of a series of superimposed images acquired in an unstructured manner [22,23]. Compared to LiDAR instrumentation, the equipment used in SfM incurs lower economic costs while still yielding reasonably acceptable results [24,25]. The limitations of SfM depend on factors such as the lens quality, processing time, image-capturing procedures, and machine resource consumption.
In the context of underground spaces, employing digital photogrammetry presents challenges due to the dark environment, necessitating meticulous preparation for image capture and careful consideration of lighting conditions. Nevertheless, the quality and resolution of the images directly influence the resulting model’s quality. A greater number of high-quality images contributes to superior model outputs. However, this also means increased resource consumption and a longer computational time [15,26].
In recent years, several caves and shelters have been documented using TLS (Terrestrial Laser Scanning) and LiDAR (Light Detection and Ranging) for various applications [27]. However, the use of Structure from Motion (SfM) in caves and rock shelters for stability assessment has been rarely reported [28]. As a result, this study aims to compare and combine both manual data collection and photogrammetry SfM methods to validate SfM’s applicability in assessing the stability of caves and rock shelters.

2. Regional Framework

The studied sites are two caves and two shelters that have relevant historical and archaeological value and are located in different zones of Spain (Figure 1).
The Reguerillo Cave is located in Patones, a small village in the north of Madrid province. This cave (Figure 2a) is a reference point for speleology in Madrid and in the entire central area of Spain [29,30]. It is in the Cretaceous band that borders the Guadarrama–Somosierra–Ayllón Mountains ranges formed by dolostones, dolomitic sandstones, limestone and marly limestone. The cave has a length of 8 km. Geomechanical characterization in the field campaign was only focused in the southern cave entrance (Figure 2a) because the entrance is closed and forbidden due to its archaeological relevance.
Cova dos Mouros is a geological structural controlled shelter with prehistoric painting located in Baleira, Galicia (Figure 2b), northwest of Spain. These are motifs, preferably geometric, which are red in color and painted directly on the quartzite stone support. Although the site is still under study, the excavations carried out [31,32] detect traces of human presence from the Middle Neolithic (IV Millennium BC) to the Bronze Age Initial (transition III–II Millenniums BC). All this allows confirming the stylistic ascription of the paintings to what was to become known as “schematic painting”.
The cave is around 20 m depth of predominantly quartzite. The geomechanical characterization was conducted both at the entrance and inside the cave.
The two shelters located in Segovia city are called Abrigo San Lazaro [33,34] (Figure 2c) and Abrigo del Molino [35] (Figure 2d). Both shelters are small cavities originated in the Cretaceous dolostones and dolomitic sandstones of the left bank of the Eresma river (Segovia, Spanish Central System piedment, Central Iberia).
The geoarchaeological research in the Abrigo del Molino and Abrigo de San Lázaro presents a rich sequence of levels that covers substantially all oxygen isotope stages 3 (OIS 3), including several levels with human occupation in both sites. These results are of great value for analyzing the end of Neanderthal human occupations in the Iberian Peninsula and to obtain contextual data which can help us to establish a chronostratigraphy in the terraces of the upper part of the Eresma River valley thanks to the palaeo-flood levels documented in the basis of the sequence.

3. Materials and Methods

3.1. Photogrammetry Modeling

3.1.1. Photogrammetry SfM

Photogrammetry is a remote sensing technique that enables the extraction of a 3D geometric property from a pair or a set of images depicting a scene. The different strategies to obtain this 3D information are based on the principles of stereoscopic vision (using only two photographs) or in modern 3D reconstruction techniques using automatic correlation algorithms of images [5,15,16,24,25,26].
Structure from Motion (SfM) technology has recently emerged as a highly efficient alternative. Its primary advantage lies in its ability to utilize multiple overlapping photographs to determine the camera’s orientation parameters, thus eliminating the need for calibration (Figure 3). To achieve this, the SfM algorithm follows these steps:
(i) It detects numerous key-points within each 2D image. (ii) These key-points are then matched in overlapping images. (iii) An iterative bundle adjustment algorithm is employed to estimate the camera parameters for each image, allowing for the computation of 3D positions of these key-points and the initial creation of a scattered 3D point cloud. (iv) Subsequently, a dense 3D point cloud is generated using Multi-View Stereo (MVS) techniques, which involve the correspondence between points found in more than two images. (v) Finally, the point cloud can be scaled and oriented within a reference system by utilizing a minimum of three ground control points (GCPs) (see Section 3.1.2). These GCPs are identifiable in the photos, and their coordinates within the system are known. [25].
This technique can be applied using software packages like Agisoft Metashape or ReMake Autodesk.
In the field campaign, 89 photographs at Cova dos Mouros, 160 in the Reguerillo Cave, 159 in the Abrigo del Molino rock shelter and 84 in Abrigo de San Lazaro were taken. All photographs were captured with the maximum possible resolution (1 MP, 3:2; effective pixels 3888 × 2592; RAW-JPEG format). These photos were gathered by an amateur digital Nikon coolpix 2800 “low-cost” camera using a constant focal distance (10.4 mm) and constant camera settings considering the normal light condition of the sites to generate a quick 3D point cloud with the Structure from Motion (SfM) methodology for each site. The variation in the number of photographs for each site is influenced by the extent and diversity of geometric irregularities present in the studied area.
To generate the 3D models of the caves and the shelters studied from the photographs taken in each site, the software Agisoft Metashape [36] was used. This software allows building 3D models by selecting the level of computation, which influences the quality of the results (Figure 4). In this work, all the 3D models were generated in high precision to obtain the quality required that allows visually observing the discontinuities sets, and the computation time for the generation of each model was about 24 h.

3.1.2. Portable Orientation Template

The 3D cloud point generated should be correctly oriented and scaled. And to avoid the use of a topographic control device, a powerful rapid and low-cost tool “portable orientation template” has been developed [25,26]. This template is reminiscent of a traditional compass, but on a larger scale, it includes five ground control points (GCPs), 3 axes (x, y, z), among which the y-axis can be aligned to the north using a compass, and a spirit level that can be used to ensure the template’s horizontal placement. With the GCP coordinates already known, the template functions as a local reference plane (Figure 5).
In the pursuit of a thorough evaluation of the quality of the point cloud 3D model, we conducted a meticulous assessment of its accuracy. This assessment involved a detailed comparison of the known, real-world coordinates of ground control points (GCPs) against the corresponding coordinates generated by the model.
Table 1 meticulously delineates the deviations in the x, y, and z axes for each GCP within every model from the test sites. These values are reasonable [24] and represent critical metrics for assessing the model’s precision and accuracy.
Furthermore, Table 2 provides the calculated root mean squared (RMS) error values derived from the point cloud models. These RMS error values offer valuable insights into the overall accuracy and reliability of the models.

3.1.3. Analysis of the 3D Point Cloud Extraction of Discontinuities

Using the open software CloudCompare [37] and following a specific process, discontinuities sets were analyzed and determined. First, we conducted a semi-automatic analysis using the plugin Facet/fracture detection, which allows observing the plan sets represented in different colors (Figure 6); each color represents a family of discontinuities. After that, the orientation of those discontinuities can be measured using the tool compass by point selection (Figure 6). This technique allows obtaining orientation in remote and risky zones.
To compare and validate the data collected from the 3D point cloud with the orientation measured in the field using a compass, a pair of control planes was carefully selected at each site. These control planes, as exemplified in Figure 7, underwent manual measurement procedures facilitated by a compass. These measurements were conducted at a specific location, which was denoted by a prominently marked green reference point (Figure 7b). Simultaneously, data pertaining to the same location were acquired from the 3D point cloud. This dual approach ensures a comprehensive comparison between manual measurements and those obtained from the 3D point cloud at the identical reference point.

3.2. Geomechanical Station and Manual Compass Measurements

The geotechnical stability of shallow caves in jointed rock mases is controlled by the orientation and strength of discontinuities. In these cases, no tensional effects nor plastification are expected: The behavior of the terrain involves “rigid blocks” moving or shearing among themselves. This is the case of the caves and shelters of this investigation: competent jointed rock mass at very shallow depth (below 20 m overburden thickness). Generally, in rock engineering and geology, the orientation of discontinuities (joints, faults, stratification) is represented by dip angle and dip direction. The widely employed instrument to determine the orientation with respect to magnetic north is the compass [5,15], which requires access to the site (Figure 8a). However, when it comes to caves, the process raises some disadvantages: only fractures located in the lower zone can be assessed (Figure 8b). In all our study sites, we focused on obtaining measurements of plans below 2 m. We measured the discontinuity orientations using a Freiberger geological compass, and the process took approximately 30 min at each site. In the Reguerillo Cave and Cova dos Mouros, we recorded 12 and 15 measurements, respectively, while in Abrigo del Molino and Abrigo San Lazaro rock shelters, we recorded 10 and 19 measurements, respectively.
To further assess the accuracy of the 3D point cloud, we initially compared the difference in measurements of the control plane (see Section 3.1.3), this comparison was initially performed in the field using a compass and subsequently within the 3D point cloud using the tool compass in Cloudcompare. Table 3 indicates a high level of similarity in the values obtained, with only a small difference observed. This variance is considered reasonable and consistent with the typical precisions acknowledged when characterizing spaces with difficult accessibility [5,15,29]. Moreover, these errors are comparable to manual measurements made with a compass, which rely on the expertise and judgment of the engineers and typically range between 2 to 8 degrees on average.

4. Results

4.1. Reguerillo Cave

Figure 9 shows the results of the analysis conducted to identify discontinues sets within the Reguerillo Cave. Figure 9a illustrates 12 poles obtained manually by compass at the entrance of the cave, identifying four main sets (J1, J2, J3, E) with their corresponding dip/dip direction. Therefore, Figure 9b shows the results obtained from the 3D point cloud (50 poles), and it is clear that more values are shown for joints J2 and J4. We highlight the appearance of J3, which is not visible in Figure 9a. Figure 9c shows a comparison and the difference of the orientation values of the main planes: the results are highly similar with a small difference in the scattering of poles obtained. In Figure 9d, a combination of poles acquired with both techniques, manually by compass and from the 3D point cloud, is shown. This combination significantly improves the original stereogram (Figure 9a). The addition contribution of more values obtained in various locations of the cave, especially the roof, allows the observation of joint J3.

4.2. Cova dos Mouros Shelter

During the field campaign, two geomechanical stations (GS) were established to identify discontinuity sets within Cova dos Mouros. The results of GS2 are illustrated in Figure 10. Specifically, Figure 10a shows 15 poles obtained by manual measurements with a compass, and Figure 10b shows 50 poles obtained from the 3D point cloud. Both figures highlight the main sets (J1, J2, J3) with their corresponding dip/dip direction. Special consideration was given to joint S0, which remains unseen in Figure 10a due to the challenges in manually collecting data with a compass and difficulties in accessing its location in the cave’s ceiling. The red and yellow colors indicate areas with the highest concentration of joint poles. Figure 10c displays the error and comparison of the orientation values of the main planes with the results being significantly similar with only a minor difference. Figure 10d shows a combination of poles obtained with a compass and from the 3D point cloud. This combination of data clearly improved the original stereogram (Figure 10a) with additional values.

4.3. Abrigo del Molino Rock Shelter

Three geomechanical stations (GS) were conducted in the Abrigo del Molino rock shelter. The results of the discontinuities collection from the main GS3 are illustrated in Figure 11 below with similar observations as before. Figure 11a depicts data obtained manually with a compass in the field, in contrast to Figure 11b, which represents data collected from the 3D point cloud. The most notable observations are J3 and J4, which are not visible in Figure 11a. Figure 11c displays the error and comparison; the results are remarkably similar with only a small difference. The combination of data significantly improved the original stereogram in Figure 11a, as evident in Figure 10d.

4.4. Abrigo de San Lazaro Rock Shelter

The results of the discontinuities collection in Abrigo de San Lazaro are illustrated in Figure 12. We note similar observations as in the previous sites. Figure 12a showcases data obtained manually with a compass in the field, revealing only two visible joints (J1 and J2) and some dispersed poles due to challenges in manually collecting data. The most significant observation is the appearance of S0 in Figure 12b (data collected from the 3D point cloud). The errors illustrated in Figure 12c are minimal and reasonable. Lastly, the combination of data results in a rich stereogram (Figure 12d).
Table 4 summarizes the orientation values obtained for each site. The data were collected manually via a compass in the field and from the 3D point cloud. Additionally, the table presents the differences and errors in data between both methods.

5. Discussion

The orientation of the discontinuities has been determined using two methods: manual measurements via a compass and from the 3D point cloud using CloudCompare software. Two planes have been selected (see example in Figure 7) for data validation, and their measurements are illustrated in Table 1. The dip and dip direction of each plan are highly consistent with an error of less than 6 degrees at the four test sites.
The data obtained from manual compass measurements, as shown in Figure 9a, Figure 10a, Figure 11a and Figure 12a, resulted in low data stereograms due to the lack of measurements in some inaccessible (above 2 m) and risky zones at all sites. In the stereogram of the Reguerillo Cave, four main sets are represented, while there are three in Cova dos Mouros, three in Abrigo del Molino, and two in Abrigo de San Lazaro. Conversely, the data obtained from the 3D point cloud are significantly better at all sites, resulting in rich stereograms. Particular attention was given to the appearance of some joints, as seen in Figure 9b, Figure 10b, Figure 11b and Figure 12b: joint J3 in the stereogram of the Reguerillo Cave, joint S0 in Cova dos Mouros, joints J3 and J4 in Abrigo del Molino, and joint S0 in Abrigo de San Lazaro. These new joints are located in high inaccessible or risky zones; for instance, joint J3 in the Reguerillo Cave is on the front wall at approximately 3m high, and joint S0 in Cova dos Mouros is in the roof of the cave.
A comparison of the data illustrated in Figure 9c, Figure 10c, Figure 11c and Figure 12c shows a small difference in the location of pole concentration with coherent results within a 10-degree margin in the worst case [15].
By combining the data presented in Figure 9d, Figure 10d, Figure 11d and Figure 12d, it becomes evident that measurements obtained from different methods complemented each other, resulting in a more realistic stereogram representation.
The consistency of the data in Table 2 is deemed satisfactory and falls within the margin of measurement variability (uncertainty) associated with manual orientation measurement with a compass [15,26,38,39].
The proposed methodology offers several advantages over alternative approaches. Firstly, it requires readily accessible and relatively inexpensive equipment, such as a reasonably good camera. Furthermore, the personnel responsible for taking the pictures do not need advanced photography skills, unlike the use of UAVs (Unmanned Aerial Vehicles) or other methods like Lidar and TLS.
Numerous authors have underscored the positive impact of Structure from Motion (SfM) techniques, regardless of the equipment used, ranging from digital low-cost cameras [15,24,26] to UAVs (Unmanned Aerial Vehicles) [38,39]. It is a well-established fact that SfM provides a more realistic characterization of discontinuity orientation compared to traditional methods like compass clinometers. As such, SfM is expected to take on a central role in shaping the future of surveying techniques, becoming an indispensable asset for researchers, professionals, and diverse industries.
The open-source software CloudCompare offers significant benefits for the visu-alization and analysis of 3D remote sensing rock models. This program allows users to view point clouds from various angles, enabling comprehensive observation and the interpretation of rock discontinuities.

6. Conclusions

The objective of this study was to compare two methods of obtaining joint sets: manual field data collection using a compass and remote sensing data acquisition through photogrammetry with the assistance of a point cloud program. We collected significant structural data from various caves and shelters in a quick and straightforward manner, aiming to validate the methodology for remote locations.
The information was gathered using different techniques (manual data collection with a compass and Structure from Motion (SfM)), neither of which requires topographic precision. Therefore, comparing the results with values obtained from a high-precision technique was not deemed necessary, as it was not part of the study’s focus.
To achieve this, control points were employed in each site. These planes are measured manually with a compass at one point identified by a green mark and from the 3D point cloud in the same point. We used a portable orientation template, equipped with five strategically placed ground control points (GCPs), and it encompasses three axes (x, y, z). The y-axis, crucial for precise alignment with the north, can be conveniently oriented using a conventional compass. To guarantee the template’s level placement, a spirit level serves as a dependable tool, which proved to be a practical tool that expedited the process and replaced the need for topographic control devices.
The study primarily focused on comparing the differences and similarities in the data obtained from both techniques, including dip and dip direction measurements.
Manual data collection with a compass does have limitations, as the process relies on visual examination and manual measurement, and there are access limitations to roofs and walls for obtaining structural data. In our cases, compass data collection was restricted to lower and safe areas, introducing bias in the resulting diagrams.
This study highlighted the value of combining manually collected data with a compass and data extracted from 3D point clouds using SfM. The manual data collection and visual analysis allowed for the prior recognition of planes controlling stability. It also allows gathering data on the properties of joints that we cannot obtain remotely. By combining compass and remote data, the analysis became more objective and of better quality with the added benefit of obtaining other pole clouds for planes that were not accessible manually (Figure 9, Figure 11 and Figure 12).
The validity of the 3D point cloud was established through a comparison of orientations measured by both techniques (Figure 7 and Table 3). The results demonstrated coherence between compass measurements and orientations derived from the 3D point cloud. In the most unfavorable case, the orientation variation was under 10° for the pole vector but on average around 5°. Structure from Motion photogrammetry proved to be a highly effective method for obtaining structural data in inaccessible areas of caves and shelters.

Author Contributions

Conceptualization, L.J.B. and A.B.; methodology, A.B.; software, A.B.; validation, S.S.D., L.J.B., M.d.A.-H., F.C.-R. and D.Á.-A.; formal analysis, A.B., S.S.D., L.J.B., M.d.A.-H., F.C.-R. and D.Á.-A.; investigation, A.B., S.S.D., L.J.B., M.d.A.-H., F.C.-R. and D.Á.-A.; resources, A.B., S.S.D., L.J.B., M.d.A.-H., F.C.-R. and D.Á.-A.; data curation, A.B., L.J.B. and S.S.D.; writing—original draft preparation, A.B., S.S.D., L.J.B., M.d.A.-H., F.C.-R. and D.Á.-A.; writing—review and editing, A.B., S.S.D., L.J.B., M.d.A.-H., F.C.-R. and D.Á.-A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wyllie, D.C.; Mah, C. Rock Slope Engineering; Institution of Mining and Metallurgy: London, UK, 2004; ISBN 0-203-49908-5. [Google Scholar]
  2. Fossen, H. Structural Geology; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar] [CrossRef]
  3. Brideau, M.-A.; Yan, M.; Stead, D. The role of tectonic damage and brittle rock fracture in the development of large rock slope failures. Geomorphology 2009, 103, 30–49. [Google Scholar] [CrossRef]
  4. Agliardi, F.; Crosta, G.B.; Meloni, F.; Valle, C.; Rivolta, C. Structurally-controlled instability, damage and slope failure in a porphyry rock mass. Tectonophysics 2013, 605, 34–47. [Google Scholar] [CrossRef]
  5. Jordá Bordehore, L.; Riquelme, A.; Tomás, R.; Cano, M. Análisis Estructural y Geomecánico En Zonas Inaccesibles de Cavernas Naturales Mediante Técnicas Fotogramétricas: Aplicación En La Entrada de La Cueva de Artá (Mallorca). El Karst y el Hombre las Cuevas Como Patrim. Mund. 2016, 528, 255–265. [Google Scholar]
  6. Assali, P.; Grussenmeyer, P.; Villemin, T.; Pollet, N.; Viguier, F. Surveying and modeling of rock discontinuities by terrestrial laser scanning and photogrammetry: Semiautomatic approaches for linear outcrop inspection. J. Struct. Geol. 2014, 66, 102–114. [Google Scholar] [CrossRef]
  7. Turanboy, A.; Ulker, E. An attempt at 3D visualization of in situ rock mass structures. Comput. Geosci. 2008, 12, 181–192. [Google Scholar] [CrossRef]
  8. Lee, S.; Suh, J.; Park, H.D. Smart Compass-Clinometer: A smartphone application for easy and rapid geological site investigation. Comput. Geosci. 2013, 61, 32–42. [Google Scholar] [CrossRef]
  9. Ozturk, H.S.; Kocaman, S.; Gokceoglu, C. A low-cost approach for determination of discontinuity orientation using smartphone images and application to a part of Ihlara Valley (Central Turkey). Eng. Geol. 2019, 254, 63–75. [Google Scholar] [CrossRef]
  10. Cirillo, D.; Cerritelli, F.; Agostini, S.; Bello, S.; Lavecchia, G.; Brozzetti, F. Integrating Post-Processing Kinematic (PPK)–Structure-from-Motion (SfM) with Unmanned Aerial Vehicle (UAV) Photogrammetry and Digital Field Mapping for Structural Geological Analysis. ISPRS Int. J. Geo-Inf. 2022, 11, 437. [Google Scholar] [CrossRef]
  11. Allmendinger, R.W.; Siron, C.R.; Scott, C.P. Structural data collection with mobile devices: Accuracy, redundancy, and best practices. J. Struct. Geol. 2017, 102, 98–112. [Google Scholar] [CrossRef]
  12. Novakova, L.; Pavlis, T.L. Modern Methods in Structural Geology of Twenty-first Century: Digital Mapping and Digital Devices for the Field Geology. In Teaching Methodologies in Structural Geology and Tectonics; Springer Geology: Berlin/Heidelberg, Germany, 2019; pp. 43–54. [Google Scholar]
  13. Filice, F.; Pezzo, A.; Lollino, P.; Perrotti, M.; Ietto, F. Multi-approach for the assessment of rock slope stability using in-field and UAV investigations. Bull. Eng. Geol. Environ. 2022, 81, 502. [Google Scholar] [CrossRef]
  14. Sturzenegger, M.; Stead, D. Close-range terrestrial digital photogrammetry and terrestrial laser scanning for discontinuity characterization on rock cuts. Eng. Geol. 2009, 106, 163–182. [Google Scholar] [CrossRef]
  15. Bordehore, L.J.; Riquelme, A.; Cano, M. Roberto Tomás Comparing manual and remote sensing field discontinuity collection used in kinematic stability assessment of failed rock slopes. Int. J. Rock Mech. Min. Sci. 2017, 97, 24–32. [Google Scholar] [CrossRef]
  16. Abellán, A.; Derron, M.H.; Jaboyedoff, M. Use of 3D Point Clouds in Geohazards. Special Issue: Current Challenges and Future Trends. Remote Sens. 2016, 8, 130. [Google Scholar] [CrossRef]
  17. Fernández-Lozano, J.; Gutiérrez-Alonso, G.; Ruiz-Tejada, M.Á.; Criado-Valdés, M. 3D digital documentation and image enhancement integration into schematic rock art analysis and preservation: The Castrocontrigo Neolithic rock art (NW Spain). J. Cult. Herit. 2017, 26, 160–166. [Google Scholar] [CrossRef]
  18. Jaboyedoff, M.; Oppikofer, T.; Abellán, A.; Derron, M.H.; Loye, A.; Metzger, R.; Pedrazzini, A. Use of lidar in landslide in vestigations: A review. Nat. Hazards 2012, 61, 5–28. [Google Scholar] [CrossRef]
  19. Tsironi, V.; Ganas, A.; Karamitros, I.; Efstathiou, E.; Koukouvelas, I.; Sokos, E. Kinematics of Active Landslides in Achaia (Peloponnese, Greece) through InSAR Time Series Analysis and Relation to Rainfall Patterns. Remote Sens. 2022, 14, 844. [Google Scholar] [CrossRef]
  20. Kyriou, A.; Nikolakopoulos, K.G.; Koukouvelas, I.K. Timely and Low-Cost Remote Sensing Practices for the Assessment of Landslide Activity in the Service of Hazard Management. Remote Sens. 2022, 14, 4745. [Google Scholar] [CrossRef]
  21. Al-Rawabdeh, A.; Moussa, A.; Foroutan, M.; El-Sheimy, N.; Habib, A. Time Series UAV Image-Based Point Clouds for Landslide Progression Evaluation Applications. Sensors 2017, 17, 2378. [Google Scholar] [CrossRef]
  22. Fonstad, M.A.; Dietrich, J.T.; Courville, B.C.; Jensen, J.L.; Carbonneau, P.E. Topographic structure from motion: A new development in photogrammetric measurement. Earth Surf. Process Landf. 2013, 38, 421–430. [Google Scholar] [CrossRef]
  23. Westoby, M.J.; Brasington, J.; Glasser, N.F.; Hambrey, M.J.; Reynolds, J.M. ‘Structure-from-Motion’ photogrammetry: A low-cost, effective tool for geoscience applications. Geomorphology 2012, 179, 300–314. [Google Scholar] [CrossRef]
  24. Riquelme, A.; Tomás, R.; Cano, M.; Pastor, J.L.; Jordá-Bordehore, L. Extraction of discontinuity sets of rocky slopes using iPhone12 derived 3DPC and comparison to TLS and SfM datasets. IOP Conf. Ser. Earth Environ. Sci. 2021, 833, 012056. [Google Scholar] [CrossRef]
  25. García-Luna, R.; Senent, S.; Jurado-Piña, R. Characterization of Underground Rock Masses Employing Structure from Motion: Application to a Real Case Tunnels and Underground Cities: Engineering and Innovation Meet Archaeology, Architecture and Art; Peila, D., Viggiani, G., Celestino, C., Eds.; Taylor & Francis Group: London, UK, 2019; ISBN 978-1-138-38865-9. [Google Scholar]
  26. García-Luna, R.; Senent, S.; Jurado-Piña, R.; Jimenez, R. Structure from Motion photogrammetry to characterize underground rock masses: Experiences from two real tunnels. Tunn. Undergr. Space Technol. 2019, 83, 262–273. [Google Scholar] [CrossRef]
  27. Idrees, M.O.; Pradhan, B. Geostructural stability assessment of cave using rock surface discontinuity extracted from terrestrial laser scanning point cloud. J. Rock Mech. Geotech. Eng. 2018, 10, 534–544. [Google Scholar] [CrossRef]
  28. Triantafyllou, A.; Watlet, A.; Le Mouélic, S.; Camelbeeck, T.; Civet, F.; Kaufmann, O.; Quinif, Y.; Vandycke, S. 3-D digital outcrop model for analysis of brittle deformation and lithological mapping (Lorette cave, Belgium). J. Struct. Geol. 2019, 120, 55–66. [Google Scholar] [CrossRef]
  29. Gutiérrez, L. Ángeles el uso de grandes escalas: Cuencas de visibilidad en los abrigos con arte esquemático en la sierra de patones (Madrid). Cuad. De Prehist. Y Arqueol. De La Univ. De Granada 2021, 31, 45–73. [Google Scholar]
  30. Pérez-Hidalgo, T.; José, T. Génesis y edad del karst del cerro de la oliva y la cueva del reguerillo (Torrelaguna, Madrid). In Agua, Minería y Medio Ambiente: Libro Homenaje al Profesor Rafael Fernández Rubio; Instituto Geológico y Minero de España: Madrid, Spain, 2005; pp. 225–242. [Google Scholar]
  31. Rodríguez Rellán, C.; Fábregas Valcarce, R.; Carrera Ramírez, F. Intervención arqueológica en el abrigo de Cova dos Mouros (Baleira, Lugo). Un primer ejemplo de pintura esquemática en Galicia. Munibe Antropol.-Arkeol. 2019, 70, 185–205. [Google Scholar]
  32. Rellán, C.R.; Valcarce, R.F.; Ramírez, F.C. Archaeological excavation of Cova dos Mouros rock-shelter (Baleira, Lugo). A first example of schematic paint in Galicia. Antropol.-Arkeol. 2019, 70, 185–205. [Google Scholar] [CrossRef]
  33. Álvarez-Alonso, D.; de Andrés-Herrero, M.; Díez-Herrero, A.; Rojo, J. Análisis geoarqueológico de las ocupaciones musterienses en el valle alto del río Eresma: El Abrigo del Molino (Segovia, España). Boletín Geológico Y Min. 2018, 129, 153–182. [Google Scholar] [CrossRef]
  34. Maté-González, M.Á.; Sánchez-Aparicio, L.J.; Blázquez, C.S.; García, P.C.; Álvarez-Alonso, D.; de Andrés-Herrero, M.; García-Davalillo, J.C.; González-Aguilera, D.; Ruiz, M.H.; Bordehore, L.J.; et al. On the Combination of Remote Sensing and Geophysical Methods for the Digitalization of the San Lázaro Middle Paleolithic Rock Shelter (Segovia, Central Iberia, Spain). Remote Sens. 2019, 11, 2035. [Google Scholar] [CrossRef]
  35. Álvarez-Alonso, D.; de Andrés-Herrero, M.; Díez-Herrero, A.; Medialdea, A.; Rojo, J. Neanderthal settlement in central Iberia: Geo-archaeological research in the Abrigo del Molino site, MIS 3 (Segovia, Iberian Peninsula). Quat. Int. 2018, 474, 85–97. [Google Scholar] [CrossRef]
  36. Agisoft Metashape Software Manual, Professional Edition; Version 1.6; Agisoft LLC: Petersburg, Russia, 2018.
  37. Girardeau-Montaut, D. CloudCompare, Open Source Project. 2017. Available online: https://www.danielgm.net/cc/ (accessed on 14 July 2022).
  38. Cawood, A.J.; Bond, C.E.; Howell, J.A.; Butler, R.W.H.; Totake, Y. LiDAR, UAV or compass-clinometer? Accuracy, coverage and the effects on structural models. J. Struct. Geol. 2017, 98, 67–82. [Google Scholar] [CrossRef]
  39. Cirillo, D. Digital Field Mapping and Drone-Aided Survey for Structural Geological Data Collection and Seismic Hazard Assessment: Case of the 2016 Central Italy Earthquakes. Appl. Sci. 2020, 10, 5233. [Google Scholar] [CrossRef]
Remotesensing 16 00072 g001
Figure 1. Location and geological context: (a) location of the study sites; (b) geological setting of the study area.
Figure 1. Location and geological context: (a) location of the study sites; (b) geological setting of the study area.
Remotesensing 16 00072 g001
Remotesensing 16 00072 g002aRemotesensing 16 00072 g002b

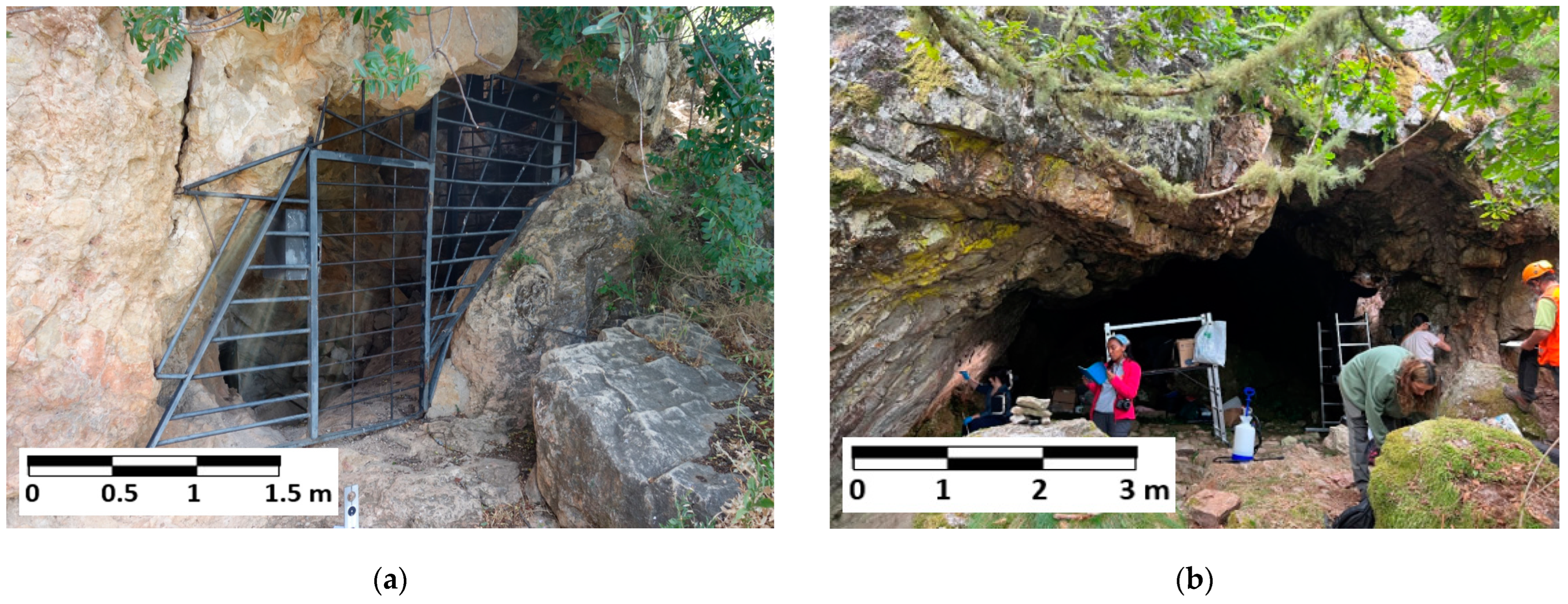

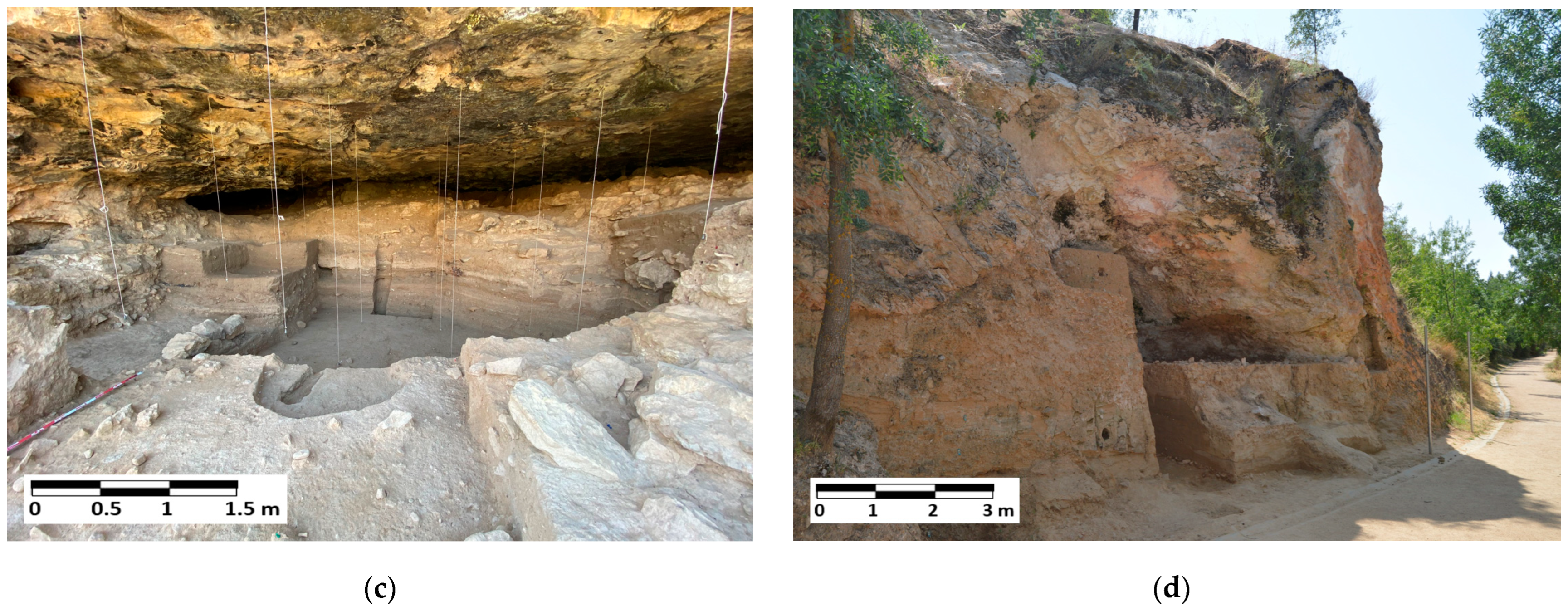

Figure 2. View of the studied caves and shelters: (a) southern entrance of the Reguerillo Cave; (b) view from inside in the Cova dos Mouros; (c) rock shelter of Abrigo de San Lazaro; (d) rock shelter of Abrigo del Molino.
Figure 2. View of the studied caves and shelters: (a) southern entrance of the Reguerillo Cave; (b) view from inside in the Cova dos Mouros; (c) rock shelter of Abrigo de San Lazaro; (d) rock shelter of Abrigo del Molino.
Remotesensing 16 00072 g002aRemotesensing 16 00072 g002b
Remotesensing 16 00072 g003

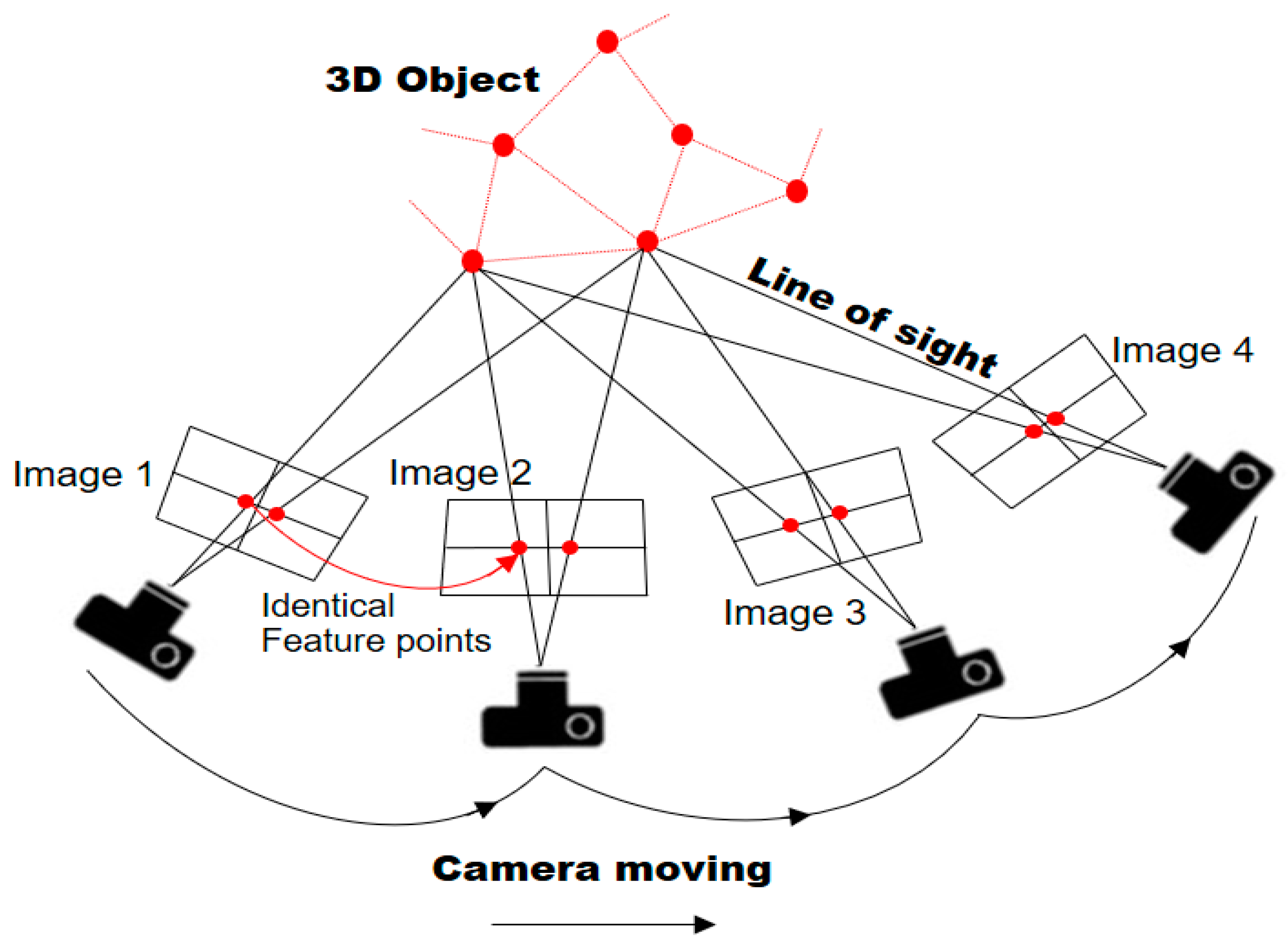

Figure 3. Principle of SfM photogrammetry for 3D object modeling.
Figure 3. Principle of SfM photogrammetry for 3D object modeling.
Remotesensing 16 00072 g003
Remotesensing 16 00072 g004

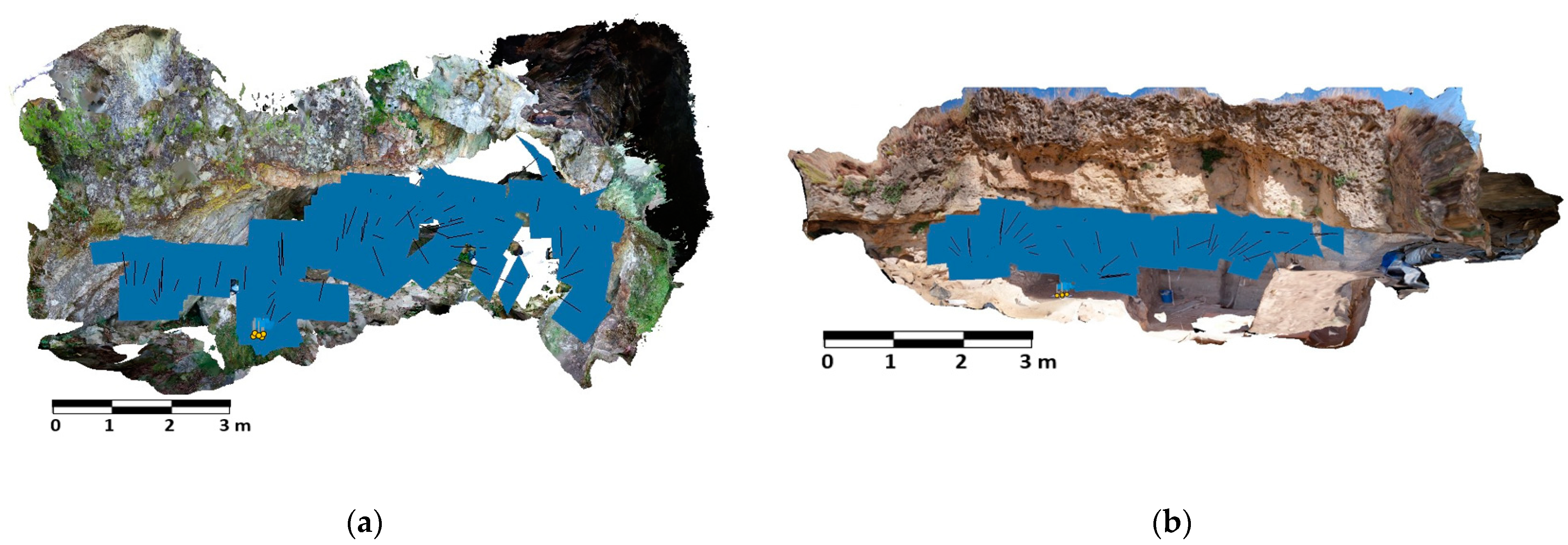

Figure 4. Three-dimensional (3D) point cloud obtained with Agisoft metashape Professional. Blue rectangles represent the position of the photographs taken at (a) Cova dos Mouros and (b) Abrigo de San Lazaro.
Figure 4. Three-dimensional (3D) point cloud obtained with Agisoft metashape Professional. Blue rectangles represent the position of the photographs taken at (a) Cova dos Mouros and (b) Abrigo de San Lazaro.
Remotesensing 16 00072 g004
Remotesensing 16 00072 g005

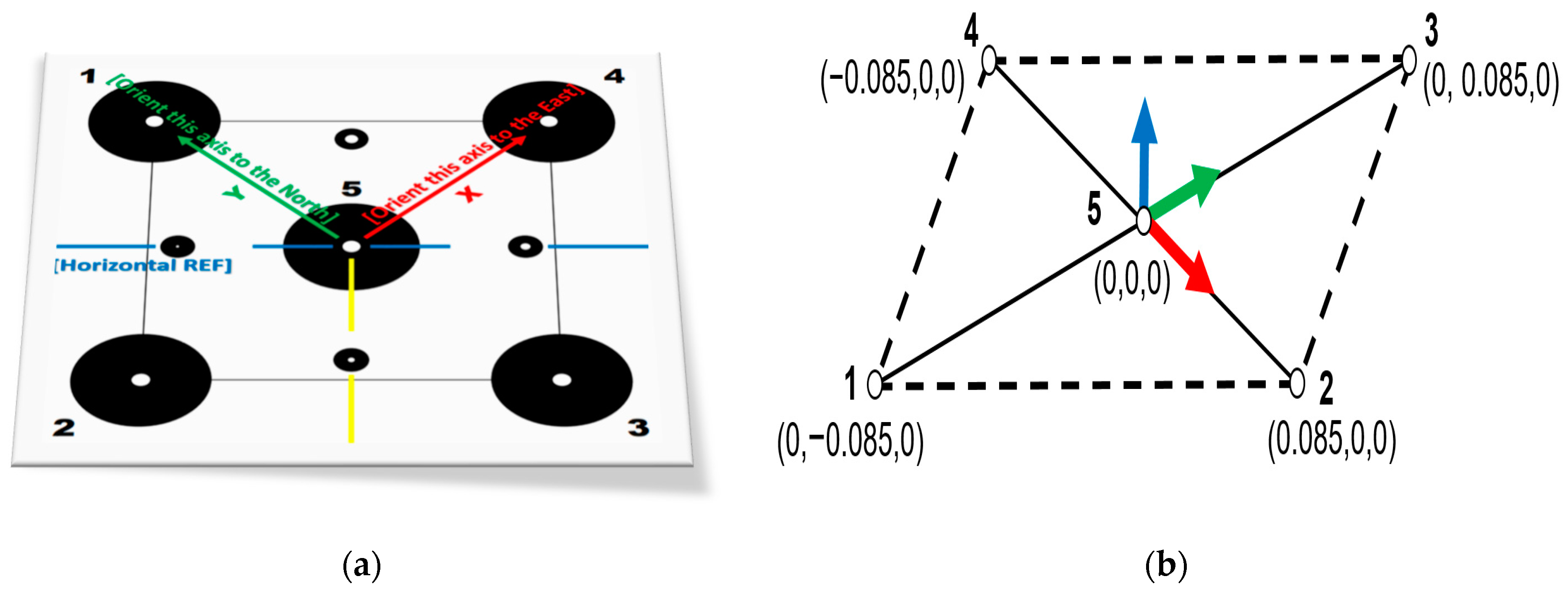

Figure 5. Portable orientation template: (a) the template used; (b) GCPs coordinates in (m).
Figure 5. Portable orientation template: (a) the template used; (b) GCPs coordinates in (m).
Remotesensing 16 00072 g005
Remotesensing 16 00072 g006

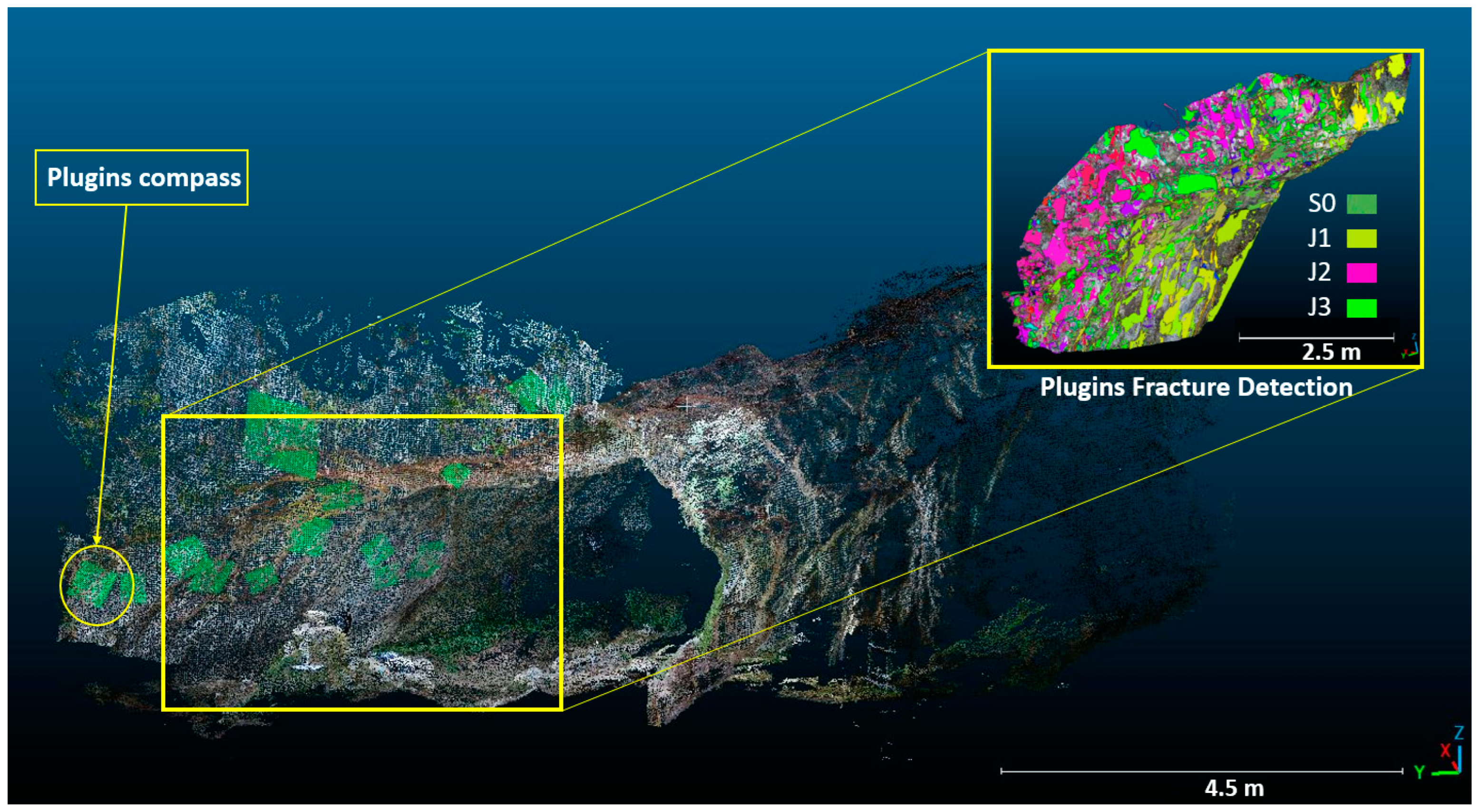

Figure 6. Orientation measurements and discontinuities analysis of Cova dos Mouros using CloudCompare software 2.12.4.
Figure 6. Orientation measurements and discontinuities analysis of Cova dos Mouros using CloudCompare software 2.12.4.
Remotesensing 16 00072 g006
Remotesensing 16 00072 g007

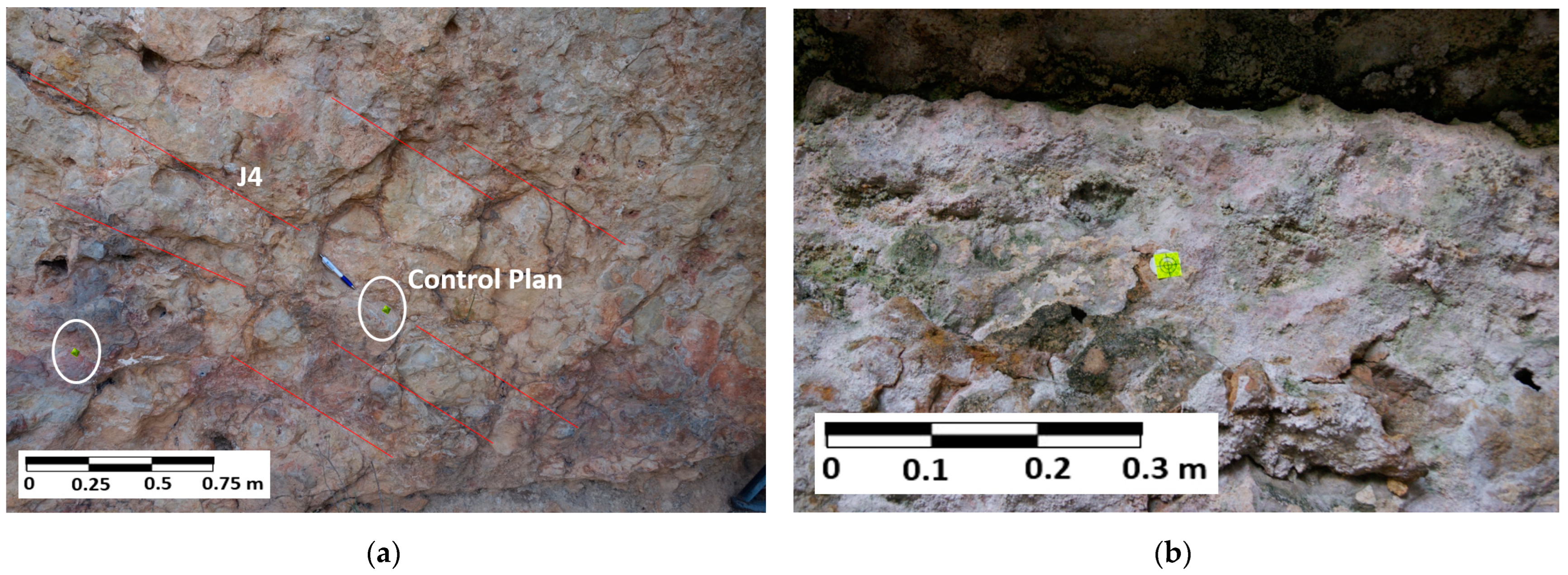

Figure 7. Control planes utilized for result validation (a) The green mark used to identify the plan to be measured; (b) example of 2 selected planes in Reguerillo Cave.
Figure 7. Control planes utilized for result validation (a) The green mark used to identify the plan to be measured; (b) example of 2 selected planes in Reguerillo Cave.
Remotesensing 16 00072 g007
Remotesensing 16 00072 g008

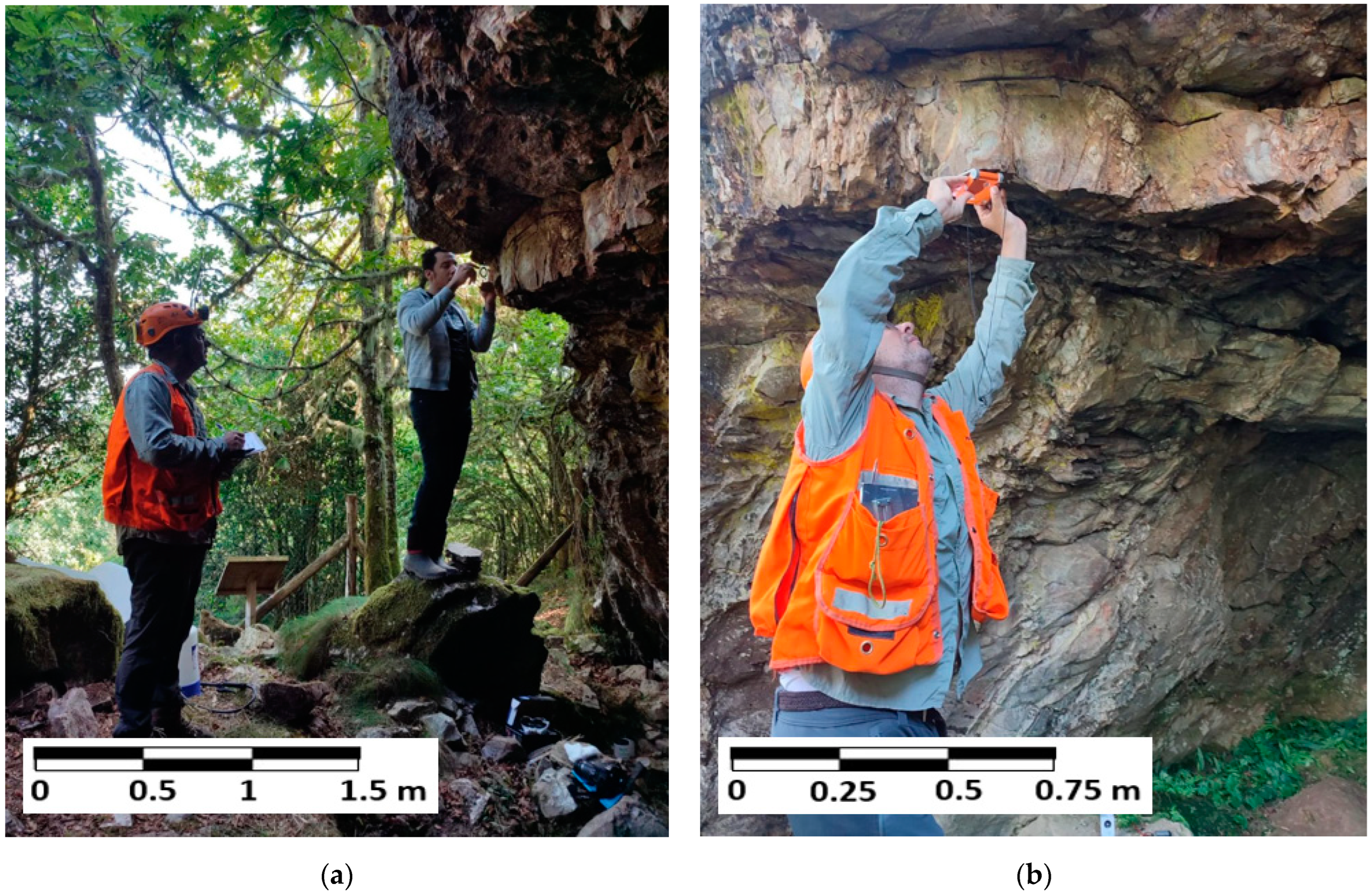

Figure 8. Examples of difficulties collecting data in high zones by hand in Cova dos Mouros, Lugo, Galicia. (a) The need for at least two persons to collect data; (b) Difficulties in reading the compass while taking measurements of the roof and elevated areas.
Figure 8. Examples of difficulties collecting data in high zones by hand in Cova dos Mouros, Lugo, Galicia. (a) The need for at least two persons to collect data; (b) Difficulties in reading the compass while taking measurements of the roof and elevated areas.
Remotesensing 16 00072 g008
Remotesensing 16 00072 g009

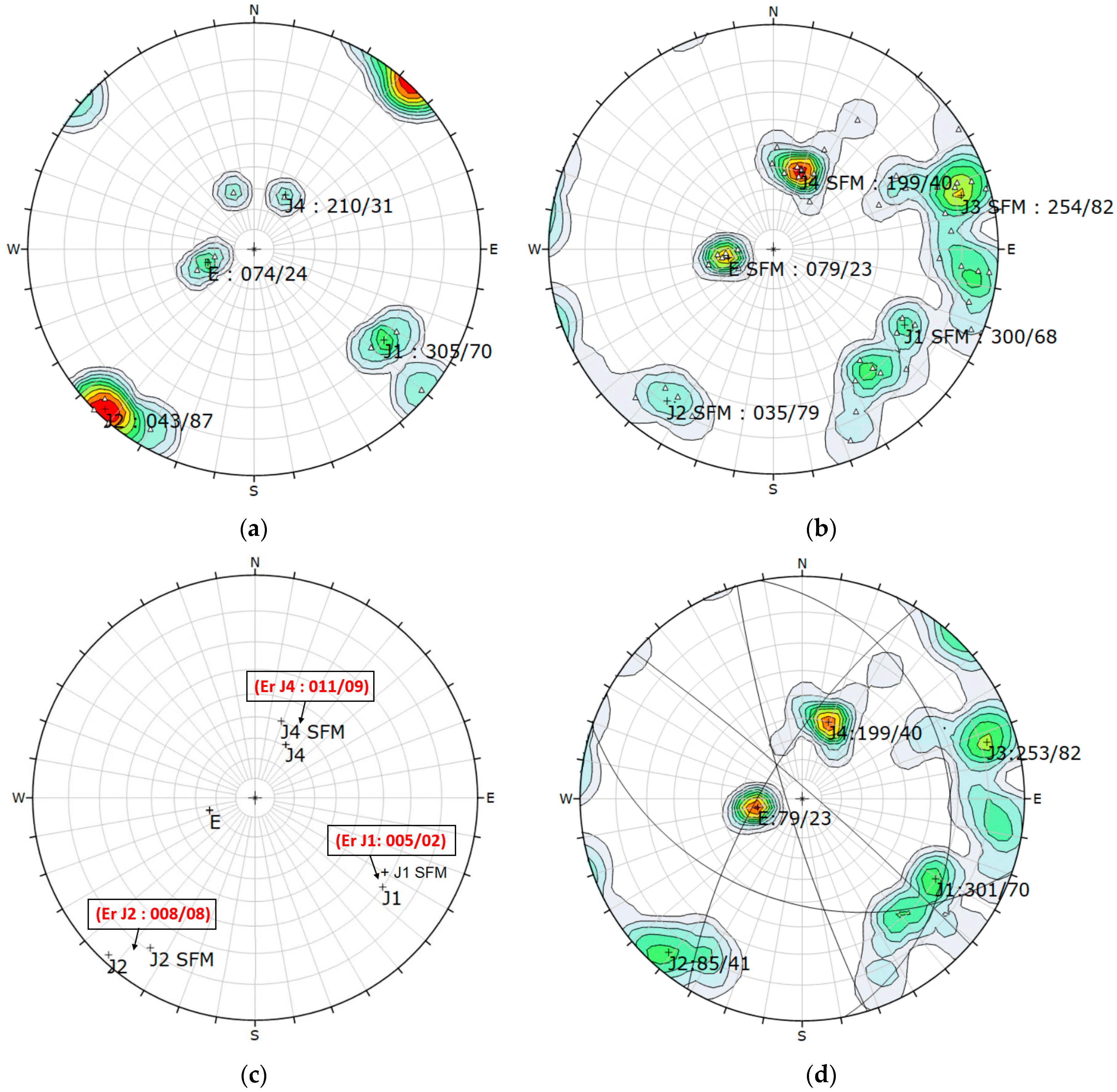

Figure 9. Pole concentration diagram of Reguerillo Cave using DIPS obtained from (a) manual measurements using a compass (n = 12 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Figure 9. Pole concentration diagram of Reguerillo Cave using DIPS obtained from (a) manual measurements using a compass (n = 12 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Remotesensing 16 00072 g009
Remotesensing 16 00072 g010

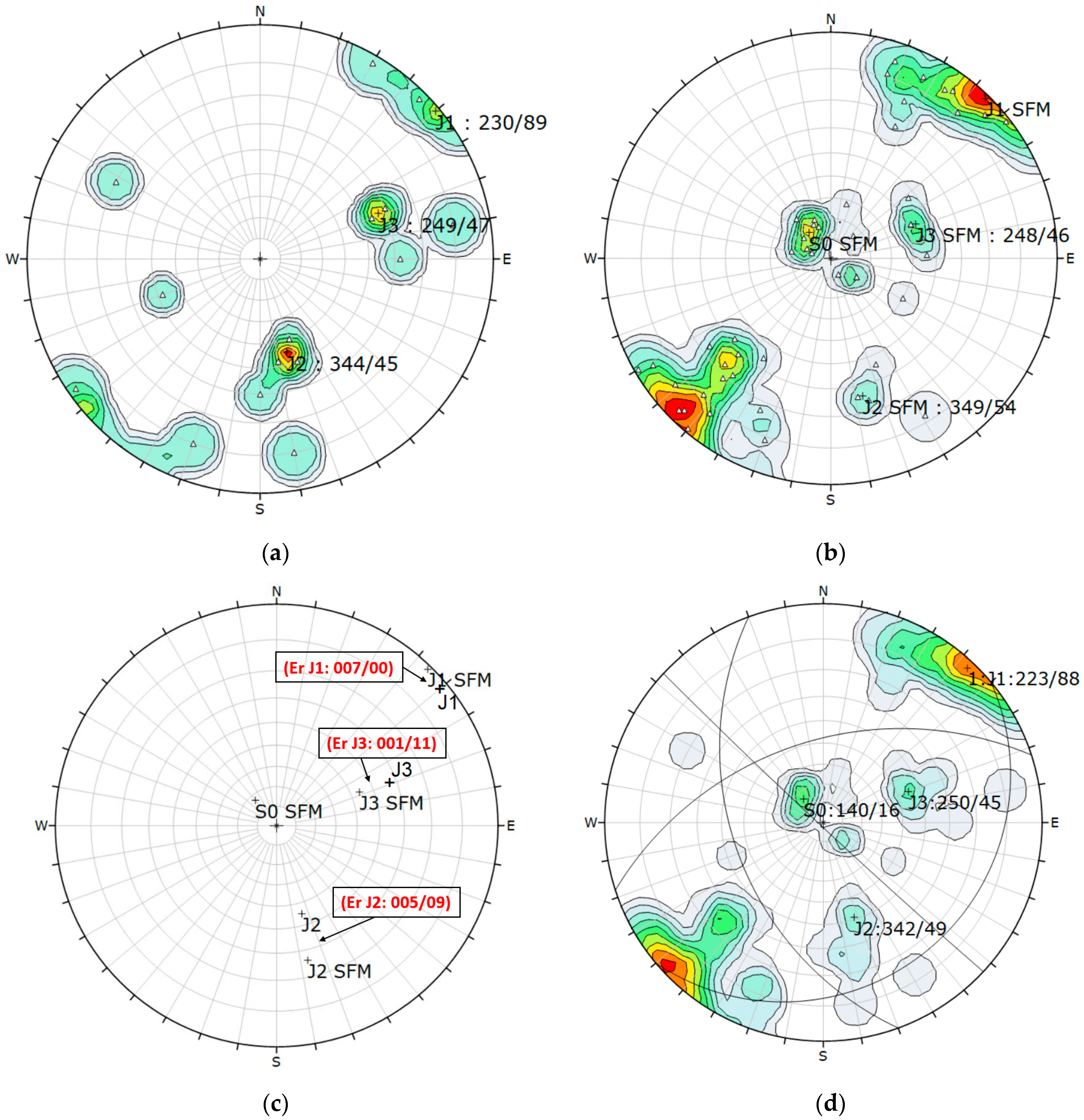

Figure 10. Pole concentration diagram of Cova dos Mouros GS2 using DIPS obtained from (a) manual measurements using a compass (n = 15 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Figure 10. Pole concentration diagram of Cova dos Mouros GS2 using DIPS obtained from (a) manual measurements using a compass (n = 15 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Remotesensing 16 00072 g010
Remotesensing 16 00072 g011

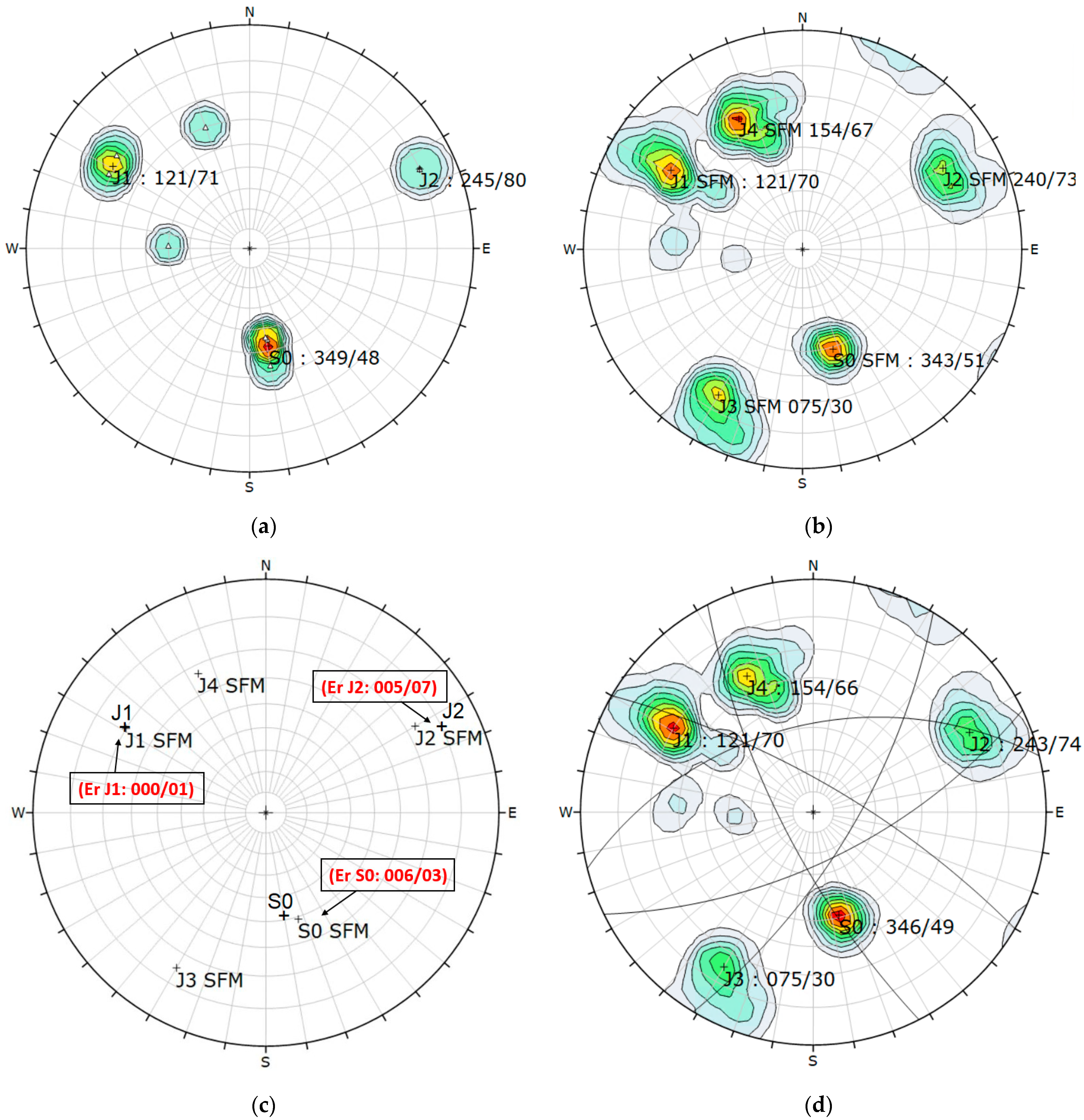

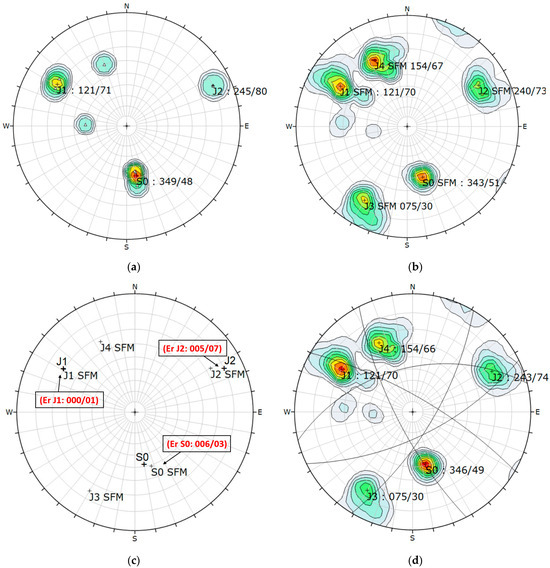

Figure 11. Pole concentration diagram of Abrigo del Molino rock shelter GS3 using DIPS obtained from (a) manual measurements using a compass (n = 10 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Figure 11. Pole concentration diagram of Abrigo del Molino rock shelter GS3 using DIPS obtained from (a) manual measurements using a compass (n = 10 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Remotesensing 16 00072 g011
Remotesensing 16 00072 g012

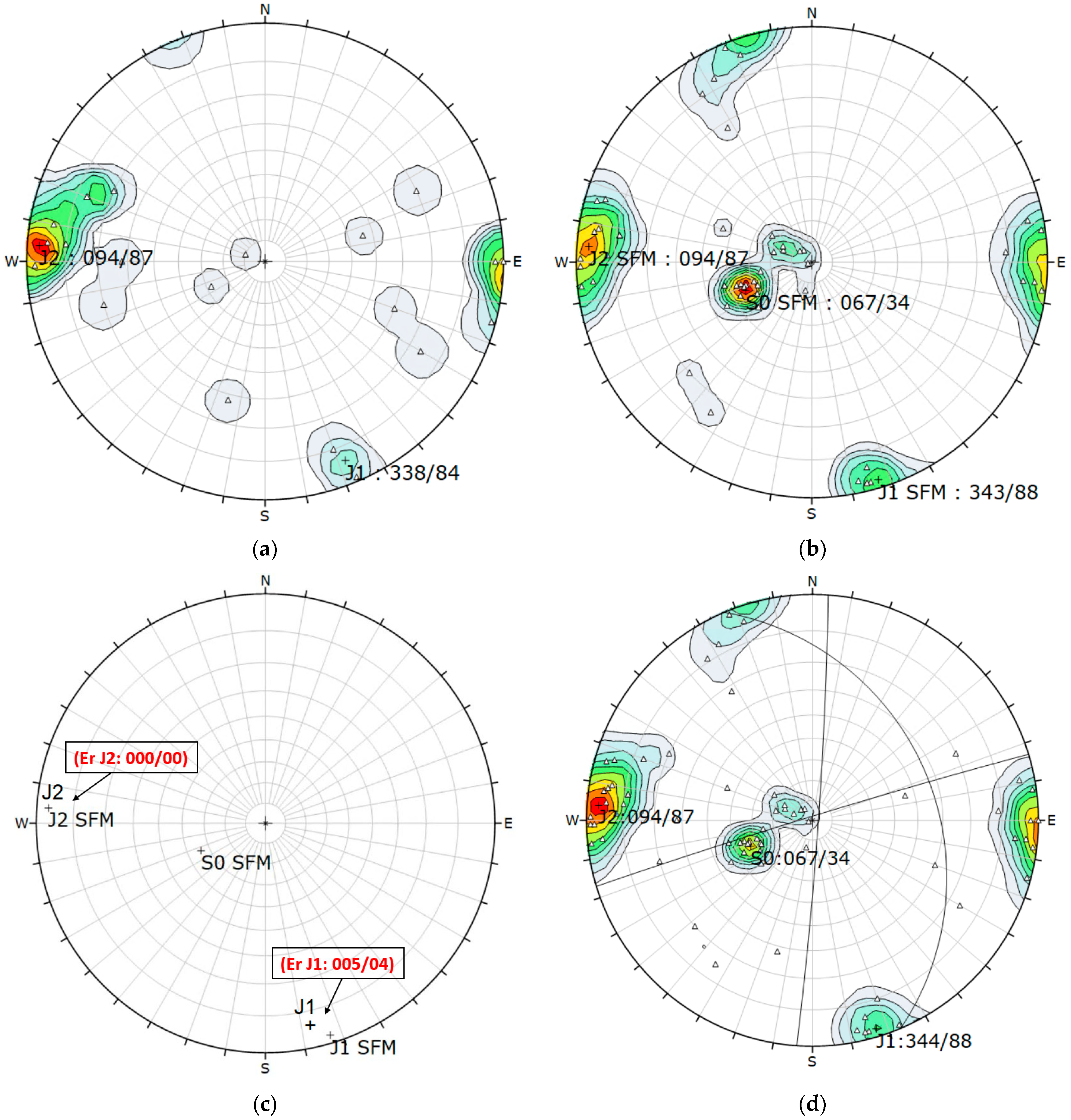

Figure 12. Pole concentration diagram of San Lazaro shelter obtained from (a) manual measurements using a compass (n = 19 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Figure 12. Pole concentration diagram of San Lazaro shelter obtained from (a) manual measurements using a compass (n = 19 poles); (b) measurements acquired from 3D point cloud with CloudCompare (50 poles); (c) comparison of planes measured manually and from the 3D point clouds (SfM); (d) average orientations of the discontinuity sets derived from the combination of data presented in (a,b).
Remotesensing 16 00072 g012
Table 1. Errors of (x, y, z) coordinates of GCPs within the 3D model.
Table 1. Errors of (x, y, z) coordinates of GCPs within the 3D model.
GCPsx Error (mm)y Error (mm)z Error (mm)Total (mm)
Reguerillo Cave10.985898−0.99265501.014121.72794
20.14393400.664821−0.6112450.914508
30.146859−0.425902−0.03763190.45208
4−0.0132861−0.138603−0.07622470.158737
50.7084030.892338−0.289021.17543
Cova dos Mouros1−0.296870.082035600.60634500.680085
20.05239240.3756660.17675300.418463
30.4214360.02941920.6063190.738983
4−0.0453547−0.3426160.1767630.388186
5−0.131602−0.1445091.566181.57833
Shlter Abrigo del Molino10.217393−0.0277667−0.8276140.85614
20.2330130.454360.7524790.909375
30.0930127−0.58874−0.8275821.01988
40.334297−0.249741−0.4416070.607571
50.0959646−0.600143−0.7333140.952434
Shelter Abrigo de San Lazaro10.22810.919401−0.1638560.961341
20.4465890.009416940.9639921.06246
3−0.589814−0.5977180.0588810.841792
40.4655580.0521444−0.3010930.556884
50.0741555−0.255769−0.1823870.322772
Table 2. Total RMS errors.
Table 2. Total RMS errors.
x Error (mm)y Error (mm)z Error (mm)Total (mm)
Reguerillo Cave0.5506890.6963080.5464081.04243
Cova dos Mouros0.2399420.2395780.8063120.874705
Shlter Abrigo del Molino0.2150210.4418980.7305930.880496
Shelter Abrigo de San Lazaro0.4053630.5041410.4655150.796982
Table 3. Errors and comparison of data measurements (manual/SfM).
Table 3. Errors and comparison of data measurements (manual/SfM).
Manual Compass3D Point CloudErrors
DipDir/Dip (°)DipDir/Dip (°)DipDir/Dip (°)
Cova dos MourosJ1 (074/42)J4 (260/85)J1 (074/46)J4 (261/82)J1 (000/04)J4 (001/03)
Reguerillo CaveJ4 (175/40)J4 (165/40)J4 (179/41)J4 (162/40)J4 (004/00)J4 (003/01)
Shlter Abrigo del MolinoE (307/45)J3 (210/65)E (301/48)J3 (214/67)E (006/03)J3 (004/02)
Shelter Abrigo de San LazaroJ1 (340/80)S0 (065/28)J1 (343/86)S0 (69/34)J1 (003/06)S0 (04/06)
Table 4. Orientation values obtained of each site.
Table 4. Orientation values obtained of each site.
SetCompass
DipDir/Dip (°)		Data Collection
3D Point Cloud
DipDir/Dip (°)		Errors
DipDir/Dip (°)		Combination
DipDir/Dip (°)
Reguerillo Cave
J1305/70300/68005/02301/70
J2043/87035/79008/08041/85
J3Difficult to be measured254/82/254/83
J4210/31199/40011/09199/40
E074/24079/23005/01079/23
Cova dos Mouros GS2
S0Difficult to be measured140/17/140/16
J1230/89223/89007/00223/88
J2344/45349/54005/09342/49
J3249/57248/46001/11250/45
Abrigo del Molino
S0349/48343/51006/03346/49
J1121/71121/70000/01121/70
J2245/80240/73005/07243/74
J3Difficult to be measured075/30/075/30
J4Difficult to be measured154/67/154/66
Abrigo de San lazaro GS3
J1338/84343/88005/04344/87
J2094/87094/87000/00094/87
S0Difficult to be measured067/34/067/34
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Benrabah, A.; Senent Domínguez, S.; Carrera-Ramírez, F.; Álvarez-Alonso, D.; de Andrés-Herrero, M.; Jorda Bordehore, L. Structural and Geomechanical Analysis of Natural Caves and Rock Shelters: Comparison between Manual and Remote Sensing Discontinuity Data Gathering. Remote Sens. 2024, 16, 72. https://doi.org/10.3390/rs16010072

AMA Style

Benrabah A, Senent Domínguez S, Carrera-Ramírez F, Álvarez-Alonso D, de Andrés-Herrero M, Jorda Bordehore L. Structural and Geomechanical Analysis of Natural Caves and Rock Shelters: Comparison between Manual and Remote Sensing Discontinuity Data Gathering. Remote Sensing. 2024; 16(1):72. https://doi.org/10.3390/rs16010072

Chicago/Turabian Style

Benrabah, Abdelmadjid, Salvador Senent Domínguez, Fernando Carrera-Ramírez, David Álvarez-Alonso, María de Andrés-Herrero, and Luis Jorda Bordehore. 2024. "Structural and Geomechanical Analysis of Natural Caves and Rock Shelters: Comparison between Manual and Remote Sensing Discontinuity Data Gathering" Remote Sensing 16, no. 1: 72. https://doi.org/10.3390/rs16010072

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
