Effect of Street Lighting on the Urban and Rural Night-Time Radiance and the Brightness of the Night Sky

Abstract

In April 2020, due to the coronavirus pandemic and the tourism decrease in Cracow (Poland), the Road Authority of the City of Cracow, followed by the authorities of several neighbouring municipalities, decided to turn off street lighting at night. It is worth noting that this is the first time that street lighting has been turned off in such a large area on a longer time frame at this scale, including one of the most populated cities in Poland, which made it possible to make unique observations. During this period, with the help of small night-sky radiance meters (Sky Quality Meters (SQM)), many ground-based measurements were made, both within the city and in its vicinity. For this purpose, the existing light pollution monitoring stations in Cracow and neighbouring cities were used. It was found that after switching off street lighting, the zenith surface brightness of the cloudless sky decreased by 15–39%, and this value was proportional to the city’s population. The night-time light satellite data (VIIRS/DNB) on radiance from Cracow and neighbouring communes were also analysed, both their daily values as well as monthly and annual averages. It was found that in the case of a large city such as Cracow, turning off all street lighting reduces the amount of light energy radiated into the sky by about 50%, which is a relatively small decrease in radiance, while reducing the surface brightness of the night sky by about 40%, regardless of the state of the atmosphere. The effect of a significant decrease in radiance as a result of switching off street lighting was found in each of the analysed communes, especially the urbanised ones.

1. Introduction

From the very beginning of the problem of light pollution, especially in the form of an artificial night sky glow, it was obvious that the main sources of this problem were cities, particularly street lighting [1,2]. The concept of a light glow was first introduced probably in 1935 [3], and the concept of astronomical light pollution in 1973 [4]. In the following years, the described phenomenon increasingly threatened astronomical studies [5], including those carried out in Cracow (Poland) [6]. Along with the development of urban infrastructures, in addition to street lighting, other light sources appeared, increasing the brightness of the sky glow. Light pollution is mainly due to the operation of wrongly designed street lighting, advertising, illumination of sports stadiums, construction, security, and façade lighting [7,8,9,10,11]. To this day, there is no real effective policy that deals with this problem.

As a result of studies on the impact of urban lighting on the brightness of the night sky, several theoretical models were created to describe this problem [12,13,14,15,16,17,18,19,20,21].

The impact of cities on light pollution was also the subject of field studies, enabled by the introduction of cheap Sky Quality Meters (SQMs), which became a kind of measurement standard [22,23,24,25]. Similar measurements were also carried out in 2009 in Cracow and the surrounding area by the team of the Light Pollution Monitoring Laboratory (LPML) operating at the Cracow University of Technology, led by the author of this paper [26,27]. The obtained results showed compliance with the values predicted by the first World Atlas of the Artificial Night Sky Brightness [28].

From 1972, it became possible to quantify the light emission from cities based on satellite images taken by the Defence Meteorological Satellite Program (DMSP) satellites [29,30]. In 2001, using the Treanor and Garstang models and determining the amount of light emitted by cities based on DMSP images, the aforementioned atlas was created (often called the Atlas of Light Pollution), commonly used to describe light pollution on Earth’s surface [28]. However, since the purpose of the DMSP satellites was to forecast the weather, their cameras did not have sufficient resolution to show the fine structure of light sources.

In 2011, the National Oceanic and Atmospheric Administration (NOAA) launched the Suomi NPP satellite [31]. This satellite has a visible infrared imaging radiometer suite camera (VIIRS) providing the best freely available night-time dataset with daily and global coverage. While in the case of DMSP satellites the smallest visible objects were 3 km in size, the VIIRS images show objects smaller than 1 km [32]. The fundamental importance of VIIRS data, in particular Day–Night Band (DNB) images for mapping Earth’s surface night illumination, especially when compared to earlier DMSP data, was highlighted in 2013 [33]. VIIRS data were also used to create the all-sky artificial sky glow model [34] and the new World Atlas of the Artificial Night Sky Brightness [35].

In 2008, the Luojia 1-01 CubeSat (6U) sized earth observation satellite, built by the Wuhan University (China), was launched into orbit. This is the first dedicated night-time light satellite providing images with a spatial resolution of 130 m, which is much better than that of DMSP/OLS and Suomi-NPP/VIIRS [36]. This creates new perspectives for remote sensing of night lights [37].

Additionally, to analyse the impact of individual types of urban lighting, high-resolution photos of some cities taken from the International Space Station (ISS) can be used [38,39]. Such a photograph was also taken for Cracow on 28 March 2017 (Figure 1). In this photo, almost all types of illuminated streets can be distinguished, as well as separate parts of the city where metal-halide or high-pressure sodium lamps (HPS) have been replaced by LED lighting.

One of the first analyses of the contribution of particular types of urban lighting to the city’s total radiance was the 2009 estimation of the complete outdoor lighting of Flagstaff (Arizona) [40]. It was found that the average fraction escaping directly upward from light fixtures was equal to 8.3%. Of the total uplight, 33% came from sports lighting when it is on; when sports lighting is off, commercial and industrial lighting accounted for 62%, with the remainder dominated by residential (14%) and roadway lighting (12%).

The potentially most complete data on light pollution sources could be obtained by switching them off sequentially and analysing the effect of these switching offs on the night sky glow. Thus far, city lighting outages have been short lived, related to lighting failures, and have occurred in a limited area, most often in a certain part of the city. However, these events were always an opportunity to research their effect on the brightness of artificial sky glow.

One of the first studies of this type was conducted on 28 September 2006 in Reykjavik, where all streetlights were shut off from 10:20 p.m. to 10:40 p.m. to prepare for the Reykjavik International Film Festival [41]. It was found that street lighting was a significant contributor to sky-glow light pollution.

Another example can be a power failure in part of Cracow in the late evening of 25 August 2011 [42]. During the failure, for more than two hours, a compact area of 2 km² with approx. 50,000 population was deprived of any power supply (both flats and street lighting). The sky brightness was then equal to 18.07 mag/arcsec² (6.44 mcd/m²). When repairing the failure, only the closest vicinity of the measurement site, with an area of about 0.03 km², was deprived of light for about half an hour. The measured zenith surface brightness of the sky was then equal to 17.72 mag/arcsec² (8.90 mcd/m²). After the failure was completely repaired, the zenith surface brightness of the virtually cloudless sky, measured near the centre of this region, was equal to 17.51 mag/arcsec² (10.79 mcd/m²). Measurements performed during the phenomenon allowed for the analysis of the impact of local lighting on the artificial sky glow of the entire city. It was found that the complete switching off of lighting in an area constituting only 4% of the city’s area causes a 40% reduction in the zenith surface brightness of the night, cloudless sky.

In 2016, differential photometric measurements of the change in night sky brightness and illuminance were performed during an automated regular switch-off of ornamental light in the town of Balaguer and an organised switch-off of all public lights in the village of Àger, both near Montsec Astronomical Park in Spain [43]. It was found that during the clear night, the ornamental lights in Balaguer contribute over 20% of the sky glow at zenith at the observational site, while very small changes were found in the ground illuminance on a cloudy night near Àger. Similar research, but on a local scale, was conducted in an urban park (Tiergarten) in Berlin (Germany) during the WWF Earth Hour in 2018 [44]. It was found that turning off nearby lighting (Potsdamer Platz) resulted in a 15% decrease in scalar illuminance, 11% decrease in horizontal illuminance, and 8% decrease in zenith luminance.

To find out what fraction of outdoor light emissions and associated energy use are due to streetlights or various types of private light sources, an experiment was carried out in 2019 in Tucson (Arizona). The streetlight output had been intentionally altered over 10 days, and the change in emissions observed by satellite was examined. It was found that streetlights operated by the city are responsible for only 13% of the total radiance measured from Tucson from space after midnight [45]. If the city did not dim its streetlights after midnight, the contribution would be 18%. When streetlights operated by other actors are included, the best estimates rise to 16% and 21%, respectively.

Another analysis of this experiment showed that the zenith sky brightness during the tests decreased by 5.40% near the city centre and 3.6% at an adjacent suburban location on nights when the output of the street lighting system was dimmed from 90% of its full power draw to 30% after local midnight [46]. The model of light sources, consisting of 26% known street lights and 74% of other sources results suggests that street lights account for about 14% of light emissions resulting in sky glow seen over the city. However, the direct measurements implied that street lighting contributed only 2–3% of light seen at the zenith over Tucson. The difference between the modelled and experimentally determined values was explained by an underestimation of the total city light emission, not accounting for the transient sources of light whose emission patterns are near horizontal, such as interior lighting escaping through uncovered building windows, automotive lighting, and illuminated signs. The improvement of sky brightness may also be related to air pollution in the studied areas [47,48].

The spreading of a COVID-19 pandemic in 2020 influenced the increase in the burden on health care, decreased human mobility, and the related decline in tourism and caused various kinds of unexpected effects in the natural environment as well [49]. As a result of migration restrictions and industrial activity limitations, overall carbon emissions have dropped [50]. An improvement in air quality and a decrease in water pollution in many cities around the globe were also noticed [51]. The impact of the pandemic was even visible in aspects such as the reduction of seismic noise associated with anthropogenic earth surface vibrations from trains, aeroplanes, industrial processes, etc. [52].

Of course, the pandemic lockdown also prompted many light pollution researchers to investigate the changes it caused in the brightness of a sky glow. The effects of the lockdown on urban light emissions were described for Granada (Spain), including both ground and satellite data [47]. The research, conducted from 14 March until 31 May 2020, showed a clear decrease in light pollution due to both a decrease in light emissions from the city and a decrease in anthropogenic aerosol content in the atmosphere which resulted in less light being scattered. A clear correlation between the abundance of PM10 particles and sky brightness was observed, such that the more polluted the atmosphere, the brighter the urban night sky. The ground-based data showed little change in the second half of the night, compared to the first, and also the satellite imagery does not show marked differences during the lockdown in terms of total light output. Given that outdoor activities decreased by up to 90% during a lockdown, these results indicate that the light output of the city seems to be dominated by permanent lighting that does not adapt to the real use of the outdoor areas by the citizens.

A photometric mapping of the artificial sky glow of a large city and its surroundings was also performed on the example of Berlin, both in the case of a cloudless and completely overcast sky [48]. It was found that the brightness of the artificial sky glow at zenith decreased by 20% at the city centre and by more than 50% at a 58 km distance from this area during the lockdown. At the same time, the overall light emission trend in the region, as observed by satellite data, was increasing. It has been suggested that the main cause for the reduction of artificial sky glow originates from improved air quality due to less air and road traffic, which is supported by statistical data and satellite image analysis. A similar analysis is currently being carried out for Cracow by the author of this paper, to be published in the future.

In April 2020 and the following months, the authorities of Cracow, as well as several neighbouring communes, resolved to completely or partially turn off street lighting at night, starting from midnight (or from 1:00 CEST) to dawn (usually to 4:00 CEST). This created a unique opportunity to study the contribution of street lighting to both the emission of light energy from the entire city (especially since VIIRS/DNB images of the research area are taken just after 1:00 CEST, i.e., after turning off street lighting in all researched communes), as well as to measure changes in the surface brightness of the night sky. A network of automatic and manual LPML measuring stations was used for these measurements. The analysis of both these data sets is the subject of this paper.

2. Materials and Methods

2.1. Research Area

The research was conducted in the western part of Małopolskie Voivodeship (Figure 2). The Małopolskie Voivodeship consists of 182 communes, including 14 urban communes (also the City of Cracow, constituting a separate urban commune), 48 urban–rural communes, and 120 rural communes [53]. Based on press releases, information on switching off the lighting in Cracow and 20 neighbouring communes was analysed. Only in eight communes (Alwernia, Chrzanów, Cracow, Dobczyce, Krzeszowice, Skawina, Wieliczka, and Zabierzów) in 2020 street lighting was actually turned off for at least one month (Appendix A:

Table A1. The statistical data of analysed communes.

Statistical Data	Alwernia	Chrzanów	Dobczyce	Cracow	Krzeszowice	Skawina	Wieliczka	Zabierzów
Area [km2]	74	79	66	327	139	100	100	99
Population	12,640	47,169	15,272	771,069	32,195	43,496	59,414	26,504
Population/km2	170	594	230	2359	232	436	596	267
Population urban	3370	36,945	6434	771,069	10,051	24,362	23,395	0
Population rural	9270	10,224	8838	0	22,144	19,134	36,019	26,504
Pop. rural/Pop	73%	21%	52%	0%	67%	41%	49%	100%

). There is one urban commune (Cracow) and one rural commune (Zabierzów), and the rest are urban–rural communes with varying degrees of urbanisation.

2.1.1. Road System

Data on the length and the type of roads were obtained from the GIS Open Street Map (OSM) for all selected communes. According to the road classification system, the following categories are distinguished in Poland:

• Motorway: these are at least two-lane highways, divided by a median, with each direction lit separately. In the research area, the motorways are mainly the ring roads of Cracow, practically illuminated along their entire length (CIE M Class);
• Primary: the most common are national two-lane high-speed roads, also illuminated along their entire length (CIE M Class);
• Secondary: most often provincial two-lane roads. They are connections between large cities. They are also illuminated along their entire length (CIE M Class);
• Tertiary: usually the paved county roads. They connect cities that are the seats of poviats (the second-level unit of local government and administration in Poland) with the seats of communes and seats of communes with each other. In cities, they are the main inter-residential streets, often also used by public transport. They are also two lanes, illuminated along their entire length (CIE M Class);
• Unclassified: in cities, they are supplementary to tertiary streets; outside cities they are communal roads. Most often illuminated on one side (CIE M Class);
• Residential: usually streets in cities and generally accessible roads in built-up areas for local access to properties or small settlements. One-sidedly lit (CIE P Class);
• Service: access roads, e.g., to parking lots or estate buildings; service roads, in-house transport, property driveways, etc. Usually poorly lit by single lamps (CIE P Class);
• Living street: streets in residential zones. A zone in which pedestrians can move freely throughout the public space available for public use and has priority over vehicles. Usually dimly lit by low-power lamps (CIE P Class);
• Pedestrian: streets accessible only to pedestrians, e.g., in the old towns. Usually dimly lit by low-power lamps (CIE P Class);
• Footway: pedestrian paths, sidewalks. Usually lit independently of adjacent roadways (CIE P Class);
• Cycleway: bicycle paths. Usually using the lighting of adjacent roadways or sidewalks (CIE P Class).

In each of the analysed communes, the length of roads from each category (of course, excluding unlit paths, field roads, etc.) were measured taking into account the information which parts of its lighting were turned off in 2020 (Appendix B:

Table A2. The length of individual road types according to the OSM classification in the researched communes [km]. The types of roads in which lighting, according to the information obtained, was turned off in 2020 are in bold font.

Type of Road	Alwernia	Chrzanów	Dobczyce	Cracow	Krzeszowice	Skawina	Wieliczka	Zabierzów
motorway	11	17	0	44	16	0	10	13
primary	0	11	0	153	11	15	9	13
secondary	13	15	16	108	3	13	19	7
tertiary	35	62	35	256	103	47	95	62
unclassified	12	4	29	96	22	42	53	32
residential	108	149	57	978	163	158	201	160
service	40	113	22	1141	129	80	90	117
pedestrian	0	0	0	33	2	2	1	1
footway	21	152	0	1662	39	57	41	25
cycleway	4	13	0	174	2	8	4	2
living street	—	—	—	117	—	—	—	—
Together	243	536	168	4761	490	423	522	431
Together switched off	185	216	110	4612	232	189	221	187
% switched off	76%	40%	66%	97%	47%	45%	42%	43%

).

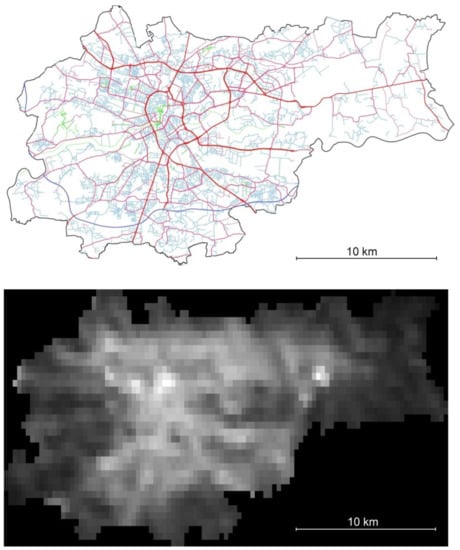

Figure 3 shows a map of illuminated roads in Cracow compared to the corresponding mean monthly VIIRS/DNB image for March 2020 [33,54]. Similar maps for all other analysed communes are provided in Appendix C (Figure A1 and Figure A2). The course of primary and secondary roads is visible in the VIIRS/DNB images.

2.1.2. Street Lighting Shutdowns

In April 2020, the authorities of the city of Cracow (Kraków), the capital of the Małopolskie Voivodeship, decided to turn off street lighting at night throughout the city. This decision was made in connection with the decline in traffic with the growing COVID-19 coronavirus pandemic. Following Cracow, the authorities of several neighbouring communes also made a similar decision to a varying extent.

The lighting was turned off automatically at designated times. This process was controlled by astronomical clocks placed in lighting control cabinets in various lighting zones. Due to the inaccurate timing of individual clocks, the times of switching off the lighting in various areas of a given commune could differ by up to 10 min (which was actually observed in, e.g., Cracow). The process of tuning all clocks in the commune sometimes took several days.

The action of switching off city lighting in Cracow had the widest range [55]. On 8 April, the lighting in parks was completely turned off. From midnight on 15 April, street lighting within the city limits, subordinate to the Cracow Roads Authority, was completely turned off. Street lighting was turned off at midnight and turned back on at 4:00 CEST. Since 22 April, the lighting of parks has been synchronised with street lighting. From 19 May, the switching off of street lighting in Cracow was moved to 1:00 CEST, and it was shut down until dawn (about 4:00 CEST). From midnight on 1 June, standard lighting was restored throughout the city.

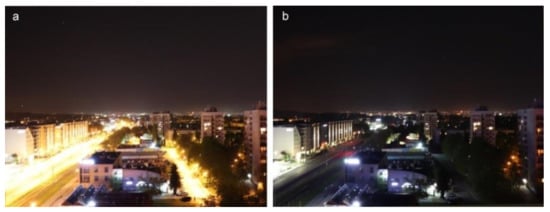

At the time of switching off the street lighting in Cracow (Kraków), the only active sources of artificial lighting were lamps located on private properties, lamps subordinate to housing communities, and various types of advertising lighting (Figure 4).

The following neighbouring communes followed the example of Cracow (Figure 2):

• In the Alwernia commune, switching off the street lighting began on 19 May 2020. Between 23:30 and 4:00 CEST, the lighting of all streets in the city, subordinated to the commune authorities, except for the 10 main streets, was turned off [56]. This lighting has been restored in September, but in November, the lighting of roads was turned off in the entire area of the commune between midnight and 4:30 CET. This state lasted until February 2021 [57].
• In the Chrzanów commune, switching off the street lighting, subordinate to the commune authorities, began on 25 June 2020. A total of 4518 lighting points with a power of 599,590 W, connected to the power grid in 143 energy consumption points, were turned off from midnight to 4:00 CEST. Lighting was restored in September 2020 [58].
• In the Dobczyce commune, from 20 May 2020, street lamps were switched off in some rural places with low car traffic. The lighting was turned off from midnight to 5:00 CEST. Starting in November, some lighting circuits have reduced the shutdown time to 4:00 CEST. These activities are still ongoing (February 2021) [59].
• In the Krzeszowice commune, switching off the street lighting began on 23 April. From midnight to 4:00 CEST, the lighting of all streets, subordinate to the commune authorities, was turned off. Street lighting was gradually restored in July 2020, but in September, it was turned off again, mainly in the rural areas of the commune. Standard lighting was restored in December 2020 [60].
• In the Skawina commune, gradual switching off the street lighting from midnight to 4:00 CEST lasted from 13 April to 18 May in various parts of it. The lighting of all streets, subordinate to the commune authorities, as well as in the City Park and housing estates, was turned off finally in June. Night lighting was gradually restored from 1 September to 14 September 2020 [61].
• In the Wieliczka commune, switching off the street lighting began on 17 April, and the process was gradually continued in the following days. As planned, street lighting was turned off at midnight and turned on again at 4:00 CEST. However, due to the fact that some of the clocks were still operating according to CET (thus they turned off the lighting at 1:00 CEST) and required correction, it was only in May 2020 that the lighting of all streets subordinate to the commune authorities was turned off from midnight. Standard lighting in the Wieliczka commune was restored on 1 September 2020 [62].
• In the Zabierzów commune, switching off the street lighting started in mid-May. From 1 June, the lighting of all streets subordinate to the commune authorities was turned off from midnight to 4:00 CEST. National, voivodeship, and poviat roads as well as some sections of communal roads connected to them remained illuminated. Standard lighting in the Zabierzów commune was not restored until 1 January 2021. It should be noted that a railway line runs through the centre of the commune, which has its own lighting, not under the control of the commune authorities. There is also a very brightly lit greenhouse complex, which is not subject to the commune authorities [63].

2.1.3. SQM Measuring Points

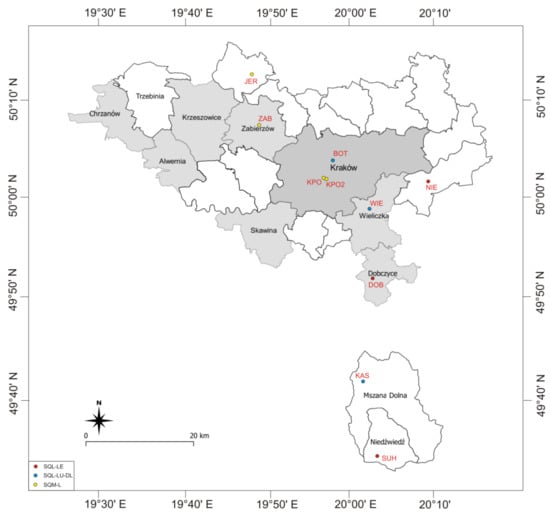

The research area covered the city of Cracow with the surrounding communes. In some of them (Figure 2, marked with a grey background), in 2020, street lighting was turned off at night, most often between midnight and 4:00 CEST/CET. For all these communes, both VIIRS/DNB data analysis and SQM measurements of the brightness of the night sky were conducted. For this purpose were used both manual SQM-L and automatic continuous measurement SQM-LE and SQM-LU-DL, owned by LPML. Unfortunately, the pandemic conditions and the related constraints caused that these data are sometimes incomplete. The reasons were either difficulties in the movement of people (in the case of SQM-L) or difficulties in accessing stationary autonomous meters for the replacement of exhausted batteries (in the case of SQM-LU-DL). Moreover, the unexpected announcement of pandemic restrictions resulted in a delay in starting the new measuring points or running temporarily disabled ones.

Measurements with SQM meters were conducted in communes where street lighting was turned off (Cracow, Wieliczka, Zabierzów, Dobczyce), in other neighbouring communes (Jerzmanowice, Niepołomice), and at measuring points away from the research area, treated as control (Kasinka Mała, Mt. Suhora) (Figure 2) (

Table 1. The SQM measuring points. S_{a max} means the greatest value measured during the research.

Name	Lat (N)	Long (E)	Alt [m]	SQM Type	Sa max [mag/arcsec2]
BOT	50°03′50″	19°57′22″	209	SQM-LU-DL	18.8
DOB	49°52′17″	20°04′23″	273	SQM-LE	21.2
JER	50°07′12″	19°46′58″	238	SQM-L	20.6
KAS	49°41′30″	20°02′19″	390	SQM-LU-DL	21.4
KPO	50°02′23″	19°55′35″	202	SQM-L	18.8
KPO2	50°02′23″	19°55′49″	202	SQM-L	18.8
NIE	50°02′17″	20°12′40″	196	SQM-LE	20.3
SUH	49°34′09″	20°04′02″	1009	SQM-LE	21.7
WIE	49°59′25″	20°04′16″	253	SQM-LU-DL	20.0
ZAB	50°07′12″	19°46′58″	238	SQM-L	20.2

; details in Appendix D).

2.2. Remote Sensing

In order to determine the total radiance from individual communes, photos obtained from the Suomi National Polar-orbiting Partnership (SNPP) satellite were used. This satellite was launched in 2011 by the US National Oceanic and Atmospheric Administration (NOAA) [31]. The satellite has a Visible Infrared Imaging Radiometer Suite (VIIRS) camera equipped with the best sensors and optical systems in civilian missions so far. While in the case of the earlier Defence Meteorological Satellite Program (DMSP) satellites the smallest visible objects were 3 km in size, the VIIRS images show objects smaller than 1 km in size.

For this research, images taken in the Day–Night Band spectral range (DNB) [64] are useful. This range has a wavelength centre at 700 nm, a bandpass of 400 nm, and a resolution of 0.8 km. DNB is, in a sense, a special sensor within VIIRS. It has separate detectors, a different imaging method, but above all a higher sensitivity. DNB operates in three signal amplification modes. Therefore, in DNB, at night, much more details can be observed than in “day” bands. Raw DNB data require careful treatment and consideration of many factors, including clouds or the angle of the photo. Therefore, the analysis used previously processed data.

When analysing monthly mean radiance, GeoTIFF files obtained from Earth Observation Group [33,54] were used, in particular monthly cloud-free DNB composites contained in vcmsl files. These files include all data, also impacted by straight light, but which underwent the stray-light correction procedure.

To perform a comparative analysis of the radiance for specific nights, before and after the time of switching off the street lighting in a given commune, the daily VIIRS/DNB data were also analysed, taken from Level-1 and Atmosphere Archive and Distribution System Distributed Active Archive Center at Goddard Space Flight Center (LAADS DAAC) [65]. The first of two VIIRS DNB-based datasets is a daily, top-of-atmosphere, at-sensor night-time radiance product called VIIRS/NPP Daily Gridded Day Night Band 15 arc-second Linear Lat Lon Grid Night. This product, called VNP46A1, contains 26 science sata sets (SDSs) that include sensor radiance, zenith and azimuth angles (at sensor, solar, and lunar), cloud-mask flags, time, shortwave IR radiance, brightness temperatures, VIIRS quality flags, moon phase angle, and moon illumination fraction. It also provides quality flag (QF) information specific to the cloud mask, VIIRS moderate-resolution bands M10, M11, M12, M13, M15, M16, and, what is important for this analysis, the DNB. During the research period (March 2020 to January 2021) VIIRS/DNB images of the research area were taken around 0:10 UTC, i.e., 1:10 CET or 2:10 CEST (depending on the season). Since the astronomical clocks that turned off the street lighting were working according to CEST (summer) or CET (autumn and winter), VIIRS/DNB images had already been taken when the lighting was turned off. It should be noted that the elimination of sunlit data due to the high latitudes of the areas of research results in a lack of data near the summer solstice. As a result, it is not possible to analyse the daily data in June 2020.

For determining the average annual radiance, the VIIRS/DNB data obtained via the Light Pollution Map website [32] were used.

It should be noted that the paper describes changes in the total radiance in the analysed areas not the radiance per pixel.

Used Units

From the VIIRS/DNB data, the radiance is obtained, i.e., power per unit projected area per unit solid angle. The symbol of radiance is L, and its standard SI unit is W/m² sr [66]. In this paper, radiance values are given in the derived units nW/cm²· sr, commonly used in the VIIRS/DNB data.

2.3. SQM Measurements

Measurements were made using Sky Quality Meters (SQMs) by Unihedron (Appendix E). SQMs are produced in several versions, of which in this research were used manually triggered SQM-L, computer-controlled SQM-LE, and autonomous SQM-LU-DL. All these meters have a light gathering angle of 20° from the instrument axis. All meters, while taking measurements, were aimed at the zenith with an accuracy of approx. 3°.

Used Units

The SQM gives the brightness of the night sky in the astronomical unit of magnitude per square arcsecond (mag/arcsec²) (Appendix E). By assuming a linear correlation between the perceived surface brightness (luminance) and the physical surface brightness, a relationship can be obtained [67,68,69] as follows:

(mag/arcsec²) = 12.59 − 2.5 log[(cd/m²)]

(1)

or vice versa,

[cd/m²] = 10.8 · 10⁴ · 10[−0.4(mag/arcsec²)]

(2)

Of course, these conversions are only approximations because of the different spectral responses of SQM and the human eye [70]. In this publication, the SQM measurement results are given in mag/arcsec², but when performing the analysis, especially when comparing with VIIRS/DNB data, they are converted into mcd/m².

Multiple measurements have shown that the amplitude of changes in the S_a value in each tested meter under stable atmospheric conditions does not exceed 0.02 mag/arcsec². Therefore, for the SQM-L, the measurement had been triggered until three consecutive readings were equal with an accuracy of 0.01–0.02 mag/arcsec^2, and no changing trend was observed. As a result, 0.02 mag/arcsec² was assumed as the short-term repetition error.

In the case of SQM-LE and SQM-LU-DL meters, the analysis included only the data obtained during the period when street lighting was switched off; S_a changes did not exceed 0.03 mag/arcsec². This value is assumed as the short-term measurement accuracy.

The long-term analysis of the SQM measurements (e.g., when comparing results from different nights) should take into account its quoted systematic uncertainty of 10 per cent (0.1 mag/arcsec²) [71].

2.4. Information on Street Lighting Shutdowns

Information on the spatial and temporal range of street lighting shutdowns in 2020 was obtained from the authorities of all communes where such activities were undertaken. In addition, information was also received in the form of a questionnaire from the inhabitants of the communes of Alwernia, Jerzmanowice-Przeginia, Krzeszowice, Wieliczka, Niepołomice, and Zabierzów (see Section 2.1.2).

3. Results

3.1. Remote Sensing Data

All VIIRS/DNB images are presented in the EPSG coordinate system: 4326—WGS 84/Spherical Mercator (Pseudo Mercator).

3.1.1. The Commune and City of Cracow

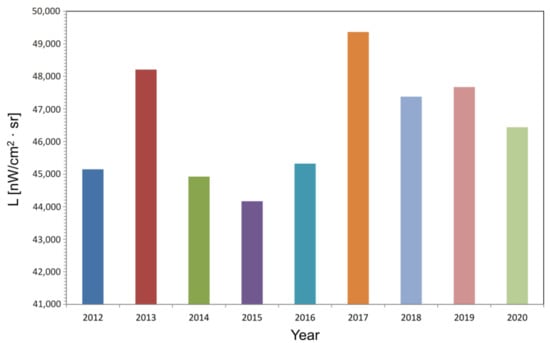

To check whether the average annual radiance from the area of Cracow changed in 2020, compared to the previous years, its value and other statistical parameters were examined for 2012–2020 within the administrative borders of Cracow, covering the area of 325.86 km² (

Table 2. Mean annual radiance in Cracow in 2012–2020 [nW/cm²·sr] [32].

Year	2012	2013	2014	2015	2016	2017	2018	2019	2020
Sum	45,145	48,208	44,924	44,168	45,319	49,360	47,378	47,673	46,439
Mean	19	20	19	20	19	21	20	20	20
Std. dev. *	17	17	17	17	17	19	17	17	17
Min.	1	1	1	0	1	1	1	1	1
Max.	87	121	116	109	101	148	113	133	124

*—Standard deviation (SD) of pixel values completely inside the area.

). In this area, the statistics for 2365 pixels were determined. The variability of the mean annual radiance is shown in Figure 5. The increase in radiance in 2017 related to the modernisation and replacement of approximately 3000 sodium lamps with LEDs is noticeable both in Table 2 and in Figure 5.

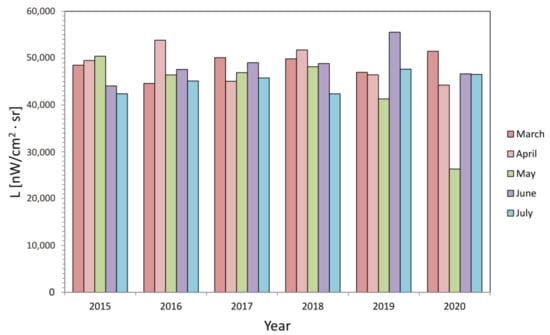

The mean monthly radiance of the area of research was also determined for the subsequent months of the year from March to July in the period 2015–2020 (

Table 3. Mean monthly radiance in Cracow from March to July in 2015–2020 [nW/cm²·sr] (SD = 15–19) [33,54]. Bold font indicates the decrease in radiance in May 2020. Radiation changes in March and April should probably be associated with rain and snowfall in these months, changing the ground reflectance.

Year	2015	2016	2017	2018	2019	2020
March	48,514	44,609	50,118	49,848	46,980	51,472
April	49,512	53,845	45,060	51,766	46,457	44,258
May	50,408	46,421	46,917	48,187	41,316	26,311
June	44,073	47,593	49,045	48,842	55,552	46,661
July	42,403	45,116	45,769	42,390	47,659	46,547

and Figure 6). January and February were skipped due to a large number of cloudy nights and thus lower reliability of the data. Very low radiance in May 2020, compared to all other months in the analysed period, can be noticed.

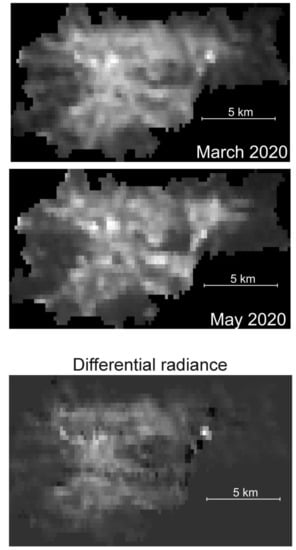

Figure 7 shows the VIIRS/DNB images of Cracow in 2020, in March (on the left, before turning off the street lighting) and May (on the right, street lighting turned off for the whole month). To demonstrate what changes have occurred between these months, the differential radiance between March and May is shown below—all the bright pixels mark areas where the radiance has decreased.

To verify the available data on the dates of turning off and turning on the street lighting, the daily radiances for selected nights were analysed. To minimise the impact of other factors not related to switching off the street lighting, in particular clouds or reflected moonlight, the analysis was performed for the selected moonless and completely cloudless nights (

Table 4. Daily radiance for Cracow. Nights with street lighting completely turned off are shown in bold font, nights during which only part of the street lighting was turned off are shown in italic font (SD = 10–20) [65]. There is a noticeable reduction in radiance during the partial shutdown of street lighting in April 2020 and the complete shutdown of street lighting in May 2020.

Date	Mean Daily Radiance [nW/cm2·sr]	Reason for Choosing the Date
25.03.2020	55,986	“normal” state of street lighting
27.03.2020	53,090	“normal” state of street lighting
13.04.2020	52,468	lighting of city parks turned off
16.04.2020	33,063	first day of switching off street lighting throughout the city
4.05.2020	26,140	switching off all street lighting throughout the city
21.05.2020	29,477	switching off all street lighting throughout the city
19.07.2020	41,344	vacation, after the complete restoration of street lighting
20.08.2020	39,377	vacation, after the complete restoration of street lighting
23.09.2020	51,258	“normal” state of street lighting
23.10.2020	47,192	“normal” state of street lighting

).

3.1.2. Other Communes in the Małopolskie Voivodeship

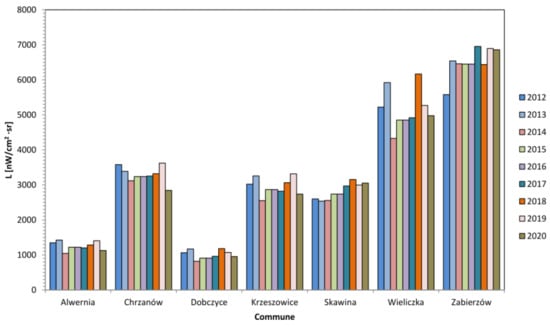

For the aforementioned communes, the average annual radiances for the years 2012–2020 were also determined (Figure 8) (Appendix F:

Table A3. Mean annual radiance for communes in which the street lighting was switched off in 2020 (except Cracow) (SD = 2–6, for Zabierzów: SD = 20–32) [32].

Year	Alwernia	Chrzanów	Dobczyce	Krzeszowice	Skawina	Wieliczka	Zabierzów
2012	1344	3578	1064	3020	2598	5220	5578
2013	1427	3386	1168	3257	2535	5921	6541
2014	1043	3119	820	2551	2553	4328	6455
2015	1025	2933	842	2538	2792	4685	6173
2016	1220	3234	908	2864	2737	4850	6447
2017	1200	3252	959	2820	2968	4917	6953
2018	1282	3318	1182	3065	3153	6165	6438
2019	1407	3621	1069	3316	2995	5267	6895
2020	1126	2843	951	2736	3050	4977	6857

).

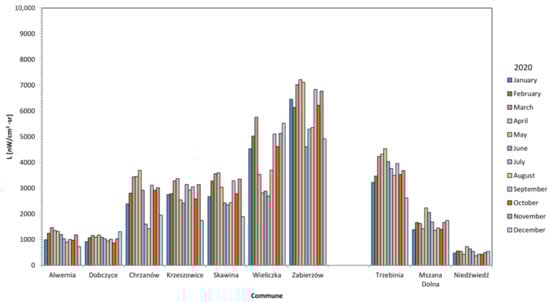

For the same communes, the mean monthly radiances in 2020 were also measured (Figure 9) (Appendix F:

Table A4. Mean monthly radiance for communes in which the street lighting was switched off in 2020 (except Cracow). The periods in which the street lighting was turned off for the entire month are in bold font. Italic font indicates that the street lighting was turned off only for a part of the month (SD = 1–6, for Zabierzów: SD = 10–23) [33,54].

Month	Alwernia	Chrzanów	Dobczyce	Krzeszowice	Skawina	Wieliczka	Zabierzów
January	986	2383	914	2748	2670	4528	6453
February	1242	2801	1066	2783	3278	5023	6133
March	1464	3436	1157	3283	3559	5756	7019
April	1355	3453	1094	3372	3599	3531	7216
May	1313	3684	1180	2544	3037	2814	7114
June	1194	2915	1088	2416	2426	2884	4605
July	1031	1601	1028	3142	2346	2688	5288
August	897	1419	945	2923	2429	3694	5352
September	1005	3113	1016	3049	3282	5103	6838
October	972	2917	867	2581	2774	4613	6219
November	1182	3016	1031	3141	3350	5128	6772
December	724	1948	1299	1739	1894	5529	4913

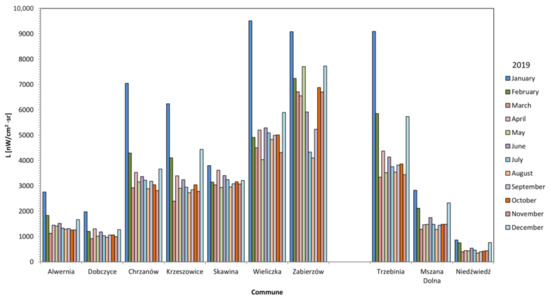

; see also Figure A3 for 2019, for comparison).

In almost every case, the decrease in radiance in the months when street lighting was turned off is evident. To exclude other possible causes of this phenomenon, the monthly radiances for the control communes (in which street lighting was not turned off) are also presented. For this purpose, the commune of Trzebinia was selected since it is a typical urban–rural commune, located between similar communes of Chrzanów, Alwernia, and Krzeszowice, where street lighting was turned off. The communes of Mszana Dolna and Niedźwiedź have also been added since they are home to SQM measuring points, respectively, KAS and SUH. Additionally, these communes are located in the mountains far from communes where street lighting was turned off. A noticeable increase in radiance from all these test communes during the shutdown of street lighting in Cracow perhaps should be connected to the pandemic return of students from a large academic centre, such as Cracow, as well as the “pandemic escape” from this city some of its citizens who have their summer houses in these communes.

The mean change in monthly radiance in each of the analysed communes is summarised in

Table 5. Change in the mean monthly radiance related to switching off the street lighting in the analysed communes (including Cracow). The used VIIRS/DNB data come from the months immediately preceding the switching off period and the ones in which the greatest number of street lamps was switched off. Both the absolute and relative percentage changes in radiance are given.

Commune	Differential Radiance dL [nW/cm2 · sr]	Relative Differential Radiance [%]
Alwernia	417	29%
Chrzanów	1798	49%
Dobczyce	93	8%
Cracow	25,162	49%
Krzeszowice	956	28%
Skawina	1171	33%
Wieliczka	2941	51%
Zabierzów	516	7%

. Differential radiance means the sum of the differences in the radiance from individual pixels in the analysed area between months immediately preceding the switching off period and the ones in which the greatest number of street lamps was switched off. Relative differential radiance is the quotient of the former value and the radiance from the period preceding lighting off.

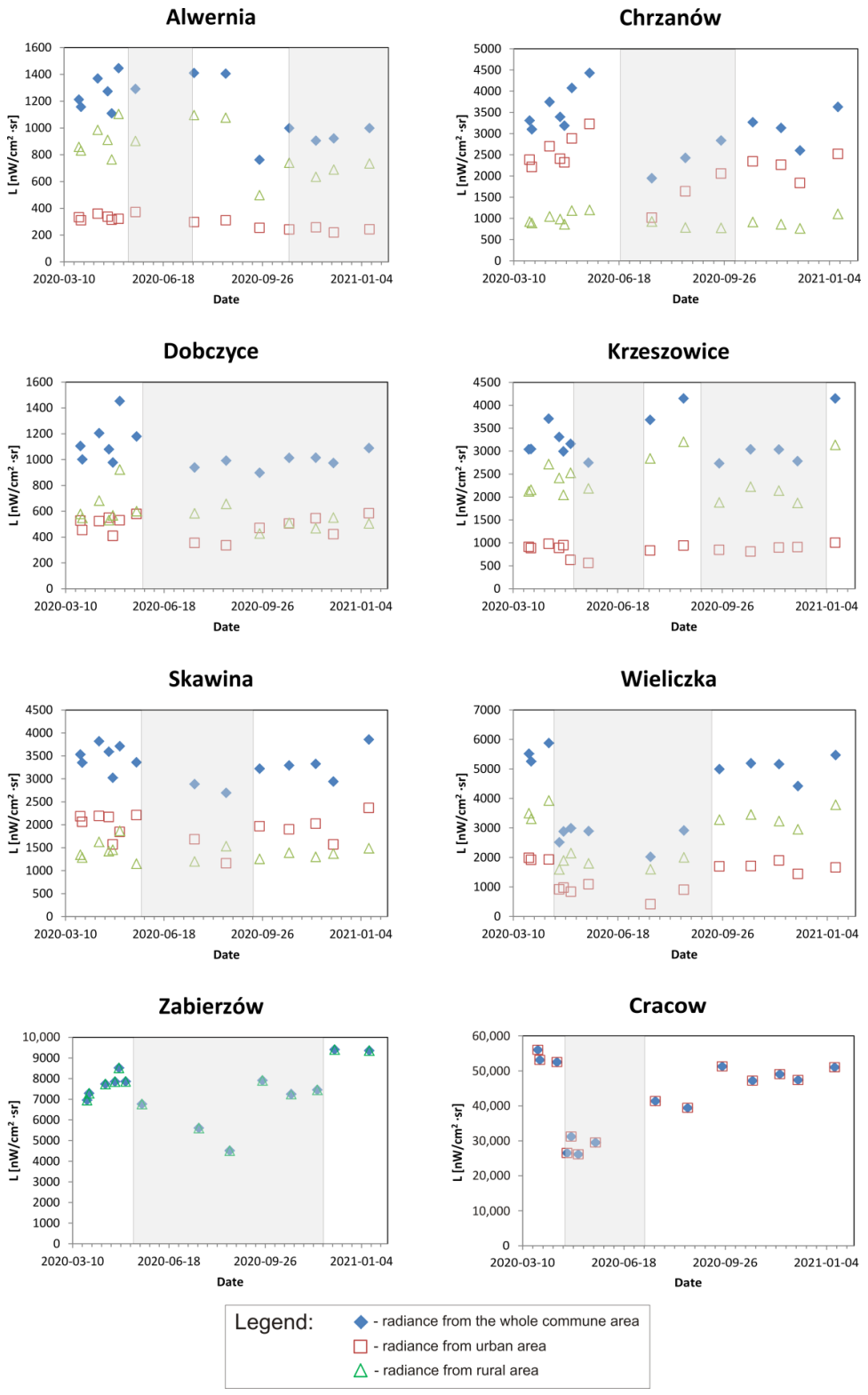

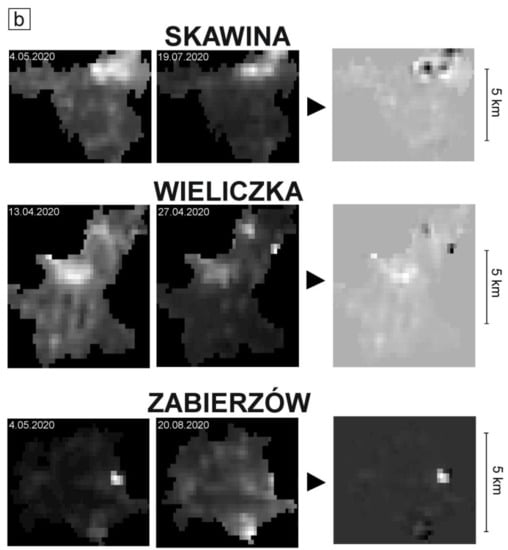

An analysis of the daily radiance for the examined communes was also conducted. This analysis allows for determining how long the switching off or switching on process was carried out. To eliminate the factors that could potentially disturb the reported values, attempts were made to choose moonless, cloudless, or only slightly cloudy nights. For urban–rural communes, the components of radiance from urban and rural areas were also determined separately (Appendix F:

Table A5. Examples of the daily radiance in 2020 for the communes of Małopolskie Voivodeship where street lighting was turned off (comm.—the whole commune; urban—the urban part of the commune; rural—the rural part of the commune). Nights are in bold font when, according to the available data, street lighting was turned off completely, in italic font—nights when only a part of the lighting was turned off (SD = 2–6, for Zabierzów: SD = 22–46) [65].

Date		Alwernia	Chrzanów	Dobczyce	Krzeszowice	Skawina	Wieliczka	Zabierzów
25.03.2020	comm.	1212	3310	1104	3038	3530	5516	6963
	urban	333	2382	526	911	2182	1982	–
	rural	858	926	578	2124	1348	3500	6963
27.03.2020	comm.	1157	3101	1001	3046	3350	5257	7289
	urban	311	2210	453	884	2064	1912	–
	rural	831	890	547	2157	1286	3307	7289
13.04.2020	comm.	1370	3746	1204	3707	3818	5879	7739
	urban	360	2699	522	978	2191	1926	–
	rural	986	1045	682	2719	1627	3928	7739
23.04.2020	comm.	1274	3394	1079	3308	3591	2511	7858
	urban	337	2406	549	888	2167	913	–
	rural	911	986	530	2415	1424	1593	7858
27.04.2020	comm.	1109	3186	976	2994	3023	2877	8524
	urban	314	2323	408	946	1570	971	–
	rural	765	862	568	2044	1453	1899	8524
4.05.2020	comm.	1446	4075	1453	3157	3709	2990	7866
	urban	321	2885	530	624	1845	833	–
	rural	1104	1184	923	2528	1864	2148	7866
21.05.2020	comm.	1292	4429	1179	2747	3359	2893	6770
	urban	372	3225	579	557	2207	1087	–
	rural	903	1201	600	2187	1152	1799	6770
19.07.2020	comm.	1411	1946	938	3682	2885	2019	5607
	urban	298	1016	355	831	1684	410	–
	rural	1096	927	583	2840	1201	1598	5607
20.08.2020	comm.	1406	2427	992	4148	2694	2912	4510
	urban	311	1638	335	938	1161	902	–
	rural	1077	787	656	3204	1534	2000	4510
23.09.2020	comm.	762	2837	897	2732	3222	4995	7914
	urban	254	2056	470	846	1966	1692	–
	rural	499	778	427	1881	1256	3279	7914
23.10.2020	comm.	998	3269	1013	3038	3291	5193	7252
	urban	243	2347	503	807	1900	1708	–
	rural	739	918	509	2225	1392	3456	7252
19.11.2020	comm.	905	3133	1014	3036	3324	5161	7458
	urban	259	2267	546	895	2023	1895	–
	rural	635	863	469	2137	1301	3233	7458
7.12.2020	comm.	922	2603	972	2781	2943	4417	9407
	urban	220	1833	421	906	1570	1438	–
	rural	689	766	551	1871	1373	2956	9407
12.01.2021	comm.	999	3630	1089	4147	3855	5468	9361
	urban	243	2520	583	1004	2367	1657	–
	rural	734	1107	505	3137	1489	3786	9361

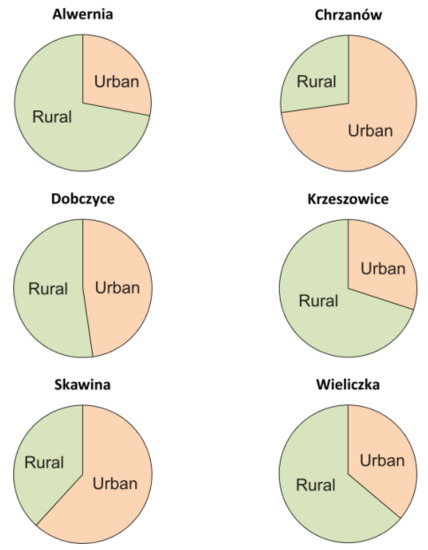

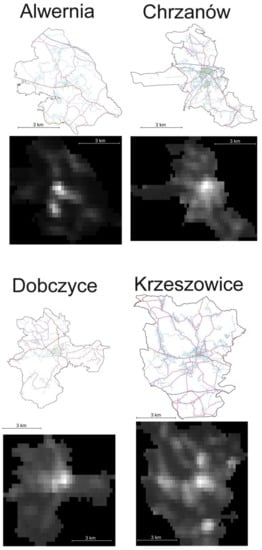

, Figure A4).

Figure 10 shows the VIIRS/DNB images of the analysed communes for the nights with all street lamps lighting (at left) and for the nights when the lighting was completely or partially turned off (in the middle). To show what changes have occurred between these nights, the differential radiance between them is also shown (at right)—bright pixels mark areas where radiance has decreased. Figure 11 shows the changes in daily radiance from March 2020 to January 2021 for a series of nights in the discussed communes. Efforts were made to represent each month for at least one night (usually, in each commune street lighting was completely turned off at the beginning of a month). Only in June, due to the proximity of the summer solstice, it was impossible to find the appropriate VIIRS/DNP image.

3.2. SQM Measurements’ Data

3.2.1. Measurements on Cloudless and Moonless Nights

With the SQM meters, a number of measurements of the brightness of the night sky were performed in the conditions of cloudless and moonless nights (Appendix G:

Table A6. Examples of changes of S_a (dS_a) determined in the conditions of a cloudless and moonless night at few measurement points (the suggested source of changes is given in brackets). Values are given in mag/arcsec², in parentheses in mcd/m².

Measuring Point	Date	Sa1	Sa2	dSa	Notes
BOT	2020-04-15	18.34 (5.03)	18.86 (3.11)	0.52 (1.91)	Cracow
	2020-04-16 *	18.97 (2.81)	18.45 (4.54)	0.52 (1.73)	Cracow
	2020-04-17 *	19.12 (2.45)	18.58 (4.03)	0.54 (1.58)	Cracow
	2020-04-18	18.46 (4.50)	19.00 (2.74)	0.54 (1.76)	Cracow
	2020-04-19	18.61 (3.92)	19.13 (2.43)	0.52 (1.49)	Cracow
	2020-04-20	18.47 (4.46)	19.00 (2.74)	0.53 (1.72)	Cracow
	2020-04-21	18.52 (4.26)	19.05 (2.61)	0.53 (1.64)	Cracow
	2020-04-22	18.51 (4.30)	19.04 (2.64)	0.53 (1.66)	Cracow
	2020-04-23	18.47 (4.46)	19.00 (2.74)	0.53 (1.72)	Cracow
	2020-04-28	18.35 (4.98)	18.90 (3.00)	0.55 (1.98)	Cracow
DOB	2020-05-17	21.35 (0.31)	21.49 (0.28)	0.14 (0.04)	Wieliczka
	2020-06-20	19.38 (1.93)	19.66 (1.49)	0.28 (0.44)	Dobczyce
	2020-06-23	19.54 (1.66)	19.81 (1.30)	0.27 (0.36)	Dobczyce
JER	2020-04-27	20.83 (0.51)	20.91 (0.47)	0.08 (0.04)	Cracow
	2020-05-16	20.01 (1.08)	20.09 (1.00)	0.08 (0.08)	Cracow
NIE	2020-05-17	19.56 (1.63)	19.64 (1.52)	0.08 (0.11)	Cracow
	2020-05-21	19.88 (1.22)	19.92 (1.17)	0.04 (0.05)	Cracow
	2020-05-22	19.94 (1.15)	20.00 (1.09)	0.06 (0.06)	Cracow
KPO	2020-04-16	18.49 (4.38)	19.00 (2.74)	0.51 (1.64)	Cracow
	2020-04-19	18.62 (3.88)	19.14 (2.41)	0.52 (1.48)	Cracow
	2020-04-20	18.50 (4.34)	19.00 (2.74)	0.50 (1.60)	Cracow
	2020-04-21	18.59 (3.99)	18.99 (2.76)	0.40 (1.23)	Cracow
	2020-04-22	18.42 (4.67)	18.97 (2.81)	0.55 (1.86)	Cracow
	2020-04-26	18.55 (4.14)	19.07 (2.57)	0.52 (1.58)	Cracow
	2020-04-28	18.44 (4.58)	18.94 (2.89)	0.50 (1.69)	Cracow
	2020-05-12	18.57 (4.07)	19.14 (2.41)	0.57 (1.66)	Cracow
	2020-05-21	18.75 (3.44)	19.24 (2.19)	0.49 (1.25)	Cracow
KPO2	2020-04-20	18.50 (4.34)	19.10 (2.50)	0.60 (1.84)	Cracow
	2020-04-21	18.59 (3.99)	19.17 (2.34)	0.58 (1.65)	Cracow
	2020-04-22	18.49 (4.38)	19.05 (2.61)	0.56 (1.76)	Cracow
	2020-04-23	18.49 (4.38)	19.07 (2.57)	0.58 (1.81)	Cracow
	2020-04-27	18.45 (4.54)	19.02 (2.69)	0.57 (1.85)	Cracow
	2020-04-28	18.44 (4.58)	18.94 (2.89)	0.50 (1.69)	Cracow
	2020-05-15	18.38 (4.84)	19.00 (2.74)	0.62 (2.11)	Cracow
	2020-05-21	18.81 (3.26)	19.26 (2.15)	0.45 (1.11)	Cracow
WIE	2020-04-15	19.99 (1.10)	20.18 (0.92)	0.19 (0.18)	Cracow
	2020-04-16	20.00 (1.09)	20.46 (0.71)	0.46 (0.38)	Cracow + Wieliczka
	2020-04-19	20.13 (0.97)	20.61 (0.62)	0.48 (0.35)	Cracow + Wieliczka
	2020-04-20	20.08 (1.01)	20.57 (0.64)	0.49 (0.37)	Cracow + Wieliczka
	2020-04-22	20.06 (1.03)	20.60 (0.63)	0.54 (0.40)	Cracow + Wieliczka
	2020-05-16	20.00 (1.09)	20.47 (0.71)	0.47 (0.38)	Cracow + Wieliczka
	2020-05-18	20.04 (1.05)	20.55 (0.66)	0.51 (0.39)	Cracow + Wieliczka
	2020-05-20	20.16 (0.94)	20.61 (0.62)	0.45 (0.32)	Cracow + Wieliczka
	2020-05-21	20.18 (0.92)	20.69 (0.58)	0.51 (0.34)	Cracow + Wieliczka
	2020-06-13	19.97 (1.12)	20.15 (0.95)	0.18 (0.17)	Wieliczka
ZAB	2020-04-28	20.04 (1.05)	20.19 (0.91)	0.15 (0.14)	Cracow

*—The morning measurements at 4:00 CEST.

). The changes in the mean value of S_a measured at the measuring points were determined (Appendix G:

Table A7. Mean change of S_a at measuring points (dS_a). The commune that is the suggested source of the change is given in parentheses.

Measuring Point	dSa[mag/arcsec2]	dSa[mcd/m2]
BOT (only Cracow)	0.53 ± 0.01	1.72 ± 0.14
DOB_1 (Dobczyce)	0.28 ± 0.01	0.40 ± 0.04
DOB_2 (Wieliczka)	0.14 ± 0.05	0.04 ± 0.02
JER (Cracow)	0.08 ± 0.01	0.06 ± 0.02
NIE_1 (Cracow)	0.06 ± 0.02	0.07 ± 0.02
NIE_2 (Wieliczka)	0.03 ± 0.01	0.03 ± 0.03
KPO (Cracow)	0.51 ± 0.04	1.55 ± 0.19
KPO2 (Cracow)	0.56 ± 0.05	1.73 ± 0.27
WIE_1 (Cracow)	0.25 ± 0.02	0.17 ± 0.06
WIE_2 (Wieliczka)	0.23 ± 0.01	0.16 ± 0.01
WIE_3 (Wieliczka + Cracow)	0.49 ± 0.03	0.37 ± 0.03
ZAB (Cracow)	0.15 ± 0.02	0.14 ± 0.04

).

During the entire measurement period, at the KAS (commune of Mszana Dolna) and SUH (commune of Niedźwiedź) control measuring points, no changes in the S_a values were found that could be related to street lighting shutdowns in Cracow or the neighbouring communes. In the case of the KAS measuring point, the maximum measured value of S_a was 21.25 ± 0.01 mag/arcsec², in the case of the SUH station, 21.78 ± 0.01 mag/arcsec².

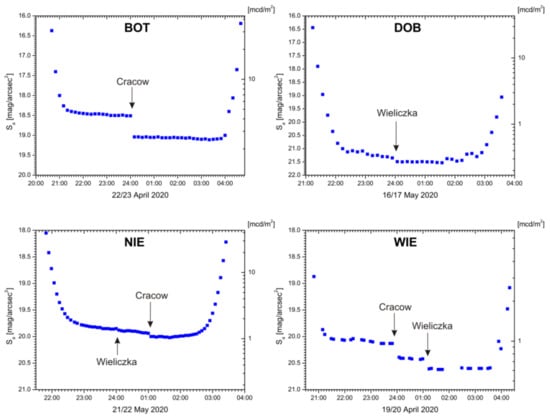

Figure 12 shows examples of changes in S_a value during selected nights for the measuring points where the continuous measurements were carried out: BOT, DOB, NIE, and WIE. On diagrams, the suggested sources of reducing the brightness of the sky glow at a given measuring point are indicated by an arrow.

3.2.2. Measurements on Overcast Nights

Measurements were also carried out during cloudy nights (Appendix G:

Table A8. Changes of S_a recorded at measuring points KPO, KPO2, and ZAB during cloudy nights, related to turning off the street lighting in Cracow [mag/arcsec², in brackets mcd/m²] (data on the height of clouds at the time of measurement come from the meteorological reports of the Kraków-Balice Airport, located on the western border of the city [80]).

Measuring Point	Date	Sa1	Sa2	dSa	Level of Clouds
KPO	2020-04-24	18.42 (4.67)	19.03 (2.66)	0.61 (2.01)	High-level clouds
	2020-04-25	15.53 (66.86)	16.20 (36.07)	0.67 (30.79)	Medium-level clouds (1400 m)
	2020-04-26	16.23 (35.09)	16.93 (18.41)	0.70 (16.67)	Medium-level clouds (1829 m)
	2020-04-28	18.34 (5.03)	18.99 (2.76)	0.65 (2.26)	High-level clouds
	2020-04-29	18.44 (4.58)	18.94 (2.89)	0.50 (1.69)	High-level clouds
	2020-04-30	15.60 (62.68)	16.10 (39.55)	0.50 (23.13)	Low-level clouds (274 m)
	2020-05-26	15.84 (50.25)	16.68 (23.18)	0.84 (27.07)	Medium-level clouds (1829 m)
KPO2	2020-04-24	18.49 (4.38)	19.07 (2.57)	0.58 (1.81)	High-level clouds
	2020-04-25	15.57 (64.44)	16.22 (35.41)	0.65 (29.03)	Medium-level clouds (1400 m)
	2020-04-26	16.10 (39.55)	16.83 (20.19)	0.73 (19.36)	Medium-level clouds (1829 m)
	2020-04-28	18.45 (4.54)	19.02 (2.69)	0.57 (1.85)	High-level clouds
	2020-04-29	18.44 (4.58)	18.94 (2.89)	0.50 (1.69)	High-level clouds
	2020-04-30	15.91 (68.73)	16.72 (43.37)	0.50 (25.36)	Low-level clouds (274 m)
	2020-05-26	15.91 (47.11)	16.72 (22.34)	0.81 (24.77)	Medium-level clouds (1829 m)
ZAB	2020-05-27	17.57 (9.75)	17.62 (10.21)	0.05 (0.46)	Stratus
	2020-05-29	18.56 (4.10)	17.69 (9.14)	0.87 (5.04)	Stratocumulus (?)
	2020-05-30	18.90 (3.00)	17.96 (7.13)	0.94 (4.13)	Stratocumulus (?)
	2020-06-01	17.56 (10.31)	17.63 (9.66)	0.07 (0.64)	Nimbostratus (rain)

). Only at the measuring points KPO, KPO2, and ZAB the genus of clouds was recorded at the time of measurement. In the case of automatic measuring points (BOT, NIE, and DOB), the amplitude of S_a variability during a cloudy night usually exceeded its possible changes related to the street lighting switching off; therefore, only some data from these points are possible for analysis (Figure 13 and Figure 14).

4. Discussion

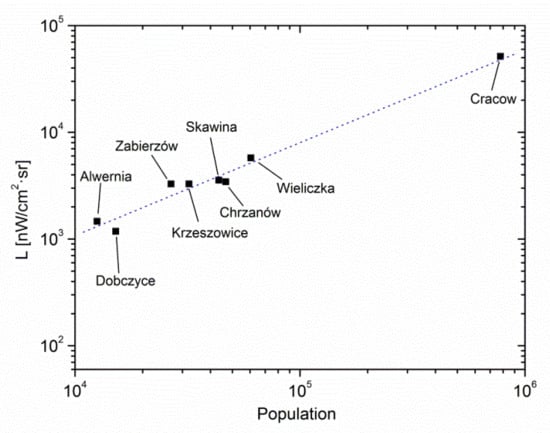

The number of illuminated roads in the commune, and particularly in the city, should depend on the number of inhabitants. Figure 15 shows the mean monthly radiance determined in March (before the street lighting shutting off period) vs. the population of the researched communes. There is a clear proportionality between these values. It means, as expected, that the main factor responsible for the amount of light energy emitted into the space is related to the number of emitters, which in turn is related to the population of the area. This relationship is consistent with the models proposed by Walker [14] and Berry [16].

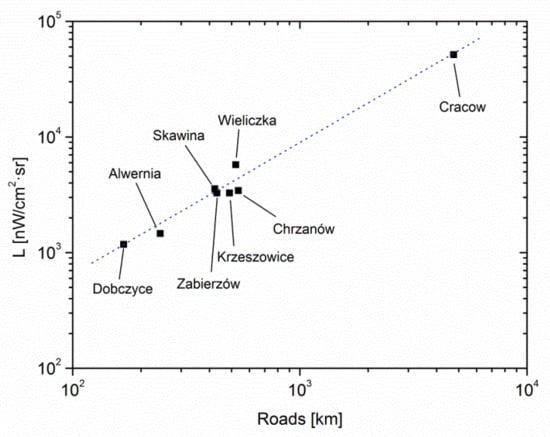

The presented research concerns the impact of switching off street lighting on the radiance. Therefore, the relationship between the radiance and the total length of illuminated roads in a given commune was checked. In this case, a clear proportionality of these values is also visible (Figure 16). However, it should be kept in mind that this relationship is indirect since undoubtedly the total length of roads in a given area depends on the population. Nevertheless, the presented graph means that unquestionably turning off street lighting should reduce the radiance. It can be concluded that the average radiance per kilometre of road in the research areas is 11.1 nW/cm²·sr/km.

Switching off street lighting in the analysed communes should impact their mean annual radiance. The column chart of the average annual radiance for Cracow in recent years (Figure 5) shows that the street lighting switching off in 2020 decreased this value, compared to the three previous years (in 2017, street lighting was modernised and extended in Cracow). To exclude the impact of other random factors that could cause such an effect, the monthly mean values of radiance for Cracow in the spring months of 2015–2020 were analysed (Figure 6). In May 2020, the radiance of Cracow significantly decreased, compared to both the neighbouring months and the same month in the preceding years. This should, of course, be linked to the total shutdown of street lighting in the city for the entire month. In this way, it was shown that indeed switching off street lighting has a noticeable effect on the radiance. The obtained image of the differential radiance between March 2020 (when the lighting was not turned off) and May 2020 (Figure 7) shows that the effect of reducing the radiance was mainly caused by turning off street lighting in the western part of Cracow, mainly in the area of the Old Town and its surroundings (the lighting of the ArcelorMittal Poland steel plant in the eastern part of the city was also turned off). The analysis of the daily radiance on selected days in the research period (Table 4) shows that initially (when only part of the lighting was turned off), it decreased by approx. 19,400 nW /cm² · sr. At the beginning of May, on the days when the lighting of the greatest number of streets was turned off, the reduction in radiance compared to March was approx. 26,300 nW/cm² · sr, which means a reduction in the radiance of Cracow by half. This value is much higher than in the case of tests carried out with the street lighting switched off in Tucson (46). The reason is probably that Tucson has long had a very well-designed street light system that complies with protection against light pollution, while in Cracow, the modernisation of street lighting began only in 2017.

Analogous diagrams made for near-Cracow communes showed that the type of commune and the scale of switching off street lighting are of significant importance here. The effect of reducing the mean annual radiance in 2020, compared to previous years, is most clearly visible in the case of Alwernia (280 nW/cm² · sr), Chrzanów (780 nW/cm² · sr), Krzeszowice (580 nW/cm² · sr), and Wieliczka (290 nW/cm² · sr), i.e., communes in which a significant part of street lighting was turned off, or this turning-out lasted several months (Appendix F: Table A3). This effect is not visible in the case of Skawina and Zabierzów. The effect of switching off street lighting is particularly evident in diagrams showing the mean monthly radiance (Figure 9). The period of radiance reduction in Chrzanów, Krzeszowice, Skawina, or Wieliczka is fully consistent with the period of street lighting switching off (Appendix F: Table A4). However, the rapid decrease in radiance in the case of Zabierzów is rather not related to switching off street lighting but to the annual temporary turning off the lighting of the aforementioned greenhouse in summer months. In the case of Dobczyce, only part of the street lighting in some rural areas was turned off, which caused only a slight change in the commune’s radiance.

Confirmations of the dates of switching off and switching on the street lighting are the daily radiances of individual communes (Figure 11; Appendix F: Table A5).

The analysis of VIIRS/DNB images for the dates preceding the periods of switching off the street lighting and for the periods during which it took place allows, to some extent, to identify the main light sources (Figure 3; Appendix C: Figure A1 and Figure A2). The differential radiance images are also helpful in the identification. On their basis, it can be concluded that the radiance changes were indeed caused by switching off the lighting of the main roads in a given commune. However, turning off street lighting in towns and larger cities was of particular importance, which is especially well visible in the case of Alwernia, Chrzanów, and Wieliczka. In the case of Zabierzów, it was possible to find in the database the night during which the bright greenhouse, usually dominant in the image of this commune, was turned off—it is clear that it is indeed the main source of light in the commune. To identify the sources of radiance changes in urban–rural communes more confidently, it was determined separately for urban and rural areas (Figure 11; Appendix F: Table A5, Figure A4). In the case of poorly urbanised communes, such as Alwernia or Krzeszowice, radiance changes are caused only by turning off the street lighting in rural areas, which is evident especially for September 2020, when the lighting of rural roads was turned off for savings. In the case of urbanised communes, such as Chrzanów or Skawina, radiance changes are only caused by switching off the city lighting (in Chrzanów, the process of the gradual restoration of street lighting in August 2020 is visible). In the commune of Dobczyce, only part of the street lighting in rural areas was turned off. Wieliczka is the only commune where street lighting has been consistently turned off, both in the city and in rural areas. In the case of the rural commune of Zabierzów, the observed reduction in radiance is less due to switching off the street lighting and to a much greater extent switching off the lighting of the aforementioned greenhouse in July 2020. In the case of Cracow, which is a municipal commune, naturally, switching off the street lighting in the city is responsible for the entire radiance change. A detailed territorial distribution of radiance and the linking of its changes with specific objects in the city is the subject of a separate publication that is being prepared.

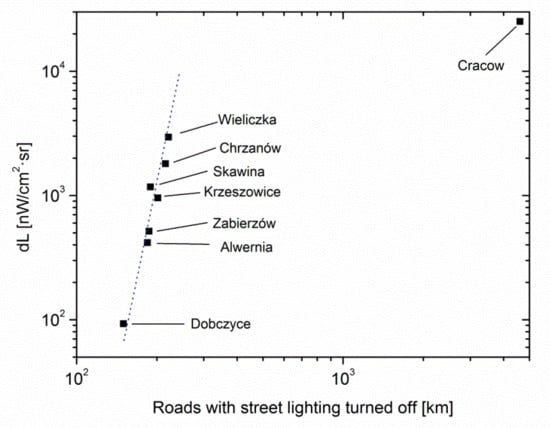

Information was obtained from the analysed communes about which roads’ lighting was turned off (Appendix B: Table A2). It is confirmed by the analysis of radiance images and their comparison with the road maps (Figure 3; Appendix C: Figure A1 and Figure A2). These data make it possible to plot the relationship between the differential radiance of communes (the difference of radiance between the month in which street lighting was switched on and that in which street lighting was switched off) and the length of roads in which lighting was switched off (Figure 17).

In the case of rural and urban–rural communes, the proportionality of the differential radiance to the length of “darkened” streets is evident. In these surroundings, street lighting is the dominant factor emitting light into space. In the case of Cracow, where all public street lighting was turned off (both in more and less urbanised areas), this resulted in a relatively small decrease in radiance. Perhaps it is related to the fact that in Cracow it is not the dominant factor illuminating the night sky. Additional sources of light are numerous apartment communities with their own lighting, as well as light advertising, offices, and even some important road intersections. It is also possible that this effect is caused by a higher concentration of particulate matter, which is the source of light scattering.

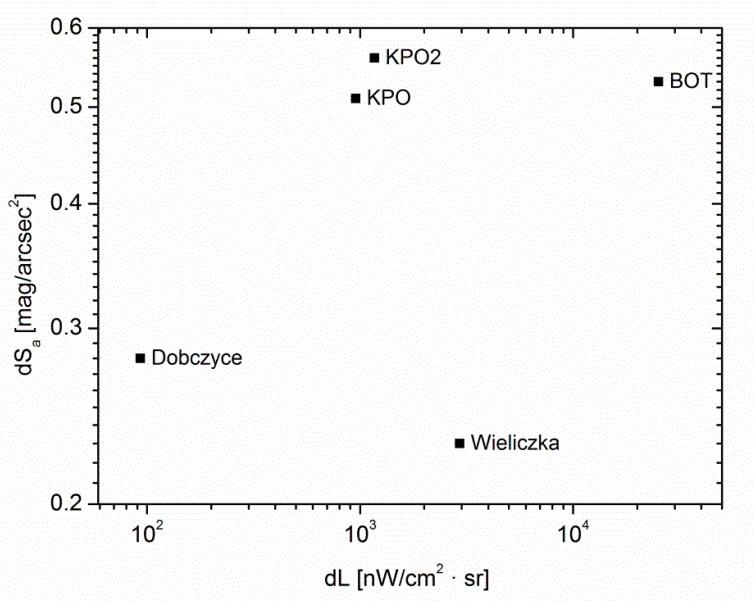

In communes, where the S_a measuring points were active (Dobczyce (DOB); Cracow (KPO, KPO2, BOT); Wieliczka (WIE)), it is possible to plot a relationship between the decrease of S_a and the decrease of radiance (Figure 18). Unfortunately, the small number of these measuring points makes it difficult to conduct a deeper analysis. However, it seems that the decrease in the surface zenith brightness of the sky (dS_a) depends mainly on the population of the commune not on the decrease in radiance. In the case of measuring points located in Cracow, dS_a is equal to 0.5–0.6 mag/arcsec² (37% decrease), while in the case of neighbouring small cities, it is equal to 0.2–0.3 mag/arcsec² (17% decrease). In the case of Cracow, this value is much higher than the zenith brightness decrease in the Tucson experiment [46]. The reason is probably that street lighting in Cracow began to be modernised only in 2017, and this modernisation is still underway.

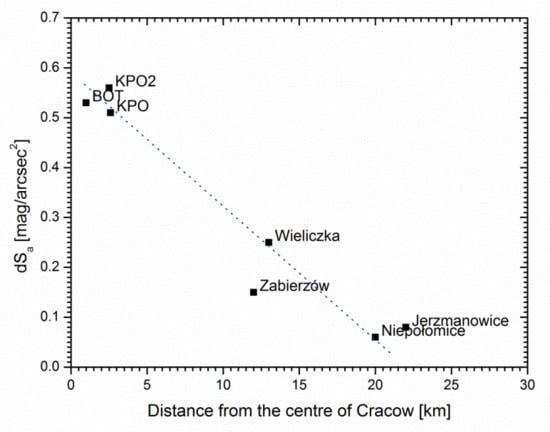

At several measuring points, located outside Cracow, a decrease of S_a can be related to the turning off the street lighting in this city. Figure 19 shows the relationship between the S_a value measured at all active measuring points and the distance from the centre of Cracow, defined as the centre of the area with the greatest radiance change (i.e., the Old Town, Figure 7). A clear relationship between these values is visible. Moreover, as can be observed, even at a distance of 20 km, the changes of street lighting in Cracow affect the zenith brightness at this measuring point. A similar decrease in zenith brightness with distance was also found for Berlin [48], but in the case of Cracow, the range is much smaller. This should be associated with the much smaller population of Cracow (almost 800,000), compared to the population of Berlin (over 3,500,000).

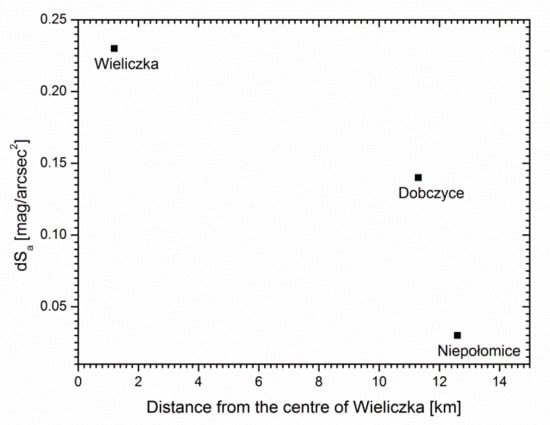

A similar analysis, but with a smaller number of cases, can be carried out on the example of the Wieliczka commune. Additionally, in this case, switching off the street lighting in the city impacts the zenith surface brightness of the night sky at the measuring points located in the neighbouring communes, up to a distance of approx. 12 km (Figure 20).

No change in the value of S_a, which could be associated with the shutdowns of street lighting in Cracow or the surrounding communes, was recorded at the measuring points in Kasinka Wielka (KAS, 40 km from Cracow) and at Suhora Mt. (SUH, 55 km from Cracow).

The above considerations apply to the case of the cloudless sky. However, at several measuring points, it was possible to analyse the impact of switching off street lighting in Cracow on the surface brightness of the overcast sky.

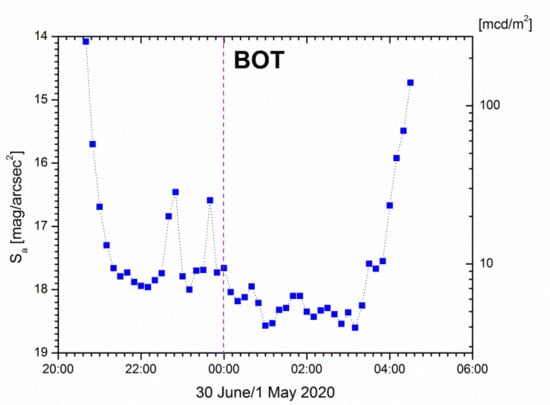

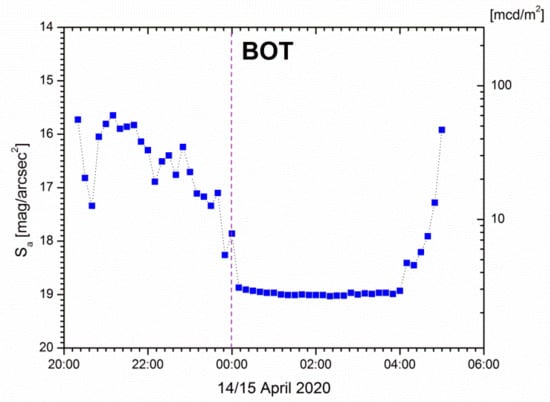

The most complete research of this type was carried out at the BOT measuring point located in the centre of Cracow. To determine the degree of cloudiness, and especially the genus of clouds, both the method of discrete derivatives [72,73] and the data of the meteorological station located at this point can be used. Throughout several nights, it was observed that in the presence of high-level clouds (and few middle-level clouds), when street lighting was turned off, the surface brightness curve typical for a cloudy sky “flattened”, assuming the appearance characteristic of a cloudless sky (Figure 13). This is in line with previous observations [73,74], according to which the noticeable scattering of light on the high-level clouds occurs only in large cities with strong radiance. A similar effect was not observed in other cities where the brightness of the night sky was continuously measured (Wieliczka and Dobczyce). It is also not visible, even in Cracow, in the case of low-level clouds, e.g., of the Stratus genus (Figure 14).

At the KPO and KPO2 measuring points, located within Cracow, where manual measurements of the sky surface brightness were carried out along with noting the genus of clouds and the degree of cloud cover, it was found that with the low-level clouds, the S_a value at the moment of switching off the street-lighting changes by 0.5–0.7 mag/arcsec², and this value does not depend on the genus or altitude of clouds. Analogous measurements carried out in Zabierzów (ZAB) and Jerzmanowice (JER) at the moment of switching off street lighting in Cracow showed that with low-level clouds of the genus of Stratus and Nimbostratus, the effect of changing S_a is very weak and amounts to only approx. 0.06 mag/arcsec², while in the case of Stratocumulus clouds, it approaches 1.00 mag/arcsec². This means that both the altitude of clouds and their genus may be important. Unfortunately, a small number of measurements does not allow for more detailed conclusions. However, it seems that these observations are consistent with those reported in the literature [74,75].

5. Conclusions

The analysis of VIIRS/DNB data showed that in each of the researched communes switching off street lighting significantly decreased the radiance. This effect is most clearly visible in urban or urban–rural communes with a high degree of urbanisation. For these communes, including Cracow as a commune, as a result of switching off all street lighting in cities, the radiance decreased by approx. 50% of values before the pandemic. In the case of rural communes (or communes with a dominant rural function), the corresponding decrease in radiance was approx. 35%. This means that in cities half of the light energy emitted into the sky comes from badly constructed street lighting. The other half comes from the lighting of private properties, parking lots, illuminated advertisements, etc. In communes with a predominant rural function, about one-third of the light energy is lost in this way—the remaining two-thirds come mainly from the lighting of individual farms and industrial plants. Unfortunately, the research covered only one rural commune (Zabierzów), where the dominant contribution to radiance comes from a single, bright object—a large greenhouse. Switching off its lighting reduced the commune’s radiance by approx. 45% of the value before the pandemic.

Turning off street lighting and the resulting reduction in the amount of energy emitted to the sky obviously reduce the brightness of the sky glow, both in the case of cloudless and cloudy skies. In the case of a cloudless sky, the difference between the decrease in the surface brightness of the sky glow over the large city (Cracow) (amounting to approx. 1.7 mcd/m², i.e., approx. 39%) and the same value determined for smaller cities, such as Dobczyce and Wieliczka (amounting to 0.4 and 0.2 mcd/m², i.e., 22% and 15%, respectively), is evident. It is interesting that turning off all street lighting in Cracow reduces the radiance by, in fact, such a small amount. This effect and the difference between the relative decrease of radiance from Cracow and the one from smaller cities should probably be associated with the various concentration of atmospheric light scattering centres, especially with the density of particulate matter (PM). The decisive impact of PM on the brightness of the cloudless sky has already been found earlier by the author of this paper (it should be kept in mind that Cracow is one of the most polluted cities in the world) [27,76]. The research by Jechow and Hölker [48] also indicates the possibility of such correlation in the pandemic period in Berlin, but a similar effect in the Małopolskie Voivodeship will be the subject of a separate publication.

In the case of overcast nights in Cracow, a significant absolute difference was found between the decrease in the surface brightness of the night sky in the presence of low- and medium-level clouds (20.1 mcd/m²) and in the presence of high-level clouds (1.8 mcd/m²). However, the relative decrease in surface sky brightness slightly depends on the genus of clouds and amounts to approx. 43%, compared to the situation before switching off the street lighting. This value is similar to that found in the case of the cloudless sky (39%).

Therefore, it can be concluded that turning off all street lighting in a large city reduces the amount of light energy radiated into the sky by about 50%, while reducing the surface brightness of the night sky by about 40%, regardless of the state of the atmosphere.

In the case of smaller cities (Dobczyce and Wieliczka), the effect of reducing the surface brightness of the overcast night sky was not observed. It can only be stated that this change was smaller than the amplitude of changes in brightness associated with the variability of cloud cover. It gives the upper limit of reducing the sky brightness to 60%, which does not exclude a value analogous to that in Cracow.

The measurements of the impact of changes in the brightness of the light source, which is the city, on the zenith surface brightness of the sky at measuring points of different distances, allowed the verification of previous theses [73,76,77]. It was found that these changes are still visible at a distance of 24 km from Cracow, which confirmed the previously established size of the city’s light island [25].
