Overheating and Daylighting; Assessment Tool in Early Design of London’s High-Rise Residential Buildings
Abstract
:1. Introduction
2. Method
2.1. Standards and Benchmarks
2.2. Simulation Software and Weather Files

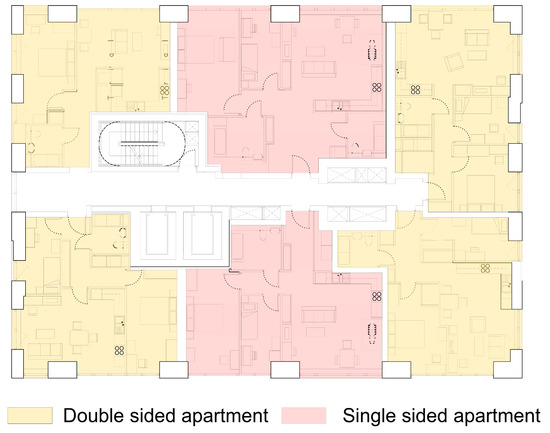

2.3. Base Model Characteristics
2.4. Design Combinations and Model Characteristics
3. Results and Discussion

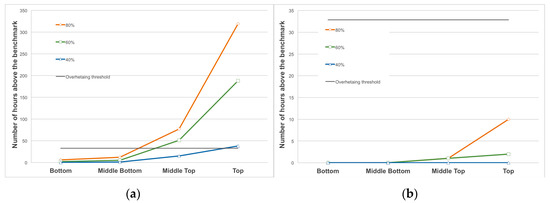

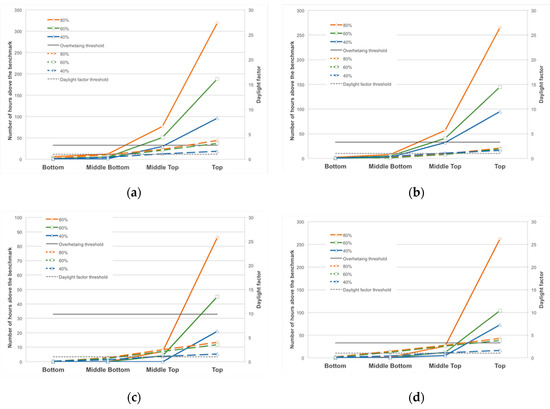

3.1. Overheating and Daylighting Performance in Relation to Apartment’s Floor Position

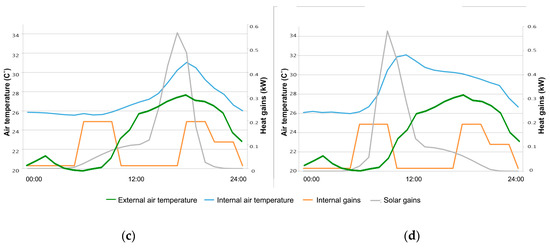

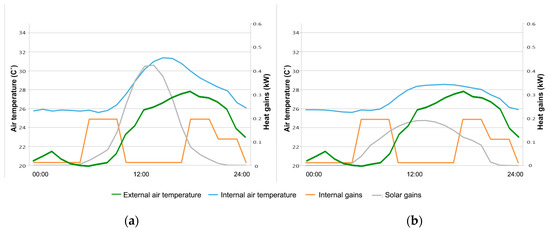

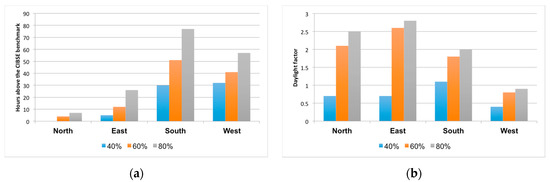

3.2. Impact of the Orientation on the Overheating and Daylighting Performances

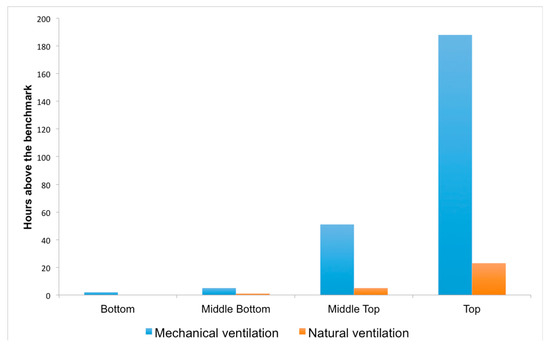

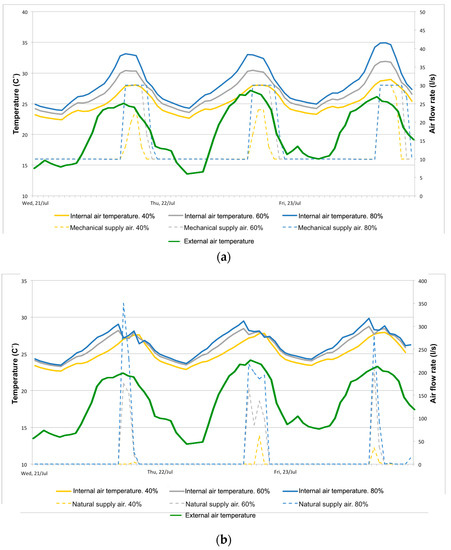

3.3. Overheating, Daylighting and Ventilation Strategy
3.4. Summary of Results
4. Design Assessment Tools
- Relationship between the design variables (orientation, floor position, glazing ratio and thermal mass) and the predicted internal temperatures of the mechanically ventilated apartments.
- Relationship between the design variables (orientation, floor position, glazing ratio and thermal mass) and the predicted internal temperatures of naturally ventilated apartments.
- Relationship between the design variables (orientation, floor position, glazing ratio and thermal mass) and the predicted daylighting factor.

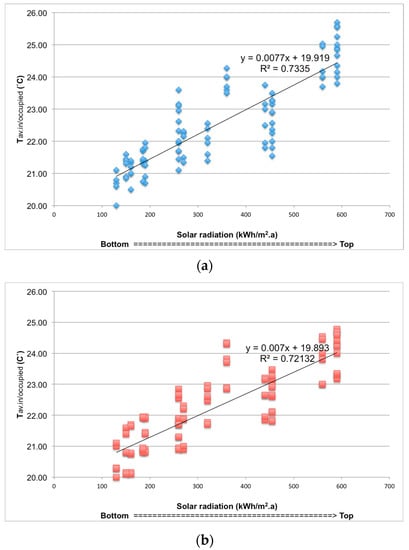

- Tav.in(occup): Average internal air temperature during the occupied hours.

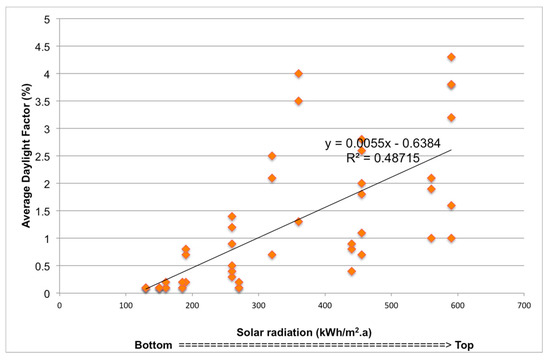

- : Average Daylight Factor (%).
- : Orientation, the yearly vertical solar radiation of the flat’s orientation (kWh/m2·a).
- : Position, the yearly vertical solar radiation on the flat’s facade (kWh/m2·a).
- : The window/wall glazing ratio of the flat (%).
- : The thermal mass of the flat (kJ/m2·K).
- Climate data: Control, TRY 2030, TRY 2050, TRY 2080
- Ventilation strategy: mechanical, natural
- Glazing Ratio: 40%, 60%, 80%
- Thermal mass: low, medium
- Orientation: north, east, south, west
- Flat position: top, middle top, middle bottom, bottom
- Type of space: living room, bedroom

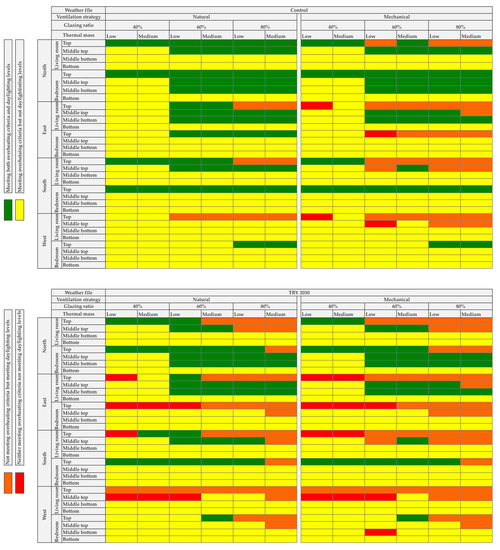

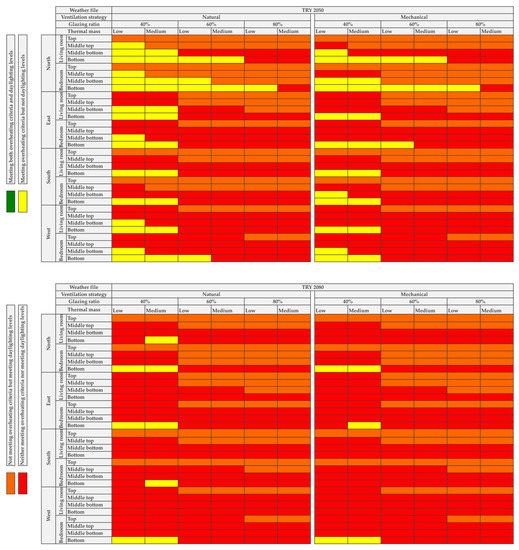

- Meeting both overheating criteria and daylighting levels
- Meeting overheating criteria, but not daylighting levels
- Not meeting overheating criteria, but meeting daylighting levels
- Neither meeting overheating criteria nor meeting daylighting levels
5. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Solomon, S.; Qin, D.; Manning, M.; Chen, Z.; Marquis, M.; Averyt, K.B.; Tignor, M.; Miller, H.L. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change, 2007; Cambridge University Press: Cambridge, UK, 2007; ISBN 978 0521 88009-1 Hardback. [Google Scholar]
- Robine, J.M.; Cheung, S.L.; Le Roy, S.; Van Oyen, H.; Herrmann, F.R. Report on Excess Mortality in Europe During Summer 2003; European Commission, Directorate General for Health and Consumer Protection: Brussels, Belgium, 2007. [Google Scholar]
- Johnson, H.; Kovats, R.S.; McGregor, G.; Stedman, J.; Gibbs, M.; Walton, H.; Cook, L.; Black, E. The impact of the 2003 heat wave on mortality and hospital admissions in England. Health Stat. Q. 2005. [Google Scholar] [CrossRef]
- Zero Carbon Hub. Overheating in Homes, the Big Picture, Zero-Carbon Hub, Full Report; Zero Carbon Hub: London, UK, 2015. [Google Scholar]
- Public Health England. Heatwave Plan for England, Protecting Health and Reducing Harm from Severe Heat and Heatwaves; Public Health England and National Health Service: London, UK, 2015. [Google Scholar]
- Gabriel, K.M.A.; Endlicher, W.R. Urban and rural mortality rates during heat waves in Berlin and Brandenburg, Germany. Environ. Pollut. 2011, 159, 2044–2050. [Google Scholar] [CrossRef] [PubMed]
- Laaidi, K.; Zeghnoun, A.; Dousset, B.; Bretin, P.; Vandentorren, S.; Giraudet, E.; Beaudeau, P. The impact of heat islands on mortality in Paris during the August 2003 heat wave. Environ. Health Perspect. 2011, 120, 254–259. [Google Scholar] [CrossRef] [PubMed]
- United Nations, Departement of Economics and Social Affairs (UN, DESA). World Urbanization Prospects, 2014 Revision; United Nations, Departement of Economics and Social Affairs: New York, NY, USA, 2015. [Google Scholar]
- Zero Carbon Hub. Overheating Risk Mapping, Evidence Review; Zero Carbon Hub: London, UK, 2015. [Google Scholar]
- Committee on Climate Change (CCC). Meeting Carbon Budgets—2012 Progress Report to Parliament; Committee on Climate Change: London, UK, 2012. [Google Scholar]
- Hamilton, G.; Shipworth, I.D.; Summerfield, J.; Steadman, A.P.; Oreszczyn, T.; Lowe, R. Uptake of energy efficiency interventions in English dwellings. Build. Res. Inf. 2014, 42, 255–275. [Google Scholar] [CrossRef]
- Porritt, S.; Cropper, P.; Shao, L.; Goodier, C. Ranking of interventions to reduce dwelling overheating during heat waves. Energy Build. 2012, 5, 16–27. [Google Scholar] [CrossRef] [Green Version]
- Shrubsole, C.; Macmillan, A.; Davies, M.; May, N. 100 Unintended consequences of policies to improve the energy efficiency of the UK housing stock. Indoor Built Environ. 2014, 23, 340–352. [Google Scholar] [CrossRef]
- National House Building Council (NHBC); Zero Carbon Hub. Overheating in New Homes F46—A Review of the Evidence; IHS BRE Press: Watford, UK, 2012. [Google Scholar]
- Beizaee, A.; Lomas, K.J.; Firth, S.K. National survey of summertime temperatures and overheating risk in English homes. Build. Environ. 2013, 65, 1–17. [Google Scholar] [CrossRef]
- Lomas, K.J.; Porritt, S.M. Overheating in buildings: Lessons from research. Build. Res. Inf. 2017, 1–18. [Google Scholar] [CrossRef]
- Baborska-Narozny, M.; Stevenson, F.; Chatterton, P. Temperature in housing: Stratification and contextual factors. Eng. Sustain. 2015, 9, 1–17. [Google Scholar] [CrossRef]
- Hulme, J.; Beaumont, A.; Summers, C. Energy Follow-up Survey 2011, Report 7: Thermal Comfort & Overheating; Building Research Establishment: Watford, UK, 2013. [Google Scholar]
- Ji, Y.; Fitton, R.; Swan, W.; Webster, P. Assessing overheating of the UK existing dwellings—A case study of replica Victorian end terrace house. Build. Environ. 2014, 77, 1–11. [Google Scholar] [CrossRef]
- Lomas, K.J.; Kane, T. Summertime temperatures and thermal comfort in UK homes. Build. Res. Inf. 2013, 41, 259–280. [Google Scholar] [CrossRef]
- Mavrogianni, A.; Taylor, J.; Davies, M.; Thoua, C.; Kolm-Murray, J. Urban social housing resilience to excess summer heat. Build. Res. Inf. 2015, 43, 16–33. [Google Scholar] [CrossRef]
- Mavrogianni, A.; Pathan, A.; Oikonomou, E.; Biddulph, P.; Symonds, P.; Davies, M. Inhabitant actions and summer overheating risk in London dwellings. Build. Res. Inf. 2017, 45, 119–142. [Google Scholar] [CrossRef]
- Vellei, M.; Ramallo-González, A.P.; Coley, D.; Lee, J.; Gabe-Thomas, E.; Lovett, T.; Natarajan, S. Overheating in vulnerable and non-vulnerable households. Build. Res. Inf. 2017, 45, 102–118. [Google Scholar] [CrossRef]
- Vellei, M.; Ramallo-González, A.P.; Kaleli, D.; Lee, J.; Natarajan, S. Investigating the overheating risk in refurbished social housing. In Proceedings of the 9th Windsor Conference: Making Comfort Relevant, Windsor Great Park, UK, 7–10 April 2016. [Google Scholar]
- Gul, M.S.; Jenkins, D.; Patidar, S.; Menzies, G.; Banfill, P.; Gibson, G. Communicating future overheating risks to building design practitioners: Using the low carbon futures tool. Build. Serv. Eng. Res. Technol. 2015, 36, 182–195. [Google Scholar] [CrossRef]
- Gupta, R.; Gregg, M. Using UK climate change projections to adapt existing English homes for a warming climate. Build. Environ. 2012, 55, 20–42. [Google Scholar] [CrossRef]
- Holmes, M.J.; Hacker, J.N. Climate change, thermal comfort and energy: Meeting the design challenges of the 21st century. Energy Build. 2007, 39, 802–814. [Google Scholar] [CrossRef]
- Mavrogianni, A.; Wilkinson, P.; Davies, M.; Biddulph, P.; Oikonomou, E. Building characteristics as determi- nants of propensity to high indoor summer temperatures in London dwellings. Build. Environ. 2012, 55, 117–130. [Google Scholar] [CrossRef]
- Taylor, J.; Davies, M.; Mavrogianni, A.; Shrubsole, C.; Hamilton, I.; Das, P.; Biddulph, P. Mapping indoor overheating and air pollution risk modification across Great Britain: A modelling study. Build. Environ. 2016, 99, 1–12. [Google Scholar] [CrossRef]
- DeWilde, P.; Rafiq, Y.; Beck, M. Uncertainties in predicting the impact of climate change on thermal performance of domestic buildings in the UK. Build. Serv. Eng. Res. Technol. 2008, 29, 7–26. [Google Scholar] [CrossRef]
- Architecture, Engineering, Consulting, Operations, and Maintenance (AECOM). Investigation into Overheating in Homes: Literature Review; Department for Communities and Local Government: London, UK, 2012. [Google Scholar]
- Arup Research + Development, Bill Dunster Architects. UK Housing and Climat Change: Heavy vs. Lightweight Construction; Ove Arup & Partners Ltd.: London, UK, 2005. [Google Scholar]
- Orme, M.; Palmer, J. Control of Overheting in Future Housing, Design Guidance for Low Energy Strategies; AECOM Ltd.: Hertfordshire, UK, 2003. [Google Scholar]
- Orme, M.; Palmer, J.; Irving, S. Control of Overheating in Well-Insulated Housing; Faber Maunsell Ltd.: Hertfordshire, UK, 2003. [Google Scholar]
- Coley, D.; Kershaw, T. Changes in internal temperatures within the built environment as a response to a changing climate. Build. Environ. 2010, 45, 89–93. [Google Scholar] [CrossRef] [Green Version]
- Good Homes Alliance (GHA). Preventing Overheating: Investigating and Reporting on the Scale of Overheating in ENGLAND, including Common Causes and an Overview of Remediation Techniques; Good Homes Alliance: London, UK, 2014. [Google Scholar]
- Departement of Communities and Local Governement (DGLG). English Housing Survey. In Headlibe Report 2013–2014; Departement of Communities and Local Governement: London, UK, 2015. [Google Scholar]
- Ledrans, S.; Vandentorren, P.; Bretin, A.; Zeghnoun, L.; Mandereau-Bruno, A.; Croisier, C.; Cochet, J.; Ribéron, I.; Siberan, B.; Declercq, M. August 2003 heat wave in France: Risk factors for death of elderly people living at home. Eur. J. Public Health 2006, 16, 583–591. [Google Scholar] [CrossRef]
- New London Architecture (NLA). London Tall Buildings Survey 2017; New London Architecture: London, UK, 2017. [Google Scholar]
- New London Architecture; GL Hearn. London Tall Buildings Survey 2015; GL Hearn Limited: London, UK, 2015. [Google Scholar]
- Zero Carbon Hub. Assessing Overheating Risk—Evidence Review; Zero Carbon Hub: London, UK, 2015. [Google Scholar]
- Chartered Institution of Building Services Engineers (CIBSE). Guide J: Weather, Solar and Illuminance Data; Chartered Institution of Building Services Engineers: London, UK, 2002. [Google Scholar]
- Chartered Institution of Building Services Engineers (CIBSE). Guide A: Environmental Design, 8th ed.; Chartered Institution of Building Services Engineers: London, UK, 2015. [Google Scholar]
- American National Standards Institute and American Society of Heating Refrigeration and Air-conditioning Engineers (ANSO/ASHRAE). Standard 55 Thermal Environmental Conditions for Human Occpancy; American National Standards Institute and American Society of Heating Refrigeration and Air-conditioning Engineers: Atlanta, GA, USA, 2013. [Google Scholar]
- British Standards Institution. Indoor Environmental Input Parameters for Design and Assessment of Energy Performance of Buildings Addressing Indoor Air Quality, Thermal Environment, Lighting and Acoustics; European Committee for Standardization: Brussels, Belgium, 2007. [Google Scholar]
- Chartered Institution of Building Services Engineers (CIBSE). Guide TM52: The Limits of Thermal Comfort: Avoiding Overheating in European Buildings; Chartered Institution of Building Services Engineers: London, UK, 2013. [Google Scholar]
- Department for Communities and Local Government (DCLG). Approved Document L1A; Department for Communities and Local Government: London, UK, 2010. [Google Scholar]
- Raynham, P.C.O.C. Lighting for Buildings—Part 2: Code of Practice for Daylighting; British Standard BS 8206-2; British Standards Institution: London, UK, 2008. [Google Scholar]
- Reeves, T.; Olbina, S.; Issa, R.R.A. Guidelines for Using Building Information Modeling for Energy Analysis of Buildings. Buildings 2015, 5, 1361–1388. [Google Scholar] [CrossRef]
- Eames, M.; Kershaw, T.; Coley, D. On the creation of future probabilistic design weather years from UKCP09. Build. Serv. Eng. Res. Technol. 2011, 32, 127–142. [Google Scholar] [CrossRef] [Green Version]
- Department for Communities and Local Government (DCLG). Approved Docuement F; Department for Communities and Local Government: London, UK, 2010. [Google Scholar]
- Integrated Environmental Solutions Limited (IES). MacroFlo Calculation Methods; Integrated Environmental Solutions Limited: Glasgow, UK, 2011. [Google Scholar]
- Coley, D.; Kershaw, T.; Eames, M. A comparison of structural and behavioural adaptations to future proofing buildings against higher temperatures. Build. Environ. 2012, 55, 159–166. [Google Scholar] [CrossRef] [Green Version]
- Paul, R. Avoiding Overhetaing in Medium & High Rise Apartments; Silcock Dawson & Partners: Leeds, UK, 2011. [Google Scholar]

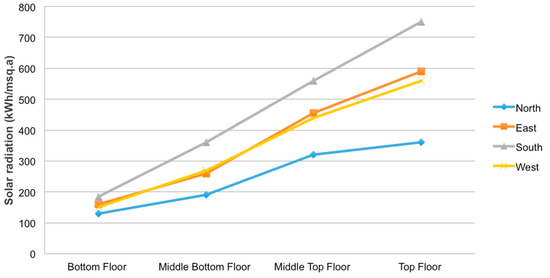

Orientation | S.R at 0% Shaded (kWh/m2·a) Flat Position: Top Floor | S.R at 25% Shaded (kWh/m2·a) Flat Position: Middle Top Floor | S.R at 50% Shaded (kWh/m2·a) Flat Position: Middle Bottom Floor | S.R at 75% Shaded (kWh/m2·a) Flat Position: Bottom Floor |
---|---|---|---|---|
North | 360 | 320 | 190 | 130 |
East | 590 | 455 | 260 | 160 |
South | 750 | 560 | 360 | 185 |
West | 560 | 440 | 270 | 150 |
A.S.H (m) | 0 | 12 | 17 | 33 |
Design Variables | ||||||
---|---|---|---|---|---|---|
Typology | Floor Position | Orientation | Thermal Mass | Glazing Ratio | Ventilation | Weather |
Single-sided | Bottom Middle bottom | North East | Low | 40% 60% | Mechanical | Control TRY 2030 |
Double-sided | Middle top Top | South West | Medium | 80% | Natural | TRY 2050 TRY 2080 |
Construction Elements | U-Values (W/m2·K) | g-Value | Glazing Lighting Transmittance | Window Frame Factor (%) | Window Proportion Length/Height |
---|---|---|---|---|---|
External walls | 0.15 | ||||
Roof | 0.1 | ||||
Floor | 0.1 | ||||
Windows | 0.85 | 0.6 | 0.7 | 30 | 0.33 |
Space | Internal Gain Category | Sensible Gain | Latent Gain | Occupancy Profile and Number of Occupant |
---|---|---|---|---|
Master Bedroom | People | 50.2 W/person | 23.6 W/person | 10:00 p.m.–7:00 a.m. every day 2 people |
Lighting | 18 W | 6:00 a.m.–7:00 a.m. 9:00 p.m.–11:00 p.m. every day | ||
Appliances | 20 W | 6:00 a.m.–7:00 a.m. 10:00 p.m.–11:00 p.m. every day + 10% heat gains for background standby use 24 h/day | ||
Bedroom | People | 50.2 W/person | 23.6 W/person | 10:00 p.m.–7:00 a.m. every day 1 people |
Lighting | 18 W | 6:00 a.m.–7:00 a.m. 9:00 p.m.–11:00 p.m. every day | ||
Appliances | 20 W | 6:00 a.m.–7:00 a.m. 10:00 p.m.–11:00 p.m. every day + 10% heat gains for background standby use 24 h/day | ||
Living room | People | 75 W/person | 55 W/person | 6:00 a.m.–9:00 a.m. 5:00 p.m.–11:00 p.m. Every day; 2 people |
Lighting | 36 W | 8:00 p.m.–11:00 p.m. every day | ||
Appliances | 120 W | 6:00 a.m.–9:00 a.m. 5:00 p.m.–11:00 p.m. every day + 10% heat gains for background standby use 24 h/day | ||
Kitchen | People | 75 W/person | 55 W/person | 7:00 p.m.–8:00 p.m. |
Cooking appliances | 1000 W | 7:00 p.m.–9:00 p.m. | ||
Fridge/Freezer | 31 W | 24 h/day |
