Developing a New Data-Driven LCA Tool at the Urban Scale: The Case of the Embodied Environmental Profile of the Building Sector
Abstract
:1. Introduction
1.1. Previous Work on the Topic
1.2. Focus and Aims of the Research
- To extend the tool implemented by Famiglietti et al. (2022) [15], including the embodied emissions of the construction materials;
- Evaluating potential GWP benchmarks (i.e., targets, reference, and limits) for the city of Milan with potential extension for the entire Lombardy region, never investigated before. Analyzing a much larger sample of buildings than so far reported by European member states the Netherlands, France, Finland, Denmark, and Sweden.
2. Materials and Methods
2.1. System Boundaries and Functional Unit
- Load-bearing structural frames:
- ○
- Basements (i.e., foundations, basement walls, and underground slabs);
- ○
- Vertical structures (i.e., beams, columns, reinforced concrete baffles, and structural masonry walls).
- Non-load-bearing elements:
- ○
- Basement and internal slabs (floor tiles excluded);
- ○
- Internal partitions (partitions of building units);
- ○
- Ceiling slabs;
- ○
- Façades, opaque and transparent envelopes.
- Finishes:
- ○
- External finishes (i.e., plaster);
- ○
- Internal finishes (i.e., gypsum plasterboard with framework).
2.2. Computational Structure
- h is a column vector with the impact category results (category indicators);
- C is the characterization matrix with the characterization factor;
- B is the intervention matrix which represents the environmental interventions of the unit processes (exchanges with nature—called the intervention matrix);
- A is the technology matrix, which represents the flows within the economic systems;
- f is the demand vector, representing the set of economic flows corresponding to the reference flow.
2.3. Description of the Engine
2.3.1. Input Model
2.3.2. Computational Model
- Xj are the objects;
- K is the number of clusters defined;
- Pi are the object Xj grouped in partitions (from 1 to K);
- Ci are the centroids.
- Reinforced concrete (RC) amounts for foundations and vertical structures (i.e., beams, columns, and baffles) were obtained by collecting data from 33 buildings constructed in Milan covering a total gross area (GA) of 443,682 m2, with an elevation per floor equal to 3 m. The equations range for buildings with stories from 1 to 14, with a number of underground floors from 1 to 2, considered in the Equation (2). The coefficient of determinations (R2) of the two relationship formulas are equal to 0.56 and 0.53 for foundations and vertical structures, respectively.
- The average percentages for reinforcing steel bars are 7% and 8% on mass, respectively. The intended uses of the buildings are residential, commercial (not open to the public), and retail, in some cases, on the ground floor; thus, with the same accidental load per legislation (equal to 2 kN/m2 in compliance with the current legislation).
- Figure 5 shows Equations (3) and (4). The authors highlight that the equations presented need future improvements to increase the tool’s precision. This will be possible by increasing the sample of data in the coming years.
- Masonry structures were modeled according to the Decree no. 29 “Norme tecniche per le costruzioni in zone sismiche” (Ministero dei Lavori Pubblici, 1996). The decree provides the percentage of structural area compared to the total area per story (Table 1). The elevation per floor was assumed equal to 3.5 m.
- is the thickness of the thermal insulation for the element (i);
- is the density of the thermal insulation in kg/m3;
- λ is the conductivity of the thermal insulation in W/(m × K);
- is the thermal resistance of the element (i) provided as input information in (m2 × K)/W;
- is the thermal resistance of element (i) listed in Table A1 in (m2 × K)/W.
2.3.3. Output Model
2.4. Building Stock for Milan
- 55% (115,675) from 1946 to 1975, 25% (52,255) from 1930 to 1945, 6% (12,812) from 2010 onward, and 14% the others for E1 asset class;
- 46% (7799) from 1946 to 1975, 29% (4863) from 1930 to 1945, 9% (1567) from 1976 to 1990, and 16% the others for E2 asset class;
- 50% (6838) from 1946 to 1975, 35% (4822) from 1930 to 1945, 5% (645) from 1976 to 1990, and 10% the others for E5 asset class.
- Windows (i) from 3.69 ± 1.15 to 1.21 ± 1.20 W/(m2 × K) for residential; (ii) from 4.01 ± 1.18 to 1.12 ± 0.22 W/(m2 × K) for commercial; and (iii) from 4.74 ± 1.23 to 1.19 ± 0.13 W/(m2 × K) for retail;
- Opaque envelopes (i) from 1.42 ± 0.43 to 0.22 ± 0.05 W/(m2 × K) for residential; (ii) from 1.65 ± 0.60 to 0.32 ± 0.13 W/(m2 × K) for commercial; and (iii) from 1.64 ± 0.67 to 0.36 ± 0.25 W/(m2 × K) for retail;
- Basement slabs (i) from 1.32 ± 0.42 to 0.29 ± 0.14 W/(m2 × K) for residential; (ii) from 1.48 ± 0.58 to 0.26 ± 0.17 W/(m2 × K) for commercial; and (iii) from 1.55 ± 0.55 to 0.25 ± 0.08 W/(m2 × K) for retail;
- Surfaces ratio (i) from 9 ± 5% to 14 ± 7% for residential; (ii) from 12 ± 8% to 32 ± 21% for commercial; and (iii) from 16 ± 12% to 33 ± 24% for retail.
- By comparing the above data, it is possible to verify, in part, the construction material technologies used by the engine (mainly according to the TABULA database) and described in Table A1. As stated, thermal transmittances listed in Table A1 were defined according to the databases used until 1975—the last year in which the libraries did not report insulation materials for the external envelope in the stratigraphy for which comparison is possible. From 1976, values in the table are presented without the contribution of thermal insulation. The outcomes obtained are presented in Table 6, where the asset class values are calculated by adding the standard deviation to the average value.

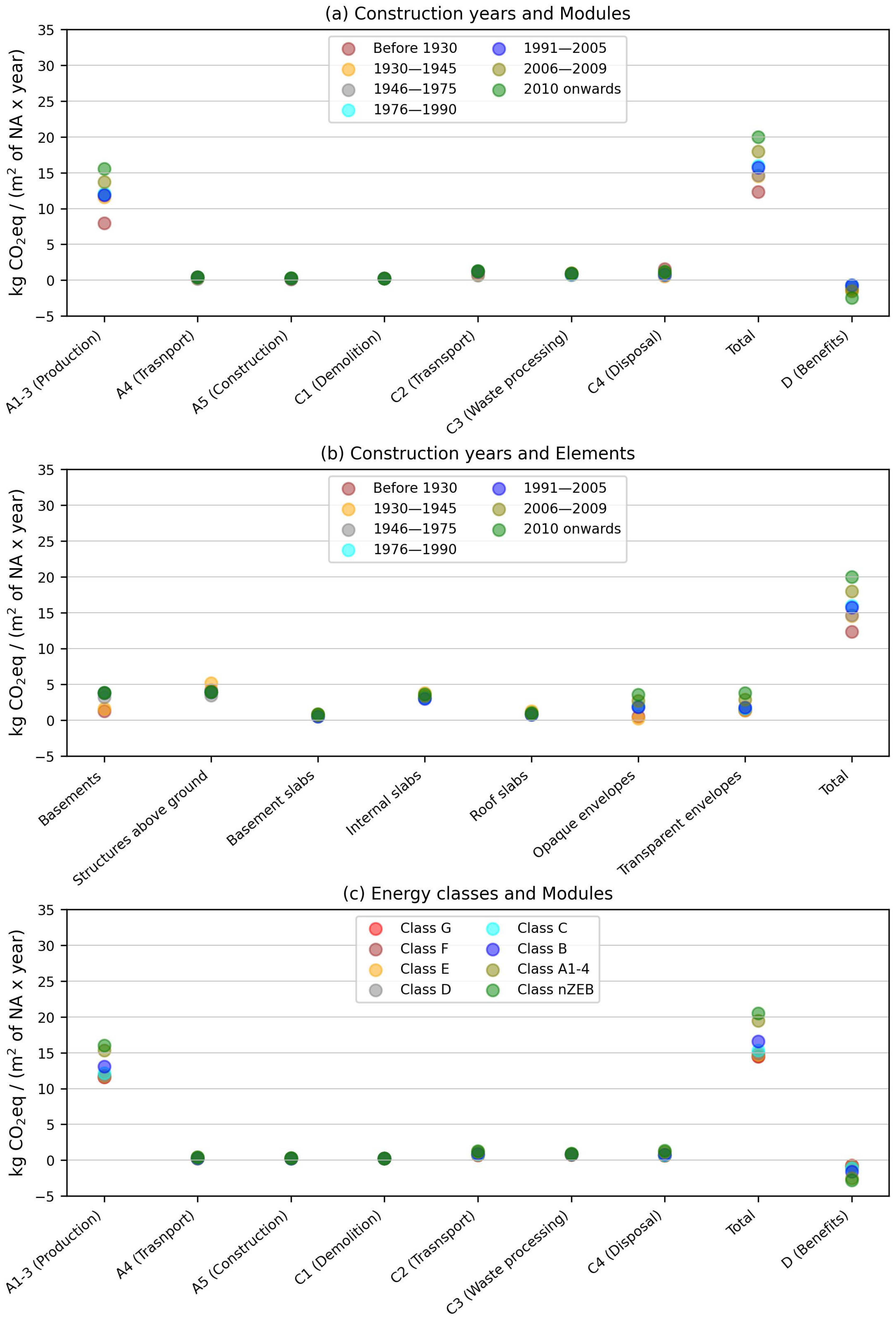

3. Results
- The vertical structure has a higher environmental score for all the impact categories analyzed than the foundations. It is strictly linked with the number of underground floors considered in the model. The engine developed considers buildings with not more than two underground floors. Potentially increasing the number of underground stories for the same number of aboveground floors, the conclusion could change;
- The internal slabs have a higher environmental score for all impact categories assessed, followed by ceilings and basement slabs. This is due to the larger surface area of the internal floors compared to other floors (buildings with an average height of 6.9 stories);
- Transparent envelopes have a higher environmental score for all impact categories analyzed, except for “ozone depletion”, due to the emissions released during the thermal insulation production process. Also, in this case, the conclusion is linked with the ratio of the transparent surface enveloped and the total surface enveloped. The building units analyzed have a ratio from 10% to 36% (see Figure 6, Figure A1 and Figure A2).
- Building typologies and construction materials:
- ○
- Asdrubali et al. (2013) [60] analyzed a single-family house (three stories), a multi-dwelling residential building (four stories), and a commercial building (five stories) without underground floors and in reinforced concrete;
- ○
- Causone et al. (2021) [70] analyzed a building with eight stories without an underground floor. Structures in reinforced concrete and wooden load-bearing frame;
- ○
- Famiglietti et al. (2023) [71] analyzed 14 buildings with 5 stories on average, without underground floors. Structures in reinforced concrete with blast furnace slag (40%) and recycled steel bars (95%);
- ○
- Rasmussen et al. (2019) [4] assessed 3 single-family houses and 25 multifamily buildings provided by Casa Clima agency (the number of stories is not provided). The structures are in wooden load-bearing frames without an underground floor.
- Elements and Modules:
4. Discussion
5. Conclusions
- To extend the tool implemented by Famiglietti et al. (2022) [15], including the embodied emissions of the construction materials;
- Evaluating potential GWP benchmarks (i.e., targets, reference, and limits) for the city of Milan with potential extension for the entire Lombardy region, never investigated before, by analyzing a much larger sample of buildings than so far reported by European member states the Netherlands, France, Finland, Denmark, and Sweden.
- Entire building stock (old and new building units), 15 kg CO2 eq/(m2 of net area × year);
- Nearly zero energy buildings (new building units), 21 kg CO2 eq/(m2 of net area × year);
- The outcomes achieved are higher if compared with what was presented by Trigaux et al. (2022) [37] and EU member states with the limit values for new constructions, from 1 to 17 and from 12 to 26 (operational energy included) kg CO2 eq/m2 of net area × year, respectively;
- Increasing the rate of recycled steel in reinforced concrete from 55% to 95% and using eco-cement (CEM II/B—Portland composite cement: clinker and blast furnace slag) leads to a reduction of 2 kg CO2 eq/(m2 of net area × year), corresponding to 290.5 kt CO2 eq, scaling the benefit to the entire area of new construction.
- Developing a large database for construction materials by computerizing the reports under the “ex-legge 10” containing the necessary information;
- Validating the model on a larger number of case studies;
- Developing maps of the city using geographical information systems (GIS) to set planning strategies;
- Assessing impacts concerning land use related to city sprawl [78];
- Associating cost and socioeconomic indicators with the environmental profile to identify priority areas for intervention and obtaining a lifecycle Sustainability assessment (LCSA).
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
Year of Build | Construction Element | Description | Thermal Transmittance (W/(m2 × K)) |
---|---|---|---|
Before 1930 | External wall | Stone masonry | 2.58 |
Internal slabs in unheated rooms | Vaults in solid bricks | 1.64 | |
Internal slabs | Beams–wooden slabs | - | |
Ceiling slabs | Beams–wooden slabs | 1.22 | |
Load-bearing structural frames | Stone masonry | - | |
1930–1945 | External wall | Solid bricks | 1.48 |
Internal slabs in unheated rooms | Steel beams and vaults in solid bricks | 1.56 | |
Internal slabs | Steel beams and hollow bricks | - | |
Ceiling slabs | Steel beams and hollow bricks | 1.99 | |
Load-bearing structural frames | Solid bricks masonry | - | |
1946–1975 | External wall | Hollow bricks (25 cm) with cavity (5 cm) | 1.11 |
Internal slabs in unheated rooms | Reinforced brick–concrete slabs, traditional screed | 1.52 | |
Internal slabs | Reinforced brick–concrete slabs, traditional screed | - | |
Ceiling slabs | Reinforced brick–concrete slabs, traditional screed | 1.61 | |
Load-bearing structural frames | Reinforced concrete frames | - | |
1976–1990 | External wall | Hollow bricks (30 cm) with cavity (10 cm) | 0.70 |
Internal slabs in unheated rooms | Reinforced brick–concrete slabs, traditional screed | 1.52 | |
Internal slabs | Reinforced brick–concrete slabs, traditional screed | - | |
Ceiling slabs | Reinforced brick–concrete slabs, traditional screed | 1.61 | |
Load-bearing structural frames | Reinforced concrete frames | - | |
1991–2005 | External wall | Hollow bricks (40 cm) | 1.11 |
Internal slabs in unheated rooms | Reinforced brick–concrete slabs, lightweight screed | 1.54 | |
Internal slabs | Reinforced brick–concrete slabs, lightweight screed | - | |
Ceiling slabs | Reinforced brick–concrete slabs, lightweight screed | 1.63 | |
Load-bearing structural frames | Reinforced concrete frames | - | |
2006–2009 | External wall | Hollow bricks (30 cm) | 0.96 |
Internal slabs in unheated rooms | Reinforced brick–concrete slabs, lightweight screed | 1.54 | |
Internal slabs in unheated rooms | Full slab in reinforced concrete | 1.67 | |
Internal slabs | Reinforced brick–concrete slabs, lightweight screed | - | |
Ceiling slabs | Reinforced brick–concrete slabs, lightweight screed | 1.63 | |
Load-bearing structural frames | Reinforced concrete frames | - | |
2010 onward | External wall | Hollow bricks (30 cm) | 0.96 |
Internal slabs to unheated rooms | Reinforced brick–concrete slabs, lightweight screed | 1.54 | |
Internal slabs to unheated rooms | Full slab in reinforced concrete | 1.67 | |
Internal slabs | Reinforced brick–concrete slabs, lightweight screed, and gypsum plasterboard | - | |
Ceiling slabs | Reinforced brick–concrete slabs, lightweight screed, and gypsum plasterboard | 0.91 | |
Load-bearing structural frames | Reinforced concrete frames | - |
Appendix B
Material | EoL Scenario | Values (%) | Recycling and WTE Efficiency | Substitution Ratio | Avoided Burdens |
---|---|---|---|---|---|
Reinforced concrete | Recycling | 61.2% | 70% for steel | 1:0.25 concrete 1:1 steel | Gravel extraction for road filling. Primary production from pig iron. |
Incineration | 0.0% | ||||
Landfill | 38.8% | ||||
Steel | Recycling | 97.0% | 81.45% | 1:1 | Primary production from pig iron. |
Incineration | 0.0% | ||||
Landfill | 3.0% | ||||
Wood and massive wood | Recycling | 0.0% | 20.70% for electricity 27.20% for heat | - | Electricity from the national grid and heat production from a natural gas boiler. |
Incineration | 49.0% | ||||
Landfill | 51.0% | ||||
Light and solid bricks | Recycling | 60.0% | 100% | 1:0.11 | Gravel extraction for road filling. |
Incineration | 0.0% | ||||
Landfill | 40.0% | ||||
Stones | Recycling | 60.0% | 100% | 1:1 | Gravel extraction for road filling. |
Incineration | 0.0% | ||||
Landfill | 40.0% | ||||
Polystyrene | Recycling | 0.0% | 20.70% for electricity 27.20% for heat | - | Electricity from the national grid and heat production from a natural gas boiler. |
Incineration | 100.0% | ||||
Landfill | 0.0% | ||||
Gypsum plasterboard | Recycling | 15.0% | - | 1:1 | Primary gypsum production. |
Incineration | 0.0% | ||||
Landfill | 85.0% | ||||
Bitumen | Recycling | 0.0% | 20.70% for electricity 27.20% for heat | - | Electricity from the national grid and heat production from a natural gas boiler. |
Incineration | 50.0% | ||||
Landfill | 50.0% | ||||
Vapor barrier in PVC | Recycling | 0.0% | 20.70% for electricity 27.20% for heat | - | Electricity from the national grid and heat production from a natural gas boiler. |
Incineration | 100.0% | ||||
Landfill | 0.0% | ||||
Window frames in PVC | Recycling | 5.4% | 55.71% for recycling 20.70% for electricity 27.20% for heat | 1:1 | Primary production of PVC granulate. Electricity from the national grid and heat production from a natural gas boiler. |
Incineration | 15.0% | ||||
Landfill | 74.6% | ||||
Window frames in wood | Recycling | 0.0% | 20.70% for electricity 27.20% for heat | - | Electricity from the national grid and heat production from a natural gas boiler. |
Incineration | 49.0% | ||||
Landfill | 51.0% |
Appendix C
Appendix D
