Improving Anaerobic Digestion of Brewery and Distillery Spent Grains through Aeration across a Silicone Membrane
Abstract
:1. Introduction
2. Materials and Methods

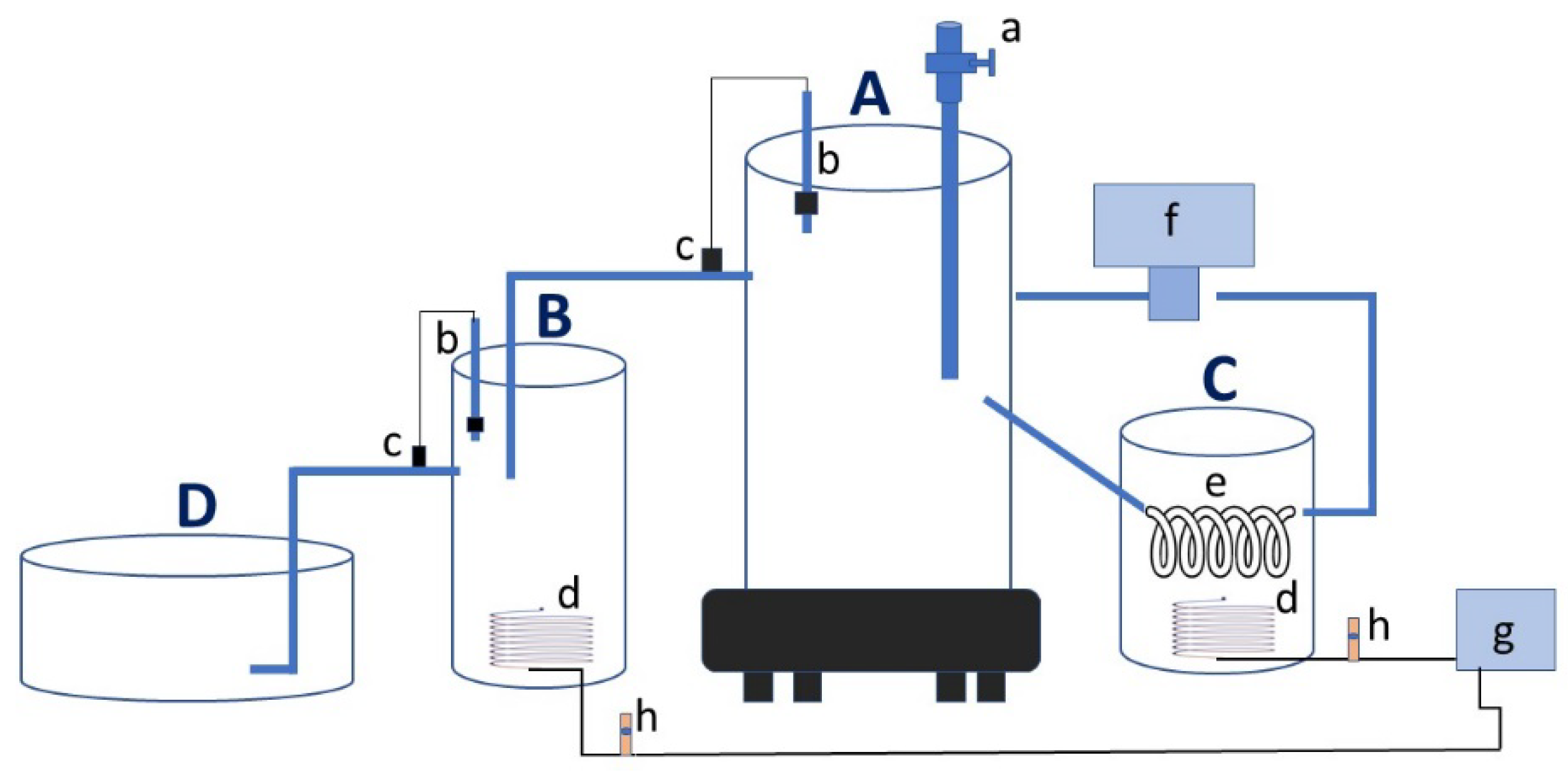

2.1. Digester Descriptions
2.2. Digestate Recirculation
2.3. Digester Operation
2.4. Analyses
3. Results
3.1. Silicone Membrane Properties
3.2. Biogas Production and Wastewater Analysis
3.3. Feedstock ICP
3.4. Secondary Aerobic Digester Performance
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Brewers Association. Available online: Brewwersassociation.org (accessed on 25 January 2022).
- Mussatto, S.I.; Fernandes, M.; Mancilha, I.M.; Roberto, I.C. Effects of medium supplementation and pH control on lactic acid production from brewer’s spent grain. Biochem. Eng. J. 2008, 40, 437–444. [Google Scholar] [CrossRef]
- Kerby, C.; Vriesekoop, F. An overview of the utilization of brewery by-products as generated by British craft breweries. Beverages 2017, 3, 24. [Google Scholar] [CrossRef] [Green Version]
- Panjičko, M.; Zupančič, G.D.; Fanedl, L.; Logar, R.M.; Tišma, M.; Zelić, B. Biogas production from brewery spent grain as a mono-substrate in a two-stage process composed of solid-state anaerobic digestion and granular biomass reactors. J. Cleaner Prod. 2017, 166, 519–529. [Google Scholar] [CrossRef]
- Goberna, M.; Camacho, M.d.M.; Lopez-Abadia, J.A.; Garcia, C. Co-digestion, biostimulation and bioaugmentation to enhance methanation of brewer’s spent grain. Waste Manag. Res. 2013, 31, 805–810. [Google Scholar] [CrossRef] [PubMed]
- Nimbalkar, P.R.; Khedkar, M.A.; Parulekar, R.S.; Chandgude, V.K.; Sonawane, K.D.; Chavan, P.V.; Bankar, S.B. Role of trace elements as cofactor: An efficient strategy toward enhanced biobutanol production. ACS Sustain. Chem. Eng. 2018, 6, 9304–9313. [Google Scholar] [CrossRef] [PubMed]
- Bougrier, C.; Dognin, D.; Laroche, C.; Gonzalez, V.; Benali-Raclot, D.; Rivero, J.A.C. Anaerobic digestion of Brewery Spent Grains: Trace elements addition requirement. Bioresour. Technol. 2018, 247, 1193–1196. [Google Scholar] [CrossRef] [PubMed]
- Bougrier, C.; Dognin, D.; Laroche, C.; Rivero, J.A.C. Use of trace elements addition for anaerobic digestion of brewer’s spent grains. J. Environ. Manag. 2018, 223, 101–107. [Google Scholar] [CrossRef]
- Sager, M. Trace and nutrient elements in manure, dung and compost samples in Austria. Soil Biol. Biochem. 2007, 39, 1383–1390. [Google Scholar] [CrossRef]
- Teixeira, M.R.; Guarda, E.C.; Freitas, E.B.; Galinha, C.F.; Duque, A.F.; Reis, M.A.M. Valorization of raw brewers’ spent grain through the production of volatile fatty acids. New Biotechnol. 2020, 57, 4–10. [Google Scholar] [CrossRef]
- Sommer, S.; Husted, S. The chemical buffer system in raw and digested animal slurry. J. Agric. Sci. 1995, 124, 45–53. [Google Scholar] [CrossRef]
- Lay, J.-J.; Li, Y.-Y.; Noike, T. The influence of pH and ammonia concentration on the methane production in high-solids digestion processes. Water Environ. Res. 1998, 70, 1075–1079. [Google Scholar] [CrossRef]
- Ahmed, W.; Rodríguez, J. A model predictive optimal control system for the practical automatic start-up of anaerobic digesters. Water Res. 2020, 174, 115599. [Google Scholar] [CrossRef] [PubMed]
- Loughrin, J.H.; Lovanh, N.; Cook, K.L. Improvement of anaerobic digester performance by wastewater recirculation through an aerated membrane. Trans. ASABE 2013, 56, 1675–1681. [Google Scholar] [CrossRef]
- Loughrin, J.H.; Cook, K.L.; Lovanh, N. Recirculating swine waste through a silicone membrane in an aerobic chamber improves biogas quality and wastewater malodors. Trans. ASABE 2012, 55, 1929–1937. [Google Scholar] [CrossRef]
- Blume, F.; Bergmann, I.; Nettmann, E.; Schelle, H.; Redge, G.; Mundt, K.; Klocke, M. Methanogenic population dynamics during semi-continuous biogas fermentation and acidification by overloading. J. Appl. Microbiol. 2010, 109, 441–450. [Google Scholar] [CrossRef] [PubMed]
- Loughrin, J.H.; Antle, S.W.; Polk, J. A gas chromatographic method for the determination of bicarbonate and dissolved gases. Front. Environ. Sci. 2017, 5, 65. [Google Scholar] [CrossRef] [Green Version]
- Po, H.N.; Senozan, N.M. The Henderson-Hasselbalch equation: Its history and limitations. Chem. Educ. 2001, 78, 1499–1503. [Google Scholar] [CrossRef]
- U.S. EPA. Method 3015A (SW-846): Microwave Assisted Acid Digestion of Aqueous Samples and Extracts. Revision 1; U.S. EPA: Washington, DC, USA, 2007.
- Zhang, H.; Cloud, A. The Permeability Characteristics of Silicone Rubber. In Proceedings of the Society for the Advancement of Material and Process Engineering Fall 2006 Technical Conference, “Global Advances in Materials and Process Engineering”, Dallas, TX, USA, 6–9 November 2006; pp. 72–75. Available online: https://imageserv5.team-logic.com (accessed on 25 February 2022).
- Beescow-Strauch, B.; Zimmer, M.; Schicks, J.M.; Erzinger, J. Gas-water separation via PDMS tubes—Concepts for methane gas monitoring and recovery from natural gas hydrates. Procedia Eng. 2012, 44, 1188. [Google Scholar] [CrossRef] [Green Version]
- PermSelect. Silicone Membrane Gas Exchangers. Available online: Permselect.com/membranes (accessed on 12 January 2022).
- Binder, H.J.; Rajendran, V.; Sadasivan, M.B.; Geibel, J.P. Bicarbonate secretion: A neglected aspect of colonic ion transport. J. Clin. Gastroenterol. 2005, 39, 553–558. [Google Scholar] [CrossRef]
- Kebreab, E.; Dijkstra, J.; Bannink, A.; France, J. Recent advances in modeling nutrient utilization in ruminants. J. Anim. Sci. 2009, 87 (Suppl. E), E111–E122. [Google Scholar] [CrossRef]
- Mallick, P.; Akunna, J.C.; Walker, G.M. Anaerobic digestion of distillery spent wash: Influence of enzymatic pre-treatment of intact yeast cells. Bioresource Technol. 2010, 101, 1681–1685. [Google Scholar] [CrossRef] [PubMed]
- Filer, J.; Ding, H.H.; Chang, S. Biochemical Methane Potential (BMP) Assay Method for Anaerobic Digestion. Res. Water 2019, 11, 921. [Google Scholar] [CrossRef] [Green Version]
- Trchounian, A. Mechanisms for hydrogen production by different bacteria during mixed-acid and photo-fermentation and perspectives of hydrogen production biotechnology. Crit. Rev. Biotechnol. 2015, 35, 103. [Google Scholar] [CrossRef] [PubMed]
- Sauer, M.; Russmayer, H.; Grabherr, R.; Peterbauer, C.K.; Marx, H. The efficient clade: Lactic acid bacteria for industrial chemical production. Trends Biotechnol. 2017, 35, 756–769. [Google Scholar] [CrossRef] [PubMed]
- Schuchmann, K.; Müller, V. Energetics and application of heterotrophy in acetogenic bacteria. Appl. Environ. Microbiol. 2016, 82, 4056–4069. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Raspór, P.R.; Goranovič, D. Biotechnological applications of acetic acid bacteria. Crit. Rev. Biotechnol. 2008, 28, 101–124. [Google Scholar] [CrossRef]
- De Roos, J.; De Vuyst, L. Acetic acid bacteria in fermented foods and beverages. Curr. Opin. Biotechnol. 2018, 49, 115–119. [Google Scholar] [CrossRef]
- Finazzo, C.; Harmer, J.; Bauer, C.; Jaun, B.; Duin, E.C.; Mahlert, F.; Goenrich, M.; Thauer, R.K.; van Doorslaer, S.; Schweiger, A. Coenzyme B induced coordination of conenzyme M via its thiol group to Ni(I) of F430 in active methyl-coenzyme M reductase. J. Am. Chem. Soc. 2003, 125, 4988–4989. [Google Scholar] [CrossRef]
- Paulo, L.M.; Ramiro-Garcia, J.; van Mourik, S.; Stams, J.M.; Sousa, D.Z. Effect of nickel and cobalt on methanogenic enrichment cultures and role of biogenic sulfide in metal toxicity attenuation. Front. Microbiol. 2017, 8, 1341. [Google Scholar] [CrossRef] [Green Version]
- Hickey, R.F.; Vanderwielen, J.; Switzenbaum, M.S. The effect of heavy metals on methane production and hydrogen and carbon monoxide levels during batch anaerobic sludge digestion. Water Res. 1989, 23, 207–218. [Google Scholar] [CrossRef]
- Azim, A.A.; Rittmann, S.K.-M.; Fino, D.; Bochmann, G. The physiological effect of heavy metals and volatile fatty acids on Methanococcus maripaludis S2. Biotechnol. Biofuels 2018, 11, 301. [Google Scholar] [CrossRef] [PubMed]
- Glass, J.B.; Orphan, V.J. Trace metal requirements for microbial enzymes involved in the production and consumption of methane and nitrous oxide. Front. Microbiol. 2012, 3, 61. [Google Scholar] [CrossRef] [Green Version]
- Kumar, M.; Nandi, M.; Pakshirirajan, K. Recent advances in heavy metal recovery from wastewater by biogenic sulfide precipitation. J. Environ. Manag. 2021, 278, 111555. [Google Scholar] [CrossRef] [PubMed]
- Kraemer, S.M.; Duckworth, O.W.; Harrington, J.M.; Schenkeveld, W.D.C. Metallophores and trace metal biogeochemistry. Aquat. Geochem. 2015, 21, 159–195. [Google Scholar] [CrossRef]
Recirculation Treatment | ||||
---|---|---|---|---|
Parameter | None | 26 mm Nitrogen | 26 mm Air | 100 mm Air |
Biogas characteristics | ||||
Weekly biogas (L) | 78.4 ± 11.1 b | 42.3 ± 4.79 c | 82.7 ± 9.01 b | 99.9 ± 9.69 a |
Methane (mg L−1) | 514 ± 23.6 a | 382 ± 30.9 b | 473 ± 27.2 a | 499 ± 24.1 a |
Carbon dioxide (mg L−1) | 382 ± 14.0 b | 509 ± 29.6 a | 406 ± 21.0 b | 366 ± 13.1 b |
Methane (g week−1) | 44.3 ± 6.74 b | 18.7 ± 2.54 c | 44.4 ± 5.28 b | 55.7 ± 5.79 a |
Carbon dioxide (g week−1) | 30.0 ± 4.10 b | 22.6 ±2.80 c | 32.3 ± 3.73 a,b | 36.7 ± 3.82 a |
Digestate characteristics | ||||

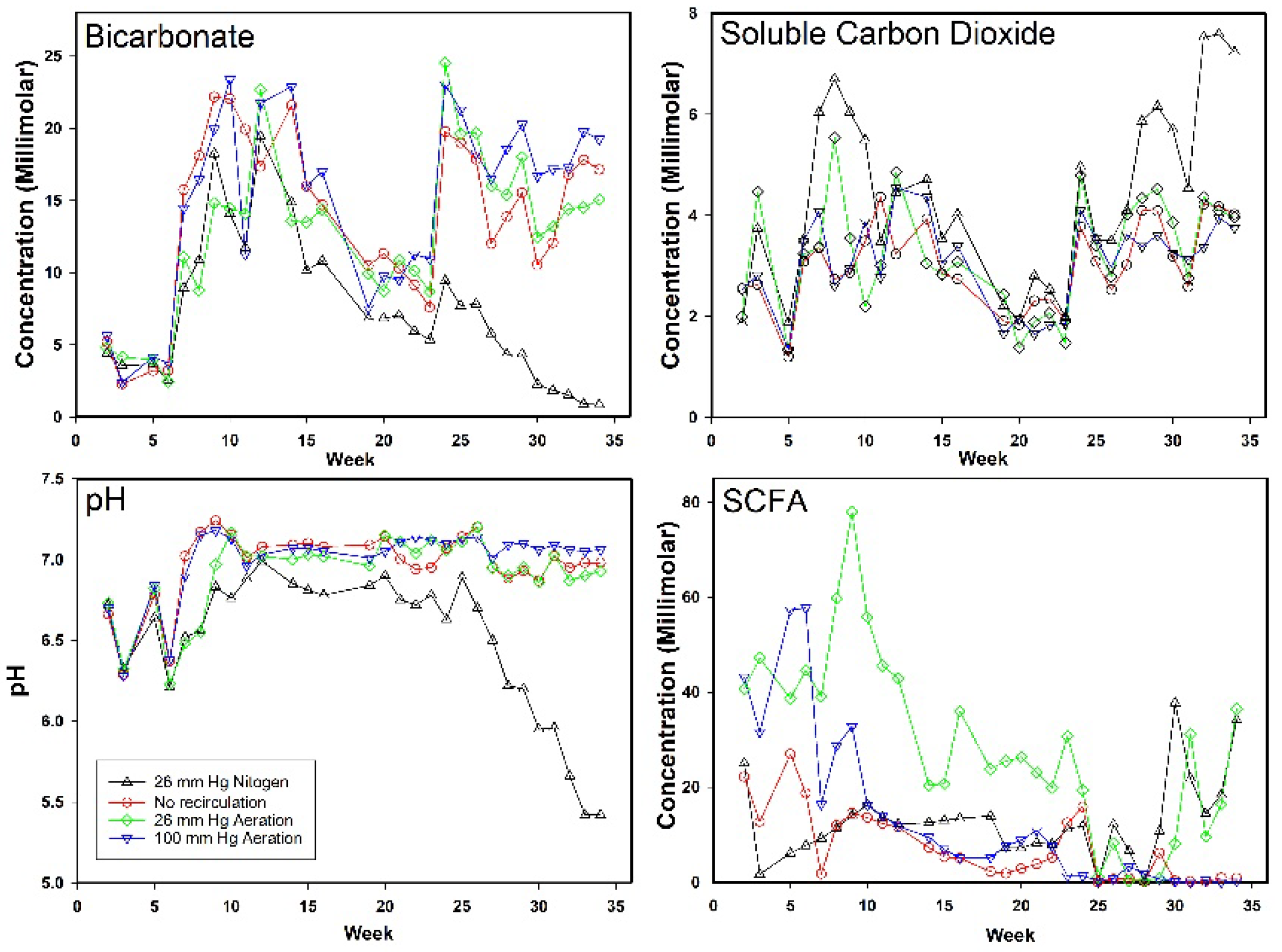

pH | 6.98 ± 0.04 a | 6.50 ± 0.08 b | 6.92 ± 0.04 a | 7.01 ± 0.04 a |
Bicarbonate (millimolar) | 14.2 ± 1.06 a | 7.42 ± 0.95 b | 13.2 ± 0.98 a | 15.4 ± 1.14 a |
Solvated carbon dioxide (millimolar) | 3.05 ± 0.16 b | 4.49 ± 0.33 a | 3.31 ± 0.21 b | 3.10 ± 0.17 b |
Solvated methane (millimolar) | 18.0 ± 3.37 a | 10.2 ± 1.83 c | 15.4 ± 2.76 b | 18.5 ± 3.43 a |
Ammonium (mg L−1) | 195 ± 21.5 ab | 197 ± 23.2 ab | 177 ± 23.1 b | 208 ± 22.5 a |
Nitrate (mg L−1) | 1.31 ± 0.33 a | 1.59 ± 0.37 a | 1.09 ± 0.28 a | 1.13 ± 0.33 a |
Nitrite (mg L−1) | 3.07 ± 1.31 a | 2.60 ± 0.99 a | 3.21 ± 1.27 a | 3.19 ± 1.19 a |
Phosphate (mg L−1) | 10.4 ± 2.38 a | 9.78 ± 2.38 a | 12.7 ± 3.18 a | 13.4 ± 3.52 a |
Sulfate (mg L−1) | 0.49 ± 0.13 a | 0.97 ± 0.38 a | 0.42 ± 0.08 a | 0.43 ± 0.10 a |
Chemical oxygen demand (mg L−1) | 2510 ± 291 c | 6700 ± 616 a | 3700 ± 357 b | 2320 ± 298 c |
Recirculation Treatment | ||||
---|---|---|---|---|
Acid | None | 26 mm Nitrogen | 26 mm Air | 100 mm Air |
Concentration (Micromolar) | ||||
Lactic | 54.4 ± 16.1 a | 50.1 ± 16.8 a | 97.6 ± 28.9 a | 174 ± 34.0 a |
Formic | 2490 ± 517 b | 6700 ± 831 a | 3300 ± 1270 b | 696 ± 166 b |
Acetic | 1600 ± 471 b | 1950 ± 592 b | 16,500 ± 2280 a | 5720 ± 1870 b |
Propanoic | 2600 ± 634 b | 2690 ± 435 b | 6070 ± 1090 a | 3580 ± 985 b |
2-Methylpropanoic | 464 ± 158 a | 991 ± 249 a | 645 ± 155 a | 1570 ± 1000 a |
Butyric | 91.6 ± 41.1 b | 346 ± 81.2 b | 1750 ± 557 a | 1070 ± 380 ab |
Total identified | 7300 ± 1350 b | 12,700 ± 1530 b | 28,400 ± 3480 a | 12,700 ± 3010 b |
Feedstock | ||||
---|---|---|---|---|
Element | Brewers’ Spent Grain | Distillers’ Spent Grain | Swine Lagoon Sludge | Dairy Manure |
Concentration (Milligrams L−1) | ||||
Calcium | 3240 | 73.4 | 129 | 1790 |
Magnesium | 2890 | 182 | 37.9 | 485 |
Potassium | 1620 | 560 | 655 | 2724 |
Sodium | 186 | 11.7 | 1.27 | 10.8 |
Iron | 210 | 5.14 | 10.4 | 84.1 |
Zinc | 88.7 | 4.26 | 4.42 | 7.92 |
Manganese | 52.1 | 4.83 | 1.27 | 10.8 |
Copper | 31.4 | 0.147 | 2.17 | 2.33 |
Nickel | 0.90 | 0.02 | 0.037 | 0.18 |
Molybdenum | bdl * | bdl | bdl | bdl |
Cobalt | bdl | bdl | bdl | bdl |
Primary Digester Treatment | ||||
---|---|---|---|---|
Parameter | None | 26 mm Nitrogen | 26 mm Air | 100 mm Air |
Chemical oxygen demand (mg L−1) * | 1300 ± 175 b | 2350 ± 153 a | 1770 ± 268 ab | 1390 ± 138 b |
pH † | 7.95 ± 0.04 a | 7.84 ± 0.04 ab | 7.75 ± 0.04 b | 7.68 ± 0.04 b |
Bicarbonate (millimolar) † | 15.1 ± 0.98 a | 15.8 ± 1.34 a | 19.3 ± 1.47 a | 16.7 ± 1.23 a |
Solvated carbon dioxide (millimolar) † | 0.72 ± 0.14 a | 0.67 ± 0.20 a | 0.98 ± 0.14 a | 1.03 ± 0.15 a |
Solvated methane (millimolar) * | 23.3 ± 4.49 a | 25.0 ± 3.22 a | 32.6 ± 4.35 a | 25.9 ± 3.34 a |
Ammonium (mg L−1) * | 174 ± 20.3 a | 175 ± 21.4 a | 183 ± 22.6 a | 194 ± 24.2 a |
Nitrate (mg L−1) * | 1.44 ± 0.40 a | 1.15 ± 0.31 a | 1.93 ± 0.52 a | 1.68 ± 0.53 a |
Nitrite (mg L−1) * | 1.54 ± 0.67 a | 1.26 ± 0.44 a | 1.29 ± 0.54 a | 0.95 ± 0.58 a |
Phosphate * | 8.39 ± 2.01 a | 8.88 ± 2.29 a | 10.6 ± 2.96 a | 10.3 ± 2.81 a |
