Cnicus benedictus Oil as a Raw Material for Biodiesel: Extraction Optimization and Biodiesel Yield

Abstract

Cnicus benedictus fruits were used as raw material to extract oil, and the resulting oil was converted into biodiesel. Two extraction methods were tested: batch extraction, and ultrasound assisted extraction. Response surface methodology was considered for the optimization of the process efficiency. The selected key independent variables were temperature, extraction time, and solid/liquid ratio for batch extraction and ultrasound intensity, temperature, and extraction time for the ultrasound assisted extraction, respectively. The optimal working conditions are different for the two extraction techniques, with respect to temperature, solid/liquid ratio, and extraction time, respectively, leading to higher extraction efficiency in the case of the ultrasound-assisted extraction. Cnicus benedictus oil obtained under the optimal extraction conditions was further esterified with methanol under acid catalysis to yield biodiesel. The biodiesel was characterized through ¹H-NMR and the main fuel properties were determined.

1. Introduction

Blessed thistle (Cnicus benedictus L.) is a well-known medicinal plant which belongs to the Asteraceae family, and has been used for centuries in traditional medicine due to its complex composition. All of the parts of Cnicus benedictus (CB) are used as extracts, mainly to enhance bile secretion, to stimulate appetite and digestion, mainly due to its high content of cnicin, a sesquiterpene lactone [1,2,3]. CB extracts also possess antimicrobial, cytotoxic, anti-inflammatory, and wound healing effects [4,5], which may be attributed to the high tannin content, up to 8% in the whole herb [6]. Recently, CB was reported as an alternative oil crop in central Europe, with fruit yields of approximately 2.0–2.5 t/ha, as well as good oil yields of 500–700 kg/ha. The oil content of CB fruits was reported to range between 23–29.2% [7]. It is important to mention, based on literature studies, that the main constituent of CB oil is linoleic acid; this oil is also rich in and α-tocopherol [2,7]. CB is a crop which has demonstrated a great adaptability to different environmental conditions, and it was proposed to be cultivated for restoration of eroded zones [8]. The role of minor crops has been reconsidered in Europe by the scientific community due to the fact that these crops could diversify the agricultural production for medicinal and industrial applications. CB is one of these crops, and its preservation and cultivation is on the agenda of different European countries [9]. Romania was recognized as offering very good conditions for CB cultivation [7]. In addition, CB oil could be used for biodiesel production. The importance of obtaining biodiesel from new sources of raw materials is a topical issue [10], and CB oil could be regarded as an alternative to other natural sources.

A recent study conducted in North Dakota (USA) demonstrated that CB has a good productivity in marginal lands, and the biodiesel properties are acceptable for industrial purposes [8]. The importance of extraction methods for vegetal oils and technologies for obtaining biodiesel also draw researchers’ attention [11]. For this reason, not only should agronomical studies be continuing, but also the extraction conditions of CB oil should be improved, with the aim of increasing the extraction yield. The oil is extracted from CB fruits mainly by pressing at 40–50 °C, resulting as a light yellow green to dark yellow oil [7].

Ultrasound-assisted extraction (UAE) is seen as an option to standard solid-liquid extraction, being acknowledged as an effective technique to enhance the extraction yield, especially by a drastic reduction of the extraction time in the case of targeted natural compounds [12,13]. Given its reproducibility, UAE has been used to recover compounds from various vegetal matrices [14,15]. Ultrasounds improve the solvent infiltration into the plant material, by displacing the cell walls, hence accelerating the release of targeted substances into the solvent [16,17]. Since ultrasounds of vegetal materials interactions are not fully understood at present, new studies are necessary to find the optimal experimental conditions for UAE. Statistical methods such as response surface methodology (RSM) are often used to search for the optimal conditions of a process, particularly if there are several parameters and interactions which could influence the system evolution. By reducing the number of experimental trials which should be carried out to assess the interactions among influencing variables, RSM reduces the efforts and the experimental costs [18,19]. The Box–Behnken design (BBD) was chosen in this work as it implies a small number of runs, as compared to other statistical designs [19].

The aims of this study are: (1) characterization of the chemical structure of CB oil (fatty acids profile, technical quality, and nutritional quality indices); (2) presentation of comparative experimental data for batch extraction and UAE of CB oil, using n-hexane as a solvent; and (3) synthesis and characterization of biodiesel from CB oil. The effect of process variables for extraction was studied and optimized using BBD. A desirability function was used for the optimization of the extraction in both cases. According to a literature survey, a comparative study between different extraction methods of CB oil at the same time as the synthesis and characterization of biodiesel obtained from CB oil has not yet been reported.

2. Materials and Methods

2.1. Vegetal Material

Cnicus benedictus fruits were obtained from the National Agricultural Research and Development Institute of Fundulea, Romania (NARDI-Fundulea), located in Calaraşi County (Romania) in 2020, being used as a vegetal material. Solid impurities were manually removed from CB fruits. The fruits were dried at 50 °C in a food dehydrator (Tribest Sedona Express SDE-P6280, Anaheim, CA, USA). After drying, the fruits were stored at 4 ± 1 °C in sealed plastic bags until oil extraction.

2.2. Extraction Techniques

2.2.1. Soxhlet-Extraction

The initial oil content in CB fruits was determined using a laboratory Soxhlet extractor and n-hexane (Merck, Germany) of analytical reagent grade as a solvent. Approximately 5 g of ground fruits were weighted and subjected to continuous (Soxhlet) extraction with 100 mL n-hexane for 8 h. The extraction was performed in triplicate. The moisture content of the fruits (5 ± 0.02%) was determined with a thermal balance (OHAUS MB23).

2.2.2. Batch Extraction

In a typical experiment, ground CB fruits were placed into a round bottom flask fitted with a water condenser. A magnetic stirrer operated at 300 rpm with a heating plate, and a temperature controller (PT 1000 temperature sensor) was used to ensure effective contact between the phases, and to establish the working temperature. After a predetermined time, the mixture was vacuum filtered and the solvent was removed under low pressure, using a rotary evaporator. The independent variables were chosen after preliminary experiments i.e., extraction time, solid/liquid ratio and working temperature. These values were varied according to BBD.

2.2.3. Ultrasound Assisted Extraction (UAE)

UAE was performed with a 500 W Ultrasonic Processors VCX Series (Sonics & Materials, Inc., Newtown, CT, USA). Samples of dried and ground CB fruits were placed in a glass vessel close-fitting the US probe top diameter, equipped with a reflux condenser, and operated at different temperatures, extraction times, and amplitudes, according to the experimental design (BBD). For all UAE trials, the solid/liquid ratio was kept at 1/16 (g/mL).

The schematic flowchart of the methodology is presented in Scheme S1 (Supplementary Material).

2.3. Analysis of Fatty Acid Profile of CB Oil

This analysis was carried on according to a previously reported method [20]. CB oil was transesterified with methanol (14% BF₃-MeOH solution was used as an acid catalyst) to obtain the corresponding fatty acid methyl esters (FAME) [20,21]. An Agilent 7890B gas chromatograph (Agilent Technologies, USA) equipped with auto sampler, 5975 C VL MSD triple axis MS detector, and a Supelco SP^TM 2560 capillary column (100 m length, 0.25 mm inner diameter, and 0.2 μm film thickness) were used for FAME separation and identification. The carrier gas was helium (1.0 mL/min, split ratio 1:100) and the oven temperature ranged as follows: 140 °C (5 min), 140–240 °C (4 °C/min), and 240 °C (20 min). FAME solutions (FAME/CH₂Cl₂: 10μL/990μL) were injected, and the fatty acids were identified based on their retention times, as compared against a commercial standard mixture (Supelco® 37 Component FAME Mix). The fatty acid profile of CB oil was determined based on the GC peak areas, adjusted by the response factors of the detector; these factors were calculated for each FAME taking methyl oleate as a reference. The response factors were obtained as an average of five injections.

2.4. Determination of the Oil Quality Indices

2.4.1. Peroxide Value (PV)

PV was determined by iodometric titration, based on the fact that I₂ is stoichiometrically released by hydroperoxides from excess KI. The I₂ formed was backtitrated with a standard Na₂S₂O₃ solution in the presence of starch as an indicator [22].

2.4.2. Free Fatty Acids Value (FFA) and Acid Value (AV)

FFA was determined by titration of oil dissolved in ethanolic NaOH solution, using phenolphthalein to observe the color shift. AV was determined from FFA by applying 1.99 as a conversion factor for oleic acid: FFA (% oleic) × 1.99 = AV [23].

2.5. Fruits Morphology

CB dried fruit morphology was visualized before and after extraction by means of a FEI Quanta Inspect F Scanning Electron Microscope (SEM, FEI Company, Hillsboro, OR, USA). The operating conditions were as follows: secondary electron mode, 30 kV accelerating voltage, 10 mm working distance. All samples were gold coated by DC magnetron sputtering for 60 s prior to SEM examination in order to ensure surface conductivity [19].

2.6. Experimental Design and Statistical Analysis

Response surface methodology (RSM) using the Box–Behnken design (BBD) was employed to assess the influence of each process variable on the oil extraction yield from CB fruits. RSM, an effective statistical technique, allows for the analysis of individual contributions and interactions of independent variables on the response, and could accurately describe the global process based on a limited number of runs [19]. BBD, which is one of the most common rotatable models, was preferred for obtaining a polynomial model (second order) to explain the contribution of each process variable on the response (extraction yield of CB oil). The obtained data were integrated into the following second-order polynomial model according to Equation (1), where Y is the response variable, β₀ is the constant term, β_i are the linear coefficients, and β_ii and β_ij represent the quadratic and interactive coefficients, respectively [19]:

$$Y={\beta }_0+{{\displaystyle \sum }}^{}{\beta }_i{x}_i+{{\displaystyle \sum }}^{}{\beta }_{ii}{x_i}^2+{{\displaystyle \sum }}^{}{\beta }_{ij}{x}_i{x}_j$$

(1)

The STATISTICA 10 software package (Stat Soft Inc., Tulsa, OK, USA) was used for experimental design analysis and data processing. Fisher’s F-test was applied to assess the significance of the regression coefficients. The significant terms in the model, returned after regression analysis, were discovered using Pareto analysis of variance (ANOVA) for the responses. Three-dimensional response surface plots were used to illustrate the independent variables interaction [19].

Extraction yield (response) determined using Equation (2), where M_oil is the amount of oil (g), and M_df is the mass of the dried fruits (g):

$$Y=\frac{M_{oil}}{M_{df}}\times 100$$

(2)

For batch extraction, Y₁ denotes the extraction yield, and for UAE, the corresponding variable is denoted as Y₂.

The extraction conditions for batch and UAE were optimized using the desirability function, which transforms each response to a desirability value d_i between 1 and 0. The value 1 corresponds to the ideal response value, and 0 to an undesirable response [15].

Box–Behnken Factorial Design for Batch Extraction

Based on the preliminary experiments, the most important variables and their domain of variation were determined.

Table 1. Independent variables and their levels in the response surface for batch extraction and for UAE of CB fruits oil.

Independent Variable; Batch Extraction	Coded Symbol	Level			Independent Variable; UAE	Coded Symbol	Level
		−1	0	1			−1	0	1
Temperature (°C)	X1	25	45	65	Temperature (°C)	x1	30	40	50
Extraction time (h)	X2	1	2	3	Extraction time (min)	x2	5	10	15
Solid/liquid ratio (g/mL)	X3	1/8	1/12	1/16	US intensity(W/cm2)	x3	5.06	9.64	13.77

gives the three independent factors designed as X₁ (temperature), X₂ (extraction time), and X₃ (solid/liquid ratio), and their corresponding values for batch extraction of CB oil. For UAE extraction of CB fruits oil, three independent variables were designed as x₁ (temperature), x₂ (extraction time), and x₃ (US intensity), their corresponding values being presented also in Table 1.

2.7. Biodiesel Synthesis from CB Fruit Oil and Its Characterization

Biodiesel was synthesized based on a two-step procedure: saponification, followed by methylation of alkali soaps with some modifications [21]. A measure of 50 mL CB oil (50 mmol) and 50 mL NaOH in methanol solution (0.1 N) were placed in a double-necked 500 mL round bottom flask fitted with a condenser, magnetic stirrer, and dropping funnel, and refluxed for 30 min. (64 °C, 300 rpm). After completion of saponification reaction (the mixture became homogeneous), 5 mL H₂SO₄ 98% solution (d = 1.98 g/mL, 100 mmol) dissolved in 50 mL was added dropwise through a dropping funnel, and the mixture was maintained at reflux for 30 min. The reaction mixture was cooled to 25 °C and its separation into two phases (methyl esters and glycerol) indicated that the methylation had occurred. Cold water (100 mL, approx. 4 °C) was added, and the flask contents were transferred into a 500 mL separatory funnel. FAME were extracted three times with 50 mL methylene chloride (d = 1.38 g/mL) portions. The combined organic extracts (lower layers) were washed with cold water until reaching a neutral pH, then dried on anhydrous MgSO₄, and separated through centrifugation. Methylene chloride was removed with a rotary evaporator. Biodiesel was obtained (89.4% yield) as a light-yellow oil, and was characterized through ¹H-NMR.

3. Results and Discussions

3.1. CB Fruits Oil Characterization

The CB fruit oil content was determined to be 33.20 ± 0.68% (reported to the dried fruits, Soxhlet method). Compared to the few literature data available on the oil content of CB fruits, this value is higher than any other previously reported, ranging between 24–29.2% [7]. Indeed, the cultivation area provides favourable pedo-climatic conditions for CB growth; however, 2020 was particularly favorable, with higher seed quality and seed production compared to previous years also registered for other Asteraceae oil plants. Since we could only find one paper reporting the fatty acids profile of CB oil [7], and nothing has been said about the oil free fatty acids content, methylation was carried out under acidic conditions using BF₃-CH₃OH complex as a catalyst, to ensure total methylation of the fatty acids from triacylglycerols, as well as from FFA [21]. The composition of the oil samples using different extraction techniques (Soxhlet, batch and UAE) was determined through gas-chromatography, and the results are displayed in

Table 2. CB oil characterization as obtained by various extraction techniques.

No.	Fatty acid	Lipid Number	Fatty acids profile * of Cnicus benedictus fruit oil (molar %)
			Soxhlet extraction (n-hexane, 8 h)	Batch extraction (65 °C, 3 h)	UAE (50 °C, 15 min, 13.77 W/cm2)
1	Palmitic	C16:0	5.31 ± 0.19	5.40 ± 0.15	5.50 ± 0.08
2	Stearic	C18:0	2.03 ± 0.09	2.10 ± 0.08	2.10 ± 0.04
3	Oleic	C18:1	18.96 ± 0.48	19.02 ± 0.42	19.01 ± 0.39
4	Linoleic	C18:2	73.69 ± 0.87	73.48 ± 0.79	73.39 ± 0.82
Technical oil quality indices *
AV (mg KOH/g oil)			2.46 ± 0.28	2.38 ± 0.16	2.44 ± 0.12
FFA (as % oleic acid)			1.24 ± 0.08	1.20 ± 0.05	1.23 ± 0.04
IV (g I2/100 g oil)			143.2 ± 0.8	142.6 ± 0.6	142.8 ± 0.8
SV (mg KOH/g oil)			191 ± 1	192 ± 1	191 ± 1
PV (meq. active oxygen/kg of oil)			2.5 ± 0.1 **	2.4 ± 0.02 **	2.7 ± 0.1 **
Total fat ‡ (g/100 g fruits)			33.20 ‡‡

* Mean values (three replicates) ± s.d.; ^‡ Reported to the dry seeds; ^‡‡ Determined for CB oil obtained through Soxhlet extraction. ** Represent significant differences (one-way ANOVA and Duncan’s test, p < 0.05).

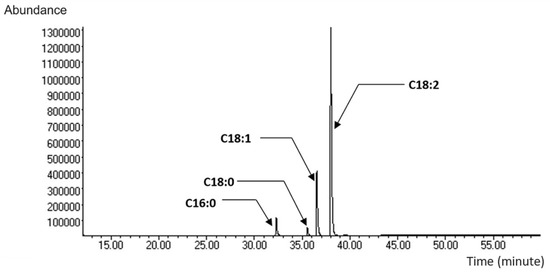

. A characteristic chromatogram of CB oil obtained for Soxhlet extraction in n-hexane is presented in Figure 1. Table 2 shows the CB oil characterization as obtained by various extraction techniques.

The fatty acid profile of CB oil is similar regardless of the extraction technique (Table 2). The most abundant fatty acid (accounting up to 73.69%) is linoleic acid (C18:2), considered as an essential fatty acid. It is the starting point for the biosynthesis of a series of ω-6 fatty acids, eventually leading to arachidonic acid (C20:4) [20,24]. CB oil also contains important amounts (up to 19.02%) of oleic acid (C18:1). Relatively low levels (ranging 7.34–7.60%) of saturated fatty acids (palmitic C16:0 and stearic C18:0) complete the fatty acids profile of the oil. Similar composition results (linoleic acid 71.80–75.0%, oleic acid 16.95–19.7%, palmitic acid 5.95–6.67%, and stearic acid 2.72–3.29%) have recently been reported for CB cultivated in Germany [7]. No statistically significant differences were found between different extraction techniques regarding oil composition (one-way ANOVA).

With respect to the technical quality indices, CB oil has a relatively high IV (143.2 g I₂/100 g oil), due to its high content of C18:2, and an SV of 191 mg KOH/g oil, which confirms the mainly C18 fatty acids oil composition.

It has been reported in the literature [25] that UAE may promote oxidative degradation of the biologically active compounds. This could constitute a considerable disadvantage of the UAE technique, restricting its utility. In this study, the evaluation of the contribution of ultrasounds on the lipid degradation during UAE was formulated based on specific oil quality indices (i.e., peroxide value PV, acid value AV, and the free fatty acids FFA). PV, AV and FFA were determined on three samples (one for each extraction technique, taking the longest exposure time, temperature, and process intensity). According to Table 2, PV presents statistically significant differences (p < 0.05) among the samples obtained through Soxhlet, batch extraction, and UAE. However, no major peroxidation process occurred during these experiments; only in the case of UAE did PV slightly increase from 2.5 meq. active oxygen/kg of oil (Soxhlet) to 2.7 meq. active oxygen/kg of oil (UAE), confirming that ultrasounds may increase lipid peroxidation. On the other hand, PV values were low, despite the high levels of PUFA; a possible explanation is that peroxidation was prevented or limited by three factors: (1) CB oil is naturally protected against peroxidation by its high levels of tocopherols [7]; (2) short exposure time (max. 15 min.); and (3) temperature was kept at max. 50 °C. No important triacylglycerols hydrolysis occurred during extractions, with AV and FFA having close values (2.38–2.46 mg KOH/g oil and 1.20–1.24% expressed as oleic acid, respectively).

3.2. Extraction Yield of CB Oil Batch Extraction Optimized by RSM

Table 3. BBD settings of independent variables and the experimental and predicted values for CB oil extraction efficiency for batch extraction (Y₁) and extraction efficiency (Y₂) for UAE, respectively.

Run	X1	X2	X2	Y1 (%)		Y2 (%)
	x1	x2	x3	Experimental	Predicted	Experimental	Predicted
1	−1	−1	0	23.02	23.11	29.48	29.20
2	−1	0	−1	23.12	23.13	28.51	28.44
3	−1	0	1	23.62	23.62	28.60	28.77
4	−1	1	0	23.88	23.77	31.07	31.24
5	0	−1	−1	23.22	23.11	28.56	28.90
6	0	−1	1	24.38	24.27	29.35	29.45
7	0	0	0	24.62	24.72	28.00	28.37
8	0	1	−1	24.02	24.12	30.44	30.33
9	0	1	1	24.84	24.94	31.88	31.53
10	1	−1	0	24.44	24.55	30.98	30.80
11	1	0	−1	24.26	24.25	29.39	29.21
12	1	0	1	25.75	25.74	30.56	30.62
13	1	1	0	25.68	25.58	32.00	32.27
14	0	0	0	25.00	24.72	28.00	28.37
15	0	0	0	24.50	24.72	28.20	28.37
16	0	0	0	24.80	24.72	27.99	28.37
17	0	0	0	24.68	24.72	28.10	28.37

presents the experimental design for batch extraction and UAE of CB oil.

The expression of Y₁ (extraction yield for batch extraction) in terms of coded variables is reflected as a second order model in Equation (3):

$$\begin{gathered} Y_1=24.72+0.811X_1-0.196{X_1}^2+0.420X_2-0.268{X_2}^2+0.496X_3-0.336{X_3}^2 \\ +0.095X_1{X}_2+0.247X_1{X}_3-0.085X_2{X}_3 \end{gathered}$$

(3)

F-test, p-value and ANOVA were applied to verify the statistical significance of the regression model for the response surface second order model (

Table 4. ANOVA test for Y₁ response function (extraction yield) for batch extraction.

Term	Sum of Squares	DF	Mean Square	F-Value	p-Value
Model	10.00263	9	1.1114	33.34328	0.000063 a
X1	5.26501	1	5.265013	145.4423	0.000271 a
X2	1.41120	1	1.411200	38.9834	0.003354 a
X3	1.97011	1	1.970112	54.4230	0.001800 a
X12	0.16216	1	0.162164	4.4797	0.101739
X22	0.30411	1	0.304112	8.4009	0.044188 a
X32	0.47606	1	0.476059	13.1508	0.022231 a
X1X2	0.03610	1	0.036100	0.9972	0.374495
X1X3	0.24502	1	0.245025	6.7686	0.059943
X2X3	0.02890	1	0.028900	0.7983	0.422089
Lack of Fit	0.08852	3	0.029508	0.8151	0.548753
Pure Error	0.14480	4	0.036200
Total SS	10.23595	16
R2 = 0.977	Adj R2 = 0.947		CV = 3.28

^a Values are significant at p < 0.05.

).

It can be observed from Table 4 that the quadratic model is highly significant, with a very high F value of 33.343, and a low p-value < 0.000063. These values represent proof that the obtained model could accurately describe the relationship between the extraction yield and the independent variables for CB oil extraction, in the case of batch extraction [19].

The high values of R² (0.977) and of Adj R² (0.947) suggest good correlation between experimental and predicted values. Based on the value of Adj R², only 5.3 % of the total variation could not be explained by the proposed model. The coefficient of variance (CV) is less than 5%, which supports the good fit of the mathematical model. Using the p-value (95% confidence level) to examine the significance of the model coefficients, the effects lower than 0.05 were considered significant. Consequently, it is evident that the extraction yield is influenced by the linear coefficients (X₁, X₂, and X₃) and by the quadratic terms X₂² and X₃², the p-values being less than 0.5 for all these terms.

The simplified fitted quadratic model obtained by neglecting the non-significant terms (p-values > 0.05) in Equation (3) is described by Equation (4):

$$Y_1=24.72+0.811X_1-0.268{X_2}^2+0.420 X_2+0.496X_3-0.336{X_3}^2$$

(4)

The influence of extraction parameters on the CB oil extraction efficiency were visualized using the response surface plots. From Figure 2a, it can be seen that both temperature and solid/liquid ratio exhibit a significant effect upon extraction yield of CB oil; this parameter is increasing with the increase of the two variables. Figure 2b represents the response surface plot of solid/liquid ratio and time. It can be observed that the solid/liquid ratio has a more pronounced influence upon extraction yield in comparison with time. Figure 2c represents the response surface plot of the two independent variables extraction time and temperature. It is evident that both variables are influencing the extraction yield, the maximum being attended for a high temperature and a long extraction time.

3.3. Desirability Optimization for CB Oil for Batch Extraction

Extraction efficiency of CB oil (batch extraction) was optimised by using the desirability function [26]. The values of optimal conditions were 1 for all variables: temperature (65 °C), time (3 h), and solid liquid ratio (1/16). The optimum value of Y₁ was found to be 25.75 % in agreement with the experimental value determined in the same experimental conditions (Y_1exp = 26.00 ± 0.28%). Profiles for predicted oil extraction efficiency and the desirability level of the influencing factors for optimal conditions in the case of batch extraction are presented in Figure 2d.

The morphology of CB fruits was examined through SEM before and after extraction using different techniques: (a) Soxhlet extraction, and (b) batch extraction.

In Figure 3a,b a compact structure of the raw vegetal material is observed before extraction. After Soxhlet extraction (Figure 3c), the vegetal material appears more depleted as compared with batch extraction, which is in agreement with the lower extraction yield in the case of the batch approach (Figure 3d).

3.4. Extraction Yield of CB Oil UAE Optimized by RSM

Equation (5) presents the second order model for Y₂ (extraction yield for CB oil for UAE) in terms of coded variables:

$$\begin{gathered} Y_2=24.418+0.677x_1+0.787{x_1}^2+0.886x_2+1.664{x_2}^2+0.418x_3+0.0347{x_3}^2 \\ -0.220x_1{x}_2+0.245x_1{x}_3+0.222x_2{x}_3 \end{gathered}$$

(5)

F-test, p-value, and ANOVA were applied to verify the statistical significance of the regression model for the response surface second order model (

Table 5. ANOVA test for Y₂ response function (extraction yield) for UAE.

Term	Sum of Squares	DF	Mean Square	F-Value	p-Value
Model	27.01459	9	0.138265	21.70919	0.000261 a
x1	3.67205	1	3.67205	21.08919	0.010089 a
x2	6.28351	1	6.28351	36.08725	0.003865 a
x3	1.40281	1	1.40281	8.05658	0.046943 a
x12	2.60953	1	2.60953	14.98694	0.017974 a
x22	11.66902	1	11.66902	67.01712	0.001213 a
x32	0.00508	1	0.00508	0.02920	0.872612
x1x2	0.19360	1	0.19360	1.11188	0.351153
x1x3	0.24010	1	0.24010	1.37893	0.305422
x2x3	0.19802	1	0.19802	1.13729	0.346316
Lack of Fit	0.27138	3	0.09046	0.51952	0.691268
Pure Error	0.69648	4	0.17412
Total SS	27.98245	16
R2 = 0.9654	Adj R2 = 0.9209		CV = 4.5%

^a Values are significant at p < 0.05.

).

The ANOVA analysis from Table 5 revealed that the model is statistically significant, with a very high F value of 21.709 at 95% confidence level. Since R² and adjusted R² are higher than 0.90, we can conclude that the experimental results agree with the predicted values, a conclusion which is also supported by the results presented in Table 2. Only 7.91% of the total system variation could not be explained by the suggested model. The coefficient of variation (CV) has a low value (<5%), suggesting a high accuracy of the experiment. Neglection of non-significant terms (p-values > 0.05) in Equation (5) leads to a simplified fitted quadratic model, i.e., Equation (6):

$$Y_2=24.418+0.677x_1+0.787{x_1}^2+0.886x_2+1.664{x_2}^2+0.418x_3$$

(6)

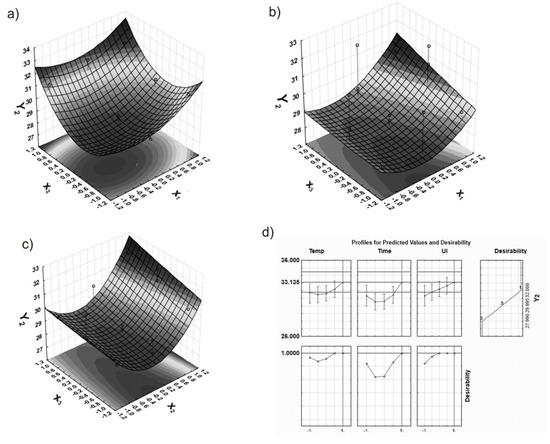

Figure 4 presents the response surface plot of extraction yield for UAE (Y₂) as a function of time, temperature, and US intensity. From Figure 4a,b it can be seen that the extraction time and temperature have a more pronounced influence upon extraction yield, in comparison with US intensity. The increase of the extraction time and temperature favours CB oil extraction in the case of UAE.

3.5. Desirability Optimization for CB Oil for UAE

Extraction efficiency of CB oil (UAE) was also optimized by means of the desirability function. The values of optimal conditions were 1 for all variables: temperature (50 °C), time (15 min), and US intensity (13.77 W/cm²). The solid/liquid ratio was kept constant at 1/16 g/mL, as in the batch extraction experiment. The optimum value of Y₂ was found to be 32 % in correlation with the experimental value, determined under similar working conditions (Y_2exp = 31.1 ± 0.44%). Profiles for predicted oil extraction yield and the desirability level for the influencing factors for optimal conditions of UAE extraction are presented in Figure 4d. CB fruits were analysed through SEM after UAE, and the images are presented in Figure 5. If we compare the images of the CB fruits after UAE with those presented in Figure 3c,d, it is evident that the US produces oil depletion in the vegetal matrix.

3.6. Synthesis of Biodiesel from CB Oil and Its Properties

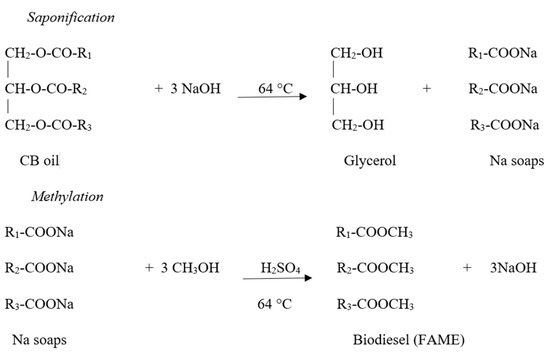

Biodiesel was synthesized under acidic catalysis, based on a two-step procedure involving saponification followed by methylation of alkali soaps, according to Scheme 1.

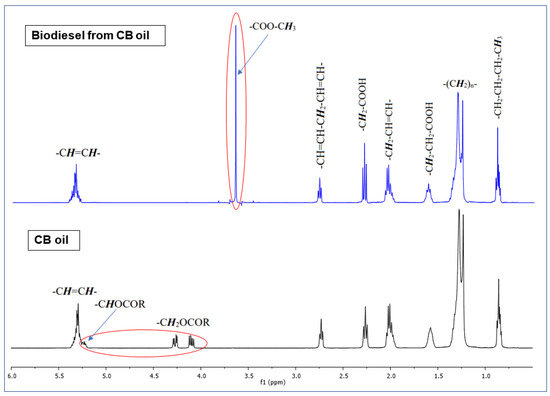

The stacked ¹H-NMR spectra of CB oil and biodiesel are presented in Figure 6, and the assignment of ¹H-NMR resonances is presented in

Table 6. Chemical shifts and assignment of ¹H-NMR resonances for CB oil and CB biodiesel [27].

No.	d (ppm)	Proton	Compound
1	0.85	-CH2-CH2-CH2-CH3	all acids in CB oil
2	1.24	-(CH2)n-	all fatty acids
3	1.64	-CH2-CH2-COO-	all fatty acids
4	2.02	-CH2-CH=CH-	C18:2 and C18:1
5	2.26	-CH2-COO-	all fatty acids
6	2.76	-CH=CH-CH2-CH=CH-	linoleic acid (C18:2)
7	3.60	-COO-CH3	methyl ester moiety
8	4.19	-CH2OCOR	H in the sn-1/3 position of the glycerol moiety
9	5.20	-CHOCOR	H in the sn-2 position of the glycerol moiety
10	5.29	-CH=CH-	C18:2 and C18:1

.

The ¹H-NMR spectra of both CB oil and CB fatty acid methyl esters (biodiesel) display the same resonances for the hydrocarbon chain, and differ only with respect to the ester moiety. As expected, the signals associated with unsaturation (i.e., allylic, bis-allylic, and directly bonded to sp² C in the double bonds) have high intensities, in correlation with the fatty acid composition (the main constituent being linoleic acid, ω-6). The completion of the transesterification reaction of CB oil to obtain biodiesel is proven in the ¹H-NMR spectrum, by the resonance at 3.60 ppm (singlet), assigned to the new methyl group from the ester moiety. At the same time—as expected—the resonances at 4.19 and 5.20 from the glycerol ester moiety are absent in the spectrum of the reaction product, confirming that the acyl groups have detached from the glycerol backbone. Biodiesel properties are shown in

Table 7. Biodiesel properties.

No.	Fatty acid	Lipid number	Fatty acids profile * (molar %)
1.	Palmitic	C16:0	5.42 ± 0.12
2.	Stearic	C18:0	2.18 ± 0.07
3.	Oleic	C18:1	19.11 ± 0.32
4.	Linoleic	C18:2	73.29 ± 0.83
Technical quality indices
Mean molar weight (g/mol) **			293.6 ± 1.2
Specific gravity, at 15 °C (kg/m3)			0.874 ± 0.003
AV (mg KOH/g biodiesel)			0.42 ± 0.07
IV (g I2/100 g biodiesel) **			142.5 ± 2.3
SV (mg KOH/g biodiesel) **			191.2 ± 1.9
CN			53.1 ± 0.9
Kinematic viscosity, at 40 °C (mm2/s)			3.1 ± 0.9
CP (°C)			−2.1 ± 0.2
PP (°C)			−9.1 ± 0.2
HHV (MJ/Kg)			39.91 ± 0.63

* Mean values ± sd (three replicates); ** Determined from the GC data: mean molar weight, iodine value (IV), and saponification value (SV) according to [28], cetane number (CN) according to [29], kinematic viscosity, and higher heating value (HHV) according to [30], and cloud point (CP) and pour point (PP) according to [31].

.

The mean acidity value obtained of 0.42 mg KOH/g biodiesel conforms with the maximum of 0.5 mg KOH/g admitted by the ASTM D664 specifications for biodiesel [32]. Ghiasy-Oskoee et al. [8] reported higher AV values ranging from 2.3 to 3.5 mg KOH/g for biodiesel from CBO, which were not compliant with standard recommendations. A possible explanation may regard the biodiesel synthesis, which, in their case, was the classical methylation procedure under alkaline catalysis; under alkaline conditions, the free fatty acids remain unmethylated [21]. On the other hand, the transesterification reported in the present paper involves the conversion of CB oil into FAME as a two-step synthesis. In the first step, both the triacylglycerols and free fatty acids are converted into Na carboxylates. The second step—methylation—is carried on under acidic catalysis, allowing for the methylation of all carboxylate species. Consequently, AV of biodiesel is considerably lower than in the case of the alkaline esterification. Iodine value (IV) of biodiesel reflects the amount of unsaturated fatty acyl chains. The IV (142 g I₂/100 g biodiesel) is due to the large amount of di-unsaturated acyl chains from linoleic moiety. The saponification value (SV, 191.2 mg KOH/g biodiesel) globally reflects the fatty acyl chain length, with C18 acids accounting for more than 94%. The cetane number (CN) of 53.1 is compliant with the recommendations of the European regulations (EN 14214, European Committee for Standardization), indicating a good ignition quality of the fuel. This value is slightly lower than 54.5 as reported by Ghiasy-Oskoee et al. [8] for biodiesel from CBO, due to the higher amount of linoleic acid (73.29% in the present case compared to 64.93%, as previously reported). According to Giakoumis and Sarakatsanis [29], the CN of biodiesel depends on the fatty acid composition, with unsaturated fatty acids contributing to the decrease of CN.

Cloud point (CP, the temperature at which FAME crystallization begins) and pour point (PP, the lowest temperature at which the fuel still flows—below this point the fuel does not flow) [31] were found to be −2.1 °C and −9.1 °C, respectively, characterizing the low temperature flow characteristics of biodiesel. The low values are due to the low amounts of palmitic acid methyl ester, which has the highest melting point of all methyl ester species present in CB biodiesel. CP and PP should be taken into account when operating diesel engines in temperature climate regions during winter periods to avoid clogging fuel pipes and filters in diesel devices [31].

The high heating value (HHV) is an important characteristic of fuels, defined as the heat released through the complete combustion of 1 kg of fuel. The HHV of CB biodiesel was 39.91 MJ/kg, which agrees with the HHV reported for sunflower FAME, which have fatty acid composition comparable to CB biodiesel [30].

4. Conclusions

Cnicus benedictus fruits have proven as a rich source of oil, with high amounts of C18:2 (>73%). An experimental study of CB oil extraction was performed using two extraction techniques: batch extraction, and UAE. The extraction process was optimized using an experimental statistical design. UAE resulted in a higher extraction yield of oil from CB fruits and a shorter extraction time as compared with batch extraction. The optimized value for UAE offers mild conditions which prevents oil degradation (i.e., 50 °C for 15 min., 1/16 g/mL solid/liquid ratio, and 13.77 W/cm² US intensity), allowing for 31.1% CB oil yield. On a laboratory scale, the highest oil yield obtained through ultrasound assisted extraction (31.1%) seems only slightly higher than previously reported yield (24–29.2%). However, in our opinion, this difference becomes relevant for the field production (in terms of kg/ha). CB oil was converted to the corresponding fatty acid methyl esters, which were further assessed for fuel characteristics. Results indicate that the obtained CB biodiesel complies with biodiesel regulations, suggesting the plant as an alternative raw material for biodiesel production. Further research should focus on the evaluation and low input improvement of Cnicus benedictus crops under unfavorable environments, as well as the evaluation of CB fuel behavior in diesel engines.
