Traffic Simulation-Based Approach for A Cradle-to-Grave Greenhouse Gases Emission Model

by
Sergio Maria Patella
1,*,
Flavio Scrucca
2,
Francesco Asdrubali
1 and
Stefano Carrese
1
1
Department of Engineering, Roma Tre University, Via Vito Volterra 62, 00146 Rome, Italy
2
CIRIAF, University of Perugia, Via G. Duranti 67, 06125 Perugia, Italy
*
Author to whom correspondence should be addressed.
Sustainability 2019, 11(16), 4328; https://doi.org/10.3390/su11164328
Submission received: 8 May 2019 / Revised: 6 August 2019 / Accepted: 7 August 2019 / Published: 10 August 2019
(This article belongs to the Section Sustainable Transportation)
Browse Figures
Versions Notes

Abstract

:
This paper presents a model to evaluate the life cycle greenhouse gases (GHG) emissions, expressed in terms of carbon dioxide equivalent (CO2eq), of a generic fleet composition as a function of the traffic simulation results. First we evaluated the complete life cycle of each category of the vehicles currently circulating; next, by defining a general linear equation, the traffic environmental performances of a real road network (city of Rome) were evaluated using a traffic simulation approach. Finally, the proposed methodology was applied to evaluate the GHG emission of a 100% penetration of battery electric vehicles (BEVs) and various electric and conventional vehicles composition scenarios. In terms of life cycle impacts, BEVs are the vehicles with the highest GHG emissions at the vehicle level (construction + maintenance + end-of-life processes) that are, on average, 20% higher than internal combustion engine vehicles, and 6.5% higher than hybrid electric vehicles (HEVs). Nevertheless, a 100% BEVs penetration scenario generates a reduction of the environmental impact at the mobility system level of about 65%.

1. Introduction

Battery electric vehicles (BEVs) and plug-in hybrid electric vehicles (PHEVs), collectively called Plug-in Electric Vehicles (PEVs), and hybrid electric vehicles (HEVs), have recently been offered as a mass-market alternative to conventional cars with petrol and diesel engines (i.e., Internal Combustion Engine Vehicles (ICEVs) [1]. They have been introduced as a solution to the problem of dependency on fossil fuels, increasing carbon dioxide (CO2) emissions, and other environmental issues [2]. Literature regarding the life cycle assessment (LCA) of PEVs, HEVs, and ICEVs is quite extended. Studies are mainly focused on the “vehicle” system and on the comparison of different technologies (BEVs, PHEVs, HEVs, and ICEVs). Studies concerning cars for individual transportation are dominant with respect to other vehicle types (e.g., heavy or light-duty trucks, buses, etc.) that are investigated in very few works [3]. The different technologies perform differently in terms of environmental impact, and there is not a single technology with good performance in all the environmental impact categories. Hawkins et al. (2012) [4] carried out a comparison of an electric vehicle (EV) and an ICEV over their entire life cycle and found that the greenhouse gases (GHG) emissions decrease of EVs powered by the current European electricity mix is 10% and 24% compared to conventional diesel and gasoline vehicles, respectively. Ellingsen et al. (2016) [5] found that when comparing equal vehicle sizes, the EVs have 20–27% lower lifecycle impact than the ICEVs using the average European electricity mix. Using a Monte Carlo method to simulate EVs use-phase under a wide range of driving conditions, Canals Casals et al. (2016) [6] calculated the GHG emission associated with EVs and ICEVs for the EVs’ top-selling European countries. They found that only France (76% nuclear power energy ratio) and Norway (94% hydropower) ensures global warming potential (GWP) reductions for the whole EVs energy consumption range. Woo et al. (2017) [7] compared the GHG emissions associated with EVs with those from the ICEVs for 70 countries. Their findings indicated that countries with high nuclear power and renewable energy ratios in their generation mix have lower GHG emissions for BEVs. Kamiya et al. (2019) [8] confirmed this and found that British Columbia (mainly hydro-based) has the greatest emission reduction potential for PEVs (78–98%) compared to ICEVs. Furthermore, EVs showed the potential for significant increases in some impact categories (human toxicity, freshwater eutrophication, and metal depletion). According to De Souza et al. (2018) [9], among the technologies, BEVs emerge as the vehicles with the lower environmental charges. The manufacturing phase of BEVs has high relative importance in terms of life cycle impact, and it has a significantly higher impact than ICEVs, mainly due to the production and disposal processes of batteries [10,11,12,13]. Due to energy production and consumption, the use of vehicles is identified as the most relevant life cycle phase regarding the majority of environmental impact indicators considered, both for ICEVs—for which also the effects of lightweighting strategies are analyzed—and the different types of EVs [14,15,16,17]. Moreover, the impact reduction potential of EVs is estimated as gradually increasing with the optimization of the electricity mix (renewable energies penetration) and the wide application of advanced electricity technologies [18,19,20,21]. The disposal phase was found to have a minor influence on the total environmental burdens [22], even if different recycling technologies for the end-of-life of the vehicle could significantly differ in terms of impact [23].
The research presented in this paper aimed at evaluating the environmental effects of individual transport by cars by combining the full life cycle implication at the vehicle level and the traffic simulation results. In fact, we evaluated the complete life cycle (per unit of kilometer) of each category of currently circulating vehicles, and defined a general equation to calculate the impact of the fleet composition on a real road network (city of Rome). The core of this study was to define a linear equation to evaluate the life cycle GHG emissions, expressed in terms of carbon dioxide equivalent (CO2eq), of a generic fleet composition as a function of the traffic simulation results. The proposed approach was used to evaluate both the environmental performances, in terms of GHG emissions, of the current scenario of the city of Rome and the environmental performance of a 100% BEVs penetration scenario. Finally, the GHG emissions of various mixed fleet composition scenarios were also evaluated to show how the linear equation proposed in this paper can be applied in any context characterized by a given fleet composition and by a specific output of the traffic simulation.
The remainder of the paper is organized as follows. Section 2 outlines the materials and methods used both for the LCA and for the traffic simulation analysis. Section 3 presents and discusses the results of the study. Section 4 concludes and summarizes the paper, including a discussion on the assumptions of this study and future research needs.

2. Materials and Methods

The LCA study considered a medium-sized passenger car as reference vehicle, and it was performed with a cradle to grave approach, i.e., considering all the life cycle stages from raw materials acquisition to vehicle end-of-life. The life cycle inventory (LCI) of the vehicle construction phase was modeled on the basis of existing literature [9,24,25,26] and data included in available databases [27], while the end-of-life was modeled by a disposal scenario specific to the considered area. Regarding the use phase, the modeling was based on the traffic simulation results, in terms of vehicle kilometer traveled (VKT). GHG emissions related to the use phase of BEVs strongly depend on the electricity generation mix of the country; emissions decrease when the contribution of renewable energies increases in the grid. In this work, we referred to the current electricity generation mix of Italy (Table 1), without considering different future scenarios, in order to evaluate the worst case in terms of environmental impact.

2.1. Life Cycle Assessment Analysis

LCA is a methodology that allows the evaluation of the environmental impact of products and services across all their life cycle stages, i.e., from raw material extraction through materials processing, manufacture, distribution, use, repair, maintenance, and final disposal or recycling. As far as this study is concerned, an attributional LCA according to ISO 14040 and 14044 [29,30] was performed with the aim of evaluating the life cycle GHG emissions associated with a 100% EVs scenario at the urban mobility level, compared with the current scenario of the case study city, which is Rome. The LCA study was carried out with a “cradle-to-grave” approach; therefore, all the life cycle stages from raw materials acquisition to vehicle end-of-life were considered (Figure 1). The selected functional unit was 1 km driven by a medium-sized passenger car characterized by a lifespan of 150,000 km. Life lengths of vehicles can vary largely according to the specific characteristics of different models, but the assumed lifespan value is widely used as a reference for LCA studies of small- to medium-sized passenger cars [4,14,18,19,22]. A detailed description of the modeling assumptions for each life cycle stage is given in the following sections.

2.1.1. Production Phase Modeling

A vehicle is an assembly of many systems that can be divided into sub-systems up to single components/materials. For the modeling of the vehicles, two common main larger systems were considered: the glider, which consists of the vehicle body and chassis, and the powertrain. The powertrain of ICEVs includes the internal combustion engine and its accessories, while for BEVs it consists of the electric motor, charger, inverter, power distribution unit, cables, and converter. The alternative fuel tanks — Liquified Petroleum Gas (LPG) and Compressed Natural Gas (CNG) — for bi-fuel ICEVs, as well as the batteries pack (Li-ion typology considered) for EVs, were considered as separate systems. The main source of data for the modeling of the production stage of the vehicles was the database Ecoinvent v3 [27]. Regarding specific components for which datasets are not available in the Ecoinvent database, data on the subcomponents/materials used were gathered from available manufacturer datasheets and from literature.
Table 2 summarizes the weight data for each vehicle and each included system, while the inventory data for the construction of each considered system are reported in the supplementary material.

2.1.2. Use Phase Modeling

Vehicles energy consumption and emissions are affected by many variables that are related to different factors. Zhou et al. (2016) [31] classified these variables into six broad categories, i.e., those related to travel characteristics (travel distance and times), to the vehicle (engine, vehicle loading, speed, and acceleration), to ambience (temperature, humidity, and wind), to the road network (roadway grade, surface roughness, and horizontal curvature), to traffic (traffic flow and signaling), and to the driver (driver behaviour and aggressiveness). In general, energy consumption is shown as increasing with speed and acceleration, both for ICEVs [32,33] and EVs [34], even if EVs seem to be more efficient in urban driving conditions, both considering laboratory driving tests and real-world vehicle activity patterns [35,36,37]. Moreover, the use of a global average value of energy consumption in [Wh/km]—as most of the LCA literature model the use phase of EVs—is considered an approximation that does not allow one to capture the real consumption of EVs among different driving cycles [38].
In this study, therefore, for a more detailed modeling of the use phase, we considered specific energy consumption/emission factors related to different driving conditions, i.e., intra-urban roads and highways, for each considered type of vehicle currently circulating in Rome. Table 3 shows the current fleet composition of Rome [39]. As shown in this table, the EVs diffusion amongst Roman households is quite limited. However, recent initiatives to promote sustainable mobility in the city of Rome have been reported by [40,41,42]. Most relevant factors and barriers affecting Italian consumer EV adoption intentions have been examined by Asdrubali et al. (2018) [43], and a general overview of consumer EV adoption behavior can be found in [2].
Regarding ICEVs, emission factors were gathered from the database of emission factors for road transport in Italy [44], which applies a methodology based on EMEP/EEA air pollutant emission inventory guidebook [45] and is coherent with IPCC guidelines on GHG [46]. Specific fuel consumption factors in g/km were then estimated starting from the available emission factors for the different gases in g/km and in g/g of fuel. Data are summarized in Table 4. Regarding EVs, instead, electricity consumption factors were assumed as specified in Table 5 for intra-urban roads and highways. Even if the assumed values represent estimates, they are in line with values resulting from standard driving cycles NEDC [47,48] and WLTC [49] that simulate both urban driving and highway conditions, obtained from [38,50]. The traffic simulation procedure, described in the next section, provided the vehicle kilometer traveled (VKT) for each link (intra-urban or highway) of the road network. Regarding the current scenario, VKT values were split according to the percentages of the fleet composition shown in Table 3. Next, the emissions were estimated using the factors reported in Table 4 and Table 5. Regarding HEVs, it was assumed an electric operation for traveling speeds under 50 km/h and a conventional fuel operation for speeds higher than 50 km/h.
The ordinary maintenance activities that occur during the vehicles’ life were modeled using the datasets included in the Ecoinvent database, which includes materials used for alteration parts and the energy consumption of garages, and also accounts for materials transportation (see the electronic supplementary material). A maintenance intervention, consisting in the replacement of the whole batteries package, was considered for the EVs. Even if some EV manufacturers consider the replacement at about 160,000 km with a 75% remaining charge capacity, the intervention is assumed to be realized after 130,000 km (about 80–85% remaining charge capacity), as a precautionary assumption (worst condition) in terms of life cycle GHG emissions. The impact of the new battery pack has not been fully associated with the life cycle of the vehicles; only the impact related to the 20,000 km remaining to reach the considered lifespan (150,000 km) has been allocated to them.

2.1.3. End-of-Life Phase Modeling

The treatment of vehicles at end-of-life consists of removing vehicle components such as engine, transmission, doors, tires, batteries, etc., in order to reuse components themselves and recycle materials. Even if higher recycling rates are to be expected, also in the light of end-of-life vehicles regulation, it should be expected that approximately 75% of a vehicle, mainly composed of ferrous metal, will be recycled or reused, while the remaining body of the car will be shredded into small pieces that will be landfilled or incinerated [51]. For the purposes of the present study, according to the “polluter pays” approach [52], the end-of-life of the considered vehicles was modeled neglecting the environmental impact reduction related to materials recycling and reuse but taking into account the impact associated with the shredding process and its output waste flows.
The assumption of neglecting the recycling and/or reuse of EVs batteries has to be considered as precautionary, since big recycling companies are nowadays industrializing battery recycling processes, and this will represent a key change in the environmental impact of the batteries of tomorrow. All the considered treatments were modeled using the datasets included in the Ecoinvent database. Inventory data regarding the end-of-life phase are reported in the supplementary material.

2.2. Traffic Simulation

A traffic simulation-based analysis was chosen to evaluate the network performances in terms of travel times and total distance traveled. As to the volume-delay functions, this study used the BPR function (Bureau of Public Roads) [53]:
t a = t a 0 ⋅ ( 1 + α ⋅ ( q a C a ) β ) ,
where t a 0 is the free-flow travel time of the road link a; α, and β are road-type specific parameters; qa is the load on the link a; and Ca is the link’s capacity.
The simulation was performed through a static traffic assignment model (using EMME by INRO). The morning peak origin-destination (O-D) trip matrix was loaded onto the traffic network of Rome, and the total amount of vehicle-trips assigned was 404,055. The O-D matrix was previously updated form recent traffic counts following the procedure described by Cascetta and Nguyen (1988) [54].
The traffic assignment procedure provided the traffic volume as well as the speed for every link of the road network. The network of Rome was modeled with 565 centroids (zones) and 6873 road links; of these, 5532 were intra-urban links.
Once these outputs are obtained, the life cycle GHG emissions, regarding both the current and different EVs market penetration rates scenarios, can finally be estimated and compared.

3. Results

3.1. Traffic Simulation

The Rome AM peak origin-destination (O–D) trip matrix was loaded onto the traffic network using EMME to estimate the link speeds, vehicle-kilometer, travel times, and average network speed. The simulation results are shown in Table 6 in terms of vehicle kilometer traveled (VKT), total time spent (TTS), and network speed.
Figure 2 shows the volumes on links resulting from the assignment procedure. A red bar represents high volumes on the link (>3000 vehicles), volumes from 1000 to 3000 vehicles are represented with green bars, and a thin blue represents small volumes (<1000 vehicles). Higher volumes can be observed in the ‘Grande Raccordo Anulare’ (GRA, i.e., a ring-shaped, 68.2 kilometers long freeway that encircles Rome) and in the high-capacity roads connecting the GRA to the city center.

3.2. GHG at the Vehicle Level

At the vehicle level (Figure 3), i.e., focusing on the sum of construction, maintenance, and end-of-life processes, BEVs are characterized by the highest life cycle GHG emissions, which are 23.2% higher than that of gasoline-fueled ICEVs, 22.6% higher than that of diesel-fueled ICEVs, and 17.9% and 17.4% higher than that of LPGs and CNG ICEVs, respectively. This higher impact is mainly due to the construction phase and, in particular, to the production of the Li-ion batteries package, which accounts for the 16.3% of the whole impact at the vehicle level. On the other hand, BEVs showed an impact that is 6.9% higher compared to gasoline-fueled HEVs, and 6.2% higher compared to diesel-fueled HEVs. For all the vehicles, the construction is the major impacting phase: 68.0–70.5% for ICEVs, 72% for HEVs, and 87.6% for BEVs. Regarding the BEVs, the Li-ion batteries production generates 18.6% of the construction impact, with the cathode (LiMn2O4) and anode (graphite) that represent, respectively, 47.4% and 29.1% of the impact related to the batteries production. The end-of-life phase makes a minor contribution to the impact (in the range 4–7% for all the vehicles), while the maintenance activities have a relevant role on the GHG emissions of ICEVs and HEVs (22–28%) and slightly contribute to the ones of BEVs (about 6%). Authors would like to stress that such results do not include the use phase impact, since a single emission factor was not considered for this phase but rather specific emission factors that are coupled with traffic simulation results. In the next section, by including the GHG emissions related to the use phase, our analysis will show that HEVs and BEVs as less impacting compared to conventional ICEVs.

3.3. GHG Emissions at the Urban Mobility Level

The linear equation model can be expressed as the sum of two components that relate to the driving conditions, i.e., intra-urban roads and highways. Thus, the total energy consumption (ET), in terms of GHG emission is given by the following equation:
E T = E H + E I U
where EH represents the emissions in highway condition and EIU relates to intra-urban conditions. If we assume that the total VKT can be divided proportionally to the fleet composition, Equation (1) can be written as follows:
E T = ∑ i α i H L i H + ∑ i α i I U L i I U
where the index i represents each vehicle category, the coefficient α represents GHG emission per unit of kilometer traveled, and L is the length traveled in the two different driving conditions (intra-urban roads and highways). Table 7 summarizes the emission coefficients for each vehicle category.
Using as input to Equation (2) the simulation results shown in Table 6 and the coefficients reported in Table 7, we obtain 1247.46 t CO2eq, mainly related to “conventional” ICEVs (gasoline and diesel).

3.3.1. Full BEVs Penetration Scenario

By assuming a 100% penetration scenario, in this section we evaluated the environmental effect of the full electrification of private urban transport.
Since this paper represents a first attempt to define an integrated approach to evaluate the life cycle GHG emissions of EVs at the urban mobility level, variations in travel demand (population growth, spatial distribution, mode choice, etc.) were not included. For the scope of this study, we assumed that private vehicles owners are directly converted into BEVs owners, and therefore all the current private car trips are made with BEVs.
Looking at the results at the mobility system level (Figure 4), GHG emissions decrease from 1247.46 t CO2eq of the current scenario, mainly related to “conventional” ICEVs (gasoline and diesel), to 438.26 t CO2eq of the 100% BEVs scenario, with a reduction equal to 64.9%. This impact reduction is related to the significant reduction of GHG emissions associated with BEVs operation (electricity consumption). In detail, in the 100% BEVs scenario, the impact of the use phase is 0.33 t CO2eq, compared to the 889.21 t CO2eq of the current scenario (due for 89.6% to gasoline and diesel ICEVs).

3.3.2. Comparison of Future Hypothetical Scenarios

In the previous section, we assumed a 100% penetration scenario to highlight the positive environmental effect of the adoption of BEVs on a real road network. In this section, as an example, we supposed 4 scenarios, shown in Figure 5, characterized by different BEVs and HEVs penetration rate. Table 8 reports the results of the life cycle GHG emissions of the four scenarios. These are intended only to show how the linear equation proposed in this paper (Equation (2)) can be applied in any context characterized by a given fleet compositions and by the specific output of the traffic simulation. As EV adoption rates vary dramatically by country owing to different levels of the various governments’ financial support and the diverse structures of the incentives [55], it is not possible to provide predetermined penetration rates. In Italy, a new incentive named “Ecobonus auto 2019” will start on March 2019. It consists of a monetary incentive ranging from 4000–6000€ to purchase electric cars with a value of up to 54.900€ (VAT included), i.e., non-luxury cars. This is expected to positively influence consumers’ intentions toward EVs.
As expected, the more the circulating fleet is composed of EVs, the more the GHG emissions decrease.

4. Conclusions

This study demonstrated the importance of an integrated approach to evaluate life cycle GHG emissions at the urban mobility level. The results from both LCA and traffic simulation were combined in order to evaluate the full life cycle implications at the mobility system level. The principal objective of this work was to define a general linear equation to evaluate life cycle GHG emissions, expressed in terms of carbon dioxide equivalent (CO2eq), of a generic fleet composition as a function of the traffic simulation results. The methodology was tested in the road infrastructure of the city of Rome, but it can be generalized and applied to any urban context characterized by a given fleet compositions and by the specific output of the traffic simulation.
The evaluation of life cycle impacts clearly showed the BEVs have the highest GHG emissions at the vehicle level, which are evaluated as the sum of the construction, maintenance, and end-of-life processes (on average 20% higher than the ones of ICEVs, and 6.5% higher than the ones of HEVs). The Li-ion batteries production process emerged as a relevant contributor, with a share of 16.3% (0.016 kg CO2eq/km) of the whole impact at the vehicle level. The analysis at the vehicle level also highlighted that the construction phase represents the main contributor to the global impact (68.0–70.5% for ICEVs, 72% for HEVs, 87.6% for BEVs), while the end-of-life gives a minor contribution for all the considered vehicles (4–7%). Maintenance activities assumed a relevant role only for the impact related to ICEVs and HEVs (22–28% of the life cycle GHG emissions), while they slightly contributed to the impact of BEVs (about 6% of the life cycle GHG emissions).
On the other hand, the analysis at the mobility system level (performed considering the vehicles direct impact during the use phase and simulating different scenarios on the real road network of the city of Rome) showed a completely different result trend. In detail, life cycle GHG emissions in the 100% BEVs penetration scenario (438.26 t CO2eq) resulted in about 65% lower compared to the ones related to the current scenario (1247.46 t CO2eq). This impact reduction is the consequence of the significant reduction of GHG emissions associated with vehicles operation, which decreased from the 889.21 t CO2eq of the current scenario to the 0.33 t CO2eq of the 100% BEVs scenario.
This work incorporated some assumptions, regarding both traffic simulation and LCA analysis. As for the general linear equation, which represents the main contribution of this paper, we assumed that total VKT obtained by the traffic simulation can be divided proportionally to the fleet composition. This assumption was necessary, since it is impossible, for data availability reasons, to associate each trip of the O-D matrix with a specific type of vehicle. However, there are no significant reasons to suppose that the user’s choice of vehicle propulsion, in the urban context, depends on the trip distance. In fact, the autonomy of modern BEVs, which are the only kind of vehicles that use energy stored from the grid exclusively, is much higher than the average daily distance traveled in the urban context.
The environmental impact of EVs under different penetration rates was evaluated without including variations in travel demand, population growth, the spatial distribution of trip attractors, mode choice, etc. A complete simulation of the urban evolution is out of the scope of the research presented in this paper. However, the method that we have provided can be replicated in any hypothetical urban mobility structure.
As to the LCA analysis, a medium-sized passenger car with a lifespan of 150,000 km was assumed. Future research could benefit from the proposed approach and attempt to investigate the environmental performances of multiple scenarios characterized by vehicles with different characteristics, especially for EVs. Moreover, the environmental impact reduction related to materials recycling and reuse at the end-of-life was neglected, and the inventory data were taken from datasheets and literature. All the assumptions have been considered reasonable for the final aim of this study, which is to define an integrated approach to evaluate the life cycle GHG emissions at the urban mobility level of any circulating fleet that includes a variable share of EVs. An in-depth analysis of these assumptions is, however, needed for future research developments.

Supplementary Materials

The following are available online at https://www.mdpi.com/2071-1050/11/16/4328/s1, Table S1: Glider, passenger car, 1 kg; Table S2: Internal combustion engine and accessories, 1 kg; Table S3: Electric motor, 1 kg; Tale S4: Li-ion battery, 1 kg; Tale S5: Charger, electric passenger car, 1 kg; Tale S6: Converter, electric passenger car, 1 kg; Table S7: Inverter, electric passenger car, 1 kg; Table S8: Power distribution unit, electric passenger car, 1 kg; Table S9: Secondary fuel tank, ICEV_LPG, 1 piece; Table S10: Secondary fuel tank, ICEV_CNG, 1 piece; Table S11: Maintenance, passenger car 1 piece (ICEVs and HEVs gasoline and diesel); Table S12: Maintenance, passenger car 1 piece (ICEVs LPG and CNG); Table S13: Maintenance, electric passenger car 1 piece; Table S14: Shredding of glider passenger car, 1 kg; Table S15: Li-ion batteries, hydrometallurgical treatment, 1 kg.

Author Contributions

Conceptualization, S.M.P.; Investigation, S.M.P. and F.S.; Methodology, S.M.P. and F.S.; Supervision, F.A. and S.C.; Writing—original draft, S.M.P., F.S. and F.A.; Writing—review & editing, S.M.P., F.S., F.A. and S.C.

Funding

This research received no external funding.

Conflicts of Interest

On behalf of all authors, the corresponding author states that there is no conflict of interest.

References

  1. McCoy, D.; Lyons, S. Consumer preferences and the influence of networks in electric vehicle diffusion: An agent-based microsimulation in Ireland. Energy Res. Soc. Sci. 2014, 3, 89–101. [Google Scholar] [CrossRef]
  2. Rezvani, Z.; Jansson, J.; Bodin, J. Advances in consumer electric vehicle adoption research: A review and research agenda. Transp. Res. Part D Transp. Env. 2015, 34, 122–136. [Google Scholar] [CrossRef] [Green Version]
  3. Mitropoulos, L.K.; Prevedouros, P.D. Life cycle emissions and cost model for urban light duty vehicles. Transp. Res. Part D Transp. Env. 2015, 41, 147–159. [Google Scholar] [CrossRef]
  4. Hawkins, T.R.; Singh, B.; Majeau-Bettez, G.; Strømman, A.H. Comparative Environmental Life Cycle Assessment of Conventional and Electric Vehicles. J. Ind. Ecol. 2012, 17, 53–64. [Google Scholar] [CrossRef]
  5. Ellingsen, L.A.-W.; Singh, B.; Strømman, A.H. The size and range effect: Lifecycle greenhouse gas emissions of electric vehicles. Env. Res. Lett. 2016, 11, 054010. [Google Scholar] [CrossRef]
  6. Canals Casals, L.; Martinez-Laserna, E.; Amante García, B.; Nieto, N. Sustainability analysis of the electric vehicle use in Europe for CO2 emissions reduction. J. Clean. Prod. 2016, 127, 425–437. [Google Scholar] [CrossRef]
  7. Woo, J.; Choi, H.; Ahn, J. Well-to-wheel analysis of greenhouse gas emissions for electric vehicles based on electricity generation mix: A global perspective. Transp. Res. Part D Transp. Env. 2017, 51, 340–350. [Google Scholar] [CrossRef]
  8. Kamiya, G.; Axsen, J.; Crawford, C. Modeling the GHG emissions intensity of plug-in electric vehicles using short-term and long-term perspectives. Transp. Res. Part D Transp. Env. 2019, 69, 209–223. [Google Scholar] [CrossRef]
  9. De Souza, L.L.P.; Lora, E.E.S.; Palacio, J.C.E.; Rocha, M.H.; Renó, M.L.G.; Venturini, O.J. Comparative environmental life cycle assessment of conventional vehicles with different fuel options, plug-in hybrid and electric vehicles for a sustainable transportation system in Brazil. J. Clean. Prod. 2018, 203, 444–468. [Google Scholar] [CrossRef]
  10. Bicer, Y.; Dincer, I. Life cycle environmental impact assessments and comparisons of alternative fuels for clean vehicles. Resour. Conserv. Recycl. 2018, 132, 141–157. [Google Scholar] [CrossRef]
  11. Karaaslan, E.; Zhao, Y.; Tatari, O. Comparative life cycle assessment of sport utility vehicles with different fuel options. Int. J. Life Cycle Assess. 2017, 23, 333–347. [Google Scholar] [CrossRef]
  12. Lombardi, L.; Tribioli, L.; Cozzolino, R.; Bella, G. Comparative environmental assessment of conventional, electric, hybrid, and fuel cell powertrains based on LCA. Int. J. Life Cycle Assess. 2017, 22, 1989–2006. [Google Scholar] [CrossRef]
  13. Qiao, Q.; Zhao, F.; Liu, Z.; Jiang, S.; Hao, H. Cradle-to-gate greenhouse gas emissions of battery electric and internal combustion engine vehicles in China. Appl. Energy 2017, 204, 1399–1411. [Google Scholar] [CrossRef]
  14. Girardi, P.; Gargiulo, A.; Brambilla, P.C. A comparative LCA of an electric vehicle and an internal combustion engine vehicle using the appropriate power mix: The Italian case study. Int. J. Life Cycle Assess. 2015, 20, 1127–1142. [Google Scholar] [CrossRef]
  15. Raugei, M.; Morrey, D.; Hutchinson, A.; Winfield, P. A coherent life cycle assessment of a range of lightweighting strategies for compact vehicles. J. Clean. Prod. 2015, 108, 1168–1176. [Google Scholar] [CrossRef] [Green Version]
  16. Soo, V.K.; Paul Compston, P.; Doolan, M. Interaction between New Car Design and Recycling Impact on Life Cycle Assessment. Procedia Cirp. 2015, 29, 426–431. [Google Scholar] [CrossRef]
  17. Faria, R.; Marques, P.; Moura, P.; Freire, F.; Delgado, J.; de Almeida, A.T. Impact of the electricity mix and use profile in the life-cycle assessment of electric vehicles. Renew. Sustain. Energy Rev. 2013, 24, 271–287. [Google Scholar] [CrossRef]
  18. Burchart-Korol, D.; Jursova, S.; Folęga, P.; Korol, J.; Pustejovska, P.; Blaut, A. Environmental life cycle assessment of electric vehicles in Poland and the Czech Republic. J. Clean. Prod. 2018, 202, 476–487. [Google Scholar] [CrossRef]
  19. Wu, Z.; Wang, M.; Zheng, J.; Sun, X.; Zhao, M.; Wang, X. Life cycle greenhouse gas emission reduction potential of battery electric vehicle. J. Clean. Prod. 2018, 190, 462–470. [Google Scholar] [CrossRef]
  20. Onat, N.C.; Kucukvar, M.; Tatari, O. Conventional, hybrid, plug-in hybrid or electric vehicles? State-based comparative carbon and energy footprint analysis in the United States. Appl. Energy 2015, 150, 36–49. [Google Scholar] [CrossRef]
  21. Bartolozzi, I.; Rizzi, F.; Frey, M. Comparison between hydrogen and electric vehicles by life cycle assessment: A case study in Tuscany, Italy. Appl. Energy 2013, 101, 103–111. [Google Scholar] [CrossRef]
  22. Tagliaferri, C.; Evangelisti, S.; Acconcia, F.; Domenech, T.; Ekins, P.; Barletta, D.; Lettieri, P. Life cycle assessment of future electric and hybrid vehicles: A cradle-to-grave systems engineering approach. Chem. Eng. Res. Des. 2016, 112, 298–309. [Google Scholar] [CrossRef]
  23. Nakano, K.; Shibahara, N. Comparative assessment on greenhouse gas emissions of end-of-life vehicles recycling methods. J. Mater. Cycles Waste Manag. 2015, 19, 505–515. [Google Scholar] [CrossRef]
  24. Schweimer, G.W.; Levin, M. Life Cycle Inventory for the Golf A4; Volkswagen AG: Wolfsburg, Germany, 2000. [Google Scholar]
  25. Leuenberger, M.; Frischknecht, R. Life Cycle Assessment of Battery Electric Vehicles and Concept Cars; ESU-Services Ltd.: Schaffhausen, Switzerland, 2010. [Google Scholar]
  26. Messagie, M.; Boureima, F.-S.; Coosemans, T.; Macharis, C.; Mierlo, J. A Range-Based Vehicle Life Cycle Assessment Incorporating Variability in the Environmental Assessment of Different Vehicle Technologies and Fuels. Energies 2014, 7, 1467–1482. [Google Scholar] [CrossRef]
  27. Ecoinvent Database v3, 2017. Swiss Centre for Life Cycle Inventories: Zurich, Switzerland, 2017. Available online: www.ecoinvent.org (accessed on 5 March 2019).
  28. International Energy Agency Statistics for Italy. 2016. Available online: https://www.iea.org/statistics/?country=ITA&isISO=true (accessed on 2 June 2019).
  29. International Organization for Standardization (ISO). ISO 14040:2006 Environmental Management—Life Cycle Assessment—Principles and Framework; International Organization for Standardization: Geneva, Switzerland, 2006. [Google Scholar]
  30. International Organization for Standardization (ISO). ISO 14044:2006 Environmental Management—Life Cycle Assessment—Requirements and Guidelines; International Organization for Standardization: Geneva, Switzerland, 2006. [Google Scholar]
  31. Zhou, M.; Jin, H.; Wang, W. A review of vehicle fuel consumption models to evaluate eco-driving and eco-routing. Transp. Res. Part D Transp. Env. 2016, 49, 203–218. [Google Scholar] [CrossRef]
  32. Bakhit, P.; Said, D.; Radwan, L. Impact of acceleration aggressiveness on fuel consumption: Using comprehensive power based fuel consumption model. Civ. Environ. Res. 2015, 7, 148–156. [Google Scholar]
  33. Ahn, K.; Rakha, H.; Trani, A.; Van Aerde, M. Estimating Vehicle Fuel Consumption and Emissions based on Instantaneous Speed and Acceleration Levels. J. Transp. Eng. 2002, 128, 182–190. [Google Scholar] [CrossRef]
  34. Galvin, R. Energy consumption effects of speed and acceleration in electric vehicles: Laboratory case studies and implications for drivers and policymakers. Transp. Res. Part D Transp. Env. 2017, 53, 234–248. [Google Scholar] [CrossRef]
  35. Qi, X.; Wu, G.; Boriboonsomsin, K.; Barth, M.J. Data-driven decomposition analysis and estimation of link-level electric vehicle energy consumption under real-world traffic conditions. Transp. Res. Part D: Transp. Env. 2018, 64, 36–52. [Google Scholar] [CrossRef] [Green Version]
  36. Wu, X.; Freese, D.; Cabrera, A.; Kitch, W.A. Electric vehicles’ energy consumption measurement and estimation. Transp. Res. Part D Transp. Env. 2015, 34, 52–67. [Google Scholar] [CrossRef]
  37. Karabasoglu, O.; Michalek, J. Influence of driving patterns on life cycle cost and emissions of hybrid and plug-in electric vehicle powertrains. Energy Policy 2013, 60, 445–461. [Google Scholar] [CrossRef]
  38. Fiori, C.; Ahn, K.; Rakha, H.A. Power-based electric vehicle energy consumption model: Model development and validation. Appl. Energy 2016, 168, 257–268. [Google Scholar] [CrossRef]
  39. Agenzia per l’Italia Digitale (AGID). Available online: https://www.dati.gov.it/dataset/parco-circolante-dei-veicoli (accessed on 5 March 2019).
  40. Carrese, S.; Giacchetti, T.; Nigro, M.; Patella, S.M. An innovative car sharing electric vehicle system: An Italia experience. In WIT Transactions on The Built Environment; Urban Transport XXIII; WIT press: Southampton, UK, 2017; Volume 176, pp. 245–252. [Google Scholar]
  41. Carrese, S.; Giacchetti, T.; Patella, S.M.; Petrelli, M. Real time ridesharing: Understanding user behavior and policies impact: Carpooling service case study in Lazio Region, Italy. In Proceedings of the 5th IEEE International Conference on Models and Technologies for Intelligent Transportation Systems (MT-ITS), Napoli, Italy, 26–28 June 2017. [Google Scholar]
  42. Patella, S.M.; Sportiello, S.; Petrelli, M.; Carrese, S. Workplace relocation from suburb to city center: A case study of Rome, Italy. Case Stud. Transp. Policy 2019, 7, 357–362. [Google Scholar] [CrossRef]
  43. Asdrubali, F.; Carrese, S.; Patella, S.M.; Sabatini, L. Development of Electric Urban Mobility: Comparative Research and Preliminary Survey. Eur. J. Sustain. Dev. Res. 2018, 2, 32. [Google Scholar] [CrossRef] [Green Version]
  44. Italian Institute for Environmental Protection and Research, ISPRA. Database of Average Emission Factors for Road Transport in Italy. 2015. Available online: http://www.sinanet.isprambiente.it/it/sia-ispra/fetransp?set_language=it (accessed on 5 March 2019).
  45. Eurpean Environment Agency, EEA. EMEP/EEA Air Pollutant Emission Inventory Guidebook 2016—Technical Guidance to Prepare National Emission Inventories; EEA Report, N. 21/2016; Eurpean Environment Agency: Copenhagen, Denmark, 2016; Available online: https://www.eea.europa.eu/publications/emep-eea-guidebook-2016 (accessed on 5 March 2019).
  46. International Panel on Climate Change, IPCC. 2006 IPCC Guidelines for National Greenhouse Gas Inventories. 2006. Available online: https://www.ipcc-nggip.iges.or.jp/public/2006gl/index.html (accessed on 5 March 2019).
  47. Regulation (EC) No. 715/2007 of the European Parliament and of the Council of 20 June 2007. Available online: https://eur-lex.europa.eu/legal-content/en/ALL/?uri=CELEX%3A32007R0715 (accessed on 5 March 2019).
  48. Commission Regulation (EC) No. 692/2008 of 18 July 2008 implementing and amending Regulation (EC) No 715/2007 of the European Parliament and of the Council. Available online: https://eur-lex.europa.eu/legal-content/en/ALL/?uri=CELEX%3A32008R0692 (accessed on 5 March 2019).
  49. Commission Regulation (EU) 2017/1151 of 1 June 2017 Supplementing Regulation (EC) No 715/2007 of the European Parliament and of the Council. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex%3A32017R1151 (accessed on 5 March 2019).
  50. Paffumi, E.; De Gennaro, M.; Martini, G.; Manfredi, U.; Vianelli, S.; Ortenzi, F.; Genovese, A. Experimental test campaign on a battery electric vehicle: On-road test results (part 2). SAE Int. J. Altern. Powertrains 2015, 4, 277–292. [Google Scholar] [CrossRef]
  51. Rosa, P.; Terzi, S. Improving end of life vehicle’s management practices: An economic assessment through system dynamics. J. Clean. Prod. 2018, 184, 520–536. [Google Scholar] [CrossRef]
  52. Envirodec. General Programme Instructions for the International EPD® System. Version 3.0. 2013. Available online: https://www.environdec.com/The-International-EPD-System/General-Programme-Instructions/ (accessed on 5 March 2019).
  53. Bureau of Public Roads. Traffic Assignment Manual; US Department of Commerce, Urban Planning Division: Washington, DC, USA, 1964. [Google Scholar]
  54. Cascetta, E.; Nguyen, S. A unified framework for estimating or updating origin/destination matrices from traffic counts. Transp. Res. Part D Methodol. 1988, 22, 437–455. [Google Scholar] [CrossRef]
  55. Zhou, Y.; Wang, M.; Hao, H.; Johnson, L.; Wang, H.; Hao, H. Plug-in electric vehicle market penetration and incentives: A global review. Mitig. Adapt. Strateg. Glob. Chang. 2014, 20, 777–795. [Google Scholar] [CrossRef]
Sustainability 11 04328 g001 550

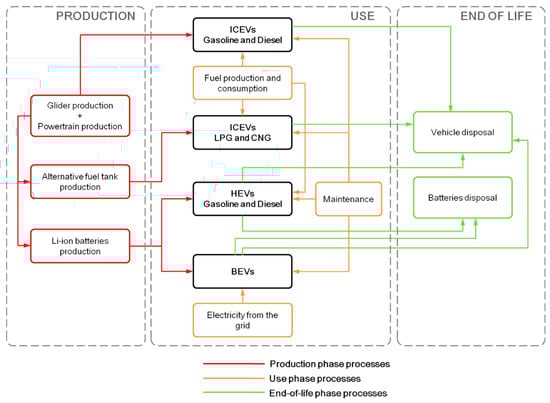

Figure 1. System boundaries adopted for the life cycle assessment (LCA) of the considered vehicles.
Figure 1. System boundaries adopted for the life cycle assessment (LCA) of the considered vehicles.
Sustainability 11 04328 g001
Sustainability 11 04328 g002 550

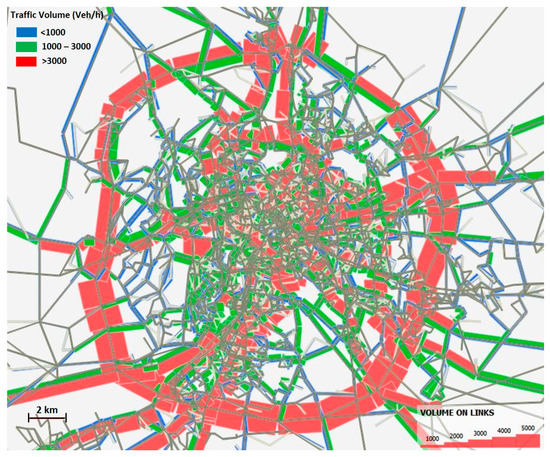

Figure 2. Simulation results: traffic volume on road links.
Figure 2. Simulation results: traffic volume on road links.
Sustainability 11 04328 g002
Sustainability 11 04328 g003 550

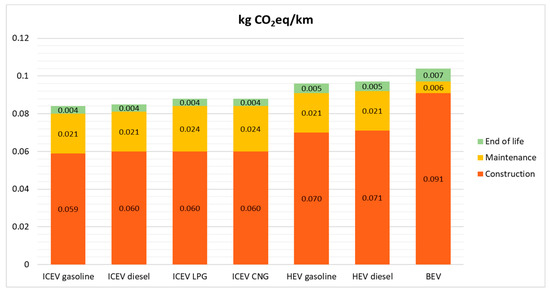

Figure 3. LCA results at the vehicle level.
Figure 3. LCA results at the vehicle level.
Sustainability 11 04328 g003
Sustainability 11 04328 g004 550

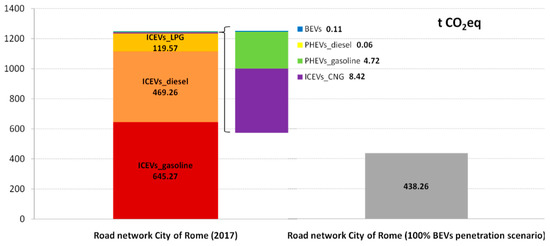

Figure 4. GHG lifecycle emissions at the mobility system level.
Figure 4. GHG lifecycle emissions at the mobility system level.
Sustainability 11 04328 g004
Sustainability 11 04328 g005 550

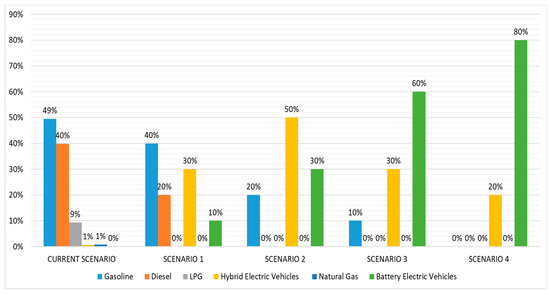

Figure 5. Fleet composition scenarios.
Figure 5. Fleet composition scenarios.
Sustainability 11 04328 g005
Table
Table 1. Italian generation mix, reference year 2016 [28].
Table 1. Italian generation mix, reference year 2016 [28].
Energy SourceShare (%)
Gas43.6
Hydropower15.3
Coal13.3
Photovoltaics7.6
Wind power6.1
Petroleum Oil4.2
Biomasses Biofuels5.9
Geothermal power2.2
Table
Table 2. Weight of the systems included in the considered vehicles.
Table 2. Weight of the systems included in the considered vehicles.
Component ICEVsHEVsBEVs
GasolineDieselLPGCNGGasolineDiesel
Powertrainkg338397338338338397240
Glider (body + chassis)kg961903961961961903900
Secondary fuel tank and accessorieskg 2151
Battery and accessorieskg 120120300
Table
Table 3. Fleet composition of Rome, reference year 2017 [39].
Table 3. Fleet composition of Rome, reference year 2017 [39].
PropulsionNumber of Vehicles%
Gasoline1,424,98649.45
Diesel1,148,83339.86
LPG266,7399.26
Natural gas21,2350.74
Hybrid electric vehicles (HEVs)19,4600.68
Battery electric vehicles (BEVs)7030.02
Table
Table 4. Emission and fuel consumption specific factors considered for internal combustion engine vehicles (ICEVs).
Table 4. Emission and fuel consumption specific factors considered for internal combustion engine vehicles (ICEVs).
Passenger Carg CO2eq/kmg CO2eq/g Fuelg Fuel/km
UrbanHighwayUrbanHighwayUrbanHighway
Gasoline267.91159.383.143.1485.3250.81
Diesel216.96159.033.113.1169.7651.14
LPG231.38196.493.033.0376.3664.85
Natural Gas201.99152.022.762.7673.0655.04
Table
Table 5. Electricity consumption specific factors considered for electric vehicles (EVs).
Table 5. Electricity consumption specific factors considered for electric vehicles (EVs).
AuthorsAverage of Driving Cycles Phases (Wh/km)Driving Cycles Results (Wh/km)
Low Speed High SpeedNEDCWLTC
Fiori et al. (2016)138.17173.83148.50169.80
Paffumi et al. (2015)157.10177.06156.90178.40
Assumed electricity consumption values
Intra-urban150Wh/km
Highway200Wh/km
Table
Table 6. Simulation results: (a) intra-urban and highways and (b) entire road network. (VKT: vehicle kilometer traveled; TTS: total time Spent.)
Table 6. Simulation results: (a) intra-urban and highways and (b) entire road network. (VKT: vehicle kilometer traveled; TTS: total time Spent.)
VKT (veh*km)TTS (veh*h)Network Speed (km/h)
INTRA-URBAN ROADS2,204,596179,03312.3
HIGHWAYS2,029,25940,26750.4
ENTIRE ROAD NETWORK4,233,855219,30019.3
Table
Table 7. α coefficient: greenhouse gases (GHG) lifecycle emission per unit of kilometer traveled. (IU: intra-urban roads; H: highways.)
Table 7. α coefficient: greenhouse gases (GHG) lifecycle emission per unit of kilometer traveled. (IU: intra-urban roads; H: highways.)
Vehicle Category (i)α (kg CO2eq/km)
IUH
Internal combustion engine vehicle (ICEV) gasoline0.3520.243
ICEV diesel0.3010.243
ICEV Liquified Petroleum Gas (LPG)0.3190.284
ICEV Compressed Natural Gas (CNG)0.2900.240
Hybrid electric vehicles (HEV) gasoline0.1660.256
HEV diesel0.1670.256
Battery electric vehicles (BEV)0.1730.196
Table
Table 8. Life cycle GHG emissions for different fleet composition scenarios.
Table 8. Life cycle GHG emissions for different fleet composition scenarios.
Vehicle CategoryLCA GHG Emissions (t CO2eq)
Current ScenarioScenario 1Scenario 2Scenario 3Scenario 4
ICEV gasoline645.27522.00261.00130.50-
ICEV diesel469.26235.45---
ICEV LPG119.57----
ICEV CNG8.42----
HEV gasoline4.77204.37340.61204.37136.24
HEV diesel0.06----
BEV0.1143.83131.48262.96350.61
1247.461005.64733.09597.82486.85

Share and Cite

MDPI and ACS Style

Patella, S.M.; Scrucca, F.; Asdrubali, F.; Carrese, S. Traffic Simulation-Based Approach for A Cradle-to-Grave Greenhouse Gases Emission Model. Sustainability 2019, 11, 4328. https://doi.org/10.3390/su11164328

AMA Style

Patella SM, Scrucca F, Asdrubali F, Carrese S. Traffic Simulation-Based Approach for A Cradle-to-Grave Greenhouse Gases Emission Model. Sustainability. 2019; 11(16):4328. https://doi.org/10.3390/su11164328

Chicago/Turabian Style

Patella, Sergio Maria, Flavio Scrucca, Francesco Asdrubali, and Stefano Carrese. 2019. "Traffic Simulation-Based Approach for A Cradle-to-Grave Greenhouse Gases Emission Model" Sustainability 11, no. 16: 4328. https://doi.org/10.3390/su11164328

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
