Spatiotemporal Distribution of PM2.5 and O3 and Their Interaction During the Summer and Winter Seasons in Beijing, China

by
Hui Zhao
1,
Youfei Zheng
1,2,* and
Chen Li
2
1
Key Laboratory for Aerosol-Cloud-Precipitation of China Meteorological Administration, Nanjing University of Information Science and Technology, Nanjing 210044, China
2
Key Laboratory of Atmospheric Environment Monitoring and Pollution Control, Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Nanjing University of Information Science and Technology, Nanjing 210044, China
*
Author to whom correspondence should be addressed.
Sustainability 2018, 10(12), 4519; https://doi.org/10.3390/su10124519
Submission received: 26 September 2018 / Revised: 27 November 2018 / Accepted: 27 November 2018 / Published: 30 November 2018
Browse Figures
Versions Notes

Abstract

:
This study analyzed the spatiotemporal variations in PM2.5 and O3, and explored their interaction in the summer and winter seasons in Beijing. To this aim, hourly PM2.5 and O3 data for 35 air quality monitoring sites were analyzed during the summer and winter of 2016. Results suggested that the highest PM2.5 concentration and the lowest O3 concentration were observed at traffic monitoring sites during the two seasons. A statistically significant (p < 0.05) different diurnal variation of PM2.5 was observed between the summer and winter seasons, with higher concentrations during daytime summer and nighttime winter. Diurnal variations of O3 concentrations during the two seasons showed a single peak, occurring at 16:00 and 15:00 in summer and winter, respectively. PM2.5 presented a spatial pattern with higher concentrations in southern Beijing than in northern areas, particularly evident during wintertime. On the contrary, O3 concentrations presented a decreasing spatial trend from the north to the south, particularly evident during summer. In addition, we found that PM2.5 concentrations were positively correlated (p < 0.01, r = 0.57) with O3 concentrations in summer, but negatively correlated (p < 0.01, r = −0.72) with O3 concentrations in winter.

1. Introduction

In recent years, serious air pollution has become one of the most important environmental problems along with the development of society and economy, especially in economically developed cities, such as Beijing, Shanghai, Guangzhou, and other big cities [1]. The major pollutants include particulate matter (e.g., PM2.5 and PM10), ground-level ozone (O3), nitrogen oxides (NOx), sulfur dioxide (SO2), carbon monoxide (CO), and Volatile Organic Compounds (VOCs) [2,3]. Many studies have suggested that high levels of air pollutants can cause some adverse effects [4,5,6,7,8,9,10,11]. The Chinese government has been dedicated to air pollution monitoring and control over last couple of decades, and ambient air quality has been widely measured in big cities since 1980s. In February 1988, the air pollution index (API), based on the concentrations of three atmospheric pollutants, namely total suspended particles (TSP), sulfur dioxide (SO2), and nitrogen dioxide (NO2), was introduced to assess the status of ambient air quality in China. On 5 June 2000, the China National Environmental Monitoring Center began to report API, defined according to the National Ambient Air Quality Standard (NAAQS-China, GB3095-1996) [12], by considering particulate matter (PM10), sulfur dioxide (SO2), and nitrogen dioxide (NO2). From 18 January 2013, the Beijing municipal government has promulgated the new National Ambient Air Quality Standards (NAAQS-China, GB3095-2012) [13], and publicized real time monitoring data of Air Quality Index (AQI) and six major atmospheric pollutants (PM2.5, O3, PM10, CO, NO2, and SO2).
In particular, regional complex atmospheric pollution characterized by high levels of O3 and PM2.5 has become a major challenge in China [14,15]. O3 is regarded as a secondary pollutant, primarily produced through a series of complex chemical reactions between Volatile Organic Compounds (VOCs) and nitrogen oxides (NOX) under solar radiation in the wavelength range of 200 to 300 nm [16,17]. The formation of O3 is a very complicated process which is affected by many factors, including precursor emissions (e.g., NOX, CO, and VOCs), local climate conditions (e.g., temperature, relative humidity, solar radiation, and wind direction and speed), and atmospheric chemical processes [18,19,20,21]. Fine particulate matter with an aerodynamic diameter of less than 2.5 μm (PM2.5) can scatter and/or absorb solar radiation and influence the surface radiation budget [22], and these scattering and/or absorbing properties are inherently related to its chemical composition. The carbonaceous components (e.g., OC and EC) and water-soluble ions (e.g., SO42−, NO3−, and NH4+) are important chemical constituents of particulate matter [23,24]. In general, PM2.5 in urban areas originates mainly from emission sources such as biomass burning, traffic-related emissions, road dust, and industrial and agricultural production as well as regional transported aerosols [25,26], while the remaining portions originate from natural sources [27]. To reduce emissions of air pollutants and improve air quality in China, the “Air Pollution Prevention and Control Action Plan” was formulated and released by the Chinese government on September 10, 2013. A recent study reported that its implementation has favored the reduction of air pollutants (PM2.5, PM10, SO2, and NOX) [28], but O3 concentration showed an increasing trend from 2013 to 2017 [29,30,31]. Meanwhile, other studies also suggested that the implementation of air pollution control measures during some international events such as the APEC Meeting, the G20 summit, and some political events can result in the reduction in concentration of PM2.5, while O3 concentration increased [32,33]. As a result, it has been suggested that PM2.5 and O3 pollution and their interaction should be further investigated [34,35,36].
In fact, although many studies have reported on PM2.5 and O3 pollution, most of them focused on spatiotemporal distribution and their relationships with weather conditions; research on the interaction of PM2.5 and O3 in the atmosphere is still rare. Feng et al. [37] pointed out that high aerosol concentrations can significantly decrease photolysis frequencies and reduce O3 concentration by more than 50 μg/m3 in the summertime. In addition, previous studies also reported a significant positive correlation between PM2.5 and O3 concentrations during the summertime [38,39]. The discrepancy in these studies suggests that the interaction between O3 and PM2.5 in the atmosphere may vary over time across space, which should be further investigated.
In this paper, we analyzed hourly PM2.5 and O3 data collected at 35 air monitoring sites in Beijing during the summer (June–August 2016) and winter (December 2016–February 2017) seasons. Our primary objectives are thus to (i) analyze the spatiotemporal distribution of PM2.5 and O3 in Beijing and (ii) explore the interaction of O3 and PM2.5 in the atmosphere during the summer and winter seasons.

2. Methods

2.1. Study Area

Beijing, situated in the north of China, is the capital city of China. It covers a total area of about 16,800 square kilometers with a population of more than 20 million. The city is constituted of 16 administrative subdivisions including a total of 14 urban and suburban districts and two rural counties. The vegetation coverage is mainly distributed in Northern Beijing, including Changping, Yanqing, Huairou, Miyun, and Pinggu Districts. Southern Beijing presents lower vegetation coverage due to the influence of urbanization. Beijing has experienced continuous economic growth and rapid urbanization over the past several decades. However, the rapid development of the economy has generated a general decline in environmental quality; Beijing is currently considered as one of the cities with the most severe air pollution in China, and even globally [40].

2.2. Data Sources

In this study, PM2.5 and O3 hourly concentration data for Beijing were collected from a web platform (http://zx.bjmemc.com.cn/) made available from by Beijing Municipal Environmental Protection together with other air pollutants (PM10, SO2, NO2, CO) for 35 air monitoring sites (Figure 1) since 2013 [15].
We divided the 35 air monitoring sites into four categories according to their functions (Table 1) [41]. In particular, hourly PM2.5 and O3 concentrations were obtained for summer 2016 (June–August 2016) and winter 2016/2017 (December 2016–February 2017).
In addition, the data of daily total radiation were obtained by the China Meteorological Data Sharing Service System Administration (available online: http://data.cma.cn/site/index.html) from December 2016 to February 2017.

2.3. Data Analysis

Daily (24-h) mean concentrations of PM2.5 and O3 concentrations were calculated in order to study the seasonal variations. We calculated the diurnal variations of PM2.5 and O3 concentrations during two seasons by averaging the concentrations at same time points of all days per season. The limit value for daily PM2.5 concentration was defined as the new National Ambient Air Quality Standards (NAAQS-China, GB3095-2012) (75 μg/m3). For O3, we used the daily maximum 8-h O3 concentration (160 μg/m3) and the daily maximum 1-h O3 concentration (200 μg/m3) (Available online: http://www.mee.gov.cn/).
For spatial comparison, we calculated the average concentrations of PM2.5 and O3 in each region of Beijing according to the location of each site [42]. The regions of Beijing were defined based on geographical administrative divisions, as shown in Table 1.
We used Inverse Distance Weighted (IDW) to interpolate the air pollution data from the 35 monitoring stations to general spatial maps for spatial comparison. This method for spatial interpolation was applied to characterize spatial distributions of pollutant concentrations in some studies [43,44,45,46]. The IDW-based interpolation maps of PM2.5 and O3 were produced using a random 70% of points [15] and validated with the remaining 30% of data. In addition, the root mean square error of PM2.5 and O3 concentration maps were calculated as an indication of the accuracy of the interpolation maps. Spatial distribution maps of PM2.5 and O3 concentrations were produced using ArcGIS ArcMap 10.0 software (Available online: http://www.esri.com/).

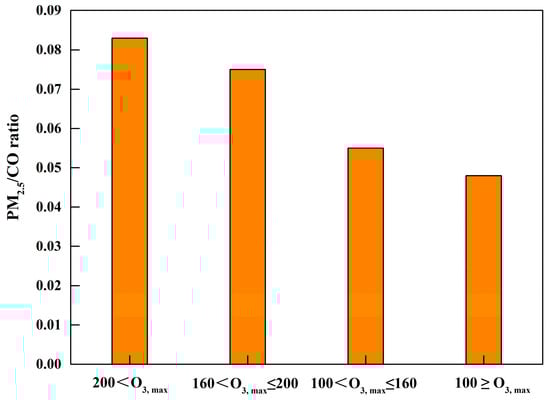

In order to further study secondary formation of PM2.5 under different O3,max in summer, CO is usually considered as a tracer of primary combustion source, and the PM2.5/CO ratio is an indicator to qualitatively infer the contribution of secondary aerosols [47].
In order to analyze the correlation between PM2.5 and O3, the statistical analysis was performed using two-tailed test, which showed that these data did not obey normal distribution. Then, Pearson correlation coefficients were calculated in order to quantify the association between PM2.5 and O3. All p-values were two-tailed and p < 0.05 was considered statistically significant. All analyses were carried out using the Origin software (OriginLab 9.0, Origin Lab Corporation, Northampton, MA, USA).

3. Results

3.1. PM2.5 and O3 Concentrations

As shown in Figure 2, the average PM2.5 concentrations during the summer and winter were 58.02 μg/m3 and 108.13 μg/m3 respectively, with 29 days in summer and 46 days in winter exceeding the current NAAQS limit for PM2.5. For O3, the average concentration in summer was 91.26 μg/m3 with 44 days exceeding the current NAAQS limit, and the average concentration in winter was 30.33 μg/m3 with no days over the limit.
PM2.5 presented the highest concentrations at traffic sites both in summer and in winter, followed by urban, suburban, and background sites (60.51, 54.28, and 54.94 μg/m3 in summer and 105.51, 102.16, and 109.62 μg/m3 in winter, respectively), as shown in Figure 3. On the contrary, O3 concentrations were lowest at traffic monitoring sites and higher at background/suburban sites. Specifically, O3 concentrations were 73.52 (24.04) μg/m3 at traffic sites in the summer (winter), and reached 92.13 (29.76), 96.82 (34.02), and 94.31 (34.42) μg/m3 at urban, suburban, and background sites, respectively.

3.2. Diurnal Variations in PM2.5 and O3 Concentrations

PM2.5 and O3 concentrations presented a distinct diurnal pattern over the seasons across sites (see Figure 4). During summer, PM2.5 concentrations were higher in the daytime than in the nighttime, with the highest concentrations always recorded at traffic sites. In general, during summer, PM2.5 concentrations began to rise early in the morning at around 4:00–5:00, reaching a peak around 8:00–9:00, successively decreasing until reaching the minimum at around 16:00–17:00, followed by a new rise until 21:00–23:00. Except for background sites, other sites showed similar characteristics, with two valley values at 4:00–5:00 and 16:00–17:00, and two peak values at 8:00–9:00 and 20:00–23:00, respectively; this is consistent with previous observations [48]. The highest PM2.5 concentrations in urban, suburban, background, and traffic sites were 66.92 μg/m3, 58.66 μg/m3, 62.03 μg/m3, and 70.68 μg/m3, respectively. The lowest PM2.5 concentration in suburban and background sites was ~50 μg/m3, while it was approximately 55–60 μg/m3 at the other two sites types. On the contrary, PM2.5 concentrations presented the opposite pattern during winter, with lower concentrations in the daytime than in the nighttime. For suburban and background sites, PM2.5 concentrations gradually reduced from 0:00–8:00, and then increased to a small peak at around 9:00–10:00; the lowest PM2.5 concentrations appeared at 15:00. For urban and traffic sites, PM2.5 concentrations began to decrease at 0:00–1:00 and reached the lowest level (85–95 μg/m3) at 11:00, followed by a sharp increase to the maximum level (125–145 μg/m3) around 23:00–1:00.
Although the O3 concentrations showed a statistically significant difference (p < 0.05) between the two seasons, traffic monitoring sites always present lower O3 concentrations than the other three site types. Interestingly, the four monitoring sites presented similar diurnal variation in the summer: the lowest O3 concentrations were observed at 7:00 in the morning. The lowest value was less than 20 μg/m3 in traffic monitoring sites, while values were between 30 and 40 μg/m3 at the other three site types. O3 concentrations for all four sites increased from 7:00 until around 15:00–16:00, when they reached their peak. The highest O3 concentration in urban, suburban, and background sites was around 160–170 μg/m3, while it was about 130 μg/m3 at traffic sites. During the nighttime, O3 concentrations exhibited a decrease. After midnight, they presented a relatively stable phase, in agreement with previous observations [49]. The pattern of the diurnal variations of O3 in winter was similar to that in summer, although with reduced fluctuation. The minimum O3 concentrations appeared at 08:00 (except for background sites) followed by an increase to the highest value at 15:00, and then a gradual decrease until the next morning.

3.3. Spatial Variations in PM2.5 and O3 Concentrations

Figure 5 illustrates average concentrations of PM2.5 and O3 in each region. PM2.5 concentration was significantly higher (p < 0.01) in winter than in summer, while O3 concentration was significantly lower (p < 0.01) in winter than in summer. The highest PM2.5 concentrations in the two seasons were observed in Southeast Beijing. PM2.5 concentrations were much lower in northwest and northeast of Beijing than in the rest of the regions in the two seasons. Northwest and northeast presented the lowest PM2.5 concentrations in summer and the highest O3 concentrations in winter.
Figure 6 presents the O3 and PM2.5 spatial distribution in Beijing, obtained by inverse distance weighted algorithm; RMSEs of PM2.5 and O3 maps were equal to 3.01 (about 5.11%) and 10.03 (about 11.21%) μg/m3 for summer and 12.93 (about 11.33%) and 5.59 μg/m3 (about 16.76%) for winter, respectively.
Overall, PM2.5 pollution was significantly higher in the southern part of Beijing than in the northern area (p < 0.01), and this pattern was especially obvious in winter. On the contrary, O3 concentrations presented decreasing concentrations from north to south, especially during summer.

3.4. Interaction between PM2.5 and O3 during the Summer and Winter Seasons

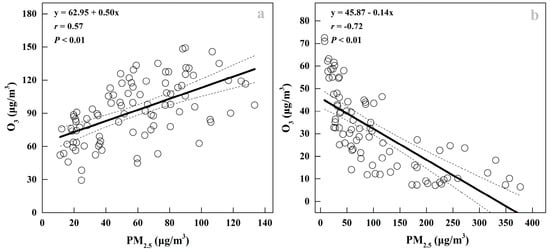

To better understand the interaction of PM2.5 and O3 in the atmosphere, we examined the correlations of daily mean PM2.5 and O3 concentrations (see Figure 7). The results indicated that PM2.5 concentrations were positively correlated (p < 0.01, r = 0.57) with O3 concentrations in summer, but negatively correlated (p < 0.01, r = −0.72) with O3 concentrations in winter.

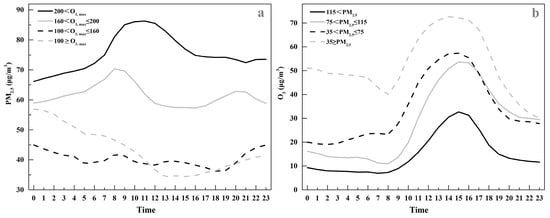

To study the effect of O3 concentrations on PM2.5 concentrations in summer, the diurnal variation of PM2.5 was displayed under four O3,max (daily maximum O3 concentration) levels (see Figure 8) [38]: exceeding 200 μg/m3, from 160 to 200 μg/m3, from 100 to 160 μg/m3, and below 100 μg/m3. When O3,max was greater than 200 μg/m3, PM2.5 concentration was the highest and the diurnal variation was significant, with the maximum PM2.5 concentration observed at 10:00. When O3,max was between 160 and 200 μg/m3, PM2.5 concentration was relatively high and the maximum concentration was observed at 08:00. When O3,max was between 100 to 160 μg/m3 and less than 100 μg/m3, PM2.5 concentrations were low with the maximum hourly concentrations occurring at 23:00 and 00:00, respectively. On the whole, PM2.5 levels were higher when O3 levels were higher in summer. In addition, we also averaged the PM2.5/CO ratio under different O3,max in summer, as shown in Figure 9. When O3,max exceeded 200 μg/m3, 160–200 μg/m3, 100–160 μg/m3, and below 100 μg/m3, respectively, the average PM2.5/CO ratios were 0.083, 0.075, 0.055, and 0.048, respectively.
To study the effect of PM2.5 concentration on O3 concentration in winter, we analyzed the diurnal variation of O3 under four PM2.5 levels, selected on the basis of previous researches by Jia et al. [38]: exceeding 115 μg/m3, from 75 to 115 μg/m3, from 35 to 75 μg/m3, and below 35 μg/m3. When PM2.5 level was greater than 115 μg/m3, O3 concentration was low with small hourly variation. When PM2.5 levels were between 75 to 115 μg/m3 and between 35 to 75 μg/m3, O3 concentrations further increased, with the previously described hourly variations. When PM2.5 level was less than 35 μg/m3, O3 concentration was the highest with large hourly variation. In general, O3 levels were lower when PM2.5 levels were higher in winter. We also averaged the daily total radiation under different PM2.5 levels in winter, as shown in Figure 10. When PM2.5 levels exceeded 115 μg/m3, 75–115 μg/m3, 35–75 μg/m3, and below 35 μg/m3, respectively, the average daily total radiation was 6.07 MJ/m2, 9.24 MJ/m2, 10.40 MJ/m2, and 13.76 MJ/m2, respectively.

4. Discussion

Undoubtedly, in recent years, atmospheric compound pollution characterized by PM2.5 and O3 has caused negative effects on atmospheric visibility, human health, and climate change [50,51,52]. Particulate matter in the atmosphere can not only affect air quality and human health, but also affects the earth’s radiation budget [53]. In addition, Feng et al. [54] showed that current O3 concentrations across China were sufficiently high to affect the yield and quality of agricultural crops. In addition, O3 can also make an impact on human health. Numerous epidemiological studies found that O3 had an association with premature mortality [55]. A recent study reported that O3 has replaced PM2.5 as the chief pollutant in economically developed areas of China (e.g., Beijing-Tianjin-Hebei, Yangtze River Delta, and Pearl River Delta) [56]. In China, the annual average concentrations of O3 and PM2.5 were 49.00 μg/m3 and 63.70 μg/m3 in 2014, whereas in 2015, concentrations of O3 and PM2.5 increased and decreased by 7.40% and 12.00%, respectively [57]. Therefore, studies on the evolution of PM2.5 and O3 and their relationships over time across space are essential for a better understanding and planning of policies for air pollution control.
In this study, we found that PM2.5 concentrations in Beijing were lower in summer than in winter, while O3 concentrations were higher in summer than in winter. Higher PM2.5 concentrations were observed in winter, which is attributed to a large number of anthropogenic emissions from biomass burning and combustion of fossil fuels and unfavorable weather conditions (e.g., low temperature, weak solar radiation, and low boundary layer height) for the dilution and diffusion of PM2.5 [8,34,58]. Meteorological factors and O3 precursors are linked to O3 formation [59,60,61]. Generally, higher temperatures and enhanced solar radiation can result in an elevated rate of photochemical reaction that promotes the production of ozone [7,62], which explains why O3 concentration is higher in summer than in winter, as observed in this study. In addition, relative humidity is also an important factor determining O3 levels. Enhanced relative humidity is favorable for aerosol formation [63], and high aerosol concentration can decrease photochemical activities and inhibit the formation of O3 [64,65]. The higher PM2.5 concentrations observed at traffic monitoring sites during both the winter and summer seasons are linked to their vicinity to traffic emission sources [48], which increases PM2.5 pollution. However, the results also indicated that traffic monitoring sites had much lower O3 concentrations than other sites. This is due to the high concentration of primary NO present at traffic sites, which favor O3 titration, while at rural areas reduced NO concentrations together with higher VOCs emissions (biogenic) favor O3 formation [32,66]. In particular, some studies showed that local O3 production was controlled by the VOC/NOX ratio [67]. In this case, O3 concentration increases with increasing VOC concentration, but decreases with increasing NOx concentration. Usually, urban sites show relatively low VOC/NOx ratios due to high NOX emission [68]. In addition, O3 is also generated during the transport of its precursors from urban areas to suburban areas [69,70]. Overall, the higher VOC/NOx ratios and/or transport of O3 and precursors from urban areas can explain the observation of higher O3 levels at suburban sites than at urban sites [71].
The higher daytime PM2.5 concentrations in summer can be explained by the stronger atmospheric oxidation favoring secondary aerosol production [72,73,74]. The forenoon peak of PM2.5 concentrations is probably due to enhanced anthropogenic activity during rush hour [34], and the decreasing PM2.5 concentrations after sunrise is mainly caused by the higher boundary layer height, which favors the dilution or diffusion of PM2.5. The boundary layer height usually remains high for longer time in summer afternoons, leading to a plateau in PM2.5 concentrations [75]. The early nighttime peak may result from a combination of the reduced boundary height and enhanced anthropogenic activity during rush hours [42]. Overall, the lower nighttime PM2.5 concentrations in summer are likely associated with the reductions in source activities and removal of particles by dry deposition [76], a mechanism enhanced for hygroscopic particles by the increase in relative humidity. In winter, PM2.5 concentrations were higher during nighttime than during daytime. The boundary layer height usually decreases early in the afternoon due to decreased solar radiation, resulting in low PM2.5 concentrations during noontime [76]. Decreased boundary layer height and wind speed and increased source activity during the afternoon rush hour lead to higher PM2.5 concentrations during evening hours [34,76]. However, the diurnal variations of O3 concentrations during the two seasons were almost the same, with a single-peak occurring at 16:00 and 15:00 in summer and winter, respectively. During both seasons, O3 concentration peaks result from higher solar radiation and temperatures promoting photochemical formation of O3 [72].
Spatially, PM2.5 concentrations in Southern Beijing were higher than in Northern Beijing during the two seasons, and this pattern was especially evident in winter. This can result from regional transport of PM2.5 from neighboring heavily polluted cities of Southern Beijing (e.g., Tianjin, Langfang, Baoding, and Zhangjiakou) [49,77,78], while Northern Beijing is surrounded by mountains. In addition, the lower population density with reduced human activity in Northern Beijing could contribute to lower PM2.5 concentration [8]. Conversely, O3 concentrations showed a decreasing trend from the north to the south during the two seasons; this pattern was more evident in summer. A previous study showed that AOD in Southern Beijing was higher than in Northern Beijing [79], suggesting that surface solar radiation was stronger in Northern Beijing than in Southern Beijing, which favored photochemical O3 production. Further, higher biogenic VOCs emissions due to the presence of vegetation in Northern Beijing can favor O3 formation [80]. On the other hand, the higher NOx concentrations observed in Southern Beijing favor O3 titration [81,82].
A significant positive correlation in summer and a significant negative correlation in winter were observed between PM2.5 and O3. The formation mechanisms and sources of PM2.5 are very complex. Recent studies have suggested that secondary aerosols might dominate the PM2.5 mass [83]. We compared the PM2.5/CO ratio under different O3,max in summer, and found that the PM2.5/CO ratio increased with rising in O3,max, reflecting the fact that the contribution of secondary aerosols increased with rising in O3,max. Thus, the significant positive correlation between PM2.5 and O3 is likely due to the fact that high O3 concentrations with strong atmospheric oxidation in summer can promote the enhanced photochemical formation of secondary fine particulates [35,38]. Additionally, we also compared the daily total radiation under different PM2.5 levels in winter, and found that the daily total radiation decreased with rising in PM2.5, suggesting that high PM2.5 concentrations in winter could potentially weaken the intensity of solar radiation reaching the Earth’s surface and inhibit the formation of O3, leading to a negative relation between PM2.5 and O3.

5. Conclusions

In summary, we analyzed the spatiotemporal distribution characteristics in PM2.5 and O3 in Beijing and investigated their interaction mechanisms in summer and winter based on hourly PM2.5 and O3 data for all 35 sites. The results showed that PM2.5 concentrations were significantly lower (p < 0.05) in summer than in winter, while O3 concentrations were significantly higher (p < 0.05) in summer than in winter. Among sites, traffic monitoring sites showed the highest PM2.5 concentration and the lowest O3 concentration during the two seasons. A remarkably different diurnal variation of PM2.5 concentration was observed between summer and winter (p < 0.05), with the higher concentration during daytime summer and nighttime winter. Diurnal variations in O3 concentration during the two seasons were observed as a single peak at 16:00 and 15:00 in summer and winter, respectively. Spatially, PM2.5 concentrations decreased in gradient from the south to the north. On the contrary, O3 concentrations in Northern Beijing were higher than those in Southern Beijing.
Our findings also confirmed that high O3 concentrations with strong atmospheric oxidation in summer could promote the enhanced photochemical formation of secondary fine particulates, and the enhanced PM2.5 levels in winter could potentially suppressed the intensity of surface solar radiation and inhibit the formation of O3.
According to the discussion and analysis of this study, we propose the following suggestions for future direction of air pollution control. First, although Beijing currently has 35 air quality monitoring stations, their spatial distribution is not uniform. As shown in Figure 1, most of the stations are sited in the urban areas of Beijing and thus more monitoring stations should be established in suburban areas. Second, previous studies have shown that air pollution in Beijing is strongly influenced by regional atmospheric pollutant transportation from the surrounding areas. Consequently, regional cooperation and joint defense and control are effective ways to control air pollution. Third, Beijing’s government has implemented a series of air pollution control policies and regulations to improve air quality in recent years. These measures have favored the reduction of PM2.5, but O3 concentration showed an increasing trend. Thus, it is recommended that more studies be conducted on the pollution characteristics, sources, and formation processes of O3. Finally, this study reveals the interaction between PM2.5 and O3, and indicates that the coordinated control of PM2.5 and O3 is the future research direction in the field of atmospheric environment in Beijing.
In conclusion, the formation process and interaction of PM2.5 and O3 are very complex, as they are not only affected by primary emissions but also affected by other influencing factors including meteorological conditions, transformation of precursors, and atmospheric oxidant capacity, suggesting further investigation is needed.

Author Contributions

H.Z. and Y.Z. conceived and designed the experiments as well as wrote the paper; H.Z. analyzed the data; and C.L. helped perform the statistical analysis.

Fund

This research was funded by the National Natural Science Foundation of China (Grant No. 41475108), Postgraduate Research & Practice Innovation Program of Jiangsu Province (Grant No. KYCX17_0878), and the Visiting Fellowship from China Scholarship Council (Grant No. 201708320313).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hu, J.L.; Wang, Y.G.; Ying, Q.; Zhang, H.L. Spatial and temporal variability of PM2.5 and PM10 over the North China Plain and the Yangtze River Delta, China. Atmos. Environ. 2014, 95, 598–609. [Google Scholar] [CrossRef]
  2. Torretta, V.; Rada, E.C.; Capodaglio, A.G. An example of the use of bio-indicators for air quality assessment in areas with high industrial presence. Environ. Eng. Manag. J. 2015, 14, 2679–2687. [Google Scholar]
  3. Mannucci, P.M.; Franchini, M. Health effects of ambient air pollution in developing countries. Int. J. Environ. Res. Public Health 2017, 14, 1048. [Google Scholar] [CrossRef] [PubMed]
  4. Aranda, A.; Mera, Y.D.; Notario, A.; Rodriguez, D.; Rodriguez, A. Fine and ultrafine particles in small cities. A case study in the south of Europe. Environ. Sci. Pollut. Res. 2015, 22, 18477–18486. [Google Scholar] [CrossRef] [PubMed]
  5. Debaje, S.B. Estimated crop yield losses due to surface ozone exposure and economic damage in India. Environ. Sci. Pollut. Res. 2014, 21, 7329–7338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Zhang, Z.Y.; Zhang, X.L.; Gong, D.Y.; Quan, W.J.; Zhao, X.J.; Ma, Z.Q.; Kim, S.J. Evolution of surface O3 and PM2.5 concentrations and their relationships with meteorological conditions over the last decade in Beijing. Atmos. Environ. 2015, 108, 67–75. [Google Scholar] [CrossRef]
  7. Guo, H.; Wang, Y.G.; Zhang, H.L. Characterization of criteria air pollutants in Beijing during 2014–2015. Environ. Res. 2017, 154, 334–344. [Google Scholar] [CrossRef] [PubMed]
  8. Guo, S.; Hu, M.; Zamora, M.L.; Peng, J.F.; Shang, D.J.; Zheng, J.; Du, Z.F.; Wu, Z.J.; Shao, M.; Zeng, L.M.; et al. Elucidating severe urban haze formation in China. Proc. Natl. Acad. Sci. USA 2014, 111, 17373–17378. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Mills, G.; Hayes, F.; Simpson, D.; Emberson, L.; Norris, D.; Harmens, H.; Buker, P. Evidence of widespread effects of ozone on crops and (semi-) natural vegetation in Europe (1990–2006) in relation to AOT40- and flux-based risk maps. Global. Change Biol. 2011, 17, 592–613. [Google Scholar] [CrossRef] [Green Version]
  10. Sicard, P.; Anav, A.; Marco, A.D.; Paoletti, E. Projected global tropospheric ozone impacts on vegetation under different emission and climate scenarios. Atmos. Chem. Phys. 2017, 17, 12177–12196. [Google Scholar] [CrossRef]
  11. Calatayud, V.; Diéguez, J.J.; Sicard, P.; Schaub, M.; Marco, A.D. Testing approaches for calculating stomatal ozone fluxes from passive samplers. Sci. Total. Environ. 2016, 572, 56–67. [Google Scholar] [CrossRef] [PubMed]
  12. State Environmental Protection Administration of China, State Bureau of Technical Supervision; Ambient Air Quality Standard (GB3095–1996); China Standards Press: Beijing, China, 1996.
  13. Chen, W.; Tang, H.Z.; Zhao, H.M. Urban air quality evaluations under two versions of the national ambient air quality standards of China. Atmos. Pollut. Res. 2016, 7, 49–57. [Google Scholar] [CrossRef]
  14. Pausata, F.S.R.; Gaetani, M.; Messori, G.; Kloster, S.; Dentener, F.J. The role of aerosol in altering North Atlantic atmospheric circulation in winter and its impact on air quality. Atmos. Chem. Phys. 2015, 15, 1725–1743. [Google Scholar] [CrossRef] [Green Version]
  15. Zhao, H.; Zheng, Y.F.; Li, T.; Wei, L.; Guan, Q. Temporal and spatial variation in, and population exposure to, summertime ground-level ozone in Beijing. Int. J. Environ. Res. Public Health 2018, 15, 628. [Google Scholar] [CrossRef] [PubMed]
  16. Sikder, H.A.; Suthawaree, J.; Kato, S.; Kajii, Y. Surface ozone and carbon monoxide levels observed at Oki, Japan: Regional air pollution trends in East Asia. J. Environ. Manag. 2011, 92, 953–959. [Google Scholar] [CrossRef] [PubMed]
  17. Jeon, W.B.; Lee, S.H.; Lee, H.; Park, C.; Kim, D.H.; Park, S.Y. A study on high ozone formation mechanism associated with change of NOx/VOCs ratio at a rural area in the Korean Peninsula. Atmos. Environ. 2014, 89, 10–21. [Google Scholar] [CrossRef]
  18. Tong, N.Y.O.; Leung, D.Y.C.; Liu, C.H. A review on ozone evolution and its relationship with boundary layer characteristics in urban environments. Water. Air. Soil Pollut. 2011, 214, 13–36. [Google Scholar] [CrossRef]
  19. Schiavon, M.; Torretta, V.; Casazza, A.; Ragazzi, M. Non-thermal plasma as an innovative option for the abatement of volatile organic compounds: A review. Water. Air. Soil Pollut. 2017, 228, 388. [Google Scholar] [CrossRef]
  20. Schiavon, M.; Schiorlin, M.; Torretta, V.; Ragazzi, M.; Rada, E.C. Biofiltration combined with non-thermal plasma for air pollution control: A preliminary investigation. Int. J. Sustain. Dev. Plan. 2016, 4, 627–635. [Google Scholar] [CrossRef]
  21. Collet, S.; Kidokoro, T.; Karamchandani, P.; Shah, T. Future-year ozone isopleths for South Coast, San Joaquin Valley, and Maryland. Atmosphere 2018, 9, 354. [Google Scholar] [CrossRef]
  22. Thompson, D.R.; Kahn, B.H.; Green, R.O.; Chien, S.A.; Middleton, E.M.; Tran, D.Q. Global spectroscopic survey of cloud thermodynamic phase at high spatial resolution, 2005–2015. Atmos. Meas. Tech. 2018, 11, 1019–1030. [Google Scholar] [CrossRef] [Green Version]
  23. Guo, F.; Ju, Y.; Wang, G.; Alvarado, E.C.; Yang, X.; Ma, Y.; Liu, A. Inorganic chemical composition of PM2.5 emissions from the combustion of six main tree species in subtropical china. Atmos. Environ. 2018, 189, 107–115. [Google Scholar] [CrossRef]
  24. Schiavon, M.; Ragazzi, M.; Rada, E.C.; Torretta, V. Air pollution control through biotrickling filters: A review considering operational aspects and expected performance. Crit. Rev. Biotechnol. 2016, 36, 1143–1155. [Google Scholar] [CrossRef] [PubMed]
  25. Hartono, D.; Lioe, B.; Zhang, Y.; Li, B.; Yu, J. Impacts of particulate matter (PM2.5) on the behavior of freshwater snail Parafossarulus striatulus. Sci. Rep. 2017, 7, 644. [Google Scholar] [CrossRef] [PubMed]
  26. Torretta, V.; Raboni, M.; Copelli, S.; Rada, E.C.; Ragazzi, M.; Ionescu, G.; Apostol, T.; Badea, A. Application of strategies for particulate matter reduction in urban areas: An Italian case. UPB. Sci. Bull. Ser. D 2013, 75, 1454–2358. [Google Scholar]
  27. Qiu, X.; Duan, L.; Gao, J.; Wang, S.; Chai, F.; Hu, J.; Zhang, J.; Yun, Y. Chemical composition and source apportionment of PM10 and PM2.5 in different functional areas of Lanzhou, China. J. Environ. Sci 2016, 40, 75–83. [Google Scholar] [CrossRef] [PubMed]
  28. Cai, S.Y.; Wang, Y.J.; Zhao, B.; Wang, S.X.; Chang, X.; Hao, J.M. The impact of the “Air Pollution Prevention and Control Action Plan” on PM2.5 concentrations in Jing-Jin-Ji region during 2012–2020. Sci. Total. Environ. 2017, 580, 197–209. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, H.; Wang, X.M.; Pang, J.M.; He, K.B. Feasibility and difficulties of China’s new air quality standard compliance: PRD case of PM2.5 and ozone from 2010 to 2025. Atmos. Chem. Phys. 2013, 13, 12013–12027. [Google Scholar] [CrossRef]
  30. Sicard, P.; Serra, R.; Rossello, P. Spatiotemporal trends in ground-level ozone concentrations and metrics in France over the time period 1999–2012. Environ. Res. 2016, 149, 122–144. [Google Scholar] [CrossRef] [PubMed]
  31. Kang, D.; Aneja, V.P.; Mathur, R.; Ray, J.D. Observed and modeled VOC chemistry under high VOC/NOx conditions in the Southeast United States national parks. Atmos. Environ. 2004, 38, 4969–4974. [Google Scholar] [CrossRef]
  32. Wang, Z.S.; Li, Y.T.; Chen, T.; Li, L.J.; Liu, B.X.; Zhang, D.W.; Sun, F.; Wei, Q.; Jiang, L.; Pan, L.B. Changes in atmospheric composition during the 2014 APEC conference in Beijing. J. Geophys. Res. Atmos. 2015, 120, 12695–12707. [Google Scholar] [CrossRef]
  33. Zhao, H.; Zheng, Y.F.; Wei, L.; Guan, Q.; Wang, Z.S. Evolution and evaluation of air quality in Hangzhou and its surrounding area during the G20 summit [in Chinese]. China. Environ. Sci. 2017, 37, 2016–2024. [Google Scholar]
  34. Zhang, Y.L.; Cao, F. Fine particulate matter (PM2.5) in China at a city level. Sci. Rep. 2015, 5, 14884. [Google Scholar] [CrossRef] [PubMed]
  35. Chang, S.C.; Lee, C.T. Secondary aerosol formation through photochemical reactions estimated by using air quality monitoring data in Taipei City from 1994 to 2003. Atmos. Environ. 2007, 41, 4002–4017. [Google Scholar] [CrossRef]
  36. Penn, S.L.; Arunachalam, S.; Woody, M.; Heiger-Bernays, W.; Tripodis, Y.; Levy, J.I. Estimating state-specific contributions to PM2.5 and O3 related health burden from residential combustion and electricity generating unit emissions in the United States. Environ. Health. Persp. 2017, 125, 324–332. [Google Scholar] [CrossRef] [PubMed]
  37. Feng, T.; Bei, N.F.; Huang, R.J.; Cao, J.J.; Zhang, Q.; Zhou, W.J.; Tie, X.X.; Liu, S.X.; Zhang, T.; Su, X.L.; et al. Summertime ozone formation in Xi’an and surrounding areas, China. Atmos. Chem. Phys. 2016, 15, 4323–4342. [Google Scholar] [CrossRef]
  38. Jia, M.W.; Zhao, T.L.; Cheng, X.H.; Gong, S.L.; Zhang, X.Z.; Tang, L.L.; Liu, D.Y.; Wu, X.H.; Wang, L.M.; Chen, Y.S. Inverse relations of PM2.5 and O3 in air compound pollution between cold and hot seasons over an urban area of east China. Atmosphere 2017, 8, 59. [Google Scholar] [CrossRef]
  39. Xiao, Z.M.; Zhang, Y.F.; Hong, S.M.; Bi, X.H.; Jiao, L.; Feng, Y.C.; Wang, Y.Q. Estimation of the main factors influencing haze, based on a long-term monitoring campaign in Hangzhou, China. Aerosol. Air. Qual. Res. 2011, 11, 873–882. [Google Scholar] [CrossRef]
  40. Song, S.J.; Wu, Y.; Xu, J.Y.; Ohara, T.; Hasegawa, S.C.; Li, J.Q.; Hao, J.M. Black carbon at a roadside site in Beijing: Temporal variations and relationships with carbon monoxide and particle number size distribution. Atmos. Environ. 2013, 77, 213–221. [Google Scholar] [CrossRef]
  41. Li, R.K.; Li, Z.P.; Gao, W.J.; Ding, W.J.; Xu, Q.; Song, X.F. Diurnal, seasonal, and spatial variation of PM2.5 in Beijing. Sci. Bull. 2015, 60, 387–395. [Google Scholar] [CrossRef]
  42. Huang, F.F.; Li, X.; Wang, C.; Xu, Q.; Wang, W.; Luo, Y.X.; Tao, L.X.; Gao, Q.; Guo, J.; Chen, S.P.; et al. PM2.5 spatiotemporal variations and the relationship with meteorological factors during 2013–2014 in Beijing, China. PLoS ONE 2015, 10, e0141642. [Google Scholar] [CrossRef] [PubMed]
  43. Michanowicz, D.R.; Shmool, J.L.C.; Tunno, B.J.; Tripathy, S.; Gillooly, S.; Kinnee, E.; Clougherty, J.E. A hybrid land use regression/AERMOD model for predicting intra-urban variation in PM2.5. Atmos. Environ. 2016, 131, 307–315. [Google Scholar] [CrossRef]
  44. Lavi, A.; Potchter, O.; Omer, I.; Fireman, E. Mapping air pollution by biological monitoring in the metropolitan Tel Aviv area. Int. J. Environ. Heal. Res. 2015, 26, 346–360. [Google Scholar] [CrossRef] [PubMed]
  45. Allshouse, W.B.; Adgate, J.L.; Blair, B.D.; McKenzie, L.M. A spatiotemporal industrial activity model for estimating the intensity of oil and gas operations in Colorado. Environ. Sci. Technol. 2017, 51, 10243–10250. [Google Scholar] [CrossRef] [PubMed]
  46. Li, T.X.; Zhou, X.K.; Ikhumhen, H.O.; Difei, A. Research on the optimization of air quality monitoring station layout based on spatial grid statistical analysis method. Environ. Technol. 2017, 39, 1271–1283. [Google Scholar] [CrossRef] [PubMed]
  47. Huang, R.J.; Zhang, Y.L.; Bozzetti, C.; Ho, K.F.; Cao, J.J.; Han, Y.M.; Daellenbach, K.R.; Slowik, J.G.; Platt, S.M.; Canonaco, F.; et al. High secondary aerosol contribution to particulate pollution during haze events in China. Nature 2014, 514, 218–222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Chen, W.; Tang, H.Z.; Zhao, H.M. Diurnal, weekly and monthly spatial variations of air pollutants and air quality of Beijing. Atmos. Environ. 2015, 119, 21–34. [Google Scholar] [CrossRef]
  49. Cheng, L.J.; Wang, S.; Gong, Z.Y.; Li, H.; Yang, Q.; Wang, Y.Y. Regionalization based on spatial and seasonal variation in ground-level ozone concentrations across China. J. Environ. Sci. 2018, 67, 179–190. [Google Scholar] [CrossRef] [PubMed]
  50. Shen, Y.L.; Yao, L. PM2.5, Population exposure and economic effects in urban agglomerations of China using ground-based monitoring data. Int. J. Environ. Res. Public Health 2017, 14, 716. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, Y.Y.; Du, H.Y.; Xu, Y.Q.; Lu, D.B.; Wang, X.Y.; Guo, Z.Y. Temporal and spatial variation relationship and influence factors on surface urban heat island and ozone pollution in the Yangtze River Delta, China. Sci. Total Environ. 2018, 631–632, 921–933. [Google Scholar] [CrossRef] [PubMed]
  52. Zheng, S.; Pozzer, A.; Cao, C.X.; Lelieveld, J. Long-term (2001–2012) concentrations of fine particulate matter (PM2.5) and the impact on human health in Beijing, China. Atmos. Chem. Phys. 2015, 15, 5715–5725. [Google Scholar] [CrossRef]
  53. Haywood, J.; Boucher, O. Estimates of the direct and indirect radiative forcing due to tropospheric aerosols: A review. Rev. Geophys. 2000, 38, 513–543. [Google Scholar] [CrossRef] [Green Version]
  54. Feng, Z.Z.; Hu, E.Z.; Wang, X.k.; Jiang, L.J.; Liu, X.J. Ground-level O3 pollution and its impacts on food crops in China: A review. Environ. Pollut. 2015, 199, 42–48. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, T.; Xue, L.; Brimblecombe, P.; Lam, Y.F.; Li, L.; Zhang, L. Ozone pollution in China: A review of concentrations, meteorological influences, chemical precursors, and effects. Sci. Total Environ. 2017, 575, 1582–1596. [Google Scholar] [CrossRef] [PubMed]
  56. Liu, H.; Liu, S.; Xue, B.R.; Lv, Z.F.; Meng, Z.H.; Yang, X.F.; Xue, T.; Yu, Q.; He, K.B. Ground-level ozone pollution and its health impacts in China. Atmos. Environ. 2018, 173, 223–230. [Google Scholar] [CrossRef]
  57. He, J.J.; Gong, S.L.; Yu, Y.; Yu, L.J.; Wu, L.; Mao, H.J.; Song, C.B.; Zhao, S.P.; Liu, H.L.; Li, X.Y.; et al. Air pollution characteristics and their relation to meteorological conditions during 2014–2015 in major Chinese cities. Environ. Pollut. 2017, 223, 484–496. [Google Scholar] [CrossRef] [PubMed]
  58. Berkemeier, T.; Ammann, M.; Mentel, T.F.; Poschl, U.; Shiraiwa, M. Organic nitrate contribution to new particle formation and growth in secondary organic aerosols from α-pinene ozonolysis. Environ. Sci. Technol. 2016, 50, 6334–6342. [Google Scholar] [CrossRef] [PubMed]
  59. Trieu, T.T.N.; Goto, D.; Yashiro, H.; Murata, R.; Sudo, K.; Tomita, H.; Satoh, M.; Nakajima, T. Evaluation of summertime surface ozone in Kanto area of Japan using a semi-regional model and observation. Atmos. Environ. 2017, 153, 163–181. [Google Scholar] [CrossRef]
  60. Latif, M.T.; Huey, L.S.; Juneng, L. Variations of surface ozone concentration across the Klang Valley, Malaysia. Atmos. Environ. 2012, 61, 434–445. [Google Scholar] [CrossRef]
  61. Pu, X.; Wang, T.J.; Huang, X.; Melas, D.; Zanis, P.; Papanastasiou, D.K.; Poupkou, A. Enhanced surface ozone during the heat wave of 2013 in Yangtze River Delta region, China. Sci. Total Environ. 2017, 603–604, 807–816. [Google Scholar] [CrossRef] [PubMed]
  62. Rappengluck, B.; Perna, R.; Zhong, S.Y.; Morris, G.A. An analysis of the vertical structure of the atmosphere and the upper-level meteorology and their impact on surface ozone levels in Houston, Texas. J. Geophys. Res. Atmos. 2008, 113, D17315. [Google Scholar] [CrossRef]
  63. Sun, Y.L.; Wang, Z.F.; Fu, P.Q.; Jiang, Q.; Yang, T.; Li, J.; Ge, X.L. The impact of relative humidity on aerosol composition and evolution processes during wintertime in Beijing, China. Atmos. Environ. 2013, 77, 927–934. [Google Scholar] [CrossRef]
  64. Bian, H.; Han, S.Q.; Tie, X.X.; Sun, M.L.; Liu, A.X. Evidence of impact of aerosols on surface ozone concentration in Tianjin, China. Atmos. Environ. 2007, 41, 4672–4681. [Google Scholar] [CrossRef]
  65. Yang, X.; Zhao, C.F.; Zhou, L.J.; Wang, Y.; Liu, X.H. Distinct impact of different types of aerosols on surface solar radiation in China. J. Geophys. Res. Atmos. 2016, 121, 6459–6471. [Google Scholar] [CrossRef]
  66. Kulkarni, P.S.; Bortoli, D.; Silva, A.M. Nocturnal surface ozone enhancement and trend over urban and suburban sites in Portugal. Atmos. Environ. 2013, 71, 251–259. [Google Scholar] [CrossRef]
  67. Pusede, S.E.; Cohen, R.C. On the observed response of ozone to NOx and VOC reactivity reductions in San Joaquin Valley California 1995-present. Atmos. Chem. Phys. 2012, 12, 9771–9811. [Google Scholar] [CrossRef]
  68. Susaya, J.; Kim, K.H.; Shon, Z.H.; Brown, R.J.C. Demonstration of long-term increases in tropospheric O3 levels: Causes and potential impacts. Chemosphere 2013, 92, 1520–1528. [Google Scholar] [CrossRef] [PubMed]
  69. Sicard, P.; Marco, A.D.; Troussier, F.; Renou, C.; Vas, N.; Paoletti, E. Decrease in surface ozone concentrations at Mediterranean remote sites and increase in the cities. Atmos. Environ. 2013, 79, 705–715. [Google Scholar] [CrossRef]
  70. Guerreiro, C.B.B.; Foltescu, V.; Leeuw, F.D. Air quality status and trends in Europe. Atmos. Environ. 2014, 98, 376–384. [Google Scholar] [CrossRef] [Green Version]
  71. Paoletti, E.; Marco, A.D.; Beddows, D.C.S.; Harrison, R.M.; Manning, W.J. Ozone levels in European and USA cities are increasing more than at rural sites, while peak values are decreasing. Environ. Pollut. 2014, 192, 295–299. [Google Scholar] [CrossRef] [PubMed]
  72. Wang, Z.S.; Li, Y.T.; Chen, T.; Zhang, D.W.; Sun, F.; Wei, Q.; Dong, X.; Sun, R.W.; Huan, N.; Pan, L.B. Ground-level ozone in urban Beijing over a 1-year period: Temporal variations and relationship to atmospheric oxidation. Atmos. Res. 2015, 164–165, 110–117. [Google Scholar] [CrossRef]
  73. Murphy, S.M.; Sorooshian, A.; Kroll, J.H.; Ng, N.L.; Chhabra, P.; Tong, C.; Surratt, J.D.; Knipping, E.; Flagan, R.C.; Seinfeld, J.H. Secondary aerosol formation from atmospheric reactions of aliphatic amines. Atmos. Chem. Phys. 2007, 7, 2313–2337. [Google Scholar] [CrossRef] [Green Version]
  74. Wen, L.; Chen, J.M.; Yang, L.X.; Wang, X.F.; Xu, C.H.; Sui, X.; Yao, Y.; Zhu, Y.H.; Zhang, J.M.; Zhu, T.; et al. Enhanced formation of fine particulate nitrate at a rural site on the North China Plain in summer: The important roles of ammonia and ozone. Atmos. Environ. 2015, 101, 294–302. [Google Scholar] [CrossRef]
  75. Liu, Z.R.; Hu, B.; Wang, L.L.; Wu, F.K.; Gao, W.K.; Wang, Y.S. Seasonal and diurnal variation in particulate matter (PM10 and PM2.5) at an urban site of Beijing: Analyses from a 9-year study. Environ. Sci. Pollut. Res. 2015, 22, 627–642. [Google Scholar] [CrossRef] [PubMed]
  76. Zhao, X.J.; Zhang, X.L.; Xu, X.F.; Xu, J.; Meng, W.; Pu, W.W. Seasonal and diurnal variations of ambient PM2.5 concentration in urban and rural environments in Beijing. Atmos. Environ. 2009, 43, 2893–2900. [Google Scholar] [CrossRef]
  77. Wang, D.F.; Zhou, B.; Fu, Q.Y.; Zhao, Q.B.; Zhang, Q.; Chen, J.M.; Yang, X.; Duan, Y.S.; Li, J. Intense secondary aerosol formation due to strong atmospheric photochemical reactions in summer: Observations at a rural site in eastern Yangtze River Delta of China. Sci. Total. Environ. 2016, 571, 1454–1466. [Google Scholar] [CrossRef] [PubMed]
  78. Chai, F.H.; Gao, J.; Chen, Z.X.; Wang, S.L.; Zhang, Y.C.; Zhang, J.Q.; Zhang, H.F.; Yun, Y.R.; Ren, C. Spatial and temporal variation of particulate matter and gaseous pollutants in 26 cities in China. J. Environ. Sci. 2014, 26, 75–82. [Google Scholar] [CrossRef]
  79. Fu, D.S.; Xia, X.A.; Wang, J.; Zhang, X.L.; Li, X.J.; Liu, J.Z. Synergy of AERONET and MODIS AOD products in the estimation of PM2.5 concentrations in Beijing. Sci. Rep. 2018, 8, 10174. [Google Scholar] [CrossRef] [PubMed]
  80. Li, G.; Bei, N.; Tie, X.; Molina, L.T. Aerosol effects on the photochemistry in Mexico City during MCMA-2006/MILAGRO campaign. Atmos. Chem. Phys. 2011, 11, 5169–5182. [Google Scholar] [CrossRef] [Green Version]
  81. Sicard, P.; Dalstein-Richier, L.; Vas, N. Annual and seasonal trends of ambient ozone concentration and its impact on forest vegetation in Mercantour National Park (South-eastern France) over the 2000–2008 period. Environ. Pollut. 2011, 159, 351–362. [Google Scholar] [CrossRef] [PubMed]
  82. Zhang, R.; Cohan, A.; Biazar, A.P.; Cohan, D.S. Source apportionment of biogenic contributions to ozone formation over the United States. Atmos. Environ. 2017, 164, 8–19. [Google Scholar] [CrossRef]
  83. Cheng, N.L.; Zhang, D.W.; Li, Y.T.; Xie, X.M.; Chen, Z.Y.; Meng, F.; Gao, B.B.; He, B. Spatio-temporal variations of PM2.5 concentrations and the evaluation of emission reduction measures during two red air pollution alerts in Beijing. Sci. Rep. 2017, 7, 8220. [Google Scholar] [CrossRef] [PubMed]
Sustainability 10 04519 g001 550

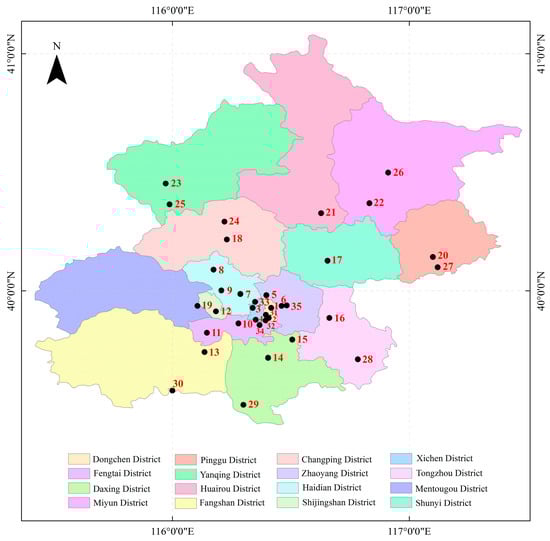

Figure 1. Locations of 35 ambient air quality monitoring sites in Beijing.
Figure 1. Locations of 35 ambient air quality monitoring sites in Beijing.
Sustainability 10 04519 g001
Sustainability 10 04519 g002 550

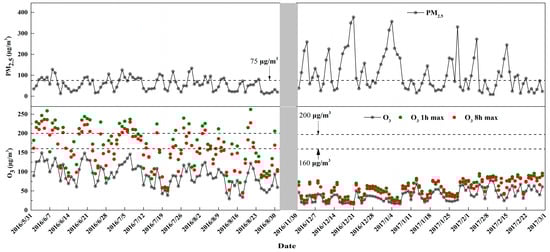

Figure 2. The daily average concentrations of PM2.5 and O3 in the two seasons in Beijing (the green dots indicate O3 1h max and the red dots indicate O3 8h max).
Figure 2. The daily average concentrations of PM2.5 and O3 in the two seasons in Beijing (the green dots indicate O3 1h max and the red dots indicate O3 8h max).
Sustainability 10 04519 g002
Sustainability 10 04519 g003 550

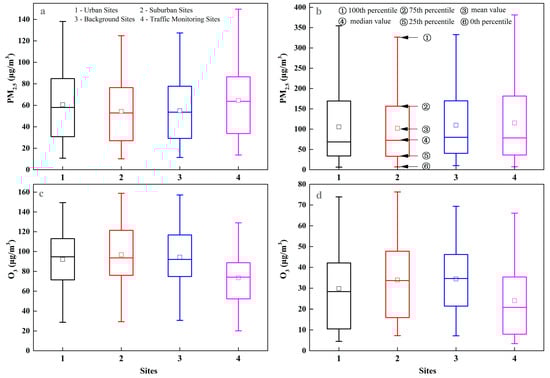

Figure 3. PM2.5 and O3 concentrations in different kinds of air monitoring sites ((a) PM2.5 concentration during summer, (b) PM2.5 concentration during winter, (c) O3 concentration during summer, and (d) O3 concentration during winter). The whiskers above and below the boxes indicate the 100th and 0th percentiles, the upper and lower boundaries of the boxes indicate the 75th and 25th percentiles, the squares indicate the mean values, and the lines in the boxes indicate the median values.
Figure 3. PM2.5 and O3 concentrations in different kinds of air monitoring sites ((a) PM2.5 concentration during summer, (b) PM2.5 concentration during winter, (c) O3 concentration during summer, and (d) O3 concentration during winter). The whiskers above and below the boxes indicate the 100th and 0th percentiles, the upper and lower boundaries of the boxes indicate the 75th and 25th percentiles, the squares indicate the mean values, and the lines in the boxes indicate the median values.
Sustainability 10 04519 g003
Sustainability 10 04519 g004 550

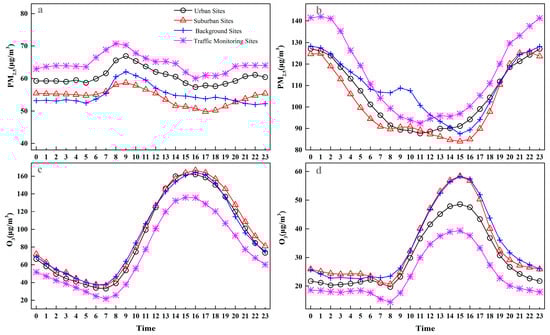

Figure 4. Average diurnal variations in PM2.5 and O3 concentrations: (a) PM2.5 concentration during summer; (b) PM2.5 concentration during winter; (c) O3 concentration during summer; and (d) O3 concentration during winter.
Figure 4. Average diurnal variations in PM2.5 and O3 concentrations: (a) PM2.5 concentration during summer; (b) PM2.5 concentration during winter; (c) O3 concentration during summer; and (d) O3 concentration during winter.
Sustainability 10 04519 g004
Sustainability 10 04519 g005 550

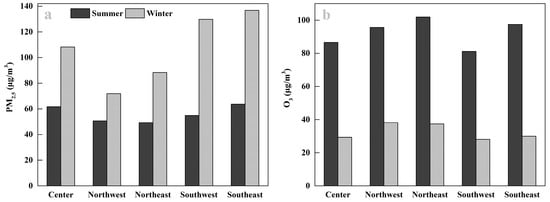

Figure 5. Average concentrations of PM2.5 and O3 in each region of Beijing. (a) Concentration of PM2.5. (b) Concentration of O3.
Figure 5. Average concentrations of PM2.5 and O3 in each region of Beijing. (a) Concentration of PM2.5. (b) Concentration of O3.
Sustainability 10 04519 g005
Sustainability 10 04519 g006 550

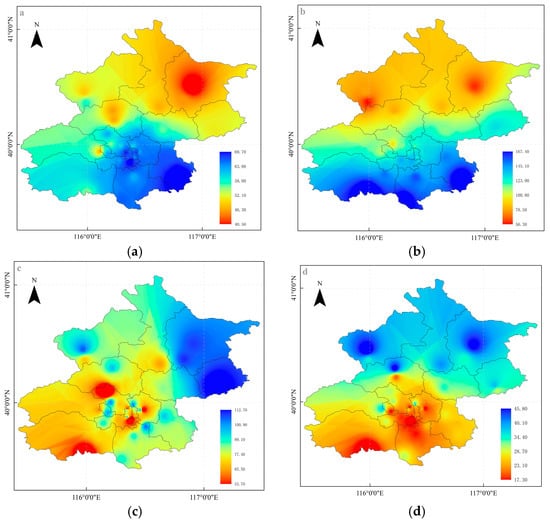

Figure 6. Spatial distribution in PM2.5 and O3 concentrations in Beijing: (a) PM2.5 concentration during summer; (b) PM2.5 concentration during winter; (c) O3 concentration during summer; and (d) O3 concentration during winter.
Figure 6. Spatial distribution in PM2.5 and O3 concentrations in Beijing: (a) PM2.5 concentration during summer; (b) PM2.5 concentration during winter; (c) O3 concentration during summer; and (d) O3 concentration during winter.
Sustainability 10 04519 g006
Sustainability 10 04519 g007 550
Figure 7. Scatter plots of PM2.5 vs. O3 during the summer and winter seasons (a) in summer and (b) in winter.
Figure 7. Scatter plots of PM2.5 vs. O3 during the summer and winter seasons (a) in summer and (b) in winter.
Sustainability 10 04519 g007
Sustainability 10 04519 g008 550
Figure 8. Diurnal variations in PM2.5 and O3 concentrations under different O3,max and PM2.5 levels, respectively. (a) Diurnal variation of PM2.5 under four O3,max levels: exceeding 200 μg/m3, 160–200 μg/m3, 100–160 μg/m3, and below 100 μg/m3 in summer. (b) Diurnal variation of O3 under four PM2.5 levels: exceeding 115 μg/m3, 75–115 μg/m3, 35–75 μg/m3, and below 35 μg/m3 in winter.
Figure 8. Diurnal variations in PM2.5 and O3 concentrations under different O3,max and PM2.5 levels, respectively. (a) Diurnal variation of PM2.5 under four O3,max levels: exceeding 200 μg/m3, 160–200 μg/m3, 100–160 μg/m3, and below 100 μg/m3 in summer. (b) Diurnal variation of O3 under four PM2.5 levels: exceeding 115 μg/m3, 75–115 μg/m3, 35–75 μg/m3, and below 35 μg/m3 in winter.
Sustainability 10 04519 g008
Sustainability 10 04519 g009 550
Figure 9. Average PM2.5/CO ratio under different O3,max in summer.
Figure 9. Average PM2.5/CO ratio under different O3,max in summer.
Sustainability 10 04519 g009
Sustainability 10 04519 g010 550
Figure 10. Average daily total radiation under different PM2.5 levels in winter.
Figure 10. Average daily total radiation under different PM2.5 levels in winter.
Sustainability 10 04519 g010
Table
Table 1. Category of each monitoring site in Beijing city.
Table 1. Category of each monitoring site in Beijing city.
Site nameCategoryRegionCode
DongsiUrban Sites (To assess air quality and its overall variation in the urban environment)Center1
Temple of HeavenCenter2
West Park OfficialsCenter3
West Wanshou NishinomiyaCenter4
Olympic Sports CenterCenter5
Agricultural Exhibition HallCenter6
WanliuCenter7
Northern New AreaCenter8
Botanical GardenCenter9
Fengtai GardenCenter10
YungangCenter11
Shijingshan cityCenter12
LiangxiangSuburban Sites (to characterize the variation of suburban air quality)Southwest13
DaxingSoutheast14
YizhuangSoutheast15
TongzhouSoutheast16
ShunyiNortheast17
ChangpingNorthwest18
MentougouSouthwest19
PingguNortheast20
HuairouNortheast21
MiyunNortheast22
YanqingNorthwest23
DinglingBackground Sites (to describe regional background levels and reflect the transmission of pollutants between regions)Northwest24
BadalingNorthwest25
Miyun ReservoirNortheast26
DonggaocunNortheast27
YongledianSoutheast28
YufaSoutheast29
LiuliheSouthwest30
Qianmen East StreetTraffic Monitoring Sites (to evaluate the impact of road traffic pollution on ambient air quality)Center31
Yongdingmen Inner StreetCenter32
Xizhimen North StreetCenter33
South 3rd Ring RoadCenter34
East 4th Ring RoadCenter35

Share and Cite

MDPI and ACS Style

Zhao, H.; Zheng, Y.; Li, C. Spatiotemporal Distribution of PM2.5 and O3 and Their Interaction During the Summer and Winter Seasons in Beijing, China. Sustainability 2018, 10, 4519. https://doi.org/10.3390/su10124519

AMA Style

Zhao H, Zheng Y, Li C. Spatiotemporal Distribution of PM2.5 and O3 and Their Interaction During the Summer and Winter Seasons in Beijing, China. Sustainability. 2018; 10(12):4519. https://doi.org/10.3390/su10124519

Chicago/Turabian Style

Zhao, Hui, Youfei Zheng, and Chen Li. 2018. "Spatiotemporal Distribution of PM2.5 and O3 and Their Interaction During the Summer and Winter Seasons in Beijing, China" Sustainability 10, no. 12: 4519. https://doi.org/10.3390/su10124519

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
