Determination of Optimum Hot-Water Temperatures for PCM Radiant Floor-Heating Systems Based on the Wet Construction Method

Abstract

Owing to use of mortar, which demonstrates low heat storage and discharge performance, conventional radiant floor-heating systems, based on the wet construction method and hot-water circulation, consume large amounts of energy. This study proposes a new type of radiant floor-heating system that is capable of reducing energy consumption via use of the latent heat of a phase change material (PCM), whereby the phase change, which occurs within, is induced by the thermal energy supplied by hot water. Simulation analyses revealed that hot-water supply temperatures, required to maintain the floor-surface and indoor-air temperatures at the set point using PCM latent heat, were in the range 40–41 °C. At supply water temperatures measuring less than 39 °C or exceeding 42 °C, the latent-heat effect of the phase change of the PCM tended to fail, and the corresponding floor-surface temperature assumed a value different from that corresponding to the set point. By contrast, supply temperatures in the range 40–41 °C resulted in return temperatures measuring approximately 27.4–27.5 °C, which in turn corresponded to an indoor air temperature of 21.6–22.6 °C that was stably maintained within ±0.6 °C of the 22 °C set-point temperature.

1. Introduction

Nearly all materials undergo transition from one state (solid, liquid, or gas) to another via absorption or discharge of heat, and depending upon which state they lie in, with respect to their particular phase-change points (e.g., melting and boiling points), most substances undergo sensible or latent heat exchange [1]. During sensible heat exchange, which for liquid water occurs in the temperature range 0–100 °C, only the temperature of a substance changes, and no change occurs in its state. In contrast, during latent heat exchange, such as the transition from ice to water at 0 °C, the material state of a substance changes isothermally (at the same temperature). Most materials absorb and discharge more heat during latent heat exchange compared to sensible heat exchange, and if a material continues to demonstrate latent heat exchange for a sufficient length of time, it can be used as a system for storing and supplying large quantities of heat.

Representative materials that demonstrate rather long latent heat exchange durations are referred to as phase change materials (PCMs). PCMs not only demonstrate extended durations of latent heat exchange during phase change, they are also capable of storing and discharging large quantities of heat in an isothermal manner. These materials are now being used in buildings as heat storage and discharge reservoirs for radiant floor-heating systems. Replacing conventional floor-heat-storage materials, which only demonstrate sensible heat exchange, with PCM enables radiant floor-heating systems to maintain indoor-air and floor-surface temperatures at a pre-set value without activating the heat-source system, thereby significantly reducing the energy consumed by the overall system. Many studies concerning PCM radiant floor-heating systems have been performed in recent times to explore appropriate PCM container shapes for floor insertion, and it has been demonstrated that use of a PCM can result in significant benefits in terms of reduced indoor-air and floor-surface temperature maintenance and increased energy savings.

Lin et al. proposed an underfloor electric heating system with SSPCM (shape-stabilized PCM) based on a dry construction method, and analyzed its thermal storage and heating energy performance [2]. In addition, utilizing a SSPCM, they developed a floor heating system using a conductive heat transfer method to decrease heating energy usage in an office space, and evaluated its energy saving performance [3]. Jin et al. proposed a floor radiant cooling and heating system based on a concrete structure with both low-temperature and high-temperature PCMs, and analyzed its thermal storage and energy saving via experimental tests [4]. Huang et al. proposed a hybrid PCM floor heating system, which integrated a PCM floor structure and a solar hot water system, and evaluated its energy performance through experimental tests [5]. Barzin et al. developed a PCM wallboard for underfloor heating and analyzed its energy saving performance via experimental tests [6]. Cheng et al. fabricated SSPCMs with various thermal conductivities for an underfloor heating system, and found, experimentally, that conductivities influence the thermal storage and energy performances of PCM [7]. Zhou et al. analyzed changes in thermal storage and energy performance by types of thermal storage masses and electric supply systems in a PCM radiant floor heating system [8]. Maria et al. proposed an underfloor heating system integrating PCM and a solar system with a heat pump, and evaluated its effects for reducing heating loads and energy consumptions [9].

Extant studies have focused on the use of PCM systems with dry-constructed floor structures that use electricity as a heat source. However, there has been a complete lack of research concerning the integration of PCMs with concrete-based wet-constructed floor structures that employ hot water as the heat source. Although wet-constructed structures provide high floor strength and serve to improve structural stability and the comfort of residents, owing to the lack of air cavities that generate noise or induce dew condensation [10], such structures consume large amounts of hot water and energy to maintain indoor-air and floor-surface temperatures at a pre-set value during the heating period. This may be attributed to their use of mortar, which only demonstrates sensible heat exchange, as the heat-storage material [11]. Using PCMs with long latent-heat exchange durations can, therefore, reduce the energy consumption of wet-constructed structures whilst also maintaining indoor-air and floor-surface temperatures at a pre-set value.

The authors have previously proposed a PCM radiant floor-heating system—built using the wet construction method and employing hot-water circulation—which could potentially form the middle-story of an apartment house. In the proposed and extant studies, the authors propose a design and system structure and describe methods for constructing a PCM container. In addition, the range of PCM melting-point temperatures required to maintain comfortable indoor-air and floor-surface temperatures has also been calculated [12,13,14].

However, because floors between stories in an apartment housing must meet basic, legally prescribed performance requirements in terms of noise transmission between stories, waterproofing, and structural safety [15,16], it is, in practice, nearly impossible to completely change an existing floor structure to insert PCMs. For this reason, it is more effective to replace part of the existing floor material and subsequently employ the reheating storage method, wherein the heat storage and discharge cycles of PCMs are repeated via circulation of hot water during heating periods. In this case, the hot water for floor heating must have appropriate supply and return temperatures, to maintain the floor-surface and indoor-air temperatures at the pre-set value, while PCM undergoes phase change during the heating period. If the temperature of the supplied hot water is too high, the PCM would enter a superheated state and liquefy, thereby resulting in an increase in the temperature of the PCM as well as the floor surface and indoor air, which in turn would lead to occupant discomfort and increased energy consumption. On the other hand, if the temperature of the supplied hot water is too low, the PCM would remain in the supercooled solid state and, if the PCM does not undergo a phase change, the pre-set temperature will not be attained and the reduction in energy consumption through the utilization of latent heat will not be realized. To solve these problems whilst efficiently running the PCM radiant floor-heating system, it is necessary to derive optimum values of hot-water supply and return temperatures.

Accordingly, the goal of this study was to determine appropriate hot-water supply and return temperatures, for the maintenance of floor-surface and indoor-air temperatures at the pre-set value, by use of a PCM radiant floor-heating system fabricated using the wet construction method. These parameters were derived using computer simulation of a residential building under pre-set indoor and outdoor environmental conditions.

2. Materials and Methods

2.1. Materials

2.1.1. System Structure and Characteristics

Because the PCM radiant floor-heating system proposed in this study was designed to be used in intermediate floors of domestic apartment-type housing structures, domestic floor-structure standards were applied in its construction [15,17]. The design and structure of the system could; however, be changed depending on the place of residence to reflect varying architectural cultures and structural standards.

The (a) panel in Figure 1 depicts the floor structure commonly used in domestic apartment-type housing, which is constructed in the following sequence of structural layers stacked over one another: 210 mm concrete slab; 20 mm insulating material; 40 mm autoclaved lightweight concrete (ALC); 40 mm mortar, including a hot-water pipe with a typical inner diameter measuring 15–20 mm [18]; and finally, floor-finishing material. Because the floor-finishing material is excluded from domestic structural standards, a prospective client may select it in accordance with desired floor characteristics. In such systems, mortar is used to facilitate heating via storage and discharge of thermal energy from hot water. However, because mortar only demonstrates sensible heat exchange, wherein temperature changes occur without any phase change, its surface temperature decreases rapidly once hot-water supply is terminated. Accordingly, conventional systems require a continuous supply of hot water to maintain the floor-surface temperature at the pre-set value, whilst consuming large quantities of energy owing to long operation times of the heat-source system.

The (b) panel in Figure 1 depicts a schematic of the proposed radiant floor-heating system, wherein a PCM is inserted into an existing floor system that demonstrates sensible as well as latent heat exchanges [13]. Because this system can maintain the floor-surface and indoor-air temperatures at a pre-set value via the supply of isothermal energy from PCM, without the need for continuous hot-water supply, energy consumption can be reduced through intermittent operation of the heat-source system.

PCM can be inserted into the ALC and mortar layers of an existing floor structure without manipulating the concrete slab, which performs a structural and insulating function, material for preventing heat loss from the floor. Insertion of PCM into mortar can cause several problems. First, as depicted in Figure 2a, the mortar layer includes a 15–20 mm diameter hot-water pipe, above which PCM must be inserted. If, for example, a 10 mm thick PCM is to be inserted, the thickness of the top mortar layer would be reduced to 10–15 mm. Since such thinning of the mortar layer would lead to crack formation on the floor surface, additional mortar would have to be applied, which in turn would reduce the ceiling height as well as the volume of the indoor space, thereby lowering the value and selling price of the building. This effect would be particularly seen in construction markets, such as South Korea, wherein the ceiling height and indoor volume are considered sensitive factors.

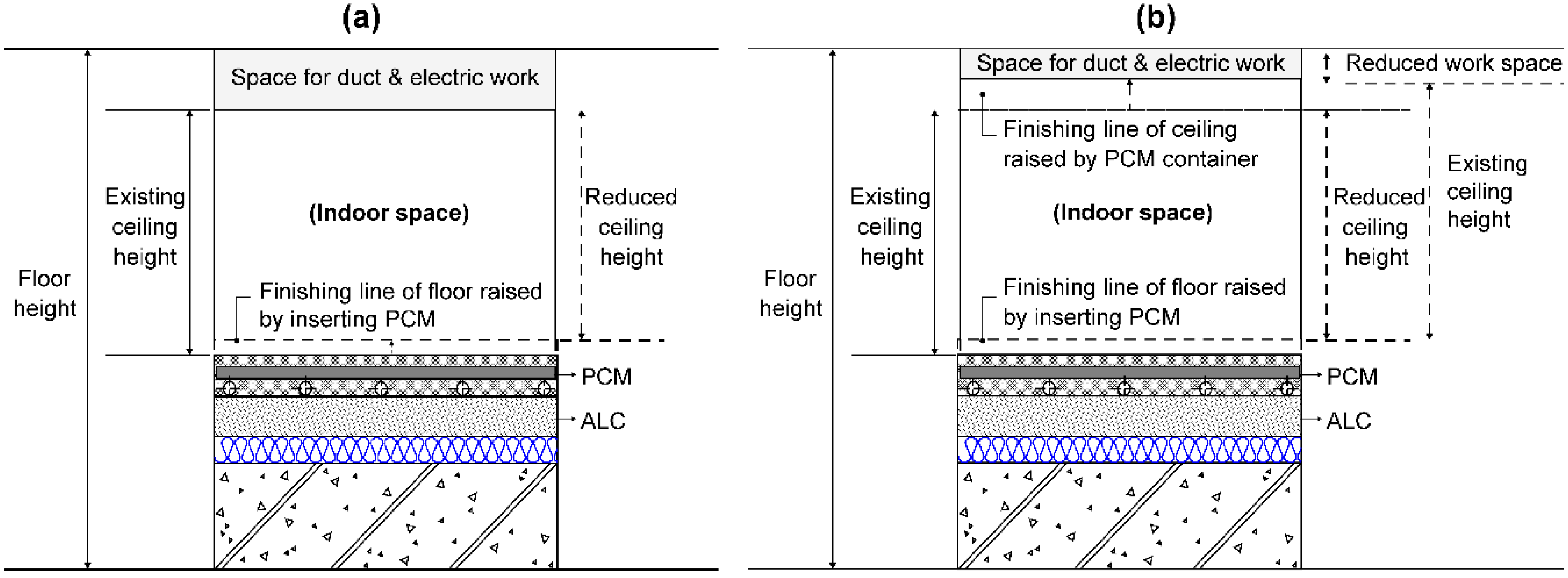

Although methods exist for reducing ceiling space—for duct and electric works—which could be used to restore the original ceiling height, following mortar thickening to accommodate a PCM (panel (b) of Figure 2), reducing the ceiling working space can have significant effects on both duct and electric works. This, in turn, could lead to cascading effects, wherein all plans related to building heating, ventilation, and air-conditioning (HVAC) would have to be amended. For these reasons, the proposed method avoids PCM insertion into the mortar layer.

Although ALC prevents heat loss from a floor, its practical role is to mitigate noise transmission between stories. According to recent studies; however, commonly used ALC materials demonstrate a rather poor noise abatement performance owing to their low density, and new systems to replace it are, therefore, being actively developed [19,20,21,22]. As an added advantage, PCMs can absorb noise more effectively, compared to conventional ALC materials, owing to their very high densities and the fact that they enter an intermediate state, between solid and liquid, during phase change. The possibility of using PCM as a floor material to replace ALC inspired our placement of PCM into the ALC layer in the proposed system (see Figure 1).

PCM used in the proposed system measured 10 mm thick. Because heat storage and discharge capability increased with the amount of PCM inserted, it was advantageous, from the point of view of energy saving, to insert as much PCM as possible into the floor, thereby replacing as much ALC as possible with PCM. Since preventing noise transmission is also a critical function of intermediate floors in an apartment-type housing, further experimental research to obtain quantitative data concerning the soundproofing effect of PCM must be performed. However, as this study primarily focused on the reduction of energy consumption in indoor environments, a set PCM thickness of 10 mm was used in anticipation of future research concerning the soundproofing effects of the proposed system.

2.1.2. PCM Aluminum Container

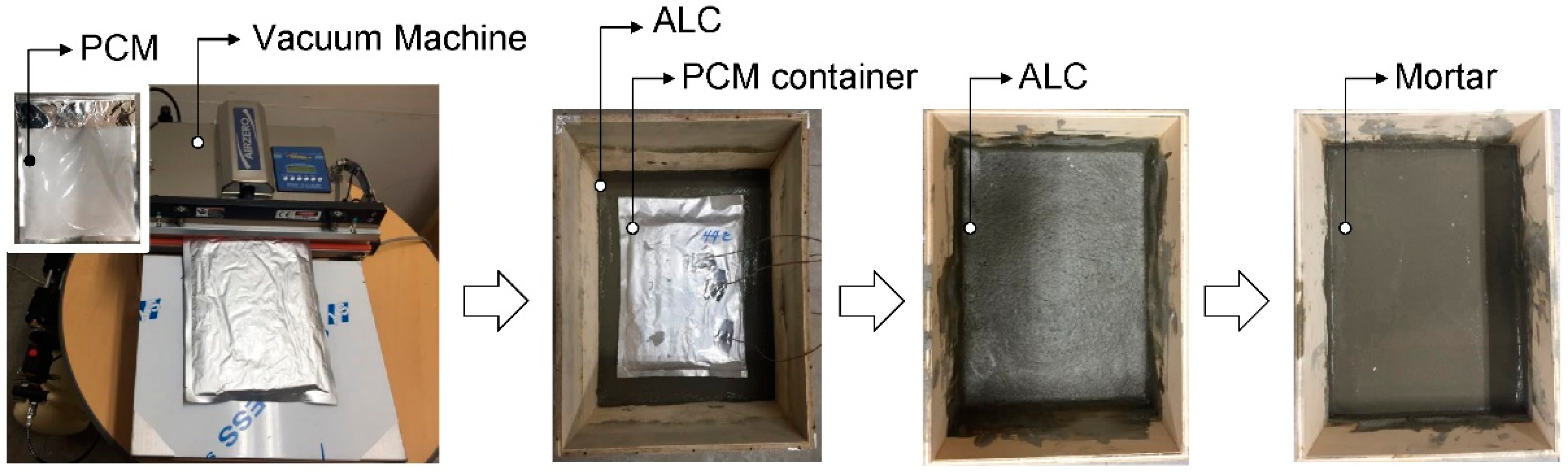

Prior to PCM insertion into a floor structure, it must be contained within a structure inside which it could safely undergo phase change from solid to liquid. Figure 3 depicts a PCM container fabricated for use in an extant study and its construction process [13]. Given the high thermal conductivity and durability of the floor, the container was fabricated using a thin aluminum sheet to accommodate the 10 mm thick PCM, specified in Section 2.1.1. The aluminum container used was slightly irregular in terms of thickness, owing to it being constructed using vacuum equipment and the application of a superheated hot wire for use in a previous floor-heating-module investigation. Such irregularities could be avoided in future construction of the container through use of an automated system for its fabrication [23].

2.1.3. Surface Temperature and Energy-Consumption Pattern

Figure 4 and Figure 5, respectively, demonstrate indicative patterns of floor-surface temperature change in the use of conventional and PCM radiant floor-heating systems, installed in apartment-type housing facilities.

Following preheating, to increase the natural floor-surface temperature from its value at the beginning of the heating period to its pre-set value, the surface temperature of the conventional system follows a sawtooth sinewave pattern, between the top (+) and bottom (−) of the error range of the pre-set floor temperature. If the surface temperature attains the value corresponding to the top or bottom of the error range, the hot-water supply must be stopped or restarted, respectively. This is problematic from the perspective of energy utilization, because the time taken to transit from the top to the bottom of the range is very short, thereby resulting in repeated cycles of hot-water supply and increased energy consumption.

In contrast, owing to the thermal energy discharge facilitated by the PCM’s latent heat exchange, the floor-surface temperature during use of the PCM radiant floor-heating system could be maintained at the pre-set for a sufficient time after the hot-water supply has been turned off. Through this time-lag phenomenon, surface-temperature decrease is delayed relative to the conventional system, and the reoperation time is, therefore, extended via the latent heat exchange of the PCM. Furthermore, as demonstrated by previous small-module experiments, PCM also demonstrates better sensible-heat storage and discharge performance compared to mortar [13], and therefore, even after the latent heat has been discharged, the surface temperature decreases more slowly, when compared to a conventional system, through loss of sensible heat. These features allow the PCM radiant floor-heating system to be operated intermittently whilst suppressing the rapid reduction in floor-surface temperature, thereby reducing hot water as well as energy consumption.

2.2. Methods

Supply and return temperatures of hot water, used as the heat source in PCM radiant floor-heating systems, must be set to maintain the floor-surface and indoor-air temperatures at the pre-set value during times of minimal annual outdoor temperature [24,25]. To derive appropriate hot water temperatures, the EnergyPlus (ver. 8.7) computer simulation package was used [26,27,28]. System modeling was performed in the following sequence: (1) Application of weather data; (2) building modeling; (3) composition of envelope and windows; (4) PCM application; (5) input of indoor heat gain and loss elements; (6) application of heating system; and (7) input of heating operation conditions.

2.2.1. Weather Data

Table 1. Location of simulation building and weather data type. EPW: EnergyPlus Weather.

Field	Input Value
Site location	Seoul, Korea
Building location	Latitude	37.34
	Longitude	126.57
Run period	From January 26 to January 28
Weather date	Seoul standard weather data (EPW File)

lists details concerning the siting and weather corresponding to the simulated apartment-type housing, which was assumed to be located in Seoul, South Korea. Using standard weather data for Seoul distributed by the government [29], the period from January 26 to 28—the coldest days of the year—was simulated.

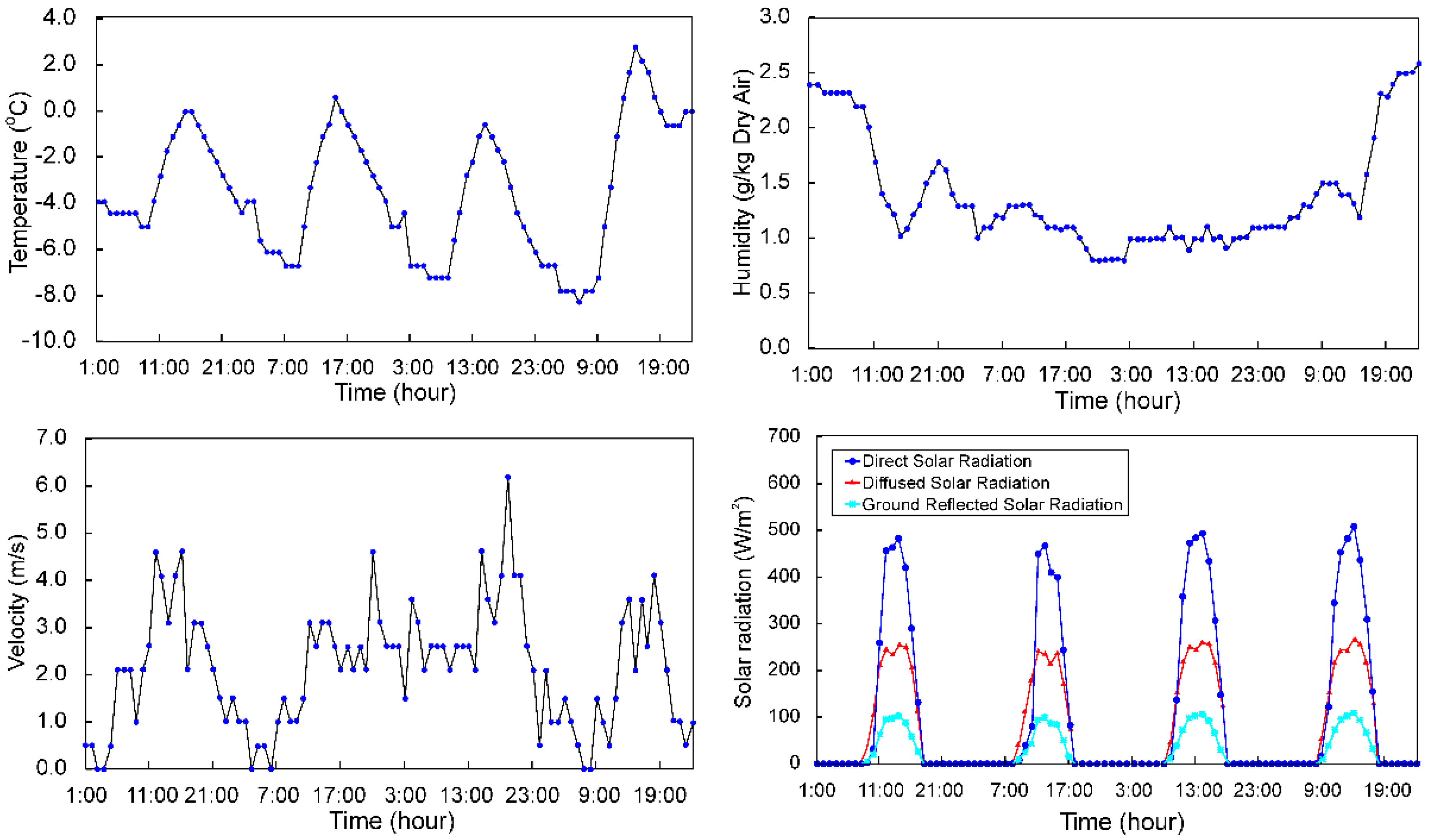

Standard weather data, with regards to dry bulb temperature, absolute humidity, wind speed, and solar radiation (Figure 6), were used to calculate the building heating load. For compatibility with EnergyPlus, data were input into the program in the form of a text-based EnergyPlus Weather (EPW) file [27].

2.2.2. Building Modeling

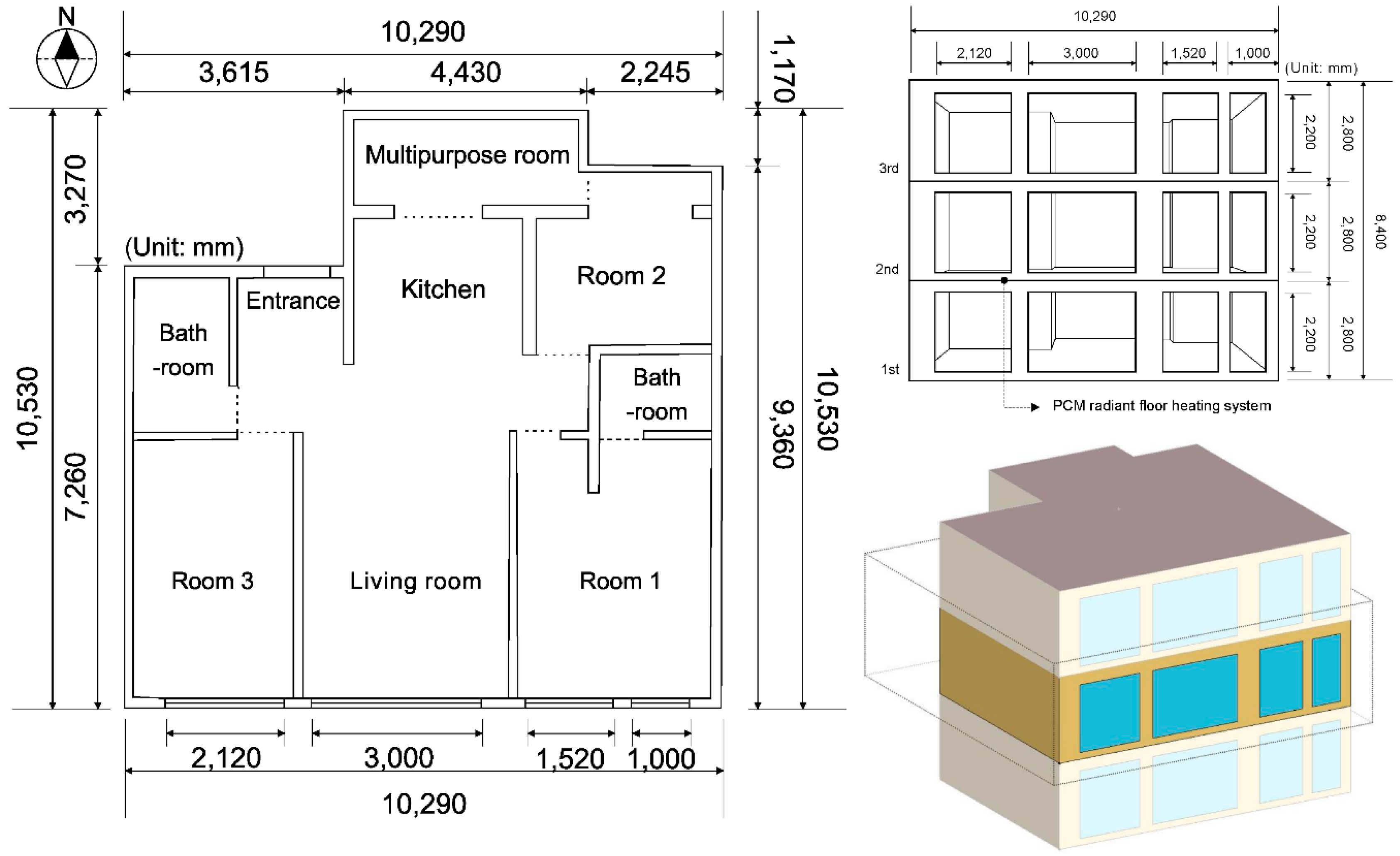

Figure 7 shows plan and front views of the apartment-type housing and the elevation view modeled via simulation. The building was modeled as a three-story structure with a total height of 8400 mm, including the lowest, middle (standard), and top stories. Each story measured 10,290 mm in length, 10,530 mm in width, and 2800 mm in height. Because the PCM radiant floor-heating system, proposed for use in this study, is to be installed in the middle story of a building, the second story of the modeled building was considered as the analysis target. Indoor space within the building was divided into eight zones, with each zone assumed to be heated simultaneously under identical temperature conditions. Public spaces, such as elevators and stairs, were excluded from the modeling, and windows of different sizes were installed on the south wall.

2.2.3. Building Structure

The apartment housing envelope comprised an exterior wall, lowest-story floor structure, middle-story floor structure, and top-story roof. Structural components listed in

Table 2. Materials comprising the building envelope [30].

Field		Input Value
No.	Structural Element	Conductivity	Density	Specific Heat
		(W/m·°C)	(kg/m3)	(J/kg·°C)
1	Reinforced concrete	1.400	2300	880
2	Autoclaved lightweight concrete (ACL)	0.150	710	1130
3	Mortar	0.720	1860	780
4	Insulating material	0.025	29	1213
5	Gypsum board	0.170	800	100
6	Air cavity	0.020	1.2	100
7	Phase change material (PCM)	0.200	860	2000
8	Finishing material	0.160	780	1255

were constructed using eight different types of materials, including the PCM. Material names and their corresponding thermal-property values, including heat conductivity, density, and specific heat, were provided as input into EnergyPlus.

Figure 8 depicts the envelope structures for the first, second, and third floors, the roof, and the outer wall of the building. The second floor (middle story) was equipped with the PCM radiant floor-heating system, which, along with the third-story floor, included a space for duct and electrical works below the concrete slab. The heat transmittance (U-value) of each envelope (

Table 3. Heat transmittance by envelope type (U-value).

Envelope Type	Heat Transmittance (U-Value)	Domestic Standard (U-Value)
	(W/m2·°C)	(W/m2·°C)
Floor structure of 1st story	0.1741	Below 0.1800
Floor structure of 2nd story (PCM)	0.1534	Below 0.8100
Floor structure of 3rd story	0.1530	Below 0.8100
Roof structure of 3rd story	0.1105	Below 0.1500
Exterior wall structure	0.2005	Below 0.2100

) was modeled to meet domestic standards [31].

To model building windows, data concerning window materials distributed by the Lawrence Berkeley National Laboratory were used along with the Therm and Window simulation program [32,33]. To meet domestic standards for U-values, windows were constructed comprising three panes.

Table 4. Properties of the pane, insulating-gas, and frame for the window system.

Window-Pane Properties
Field			Input Value
Thickness (mm)			6.000
Conductivity (W/m·°C)			1.000
Exterior surface	Entire waves	Transmittance	0.246
		Reflectivity	0.218
	Visible waves	Transmittance	0.313
		Reflectivity	0.106
	Surface emissivity		0.340
Interior surface	Entire waves	Transmittance	0.246
		Reflectivity	0.218
	Visible waves	Transmittance	0.313
		Reflectivity	0.106
	Surface emissivity		0.340
Insulating-Gas Properties
Field			Input Value
Type			Argon gas (pure 100%)
Conductivity			0.016348 (W/m·°C)
Viscosity			0.000021 (kg/m·s)
Specific heat			521.9290 (J/kg·°C)
Density			1.782282 (kg/m3)
Prandtl number			0.6705
Window-Frame Properties
Field			Input Value
Frame material			Polyvinyl chloride (PVC)
Thickness			300 (mm)
Outside protruded length			129 (mm)
Inside protruded length			129 (mm)
Filled insulating material			Urethane

lists types and properties of panes, insulating gases, and frames comprising the triple-pane windows considered in this study. The panes measured 6 mm thick and possessed identical solar-radiation properties on their respective front and back surfaces. The insulating-gas used was 100% pure argon gas confined to a 12 mm thickness. The 300 mm thick frame was made of polyvinyl chloride (PVC) and was injected with urethane to minimize heat loss.

U-values of the said triple-pane windows were obtained based on properties of the above-listed constituent elements, as given in

Table 5. Heat transmittance of the triple-pane window (U-value).

Type of System	Field	Input Value
Glazing system	Total pane thickness (6 + 6 mm)	18 (mm)
	Total gas layers thickness (12 + 12 mm)	24 (mm)
	Spacer type (12 + 12 mm)	Aluminum spacer with desiccant
	Total glazing thickness	42 (mm)
Frame system	Total frame thickness	300 (mm)
Triple pane window	Thermal transmittance (U-Value)	1.101 (W/m2·°C)
	Domestic standard	1.200 (W/m2·°C)

. The total pane and gas-layer thicknesses measured 18 and 24 mm, respectively. The thickness of the spacer, which was composed of aluminum infused with a desiccant, installed between the panes measured 12 mm—identical to that of the gas layer. The total thickness of the glazing system, including the panes, gas layers, and spacers, measured 42 mm, and the total thickness of the frame equaled 300 mm. To calculate the overall U-value, surface heat-transfer coefficients of 23.3 and 9.1 W/m²·°C were applied to reflect domestic standards for indoor and outdoor temperatures of 20 and 0 °C, respectively [31,34]. The resulting U-value of the triple-pane window under these conditions was determined to be 1.101 W/m²·°C.

2.2.4. Phase Change Material

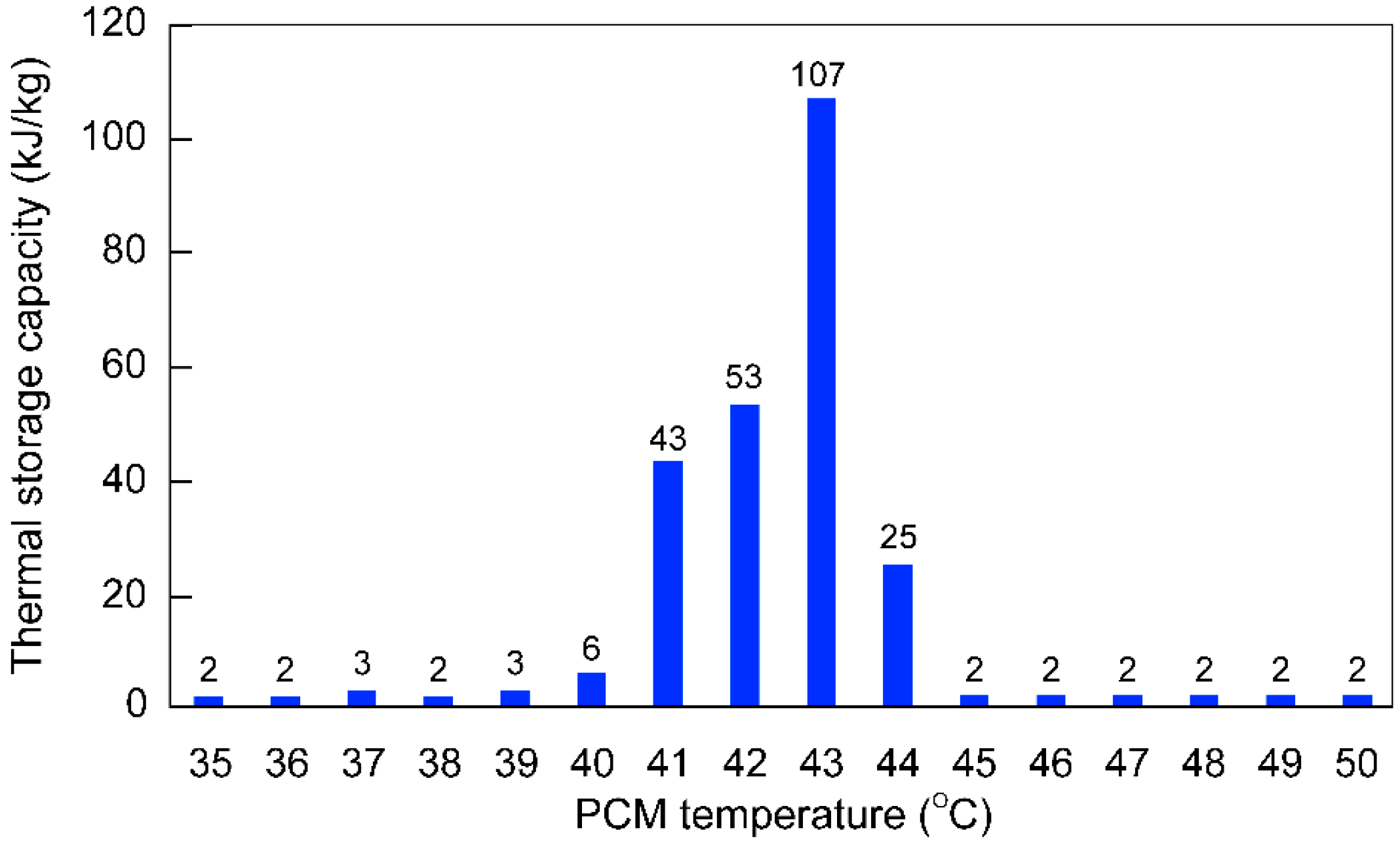

The PCM inserted into the floor structure of the second story was of the solid–liquid type that undergoes phase change via latent heat exchange, which occurs within the temperature range 39–42 °C [35]. As depicted in Figure 9, modeling of the inserted PCM in EnergyPlus required the heat-storage capacities to be input corresponding to 15 temperatures, including those lying within the sensible- and latent-heat-exchange temperature ranges of the PCM. Within the 34–38°C range, the PCM demonstrated solid-state sensible heat exchange, wherein the temperature changes were observed. The corresponding heat-storage capacity within this temperature range equaled 3–9 kJ/kg. In contrast, the heat storage capacity in the 39–42 °C temperature range, wherein the PCM demonstrated phase change from solid to liquid, assumed values in the range of 22–37 kJ/kg. The temperature range to which the PCM demonstrated maximum heat storage was observed to be 41–42 °C, above which the heat-storage capacity plummeted to only 2 kJ/kg, and the system became stable in the fully liquid state.

2.2.5. Indoor Heat-Gain and Heat-Loss Elements

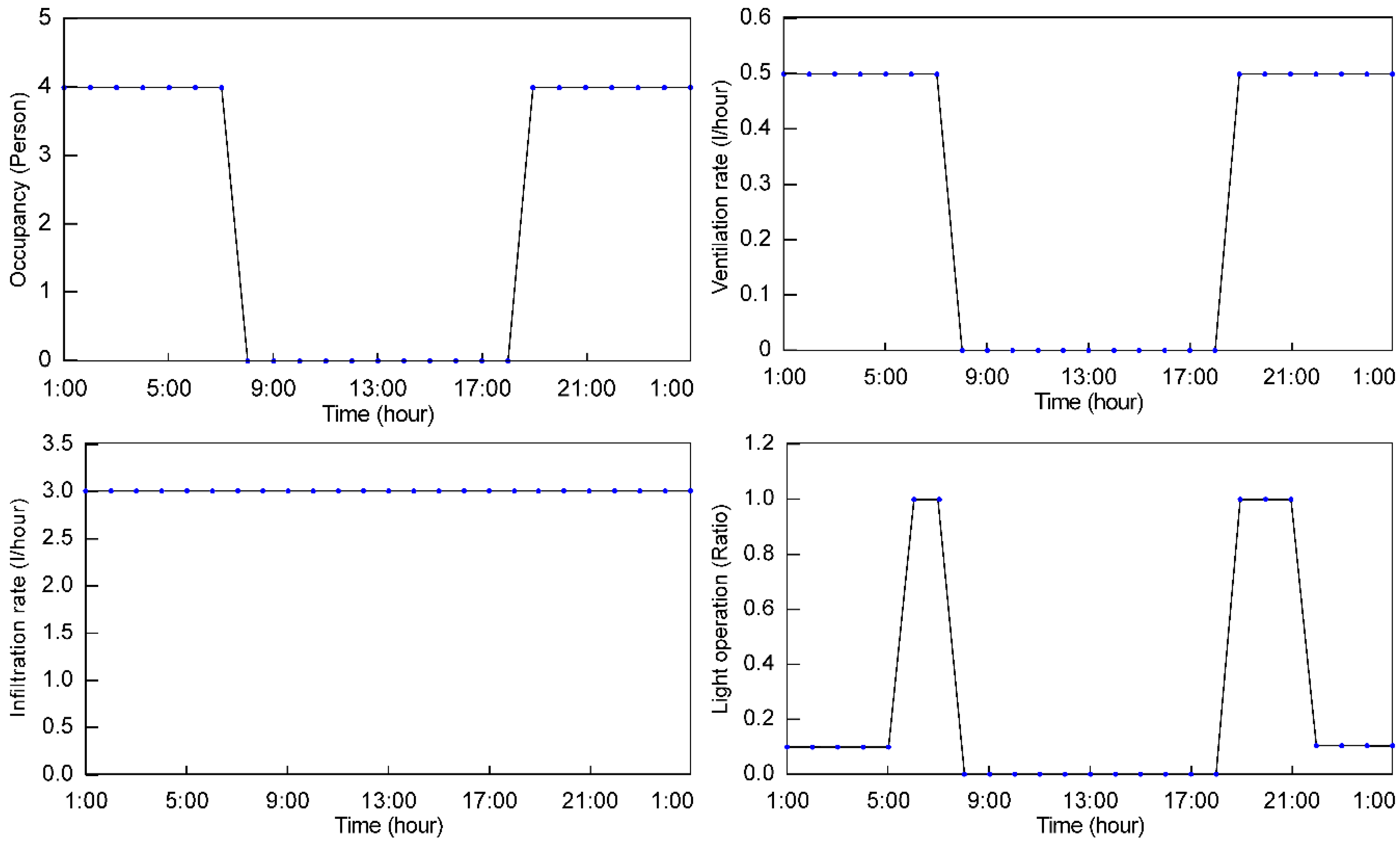

Figure 10 depicts schedules of indoor heat gain and loss elements employed in simulations performed in this study. These schedules corresponded to a resident family of four—the most common number of family members in domestic Korean households [36]. The occupancy time considered was between 18:00 h and 08:00 h the following day, and it was assumed that no occupants were present within the house at other times.

A ventilation rate of 0.5 air change per hour was used based on the domestic standard “Rules for Building Equipment Standards” [16]. In accordance with “Building Airtightness Criteria,” domestic buildings, based on their infiltration rates, are classified as general buildings (5.0 air change per hour or lower), energy-saving buildings (3.0 air change per hour or lower), and zero-energy buildings (1.0 air change per hour or lower) [37]. The simulated apartment housing was assumed to be of the energy-saving building type with a target ventilation rate of 3.0 air change per hour.

EnergyPlus models light operation using a number between 0 and 1 to reflect occupant activity. The maximum value of 1 was applied between 18:00 h and 22:00 h as well as between 05:00 h and 08:00 h, assuming these to be times of maximum occupant activity. A minimum value of 0.1 was applied between 22:00 h and 05:00 h to reflect sleep periods. No lighting was used between 08:00 h and 18:00 h, as no occupants were assumed to be present during this period.

The heat gains caused by human presence and the operation of electric equipment were excluded from the simulation, as these do not cast a significant effect on the heating load in a four-person occupied apartment.

2.2.6. District Heating

District heating was employed as the heat-source supply system for the proposed PCM radiant floor-heating system. Figure 11 depicts a conceptual diagram of hot-water circulation via direct supply method, as applied during simulations performed in this study.

When supplied to the building, high-temperature hot water produced by a district heating plant is converted into mid-temperature hot water by means of a heat exchange unit and subsequently returned to the plant. The unit also converts low-temperature hot water obtained from the building to mid-temperature hot water, and resupplies it to the building. During the heating period, hot water is circulated via repeated transfers between the district heating plant and apartment building.

In accordance with domestic standards, supply and return temperatures of hot water from and to the district heating plant (supply side) equal 115 and 55 °C, respectively. Corresponding supply and return temperatures for an apartment building (demand side) equal 60 and 45 °C, respectively [24,25]. However, because the second-floor PCM radiant floor-heating system possesses structural and thermal characteristics that differ from those of conventional systems, it was deemed inappropriate to consider the said standard supply and return temperatures for use in this study, and therefore, new PCM floor-heating hot-water temperatures had to be investigated.

To accomplish this objective, results concerning various values of building hot-water supply and return temperatures were modeled against constant district heating plant supply and return temperatures of 115 and 55 °C, respectively. The supply temperature was sequentially decreased in steps of 1 °C, from the conventional temperature of 60 °C, until the floor-surface and indoor-air temperatures attained the pre-set value; the return temperature was then calculated by the flow controller, considering changes in the floor-surface temperature as well as the indoor and outdoor temperatures.

Table 6. District heating components.

Loop Type	Field		Input Value
District heating plant loop	Heating source		Hot water
	Heating capacity		1 (MW)
	Maximum flow rate		Autosize (m3/s)
Apartment housing loop	Hydronic Pump	Pipe inside diameter	0.015 (m)
		Maximum flow rate	Autosize (m3/s)
		Head pressure	200 (kPa)
		Motor efficiency	0.9
		Control type	Intermittent
	Hot-water pipe	Inside diameter	0.015 (m)
		Heat loss	Adiabatic
	Bypass	Inside diameter	0.015 (m)
		Heat loss	Adiabatic

lists the components used to connect the apartment housing and district heating plant in the EnergyPlus model. The district heating plant used hot water as a heat source, and possessed a maximum plant capacity of 1 MW to ensure the supply of a sufficient amount of hot water. An insulation condition with no heat loss from the surface was considered for all pipes.

Devices used for district heating within the apartment included a hydronic pump, a hot-water pipe, and a bypass. The pipe connected to the hydronic pump measured 15 mm in internal diameter, and a pump head pressure of 200 kPa was used to ensure that the hot water reached the third story of the building. A maximum motor efficiency of 90% was considered along with an intermittent pump control assembly, to automatically control the flow rate of hot water in accordance with the floor-surface and indoor-air temperatures. The hot-water pipe was assumed to incur no heat loss. The internal diameter and heat loss of the bypass were set to be identical to those of the hot-water pipe.

2.2.7. Heating Operation Conditions

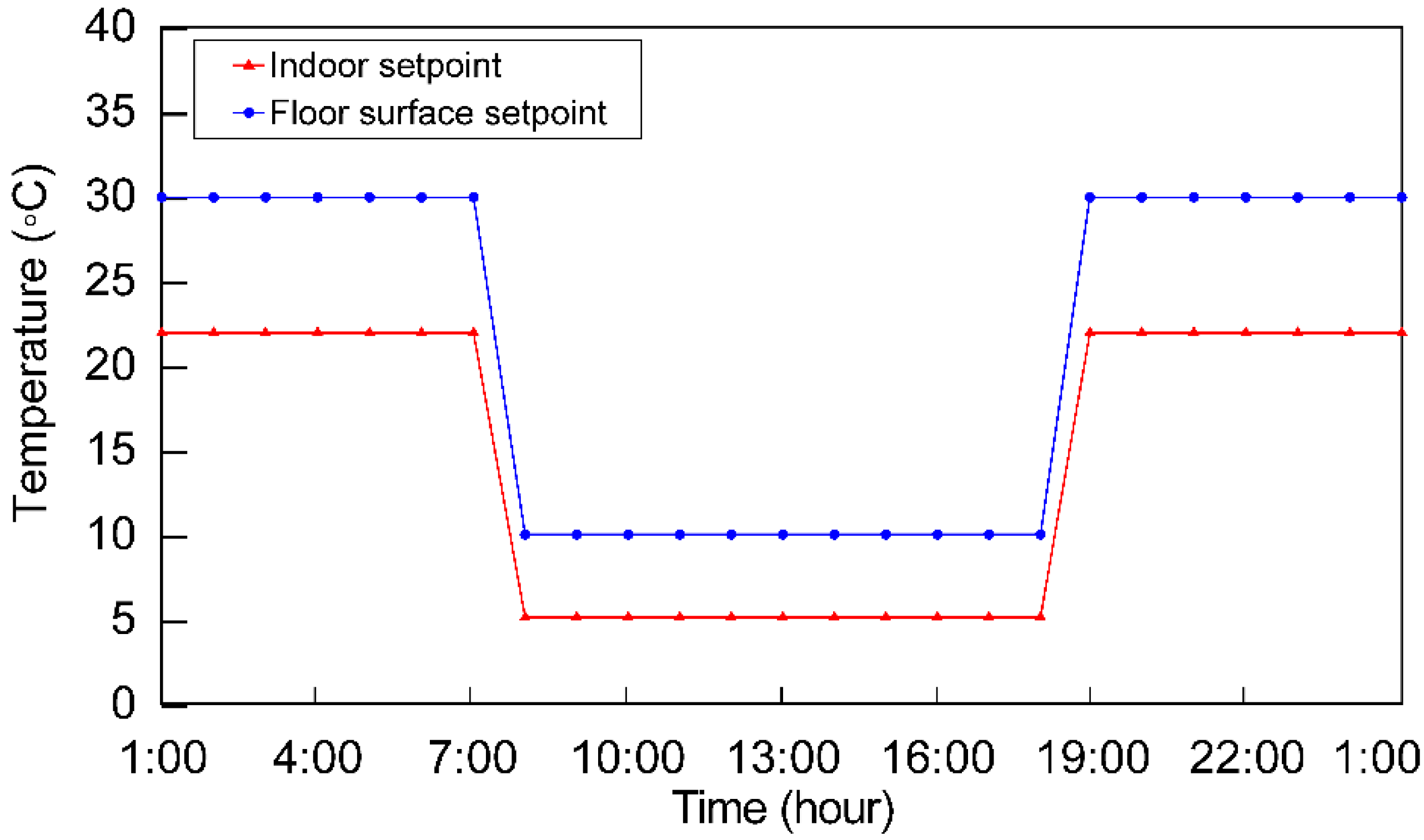

Based on domestic regulations and the results reported in extant studies [31,38], floor-surface and indoor-air temperatures of the apartment housing were set to 22 and 30 °C, respectively.

As described in Section 2.2.5, heating hours corresponded to the duration between 18:00 h to 08:00 h the following day, during which no occupants were assumed present inside the house, whereas non-heating hours corresponded to 08:00 h to 18:00 h (Figure 12). The non-heating hours were set such that the floor-surface and indoor-air temperatures would not drop below 5 and 10 °C, respectively.

3. Results and Discussion

The scope of the analysis was limited to the second story, wherein the proposed PCM radiant floor-heating system was installed. Simulations were performed for the period between 26 and 28 January, during which the outdoor temperature typically attains its lowest annual value. All conditions, including the building structure as well as the indoor and outdoor environment, were kept constant while reducing the hot-water supply temperature from 60 °C in steps of 1 °C.

3.1. Hot-Water Supply Temperature

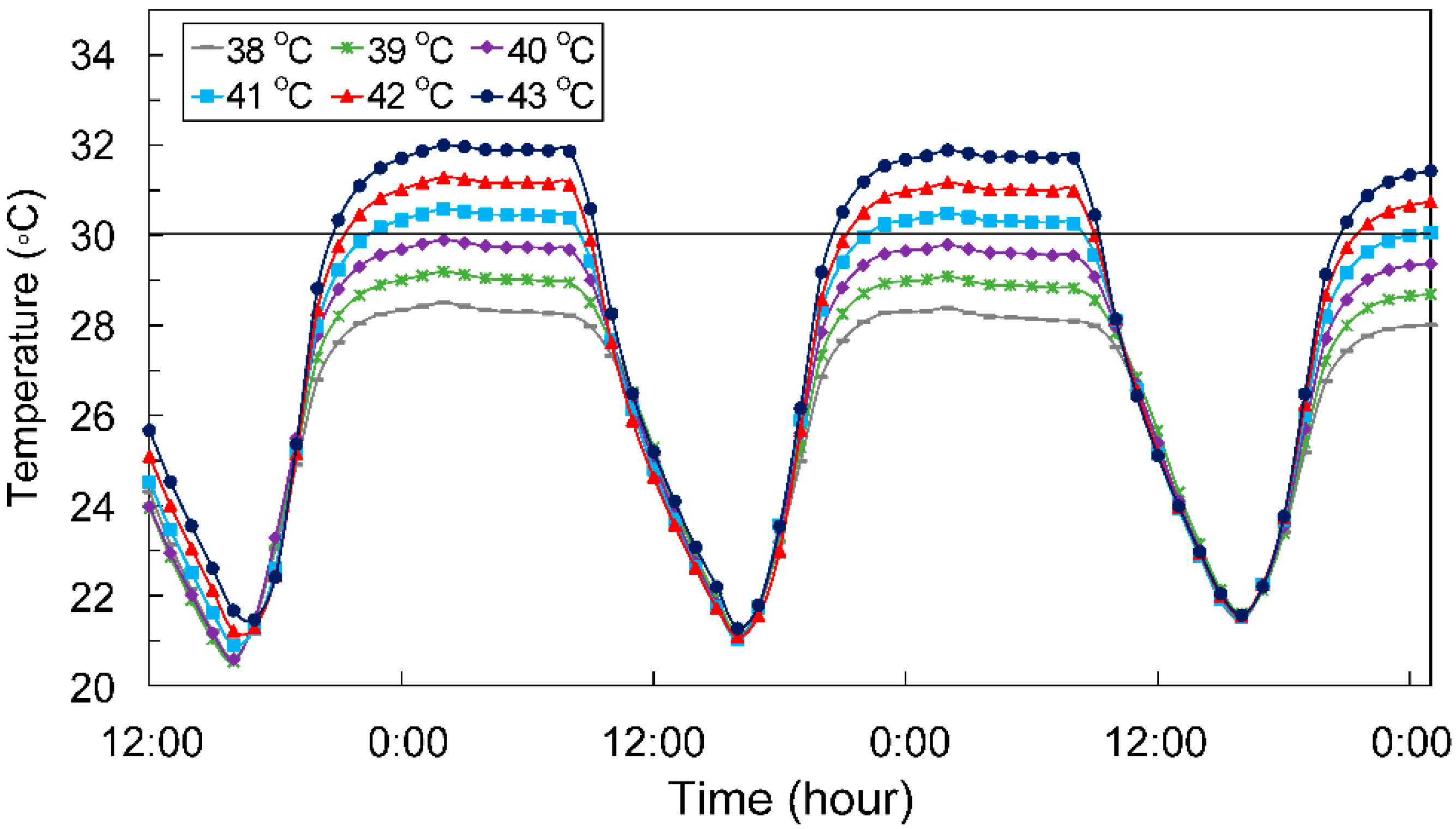

Figure 13 depicts the hourly variation in floor-surface temperatures, at various hot-water supply temperatures, lying within the range 38–43 °C. In each case, following heating at 18:00 h, the floor-surface temperature attained a stable state (represented by nearly straight-line segments in the diagram) at approximately 21:00 h. The period between 18:00 h and 21:00 h can, therefore, be considered as the preheating time during which the floor-surface temperature remains unstable. Consequently, the actual period of surface-temperature analysis was from 21:00 h on 26 January to 08:00 h on 27 January and from 21:00 h on 27 January to 08:00 h on 28 January, during which the floor-surface temperature remained nearly constant.

At a hot-water supply temperature of 38 °C, the floor-surface temperature was observed to be in the range 28–28.5 °C during the period from 21:00 h on 26 January to 08:00 h on 27 January. Correspondingly, between 21:00 h on 27 January and 08:00 h on 28 January, the floor-surface temperature measured in the range 28.1–28.4 °C. During the entire simulation period at the said hot-water temperature, the floor-surface temperature was observed to measure less than the pre-set value of 30 °C by 1.5–2.0 °C.

At a hot-water supply temperature of 39 °C, the floor-surface temperature measured 28.2–29.2 °C during the period from 21:00 h on 26 January to 08:00 h on 27 January. Correspondingly, between 21:00 h on 27 January and 08:00 h on 28 January, the floor-surface temperature measured in the range 28.3–29.1 °C. Consequently, during the entire simulation period the floor-surface temperature measured 0.8–1.8 °C lower than the corresponding pre-set value.

At a hot-water supply temperature of 40 °C, the floor-surface temperature measured 28.8–29.9 °C during the period from 21:00 h on 26 January to 08:00 h on 27 January. Correspondingly, between 21:00 h on 27 January and 08:00 h on 28 January, the floor-surface temperature measured in the range 28.8–29.8 °C. In particular, the floor-surface temperature measured in the range 28.8–29.3 °C—slightly lower than the pre-set value—between 21:00 h and 23:00 h. However, after 23:00 h, the floor-surface temperature measured 29.6–29.9 °C, which was very close to (within 0.1–0.4 °C of) the pre-set temperature.

At a hot water supply temperature of 41 °C, the floor-surface temperature measured in the range 29.2–30.6 °C between 21:00 h on 26 January and 08:00 h on 27 January; correspondingly, the floor-surface temperature measured 29.4–30.5 °C between 21:00 h on 27 January and 08:00 h on 28 January. Although during certain hours the floor-surface temperature exceeded the pre-set value (by roughly 0.5–0.6 °C), the floor-surface temperature, for the most part, measured very close to the pre-set value (within 0.5 °C).

At a hot-water supply temperature of 42 °C, the floor-surface temperature measured in the range 29.8–31.3 °C between 21:00 h on 26 January and 08:00 h on 27 January; correspondingly, the floor-surface temperature measured 29.9–31.2 °C between 08:00 h on 27 January to 08:00 h on 28 January. In general, after 21:00 h, the floor-surface temperature was observed to exceed its pre-set value by 0.5–1.3 °C.

At a hot-water supply temperature of 43 °C, the floor-surface temperature measured in the range 30.5–32.0 °C between 21:00 h on 26 January and 08:00 h on 27 January; correspondingly, the floor-surface temperature measured 30.5–31.9 °C between 18:00 h on 27 January and 08:00 h on 28 January. In this case, the floor-surface temperature was observed to be quite different from its pre-set value at all times.

In terms of the average temperature, at all heating times excluding the preheating hours, the average temperature of the floor surface measured 28.2, 28.9, 29.6, 30.2, 30.9, and 31.6 °C corresponding to hot-water supply temperatures of 38, 39, 40, 41, 42, and 43 °C, respectively. At supply temperatures of 38 and 39 °C, the floor-surface temperature did not attain its pre-set value, whereas at supply temperatures of 42 and 43 °C, the floor-surface temperature measured higher compared to its pre-set value. However, at supply temperatures of 40 and 41 °C, the floor-surface temperature consistently measured close to its pre-set value.

In summary, supplying hot water at or below 39 °C to the radiant floor-heating system resulted in a floor-surface temperature below it pre-set value of 30 °C, corresponding to the PCM that undergoes phase change above 39 °C. This causes the PCM to either remain solid in the cooling state or to fail to undergo full liquefaction. Under this condition, occupants may feel discomfort owing to a low floor-surface temperature, and the energy saving effect might not be realized as the latent heat of the PCM can no longer be utilized.

On the other hand, supplying hot water at 42 °C or higher leads to situations wherein the floor surface could overheat, thereby resulting in supply of unnecessary thermal energy to the indoor space and potential liquefaction of PCM beyond latent heat exchange. In addition to increasing the room temperature beyond an unnecessary level, such overheating could lead to structural problems caused by the generation of fine cracks within the ALC and mortar surrounding the PCM container, owing to increased pressure and volume within the container.

The above results suggest that the most appropriate hot-water supply temperature for radiant floor-heating systems, installed with a 10 mm thick PCM layer, lies in the range 40–41 °C. By maintaining the supply temperature within this range, the latent heat exchange of the PCM can be appropriately utilized, and the floor-surface temperature can be maintained at its pre-set value.

3.2. Return Temperature of Hot Water

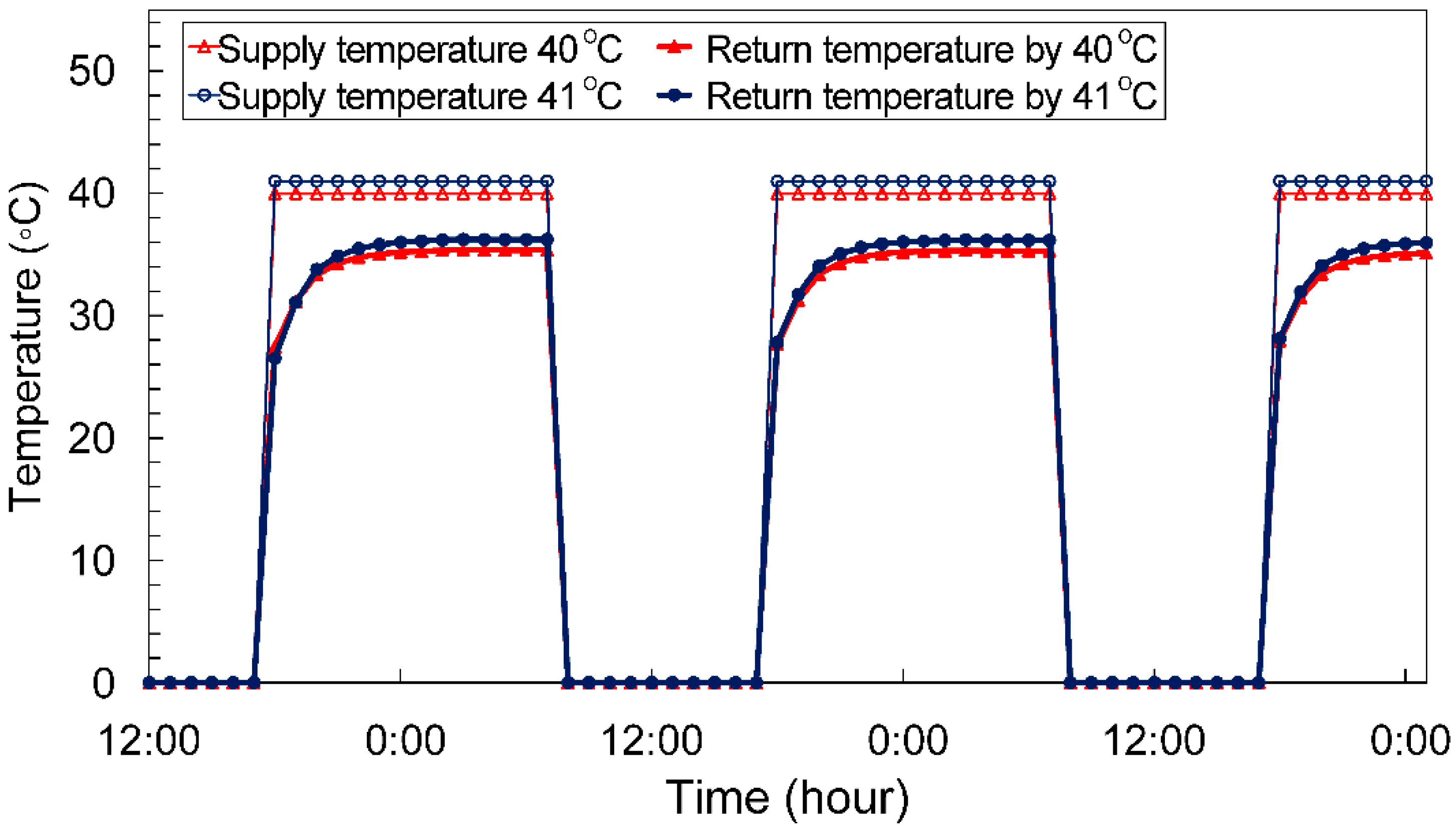

Figure 14 depicts hourly variations in the return temperatures of hot water supplied at 40 and 41 °C to the PCM radiant floor-heating system between 26 and 28 January.

At the hot-water supply temperature of 40 °C, the corresponding return temperature measured in the range 27.4–35.4 °C between 18:00 h on 26 January and 08:00 h on 27 January; correspondingly, the return temperature measured 27.6–35.3 °C between 18:00 h on 27 January and 08:00 h on 28 January. The return temperature measured the lowest between 18:00 h and 21:00 h because a large quantity of thermal energy had to be supplied to raise the temperature of the floor—which had cooled during the non-heating hours-up to the pre-set value. In contrast, after 21:00 h, the return temperature remained approximately constant, as the floor-surface temperature had nearly attained the pre-set temperature. This result suggests an optimum return-temperature value of 27.4 °C, the lowest value measured over the course of the simulation.

At a hot-water supply temperature of approximately 41 °C, the return temperature measured in the range 27.5–36.2 °C between 18:00 h on 26 January and 08:00 h on 27 January; correspondingly, the return temperature measured 27.8–36.2 °C between 18:00 h on 27 January and 08:00 h on 28 January. Thus, a pattern similar to that observed at a hot-water supply temperature of 40 °C was observed. That is, the return temperature remained nearly constant in the range 27.5–36.2 °C across heating hours. This suggests an optimal return-temperature value of 27.5 °C for the hot-water supply at 41 °C.

3.3. Indoor-Air Temperature

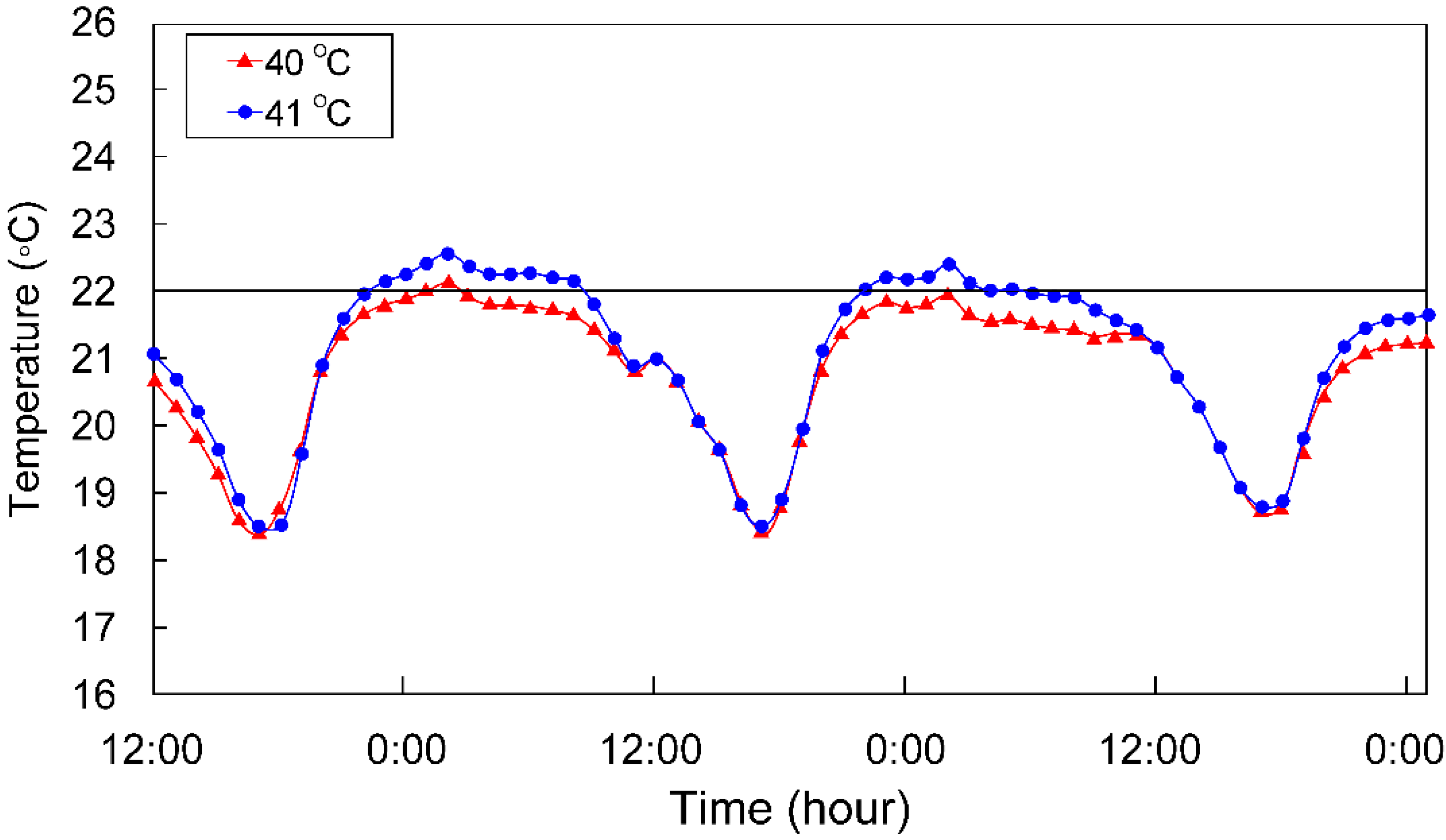

Figure 15 depicts hourly variations in the indoor-air temperatures corresponding to hot-water supply and return temperatures in the range 40–41 °C and 27.4–27.5 °C, respectively, in the PCM radiant floor-heating system during the period from 26–28 January.

At hot-water supply and return temperatures of 40 and 27.4 °C, respectively, the indoor-air temperature measured in the range 18.7–22 °C between 18:00 h on 26 January and 08:00 h on 27 January; correspondingly, the return temperature measured 18.8–21.9 °C between 18:00 h on 27 January and 08:00 h on 28 January. Excluding preheating hours from 18:00 to 22:00 h, based on above results, the indoor-air temperature was observed to fall within the range 21.6–22.1 °C (i.e., within 0.1–0.6 °C of its pre-set value of 22 °C). The indoor-air temperature was stabilized approximately one hour after the floor-surface temperature, thereby apparently reflecting the time needed for heat to be transferred from the floor-surface to the indoor space.

At supply and return temperatures of 41 and 27.5 °C, respectively, the indoor-air temperature outside of preheating hours measured in the range 22.0–22.6 °C between 22:00 h on 26 January and 08:00 h on 27 January; correspondingly, the return temperature measured 22.1–22.4 °C between 22:00 h on 27 January and 08:00 h on 28 January. Under these hot-water conditions, the indoor-air temperature followed a pattern similar to that observed for supply and return temperatures of 40 and 27.4 °C, respectively, and remained within 0.1–0.6 °C of the 22 °C pre-set value.

In summary, outside of the preheating hours (18:00–22:00 h), setting the hot-water supply and return temperatures in the range 40–41 °C and 27.4–27.5 °C, respectively, resulted in steady maintenance of the indoor-air temperature within 0.1–0.6 °C of the 22 °C pre-set value.

4. Conclusions

The proposed study determines optimum hot-water supply and return temperatures for a PCM radiant floor-heating system. To this end, computer simulations were performed to derive hot-water supply and return temperatures that could stably maintain floor-surface and indoor-air temperatures, close to their respective pre-set values, through use of the latent heat of the PCM during the coldest period of outdoor temperatures. Results of this study are summarized hereunder.

(1)

The optimum hot-water supply temperature, for maintaining floor-surface and indoor-air temperatures close to their pre-set values using a wet-constructed PCM radiant floor-heating system containing a 10 mm thick PCM layer, lies in the range 40–41 °C. If hot water is supplied at or below 39 °C or at or above 42 °C, the floor-surface temperature cannot be maintained at its pre-set value, and the latent heat of the PCM cannot be effectively utilized, thereby resulting in the compromised energy-saving capability of the proposed system.

(2)

The optimum hot-water return temperature under very cold conditions (i.e., at minimum annual temperatures) was determined to be the lowest temperature of hot-water returned from the floor during heating hours. Simulations were performed corresponding to hot-water supply and return temperatures in the range 40–41 °C and 27.4–27.5 °C, respectively. However, it should be noted that the difference between the two hot-water supply temperatures was only 1 °C and, therefore, a minimum difference of 0.1 °C in return temperatures should not be surprising.

(3)

Under the supply and return temperature conditions described in (2), the system was analyzed to determine whether the indoor-air temperature attained its pre-set value of 22 °C. As observed, the indoor-air temperature measured in the range 18.7–22.6 °C during heating hours, and that when preheating hours were exchanged, the above range was narrowed down to ±0.6 °C around the pre-set value (i.e., the indoor-air temperature measured in the range 21.4–22.6 °C).

(4)

The proposed radiant floor-heating system comprised a 10 mm thick PCM layer, concrete slabs, insulating material, ALC, and mortar. For floor structures and PCM thicknesses differing from these, processes and analysis techniques described in this study could be used as reference for determining corresponding optimum hot-water supply and return temperatures.

This study has been built upon extant work performed with regards to deriving an optimum design of a PCM radiant floor-heating system, with appropriate hot-water supply and return temperatures for maintaining the floor-surface and indoor-air temperatures at their respective pre-set values. When employing the actual system within the floor structure of an apartment building under such conditions, it will be necessary to examine how much energy saving can be realized relative to conventional systems. To do so, a follow-up study will be performed to compare the energy consumption of a conventional system against that of the proposed PCM radiant floor-heating system built in accordance with the wet construction method.
