Engineering of Nanofibrous Amorphous and Crystalline Solid Dispersions for Oral Drug Delivery

by
Laura Modica de Mohac
1,2,
Alison Veronica Keating
2,
Maria De Fátima Pina
3 and
Bahijja Tolulope Raimi-Abraham
2,*
1
DIBIMIS Department, University of Study of Palermo, 90128 Palermo, Italy
2
Drug Delivery Group, Institute of Pharmaceutical Science Faculty of Life Sciences and Medicine, King’s College London, London SE1 9NH, UK
3
Department of Pharmaceutics, University College London School of Pharmacy, London WC1N 1AX, UK
*
Author to whom correspondence should be addressed.
Pharmaceutics 2019, 11(1), 7; https://doi.org/10.3390/pharmaceutics11010007
Submission received: 22 June 2018 / Revised: 12 October 2018 / Accepted: 19 October 2018 / Published: 24 December 2018
(This article belongs to the Special Issue Electrospun and Electrosprayed Formulations for Drug Delivery)

Abstract

:
Poor aqueous solubility (<0.1 mg/mL) affects a significant number of drugs currently on the market or under development. Several formulation strategies including salt formation, particle size reduction, and solid dispersion approaches have been employed with varied success. In this review, we focus primarily on the emerging trends in the generation of amorphous and micro/nano-crystalline solid dispersions using electrospinning to improve the dissolution rate and in turn the bioavailability of poorly water-soluble drugs. Electrospinning is a simple but versatile process that utilizes electrostatic forces to generate polymeric fibers and has been used for over 100 years to generate synthetic fibers. We discuss the various electrospinning studies and spinneret types that have been used to generate amorphous and crystalline solid dispersions.

Graphical Abstract

1. Introduction

Approximately 40% of marketed oral drugs are categorized as having poor aqueous solubility (i.e., <0.1 mg/mL) [1] resulting in a significant challenge in drug development. Several formulation strategies such as co-crystals [2], salt formation [3], particle size reduction [4], and more commonly, solid dispersion (SD) approaches [5,6,7] have been employed to increase aqueous solubility (and in turn enhance the oral bioavailability) of Biopharmaceutics Classification System (BCS) II (i.e., low solubility and high permeability) and IV (i.e., low solubility and permeability) drugs.
SDs have been redefined several times over time. For example, in 1961, Sekiguchi and Obi suggested that when the drug was formulated as a SD, it was present in a microcrystalline state as a eutectic mixture i.e., a combination of crystalline components (drug and a carrier) that are miscible in the molten liquid state, but show little to no miscibility in the solid state and on cooling would crystallize as two components [8]. Later, Chiou and Riegelman (1971) referred to SDs as a dispersion of one or more active ingredients present within an inert carrier or matrix in the solid state prepared by the melting (fusion), solvent-based, or melting-solvent method [9]. This was further defined by Lerner et al. (2000) as a dispersion in which the drug is only partially molecularly dispersed and is generated from physical mixtures of the carrier and drug [10]. In 2002, Craig described SDs as a delivery system whereby the drug is dispersed in a biologically inert matrix, to enhance oral bioavailability [11]. A range of materials are used as the inert matrix or carrier in a SD ranging from sugars [12,13], wax based systems [14] and, more commonly, polymers.
There are several hypotheses regarding the mechanism of drug release from SD systems amorphous and crystalline alike. The most agreed hypothesis is the existence of two different mechanisms of drug release, carrier-controlled or drug-controlled (Figure 1). This hypothesis is based on key findings by Corrigan et al. [15] in their drug release study of a phenobarbitone-(poly)ethylene glycol (PEG) SD where the rate of phenobarbitone release from the SD was the same as that of PEG on its own. Craig [11] further suggested that, if a system underwentcarrier-controlled dissolution then the physical properties such as initial particle size of the drug or crystallinity should be largely irrelevant. In comparison with drug-controlled dissolution, the physical property of the drug as well as its solubility is of greater relevance [11], highlighting the potential of SDs to enhance drug dissolution rate through a preferential selection of the appropriate carrier (in this case polymer) or a combination of carrier and carrier types (e.g., wax and polymers polymer blends [14]).
In most cases where SDs are generated, a comparison is made with the physical mixture (PM). The PM is essentially where the drug and carrier are not chemically combined through a process but prepared through gentle or mild mixing. To ensure drug release compared to SD is not influenced by additional factors such as particle size, it is good practice for both drug and carrier to be passed through a dry sieve of known aperture so any effects observed are due entirely to the properties of the PM. Examples in the literature exist that demonstrate enhanced drug release of a PM compared to its SD counterpart. For example Leonardi and Salomon (2013) PM of benznidazole and PEG 6000 offered greater dissolution compared to it a SD prepared by a solvent method [16].
SDs have been characterized into two main classifications, firstly in accordance to carrier type and secondly taking into account the correlation to stability and solubility, preparation, and characterization techniques [17].
When classifying SDs by carrier type, there are four generations that have been discussed and explored in the literature. The first generation SDs were introduced by Sekiguchi and Obi as eutectic mixtures where both drug and carrier were present in the crystalline state [18]. Second generation SDs were carriers are generally polymeric and present in the amorphous state with the drug dispersed molecularly within the inert matrix. The drug is generally supersaturated to ensure its solubilization in the carriers in second generation SDs [19]. Third generation SDs were the carriers can be a co-polymer system or a mixture of surfactants and polymers and improvement of the drug release profile is due to the carrier’s surface activity or self-emulsifying properties which in addition could reduce drug re-crystallization and improve SD stability [20]. Finally, fourth generation SDs are the carriers are bifunctional in nature and have solubilizing as well as surfactant properties [21]. The carriers are non-ionic and so the solubility is independent of pH changes making these carriers more suited for SD development. Soluplus®, a polyvinyl caprolactam-polyvinyl acetate-polyethylene glycol graft co-polymer solubilizer with an amphiphilic chemical structure has been highlighted as a fourth generation SD carrier [22].
When classifying SDs in accordance to their correlation to stability and solubility, preparation and characterization techniques, six classes have been identified [23]. Class C–C and Class C–A where the Active Pharmaceutical Ingredient (API) is present in the crystalline state are dispersed in either a crystalline or amorphous carrier respectively. Class C–C and C–A SDs are deemed stable, however, less soluble due to the crystalline nature of the API. Class A–C and Class A-A were the API is present in the amorphous state dispersed in either a crystalline or amorphous carrier. Class A–C and CC SDs are considered to increase API solubility enhancement, however, low miscibility is observed between the API and carrier has been highlighted as an issue. Class M–C and Class M–A are where the drug is molecularly dispersed within either a crystalline or amorphous carrier. These systems have been shown to greatly improve drug dissolution behavior with great physical stability due to the high miscibility and strong molecular interaction between the two components with the API being molecularly dispersed [23].
In this review, we discuss amorphous and crystalline SDs which we define as a system where the drug is molecularly dispersed with an amorphous polymer matrix and as a system where the micronized or nanosized crystalline drug is dispersed within an amorphous polymer matrix with or without the use of stabilizing agents respectively.
SD stability has been studied at length over the years and factors influencing can be summarized as follows: physical stability, crystallization tendency, amorphization, drug-polymer miscibility, dissolution enhancement, and method of preparation. Electrospinning is a rapid solvent evaporation method and is well suited for drugs with thermal instability and can avoid drug re-crystallization or amorphization during processing [24]. Many polymers have been used to prepare SDs such as poly(N-vinvylpyrrolidone) (PVP) [25], polyethylene glycol (PEG) [26], zein [27], hydroxypropyl methylcellulose (HPMC) [28,29], polycaprolactone [30], and polyacrylic acid [31], expanding the potential of processes used to make SDs from the traditional solvent-based methods [32,33], hot melt extrusion (HME) [34,35,36], spray-drying [22,37], to polymer-based nanofabrication methods such as electrospinning [38,39,40] and other centrifugal spinning based methods [12,13,41,42].
In this review, we focus primarily on the emerging trends in the generation of amorphous and crystalline SDs using nanofabrication techniques namely electrospinning to improve the dissolution rate and in turn bioavailability of poorly water-soluble drugs. It is important to note that there are more studies investigating the generation of electrospun nanofibrous amorphous solid dispersions than crystalline SDs suggesting that electrospun nanofibrous crystalline SDs are still a relatively under-investigated formulation strategy.

2. Nanofibrous Amorphous Solid Dispersions

Amorphous materials have higher enthalpy, entropy, and free energy compared to their crystalline counterparts, leading to higher apparent solubility. The weaker attractive intermolecular forces of amorphous materials are more easily broken, allowing molecules to move from the material’s surface into the medium greater ease compared to crystalline counterparts. As a result, amorphous materials are more soluble and have a faster dissolution rate. Unfortunately, even with such advantages the success and usefulness of amorphous materials in drug development is greatly dependent on their long stability within a dosage form [3,43,44]. Given the high solubility of amorphous compounds (compared to their crystalline counterparts), amorphous solid dispersions (ASDs) are an important strategy to improve the apparent solubility, dissolution rate, and in turn bioavailability of poorly water-soluble drugs [45].
Nanofibers possess a high surface area to volume ratio and have gained increased interest in drug delivery beyond their known application in areas such as tissue engineering scaffolds [46] or wound dressing for example [47]. Due to their high drug-loading capacity, internal architecture, porosity, and malleability the addition of therapeutically relevant molecules has several benefits. For further information on recent developments in the application of micro and nanofabrication techniques in drug delivery and on nanofibres in drug delivery, the reader is directed to a recent review by Qi and Craig [26].

2.1. Electrospinning

Electrospinning is a simple but versatile process that utilizes electrostatic forces to generate polymeric fibers and has been used for over 100 years to generate synthetic fibers [48,49,50]. Typically, electrospinning involves pushing a viscous polymer or polymer/drug solution through a spinneret (narrow gauge syringe needle) at a constant flow rate. A voltage is applied to the polymer solution, creating repulsive forces between the like charges in the solution and attractive forces between the charged solution and the grounded collector. When the electrostatic forces equal the surface tension of the liquid, a Taylor cone is formed. If the electric field is increased beyond this point, the electrostatic repulsion will exceed the surface tension and result in the ejection of a fiber jet from the apex of the cone which accelerates towards the grounded collector [51,52]. As the fiber jet accelerates towards the collector it undergoes chaotic whipping instability which increases the transit time and path length to the collector, allowing the solvent to evaporate leaving solid, thin fibers. Cheng et al. presented electrospinning as a novel processing method to generate functional nanomaterials with many applications ranging from wound healing and medical textiles, to production of oral-dispersible film SD and controlled delivery systems [27,53,54,55]. Electrospinning is a rapid solvent evaporation process well suited to amorphous materials as by this process the drug does not have time to form a crystal lattice within the nanofiber and remains distributed in its amorphous form at a molecular scale [56]. Additionally, the internal structure of the fibers themselves can be altered to be hollow or biphasic by using specific electrospinning approaches [57].

2.1.1. Mono-Axial Electrospinning

Mono-axial electrospinning is the simplest and as a result of this the most common electrospinning experiment. The polymer (and API) in solution or suspension is dispensed through a single-bore blunt-end needle resulting in a monolithic product, with the API and polymer typically evenly and homogeneously blended throughout the fibers [58].
In Verreck et al.’s study, Itraconazole-HPMC SDs were generated by electrospinning and properties of the resultant nanofibres were compared relative to other SD techniques namely HME and solvent casting with regards their dissolution behavior [59]. Though the dissolution methods varied for the different presentations, several apparent trends were observed. PMs of itraconazole and HPMC generated little (<1–3%) drug release in any of the dissolution approaches assessed. Interestingly, electrospun ASDs samples resulted in complete in vitroitraconazole release over but however, the dissolution rate was slower compared to the cast thin films, melt extruded and milled powders [59]. The authors concluded that for this drug-polymer system, there could be potential as a controlled drug delivery system. Nagy et al. compared the drug dissolution behavior of spironolactone-soluplus SDs generated by electrospinning to those prepared by HME with key findings confirming the generation of ASDs with the electrospun nanofibers showing enhanced drug dissolution behavior compared to the HME SDs [60,61].
PVP-acetaminophen SDs prepared by electrospinning generating non-woven nanofibrous meshes were compared to traditional SD preparation processes namely freeze drying, vacuum drying, and heat drying with an advantage of the electrospinning process over the traditional processes being the unique microstructural characteristics of the electrospun nanofibres generated. Freeze dried samples and electrospun fibers did not show any evidence of phase separation phenomenon which was evident in heat-dried and vacuum-dried samples which led to visible (in scanning electron microscopy studies) microparticles on the sample surfaces. The in vitro dissolution tests illustrated that the electrospun SDs nanofibers released 93.8% acetaminophen in the first 2 min and the dissolution rates of acetaminophen from the different SDs had the following order: electrospun > vacuum-dried ≈ freeze-dried > heating-dried [62]. They also highlighted [62] the advantage of third generation SDs (where the state the carrier has surface activity or self-emulsifying properties) and the potential for these to be generated using mono-axial electrospinning. Third generation SDs of ferulic acid in composite nanofibers with three-dimensional continuous web structure were generated by electrospinning co-dissolving solutions of ferulic acid, PVP with the surfactant sodium dodecyl sulfate (SDS) and sucralose. In vitro dissolution and permeation tests showed that the nanofiber-based SDs rapidly released all of the ferulic acid within in 1 min and had a 13-fold greater permeation rate across sublingual mucosa compared to crude ferulic acid particles [63,64].

2.1.2. Coaxial and Multi-Axial Electrospinning

Coaxial electrospinning (also known as co-electrospinning) involves the use of a two-needle spinneret, with one needle nested inside another in a concentric fashion. Fires generated tend to have greater versatility in terms of the range of materials used, therapeutic agents incorporated (ranging from small molecules to biological molecules), size (e.g., from 100 nm to 300 μm), and can offer complete drug encapsulation and higher drug stability compared to mono-axial fibers [58]. The use of coaxial and multi-axial electrospinning approaches has been applied in drug delivery with great success to generate biphasic [65], targeted release [66,67] and multifunctional materials [68] as well as SDs. Yang et al. [69] explored three types of electrospinning namely coaxial, modified coaxial, and tri-axial (characterized by the use of un-spinnable liquids as the sheath working fluids) electrospinning to generate nanofibrous ferulic acid-cellulose acetate ASDs depot systems [69]. In vitro dissolution tests revealed that the fibers were able to provide close to zero-order release over 36 h, with no initial burst release and minimal tailing-off. The release properties of the depot systems generated showed improved properties over the monolithic fibers, which exhibited a significant burst release and also considerable tailing-off at the end of the drug release studies [69]. Tri-axial electrospinning has also been successfully used to fabricate nanofibres of lecithin (known to be un-spinnable), diclofenac sodium with Eudragit S100 a methacrylic acid/methyl methacrylate copolymer (which only dissolves at pH > 7.0) as the carrier matrix for oral colon targeting [70].

2.1.3. Others

Several other electrospinning systems exist which have been used to generate ASDs. The core-cut nozzle system where the exit pipe of the core nozzle is removed so that the core fluid can form an envelope inside the shell solution [71] has been shown to improve spinnability of two fluids by reducing jet instability. This system is also suitable for the production of multi-layered nanofibers where the drug is in the internal layer. Due to this, drug release is shown to start from the core then moving through to the external environment with applications as a controlled drug delivery system as the thickness of each layer can be tailored to vary the drug release [71]. Side-by-side electrospinning is a two-liquid process and the structure of the spinneret is propagated into the solid products creating Janus fibers with two different sides [72]. The different sides could hold two different polymers with two different drugs loaded resulting in concomitant drug release [73].
Unfortunately, in spite of the enormous research efforts both in academia and in industry very few ASDs products let alone nanofibrous ASDs have reached the market so far [74]. Works by Démuth et al. have successfully turned ASDs nanofibers into a viable nanofibrous ASDs solid dosage forms by compressing them into tablets with enhanced drug dissolution rates [75,76]. With promising work on-going in the field, there is the potential to have a commercially available nanofibrous ASD based dosage form.

3. Nanofibrous Micro/Nano-Crystalline Solid Dispersions

Due to the challenges associated with the stability of ASDs, there is a push to reconsider the crystalline state in the micron or nanoscale as an alternative method for SD production. It is well-known that the dissolution rate of smaller particles is greater due to the increased surface area in accordance with Noyes–Whitney equation and Nernst–Brunner theory [66,67,68]. Several investigations into drug particle size reduction [77,78,79] have shown that particle size reduction leads to increased drug solubility. It has also been demonstrated that a further increase in drug bioavailability is observed when the particle size of a drug is reduced from micrometer to nanometer [80].
Nanosuspensions are sub-micron colloidal dispersions of the drug, which are stabilized by surfactants [81]. This technology has shown great promise as a strategy to improve the dissolution rate of poorly soluble drugs by maintaining the drug in its preferred crystalline state of a size sufficiently small for pharmaceutical acceptability [82,83]. Major advantages of this technology are its general applicability to most drugs and its simplicity [80]. Solid micro/nano-crystalline dispersions have been generated using techniques such as film making [82,84], solvent casting method [32], spray drying [84,85], hot melt extrusion [25], and electrospinning [86].

4. Conclusions

In this review, we focused on the emerging trends in the generation of amorphous and micro/nano-crystalline solid dispersions using electrospinning to improve the dissolution rate and in turn the bioavailability of poorly water-soluble drugs. With electrospinning being a simple but versatile process, various studies have successfully generated mainly amorphous solid dispersions with few studies exploring the generation of crystalline solid dispersions. The scalability of electrospinning and its products for commercial drug delivery applications is a topic of great discussion and debate. The industrial upscaling of electrospinning and application of resultant fibers is discussed by Taylor et al. [86]. The electrospinning equipment market for laboratory research and industrial production is expected to grow significantly in the future due to the continuous development of new electrospinning technologies influenced by demand.

Funding

This research is funded by Universita degli Studi di Palermo DIBIMIS Department.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Vo, C.L.N.; Park, C.; Lee, B.J. Current trends and future perspectives of solid dispersions containing poorly water-soluble drugs. Eur. J. Pharm. Biopharm. 2013, 85, 799–813. [Google Scholar] [CrossRef] [PubMed]
  2. Demetzos, C. Pharmaceutical Nanotechnology; Springer Singapore: Singapore, 2016; ISBN 978-981-10-0790-3. [Google Scholar]
  3. Serajuddln, A.T.M. Solid dispersion of poorly water-soluble drugs: Early promises, subsequent problems, and recent breakthroughs. J. Pharm. Sci. 1999, 88, 1058–1066. [Google Scholar] [CrossRef]
  4. Loh, Z.H.; Samanta, A.K.; Sia Heng, P.W. Overview of milling techniques for improving the solubility of poorly water-soluble drugs. Asian J. Pharm. Sci. 2015, 10, 255–274. [Google Scholar] [CrossRef]
  5. Paudel, A.; Worku, Z.A.; Meeus, J.; Guns, S.; Van den Mooter, G. Manufacturing of solid dispersions of poorly water soluble drugs by spray drying: Formulation and process considerations. Int. J. Pharm. 2013, 453, 253–284. [Google Scholar] [CrossRef] [PubMed]
  6. Shah, N.; Iyer, R.M.; Mair, H.-J.; Choi, D.; Tian, H.; Diodone, R.; Fahnrich, K.; Pabst-Ravot, A.; Tang, K.; Scheubel, E.; et al. Improved human bioavailability of vemurafenib, a practically insoluble drug, using an amorphous polymer-stabilized solid dispersion prepared by a solvent-controlled coprecipitation process. J. Pharm. Sci. 2013, 102, 967–981. [Google Scholar] [CrossRef] [PubMed]
  7. Huang, Y.; Dai, W.-G. Fundamental aspects of solid dispersion technology for poorly soluble drugs. Acta Pharm. Sin. B. 2014, 4, 18–25. [Google Scholar] [CrossRef]
  8. Sekiguchi, K.; Obi, N. Studies on absorption of eutectic mixture I. A comparison of the behaviour of eutectic mixture of sulfathiazole and that of ordinary sulfathiazole in man. Chem. Pharm. Bull. 1961, 9, 866–872. [Google Scholar] [CrossRef]
  9. Chiou, W.L.; Riegelman, S. Pharmaceutical applications of solid dispersion systems. J. Pharm. Sci. 1971, 60, 1281–1302. [Google Scholar] [CrossRef]
  10. Leuner, C.; Dressman, J. Improving drug solubility for oral delivery using solid dispersions. Eur. J. Pharm. Biopharm. 2000, 50, 47–60. [Google Scholar] [CrossRef]
  11. Craig, D.Q.M. The mechanisms of drug release from solid dispersions in water-soluble polymers. Int. J. Pharm. 2002, 231, 131–144. [Google Scholar] [CrossRef]
  12. Marano, S.; Barker, S.A.; Raimi-Abraham, B.T.; Missaghi, S.; Rajabi-Siahboomi, A.; Aliev, A.E.; Craig, D.Q.M. Microfibrous solid dispersions of poorly water-soluble drugs produced via centrifugal spinning: unexpected dissolution behavior on recrystallization. Mol. Pharm. 2017, 14, 1666–1680. [Google Scholar] [CrossRef] [PubMed]
  13. Marano, S.; Barker, S.A.; Raimi-Abraham, B.T.; Missaghi, S.; Rajabi-Siahboomi, A.; Craig, D.Q.M. Development of micro-fibrous solid dispersions of poorly water-soluble drugs in sucrose using temperature-controlled centrifugal spinning. Eur. J. Pharm. Biopharm. 2016, 103, 84–94. [Google Scholar] [CrossRef]
  14. Yan, H.-X.; Zhang, S.-S.; He, J.-H.; Liu, J.-P. Application of ethyl cellulose, microcrystalline cellulose and octadecanol for wax based floating solid dispersion pellets. Carbohydr. Polym. 2016, 148, 143–152. [Google Scholar] [CrossRef] [PubMed]
  15. Corrigan, O.I. Retardation of polymeric carrier dissolution by dispersed drugs: factors influencing the dissolution of solid dispersions containing polyethlene glycols. Drug Dev. Ind. Pharm. 1986, 12, 1777–1793. [Google Scholar] [CrossRef]
  16. Leonardi, D.; Salomon, C.J. Unexpected performance of physical mixtures over solid dispersions on the dissolution behavior of benznidazole from tablets. J. Pharm. Sci. 2013, 102, 1016–1023. [Google Scholar] [CrossRef] [PubMed]
  17. Sharma, P.K.; Panda, A.; Pradhan, A.; Zhang, J.; Thakkar, R.; Whang, C.-H.; Repka, M.A.; Murthy, S.N. Solid-state stability issues of drugs in transdermal patch formulations. AAPS PharmSciTech 2017, 19. [Google Scholar] [CrossRef] [PubMed]
  18. Vasconcelos, T.; Sarmento, B.; Costa, P. Solid dispersions as strategy to improve oral bioavailability of poor water soluble drugs. Drug Discov. Today 2007, 12, 1068–1075. [Google Scholar] [CrossRef]
  19. van Drooge, D.J.; Braeckmans, K.; Hinrichs, W.L.J.; Remaut, K.; De Smedt, S.C.; Frijlink, H.W. Characterization of the mode of incorporation of lipophilic compounds in solid dispersions at the nanoscale using fluorescence resonance energy transfer (FRET). Macromol. Rapid Commun. 2006, 27, 1149–1155. [Google Scholar] [CrossRef]
  20. Pouton, C.W. Formulation of poorly water-soluble drugs for oral administration: Physicochemical and physiological issues and the lipid formulation classification system. Eur. J. Pharm. Sci. 2006, 29, 278–287. [Google Scholar] [CrossRef] [PubMed]
  21. Khan, A.W.; Kotta, S.; Ansari, S.H.; Sharma, R.K.; Ali, J. Enhanced dissolution and bioavailability of grapefruit flavonoid Naringenin by solid dispersion utilizing fourth generation carrier. Drug Dev. Ind. Pharm. 2015, 41, 772–779. [Google Scholar] [CrossRef]
  22. Shamma, R.N.; Basha, M. Soluplus: A novel polymeric solubilizer for optimization of Carvedilol solid dispersions: Formulation design and effect of method of preparation. Powder Technol. 2013, 237, 406–414. [Google Scholar] [CrossRef]
  23. Meng, F.; Gala, U.; Chauhan, H. Classification of solid dispersions: correlation to (i) stability and solubility (ii) preparation and characterization techniques. Drug Dev. Ind. Pharm. 2015, 41, 1401–1415. [Google Scholar] [CrossRef] [PubMed]
  24. Kumar, B. Solid Dispersion—A Review. PharmaTutor 2017, 5, 24–29. [Google Scholar]
  25. Pina, M.F.; Zhao, M.; Pinto, J.F.; Sousa, J.J.; Craig, D.Q.M. The influence of drug physical state on the dissolution enhancement of solid dispersions prepared via hot-melt extrusion: A case study using olanzapine. J. Pharm. Sci. 2014, 103, 1214–1223. [Google Scholar] [CrossRef] [PubMed]
  26. Qi, S.; Craig, D. Recent developments in micro- and nanofabrication techniques for the preparation of amorphous pharmaceutical dosage forms. Adv. Drug Deliv. Rev. 2016, 100, 67–84. [Google Scholar] [CrossRef] [PubMed]
  27. Alhusein, N.; Blagbrough, I.S.; Beeton, M.L.; Bolhuis, A.; De Bank, P.A. Electrospun Zein/PCL fibrous matrices release tetracycline in a controlled manner, killing Staphylococcus aureus both in biofilms and ex vivo on pig skin, and are compatible with human skin cells. Pharm. Res. 2016, 33, 237–246. [Google Scholar] [CrossRef] [PubMed]
  28. Li, B.; Konecke, S.; Harich, K.; Wegiel, L.; Taylor, L.S.; Edgar, K.J. Solid dispersion of quercetin in cellulose derivative matrices influences both solubility and stability. Carbohydr. Polym. 2013, 92, 2033–2040. [Google Scholar] [CrossRef]
  29. Zidan, A.S.; Rahman, Z.; Sayeed, V.; Raw, A.; Yu, L.; Khan, M.A. Crystallinity evaluation of tacrolimus solid dispersions by chemometric analysis. Int. J. Pharm. 2012, 423, 341–350. [Google Scholar] [CrossRef]
  30. Alhusein, N.; De Bank, P.A.; Blagbrough, I.S.; Bolhuis, A. Killing bacteria within biofilms by sustained release of tetracycline from triple-layered electrospun micro/nanofibre matrices of polycaprolactone and poly (ethylene-co-vinyl acetate). Drug Deliv. Transl Res. 2013, 3, 531–541. [Google Scholar] [CrossRef]
  31. Alshahrani, S.M.; Lu, W.; Park, J.-B.; Morott, J.T.; Alsulays, B.B.; Majumdar, S.; Langley, N.; Kolter, K.; Gryczke, A.; Repka, M.A. Stability-enhanced hot-melt extruded amorphous solid dispersions via combinations of soluplus® and hpmcas-hf. AAPS PharmSciTech 2015, 16, 824–834. [Google Scholar] [CrossRef]
  32. Modica de Mohac, L.; de Fátima Pina, M.; Raimi-Abraham, B.T. Solid microcrystalline dispersion films as a new strategy to improve the dissolution rate of poorly water soluble drugs: A case study using olanzapine. Int. J. Pharm. 2016, 508, 42–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. De Caro, V.; Ajovalasit, A.; Sutera, F.M.; Murgia, D.; Sabatino, M.A.; Dispenza, C. Development and characterization of an amorphous solid dispersion of furosemide in the form of a sublingual bioadhesive film to enhance bioavailability. Pharmaceutics 2017, 9, 22. [Google Scholar] [CrossRef] [PubMed]
  34. Li, Y.; Pang, H.; Guo, Z.; Lin, L.; Dong, Y.; Li, G.; Lu, M.; Wu, C. Interactions between drugs and polymers influencing hot melt extrusion. J. Pharm. Pharmacol. 2014, 66, 148–166. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, K.; Yu, H.; Luo, Q.; Yang, S.; Lin, X.; Zhang, Y.; Tian, B.; Tang, X. Increased dissolution and oral absorption of itraconazole/Soluplus extrudate compared with itraconazole nanosuspension. Eur. J. Pharm. Biopharm. 2013, 85, 1285–1292. [Google Scholar] [CrossRef] [PubMed]
  36. Keating, A.V.; Soto, J.; Tuleu, C.; Forbes, C.; Zhao, M.; Craig, D.Q.M. Solid state characterisation and taste masking efficiency evaluation of polymer based extrudates of isoniazid for paediatric administration. Int. J. Pharm. 2018, 536, 536–546. [Google Scholar] [CrossRef] [PubMed]
  37. Davis, M.T.; Potter, C.B.; Mohammadpour, M.; Albadarin, A.B.; Walker, G.M. Design of spray dried ternary solid dispersions comprising itraconazole, soluplus and HPMCP: Effect of constituent compositions. Int. J. Pharm. 2017, 519, 365–372. [Google Scholar] [CrossRef] [PubMed]
  38. Qi, S.; Moffat, J.G.; Yang, Z. Early stage phase separation in pharmaceutical solid dispersion thin films under high humidity: improved spatial understanding using probe based thermal and spectroscopic nano-characterisation methods. Mol. Pharm. 2013, 10, 918–930. [Google Scholar] [CrossRef]
  39. Ng, Y.C.; Yang, Z.; McAuley, W.J.; Qi, S. Stabilisation of amorphous drugs under high humidity using pharmaceutical thin films. Eur. J. Pharm. Biopharm. 2013, 84, 555–565. [Google Scholar] [CrossRef]
  40. Luo, C.J.; Stoyanov, S.D.; Stride, E.; Pelan, E.; Edirisinghe, M. Electrospinning versus fibre production methods: from specifics to technological convergence. Chem. Soc. Rev. 2012, 41, 4708–4735. [Google Scholar] [CrossRef]
  41. Illangakoon, U.E.; Nazir, T.; Williams, G.R.; Chatterton, N.P. Mebeverine-loaded electrospun nanofibers: physicochemical characterization and dissolution studies. J. Pharm. Sci. 2014, 103, 283–292. [Google Scholar] [CrossRef]
  42. Raimi-Abraham, B.T.; Mahalingam, S.; Davies, P.J.; Edirisinghe, M.; Craig, D.Q.M. Development and characterization of amorphous nanofiber drug dispersions prepared using pressurized gyration. Mol. Pharm. 2015, 12, 3851–3861. [Google Scholar] [CrossRef] [PubMed]
  43. Bhut, V.Z.; Prajapati, A.B.; Patel, K.N.; Patel, B.A.; Patel, P.A. Solid dispersion as a strategy to enhance solubility: A review article. IJPRS 2012, 5, 490–498. [Google Scholar]
  44. Thakral, S.; Thakral, N.K. Prediction of drug–polymer miscibility through the use of solubility parameter based flory–huggins interaction parameter and the experimental validation: PEG as model polymer. J. Pharm. Sci. 2013, 102, 2254–2263. [Google Scholar] [CrossRef] [PubMed]
  45. Son, Y.J.; Kim, W.J.; Yoo, H.S. Therapeutic applications of electrospun nanofibers for drug delivery systems. Arch. Pharm. Res. 2013, 37, 69–78. [Google Scholar] [CrossRef]
  46. Liu, M.; Duan, X.-P.; Li, Y.-M.; Yang, D.-P.; Long, Y.-Z. Electrospun nanofibers for wound healing. Mater. Sci. Eng. C 2017, 76, 1413–1423. [Google Scholar] [CrossRef] [PubMed]
  47. Jun, I.; Han, H.S.; Edwards, J.R.; Jeon, H. Electrospun Fibrous Scaffolds for Tissue Engineering: Viewpoints on Architecture and Fabrication. Int. J. Mol. Sci. 2018, 19, 745. [Google Scholar] [CrossRef] [PubMed]
  48. Cooley, J.F. Improved methods of and apparatus for electrically separating the relatively volatile liquid component from the component of relatively fixed substances of composite fluids. United Kingdom Patent 1900, 6385, 19. [Google Scholar]
  49. Cooley, J.F. Apparatus for Electrically Dispersing Fluids. U.S. Patent Application No. 692,631, 4 February 1902. [Google Scholar]
  50. Morton, W.J. Method of Dispersing Fluids. U.S. Patent US705691A, 29 July 1902. [Google Scholar]
  51. Sill, T.J.; von Recum, H.A. Electrospinning: applications in drug delivery and tissue engineering. Biomaterials 2008, 29, 1989–2006. [Google Scholar] [CrossRef] [PubMed]
  52. Williams, G.R.; Chatterton, N.P.; Nazir, T.; Yu, D.G.; Zhu, L.M.; Branford-White, C.J. Electrospun nanofibers in drug delivery: recent developments and perspectives. Ther. Deliv. 2012, 3, 515–533. [Google Scholar] [CrossRef]
  53. Cheng, H.; Yang, X.; Che, X.; Yang, M.; Zhai, G. Biomedical application and controlled drug release of electrospun fibrous materials. Mater. Sci. Eng. C 2018, 90, 750–763. [Google Scholar] [CrossRef]
  54. Vogt, L.; Liverani, L.; Roether, J.; Boccaccini, A. Electrospun Zein Fibers Incorporating Poly(glycerol sebacate) for Soft Tissue Engineering. Nanomaterials 2018, 8, 150. [Google Scholar] [CrossRef]
  55. Alhusein, N.; Blagbrough, I.S.; De Bank, P.A. Zein/polycaprolactone electrospun matrices for localised controlled delivery of tetracycline. Drug Deliv. Transl. Res. 2013, 3, 542–550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Zhang, H.; Lou, S.; Williams, G.R.; Branford-White, C.; Nie, H.; Quan, J.; Zhu, L.-M. A systematic study of captopril-loaded polyester fiber mats prepared by electrospinning. Int. J. Pharm. 2012, 439, 100–108. [Google Scholar] [CrossRef] [PubMed]
  57. Qu, H.; Wei, S.; Guo, Z. Coaxial electrospun nanostructures and their applications. J. Mater. Chem. A. 2013, 1, 11513–11518. [Google Scholar] [CrossRef]
  58. Williams, G.R.; Raimi-Abraham, B.T.; Luo, C.J. Nanofibres in Drug Delivery; UCL Press: London, UK, 2018; ISBN 9781787350182. [Google Scholar]
  59. Verreck, G.; Chun, I.; Peeters, J.; Rosenblatt, J.; Brewster, M.E. Preparation and characterization of nanofibers containing amorphous drug dispersions generated by electrostatic spinning. Pharm. Res. 2003, 20, 810–817. [Google Scholar] [CrossRef] [PubMed]
  60. Nagy, Z.K.; Balogh, A.; Vajna, B.; Farkas, A.; Patyi, G.; Kramarics, Á.; Marosi, G. Comparison of electrospun and extruded soluplus®-based solid dosage forms of improved dissolution. J. Pharm. Sci. 2012, 101, 322–332. [Google Scholar] [CrossRef] [PubMed]
  61. Nagy, Z.K.; Balogh, A.; Démuth, B.; Pataki, H.; Vigh, T.; Szabó, B.; Molnár, K.; Schmidt, B.T.; Horák, P.; Marosi, G.; et al. High speed electrospinning for scaled-up production of amorphous solid dispersion of itraconazole. Int. J. Pharm. 2015, 480, 137–142. [Google Scholar] [CrossRef] [PubMed]
  62. Yu, D.-G.; Branford-White, C.; White, K.; Li, X.-L.; Zhu, L.-M. dissolution improvement of electrospun nanofiber-based solid dispersions for acetaminophen. AAPS PharmSciTech 2010, 11, 809–817. [Google Scholar] [CrossRef]
  63. Huang, Z.-M.; Zhang, Y.-Z.; Kotaki, M.; Ramakrishna, S. A review on polymer nanofibers by electrospinning and their applications in nanocomposites. Compos. Sci. Technol. 2003, 63, 2223–2253. [Google Scholar] [CrossRef]
  64. Li, D.; Xia, Y. Electrospinning of nanofibers: reinventing the wheel? Adv. Mater. 2004, 16, 1151–1170. [Google Scholar] [CrossRef]
  65. Yu, D.G.; Wang, X.; Li, X.Y.; Chian, W.; Li, Y.; Liao, Y.Z. Electrospun biphasic drug release polyvinylpyrrolidone/ethyl cellulose core/sheath nanofibers. Acta Biomater. 2013, 9, 5665–5672. [Google Scholar] [CrossRef]
  66. Maincent, J.; Williams, R.O. Sustained-release amorphous solid dispersions. Drug Deliv. Transl. Res. 2018, 8, 1–12. [Google Scholar] [CrossRef] [PubMed]
  67. Lin, W.C.; Yeh, I.T.; Niyama, E.; Huang, W.R.; Ebara, M.; Wu, C.S. Electrospun poly(ε-caprolactone) nanofibrous mesh for imiquimod delivery in melanoma therapy. Polymers 2018, 10, 231. [Google Scholar] [CrossRef]
  68. Wei, Q.; Xu, F.; Xu, X.; Geng, X.; Ye, L.; Zhang, A.; Feng, Z. The multifunctional wound dressing with core–shell structured fibers prepared by coaxial electrospinning. Front. Mater. Sci. 2016, 10, 113–121. [Google Scholar] [CrossRef]
  69. Yang, G.; Li, J.; Yu, D.; He, M.; Yang, J.; Williams, G.R. Nanosized sustained-release drug depots fabricated using modified tri-axial electrospinning. Acta Biomater. 2017, 53, 233–241. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Yang, C.; Yu, D.-G.; Pan, D.; Liu, X.-K.; Wang, X.; Bligh, S.W.A.; Williams, G.R. Electrospun pH-sensitive core–shell polymer nanocomposites fabricated using a tri-axial process. Acta Biomater. 2016, 35, 77–86. [Google Scholar] [CrossRef] [Green Version]
  71. Lee, B.S.; Jeon, S.Y.; Park, H.; Lee, G.; Yang, H.S.; Yu, W.R. New electrospinning nozzle to reduce jet instability and its application to manufacture of multi-layered nanofibers. Sci. Rep. 2014, 4, 6758. [Google Scholar] [CrossRef] [PubMed]
  72. Yu, D.-G.; Yang, C.; Jin, M.; Williams, G.R.; Zou, H.; Wang, X.; Bligh, S.W.A. Medicated Janus fibers fabricated using a Teflon-coated side-by-side spinneret. Colloids Surf B Biointerfaces 2016, 138, 110–116. [Google Scholar] [CrossRef] [Green Version]
  73. Geng, Y.; Zhang, P.; Wang, Q.; Liu, Y.; Pan, K. Novel PAN/PVP Janus ultrafine fiber membrane and its application for biphasic drug release. J. Mater. Chem. B 2017, 5, 5390–5396. [Google Scholar] [CrossRef]
  74. Van Den Mooter, G. The use of amorphous solid dispersions: A formulation strategy to overcome poor solubility and dissolution rate. Drug Discov. Today Technol. 2012, 9, 79–86. [Google Scholar] [CrossRef]
  75. Démuth, B.; Farkas, A.; Balogh, A.; Bartosiewicz, K.; Kállai-Szabó, B.; Bertels, J.; Vigh, T.; Mensch, J.; Verreck, G.; Van Assche, I.; et al. Lubricant-induced crystallization of itraconazole from tablets made of electrospun amorphous solid dispersion. J. Pharm. Sci. 2016, 105, 2982–2988. [Google Scholar] [CrossRef]
  76. Démuth, B.; Farkas, A.; Szabó, B.; Balogh, A.; Nagy, B.; Vágó, E.; Vigh, T.; Tinke, A.P.; Kazsu, Z.; Demeter, Á.; et al. Development and tableting of directly compressible powder from electrospun nanofibrous amorphous solid dispersion. Adv. Powder Technol. 2017, 28, 1554–1563. [Google Scholar] [CrossRef]
  77. Li, M.; Gogos, C.G.; Ioannidis, N. Improving the API dissolution rate during pharmaceutical hot-melt extrusion I: Effect of the API particle size, and the co-rotating, twin-screw extruder screw configuration on the API dissolution rate. Int. J. Pharm. 2015, 478, 103–112. [Google Scholar] [CrossRef] [PubMed]
  78. Ige, P.P.; Baria, R.K.; Gattani, S.G. Fabrication of fenofibrate nanocrystals by probe sonication method for enhancement of dissolution rate and oral bioavailability. Colloids Surf. B Biointerfaces 2013, 108, 366–373. [Google Scholar] [CrossRef] [PubMed]
  79. Frizon, F.; de Oliveira Eloy, J.; Donaduzzi, C.M.; Mitsui, M.L.; Marchetti, J.M. Dissolution rate enhancement of loratadine in polyvinylpyrrolidone K-30 solid dispersions by solvent methods. Powder Technol. 2013, 235, 532–539. [Google Scholar] [CrossRef]
  80. Gao, L.; Liu, G.; Wang, X.; Liu, F.; Xu, Y.; Ma, J. Preparation of a chemically stable quercetin formulation using nanosuspension technology. Int. J. Pharm. 2011, 404, 231–237. [Google Scholar] [CrossRef] [PubMed]
  81. Rabinow, B.E. Nanosuspensions in drug delivery. Drug Deliv. 2004, 3, 785–796. [Google Scholar] [CrossRef] [PubMed]
  82. Bodmeier, R.; Oh, K.H.; Chen, H. The effect of the addition of low molecular weight poly(dl-lactide) on drug release from biodegradable poly(dl-lactide) drug delivery systems. Int. J. Pharm. 1989, 51, 1–8. [Google Scholar] [CrossRef]
  83. Tinke, A.P.; Carnicer, A.; Govoreanu, R.; Scheltjens, G.; Lauwerysen, L.; Mertens, N.; Vanhoutte, K.; Brewster, M.E. Particle shape and orientation in laser diffraction and static image analysis size distribution analysis of micrometer sized rectangular particles. Powder Technol. 2008, 186, 154–167. [Google Scholar] [CrossRef] [Green Version]
  84. Choi, H.J.; Kim, S.G.; Hyun, Y.H.; Jhon, M.S. Preparation and rheological characteristics of solvent-cast poly (ethylene oxide)/ montmorillonite nanocomposites. Macromol. Rapid Commun. 2001, 22, 320–325. [Google Scholar] [CrossRef]
  85. Singh, A.; Van den Mooter, G. Spray drying formulation of amorphous solid dispersions. Adv. Drug Deliv. Rev. 2016, 100, 27–50. [Google Scholar] [CrossRef]
  86. Taylor, M.J.; Tanna, S.; Sahota, T. In vivo study of a polymeric glucose-sensitive insulin delivery system using a rat model. J. Pharm. Sci. 2010, 99, 4215–4227. [Google Scholar] [CrossRef] [PubMed]

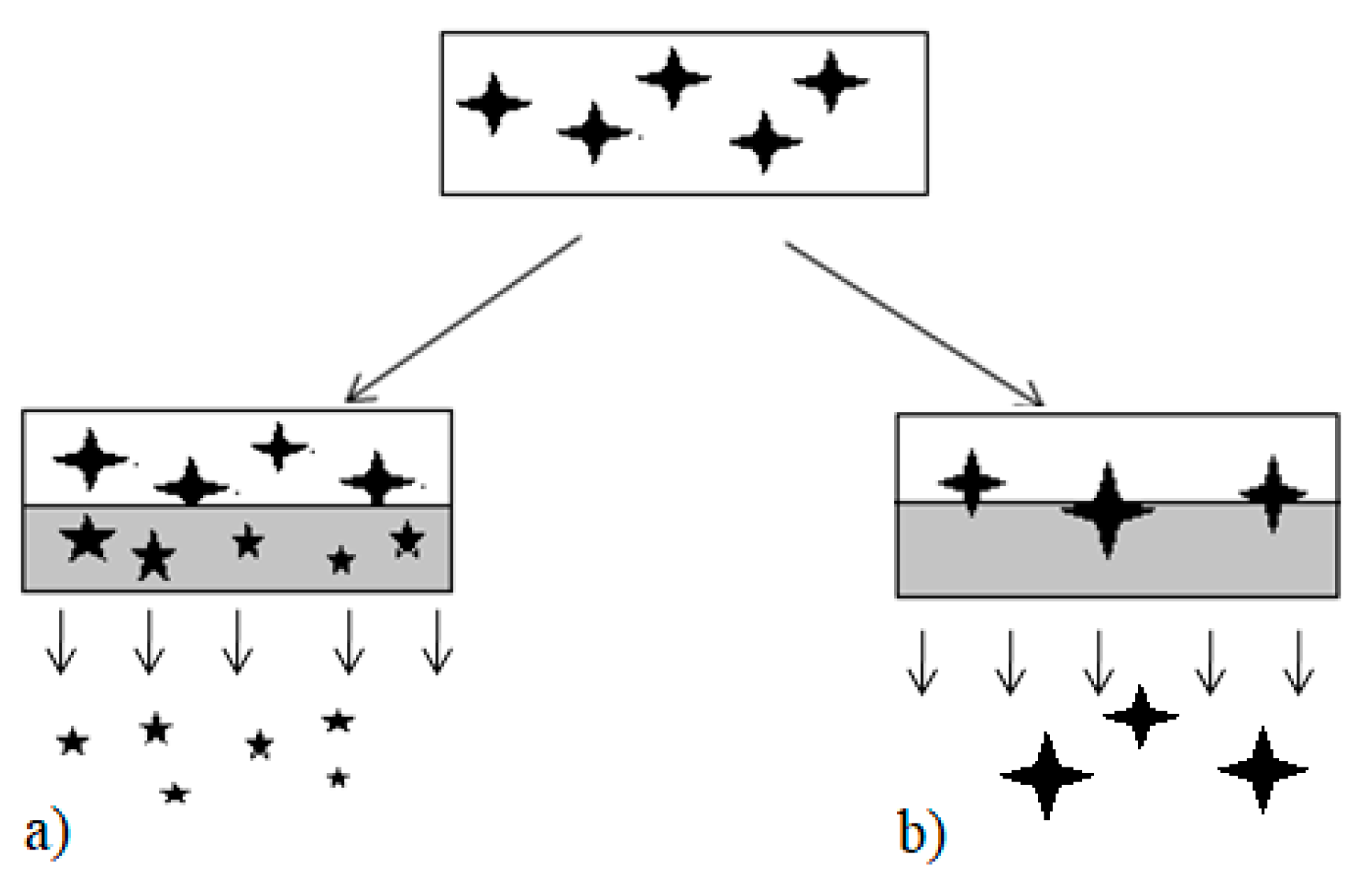

Figure 1. Schematic diagram shows (a) Carrier-controlled dissolution and (b) drug-controlled dissolution (Adapted with permission from [11], copyright Elsevier, 2002). The larger Pharmaceutics 11 00007 i001 represents dissolved drug, the smaller Pharmaceutics 11 00007 i001 represent the partially dissolved drug. Grey box represents an aqueous environment.
