Forests 2017, 8(8), 277; doi:10.3390/f8080277

Tropical-Forest Structure and Biomass Dynamics from TanDEM-X Radar Interferometry

1
Jet Propulsion Laboratory, California Institute of Technology, Pasadena, CA 91109, USA
2
Canopy Remote Sensing Solutions, Florianópolis, SC 88032, Brazil
3
US Forest Service, International Institute of Tropical Forestry, Rio Piedras 00926, Puerto Rico
4
EMBRAPA, Agricultural Informatics, Campinas, SP 13083, Brazil
5
Instituto Nacional de Pesquisas Espaciais, Sao Jose dos Campos, SP 12227, Brazil
6
Amazon, Seattle, WA 98109, USA
7
Departamento de Engenharia Agrícola, Universidade Federal de Sergipe, SE 49100, Brazil
*
Author to whom correspondence should be addressed.
Received: 24 May 2017 / Revised: 24 June 2017 / Accepted: 15 July 2017 / Published: 31 July 2017
(This article belongs to the Special Issue Remote Sensing of Forest Disturbance)
View Full-Text   |   Download PDF [12216 KB, uploaded 17 August 2017]   |

Abstract

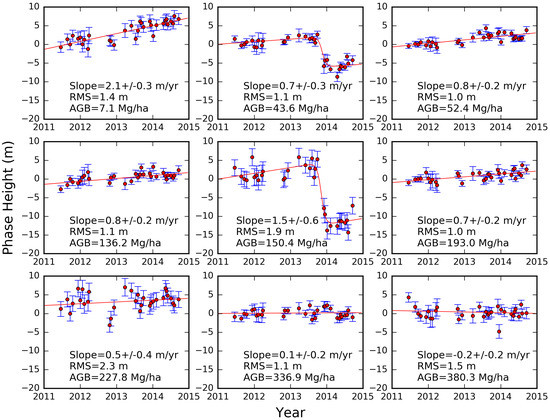

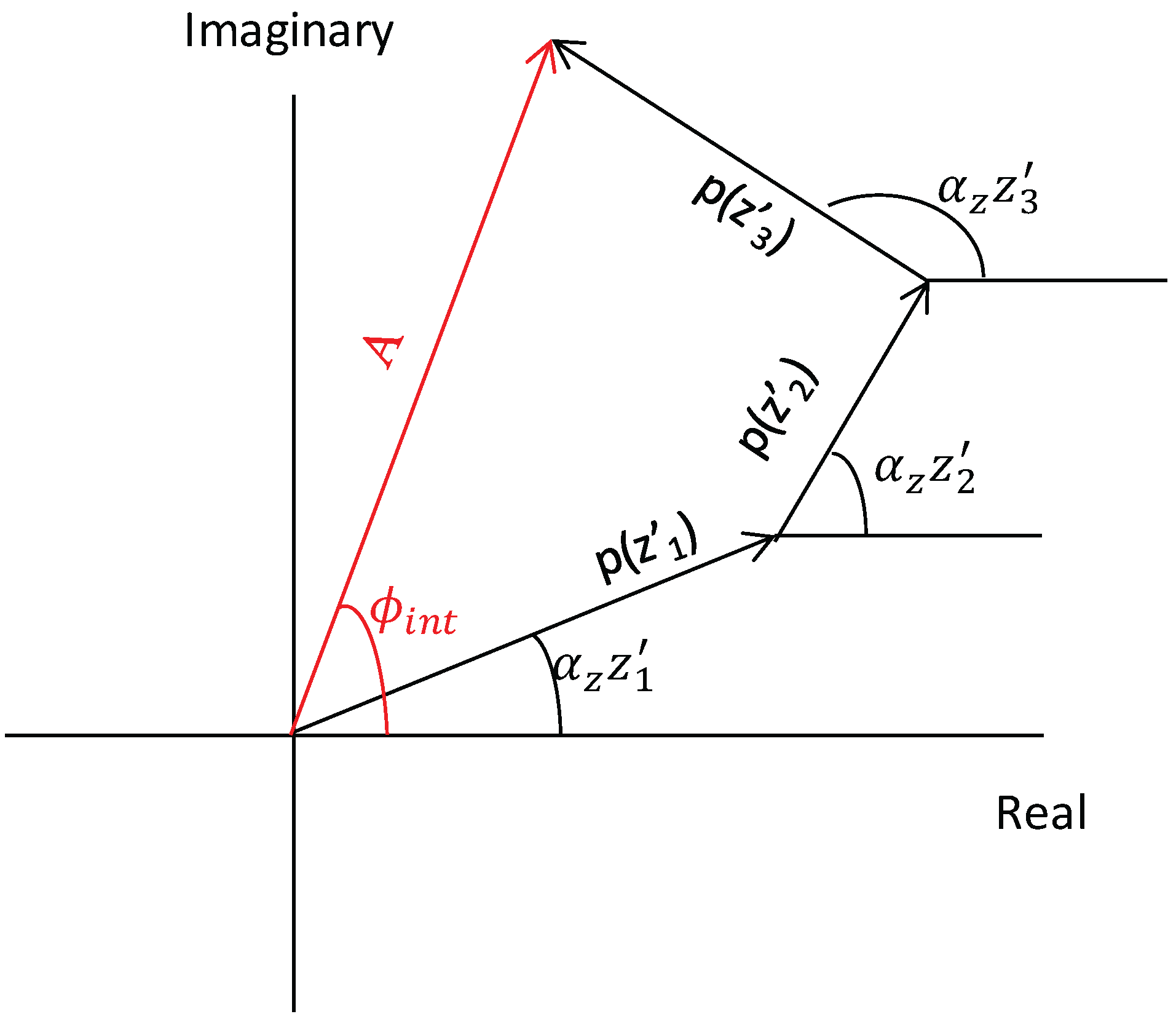

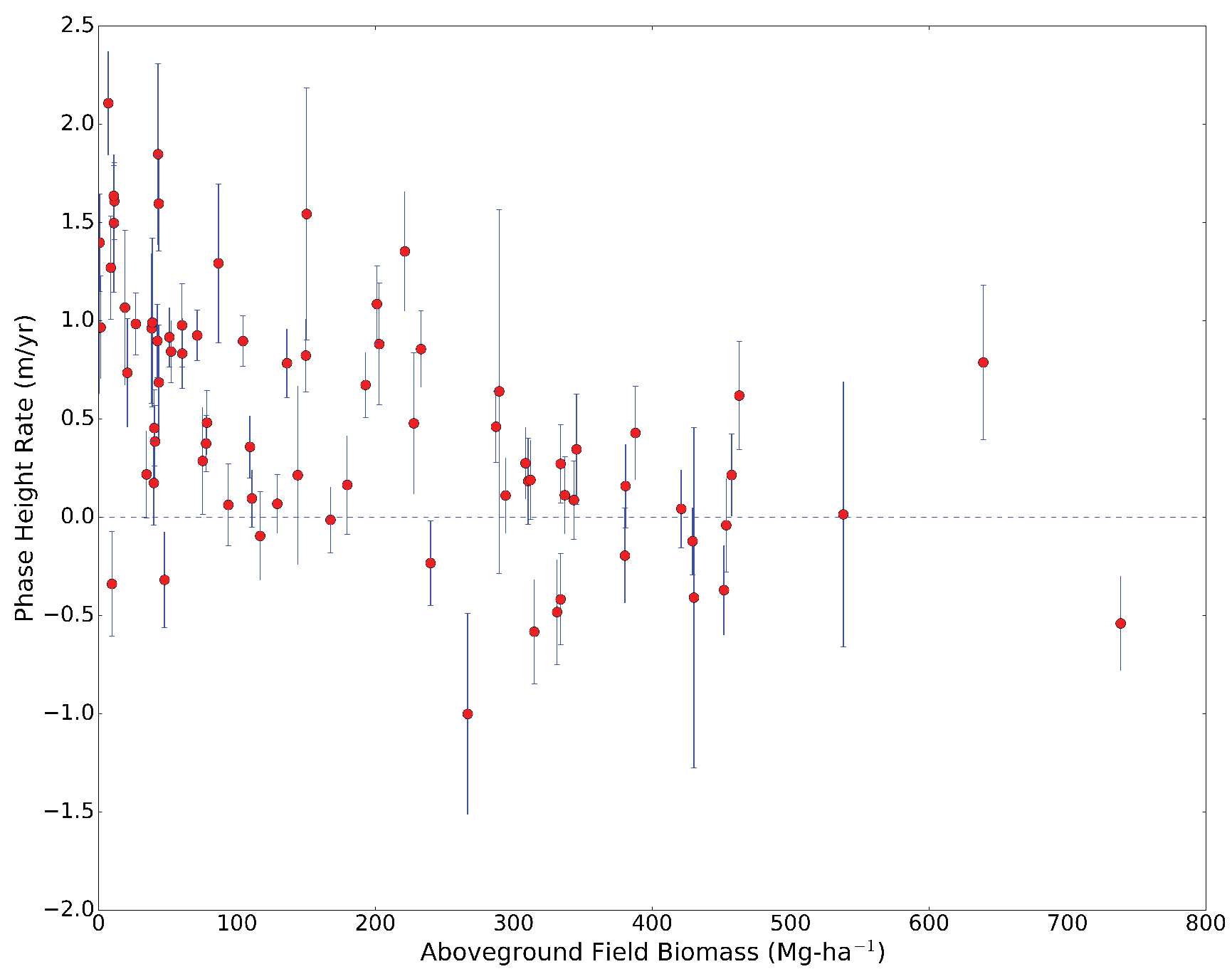

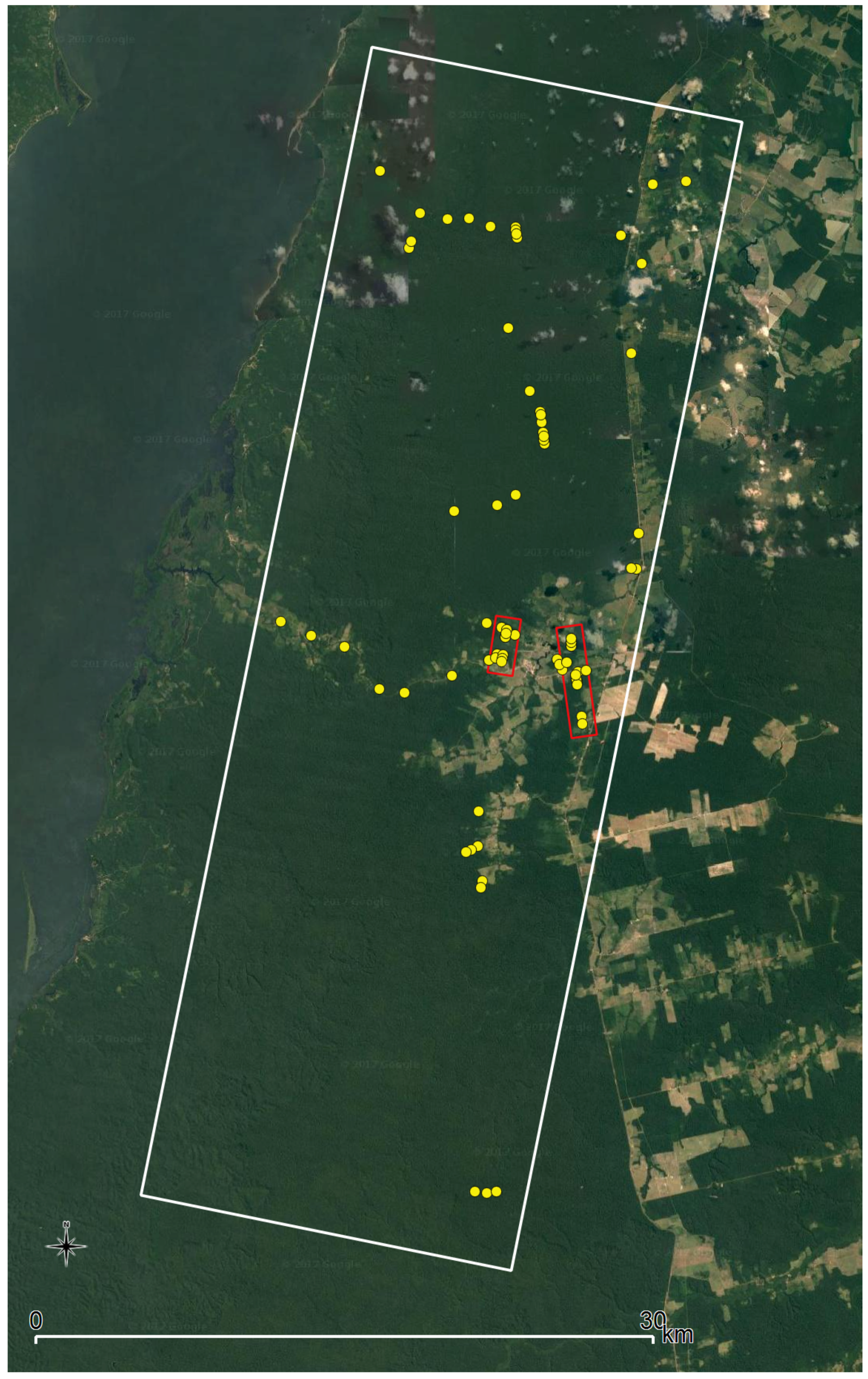

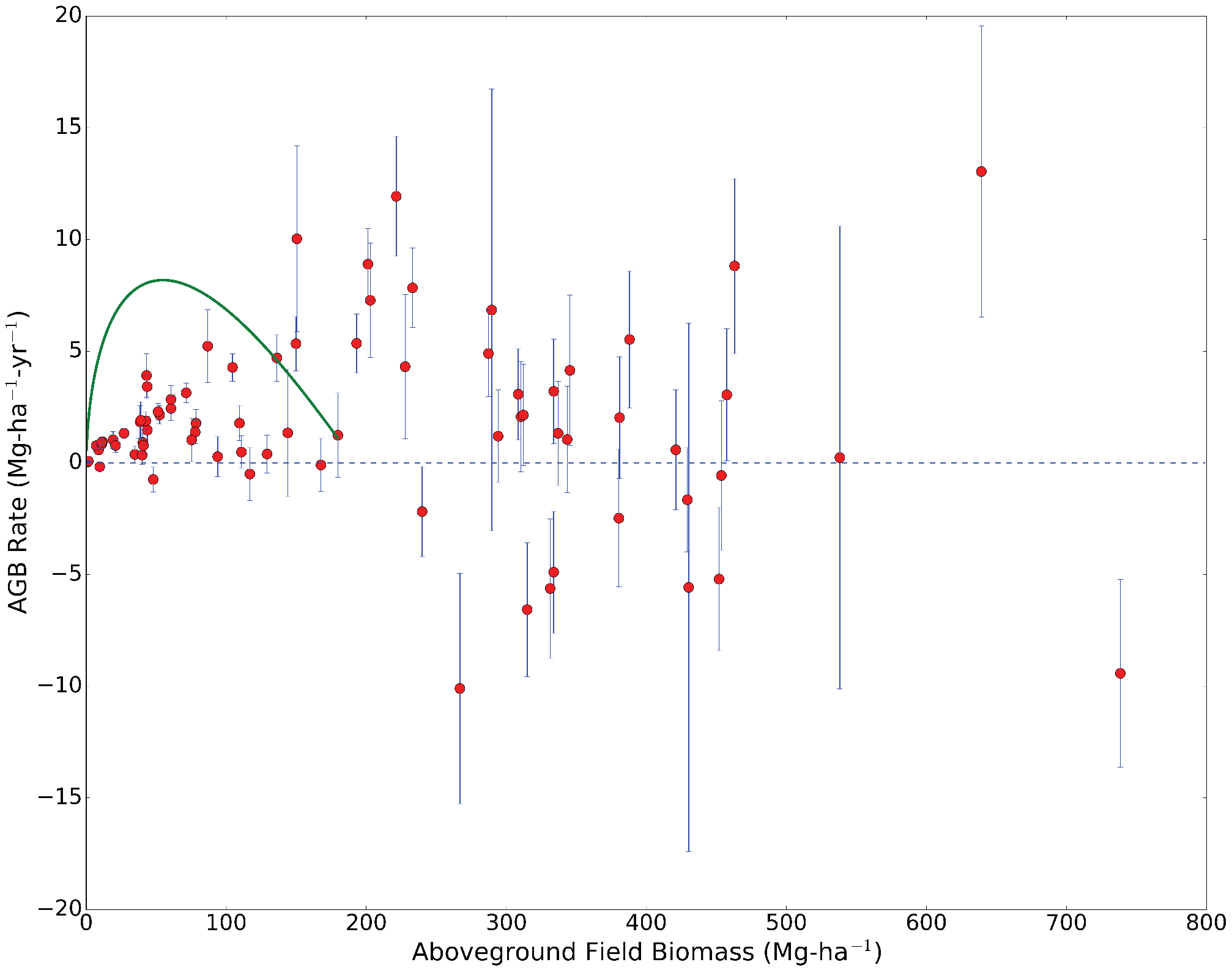

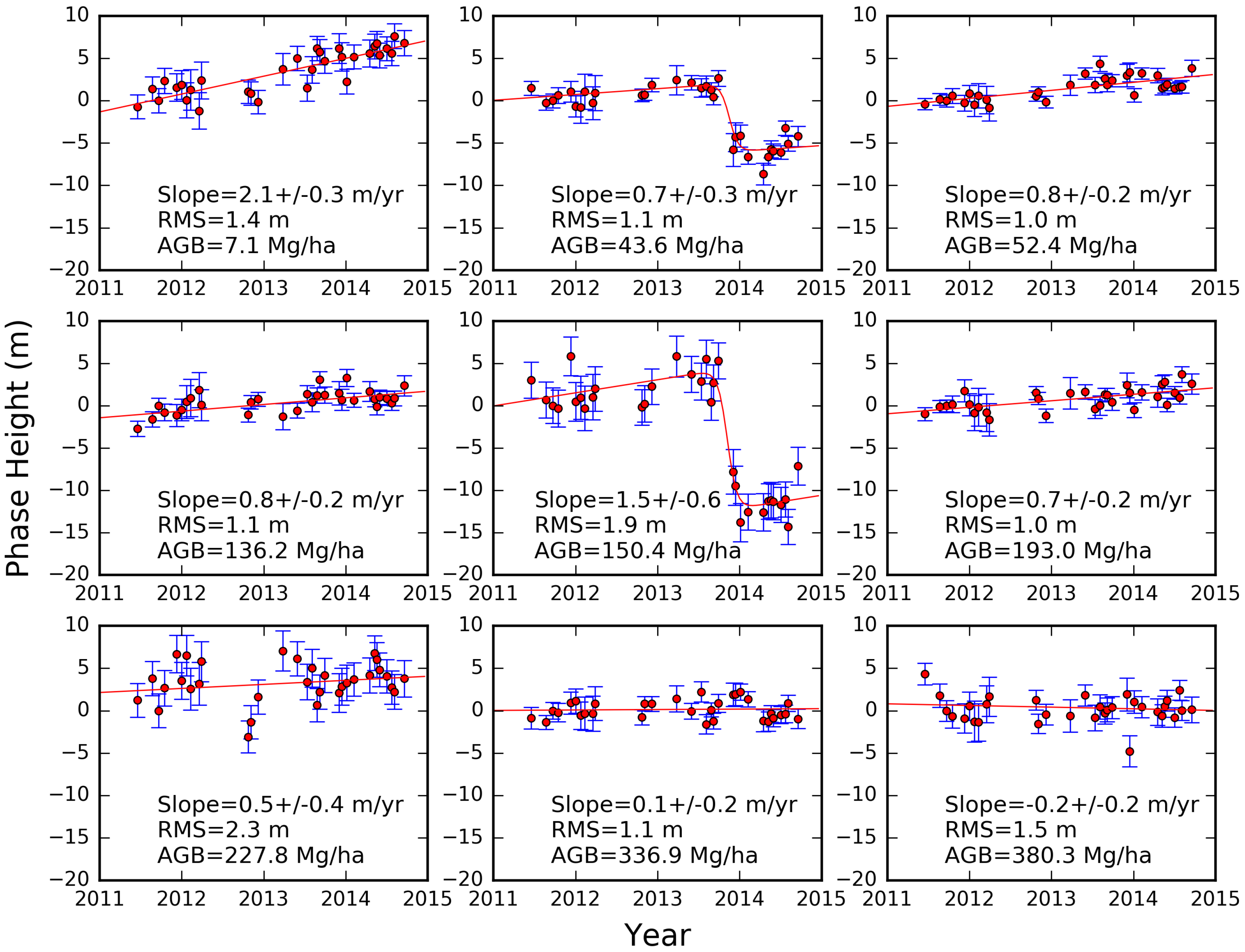

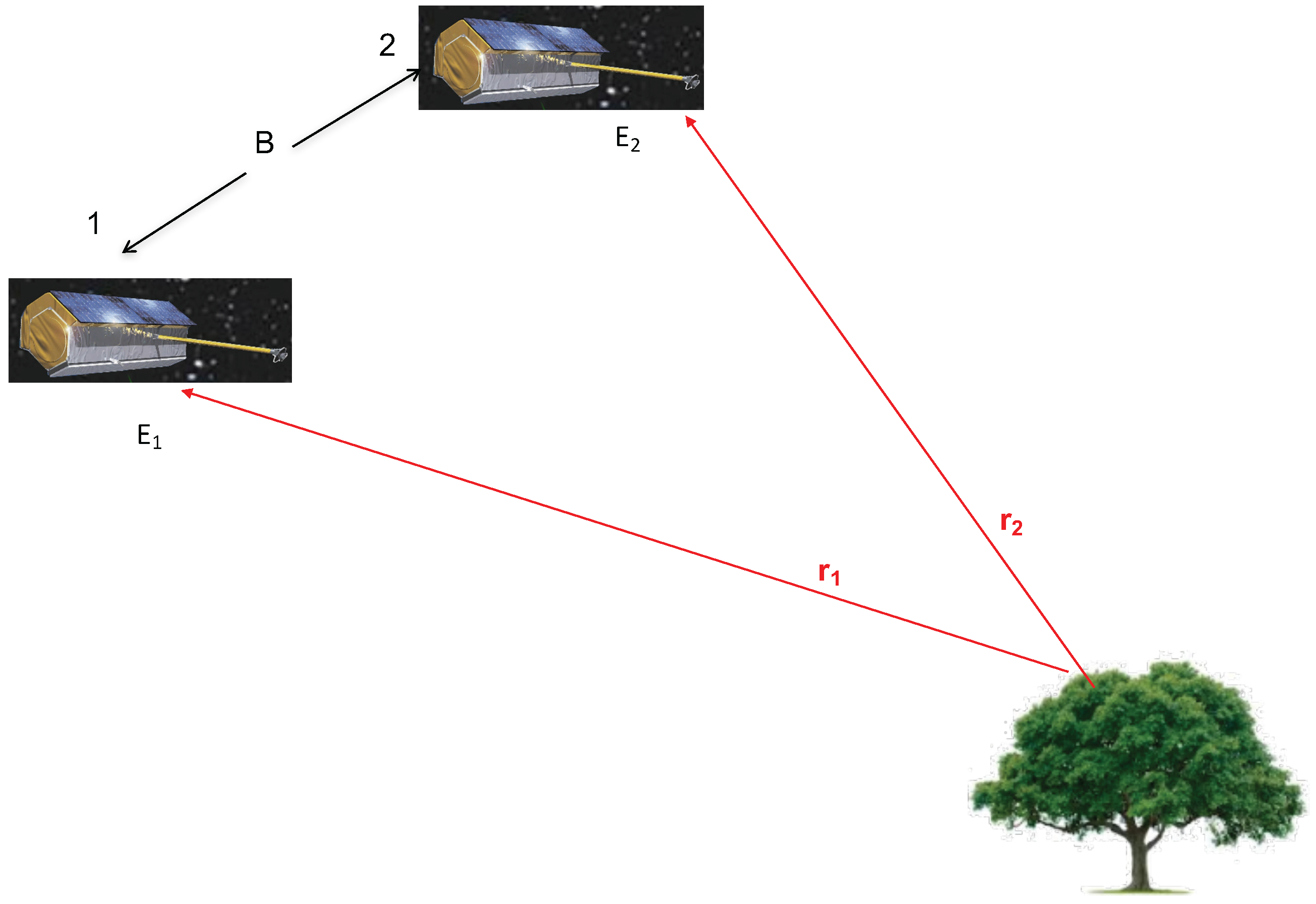

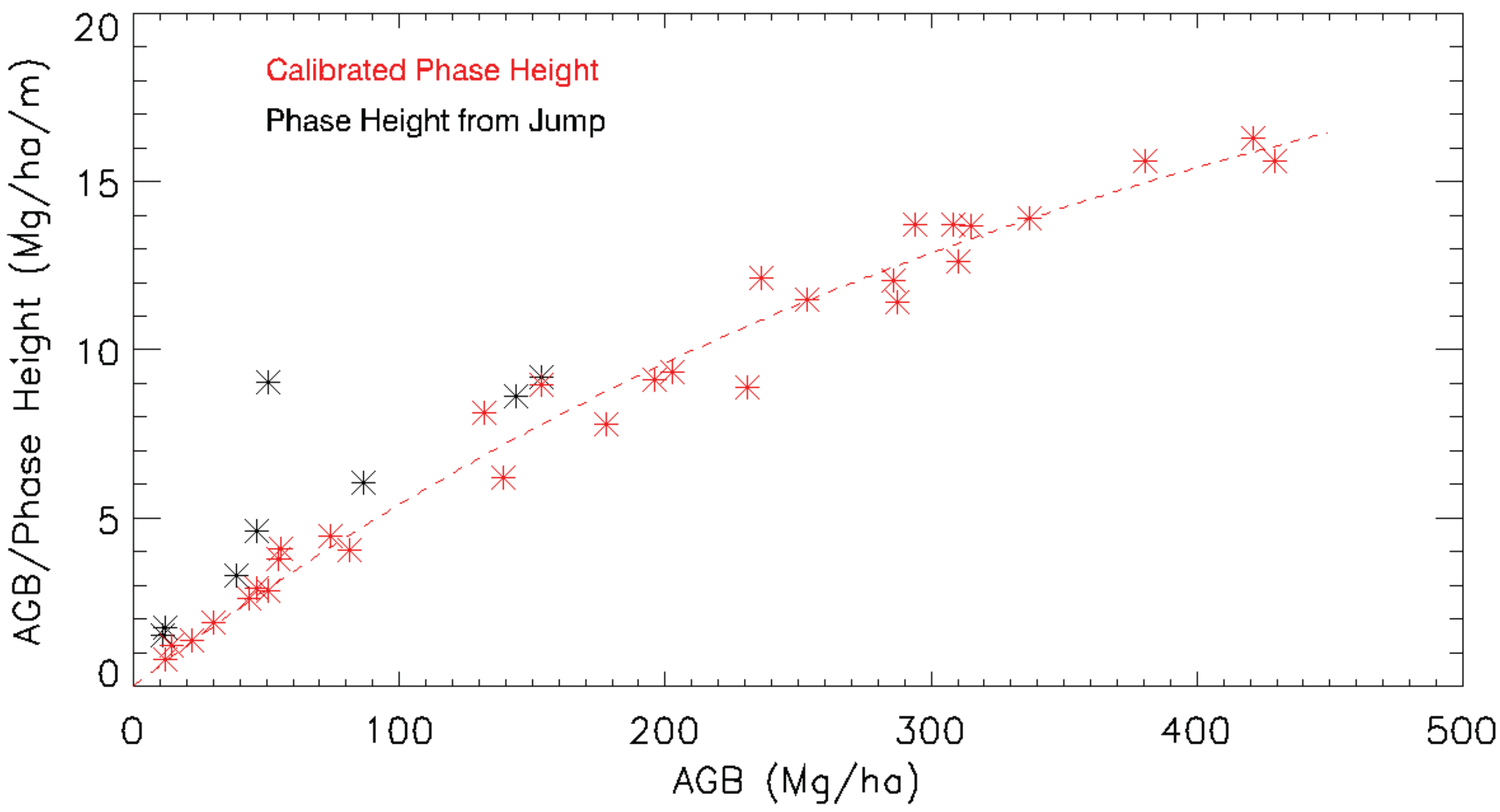

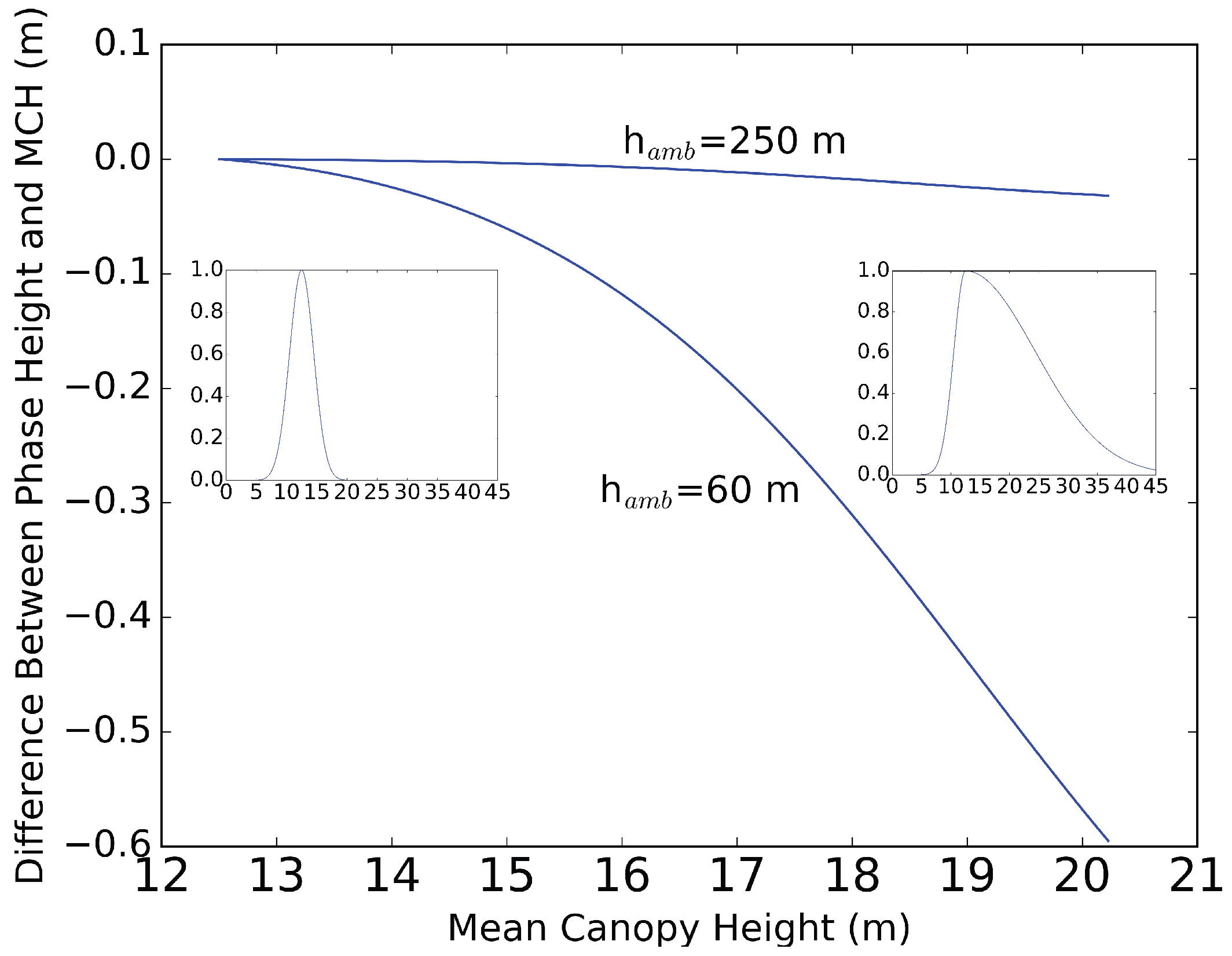

Changes in tropical-forest structure and aboveground biomass (AGB) contribute directly to atmospheric changes in CO 2 , which, in turn, bear on global climate. This paper demonstrates the capability of radar-interferometric phase-height time series at X-band (wavelength = 3 cm) to monitor changes in vertical structure and AGB, with sub-hectare and monthly spatial and temporal resolution, respectively. The phase-height observation is described, with a focus on how it is related to vegetation-density, radar-power vertical profiles, and mean canopy heights, which are, in turn, related to AGB. The study site covers 18 × 60 km in the Tapajós National Forest in the Brazilian Amazon. Phase-heights over Tapajós were measured by DLR’s TanDEM-X radar interferometer 32 times in a 3.2 year period from 2011–2014. Fieldwork was done on 78 secondary and primary forest plots. In the absence of disturbance, rates of change of phase-height for the 78 plots were estimated by fitting the phase-heights to time with a linear model. Phase-height time series for the disturbed plots were fit to the logistic function to track jumps in phase-height. The epochs of clearing for the disturbed plots were identified with ≈1-month accuracy. The size of the phase-height change due to disturbance was estimated with ≈2-m accuracy. The monthly time resolution will facilitate REDD+ monitoring. Phase-height rates of change were shown to correlate with LiDAR RH90 height rates taken over a subset of the TanDEM-X data’s time span (2012–2013). The average rate of change of phase-height across all 78 plots was 0.5 m-yr - 1 with a standard deviation of 0.6 m-yr - 1 . For 42 secondary forest plots, the average rate of change of phase-height was 0.8 m-yr - 1 with a standard deviation of 0.6 m-yr - 1 . For 36 primary forest plots, the average phase-height rate was 0.1 m-yr - 1 with a standard deviation of 0.5 m-yr - 1 . A method for converting phase-height rates to AGB-rates of change was developed using previously measured phase-heights and field-estimated AGB. For all 78 plots, the average AGB-rate was 1.7 Mg-ha - 1 -yr - 1 with a standard deviation of 4.0 Mg-ha - 1 -yr - 1 . The secondary-plot average AGB-rate was 2.1 Mg-ha - 1 -yr - 1 , with a standard deviation of 2.4 Mg-ha - 1 -yr - 1 . For primary plots, the AGB average rate was 1.1 Mg-ha - 1 -yr - 1 with a standard deviation of 5.2 Mg-ha - 1 -yr - 1 . Given the standard deviations and the number of plots in each category, rates in secondary forests and all forests were significantly different from zero; rates in primary forests were consistent with zero. AGB-rates were compared to change models for Tapajós and to LiDAR-based change measurements in other tropical forests. Strategies for improving AGB dynamical monitoring with X-band interferometry are discussed. View Full-Text
Keywords: tropical forest dynamics; aboveground biomass; interferometric SAR; TanDEM-X tropical forest dynamics; aboveground biomass; interferometric SAR; TanDEM-X
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Treuhaft, R.; Lei, Y.; Gonçalves, F.; Keller, M.; Santos, J.R.; Neumann, M.; Almeida, A. Tropical-Forest Structure and Biomass Dynamics from TanDEM-X Radar Interferometry. Forests 2017, 8, 277.
