Forests 2011, 2(3), 741-748; doi:10.3390/f2030741

Communication
Initial Assessment of Thousand Cankers Disease on Black Walnut, Juglans nigra, in Eastern Tennessee
Jerome F. Grant 1,*, Mark T. Windham 1, Walker G. Haun 2, Gregory J. Wiggins 1 and Paris L. Lambdin 1
1
Department of Entomology and Plant Pathology, 2431 Joe Johnson Drive, 205 Ellington Plant Sciences Building, The University of Tennessee, Knoxville, TN 37996-4560, USA; E-Mails: mwindham@utk.edu (M.T.W.); wiggybug@utk.edu (G.J.W.); plambdin@utk.edu (P.L.L.)
2
Tennessee Department of Agriculture, Division of Regulatory Services, Ellington Agricultural Center, P.O. Box 40627, Nashville, TN 37204, USA; E-Mail: Walker.Haun@tn.gov
*
Author to whom correspondence should be addressed; E-Mail: jgrant@utk.edu; Tel.: +1-865-974-0218; Fax: +1-865-974-4744.
Received: 12 July 2011; in revised form: 29 August 2011 / Accepted: 31 August 2011 /
Published: 9 September 2011

Abstract

: In 2010, thousand cankers disease (TCD) was documented in Tennessee, representing the first confirmation of this disease in the native range of black walnut and the first known incidence of TCD east of Colorado. Tennessee Department of Agriculture personnel conducted surveys to determine the extent of TCD in counties in eastern Tennessee. Samples of symptomatic black walnuts were sent to the University of Tennessee for processing. The causative agents, walnut twig beetle, Pityophthorus juglandis, and the fungal pathogen Geosmithia morbida, were documented on the same trees in four counties. Tree mortality was observed in two counties, and tree decline was observed in at least 10 counties although it may be attributed to previous droughts or to TCD. In 2010, four confirmed counties were quarantined by TDA, and 10 buffer counties were also regulated. Research is underway to further assess the incidence and impact of TCD on black walnut in Tennessee.
Keywords:
distribution; forest threat; Geosmithia morbida; insect/fungal interactions; native range; Pityophthorus juglandis; walnut twig beetle

1. Introduction

Black walnut, Juglans nigra, is native to eastern and midwestern U.S. (Figure 1), where it is both ecologically and economically important. Black walnut is a gap-phase species able to persist in the understory and quickly grow to fill canopy gaps. Due to its narrow range of suitable site conditions, black walnut can also serve as an indicator of moist, well-drained, protected sites rich in soil nutrients [1]. The nuts of black walnut are an important food for forest rodents and also are an economically important specialty crop for humans [1,2]. Some homeowners and landowners also harvest black walnut as a valuable nut crop for personal use or to sell for income. In some rural areas, black walnuts are important as part of the human diet and provide several medical benefits. The heavy, richly-grained wood of mature trees is prized as a timber commodity, and its growth form makes it a desirable nursery plant [2,3]. Although it is not native to western U.S., black walnut has been transplanted and is grown throughout much of the area [4,5]. Black walnut is now threatened by a new insect/fungal disease complex which has been documented in the native range of black walnut and has potential to cause tremendous tree decline and mortality.

Large numbers of black walnut trees in western U.S. have died in the last decade [7]. Researchers concluded that this mortality was caused by a new disease complex called thousand cankers disease (TCD), which involves the newly described/named fungus Geosmithia morbida (Ascomycota: Hypocreales: Bionectriaceae) vectored by the walnut twig beetle, Pityophthorus juglandis (Coleoptera: Curculionidae: Scolytinae) (Figure 2) [7,13,14]. This association and fungal identification represented the first documentation of Geosmithia as a pathogen of black walnut [7].

The walnut twig beetle is native to western U.S., where it is found in several states, including Arizona, California, Colorado, Idaho, New Mexico, Oregon, Utah, and Washington (Figure 2) [8-11]. The primary range of P. juglandis originally included Arizona, New Mexico, and Chihuahua, Mexico and coincided with the range of Arizona walnut (Juglans major), which is native to the southwestern U.S. [2,8,15].

The association of P. juglandis with G. morbida is a new discovery and may be a new phenomenon [7,15,16]. Black walnuts are extremely susceptible to TCD, which has caused widespread mortality of black walnut in Colorado where this valuable resource has been eliminated from several municipalities [15]. This disease complex, however, is no longer restricted to western U.S., as it was recently discovered on black walnut in eastern Tennessee (Figure 1) [14].

The discovery of TCD on black walnut in its native range in eastern Tennessee in July 2010 represents the first documentation of this disease complex east of Colorado [14]. TCD has since been found in Virginia in June 2011 [17] and Pennsylvania in August 2011 [18]. The impact of TCD on black walnut in its native range is unclear; however, scientists speculate that, if left unmanaged, this disease could cause the extinction of this important native timber/nut/nursery crop/mast producer in eastern U.S. The potential impacts and spread of this disease complex on black walnut have been proposed and described by several authors [2,19]. This paper documents the initial assessment of distribution of TCD in Tennessee.

2. Distribution Assessment

2.1. Approach to Assessing Distribution

Once TCD was documented and confirmed in Tennessee (Knox Co.) during the summer of 2010, the Tennessee Department of Agriculture (TDA) collected twig samples from black walnut from 13 August to 27 September 2010 to determine the presence of the walnut twig beetle and the pathogen, as well as the incidence and spread of TCD, in this area. One twig sample was collected from each tree, and a sample consisted of ca. 10 twigs that averaged ca. 2 cm in diameter and ca. 28 cm in length. Main stem samples were not collected to avoid injury to non-infected/infested trees. Twig samples were collected from suspect trees in various counties from August to September by TDA personnel and placed in plastic bags. A suspect tree was identified based on several symptoms, including yellowing leaves, dieback, and epicormic shoots. Monitoring tools were not used to collect walnut twig beetles. Samples were provided to collaborators at the University of Tennessee for processing and examination for the presence of P. juglandis and G. morbida. Observations on tree mortality and tree health were also noted, where appropriate.

Once samples were retrieved from TDA personnel, samples were placed in an environmental chamber (ca. 12 °C) and processed, usually within 1–3 days, in the laboratory. Twigs were examined and dissected using a knife to shave away bark tissue gradually to determine the presence of walnut twig beetles and/or cankers. Beetles were identified based on morphological features (JFG and GJW), and vouchers were confirmed by Whitney Cranshaw (Colorado State Univ.) [8,9,15,20]. Other insects, especially bark beetles, were also noted. When cankers were found, a sample of the canker was plated and cultured on 1/10 potato dextrose broth solidified with 8 g/L bacto agar and incubated on a 12:12 light:dark cycle at 22 °C. Pathogens that grew on the media were examined visually and microscopically after 6–10 days, and G. morbida was positively identified (MTW). Based upon the Rules of Tennessee Department of Agriculture, TCD was confirmed on samples when both the walnut twig beetle and the fungal pathogen were documented [12].

2.2. Distribution Results and Regulatory Map for TCD in Tennessee

Eighty-six samples from 19 counties (Figure 3) were processed; all samples except two (Davidson Co.) were from eastern Tennessee, where TCD was initially confirmed. These 86 samples represented 82 different trees, as four trees were sampled twice. Walnut twig beetle and G. morbida were confirmed on black walnut in four counties (Anderson, Blount, Knox, and Union Co.). These four counties were quarantined by TDA in 2010, and 10 buffer counties were also regulated (Figure 3) [12]. In three (Anderson, Blount and Union Counties) of the four TCD-positive counties, G. morbida was cultured from two of the samples that did not contain walnut twig beetles. Also, G. morbida was not cultured from several samples that contained walnut twig beetles. Trees positive for TCD were not destroyed. These results emphasize the need for further efforts to define epidemiology of TCD in the native range of black walnut. Several sampled trees had already died; these trees had signs of walnut twig beetle and cankers, suggesting that they may have died from TCD. Other dead trees, however, had no signs of beetles or cankers and may have died from drought stress and other contributing factors.

Walnut twig beetles were recovered from samples collected from 18 August 2010 to 3 September 2010; G. morbida was cultured from samples collected from 13 to 26 August 2010. Four or five other bark beetle species (ca. 50 adults) were recovered from nine counties (Anderson, Campbell, Grainger, Hawkins, Loudon, Morgan, Roane, Sullivan, and Washington Co.). The native Pityophthorus lautus was also found on black walnut in several counties. Five other families of bark-inhabiting insects were found; these included Buprestidae (22 larvae, four counties), Cerambycidae (11 larvae, two counties), Formicidae (14 adults, one county), and Thripidae (25 nymphs/adults, one county).

3. Conclusions and Future Directions

The presence of TCD in Tennessee in 2010 represented the only known, documented incidence of this beetle/pathogen complex in the native range of black walnut in the eastern U.S. Thus, opportunities exist to expand research and outreach activities to better understand this disease and its causative agents. Additional surveys for this disease are planned for eastern and middle Tennessee and will include samples from walnuts in urban and forest settings to determine life cycle, population density, distribution, and impact on black walnut in the region. Numerous scolytid species are present in Tennessee, and their role in the epidemiology of TCD should be investigated [21]. Knowledge gained can be applied throughout the native range of black walnut to enable scientists to develop management strategies to limit the economic and environmental impact of this potentially devastating disease. For further information (Action Plan, Regulations, Quarantine Map, etc.) on TCD in Tennessee, visit the Tennessee Department of Agriculture's TCD informational site (www.tn.gov/agriculture/regulatory/tcd.html) [22].

Forests 02 00741f1 200

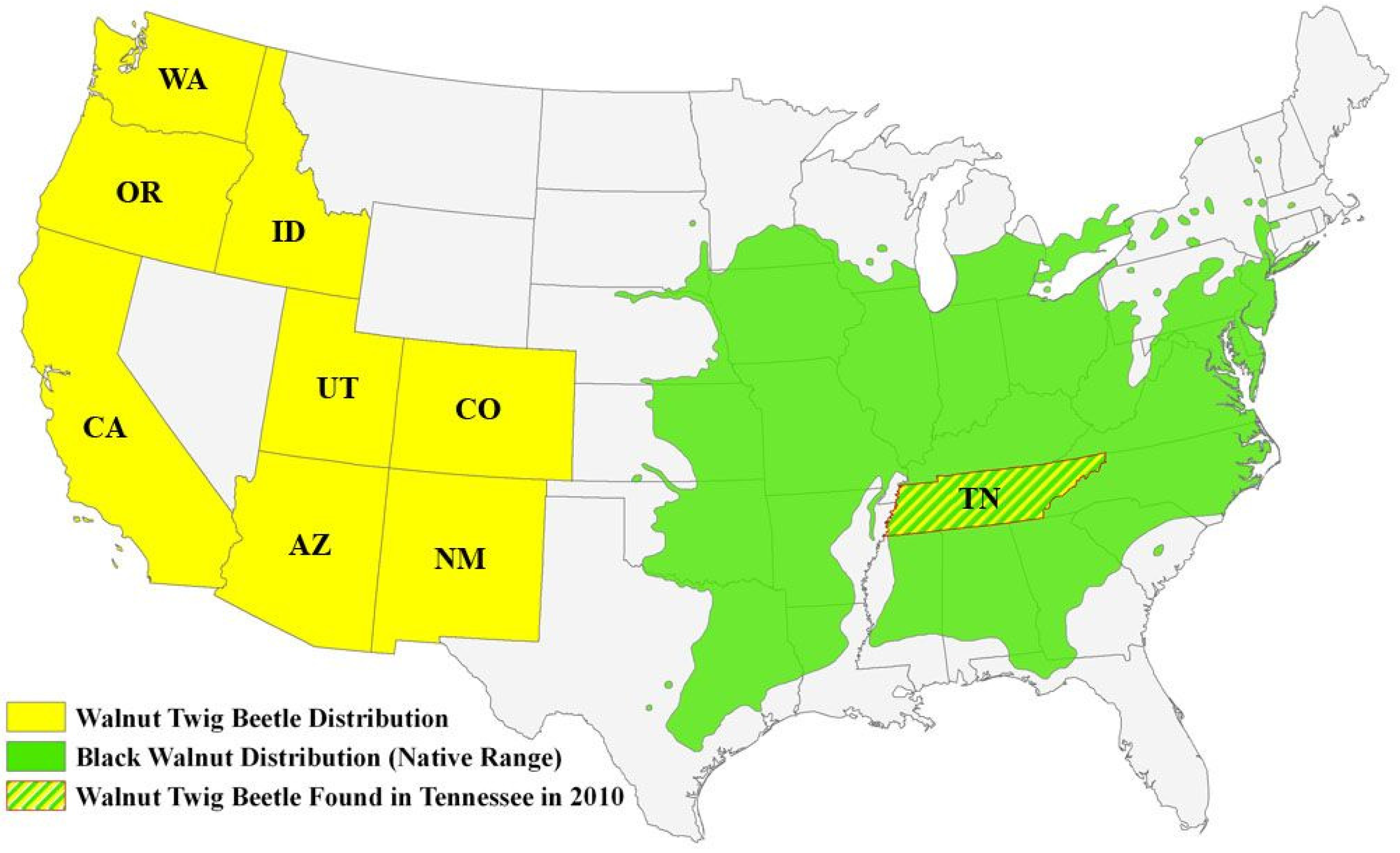

Figure 1. Native distribution of black walnut in North America (from U.S. Geological Survey tree distribution data [6]) and distribution of the walnut twig beetle in the U.S., 2010 [2,7-12].

Click here to enlarge figure

Figure 1. Native distribution of black walnut in North America (from U.S. Geological Survey tree distribution data [6]) and distribution of the walnut twig beetle in the U.S., 2010 [2,7-12].
Forests 02 00741f1 1024
Forests 02 00741f2 200
Figure 2. Thousand cankers disease: (A) Symptomatic black walnut tree infested with walnut twig beetle and Geosmithia morbida; note crown mortality and profusion of epicormic shoots; (B) branch flagging, a primary symptom preceding branch dieback; (C) canker in living bark tissue; (D) canker extending into woody tissue; (E) conidiophores of G. morbida isolated from a tree in Knox Co.; (F) galleries made by walnut twig beetle; and (G) adult walnut twig beetle.

Click here to enlarge figure

Figure 2. Thousand cankers disease: (A) Symptomatic black walnut tree infested with walnut twig beetle and Geosmithia morbida; note crown mortality and profusion of epicormic shoots; (B) branch flagging, a primary symptom preceding branch dieback; (C) canker in living bark tissue; (D) canker extending into woody tissue; (E) conidiophores of G. morbida isolated from a tree in Knox Co.; (F) galleries made by walnut twig beetle; and (G) adult walnut twig beetle.
Forests 02 00741f2 1024
Forests 02 00741f3 200

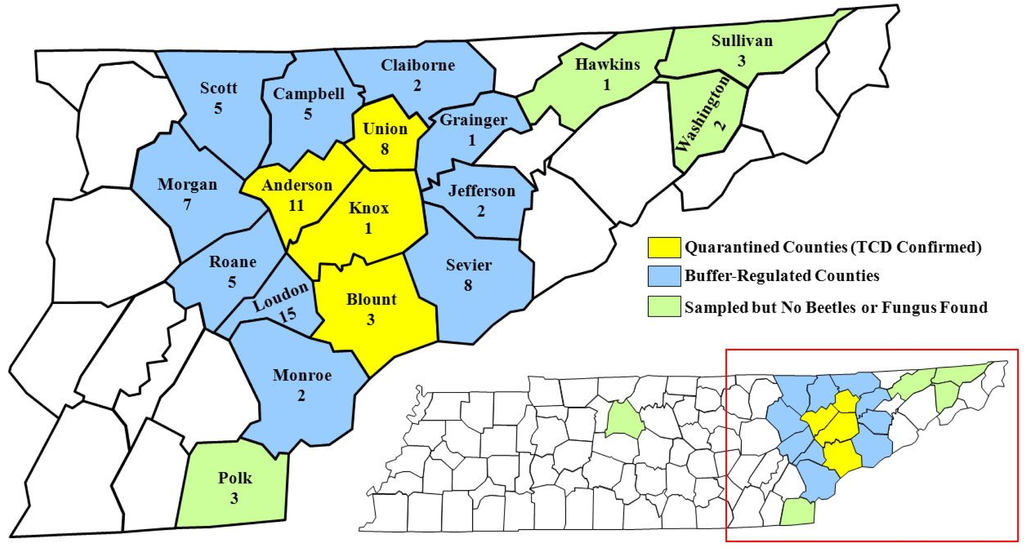

Figure 3. Distribution of known locations of thousand cankers disease (TCD) in eastern Tennessee, 2010. TCD was confirmed if both walnut twig beetle and G. morbida were present. Counties where TCD has been confirmed are quarantined; adjacent counties are designated as buffer counties and are also regulated. Numbers represent samples processed in each county; two samples were processed from Davidson Co. in middle Tennessee [12].

Click here to enlarge figure

Figure 3. Distribution of known locations of thousand cankers disease (TCD) in eastern Tennessee, 2010. TCD was confirmed if both walnut twig beetle and G. morbida were present. Counties where TCD has been confirmed are quarantined; adjacent counties are designated as buffer counties and are also regulated. Numbers represent samples processed in each county; two samples were processed from Davidson Co. in middle Tennessee [12].
Forests 02 00741f3 1024

The information and advice provided by Whitney Cranshaw and Ned Tisserat (Colorado State University), who originally confirmed TCD in Tennessee, were greatly appreciated. We express appreciation to TDA personnel for providing samples and to Renee Follum, Lydia McClure, and Lisa Vito (University of Tennessee) for their assistance in processing samples.

References

  1. Barnes, B.V.; Zak, D.R.; Denton, S.R.; Spurr, S.H. Forest Ecology, 4th ed. ed.; John Wiley and Sons, Inc.: New York, NY, USA, 1998.
  2. Pathway Assessment: Geosmithia sp. and Pityophthorus juglandis Blackman Movement from the Western into the Eastern United States; USDA Animal and Plant Health Inspection Service Plant Protection and Quarantine: Raleigh, NC, USA, 2009. Available online: http://tn.gov/agriculture/publications/regulatory/tc_pathwayanalysis.pdf (accessed on 6 July 2011).
  3. Sargent, C.S. Manual of the Trees of North America (Exclusive of Mexico); Dover Publications, Inc.: New York, NY, USA, 1965.
  4. Grant, J.A.; Grant, C.L. Trees and Shrubs for Pacific Northwest Gardens; Pacific Books, Publishers: Palo Alto, CA, USA, 1974.
  5. Britton, M.T.; Leslie, C.H.; McGranahan, G.H.; Dandekar, A.M. Walnuts. In Biotechnology in Agriculture and Forestry: Transgenic Crops V; Pau, E.C., Davey, M.R., Eds.; Springer: New York, NY, USA, 2007; Volume 60, pp. 349–370.
  6. Digital Representations of Tree Species Range Maps from “Atlas of United States Trees” by Elbert L. Little, Jr. US Department of the Interior, US Geological Survey: Washington, DC, USA, 2006. Available online: http://gec.cr.usgs.gov/data/atlas/little/ (accessed on 1 December 2010).
  7. Tisserat, N.; Cranshaw, W.; Leatherman, D.; Utley, C.; Alexander, K. Black walnut mortality in Colorado caused by the walnut twig beetle and thousand cankers disease. Plant Health Prog. 2009, doi:10.1094/PHP-2009-0811-01-RS.
  8. Blackman, M.W. The genus Pityophthorus Eichh. in North America: A Revisional Study of the Pityophthori, with Descriptions of Two New Genera and Seventy-One New Species; New York State College of Forestry Syracuse University: Syracuse, NY, USA, 1928.
  9. Bright, D.E. Taxonomic Monograph of the Genus Pityophthorus Eichhoff in North and Central America (Coleptera: Scolytidae); Memoirs of the Entomological Society of Canada 118; Entomological Society of Canada: Ottawa, ON, Canada, 1981; pp. 1–378.
  10. Bright, D.E.; Stark, R.W. The bark and ambrosia beetles of California. Bull. Calif. Insect Surv. 1973, 16, 1–169.
  11. Wood, S.L.; Bright, D.E. A Catalog of Scolytidae and Platypodidae (Coleoptera) Part 2: Taxonomic Index Volume A. Great Basin Nat. Mem. 1992, 13, 1–1005.
  12. Rules of Tennessee Department of Agriculture, Chapter 0080-06-11, Thousand Cankers Quarantine; Tennessee Department of Agriculture: Nashville, TN, USA, 2010. Available online: http://www.state.tn.us/sos/rules/0080/0080-06/0080-06-11.20100901.pdf (accessed on 6 July 2011).
  13. Kolarik, M.; Freeland, E.; Utley, C.; Tisserat, N. Geosmithia morbida sp. nov., a new phytopathogenic species living in symbiosis with the walnut twig beetle (Pityophthorus juglandis) on Juglans in USA. Mycologia 2011, 103, 325–332.
  14. Pest Alert: Thousand Cankers Disease; USDA Forest Service Northeastern Area State and Private Forestry: Newtown Square, PA, USA, 2010. Available online: http://na.fs.fed.us/pubs/palerts/cankers_disease/thousand_cankers_disease_screen_res.pdf (accessed on 6 July 2011).
  15. Pest Alert: Walnut Twig Beetle and Thousand Cankers Disease of Black Walnut; Colorado State University: Fort Collins, CO, USA, 2010. Available online: http://www.colostate.edu/Dept/bspm/extension%20and%20outreach/Walnut%20Twig%20Beetle%20Pest%20Alert%2016Aug 2010 pdf (accessed on 6 July 2011).
  16. Freeland, E.; Kolarik, M.; Utley, C.; Cranshaw, W.; Tisserat, N. The Geosmithia causing thousand cankers disease of walnut is a new species. Phytopathology 2009, 99, S37.
  17. Thousand Cankers Disease; Virginia Department of Agriculture and Consumer Services: Richmond, VA, USA, 2011. Available online: http://www.vdacs.virginia.gov/plant&pest/disease-tcd.shtml (accessed on 17 August 2011).
  18. Thousand Cankers Disease; Pennsylvania Department of Agriculture: Harrisburg, PA, USA, 2011. Available online: http://www.agriculture.state.pa.us/portal/server.pt/gateway/PTARGS_0_2_75292_10297_0_43/AgWebsite/ProgramDetail.aspx?name=Thousand-Cankers-Disease&navid=12&parentnavid=0&palid=137& (accessed on 28 August 2011).
  19. Leslie, C.A.; Seybold, S.J.; Graves, A.D.; Cranshaw, W.; Tisserat, N. Potential impacts of thousand cankers disease on commercial walnut production and walnut germplasm conservation. Acta Hortic. 2010, 861, 431–434.
  20. Wood, S.L. The bark and ambrosia beetles of North and Central America (Coleoptera: Scolytidae), a taxonomic monograph. Great Basin Nat. Mem. 1982, 6, 1–1359.
  21. Grant, J.F.; Mayor, A.J.; Lambdin, P.L.; Wiggins, G.J. New species records and incidence of bark and ambrosia beetles (Coleoptera: Scolytidae) from the Barrens of Middle Tennessee, USA. Nat. Area J. 2003, 23, 278–283.
  22. Thousand Cankers Disease; Tennessee Department of Agriculture: Nashville, TN, USA, 2011. Available online: http://www.tn.gov/agriculture/regulatory/tcd.shtml (accessed on 1 September 2011).
  • Conflict of Interest: The authors declare no conflict of interest.
