The Role of Grain Size on Neutron Irradiation Response of Nanocrystalline Copper

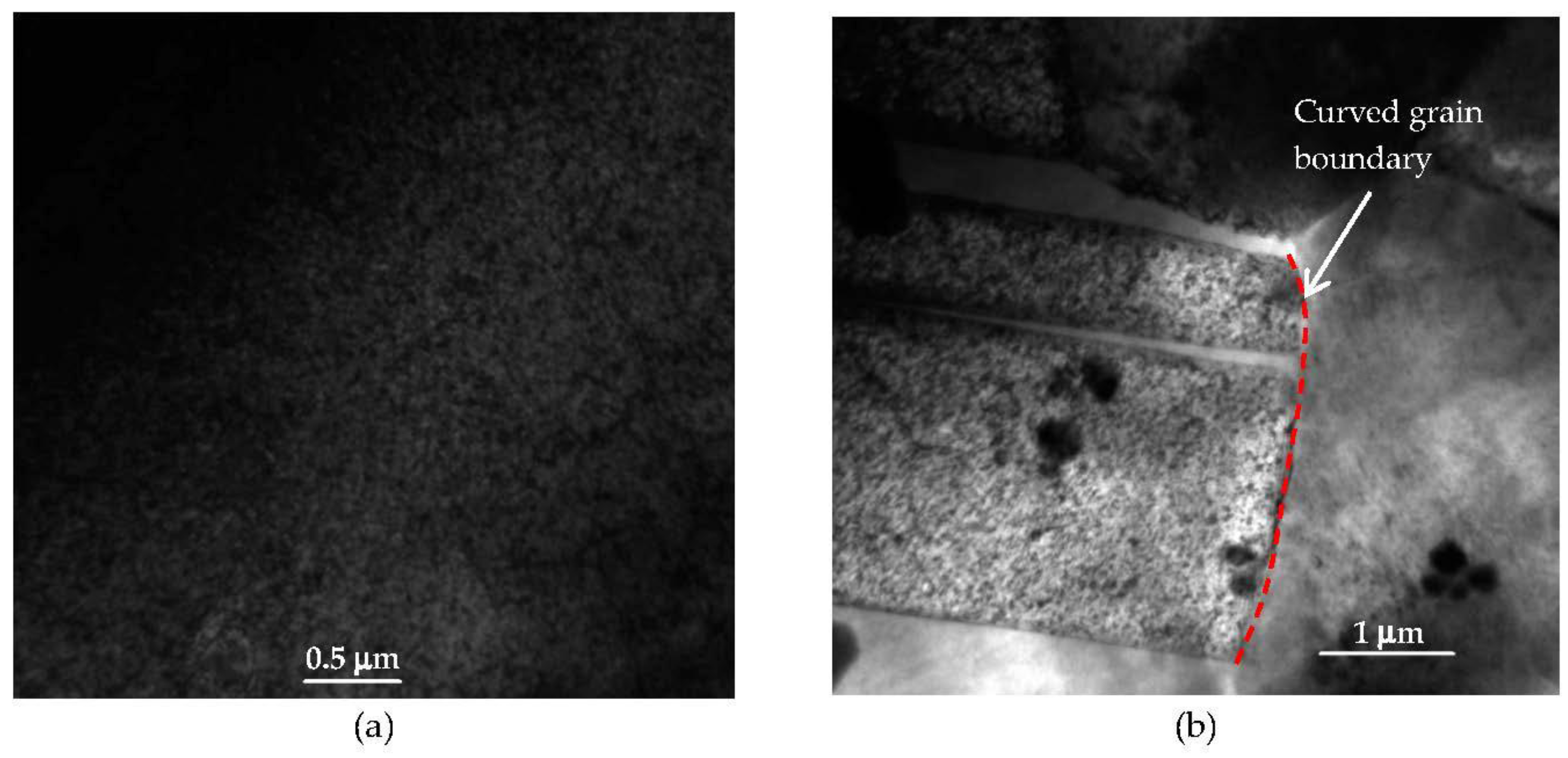

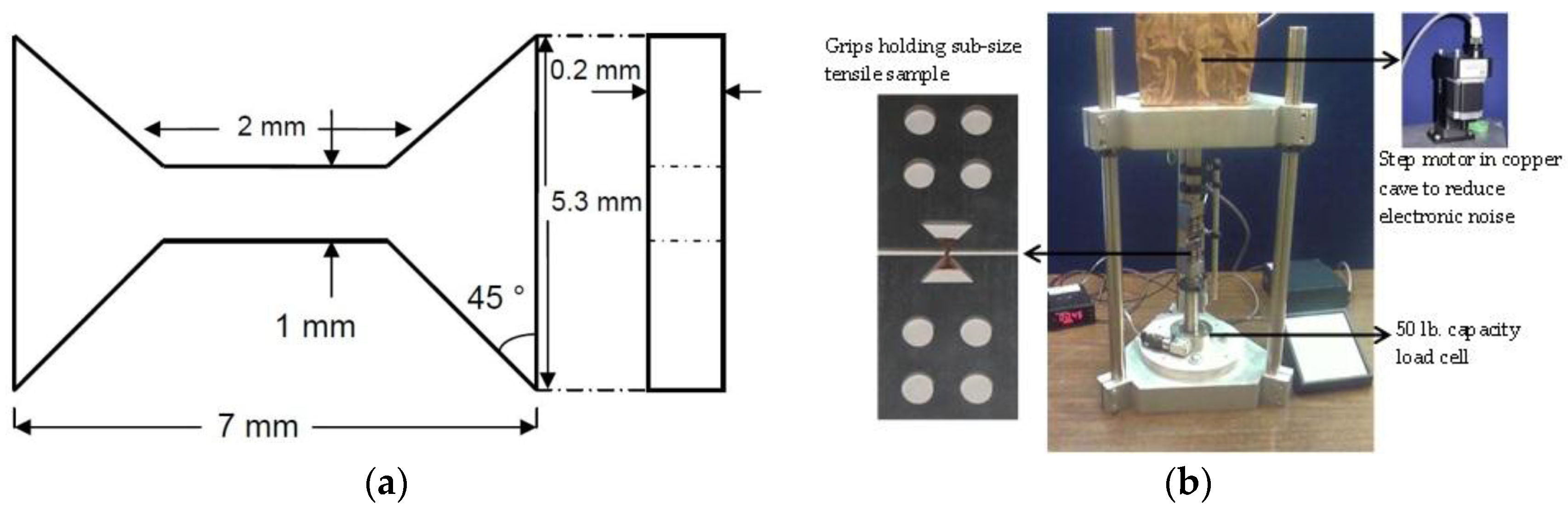

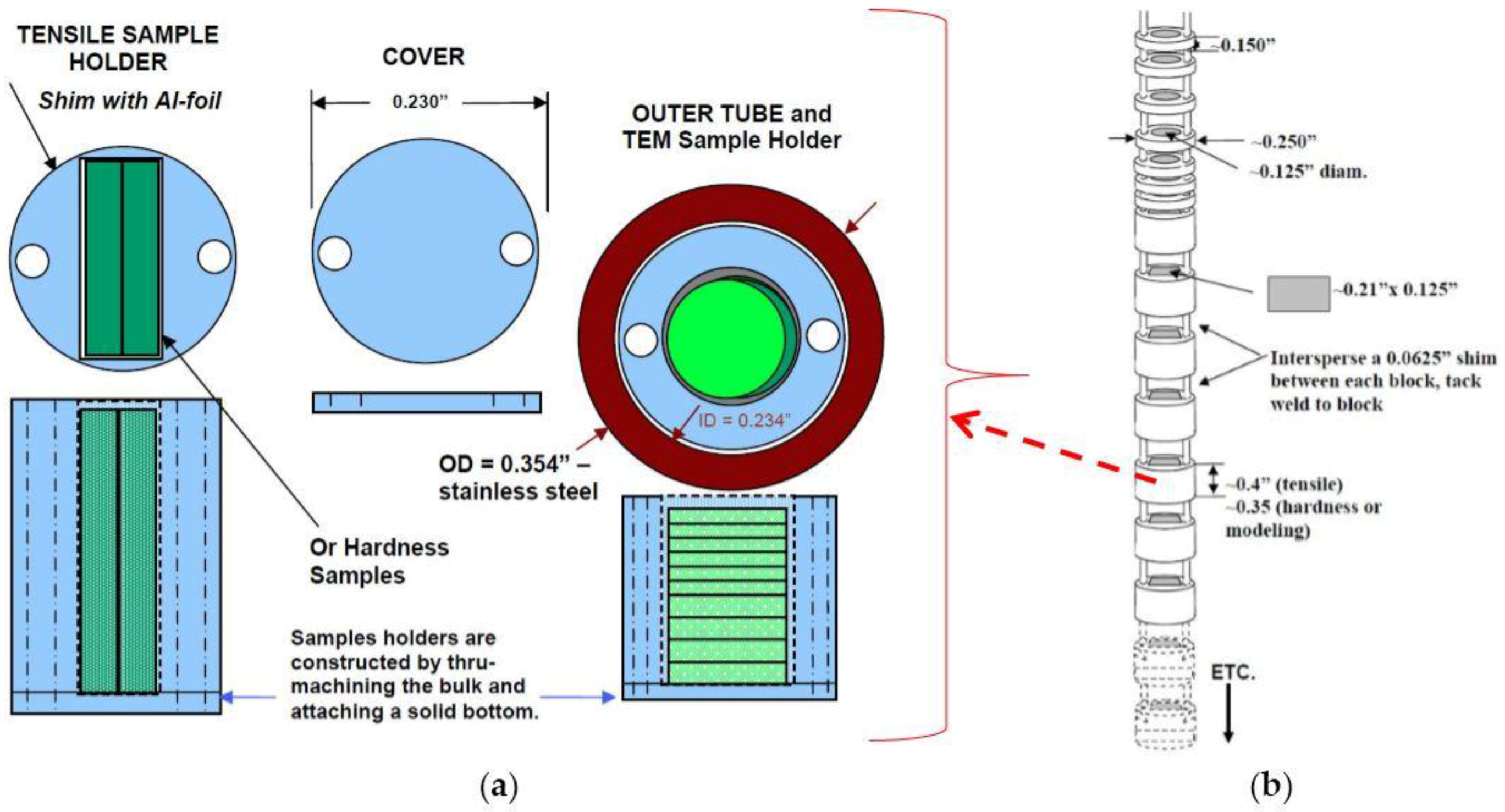

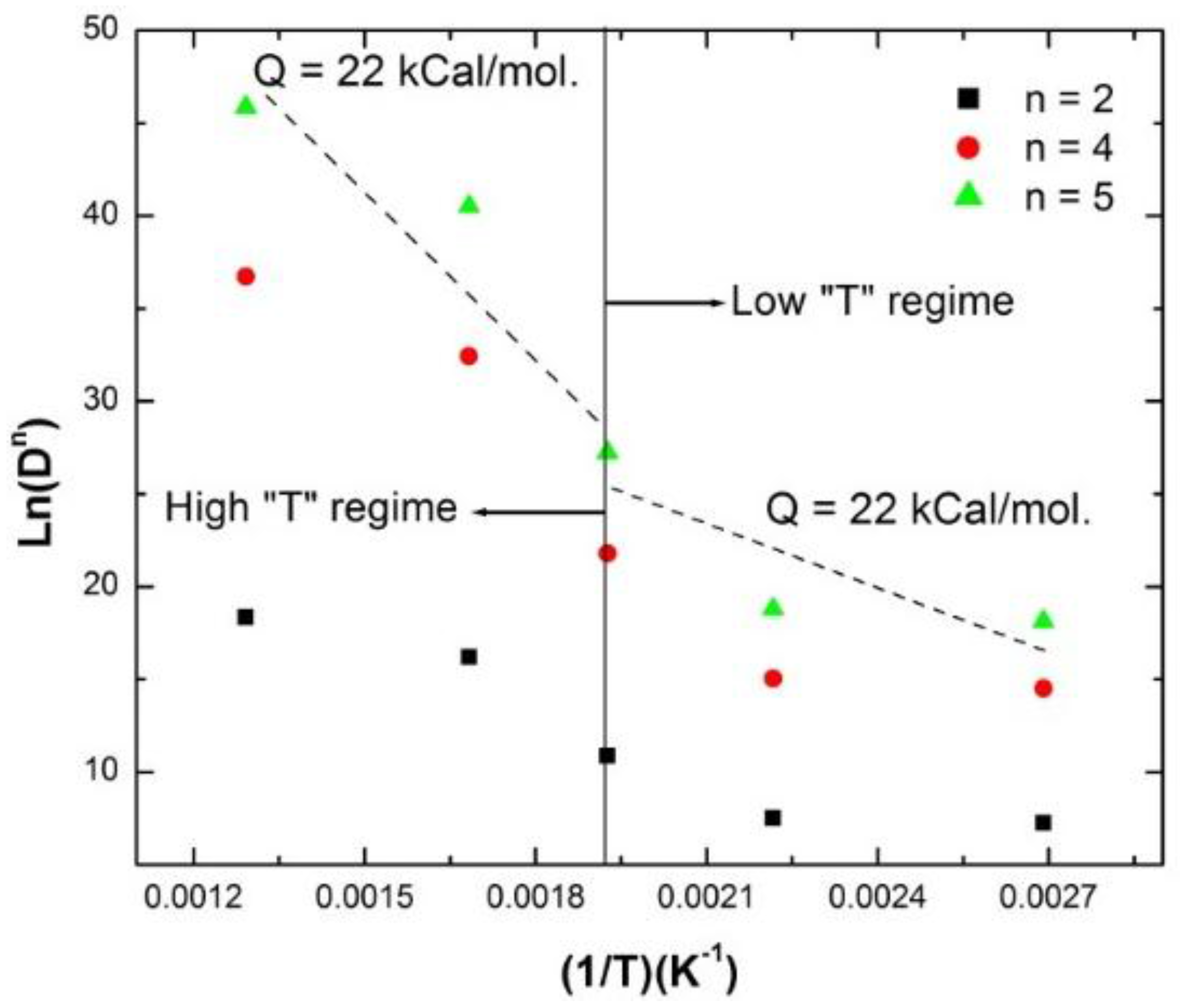

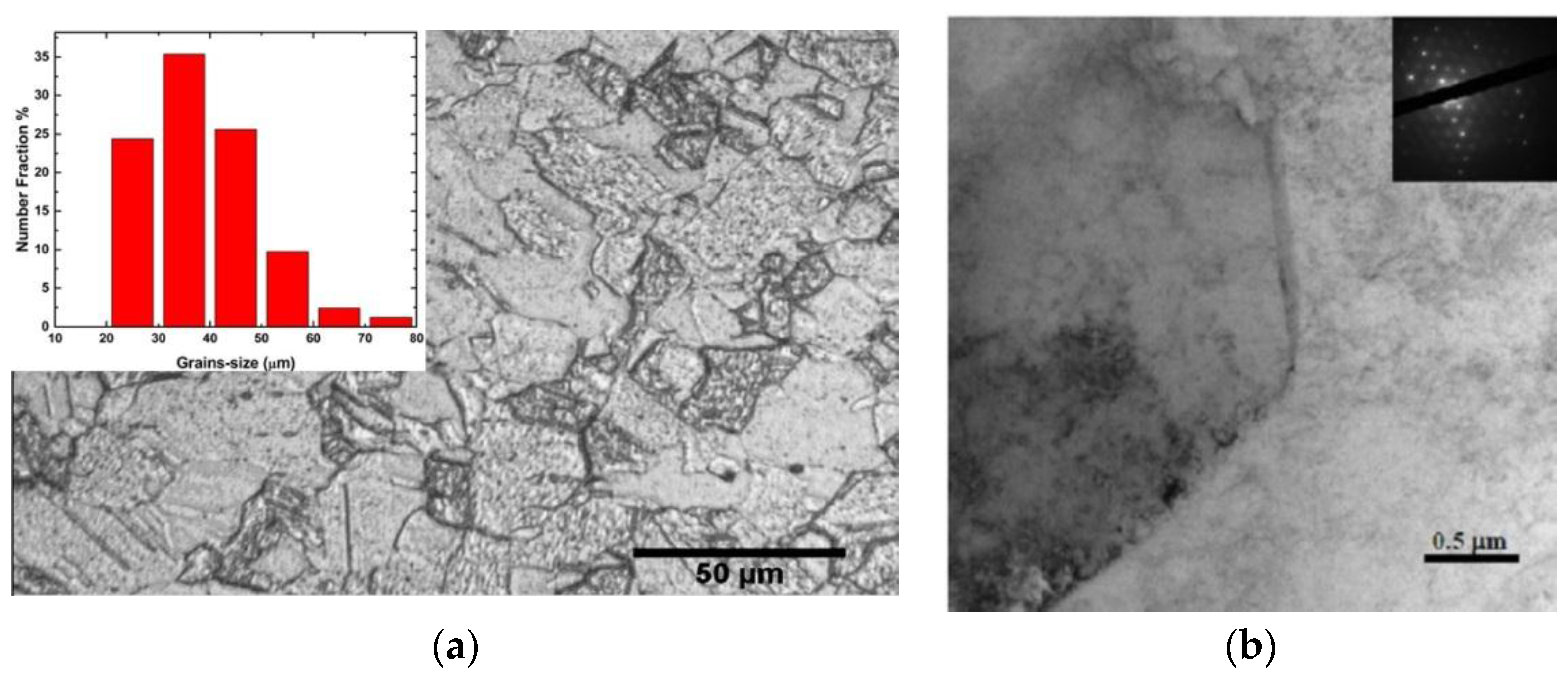

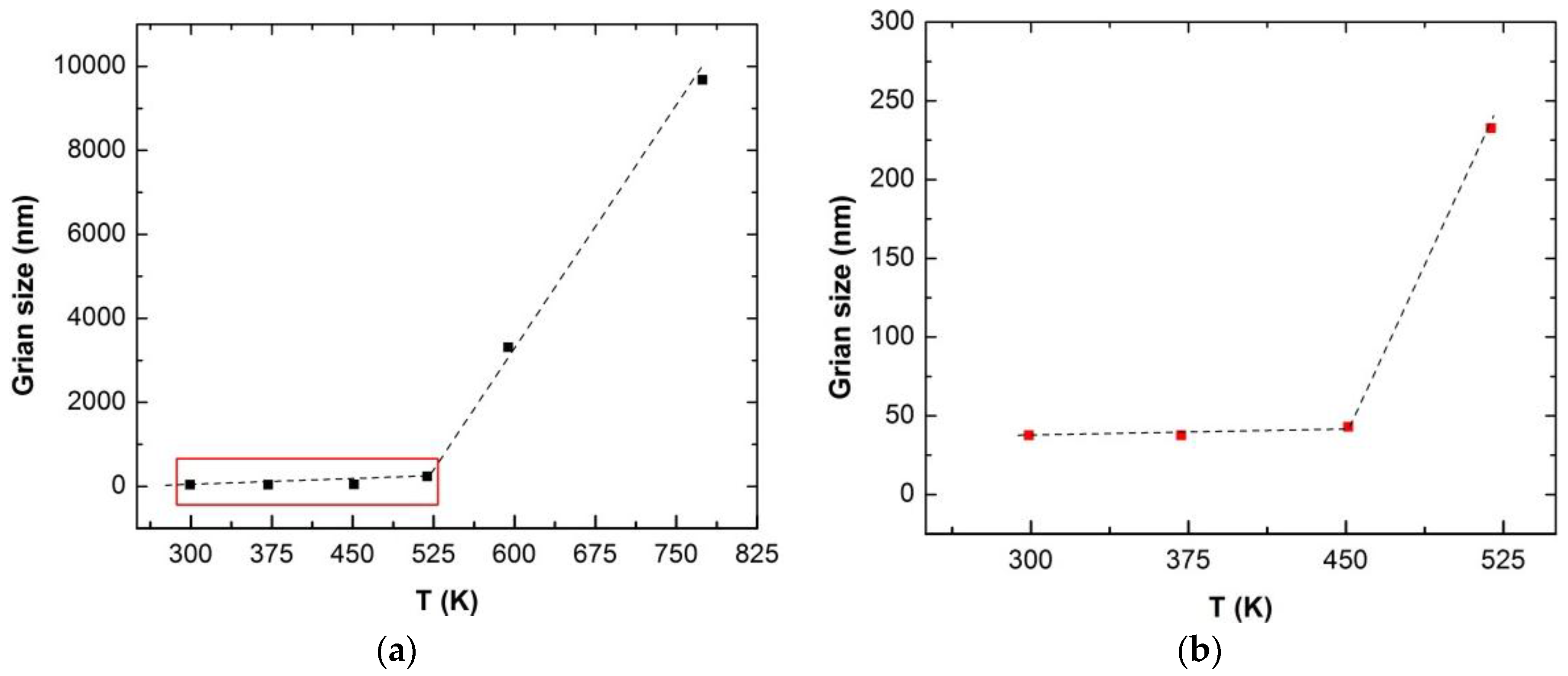

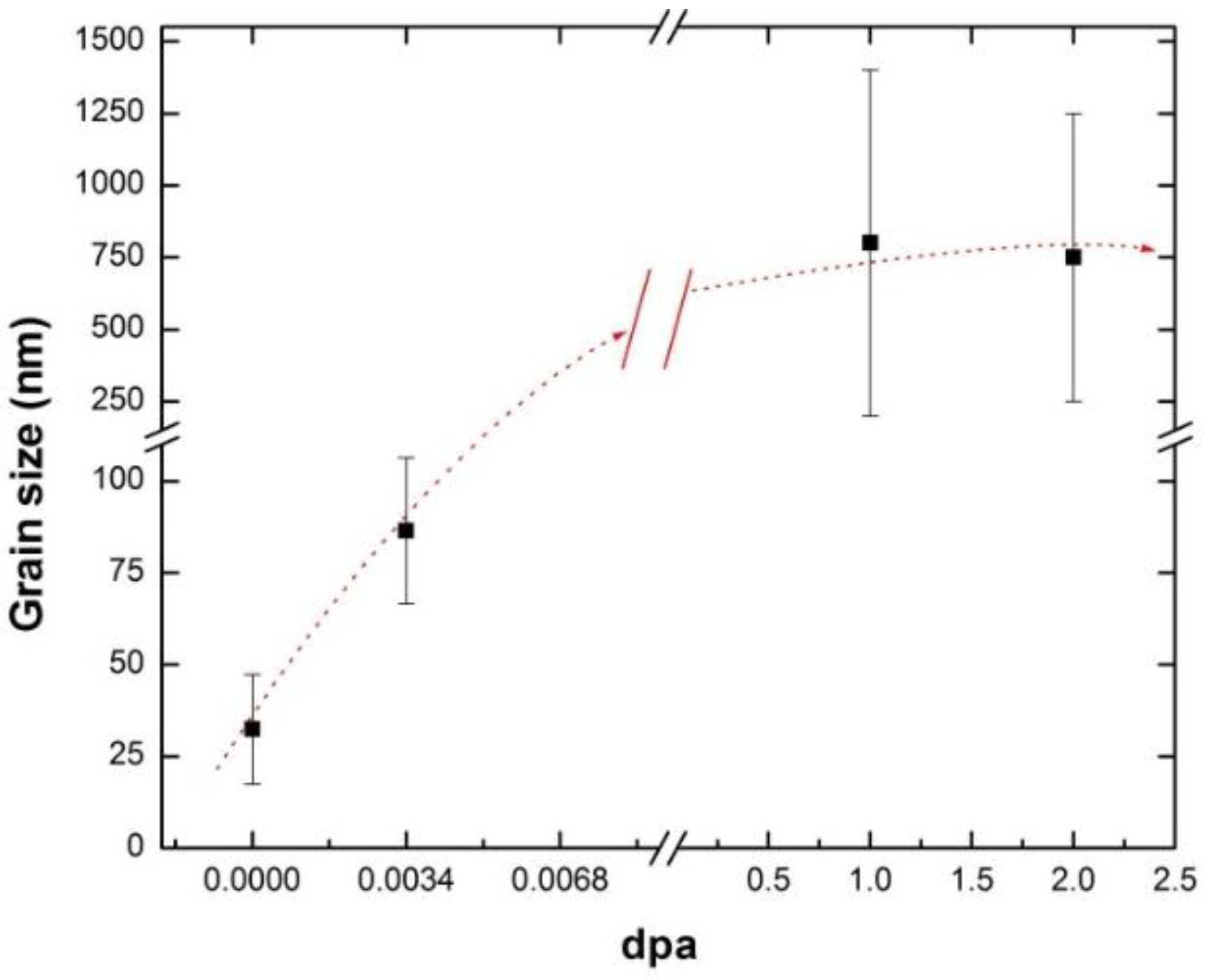

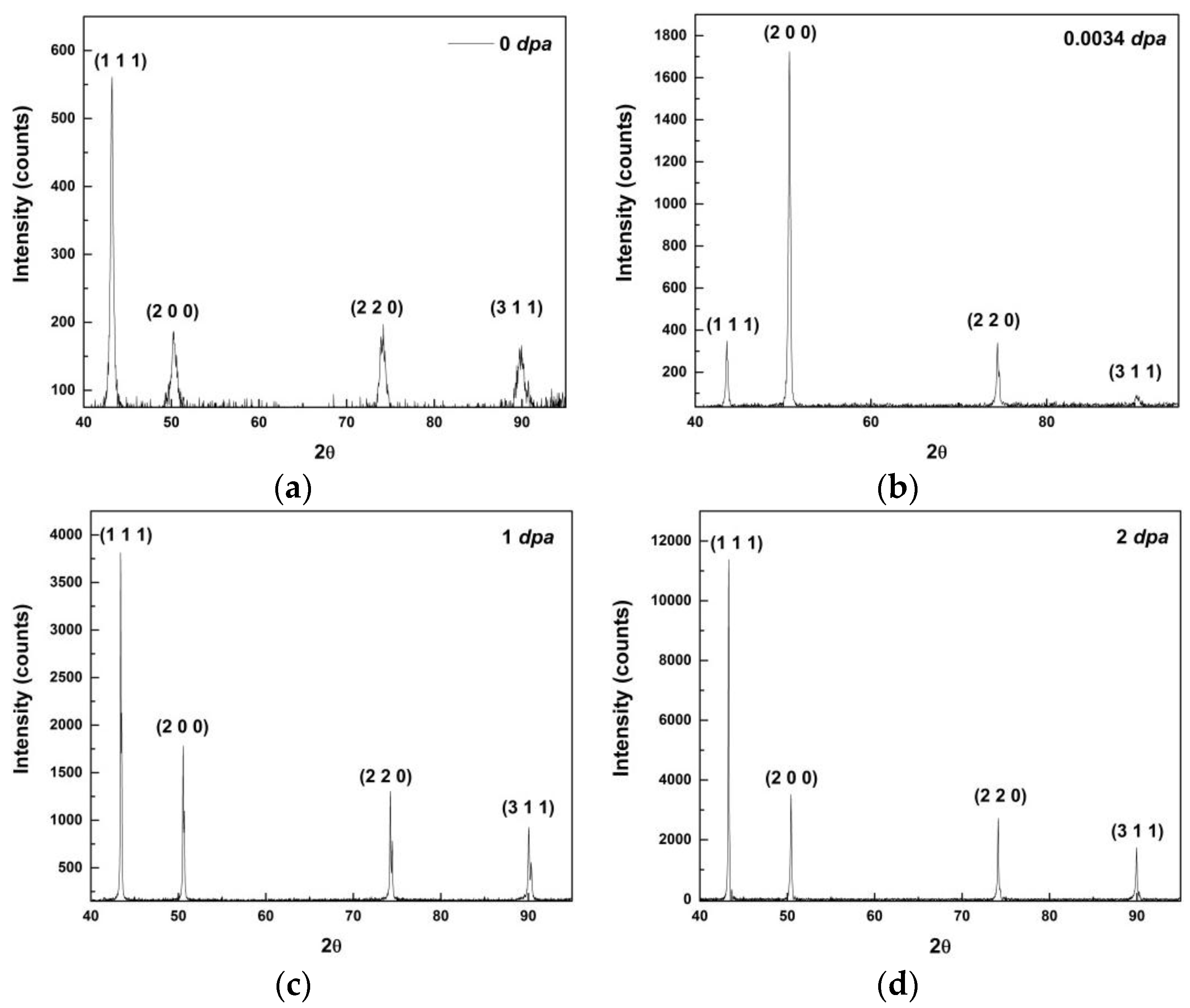

AbstractThe role of grain size on the developed microstructure and mechanical properties of neutron irradiated nanocrystalline copper was investigated by comparing the radiation response of material to the conventional micrograined counterpart. Nanocrystalline (nc) and micrograined (MG) copper samples were subjected to a range of neutron exposure levels from 0.0034 to 2 dpa. At all damage levels, the response of MG-copper was governed by radiation hardening manifested by an increase in strength with accompanying ductility loss. Conversely, the response of nc-copper to neutron irradiation exhibited a dependence on the damage level. At low damage levels, grain growth was the primary response, with radiation hardening and embrittlement becoming the dominant responses with increasing damage levels. Annealing experiments revealed that grain growth in nc-copper is composed of both thermally-activated and irradiation-induced components. Tensile tests revealed minimal change in the source hardening component of the yield stress in MG-copper, while the source hardening component was found to decrease with increasing radiation exposure in nc-copper. View Full-Text
Share & Cite This Article
Mohamed, W.; Miller, B.; Porter, D.; Murty, K. The Role of Grain Size on Neutron Irradiation Response of Nanocrystalline Copper. Materials 2016, 9, 144.
Mohamed W, Miller B, Porter D, Murty K. The Role of Grain Size on Neutron Irradiation Response of Nanocrystalline Copper. Materials. 2016; 9(3):144.Chicago/Turabian Style
Mohamed, Walid; Miller, Brandon; Porter, Douglas; Murty, Korukonda. 2016. "The Role of Grain Size on Neutron Irradiation Response of Nanocrystalline Copper." Materials 9, no. 3: 144.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
