Materials 2015, 8(7), 4618-4630; doi:10.3390/ma8074618

Fine Structure in Multi-Phase Zr8Ni21-Zr7Ni10-Zr2Ni7 Alloy Revealed by Transmission Electron Microscope

1
BASF-Ovonic, 2983 Waterview Drive, Rochester Hills, MI 48309, USA
2
Material Measurement Laboratory, National Institute of Standards and Technology, Gaithersburg, MD 20899, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Daolun Chen
Received: 27 May 2015 / Revised: 6 July 2015 / Accepted: 16 July 2015 / Published: 22 July 2015
View Full-Text   |   Download PDF [2262 KB, uploaded 22 July 2015]   |

Abstract

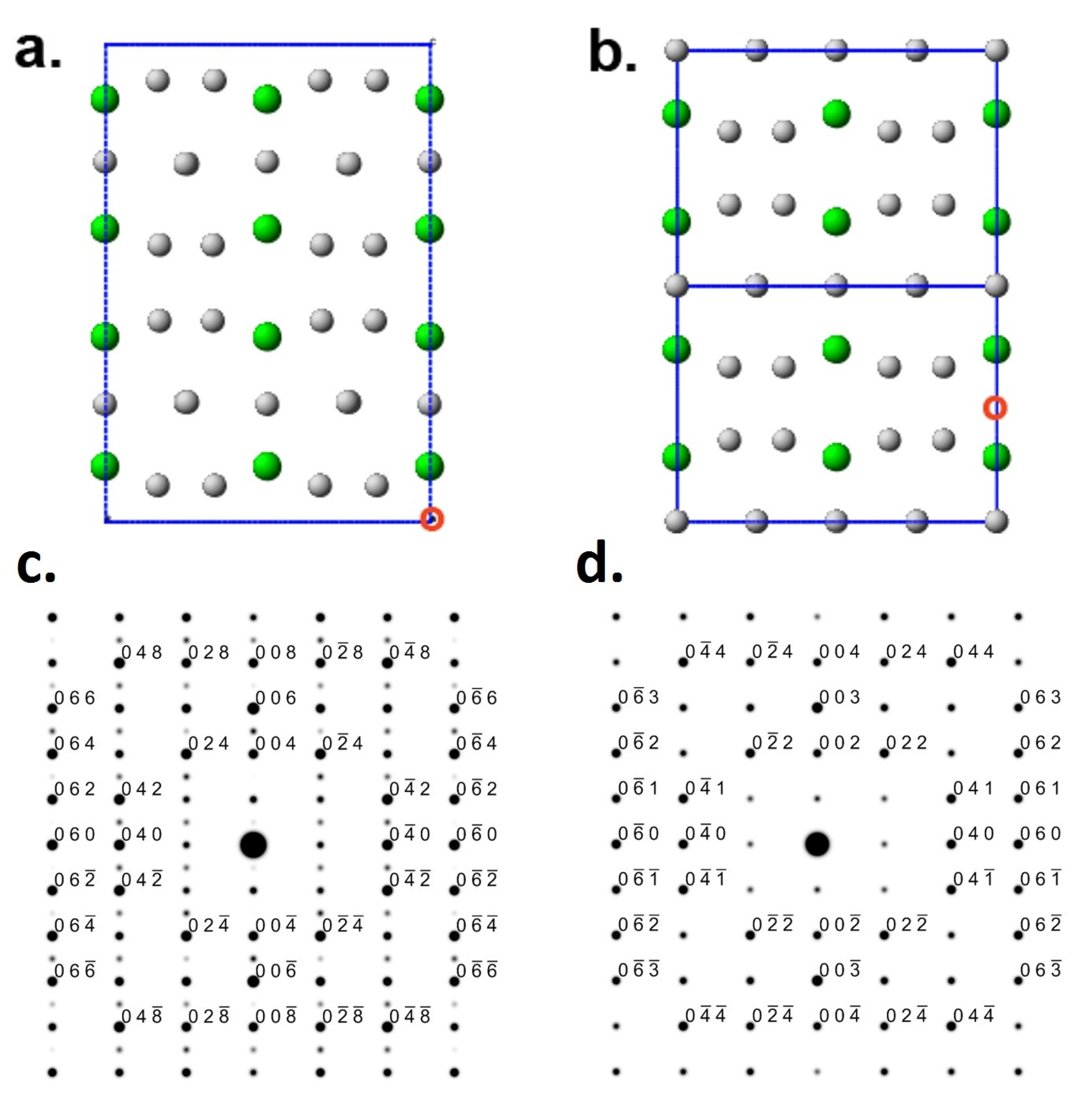

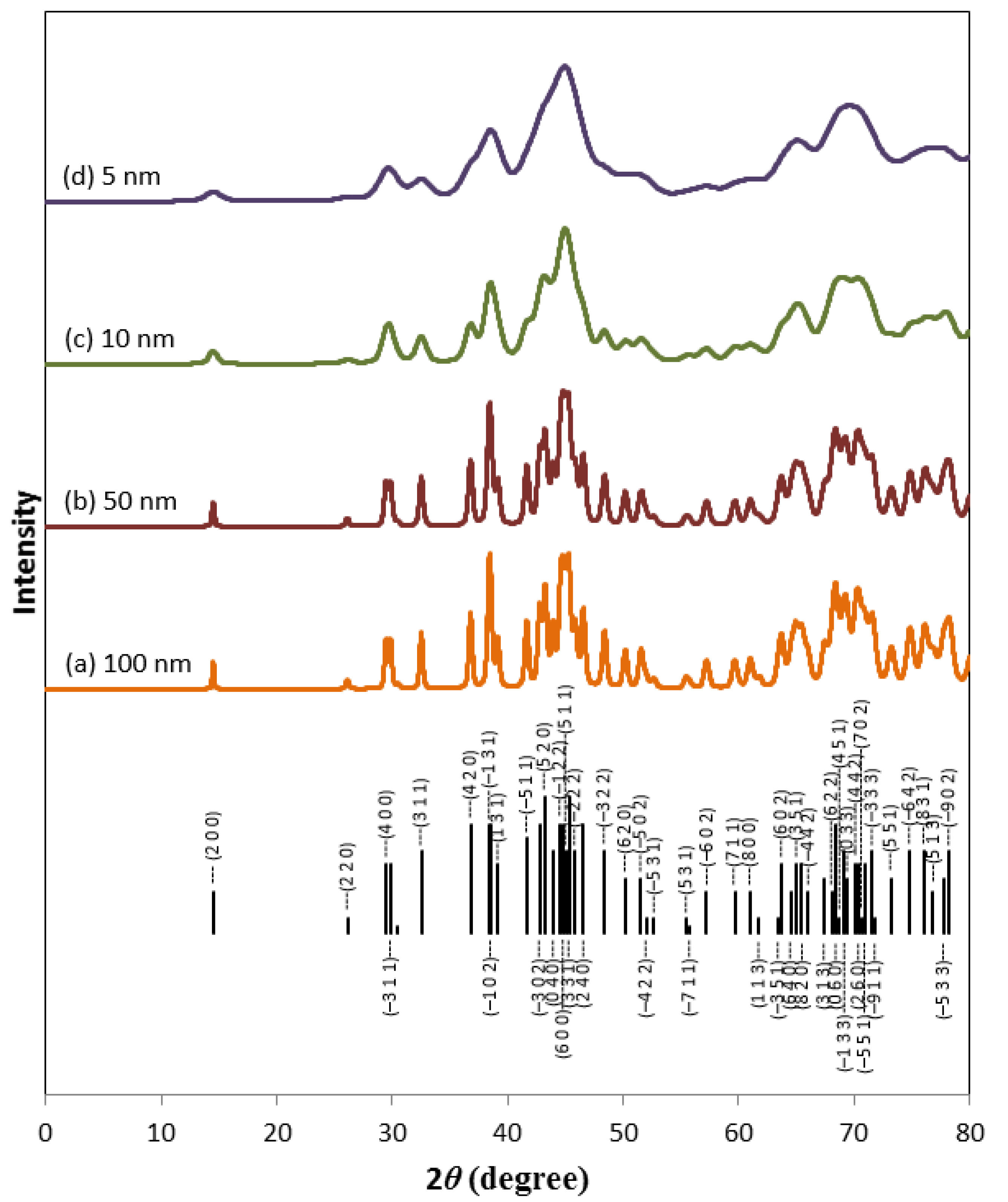

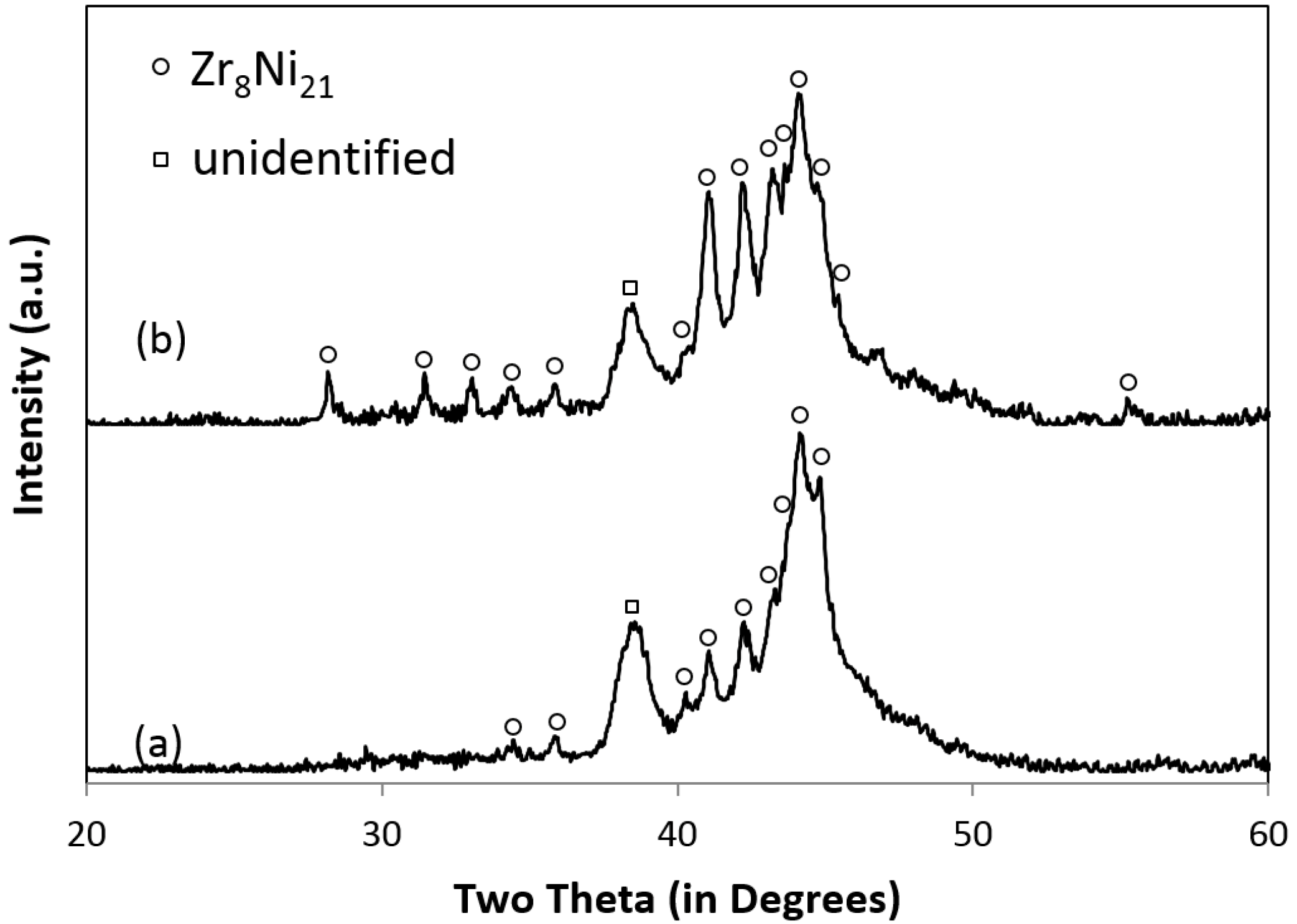

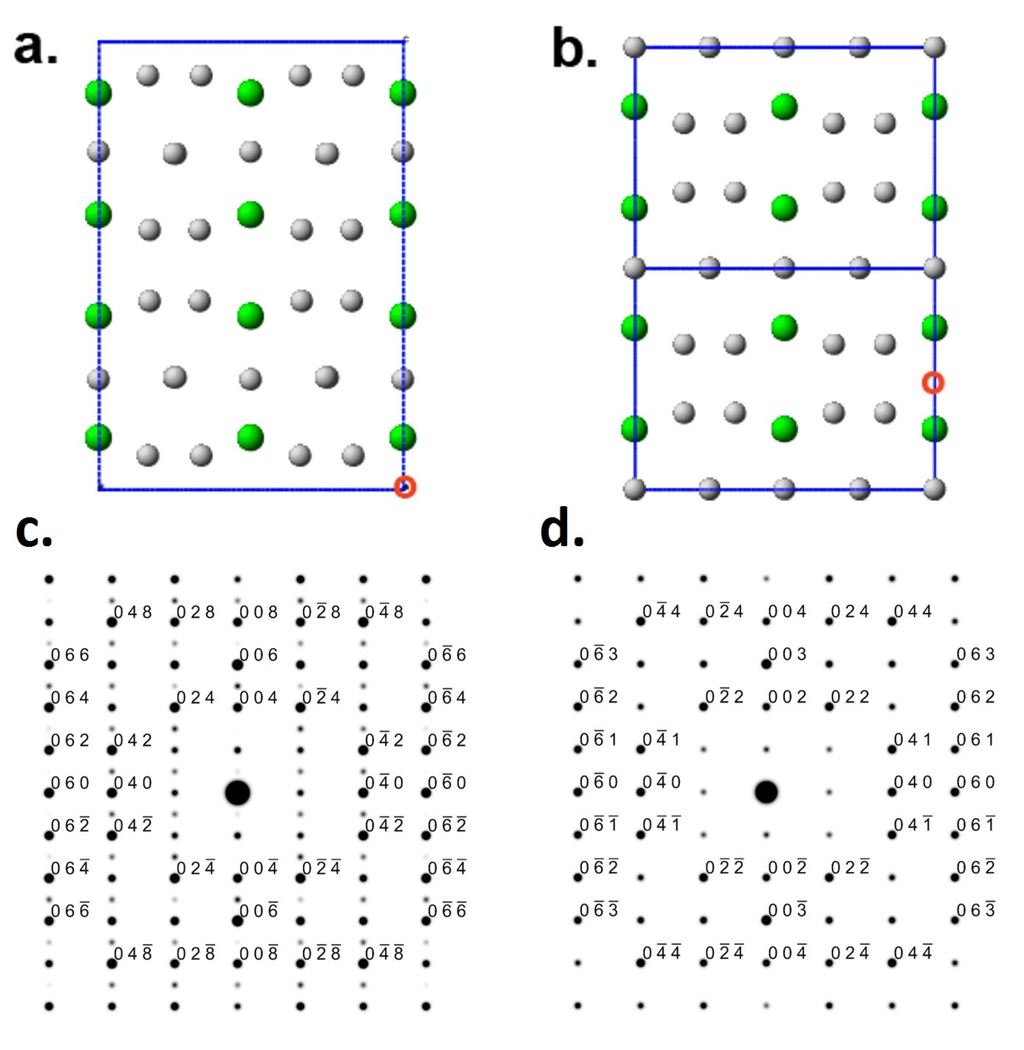

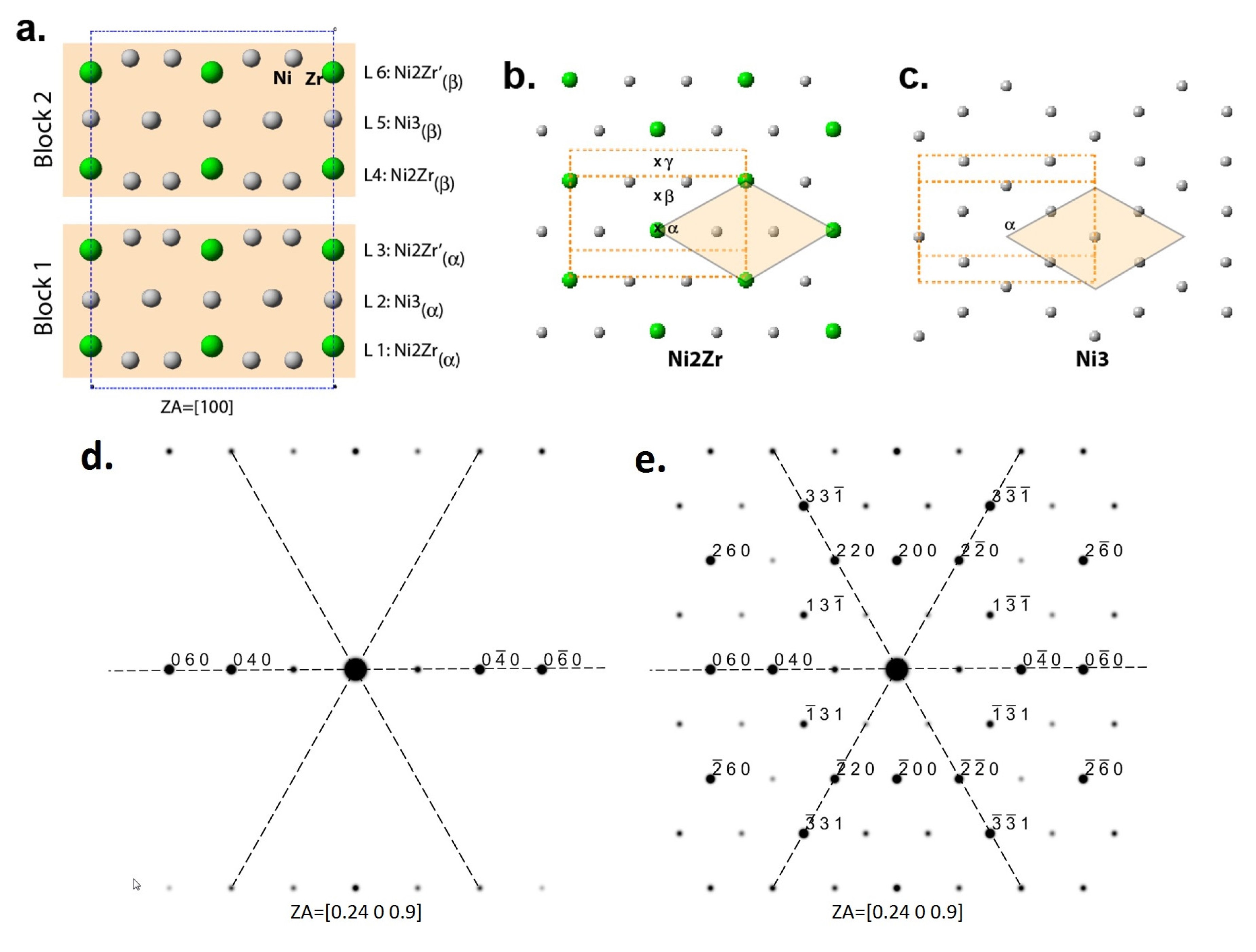

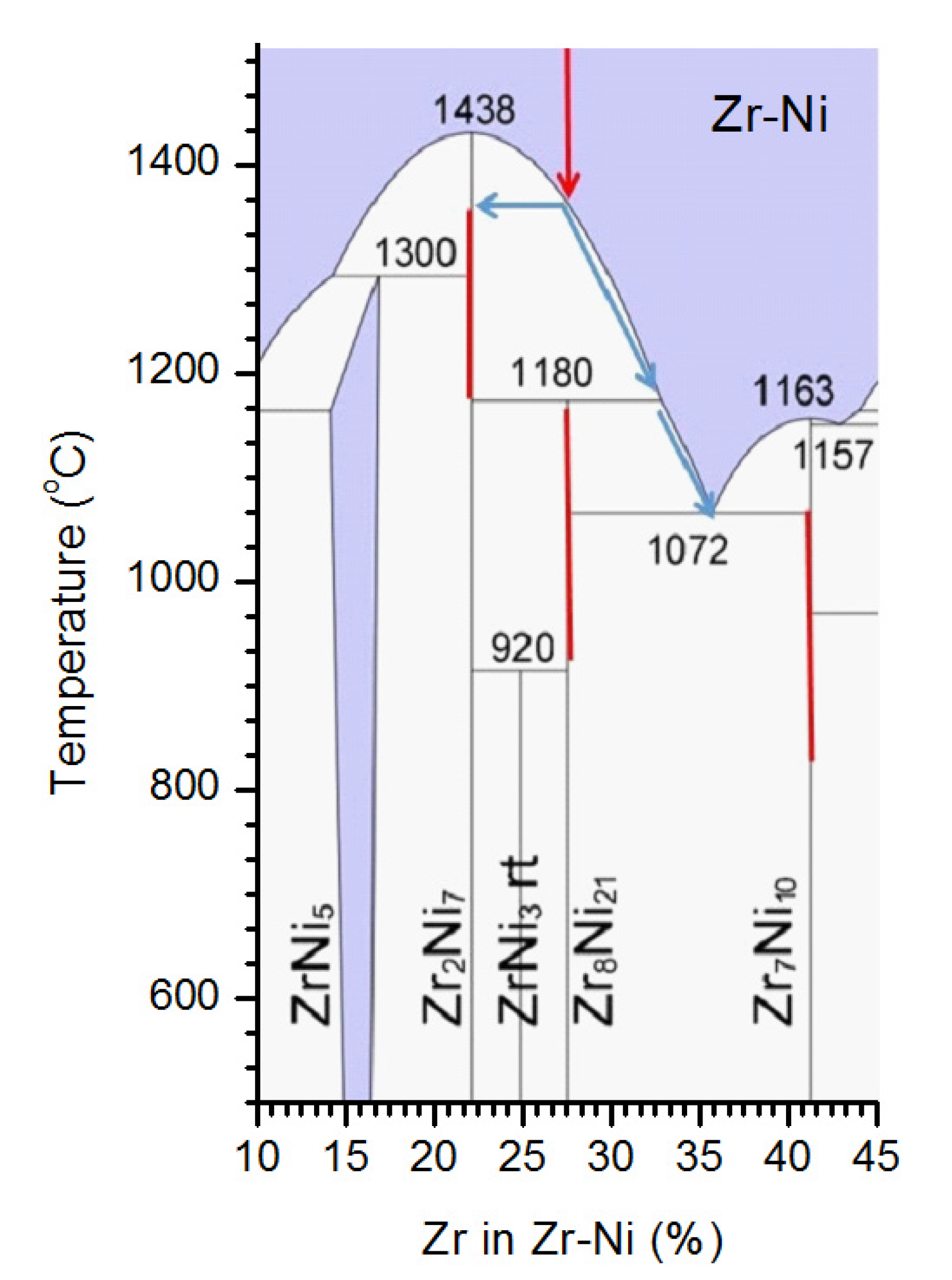

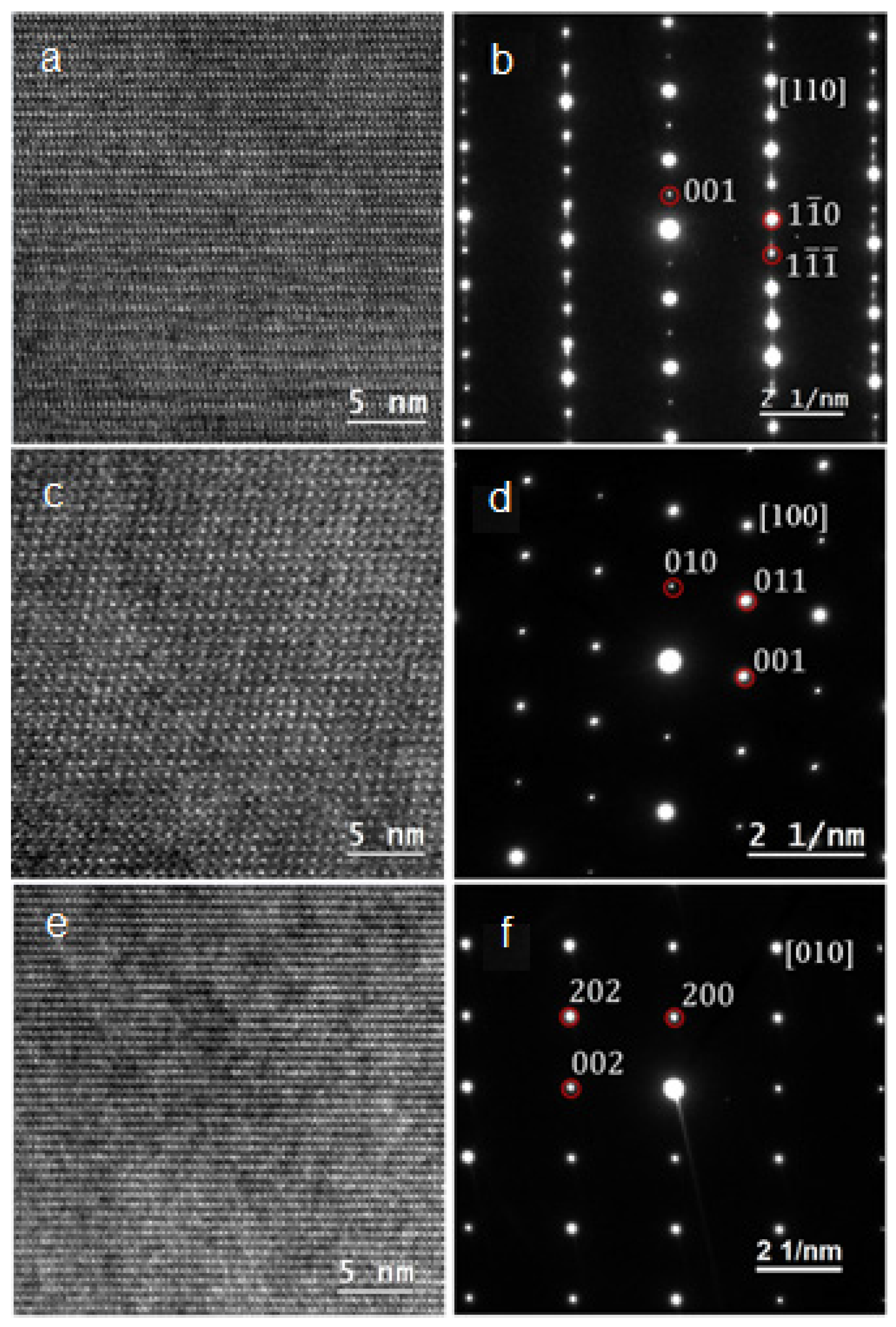

The microstructure of an annealed alloy with a Zr8Ni21 composition was studied by both scanning electron microscopy (SEM) and transmission electron microscopy (TEM). The presence of three phases, Zr8Ni21, Zr2Ni7, and Zr7Ni10, was confirmed by SEM/X-ray energy dispersive spectroscopy compositional mapping and TEM electron diffraction. Distribution of the phases and their morphology can be linked to a multi-phase structure formed by a sequence of reactions: (1) L → Zr2Ni7 + L’; (2) peritectic Zr2Ni7 + L’ → Zr2Ni7 + Zr8Ni21 + L”; (3) eutectic L” → Zr8Ni21 + Zr7Ni10. The effect of annealing at 960 °C, which was intended to convert a cast structure into a single-phase Zr8Ni21 structure, was only moderate and the resulting alloy was still multi-phased. TEM and crystallographic analysis of the Zr2Ni7 phase show a high density of planar (001) defects that were explained as low-energy boundaries between rotational variants and stacking faults. The crystallographic features arise from the pseudo-hexagonal structure of Zr2Ni7. This highly defective Zr2Ni7 phase was identified as the source of the broad X-ray diffraction peaks at around 38.4° and 44.6° when a Cu-K was used as the radiation source. View Full-Text
Keywords: intermetallics; nanocrystalline structure; microstructure; planar faults; scanning electron microscopy; transmission electron microscopy intermetallics; nanocrystalline structure; microstructure; planar faults; scanning electron microscopy; transmission electron microscopy
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
