Materials 2014, 7(2), 876-886; doi:10.3390/ma7020876

Study on Surface Permeability of Concrete under Immersion

, 1,* , 1
, 2,*  and 1
Received: 12 December 2013; in revised form: 16 January 2014 / Accepted: 23 January 2014 / Published: 28 January 2014
(This article belongs to the Section Porous Materials)
View Full-Text   |   Download PDF [579 KB, uploaded 28 January 2014]

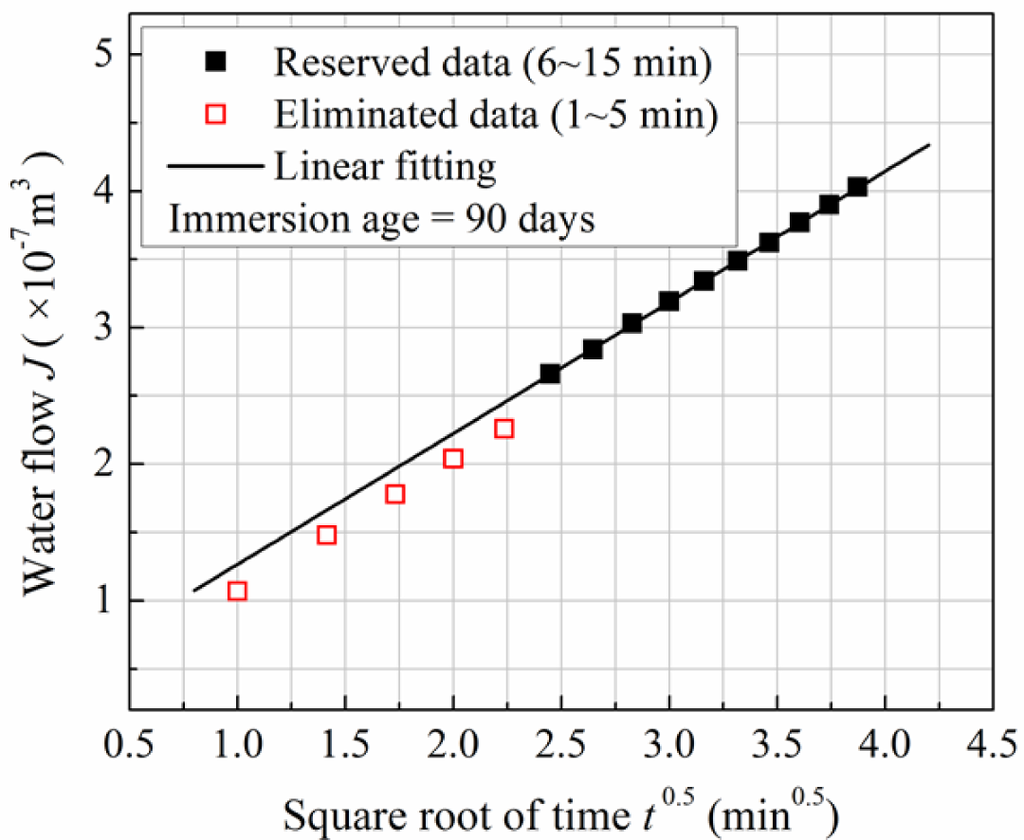

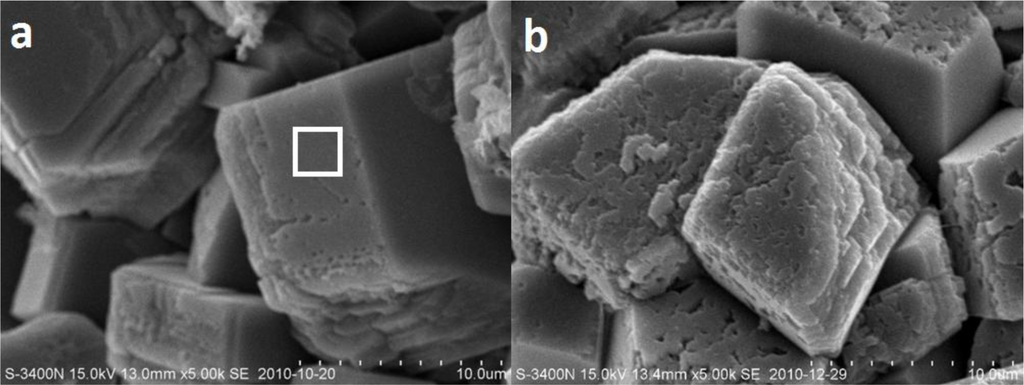

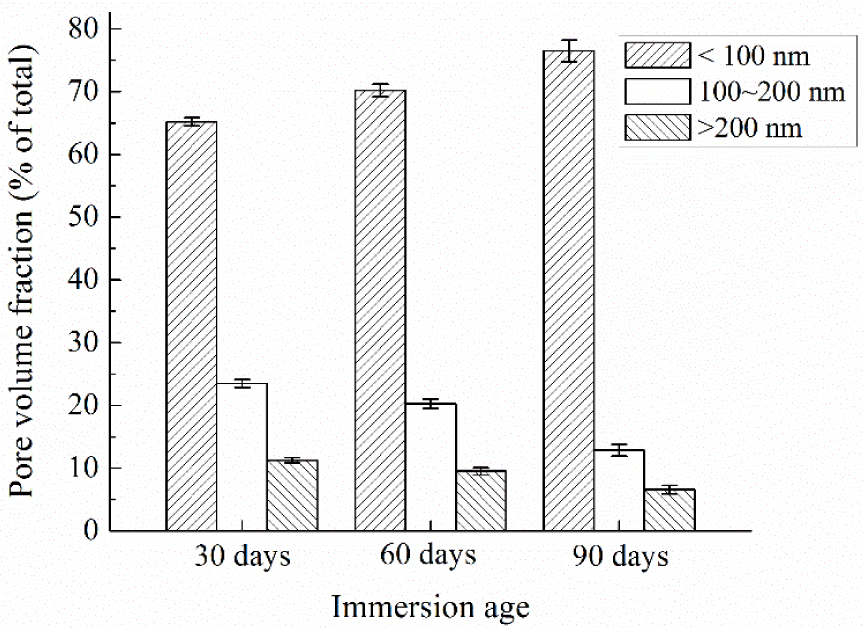

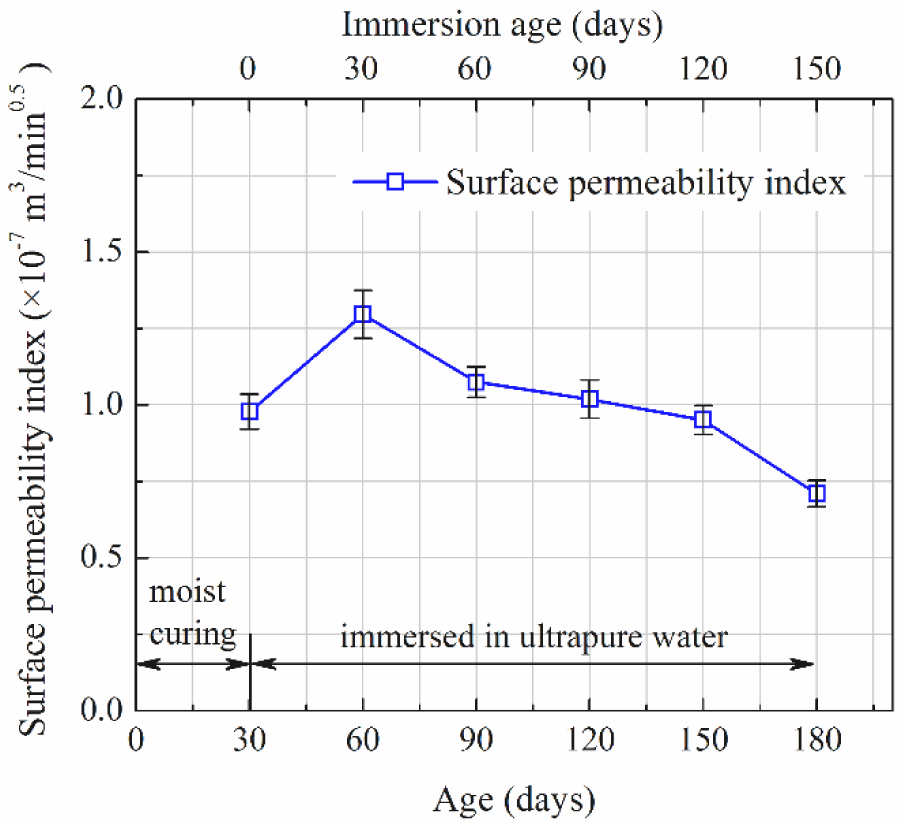

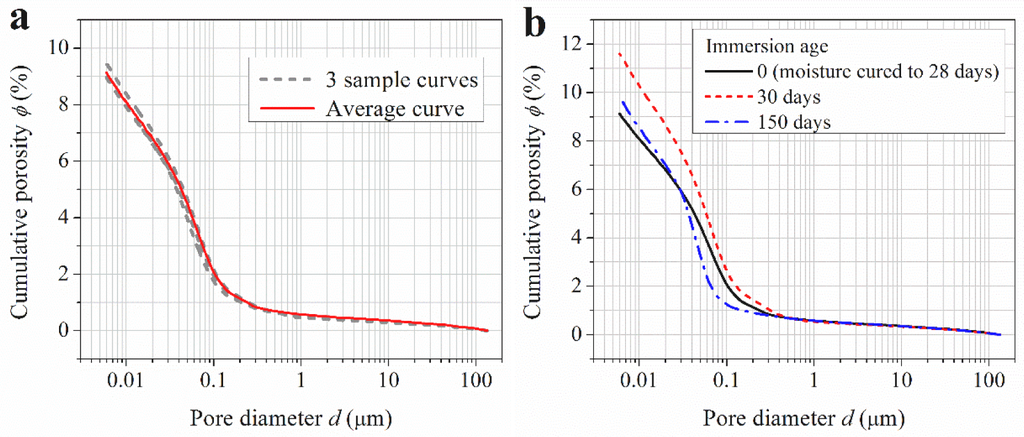

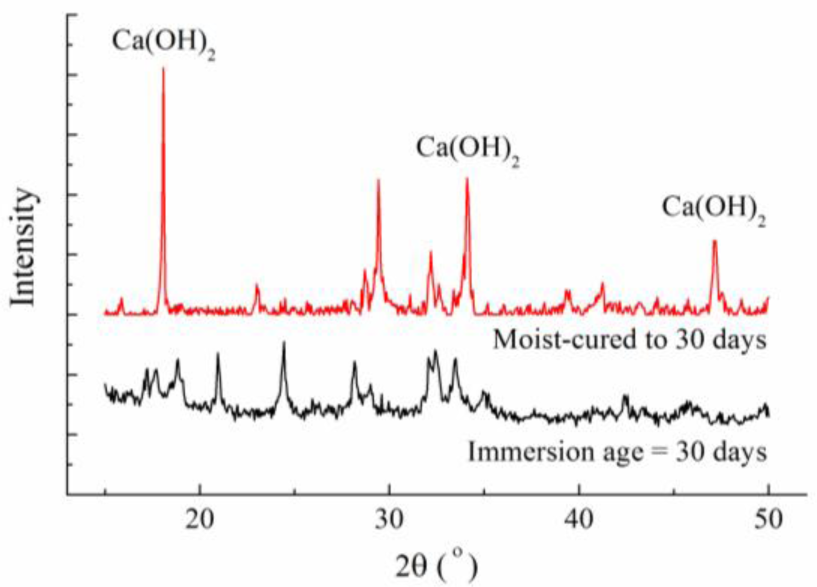

Abstract: In this paper, concrete specimens are immersed in ultrapure water, to study the evolutions of surface permeability, pore structure and paste microstructure following the prolonging of immersion period. According to the results, after 30-day immersion, the surface permeability of concrete becomes higher as compared with the value before immersion. However, further immersion makes the surface permeability decrease, so that the value measured after 150-day immersion is only half that measured after 30-day immersion. The early increase in surface permeability should be mainly attributed to the leaching of calcium hydroxide, while the later decrease to the refinement of pore structure due to hydration. The two effects work simultaneously and compete throughout the immersion period. The proposed mechanisms get support from microscopic measurements and observations.
Keywords: concrete; immersion; calcium hydroxide; surface permeability; pore structure
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |

MDPI and ACS Style

Liu, J.; Xing, F.; Dong, B.; Ma, H.; Pan, D. Study on Surface Permeability of Concrete under Immersion. Materials 2014, 7, 876-886.

AMA Style

Liu J, Xing F, Dong B, Ma H, Pan D. Study on Surface Permeability of Concrete under Immersion. Materials. 2014; 7(2):876-886.

Chicago/Turabian Style

Liu, Jun; Xing, Feng; Dong, Biqin; Ma, Hongyan; Pan, Dong. 2014. "Study on Surface Permeability of Concrete under Immersion." Materials 7, no. 2: 876-886.

Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
