Materials 2013, 6(8), 3171-3193; doi:10.3390/ma6083171
Article

Inorganic Nanoparticle-Modified Poly(Phenylene Sulphide)/ Carbon Fiber Laminates: Thermomechanical Behaviour

1,* email and 2email
Received: 2 May 2013; in revised form: 15 July 2013 / Accepted: 23 July 2013 / Published: 26 July 2013
(This article belongs to the Section Porous Materials)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

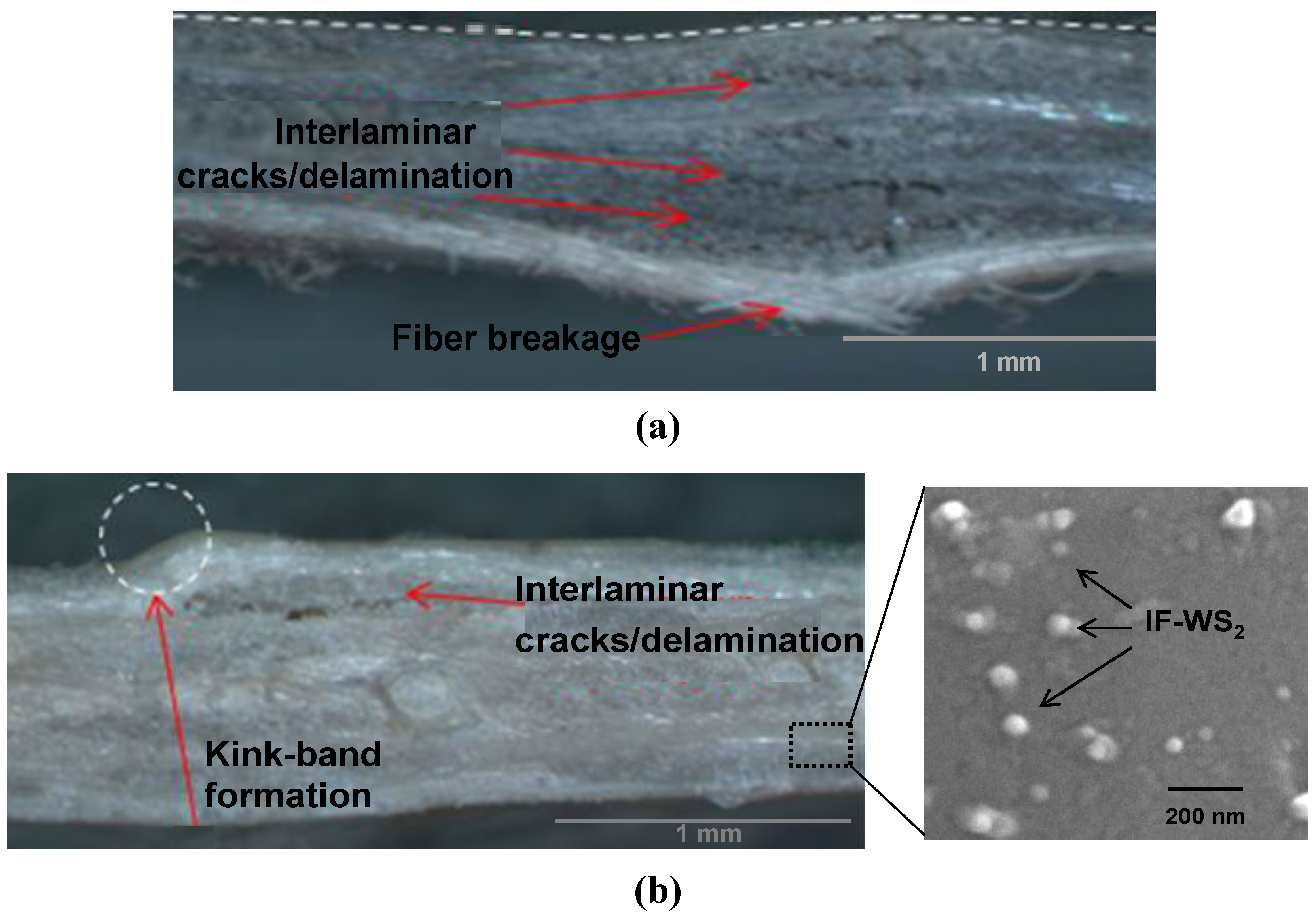

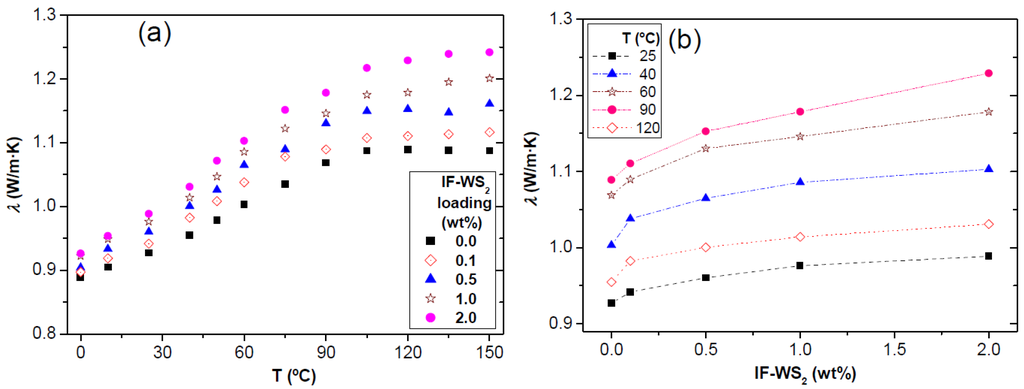

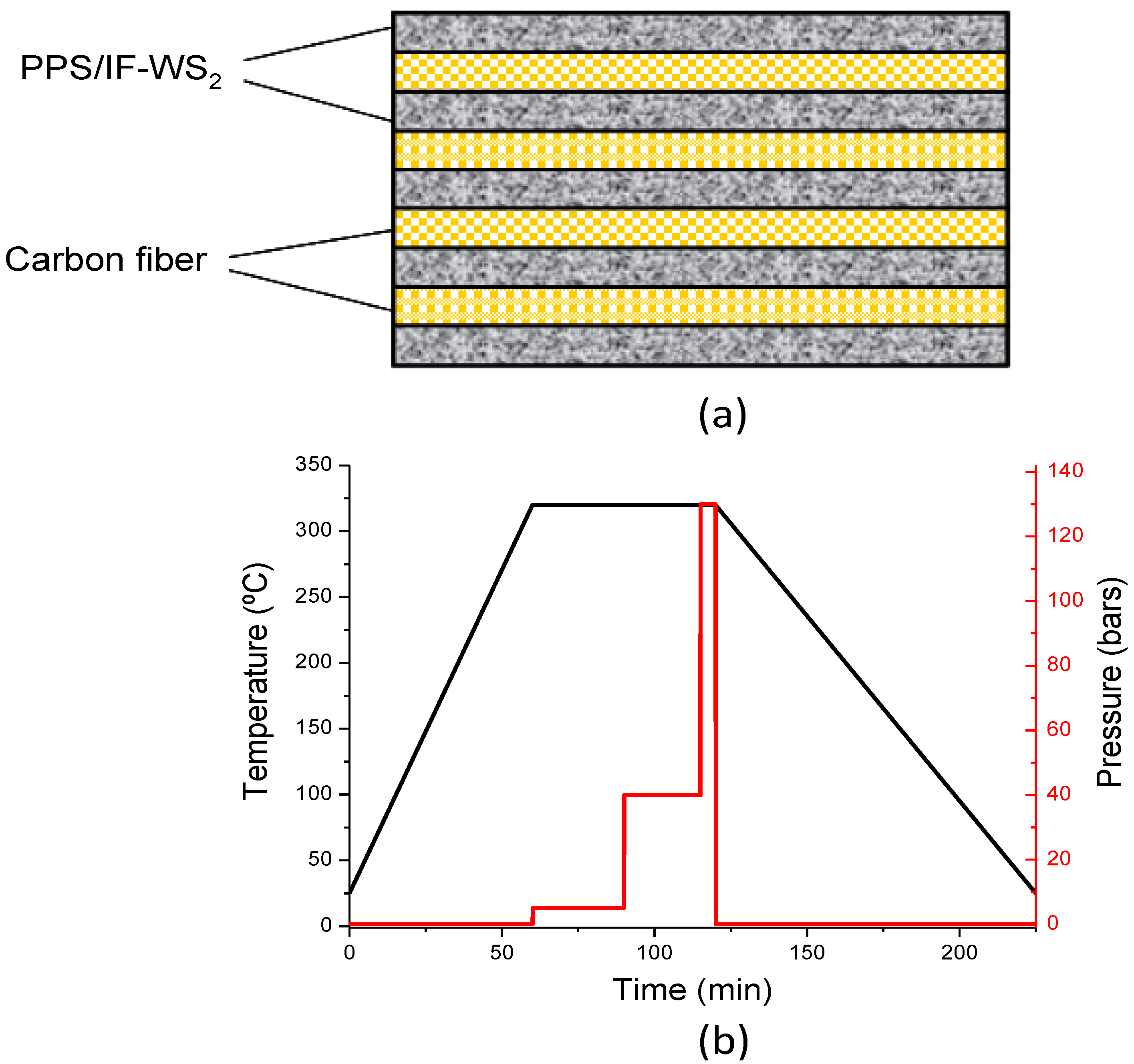

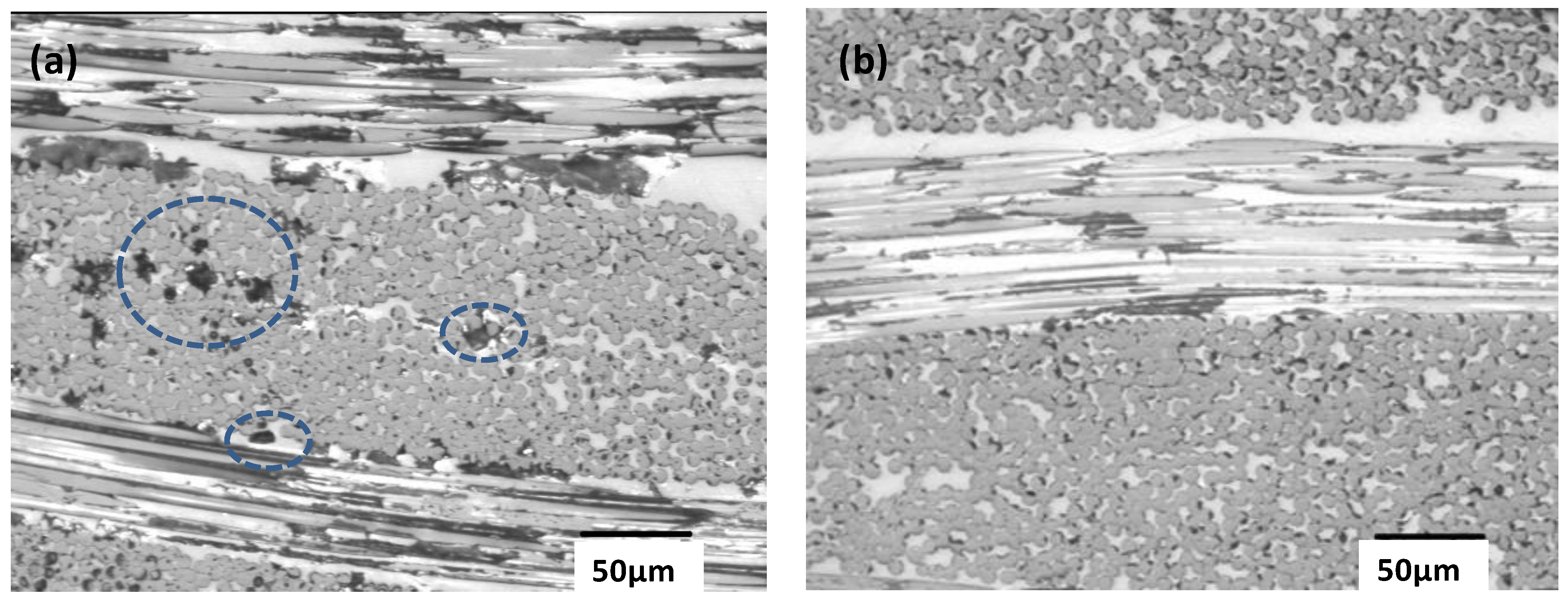

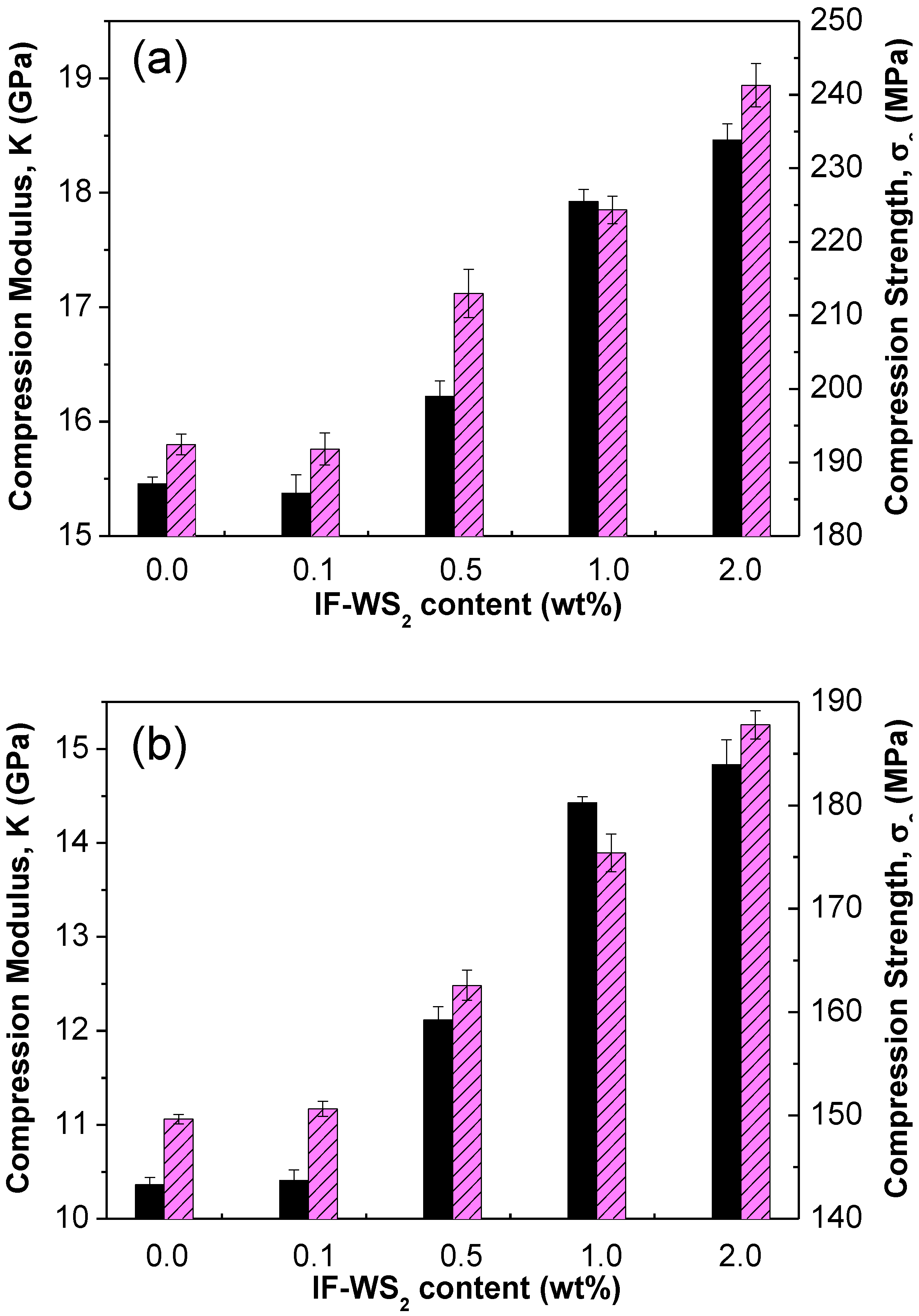

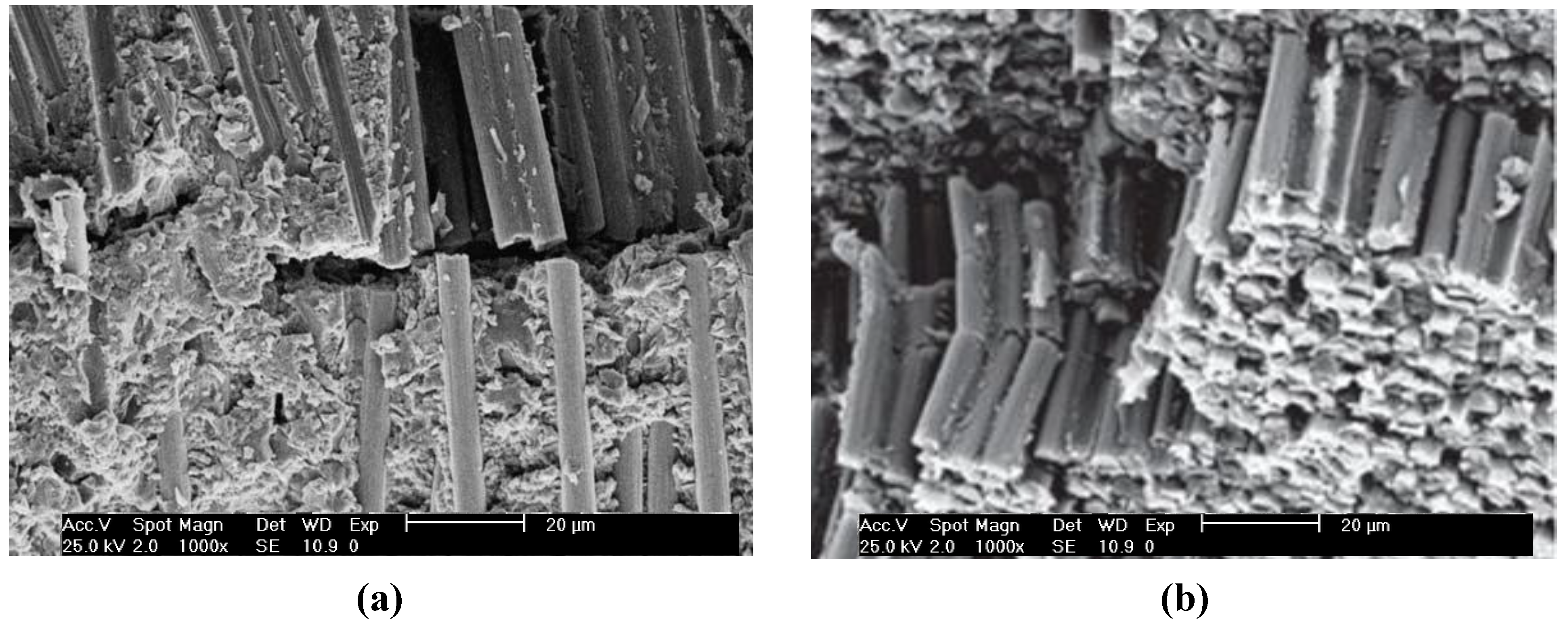

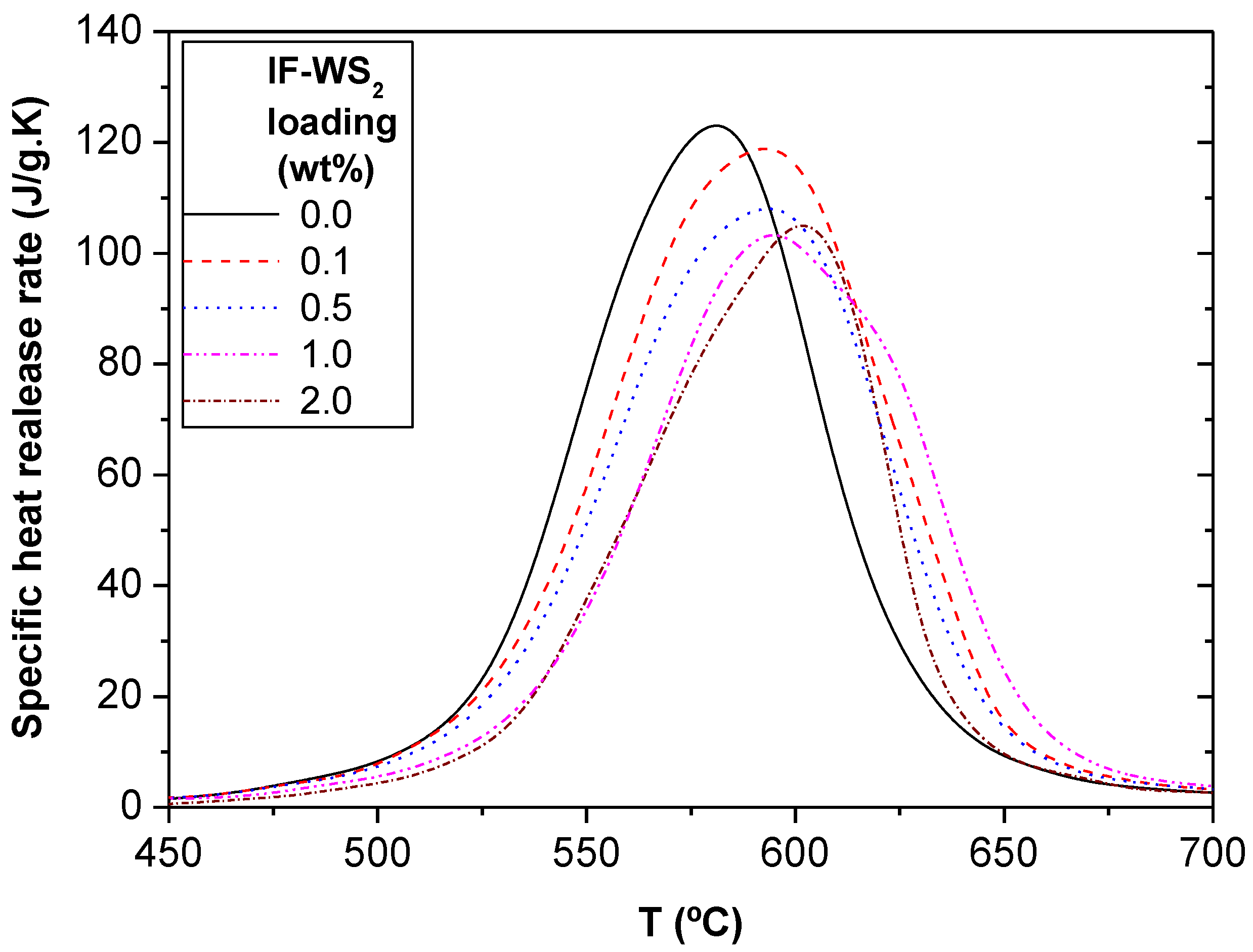

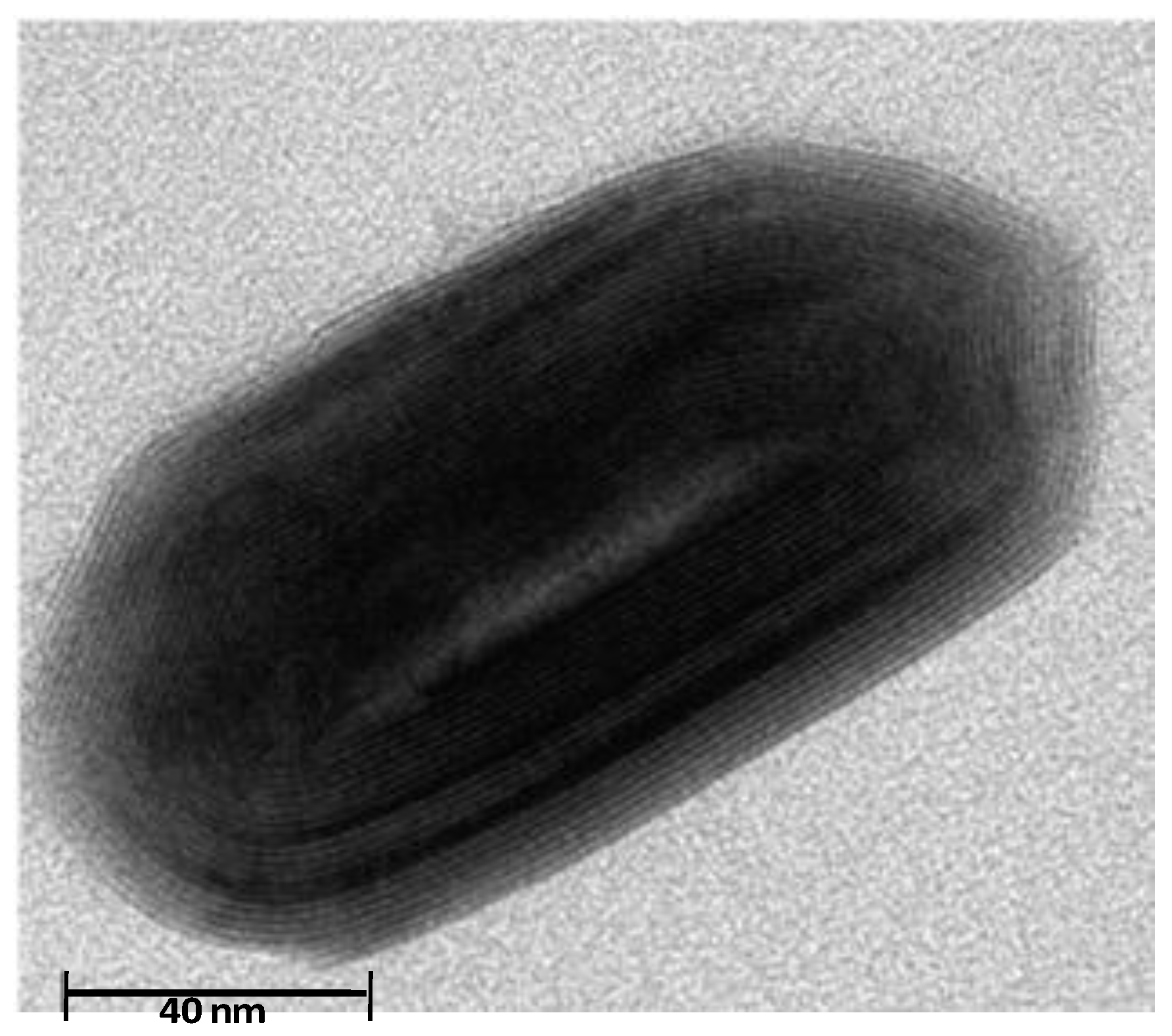

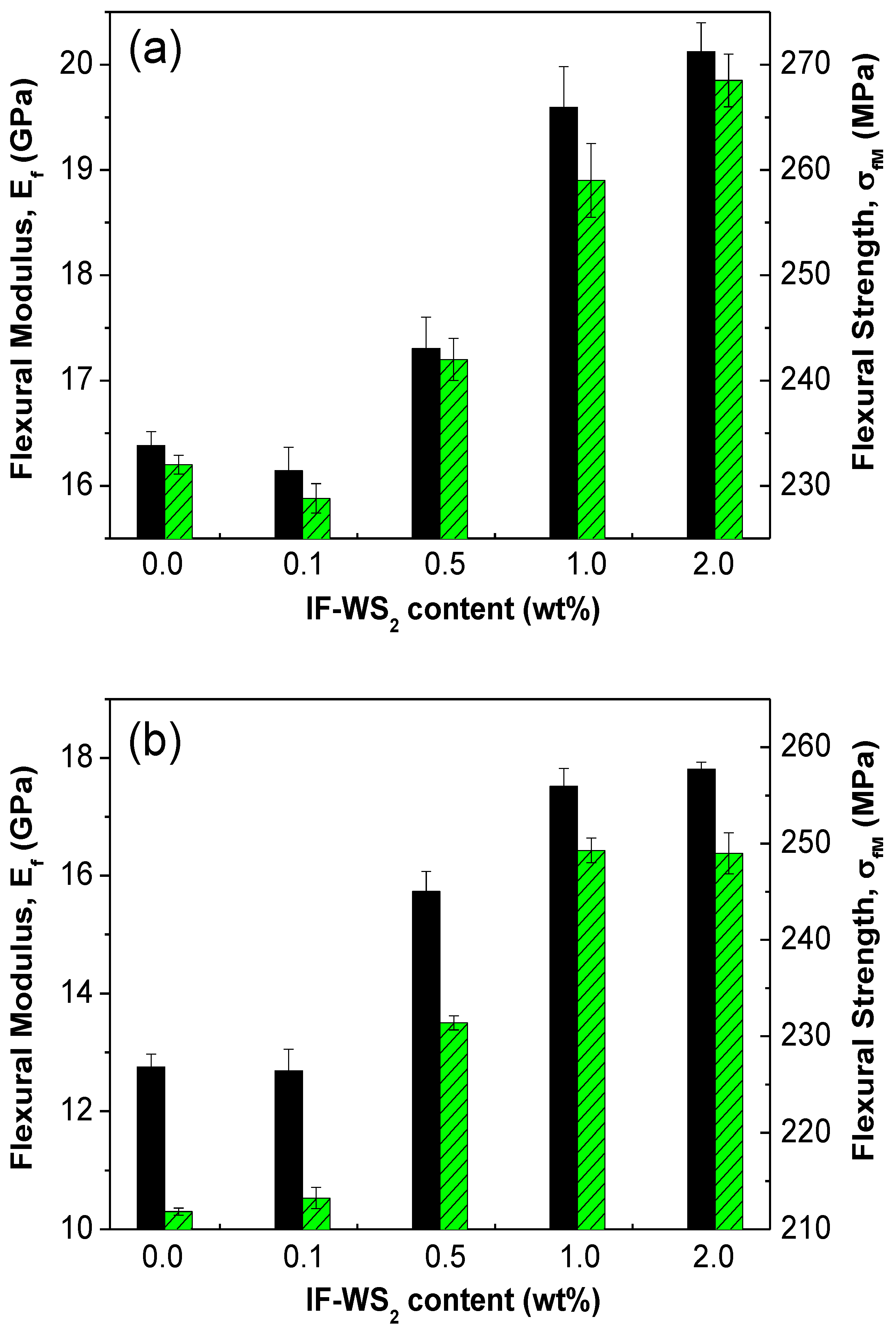

Abstract: Carbon fiber (CF)-reinforced high-temperature thermoplastics such as poly(phenylene sulphide) (PPS) are widely used in structural composites for aerospace and automotive applications. The porosity of CF-reinforced polymers is a very important topic for practical applications since there is a direct correlation between void content and mechanical properties. In this study, inorganic fullerene-like tungsten disulphide (IF-WS2) lubricant nanoparticles were used to manufacture PPS/IF-WS2/CF laminates via melt-blending and hot-press processing, and the effect of IF-WS2 loading on the quality, thermal and mechanical behaviour of the hybrid composites was investigated. The addition of IF-WS2 improved fiber impregnation, resulting in lower degree of porosity and increased delamination resistance, compression and flexural properties; their reinforcement effect was greater at temperatures above the glass transition (Tg). IF-WS2 contents higher than 0.5 wt % increased Tg and the heat deflection temperature while reduced the coefficient of thermal expansion. The multiscale laminates exhibited higher ignition point and notably reduced peak heat release rate compared to PPS/CF. The coexistence of micro- and nano-scale fillers resulted in synergistic effects that enhanced the stiffness, strength, thermal conductivity and flame retardancy of the matrix. The results presented herein demonstrate that the IF-WS2 are very promising nanofillers to improve the thermomechanical properties of conventional thermoplastic/CF composites.
Keywords: hybrid composites; IF-WS2 nanoparticles; poly(phenylene sulphide); porosity thermomechanical properties; synergistic effects
PDF Full-text Download PDF Full-Text [1026 KB, Updated Version, uploaded 30 July 2013 08:10 CEST]
The original version is still available [1026 KB, uploaded 26 July 2013 12:18 CEST]

Export to BibTeX |
EndNote


MDPI and ACS Style

Díez-Pascual, A.M.; Naffakh, M. Inorganic Nanoparticle-Modified Poly(Phenylene Sulphide)/ Carbon Fiber Laminates: Thermomechanical Behaviour. Materials 2013, 6, 3171-3193.

AMA Style

Díez-Pascual AM, Naffakh M. Inorganic Nanoparticle-Modified Poly(Phenylene Sulphide)/ Carbon Fiber Laminates: Thermomechanical Behaviour. Materials. 2013; 6(8):3171-3193.

Chicago/Turabian Style

Díez-Pascual, Ana M.; Naffakh, Mohammed. 2013. "Inorganic Nanoparticle-Modified Poly(Phenylene Sulphide)/ Carbon Fiber Laminates: Thermomechanical Behaviour." Materials 6, no. 8: 3171-3193.


Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
