Article

Tailoring Iridium Valence States on ZSM-5 for Enhanced Catalytic Performance in CO Selective Catalytic Reduction of NO under Oxygen-Enriched Environments

by
Yarong Bai
1,2,
Chuhan Miao
1,2,
Weilong Ouyang
1,2,
Lang Wang
1,2,
Haiqiang Wang
1,2,* and
Zhongbiao Wu
1,2,*
1
Key Laboratory of Environment Remediation and Ecological Health, Ministry of Education, College of Environmental Resources Science, Zhejiang University, Hangzhou 310058, China
2
Zhejiang Provincial Engineering Research Center of Industrial Boiler Furnace Flue Gas Pollution Control, Hangzhou 310058, China
*
Authors to whom correspondence should be addressed.
Materials 2024, 17(6), 1440; https://doi.org/10.3390/ma17061440
Submission received: 27 February 2024 / Revised: 15 March 2024 / Accepted: 19 March 2024 / Published: 21 March 2024
(This article belongs to the Section Catalytic Materials)
Browse Figures
Versions Notes

Abstract

:
Barium and iridium supported on Zeolite Socony Mobil-5 (ZSM-5) are efficient catalysts for the selective catalytic reduction of nitric oxide by carbon monoxide (CO-SCR), with enhanced cyclic stability. The introduction of Ba hindered the oxidation of metallic Ir active species and enabled Ir to maintain an active metallic state, thereby preventing a decrease in catalytic activity in the CO-SCR reaction. Moreover, the Ba modification increased the NO adsorption of the catalyst, further improving the catalytic activity. Owing to the better anti-oxidation ability of Ir0 in IrBa0.2/ZSM-5(27) than in Ir/ZSM-5(27), IrBa0.2/ZSM-5(27) showed better stability than Ir/ZSM-5(27). Considering that all samples in the present study were tested to simulate actual flue gases (such as sintering flue gas and coke oven flue gas), NH3 was introduced into the reaction system to serve as an extra reductant for NOx. The NOx conversion to N2 (77.1%) was substantially improved using the NH3-CO-SCR system. The proposed catalysts and reaction systems are promising alternatives for treating flue gas, which contains considerable amounts of NOx and CO in oxygen-enriched environments.

1. Introduction

In recent decades, anthropogenic atmospheric pollutants emitted during fossil fuel combustion have become a global issue in the context of climate change and air pollution. After 86% of the coal power in China reached the ultra-low emission policy targets by 2019, the focus shifted to other industrial sources such as steel plants, biomass-fired generators, and waste incinerators. Flue gases from these units typically contain considerable amounts of nitric oxide (NO) and high concentrations of carbon monoxide (CO), which can be considered a natural reductant for NO emissions [1,2,3].
The selective catalytic reduction of NO by CO (CO-SCR) is a promising method for controlling NOx emissions from stationary sources [4,5]. Previous studies on NOx reduction in vehicular emissions explored possible catalysts under O2-free or O2-deficient conditions [6,7,8,9,10]. Certain studies have reported that catalysts are active under O2-rich conditions but have been tested under low NO and high CO concentrations (CO:NO>100:1, only for automotive applications) [11,12] or using He as a balanced gas in the activity evaluation (inconsistent with actual applications) [13,14]. However, because CO is considerably more reactive with O2 than with NOx, it is challenging to use the original CO to reduce NOx when excess O2 exists in the flue gases [3,13,15,16,17,18]. It has been proven that Ir-based catalysts can achieve relatively high NOx conversion in the presence of excess O2 [19,20,21].
Ir loaded onto SiO2 catalysts can be used for CO-SCR reactions in the presence of O2, according to previous reports [20,22,23]. Molecular sieves are typical silicon-based materials with regular pore structures and have been widely used in many areas [24,25,26,27,28,29]. Therefore, we deduced that iridium loading onto molecular sieves (ZSM-5, SAPO-34, SBA-15, and MCM-41) may also obtain high NOx removal efficiency. Because Ir0 sites are the active sites for the CO-SCR reaction, better anti-oxidation of Ir-based catalysts in the presence of O2 is vital for the catalytic performance of these catalysts. Haneda et al. proved that Ba can inhibit the oxidization of Ir metal, which could be the active site for the CO-SCR reaction [21,30]. We deduced that Ba may also improve the CO-SCR performance of Ir-based molecular sieve catalysts.
In this study, an IrBa(0.2)/ZSM-5(27) catalyst was developed to obtain a bimetallic catalyst configuration with enhanced activity for NOx reduction by CO. Ba incorporation and H2 pretreatment at 500 °C improved the cyclic stability of the catalysts and N2 selectivity in the cyclic tests. The physicochemical properties of the Ba-Ir bimetallic catalyst were compared with those of the Ir monometallic catalyst to rationalize the functions of the Ba counterpart in the CO-SCR reaction.

2. Materials and Methods

2.1. Catalyst Preparation

All catalysts were prepared by impregnating zeolites with an aqueous solution of Ir and Ba precursors. The precursor of Ir used in this work is hexachloroiridium acid hydrate, while the precursor of Ba is barium nitrate. A total of 5 g of hexachloroiridium acid hydrate was dissolved in 200 mL of deionized water to form a solution in which the concentration of Ir was 0.008 g/mL. A total of 0.5 g barium nitrate was dissolved in 50 mL of deionized water to form a transparent solution. Both of these chemical reagents were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China. H-ZSM-5 and SAPO-34 were purchased from Tianjin Nankai University Catalyst Co., Ltd., Tianjin, China. The Si/Al ratios of H-ZSM-5 and SAPO-34 were 27 and 0.5, respectively. Pure silica SBA-15 and MCM-41 molecular sieves were purchased from XFNANO Material Technology Co., Ltd., Nanjing, China.
In the preparation progress of Ir/ZSM-5 with a 0.5% Ir loading amount, 5 g of H-ZSM-5 was added to 50 mL of deionized water under stirring, and then 3.12 mL of hexachloroiridium acid solution (0.008 g/mL) was added to the above-mentioned solution. After stirring at room temperature for 6 h, the mixture was dried at 100 °C for 8 h. The sample, after drying, was calcined in an air atmosphere at 500 °C for 4 h, and the obtained powder was labeled as Ir/ZSM-5(27). The preparation method of Ir/SAPO-34, Ir/SBA-15, and Ir/MCM-41 was similar to that of Ir/ZSM-5(27); only the carrier of catalysts needed to change. Furthermore, Ir/ZSM-5 catalysts with other loading amounts were prepared using similar methods; only the addition amount of hexachloroiridium acid solution changed. The preparation method of Ba-modified Ir/ZSM-5(27) catalysts was the same as with Ir/ZSM-5(27); only barium nitrate solution needed to be added at the same time as hexachloroiridium acid was added to the solution. The molar ratio of Ba:Ir was set at 0.1, 0.2, 0.4 and 1.0. The prepared catalysts were labeled as IrBa0.1/ZSM-5, IrBa0.2/ZSM-5, IrBa0.4/ZSM-5, and IrBa1/ZSM-5, respectively.

2.2. CO-SCR Performance Evaluation

Selective catalytic reduction of NO with CO was carried out in a fixed-bed quartz reactor by using catalysts of 40–60 mesh (Scheme 1). The catalyst was placed in the middle position of the quartz reaction tube, and a thermocouple was placed above the catalyst to measure the reaction temperature during the activity test. The typical composition of the inlet gas was 600 ppm NO, 3000 ppm CO, 5 vol.% O2, and balanced with N2. A total of 2.3 mL of catalysts was used during the activity test, and the total gas flow was set at 1500 mL/min. The reaction temperature was tested from 180 °C to 500 °C; each reaction temperature was maintained for 30 min to reach a steady state. A total of 1.25 g of catalyst was used in each test, and the gas hourly space velocity (GHSV) corresponded to 40,000 h−1. The outlet concentrations of NO and NO2 were monitored by a flue gas analyzer (Testo 350, Testo Inc., Lenzkirch, Germany). The catalytic activity was evaluated in terms of NO conversion and NOx conversion, as follows:
NO   conversion   =   inlet   NO − [ outlet   NO ] inlet   NO × 100 %
NO x   conversion = inlet   NO x − [ outlet   NO x ] inlet   NO x × 100 %

2.3. Catalyst Characterization

Transmission electron microscope (TEM) images were acquired on a FEI Tecnai G2 F20 S-TWIN (Hillsboro, OR, USA) instrument. The energy-dispersive X-ray spectroscopy elemental mapping (EDX-mapping) was acquired by an Oxford X-MAX 80T (Oxfordshire, UK) instrument. All images were acquired from the unreduced catalysts.
The crystal structures of the as-made catalysts were measured by powder X-ray diffraction (XRD) on an X-pert Powder (PANalytical B.V., Almelo, The Netherland). X-ray photoelectron spectroscopy (XPS, Thermo ESCALAB 250, Waltham, MA, USA) was used to investigate the surface properties of the samples with Al Kα radiation (hν = 1486.6 eV). The shift of the binding energy due to relative surface charging was corrected using the C 1s level at 284.8 eV as an internal standard. The specific surface areas were determined by the Brunauer–Emmett–Teller (BET) method on a nitrogen adsorption apparatus (ASAP 2020, Altanta, GA, USA). All the samples were degassed at 300 °C prior to measurements. The data were collected in relative pressure (P/P0) ranging from 0.05 to 0.30.
Temperature-programmed reduction of H2 (H2-TPR) was performed on a TP-5079 (Xianquan, Tianjin, China) using 50 mg samples. Prior to TPR experiments, catalysts were pretreated under a flow of 5 vol.% O2/He at 400 °C for 1 h and then cooled to room temperature. Reduction was carried out by heating the sample in 6 vol.% H2/N2 at a heating rate of 10 °C/min. The consumption of H2 was detected by a TCD detector. Temperature programmed desorption of NO (NO-TPD) was conducted on a similar TP-5079 setup. Catalysts were saturated with NO/He (1000 ppm NO) after pretreatment in He gas flow at 400 °C. Desorption was carried out by heating the sample in He gas flow from 70 °C to 800 °C (Hiden Analytical QGA, Warrington, UK).

3. Results and Discussion

3.1. The Influence of Catalyst Carrier and Ir Loading Amount on Catalytic Performance

The carrier plays a vital role in catalytic performance. Four types of zeolites were selected as typical supports for loading the Ir catalysts: ZSM-5 (Si/Al = 27), SAPO-34 (Si/Al = 0.5), SBA-15 (Si), and MCM-41 (Si). The NO and NOx conversions over the prepared catalysts are shown in Figure 1a,b. The catalysts used in this part were not pretreated with H2. Among the selected zeolite types, Ir/ZSM-5(27) exhibited the best NO and NOx conversion (70.3% and 26.8%, respectively) at 322 °C. The catalytic activity of Ir/SBA-15 was slightly lower than that of Ir/ZSM-5(27); 65.3% NO conversion and 24.8% NOx conversion were achieved using this catalyst. Moreover, the NO and NOx conversions of Ir/SAPO-34 and Ir/MCM-41 were lower than those of Ir/ZSM-5(27). A considerably better catalytic activity was obtained for Ir/ZSM-5(27) at low temperatures; thus, ZSM-5 was selected as the catalyst carrier for Ir in subsequent experiments.
Figure 1c,d shows the catalytic activity of unreduced Ir/ZSM-5(27) with different Ir loading amounts; the highest NO conversion was obtained when the Ir loading was increased to 2%. However, only 65.8% NO and 27.0% NOx conversions were obtained using 0.2% Ir/ZSM-5(27). Furthermore, the catalytic activity of 0.5% Ir/ZSM-5(27) at low temperatures was better than those of 0.2% Ir/ZSM-5(27) and 1% Ir/ZSM-5(27). Considering the high cost of Ir, the loading amount of Ir was set to 0.5% for subsequent investigations.

3.2. Optimization of Reduction Pretreatment

Ir-based catalysts become active in the CO-SCR reaction upon H2 pretreatment, which can improve the surface enrichment and ordering of Ir atoms [12,13]. Therefore, the effects of H2 pretreatment on the catalyst performance were studied using Ir/ZSM-5(27) samples with and without pretreatment in flowing H2/N2 gas, and their NO and NOx conversions are shown in Figure 2. The pretreatment with H2 at 500 °C improved the NO conversion of Ir/ZSM-5(27) in a temperature range of 190–280 °C. More importantly, NOx conversion by the catalyst improved substantially. The NOx conversion of the catalyst without H2 pretreatment was calculated as 0.1% at 224 °C. After pretreatment with H2/N2 gases at 500 °C, the NOx conversion of the catalyst increased to 39.5% and 36.3% at 246 °C and 328 °C, respectively. This change is attributed to the different Ir valence states in the catalysts, which were further explored using various characterization techniques, as described in the following section. Notably, the NOx conversion of the catalyst increases with increasing pretreatment temperatures. Furthermore, the NOx conversion was lower than the NO conversion owing to the transformation of NO to NO2, particularly in the temperature range from 270 °C to 400 °C.
Previous studies [12,21,31,32] have shown that Ir0 species, rather than their oxidized IrO2 form, are the active sites for NO reduction with CO. The highly dispersed Ir on the ZSM-5 surface was easily reduced during the pretreatment process, resulting in a considerable fraction of the catalytically active zero-valent Ir species being exposed to the small Ir particles, thereby enhancing the catalytic activity of the catalyst.

3.3. Influence of Ba Addition

Previous reports have demonstrated that Ba could serve as a promoter to increase NOx conversion in the CO-SCR reaction because Ba could inhibit the oxidation of Ir0 sites [21,30,33,34]. Therefore, the influence of the Ba addition on the catalytic activity of Ir/ZSM-5(27) was investigated. Figure 3a shows the NO conversion of the Ba-modified Ir/ZSM-5(27) catalyst, where the NO conversion increased slightly at low temperatures (<300 °C) when the molar ratio of Ba to Ir was 0.1 and 0.2. However, the NO conversion decreased dramatically when the molar ratio of Ba to Ir was <0.2. The NO conversion did not change after the Ba modification. This result demonstrates that Ba modification mainly influences the catalytic activity at low temperatures (<300 °C) while having a negligible effect on the NO conversion of these catalysts at high temperatures (>300 °C). Figure 3b shows that 47.1% NOx conversion was obtained for IrBa0.2/ZSM-5(27) at 247 °C, which is obviously higher than that of Ir/ZSM-5(27) (only 39.0%). The above results show that Ba addition can improve catalytic activity at low temperatures but has little effect at high temperatures. It should also be noted that IrBa0.2/ZSM-5(27) showed a relatively higher NO conversion in the presence of O2 with a low Ir loading amount (Table 1).

3.4. The Stability of Catalysts and the Influence of Other Components on CO-SCR Catalytic Performance

Cyclic stability is vital for catalysts used in industrial applications. Therefore, the cycling performance of Ir/ZSM-5(27) was evaluated (results shown in Figure 4a). After three cyclic tests, the activity of the Ir/ZSM-5(27) sample significantly decreased in the temperature range of 190–370 °C, and the highest NOx conversion decreased from 39.0% (at 246 °C) to 21.4% (at 368 °C). The Ir/ZSM-5(27) catalyst exhibited poor cyclic stability, which requires further improvement before industrial application. After three cyclic tests, the deactivated Ir/ZSM-5(27) catalyst was then regenerated with H2, and the activity of the regenerated catalyst was basically recovered to its original activity, with NO conversions of 38.9% at 244 °C and 35.2% at 325 °C (that at 285 °C slightly decreased). These results suggest that the deactivation of the Ir catalysts was mainly caused by the loss of Ir0 (oxidized to IrO2) during the reaction, thereby diminishing the de-NOx ability after three cyclic tests and allowing easy recovery by H2 treatment.
As proposed, the addition of Ba hindered the oxidation of the active species, thus preventing a decrease in catalytic activity. Therefore, Ba was used as a promoter to improve the catalyst’s cycling performance. As shown in Figure 4b, NOx conversion at low temperatures (<280 °C) decreased for IrBa0.2/ZSM-5(27) after the first test. However, the NOx conversion of this catalyst at high temperatures (>280 °C) was increased after the first test, and nearly 40.0% NOx conversion (320–330 °C) was achieved during the cyclic performance test. The above results showed that the IrBa0.2/ZSM-5(27) catalyst could maintain more than 40.0% NOx conversion at approximately 320 °C after five times cycle use, indicating that Ba addition markedly improved the cyclic stability of the catalyst and prevented a decrease in catalytic activity.
A long-term stability test of IrBa0.2/ZSM-5(27) was performed at 320 °C for 36 h (Figure 4c). The NOx conversion was maintained above 38.0% throughout the test, demonstrating that this catalyst possesses robust resistance to O2 during the CO-SCR reaction. Long-term stability is vital for the practical use of catalysts. Furthermore, the effect of H2O on the CO-SCR activity of IrBa0.2/ZSM-5(27) was investigated (Figure 4d). Obviously, the NOx conversion at low temperatures increased after 5% H2O was introduced into the inlet gas, which is consistent with a previous report [36,37] because H2O can react with CO via a water–gas shift reaction to generate H2, which can be used to reduce the high-valence Ir species. However, NOx conversion decreased at low temperatures and increased at high temperatures after adding SO2. The inhibitory effect of SO2 on the catalytic performance at low temperatures is due to the presence of SO2, which can inhibit the conversion of CO, resulting in the ignition temperature of the CO-SCR reaction shifting to a high temperature [38].

3.5. NH3-CO-SCR Performance on the Ba-Modified Catalyst

Although IrBa0.2/ZSM-5(27) achieved 47.1% NOx conversion in the presence of O2 (Figure 3b), this was far from the requirement for practical applications. Thus, 300 ppm NH3 was introduced into the reaction system. It was found that 77.1% NOx conversion (240 °C) was achieved on this catalyst (Figure 5b). This demonstrates that the addition of NH3 can significantly improve NOx conversion via the NH3-SCR process. Furthermore, the NOx conversion was close to the NO conversion at low temperatures (<280 °C) (Figure 5a,b), which was due to the addition of NH3 inhibiting the oxidization of NO to NO2 in the presence of excess O2. Notably, both NO and NOx conversions significantly improved after Ba modification, proving that Ba modification is an effective measure for improving the catalytic activity of Ir/ZSM-5(27).

3.6. Physical Properties of as-Made Catalysts

As shown in Figure 6a, a broad peak around 20–30° appeared in the XRD patterns of Ir/SBA-15 and Ir/MCM-41, corresponding to the diffraction peak of amorphous silica. Notably, no peaks corresponding to Ir species were observed in the XRD patterns of Ir/SBA-15, Ir/MCM-41, and Ir/SAPO-34. Furthermore, the characteristic peaks of the MFI skeleton structure belonging to ZSM-5 were observed in the Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27) spectra (Figure 6b), whereas the peaks of the Ir and Ba species were not observed in the IrBa0.2/ZSM-5(27) spectra [39,40,41]. This suggests that the Ir and Ba species were highly dispersed on the carrier, which could be attributed to the low loading of Ir and Ba during the preparation of this catalyst.
Figure 7 shows the transmission electronic microscope (TEM) images of different samples. Because the relative molecular mass of Ir is heavier than that of Al and Si, the black dots in the TEM images correspond to the Ir species. As shown in Figure 7a,b, the Ir species in Ir/ZSM-5(27) mainly existed as large particles, and the diameters of most particles were close to 10 nm. However, the particle size of the Ir species in Ir/MCM-41 was only approximately 2 nm, which suggests the Ir species have better dispersion on MCM-41 than on ZSM-5 (Figure 7c,d). Moreover, a high dispersion of Ir species was also obtained in SAPO-34, and most of the Ir species existed in the form of small particles (Figure 7e,f). Furthermore, some large particles (>20 nm) were observed for Ir/SAPO-34 (Figure 7e). The Ir/SBA-15 catalyst exhibited regular mesoporous channels with a pore diameter of approximately 7 nm (Figure 7g). Some Ir nanoparticles were located in the channels of SBA-15, which is because these channels of SBA-15 are large enough to permit Ir species to enter the inner space of SBA-15. The particle size of the Ir species in Ir/SBA-15 was approximately 6 nm, as shown in Figure 7h. The particle size of the metal species decreased when Ba was also present in the catalyst, which means that Ba modification could decrease the agglomeration of Ir and result in better dispersion of the Ir species on ZSM-5 (Figure 7i,j). The different particle sizes of the Ir species on different carriers may result in different chemical properties of these catalysts, and Ba modification could also influence the chemical properties of Ir/ZSM-5(27). Energy-dispersive X-ray (EDX) spectroscopic elemental mapping was used to investigate the elemental distribution of IrBa0.2/ZSM-5(27) (Figure 7k). It is clear that both Ir and Ba were highly distributed on the surface of ZSM-5(27).
Ir/SBA-15 showed typical type IV isotherms with an H1 hysteresis loop, indicating the presence of mesoporous structures in the catalyst (Figure 8a). Ir/SAPO-34 shows typical I isotherms, demonstrating that this catalyst is a microporous material. Furthermore, Ir/ZSM-5(27) and Ba-modified Ir/ZSM-5(27) showed typical I isotherms (Figure 8b), which also suggests the existence of micropores in these catalysts.
The specific surface areas of Ir/SAPO-34 and Ir/MCM-41 were larger than that of Ir/ZSM-5(27), whereas the NO conversion of these two catalysts was worse than that of the Ir/ZSM-5(27) (Table 2). This result proved that the specific surface area of the catalyst had little effect on the catalytic performance of Ir-based catalysts. Furthermore, the specific surface area of ZSM-5 decreased after loading with Ir and Ba, possibly because some of these species entered the internal pores of ZSM-5. Although the BET surface area of IrBa0.2/ZSM-5(27) is smaller than that of Ir/ZSM-5, the catalytic activity of IrBa0.2/ZSM-5(27) was higher than that of Ir/ZSM-5. This result further demonstrates that there is no clear relationship between the specific surface area and the catalytic activity of these catalysts. Based on the above results, it is reasonable to deduce that the chemical properties (such as the NO adsorption ability and chemical valence of Ir) may play an important role in the catalytic performance.

3.7. Adsorption and Redox Properties of as-Made Catalysts

Temperature-programmed desorption of NO (NO-TPD) tests were conducted on two samples to investigate the NO adsorption and desorption performances of Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27). As shown in Figure 9a, the NO-TPD spectrum of Ir/ZSM-5(27) has a clear desorption peak between 100 °C and 300 °C (peaking at 244 °C), which might be due to weak adsorption species (nitrite and NO) because NO was the predominant species detected using mass spectrometry [42,43]. The Ba-modified catalysts’ desorption peaks became more pronounced, suggesting that Ba modification substantially increased the NO adsorption/desorption on Ir/ZSM-5(27). NO can adsorb on two different active sites of the Ir crystal. The NO adsorbed on the hollow sites was unstable and could further dissociate into N and O at low temperatures (even at room temperature), whereas the NO adsorbed on the atop sites was stable at low temperatures [44,45]. IrBa0.2/ZSM-5(27) and IrBa1.0/ZSM-5(27) may provide more atop sites, leading to greater desorption on these two catalysts than on IrBa0.4/ZSM-5(27). Moreover, the desorption peak area of IrBa0.2/ZSM-5(27) was markedly larger than the other samples, which may further improve its catalytic activity.
The H2 temperature-programmed reduction (H2-TPR) profiles of Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27) were tested from 100 °C to 550 °C with a ramping rate of 10 °C/min. As shown in Figure 9b, the H2-TPR spectrum of Ir/ZSM-5(27) has a pronounced reduction peak of 210 °C with a shoulder at 184 °C, which can be attributed to the reduction of IrO2 to metallic Ir0 [15,25,26]. With Ba modification, the reduction peak at 210 °C shifted backward slightly to 216 °C. The slight shift of this peak to higher temperatures suggests an interaction between the Ir and Ba species, where a more stable Ir0 could be created by introducing Ba.
Furthermore, the overall H2 consumption of the catalyst decreases after the introduction of Ba. Ba can act as an oxidation inhibitor and stabilize the catalytically active Ir species, enhancing activity and durability [27,28]. Therefore, the decrease in H2 consumption (in the H2-TPR results) suggested the presence of less IrO2 and more Ir0 in IrBa0.2/ZSM-5(27) than in Ir/ZSM-5(27).

3.8. X-ray Photoelectron Spectroscopy (XPS) of as-Made Catalysts

The Ir 4f signals of the Ir loaded onto different carriers are shown in Figure 10a. The binding energies (BEs) at 61.1 and 64.1 eV were attributed to Ir0, and those at 62.1 and 65.1 eV to electron-deficient iridium species (Irδ+) [46,47], indicating that Ir0 and oxidized Irδ+ coexisted in samples. Peak fitting and area analysis revealed contributions of 12.8% Ir0 and 87.2% Irδ+ for Ir/SAPO-34 and 12.1% Ir0 and 87.9% Irδ+ for Ir/MCM-41 (Table 3). Notably, the peak intensity of Ir/SBA-15 was very weak. This result indicates that most of the Ir species were located in the inner channels of SBA-15, as confirmed by the TEM image of Ir/SBA-15 (Figure 7g).
The Ir 4f spectra of Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27) were also recorded, and the results are shown in Figure 10b. The proportion of Ir0 in Ir/ZSM-5(27) was 15.8%, which was higher than that in Ir/SAPO-34 and Ir/MCM-41. Because Ir0 sites are the active sites for the CO-SCR reaction, a higher proportion of Ir0 in Ir/ZSM-5(27) improves the NOx removal efficiency. Furthermore, the proportion of Ir0 increased to 23.8% after Ba modification, indicating that Ba modification was beneficial for the formation of metallic species (Ir0) in an oxidizing atmosphere. This result is consistent with the H2-TPR results, which also indicated a higher Ir0 distribution on the surface of IrBa0.2/ZSM-5(27) than on the other catalysts.
Considering that the Ir species in the metallic Ir0 form act as active sites in the CO-SCR reaction, Ba enhances the oxidation resistance of Ir0, which enables Ir to maintain its active metallic state, thereby significantly improving the catalytic activity and cyclic stability of Ir-based catalysts in the CO-SCR reaction when O2 is present.

4. Conclusions

The catalytic activity and cyclic stability of the bimetallic Ba-Ir catalyst supported on the ZSM-5 zeolite were studied for possible industrial applications in the selective catalytic reduction of NO by CO in oxygen-enriched environments. The catalyst carrier can influence the form of the Ir species and result in differences in the proportion of metallic Ir0 in these catalysts. The metallic Ir0 species were verified to be the active sites for CO-SCR, and H2 pretreatment resulted in more Ir0 species serving as active sites for CO-SCR. The activity of the Ir/ZSM-5 catalyst decreased by 17.6% in the three cyclic tests because of the oxidation of Ir0, which was recovered by H2 regeneration. Ba acts as an oxidation inhibitor and stabilizes the catalytically active Ir0 species, tailoring the Ir valence states on the catalysts and resulting in enhanced activity and high durability in the CO-SCR reaction in oxygen-enriched environments. NOx conversion was further improved to 77.1% by the addition of NH3 (NH3-CO-SCR). Therefore, the proposed catalyst is a promising alternative for stationary industrial applications in oxygen-enriched environments, such as flue gas treatment systems for steel plants, biomass-fired generators, and waste incinerators.

Author Contributions

Methodology, W.O.; Software, W.O. and L.W.; Investigation, Y.B. and C.M.; Writing—original draft, Y.B.; Writing—review & editing, H.W. and Z.W.; Resources, C.M.; Visualization, L.W.; Supervision, Z.W.; Project administration, H.W.; Funding acquisition, H.W. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the financial support of this work from National Natural Science Foundation of China (NSFC-52170116), National Key Research and Development Plan of China (2022YFC3701600), Hangzhou Qianjiang Distinguished Experts Project and the Program for Zhejiang Leading Team of S&T Innovation (Grant No. 2013TD07).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Xu, Z.; Li, Y.; Lin, Y.; Zhu, T. A review of the catalysts used in the reduction of NO by CO for gas purification. Environ. Sci. Pollut. Res. 2020, 27, 6723–6748. [Google Scholar] [CrossRef]
  2. Kim, C.H.; Qi, G.; Dahlberg, K.; Li, W. Strontium-doped perovskites rival platinum catalysts for treating NOx in simulated diesel exhaust. Science 2010, 327, 1624–1627. [Google Scholar] [CrossRef] [PubMed]
  3. Gholami, Z.; Luo, G.H.; Gholami, F.; Yang, F. Recent advances in selective catalytic reduction of NOx by carbon monoxide for flue gas cleaning process: A review. Catal. Rev.-Sci. Eng. 2020, 63, 68–119. [Google Scholar] [CrossRef]
  4. Liu, S.; Ji, Y.; Liu, B.; Xu, W.; Chen, W.; Yu, J.; Zhong, Z.; Xu, G.; Zhu, T.; Su, F. Co single atoms and CoOx nanoclusters anchored on Ce0.75Zr0.25O2 synergistically boosts the NO reduction by CO. Adv. Funct. Mater. 2023, 33, 2303297. [Google Scholar] [CrossRef]
  5. Ji, Y.; Liu, S.; Zhu, H.; Xu, W.; Jiang, R.; Zhang, Y.; Yu, J.; Chen, W.; Jia, L.; Jiang, J.; et al. Isolating contiguous ir atoms and forming Ir-W intermetallics with negatively charged Ir for efficient NO reduction by CO. Adv. Mater. 2022, 34, 2205703. [Google Scholar] [CrossRef] [PubMed]
  6. Fernandez, E.; Liu, L.; Boronat, M.; Arenal, R.; Concepcion, P.; Corma, A. Low-temperature catalytic NO reduction with CO by subnanometric Pt clusters. ACS Catal. 2019, 9, 11530–11541. [Google Scholar] [CrossRef] [PubMed]
  7. Bera, P.; Patil, K.C.; Jayaram, V.; Subbanna, G.N.; Hegde, M.S. Ionic dispersion of Pt and Pd on CeO2 by combustion method: Effect of metal-ceria interaction on catalytic activities for NO reduction and CO and hydrocarbon oxidation. J. Catal. 2000, 196, 293–301. [Google Scholar] [CrossRef]
  8. Kerkar, R.D.; Salker, A.V. Synergistic effect of modified Pd-based cobalt chromite and manganese oxide system towards NO-CO redox detoxification reaction. Environ. Sci. Pollut. Res. 2020, 27, 27061–27071. [Google Scholar] [CrossRef] [PubMed]
  9. Kyriakou, G.; Marquez, A.M.; Pedro Holgado, J.; Taylor, M.J.; Wheatley, A.E.H.; Mehta, J.P.; Fernandez Sanz, J.; Beaumont, S.K.; Lambert, R.M. Comprehensive experimental and theoretical study of the CO plus NO reaction catalyzed by Au/Ni nanoparticles. ACS Catal. 2019, 9, 4919–4929. [Google Scholar] [CrossRef]
  10. Oton, L.F.; Oliveira, A.C.; de Araujo, J.C.S.; Araujo, R.S.; de Sousa, F.F.; Saraiva, G.D.; Lang, R.; Otubo, L.; da Silva Duarte, G.C.; Campos, A. Selective catalytic reduction of NOx by CO (CO-SCR) over metal-supported nanoparticles dispersed on porous alumina. Adv. Powder Technol. 2020, 31, 464–476. [Google Scholar] [CrossRef]
  11. Song, J.H.; Park, D.C.; You, Y.-W.; Kim, Y.J.; Kim, S.M.; Heo, I.; Kim, D.H. Kinetic and DRIFTS studies of IrRu/Al2O3 catalysts for lean NOx reduction by CO at low temperature. Catal. Sci. Technol. 2020, 10, 8182–8195. [Google Scholar] [CrossRef]
  12. Song, J.H.; Park, D.C.; You, Y.-W.; Chang, T.S.; Heo, I.; Kim, D.H. Lean NOx reduction by CO at low temperature over bimetallic IrRu/Al2O3 catalysts with different Ir:Ru ratios. Catal. Sci. Technol. 2020, 10, 2120–2136. [Google Scholar] [CrossRef]
  13. Nanba, T.; Shinohara, S.; Masukawa, S.; Uchisawa, J.; Ohi, A.; Obuchi, A. Formation of active sites on Ir/WO3-SiO2 for selective catalytic reduction of NO by CO. Appl. Catal. B Environ. 2008, 84, 420–425. [Google Scholar] [CrossRef]
  14. Nanba, T.; Shinohara, S.; Uchisawa, J.; Masukawa, S.; Ohi, A.; Obuchi, A. Enhancement of activity of Ir catalysts for the selective catalytic reduction of NO by CO. Chem. Lett. 2006, 35, 450–451. [Google Scholar] [CrossRef]
  15. Gholami, Z.; Luo, G. Low-temperature selective catalytic reduction of NO by CO in the presence of O2 over Cu:Ce catalysts supported by multiwalled carbon nanotubes. Ind. Eng. Chem. Res. 2018, 57, 8871–8883. [Google Scholar] [CrossRef]
  16. Li, S.; Chen, X.; Wang, F.; Xie, Z.; Hao, Z.; Liu, L.; Shen, B. Promotion effect of Ni doping on the oxygen resistance property of Fe/CeO2 catalyst for CO-SCR reaction: Activity test and mechanism investigation. J. Hazard. Mater. 2022, 431, 128622. [Google Scholar] [CrossRef] [PubMed]
  17. Nakatsuji, T.; Komppa, V. Structural evolution of highly active Ir-based catalysts for the selective reduction of NO with reductants in oxidizing conditions. Top. Catal. 2001, 16, 217–223. [Google Scholar] [CrossRef]
  18. Nanba, T.; Wada, K.-i.; Masukawa, S.; Uchisawa, J.; Obuchi, A. Enhancement of activity of Ir catalysts for selective catalytic reduction of NO with CO by physical mixing with SiO2. Appl. Catal. A Gen. 2010, 380, 66–71. [Google Scholar] [CrossRef]
  19. Ogura, M.; Kawamura, A.; Matsukata, M.; Kikuchi, E. Catalytic activity of Ir for NO-CO reaction in the presence of SO2 and excess oxygen. Chem. Lett. 2000, 29, 146–147. [Google Scholar] [CrossRef]
  20. Sasaki, M.; Sultana, A.; Haneda, M.; Hamada, H. Practical evaluation of the catalytic performance of Ir/SiO2-based catalysts for selective reduction of NO with CO. Top. Catal. 2009, 52, 1803–1807. [Google Scholar] [CrossRef]
  21. Takahashi, A.; Fujitani, T.; Nakamura, I.; Katsuta, Y.; Haneda, M.; Hamada, H. Excellent promoting effect of Ba addition on the catalytic activity of Ir/WO3-SiO2 for the selective reduction of NO with CO. Chem. Lett. 2006, 35, 420–421. [Google Scholar] [CrossRef]
  22. Haneda, M.; Fujitani, T.; Hamada, H. Effect of iridium dispersion on the catalytic activity of Ir/SiO2 for the selective reduction of NO with CO in the presence of O2 and SO2. J. Mol. Catal. A Chem. 2006, 256, 143–148. [Google Scholar] [CrossRef]
  23. Yoshinari, T.; Sato, K.; Haneda, M.; Kintaichi, Y.; Hamada, H. Remarkable promoting effect of coexisting SO2 on the catalytic activity of Ir/SiO2 for NO reduction in the presence of oxygen. Catal. Commun. 2001, 2, 155–158. [Google Scholar] [CrossRef]
  24. Beale, A.M.; Gao, F.; Lezcano-Gonzalez, I.; Peden, C.H.F.; Szanyi, J. Recent advances in automotive catalysis for NOx emission control by small-pore microporous materials. Chem. Soc. Rev. 2015, 44, 7371–7405. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, J.; Kim, W.; Seo, Y.; Kim, J.-C.; Ryoo, R. n-Heptane hydroisomerization over Pt/MFI zeolite nanosheets: Effects of zeolite crystal thickness and platinum location. J. Catal. 2013, 301, 187–197. [Google Scholar] [CrossRef]
  26. Goel, S.; Zones, S.I.; Iglesia, E. Encapsulation of metal clusters within MFI via interzeolite transformations and direct hydrothermal syntheses and catalytic consequences of their confinement. J. Am. Chem. Soc. 2014, 136, 15280–15290. [Google Scholar] [CrossRef] [PubMed]
  27. Choi, M.; Wu, Z.; Iglesia, E. Mercaptosilane-assisted synthesis of metal clusters within zeolites and catalytic consequences of encapsulation. J. Am. Chem. Soc. 2010, 132, 9129–9137. [Google Scholar] [CrossRef] [PubMed]
  28. Paolucci, C.; Khurana, I.; Parekh, A.A.; Li, S.; Shih, A.J.; Li, H.; Di Iorio, J.R.; Albarracin-Caballero, J.D.; Yezerets, A.; Miller, J.T.; et al. Dynamic multinuclear sites formed by mobilized copper ions in NOx selective catalytic reduction. Science 2017, 357, 898–903. [Google Scholar] [CrossRef] [PubMed]
  29. Concepcion, P.; Perez, Y.; Hernandez-Garrido, J.C.; Fajardo, M.; Calvino, J.J.; Corma, A. The promotional effect of Sn-beta zeolites on platinum for the selective hydrogenation of α,β-unsaturated aldehydes. Phys. Chem. Chem. Phys. 2013, 15, 12048–12055. [Google Scholar] [CrossRef]
  30. Haneda, M.; Kudo, H.; Nagao, Y.; Fujitani, T.; Hamada, H. Enhanced activity of Ba-doped Ir/SiO2 catalyst for NO reduction with CO in the presence of O2 and SO2. Catal. Commun. 2006, 7, 423–426. [Google Scholar] [CrossRef]
  31. Inomata, H.; Shimokawabe, M.; Kuwana, A.; Arai, M. Selective reduction of NO with CO in the presence of O2 with Ir/WO3 catalysts: Influence of preparation variables on the catalytic performance. Appl. Catal. B Environ. 2008, 84, 783–789. [Google Scholar] [CrossRef]
  32. Tamai, T.; Haneda, M.; Fujitani, T.; Hamada, H. Promotive effect of Nb2O5 on the catalytic activity of Ir/SiO2 for NO reduction with CO under oxygen-rich conditions. Catal. Commun. 2007, 8, 885–888. [Google Scholar] [CrossRef]
  33. Sasaki, M.; Mita, T.; Tsujimura, T.; Nanba, T.; Obuchi, A.; Haneda, M.; Hamada, H. Performance of Ba-doped Ir/WO3-SiO2 catalyst for selective catalytic reduction of NOx with CO in diesel exhaust. J. Jpn. Pet. Inst 2008, 51, 356–359. [Google Scholar] [CrossRef]
  34. Song, J.H.; Park, D.C.; You, Y.-W.; Kim, Y.J.; Lee, J.H.; Heo, I.; Kim, D.H. Promotive effects of Ba addition on lean NOx reduction by CO over IrRu/Al2O3 catalyst. Chem. Eng. J. 2023, 452, 139331. [Google Scholar] [CrossRef]
  35. Doi, Y.; Haneda, M. Catalytic performance of supported Ir catalysts for NO reduction with C3H6 and CO in slight lean conditions. Catal. Today 2018, 303, 8–12. [Google Scholar] [CrossRef]
  36. Haneda, M.; Hamada, H. Promoting effect of coexisting H2O on the activity of Ir/WO3/SiO2 catalyst for the selective reduction of NO with CO. Chem. Lett. 2008, 37, 830–831. [Google Scholar] [CrossRef]
  37. Haneda, M.; Hamada, H. Promotional role of H2O in the selective catalytic reduction of NO with CO over Ir/WO3/SiO2 catalyst. J. Catal. 2010, 273, 39–49. [Google Scholar] [CrossRef]
  38. Sun, Y.; Wu, Y.; Bai, Y.; Wu, X.; Wang, H.; Wu, Z. High performance iridium loaded on natural halloysite nanotubes for CO-SCR reaction. Fuel 2024, 357, 129938. [Google Scholar] [CrossRef]
  39. Choi, M.; Na, K.; Kim, J.; Sakamoto, Y.; Terasaki, O.; Ryoo, R. Stable single-unit-cell nanosheets of zeolite MFI as active and long-lived catalysts. Nature 2009, 461, 246–249. [Google Scholar] [CrossRef]
  40. Dai, Q.G.; Wang, W.; Wang, X.Y.; Lu, G.Z. Sandwich-structured CeO2@ZSM-5 hybrid composites for catalytic oxidation of 1, 2-dichloroethane: An integrated solution to coking and chlorine poisoning deactivation. Appl. Catal. B Environ. 2017, 203, 31–42. [Google Scholar] [CrossRef]
  41. Pang, L.; Fan, C.; Shao, L.N.; Song, K.P.; Yi, J.X.; Cai, X.; Wang, J.; Kang, M.; Li, T. The Ce doping Cu/ZSM-5 as a new superior catalyst to remove NO from diesel engine exhaust. Chem. Eng. J. 2014, 253, 394–401. [Google Scholar] [CrossRef]
  42. Li, J.; Zhu, Y.; Ke, R.; Hao, J. Improvement of catalytic activity and sulfur-resistance of Ag/TiO2-Al2O3 for NO reduction with propene under lean burn conditions. Appl. Catal. B Environ. 2008, 80, 202–213. [Google Scholar] [CrossRef]
  43. Torre-Abreu, C.; Ribeiro, M.F.; Henriques, C.; Delahay, G. NO TPD and H2-TPR studies for characterisation of CuMOR catalysts the role of Si/Al ratio, copper content and cocation. Appl. Catal. B Environ. 1997, 14, 261–272. [Google Scholar] [CrossRef]
  44. Fujitani, T.; Nakamura, I.; Kobayashi, Y.; Takahashi, A.; Haneda, M.; Hamada, H. Adsorption and reactions of NO on clean and CO-precovered Ir(111). J. Phys. Chem. B 2005, 109, 17603–17607. [Google Scholar] [CrossRef] [PubMed]
  45. Ueda, K.; Suzuki, K.; Toyoshima, R.; Monya, Y.; Yoshida, M.; Isegawa, K.; Amemiya, K.; Mase, K.; Mun, B.S.; Arman, M.A.; et al. Adsorption and reaction of CO and NO on Ir(111) under near ambient pressure conditions. Top. Catal. 2016, 59, 487–496. [Google Scholar] [CrossRef]
  46. Bai, Y.; Gao, S.; Sun, Y.; Ouyang, W.; Zhou, Y.; Wang, H.; Wu, Z. Insight into the mechanism of selective catalytic reduction of NO by CO over a bimetallic IrRu/ZSM-5 catalyst in the absence/presence of O2 by isotopic C13O tracing methods. Environ. Sci. Technol. 2023, 57, 9105–9114. [Google Scholar] [CrossRef] [PubMed]
  47. Freakley, S.J.; Ruiz-Esquius, J.; Morgan, D.J. The X-ray photoelectron spectra of Ir, IrO2 and IrCl3 revisited. Surf. Interface Anal. 2017, 49, 794–799. [Google Scholar] [CrossRef]
Materials 17 01440 sch001

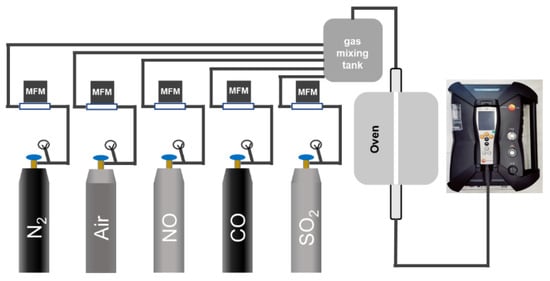

Scheme 1. The catalytic performance testing equipment.
Scheme 1. The catalytic performance testing equipment.
Materials 17 01440 sch001
Materials 17 01440 g001

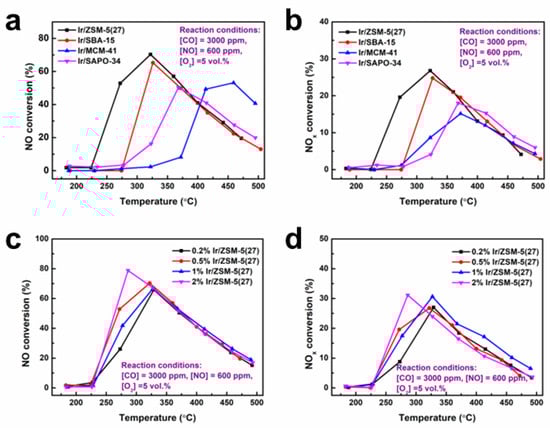

Figure 1. (a) NO and (b) NOx conversion on Ir-loaded zeolites without reduction. (c) NO and (d) NOx conversion on Ir/ZSM-5(27) with different Ir loading amounts.
Figure 1. (a) NO and (b) NOx conversion on Ir-loaded zeolites without reduction. (c) NO and (d) NOx conversion on Ir/ZSM-5(27) with different Ir loading amounts.
Materials 17 01440 g001
Materials 17 01440 g002

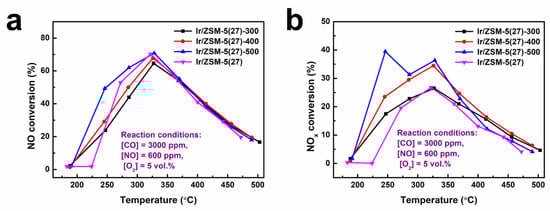

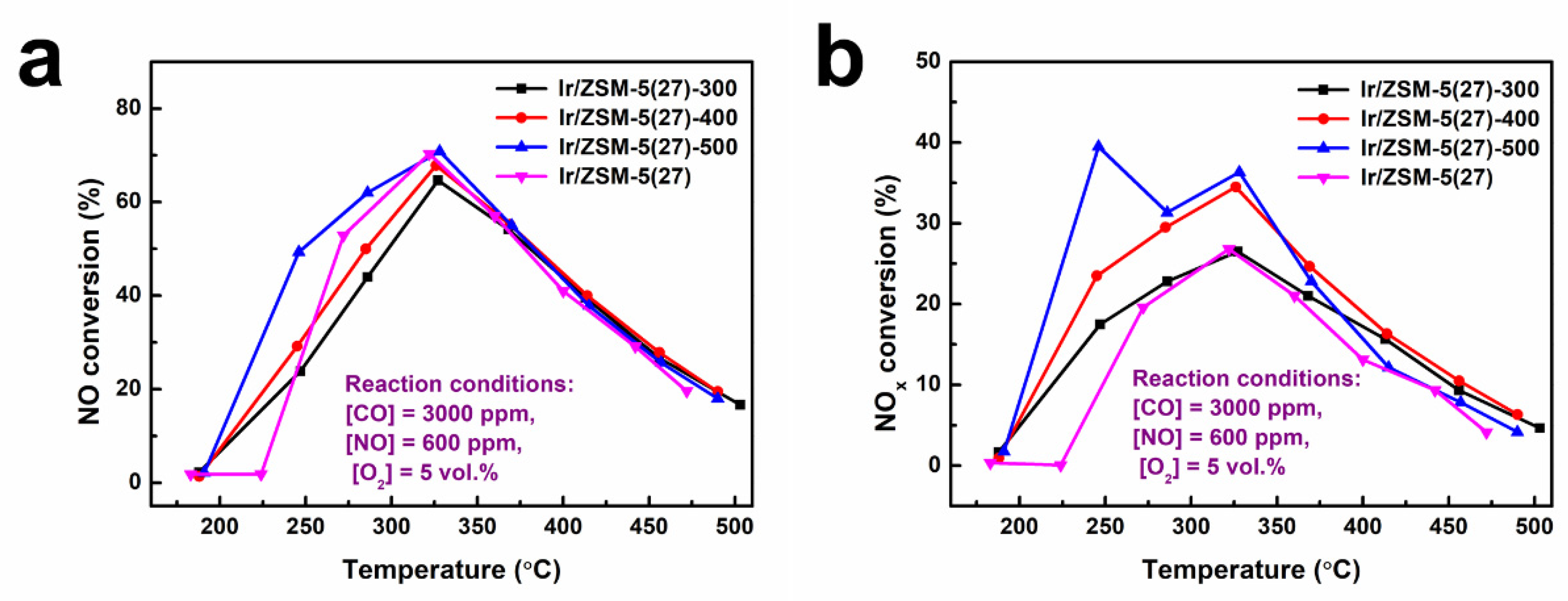

Figure 2. (a) NO and (b) NOx conversions on Ir/ZSM-5(27) that were treated at various reduction temperatures.
Figure 2. (a) NO and (b) NOx conversions on Ir/ZSM-5(27) that were treated at various reduction temperatures.
Materials 17 01440 g002
Materials 17 01440 g003

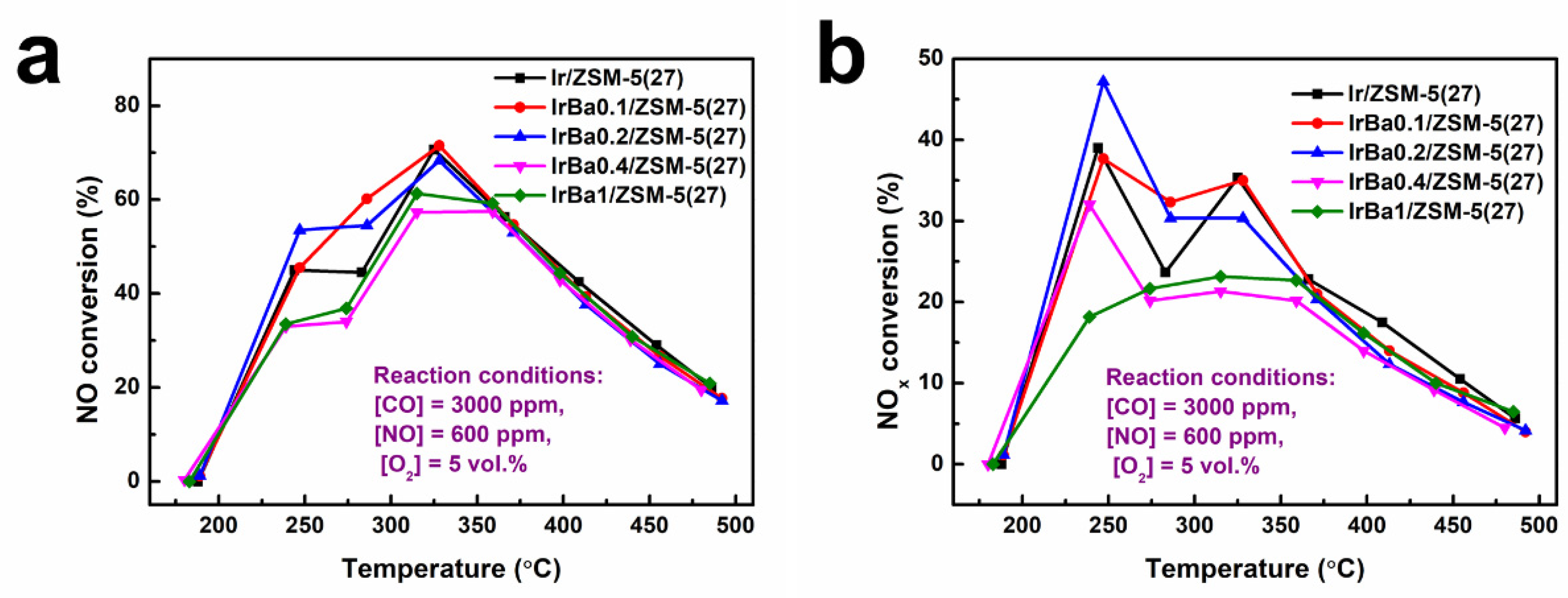

Figure 3. (a) NO and (b) NOx conversions of Ba modified Ir/ZSM-5(27) after reduction.
Figure 3. (a) NO and (b) NOx conversions of Ba modified Ir/ZSM-5(27) after reduction.
Materials 17 01440 g003
Materials 17 01440 g004

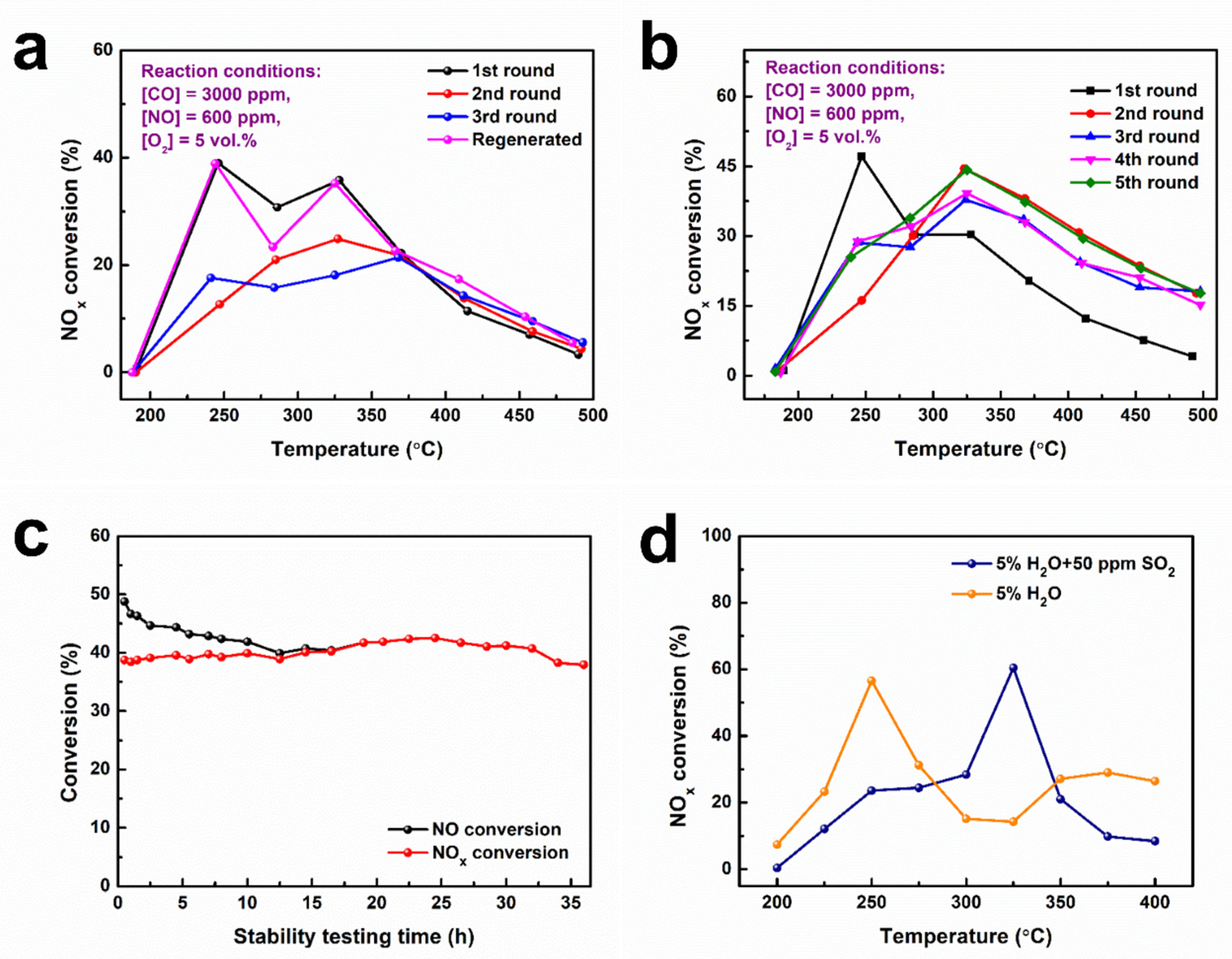

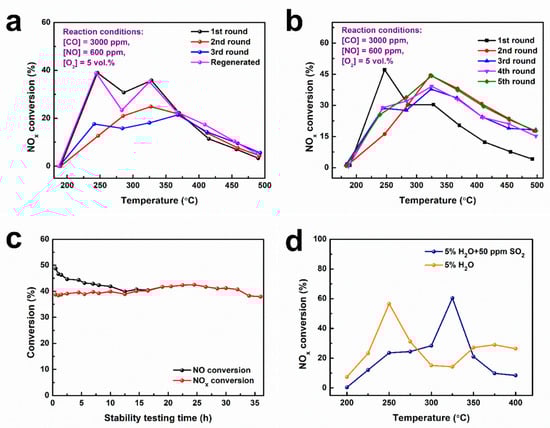

Figure 4. Cyclic performance and stability. (a) NOx conversion of Ir/ZSM-5(27), (b) NOx conversion of IrBa0.2/ZSM-5(27), (c) stability test of IrBa0.2/ZSM-5(27) at 320 °C, (d) the influence of H2O and SO2 on CO-SCR catalytic performance of IrBa0.2/ZSM-5. Feed composition: 600 ppm NO, 3000 ppm CO, 5 vol.% O2, 5 vol.% H2O (when used), 50 ppm SO2 (when used) balanced with N2, GHSV = 40,000 h−1.
Figure 4. Cyclic performance and stability. (a) NOx conversion of Ir/ZSM-5(27), (b) NOx conversion of IrBa0.2/ZSM-5(27), (c) stability test of IrBa0.2/ZSM-5(27) at 320 °C, (d) the influence of H2O and SO2 on CO-SCR catalytic performance of IrBa0.2/ZSM-5. Feed composition: 600 ppm NO, 3000 ppm CO, 5 vol.% O2, 5 vol.% H2O (when used), 50 ppm SO2 (when used) balanced with N2, GHSV = 40,000 h−1.
Materials 17 01440 g004
Materials 17 01440 g005

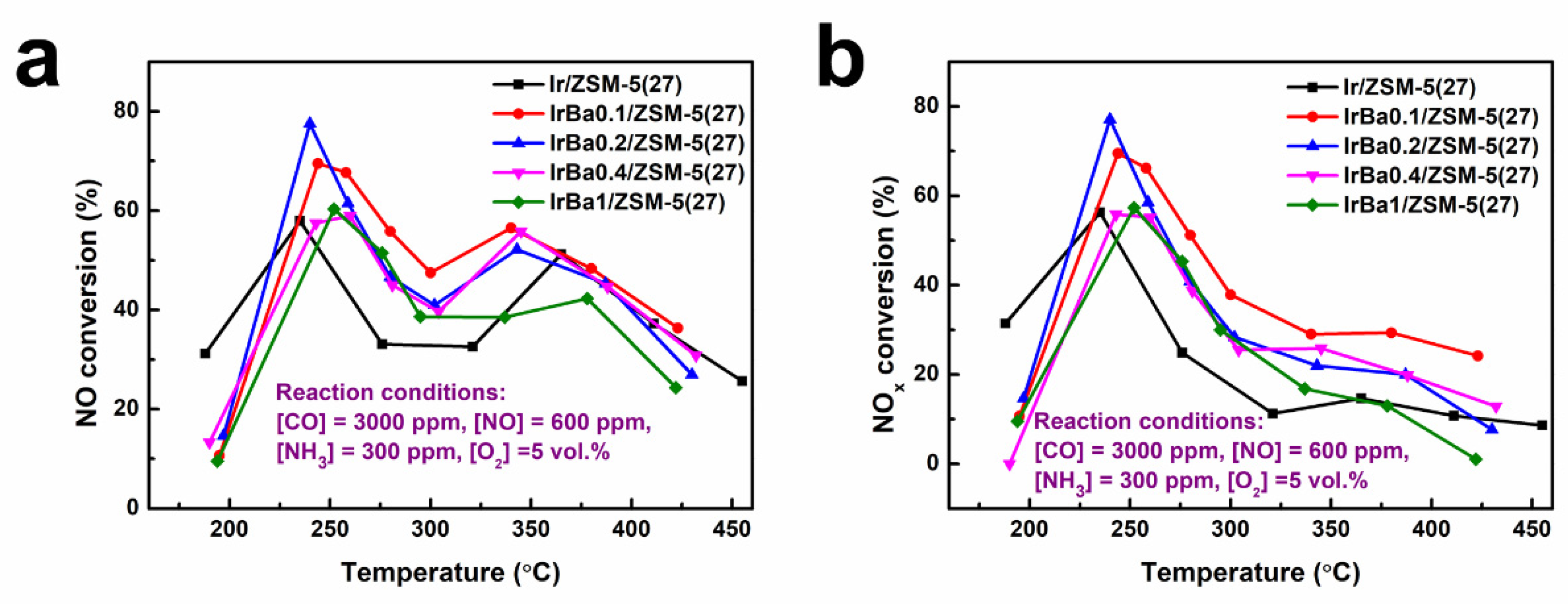

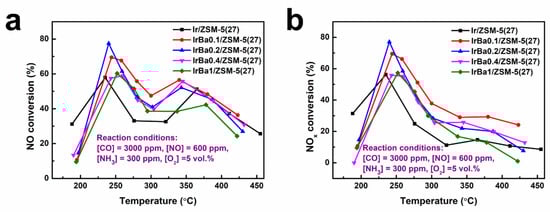

Figure 5. (a) NO and (b) NOx conversions on Ba-modified Ir/ZSM-5(27) catalyst during the NH3-CO-SCR reaction.
Figure 5. (a) NO and (b) NOx conversions on Ba-modified Ir/ZSM-5(27) catalyst during the NH3-CO-SCR reaction.
Materials 17 01440 g005
Materials 17 01440 g006

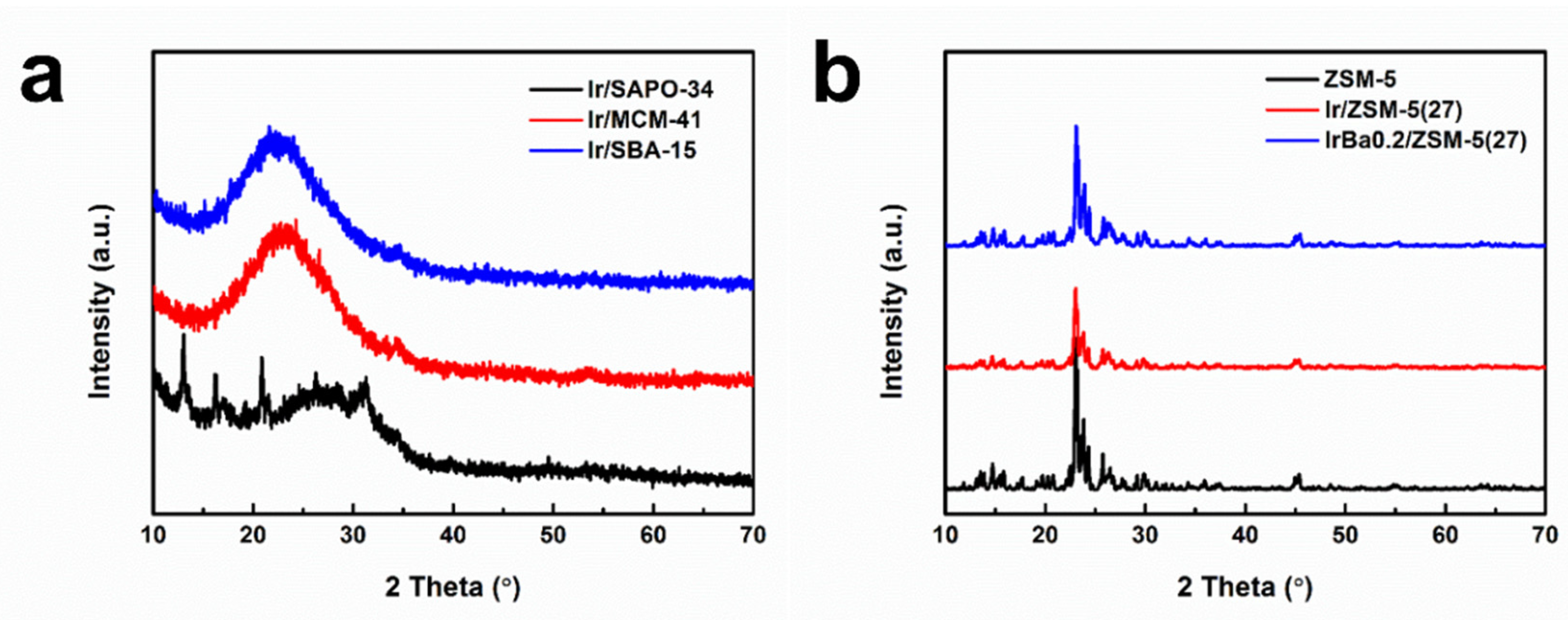

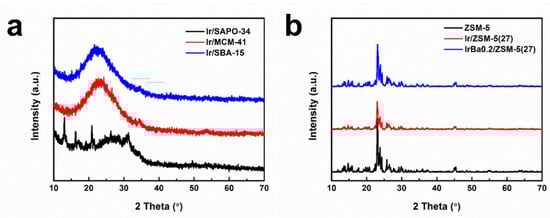

Figure 6. (a) The X-ray diffraction (XRD) patterns of Ir/SAPO-34, Ir/MCM-41 and Ir/SBA-15. (b) The X-ray diffraction (XRD) patterns of ZSM-5, Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27).
Figure 6. (a) The X-ray diffraction (XRD) patterns of Ir/SAPO-34, Ir/MCM-41 and Ir/SBA-15. (b) The X-ray diffraction (XRD) patterns of ZSM-5, Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27).
Materials 17 01440 g006
Materials 17 01440 g007

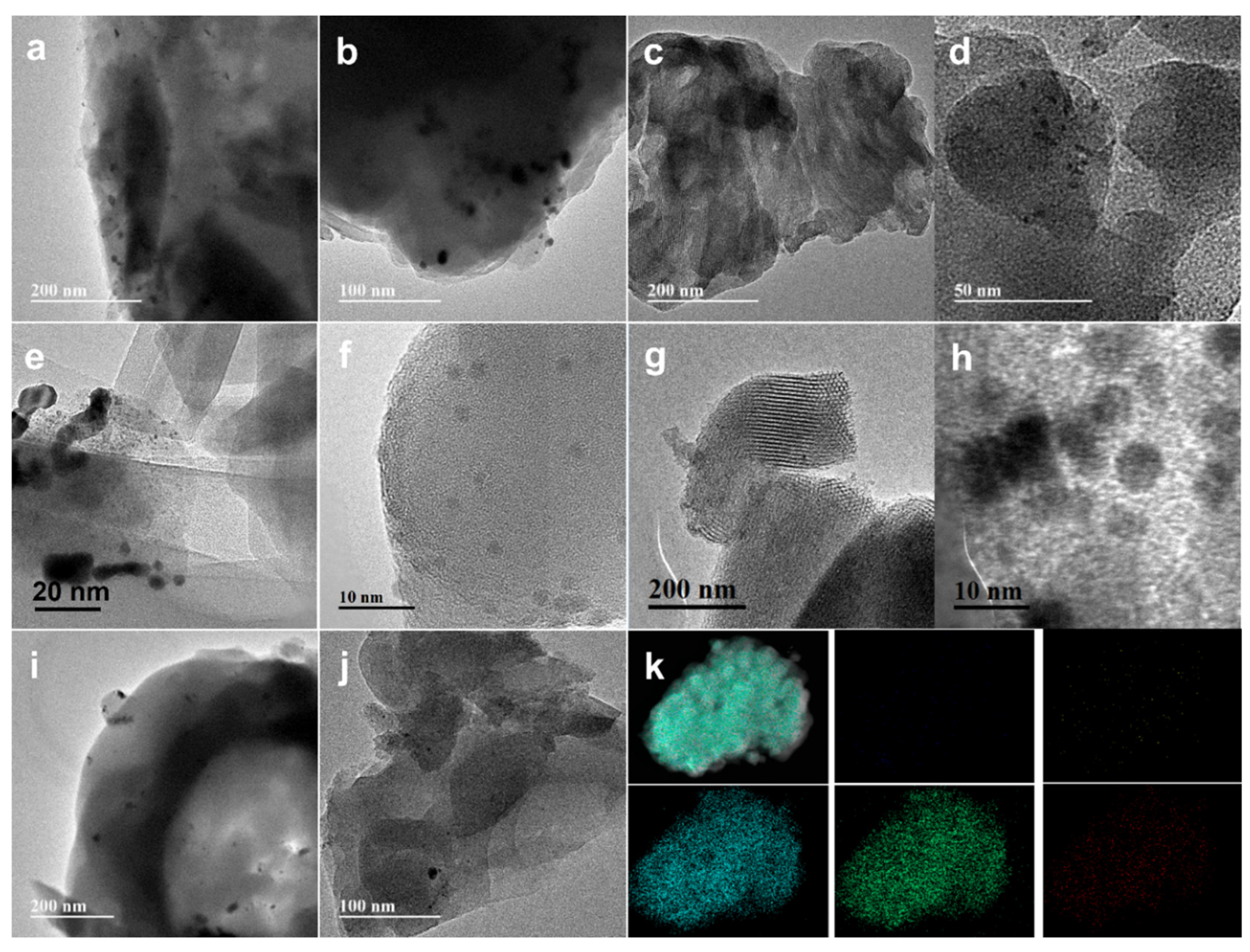

Figure 7. TEM images of Ir/ZSM-5(27) (a,b), Ir/MCM-41 (c,d), Ir/SAPO-34 (e,f), Ir/SBA-15 (g,h), and IrBa0.2/ZSM-5(27) (i,j). EDX-mapping of IrBa0.2/ZSM-5(27) (k).
Figure 7. TEM images of Ir/ZSM-5(27) (a,b), Ir/MCM-41 (c,d), Ir/SAPO-34 (e,f), Ir/SBA-15 (g,h), and IrBa0.2/ZSM-5(27) (i,j). EDX-mapping of IrBa0.2/ZSM-5(27) (k).
Materials 17 01440 g007
Materials 17 01440 g008

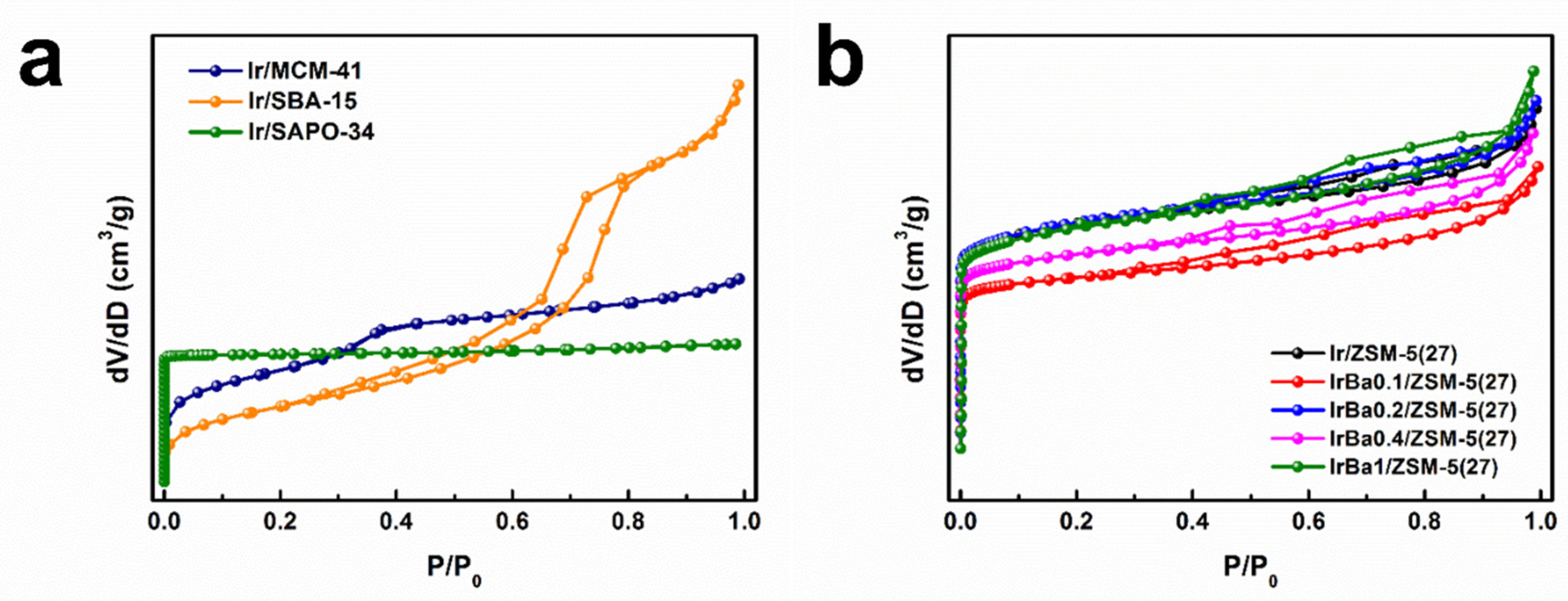

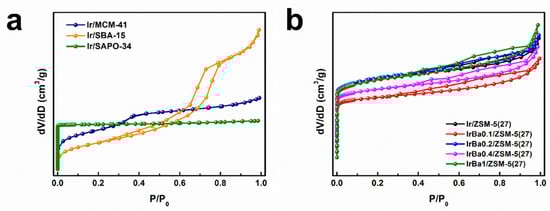

Figure 8. N2 adsorption/desorption isotherms of Ir loaded on different carriers (a) and Ba-modified Ir/ZSM-5(27) catalysts (b).
Figure 8. N2 adsorption/desorption isotherms of Ir loaded on different carriers (a) and Ba-modified Ir/ZSM-5(27) catalysts (b).
Materials 17 01440 g008
Materials 17 01440 g009

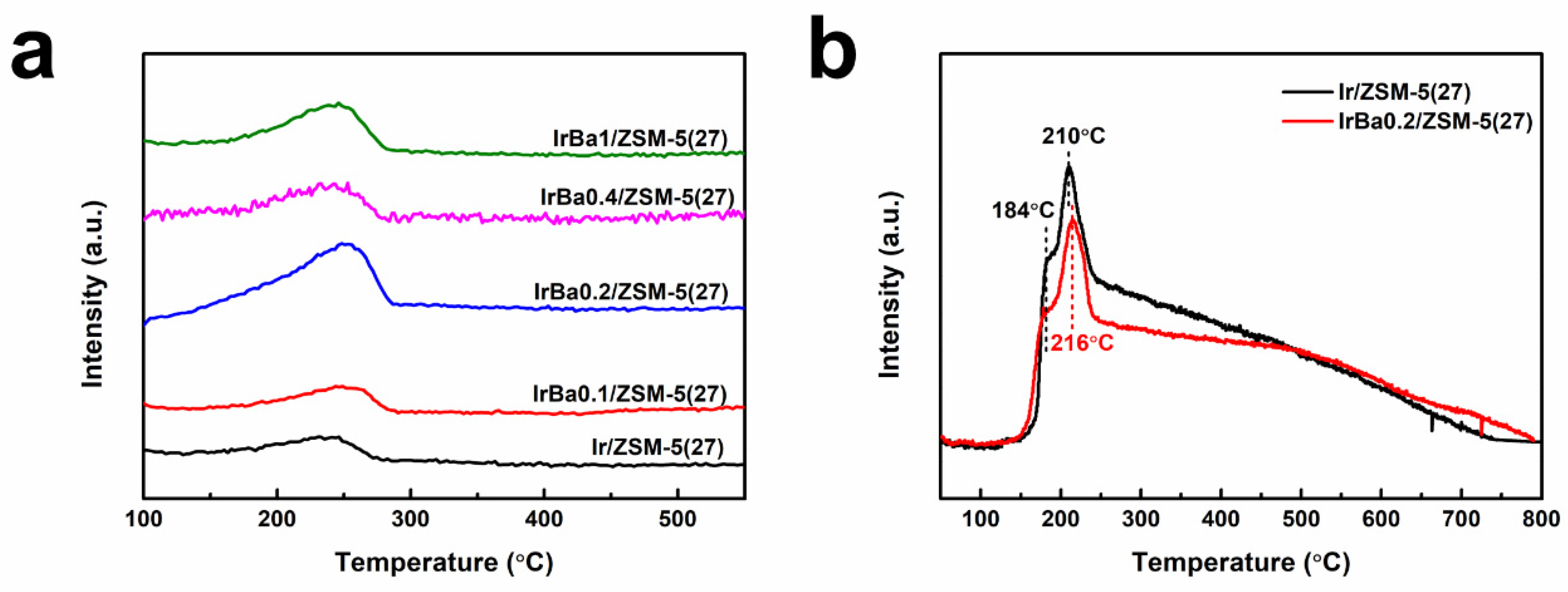

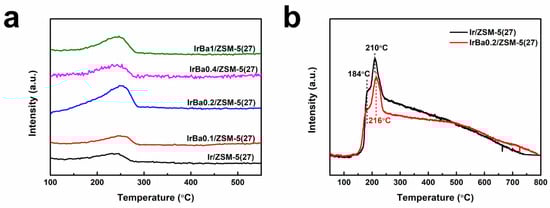

Figure 9. (a) NO-TPD and (b) H2-TPR spectrum of as-made catalysts.
Figure 9. (a) NO-TPD and (b) H2-TPR spectrum of as-made catalysts.
Materials 17 01440 g009
Materials 17 01440 g010

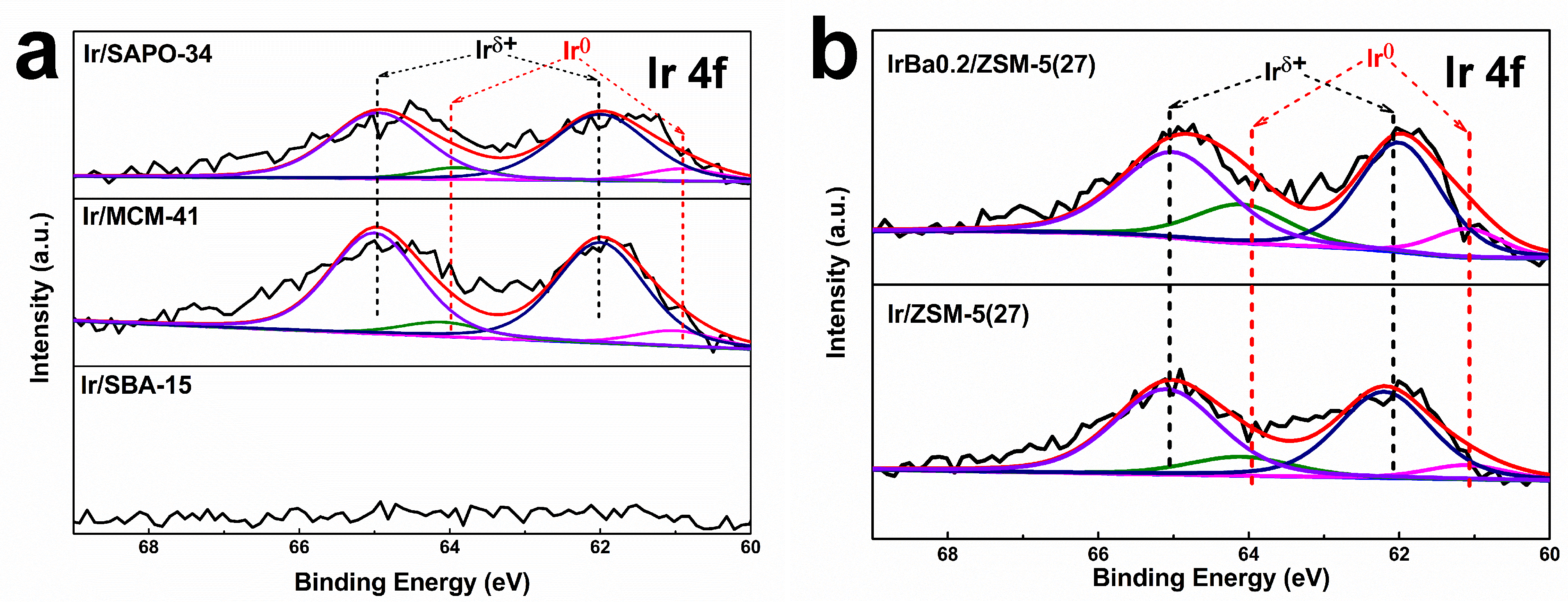

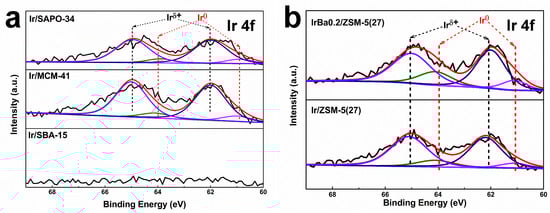

Figure 10. The XPS spectrum of Ir 4f for Ir/SAPO-34, Ir/MCM-41, and Ir/SBA-15 (a). The XPS spectrum of Ir 4f for Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27) (b).
Figure 10. The XPS spectrum of Ir 4f for Ir/SAPO-34, Ir/MCM-41, and Ir/SBA-15 (a). The XPS spectrum of Ir 4f for Ir/ZSM-5(27) and IrBa0.2/ZSM-5(27) (b).
Materials 17 01440 g010
Table 1. The NO conversion of different catalysts in the presence of O2.
Table 1. The NO conversion of different catalysts in the presence of O2.
CatalystsReaction ConditionsIr Loading Amount (%)NO Conversion (%)References
IrRu/Al2O350 ppm NO, 7000 ppm CO, 5% O21.9%88%[12]
BaIrRu/Al2O350 ppm NO, 7000 ppm CO, 5% O21.9%90%[34]
IrW-WO3/KIT-61000 ppm NO, 4000 ppm CO, 5% O21.0%<60%[5]
Ir/WO3500 ppm NO, 3000 ppm CO, 5% O2, 2 ppm SO2, 1% H2O5.0%25%[31]
Ir/Al2O3500 ppm NO, 1000 ppm CO, 300 ppm C3H6, 0.5% O2, 5% H2O1.0%nearly 80%[35]
IrBa0.2/ZSM-5600 ppm NO, 3000 ppm CO, 5% O20.5%68%This work
Table 2. The texture properties of as-made catalysts.
Table 2. The texture properties of as-made catalysts.
SampleSpecific Surface Area (m2/g)Pore Volume (cm3/g)
SmicroStotalVmicroVtotal
Ir/SAPO-34658.2679.30.260.29
Ir/MCM-41-535.9-0.39
Ir/SBA-15-372.2-0.91
Ir/ZSM-5(27)362.1415.90.150.25
IrBa0.1/ZSM-5(27)197.4251.80.100.20
IrBa0.2/ZSM-5(27)291.0370.40.140.27
IrBa0.4/ZSM-5(27)234.8301.60.120.24
IrBa1.0/ZSM-5(27)247.1323.90.120.27
Table 3. Surface element states on different catalysts.
Table 3. Surface element states on different catalysts.
SamplesIr0/(Ir0 + Irδ+)
Ir/SAPO-3412.8%
Ir/MCM-4112.1%
Ir/SBA-15-
Ir/ZSM-5(27)15.8%
IrBa0.2/ZSM-5(27)23.8%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bai, Y.; Miao, C.; Ouyang, W.; Wang, L.; Wang, H.; Wu, Z. Tailoring Iridium Valence States on ZSM-5 for Enhanced Catalytic Performance in CO Selective Catalytic Reduction of NO under Oxygen-Enriched Environments. Materials 2024, 17, 1440. https://doi.org/10.3390/ma17061440

AMA Style

Bai Y, Miao C, Ouyang W, Wang L, Wang H, Wu Z. Tailoring Iridium Valence States on ZSM-5 for Enhanced Catalytic Performance in CO Selective Catalytic Reduction of NO under Oxygen-Enriched Environments. Materials. 2024; 17(6):1440. https://doi.org/10.3390/ma17061440

Chicago/Turabian Style

Bai, Yarong, Chuhan Miao, Weilong Ouyang, Lang Wang, Haiqiang Wang, and Zhongbiao Wu. 2024. "Tailoring Iridium Valence States on ZSM-5 for Enhanced Catalytic Performance in CO Selective Catalytic Reduction of NO under Oxygen-Enriched Environments" Materials 17, no. 6: 1440. https://doi.org/10.3390/ma17061440

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
