Effect of Silicon Dioxide Nanoparticles on the Sintering Properties of Beta-Tricalcium Phosphate Composites

by
Kazuaki Hashimoto
*,
Masahiko Oiwa
and
Hirobumi Shibata
Department of Applied Chemistry, Faculty of Engineering, Chiba Institute of Technology, 2-17-1 Tsudanuma, Narashino-shi 275-0016, Chiba, Japan
*
Author to whom correspondence should be addressed.
Materials 2024, 17(4), 797; https://doi.org/10.3390/ma17040797
Submission received: 20 November 2023 / Revised: 1 February 2024 / Accepted: 5 February 2024 / Published: 7 February 2024
(This article belongs to the Special Issue Mechanical Properties and Applications of Advanced Ceramics: Second Edition)
Browse Figures
Versions Notes

Abstract

:
Composite sintered bodies comprising silicon dioxide (SiO2) nanoparticles dispersed in β-tricalcium phosphate (β-TCP) were prepared. The addition of nano-sized colloidal SiO2 to the β-TCP produced well-dispersed secondary phase nanoparticles that promoted densification by suppressing grain growth and increasing linear shrinkage of the sintered bodies. The SiO2 was found not to react with the β-TCP at 1120 °C and the substitution of silicon for phosphorous to produce a solid solution did not occur. This lack of a reaction is ascribed to the absence of available calcium ions to compensate for the increase in charge associated with this substitution. The SiO2 nanoparticles were found to be present near the intersections of grain boundaries in the β-TCP. β-TCP composite sintered body containing 2.0 and 4.0 wt% SiO2 exhibited a bending strength comparable to that of cortical bone and hence could potentially be used as a bone filling material.

1. Introduction

In recent years, the demand for bone replacement materials used in the treatment of bone diseases has increased due to ongoing aging of the population. To date, β-tricalcium phosphate (β-Ca3(PO4)2: β-TCP) has been employed clinically for this purpose because this material shows excellent biocompatibility along with a high bioabsorbability and can replace autologous bone when implanted in a bone defect [1,2,3]. Even so, β-TCP has inferior osteogenic potential and lacks mechanical strength compared with autogenous bone. As an example, in the case that raw β-TCP powder is prepared via a solid phase reaction and subsequently sintered for 24 h at 1100 °C, which is below the alpha-beta phase transition temperature, grain growth can occur without an increase in density. The result is a sintered body that exhibits a flexural strength in the range of 40–60 MPa and a sintering ratio of approximately 80% [4]. It has been reported that sintered bodies having greater density and with bending strengths in the range of 150–200 MPa can be obtained by adding a trace oxide to prevent the crystalline phase transition when sintering at high temperatures of 1150 to 1250 °C [5,6]. However, the incorporation of these phase transition inhibitors may form a substitution-type solid solution with β-TCP, thus suppressing the original solubility of β-TCP and resulting in reduced bioabsorbability [7,8,9,10,11].
It has also been demonstrated that densification can be promoted by hot pressing [12,13], hot isostatic pressing [14,15] and spark plasma sintering [16,17], although the necessary equipment is expensive to purchase and to operate. The present work prepared composite sintered bodies in which nanoparticles were dispersed to generate a secondary phase [18,19]. Specifically, colloidal silica (SiO2) was added to β-TCP powder in the form of nanoparticles with the aim of improving the sintering characteristics and mechanical strength of the material.
Silicon is known to be essential for the growth and development of bone and cartilage [20] and is found at concentrations of the order of 100 ppm in bone and ligaments and 200–600 ppm in cartilage and other connective tissues [21]. The localized concentration of this element at active calcareous sites in the bones of young mice has also been noted, where it is involved in the early stages of biomineralization [22]. On the other hand, water-soluble Si has been shown to promote osteoblast proliferation, differentiation and collagen production under in vitro conditions and to act on osteoclasts in a dosage-dependent manner. Addition of 0–50 mM (0–1.4 ppm Si) orthosilicate to the medium of human osteoblasts was found to increase alkaline phosphatase and osteocalcin activity by 1.5- and 1.2-fold, respectively, suggesting enhanced bone formation, and type I collagen synthesis by 1.8-fold [23]. In addition, administration of 0.1–100 ppm water-soluble Si solution to the medium of human osteoblasts for 48 h increased osteoblast proliferation and cell differentiation in a dosage-dependent manner through upregulation of transforming growth factor beta (TGF-β) [24]. Furthermore, ionic products containing high concentrations of water-soluble Si of Bioglass® are known to stimulate osteogenesis and collagen synthesis, and culturing with ionic products of Bioglass® significantly increased proliferation, differentiation, collagen secretion, and survival of osteoblasts derived from rat cranial crown. Ionic products generated by Bioglass® dissolution markedly increased genes encoding proteins involved in osteoblast proliferation, extracellular matrix remodeling, and extracellular matrix attachment, and had a marked effect on gene expression in human osteoblasts [25]. Similarly, ionic products of calcium silicate (CaSiO3) were observed to enhance blast cell activity [26]. In vitro experiments of rat osteoclast cultures treated with Si leached from silicon-containing calcium phosphate showed a dosage-dependent effect of Si on osteocytes and osteoclasts [27]. As reported above, many studies have reported that silicon activates osteoblast-like cells [28,29].
Another approach to producing high-density, high-strength sintered bodies is to utilize very finely powdered raw materials. Therefore, the present study also assessed the use of the polymerized complex method. In this process, metal ions are complexed, after which carboxyl and hydroxyl groups present in the complex are dehydrated and condensed by heating to prepare a polymeric gel (Figure 1) in which metal ions are coordinated [30].
This technique allows metal ions to be incorporated at an atomic level of dispersion and also permits the homogeneous dispersion of trace amounts of various additives. In addition, powders can be prepared rapidly and at low temperatures by sintering these gel precursors and hence the synthesis of raw material particles is facile [31,32].
In the work reported herein, composite sintered bodies incorporating well-dispersed silicon dioxide nanoparticles were prepared using fine β-TCP particles obtained by the polymerized complex method as the raw material. The effects of these nanoparticles on sintering characteristics and on the mechanical strength of the sintered β-TCP were investigated.

2. Experimental

2.1. Preparation of β-TCP

Calcium nitrate tetrahydrate (Ca(NO3)2·4H2O, 99.0%, Fujifilm Wako Pure Chemicals Corporation, Osaka, Japan) was used as the Ca source and 2-phosphonobutane-1,2,4-tricarboxylic acid (PBTC, 50% in water, K-I Kasei, Tokyo, Japan) as the P source, respectively. A calcium nitrate solution was initially prepared by dissolving 21.98 g of Ca(NO3)2·4H2O in 50 mL of pure water with stirring. This solution was subsequently added to 33.02 g of the PBTC solution to prepare a mixture having a Ca/P molar ratio of 1.50. This mixed solution was subsequently heated with magnetic stirring at 150 °C for 3 h using a hot plate. The gel-like material obtained from the resulting dehydration-condensation polymerization was then transferred to a crucible and dried at 180 °C and 300 °C for 24 h and 10 h, respectively, to prepare the β-TCP precursor. This precursor was then calcined by heating to 900 °C at a heating rate of 5 °C·min−1 and held at that temperature for 6 h under atmospheric air.
The samples produced in this manner were assessed by X-ray diffraction (XRD) using a MiniFlex600 diffractometer (Rigaku, Tokyo, Japan) and by Fourier transform infrared (FT-IR) spectroscopy (FT-IR-4200, Jasco, Tokyo, Japan). Scanning electron microscopy (SEM; VE-7800, KEYENCE, Tokyo, Japan) was also used to observe the shapes and diameters of the particles comprising these materials while the particle size distributions were ascertained using a laser diffraction particle size analyzer (MT3300EXI3I, Microtrac Bell, Tokyo, Japan).

2.2. Preparation and Evaluation of Sintered Bodies

Fumed colloidal silica (SiO2; particle size: 12 nm, Strem Chemicals Inc., Newburyport, MD, USA) was added to the raw β-TCP powder at 0, 1, 2, 3, 4 or 5 wt% by external blending followed by mixing in ethanol for 12 h using alumina balls. The external blending refers to the mixing ratio (wt%) in which the weight of the raw material is taken as 100. After removing the ethanol with a rotary evaporator, the milled powder was mixed with a 2 wt% polyvinyl alcohol aqueous solution (Fujifilm Wako Pure Chemicals Corporation, Osaka, Japan), added at 8 wt%, and with deionized water, also added at 8 wt%, in a plastic bag. The resulting mixture was subsequently passed through a Teflon sieve having 200 μm pores. Kerosene (Fujifilm Wako Pure Chemicals Corporation, Osaka, Japan) was then added to the material at 5 wt% followed by thorough mixing in a plastic bag. The resulting mixture was placed in a cylindrical (11 mm dia.) mold forming machine (CDM-5M, Riken Kiki Corp., Tokyo, Japan) and subjected to a uniaxial pressure of 120 MPa for 1 min. This process fabricated a compact cylinder having a diameter of 11.0 mm and a thickness of 2.0 mm that was vacuum-sealed in a plastic bag using a vacuum packaging machine (V-280A, Tosei Corporation, Tokyo, Japan). The compact cylinder was then subjected to cold isostatic pressing (CIP) at 200 MPa for 10 min, employing an LCP-80–200A device (NPA System, Tokyo, Japan). The compact cylinders produced in this manner were sintered at 200 °C for 5 h, 500 °C for 5 h and 1120 °C for 24 h, applying a heating rate of 3 °C·min−1 between each temperature and under atmospheric air (Figure 2).
The sintered bodies were analyzed by XRD and FTIR spectroscopy. In addition, the lattice constants were obtained using the silicon internal standard method. Linear shrinkage was calculated as the difference between the length of the sample before sintering and the length of the sample after sintering divided by the length of the sample before sintering, expressed as a percentage. The porosity, bulk density and sintering ratios of the sintered bodies were ascertained using the Archimedes method. The microstructural observations of the sintered bodies were performed by field emission (FE) SEM (JSM-IT-800, JEOL Ltd., Tokyo, Japan), Energy Dispersive X-ray spectroscopy-attached SEM (EDX-SEM, JSM-7000, JEOL Ltd., Tokyo, Japan). The microstructural observations and elemental mapping were performed using scanning transmission electron microscopy (STEM, TalosF200X, FEI Company Japan Ltd., Tokyo, Japan). The specimens used for scanning electron microscopies were surface polished and then thermally etched at 1020 °C for 5 h. Furthermore, the test specimens used for scanning transmission electron microscopy observations were prepared as thin slice material using a focused ion beam machine (FIB NB5000, Hitachi High-Tech corporation, Tokyo, Japan). Finally, three-point bending tests (cross head speed,1 mm/min.) were carried out to assess mechanical strength with an Autograph AGS-X instrument (Shimadzu, Kyoto, Japan). The specimens used for the three-point bending test were cut to 3 mm × 4 mm × 40 mm and the cut surfaces were polished.

3. Results and Discussion

3.1. Evaluation of β-TCP as a Raw Material

The sample generated by calcination of the precursor gel synthesized using the polymerized complex method with heating at 900 °C was found to comprise a single β-TCP phase based on analyses by XRD and FT-IR spectroscopy. The particle morphology and particle size distribution of this material were also examined. Figure 3 presents an SEM image of this β-TCP specimen after calcination while Figure 4 shows the particle size distribution data acquired after ball-milling of the precursor. The SEM image indicates narrow particles with sizes in the range of 2 to 5 µm. The size distribution of the particles obtained by ball milling ranged from 0.3 to 4 μm with a median diameter of 1.68 μm and SD of 0.80 μm. These results indicate that the raw material for the sintered bodies (that is, the β-TCP powder) consisted of fine particles having a relatively narrow range of sizes and an average size of less than 2 μm.

3.2. Preparation and Evaluation of β-TCP Composite Sintered Bodies Containing SiO2

Figure 5 shows the XRD patterns acquired from the β-TCP composite sintered bodies in which varying concentrations of SiO2 nanoparticles were dispersed. The peaks generated by each specimen were consistent with those of β-TCP (ICDD no. 055-0898), indicating that all samples had the same crystal structure as β-TCP [33]. Because the patterns of these sintered bodies were not modified, it appears that the SiO2 did not form a solid solution within the β-TCP crystal structure. Furthermore, no peaks related to SiO2 or various by-products were obtained, presumably because of the low concentration or amorphous nature of the SiO2. Interestingly, the XRD pattern generated by a specimen containing 10 wt% SiO2 contained peaks attributed to cristobalite (ICDD no. 001-043). This result suggests that the SiO2 nanoparticles added at lower concentrations were also changed to cristobalite upon heating.
Figure 6 presents the FT-IR spectra of these same sintered bodies. The spectrum of a sample of heated colloidal SiO2 is also shown in the figure. Each of these spectra contains peaks ascribed to the bending and stretching vibrations of PO4 groups (attributed to the presence of calcium phosphate) within the ranges of 550 to 605 cm−1 and 905 to 1120 cm−1, respectively. In contrast, there are no peaks related to by-products such as hydroxyapatite or Ca2P2O7 [34,35]. In the FT-IR spectrum of the heated SiO2 sample shown in the figure, absorption spectra attributed to Si-O-Si stretching vibration and bending vibration of SiO2 were observed at 1000–1200 cm−1 and 800 cm−1, respectively [36,37], but as in the X-ray diffraction results, these absorptions could not be clearly distinguished. XRD patterns and FT-IR spectra showed no evidence of synthetic reactions such as compounding or substitution of the blended SiO2.
The lattice constants of these specimens are summarized in Figure 7. These values indicate that the added SiO2 did not form a solid solution with the β-TCP. However, it should be noted that the authors previously prepared β-TCP in which silicon ions were substituted at phosphorus sites [38]. Although the composition of the β-TCP was not modified upon adding SiO2 in the present work, prior work demonstrated that the increased negative charge resulting from the replacement of PO43− with SiO44− ions was compensated for by the incorporation of Ca2+ ions. Hence, the Ca/P molar ratio was increased above the stoichiometric value of 1.50. In the present study, it is appears that silicon ions were not substituted into the β-TCP lattice because cations were not available to compensate for the associated change in charge.
The results so far suggest that the SiO2 added to β-TCP is present as SiO2 particles in the matrix of the sintered body.

3.3. Evaluations of Physical Properties

Figure 8 shows the linear shrinkage and the sintered ratio (that is, relative density) of the various sintered bodies. The linear shrinkage of the pure β-TCP was 9.3% whereas this value was approximately 13% at a SiO2 addition level of 3.0 wt% and increased with increase of SiO2 addition. It was estimated that the increase in linear shrinkage due to sintering of SiO2 particle-dispersed β-TCP composite sintered bodies with increasing SiO2 addition was due to densification by discharging pores in the sintered body. The sintered bodies containing 3.0 wt% SiO2 showed the sintered ratio of 93% whereas the sintered ratio for the β-TCP was 78%. Hence, the sintered ratio also increased along with the SiO2 content.
Figure 9 summarizes the porosity and bulk density values for sintered bodies. The bulk density of the β-TCP was 2.54, supporting the linear shrinkage and sintering data. In contrast, the bulk densities of the sintered bodies containing 3.0 wt% or more SiO2 were in the range of 2.95 to 2.98 g·cm−3 (compared with a theoretical density of 3.07 g·cm−3). These data demonstrate that the bulk density was increased with increases in SiO2 content in this range. Conversely, the open porosity values of the sintered bodies decreased with increasing SiO2 addition up to 2 wt% whereas the closed porosity values decreased with SiO2 addition above 3 wt%. The decrease of porosity indicates that the sintering characteristics of the material were improved.
Figure 10 shows FE-SEM images of the various specimens. The particle sizes obtained from these images using the intercept method [39] are also provided in the figure. On this basis, it is apparent that both porosity and particle size were decreased with increases in the concentration of SiO2. These images are in agreement with the earlier porosity data because the open pores on the surfaces of the sintered bodies were similar to those measured by the Archimedes method, as described above. The grains in the pure sintered material were approximately 1.7 μm in size whereas SiO2 addition decreased this value to approximately 1.5 μm. These results confirm that porosity and grain size were decreased with increasing SiO2 content. Hence, the sintered bodies became denser with SiO2 addition. It is thought that SiO2 addition suppressed the diffusion of β-TCP, inhibited grain growth and promoted densification by discharging pores and restructuring the grain structure.
Figure 11 provides elemental mapping images of a sintered specimen containing 4.0 wt% SiO2 as acquired using EDX-SEM. These images show that Ca and P are present in the same locations and that Ca and P are absent where Si is present. In addition, Si is widely dispersed. These results provide more evidence that a solid solution was not formed between the β-TCP and SiO2 but rather that these materials existed as separate phases. However, it is not possible to determine from these images whether the SiO2 was located within the grains or at the grain boundaries.
STEM was used for further high-resolution microstructural observations. Figure 12 presents STEM images showing the microstructure and elemental mapping of the 4.0 wt% SiO2 specimen. These image data revealed that the SiO2 nanoparticles ranged in size from 100 to 500 nm and were located at the intersection of grain boundaries.

3.4. Mechanical Strength Assessments

Figure 13 summarizes the three-point bending strength and flexural modulus values obtained for the sintered bodies. The average strength value for the pure β-TCP was 42 MPa while the specimens containing 2.0 and 4.0 wt% SiO2 had strengths of 110 and 125 MPa, respectively. Sintered bodies with 2.0 and 4.0 wt% SiO2 exhibited bending strengths comparable to that of cortical bone [40] and hence could possibly be used as a bone filling material. These increases in strength are attributed to densification and possibly to the suppression of crack propagation by SiO2 nanoparticles at the intersections between grain boundaries. The addition of these SiO2 nanoparticles resulted in higher values of mechanical strength that were more than comparable to those of β-TCP sintered bodies produced using the hot-pressing technique [12]. Because the hot-pressing specimens showed a higher degree of sintering than was obtained in the present work, the enhanced mechanical strength seen in this study likely resulted from both dispersion of the nanoparticles and densification [41].
SEM images of fracture surfaces of β-TCP composite sintered with and without 4.0 wt% SiO2 nanoparticles are shown in Figure 14. SEM images of fracture surfaces of sintered specimens without SiO2 nanoparticles showed a porous state and crack propagation at the grain boundaries around the pores, which in the case of this specimen was considered to be due to intergranular fracture. On the other hand, the sintered specimen with 4 wt% SiO2 nanoparticles was found to be pore-free and dense, indicating that crack propagation occurred via intragranular or intergranular fractures. In particular, the particles, which were considered to be SiO2 particles, were found to be widely distributed, suggesting that the crack propagation was suppressed by the particles.
Although there have been many evaluations of the mechanical strength of porous sintered β-TCP [42,43] and biphasic composites containing HAp [44,45], there are few reports on the subject of the mechanical strength of dense sintered β-TCP. Therefore, we consider the outcomes of studies such as the present study to be valuable data for bioceramics.

4. Conclusions

Composite sintered bodies comprising silicon dioxide nanoparticles dispersed in the microstructures of β-TCP were fabricated. Nano-sized colloidal silica was used as the silicon dioxide component in these materials. This silicon dioxide was well-dispersed as secondary phase particulates that suppressed grain growth in the sintered bodies and promoted densification by increasing linear shrinkage due to pore expulsion. However, substitution to form a solid solution with β-TCP was not observed even upon heating at 1120 °C. This lack of substitution likely can be attributed to the absence of free calcium ions required for charge compensation. Silicon dioxide was found to be present as 100–500 nm nanoparticles near the intersections of grain boundaries. Sintered bodies with 2.0 and 4.0 wt% SiO2 exhibited bending strengths comparable to that of cortical bone and hence could possibly be used as a bone filling material.

Author Contributions

K.H., M.O. and H.S. initiated the project; K.H. wrote the paper; M.O. produced all of the figures. All authors participated in the discussion and interpretation of the results. All authors edited and proofread the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dorozhkin, S.V. Bioceramics of calcium orthophosphates. Biomaterials 2010, 31, 1465–1485. [Google Scholar] [CrossRef] [PubMed]
  2. Bohner, M.; Santoni, B.L.G.; Döbelin, N. β-tricalcium phosphate for bone substitution: Synthesis and properties. Acta Biomater. 2020, 113, 23–41. [Google Scholar] [CrossRef] [PubMed]
  3. Giannoudis, P.V.; Dinopoulos, H.; Tsiridis, E. Bone substitutes: An update. Injury 2005, 36, S20–S27. [Google Scholar] [CrossRef] [PubMed]
  4. Kanazawa, T.; Umegaki, T.; Yamashita, K.; Monma, H.; Hiramaysu, T. Effects of additives on sintering and some properties of calcium phosphates with various Ca/P ratios. J. Mater. Sci. 1991, 26, 417–422. [Google Scholar] [CrossRef]
  5. Bhatt, H.A.; Kalita, S.J. Influence of oxide-based sintering additives on densification and mechanical behavior of tricalcium phosphate (TCP). J. Mater. Sci.: Mater. Med. 2007, 18, 883–893. [Google Scholar] [CrossRef] [PubMed]
  6. Toriyama, M.; Kawamura, S.; Ito, Y.; Nagae, H.; Toyama, I. Effect of Mixed Addition of Al2O3 and SiO2 on Mechnical Strength of Sintered β-Tricalcium Phosphate. J. Ceram. Soc. Jpn. 1988, 96, 837–841. [Google Scholar] [CrossRef]
  7. Hashimoto, K. Tricalcium Phosphate-based Nanoceramics. In Nanobioceramics for Healthcare Applications; World Scientific: Singapore, 2017; pp. 79–104. [Google Scholar]
  8. Matsumoto, N.; Yoshida, K.; Hashimoto, K.; Toda, Y. Dissolution mechanisms of β-tricalcium phosphate doped with monovalent metal ions. J. Ceram. Soc. Jpn. 2010, 118, 451–457. [Google Scholar] [CrossRef]
  9. Orlov, N.K.; Putlayev, V.I.; Evdokimov, P.V.; Safronava, T.V.; Klimashina, E.S.; Milkin, P.A. Resorption of Ca3–xM2x(PO4)2 (M = Na, K) Calcium Phosphate Bioceramics in Model Solutions. Inorg. Mater. 2018, 54, 500–508. [Google Scholar] [CrossRef]
  10. Kazakova, G.; Safronova, T.; Golubchikov, D.; Shevtsova, O.; Rau, J.V. Resorbable Mg2+-Containing Phosphates for Bone Tissue Repair. Materials 2021, 14, 4857. [Google Scholar] [CrossRef]
  11. Santoni, B.L.G.; Niggli, L.; Sblendorio, G.A.; Alexznder, D.T.L.; Stahli, C.; Bowen, P.; Dobelin, N.; Bohner, M. Chemically pure β-tricalcium phosphate powders: Evidence of two crystal structures. J. Euro Ceram. Soc. 2021, 41, 1683–1694. [Google Scholar] [CrossRef]
  12. Yoshida, K.; Kondo, N.; Kita, H.; Mitamura, M.; Hashimoto, K.; Toda, Y. Effect of substitutional monovalent and divalent metal ions on mechanical properties of beta-tricalcium phosphate. J. Am. Ceram. Soc. 2005, 88, 2315–2318. [Google Scholar] [CrossRef]
  13. Miyamoto, R.; Ohashi, K.; Yoshida, K.; Matsumoto, N.; Shibata, H.; Meguro, T.; Fukuyama, S.; Hashimoto, K. Effect of vanadium ion addition on sintering of β-tricalcium phosphate by hot pressing. Phosphorus Res. Bull. 2012, 26, 4–5. [Google Scholar] [CrossRef]
  14. Boilet, L.; Descamps, M.; Rguiti, E.; Tricoteaux, A.; Lu, J.; Petit, F.; Lardot, V.; Cambier, F.; Leriche, A. Processing and properties of transparent hydroxyapatite and β-tricalcium phosphate obtained by HIP process. Ceram. Int. 2013, 39, 283–288. [Google Scholar] [CrossRef]
  15. Mateescu, M.; Rguitti, E.; Ponche, A.; Descamps, M.; Anselme, K. Biomimetic evaluation of β-tricalcium phosphate prepared by hot isostatic pressing. Biomatter 2012, 2, 103–111. [Google Scholar] [CrossRef]
  16. Kawagoe, D.; Ioku, K.; Fujimori, H.; Goto, S. Transparent β-tricalcium phosphate ceramics prepared by spark plasma sintering. J. Ceram. Soc. Jpn. 2004, 112, 462–463. [Google Scholar] [CrossRef]
  17. Sainz, M.A.; Serena, S.; Caballero, A. Synthesis and properties of Zn and Zn–Mg-doped tricalcium phosphates obtained by Spark Plasma Sintering. Ceram. Int. 2023, 49, 19569–19577. [Google Scholar] [CrossRef]
  18. Niihara, K. New design concept of structural ceramics—Ceramic nanocomposite. J. Ceram. Soc. Jpn. 1991, 99, 974–982. [Google Scholar] [CrossRef]
  19. Hu, X.; Zhang, W.; Hou, D. Synthesis, microstructure and mechanical properties of tricalcium phosphate–hydroxyapatite (TCP/HA) composite ceramic. Ceram. Int. 2020, 46, 9810–9816. [Google Scholar] [CrossRef]
  20. Jugdaohsingh, R. Silicon and bone health. J. Nutr. Health Aging 2007, 11, 99–100. [Google Scholar] [PubMed]
  21. Schwarz, K. A bound form of Si in glycosaminoglycans and polyuronides. Proc. Natl. Acad. Sci. USA 1973, 70, 1608–1612. [Google Scholar] [CrossRef]
  22. Carlisle, E.M. Silicon: A possible factor in bone calcification. Science 1970, 167, 279–280. [Google Scholar] [CrossRef] [PubMed]
  23. Reffitt, D.M.; Ogston, N.; Jugdaohsingh, R.; Cheung, H.F.J.; Evans, B.A.J.; Thompson, R.P.H.; Powell, J.J.; Hampson, G.N. Orthosilic acid stimulates collagen type 1 synthesis and osteoblastic differentiation in human osteoblast-like cells in vitro. Bone 2003, 32, 127–135. [Google Scholar] [CrossRef] [PubMed]
  24. Keeting, P.E.; Oursler, M.J.; Wiegand, K.E.; Bonde, S.K.; Spelsberg, T.C.; Riggs, B.L. Zeolite a increases proliferation, differentiation, and transforming growth factor-β production in normal adult human osteoblast-like cells in vitro. J. Bone Miner. Res. 1992, 7, 1281–1289. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, E.J.; Bu, S.Y.; Sung, M.K.; Choi, M.K. Effects of Silicon on Osteoblast Activity and Bone Mineralization of MC3T3-E1 cells. Biol. Trace Elem. Res. 2013, 152, 105–112. [Google Scholar] [CrossRef] [PubMed]
  26. Pietak, A. The Role of Silicon in Si-TCP Bioceramics: A Material and Biological Characterization; Queen’s University: Kingston, UK, 2004. [Google Scholar]
  27. Zhou, X.F.; Moussa, F.M.; Mankoci, S.; Ustriyana, P.; Zhang, N.; Abdelmagid, S.; Molenda, J.; Murphy, W.L.; Safadi, F.F.; Sahai, N. Orthosilicic acid, Si(OH)4, stimulates osteoblast differentiation in vitro by upregulating miR-146a to antagonize NF-κB activation. Acta Biomater. 2016, 39, 192–202. [Google Scholar] [CrossRef] [PubMed]
  28. Xynos, I.D.; Edgar, A.J.; Buttery, L.D.K.; Hench, L.L.; Polak, J.M. Gene-expression profiling of human osteoblasts following treatment with the ionic products of BioglassⓇ 45S5 dissolution. J. Biomed. Mater. Res. 2001, 55, 151–157. [Google Scholar] [CrossRef] [PubMed]
  29. Valerio, P.; Pereira, M.M.; Goes, A.M.; Leite, M.F. The effect of ionic products from bioactive glass dissolution on osteoblast proliferation and collagen production. Biomaterials 2004, 25, 2941–2948. [Google Scholar] [CrossRef] [PubMed]
  30. Matsumoto, N.; Yoshida, K.; Hashimoto, K.; Toda, Y. Preparation of beta-tricalcium phosphate by chelate reaction of calcium ion with phosphonic acid. Trans. Mater. Res. Soc. Jpn. 2010, 34, 81–84. [Google Scholar] [CrossRef]
  31. Kakihana, M. Sol-gel preparation of high temperature superconducting oxides. J. Sol-Gel Sci. Tech. 1996, 6, 7–55. [Google Scholar] [CrossRef]
  32. Yoshimura, M. Feature and importance of solution processing for ceramics-nano-particles, thin films, thick films, patterns and bulks. J. MMIJ 2009, 125, 381–388. [Google Scholar] [CrossRef]
  33. Yashima, M.; Sakai, A.; Kimiyama, T.; Hoshikawa, A. Crystal structure analysis of β-tricalcium phosphate Ca3(PO4)2 by neutron powder diffraction. J. Solid State Chem. 2003, 175, 272–277. [Google Scholar] [CrossRef]
  34. Elbashir, S.; Brostrom, M.; Skoglund, N. Thermodynamic modelling assisted three-stage solid state synthesis of high purity β-Ca3(PO4)2. In Materials & Design; Elsevier: Amsterdam, The Netherlands, 2024; p. 112679. [Google Scholar]
  35. Elliott, J.C. Chapter 3. Hydroxyapatite and nonstoichiometric apatite. In Structure and Chemistry of the Apatites and Other Calcium Orthophosphates; Elsevier: Amsterdam, The Netherlands, 1994; p. 171. [Google Scholar]
  36. Sitarz, M.; Handke, M.; Mozgawa, W. Identification of silicooxygen rings in SiO2 based on IR spectra. Spectrochim. Part A 2000, 56, 1819–1823. [Google Scholar] [CrossRef] [PubMed]
  37. Wu, Z.; Lee, K.; Lin, Y.; Lan, X.; Huang, L. Effects of surface-active substances on acid–base indicator reactivity in SiO2 gels. J. Non-Cryst. Solids 2003, 320, 168–176. [Google Scholar] [CrossRef]
  38. Hashimoto, K.; Imai, T.; Shibata, H. Preparation of silicon-substituted beta-tricalcium phosphate by the polymerized complex method. Phosphorus Res. Bull. 2023, 39, 14–22. [Google Scholar] [CrossRef]
  39. Abrams, H. Grain size measurement by the intercept method. Metallography 1971, 4, 59–78. [Google Scholar] [CrossRef]
  40. Hench, L.L.; Wilson, J. Chapter 1. Introduction. In An Introduction to Bioceramicts; World Sceintific: Singapore, 1999; p. 12. [Google Scholar]
  41. Golovanova, O.A.; Tsyganova, A. Physical and Chemical Properties of Dense Ceramics Based on a Mixture of Calcium Phosphates. Russ. Metall. 2023, 2023, 1314–1318. [Google Scholar] [CrossRef]
  42. Park, J.H.; Bae, J.Y.; Shim, J.; Jeon, I. Evaluation of suitable porosity for sintered porous β-tricalcium phosphate as a bone substitute. Mater. Character. 2012, 71, 103–111. [Google Scholar] [CrossRef]
  43. Zhang, Y.; Zhang, Q.; He, F.; Zuo, F.; Shi, X. Fabrication of cancellous-bone-mimicking β-tricalcium phosphate bioceramic scaffolds with tunable architecture and mechanical strength by stereolithography 3D printing. J. Euro Ceram. Soc. 2022, 42, 6713–6720. [Google Scholar] [CrossRef]
  44. Hussain, W.A.; Al-Mosawa, E.H.A.; Ismail, M.M.; Alwan, L.H. Porous Biphasic Calcium Phosphate for Biomedical Application. J. Biomime. Biomater. Biomed. Eng. 2021, 49, 101–110. [Google Scholar] [CrossRef]
  45. Ruan, J.M.; Zou, J.P.; Zhou, J.N.; Hu, J.Z. Porous hydroxyapatite–tricalcium phosphate bioceramics. Powder Metall. 2006, 49, 66–69. [Google Scholar] [CrossRef]
Materials 17 00797 g001

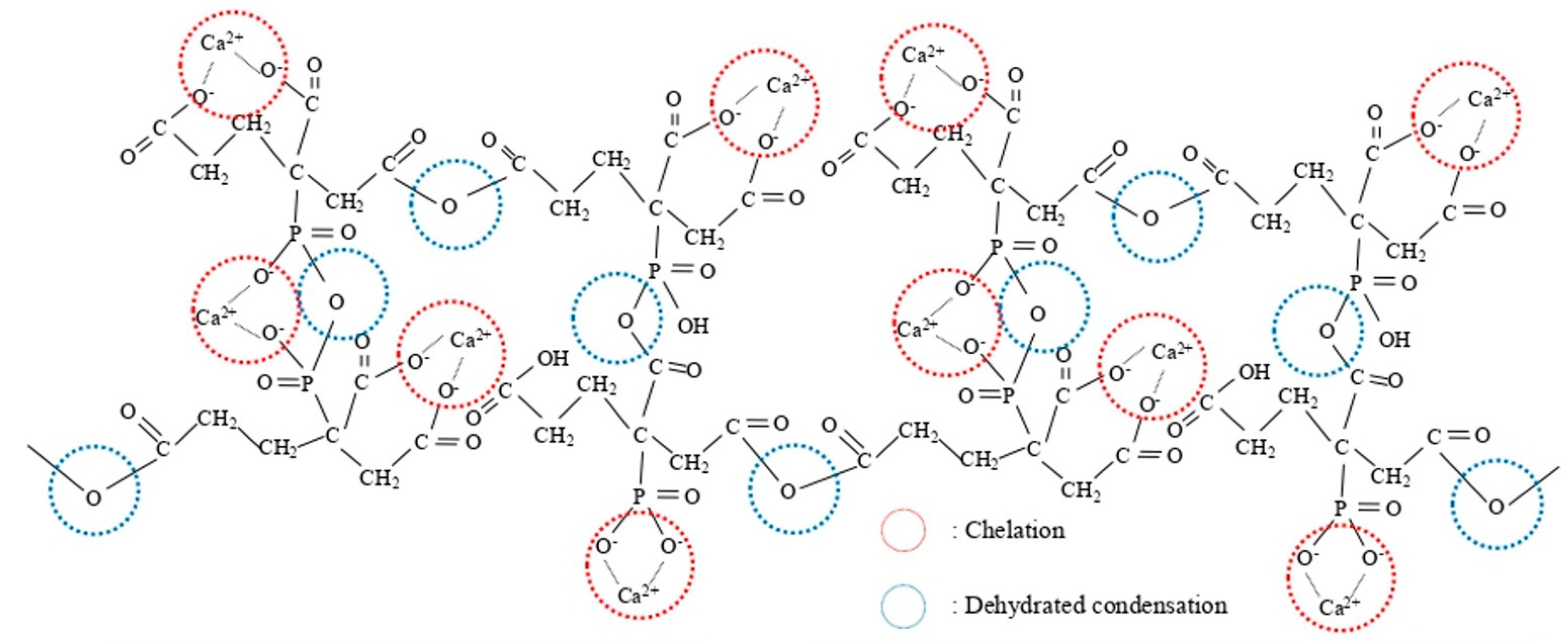

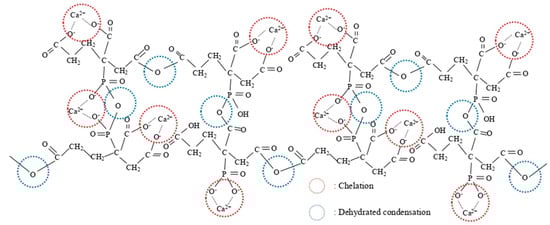

Figure 1. Predicted structure of polymeric gel obtained by polymerized complex method [30].
Figure 1. Predicted structure of polymeric gel obtained by polymerized complex method [30].
Materials 17 00797 g001
Materials 17 00797 g002

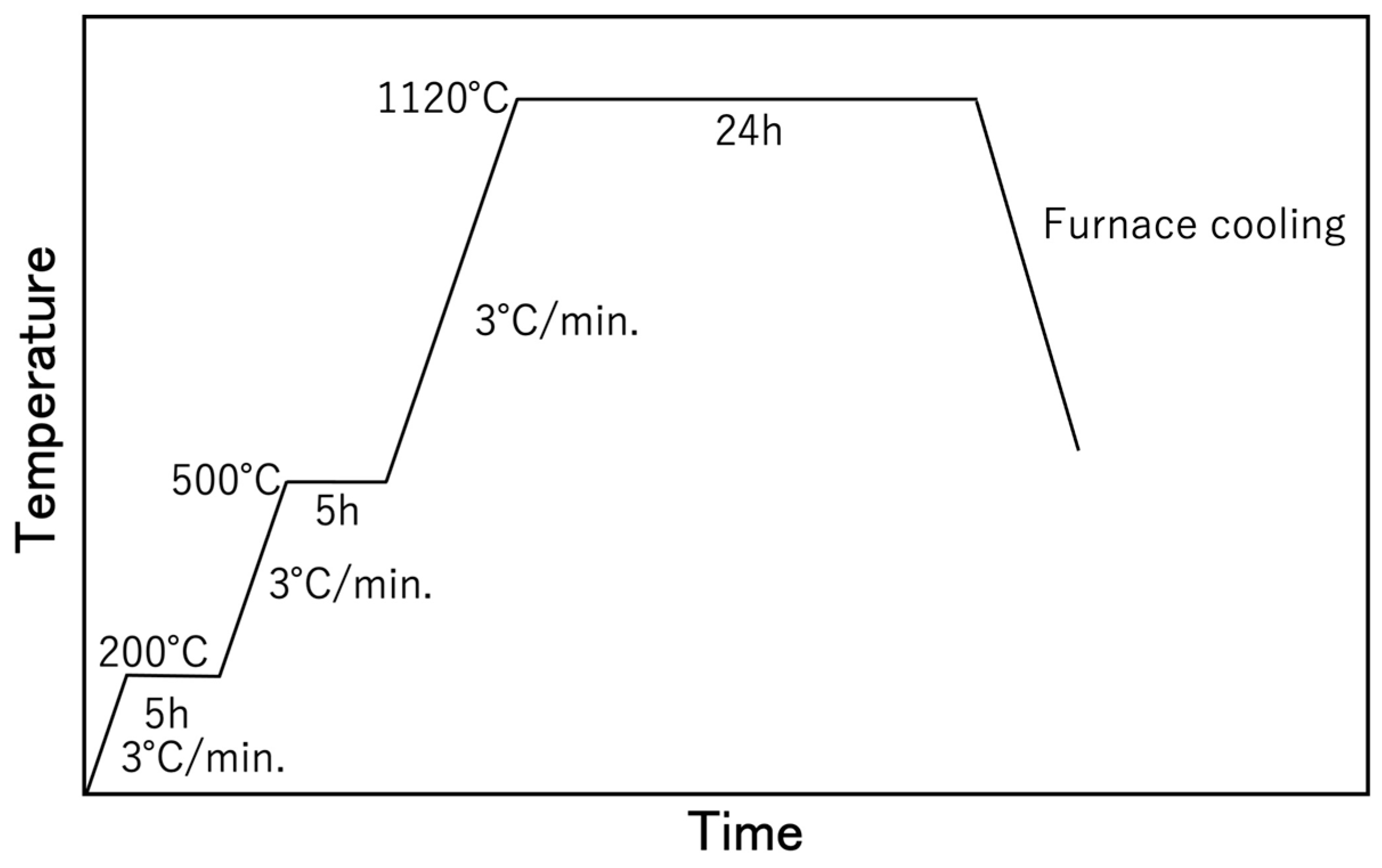

Figure 2. Heating rate for sintering in this work.
Figure 2. Heating rate for sintering in this work.
Materials 17 00797 g002
Materials 17 00797 g003
Figure 3. SEM image of the β-TCP used as the raw material in this work.
Figure 3. SEM image of the β-TCP used as the raw material in this work.
Materials 17 00797 g003
Materials 17 00797 g004

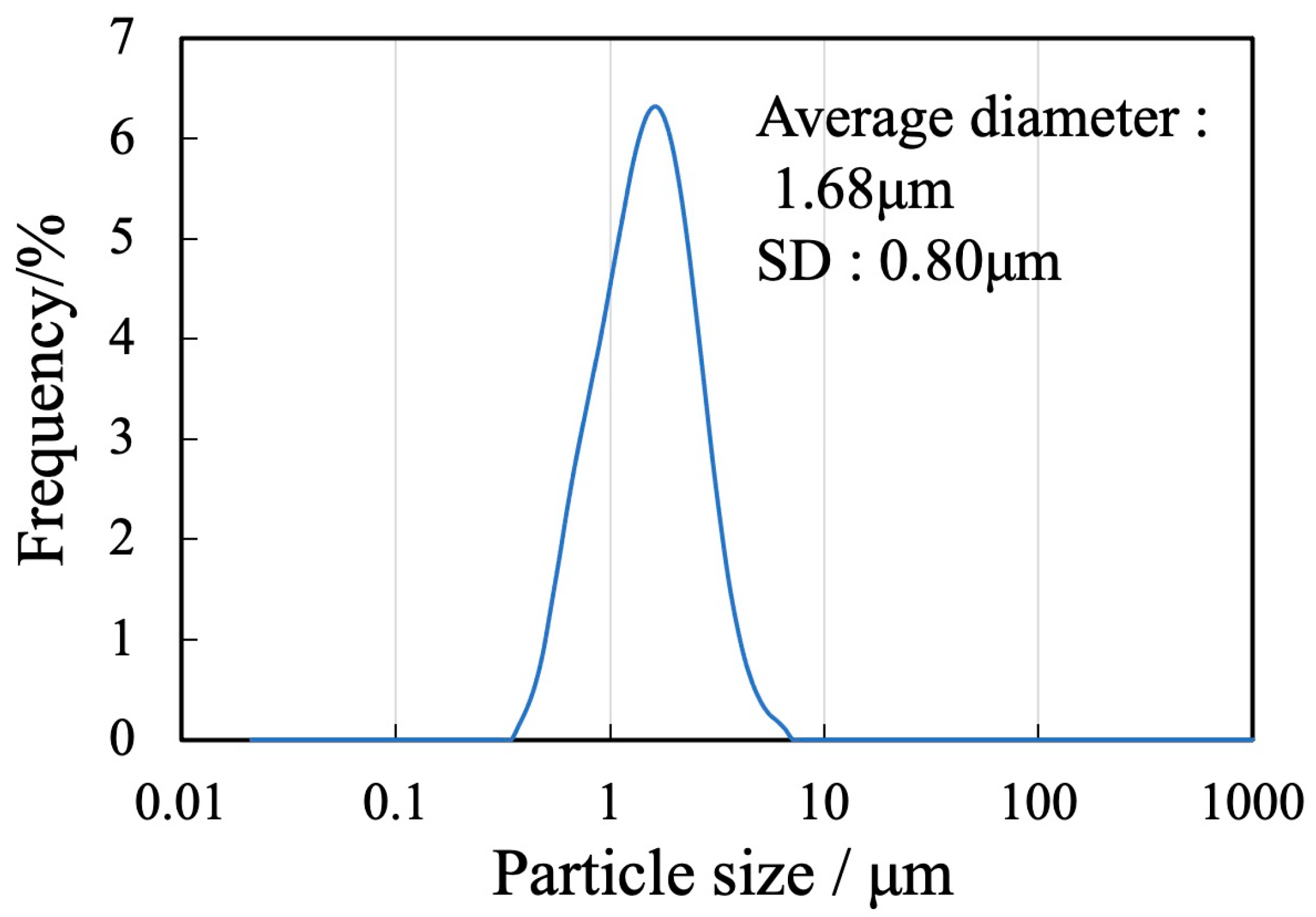

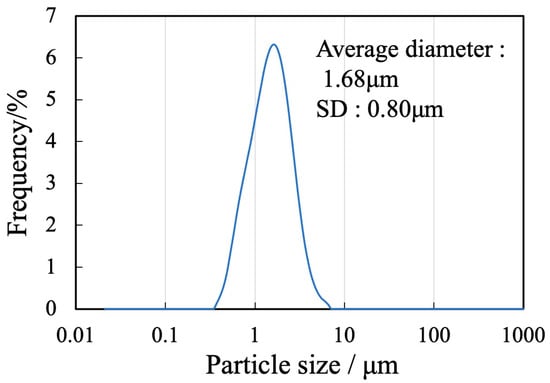

Figure 4. Particle size distribution of the β-TCP.
Figure 4. Particle size distribution of the β-TCP.
Materials 17 00797 g004
Materials 17 00797 g005

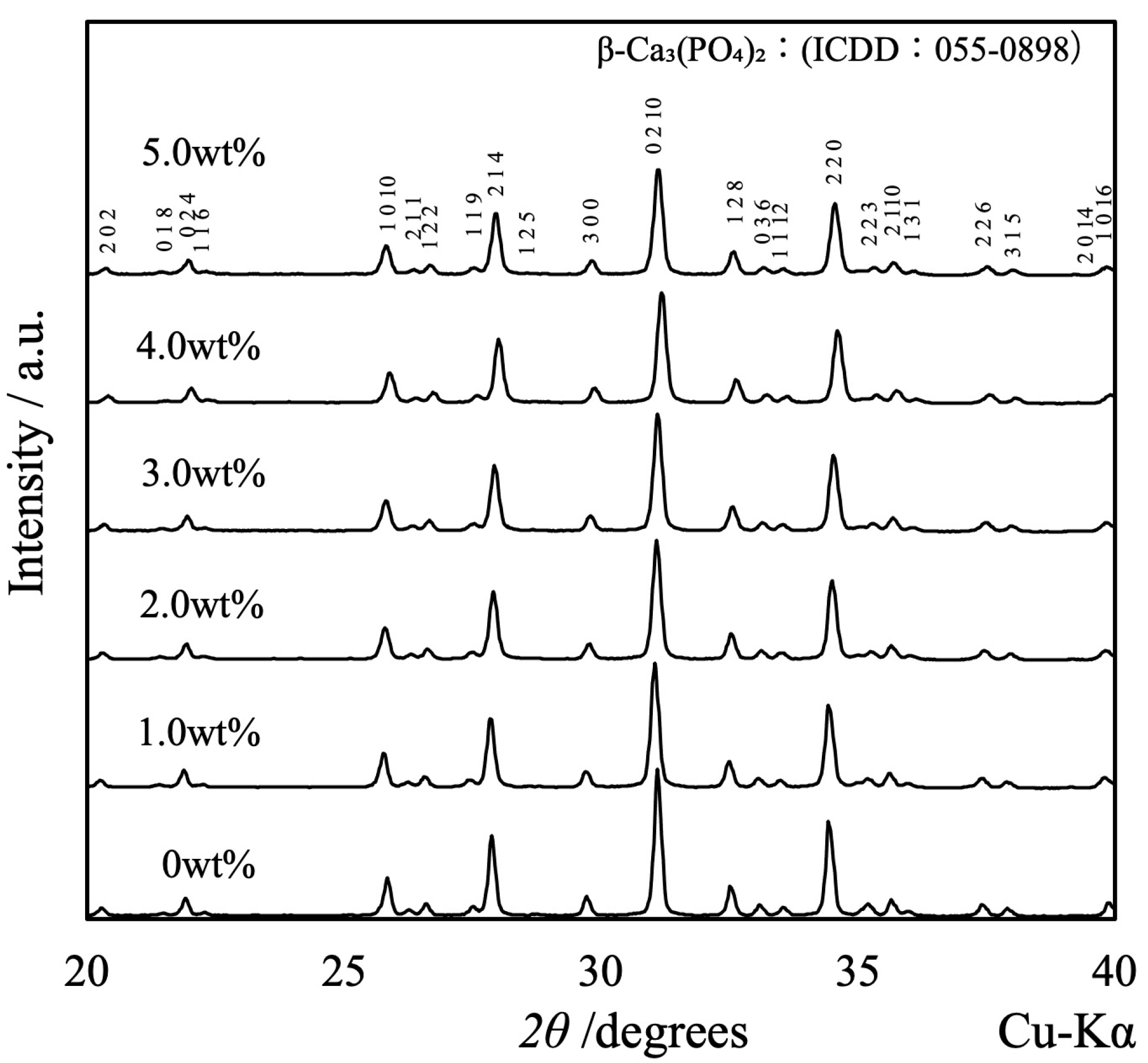

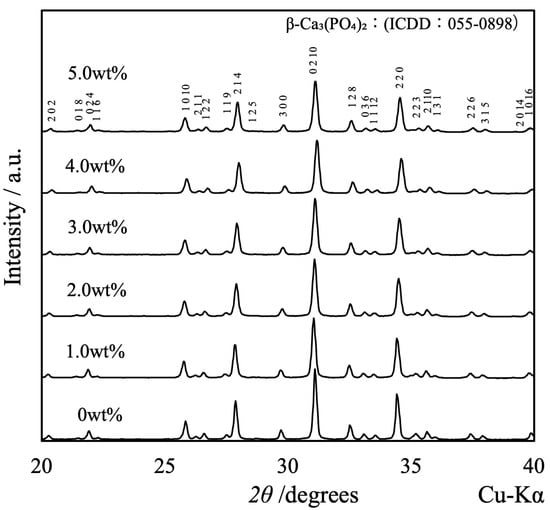

Figure 5. XRD patterns of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles.
Figure 5. XRD patterns of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles.
Materials 17 00797 g005
Materials 17 00797 g006

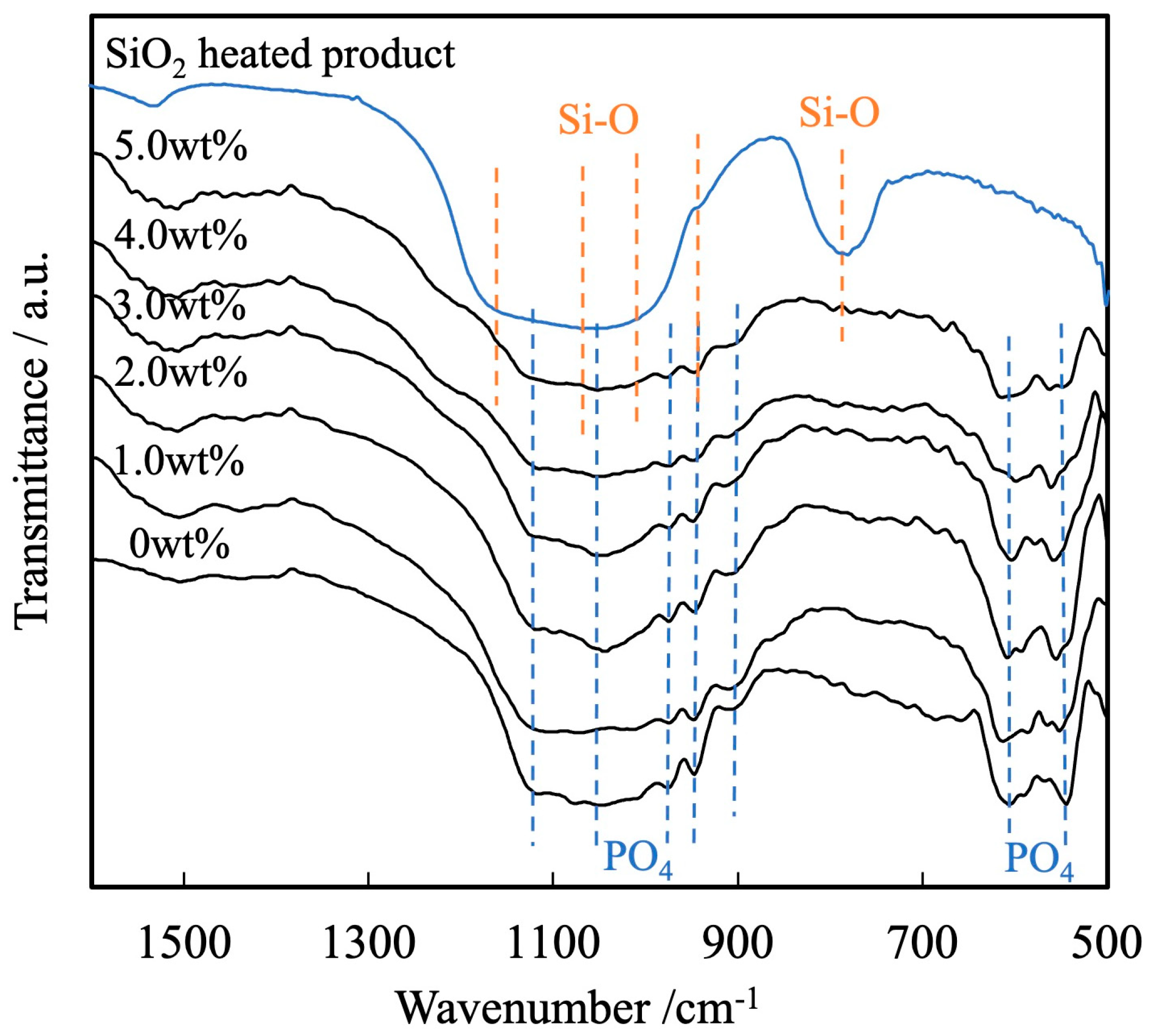

Figure 6. FTIR spectra of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles.
Figure 6. FTIR spectra of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles.
Materials 17 00797 g006
Materials 17 00797 g007

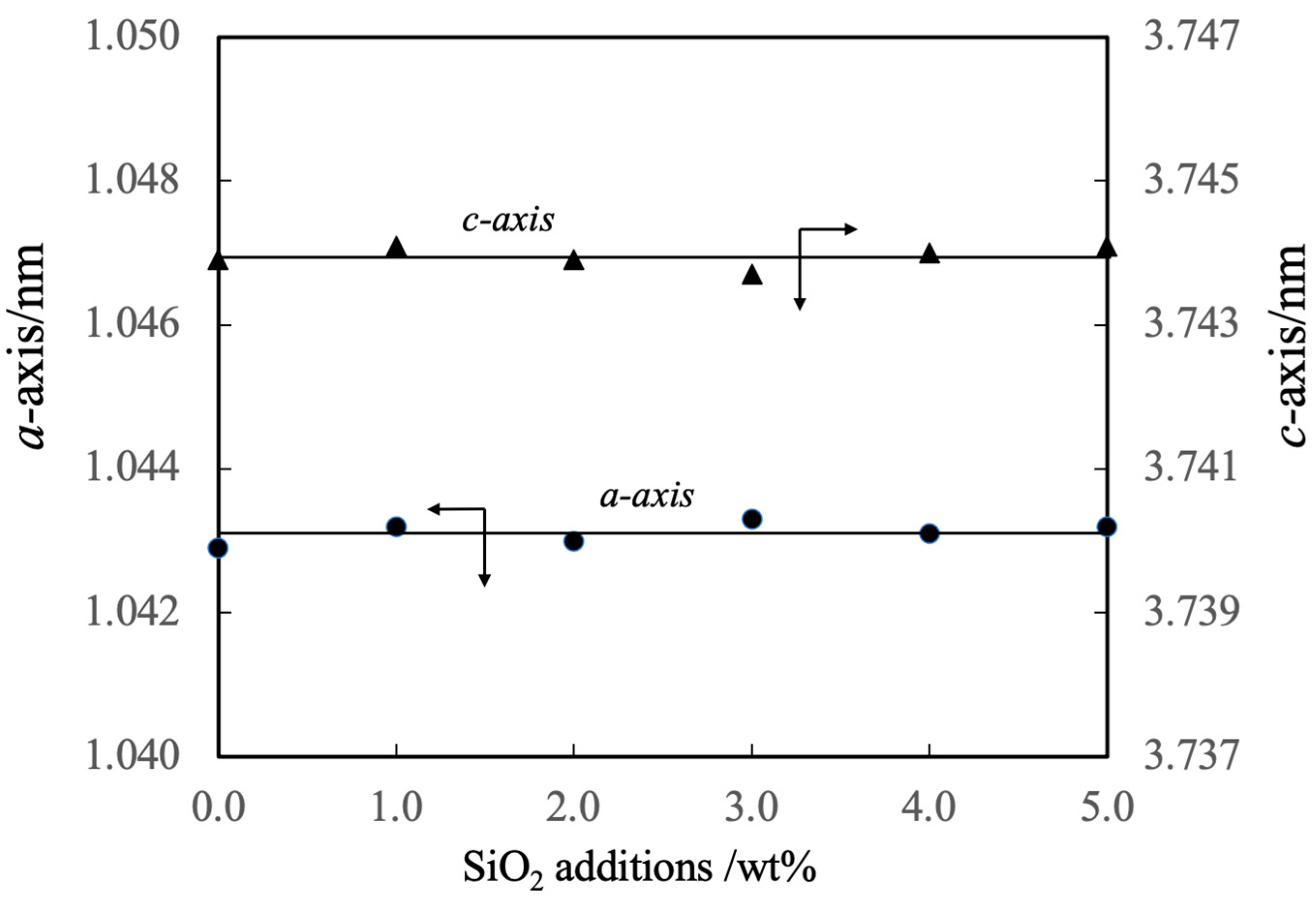

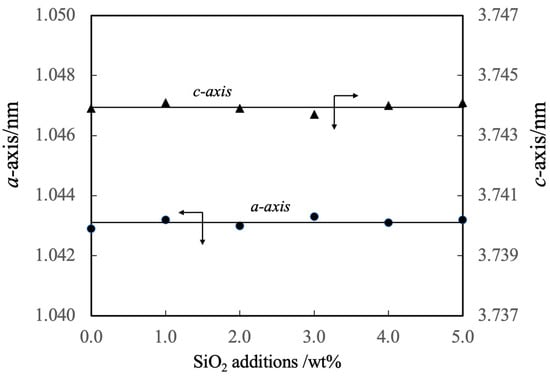

Figure 7. Lattice constants of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. Closed circles and triangles indicate the lattice constants of the a-axis and c-axis, respectively. The direction of the arrow indicates the relationship between the axes in the figure.
Figure 7. Lattice constants of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. Closed circles and triangles indicate the lattice constants of the a-axis and c-axis, respectively. The direction of the arrow indicates the relationship between the axes in the figure.
Materials 17 00797 g007
Materials 17 00797 g008

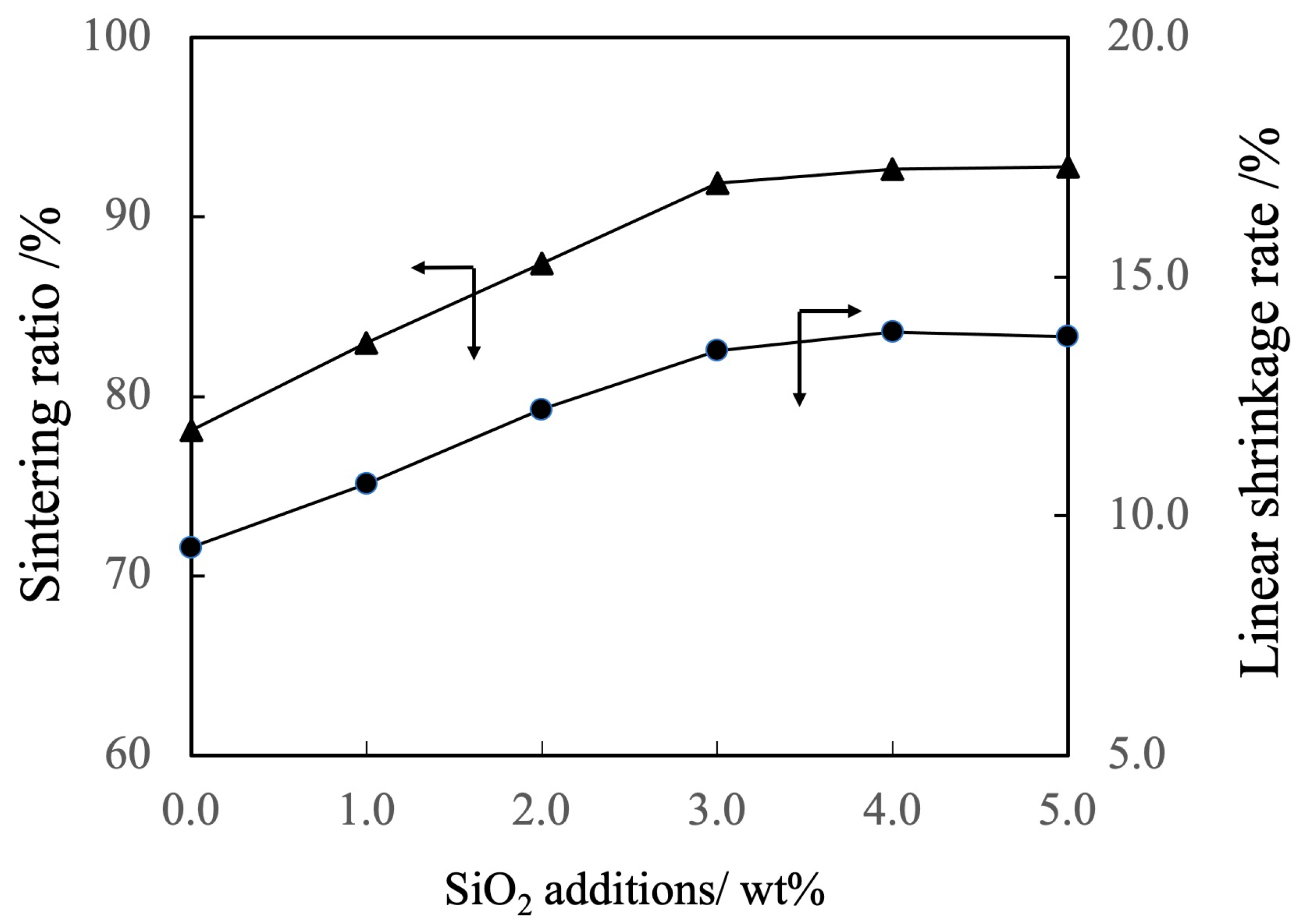

Figure 8. Sintering ratios and linear shrinkage rates of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. Closed circles and triangles indicate linear shrinkage rate and sintering ratio, respectively. The direction of the arrow indicates the relationship between the axes in the figure.
Figure 8. Sintering ratios and linear shrinkage rates of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. Closed circles and triangles indicate linear shrinkage rate and sintering ratio, respectively. The direction of the arrow indicates the relationship between the axes in the figure.
Materials 17 00797 g008
Materials 17 00797 g009

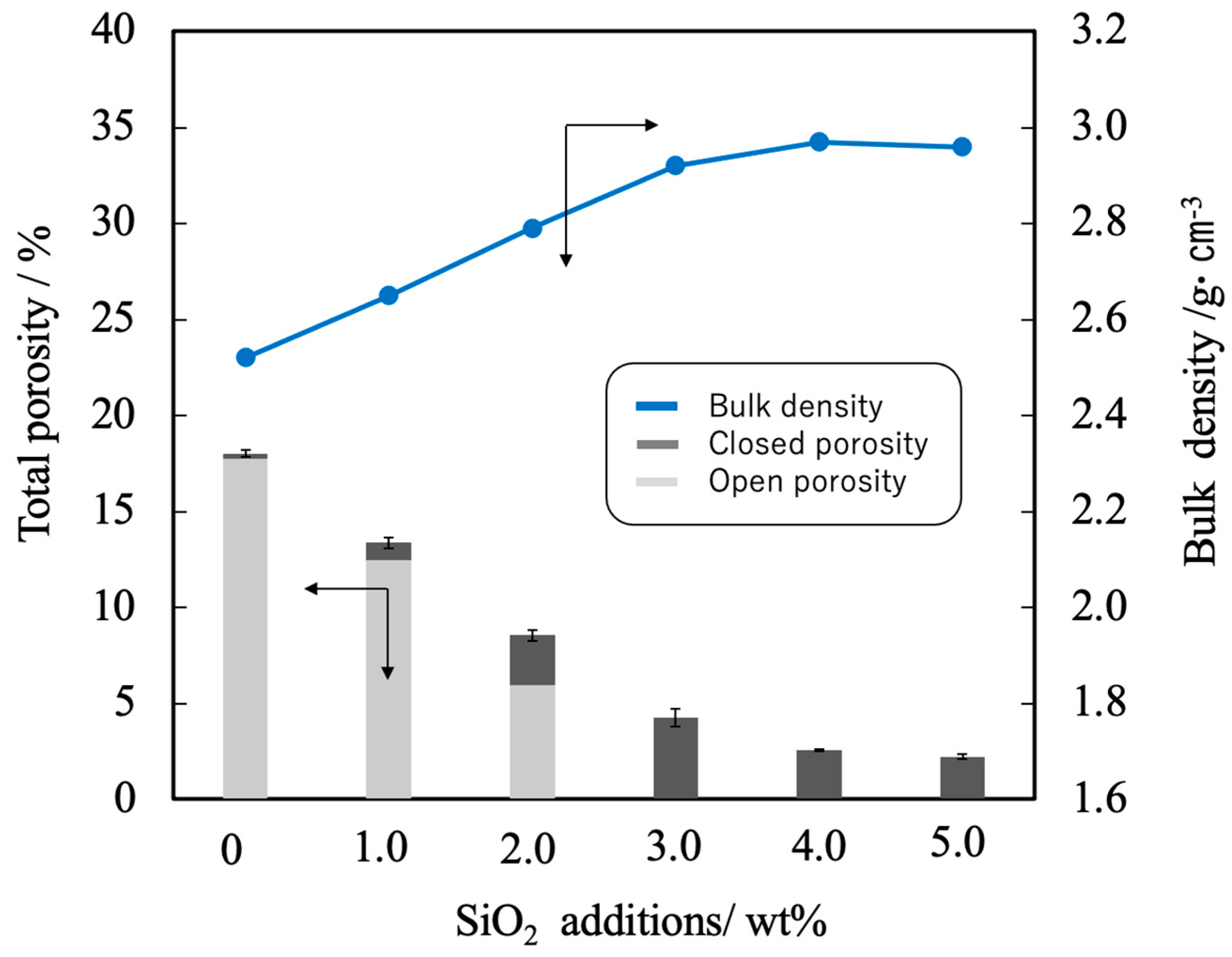

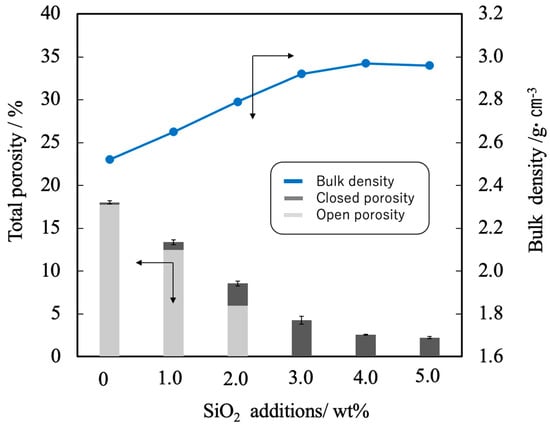

Figure 9. Bulk density and porosity values for β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. The closed circles and bar graphs show bulk density and porosity, respectively. The direction of the arrow indicates the relationship between the axes in the figure. Error bars indicate standard errors.
Figure 9. Bulk density and porosity values for β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. The closed circles and bar graphs show bulk density and porosity, respectively. The direction of the arrow indicates the relationship between the axes in the figure. Error bars indicate standard errors.
Materials 17 00797 g009
Materials 17 00797 g010
Figure 10. FE-SEM images of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles.
Figure 10. FE-SEM images of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles.
Materials 17 00797 g010
Materials 17 00797 g011

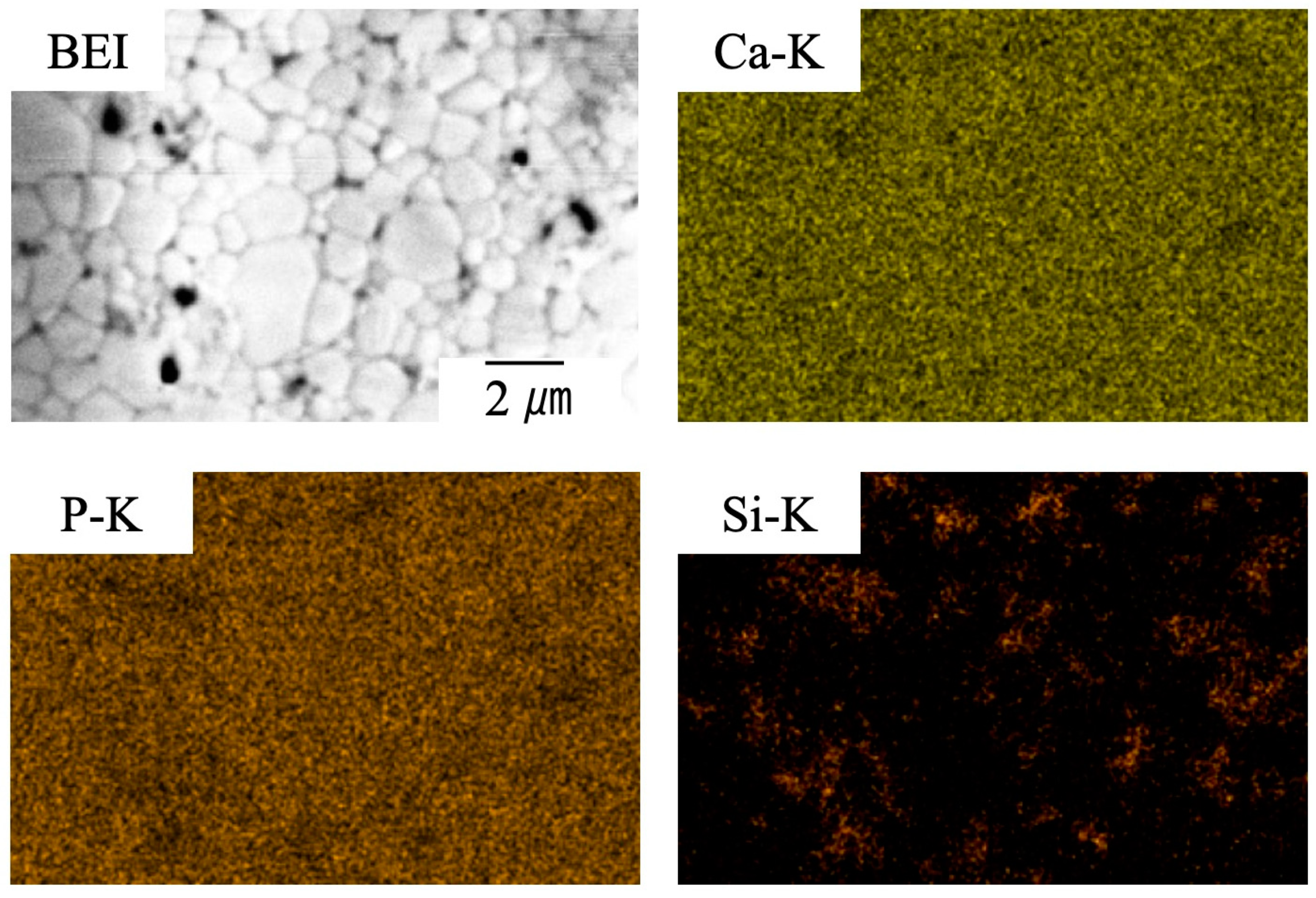

Figure 11. EDX-SEM images of β-TCP composite sintered bodies with 4.0 wt% SiO2 nanoparticles.
Figure 11. EDX-SEM images of β-TCP composite sintered bodies with 4.0 wt% SiO2 nanoparticles.
Materials 17 00797 g011
Materials 17 00797 g012
Figure 12. STEM images of β-TCP composite sintered bodies with 4.0 wt% SiO2 nanoparticles.
Figure 12. STEM images of β-TCP composite sintered bodies with 4.0 wt% SiO2 nanoparticles.
Materials 17 00797 g012
Materials 17 00797 g013

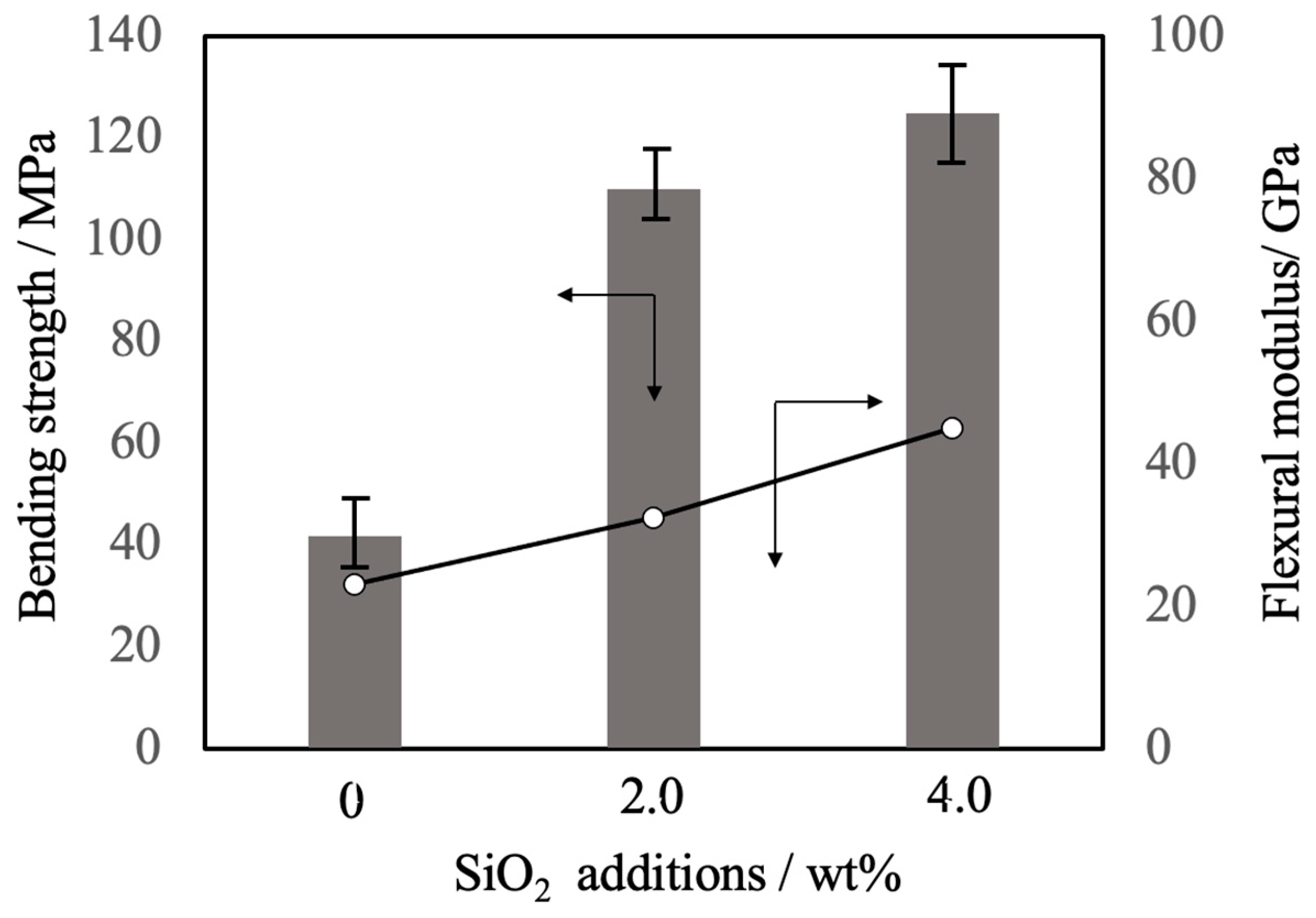

Figure 13. Bending strength and flexural modulus values of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. The bar graph shows the bending strength, the opened circles the flexural modulus. The direction of the arrow indicates the relationship between the axes in the figure. Error bars indicate standard errors.
Figure 13. Bending strength and flexural modulus values of β-TCP composite sintered bodies incorporating varying amounts of SiO2 nanoparticles. The bar graph shows the bending strength, the opened circles the flexural modulus. The direction of the arrow indicates the relationship between the axes in the figure. Error bars indicate standard errors.
Materials 17 00797 g013
Materials 17 00797 g014
Figure 14. SEM images of the fracture surface of β-TCP composite sintered bodies with 4.0 wt% SiO2 nanoparticles and without.
Figure 14. SEM images of the fracture surface of β-TCP composite sintered bodies with 4.0 wt% SiO2 nanoparticles and without.
Materials 17 00797 g014
