Enhancing Surface Temperature Uniformity in a Liquid Silicone Rubber Injection Mold with Conformal Heating Channels

by
Chil-Chyuan Kuo
1,2,3,4,*,
Qing-Zhou Tasi
1,
Song-Hua Huang
5 and
Shih-Feng Tseng
6,*
1
Department of Mechanical Engineering, Ming Chi University of Technology, New Taipei City 24301, Taiwan
2
Research Center for Intelligent Medical Devices, Ming Chi University of Technology, No. 84, Gungjuan Road, New Taipei City 24301, Taiwan
3
Department of Mechanical Engineering, Chang Gung University, No. 259, Wenhua 1st Road, Guishan District, Taoyuan City 33302, Taiwan
4
Center for Reliability Engineering, Ming Chi University of Technology, No. 84, Gungjuan Road, New Taipei City 24301, Taiwan
5
Li-Yin Technology Co., Ltd., No. 37, Lane 151, Section 1, Zhongxing Road, Wugu District, New Taipei City 24101, Taiwan
6
Department of Mechanical Engineering, National Taipei University of Technology, No. 1, Section 3, Zhongxiao E. Road, Da’an District, Taipei City 106344, Taiwan
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(17), 5739; https://doi.org/10.3390/ma16175739
Submission received: 22 June 2023 / Revised: 6 August 2023 / Accepted: 7 August 2023 / Published: 22 August 2023
(This article belongs to the Section Advanced Materials Characterization)
Browse Figures
Versions Notes

Abstract

:
To enhance the productivity and quality of optical-grade liquid silicone rubber (LSR) and an optical convex lens simultaneously, uniform vulcanization of the molding material is required. However, little has been reported on the uniform vulcanization of LSR in the heated cavity. This paper presents a conformal heating channel to enhance the temperature uniformity of the mold surface in the LSR injection molding. The curing rate of an optical convex lens was numerically investigated using Moldex3D molding simulation software. Two different sets of soft tooling inserts, injection mold inserts with conventional and conformal heating channels, were fabricated to validate the simulation results. The mold surface temperature uniformity was investigated by both numerical simulation and experiment. In particular, both a thermal camera and thermocouples were employed to measure the mold surface temperature after LSR injecting molding. It was found that the uniformity of the mold surface for LSR injection mold with the conformal heating channel was better. The average temperature of the mold surface could be predicted by the heating oil temperature according to the proposed prediction equation. The experimental results showed that the trend of the average temperature of five sensor modes was consistent with the simulation results. The error rate of the simulation results was about 8.31% based on the experimental result for the LSR injection mold with the conformal heating channel.

1. Introduction

Liquid silicone rubber (LSR) is a two-component system with the distinctive characteristics of high-temperature resistance, electrical insulation, flame resistance, chemical stability, and corrosion resistance. Thus, the demand for LSR is experiencing exponential growth since LSR injection molding (IM) is widely used for fabricating products in many industries, such as consumer goods, food, and automotive [1,2]. Typically, silicone rubber belongs to the family of thermoset elastomers. Therefore, LSR parts are fire retardant and can withstand extreme temperatures [3]. In addition, LSR parts can resist acids and alkalis. LSR is especially suitable for high-quality production of parts that include sealing membranes, seals and electric connectors.
Rey et al. [4] provided a new method for studying the nickel–titanium–silicone structure for biomechanical applications. Results showed that the contraction length is less than the diameter expansion by about 7%, which is a main advantage of a nickel–titanium–silicone rubber composite. Ou et al. [5] studied the filling and curing phases of injection molding of liquid silicone rubbers and proposed a model using molding simulation software. The rheokinetic properties are described for different silicone fluid samples from 25 to 100 °C. Zhang et al. [6] investigated the effects of vinyl-functionalized silica particles on the mechanical and thermal properties of an LSR nanocomposite. The results revealed that vinyl-modified SiO2 particle/liquid silicone rubber composites had higher thermal stability and mechanical strength than non-modified composites, which gave rise to ideas about preparing a high-performance LSR with low viscosity. Magaña et al. [7] designed functionalizing silicone rubber films by a direct grafting method using gamma irradiation to induce polymerization. The results revealed that the polymeric prodrug in medical devices for breast reconstruction and augmentation can decrease the 25-day period before returning to normal. Guo et al. [8] investigated the anticondensation characteristics of LSR temperature-control coatings. It was found that the coatings containing phase-change capsules significantly enhanced the anticondensation performance of metal cabinets. Wu et al. [9] developed epoxy and boron-modified polydimethylsiloxane to provide a two-component addition-cured LSR with good self-adhesion. The results revealed that the LSR had a thermal conductivity of 1.59 W/m-K. Marl et al. [10] analyzed the cell structure of these LSR foams and found it to be very homogeneous. Woitschach et al. [11] modified the LSR with two of the most commonly used thermoplastic polyurethanes and evaluated the inflammatory potential of the materials. Shang et al. [12] used LSR filled with SiC nanoparticles to insulate cable accessories. It was found that the sample with 3 wt. % SiC/LSR had the best nonlinear conductivity and nonlinear conductivity coefficient. Kaitainen et al. [13] found that micropatterning or silver coating improved electrode performance significantly based on the electrically conductive LSR. Seitz et al. [14] used surface treatment technology to improve LSR adhesion strength, which resulted in stronger bonding to the organofunctional silane of the self-adhesive silicone rubber. Liu et al. [15] showed a hydantoin-containing silane to improve tracking and bacteria resistance. The results showed that the thermal stability of addition-cured LSR improved significantly. Harkousa et al. [16] investigated the rheological behavior of an LSR and found crosslinking kinetics. Qiu et al. [17] investigated the effects of functional silane on LSR flame retardant and thermal stability. However, very few studies have focused on the uniform vulcanization of optical-grade LSR.
In general, LSR resists extreme temperatures with good ability and stability, and injection molding manufactures durable and pliable components in high volume. It should be noted that uniform vulcanization of material in the heated cavity is required to enhance the productivity and quality of the molded parts simultaneously. The main objective is to enhance surface temperature uniformity in the LSR injection mold by using conformal heating channels. First, the mold surface temperature was numerically examined using Moldex3D molding simulation software (R14 SP3OR, CoreTech System Inc., New Taipei City, Taiwan). Then, two LSR injection molds were fabricated: one with a conformal heating channel fabricated using rapid tooling technology and one with a conventional heating channel. Finally, a comprehensive analysis of the mold surface temperature was performed by thermal camera and thermocouple. Temperature uniformity during the vacuolization of an optical convex lens was investigated by both numerical simulation and experiment by both thermal camera and thermocouple.

2. Experimental Details

In this study, an optical convex lens was selected as the part to be molded. The part, rapid tool, conformal heating channel, and conventional heating channel were designed by 3D modeling software (Parametric Technology Inc., Boston, MA, USA). Figure 1 shows the computer-aided design (CAD) model of an optical convex lens. The diameter was 50 mm with a thickness in the center of approximately 18.7 mm. Figure 2 shows the design of the rapid tool with the conformal heating channel. The cavity insert had a length and width of 90 mm and a height of 45 mm. The core insert had a length and width of 90 mm and a height of 30 mm. The cross-section of the conformal heating channel was circular with a diameter of 6 mm.
Two different kinds of rapid tools for fabricating optical convex lens were designed and implemented with the developed mixture. One was the LSR injection mold with the conformal heating channel. The other was the mold with the conventional heating channel for comparison. The rapid tools were fabricated with the mixture composed of epoxy resins (EP-2N1, Ruixin Inc., New Taipei City, Taiwan) and 41 vol.% aluminum powder with average particle size of about 45 µm. First, an intermediate mold was fabricated using silicone rubber (KE-1310ST, Shin Etsu Inc., New Taipei City, Taiwan). To eliminate the air bubbles, the mixture was put into a vacuum pump (F-600, Feiling Inc. New Taipei City, Taiwan). Both the conventional and conformal heating channels were fabricated with polyvinyl butyral (PVB) filament feedstock (Thunder 3D Inc., New Taipei City, Taiwan) [18,19] using fused filament modeling (FFF) technology [20,21] (Teklink smart solution Inc., New Taipei City, Taiwan). The process parameters of FFF included a printing speed of 30 mm/s, bed temperature of 60 °C, printing temperature of 200 °C, and layer thickness of 0.1 mm. The molding material was ELASTOSIL® LR 3003/50 US A/B (Wacker Chemical AG Inc., Munich, Germany) [22] because it is suitable for manufacturing an optical convex lens through LSR injection molding.
The primary purpose of numerical simulation was to understand the temperature uniformity of conventional heating channels in the LSR molds. In this study, the Moldex3D simulation software (R14 SP3OR, CoreTech System Inc., New Taipei City, Taiwan) was used to investigate the curing rate of a fisheye lens. Figure 3 shows the simulation models and material properties of the molding materials. The LSR injection mold involved conformal heating and cooling channels. The number of meshes for the optical convex lens, LSR injection mold, filling system, and two channels were 2216; 1,344,551; 121; 5800, and 477,176, respectively. A three-dimensional, cyclic, transient heat transfer problem with convective boundary conditions on both the mold and mold base surfaces was set in the simulation. The material property information of the molding materials included a viscosity chart and pressure–volume–temperature diagram. It is well-known that viscosity depends on temperature, shear rate, and pressure because it is the index of material flow resistance. Viscosity will rise sharply when a material reaches a certain temperature at a specific heating rate. As the temperature rises, the volume of the material will begin to expand. The greater the pressure on the material, the smaller its volume as the temperature rises. The seed size for the product, conformal heating channel, and conformal cooling channel was 0.1 mm. The seed size for the mold base was 1 mm. The boundary layer mesh had 5 layers.
To investigate temperature uniformity in the heated cavity, night heating oil temperatures (60, 80, 100, 120, 140, 150, 160, 170, and 180 °C) were employed. Figure 4 shows the measurement of the surface temperature of an LSR injection mold using a thermal camera. Figure 5 shows the measurement using five thermocouples. The experiment set-up for measuring mold surface temperature included an infrared thermal imager (BI-TM-F01P, Panrico trading Inc., New Taipei City, Taiwan), five k-type thermocouples (C071009-079, Cheng Tay Inc., Taipei, Taiwan) with a measurement sensitivity of ±1 °C, a heating oil temperature controller (JSO—1020E, Jie-Seng Inc., New Taipei, Taiwan), and a data acquisition system (MRD-8002L, IDEA System Inc., New Taipei City, Taiwan). The value of center-line average surface roughness (Ra) was used to measure the surface roughness of the LSR injection mold. The measuring range was 250 × 250 µm and a white-light interferometer (7502, Chroma Inc., New Taipei City, Taiwan) was used.

3. Results and Discussion

Figure 6 shows the LSR injection mold with conformal and conventional heating channels. The mold surface temperature was numerically investigated by the Moldex3D molding simulation software using five sensor nodes on the mold surface.
Figure 7 shows the numerical simulation results of temperature distributions of the five sensor nodes on the mold surface for two different LSR injection molds with a heating oil temperature of 60, 80, 100, 120, 140, 150, 160, 170, and 180 °C. The results showed that the average temperature of sensor node 3 was the highest because it was closer to the heating system. However, the average temperature of sensor node 5 was the lowest because it was closer to the conformal cooling system. Figure 8 shows the numerical simulation results of the average temperature of the mold surface for an LSR injection mold with two different heating systems. The upper limit is the highest temperature of the mold surface, and the lower limit is the lowest temperature of the mold surface. For the LSR injection mold with the conventional heating channel, the average surface temperature was 57.2, 74.2, 92.2, 108.3, 123.7, 132.3, 142.3, 151.6 and 160 °C, respectively. It should be noted that the average temperature of the mold surface was up to 58.5, 77.7, 96.8, 115.0, 133.0, 142.5, 151.9, 161.7, and 171.3 °C, respectively. Based on the above data, two results were found in this study. One is that the uniformity of the mold surface for the LSR injection mold with the conformal heating channel was better than for the mold with the conventional heating channel. This meant that the temperature difference between the highest and lowest surface temperatures for the mold with the conformal heating channel was small. Figure 9 shows the temperature difference for sensor nodes 3 and 5 for two different LSR injection molds with different heating oil temperatures. The temperature difference for the mold with the conventional heating channel was about 1.77, 2.96, 4.00, 5.65, 7.96, 8.70, 11.24, 11.95, and 16.86 °C, respectively. However, for the mold with the conformal heating channel, the difference was about 1.05, 1.57, 2.10, 3.01, 4.19, 4.57, 4.92, 5.42, and 8.19 °C, respectively. The other is that the heating rate of the mold surface for LSR injection mold with conformal heating channel was faster.
Figure 10 shows the experimental temperature distribution results of the five sensor nodes on the mold surface for two different LSR injection molds with a heating oil temperature of 60 and 180 °C using a thermal camera. The experimental results were consistent with the simulation results, showing the uniformity of the mold surface for an LSR injection mold with a conformal heating channel was better than one with a conventional heating channel. Figure 11 shows the experimental and simulation results of the average surface temperature for an LSR injection mold with conformal heating. It should be pointed out that the average temperature of the mold surface (y) was estimated by the heating oil temperature (x) according to the prediction equation of y = −0.7999x2 + 19.477x + 40.13 with a correlation coefficient of 0.9984. The trend of the average temperature of the five sensing nodes on the mold surface from the experimental results was consistent with the simulation results. However, the average temperature of the experiment was lower than the that of the simulation. For example, the maximum mold surface temperature for an LSR injection mold with conformal heating channel reached only 150 °C when a heating oil temperature of 180 °C was used to vulcanize the optical convex lens. The possible reason is the different environmental conditions between the experiment and simulation. In practice, an oil pipe was exposed to the atmosphere causing a heat transfer loss in the process of heating the oil. This phenomenon was confirmed by the temperature history of sensor node 3 obtained by a thermocouple. Figure 12 shows the experimental results of the temperature history of sensor node 3 for the two LSR injection molds with a heating oil temperature of 180 °C using a thermocouple. Figure 13 shows the error rate between the experimental and simulation results of the average temperature of the mold surface for the LSR injection mold with conformal heating. Based on the experimental results, the simulation error rate was about 0.110, 1.130, 6.00, 10.910, 10.940, 10.660, 10.540, 11.50, and 13.00%, respectively. The error rate of the simulation results was about 8.31% based on the experimental results.
The same phenomenon was found in the LSR injection mold with conventional heating. Figure 14 shows the experimental and simulation average surface temperature results. Figure 15 shows the error rate between the experimental and simulation results. Based on the experimental results, the simulation error rate was about 3.20, 4.10, 4.97, 10.40, 10.43, 9.91, 10.27, 10.93, and 10.08%, respectively. Figure 16 shows the surface analysis of the LSR injection mold. The average surface roughness the LSR injection mold was about 174 nm.
This paper presented a conformal heating channel to enhance the temperature uniformity of the mold surface in the LSR injection molding of an optical convex lens. It should be noted that the fabricated LSR injection mold fulfilled sustainable development goals [23,24,25,26,27]. The above-described findings provided the greatest application potential in the design stage of a new optical convex lens. In this study, two different sets of rapid tools were implemented using a mixture comprising of Al powder and epoxy resin. Unfortunately, the mechanical property [28] of the rapid tool [29] was inferior to conventional mold steel [30]. Thus, improving the mechanical properties of the fabricated LSR injection mold [31,32,33] by adding stainless steel or iron powder [34] is an interesting research topic. In addition, it was interesting to observe the surface roughness [35] of the 3D print mold on the surface of the lens using a scanning electron microscope [36] or a 3D optical profilometer [37]. Also, it was interesting to analyze the chemical composition and changes that produced variation in fabrication temperature using Raman spectroscopy [38] or attenuated total reflectance using Fourier-transform infrared spectroscopy [39]. This research is ongoing and the results will be presented in a later work.

4. Conclusions

Traditionally, the use of plastic lenses has distinct drawbacks: they have short service life and are easily scratched. An optical-grade LSR lens can provide safety and aging resistance. The major objective of this study was to enhance the temperature uniformity of the mold surface in the injection molding of LSR using the conformal heating channel. The main conclusions from the experimental work in this study are as follows:
  • The uniformity of the mold surface for LSR injection mold with the conformal heating channel was better than for the mold with the conventional heating channel.
  • The experimental results showed that the average temperature of the mold surface (y) could be predicted by the heating oil temperature (x) according to the prediction equation of y = −0.7999x2 + 19.477x + 40.13 with a correlation coefficient of 0.9984.
  • The experimental results showed that the trend of the average temperature of five sensor modes was consistent with the simulation results.
The error rate of the simulation results was about 8.31% based on the experimental result of LSR injection mold with the conformal heating channel.

Author Contributions

C.-C.K.: Wrote the paper, conceived and designed the analysis, performed the analysis, and conceptualization; Q.-Z.T., S.-H.H. and S.-F.T.: Collected the data, contributed data or analysis tools. All authors have read and agreed to the published version of the manuscript.

Funding

This study received financial support by the National Science and Technology Council of Taiwan under contract nos. NSTC 111-2221-E-131-015-MY2, MOST 110-2221-E-131-023, and MOST 109-2637-E-131-004.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data and materials are available.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kuo, C.-C.; Tasi, Q.-Z.; Hunag, S.-H.; Tseng, S.-F. Development of an Injection Mold with High Energy Efficiency of Vulcanization for Liquid Silicone Rubber Injection Molding of the Fisheye Optical Lens. Polymers 2023, 15, 2869. [Google Scholar] [CrossRef] [PubMed]
  2. Kuo, C.-C.; Lin, J.-X. A cost-effective method for rapid manufacturing polymer rapid tools used for liquid silicone rubber injection molding. Int. J. Adv. Manuf. Technol. 2019, 104, 1159–1170. [Google Scholar] [CrossRef]
  3. Kuo, C.-C.; Lin, J.-X. Fabrication of the Fresnel lens with liquid silicone rubber using rapid injection mold. Int. J. Adv. Manuf. Technol. 2019, 101, 615–625. [Google Scholar] [CrossRef]
  4. Rey, T.; Le Cam, J.-B.; Chagnon, G.; Favier, D.; Rebouah, M.; Razan, F.; Robin, E.; Didier, P.; Heller, L.; Faure, S.; et al. An original architectured NiTi silicone rubber structure for biomedical applications. Mater. Sci. Eng. C 2014, 45, 184–190. [Google Scholar] [CrossRef]
  5. Ou, H.; Sahli, M.; Barrière, T.; Gelin, J.C. Multiphysics modelling and experimental investigations of the filling and curing phases of bi-injection moulding of thermoplastic polymer/liquid silicone rubbers. Int. J. Adv. Manuf. Technol. 2017, 92, 3871–3882. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Liu, W.; Zhou, Q.; Meng, Y.; Zhong, Y.; Xu, J.; Xiao, C.; Zhang, G.; Zhang, Y. Effects of Vinyl Functionalized Silica Particles on Thermal and Mechanical Properties of Liquid Silicone Rubber Nanocomposites. Polymers 2023, 15, 1224. [Google Scholar] [CrossRef]
  7. Magaña, H.; Becerra, C.D.; Serrano-Medina, A.; Palomino, K.; Palomino-Vizcaíno, G.; Olivas-Sarabia, A.; Bucio, E.; Cornejo-Bravo, J.M. Radiation Grafting of a Polymeric Prodrug onto Silicone Rubber for Potential Medical/Surgical Procedures. Polymers 2020, 12, 1297. [Google Scholar] [CrossRef]
  8. Guo, J.; Wang, X.; Wang, J.; Chen, C.; Liu, Y.; Fan, W.; Jia, Z. Study on the Anticondensation Characteristics of Liquid Silicone Rubber Temperature-Control Coatings. Polymers 2019, 11, 1282. [Google Scholar] [CrossRef]
  9. Wu, J.-K.; Zheng, K.-W.; Wang, Q.-Y.; Nie, X.-C.; Wang, R.; Xu, J.-T. Binary Promoter Improving the Moderate-Temperature Adhesion of Addition-Cured Liquid Silicone Rubber for Thermally Conductive Potting. Materials 2022, 15, 5211. [Google Scholar] [CrossRef]
  10. Marl, S.; Giesen, R.-U.; Heim, H.-P. Liquid Silicone Rubber Foamed with Thermoplastic Expandable Microspheres. Materials 2022, 15, 3779. [Google Scholar] [CrossRef]
  11. Woitschach, F.; Kloss, M.; Schlodder, K.; Borck, A.; Grabow, N.; Reisinger, E.C.; Sombetzki, M. In Vitro Study of the Interaction of Innate Immune Cells with Liquid Silicone Rubber Coated with Zwitterionic Methyl Methacrylate and Thermoplastic Polyurethanes. Materials 2021, 14, 5972. [Google Scholar] [CrossRef] [PubMed]
  12. Shang, N.; Chen, Q.; Wei, X. Preparation and Dielectric Properties of SiC/LSR Nanocomposites for Insulation of High Voltage Direct Current Cable Accessories. Materials 2018, 11, 403. [Google Scholar] [CrossRef]
  13. Kaitainen, S.; Kutvonen, A.; Suvanto, M.; Pakkanen, T.T.; Lappalainen, R.; Myllymaa, S. Liquid silicone rubber (LSR)-based dry bioelectrodes: The effect of surface micropillar structuring and silver coating on contact impedance. Sens. Actuators A Phys. 2014, 206, 22–29. [Google Scholar] [CrossRef]
  14. Seitz, V.; Arzt, K.; Mahnel, S.; Rapp, C.; Schwaminger, S.; Hoffstetter, M.; Wintermantel, E. Improvement of adhesion strength of self-adhesive silicone rubber on thermoplastic substrates—Comparison of an atmospheric pressure plasma jet (APPJ) and a Pyrosil® flame. Int. J. Adhes. Adhes. 2016, 66, 65–72. [Google Scholar] [CrossRef]
  15. Liu, T.; Zeng, X.; Fang, W.; Lai, X.; Li, H. Synthesis of a novel hydantoin-containing silane and its effect on the tracking and bacteria resistance of addition-cure liquid silicone rubber. Appl. Surf. Sci. 2017, 423, 630–640. [Google Scholar] [CrossRef]
  16. Harkousa, A.; Colomines, G.; Leroyb, E.; Mousseaua, P.; Deterrea, R. The kinetic behavior of Liquid Silicone Rubber: A comparison between thermal and rheological approaches based on gel point determination. React. Funct. Polym. 2016, 101, 20–27. [Google Scholar] [CrossRef]
  17. Qiu, J.; Lai, X.; Fang, W.; Li, H.; Zeng, X. An efficient strategy for simultaneously improving tracking resistance and flame retardancy of addition-cure liquid silicone rubber. Polym. Degrad. Stab. 2017, 144, 176–186. [Google Scholar] [CrossRef]
  18. Mackiewicz, E.; Wejrzanowski, T.; Adamczyk-Cieślak, B.; Oliver, G.J. Polymer–Nickel Composite Filaments for 3D Printing of Open Porous Materials. Materials 2022, 15, 1360. [Google Scholar] [CrossRef]
  19. Kosiński, P.; Żach, P. Verification of Fatigue Damage and Prognosis Related to Degradation of Polymer-Ceramic. Materials 2021, 14, 5147. [Google Scholar] [CrossRef]
  20. Mohammed, A.H.; Kovacev, N.; Elshaer, A.; Melaibari, A.A.; Iqbal, J.; Hassanin, H.; Essa, K.; Memić, A. Preparation of Polylactic Acid/Calcium Peroxide Composite Filaments for Fused Deposition Modelling. Polymers 2023, 15, 2229. [Google Scholar] [CrossRef]
  21. Balani, S.B.; Mokhtarian, H.; Salmi, T.; Coatanéa, E. An Investigation of the Influence of Viscosity and Printing Parameters on the Extrudate Geometry in the Material Extrusion Process. Polymers 2023, 15, 2202. [Google Scholar] [CrossRef] [PubMed]
  22. Khan, K.; Gudainiyan, J.; Iqbal, M.; Jamal, A.; Amin, M.N.; Mohammed, I.; Al-Faiad, M.A.; Abu-Arab, A.M. Modelling Compression Strength of Waste PET and SCM Blended Cementitious Grout Using Hybrid of LSSVM Models. Materials 2022, 15, 5242. [Google Scholar] [CrossRef] [PubMed]
  23. Skowrońska, B.; Chmielewski, T.; Kulczyk, M.; Skiba, J.; Przybysz, S. Microstructural Investigation of a Friction-Welded 316L Stainless Steel with Ultrafine-Grained Structure Obtained by Hydrostatic Extrusion. Materials 2021, 14, 1537. [Google Scholar] [CrossRef]
  24. Li, K.; Zhou, T.; Liu, B.-H. Internet-based intelligent and sustainable manufacturing: Developments and challenges. Int. J. Adv. Manuf. Technol. 2020, 108, 1767–1791. [Google Scholar] [CrossRef]
  25. Rahman, M.A.; Ali, A.; Rahamathulla, M.; Salam, S.; Hani, U.; Wahab, S.; Warsi, M.H.; Yusuf, M.; Ali, A.; Mittal, V.; et al. Fabrication of Sustained Release Curcumin-Loaded Solid Lipid Nanoparticles (Cur-SLNs) as a Potential Drug Delivery System for the Treatment of Lung Cancer: Optimization of Formulation and In Vitro Biological Evaluation. Polymers 2023, 15, 542. [Google Scholar] [CrossRef]
  26. Varghese, S.A.; Pulikkalparambil, H.; Promhuad, K.; Srisa, A.; Laorenza, Y.; Jarupan, L.; Nampitch, T.; Chonhenchob, V.; Harnkarnsujarit, N. Renovation of Agro-Waste for Sustainable Food Packaging: A Review. Polymers 2023, 15, 648. [Google Scholar] [CrossRef]
  27. Morales, M.A.; Maranon, A.; Hernandez, C.; Michaud, V.; Porras, A. Colombian Sustainability Perspective on Fused Deposition Modeling Technology: Opportunity to Develop Recycled and Biobased 3D Printing Filaments. Polymers 2023, 15, 528. [Google Scholar] [CrossRef]
  28. Kumar, L.; Jain, P.K.; Sharma, A.K. A fuzzy goal programme–based sustainable Greenfield supply network design for tyre retreading industry. Int. J. Adv. Manuf. Technol. 2020, 108, 2855–2880. [Google Scholar] [CrossRef]
  29. Bae, K.; Moon, H.-S.; Park, Y.; Jo, I.; Lee, J. Influence of Tempering Temperature and Time on Microstructure and Mechanical Properties of Additively Manufactured H13 Tool Steel. Materials 2022, 15, 8329. [Google Scholar] [CrossRef]
  30. Meylan, B.; Calderon, I.; Wasmer, K. Optimization of Process Parameters for the Laser Polishing of Hardened Tool Steel. Materials 2022, 15, 7746. [Google Scholar] [CrossRef]
  31. Wang, B.; Wang, Y.; Li, C.; Gao, A. Evolution and Regulation of Radial Structure of PAN Pre-Oxidized Fiber Based on the Fine Denier Model. Materials 2022, 15, 1409. [Google Scholar] [CrossRef] [PubMed]
  32. Sahu, M.; Narasimhan, L.; Raichur, A.M.; Sover, A.; Ciobanu, R.C.; Lucanu, N.; Aradoaei, M. Improving Fracture Toughness of Tetrafunctional Epoxy with Functionalized 2D Molybdenum Disulfide Nanosheets. Polymers 2021, 13, 4440. [Google Scholar] [CrossRef] [PubMed]
  33. Nakonieczny, D.S.; Martynková, G.S.; Hundáková, M.; Kratošová, G.; Holešová, S.; Kupková, J.; Pazourková, L.; Majewska, J. Alkali-Treated Alumina and Zirconia Powders Decorated with Hydroxyapatite for Prospective Biomedical Applications. Materials 2022, 15, 1390. [Google Scholar] [CrossRef] [PubMed]
  34. Houssat, M.; Villeneuve-Faure, C.; Lahoud Dignat, N.; Locatelli, M.-L.; Cambronne, J.-P. Temperature Influence on PI/Si3N4 Nanocomposite Dielectric Properties: A Multiscale Approach. Polymers 2021, 13, 1936. [Google Scholar] [CrossRef] [PubMed]
  35. Hameed, A.R.; Majdoub, H.; Jabrail, F.H. Effects of Surface Morphology and Type of Cross-Linking of Chitosan-Pectin Microspheres on Their Degree of Swelling and Favipiravir Release Behavior. Polymers 2023, 15, 3173. [Google Scholar] [CrossRef]
  36. Ferrari, M.; Lettieri, E.; Pontoriero, D.I.K.; Vallittu, P.; Cagidiaco, E.F. Particulate Filler and Discontinuous Fiber Filler Resin Composite’s Adaptation and Bonding to Intra-Radicular Dentin. Polymers 2023, 15, 3180. [Google Scholar] [CrossRef]
  37. Lafirenza, M.; Guerra, M.G.; Lavecchia, F. A layerwise monitoring methodology based on blue laser line profilometer for Material Extrusion processes. Int. J. Adv. Manuf. Technol. 2023, 127, 5421–5436. [Google Scholar] [CrossRef]
  38. Čermák, A.; Simonović, K.; Bondarev, A.; Kožmín, P.; Syrovátka, Š.; Polcar, T.; Syrovátka, J. Femtosecond laser texturing of DLC-based coatings by DLW method with sub-micrometer precision. Int. J. Adv. Manuf. Technol. 2022, 121, 8479–8494. [Google Scholar] [CrossRef]
  39. Jatti, V.S.; Sefene, E.M.; Jatti, A.V.; Mishra, A.; Dhabale, R.D. Synthesis and characterization of diamond-like carbon coatings for drill bits using plasma-enhanced chemical vapor deposition. Int. J. Adv. Manuf. Technol. 2023, 127, 4081–4096. [Google Scholar] [CrossRef]
Materials 16 05739 g001

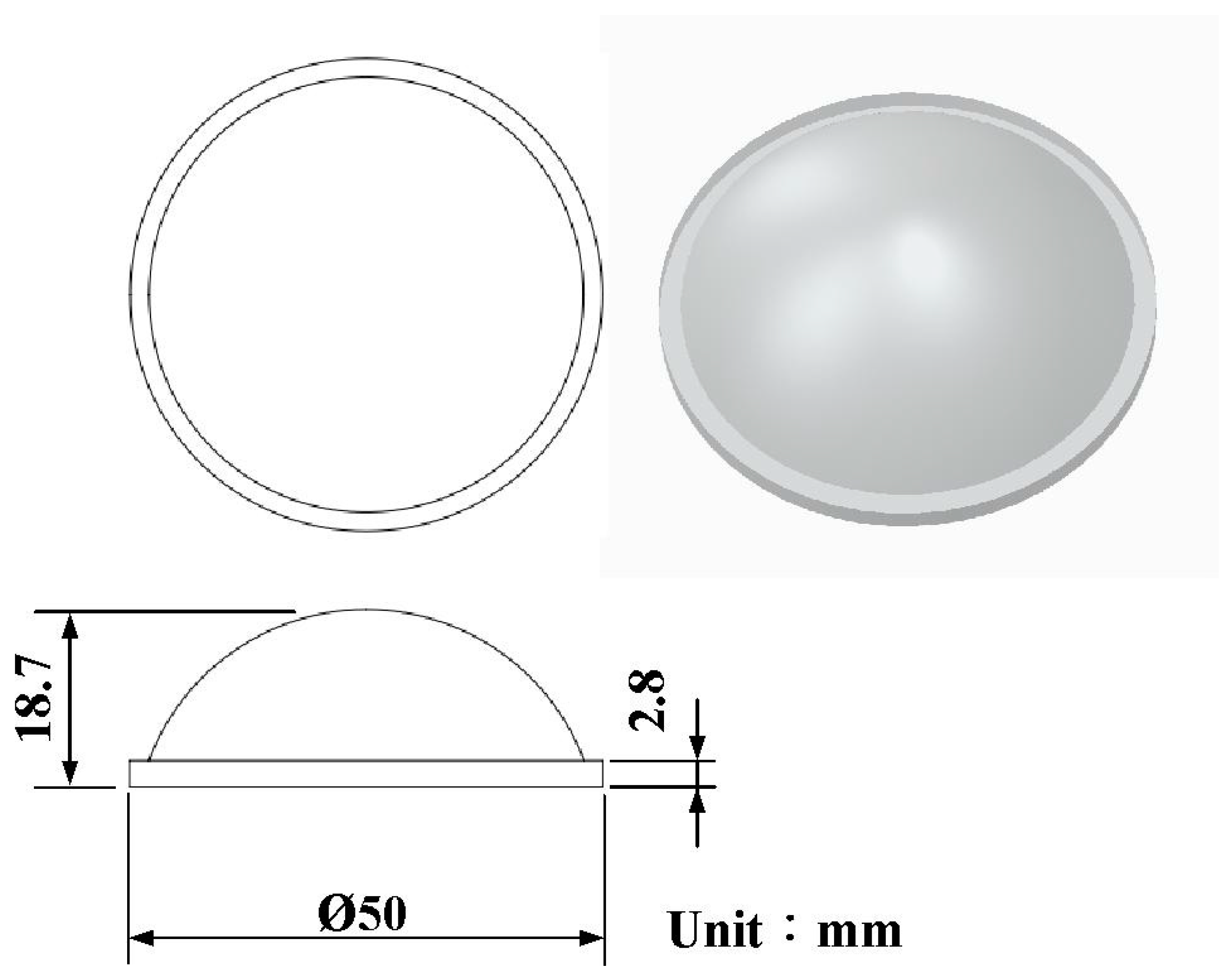

Figure 1. CAD model of an optical convex lens.
Figure 1. CAD model of an optical convex lens.
Materials 16 05739 g001
Materials 16 05739 g002

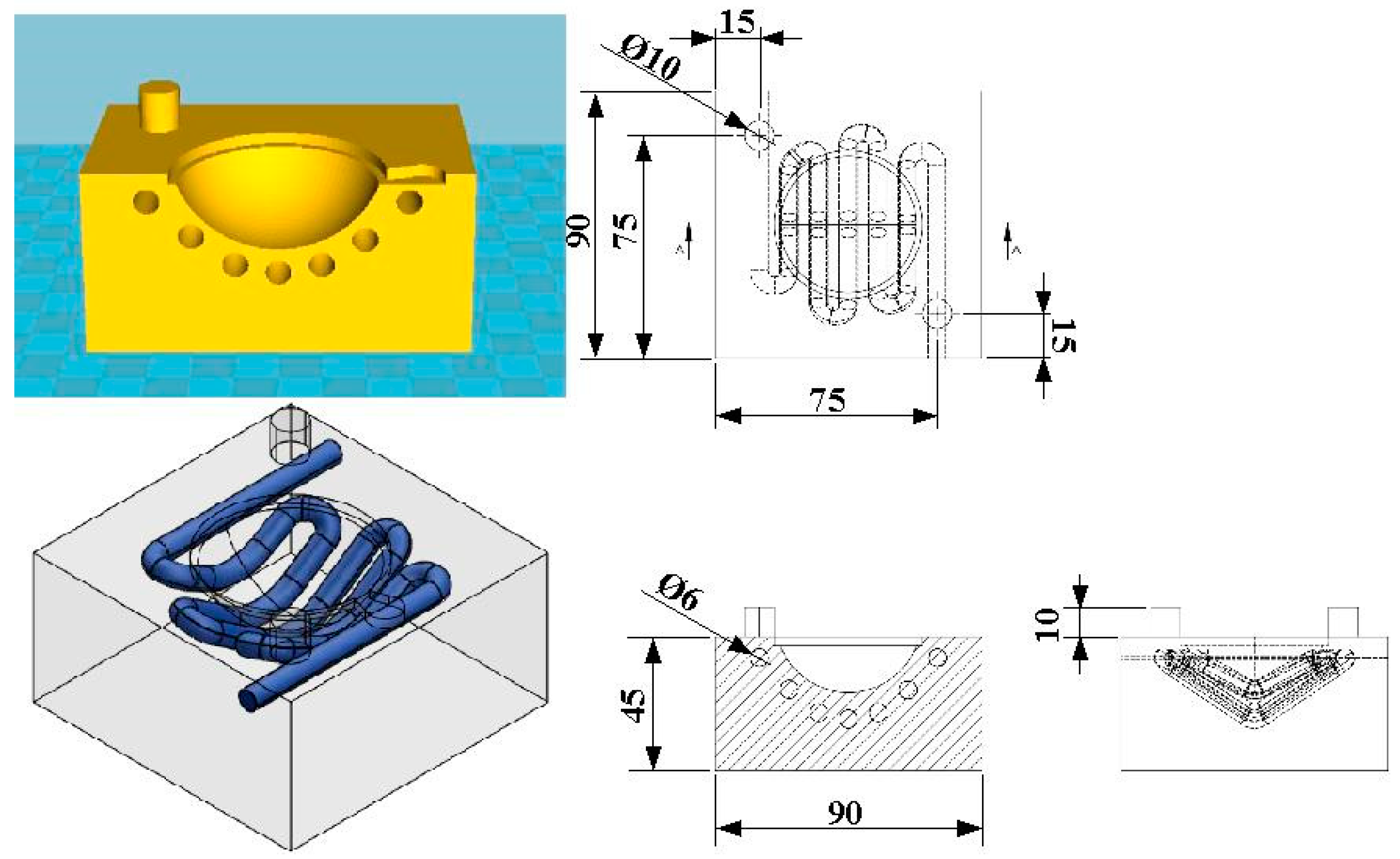

Figure 2. Design of the rapid tool with a conformal heating channel.
Figure 2. Design of the rapid tool with a conformal heating channel.
Materials 16 05739 g002
Materials 16 05739 g003

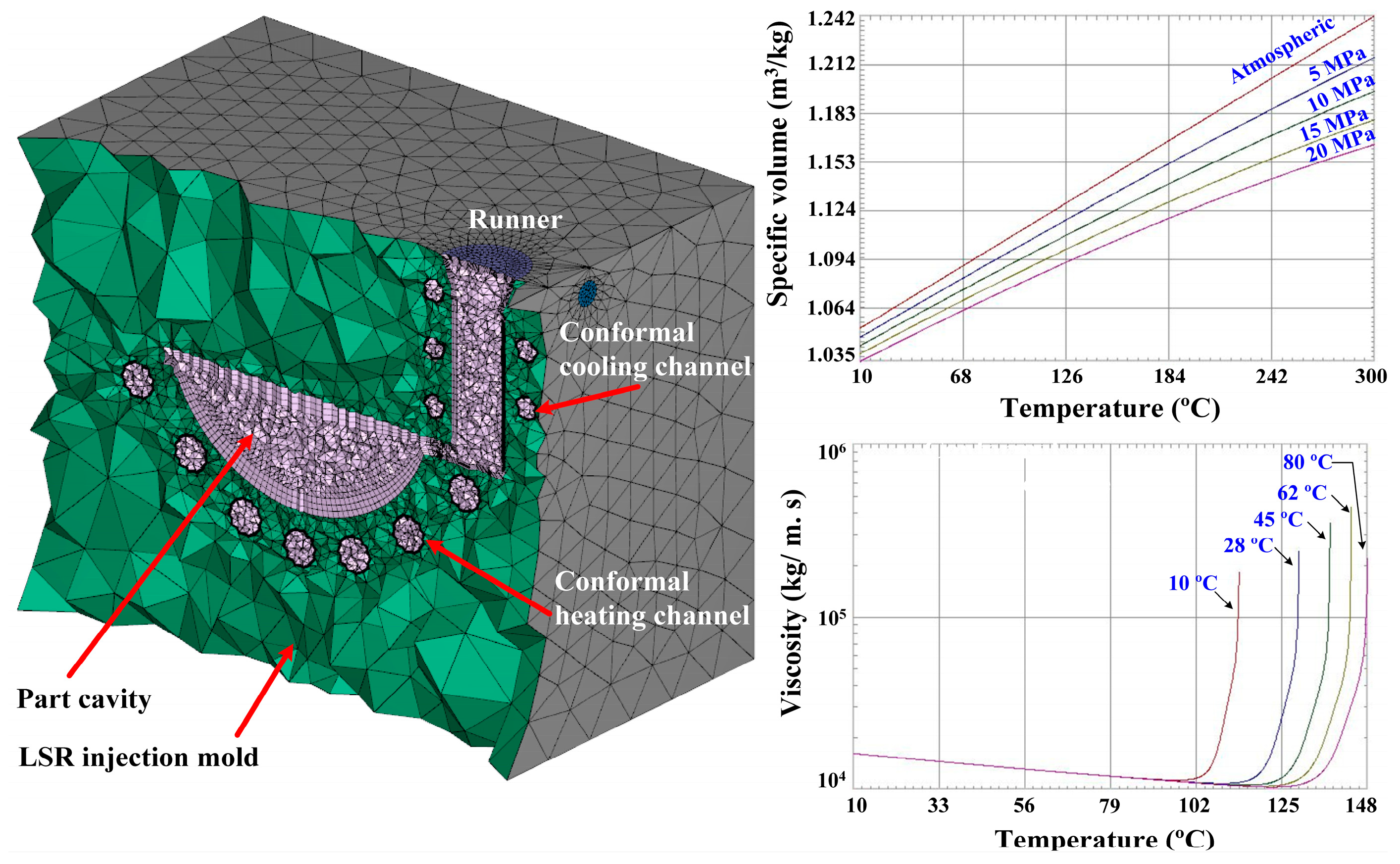

Figure 3. Simulation models and material properties of the molding materials.
Figure 3. Simulation models and material properties of the molding materials.
Materials 16 05739 g003
Materials 16 05739 g004

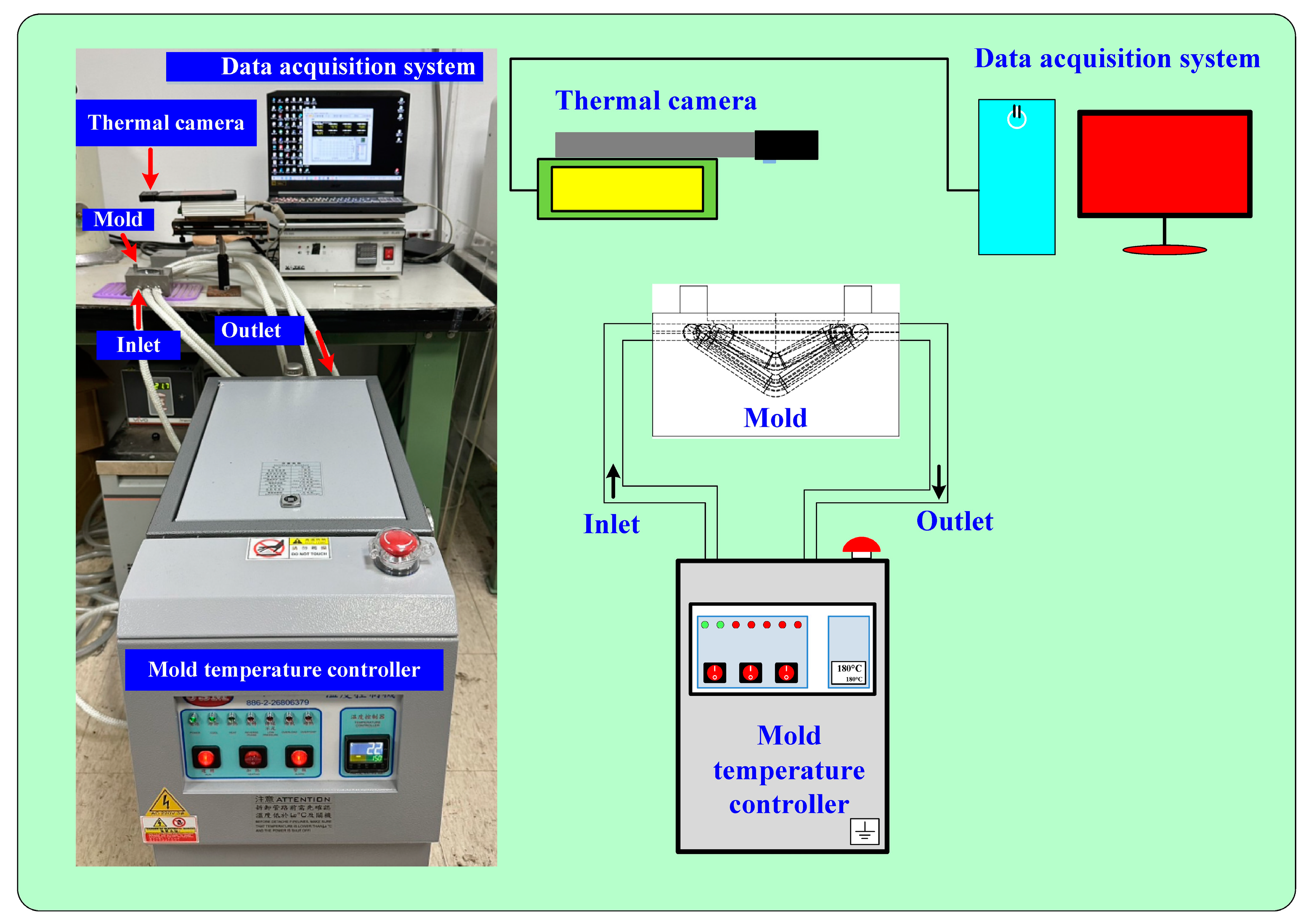

Figure 4. Measuring of the surface temperature of an LSR injection mold using a thermal camera.
Figure 4. Measuring of the surface temperature of an LSR injection mold using a thermal camera.
Materials 16 05739 g004
Materials 16 05739 g005

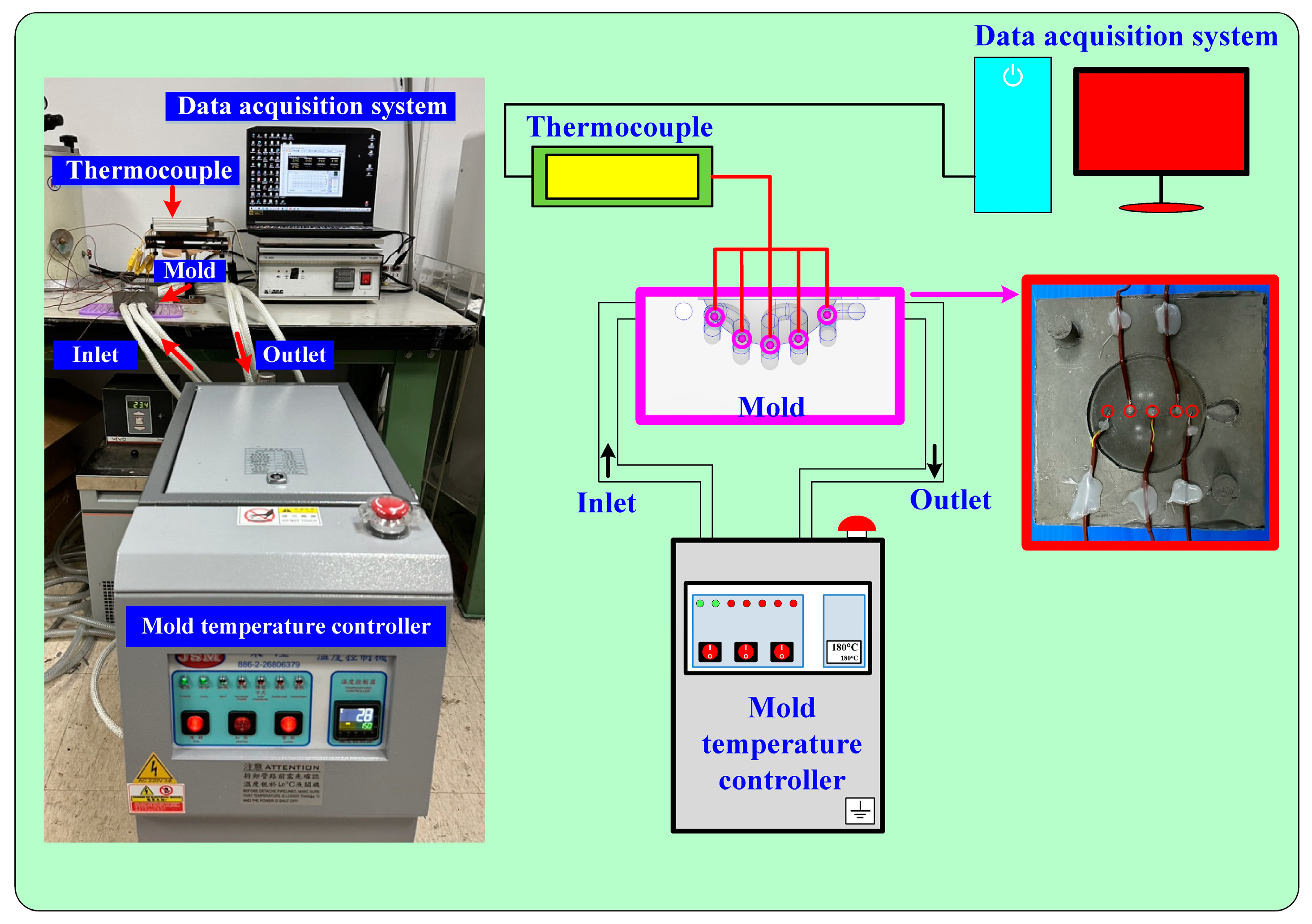

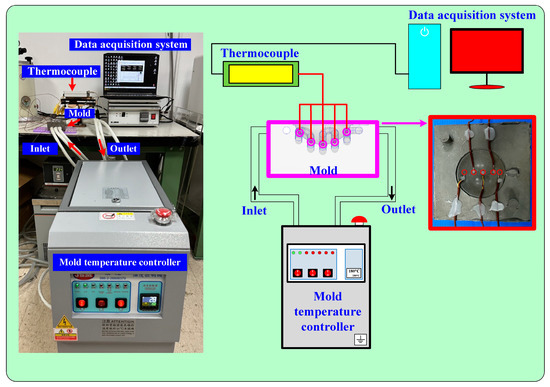

Figure 5. Measuring of the surface temperature of an LSR injection mold using five thermocouples.
Figure 5. Measuring of the surface temperature of an LSR injection mold using five thermocouples.
Materials 16 05739 g005
Materials 16 05739 g006

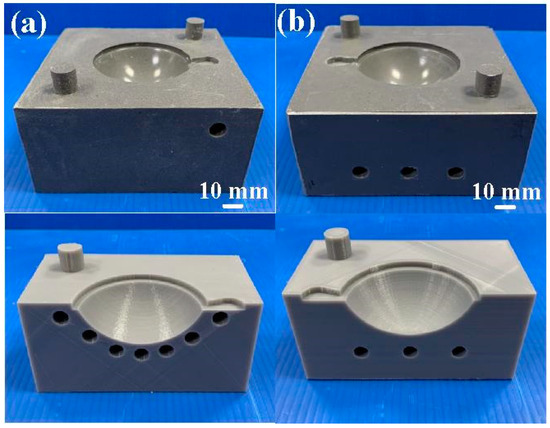

Figure 6. LSR injection mold with (a) conformal and (b) conventional heating channel.
Figure 6. LSR injection mold with (a) conformal and (b) conventional heating channel.
Materials 16 05739 g006
Materials 16 05739 g007

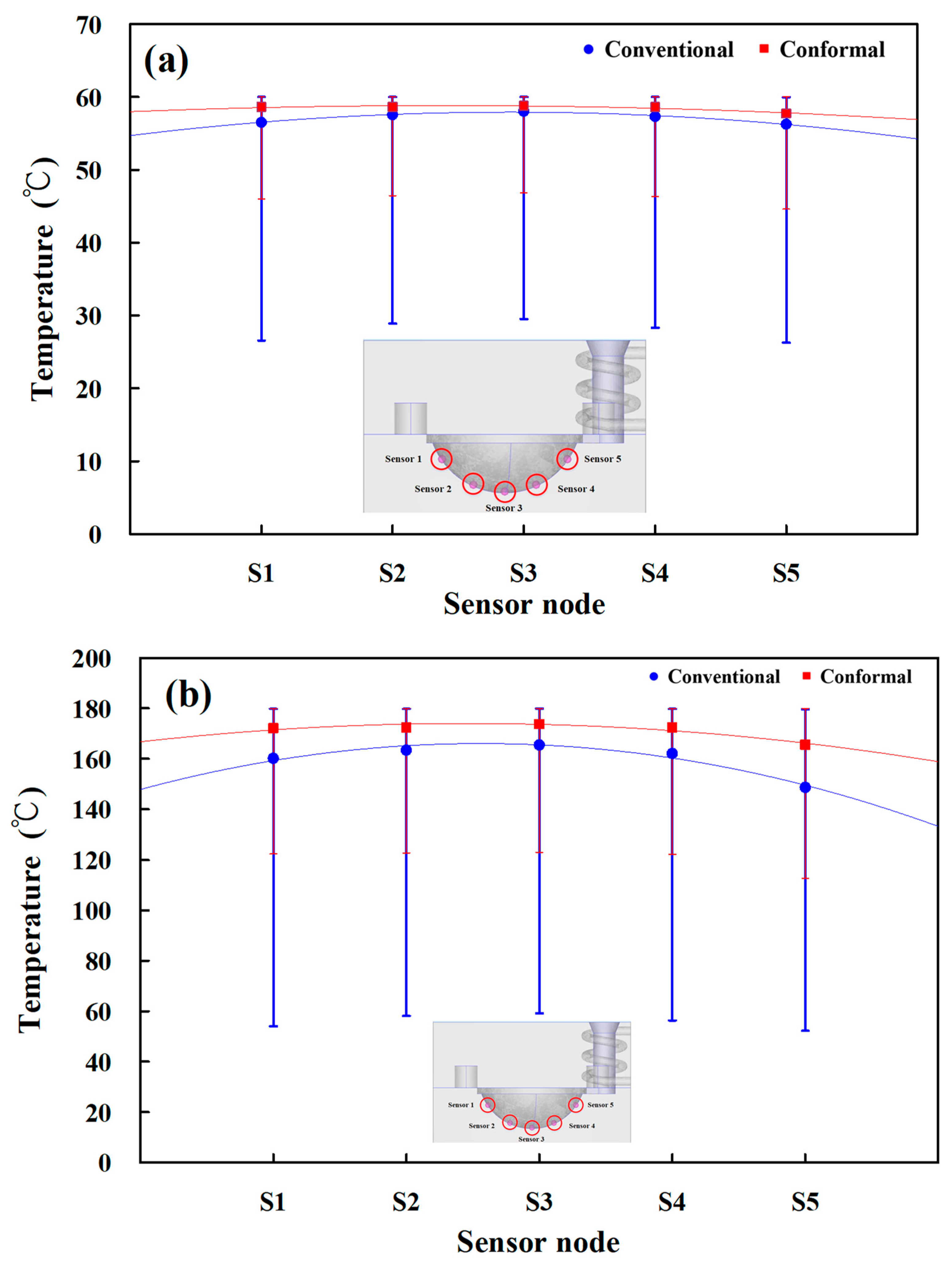

Figure 7. Numerical simulation results of temperature distributions of the five sensor nodes on the mold surface for two different LSR injection molds with the heating oil temperature of (a) 60 and (b) 180 °C.
Figure 7. Numerical simulation results of temperature distributions of the five sensor nodes on the mold surface for two different LSR injection molds with the heating oil temperature of (a) 60 and (b) 180 °C.
Materials 16 05739 g007
Materials 16 05739 g008

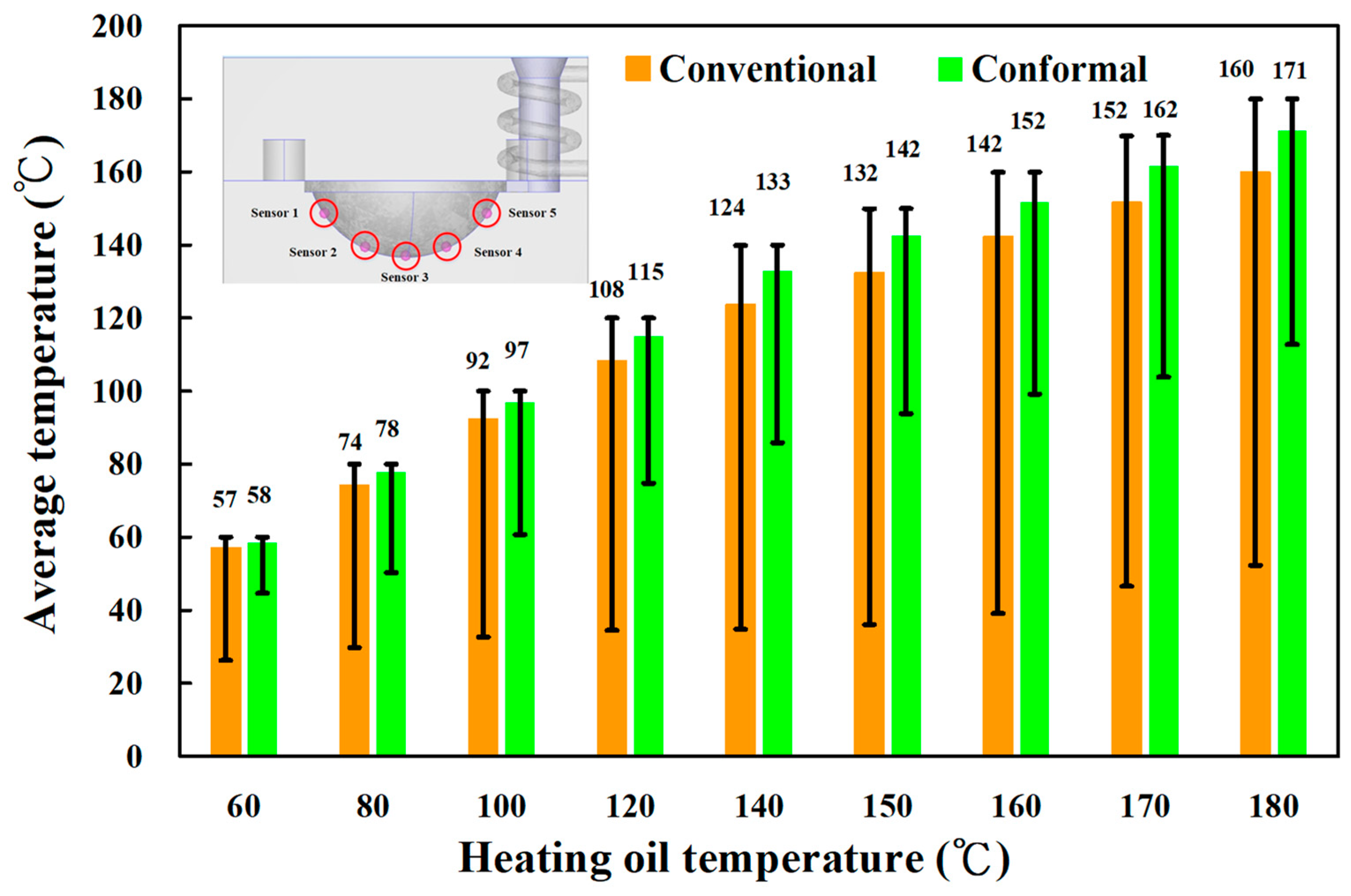

Figure 8. Numerical simulation results of average surface temperature for an LSR injection mold with two different heating systems.
Figure 8. Numerical simulation results of average surface temperature for an LSR injection mold with two different heating systems.
Materials 16 05739 g008
Materials 16 05739 g009

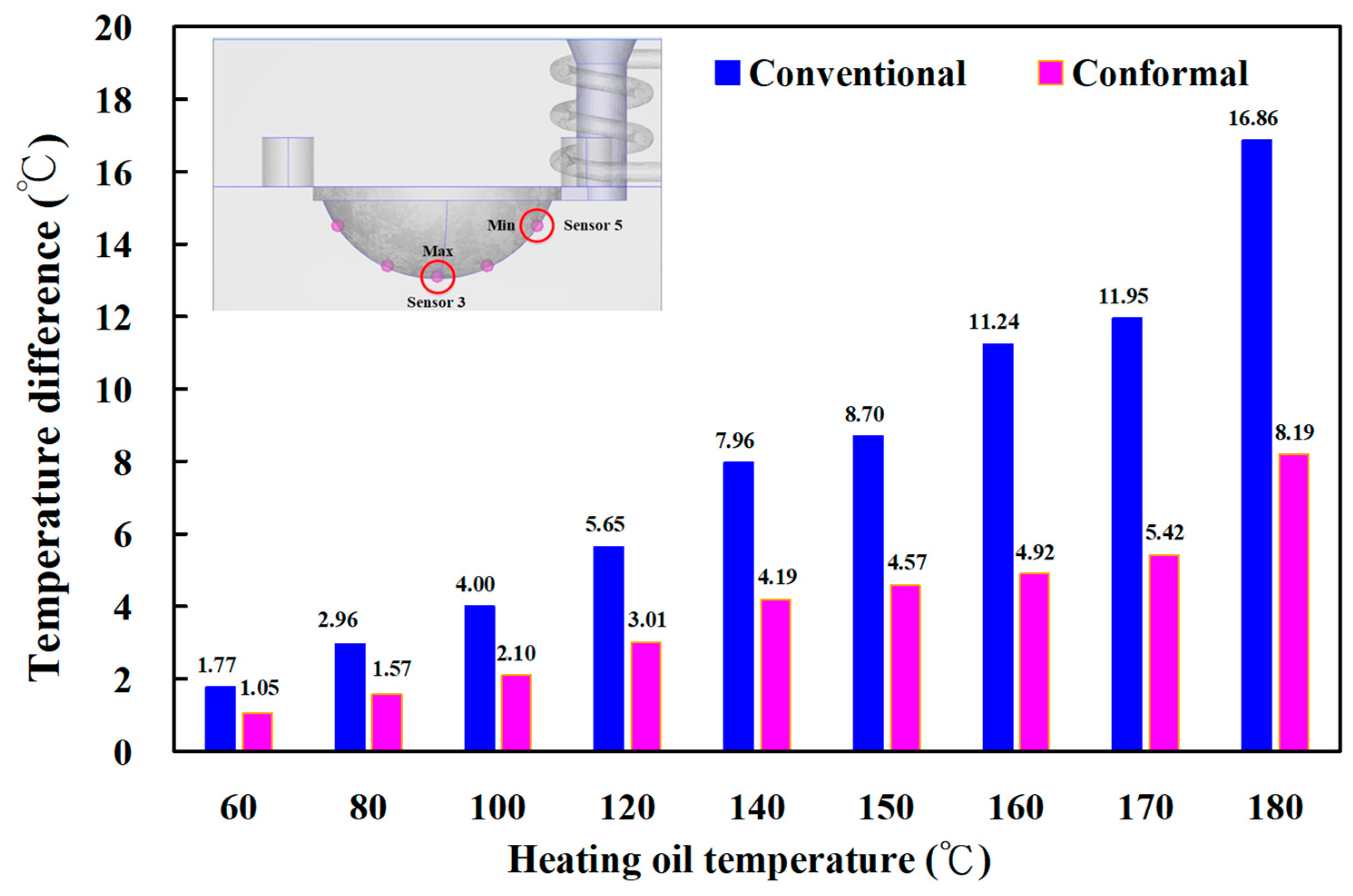

Figure 9. Temperature difference for sensor nodes 3 and 5 for two different LSR injection molds with a heating oil temperature of 60, 80, 100, 120, 140, 150, 160, 170, and 180 °C.
Figure 9. Temperature difference for sensor nodes 3 and 5 for two different LSR injection molds with a heating oil temperature of 60, 80, 100, 120, 140, 150, 160, 170, and 180 °C.
Materials 16 05739 g009
Materials 16 05739 g010aMaterials 16 05739 g010b

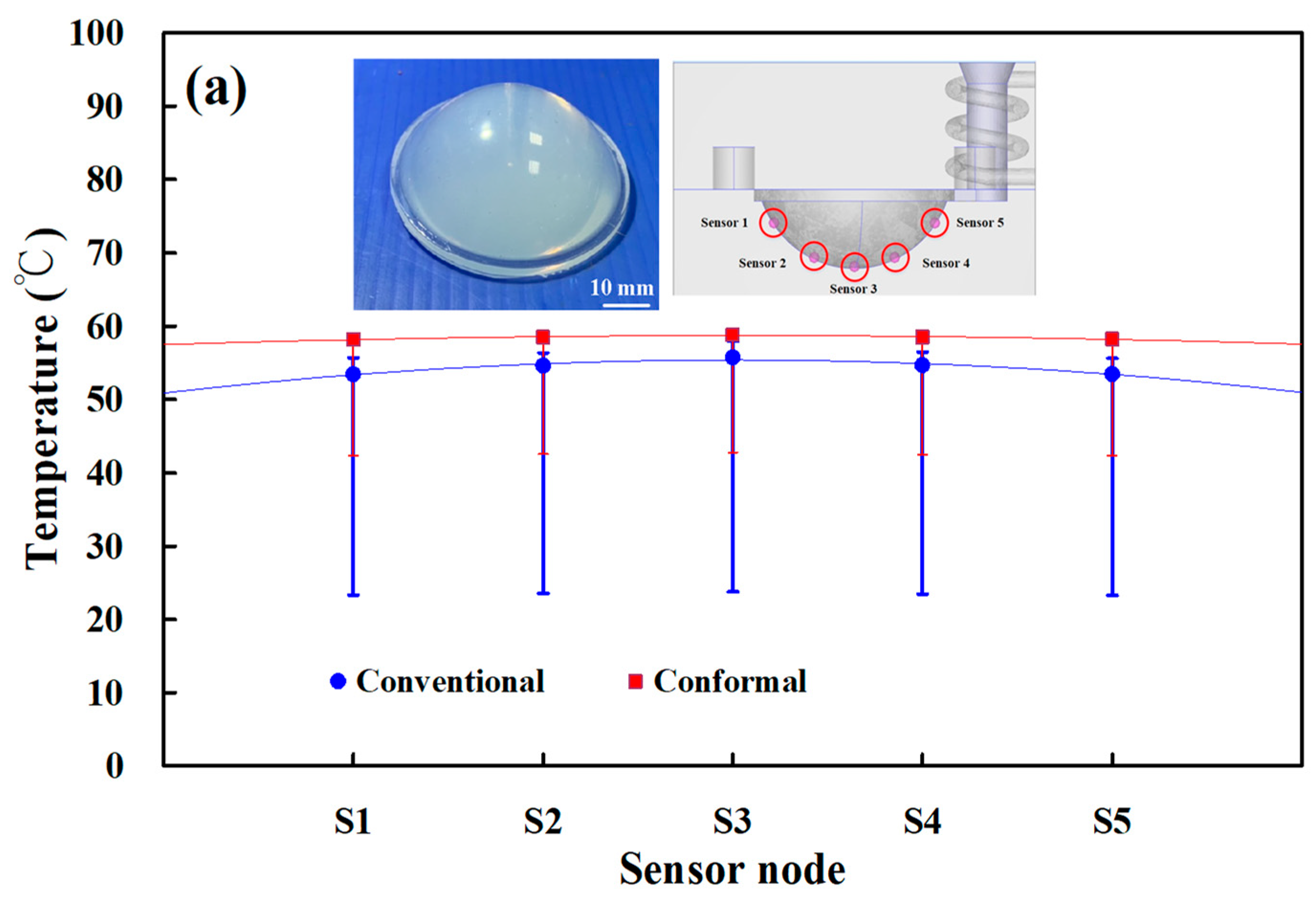

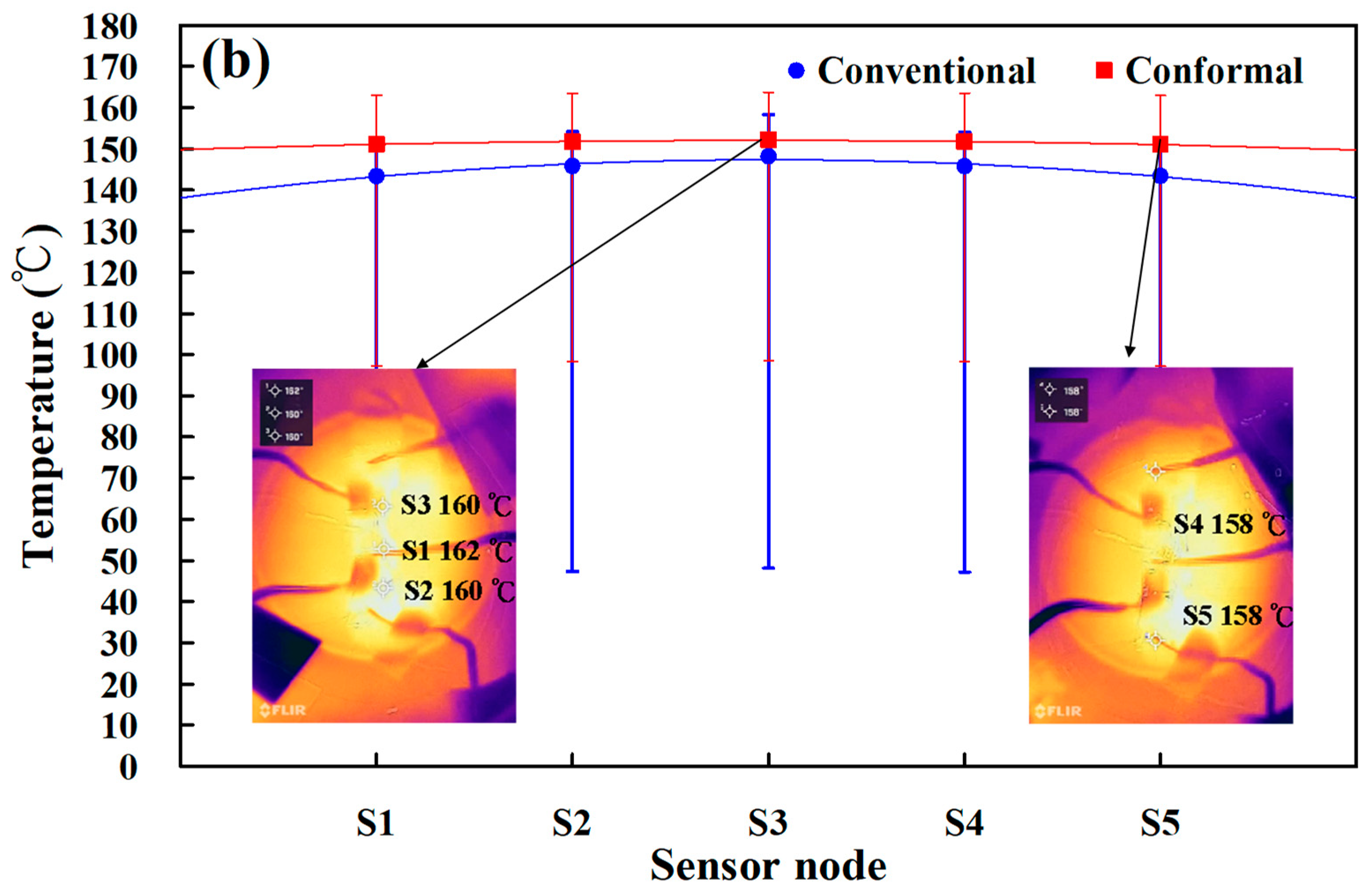

Figure 10. Experimental results of temperature distributions of the five sensor nodes on the mold surface for two different LSR injection molds with the heating oil temperature of (a) 60 and (b) 180 °C using a thermal camera.
Figure 10. Experimental results of temperature distributions of the five sensor nodes on the mold surface for two different LSR injection molds with the heating oil temperature of (a) 60 and (b) 180 °C using a thermal camera.
Materials 16 05739 g010aMaterials 16 05739 g010b
Materials 16 05739 g011

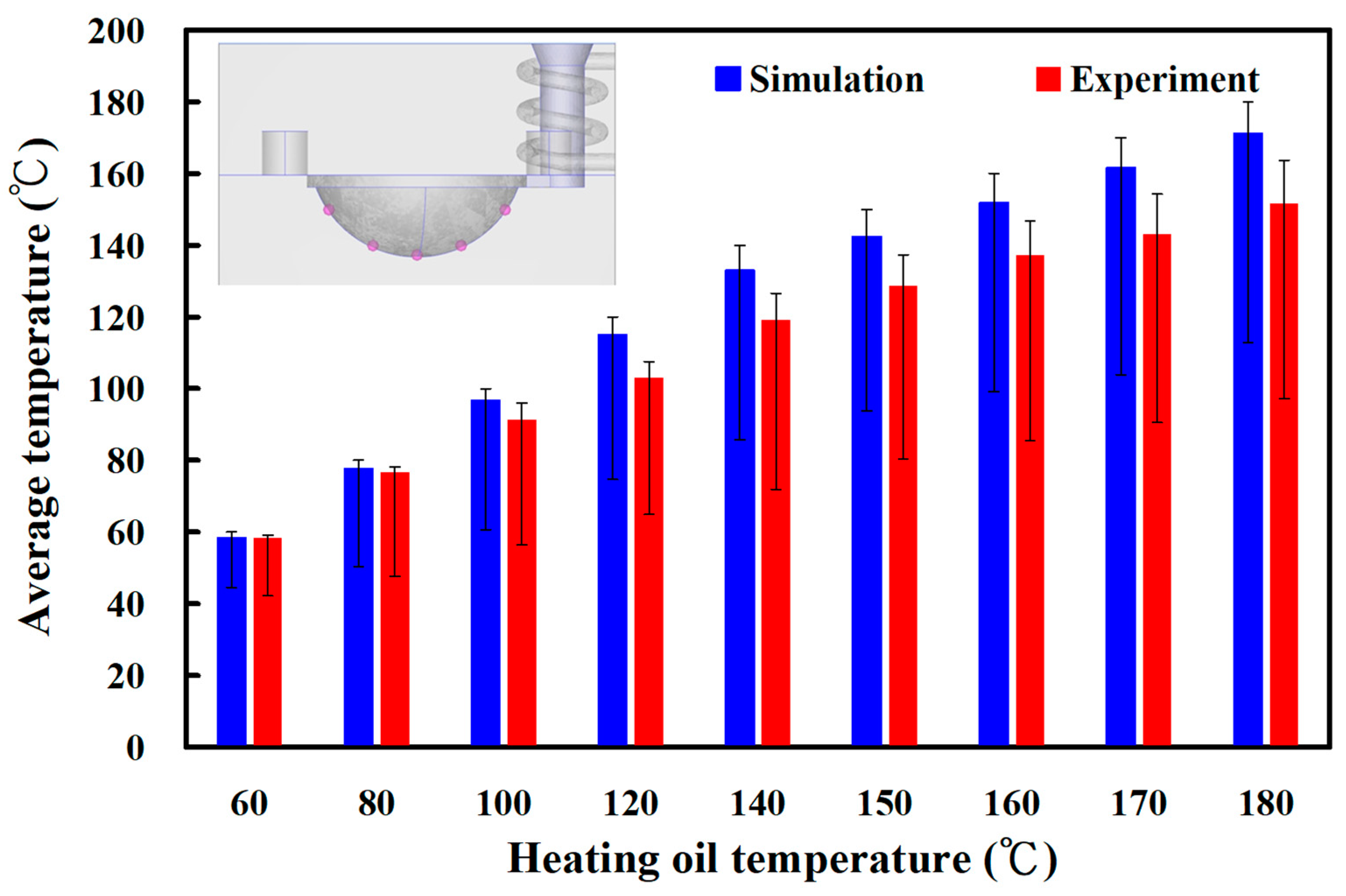

Figure 11. Experimental and simulation results of average temperature of the mold surface for an LSR injection mold with conformal heating.
Figure 11. Experimental and simulation results of average temperature of the mold surface for an LSR injection mold with conformal heating.
Materials 16 05739 g011
Materials 16 05739 g012

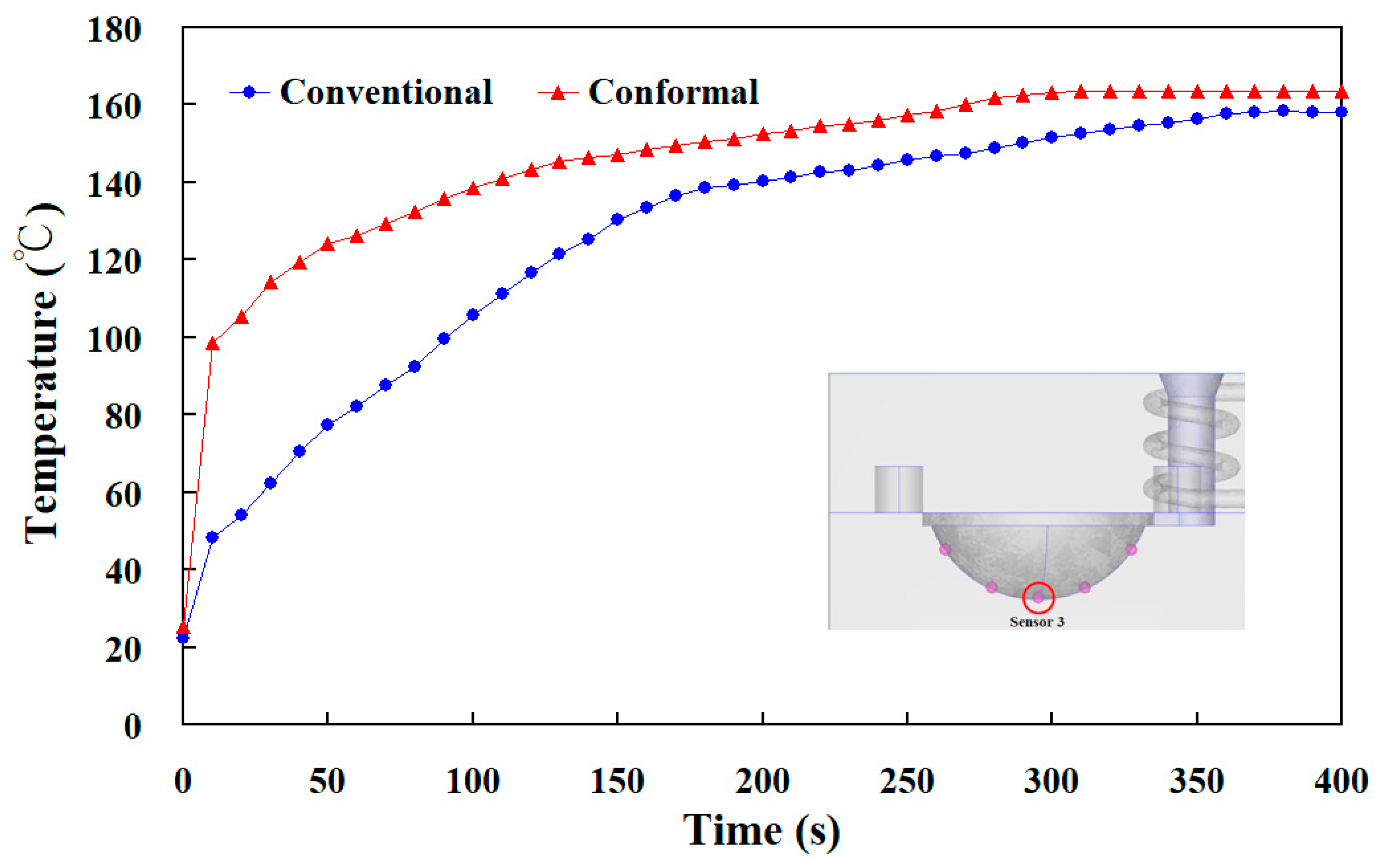

Figure 12. Experimental results of the temperature history of sensor node 3 for two different LSR injection molds with a heating oil temperature of 180 °C using a thermocouple.
Figure 12. Experimental results of the temperature history of sensor node 3 for two different LSR injection molds with a heating oil temperature of 180 °C using a thermocouple.
Materials 16 05739 g012
Materials 16 05739 g013

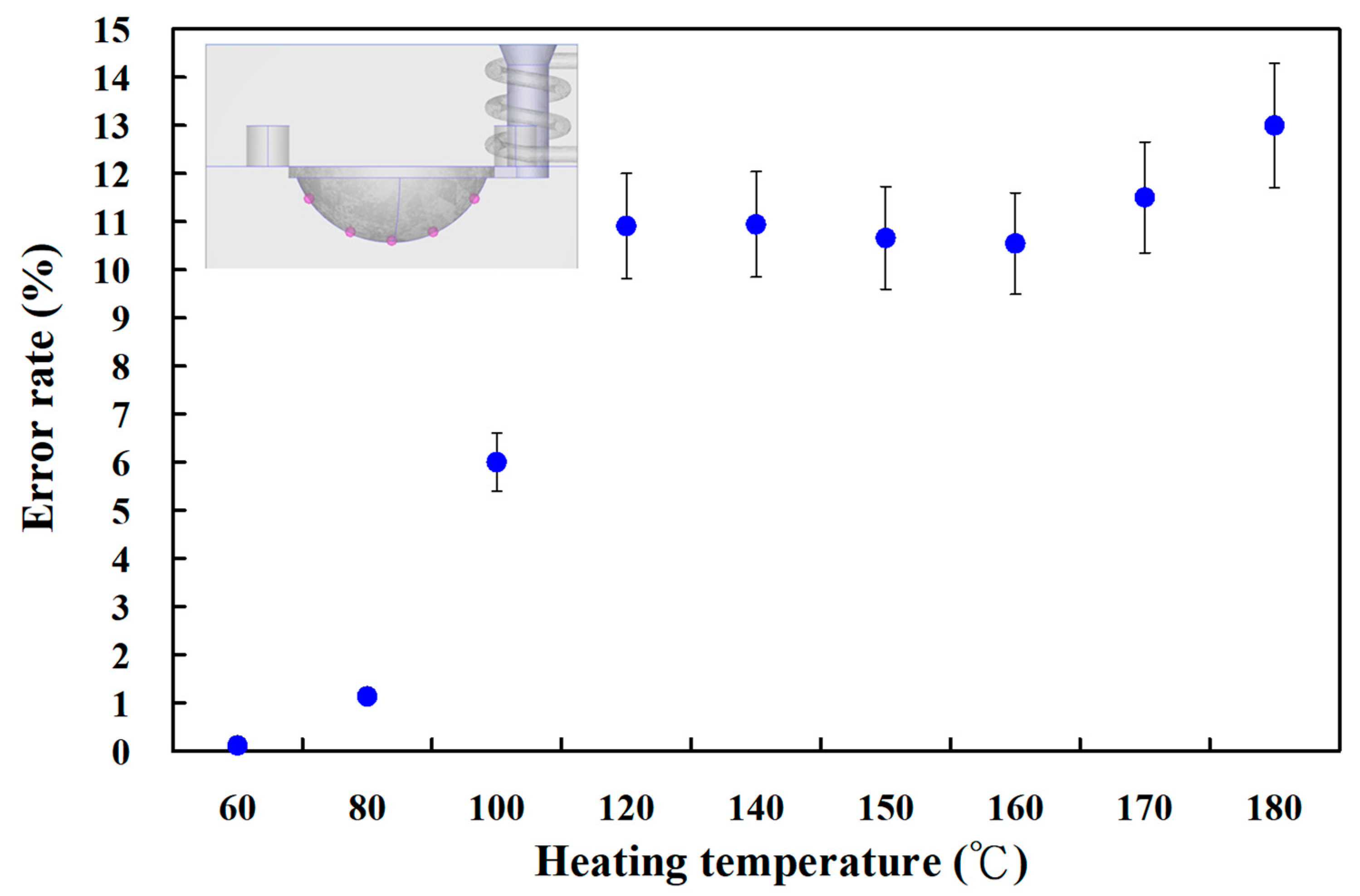

Figure 13. Error rate between experimental and simulation results of average temperature of the mold surface for LSR injection mold with conformal heating.
Figure 13. Error rate between experimental and simulation results of average temperature of the mold surface for LSR injection mold with conformal heating.
Materials 16 05739 g013
Materials 16 05739 g014

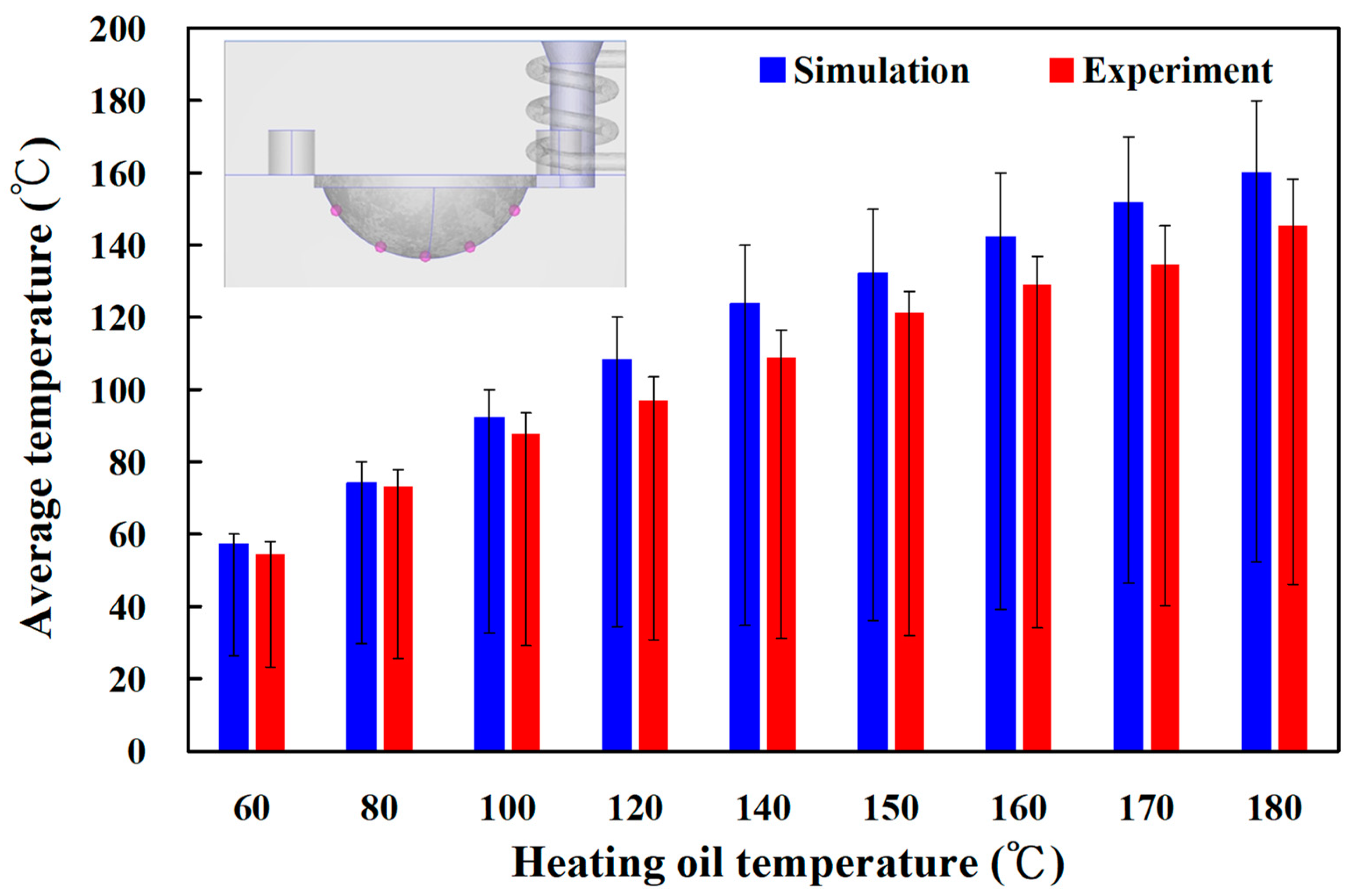

Figure 14. Experimental and simulation results of the average temperature of the mold surface for an LSR injection mold with conventional heating.
Figure 14. Experimental and simulation results of the average temperature of the mold surface for an LSR injection mold with conventional heating.
Materials 16 05739 g014
Materials 16 05739 g015

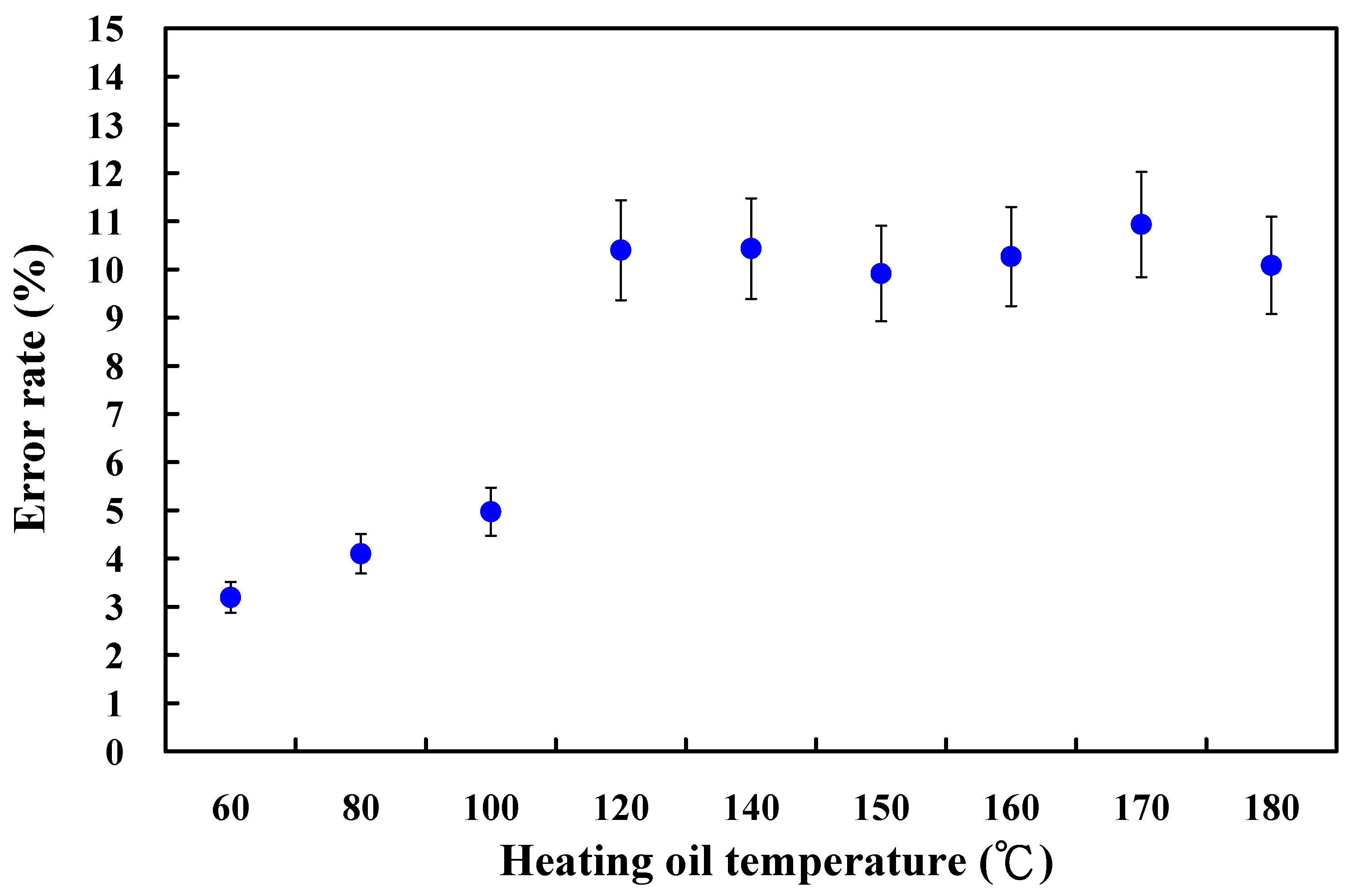

Figure 15. Error rate between the experimental and simulation results of the average mold surface temperature of an LSR injection mold with conventional heating.
Figure 15. Error rate between the experimental and simulation results of the average mold surface temperature of an LSR injection mold with conventional heating.
Materials 16 05739 g015
Materials 16 05739 g016

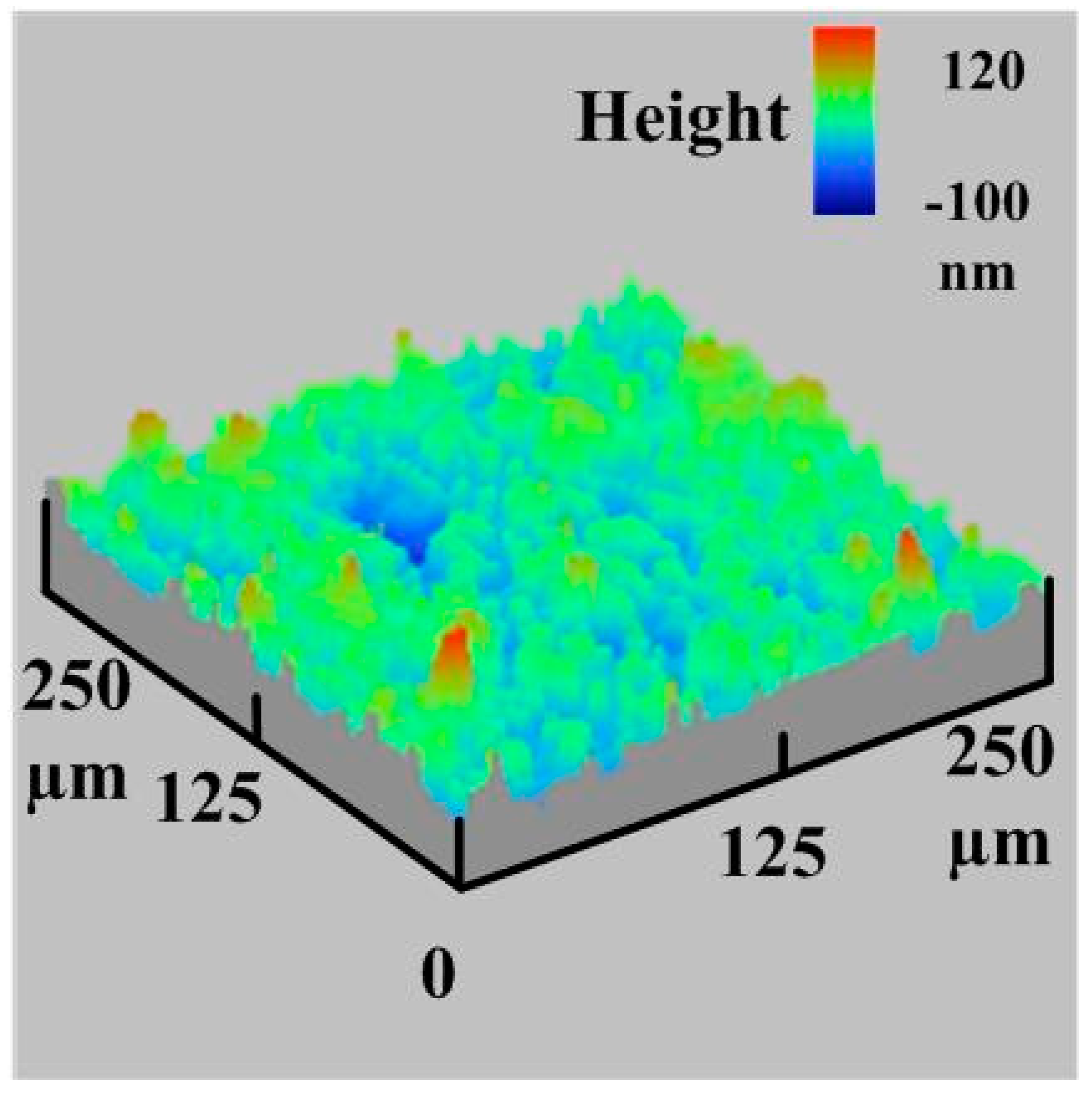

Figure 16. Surface analysis of the LSR injection mod.
Figure 16. Surface analysis of the LSR injection mod.
Materials 16 05739 g016
