Experimental Study on the Application of Recycled Concrete Waste Powder in Alkali-Activated Foamed Concrete

by
Dongsheng Zhang
1,2,
Weiwei Hao
1 and
Qiuning Yang
1,*
1
School of Civil and Hydraulic Engineering, Ningxia University, Yinchuan 750021, China
2
Research Group RecyCon, Department of Civil Engineering, KU Leuven, Campus Bruges, 8200 Bruges, Belgium
*
Author to whom correspondence should be addressed.
Materials 2023, 16(17), 5728; https://doi.org/10.3390/ma16175728
Submission received: 30 June 2023 / Revised: 6 August 2023 / Accepted: 13 August 2023 / Published: 22 August 2023
(This article belongs to the Special Issue New Trends in Geopolymer Concrete)
Browse Figures
Review Reports Versions Notes

Abstract

:
The alkali-activated cementitious material was prepared by partially replacing slag with recycled concrete powder (RCP). The influence of RCP substitution rates (10%, 20%, 30%, 40%, and 50% mass fraction) on the performance of alkali-activated slag-RCP-based (AASR) foamed concrete was studied. The fluidity, water absorption, softening coefficient, compressive strength, flexural strength, drying shrinkage, thermal conductivity, and frost resistance of AASR foamed concrete were studied. The results show that the fluidity and softening coefficient of AASR foamed concrete decreases with the increase in RCP content, and the fluidity range is 230–270 mm. Due to the porous structure of the RCP, the water absorption of AASR increases. With the increase in the curing age, the strength of AASR foamed concrete increases. The addition of RCP reduced the mechanical properties of AASR foamed concrete. Compared with the control group, the compressive strength of AASR50 decreased by 66.7% at 28 days, and the flexural strength decreased by 61.5%. However, the 28 d compressive strength of AASR foamed concrete under all RCP replacement rates still meets the standard value (0.6 MPa). The addition of RCP effectively reduces the thermal conductivity of the AASR foamed concrete, and when the RCP content is 50%, the thermal conductivity is lowest, 0.119 W/(m·K); the drying shrinkage of the AASR foamed concrete can be improved by adding RCP, and the drying shrinkage value is lowest when the RCP is 30%, which is 14.7% lower than that of the control group. The frost resistance of AASR foamed concrete decreases with the increase in the RCP content. When the recycled micropowder content is 20–50% and after 25 freeze–thaw cycles, AASR foamed concrete has reached freeze–thaw damage.

1. Introduction

Foamed concrete is a kind of lightweight inorganic material, which has a wide range of application scenarios and can be used as filling materials, insulation boards, lightweight partitions, etc. [1]. Compared with traditional insulation filling materials, foamed concrete has the characteristics of low cost, controllable density, convenient construction, etc. [2,3]. Widespread application of foamed concrete cannot only effectively reduce the dead weight of buildings, reduce the production, manufacturing, and labor costs involved in the preparation and transportation processes, but also greatly reduce energy consumption [4,5,6]. For a long time, Portland cement has mostly been used as the cementing material, and the foamed concrete prepared by this method has the characteristics of excellent durability and easy construction. However, during the preparation process of Portland cement, massive energy is consumed, which goes against the modern concept of energy conservation and emission reduction. In addition, Portland cement has a long setting time, which will lead to partial defoaming during the preparation of foamed concrete, reducing the volume of foamed concrete and even collapsing the mold [7,8].
Alkali-activated slag-foamed concrete emerged to solve this issue. Since it does not need cement in the production process, it is a low-carbon and environmentally friendly material, with the advantages of high early strength and good water resistance [9,10,11]. The hydration product of the high calcium cementitious system represented by slag is mainly hydrated calcium aluminum silicate (C-A-S-H). Its reaction process has a lower hydration heat and faster hydration rate than traditional cement, making it a promising alternative material for Portland cement [12,13,14]. Su et al. [15] used fly ash and slag as the main raw materials to prepare foamed concrete with the alkali-activation method. It was found that when the amount of activator was 21% and the modulus of water glass was one, foamed concrete showed the best performance. After 28 days, the compressive strength of the sample reached 2.18 MPa, and the porosity was 63.07%. The compressive strength of alkali-activated slag foamed concrete with a density of 600–1500 kg/m3 prepared by Mastali et al. [16] is 25–130 MPa; compared with ordinary Portland cement-based foamed concrete with the same density, the strength is higher. He et al. [17] showed that the water absorption rate of alkali-activated slag foamed concrete with a dry density of 600 kg/m3 was between 50.1 and 52.6%, with good durability. However, despite China producing over 100 million tons of slag annually, the market demand is high, and slag prices have been rising, and the continued high demand may limit future slag supplies [18]. Therefore, it is necessary to search for materials that can partially replace slag in alkali-activated cementitious materials.
With the acceleration of urbanization, massive construction waste, mainly concrete, has been produced. How to deal with these wastes has become an important issue for the sustainable development of buildings. Nowadays, many enterprises and scholars use crushed construction waste to produce aggregates [19,20,21,22] to replace increasingly scarce natural stone resources. However, in the process of producing recycled concrete aggregates, crushing, screening, and other steps will generate a large number of particles smaller than 75 microns, which are called recycled concrete powder (RCP). Recycling of RCP is an important part of achieving zero emissions of construction waste [19,23,24,25]. In recent years, the use of RCP as a partial replacement for slag and as a cementitious material to prepare alkali-activated cement has received a lot of attention. Sharma [26] used sodium hydroxide and sodium metasilicate solution as an activator to study the preparation of geopolymer mortar by partially replacing fly ash with recycled micropowder. It was found that the replacement rate of RCP reached 30%, which can improve the strength and durability of the geopolymer mortar. Additionally, the existence of calcium content in RCP was verified in microstructure analysis, which made the microstructure dense and improved the various properties of the geopolymer mortar. Liu [27] studied the drying shrinkage performance of the RCP-slab-based geopolymer (RPSG), and the results showed that slag can significantly reduce the drying shrinkage of RPSG, and the drying shrinkage rate of RPSG increases with the increase in alkali equivalent. Liu [28] reported on the microscopic characteristics, mechanical strength, and transportation performance of the alkali-activated slag geopolymers with different RCP contents. The results show that RCP in various construction wastes mainly consists of hydrated products, anhydrous cement particles, quartz, and calcite. The addition of high-content RCP expanded the pore structure of the slag-based polymer, and the replacement of 100% slag with RCP resulted in a relatively loose microstructure of a sustainable geopolymer. The mechanical strength and water resistance of the slag-based polymer decrease with the increase in the RCP substitution rate, and the replacement of 100% slag with RCP results in a significant decrease in the mechanical strength and water absorption. It is feasible and sustainable to use 100% RCP for upcycling of fully recovered geopolymer. Li [29] studied the influence and mechanism of different RCP substitution rates on mortar from the aspects of physical properties, mechanical properties, hydration kinetics, hydration products, pore structure, etc. The results showed that the addition of regenerated micropowder shortened the setting time of the slurry. With the increase in the RCP content, the hydration induction period of mortar is prolonged, and the peak hydration heat release rate and cumulative heat release show a significant downward trend. Obviously, it is feasible to use RCP as an economical and environmentally friendly cementitious material to replace some slag in the alkali slag cementitious system. However, there are a few reports on the research on the preparation of AASR foamed concrete with RCP. Therefore, the purpose of this experimental study is to explore the influence of RCP with different contents on the performance of alkali-activated slag foamed concrete.
In this experimental scheme, AASR foamed concrete was prepared by adding RCP with different contents (0%, 10%, 20%, 30%, 40%, and 50%) to replace part of the slag, and the fluidity, water absorption, softening coefficient, compressive strength, flexural strength, drying shrinkage, and frost resistance of the AASR foamed concrete are explored. The results of this study contribute to expanding the application range of RCP and promoting the development of green cementitious materials.

2. Experimental Details

2.1. Raw Materials

The cementitious materials used in this study are slag and RCP. The slag is selected as S95 grade slag, with a specific surface area of 524 m2/kg and a density of 2780 kg/m3. The raw material for RCP is obtained from waste concrete collected during the demolition process of a reinforced concrete building in Ningxia. After crushing the waste concrete, it is preliminarily screened through a 1.18 mm square hole sieve, and the obtained material is ground into micropowder using a planetary mill. The chemical composition of slag and RCP is shown in Table 1.
The alkaline activator is made by mixing water glass and industrial flake sodium hydroxide with an initial modulus of 3.3. The foaming agent is a Legao foaming agent produced by Shandong Lego Company, mixed with tap water in a mass ratio of 1:50.

2.2. Mix Proportions, Casting, and Curing

At the beginning of the test, it was determined that the AASR foamed concrete with a target dry density of 500 kg/m3 was prepared by using RCP and slag as precursors. The water-binder ratio of foamed concrete is 0.34, the modulus of the activator is 1.0, and the alkali equivalent is 5%. RCP is used as a supplementary cementitious material to replace 10%, 20%, 30%, 40%, and 50% of the slag. Additionally, the specific mix design is shown in Table 2.
First, the slag and RCP are evenly mixed in a mixer. Then, water and an alkali activator are poured into the mixer and stirred for three minutes to obtain a slurry with uniform flow. Next, the prepared foamed mix is added to the slurry quickly and evenly. This is subsequently poured into the mold after mixing uniformly, wrapped with a plastic film, and placed in a standard curing room. This can be demolded after 24 h. Next, the demolded test block must be cured until the measurement age.

2.3. Test Method

According to standards [30,31,32], the fluidity, dry density, water absorption, and softening coefficient of AASR foamed concrete were determined. As shown in Figure 1, with reference to JG/T 266-2011 [30] and GB/T 17671-2021 [33], the compressive strength of the AASR foamed concrete with a size of 100 mm × 100 mm × 100 mm and the flexural strength of the AASR foamed concrete with a size of 40 mm×40 mm×160 mm are measured with a YAW-2000 electro-hydraulic servo pressure testing machine. With reference to GB/T10294 [32], the ADH3030 thermal conductivity tester (as shown in Figure 2) is used to measure the thermal conductivity of the AASR foamed concrete with a size of 300 mm × 300 mm × 30 mm. An SP-175 vertical shrinkage dilatometer (as shown in Figure 3) was used to measure the 3, 7, 14, 21, 28, and 56 d dry shrinkage values of the AASR foamed concrete with a size of 40 mm × 40 mm × 160 mm.
Ultrasonic testing is an effective non-destructive testing method. The HU-U81 concrete ultrasonic detector was used to measure the wave velocity of the AARS foamed concrete before and after freezing and thawing, as shown in Figure 4. The relative dynamic elastic modulus of the concrete specimen was calculated according to Equations (1) and (2):
E = ρ ( 1 + V ) ( 1 − 2 V ) 1 − V v 2
where, E is the dynamic elastic modulus of the material; V is the Poisson’s ratio of the material; v is the ultrasonic wave velocity of the material; and ρ is the density of the material. Due to the small variations in the Poisson and density of concrete materials [34,35], the relative dynamic elastic modulus of foamed concrete can be calculated using the following equation:
E r = v n 2 v 0 2
where Er is the relative dynamic elastic modulus of the specimen; Vn is the ultrasonic wave velocity of the specimen after n freeze–thaw cycles; and V0 is the initial wave velocity of the specimen before the freeze–thaw cycle.

3. Results and Analyses

3.1. Fluidity

The fluidity results of the AASR foamed concrete under different RCP replacement rates are shown in Figure 5. With the increase in the RCP content, the fluidity of the AASR foamed concrete decreases gradually. Compared with the fluidity of AASR0 (270 mm), the fluidity of AASR10, AASR20, AASR30, AASR40, and AASR50 decreases by 4.4%, 7.4%, 10.0%, 13.0%, and 14.8%, respectively. This is mainly because the surface of the RCP is rough and there are numerous interconnected voids inside. The addition of RCP will increase the water absorption capacity in the foamed concrete slurry, resulting in excessive internal friction resistance of the slurry, thus reducing the fluidity of the slurry [36,37].

3.2. Water Absorption

Figure 6 shows the influence of the RCP content on the water absorption of the AASR foamed concrete. It can be seen from Figure 6 that the water absorption of the AASR foamed concrete gradually increases with the increase in the RCP content. When the RCP content is 10%, 20%, 30%, 40%, and 50%, the water absorption of the AASR foamed concrete is 3.5%, 11.8%, 15.3%, 24.1%, and 26.6% higher than that of AASR0. This is because the porous structure of RCP will increase the capillary effect of the AASR foamed concrete in water [38]; in addition, the activity of RCP is lower than that of slag. With the increase in its content, the amount of the hydration products of the AASR foamed concrete decreases, and the compactness decreases [39].

3.3. Softening Coefficient

The softening coefficient is an important parameter for the water resistance properties of materials. It can be seen from Figure 7 that the softening coefficient of the AASR foamed concrete gradually decreases with the increase in the RCP content. When the content of RCP increases from 0% to 50%, the softening coefficient of the AASR foamed concrete decreases from 0.963 to 0.710, indicating that adding RCP will have a great impact on its mechanical properties after water absorption; thus, the content of RCP should be reasonably selected according to the actual conditions. The softening of the AASR foamed concrete after water absorption is mainly caused by the addition of RCP, which makes the concrete produce a certain amount of N-A-S-H gel after hydration. The gel structure is prone to hydrolysis due to unstable silicoaluminate bonds, which will cause the overall deterioration in the hardened cement paste, increase the micropores, and then lead to a decline in the macro strength. In addition, when AASR foamed concrete is saturated with water, the moisture migration in the internal pores will lead to a reduction of cohesive forces between crystal particles in the hardened cement paste and poor connection performance [40]. Finally, when AASR foamed concrete is subjected to external forces, the stress generated by the forced migration of internal moisture will cause certain damage to its pore structure, thereby reducing the strength of the AASR foamed concrete.

3.4. Compressive Strength

Figure 8 shows the influence of RCP content on the compressive strength of the AASR foamed concrete. With the increase in the curing age, the compressive strength of the AASR foamed concrete increased, especially in the later ages. At all ages, the compressive strength of foamed concrete decreases with the increase in the RCP content. When 50% RCP is added, the 3 d, 7 d, and 28 d compressive strength of the AASR foamed concrete is 0.47 MPa, 0.70 MPa, and 1.11 MPa, respectively, which is 66.7%, 63.2%, and 53.8% lower than that of AASR0. This is mainly because as the content of RCP increases, its disadvantages of having more internal pores, poor particle shape, and low activity gradually become prominent. Moreover, the more the content is added, the more water is adsorbed, which is not conducive to the hydration reaction; secondly, RCP replaces mineral powder. Because the activity of RCP is lower than that of slag, the compressive strength of the AASR foamed concrete decreases [41]. Although the addition of RCP reduces the compressive strength of the AASR foamed concrete, the 28 d compressive strength of AASR foamed concrete under all RCP replacement rates still meets the standard value (0.6 MPa).

3.5. Flexural Strength

The influence of the RCP content on the flexural strength of the alkali-activated foamed concrete is shown in Figure 9. With the increase in the RCP content, the flexural strength of AASR foamed concrete decreases gradually, which is consistent with the change rule of compressive strength. When 50% RCP is added, the 3 d, 7 d, and 28 d flexural strength of the AASR50 foamed concrete is 0.2 MPa, 0.3 MPa, and 0.49 MPa, respectively, which is 64.2%, 63.2%, and 66.7% lower than that of the AASR0.
The relationship between the compressive strength (ft) and flexural strength (ff) of the foamed concrete is complex, which is affected by the composition, density, pore structure, curing conditions, and curing age of the foamed concrete. Generally, there is a positive correlation between the compressive strength and the flexural strength of the foamed concrete. According to the test results, the relationship between the AASR foamed concrete flexural strength and the cube compressive strength is shown in Figure 10. Through regression, the relationship formula can be obtained as follows:
f f = 0.493 x − 0.06
It should be stated that the proposed equations with high accuracy (R2 = 0.958) have good agreements with the experimental outcomes.

3.6. Thermal Conductivity

Figure 11 shows the influence of different RCP contents on the thermal conductivity of the AASR foamed concrete. It can be seen from Figure 11 that the addition of RCP can effectively reduce the thermal conductivity of the AASR foamed concrete. In particular, the larger the amount of RCP, the more obvious the downward trend is. When the amount of RCP is 50%, the thermal conductivity of the AASR foamed concrete is the lowest, 0.119 W/(m·K). This is because RCP has irregular particles and high-water absorption capacity compared with slag, which will cause damage to the slurry foamed liquid film, leading to the increase in irregular large holes in the specimen and a decrease in the pore structure compactness. With the increase in the RCP replacement rate, the porosity of AASR foamed concrete increases, which is more obvious. At this point, due to the reduction in the slag, the hydration products decrease, the proportion of stable internal and external solid structures decreases, the efficiency of heat conduction decreases, and the thermal conductivity decreases [40].

3.7. Drying Shrinkage

The drying shrinkage values of the AASR foamed concrete with different RCP contents are shown in Figure 12. It can be found that the drying shrinkage of the AASR foamed concrete is divided into three stages. The first stage is the slow growth stage (3–7 d). At this time, the internal water content of the structure is high, and the water is lost along the relatively large connecting pores and capillary pores. This situation will cause changes in the capillary tension and surface free energy of the AASR foamed concrete, making the specimen gradually shrink [42]; simultaneously, at this stage, the substitution rates of RCP have no significant effect on the dry shrinkage of the AASR foamed concrete. When the RCP substitution rates are 0%, 10%, 20%, 30%, 40%, and 50%, the 7 d dry shrinkage values of the samples are 1.584, 1.492, 1.404, 1.322, 1.444, and 1.607 × 10−6 m, respectively. The second stage is the rapid growth stage (7–28 d); at this time, the water content of the specimen is largely lost under the dry environment and internal hydration, and the nanopores in the AASR foamed concrete lose water seriously and the gel begins to densify. The combined effects of the two led to the sharp shrinkage of the specimen volume [43]; in addition, with the increase in the RCP content, the drying shrinkage of the foamed concrete decreases first and then increases. The RCP content is 10%, 20%, 30%, and 40%, and the 28 d dry shrinkage values of the samples are 3.429, 3.242, 3.062, 2.893, 3.145 and 3.503 × 10−6 m, respectively, and the drying shrinkage performance of the AASR foamed concrete is the best under the 30% replacement rate of RCP. This is because as the substitution rate of RCP for mineral powder increases, the activity of RCP is low, the hydration reaction is slow, and the hydration products produced by hydration are reduced, resulting in smaller shrinkage [44]. In the third stage, after 28 d, the dry shrinkage value of the specimen slowly increases and tends to stabilize. Compared with the 28 d dry shrinkage values, the 42 d shrinkage values for AASR0, AASR20, AASR30, AASR40, and AASR50 increased by 5.86%, 5.91%, 5.88%, 6.17%, and 6.59%, respectively. Compared with the 42 d shrinkage values, the 56 d shrinkage values for AASR0, AASR20, AASR30, AASR40, and AASR50 increased by 2.32%, 2.86%, 3.39%, 3.33%, and 4.69%, respectively.

3.8. Frost Resistance

3.8.1. Mass Loss

The mass loss rate is one of the important indicators reflecting the frost resistance of cement-based materials. Figure 13 shows that when the number of freeze–thaw cycles is low, the influence of the dosage on the loss rate is relatively small. And when the number of freeze–thaw cycles is five, the mass loss rate of AASR0 is the lowest at 1.33%. With the increase in the freeze–thaw cycles, the mass loss rate of the AASR foamed concrete under different RCP content increases, and with the increase in the RCP content, the increase is larger. This is because with the increase in the RCP content, the water absorption rate of the AASR foamed concrete increases and the softening coefficient decreases, which makes the specimens with higher RCP content subject to greater frost heave stress and more serious surface damage under the condition of multiple freeze–thaw cycles. The mass loss rates of AASR0, AASR10, AASR20, AASR30, AASR40, and AASR50 are 4.32%, 4.89%, 5.74%, 6.65%, 7.68%, and 8.72%, respectively, after 25 freeze–thaw cycles. According to JGJ/T 341-2014 [31], when the mass loss rate of the AASR foamed concrete with 20–50% RCP content reaches 5% after 25 freeze–thaw cycles, it can be considered that it has been damaged by freeze–thaw.

3.8.2. Compressive Strength Loss

Figure 14 shows the influence of the RCP content on the strength loss rate of AASR foamed concrete under different freeze–thaw cycles. It can be seen from Figure 14 that when the RCP content is unchanged, the strength loss rate of the AASR foamed concrete increases with the increase in the freeze–thaw cycles; when the number of freeze–thaw cycles is constant, the strength loss rate increases with the increase in the RCP content and shows an increasing trend under different freeze–thaw cycles. When the RCP content is 50%, the highest strength loss rate is 19.88% after 25 freeze–thaw cycles. This is because the activity of RCP is low, and its incorporation will reduce the strength of the AASR foamed concrete, and the ability to resist the frost heaving stress caused by freezing and thawing will become weak and vulnerable to damage. In addition, the incorporation of RCP will increase the water absorption in the AASR foamed concrete, which will subject it to greater frost heave stress during a freeze–thaw cycle, thus causing more serious internal damage [45].

3.8.3. Relative Dynamic Modulus of Elasticity

Figure 15 shows the influence of freeze–thaw cycles on the relative dynamic elastic modulus of the AASR foamed concrete with different RCP contents. It can be seen from Figure 15 that with the increase in the freeze–thaw cycles, the relative dynamic elastic modulus of the AASR foamed concrete gradually decreases, which indicates that freeze–thaw will aggravate the internal damage of the AASR foamed concrete, because the expansion of water freezing in the pores will increase the water pressure in the pores until the tensile strength is reached and the internal pores of the test block freeze and crack. Under the same freeze–thaw cycles, the relative dynamic elastic modulus of AASR foamed concrete decreases with the increase in the RCP content. The relative dynamic elastic modulus of AASR0, AASR10, AASR20, AASR30, AASR40, and AASR50 are 70.8%, 66.3%, 48.5%, 40.2%, 30.8%, and 24.64%, respectively, after 25 freeze–thaw cycles. According to JGJ/T 341-2014 [31], the relative dynamic elastic modulus of the AASR foamed concrete with 20–50% RCP content has decreased to less than 60% after 25 freeze–thaw cycles, which can be regarded as having been damaged by freeze–thaw, which is consistent with the result of mass loss.

4. Conclusions

In this study, RCP and slag are used as the main cementitious materials to prepare AASR foamed concrete with a density of 500 kg/m3. The main conclusions are as follows:
(1)
The fluidity and softening coefficient of the AASR foamed concrete decrease with the increase in the RCP content and its fluidity ranges from 230 mm to 270 mm. Due to the porous structure of the RCP, the water absorption of the AASR foamed concrete increased.
(2)
With the increase in the curing age, the strength of the AASR foamed concrete increases. The addition of RCP reduces the mechanical properties of the AASR foamed concrete; in particular, the larger the amount of RCP, the more obvious the downward trend. Although the addition of RCP reduces the compressive strength of the AASR foamed concrete, the 28 d compressive strength of the AASR foamed concrete under all RCP replacement rates still meets the standard value (0.6 MPa). According to the test results, this paper establishes a linear relationship between the compressive strength and flexural strength of the AASR foamed concrete under different RCP replacement rates, and the two have a high correlation.
(3)
The addition of RCP effectively reduced the thermal conductivity of the AASR foamed concrete, and when the RCP content was 50%, the thermal conductivity was the lowest, 0.119 W/(m·K); this is because RCP has irregular particles and high-water absorption capacity compared with slag, which will cause damage to the slurry foamed liquid film, leading to the increase in the irregular large holes in the specimen and the decrease in the hole wall compactness. With the increase in the RCP replacement rate, the porosity of the AASR foamed concrete increases, which is more obvious. At this point, due to the reduction in the slag, the hydration products decrease, the proportion of stable internal and external solid structures decreases, the efficiency of heat conduction decreases, and the thermal conductivity decreases.
(4)
The drying shrinkage of AASG foamed concrete can be improved by adding RCP, and the 28 d drying shrinkage value is the lowest when the amount of RCP is 30%, which is 15.6% lower than that of the control group. However, the drying shrinkage of AASR foamed concrete will increase slightly when the amount of RCP is too high, but it is still lower than the reference group; the frost resistance of the AASR foamed concrete decreases with the increase in the RCP content. When the recycled micropowder content exceeds 20%, after 25 freeze–thaw cycles, the mass damage rate of the AASR foamed concrete exceeds 5%, and the relative dynamic modulus of elasticity exceeds 60%, all of which have reached destruction.
This study primarily focused on the influence of the RCP replacement rate on the fluidity, water absorption, softening coefficient, compressive strength, flexural strength, thermal conductivity, drying shrinkage, and frost resistance of AASR foamed concrete. However, high-temperature resistance, carbonation, sulfate attack, and durability are also important factors affecting the performance of foamed concrete. Therefore, in future research, exploring the durability of AASR foamed concrete is necessary. Moreover, additional research is needed to improve the mechanical properties of the concrete due to the addition of RCP by utilizing fibers or nanomaterials.

Author Contributions

Conceptualization, D.Z., W.H. and Q.Y.; methodology, D.Z.; formal analysis, W.H. and D.Z.; resources, Q.Y.; writing—original draft preparation, D.Z. and W.H.; writing—review and editing, D.Z. and Q.Y.; supervision, D.Z.; project administration, Q.Y.; funding acquisition, Q.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the key research and development projects of Ningxia Province of China (Project No. 2019BFG02020, 2022BDE93016 and 2021BEG02014), First Class Discipline Construction in Ningxia Colleges and Universities (discipline of water conservancy engineering) (NXYLXK 2021A03).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Amran, Y.H.M.; Farzadnia, N.; Ali, A.A.A. Properties and applications of foamed concrete: A review. Constr. Build. Mater. 2015, 101, 990–1005. [Google Scholar] [CrossRef]
  2. Deepthi, Y.; Ambily, P.S.; Rao, H.S. Studies on Lightweight Geopolymer Concrete. Indian J. Eng. Mater. Sci. 2023, 30, 21–31. [Google Scholar] [CrossRef]
  3. Chica, L.; Alzate, A. Cellular concrete review: New trends for application in construction. Constr. Build. Mater. 2019, 200, 637–647. [Google Scholar] [CrossRef]
  4. Dang, J.; Zhao, S.; Chen, G.; Cao, X.; Yang, J. Effect of polyethylene powder and heating treatment on the microstructure and hardened properties of foam concrete. J. Build. Eng. 2022, 50, 104143. [Google Scholar] [CrossRef]
  5. Abdelgader, H.S.; Kurpinska, M.; Amran, M. Effect of slag coal ash and foamed glass on the mechanical properties of two-stage concrete. In Proceedings of the 3rd International Congress on Materials and Structural Stability (CMSS), Rabat, Morocco, 24–26 November 2021; pp. 1091–1097. [Google Scholar]
  6. Liu, P.; Wu, W.; Du, B.; Tian, G.H.; Gong, Y.F. Study on the heat and moisture transfer characteristics of aerogel-enhanced foam concrete precast wall panels and the influence of building energy consumption. Energy Build. 2021, 256, 111707. [Google Scholar] [CrossRef]
  7. Mydin, M.A.O.; Nawi, M.N.M.; Omar, R.; Khadimallah, M.A.; Ali, I.M.; Deraman, R. The use of inorganic ferrous-ferric oxide nanoparticles to improve fresh and durability properties of foamed concrete. Chemosphere 2023, 317, 137661. [Google Scholar] [CrossRef]
  8. Othuman Mydin, M.A.; Mohd Nawi, M.N.; Omar, R.; Dulaimi, A.; Najm, H.M.; Mahmood, S.; Sabri Sabri, M.M. Mechanical, durability and thermal properties of foamed concrete reinforced with synthetic twisted bundle macro-fibers. Front. Mater. 2023, 10, 1158675. [Google Scholar] [CrossRef]
  9. Liu, C.; Wang, C.; Xiao, W.; Wu, J.; Gao, M. Study on the performance of calcined spent waterglass foundry sand in alkali—Activated foam concrete. Constr. Build. Mater. 2023, 378, 131151. [Google Scholar] [CrossRef]
  10. Shi, J.; Liu, B.; He, Z.; Liu, Y.; Jiang, J.; Xiong, T.; Shi, J. A green ultra-lightweight chemically foamed concrete for building exterior: A feasibility study. J. Clean. Prod. 2021, 288, 125085. [Google Scholar] [CrossRef]
  11. Dhasindrakrishna, K.; Pasupathy, K.; Ramakrishnan, S.; Sanjayan, J. Progress, current thinking and challenges in geopolymer foam concrete technology. Cem. Concr. Compos. 2021, 116, 103886. [Google Scholar] [CrossRef]
  12. Rasmus, J.; Ohenoja, K.; Kinnunen, P.; Illikainen, M. Effect of green liquor dregs as an alkali source for alkali—Activated blast furnace slag mortar. Case Stud. Constr. Mater. 2023, 18, e01950. [Google Scholar] [CrossRef]
  13. Nag, M.K.; Kumar, P. Synthesis and Characterization of High-Performance Blended Alkali—Activated Geopolymer (FA/GBFS) from Industrial Wastes. Iran. J. Sci. Technol. Trans. Civ. Eng. 2023, 47, 2051–2071. [Google Scholar] [CrossRef]
  14. Lv, Y.; Wang, C.; Han, W.; Li, X.; Peng, H. Study of the Mechanical Properties and Microstructure of Alkali—Activated Fly Ash-Slag Composite Cementitious Materials. Polymers 2023, 15, 1903. [Google Scholar] [CrossRef]
  15. Su, L.; Fu, G.; Liang, B.; Sun, Q.; Zhang, X. Mechanical properties and microstructure evaluation of fly ash-Slag geopolymer foaming materials. Ceram. Int. 2022, 48, 18224–18237. [Google Scholar] [CrossRef]
  16. Mastali, M.; Kinnunen, P.; Isomoisio, H.; Karhu, M.; Illikainen, M. Mechanical and acoustic properties of fiber-reinforced alkali—Activated slag foam concretes containing lightweight structural aggregates. Constr. Build. Mater. 2018, 187, 371–381. [Google Scholar] [CrossRef]
  17. He, J.; Gao, Q.; Song, X.; Bu, X.; He, J. Effect of foaming agent on physical and mechanical properties of alkali—Activated slag foamed concrete. Constr. Build. Mater. 2019, 226, 280–287. [Google Scholar] [CrossRef]
  18. Guo, J.; Bao, Y.; Min, W. Steel slag in China: Treatment, recycling, and management. Waste. Manag. 2018, 78, 318–330. [Google Scholar] [CrossRef]
  19. Li, L.; Lu, J.; Shen, P.; Sun, K.; Pua, L.E.L.; Xiao, J.; Poon, C.S. Roles of recycled fine aggregate and carbonated recycled fine aggregate in alkali—Activated slag and glass powder mortar. Constr. Build. Mater. 2023, 364, 129876. [Google Scholar] [CrossRef]
  20. Muthuraman, U.; Raja, M.A.; Sophia, M.; Babu, O.G. Influence of silane treatment on the mechanical strength and durability of reactive powder concrete containing recycled fine aggregate. In Proceedings of the International Conference on Emerging Trends in Material Science and Technology (ICETMT), Bangalore, India, 10–11 February 2022; pp. 5444–5451. [Google Scholar]
  21. Janani, S.; Rampradheep, G.S.; Kulanthaivel, P.; Muruga, P.C. Eco-Efficient Concrete: A sustainable reutilization of Ceramic Tile Waste Powder (CTWP) as a partial replacement for cementitious material in a recycled fine aggregate concrete. J. Ceram. Process. Res. 2022, 23, 884–891. [Google Scholar] [CrossRef]
  22. Bian, Y.; Li, Z.; Zhao, J.; Wang, Y. Synergistic enhancement effect of recycled fine powder (RFP) cement paste and carbonation on recycled aggregates performances and its mechanism. J. Clean. Prod. 2022, 344, 130848. [Google Scholar] [CrossRef]
  23. Bu, C.; Tan, B.; Wu, Q.; Qiao, Y.; Sun, Y.; Yu, L.; Yang, Q. Activation Method and Reuse of Waste Concrete Powder—A Review. Sustainability 2023, 15, 5451. [Google Scholar] [CrossRef]
  24. Starzyk, A.; Rybak-Niedziolka, K.; Lacek, P.; Mazur, L.; Stefanska, A.; Kurcjusz, M.; Nowysz, A. Environmental and Architectural Solutions in the Problem of Waste Incineration Plants in Poland: A Comparative Analysis. Sustainability 2023, 15, 2599. [Google Scholar] [CrossRef]
  25. Rybak-Niedziolka, K.; Starzyk, A.; Lacek, P.; Mazur, L.; Myszka, I.; Stefanska, A.; Kurcjusz, M.; Nowysz, A.; Langie, K. Use of Waste Building Materials in Architecture and Urban Planning—A Review of Selected Examples. Sustainability 2023, 15, 5047. [Google Scholar] [CrossRef]
  26. Sharma, A.; Singh, P.; Kapoor, K. Utilization of recycled fine powder as an activator in fly ash based geopolymer mortar. Constr. Build. Mater. 2022, 323, 126581. [Google Scholar] [CrossRef]
  27. Liu, X.; Liu, E.; Fu, Y. Reduction in Drying Shrinkage and Efflorescence of Recycled Brick and Concrete Fine Powder-Slag-Based Geopolymer. Appl. Sci. 2023, 13, 2997. [Google Scholar] [CrossRef]
  28. Liu, M.; Wang, C.; Wu, H.; Yang, D.; Ma, Z. Reusing recycled powder as eco-friendly binder for sustainable GGBS-based geopolymer considering the effects of recycled powder type and replacement rate. J. Clean. Prod. 2022, 364, 132656. [Google Scholar] [CrossRef]
  29. Li, Z.; Bian, Y.; Zhao, J.; Wang, Y.; Yuan, Z. Recycled concrete fine powder (RFP) as cement partial replacement: Influences on the physical properties, hydration characteristics, and microstructure of blended cement. J. Build. Eng. 2022, 62, 105326. [Google Scholar] [CrossRef]
  30. JG/T 266-2011; Foamed Concrete. China Quality Inspection Press: Beijing, China, 2011.
  31. JGJ/T 341-2014; Technical Specification for Application of Foamed Concrete. China Architecture and Building Press: Beijing, China, 2014.
  32. GB/T 11969—2020; Test Methods of Autoclaved Aerated Concrete. China Quality Inspection Press: Beijing, China, 2020.
  33. GB/T17671—2021; Test Method of Cement Mortar Strength. China Quality Inspection Press: Beijing, China, 2021.
  34. Suzuki, T.; Ogata, H.; Takada, R.; Aoki, M.; Ohtsu, M. Use of acoustic emission and X-ray computed tomography for damage evaluation of freeze-thawed concrete. Constr. Build. Mater. 2010, 24, 2347–2352. [Google Scholar] [CrossRef]
  35. Sun, W.; Mu, R.; Lua, X.; Miao, C.W. Effect of chloride salt, freeze-thaw cycling and externally applied load on the performance of the concrete. Cem. Concr. Res. 2002, 32, 1859–1864. [Google Scholar] [CrossRef]
  36. Xiao, J.; Zhang, H.; Zou, S.; Duan, Z.; Ma, Y. Developing recycled foamed concrete for engineered material arresting system. J. Build. Eng. 2022, 53, 104555. [Google Scholar] [CrossRef]
  37. Liu, M.; Wu, H.; Yao, P.; Wang, C.; Ma, Z. Microstructure and macro properties of sustainable alkali—Activated fly ash mortar with various construction waste fines as binder replacement up to 100%. Cem. Concr. Compos. 2022, 134, 104733. [Google Scholar] [CrossRef]
  38. Alzeebaree, R.; Mawlod, A.O.; Mohammedameen, A.; Nis, A. Using of recycled clay brick/fine soil to produce sodium hydroxide alkali activated mortars. Adv. Struct. Eng. 2021, 24, 2996–3009. [Google Scholar] [CrossRef]
  39. Li, L.K.; Liu, Q.; Huang, T.Y.; Peng, W.Z. Mineralization and utilization of CO2 in construction and demolition wastes recycling for building materials: A systematic review of recycled concrete aggregate and recycled hardened cement powder. Sep. Purif. Technol. 2022, 298, 121512. [Google Scholar] [CrossRef]
  40. Topic, J.; Prosek, Z. Micronized Concrete Powder as Mircofiller in Cement Paste: Influence on Hydration and Structure. In Proceedings of the 11th Conference on Nano and Macro Mechanics (NMM), Prague, Czech Republic, 17 September 2020; pp. 109–113. [Google Scholar]
  41. Topic, J.; Prosek, Z. Hydration Process and Mechanical Properties of Cement Paste with Recycled Concrete Powder and Silica Sand Powder. In Proceedings of the 8th Nano and Macro Mechanics (NMM) Conference, Prague, Czech Republic, 21 September 2017; pp. 125–129. [Google Scholar]
  42. Abdollahnejad, Z.; Zhang, Z.; Wang, H.; Mastali, M. Comparative Study on the Drying Shrinkage and Mechanical Properties of Geopolymer Foam Concrete Incorporating Different Dosages of Fiber, Sand and Foam Agents. In Proceedings of the Fib Symposium on High Tech Concrete—Where Technology and Engineering Meet, Maastricht, The Netherlands, 12–14 June 2018; pp. 42–48. [Google Scholar]
  43. Yang, D.; Liu, M.; Ma, Z. Properties of the foam concrete containing waste brick powder derived from construction and demolition waste. J. Build. Eng. 2020, 32, 101509. [Google Scholar] [CrossRef]
  44. Ozcelikci, E.; Kul, A.; Gunal, M.F.; Ozel, B.F.; Yildirim, G.; Ashour, A.; Sahmaran, M. A comprehensive study on the compressive strength, durability-related parameters and microstructure of geopolymer mortars based on mixed construction and demolition waste. J. Clean. Prod. 2023, 396, 136522. [Google Scholar] [CrossRef]
  45. Zhang, S.; Qi, X.; Guo, S.; Zhang, L.; Ren, J. A systematic research on foamed concrete: The effects of foam content, fly ash, slag, silica fume and water-to-binder ratio. Constr. Build. Mater. 2022, 339, 127683. [Google Scholar] [CrossRef]
Materials 16 05728 g001

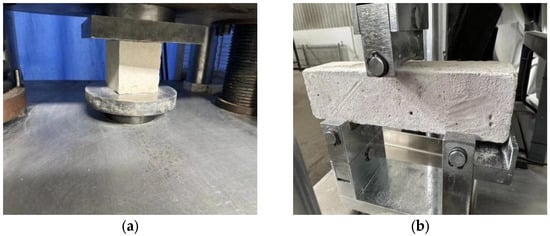

Figure 1. Measurement of mechanical properties of AASR foamed concrete, (a) Compressive strength test; (b) Flexural strength test.
Figure 1. Measurement of mechanical properties of AASR foamed concrete, (a) Compressive strength test; (b) Flexural strength test.
Materials 16 05728 g001
Materials 16 05728 g002

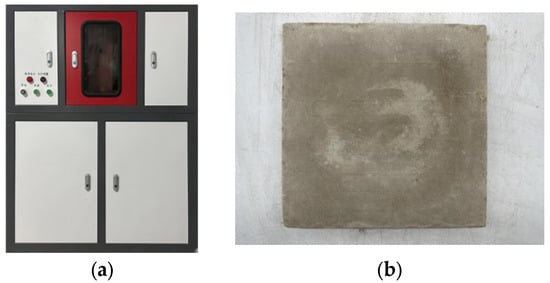

Figure 2. Thermal conductivity test of AASR foamed concrete, (a) Testing instrument; (b) The geometric shape of the sample.
Figure 2. Thermal conductivity test of AASR foamed concrete, (a) Testing instrument; (b) The geometric shape of the sample.
Materials 16 05728 g002
Materials 16 05728 g003

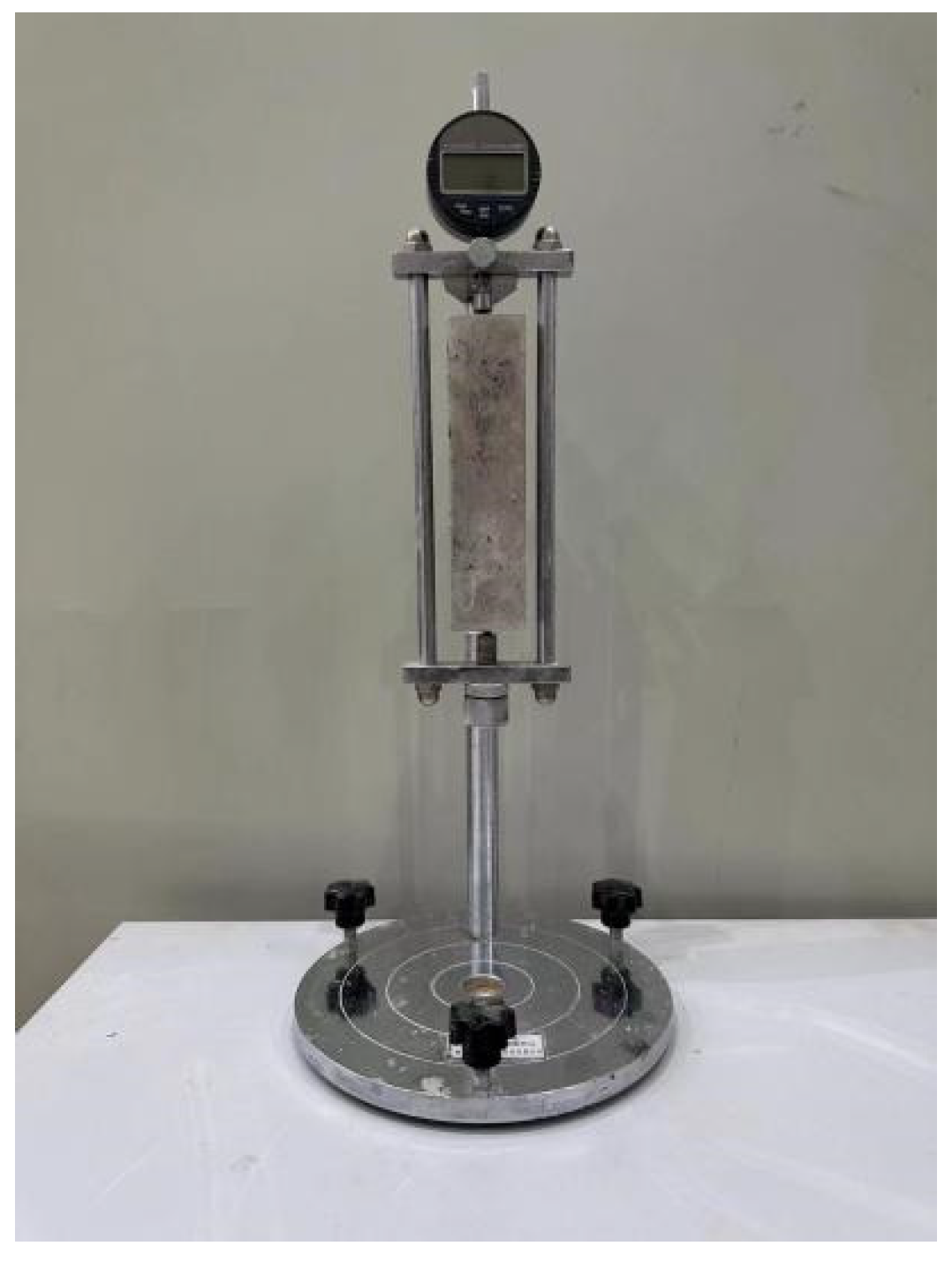

Figure 3. Drying shrinkage test of AASR foamed concrete.
Figure 3. Drying shrinkage test of AASR foamed concrete.
Materials 16 05728 g003
Materials 16 05728 g004

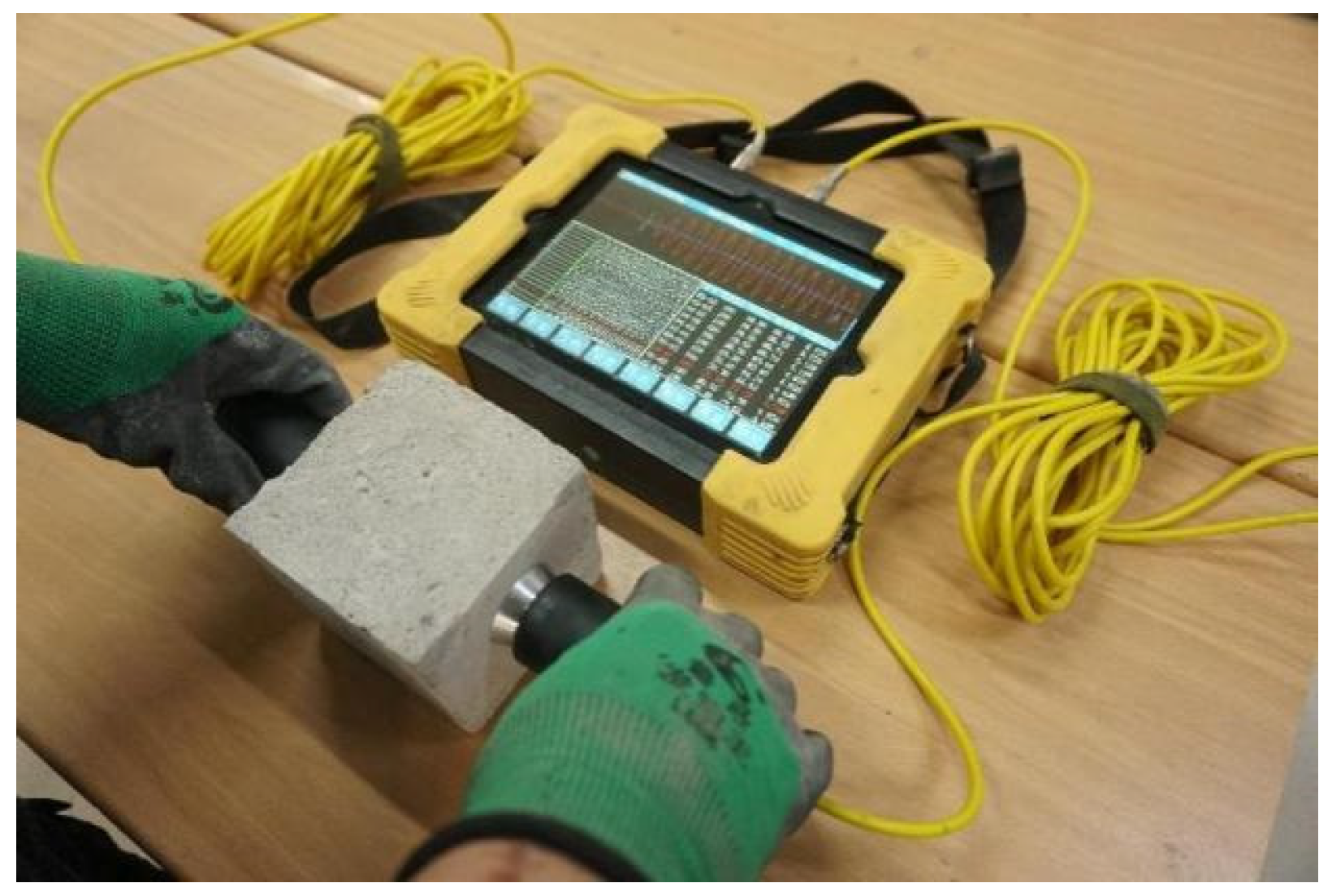

Figure 4. Ultrasonic wave velocity test of AASR foamed concrete.
Figure 4. Ultrasonic wave velocity test of AASR foamed concrete.
Materials 16 05728 g004
Materials 16 05728 g005

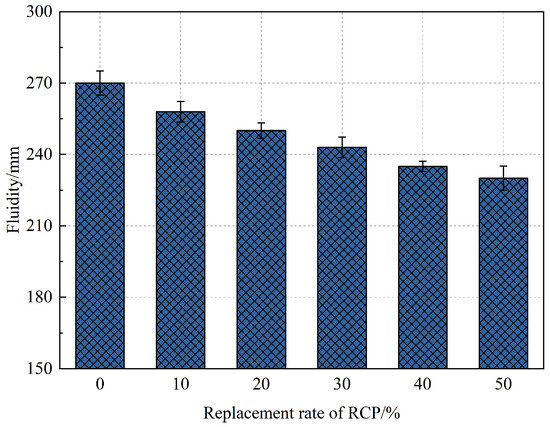

Figure 5. Effect of RCP contents on fluidity of AASR foamed concrete.
Figure 5. Effect of RCP contents on fluidity of AASR foamed concrete.
Materials 16 05728 g005
Materials 16 05728 g006

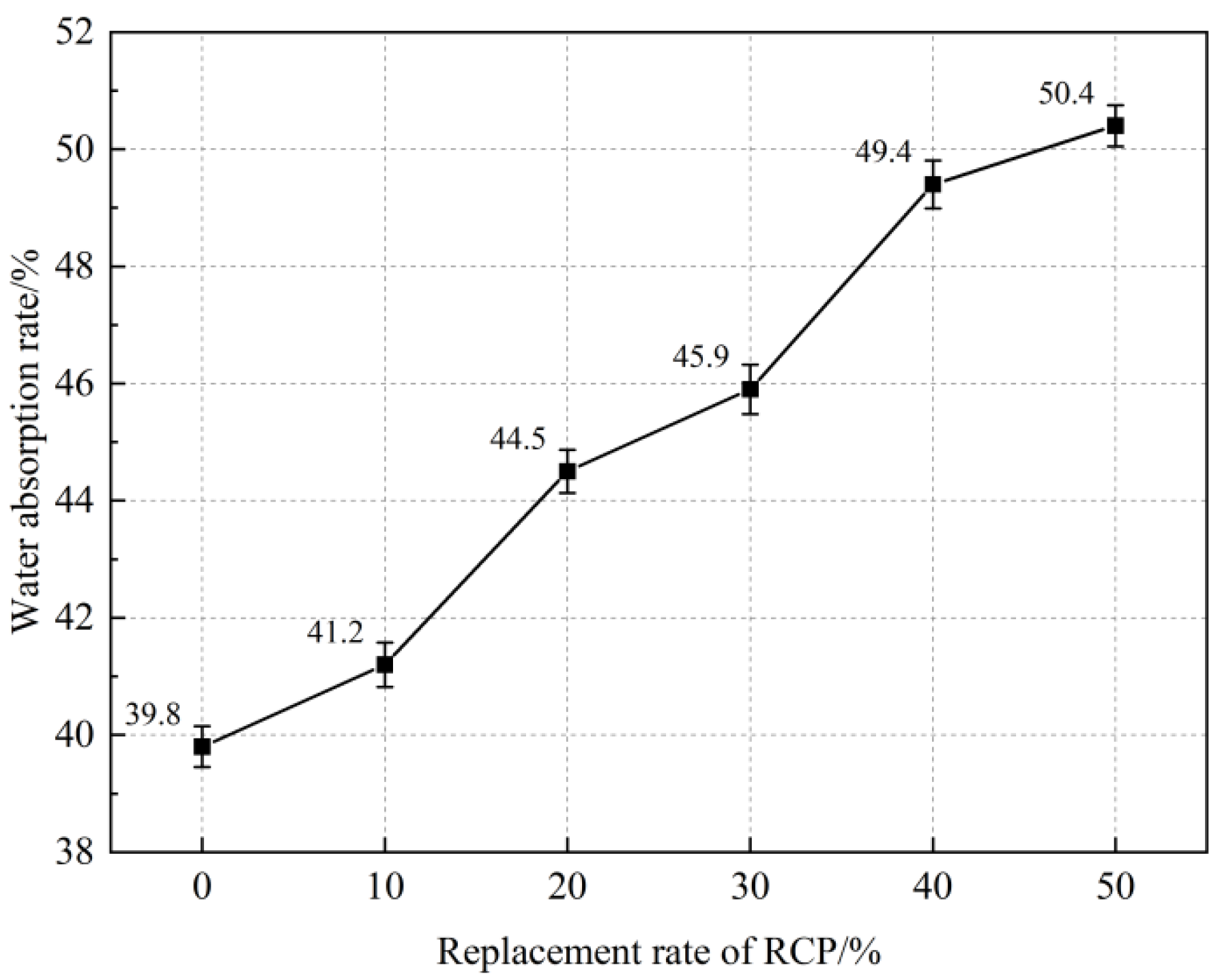

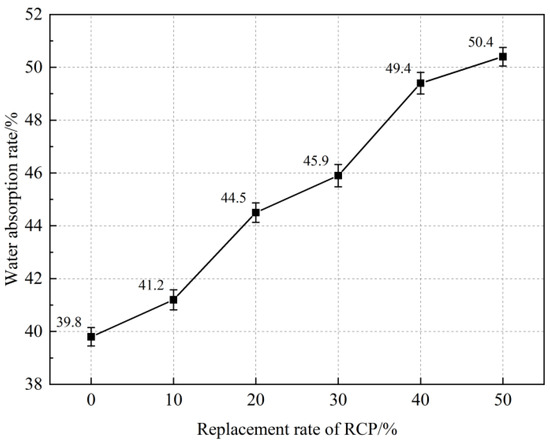

Figure 6. Water absorption of AASR foamed concrete with different RCP Contents.
Figure 6. Water absorption of AASR foamed concrete with different RCP Contents.
Materials 16 05728 g006
Materials 16 05728 g007

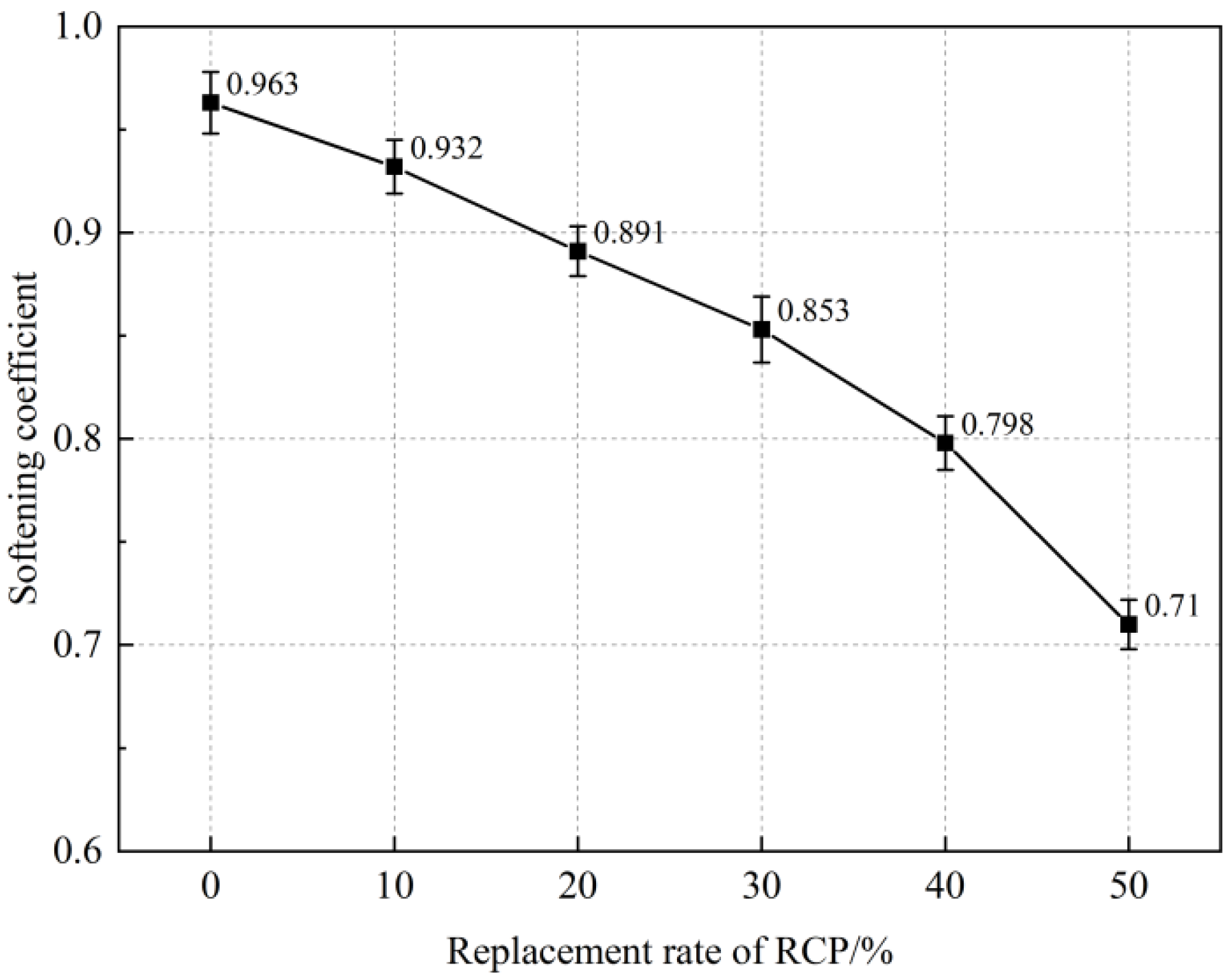

Figure 7. Softening coefficient of AASR foamed concrete with different RCP Contents.
Figure 7. Softening coefficient of AASR foamed concrete with different RCP Contents.
Materials 16 05728 g007
Materials 16 05728 g008

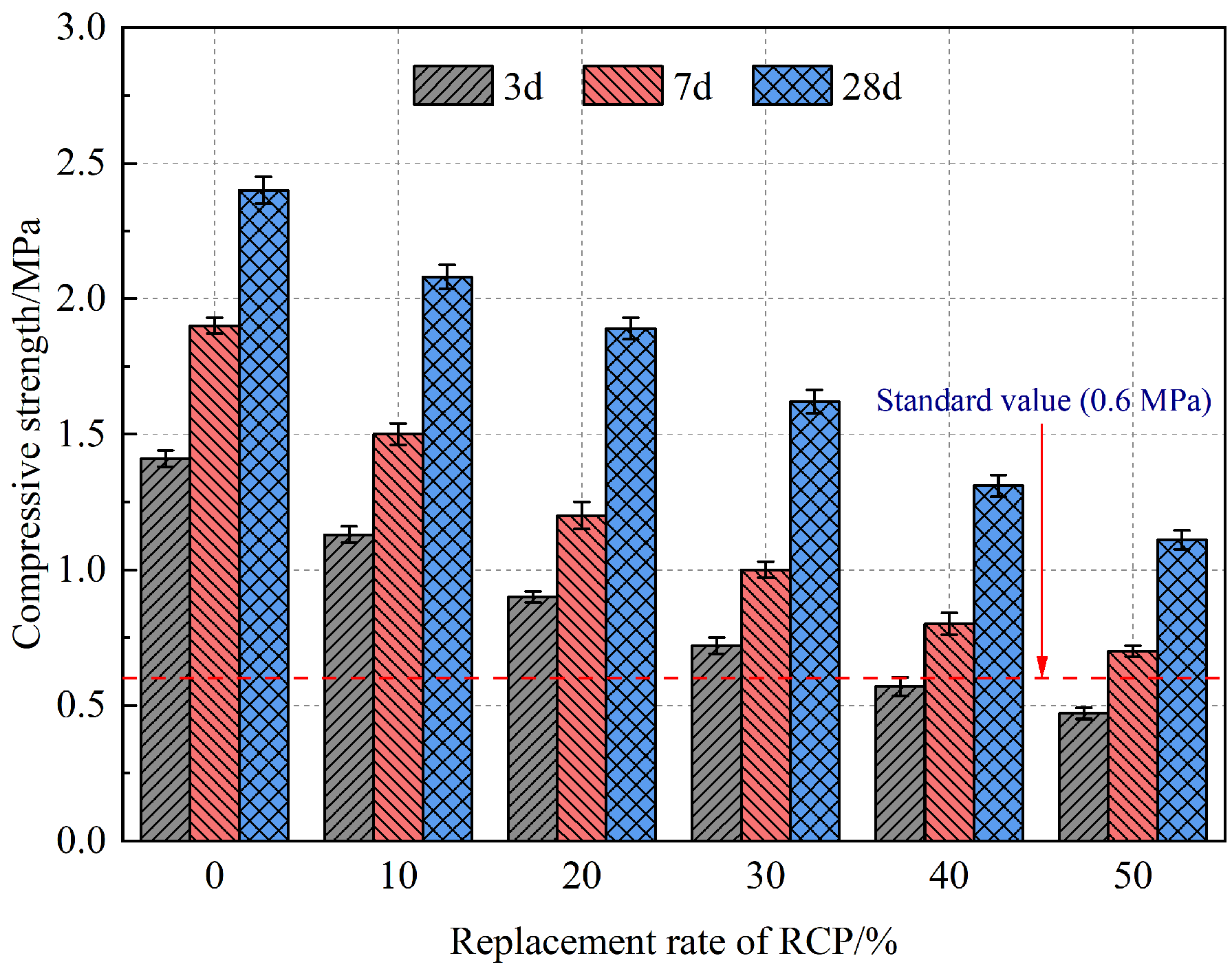

Figure 8. Compressive strength of AASR foamed concrete with different RCP Contents.
Figure 8. Compressive strength of AASR foamed concrete with different RCP Contents.
Materials 16 05728 g008
Materials 16 05728 g009

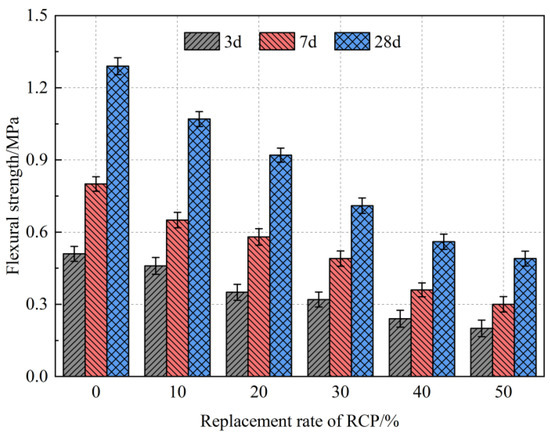

Figure 9. Flexural strength of AASR foamed concrete with different RCP Contents.
Figure 9. Flexural strength of AASR foamed concrete with different RCP Contents.
Materials 16 05728 g009
Materials 16 05728 g010

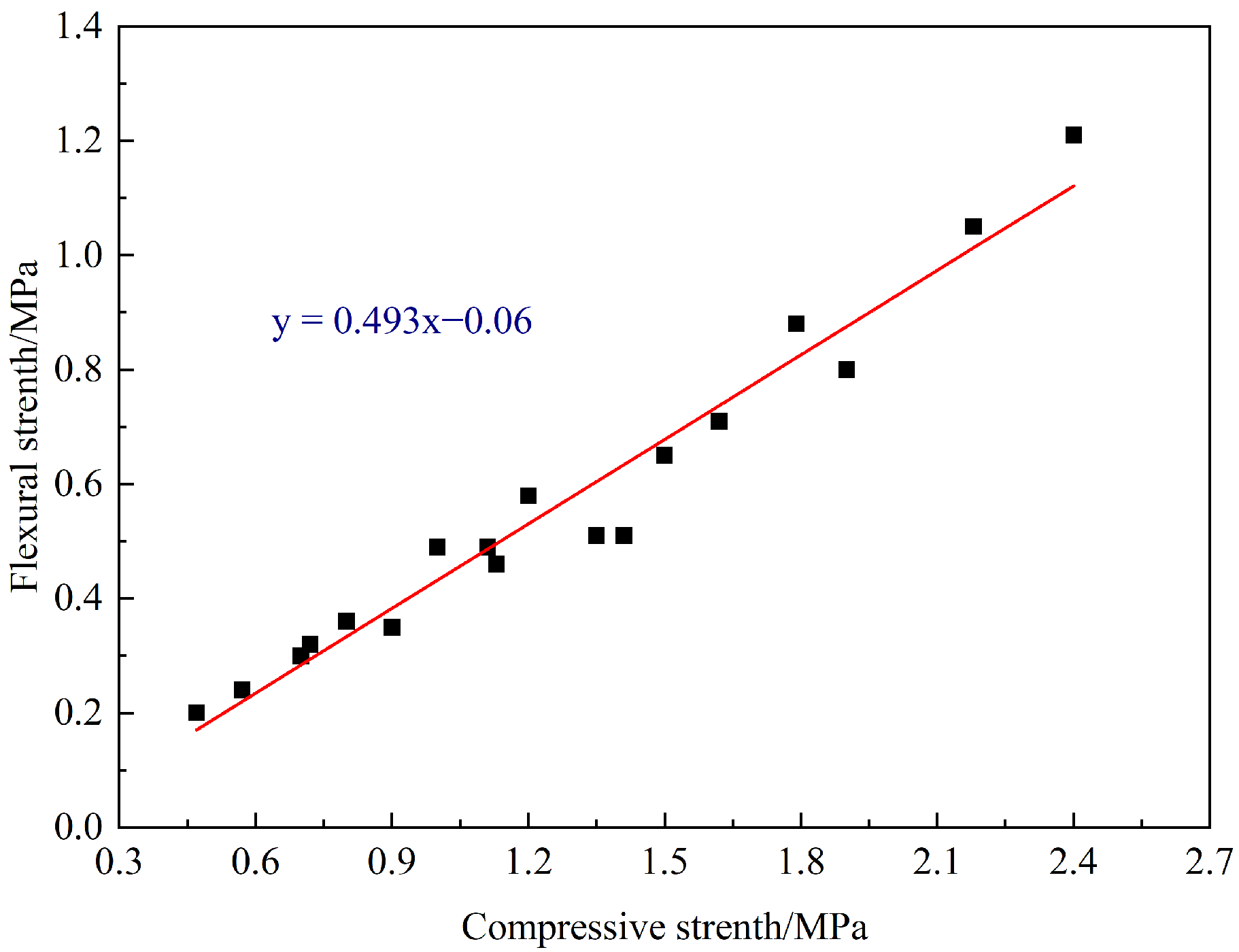

Figure 10. Linear fitting of AASR foamed concrete compressive strength and flexural.
Figure 10. Linear fitting of AASR foamed concrete compressive strength and flexural.
Materials 16 05728 g010
Materials 16 05728 g011

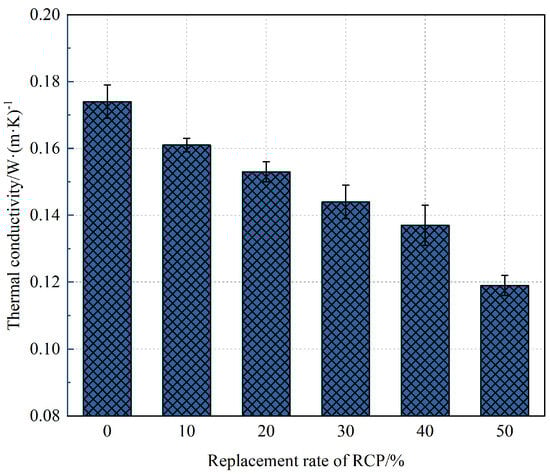

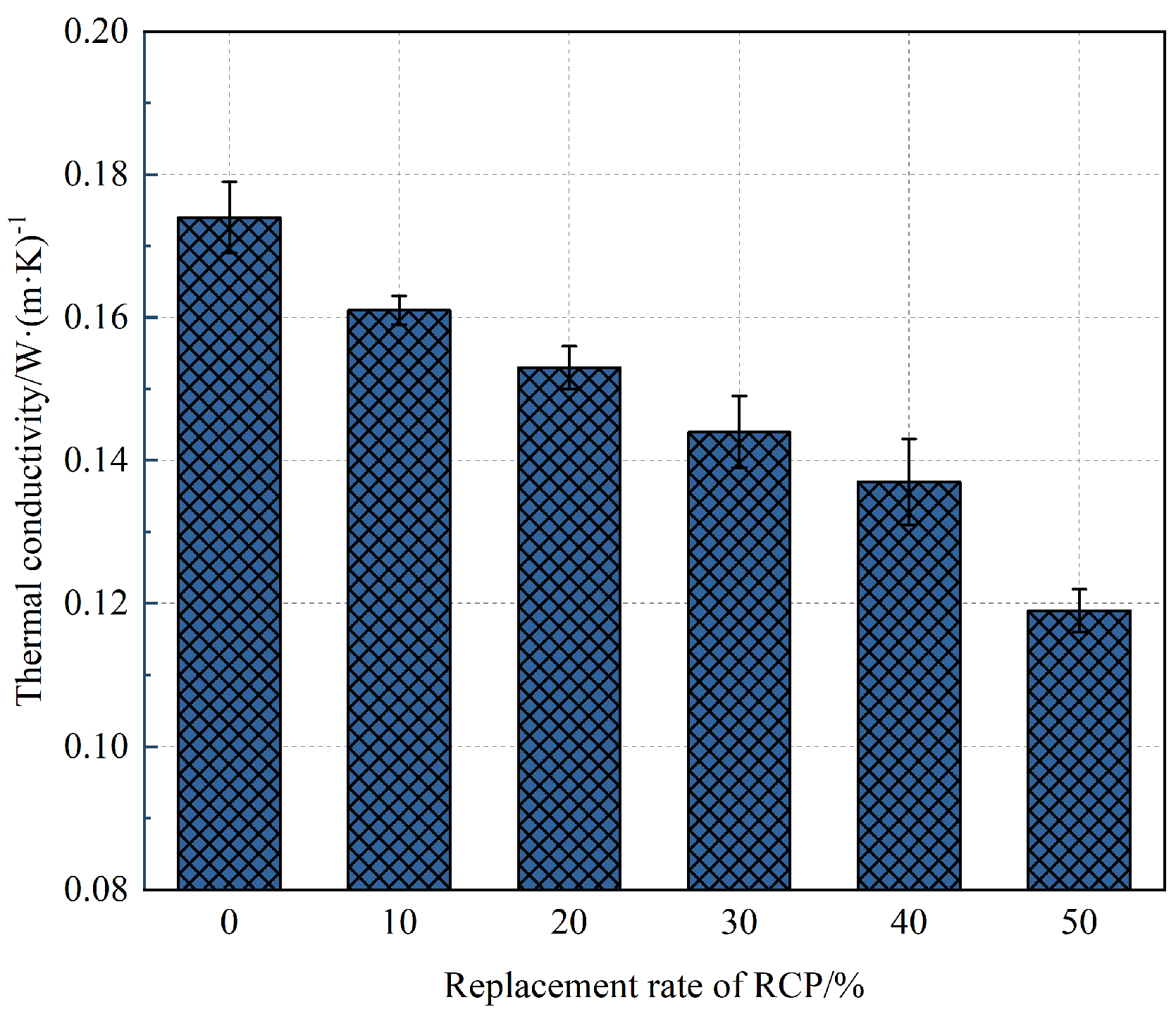

Figure 11. Thermal conductivity of AASR foamed concrete with different RCP Contents.
Figure 11. Thermal conductivity of AASR foamed concrete with different RCP Contents.
Materials 16 05728 g011
Materials 16 05728 g012

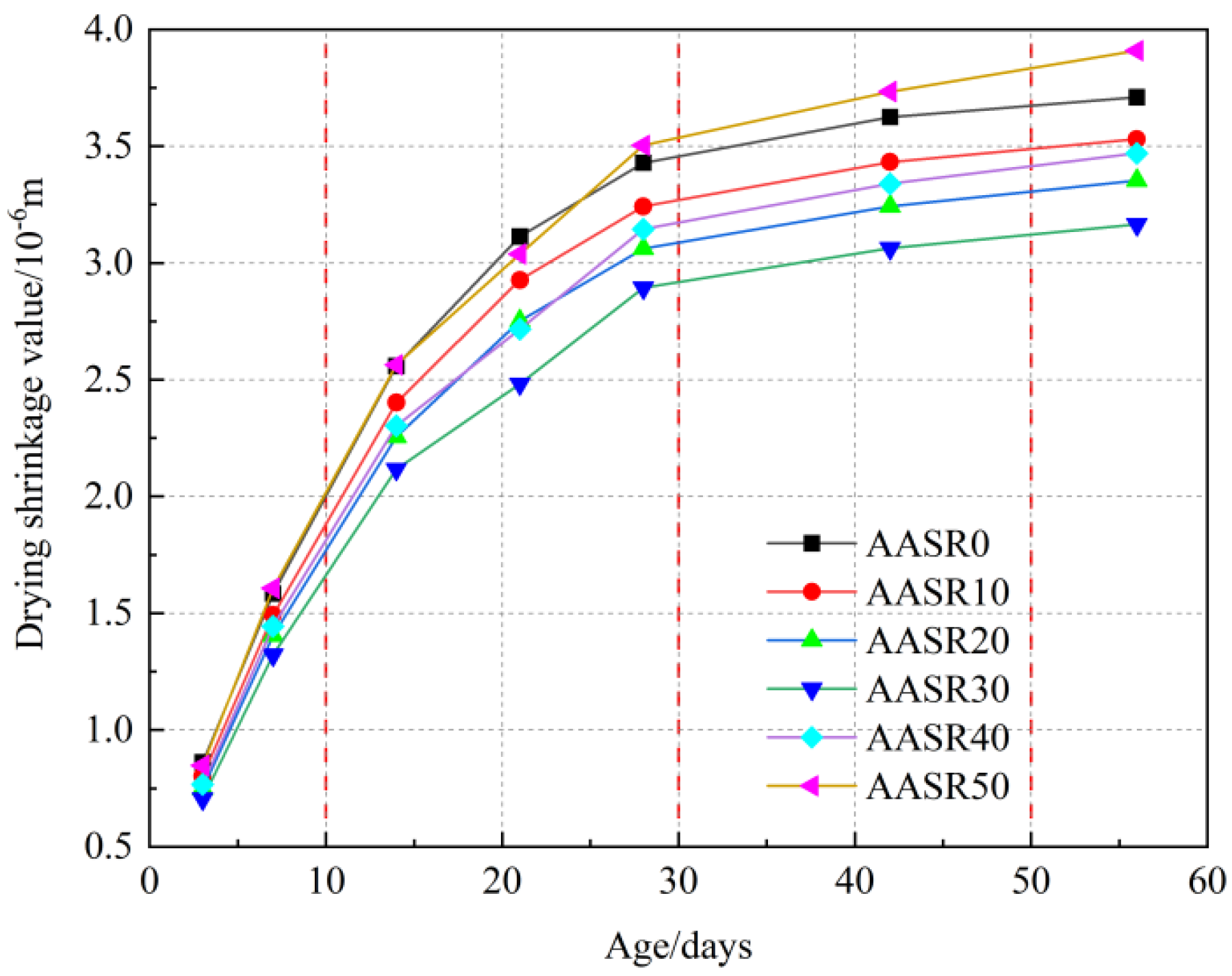

Figure 12. Drying shrinkage of AASR foamed concrete with different RCP Contents.
Figure 12. Drying shrinkage of AASR foamed concrete with different RCP Contents.
Materials 16 05728 g012
Materials 16 05728 g013

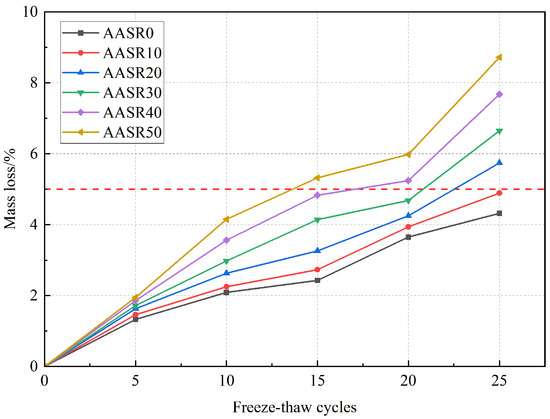

Figure 13. Effect of RCP contents on AASR foamed concrete mass loss under different freeze–thaw cycles.
Figure 13. Effect of RCP contents on AASR foamed concrete mass loss under different freeze–thaw cycles.
Materials 16 05728 g013
Materials 16 05728 g014

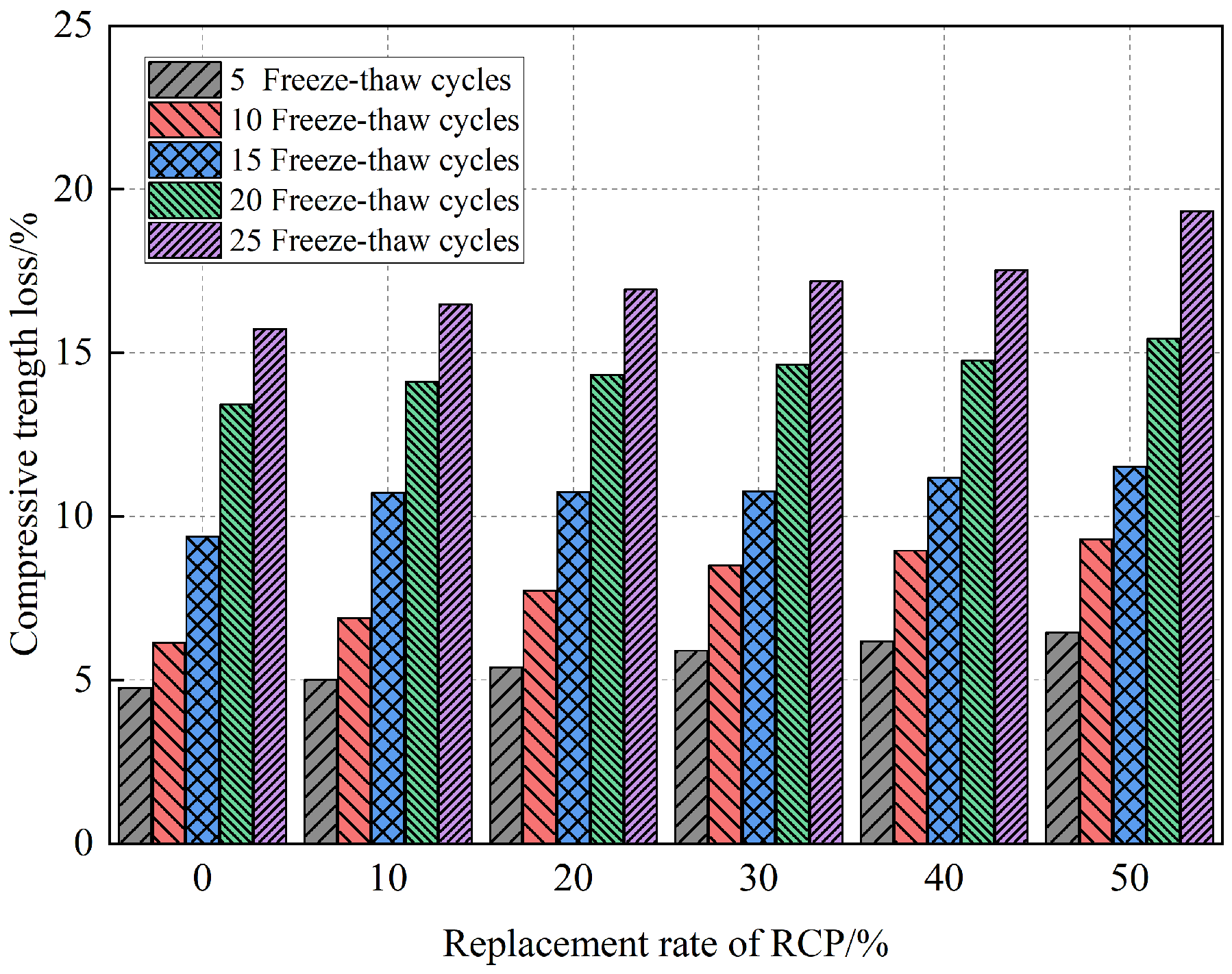

Figure 14. Effect of RCP contents on AASR foamed concrete compressive strength loss under different freeze–thaw cycles.
Figure 14. Effect of RCP contents on AASR foamed concrete compressive strength loss under different freeze–thaw cycles.
Materials 16 05728 g014
Materials 16 05728 g015

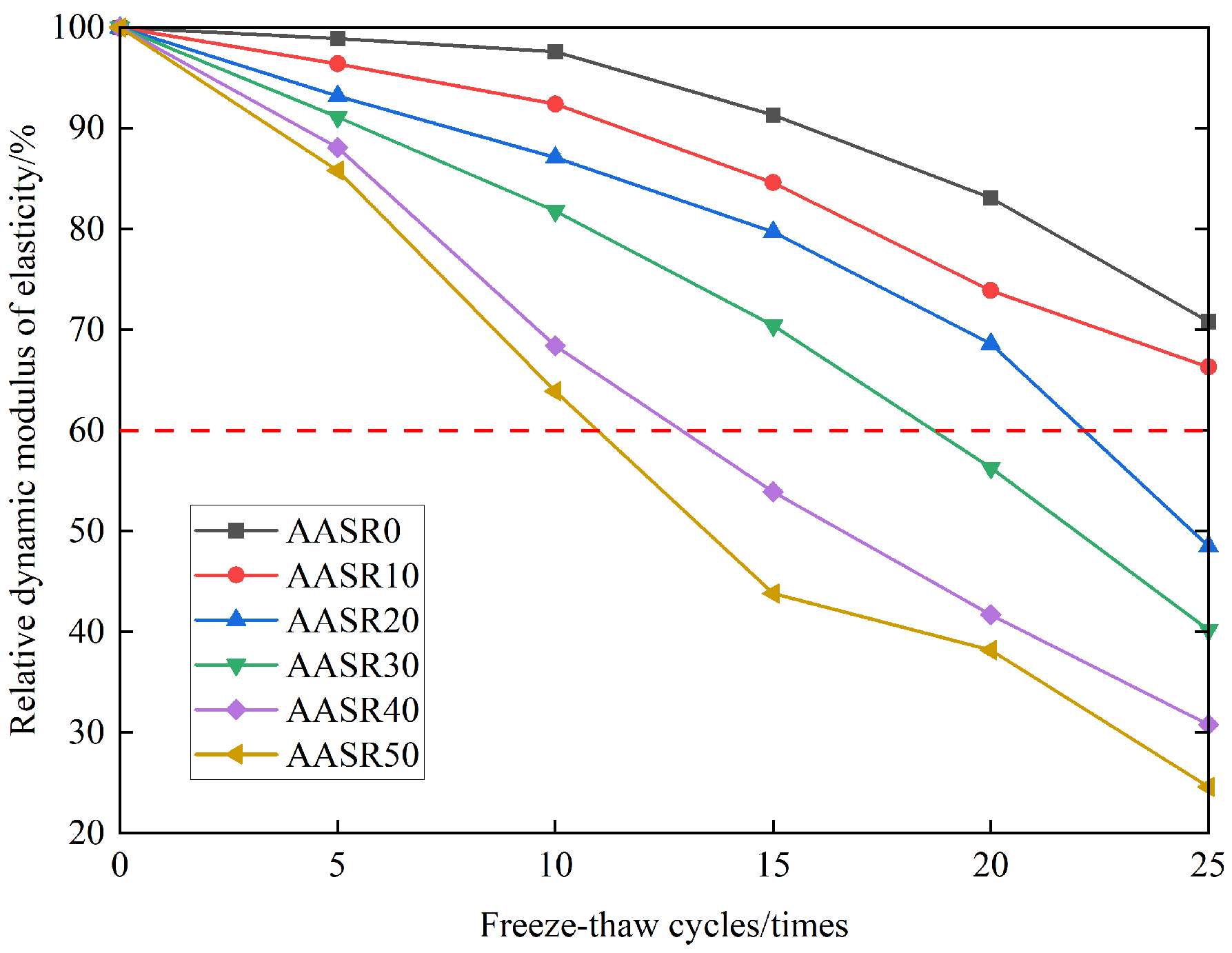

Figure 15. Effect of RCP contents on AASR foamed concrete relative dynamic modulus of elasticity under different freeze–thaw cycles.
Figure 15. Effect of RCP contents on AASR foamed concrete relative dynamic modulus of elasticity under different freeze–thaw cycles.
Materials 16 05728 g015
Table 1. Chemical properties of slag and RCP.
Table 1. Chemical properties of slag and RCP.
CompositesSiO2Al2O3CaOFe2O3MgOTiO2Na2O
Slag28.714.838.10.4210.61.141.78
RCP40.17.4539.03.156.180.360.96
Table 2. Mix proportions of AASR (kg/m3).
Table 2. Mix proportions of AASR (kg/m3).
GroupSlagRCPAlkaline ActivatorWaterFoamBulk Density
AASR0375.0085.7123.7102.3546.5
AASR10341.333.785.7123.7102.3537.3
AASR20307.567.585.7123.7102.3525.2
AASR30273.7101.385.7123.7102.3510.3
AASR40240.0135.085.7123.7102.3489.8
AASR50206.3168.785.7123.7102.3470
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, D.; Hao, W.; Yang, Q. Experimental Study on the Application of Recycled Concrete Waste Powder in Alkali-Activated Foamed Concrete. Materials 2023, 16, 5728. https://doi.org/10.3390/ma16175728

AMA Style

Zhang D, Hao W, Yang Q. Experimental Study on the Application of Recycled Concrete Waste Powder in Alkali-Activated Foamed Concrete. Materials. 2023; 16(17):5728. https://doi.org/10.3390/ma16175728

Chicago/Turabian Style

Zhang, Dongsheng, Weiwei Hao, and Qiuning Yang. 2023. "Experimental Study on the Application of Recycled Concrete Waste Powder in Alkali-Activated Foamed Concrete" Materials 16, no. 17: 5728. https://doi.org/10.3390/ma16175728

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
