A Water-Stable Zn-MOF Used as Multiresponsive Luminescent Probe for Sensing Fe3+/Cu2+, Trinitrophenol and Colchicine in Aqueous Medium

by
Xiaojing Zhou
,
Lili Liu
,
Yue Niu
,
Mingjun Song
,
Yimin Feng
,
Jitao Lu
* and
Xishi Tai
*
School of Chemical & Chemical Engineering and Environmental Engineering, Weifang University, Weifang 261061, China
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(19), 7006; https://doi.org/10.3390/ma15197006
Submission received: 6 September 2022 / Revised: 4 October 2022 / Accepted: 6 October 2022 / Published: 9 October 2022
(This article belongs to the Special Issue Applications of Advanced Nanomaterials in Sensor Devices)
Browse Figures
Review Reports Versions Notes

Abstract

:
A water-stable Zn-MOF was constructed based on H2PBA and 1, 10-phenanthroline under solvothermal conditions. The compound exhibited a 3D (2,3,8)-connected (43)2(46.66.815.12)(8) topology framework. The crystal structure and phase purity of the compound was verified by single crystal X-ray diffraction. Subsequently, some studies on the morphology, structure, and luminescent properties were carried out. The results showed that this compound could be used as a versatile chemosensor for Fe3+/Cu2+, trinitrophenol and colchicine via a luminescence quenching effect in an aqueous medium.

Graphical Abstract

1. Introduction

In the past decades, the rapid growth of industry and population has increased the demand for clean water everywhere, which has therefore become a vital area of research [1,2,3]. Water pollution including heavy metals ions, anions, organics, antibiotic, dyes and explosives are harmful to human health and the ecological environment. Therefore, considerable attention should be focused on the detection and assessment of water pollution by sensitive and reliable sensors.
Fe3+ and Cu2+ are two well-known important ions, in which Fe3+ is essential for the human body; excess or the deficiency of Fe3+ results in various health problems such as Alzheimer’s disease, hemochromatosis, diabetes, etc. [4,5]; meanwhile, Cu2+ plays an important role in all living organisms and is vital to their health; however, an excessive intake of Cu2+ will cause an imbalance in the cellular processes and leads to increased blood pressure, and damage to the kidneys and liver [6]. As a consequence, it is highly desirable to detect Fe3+ and Cu2+ for human health. Meanwhile, colchicine has been discovered to inhibit many inflammatory processes, it is a toxic natural product which is originally extracted from plants of the genus Colchicum; even trace amount of colchicine may cause emesis, kidney failure, diarrhea, and bone marrow suppression to human beings, colchicine is also a classical drug for treating gout, spontaneous inflammation, liver cirrhosis [7,8].
On the other hand, nitroaromatics are highly toxic and strongly explosive; the detection of these explosive nitroaromatics is of great significance to human security, anti-terrorism handling and environmental protection. Among the nitroaromatics, as a kind of vital chemical raw material, trinitrophenol (TNP) has been extensively used in the area of explosives, papermaking, medicines, and textiles. However, the discharge of trinitrophenol into the environment may cause male infertility, anemia, and other severe health problems. Therefore, it is urgent to find an effective and rapid technique to detect these pollutants [9,10,11,12,13].
Up to now, numerous monitoring and detection techniques have been employed for sensing metal ions, trinitrophenol or colchicine in recent years, such as atomic absorption apectroscopy, raman spectroscopy, inductively coupled plasma-mass spectrometry, ion mobility spectrometry, electrochemical methods, etc. [14,15]. These detecting procedures are time consuming, requiring sophisticated sample preparation methods. In comparison, the luminescence sensor has recently become very efficient in terms of its convenient visual detection. Meanwhile, fewer reports involving the fluorescence detection of colchicine. Hence, it may help to pave the way for fluorescence detection of toxic contaminants in water systems [16,17].
Metal organic frameworks (MOFs) have been widely studied owing to their potential applications in various fields such as gas storage and separation, food safety, sensing, catalysis and drug delivery [18,19,20,21,22,23,24]. Among them, luminescent MOFs (LMOFs) have been widely investigated in the area of chemical sensing due to their outstanding luminescent properties. For instance, Li et al. reported the first high LMOF for detecting trace amounts of nitroaromatics in the vapor phase; Zhao and co-workers synthesized an anionic In-MOF which is the first example of a MOF-based luminescent probe to detect colchicine; Li and Zhang et al. constructed a robust Tb(III)-MOF for the highly sensitive sensing of Cu2+ and nitromethane. These results show that MOFs can act as effective fluorescent probes for sensing metal ions, nitroaromatics or colchicine [25,26].
At the same time, most of the LMOFs were exploited in organic solvent systems but not in a water system, because of their poor water stability, which limits their practical application. Up to now, only a few of the MOF-based sensors reported can maintain their stability in water. Therefore, there is an urgent need to develop new chemically stable LMOFs for the selective and fast detection of metal ions, nitroaromatics or colchicine in water systems [27].
In this work, we chose Zn2+ as the metal source as the d10 transition metal ion, as it is useful to construct LMOFs with unique photophysical properties [28,29,30,31].
Based on the above consideration, in this study, we present a fluorescent Zn-MOF, Zn4(PBA)3(OH)2(DMF) under solvothermal conditions which can be utilized as multifunctional material for sensing Fe3+/Cu2+, trinitrophenol and colchicine in aqueous medium with high sensitivity. The crystal structure was characterized by IR spectroscopy, thermogravimetric, single-crystal, powder X-ray diffraction methods. Furthermore, the luminescent property and sensing behavior of Fe3+/Cu2+, trinitrophenol, colchicine for the Zn-MOF in water was also investigated in detail. It is shown that the Zn-MOF can be used as effective fluorescence sensor for sensing Fe3+/Cu2+, trinitrophenol and colchicine. Moreover, the quenching mechanism is also discussed briefly.

2. Physical Measurements

FT-IR spectra were collected on a Nicolet impact 410 FTIR spectrometer from USA nicolet corporation with KBr pellet in the 400–4000 cm−1 region. Solvothermal reaction was performed in 15 mL Teflon-lined stainless steel autoclave.
Elemental analyses for C, H, N were performed on a Perkin-Elmer 2400 element analyzer from USA Perkin-Elmer corporation. Powder X-ray diffraction measurement data were collected on a Rigaku D/max 2550 X-ray Powder Diffractometer from Japan Rigaku corporation (Table 1). TGA was performed using a TGA Q500 V20.10 Build 36 from USA Ta instruments corporation, which was collected from room temperature to 800 °C at a heating rate of 10 °C/min in a flowing N2 atmosphere. UV-Vis spectra were acquired from a TU-1900 spectrometer from Beijing puxi general instruments corporation at room temperature. Luminescent spectra were obtained on the FLS920 spectrofluorometer from Edinburgh company of UK, both the excitation and emission pass width were 2.0 nm.

3. Synthesis of the Compound

Zinc(II) nitrate hexahydrate (29.7 mg from Sinopharm, 99.99%), 3,5-Pyridinedicarboxylic acid (8.4 mg), and 1,10-phenanthroline (15.6 mg), DMF (5 mL) were mixed in a 15 mL autoclave and kept in an oven at 100 °C for 72 h; this was then allowed to cool to room temperature, octahedral crystals were collected and washed with DMF, followed by drying at 60 °C. Yield 58% (based on 3,5-Pyridinedicarboxylic acid), IR (KBr 4000–400 cm−1) 3435 (w), 3055 (w), 1643 (s), 1614 (s), 1522 (m), 1434 (m), 1280 (m), 1146 (w), 1029 (w), 846 (m), 767 (m), 737 (m), 641 (w), 587 (l). Elemental analysis (%): Calcd for: C24H18N4O16Zn4: C 32.7 H 2.0 N 7.73; found: C 32.53 H 1.96 N 7.65.
Table
Table 1. Crystallographic data and structure refinement summary for the compound.
Table 1. Crystallographic data and structure refinement summary for the compound.
CompoundZn-MOF
Molecular formulaC24H18N4O16Zn4
Formula weight879.82
Crystal systemMonoclinic
Space groupC 2/c
a, Å26.7137(7)
Β, Å11.1860(3)
c, Å19.7493(5)
α90
β132.56
γ90
V, Å34347.1(2)
Z4
Dcalc, g/cm31.260
F(000)1632.0
GoF1.057
R1, wR2 [I > 2σ(I)] a,bR1 = 0.036,
wR2 = 0.1029
R1, wR2 (all data)R1 = 0.0435
wR2 = 0.1059
aR1 = ||Fo| − |Fc||/Σ|F|o. b wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2. w = 1/ [σ2(Fo2) + (ap)2 + (bp)], p = [max(Fo2 or 0) + 2(Fc2)]/3. a = 0.0540, b = 19.106.

4. Crystal Structure of the Compound

Crystallographic study revealed that the compound crystallized in space group C2/c and its asymmetric unit contained two Zn centers, one and a half 3, 5-Pyridinedicarboxylate groups, one hydroxide(OH−) anion and one coordinated water molecule (Figure S1). There were two kinds of Zn coordination modes, Zn1 was hexacoordinated by one hydroxide anion, three oxygen atoms from three PBA2− ligands, and one nitrogen atom from one PBA2− ligand, one water molecule, Zn2 adopted a pentagonal geometry, coordinated by three oxygen atoms from three different PBA2− molecules (Figure 1), the Zn-O distances were from 1.928(13) to 2.151(4) Å, the Zn-N bond length was 2.170(3) Å (Table S1). The PBA2− ligands showed two different coordination modes (La and Lb) (Figure S2). Each carboxylate group adopted µ2-η1:η1 bidentate mode, the hydroxide anion showed a µ2- bridging mode to coordinate to one Zn(1) and one Zn(2) center. To describe the extended framework of the compound, it was noted that two Zn(1) and Zn(2) centers are held together by two µ2-OH and six carboxylate groups from six PBA2− ligands to form a tetranuclear zinc cluster, {Zn4(OH)2(CO2)6}, which was further connected by eight PBA2− ligands to construct a 3D framework (Figure 2). From the topological viewpoint, La could be considered as a 3-connected node, while Lb could be defined as a linker and the [Zn4(COO)8] cluster could be viewed as an 8-connected node. Thus, the overall structure of this compound was a 3D (2,3,8)-connected framework with (43)2(46.66.815.12)(8) topology (Figure 3). Topological classification with the TOPOS TTD collection revealed that such a net has never been found in coordination polymers. The solvent accessible volume of the compound was estimated to be 48.7% of the total unit cell volume by using PLATON software.

5. Luminescent Emission

The solid state fluorescent properties of the compound and H2PBA were investigated, as shown in Figure S3. H2PBA (λex = 320 nm) obtained the maximum emission peak at 377 nm, which can be attributed to the π*-π transitions of the conjugate structure, and the compound obtained the maximum emission peaks at 370 nm, 387 nm (λex = 320 nm), which can be attributed to MLCT or LMCT process.
The fluorescent response of the compound towards various solvents was investigated to verify their luminescent character, DMF, DMA, DMSO, NMP (N-Methyl-2-pyrrolidone), ethanol, acetonitrile, methanol, ethyl acetate, ethylene glycol and H2O were selected in this work. Basically, 3 mg of the compound was well dispersed in 3 mL solvent and ultrasonicated for 30 min (3 mg/3 mL), leading to stable suspensions. As shown in Figure 4, the fluorescence intensities of the compound were highly depended on the solvents (λex = 320 nm); notably, in H2O, the compound demonstrated the strongest fluorescence emission, thus, H2O was chosen as the dispersed solvent to find the potential fluorescence information.
To explore whether the compound could detect metal ions, 3 mg samples of the compound were sonicated in 3 mL M(NO3)x water solution (0.01 M) (M = Al3+, Cd2+, Cr3+, Cu2+, Fe3+, K+, Mn2+, Na+, Pb2+, Zn2+) for 30 min to give uniform suspensions (3 mg/3 mL). The luminescence intensities of the suspensions were measured, as illustrated in Figure 5, the luminescence intensities were heavily dependent on the metal ions (λex = 320 nm). Among them, Fe3+ and Cu2+ showed the most significant quenching effect. To explore the water stability of the compound, the as-synthesized sample was immersed in distilled water for 24 h. As illustrated in Figure S4, the PXRD pattern of this compound still remained stable. Meanwhile, the PXRD of the compound was measured after sensing the metal ions which retained their structural integrity (Figure S5).
In order to evaluate the sensing sensitivity of the compound towards Fe3+/Cu2+, 5 × 10−3 M Fe3+ or Cu2+ was gradually added to the compound (3 mg) in 3 mL distilled water (3 mg/3 mL) for fluorescence titration experiments (λex = 320 nm). With the increased volume of Fe3+/Cu2+ for the compound, the fluorescence intensity decreased continuously (Figure 6 and Figure 7). This quenching effect was analyzed by linear Stern-Volmer (S-V) equation: I0/I = 1 + Ksv [M], where Ksv and [M] refer to the quenching constant and the concentration of metal ions, I0 represents the initial fluorescence intensity, and I denotes the intensities after the addition of Fe3+ or Cu2+. The Stern-Volmer plots for Fe3+ or Cu2+ were nearly linear with a correlation coefficient of 0.95, 0.97 for the compound, and the slope of Ksv was calculated to be 3.64 × 104 M−1, 6.83 × 103 M−1 (Figures S6 and S7), which was higher than some reported results [32,33,34]. According to the equation of LOD = 3σ/k, the limits of detection of Fe3+ and Cu2+ were 1.95 mM, 10.4 mM respectively, and the results indicated that the compound could be use as sensitive luminescence probe toward Fe3+/Cu2+. The presence of Fe3+/Cu2+ aqueous solution almost completely quenched the luminescence intensity of the compound for the given metal ions (Figures S8 and S9).
To trace their potential for nitroaromatic detection, the fluorescence characteristics for the compound were studied. The nitroaromatics, used in this work included 2,4-nitrotoluene (2,4-NT), 2-nitrotoluene (2-NT), trinitrophenol (TNP), 2,4,6-trinitrotoluene (TNT), 4-nitrotoluene (p-NT), nitrotoluene (NT). Upon incremental addition of the nitroaromatic aqueous solutions (1 mM), gradual quenching of the fluorescence intensities at 383 nm of the compound were observed (λex = 320 nm), whereas very remarkable levels of fluorescence quenching were observed through the gradual addition of trinitrophenol aqueous solution (Figure 8).
To further investigate the sensitivity of the compound for the detection of trinitrophenol, the fluorescence-quenching titration study was performed by the gradual addition of trinitrophenol aqueous solution (5 × 10−4 M) to the suspensions of the compound; the results showed that the luminescent intensity drastically decreased (Figure 9). According to the titration data, the Stern-Volmer plots were observed using the I0/I = 1 + Ksv [M] equation, a nearly linear correlation between the quenching rate and the concentration of trinitrophenol could be obtained, meanwhile Ksv for trinitrophenol was calculated 1.97 × 105 M−1 (R2 = 0.9848) (Figure S10), which is higher than other reported MOF sensors [35,36,37], and the limit detection of trinitrophenol is 0.35 mM.
The fluorescence response of the compound in colchicine aqueous solutions (1 × 10−2 M) was also examined (λex = 320 nm) (Figure S11); the fluorescence intensities were decreased dramatically, suggesting high sensitivity of the compound for colchicine. Subsequently, a fluorescence titration experiment for colchicine was performed in which the suspensions of the compound was added with an incremental volume of colchicine aqueous solutions (50–1000 μL, 5 × 10−4 M). it was observed that the luminescence intensity of the compound gradually decreased (Figure 10). Stern-Volmer plots were acquired according to the titration data; the results showed a higher Ksv value of 1.05 × 105 M−1 to detect colchicine (R2 = 0.975) (Figure S12) [38], the limit of detection of colchicine was 0.66 mM. These results reveal that the compound has proper sensitivity to detect colchicine in aqueous medium.
In addition, the Fe3+/Cu2+, trinitrophenol and colchicine aqueous solutions exhibited an absorption in the 260–500 nm range, which had overlaps with the excitation of the compound (Figure S13). This shows the energy of excited light is taken by Fe3+/Cu2+, trinitrophenol and colchicine, so the transfer energy of the compound is blocked, resulting in the quenching effect. The sensing mechanism for metal ions can be attributed to the suppression of luminescence resonance energy transfer and the enhancement of intermolecular electron transfer [39].

6. Conclusions

In summary, a water-stable fluorescent Zn-MOF was constructed using a solvothermal method, the compound feathers a 3D (2,3,8)-connected framework with (43)2(46.66.815.12)(8) topology. Luminescence–sensing investigations showed that the compound could be developed as a multifunctional material for high detection of Fe3+/Cu2+, trinitrophenol and colchicine. It is highly anticipated that this versatile detection performance may shed light on the design of more multifunctional MOFs in chemical sensing.

Supplementary Materials

Supplementary information is available for this paper at https://www.mdpi.com/article/10.3390/ma15197006/s1. CCDC-1876154; Table S1: Selected bond distances (Å) and angles (°) for the compound; Figure S1: The asymmetric unit of the compound; Figure S2: The coordination modes of PBA2-; Figure S3: The solid state of the compound and H2PBA; Figure S4: The PXRD of the compound and after immersing in distilled water for 24 h; Figure S5: The PXRD of the compound after sensing of the metal ions; Figures S6, S7, S10 and S12: The S-V plots for luminescence intensity of the compound towards Fe3+, Cu2+, trinitrophenol and colchicine; Figures S8 and S9: Anti-interference performances of Fe3+ and Cu2+; Figure S11: Fluorescence spectral of the compound in water (Black); Fluorescent spectral of the compound towards colchicine (1 × 10−2 M) (Red); Figure S13: The UV absorption of Fe3+, Cu2+, TNP and colchicine; Figure S14: The PXRD of the compound; Figure S15: The TGA of the compound; Figure S16: The IR of the compound.

Author Contributions

Conceptualization, X.Z. and L.L.; methodology, X.Z.; software, Y.N. and Y.F.; investigation, M.S.; resources, Y.F.; data curation, X.Z.; writing—original draft preparation, X.Z. and M.S.; writ-ing—review and editing, L.L. and Y.N., project administration, J.L. and X.T., funding acquisition, X.T. and J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This project is supported by the Open Project of State Key Laboratory of Inorganic Synthesis and Preparation of Jilin University 2022-34, National Natural Science Foundation Youth Fund 201802104, Shandong Provincial Natural Science Foundation (ZR2019QB011), Project of Shandong Province Higher Educational Science and Technology Program (J18KA081).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nagajyoti, P.C.; Lee, K.D.; Sreekanth, T.V.M. Heavy metals, occurrence and toxicity for plants: A review. Environ. Chem. Lett. 2010, 8, 199–216. [Google Scholar] [CrossRef]
  2. Ahmad Malik, L.; Bashir, A.; Qureashi, A.; Pandith, A.H. Detection and removal of heavy metal ions: A review. Environ. Chem. Lett. 2019, 17, 1495–1521. [Google Scholar] [CrossRef]
  3. Uddin, M.J.; Ampiaw, R.E.; Lee, W. Adsorptive removal of dyes from wastewater using a metal-organic framework: A review. Chemosphere 2021, 284, 131314. [Google Scholar] [CrossRef]
  4. Hyman, L.M.; Franz, K.J. Probing oxidative stress: Small molecule fluorescent sensors of metal ions, reactive oxygen species and thiols. Coor. Chem. Rev. 2012, 256, 2333–2356. [Google Scholar]
  5. Carter, K.P.; Young, A.M.; Palmer, A.E. Fluorescent Sensors for Measuring Metal Ions in Living Systems. Chem. Rev. 2014, 114, 4564–4601. [Google Scholar] [CrossRef] [PubMed]
  6. Zhong, W.S.; Ren, T.; Zhao, L.J. Determination of Pb (Lead), Cd (Cadmium), Cr (Chromium), Cu (Copper), and Ni (Nickel) in Chinese tea with high resolution continuum source graphite furnace atomic absorption spectrometry. J. Food. Drug. Anal. 2016, 24, 46–55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Wang, Y.; Wang, K.; Liu, W.; Shen, G.; Yu, R. A new fluorescence optical-fiber sensor for Colchicine. Anal. Sci. 1997, 13, 447–451. [Google Scholar] [CrossRef] [Green Version]
  8. Jiang, X.L.; Hou, S.L.; Jiao, Z.H.; Zhao, B. Luminescent Detection of Colchicine by a Unique Indium-Organic Framework in Water with High Sensitivity. Anal. Chem. 2019, 91, 9754–9759. [Google Scholar] [CrossRef] [PubMed]
  9. Wollin, M.; Dieter, H.H. Toxicological Guidelines for Monocyclic Nitro-, Amino- and Aminonitroaromatics, Nitramines, and Nitrate Esters in Drinking Water. Arch. Environ. Contam. Toxicol. 2005, 49, 18–26. [Google Scholar] [CrossRef] [PubMed]
  10. Germain, M.E.; Knapp, M.J. Optical explosives detection: From color changes to fluorescence turn-on. Chem. Soc. Rev. 2009, 38, 2543–2555. [Google Scholar] [CrossRef] [PubMed]
  11. Najarro, M.; Morris, M.E.D.; Staymates, M.E.; Fletcher, R.; Gillen, G. Optimized thermal desorption for improved sensitivity in trace explosives detection by ion mobility spectrometry. Analyst 2012, 137, 2614–2622. [Google Scholar] [CrossRef] [PubMed]
  12. Pavlačka, M.; Bajerová, P.; Kortánková, K.; Bláha, J.; Zástěra, M.; Mázl, R.; Ventura, K. Analysis of explosives using differential mobility spectrometry. Int. J. Ion. Mobil. Spectrom. 2016, 19, 31–39. [Google Scholar] [CrossRef]
  13. Chen, L.; Ma, N.; Park, Y.; Jin, S.; Hwang, H.; Jiang, D.; Jung, Y.M. Highly sensitive determination of iron (III) ion based on phenanthroline probe: Surface-enhanced Raman spectroscopy methods. Spectrochim. Acta Part. A 2018, 197, 43–46. [Google Scholar] [CrossRef] [PubMed]
  14. Séby, F.; Charles, S.; Gagean, M.; Garraud, H.; Donard, O.F.X. Chromium speciation by hyphenation of high-performance liquid chromatography to inductively coupled plasma-mass spectrometry-study of the influence of interfering ions. J. Anal. Spectrom. 2003, 18, 1386–1390. [Google Scholar] [CrossRef]
  15. Goswami, S.; Aich, K.; Das, A.K.; Manna, A.; Das, S. A naphthalimide-quinoline based probe for selective, fluorescence ratiometric sensing of trivalent ions. RSC Adv. 2013, 3, 2412–2416. [Google Scholar] [CrossRef]
  16. Zhang, L.; Kang, Z.; Xina, X.; Sun, D. Metal-organic frameworks based luminescent materials for nitroaromatics sensing. Cryst. Eng. Comm. 2016, 18, 193–206. [Google Scholar] [CrossRef]
  17. Chen, W.; Fan, R.; Fan, J.; Liu, H.; Sun, T.; Wang, P.; Yang, Y. Lanthanide Coordination Polymer-Based Composite Films for Selective and Highly Sensitive Detection of Cr2O72– in Aqueous Media. Inorg. Chem. 2019, 58, 15118–15125. [Google Scholar] [CrossRef]
  18. Ma, L.; Abney, C.; Lin, W. Enantioselective catalysis with homochiral metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1248–1256. [Google Scholar] [CrossRef]
  19. Xuan, W.; Zhu, C.; Liu, Y.; Cui, Y. Mesoporous metal-organic framework materials. Chem. Soc. Rev. 2012, 41, 1677–1695. [Google Scholar] [CrossRef]
  20. Wang, H.; Lustig, W.P.; Li, J. Sensing and capture of toxic and hazardous gases and vapors by metal-organic frameworks. Chem. Soc. Rev. 2018, 47, 4729–4756. [Google Scholar] [CrossRef]
  21. Ding, M.; Flaig, R.W.; Jiang, H.L.; Yaghi, O.M. Carbon capture and conversion using metal-organic frameworks and MOF-based materials. Chem. Soc. Rev. 2019, 48, 2783–2828. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, P.L.; Xie, L.H.; Joseph, E.A.; Li, J.R.; Su, X.O.; Zhou, H.C. Metal-Organic Framework for Food Safety. Chem. Rev. 2019, 119, 10638–10690. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, Y.; Zeng, H.; Zhu, X.; Lu, W.; Li, D. Metal-organic frameworks as photoluminescent biosensing platforms: Mechanisms and applications. Chem. Soc. Rev. 2021, 50, 4484–4513. [Google Scholar] [CrossRef] [PubMed]
  24. Cheng, W.; Tang, X.; Zhang, Y.; Wu, D.; Yang, W. Applications of metal-organic framework (MOF)-based sensors for food safety: Enhancing mechanisms and recent advances. Trends. Food. Sci. Tech. 2021, 112, 268–282. [Google Scholar] [CrossRef]
  25. Lan, A.; Li, K.; Wu, H.; Olson, D.; Emge, T.; Ki, W.; Hong, M.; Li, J. A Luminescent Microporous Metal-Organic Framework for the Fast and Reversible Detection of High Explosives. Angew. Chem. Int. Ed. 2009, 48, 2334–2338. [Google Scholar] [CrossRef]
  26. Zhao, J.; Wang, Y.-N.; Dong, W.-W.; Wu, Y.-P.; Li, D.; Zhang, Q.C. A Robust Luminescent Tb(III)-MOF with Lewis Basic Pyridyl Sites for the Highly Sensitive Detection of Metal Ions and Small Molecules. Inorg. Chem. 2016, 55, 3265–3271. [Google Scholar] [CrossRef]
  27. Wang, C.; Liu, X.; Demir, N.K.; Chen, J.P.; Li, K. Applications of water stable metal-organic frameworks. Chem. Soc. Rev. 2016, 45, 5107–5134. [Google Scholar] [CrossRef]
  28. Ma, D.; Li, B.; Zhou, X.; Zhou, Q.; Liu, K.; Zeng, G.; Li, G.; Shi, Z.; Feng, S. A dual functional MOF as a luminescent sensor for quantitatively detecting the concentration of nitrobenzene and temperature. Chem. Comm. 2013, 49, 8964–8966. [Google Scholar] [CrossRef]
  29. Masoomi, M.Y.; Beheshti, S.; Morsali, A. Mechanosynthesis of new azine-functionalized Zn(II) metal-organic frameworks for improved catalytic performance. J. Mater. Chem. A 2014, 2, 16863–16866. [Google Scholar] [CrossRef]
  30. Liu, Z.-Q.; Zhao, Y.; Deng, Y.; Zhang, X.-D.; Kang, Y.-S.; Lu, Q.-Y.; Sun, W.-Y. Selectively sensing and adsorption properties of nickel(II) and cadmium(II) architectures with rigid 1H-imidazol-4-yl containing ligands and 1,3,5-tri(4-carboxyphenyl)benzene. Sens. Actuators B 2017, 250, 179–188. [Google Scholar] [CrossRef]
  31. Zhang, X.; Luo, X.; Zhang, N.; Wu, J.; Huang, Y.Q. A highly selective and sensitive Zn(II) coordination polymer luminescent sensor for Al3+ and NACs in the aqueous phase. Inorg. Chem. Front. 2017, 4, 1888–1894. [Google Scholar] [CrossRef]
  32. Gao, E.; Liu, D.; Xing, J.; Feng, Y.; Su, J.; Liu, J.; Zhao, H.; Wang, N.; Jia, Z.; Zhang, X.; et al. A Recyclable bi-functional Luminescent Zinc (II) metal-organic framework as highly selective and sensitive sensing probe for nitroaromatic explosives and Fe3+ ions. Appl. Organomet. Chem. 2019, 33, 9. [Google Scholar] [CrossRef]
  33. Li, X.; Tang, J.; Liu, H.; Gao, K.; Meng, P.X.; Wu, J.; Hou, H. A high Sensitive and Recyclable Ln-MOF Luminescent Sensor for Efficient Detection of Fe3+, CrVI Anions with Carbazolyltetracarboxylate Ligand. Chem. Asian J. 2019, 14, 3721–3727. [Google Scholar] [CrossRef] [PubMed]
  34. Du, Y.; Yang, H.; Liu, R.; Shao, C.; Yang, L. A multi-responsive chemosensor for highly sensitive and selective detection of Fe3+, Cu2+, Cr2O72− and nitrobenzene based on a luminescent lanthanide metal*organic framework. Dalton Trans. 2020, 49, 13003–13016. [Google Scholar] [CrossRef] [PubMed]
  35. Joarder, B.; Desai, A.V.; Samanta, P.; Mukherjee, S.; Ghosh, S.K. Selective and Sensitive Aqueous-Phase Detection of 2,4,6-Trinitrophenol (TNP) by an Amine-Functionalized Metal-Organic Framework. Chem. Eur. J. 2015, 21, 965–969. [Google Scholar] [CrossRef] [PubMed]
  36. Wu, K.; Hu, J.; Shi, S.; Li, J.; Cheng, X. A thermal stable pincer-MOF with high selective and sensitive nitro explosive TNP, metal ion Fe3+ and pH sensing in aqueous solution. Dye. Pigment. 2020, 173, 107993. [Google Scholar] [CrossRef]
  37. Senthilkumar, S.; Goswami, R.; Smith, V.J.; Bajaj, H.C.; Neogi, S. Pore Wall-Functionalized Luminescent Cd(II) Framework for Selective CO2 Adsorption, Highly Specific 2,4,6-Trinitrophenol Detection, and Colorimetric Sensing of Cu2+ Ions. ACS Sustain. Chem. Eng. 2018, 6, 10295–10306. [Google Scholar] [CrossRef]
  38. Li, J.X.; Guan, Q.L.; Wang, Y.; You, Z.X.; Xing, Y.H.; Bai, F.Y.; Sun, L.X. A lanthanide-organic crystalline framework material encapsulating 1,3,6,8-tetrakis(p-benzoic acid)pyrene: Selective sensing of Fe3+, Cr2O72− and colchicine and white-light emission. New J. Chem. 2020, 44, 1446–1454. [Google Scholar] [CrossRef]
  39. Chen, C.; Wang, X.; Li, L.; Huang, Y.; Gao, R. Highly selective sensing of Fe3+ by an anionic metal-organic framework containing uncoordinated nitrogen and carboxylate oxygen sites. Dalton Trans. 2018, 47, 3452–3458. [Google Scholar] [CrossRef]
Materials 15 07006 g001 550

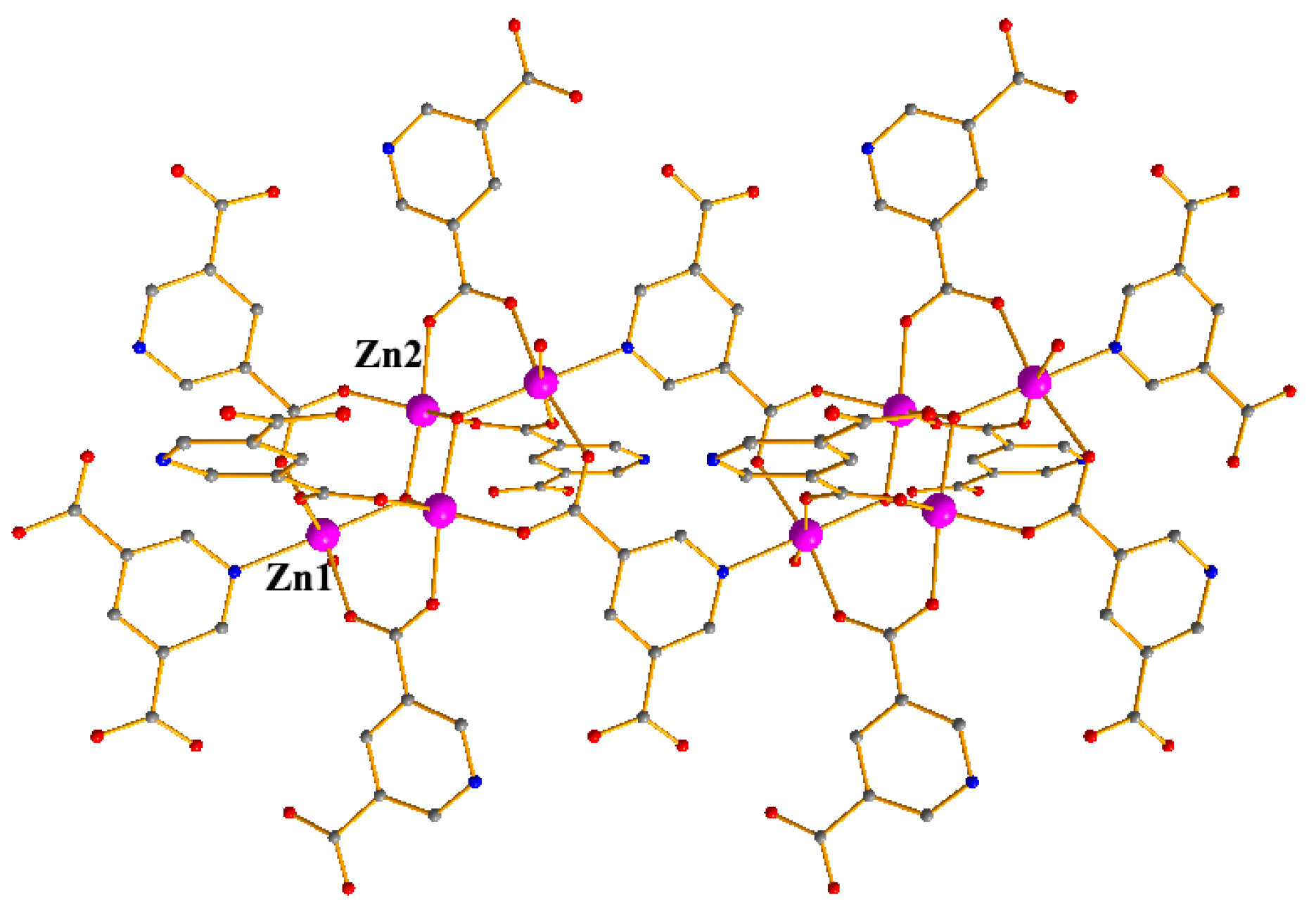

Figure 1. The coordination of Zn ions in the compound.
Figure 1. The coordination of Zn ions in the compound.
Materials 15 07006 g001
Materials 15 07006 g002 550

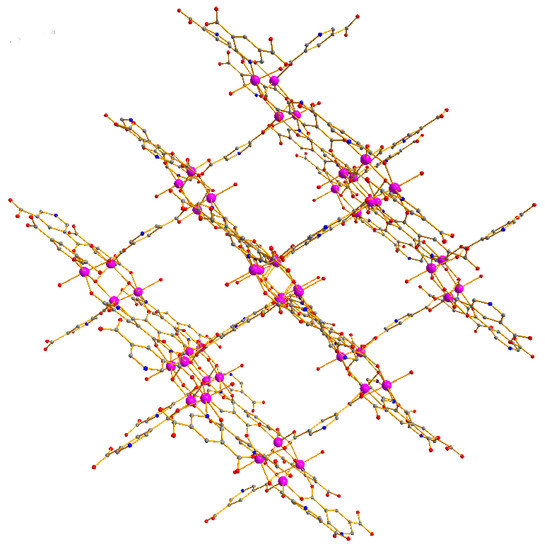

Figure 2. The 3D structure of the compound.
Figure 2. The 3D structure of the compound.
Materials 15 07006 g002
Materials 15 07006 g003 550

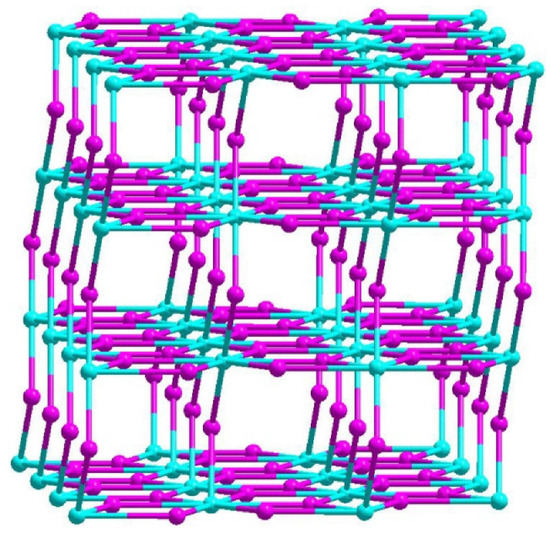

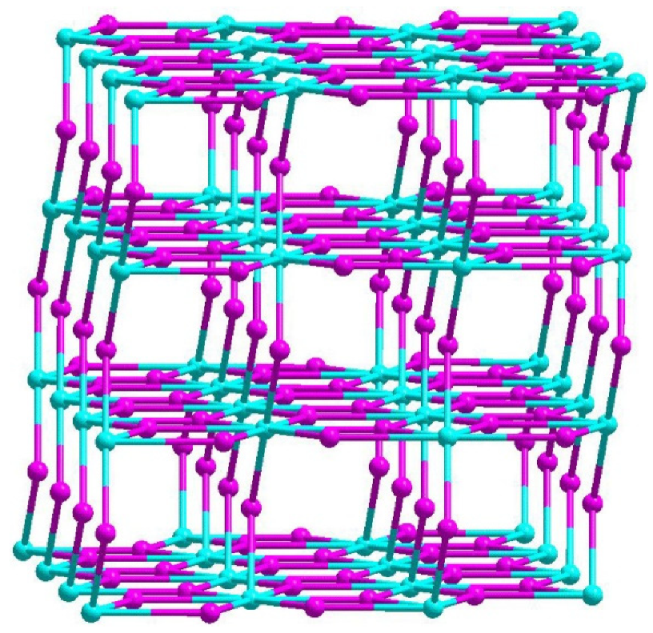

Figure 3. The topology of the compound.
Figure 3. The topology of the compound.
Materials 15 07006 g003
Materials 15 07006 g004 550

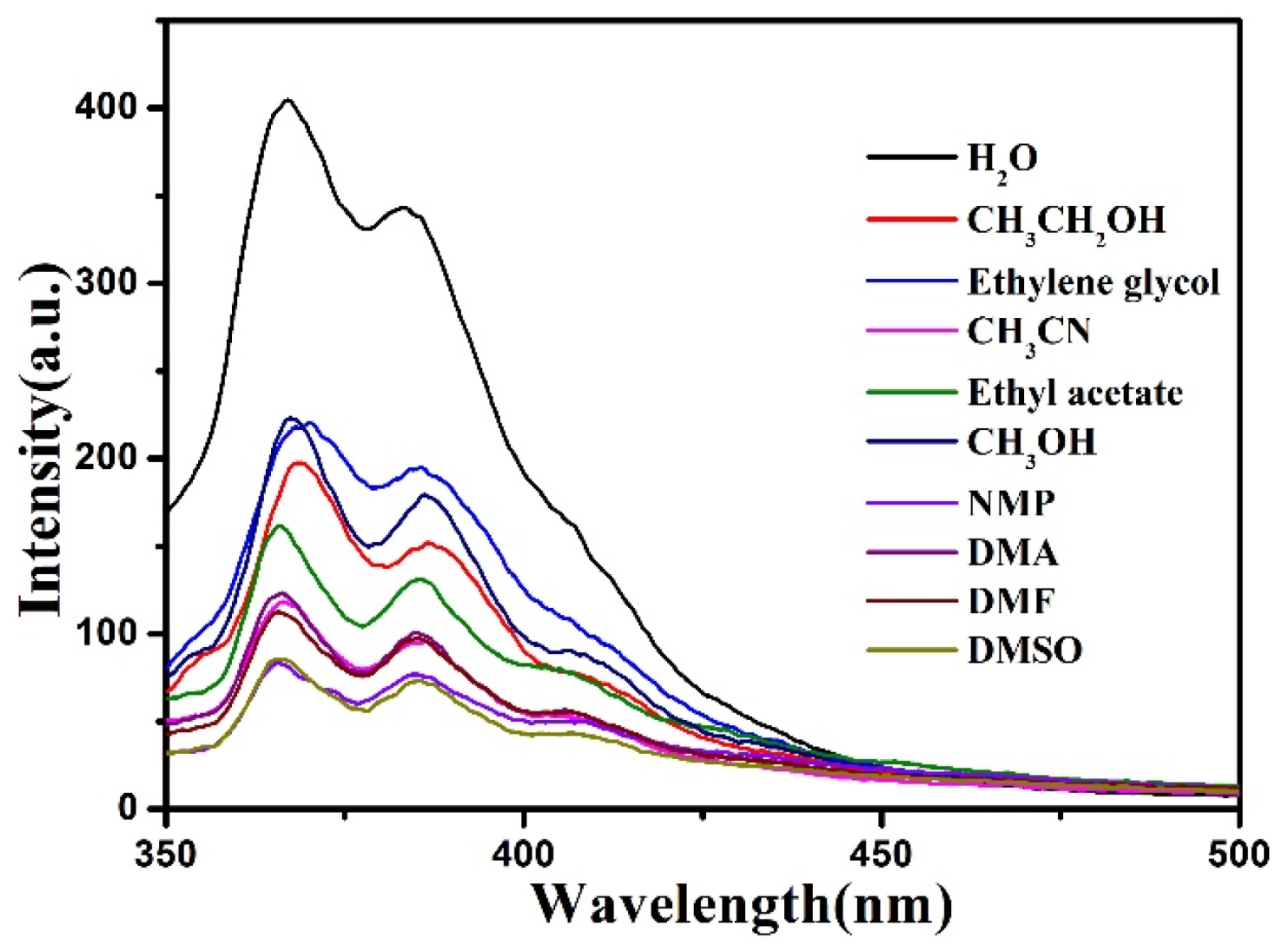

Figure 4. Fluorescence spectra of the compound in different solvents.
Figure 4. Fluorescence spectra of the compound in different solvents.
Materials 15 07006 g004
Materials 15 07006 g005 550

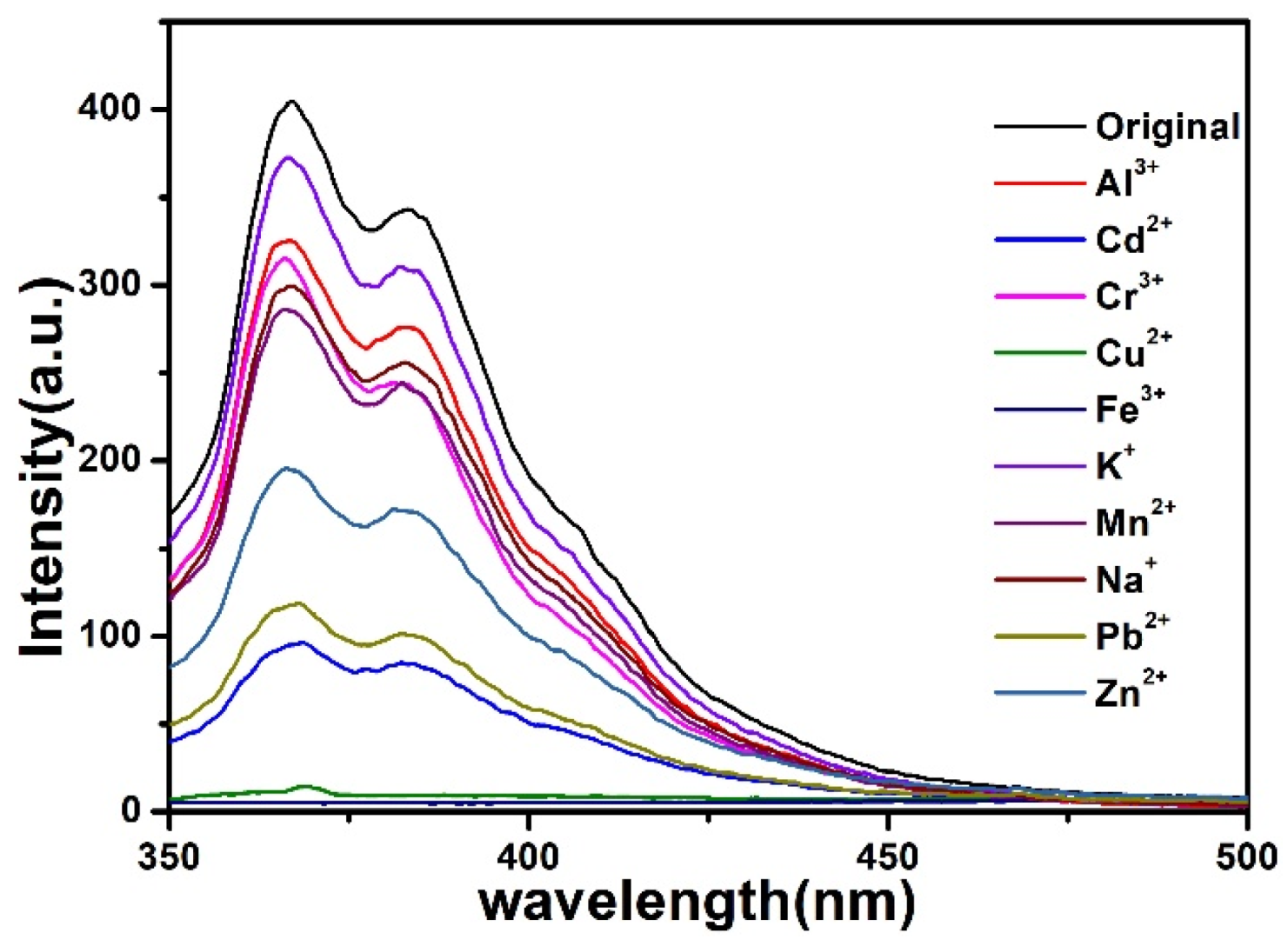

Figure 5. Fluorescence spectra of the compound towards different metal ions.
Figure 5. Fluorescence spectra of the compound towards different metal ions.
Materials 15 07006 g005
Materials 15 07006 g006 550

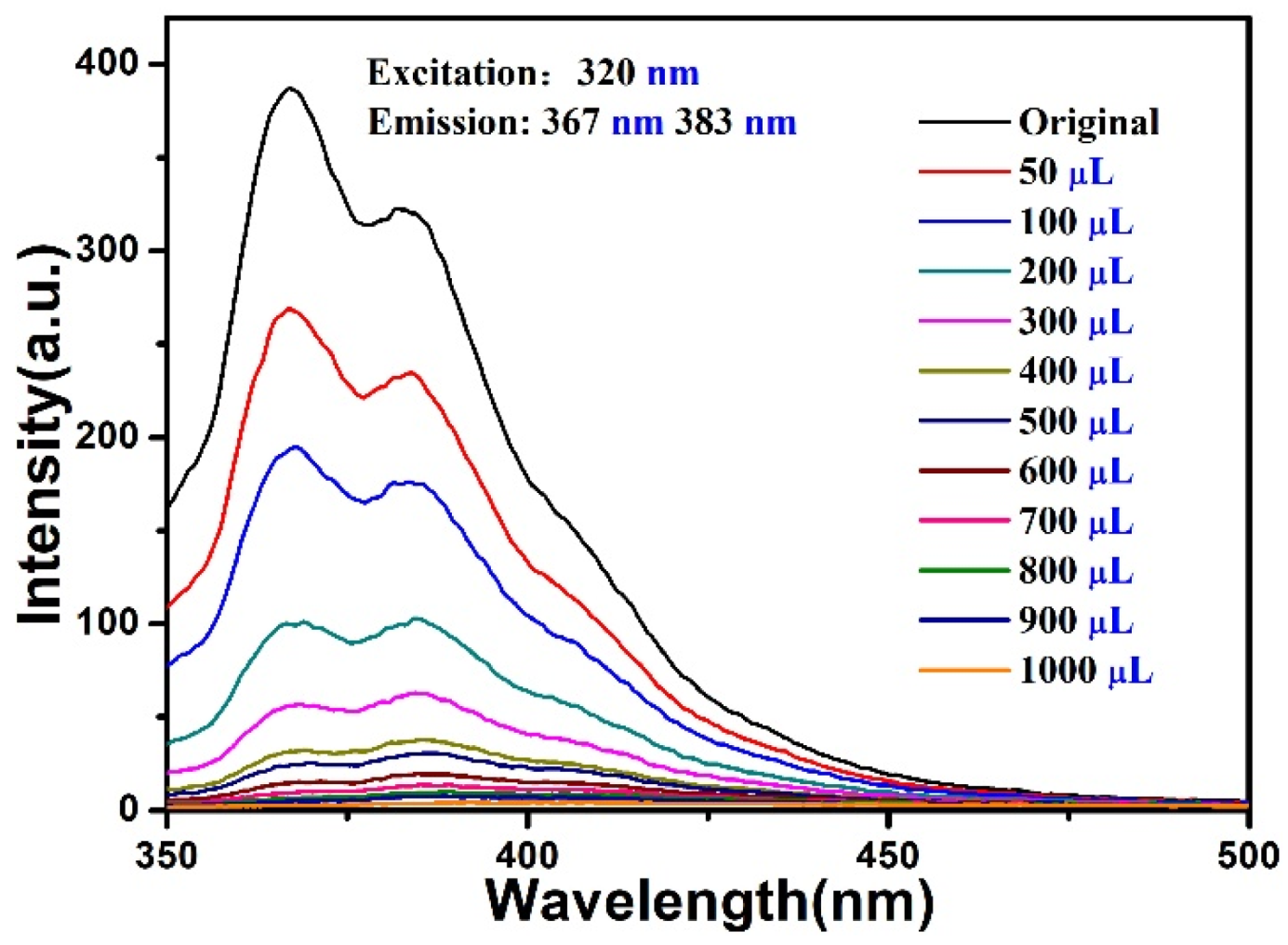

Figure 6. Fluorescence spectra of the compound with addition of Fe3+ (5 × 10−3 M).
Figure 6. Fluorescence spectra of the compound with addition of Fe3+ (5 × 10−3 M).
Materials 15 07006 g006
Materials 15 07006 g007 550

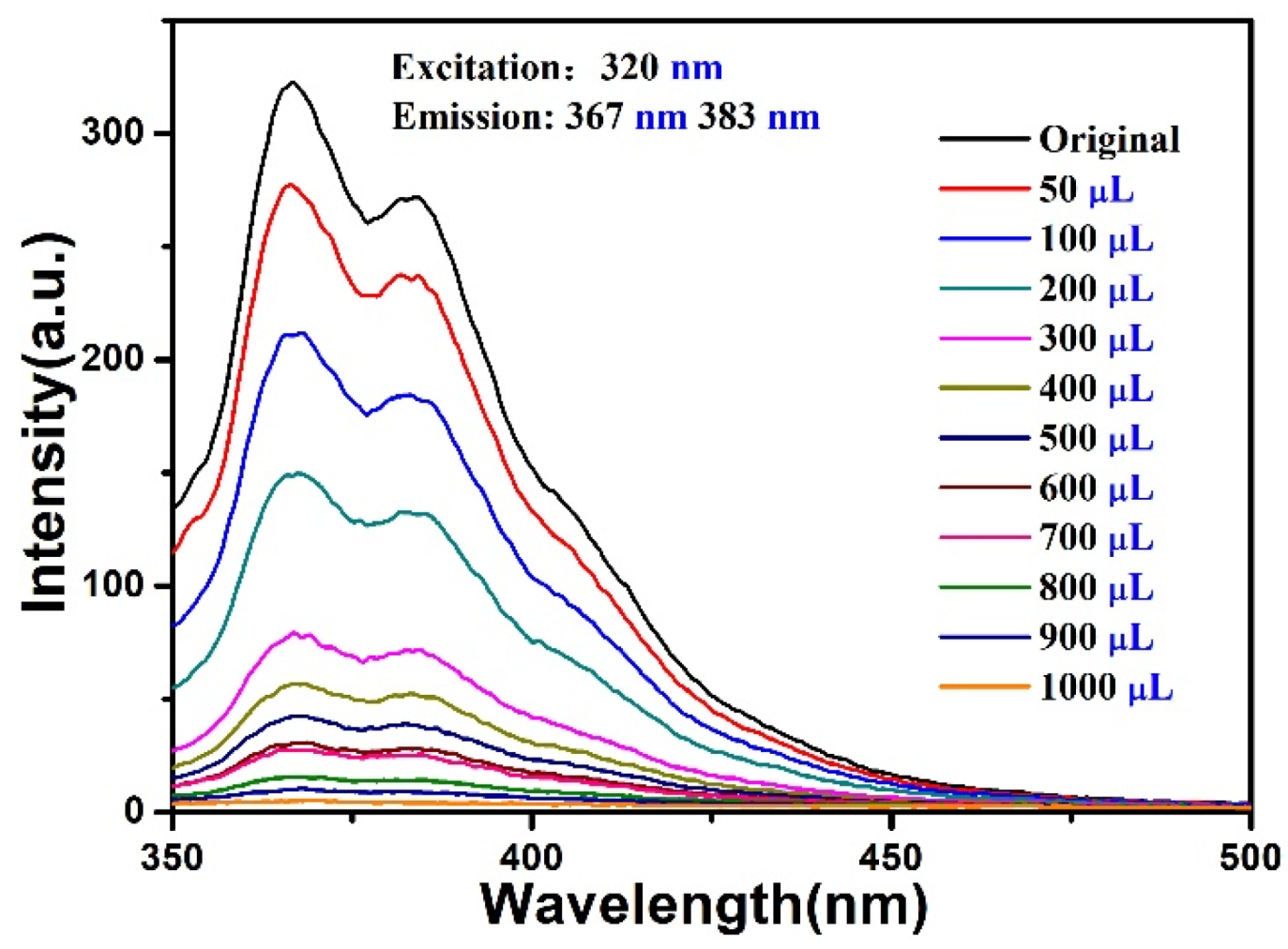

Figure 7. Fluorescence spectra of the compound with addition of Cu2+ (5 × 10−3 M).
Figure 7. Fluorescence spectra of the compound with addition of Cu2+ (5 × 10−3 M).
Materials 15 07006 g007
Materials 15 07006 g008 550

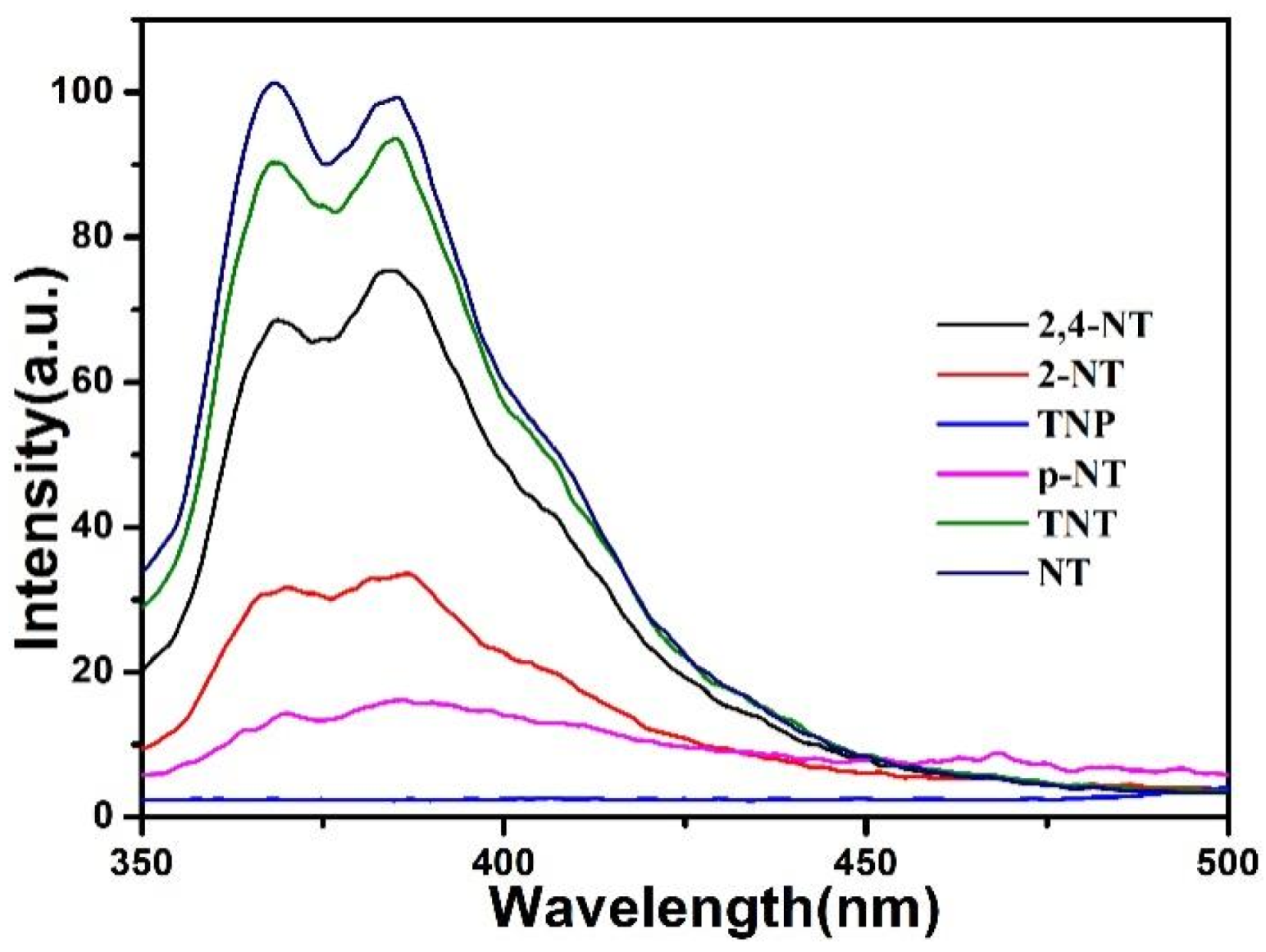

Figure 8. Fluorescence spectra of the compound towards explosives (1 × 10−3 M).
Figure 8. Fluorescence spectra of the compound towards explosives (1 × 10−3 M).
Materials 15 07006 g008
Materials 15 07006 g009 550

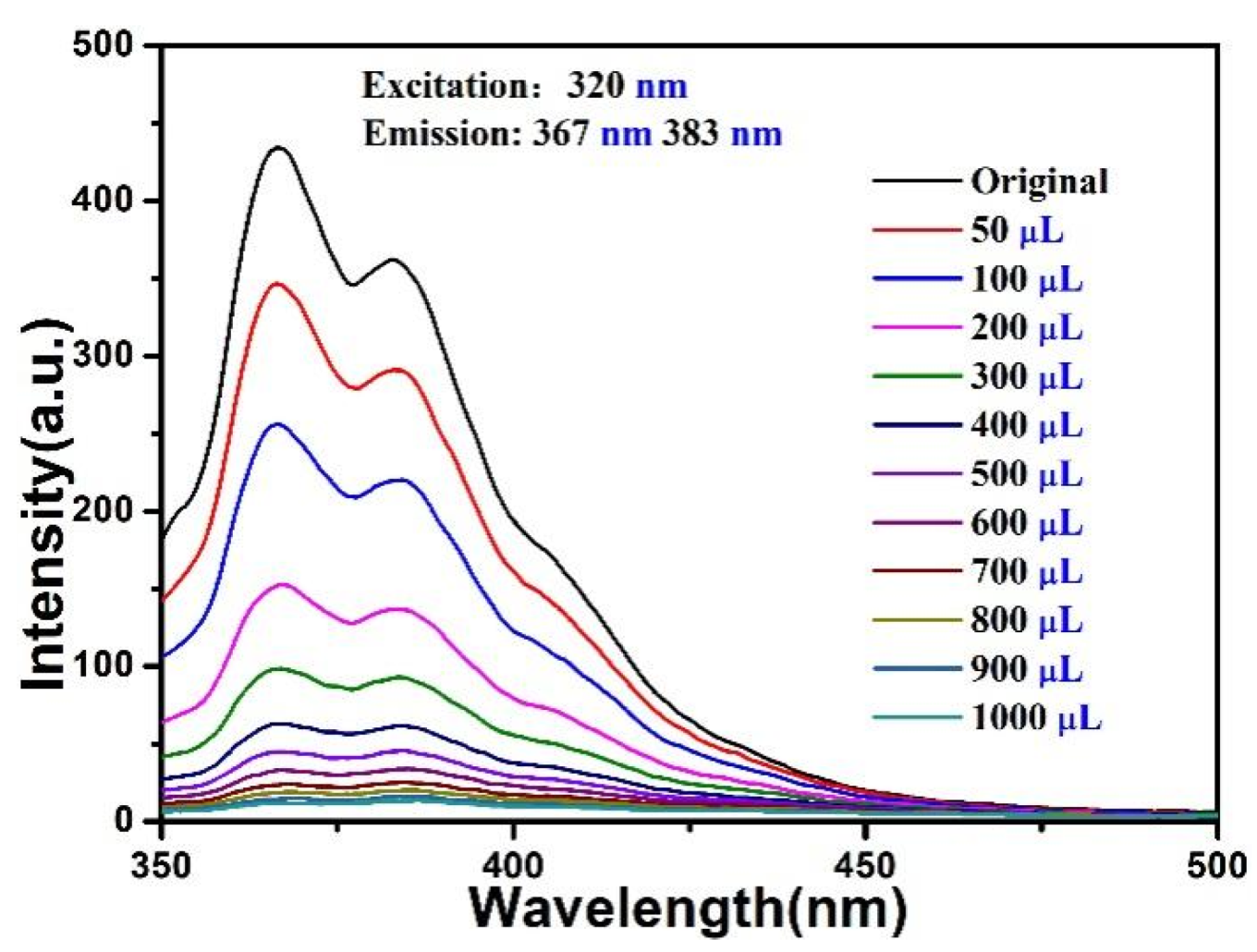

Figure 9. Fluorescence spectra of the compound towards trinitrophenol (5 × 10−4 M).
Figure 9. Fluorescence spectra of the compound towards trinitrophenol (5 × 10−4 M).
Materials 15 07006 g009
Materials 15 07006 g010 550

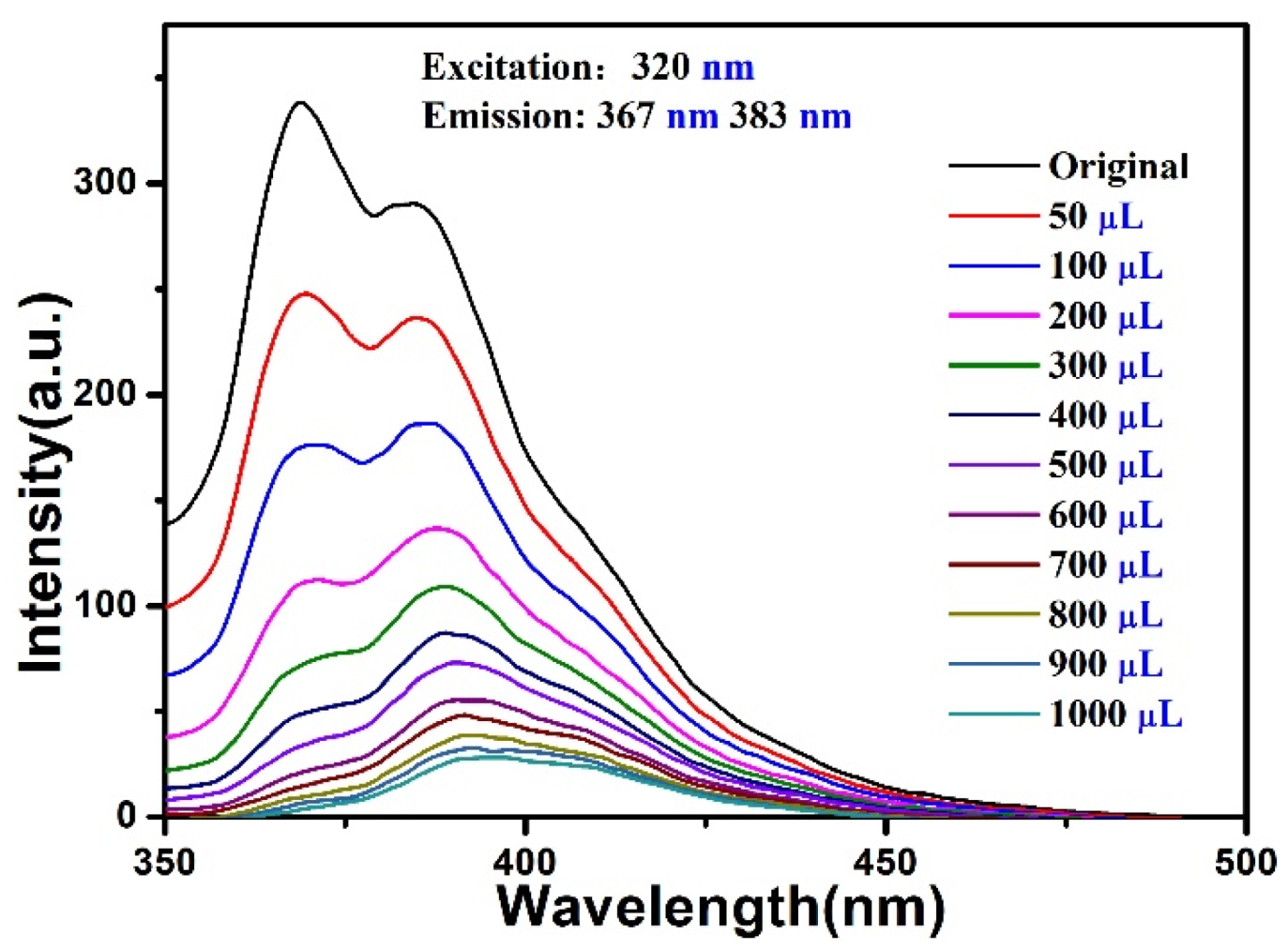

Figure 10. Fluorescence spectra of the compound towards colchicine (5 × 10−4 M).
Figure 10. Fluorescence spectra of the compound towards colchicine (5 × 10−4 M).
Materials 15 07006 g010
