Azobenzene Functionalized “T-Type” Poly(Amide Imide)s vs. Guest-Host Systems—A Comparative Study of Structure-Property Relations

by
Karolina Bujak
1,
Anna Kozanecka-Szmigiel
2,
Ewa Schab-Balcerzak
3 and
Jolanta Konieczkowska
3,*
1
Institute of Chemistry, University of Silesia, Szkolna 9, 40-006 Katowice, Poland
2
Faculty of Physics, Warsaw University of Technology, 75 Koszykowa Str., 00-662 Warszawa, Poland
3
Centre of Polymer and Carbon Materials, Polish Academy of Sciences, 34 M. Curie-Sklodowska Str., 41-819 Zabrze, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(8), 1912; https://doi.org/10.3390/ma13081912
Submission received: 24 March 2020 / Revised: 9 April 2020 / Accepted: 16 April 2020 / Published: 18 April 2020
(This article belongs to the Special Issue Advances in Materials for Organic Optoelectronics and Photonics)
Browse Figures
Review Reports Versions Notes

Abstract

:
This paper describes the synthesis and characterization of new “T-type” azo poly(amide imide)s as well as guest-host systems based on the “T-type” matrices. The matrices possessed pyridine rings in a main-chain and azobenzene moieties located either between the amide or imide groups. The non-covalent polymers contained the molecularly dispersed 4-phenylazophenol or 4-[(4-methyl phenyl)diazinyl]phenol chromophores that are capable of forming intermolecular hydrogen bonds with the pyridine rings. The FTIR spectroscopy and the measurements of the thermal, optical and photoinduced optical birefringence were employed for the determination of the influence of H-bonds and the specific elements of polymer architecture on physicochemical properties. Moreover, the obtained results were compared to those described in our previous works to formulate structure-property relations that may be considered general for the class of “T-type” azo poly(amide imide)s.

Graphical Abstract

1. Introduction

One of the fastest-growing fields of technologies is photonics and optoelectronics. The growing interest in photonic processes has become the propelling force of research into new materials that may be applied for information storage, as optical elements, controlled optical and photo-optical media, as light couplers in planar waveguides, liquid-crystal layering in liquid crystal displays, etc. [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. One of the most attractive materials for photonics applications are azo polymers i.e., macromolecules containing chromophores being derivatives of azobenzene or azo pyridine [15,16]. Polymeric materials can be easily adapted to meet specific applications, due to their advantages such as flexibility, ease of processing, low dielectric constant and their stability at a set temperature [17]. Depending on the kind of incorporation of azo chromophores to the polymer backbone, azo polymers can be classified as functionalized with a covalently bonded azo chromophore (side-chain, main-chain and “T-type” polymers), or guest-host azo systems, within azo dye, which is dispersed in the polymer (doped polymers) or attached to the polymer matrix by non-covalent interactions as H-bonds, ionic bonds or π–π sticks (supramolecular assembles) [3,18,19].
All potential applications of azo polymers result from light-stimuli properties. The irradiation of azo polymers with linearly polarized light forces multiple cycles of trans-cis-trans isomerization of azobenzene molecules, which is preceded by selective absorption events. The reorientation process of azo chromophores towards positions perpendicular to the light polarization (in which the azo molecules cannot be photoexcited) leads to the generation of the so-called photoinduced optical anisotropy (POA). The photoinduced optical anisotropy is observed as a difference in the refractive light index (birefringence) and/or the absorption coefficient (dichroism) experienced by light polarized in a direction perpendicular and parallel to the polarization of the excitation beam, respectively [17,20]. Due to the fact that POA is influenced by many factors referring to the chemical structure of azo polymers, a detailed characterization of the relationship between azo polymer architecture and the photoinduced effects is required for the optimization of properties for specific uses.
Polyimides (PIs) are an important group of polymers among the materials dedicated to photonics and optoelectronics applications, due to their unique properties i.e., low susceptibility to laser light damage, high glass-transition temperature and thermal stability [21]. Functionalized [8,22,23,24] and non-covalent azo polyimides [25,26,27,28] were widely investigated in the last decade for the generation of photoinduced birefringence or surface relief gratings. However, only one work showed mixed azo systems with two azobenzenes, where one was covalently bonded to the polymer backbone and the second was dispersed in the PI matrix [29]. The azo polyimide matrix containing chromophores with the nitro group was doped by two azo dyes, disperse red 1 or azo-carbazole diamine. Photoinduced birefringence was ca. 0.035 for polymer matrix and 0.062 and 0.07 (argon laser, λ = 488 nm, t = 1500 s) for mixed azo systems with disperse red 1 and azo-carbazole diamine, respectively. The enhancement of birefringence was caused by the increased content of azo chromophores in the polymer. However, the relaxation process after turning off the laser beam was significantly lower for the azo system doped by azo-carbazole diamine than the polyimide matrix. Polyimides are attractive hosts for the preparation of azo materials exhibiting a high and stable optical anisotropy [17]. The guest-host azo polyimides generate large modulations of surface relief gratings up to 95 nm and high birefringence up to 0.035 with 20% relaxation after 10 min [30,31]. Additionally, it was proved that materials exhibiting birefringence at ca. 0.02 may be applied in photonic devices [32].
Our previous works showed that poly(amide imide)s with two azobenzene moieties per structural unit exhibited the highest and the most stable photoinduced birefringence, as was observed for polyimides [33]. On the other hand, poly(amide imide)s with phenyl rings in the main-chain and azobenzene between the imide structure did not exhibit birefringence, because of the forming intermolecular hydrogen bonds; in addition, poly(amide imide)s with chromophores between amide linkages were insoluble in organic solvents [34,35]. The unexpected results for PIs with one azo group in the polymer-repeating unit made it impossible to research the influence of a location of an azo dye (between imide or amide linkages) on the physicochemical properties, including the photoinduced birefringence. Our previous investigations became an inspiration to the preparation of new poly(amide imide)s with pyridine rings in the main-chain, which improved the solubility. Functionalized PIs were applied as matrices for the preparation of the non-covalent azo systems with two azobenzene moieties per repeating unit, where one azo chromophore was covalently bonded to the polymer backbone and the second was dispersed molecularly in the polymer matrix. The prepared azo polyimides allowed for the study of the influence of the azo dye content and their location in the backbone on the physicochemical properties in comparison to the PIs with covalently bonded azo chromophores or fully non-covalent azo systems.

2. Results and Discussion

In this paper, two series of “T-type” azo polyimides i.e., functionalized and guest-host azo systems (Figure 1) are described. Functionalized poly(amide imide)s PAI-5–PAI-8 and doped azo system PAI-9[Az(CH3)] were synthesized and characterized in our previous works [33,34,35,36,37]. Polyimides with pyridine rings in the polymer backbone are new materials. Polymers PAI-1, PAI-2 and PAI-4 contain azobenzene moiety between amide groups, while PAI-3, PAI-5, and PAI-6 have azobenzene unit between imide rings. Polymers PAI-7 and PAI-8 have two covalently bonded azobenzenes between amide and imide groups. The functionalized poly(amide imide)s with pyridine rings in the main-chain were applied as matrices to obtain the guest-host azo systems. Azo chromophore 4-phenylazophenol (Az(H)) was dispersed in the PAI-1 and PAI-3 matrices, while 4-[(4-methyl phenyl)diazinyl]phenol (Az(CH3)) was added to the PAI-2 and PAI-9 polymers. The guest-host azo systems contained two chromophores (with the same substituent –CH3 or H), the first one covalently bonded to the backbone, and the second dispersed molecularly in a polymer matrix. Non-covalent azo polyimides were prepared by dissolution equimolar amounts of the polymer matrix and the azo chromophore. Only the polyimide PAI-9[Az(CH3)] contained two non-covalently bonded azo chromophores. The chemical structures of the investigated azo polymers are shown in Figure 1.

2.1. Intermolecular Hydrogen Bonds Formation

1H NMR and FTIR spectroscopies are powerful techniques to prove the hydrogen bond formation. In the 1H NMR spectra, the chemical shift of the amide proton can provide information on the H-bonds formation. It was found that if the hydrogen bonds became stronger the shift of signals was moved downfield [38]. We proved that poly(amide imide)s containing covalently bonded azobenzene between imide rings (PAI-5 and PAI-6) and without side azo groups readily formed the intermolecular hydrogen bonds between amide linkages [34,36]. The formation of the intermolecular H-bonds by polymers significantly influenced their physical properties i.e., led to poor solubility in organic solvents, generated a large blue shift of the absorption maximum, or hampered the photoinduced birefringence [34,36].
The presence of the intermolecular H-bonds for functionalized azo polyimide matrices was verified using FTIR and 1H NMR spectra. The comparison between the normalized spectra showed that the N–H absorption region at ca. 3300 cm−1 is higher in intensity and broaden for PAI-3 (Figure 2a). Similarly, the vibration band of the C=O bond in the amide group of PAI-3 was shifted to lower frequencies (at ca. 1650 cm−1) in comparison to PAI-1 and PAI-2 (Figure 2b). The shifts suggest the presence of interchain H-bonds in PAI-3. The presence of the intermolecular H-bonds for the functionalized azo polyimides with pyridine rings in the main-chain was verified by comparing the N–H signal position in the 1H NMR spectra taken at room temperature and at 80 °C. The chemical shift of the amide protons from ca. 11.35, 11.05 ppm to 11.30 and 10.90 ppm with the increasing temperature confirmed the presence of H-bonds, which became weaker at higher temperatures for all azo polyimide matrices. 1H NMR spectra of PAI-2 registered at room temperature and at 80 °C are depicted in Figure 3. FTIR and 1H NMR spectra showed that intermolecular H-bonds are formed in azo polyimide matrices, but that the strongest hydrogen interactions were observed for PAI-3. A lack of azo moiety between amide groups favored the formation of H-bonds.
The incorporation of pyridine rings in the main-chain of the polymer is commonly used to –N∙∙∙H– hydrogen bonds formation between the polymer and azo chromophore in the supramolecular azo systems [9,11,39,40,41]. However, we proved that carbonyl groups in imide rings or amide linkages may hinder the formation of the H-bonds [25,36]. The 1H NMR spectra confirmed that the azo chromophores were dispersed in a polymer matrix without H-bonds formation. No reduction in signal intensity corresponding to the hydroxyl group in the chromophore structure was observed, and no signal shift corresponding to protons in the pyridine ring at ca. 8.9 ppm was detected either (Figure 4). The FTIR spectra exhibited the same character for the polymer matrix and the non-covalent azo system in the regions corresponding to the vibration of the N–H-bond in the amide group (Figure 5a), and characteristic for the absorption of pyridine ring (Figure 5b). Thus, non-covalent polyimides should be treated as doped systems, where azo chromophores are dispersed in the polymer matrix with no H-bonds formation. Simultaneously, broad and high-intensity N–H bands centered at ca. 3200 cm−1 (Figure 5a) could be the result of the presence of OH groups attached to the azo chromophore, dispersed in the polymer matrix, and of the formation of the interchain hydrogen bonds between the amide groups in both the PAI-3 polymer matrix and its non-covalent analogue. We recently found an analogous effect for structurally similar azo poly(amide imide)s containing the chromophores between the amide groups and phenyl rings instead of the pyridine ones in the backbone [34]. The absorption band observed at 850 cm−1 in the FTIR spectrum of PAI-3[Az(H)] in Figure 5b was probably due to C–OH vibration in the azobenzene derivative Az(H). This band was observed in the FTIR spectra of both chromophores (Az(H) and Az(CH3)) and in systems with dispersed Az(H) and Az(CH3) in a polymer matrix.

2.2. Polymer Characterization

The polymer structures were determined by 1H NMR and FTIR spectroscopies and elemental analysis. The 1H NMR spectra showed signals in the range 6.89–8.87 ppm corresponding to the aromatic rings and at ca. 11.00 ppm, characteristic for the proton in the amide group. In the 1H NMR spectra of PAI-2, a signal at 2.38 ppm corresponding to the methyl group was observed. The FTIR spectra exhibited absorption bands of the imide rings at ~1780 cm−1, and ~1720 cm−1 attributed to the asymmetric and symmetric stretching vibration of the carbonyl group in the five-membered ring, respectively. The absorption peaks at 1356 cm−1 (PAI-1 and PAI-2) and 1380 cm−1 (PAI-3) and ~720 cm−1 were attributed to C–N stretching and the deformation vibration of the imide ring, respectively. Poly(amide imide)s exhibited a broad absorption band in the range 3341–3151 cm−1, corresponding to the vibration of the N–H-bond, at 1679 cm−1 (PAI-1 and PAI-2) and 1658 cm−1 (PAI-3), characteristic for C=O in the amide group. Polymer matrices exhibited absorption at ca. ~1100 cm−1 attributed to the pyridine ring. Elemental analysis showed a good correlation between the calculated and found values of the element content. The highest differences were 0.73% for C, 0.56% for N, and 0.49% for H.
The poly(amide imide)s structures were evaluated by the wide-angle X-ray diffraction measurements. All functionalized and guest-host azo polyimides showed the same diffraction patterns with one broad diffraction peak of the diffusion type in the range 17–38° (2θ). This was typical for perfectly amorphous materials. The selected X-ray patterns are presented in Figure S1. The solubility of the poly(amide imide)s was determined qualitatively by the dissolution of 10 mg of the polymer in 1 mL organic solvent. All poly(amide imide)s were soluble in N–methyl–2–pyrrolidone and partially soluble in N,N–Dimethylformamide (DMF), DMSO, CHCl3, THF and cyclohexanone, after heating to the boiling temperature. The exception was PAI-1 which was soluble at room temperature in DMSO. Poly(amide imide)s exhibited a rather poor solubility in organic solvents, but the incorporation of the pyridine ring to the polymer backbone improved the solubility in comparison to the polyimides with phenyl rings (PAI-4, PAI-5, and PAI-6). The incorporation of the pyridine rings to the main-chain increased the solubility, which was also observed for different polyimides [42,43,44,45,46]. Poly(amide imide)s PAI-5 and PAI-6, with azobenzene moieties between imide groups and phenyl rings located between amide linkages, were insoluble in THF and CHCl3. Polyimide PAI-4 with phenyl rings between imide groups were insoluble in all the used solvents, because of physicochemical properties that were not investigated.
In Table 1 the average molar masses of poly(amide imide)s matrices are collected. The obtained values of molecular masses should be treated only indicatively. The molar masses calculated based on the calibration may differ from the absolute molar masses if the hydrodynamic values of the studied polymers differ from those of the polystyrene standards. The gel permeation chromatography analysis revealed the average weight of the molar masses (Mw) in the range of 1.7 × 103–14.9 × 103 g/mol with a relatively low dispersity from 1.5 to 1.9. It is worth noting that the polymers with the azobenzenes between the imide rings (PAI-3, PAI-5, and PAI-6) exhibited the lowest Mw. The Mw values suggest the oligomeric nature of the polyimides.

2.3. Thermal Properties

The investigations of the glass transition temperatures of the functionalized poly(amide imide)s, the azo chromophores and the guest-host azo systems were evaluated by the differential scanning calorimetry (DSC) technique. The utilization of high-boiling temperature solvent, i.e., N-methyl-2-pyrrolidone (NMP), required a proper drying procedure (cf. caption 3.8) as the presence of the residual solvent in a material sample might lead to unreliable results. Table 2 summarizes the glass transition temperatures (Tg) values of the functionalized poly(amide imide)s, chromophores and guest-host azo systems.
Functionalized poly(amide imide)s exhibited high Tgs in the range of 244–309 °C. Considering the influence of the elements of the polymer structure on the Tg, it was found that:
  • Polymer with pyridine rings in the backbone exhibited higher Tg than their analogue with phenyl rings (PAI-3 vs. PAI-5).
  • The incorporation of the azobenzene group between the amide linkages decreased the Tg (PAI-1) in comparison to PAI-3 containing chromophores between imide rings.
  • The incorporation of two covalently bonded azo chromophores to the polymer repeating unit did not influence Tg’s in comparison to the polymer with one azo group per structural unit, despite a significantly higher average for molar masses.
  • The guest-host azo systems were characterized by lower Tg in comparison to polymer matrices, because of the plastification effect. A much greater reduction of Tg was observed for PAI-9[Az(CH3)] than for the other guest-host systems due to the higher content of non-covalently bonded azo dye (25 wt.% vs. 45 wt.%).
The thermal stability of the poly(amide imide)s matrices and guest-host azo systems were investigated by the thermogravimetric (TGA) measurements and the results are collected in Table 2. The beginning of thermal decomposition for functionalized poly(amide imide)s based on temperatures of the 5% (T5) and 10% (T10) weight loss appeared in the range of 258–332 °C and 395–412 °C, respectively. Poly(amide imide)s matrices showed two or three decomposition steps with a temperature of the maximum decomposition rate (Tmax), as evidenced by the differential thermogravimetric curves (DTG), in the range of 275–606 °C (Figure S2). The first and second degradation step with the weight loss in the range 275–473 °C was connected with the destruction of the azo groups, while the third step in the range 546–606 °C was due to the degradation of the polymer backbone [48,49]. The incorporation of the pyridine ring to the polymer main-chain did not influence thermal stability in comparison to the polyimides with phenyl rings. All functionalized polyimides were characterized by a high residual weight at 800 °C, ca. 50%, despite PAI-8.
In the next stage, the effect of the presence of a non-covalent azo dye in azo systems on thermal stability, as compared to the stability of the host polymer, was examined. It was found that the incorporation of the chromophore into the polymer matrix lowered the T5 by 130–191 °C and T10 by 170–223 °C (Table 2). The highest decrease of the beginning of the thermal decomposition temperature was observed for polyimide PAI-9[Az(CH3)] with 45 wt.% of the chromophore. The presence of azo dye caused a slight drop in the temperature of the maximum decomposition rate in azo systems compared to the polymeric hosts, and reduction of residual weight in the range of 6–29%. Guest-host polymers showed two or three decomposition steps in the range of 172–581 °C. The first degradation step with the weight loss between 172–226 °C was connected with the destruction of a non-covalently bonded azo chromophore, the second step from 373–420°C was connected with the degradation of N=N linkages in covalently attached azo moieties, while the third step (the second step for PAI-3[Az(CH3)]) in the range of 362–583 °C was due to the degradation of the polymer main-chain.

2.4. Linear Optical Properties

The UV-Vis spectra of the polymer matrices were acquired both in polymer films cast on a glass substrate and in an NMP solution. The range of UV-Vis measurements was limited by the transparency of the used substrate and the solvent. The maximum absorption wavelengths of studied polymers are collected in Table 3.
Functionalized polyimides are characterized by the maximum of the absorption (λmax) being in the range of 263–444 nm in the NMP solution and 300–354 nm in the polymer film (Table 3). In general, λmaxs in polymer film were hipsochromically shifted (by about 11 and 27 nm) compared to the solution. Polyimides with azobenzene between imide rings exhibited a significant shift of the λmaxs to the lower wavelength than polymers with azobenzene between amide linkages (Figure 6a). This shift can be connected with the formation of strong intermolecular H-bonds between the amide groups. The same blue shift was observed for azo poly(amide imide)s in our previous works [34,37,50]. The addition of azo dyes to the poly(amide imide) matrices caused the increasing absorbance at ca. 360 nm, but had no significant impact on the location of the λmax (Figure 6b; Figure S3). In the case of PAI-1[Az(H)], a new absorption band in the range of 500–700 nm was observed (Figure S3a).

2.5. Photoinduced Birefringence

The photoinduced birefringence in newly prepared materials was investigated using a 405 nm excitation beam of a moderate intensity of 100 mW/cm2. Among newly synthesized polyimides the beam was the most strongly absorbed by the layers of PAI-2 and its guest-host analogue (Table 4). For these materials, the excitation wavelength was located close to the region of the absorption band maximum (Figure 6b). The lowest absorption coefficient at 405 nm (α405) was observed for PAI-3, for which the writing wavelength fell at the red shoulder of the polymer absorption band (Figure 6a). Considering the polyimides reported previously, PAI-7 and PAI-8 exhibited the highest α405. The measured changes in the photoinduced birefringence with an irradiation time of 405 nm are shown in Figure 7a. Figure 7b presents the birefringence decays recorded after turning off the excitation light. The maximum observed birefringence (Δnmax) as well as a percentage of the relaxed birefringence (Δnrelax), due to the turning off of the excitation beam, together with the thickness of the polymer layers (d) used in the optical measurement, are summarized in Table 4.
The performed experiments revealed quite a different photoresponse of the investigated materials. Among the newly synthesized functionalized matrices, a large birefringence ~0.05 was induced in the polymers with the azo moieties between the amide groups (i.e., PAI-2 and PAI-1), while a very low or zero birefringence was found for the matrices with the azo moieties between the imide rings (i.e., PAI-5 and PAI-3) (Figure 7a). The former result may be attributed to both the efficient absorption of a 405 nm beam in the PAI-2 and PAI-1 layers and the highly inefficient disordering processes evidenced in their birefringence relaxation curves (Figure 7b). No birefringence generation in PAI-3 indicated an insufficient free volume for azo chromophores to isomerize [34]. This hypothesis found a confirmation in the measured FTIR spectra of PAI-3 (Figure 2), which revealed a large amount of intermolecular hydrogen bonds between the amide groups. Moreover, the lack of optical response of PAI-3 is in agreement with a formation of interchain hydrogen bonds as well as a suppressed process of birefringence induction in PAI-6, i.e., in a structurally similar azo polymer to PAI-3 [34]. A weak birefringence signal found for PAI-5 further confirmed that the location of azo moieties exclusively between the imide groups was highly disadvantageous for a generation of photoinduced anisotropy. The non-zero signal observed in PAI-5 in comparison to zero birefringence in PAI-3 and PAI-6 might be ascribed to differences in the polymer molar masses (low molar masses of PAI-3 and PAI-6 could favor the formation of a more extensive interchain H-bond).
It is worth noting that the stability of light-induced birefringence in both functionalized PAI-1 and PAI-2 polymers was particularly high and comparable to the birefringence stability reported for the PAI-7 and PAI-8 [35]. We recently demonstrated that the photoinduced properties of PAI-7, i.e., the magnitude of the generated birefringence and its stability after irradiation, allowed for an inscription of a complex azo chromophore pattern due to irradiation with two right-and-left circularly polarized coherent beams [51]. The irradiated PAI-7 layers were successfully used as substrates of a liquid crystal cell that formed a switchable diffraction grating with unique diffraction properties. Thus, one can assume that the PAI-1 and PAI-2 materials showing similar photoresponsive behavior to PAI-7, exhibited a large application potential for the fabrication of liquid crystal-based optical devices.
Considering the optical response of the newly prepared guest-host azo systems, some interesting features may be noted. In particular, a birefringence signal that was detected for PAI-3[Az(H)] indicated that the addition of the Az(H) chromophores to the PAI-3 matrix increased the distance between the polymer chains, which in turn allowed for trans-cis isomerization processes. However, as can be seen in Figure 7b, the molecular order induced in PAI-3[Az(H)] was unstable and almost fully relaxed within ca. 400 s after 405 nm exposure (Table 4). A very low birefringence and its fast decrease in the dark indicated that the non-bonded chromophores, rather than the covalently attached ones, made a major contribution to the observed optical response of the PAI-3[Az(H)] material.
The final birefringence of the guest-host PAI-1[Az(H)] and PAI-2[Az(CH3)] azo systems, was lower than or similar to the Δnmax measured for their functionalized counterparts, respectively. However, the dynamics of birefringence growth in the PAI-1[Az(H)] and PAI-2[Az(CH3)] layers, during the first few hundreds of seconds of 405 nm exposure, were faster than in the covalent analogues. Interestingly, the birefringence stability of PAI-2[Az(CH3)] was as large as that observed in PAI-2, which may indicate an advantageous role of the methyl group substituent in stabilizing the induced molecular order. The birefringence signals did not reach saturation within the experimental time-period for either of the newly prepared polymers.

3. Materials and Methods

3.1. Materials

Trimetilic anhydride chloride, 2,6–diaminopyridine, pyridine, acetone, acetic anhydride, N–methyl–2–pyrrolidone (NMP), 1,2–dichlorobenzene, dimethyl sulfoxide (DMSO) and cyclohexanone were purchased from Sigma-Aldrich Chemical Co. Methanol, N,N–Dimethylformamide (DMF) and chloroform were purchased from Chempur (Poland). Tetrahydrofuran (THF) was purchased from Fluka (USA).

3.2. Measurements

The 1H NMR spectra were recorded on an Avance II 600 MHz Ultra Shield Plus (Bruker) Spectrometer in the DMSO-d6 as the solvent and with TMS as the internal standard. The infrared (IR) spectra of the polymers were recorded with a Nicolet 6700 FTIR apparatus (Thermo Scientific) with KBr pellets. The FTIR spectra of the guest-host azo systems were acquired on a BiO-Rad FTS 40 A Spectrometer in the transmission mode, using a polymer solution cast on the KBr pellets from the NMP solution. Prepared KBr pallets with non-covalent polyimides were dried in the vacuum at 50 °C by 24 h. The UV-Vis spectra were recorded as films on glass substrates and in NMP (solution 10−5 molL−1) of polymers using a V-570 UV-Vis-NIR Spectrophotometer (Jasco Inc.). The X-ray diffraction pattern of solid samples was recorded using Cu Kα radiation on a wide-angle HZG-4 diffractometer (Carl Zeiss Jena) working in the typical Bragg geometry. Thermogravimetric analysis (TGA) was performed on a Perkin Elmer Thermogravimetric Analyzer Pyris 1 TGA under a nitrogen atmosphere using heating/cooling cycles in the temperature range from 20–800 °C at a heating rate of 15 °C/min. Differential scanning calorimetry (DSC) was performed with a TA-DSC 2010 apparatus (TA Instruments) in a temperature range from 25–300 °C at a heating rate of 20 °C/min under a nitrogen flow of 50 mLmin−1. All samples for TGA and DSC analyses were dried before the measurement at 70 °C (non-covalent azo systems) or 100 °C (functionalized azo poly(amide imide)s) by 24 h. The molar mass and dispersity (Mw/Mn) of the polymers were determined using gel permeation chromatography (GPC) measurements conducted at room temperature with DMF as an eluent at a flow rate of 1 mLmin−1. A Knauer apparatus with MIXED- DPL gel columns (Knauer) and polystyrene standards were used.
Photoinduced birefringence (Δn) measurements were carried out using a 405 nm excitation beam and a 690 nm probe beam from diode lasers. The detailed scheme of an experimental set-up was presented elsewhere [33]. The technique was based on a detection of the probe beam transmission through a polymer sample placed between two crossed polarizers, while irradiating the sample with the excitation beam. In the measurement, the polarization direction of the excitation beam was oriented at an angle of 45° with respect to a polarization of the probing beam. For such an experimental configuration, the photoinduced birefringence was calculated from the formula: Δn = λ/(πd)arcsinT1/2, where λ is the probing beam wavelength, d is the film thickness and T is the transmittance of the crossed-polarizer set-up. The measurements of the thickness of the poly(amide imide) layers cast on glass substrates were performed by a Dektak XT stylus profiler with a diamond tipped stylus.

3.3. Synthesis of Azo Chromophores

Azo chromophores 4-[(4-methyl phenyl)diazenyl]phenol (Az(CH3)) and 4-phenylazophenol (Az(H)) were synthesized and were comprehensively characteristic as they were in articles [25,31].

3.4. Synthesis of Diamines

The detailed synthesis and characterization of the chromophores 2,4-diamino-4’-methylazobenzene (AKCH3) and 2,4-diamino-4’-azobenzene (AK(H)) have been previously reported [21,52].

3.5. Synthesis of Dianhydrides

The detailed synthesis and characterization of the azo dianhydrides 4,4’-(2,4-diamido-azobenzene)bisphthalic anhydride (DB(H)), 1,3-[pyridine-di(benzene-5-amido-1,2-dicarboxylic)dianhydride (DB(Py)) and 4,4’-(2,4-diamido-4-methylazobenzene)bisphthalic anhydride (DB(CH3)) have been previously reported [1,36,53].

3.6. Synthesis of Chromophore-Functionalized Polymers

The synthesis of the azo poly(amide imide)s with pyridine rings in the main-chain was carried out according to the published procedure [54]. In a 25 mL round bottom flask, equimolar amounts of dianhydride (1 mmol) and the appropriate diamine (1 mmol) were placed. The whole was dissolved in a solvent mixture of 2.4 mL of NMP and 0.6 mL of 1,2-dichlorobenzene. O-dichlorobenzene was added as a co-solvent to remove the water formed during the imidization process. The reaction mixture was heated for 3.5 h on a magnetic stirrer at 175 °C in an argon atmosphere. The product was precipitated in methanol, purified by methanol extraction on a Soxhlet apparatus for 2 days and dried at 100 °C.
PAI-1 was synthesized from azo dianhydride DB(H) and diamine 2,6-diaminopyridine. Yield: 95%. 1H NMR (DMSO-d6, 600 MHz, δ, ppm): 7.58 (s, ArH, 3H), 7.79 (s, ArH, 1H), 7.93 (s, ArH, 5H), 8.20 (s, ArH, 3H), 8.36 (s, ArH, 1H), 8.53 (s, ArH, 2H), 8.57–8.66 (d, ArH, 1H), 8.86 (s, ArH, 1H), 11.07 (s, NH, 1H), 11.39 (s, NH, 1H). FTIR (KBr, cm−1): 3353 (N–H in amide group); 1784, 1729 (C=O in imide group); 1679 (C=O in amide group); 1599 (–N=N–); 1356 (–C–N– stretching); 1001 (pyridine); 720 (–C–N– deformation). Anal. Calcd. (%) for [C35H19N7O6]n (633.57 g/mol): C, 66.35; H, 3.02; N, 15.48: Found: C, 66.56; H, 3.37; N, 15.94.
PAI-2 was synthesized from azo dianhydride DB(CH3) and diamine 2,6–diaminopyridine. Yield: 85%. 1H NMR (DMSO-d6, 600 MHz, δ, ppm): 2.38 (s, CH3, 3H), 7.38 (s, ArH, 3H), 7.7–7.87 (d, ArH, 4H), 7.89 (s, ArH, 1H), 8.19 (s, ArH, 3H), 8.37 (s, ArH, 1H), 8.53 (s, ArH, 2H), 8.57–8.66 (d, ArH, 1H), 8.87 (s, ArH, 1H), 11.04 (s, NH, 1H), 11.41 (s, NH, 1H). FTIR (KBr, cm−1): 3341 (N–H in amide group); 3053 (CH3); 1783, 1728 (C=O in imide group); 1679 (C=O in amide group); 1597 (–N=N–); 1356 (–C–N– stretching); 1000 (pyridine); 719 (–C–N– deformation). Anal. Calcd. (%) for [C36H21N7O6]n (647.59 g/mol): C, 66.77; H, 3.27; N, 15.14:. Found: C, 66.04; H, 3.99; N, 14.50.
PAI-3 was synthesized from azo dianhydride DB(Py) and diamine AK(H). Yield: 37%. 1H NMR (DMSO-d6, 600 MHz, δ, ppm): 6.89 (d, ArH, 2H), 7.24 (d, ArH, 2H), 7.94 (s, ArH, 3H), 8.05–8.10 (d, ArH, 2H), 8.10-8.15 (d, ArH, 2H), 8.44 (s, ArH, 1H), 8.46 (s, ArH, 2H), 8.49 (s, ArH, 1H), 8.51 (s, ArH, 1H), 8.56 (s, ArH, 1H), 11.11 (d, NH, 2H). FTIR (KBr, cm−1): 3151 (N-H); 1781, 1715 (C=O in imide group); 1658 (C=O in amide group); 1603 (–N=N–); 1380 (–C–N– stretching); 1000 (pyridine); 723 (–C–N– deformation). Anal. Calcd. (%) for [C35H19N7O6]n (633.57 g/mol): C, 66.35; H, 3.02; N, 15.47:. Found: C, 65.94; H, 3.51; N, 14.92.

3.7. Preparation of Non-Covalent Azo Polyimides

The non-covalent azo systems (PAI-1[Az(H)], PAI-2[Az(CH3)] and PAI-3[Az(H)]) were prepared by the dissolution of the chromophores guest and azo poly(amide imide)s hosts in NMP solution. Each system contained equimolar amounts of the matrix and chromophores. The non-covalent azo polymers were prepared in the form of films on glass substrates.

3.8. Polymer Film Preparation

The homogenous solutions of 0.1 g of functionalized polyimides (PAI-1, PAI-2, PAI-3) or the non-covalent azo systems (PAI-1[Az(H)], PAI-2[Az(CH3)] and PAI-3[Az(H)]) were dissolved in 1.5 mL NMP and filtered through 0.2 µm membranes. Then, they were applied on to microscopic glass substrate and heated on a magnetic stirrer at 50 °C. Subsequently, the layers were heated in a vacuum oven at 70 °C for 3 days (non-covalent azo systems) or 100 °C for 24 h (functionalized polyimides) to completely evaporate the solvent.

4. Conclusions

The structure-property relations of functionalized “T-type” poly(amide imide)s and guest-host analogues were compared using DSC, TGA, UV-Vis and photoinduced birefringence measurements. Our results showed the increase of Tg for functionalized polyimides with pyridine rings in comparison to analogues with phenyl rings. It was noticed that polymers containing covalently bonded chromophores exhibit better thermal properties, than their analogues with the doped azo dyes. A strong dependence of the absorption band and the location of the chromophores in the backbone was observed. Functionalized azo polyimides with chromophores between imide rings showed a large bathochromic shift of the λmax in comparison to the polymers containing azo moieties between amide linkages. The red-shift can be connected to the formation of the strong intermolecular H-bonds, which was evidenced by the FTIR and 1H NMR spectra. The spectroscopic analysis showed that the presence of amide and imide groups in the main-chain of the polymer backbone hinders the formation of the H-bonds between nitrogen in pyridine rings and the hydroxyl group in the azo chromophores. Our present and former results of photoinduced birefringence measurements revealed important relationships between the chemical structure and photoresponsive behavior of functionalized “T-type” azo poly(amide imide)s. Firstly, a location of azo chromophores between the imide rings instead of the amide groups is highly disadvantageous for the efficient absorption of blue light as well as for the effective trans-cis photoisomerization; a larger molar mass of the polymers with azo moieties between the imide rings or introducing azo chromophore dopants may have an advantageous effect on the detection of the non-zero optical response. Secondly, for the efficient process of photoinduced birefringence generation, the presence of azo chromophores between the amide groups is necessary. In that case, the induced birefringence exhibits a very large stability after irradiation, making these particular azo polymers very attractive for applications in the area of the photoalignment of liquid crystals. It should be noticed that our comparative studies (current and previous) allowed the formulation of some structure-properties relationships that can be applied to the entire class of “T-type” azo poly(amide imide)s.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/8/1912/s1, Figure S1: X-ray diffraction patterns of the investigated azo polymers. Figure S2: DTG curves of the azo polyimides. Figure S3: UV-Vis spectra of the azo polyimide matrices and their doped analogue for (a) PAI-1[Az(H)], (b) PAI-3[Az(H)] in the polymer film.

Author Contributions

Investigation: K.B., A.K.-S. and J.K.; validation, K.B. and A.K.-S.; visualization, K.B. and A.K.-S.; writing—original draft, K.B.; writing—review and editing, A.K.-S., E.S.-B. and J.K.; conceptualization: resources, J.K.; funding acquisition, J.K.; supervision, J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yaroshchuk, O.V.; Dumont, M.; Zakrevskyy, Y.A.; Bidna, T.V.; Lindau, J. Molecular structure of azopolymers and photoinduced 3D orientational order. 1. Azobenzene polyesters. J. Phys. Chem. B 2004, 108, 4647–4658. [Google Scholar] [CrossRef]
  2. Lee, T.S.; Kim, D.-Y.; Jiang, X.L.; Li, L.; Kumar, J. STripathy, Photoinduced surface relief gratings in high-Tg main-chain azoaromatic polymer films. J. Polym. Sci. A Polym. Chem. 1998, 36, 283–289. [Google Scholar] [CrossRef]
  3. Xie, S.; Natansohn, A.; Rochon, P. Recent developments in aromatic azo polymers research. Chem. Mater. 1993, 5, 403–411. [Google Scholar] [CrossRef]
  4. Barrett, C.J.; Natansohn, A.L.; Rochon, P.L. Mechanism of optically inscribed high-efficiency diffraction gratings in azo polymer films. J. Phys. Chem. 1996, 100, 8836–8842. [Google Scholar] [CrossRef]
  5. Mendonça, C.R.; dos Santos, D.S., Jr.; Balogh, D.T.; Dhanabalan, A.; Giacometti, J.A.; Zilio, S.C.; Oliveira, O.N., Jr. Optical storage in mixed Langmuir–Blodgett (LB) films of azopolymers and cadmium stearate. Polymer 2001, 42, 6539–6544. [Google Scholar] [CrossRef]
  6. Buffeteau, T.; Pezolet, M. Photoinduced orientation in azopolymers studied by infrared spectroscopy: Cooperative and biaxial orientation in semicrystalline polymers. Macromolecules 1998, 31, 2631–2635. [Google Scholar] [CrossRef]
  7. Meng, X.; Natansohn, A.; Barrett, C.; Rochon, P. Azo polymers for reversible optical storage. 10. Cooperative motion of polar side groups in amorphous polymers. Macromolecules 1996, 29, 946–952. [Google Scholar] [CrossRef]
  8. Sava, I.; Burescu, A.; Stoica, I.; Musteata, V.; Cristea, M.; Mihaila, I.; Pohoata, V.; Topala, I. Properties of some azo-copolyimide thin films used in the formation of photoinduced surface relief gratings. RSC Adv. 2015, 5, 10125–10133. [Google Scholar] [CrossRef]
  9. Priimagi, A.; Vapaavuori, J.; Rodriguez, F.J.; Faul, C.F.J.; Heino, M.T.; Ikkala, O.; Kauranen, M.; Kaivola, M. Hydrogen-bonded polymer-azobenzene complexes: Enhanced photoinduced birefringence with high temporal stability through interplay of intermolecular interactions. Chem. Mater. 2008, 20, 6358–6363. [Google Scholar] [CrossRef]
  10. Vapaavuori, J.; Valtavirta, V.; Alasaarela, T.; Mamiya, J.-I.; Priimagi, A.; Shishido, A.; Kaivola, M. Efficient surface structuring and photoalignment of supramolecular polymer–azobenzene complexes through rational chromophore design. J. Mater. Chem. 2011, 21, 15437–15441. [Google Scholar] [CrossRef]
  11. Koskela, J.E.; Vapaavuori, J.; Hautala, J.; Priimagi, A.; Faul, C.F.J.; Kaivola, M.; Ras, R.H.A. Surface-relief gratings and stable birefringence inscribed using light of broad spectral range in supramolecular polymer-bisazobenzene complexes. J. Phys. Chem. C 2012, 116, 2363–2370. [Google Scholar] [CrossRef]
  12. Hu, D.; Chen, K.; Zou, G.; Zhang, Q. Preparation and characterization of hydrogen-bonded P4VP-bisazobenzene complexes. J. Polym. Res. 2012, 19, 9983. [Google Scholar] [CrossRef]
  13. González-Vila, Á.; Debliquy, M.; Lahem, D.; Zhang, C.; Mégret, P.; Caucheteur, C. Molecularly imprinted electropolymerization on a metal-coated optical fiber for gas sensing applications. Sens. Actuators B Chem. 2017, 244, 1145–1151. [Google Scholar] [CrossRef]
  14. Aldaba, A.L.; González-Vila, Á.; Debliquy, M.; Lopez-Amo, M.; Caucheteur, C.; Lahem, D. Polyaniline-coated tilted fiber Bragg gratings for pH sensing. Sens. Actuators B Chem. 2018, 254, 1087–1093. [Google Scholar] [CrossRef]
  15. Wang, D.; Wang, X. Amphiphilic azo polymers: Molecular engineering, self-assembly and photoresponsive properties. Prog. Polym. Sci. 2013, 38, 271–301. [Google Scholar] [CrossRef]
  16. Oliveira, O.N., Jr.; dos Santos, D.S., Jr.; Balogh, D.T.; Zucolotto, V.; Mendonc, C.R. Optical storage and surface-relief gratings in azobenzene-containing nanostructured films. Adv. Coll. Interface Sci. 2005, 116, 179–192. [Google Scholar] [CrossRef]
  17. Yesodha, S.K.; Pillai, C.K.S.; Tsutsumi, N. Stable polymeric materials for nonlinear optics: A review based on azobenzene systems. Prog. Polym. Sci. 2004, 29, 48–74. [Google Scholar] [CrossRef]
  18. Konieczkowska, J.; Schab-Balcerzak, E. Supramolecular azopolymers based on hydrogen bonds. Polimery 2015, 60, 423–434. [Google Scholar] [CrossRef]
  19. Raut, P.; Swanson, N.; Kulkarni, A.; Pugh, C.; Jana, S.C. Exploiting arene-perfluoroarene interactions for dispersion of carbon black in rubber compounds. Polymer 2018, 148, 247–258. [Google Scholar] [CrossRef]
  20. Yager, K.G.; Barrett, C.J. Novel photo-switching using azobenzene functional materials. J. Photochem. Photobiol. A Chem. 2006, 182, 250–261. [Google Scholar] [CrossRef]
  21. Schab-Balcerzak, E.; Siwy, M.; Jarzabek, B.; Kozanecka-Szmigiel, A.; Switkowski, K.; Pura, B. Post and prepolymerization strategies to develop novel photochromic poly(ester imide)s. J. Appl. Polym. Sci. 2011, 120, 631–643. [Google Scholar] [CrossRef]
  22. Kozanecka-Szmigiel, A.; Switkowski, K.; Schab-Balcerzak, E.; Szmigiel, D. Photoinduced birefringence of azobenzene polymer at blue excitation wavelengths. Appl. Phys. B 2015, 119, 227–231. [Google Scholar] [CrossRef] [Green Version]
  23. Schab-Balcerzak, E.; Sobolewska, A.; Miniewicz, A.; Jurusik, J. Chromophore concentration effect on holographic grating formation efficiency in novel azobenzene-functionalized polymers. Polym. Eng. Sci. 2008, 48, 1755–1767. [Google Scholar] [CrossRef]
  24. He, T.C.; Wang, C.S.; Pan, X.; Zhang, C.Z.; Lu, G.Y. The nonlinear optical property and photoinduced anisotropy of a novel azobenzene-containing fluorinated polyimide. Appl. Phys. B 2009, 94, 653–659. [Google Scholar] [CrossRef]
  25. Konieczkowska, J.; Janeczek, H.; Małecki, J.; Trzebicka, B.; Szmigiel, D.; Kozanecka-Szmigiel, A.; Schab-Balcerzak, E. Noncovalent azopoly(ester imide)s: Experimental study on structure-property relations and theoretical approach for prediction of glass transition temperature and hydrogen bond formation. Polymer 2017, 113, 53–66. [Google Scholar] [CrossRef]
  26. Schab-Balcerzak, E.; Sobolewska, A.; Stumpe, J.; Hamryszak, L.; Bujak, P. Surface relief gratings in azobenzene supramolecular systems based on polyimides. Opt. Mater. 2012, 35, 155–167. [Google Scholar] [CrossRef]
  27. Saccone, M.; Dichiarante, V.; Forni, A.; Goulet-Hanssens, A.; Cavallo, G.; Vapaavuori, J.; Terraneo, G.; Barrett, C.J.; Resnati, G.; Metrangolo, P.; et al. Supramolecular hierarchy among halogen and hydrogen bond donors in light-induced surface patterning. J. Mater. Chem. C 2015, 3, 759–768. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, X.; Vapaavuori, J.; Wang, X.; Sabat, R.G.; Pellerin, C.; Bazuin, C.G. Influence of supramolecular interaction type on photoresponsive azopolymer complexes: A surface relief grating formation study. Macromolecules 2016, 49, 4923–4934. [Google Scholar] [CrossRef]
  29. Chen, J.P.; Labarthet, F.L.; Natansohn, A.; Rochon, P. Highly stable optically induced birefringence and holographic surface gratings on a new azo-carbazole-based polyimide. Macromolecules 1999, 32, 8572–8579. [Google Scholar] [CrossRef]
  30. Konieczkowska, J.; Wojtowicz, M.; Sobolewska, A.; Noga, J.; Jarczyk-Jedryka, A.; Kozanecka-Szmigiel, A.; Schab-Balcerzak, E. Thermal, optical and photoinduced properties of a series of homo and co-polyimides with two kinds of covalently bonded azo-dyes and their supramolecular counterparts. Opt. Mater. 2015, 48, 139–149. [Google Scholar] [CrossRef]
  31. Schab-Balcerzak, E.; Flakus, H.; Jarczyk-Jedryka, A.; Konieczkowska, J.; Siwy, M.; Bijak, K.; Sobolewska, A.; Stumpe, J. Photochromic supramolecular azopolyimides based on hydrogen bonds. Opt. Mater. 2015, 47, 501–511. [Google Scholar] [CrossRef]
  32. Węgłowski, R.; Piecek, W.; Kozanecka-Szmigiel, A.; Konieczkowska, J.; Schab-Balcerzak, E. Poly(esterimide) bearing azobenzene units as photoaligning layer for liquid crystals. Opt. Mater. 2015, 49, 224–229. [Google Scholar] [CrossRef]
  33. Konieczkowska, J.; Schab-Balcerzak, E.; Siwy, M.; Switkowski, K.; Kozanecka-Szmigiel, A. Large and highly stable photoinduced birefringence in poly(amideimide)s with two azochromophores per structural unit. Opt. Mater. 2015, 39, 199–206. [Google Scholar] [CrossRef]
  34. Kozanecka-Szmigiel, A.; Konieczkowska, J.; Switkowski, K.; Antonowicz, J.; Trzebicka, B.; Szmigiel, D.; Schab-Balcerzak, E. Influence of supramolecular interactions on photoresponsive behavior of azobenzene poly(amide imide)s. J. Photochem. Photobiol. A Chem. 2016, 318, 114–123. [Google Scholar] [CrossRef]
  35. Konieczkowska, J.; Kozanecka-Szmigiel, A.; Piecek, W.; Węgłowski, R.; Schab-Balcerzak, E. Azopolyimides—Influence of chemical structure on azochromophore photo-orientation efficiency. Polimery 2018, 63, 481–487. [Google Scholar] [CrossRef]
  36. Konieczkowska, J.; Kozanecka-Szmigiel, A.; Janeczek, H.; Małecki, J.; Wójtowicz, M.; Schab-Balcerzak, E. No effect of the hydrogen bonds on the physicochemical properties of the guest-host poly(amide imide) azosystems and efficiency of chromophore orientation. Dyes. Pigm. 2018, 156, 250–259. [Google Scholar] [CrossRef]
  37. Konieczkowska, J.; Janeczek, H.; Małecki, J.; Schab-Balcerzak, E. The comprehensive approach towards study of (azo)polymers fragility parameter: Effect of architecture, intra– and intermolecular interactions and backbone conformation. Eur. Polym. J. 2018, 109, 489–498. [Google Scholar] [CrossRef]
  38. Aiba, M.; Tokuyama, T.; Matsumoto, H.; Tomioka, H.; Higashihara, T.; Ueda, M. Effect of N-methyl amide linkage on hydrogen bonding behavior and water transport properties of partially N-methylated random aromatic copolyamides. J. Polym. Sci. 2014, 52, 3453–3462. [Google Scholar] [CrossRef]
  39. Wu, S.; Duan, S.; Lei, Z.; Su, W.; Zhang, Z.; Wang, K.; Zhang, Q. Supramolecular bisazopolymers exhibiting enhanced photoinduced birefringence and enhanced stability of birefringence for four-dimensional optical recording. J. Mater. Chem. 2010, 20, 5202–5209. [Google Scholar] [CrossRef]
  40. Priimagi, A.; Kaivola, M.; Rodriguez, F.J.; Kauranen, M. Enhanced photoinduced birefringence in polymer-dye complexes: Hydrogen bonding makes a difference. Appl. Phys. Lett. 2007, 90, 121103. [Google Scholar] [CrossRef] [Green Version]
  41. Barrio, J.; Blasco, E.; Oriol, L.; Alcal, R.; Sanchez-Somolinos, C. Diblock copolymer–azobenzene complexes through hydrogen bonding: Self-assembly and stable photoinduced optical anisotropy. J. Polym. Sci. A 2013, 51, 1716–1725. [Google Scholar] [CrossRef]
  42. Yan, S.; Chen, W.; Yang, X.; Chen, C.; Huang, M.; Xu, Z.; Yeung, K.W.K.; Yi, C. Soluble polyimides based on a novel pyridine-containing diamine m,p-PAPP and various aromatic dianhydrides. Polym. Bull. 2011, 66, 1191–1206. [Google Scholar] [CrossRef] [Green Version]
  43. Wang, X.; Li, Y.-F.; Ma, T.; Zhang, S.; Gong, C. Synthesis and characterization of novel polyimides derived from 2,6-bis[4-(3,4-dicarboxyphenoxy)benzoyl]pyridine dianhydride and aromatic diamines. Polymer 2006, 47, 3774–3783. [Google Scholar] [CrossRef]
  44. Tamami, B.; Yeganeh, H. Preparation and properties of novel polyimides derived from 4-Aryl-2,6 Bis(4-amino phenyl)pyridine. J. Polym. Sci. A Polym. Chem. 2001, 39, 3826–3831. [Google Scholar] [CrossRef]
  45. Wang, X.; Li, Y.; Zhang, S.; Ma, T.; Shao, Y.; Zhao, X. Synthesis and characterization of novel polyimides derived from pyridine-bridged aromatic dianhydride and various diamines. Eur. Polym. J. 2006, 42, 1229–1239. [Google Scholar] [CrossRef]
  46. Wang, K.-L.; Liou, W.-T.; Liaw, D.-J.; Huang, S.-T. High glass transition and thermal stability of new pyridine-containing polyimides: Effect of protonation on fluorescence. Polymer 2008, 49, 1538–1546. [Google Scholar] [CrossRef]
  47. Bujak, K.; Orlikowska, H.; Małecki, J.G.; Schab-Balcerzak, E.; Bartkiewicz, S.; Bogucki, J.; Sobolewska, A.; Konieczkowska, J. Fast dark cis-trans isomerization of azopyridine derivatives in comparison to their azobenzene analogues: Experimental and computational study. Dyes. Pigm. 2019, 160, 654–662. [Google Scholar] [CrossRef]
  48. Sava, I.; Sacarescu, L.; Stoica, I.; Apostol, I.; Damian, V.; Hurduc, N. Photochromic properties of polyimide and polysiloxane azopolymers. Polym. Int. 2009, 58, 163–170. [Google Scholar] [CrossRef]
  49. Sava, I.; Burescu, A.; Lisa, G. Study of thermal behavior of polyimides containing pendent-substituted azobenzene units. Polym. Bull. 2014, 71, 1359–1373. [Google Scholar] [CrossRef]
  50. Konieczkowska, J.; Janeczek, H.; Kozanecka-Szmigiel, A.; Schab-Balcerzak, E. Poly(amic acid)s and their poly(amide imide) counterparts containing azobenzene moieties: Characterization, imidization kinetics and photochromic properties. Mater. Chem. Phys. 2016, 180, 203–212. [Google Scholar] [CrossRef]
  51. Kozanecka-Szmigiel, A.; Rutkowska, K.A.; Nieborek, M.; Kwasny, M.; Karpierz, M.A.; Schab-Balcerzak, E.; Konieczkowska, J.; Szmigiel, D. Photopatterned azo poly(amide imide) layers as aligning substrates of holographic liquid crystal diffraction gratings for beam steering applications. J. Mater. Chem. C 2020, 8, 968–976. [Google Scholar] [CrossRef]
  52. Schab-Balcerzak, E.; Sapich, B.; Stumpe, J. Photoinduced optical anisotropy in new poly(amide imide)s with azobenzene units. Polymer 2005, 46, 49–59. [Google Scholar] [CrossRef]
  53. Schab-Balcerzak, E.; Sobolewska, A.; Miniewicz, A.; Jarusik, J.; Jarzabek, B. Photoinduced holographic gratings in azobenzene-functionalized poly(amideimide)s. Polym. J. 2007, 39, 659–669. [Google Scholar] [CrossRef] [Green Version]
  54. Schab-Balcerzak, E.; Konieczkowska, J.; Siwy, M.; Sobolewska, A.; Wojtowicz, M.; Wiacek, M. Comparative studies of polyimides with covalently bonded azo-dyes with their supramolecular analoges: Thermo-optical and photoinduced properties. Opt. Mater. 2014, 36, 892–902. [Google Scholar] [CrossRef]
Materials 13 01912 g001 550

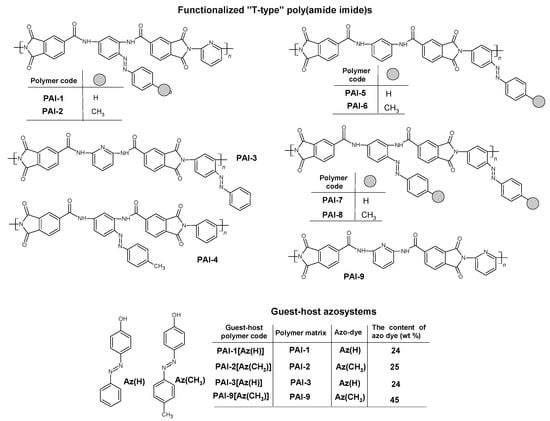

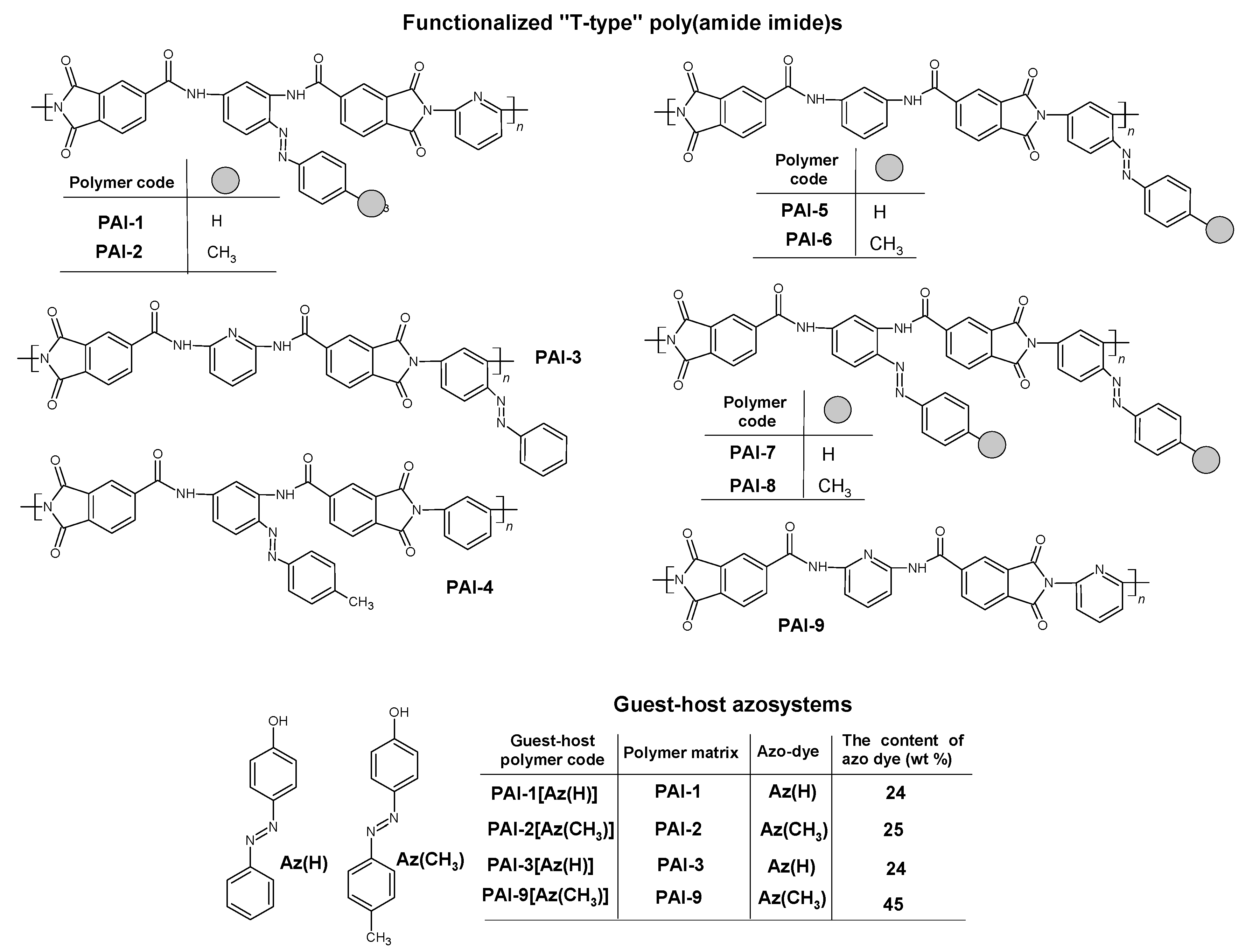

Figure 1. Chemical structures of the functionalized poly(amide imide)s, azo chromophores and the guest-host systems with the content of azo dye.
Figure 1. Chemical structures of the functionalized poly(amide imide)s, azo chromophores and the guest-host systems with the content of azo dye.
Materials 13 01912 g001
Materials 13 01912 g002 550

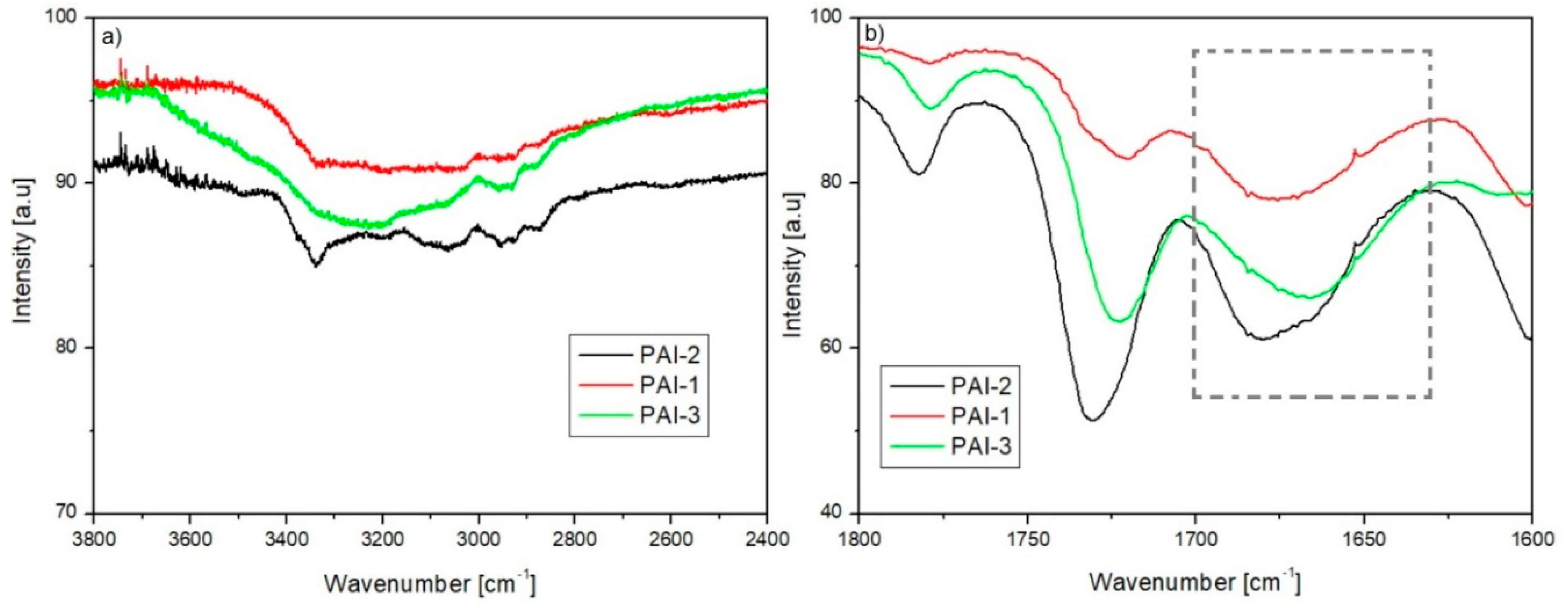

Figure 2. FTIR spectra of the azo polyimide matrices PAI-1, PAI-2, PAI-3 in the range of (a) 2400–3800 cm−1 and (b) 1600–1800 cm−1.
Figure 2. FTIR spectra of the azo polyimide matrices PAI-1, PAI-2, PAI-3 in the range of (a) 2400–3800 cm−1 and (b) 1600–1800 cm−1.
Materials 13 01912 g002
Materials 13 01912 g003 550

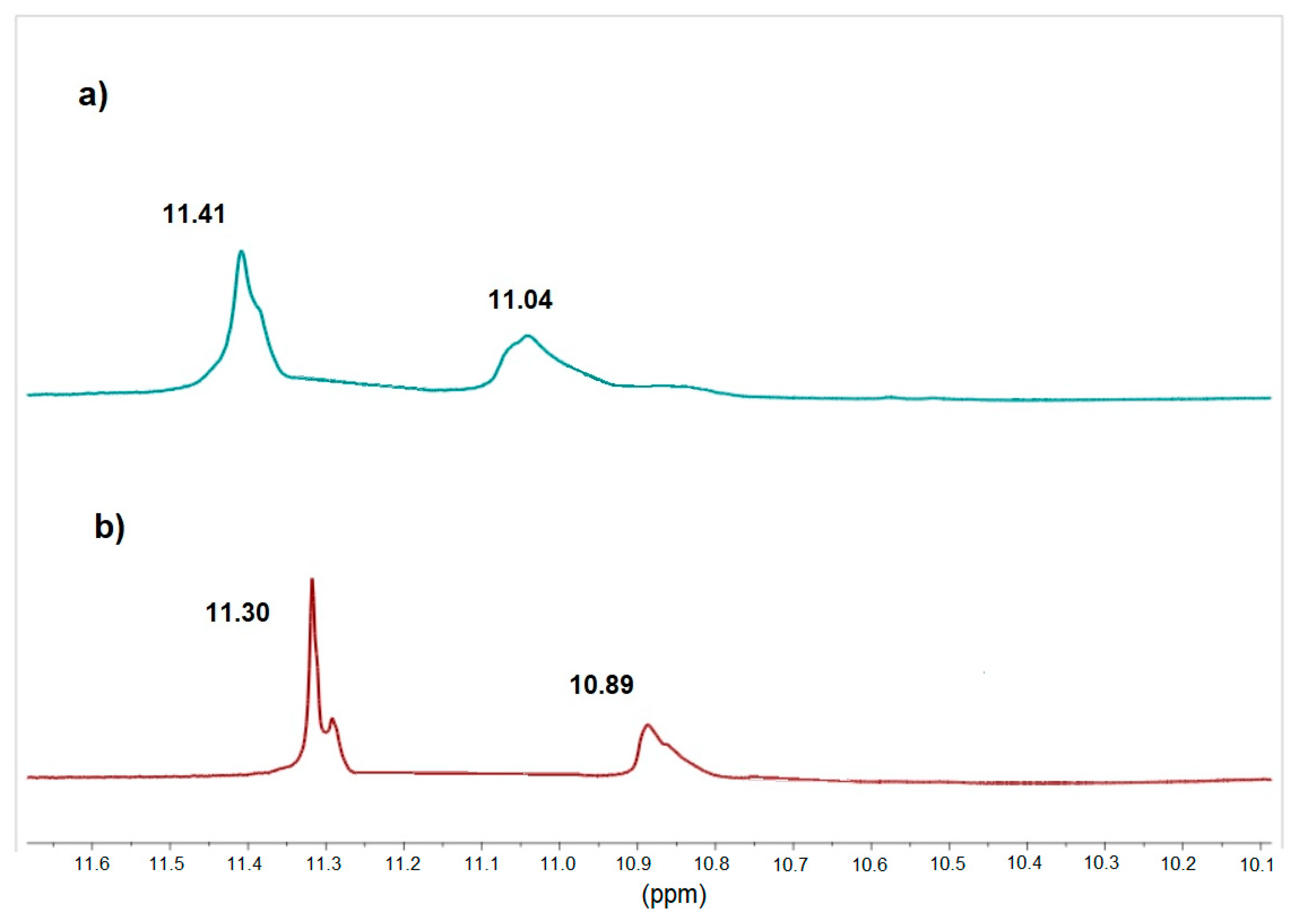

Figure 3. 1H NMR (DMSO-d6) spectra of PAI-2 (a) at room temperature and (b) at 80 °C.
Figure 3. 1H NMR (DMSO-d6) spectra of PAI-2 (a) at room temperature and (b) at 80 °C.
Materials 13 01912 g003
Materials 13 01912 g004 550

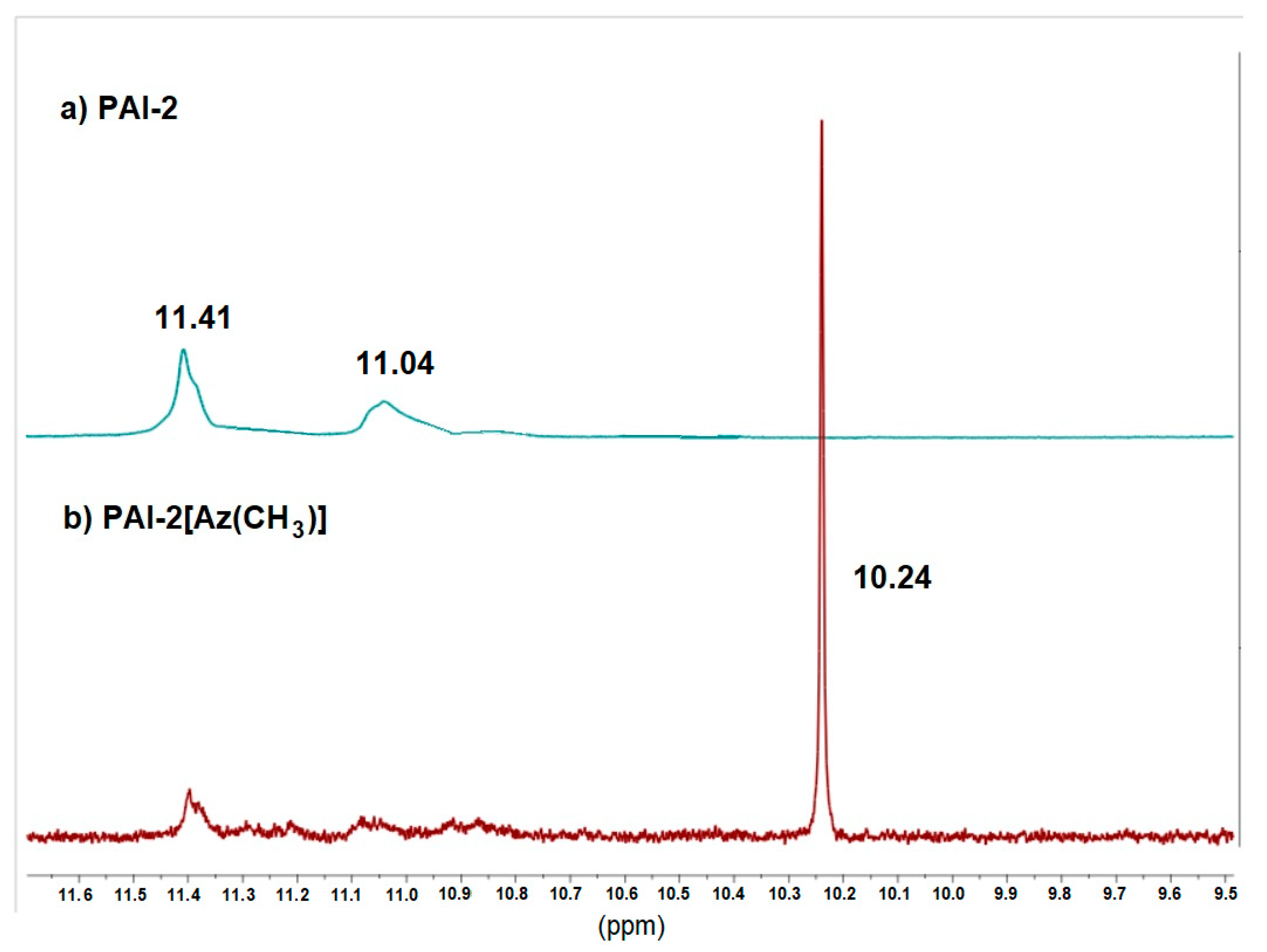

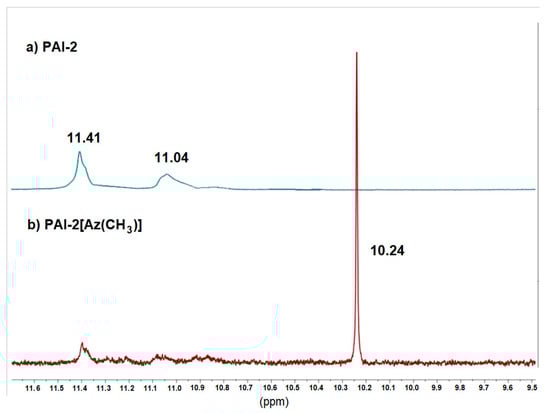

Figure 4. The 1H NMR spectra for (a) the polyimide matrix PAI-2 and (b) its guest-host azo system analogue PAI-2[Az(CH3)].
Figure 4. The 1H NMR spectra for (a) the polyimide matrix PAI-2 and (b) its guest-host azo system analogue PAI-2[Az(CH3)].
Materials 13 01912 g004
Materials 13 01912 g005 550

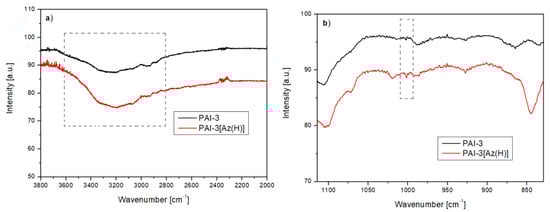

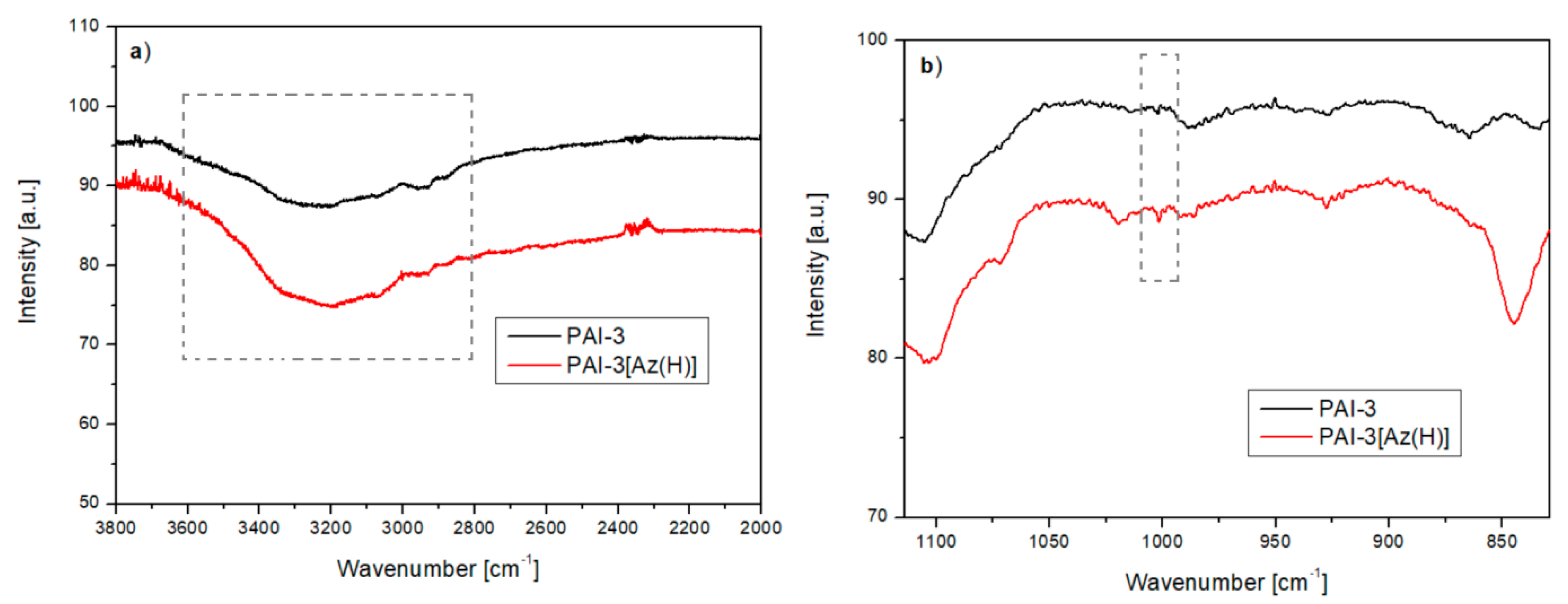

Figure 5. FTIR spectra for the polyimide matrix PAI-3 and their guest-host azo system analogue PAI-3[Az(H)] in the range of (a) 2000–3800 cm−1 and (b) 800–1250 cm−1.
Figure 5. FTIR spectra for the polyimide matrix PAI-3 and their guest-host azo system analogue PAI-3[Az(H)] in the range of (a) 2000–3800 cm−1 and (b) 800–1250 cm−1.
Materials 13 01912 g005
Materials 13 01912 g006 550

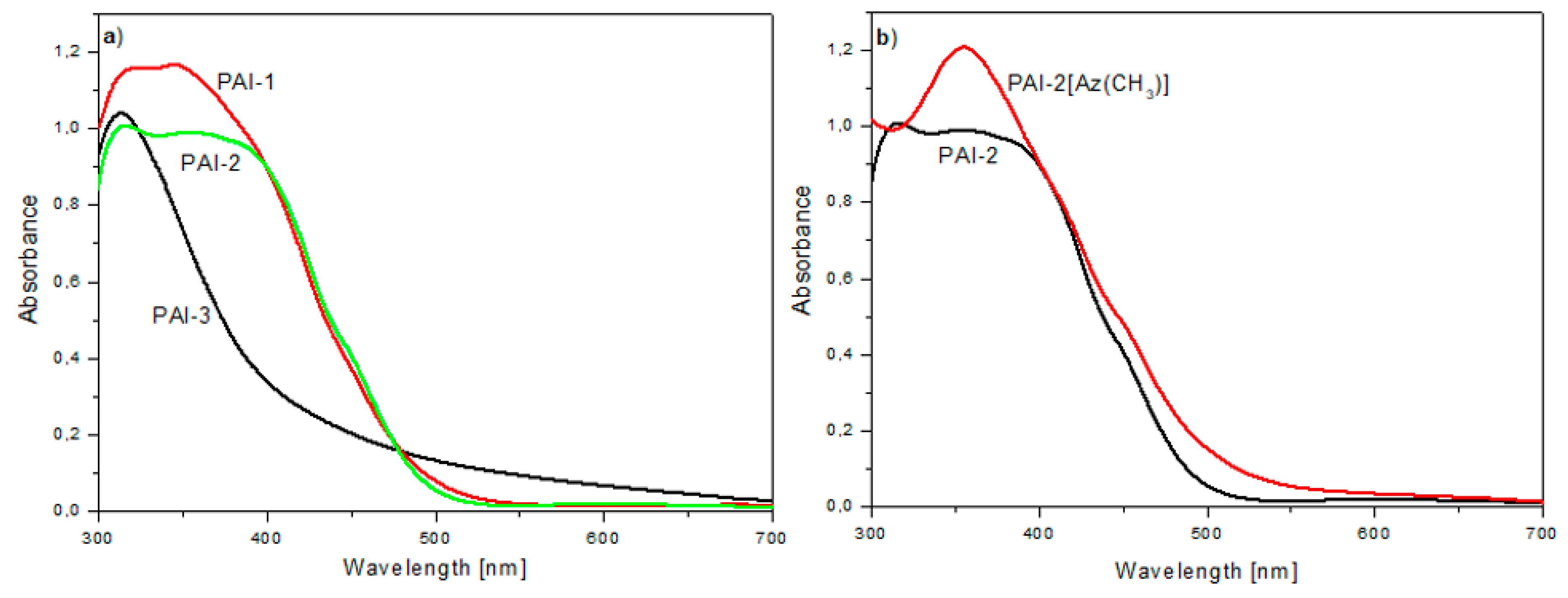

Figure 6. UV-Vis spectra of (a) the azo polyimide matrices and (b) the PAI-2[Az(CH3)] compared with PAI-2 in the polymer film.
Figure 6. UV-Vis spectra of (a) the azo polyimide matrices and (b) the PAI-2[Az(CH3)] compared with PAI-2 in the polymer film.
Materials 13 01912 g006
Materials 13 01912 g007 550

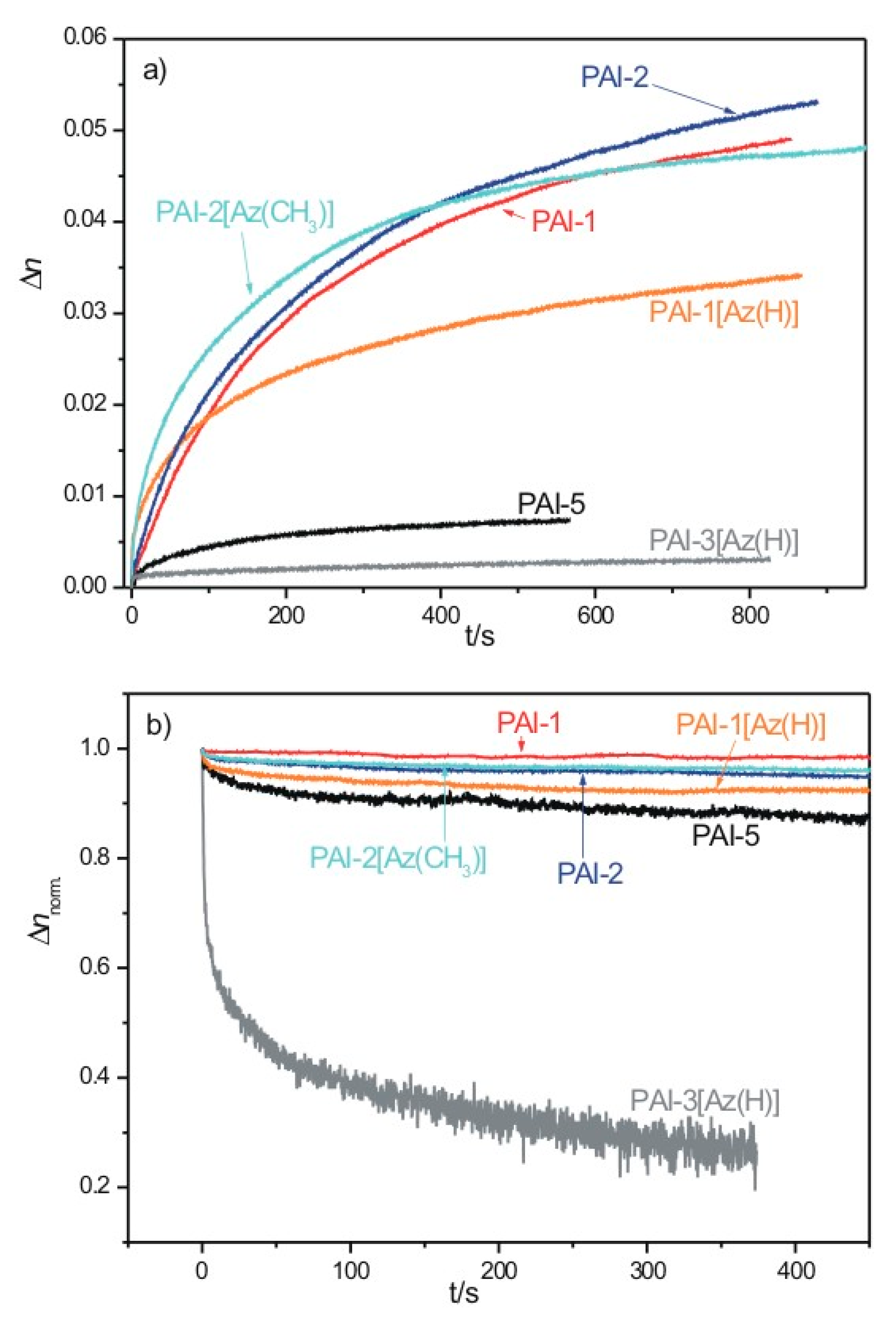

Figure 7. (a) Photoinduced birefringence growths upon 405 nm 100 mW/cm2 excitation beam (b) the corresponding normalized birefringence decreases after turning off the excitation beam in the studied azo polyimides.
Figure 7. (a) Photoinduced birefringence growths upon 405 nm 100 mW/cm2 excitation beam (b) the corresponding normalized birefringence decreases after turning off the excitation beam in the studied azo polyimides.
Materials 13 01912 g007
Table
Table 1. Molar masses and dispersity of the functionalized poly(amide imide)s.
Table 1. Molar masses and dispersity of the functionalized poly(amide imide)s.
Polymer CodeMn × 103 (g/mol)Mw × 103 (g/mol)Mw/Mn
PAI-13.26.21.9
PAI-23.25.21.7
PAI-31.11.71.5
PAI-5 [37]2.13.851.8
PAI-6 [34,35]1.11.9 1.7
PAI-7 [35]4.36.81.6
PAI-8 [34,35]10.314.91.5
Table
Table 2. Glass transition temperatures (Tg) and the thermal stability of functionalized poly(amide imide)s, azo chromophores and the guest-host azo systems.
Table 2. Glass transition temperatures (Tg) and the thermal stability of functionalized poly(amide imide)s, azo chromophores and the guest-host azo systems.
Polymer CodeDSCTGA (N2)
Tg (°C)aT5 (°C)bT10 (°C)cTmax (°C)d Residual Weight (%)
PAI-1244419455432; 61253
PAI-2281426489427; 59654
PAI-3300357416390; 53349
PAI-5 282331408356; 463; 55253
PAI-6247 [35]290 [34,35]407434; 59850
PAI-7 [35]254371412 429; 60649
PAI-8 [33,34,35]nd258389-33
PAI-9 [36]265356412454; 56569
PAI-1[Az(H)]198202221214; 437; 59338
PAI-2[Az(CH3)]210211235226; 405; 58142
PAI-3[Az(H)]133210235225; 389; 59745
PAI-9[Az(CH3)] [36]105174229172; 36240
Az(H) [47]−73188202244-
Az(CH3) [47]4114 124 127; 237; 289-
nd—not detected up to 300 °C; a Temperature of 5% weight loss; b Temperature of 10% weight loss; c Temperature of the maximum decomposition rate from the differential thermogravimetric curves (DTG); d Residual weight at 800 °C.
Table
Table 3. Maximum absorption wavelength (λmax) of the functionalized polyimides, the azo systems in film and the N-methyl-2-pyrrolidone (NMP) solution.
Table 3. Maximum absorption wavelength (λmax) of the functionalized polyimides, the azo systems in film and the N-methyl-2-pyrrolidone (NMP) solution.
Polymer Codeλmax (nm) in Filmλmax (nm) in NMP
PAI-1317; 345311; 361
PAI-2314; 354308; 381
PAI-3310 314
PAI-5 [37]below 300263; 311; 444 *
PAI-6 [34,35]309264
PAI-7 [33]342292 *; 338; 395 *; 440 *
PAI-8 [33]355 263; 350; 447 *
PAI-9 [36]323301
PAI-1[Az(H)]349
PAI-2[Az(CH3)]355
PAI-3[Az(H)]343
PAI-9[Az(CH3)] [36]353
* The position of the absorption band calculated using the second derivatives method (i.e., the minimum of the second derivative of the absorption curve corresponds to the absorption maximum).
Table
Table 4. The absorption coefficient at 405 nm, the thickness, maximum induced birefringence and the percentage of the relaxed birefringence measured for the polymer layers cast onto glass substrates.
Table 4. The absorption coefficient at 405 nm, the thickness, maximum induced birefringence and the percentage of the relaxed birefringence measured for the polymer layers cast onto glass substrates.
Polymer Codeα405 (cm−1)d (µm)ΔnmaxΔnrelax (%)
PAI-15.8 × 1040.400.0492
PAI-28.1 × 1040.250.0525
PAI-32.7 × 1040.37non-detectable-
PAI-53.0 × 1040.500.00712
PAI-6 [34,35]3.0 × 1040.38non-detectable-
PAI-7 [35]1.0 × 1050.190.055 (after 600 s)1.5 (after 500 s)
PAI-8 [34,35]1.0 × 1050.130.060 (after 1000 s)5 (after 500 s)
PAI-1[Az(H)]7.2 × 1040.250.0348
PAI-2[Az(CH3)]8.5 × 1040.250.0474
PAI-3[Az(H)]3.5 × 1040.610.00373
PAI-9[Az(CH3)] [36]3.1 × 1040.350.012 (after 600 s)25 (after 500 s)

Share and Cite

MDPI and ACS Style

Bujak, K.; Kozanecka-Szmigiel, A.; Schab-Balcerzak, E.; Konieczkowska, J. Azobenzene Functionalized “T-Type” Poly(Amide Imide)s vs. Guest-Host Systems—A Comparative Study of Structure-Property Relations. Materials 2020, 13, 1912. https://doi.org/10.3390/ma13081912

AMA Style

Bujak K, Kozanecka-Szmigiel A, Schab-Balcerzak E, Konieczkowska J. Azobenzene Functionalized “T-Type” Poly(Amide Imide)s vs. Guest-Host Systems—A Comparative Study of Structure-Property Relations. Materials. 2020; 13(8):1912. https://doi.org/10.3390/ma13081912

Chicago/Turabian Style

Bujak, Karolina, Anna Kozanecka-Szmigiel, Ewa Schab-Balcerzak, and Jolanta Konieczkowska. 2020. "Azobenzene Functionalized “T-Type” Poly(Amide Imide)s vs. Guest-Host Systems—A Comparative Study of Structure-Property Relations" Materials 13, no. 8: 1912. https://doi.org/10.3390/ma13081912

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
