Article

Effect of Yttrium and Rhenium Ion Implantation on the Performance of Nitride Ceramic Cutting Tools

by
Dmitrij Morozow
1,
Zbigniew Siemiątkowski
1,
Edwin Gevorkyan
2,
Mirosław Rucki
1,*,
Jonas Matijošius
3,
Artūras Kilikevičius
3,
Jacek Caban
4 and
Zbigniew Krzysiak
5,*
1
Faculty of Mechanical Engineering, Kazimierz Pulaski University of Technology and Humanities in Radom, ul. Stasieckiego 54, 26-600 Radom, Poland
2
Department of Quality, Standardization, Certification and Manufacturing Technology, Ukraine State University of Railway Transport, 7 Feuerbach sq., 61010 Kharkiv, Ukraine
3
Institute of Mechanical Science, Vilnius Gediminas Technical University, J. Basanavičiaus str. 28, LT-03224 Vilnius, Lithuania
4
Faculty of Mechanical Engineering, Lublin University of Technology, Nadbystrzycka 36, 20-618 Lublin, Poland
5
Faculty of Production Engineering, University of Life Sciences in Lublin, Głęboka 28, 20-612 Lublin, Poland
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(20), 4687; https://doi.org/10.3390/ma13204687
Submission received: 17 September 2020 / Revised: 16 October 2020 / Accepted: 19 October 2020 / Published: 21 October 2020
(This article belongs to the Special Issue Machinability of Metallic Materials and Composites)
Browse Figures
Versions Notes

Abstract

:
In the paper, the results of experimental investigations of ion implanted cutting tools performance are presented. The tools, made out of Si3N4 with additives typically used for turning of Ti-6Al-4V alloy, underwent implantation with ions of yttrium (Y+) and rhenium (Re+) using the metal vapor vacuum arc method. Distribution of ions on the tool surface was measured. The cutting tools were tested in turning process with measurement of cutting forces and analysis of wear. A rather unexpected result was the increased wear of the tool after Y+ implantation with 1 × 1017 ion/cm2. It was demonstrated, however, that the tool after Y+ 2 × 1017 ion/cm2 ion implantation provided the best machining performance.

1. Introduction

Due to its extraordinary properties, titanium and titanium alloy Ti-6Al-4V is widely used in various branches of industry [1,2,3], such as aircraft, automotive industry and optoelectronics [4,5], or medicine [6]. In the field of orthopedics and in dental prosthetics, titanium found a wide range of applications [6,7]. Its high corrosion resistance is attributed to passive layers consisting of amorphous TiO2, formed on the surfaces [8,9,10]. It may be characterized as a very difficult-to-cut material due to its endurance and relative elongation (6–15%). Moreover, low heat transfer ability causes that the thermal energy does not dissipate easily by conduction, which results in increase of temperatures in the cutting contact area [11]. A similar situation takes place in the case of cobalt alloys [12]. As a consequence, large amounts of heat are not carried away with the chipped material, but penetrate into the cutting tool [13], which require application of new cooling methods [14]. In the research on Ti-6Al-4V alloy machining, special attention is paid to the additive manufactured details cut with solid ceramic tools [15].
It is widely acknowledged that ceramic tools have good thermal stability and perform very well during high temperature cutting processes [16]. Nevertheless, the inserts designed to cut the difficult-to-machine materials are coated with special coatings. These are typically multilayer compositions, with outer layers reducing friction coefficient and inner layers protecting the tool from the heat generated at the tool–chip interface [17].
Specific microstructure in the coating, and especially in its subsurface layers, and thus enhanced hardness and a desirable residual stress can be achieved using PVD (physical vapor deposition) methods [18] or with ion implantation techniques, which is known to be suitable for ceramics [19]. Almost all characteristics of the tool material increasing its wear resistance were found to be changed after ion implantation [20]. It was reported that the tools PVD-coated with (Ti, Al)N + TiN had the longest tool life and were recommended for face milling of titanium alloys [21]. The process of deposition can be supported with IBAD (ion beam assisted deposition), to induce changes in hardness or to generate desirable residual stresses in the subsurface layer [22]. This way, substantial improvement of the cutting tools performance and reduction of their wear can be reached. Wear conditions of different cutting tools could increase the cost of production and cause substantial effect on carbon emissions [23]. There are many factors affecting the wear of cutting tools, such as vibration [24] and cutting forces [25]. There are publications on micro end milling of Ti-6Al-4V that focused on wear behavior and performance of tungsten carbide cutting insert with TiAlN coating [26]. However, there are very few reports about the ion implantation impact on the lifetime of ceramic inserts at increased temperatures in industrial conditions [27]. The present work is dedicated to the influence of yttrium (Y+) and rhenium (Re+) ions implantation into the rake face of nitride ceramics cutting inserts on their performance in real working conditions.

2. Materials and Methods

The research was focused on the cutting tools performance during machining of a typical α+β dual-phase titanium alloy Ti-6Al-4V. Its microstructure consists of hexagonal close packed (HCP) α and body centered cubic (BCC) β phases [28]. Since α phase normally precipitates from β phase, the arrangement of phases is determined by the heat treatment conditions [29]. Physically, α phase is stabilized by aluminum, while β phase by vanadium, so that the aluminum addition provides an increase of strength, while the vanadium addition allows maintaining plasticity [30]. Values of the Young modulus can have quite a large scattering, reportedly varying from 94 to 118 GPa [31]. Chemical composition of the alloy is the following: Al—6.5%, V—4.3%, Fe—0.18%, C—0.01%, N—0.13%, and O—0.13% by weight [32].
Thermal conductivity of titanium alloys is low, ca. 1/6 that for steel [33], and it can be assumed as 6.7 W/(m·K) [34]. It results in heat concentration on the cutting edge and the rake face of the tool during machining. The temperature in the chip–tool interface when turning Ti-6Al-4V can reach 1200 °C [35]. The material strengthening phenomena takes place, and, as a consequence, the tool wear is increased, friction and cutting forces rise up, and the cutting edge is quickly damaged. According to the available reports, hardness of annealed Ti-6Al-4V with alpha-beta microstructure is ca. 350 HV [33].
For the turning tests, the samples made out of Ti-6Al-4V alloy with diameter ∅60 mm and length l = 35 mm. The tests of cutting were performed using the machining center DMG NEF400 CNC (Bielefeld, Germany). The cutting forces were measured with the dynamometer CL 16-3F-3M made by ZEPWN (Marki, Poland) shown in Figure 1. It was able to measure cutting forces during machining process, and its uncertainty was assumed below 0.45% of the actually measured value [17]. The sampling was performed each 0.1 s.
There are some recommendations on the machining parameters for different titanium alloys [36]. In general, the highest cutting speeds vc between 95 and 210 m/min can be applied to non-alloyed titanium, but an increase of vanadium and chromium content with a harder β phase requires smaller cutting speeds. For the dual-phase alloy Ti-6Al-4V, the recommended cutting speed was 48–100 m/min, and in experiments, it was vc = 50 m/min at feed rate f = 0.15 mm/rev and cutting depth ap = 0.5 mm.
Since Si3N4-based ceramics appeared to be superior to Al2O3-based ones as the material of cutting tools [37], the former was chosen for the experiments. Cutting tools were used with inserts TNGA 160408E (IS9) made out of nitride ceramics IS9 (Si3N4 with additives), fixed in holders MTJNL 2020K-16W-M produced by ISCAR company (Tel Aviv, Israel). The geometry of cutting tools was as follows: α = 6°; γ = −6°; κr = 93°; rε = 0.8 mm. No coolants were applied.
Before the turning tests, some of the applied inserts underwent the ion implantation procedure. The rake surfaces of the cutting inserts underwent ion implantation with the respective ions of yttrium (Y+) and rhenium (Re+) in order to modify the properties of the outer layer. For that purpose, the device TITAN (HCEI, Tomsk, Russia), equipped with a spark source of metal vapor MEVVA type (metal vapor vacuum arc) was used. Since tribological aspects play important role in the tool wear [38], the parameters of the ion implantation process were chosen according to the tribological research described in [39]. Table 1 presents applied ion doses and beam energy of the process.
The implantation procedure was performed at the Polish National Center of Nuclear Research (NCBJ, Świerk, Poland). Its results were assessed with a scanning electron microscope EVO MA10 produced by ZEISS (Jena, Germany).

3. Results and Discussion

The experiments were aimed on assessment of the performance of ion implanted cutting tools compared to the typical unimplanted ones. To reach that goal, three directions were explored, namely, quality of the ion implantation, cutting forces during machining, and tool wear. The results are presented and discussed in the respective subsections.

3.1. Ions Distribution on the Rake Surface

Rake surfaces of nitride ceramic inserts IS9 before and after ion implantation can be seen in Figure 2. It is noteworthy that the general appearance of the surface did not change, because of a very thin coating of ions. Figure 3 presents the results obtained from the energy dispersive spectroscopy (EDS) measurement.
It can be seen that the chemical composition after yttrium ion implantation at both doses contains some amounts of Y, absent in the original material. To assess distribution of the material on the rake surface, the maps were prepared with the points of higher density and brightness on the areas with higher substance content. There was no significant difference in mappings representing elements after ion implantation at dose 1 × 1017 ion/cm2 or 2 × 1017 ion/cm2. An example of such a map is shown in Figure 4, where steady distribution of both yttrium and rhenium is clearly seen.
Lower brightness may suggest that Re+ ions adhered to the nitride ceramic surface in smaller degree than ions Y+. Nevertheless, presence and steady distribution of the ions that made up a coating, is clear and obvious, which confirms high quality and surface integrity of the investigated cutting tools.

3.2. Cutting Forces Measurement

The cutting forces during tests are represented by graphs shown in Figure 5, Figure 6 and Figure 7. They were plotted for the unimplanted cutting inserts, rhenium (Re+) implanted and yttrium (Y+) implanted ones, respectively. Since the obtained results appeared very different for three edges of each triangular inserts, the respective plots for each edge are shown separately. The plots represent the resulting machining force through its three components, namely, cutting force Fc, feed force Ff, and passive force Fp. The graphs contain 6 cycles of interrupted cutting each, since the tool life tends to be reduced in the interrupted cutting method due to the high impact loads during the entry and the exit from the cut [40].
From Figure 5, it is seen that 1st and 2nd edges were damaged after ca. 100 s of work, so that further cutting did not provide required quality. In case of the 3rd edge, damage was rather steady and the edge was blunting without larger cracks and chipping, though unstable cutting force Fc between 50 and 100 s might indicate some kind of accelerated wear or microdamage. Looking at the first three cycles in Figure 6, it is difficult to find substantial improvement in case of rhenium ion implantation. Further cycles of the Re+ implanted insert appear more stable, though perform higher forces, which is not the case for the 3rd edge of unimplanted insert, however. In addition, passive force Fp is clearly increasing from 100 up to 400 and even 500 N for two edges of the Re+ implanted insert. Steady twofold and even 5-fold increase of feed force Ff is noteworthy: it takes place in all edges of the Re+ implanted insert in a similar way. In this respect, the tools implanted with yttrium ions appear to be much more advantageous because of stable performance during 200 s in all 6 cycles, as it is seen in Figure 7. Detailed analysis of the graphs obtained for Y+ implanted tools at dose 1 × 1017 ion/cm2 (not shown here) proved that after 3–4 cycles, when the layer of yttrium was worn out, forces increased and lost stability.
Special attention should be paid to the passive force component Fp, responsible for penetration into the machined material. When the edge loses its sharpness, larger Fp is required for overcoming the material’s resistance. In the graphs for unimplanted inserts, its value is rather unstable, varying between 50 and 150 N (Figure 5a,b). Its jump from 100 to 200 N after 100 s in Figure 5c may be attributed to some sort of chipping damage of the cutting edge. A similar sharp increase of the passive force component Fp is seen in Figure 6a, but after 230 s of working and reaching higher values of almost 300 N. Other rhenium-implanted edges performed gradual increase of Fp after each interruption. In this respect, the yttrium implanted inserts performed exceptionally well, keeping a very steady Fp value of ca. 100 N with some vibrations after 230 s (Figure 7a) or jump up to 200 N after 200 s (Figure 7c).
In order to provide more generalized insight, the initial and final values of forces in each turning test were gathered in single graphs presented in Figure 8. Dashed lines were added to emphasize the general trend for each cutting tool. It should be noted that for yttrium ion implanted surfaces, dispersion of all forces components values in the end points is the smallest.

3.3. Wear of the Cutting Tool

Visual inspection of the cutting edges and rake faces after turning tests was in conformity with the observations made from forces graphs. However, in order to make the results more objective, wear parameters VBN (notch wear, mm) and VBC (tool corner wear, or flank wear of tool corner, mm) were calculated according to the Standard PN-ISO 3685:1996. Figure 9, Figure 10 and Figure 11 present examples of the worn edges photomicrographs of the unimplanted, rhenium (Re+) implanted, and yttrium (Y+) implanted inserts, respectively. In Figure 12, values of the obtained wear parameters are collected in the bar diagram.
From Figure 12, where evident prevalence of implanted tools is seen, no clear trend can be derived, though. Differences of VBN values between two edges of the same insert sometimes appear very large, especially in case of the insert without ion implantation. One would expect smaller wear for Re+ 2 × 1017 ion/cm2 than for Re+ 1 × 1017 ion/cm2, which did not take place in case of the 1st edge. In addition, rather unexpected was the increased wear of for Y+ 1 × 1017 ion/cm2 (Y1). Nevertheless, the column Y2 corresponding with Y+ 2 × 1017 ion/cm2 insert stays in agreement with data obtained from cutting forces measurement. Namely, the tool after Y+ 2 × 1017 ion/cm2 ion implantation provided the best machining performance.
The VBC values in Figure 12b did not reveal any distinguishable trend. Again, the tool after Y+ 2 × 1017 ion/cm2 ion implantation (Y2) was worn in the smallest degree, even though similar results were obtained for Re+ 1 × 1017 ion/cm2 (Re1). In any case, however, VBC values for ion implanted surfaces were in range between 0.10 and 0.25, which was less than 1/3 of the respective VBC = 0.8 for the unimplanted tool.
Thus, in terms of tool wear decrease, ion implantation with larger doses did not provide evident improvement than that of smaller doses, while compared to the unimplanted tools, the implanted ones they performed substantially better. VBN values for implanted tools were at least 20% and at best 75% lower.

4. Conclusions

The research provided important initial qualitative information on impact of ion implantation on performance of cutting tools with difficult-to-machine materials. Wear analysis and turning tests of inserts TNGA 160408E made out of silicon nitride ceramics IS9 (Si3N4 with additives), after ion implantation with rhenium and yttrium, enabled formulating the following conclusions:
  • implantation of ions to the rake face of ceramic cutting tools is the effective way to improve their properties;
  • in particular, implantation of yttrium ions significantly decreased cutting resistance during dry machining of titanium alloy Ti-6Al-4V, compared to the inserts without ion implantation as well as to the ones implanted with rhenium ions;
  • wear of cutting edges after ion implantation was smaller than unimplanted ones, thus providing longer lifetime and better performance of tools with ion implanted surfaces;
  • significant improvement was obtained only with higher doses of ions, namely, Y+ 2 × 1017 ion/cm2;
  • in further research, more attention will be paid to the cutting tools implanted with yttrium ions in order to collect in-depth quantitative results.
The proposed methodology can be used in order to improve performance and to prolong the lifetime of the ceramic cutting tools applied for machining of the titanium alloys, as well as other difficult-to-cut materials. Further investigations will enable assessment of the ion implantation effect on performance of newly developed nanocomposite cutting tools.

Author Contributions

Conceptualization, D.M., E.G. and J.M.; methodology, D.M., E.G., Z.S., A.K. and Z.K.; software, Z.S., J.C. and Z.K.; validation, E.G., M.R., J.M. and J.C.; formal analysis, M.R., A.K. and Z.K.; investigation, D.M., Z.S., A.K. and E.G.; resources, Z.S. and J.C.; data curation, D.M., J.M. and J.C.; writing—original draft preparation, M.R.; writing—review and editing, E.G., J.M., A.K., J.C. and Z.K.; visualization, Z.K. and M.R.; supervision, E.G. and Z.S.; project administration, D.M. and Z.K.; funding acquisition, J.M. and Z.K. All authors have read and agreed to the published version of the manuscript.

Funding

The researches were performed with financial support of Polish Ministry of Science and Higher Education for UTH Radom, project No. 3257/22/P, and co-funded from the ’Excellent science’ program of the Polish Ministry of Science and Higher Education as a part of the contract No. DNK/SP/465641/2020 "The role of the agricultural engineering and environmental engineering in the sustainable agriculture development."

Acknowledgments

The Authors express their gratitude to the Polish National Center of Nuclear Research (NCBJ) for the cooperation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Karlsson, J.; Norell, M.; Ackelid, U.; Engqvist, H.; Lausmaa, J. Surface oxidation behavior of Ti–6Al–4V manufactured by Electron Beam Melting (EBM®). J. Manuf. Process. 2015, 17, 120–126. [Google Scholar] [CrossRef]
  2. Lepicka, M.; Gradzka-Dahlke, M.; Pieniak, D.; Pasierbiewicz, K.; Krynska, K.; Niewczas, A. Tribological performance of titanium nitride coatings: A comparative study on TiN-coated stainless steel and titanium alloy. Wear 2019, 422, 68–80. [Google Scholar] [CrossRef]
  3. Szala, M.; Hejwowski, T. Cavitation Erosion Resistance and Wear Mechanism Model of Flame-Sprayed Al2O3-40%TiO2/NiMoAl Cermet Coatings. Coatings 2018, 8, 254. [Google Scholar] [CrossRef] [Green Version]
  4. Gardynski, L.; Caban, J.; Barta, D. Research of composite materials used in the construction of vehicle bodywork. Adv. Sci. Technol. Res. J. 2018, 12, 181–187. [Google Scholar] [CrossRef]
  5. Maruszczyk, A.; Dudek, A.; Szala, M. Research into morphology and properties of TiO2-NiAl atmospheric plasma sprayed coating. Adv. Sci. Technol. Res. J. 2017, 11, 204–210. [Google Scholar] [CrossRef] [Green Version]
  6. Żebrowski, R.; Walczak, M.; Klepka, T.; Pasierbiewicz, K. Effect of the shot peening on surface properties of Ti-6Al-4V alloy produced by means of DMLS technology. Eksploat. Niezawodn.—Maint. Reliab. 2019, 21, 46–53. [Google Scholar] [CrossRef]
  7. Żebrowski, R.; Walczak, M.; Korga, A.; Iwan, M.; Szala, M. Effect of Shot Peening on the Mechanical Properties and Cytotoxicity Behaviour of Titanium Implants Produced by 3D Printing Technology. J. Healthc. Eng. 2019, 2019, 8169538. [Google Scholar] [CrossRef]
  8. Jelliti, S.; Richard, C.; Retraint, D.; Roland, T.; Chemkhi, M.; Demangel, C. Effect of surface nanocrystallization on the corrosion behavior of Ti6Al-4V titanium alloy. Surf. Coat. Technol. 2013, 224, 82–87. [Google Scholar] [CrossRef]
  9. Kajzer, W.; Jaworska, J.; Jelonek, K.; Szewczenko, J.; Kajzer, A.; Nowińska, K.; Hercog, A.; Kaczmarek, M.; Kasperczyk, J. Corrosion resistance of Ti6Al4V alloy coated with caprolactone-based biodegradable polymeric coatings. Eksploat. Niezawodn. Maint. Reliab. 2018, 20, 30–38. [Google Scholar] [CrossRef]
  10. Kaminski, M.; Budzynski, P.; Surowiec, Z.; Wiertel, M.; Skuratov, V.A. Surface morphology and phase stability of titanium irradiated with 168 MeV Xe-136 ions. Int. J. Mater. Res. 2018, 109, 779–784. [Google Scholar] [CrossRef]
  11. Bejjani, R.; Bamford, E.; Cedergren, S.; Archenti, A.; Rashid, A. Variations in the Surface Integrity of Ti-6Al-4V by Combinations of Additive and Subtractive Manufacturing Processes. Materials 2020, 13, 1825. [Google Scholar] [CrossRef] [PubMed]
  12. Kaminski, M.; Budzynski, P.; Szala, M.; Turek, M. Comparing of microhardness of the stellite 6 cobalt alloy implanted with 175 keV Mn+ ions and 120 keV N+ ions. Adv. Sci. Technol. Res. J. 2019, 13, 179–185. [Google Scholar] [CrossRef]
  13. Maruda, R.W.; Krolczyk, G.M.; Nieslony, P.; Wojciechowski, S.; Michalski, M.; Legutko, S. The influence of the cooling conditions on the cutting tool wear and the chip formation mechanism. J. Manuf. Process. 2016, 24P1, 107–115. [Google Scholar] [CrossRef]
  14. Garcia, U.; Ribeiro, M.V. Ti6Al4V Titanium Alloy End Milling with Minimum Quantity of Fluid Technique Use. Mater. Manuf. Process. 2016, 31, 905–918. [Google Scholar] [CrossRef] [Green Version]
  15. Zhang, H.; Dang, J.; Ming, W.; Xu, X.; Chen, M.; An, Q. Cutting responses of additive manufactured Ti6Al4V with solid ceramic tool under dry high-speed milling processes. Ceram. Int. 2020, 46, 14536–14547. [Google Scholar] [CrossRef]
  16. Zha, J.; Yuan, Z.; Zhang, H.; Li, Y.; Chen, Y. Nickel-Based Alloy Dry Milling Process Induced Material Softening Effect. Materials 2020, 13, 3758. [Google Scholar] [CrossRef]
  17. Narojczyk, J.; Morozow, D.; Narojczyk, J.W.; Rucki, M. Ion implantation of the tool’s rake face for machining of the Ti-6Al-4V alloy. J. Manuf. Process. 2018, 34 Pt A, 274–280. [Google Scholar] [CrossRef]
  18. Zhang, P.; Cai, Z.; Xiong, W. Influence of Si content and growth condition on the microstructure and mechanical properties of Ti-Si-N nanocomposite films. Surf. Coat. Technol. 2007, 201, 6819–6823. [Google Scholar] [CrossRef]
  19. Page, T.F.; Bull, S.J. Ion Implantation in Ceramics. In Encyclopedia of Materials: Science and Technology; Buschow, K.H.J., Cahn, R.W., Flemings, M.C., Ilschner, B., Kramer, E.J., Mahajan, S., Veyssière, P., Eds.; Elsevier: Amsterdam, The Netherlands, 2001; pp. 4286–4292. [Google Scholar] [CrossRef]
  20. Vesnovsky, O.K. Ion implantation of cutting tools. Surf. Coat. Technol. 1992, 52, 297–299. [Google Scholar] [CrossRef]
  21. An, Q.; Chen, J.; Tao, Z.; Ming, W.; Chen, M. Experimental investigation on tool wear characteristics of PVD and CVD coatings during face milling of Ti-6242S and Ti-555 titanium alloys. Int. J. Refract. Met. Hard Mater. 2020, 86, 105091. [Google Scholar] [CrossRef]
  22. Narojczyk, J.; Werner, Z.; Piekoszewski, J.; Szymczyk, W. Effects of nitrogen implantation on lifetime of cutting tools made of SK5M tool steel. Vacuum 2005, 78, 229–233. [Google Scholar] [CrossRef]
  23. Tian, C.; Zhou, G.; Zhang, J.; Zhang, C. Optimization of cutting parameters considering tool wear conditions in low-carbon manufacturing environment. J. Clean. Prod. 2019, 226, 706–719. [Google Scholar] [CrossRef]
  24. Kataoka, R.; Shamoto, E. Influence of vibration in cutting on tool flank wear: Fundamental study by conducting a cutting experiment with forced vibration in the depth-of-cut direction. Precis. Eng. 2019, 55, 322–329. [Google Scholar] [CrossRef]
  25. Suárez, A.; Veiga, F.; López de Lacalle, L.N.; Polvorosa, R.; Wretland, A. An investigation of cutting forces and tool wear in turning of Haynes 282. J. Manuf. Process. 2019, 37, 529–540. [Google Scholar] [CrossRef]
  26. Vipindas, K.; Jose, M. Wear behavior of TiAlN coated WC tool during micro end milling of Ti-6Al-4V and analysis of surface roughness. Wear 2019, 424–425, 165–182. [Google Scholar] [CrossRef]
  27. Perry, A.J.; Treglio, J.R.; Bhat, D.G.; Boppana, S.P.; Kattamis, T.Z.; Schlichting, G.; Geist, D.E. Effect of ion implantation on the residual stress, tribological and machining behavior of CVD and PVD TiN coated cemented carbide cutting tool inserts. Surf. Coat. Technol. 1994, 68–69, 294–300. [Google Scholar] [CrossRef]
  28. Xu, J.; Zhu, J.; Fan, J.; Zhou, Q.; Peng, Y.; Guo, S. Microstructure and mechanical properties of Ti–6Al–4V alloy fabricated using electron beam freeform fabrication. Vacuum 2019, 167, 364–373. [Google Scholar] [CrossRef]
  29. Kumar, P.; Prakash, O.; Ramamurty, U. Micro-and meso-structures and their influence on mechanical properties of selectively laser melted Ti-6Al-4V. Acta Mater. 2018, 154, 246–260. [Google Scholar] [CrossRef]
  30. Cherenda, N.N.; Basalai, A.V.; Shymanski, V.I.; Uglov, V.V.; Astashynski, V.M.; Kuzmitski, A.M.; Laskovnev, A.P.; Remnev, G.E. Modification of Ti-6Al-4V alloy element and phase composition by compression plasma flows impact. Surf. Coat. Technol. 2018, 355, 148–154. [Google Scholar] [CrossRef] [Green Version]
  31. Dumontet, N.; Connétable, D.; Malard, B.; Viguier, B. Elastic properties of the α’ martensitic phase in the Ti-6Al-4V alloy obtained by additive manufacturing. Scr. Mater. 2019, 167, 115–119. [Google Scholar] [CrossRef] [Green Version]
  32. Seo, D.M.; Hwang, T.W.; Moon, Y.H. Carbonitriding of Ti-6Al-4V alloy via laser irradiation of pure graphite powder in nitrogen environment. Surf. Coat. Technol. 2019, 363, 244–254. [Google Scholar] [CrossRef]
  33. Shokrani, A.; Al-Samarrai, I.; Newman, S.T. Hybrid cryogenic MQL for improving tool life in machining of Ti-6Al-4V titanium alloy. J. Manuf. Process. 2019, 43, 229–243. [Google Scholar] [CrossRef]
  34. Xu, Z.; He, X.; Hu, H.; Tan, P.J.; Yu, L.; Huang, F. Plastic behavior and failure mechanism of Ti-6Al-4V under quasi-static and dynamic shear loading. Int. J. Impact Eng. 2019, 130, 281–291. [Google Scholar] [CrossRef]
  35. Mia, M.; Dhar, N.R. Effects of duplex jets high-pressure coolant on machining temperature and machinability of Ti-6Al-4V superalloy. J. Mater. Process. Technol. 2018, 252, 688–696. [Google Scholar] [CrossRef]
  36. Oczoś, K.E. Metal removal method in shaping the titanium and titanium alloy parts used for aviation and medical instruments. Mechanik 2008, 81, 639–656. [Google Scholar]
  37. Grigoriev, S.N.; Fedorov, S.V.; Hamdy, K. Materials, properties, manufacturing methods and cutting performance of innovative ceramic cutting tools—A review. Manuf. Rev. 2019, 6, 19. [Google Scholar] [CrossRef] [Green Version]
  38. Zawada-Michałowska, M.; Pieśko, P.; Józwik, J. Tribological Aspects of Cutting Tool Wear during the Turning of Stainless Steels. Materials 2020, 13, 123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Morozow, D.; Rucki, M.; Siemiątkowski, Z.; Gutsalenko, Y. Tribological tests of the ceramic cutting tools after yttrium (Y+) and rhenium (Re+) ion implantation. Tribologia 2019, 285, 71–77. [Google Scholar] [CrossRef]
  40. Wika, K.K.; Gurdal, O.; Litwa, P.; Hitchens, C. Influence of supercritical CO2 cooling on tool wear and cutting forces in the milling of Ti-6Al-4V. Procedia CIRP 2019, 82, 89–94. [Google Scholar] [CrossRef]
Materials 13 04687 g001 550

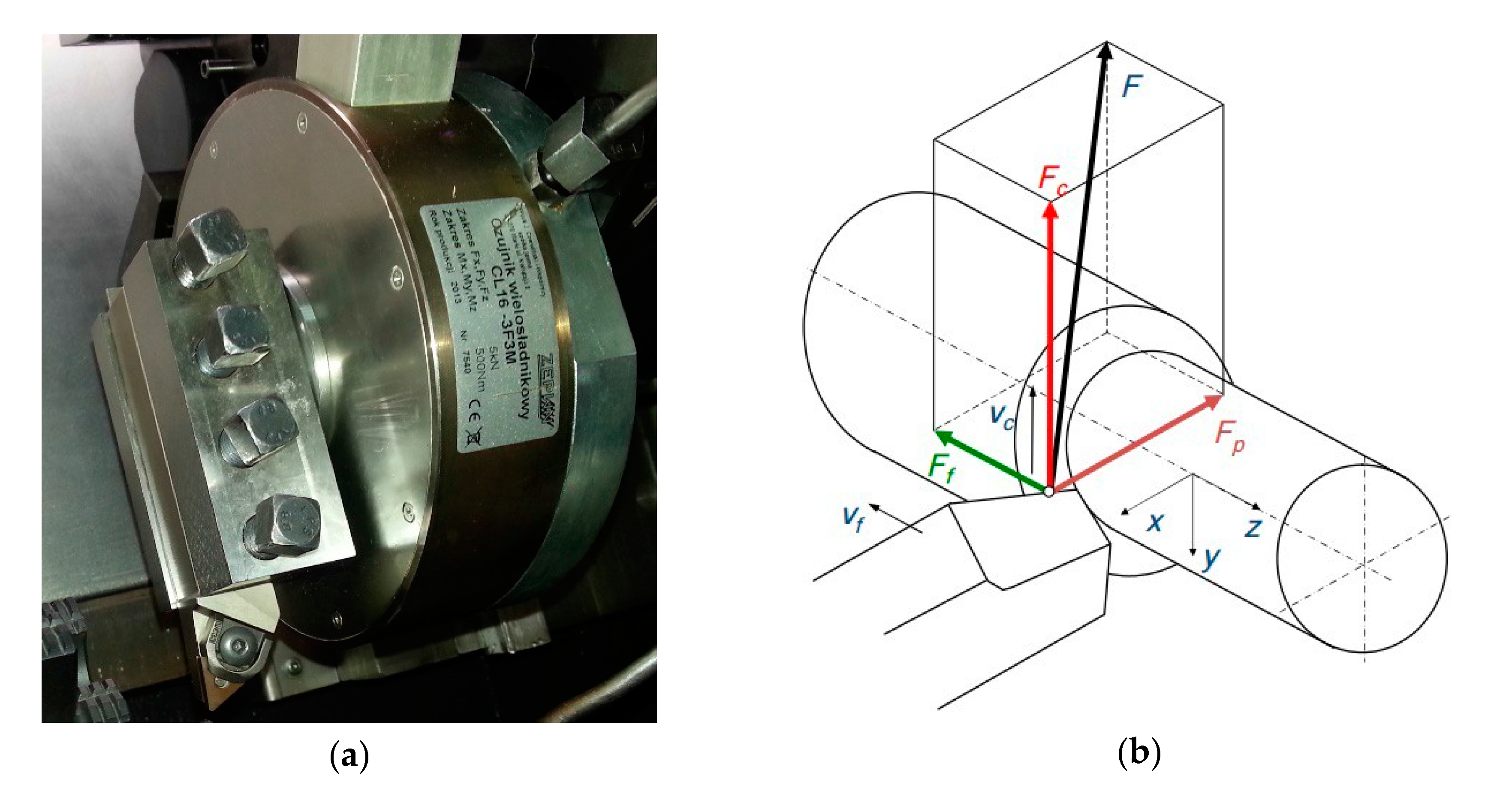

Figure 1. CL16-3F3M device: (a) The overall view; (b) scheme of the measured forces components.
Figure 1. CL16-3F3M device: (a) The overall view; (b) scheme of the measured forces components.
Materials 13 04687 g001
Materials 13 04687 g002 550
Figure 2. Analyzed surfaces: (a) Unimplanted insert surface; (b) Surface after yttrium ion implantation (dose 2 × 1017 ion/cm2); (c) Surface after rhenium ion implantation (dose 2 × 1017 ion/cm2).
Figure 2. Analyzed surfaces: (a) Unimplanted insert surface; (b) Surface after yttrium ion implantation (dose 2 × 1017 ion/cm2); (c) Surface after rhenium ion implantation (dose 2 × 1017 ion/cm2).
Materials 13 04687 g002
Materials 13 04687 g003 550

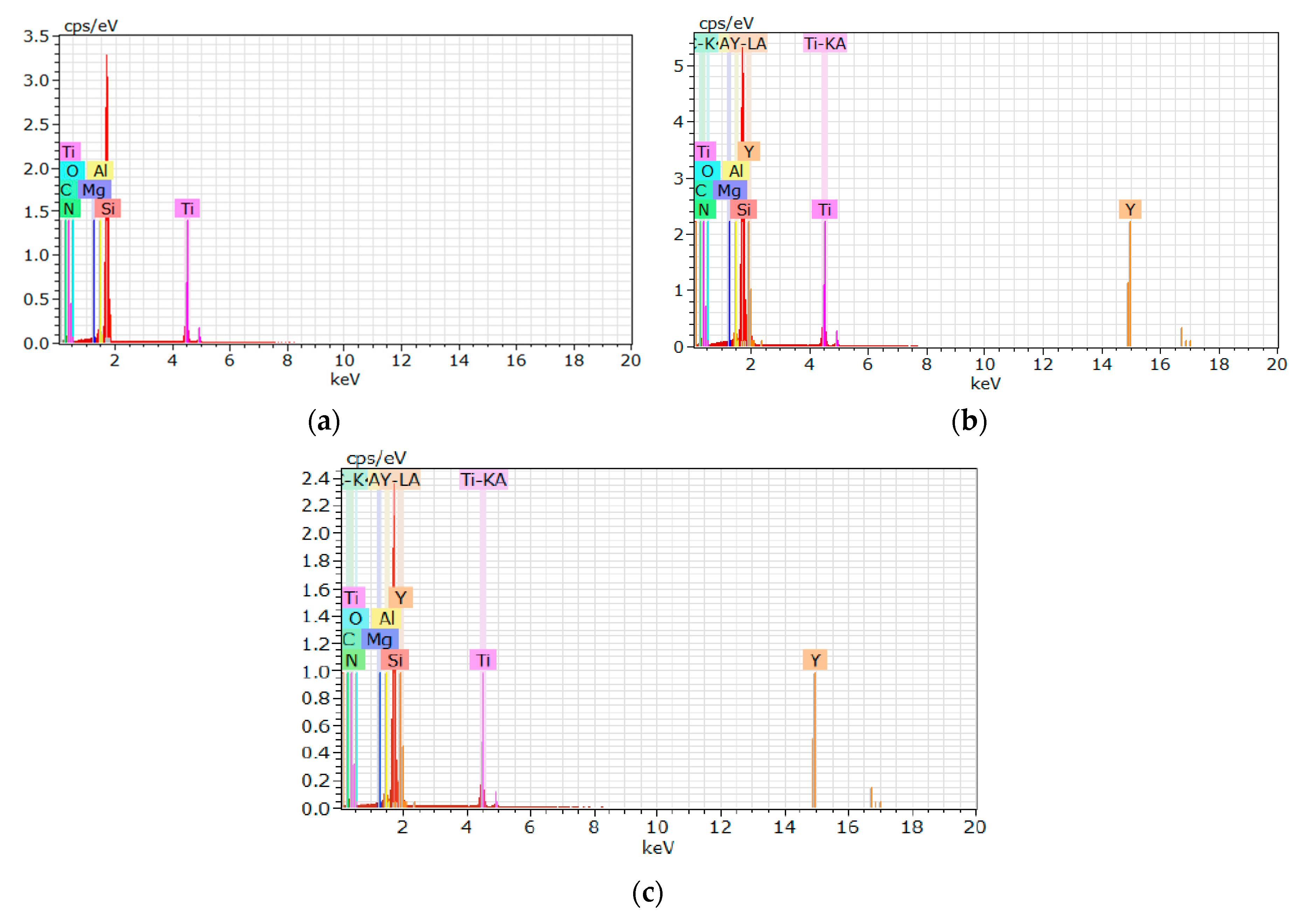

Figure 3. EDS analysis of different chemical compositions of the IS9 inserts: (a) Before ion implantation; (b) after yttrium ion implantation at dose 1 × 1017 ion/cm2; (c) after yttrium ion implantation at dose 2 × 1017 ion/cm2.
Figure 3. EDS analysis of different chemical compositions of the IS9 inserts: (a) Before ion implantation; (b) after yttrium ion implantation at dose 1 × 1017 ion/cm2; (c) after yttrium ion implantation at dose 2 × 1017 ion/cm2.
Materials 13 04687 g003
Materials 13 04687 g004 550
Figure 4. Yttrium (a) and rhenium (b) distribution on the nitride ceramic surface after ion implantation.
Figure 4. Yttrium (a) and rhenium (b) distribution on the nitride ceramic surface after ion implantation.
Materials 13 04687 g004
Materials 13 04687 g005 550

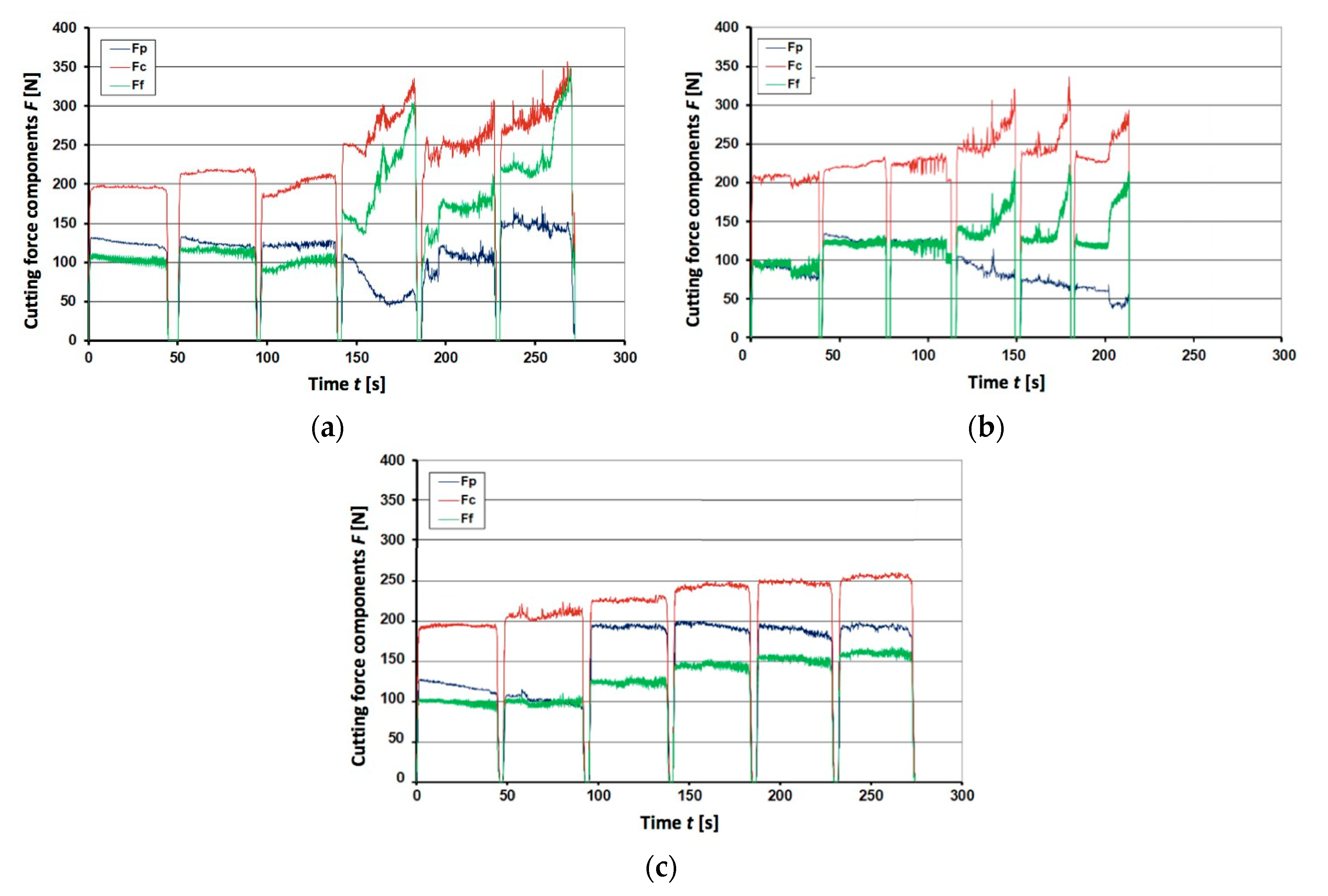

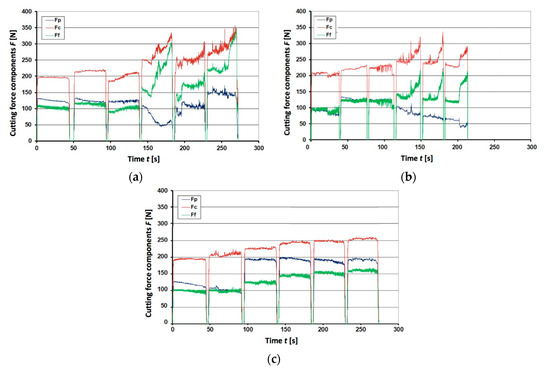

Figure 5. Registered force components Fp, Fc, and Ff for the insert IS9 without implanted ions: (a) 1st edge; (b) 2nd edge; (c) 3rd edge.
Figure 5. Registered force components Fp, Fc, and Ff for the insert IS9 without implanted ions: (a) 1st edge; (b) 2nd edge; (c) 3rd edge.
Materials 13 04687 g005
Materials 13 04687 g006 550

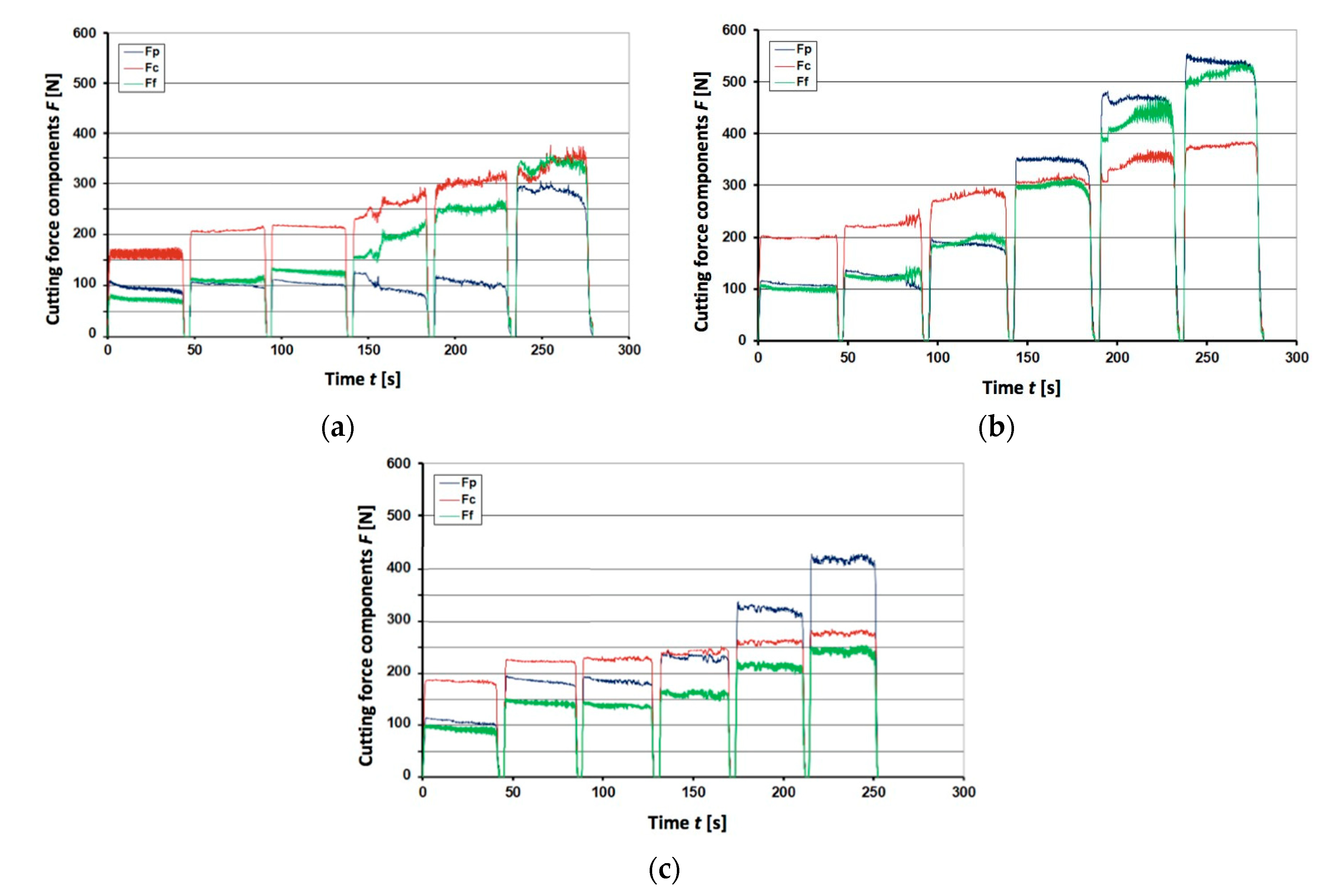

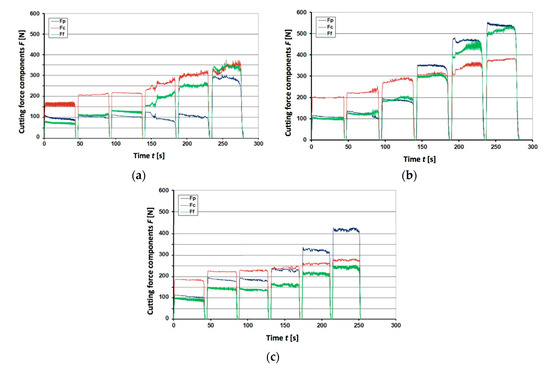

Figure 6. Registered force components Fp, Fc, and Ff for the Re+ implanted at dose 2 × 1017 ion/cm2 insert IS9: (a) 1st edge; (b) 2nd edge; (c) 3rd edge.
Figure 6. Registered force components Fp, Fc, and Ff for the Re+ implanted at dose 2 × 1017 ion/cm2 insert IS9: (a) 1st edge; (b) 2nd edge; (c) 3rd edge.
Materials 13 04687 g006
Materials 13 04687 g007 550

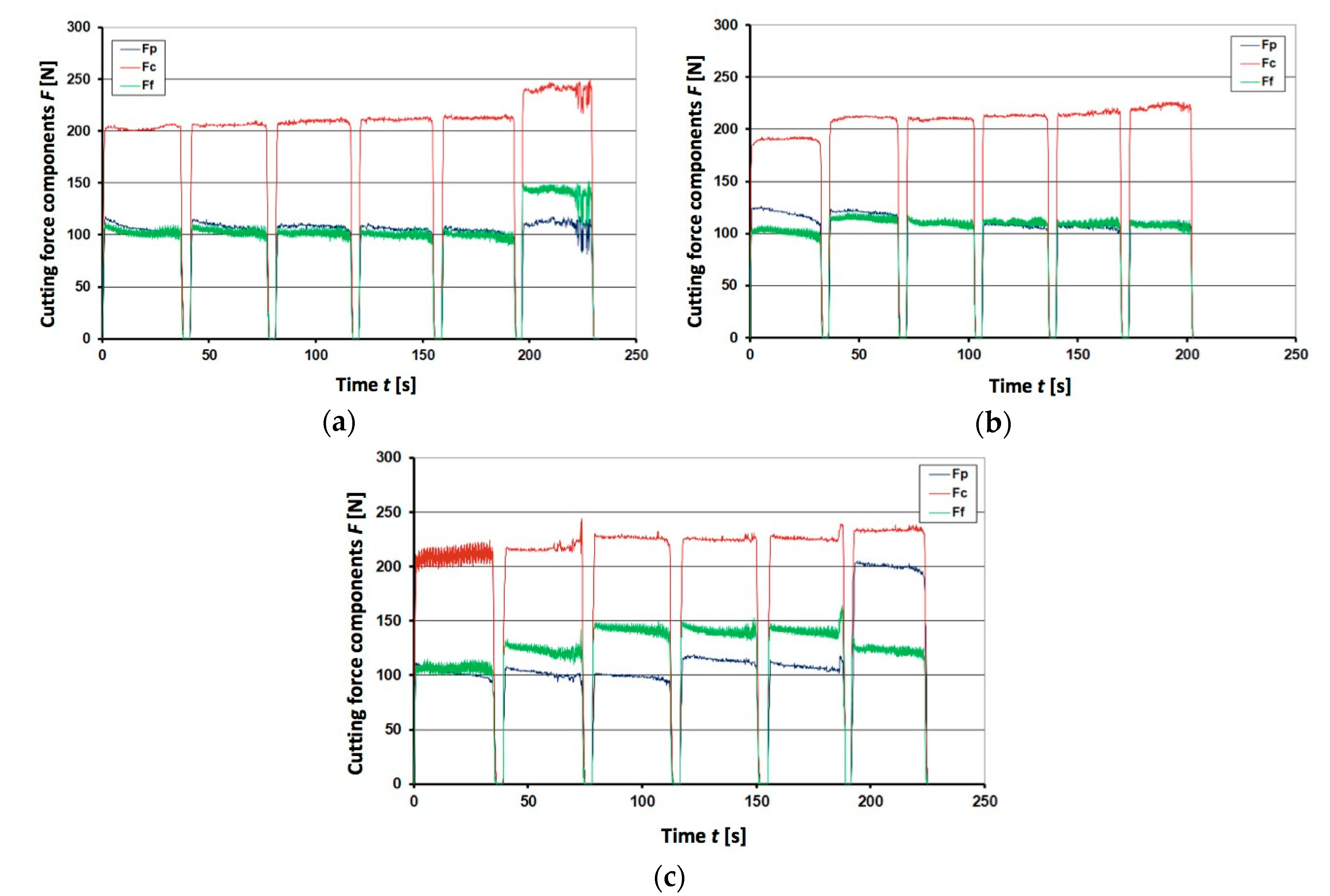

Figure 7. Registered force components Fp, Fc, and Ff for the Y+ implanted at dose 2 × 1017 ion/cm2 insert IS9: (a) 1st edge; (b) 2nd edge; (c) 3rd edge.
Figure 7. Registered force components Fp, Fc, and Ff for the Y+ implanted at dose 2 × 1017 ion/cm2 insert IS9: (a) 1st edge; (b) 2nd edge; (c) 3rd edge.
Materials 13 04687 g007
Materials 13 04687 g008a 550Materials 13 04687 g008b 550

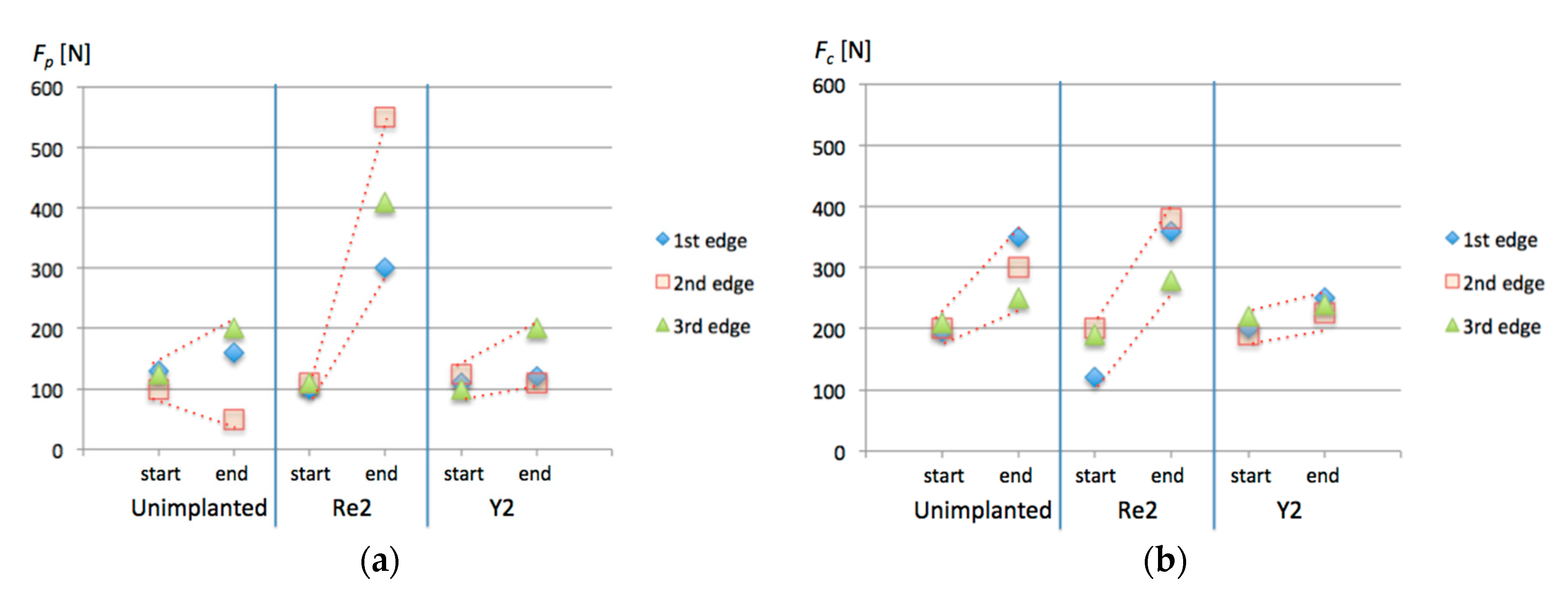

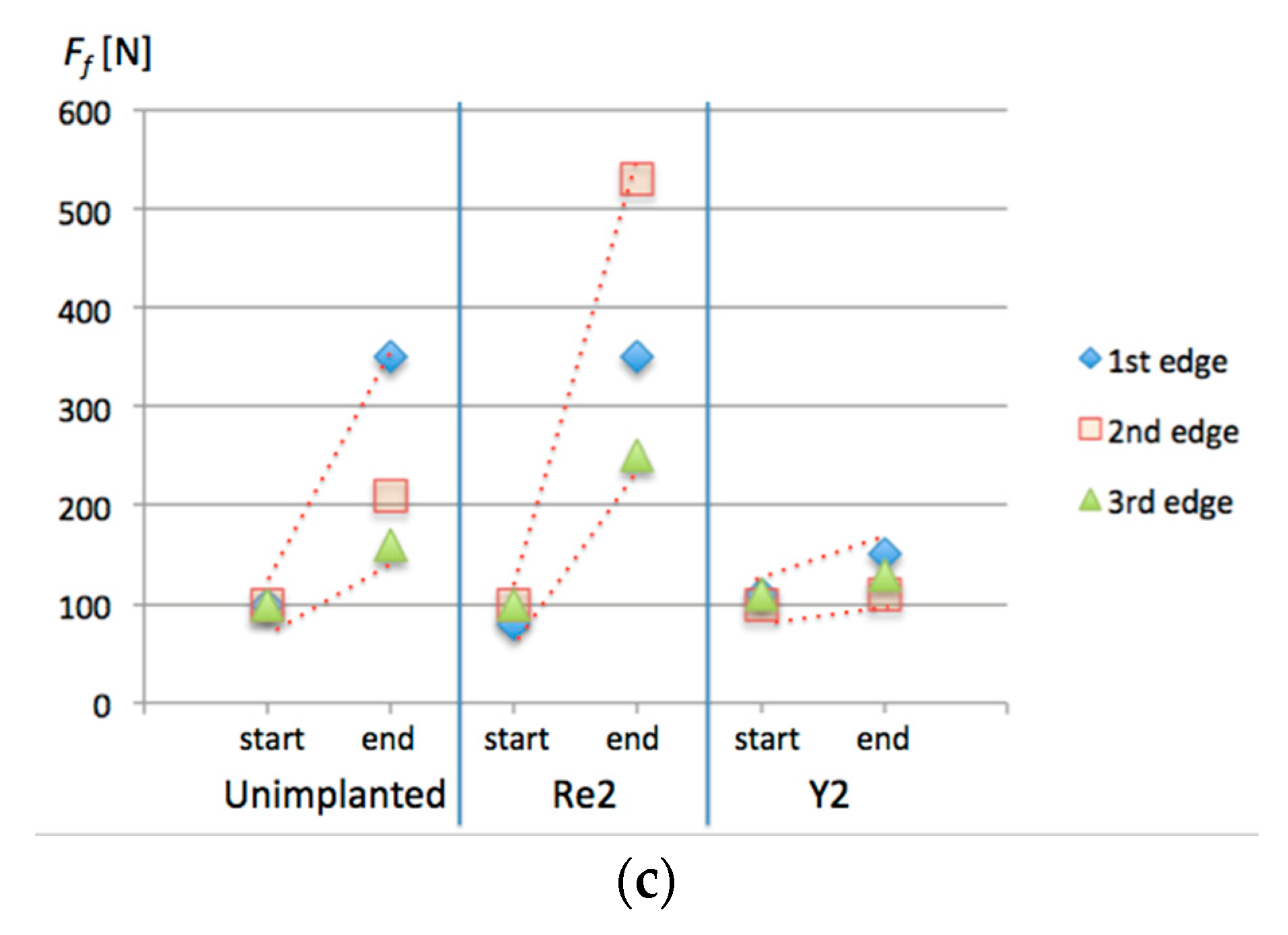

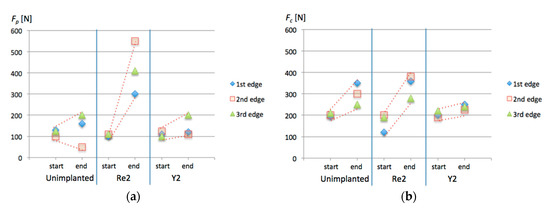

Figure 8. Registered force components: (a) Fp; (b) Fc; (c) Ff. The respective symbols along X-axis denote start and end points of turning tests for cutting inserts: Unimplanted; Re2—Re+ (2 × 1017 ion/cm2) implanted edges: Y2—Y+ (2 × 1017 ion/cm2) implanted edges.
Figure 8. Registered force components: (a) Fp; (b) Fc; (c) Ff. The respective symbols along X-axis denote start and end points of turning tests for cutting inserts: Unimplanted; Re2—Re+ (2 × 1017 ion/cm2) implanted edges: Y2—Y+ (2 × 1017 ion/cm2) implanted edges.
Materials 13 04687 g008aMaterials 13 04687 g008b
Materials 13 04687 g009 550

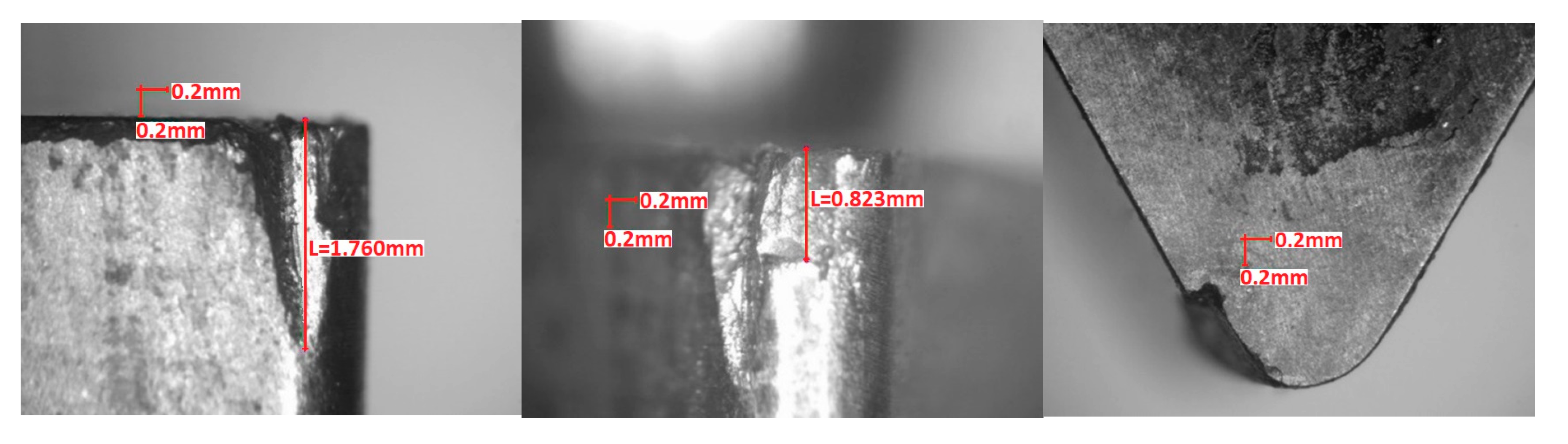

Figure 9. Unimplanted TNGA 160408E (IS9) edge after turning test (VBN = 1.8 mm, VBC = 0.8 mm).
Figure 9. Unimplanted TNGA 160408E (IS9) edge after turning test (VBN = 1.8 mm, VBC = 0.8 mm).
Materials 13 04687 g009
Materials 13 04687 g010 550

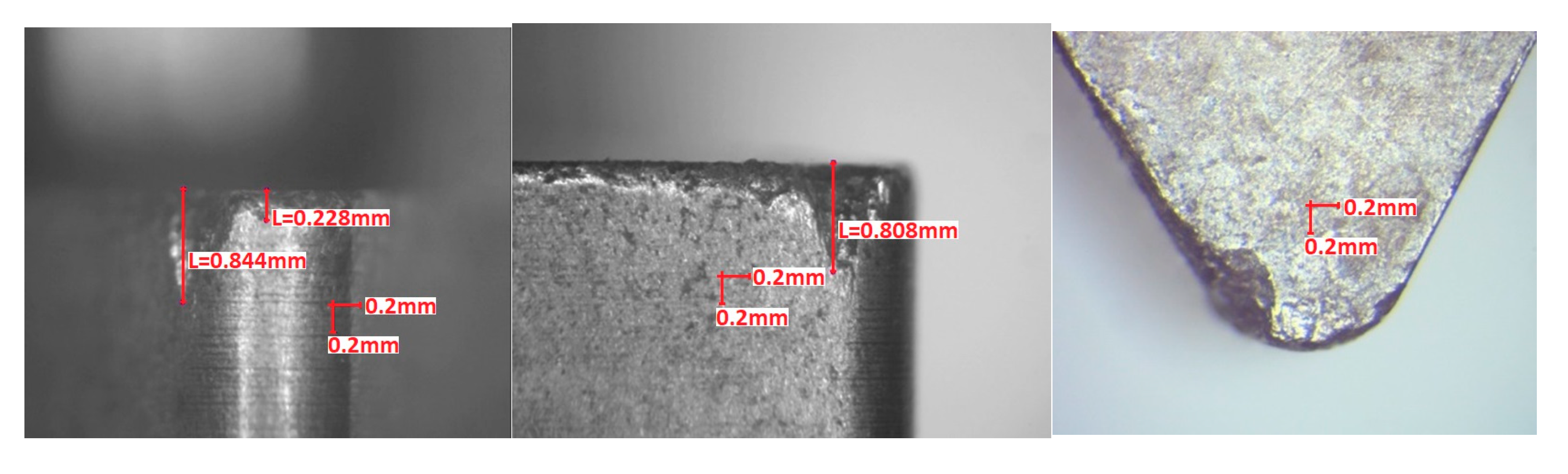

Figure 10. Rhenium implanted at dose 2 × 1017 ion/cm2 TNGA 160408E (IS9) edge after turning test (VBN = 0.8 mm, VBC = 0.2 mm).
Figure 10. Rhenium implanted at dose 2 × 1017 ion/cm2 TNGA 160408E (IS9) edge after turning test (VBN = 0.8 mm, VBC = 0.2 mm).
Materials 13 04687 g010
Materials 13 04687 g011 550

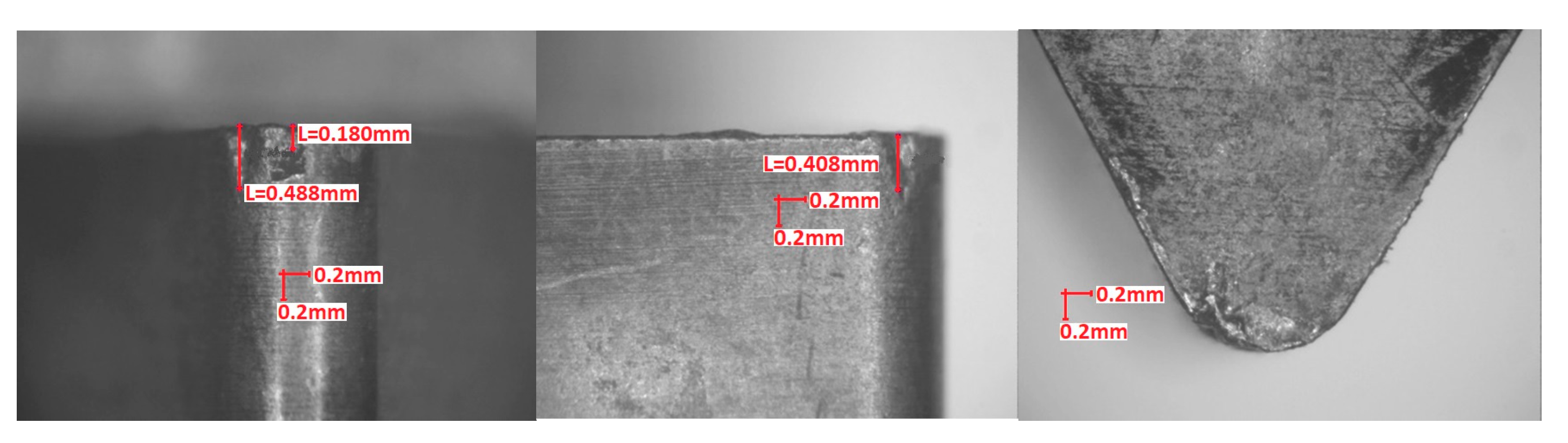

Figure 11. Yttrium implanted at dose 2 × 1017 ion/cm2 TNGA 160408E (IS9) edge after turning test (VBN = 0.4 mm, VBC = 0.2 mm).
Figure 11. Yttrium implanted at dose 2 × 1017 ion/cm2 TNGA 160408E (IS9) edge after turning test (VBN = 0.4 mm, VBC = 0.2 mm).
Materials 13 04687 g011
Materials 13 04687 g012 550

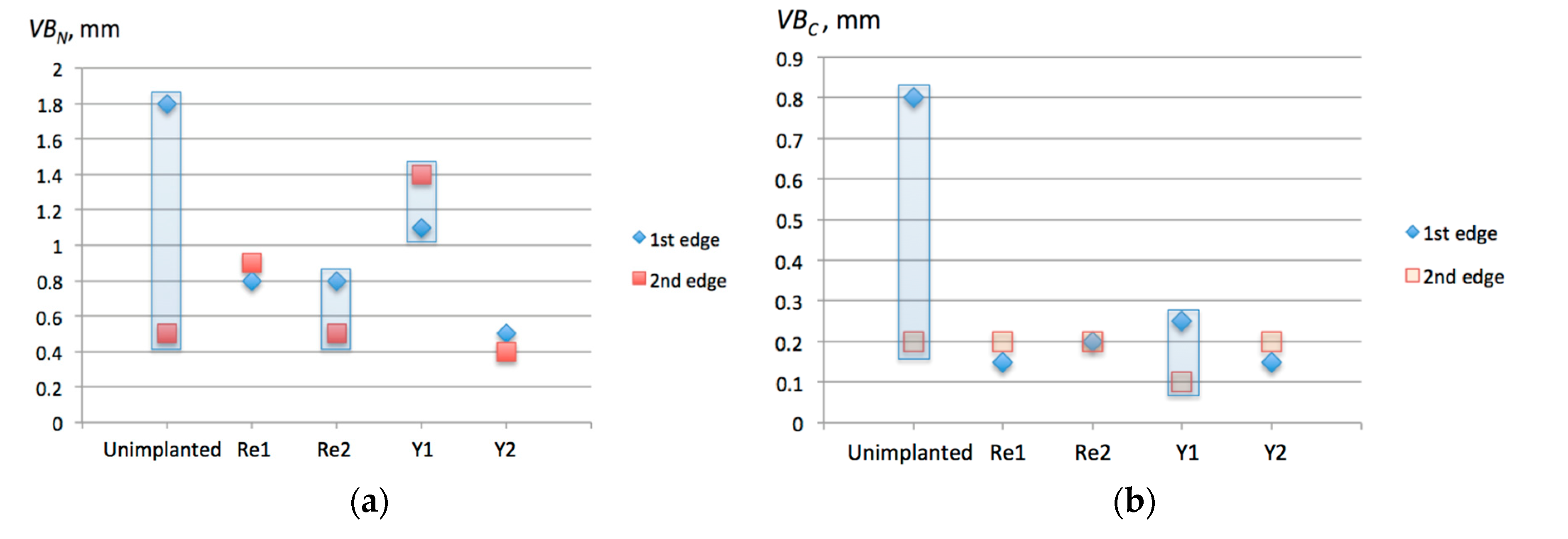

Figure 12. Wear parameters of TNGA 160408E (IS9) inserts measured on two edges each: (a) VBN; (b) VBC. The respective symbols along X-axis denote: Unimplanted 1st and 2nd edge; Re1—Re+ (1 × 1017 ion/cm2) implanted edges; Re2—Re+ (2 × 1017 ion/cm2) implanted edges: Y1—Y+ (1 × 1017 ion/cm2) implanted edges; Y2—Y+ (2 × 1017 ion/cm2) implanted edges.
Figure 12. Wear parameters of TNGA 160408E (IS9) inserts measured on two edges each: (a) VBN; (b) VBC. The respective symbols along X-axis denote: Unimplanted 1st and 2nd edge; Re1—Re+ (1 × 1017 ion/cm2) implanted edges; Re2—Re+ (2 × 1017 ion/cm2) implanted edges: Y1—Y+ (1 × 1017 ion/cm2) implanted edges; Y2—Y+ (2 × 1017 ion/cm2) implanted edges.
Materials 13 04687 g012
Table
Table 1. Ion implantation parameters.
Table 1. Ion implantation parameters.
No.InsertIon TypeIon Dose (ion/cm2)Beam Energy (keV)
1TNGA 160408E
(IS9, Si3N4-based ceramic)		Re+1 × 1017
2 × 1017		65
2TNGA 160408E
(IS9, Si3N4-based ceramic)		Y+1 × 1017
2 × 1017		65
