Next Article in Journal
The Influence of Dosing Method and Material Characteristics of Superabsorbent Polymers (SAP) on the Effectiveness of the Concrete Internal Curing
Previous Article in Journal
Experimental Parametric Model for Adhesion Wear Measurements in the Dry Turning of an AA2024 Alloy
Article Menu

Export Article

Open AccessArticle
Materials 2018, 11(9), 1599; https://doi.org/10.3390/ma11091599

A Novel Computational Method of Processing Map for Ti-6Al-4V Alloy and Corresponding Microstructure Study

1
Key Laboratory for Anisotropy and Texture of Materials (Ministry of Education), Northeastern University, Shenyang 110819, China
2
Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
*
Author to whom correspondence should be addressed.
Received: 4 August 2018 / Revised: 31 August 2018 / Accepted: 31 August 2018 / Published: 3 September 2018
(This article belongs to the Section Structure Analysis and Characterization)
Full-Text   |   PDF [4680 KB, uploaded 3 September 2018]   |

Abstract

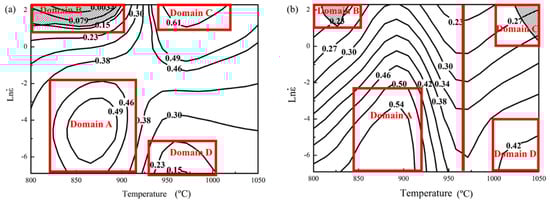

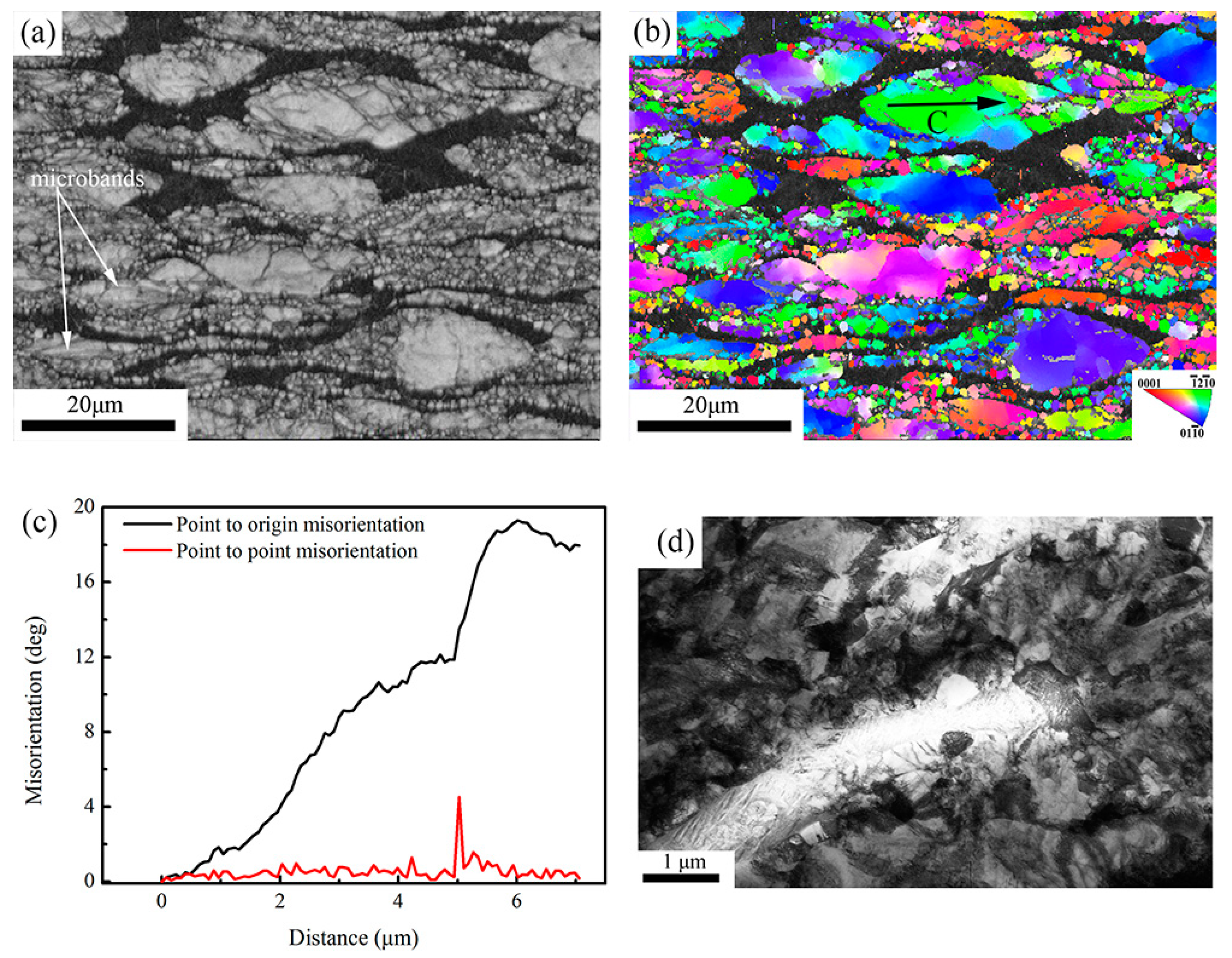

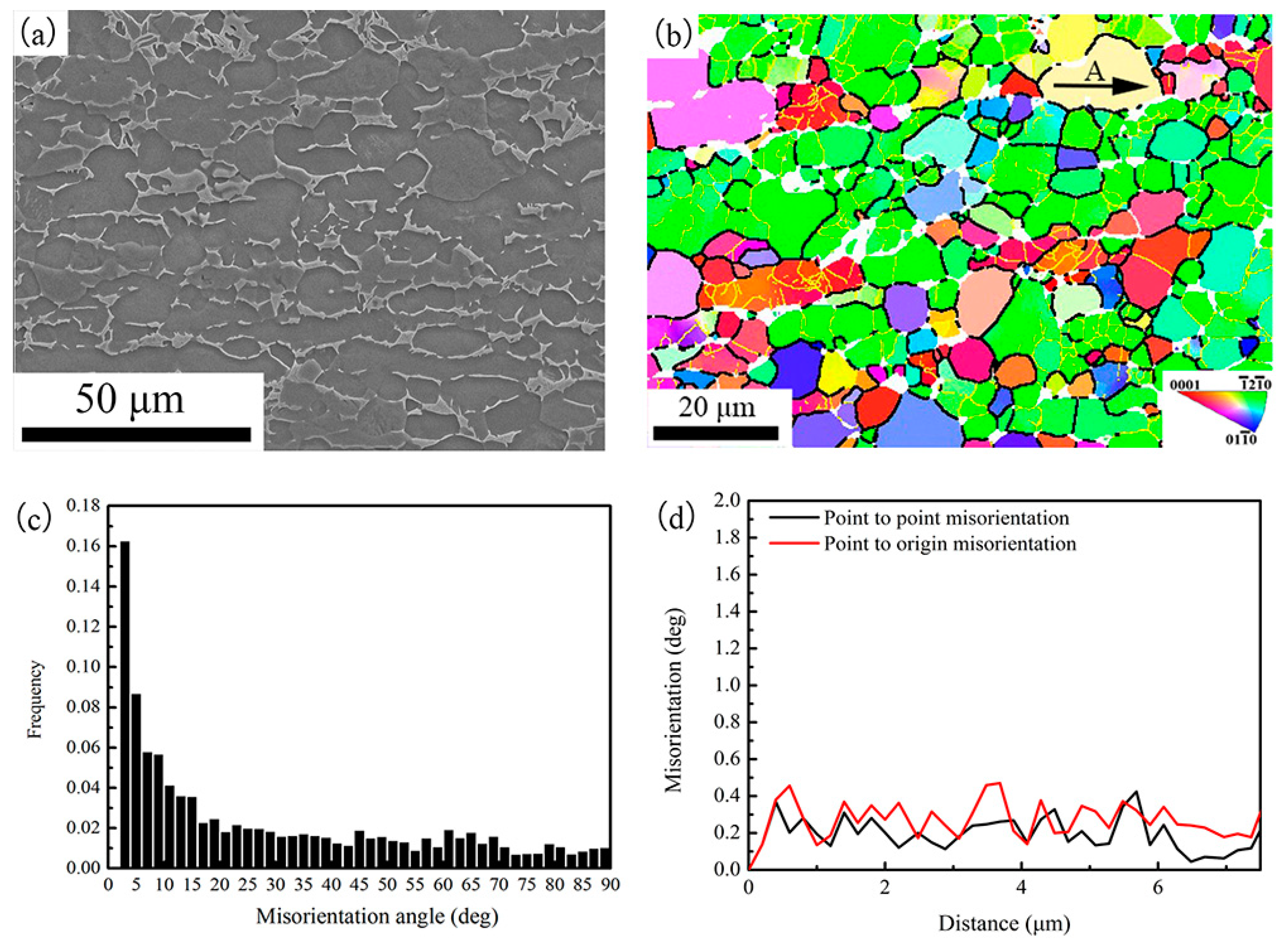

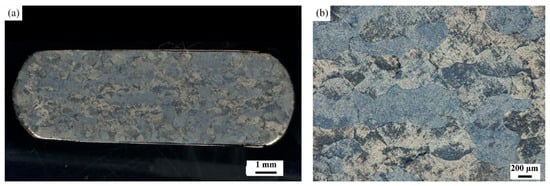

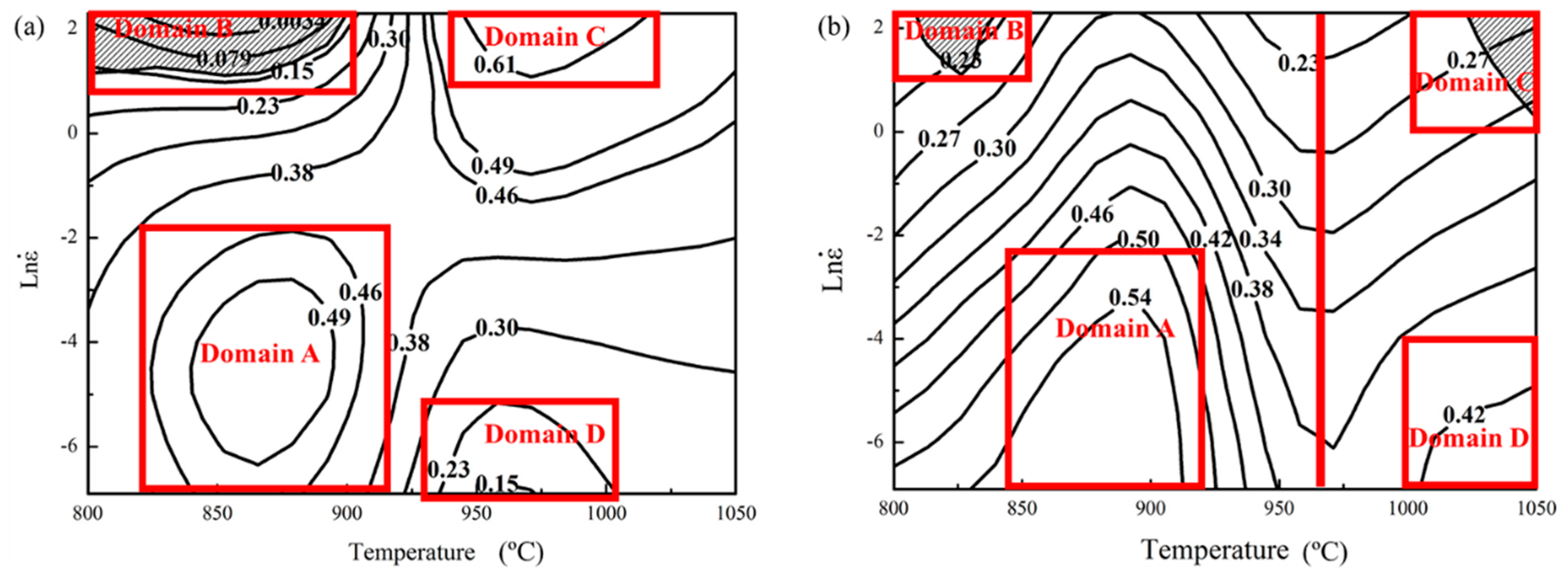

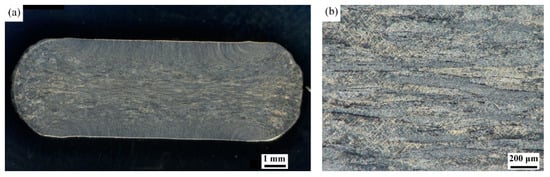

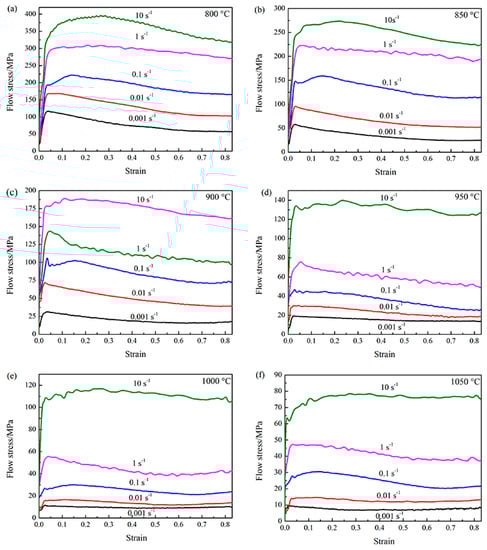

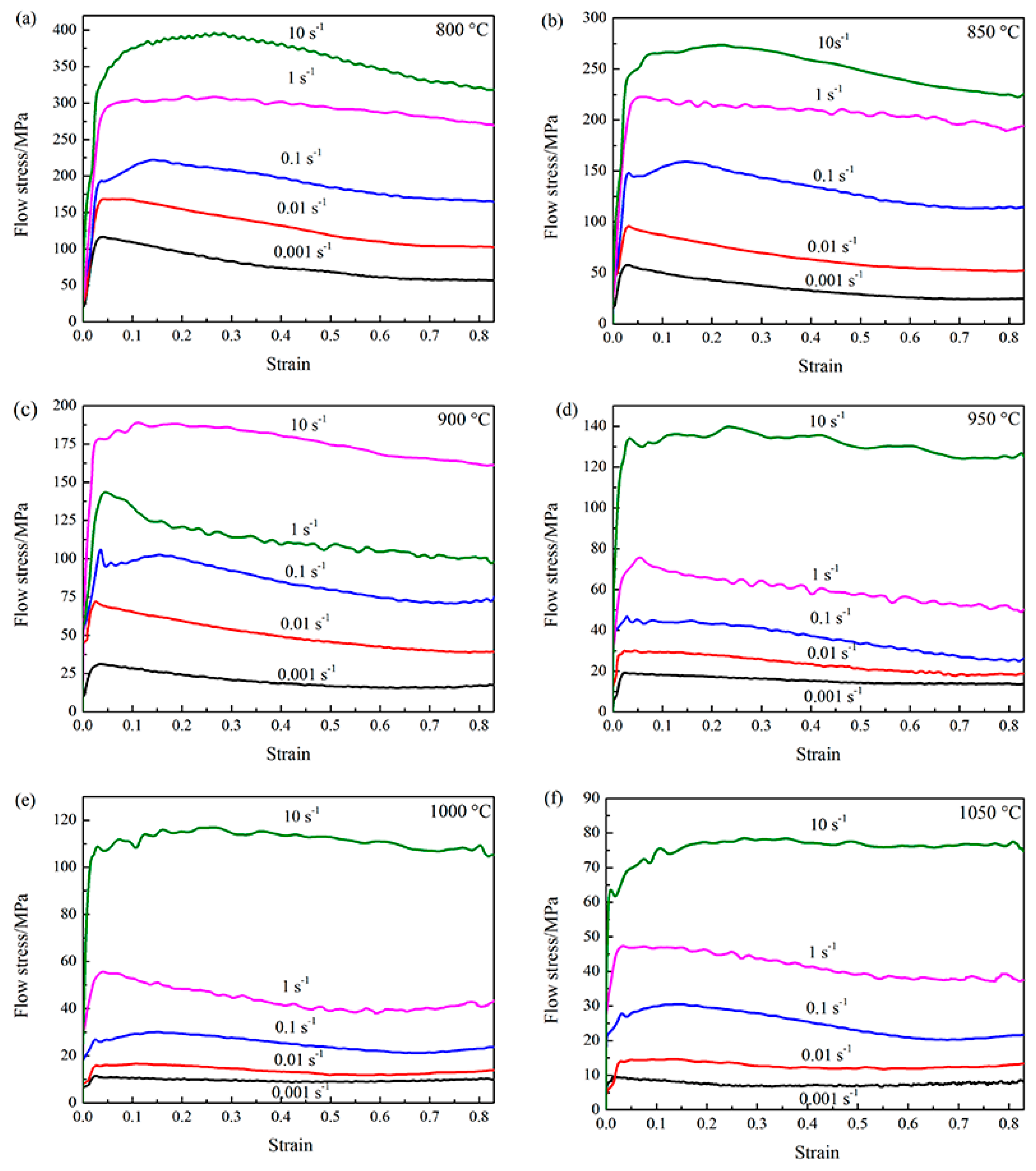

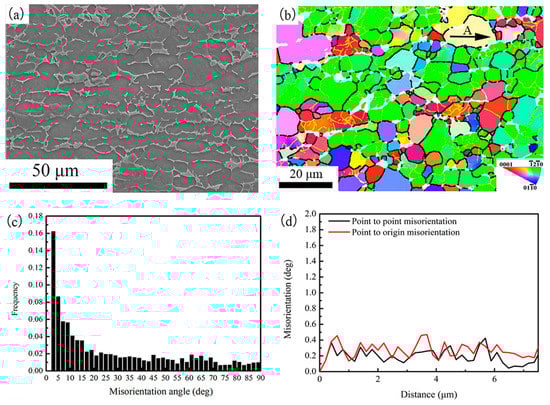

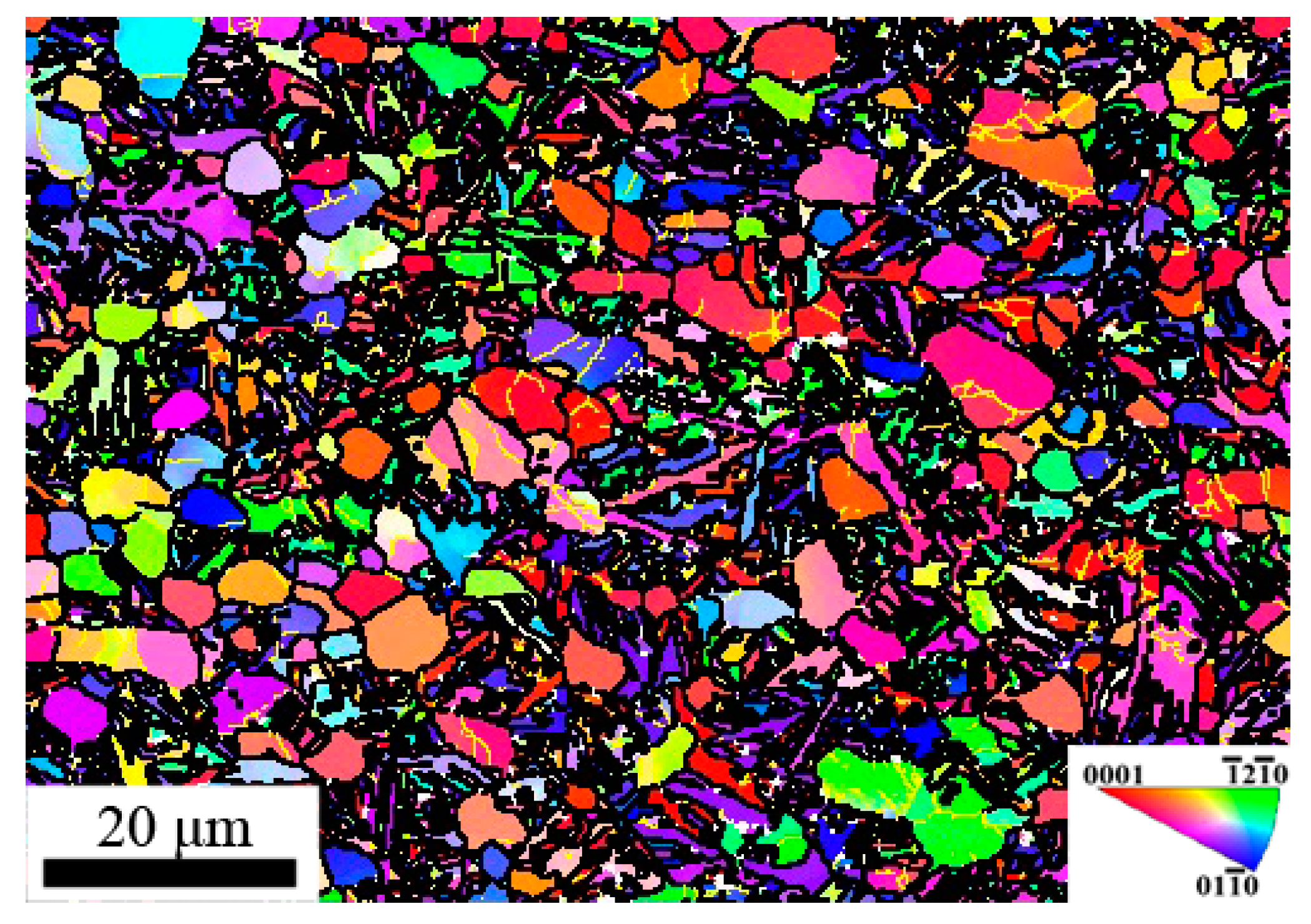

The Arrhenius-type constitutive equation is mostly used to describe flow behaviors of material. However, no processing map has been constructed directly according to it. In this study, a novel computational method was applied for establishing the processing map for Ti-6Al-4V alloy in the temperature and strain rate range of 800–1050 °C and 0.001–10 s−1, respectively. The processing map can be divided into four domains according to its graphic features. Among the four domains, the optimal domain is in the temperature and strain rate range of 850–925 °C and 0.001–0.1 s−1, where peak efficiency η is 0.54 and the main microstructural evolution is DRX (dynamic recrystallization). When the alloy is processed in the α + β phase field, the temperature and strain rate range of 800–850 °C and 3–10 s−1 should be avoided, where instability parameter ξ is negative and the microstructural feature is flow localization. When the alloy is processed in the β phase field, DRV (dynamic recovery) and slight DRX of β phase is the main microstructural characteristics in the range of 1000–1050 °C and 0.001–0.02 s−1. However, flow localization of β phase is the main microstructural feature in the range of 1000–1050 °C and 1–10 s−1, which should be avoided. View Full-Text
Keywords: Ti-6Al-4V alloy; hot deformation; processing map; microstructure Ti-6Al-4V alloy; hot deformation; processing map; microstructure
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Hu, M.; Dong, L.; Zhang, Z.; Lei, X.; Yang, R.; Sha, Y. A Novel Computational Method of Processing Map for Ti-6Al-4V Alloy and Corresponding Microstructure Study. Materials 2018, 11, 1599.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
