Next Article in Journal
Influence of Absorbable Calcium Sulfate-Based Bone Substitute Materials on Human Haemostasis—In Vitro Biological Behavior of Antibiotic Loaded Implants
Previous Article in Journal
Effect of Sigma Phase Morphology on the Degradation of Properties in a Super Duplex Stainless Steel
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle
Materials 2018, 11(6), 934; https://doi.org/10.3390/ma11060934

Corrosion Performance of Nano-ZrO2 Modified Coatings in Hot Mixed Acid Solutions

1
Key Laboratory of Nuclear Materials and Safety Assessment, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
School of Materials Science and Engineering, University of Science and Technology of China, Hefei 230026, China
*
Author to whom correspondence should be addressed.
Received: 5 May 2018 / Revised: 29 May 2018 / Accepted: 30 May 2018 / Published: 1 June 2018
View Full-Text   |   Download PDF [3845 KB, uploaded 1 June 2018]   |

Abstract

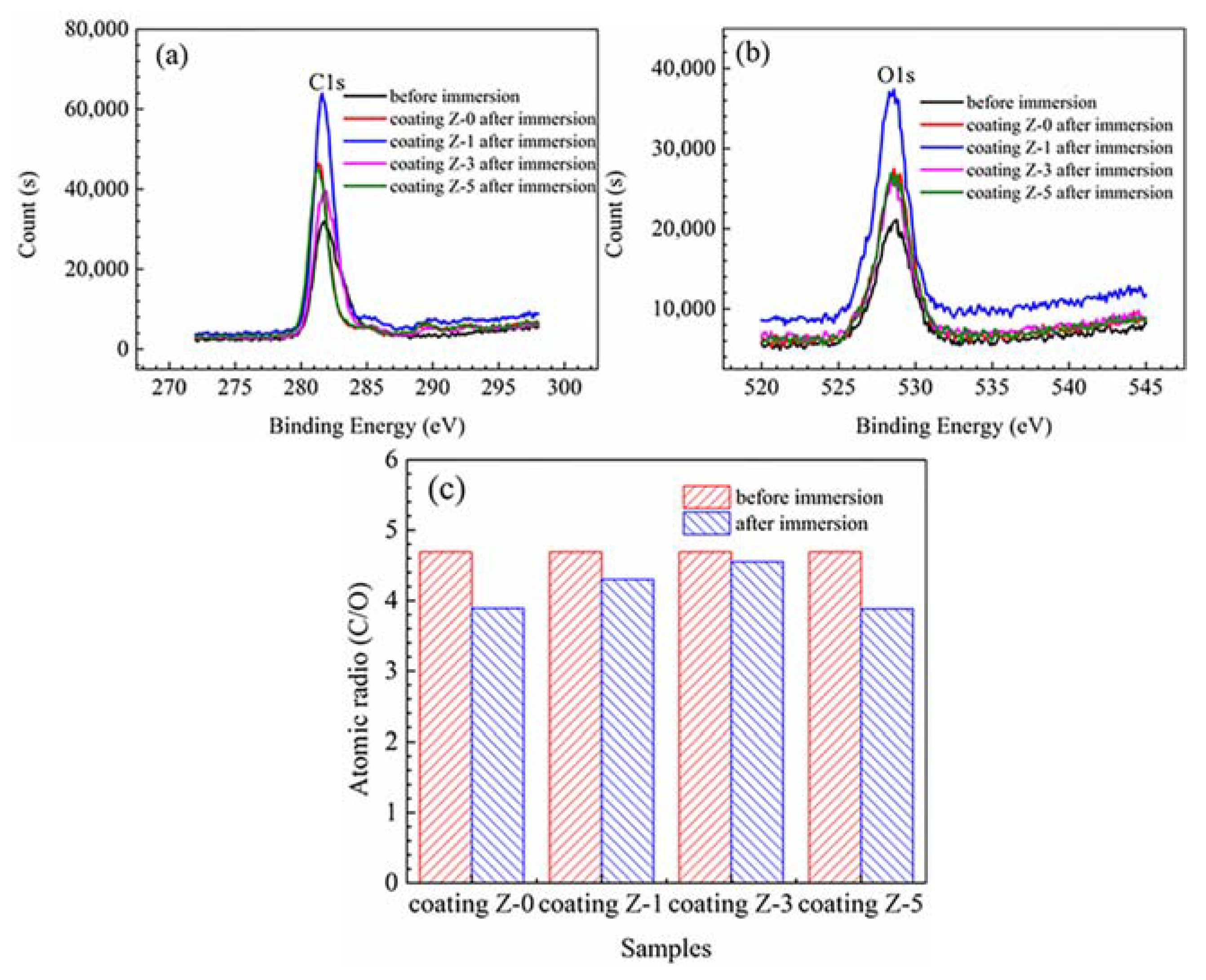

A nano-ZrO2 modified coating system was prepared by incorporation of nano-ZrO2 concentrates into phenolic-epoxy resin. The corrosion performance of the coatings was evaluated in hot mixed acid solution, using electrochemical methods combined with surface characterization, and the effects of nano-ZrO2 content were specially focused on. The results showed that 1% and 3% nano-ZrO2 addition enhanced the corrosion resistance of the coatings, while 5% nano-ZrO2 addition declined it. The coating with 3% nano-ZrO2 presented the minimum amount of species diffusion, the lowest average roughness (5.94 nm), and the highest C/O ratio (4.55) and coating resistance, and it demonstrated the best corrosion performance among the coating specimens. View Full-Text
Keywords: nano coatings; EIS; corrosion performance; acid corrosion nano coatings; EIS; corrosion performance; acid corrosion
Figures

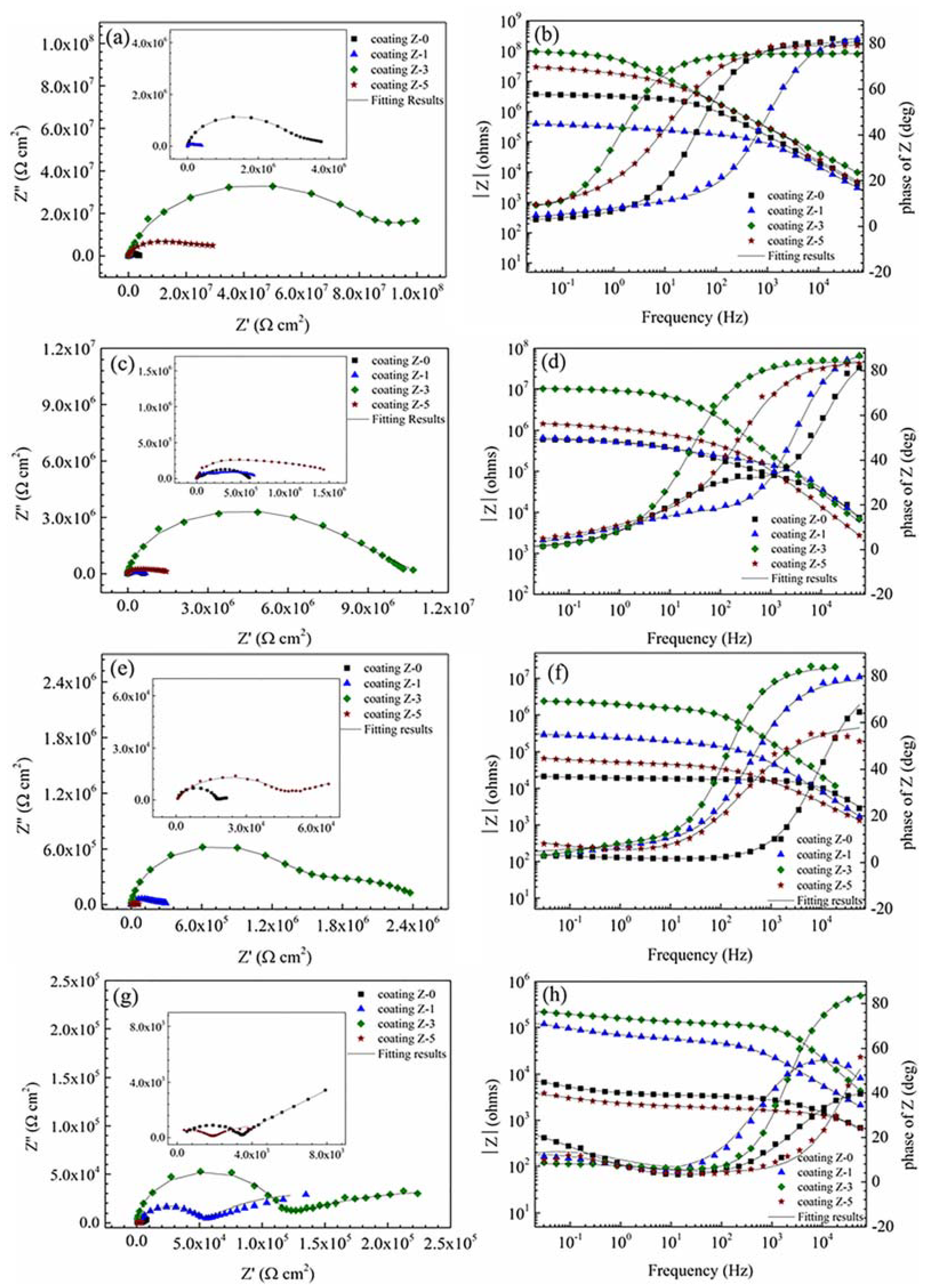

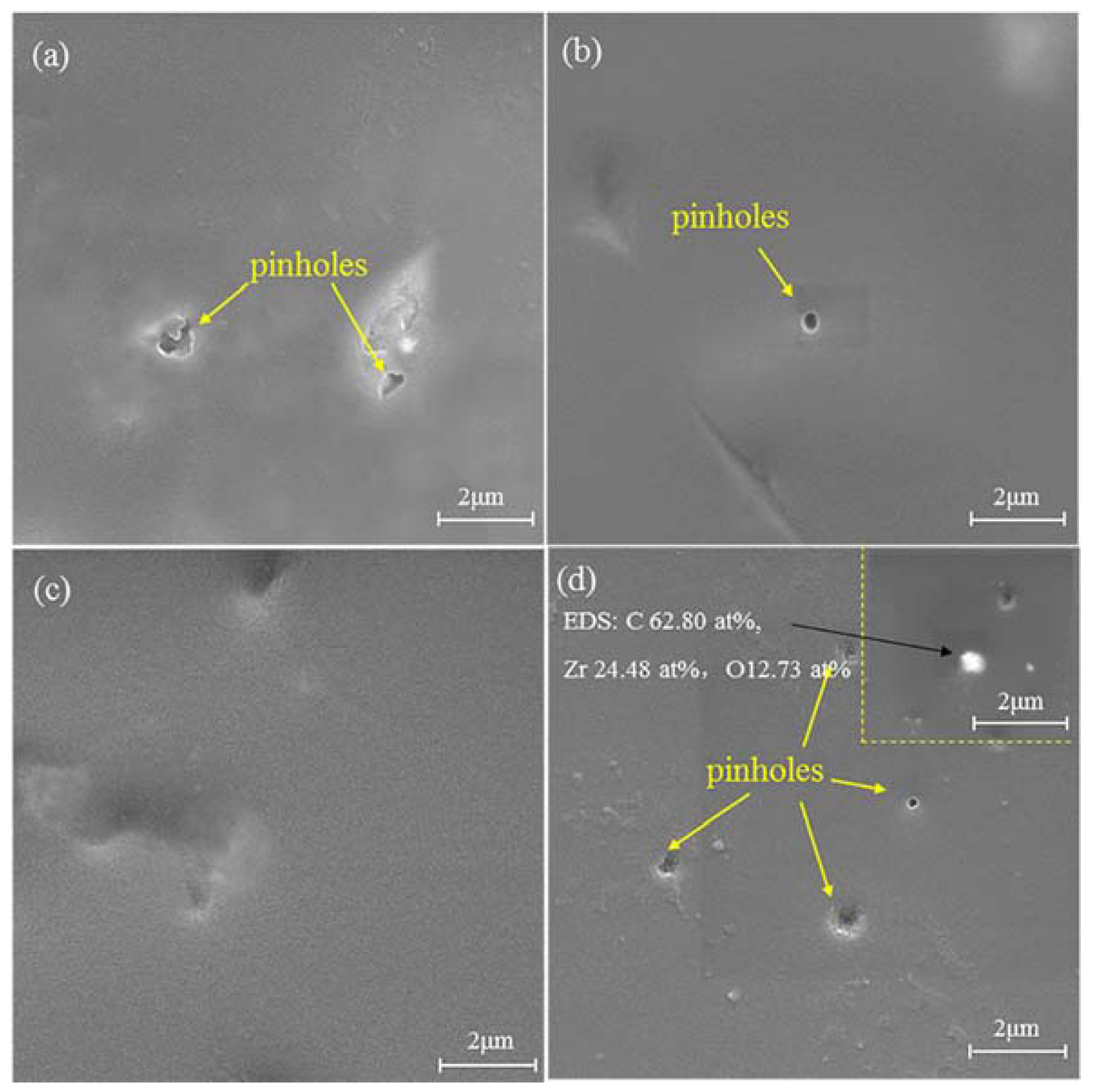

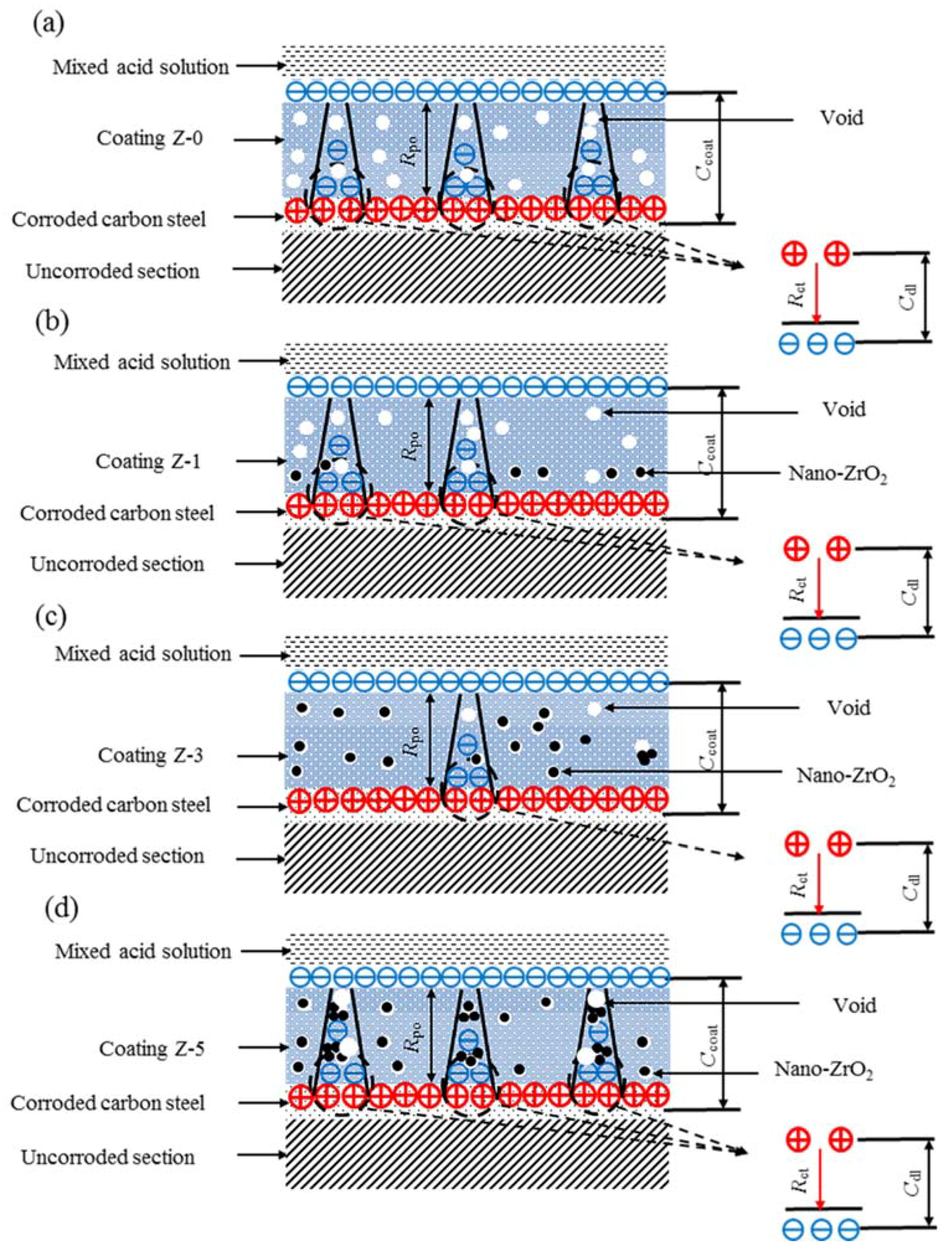

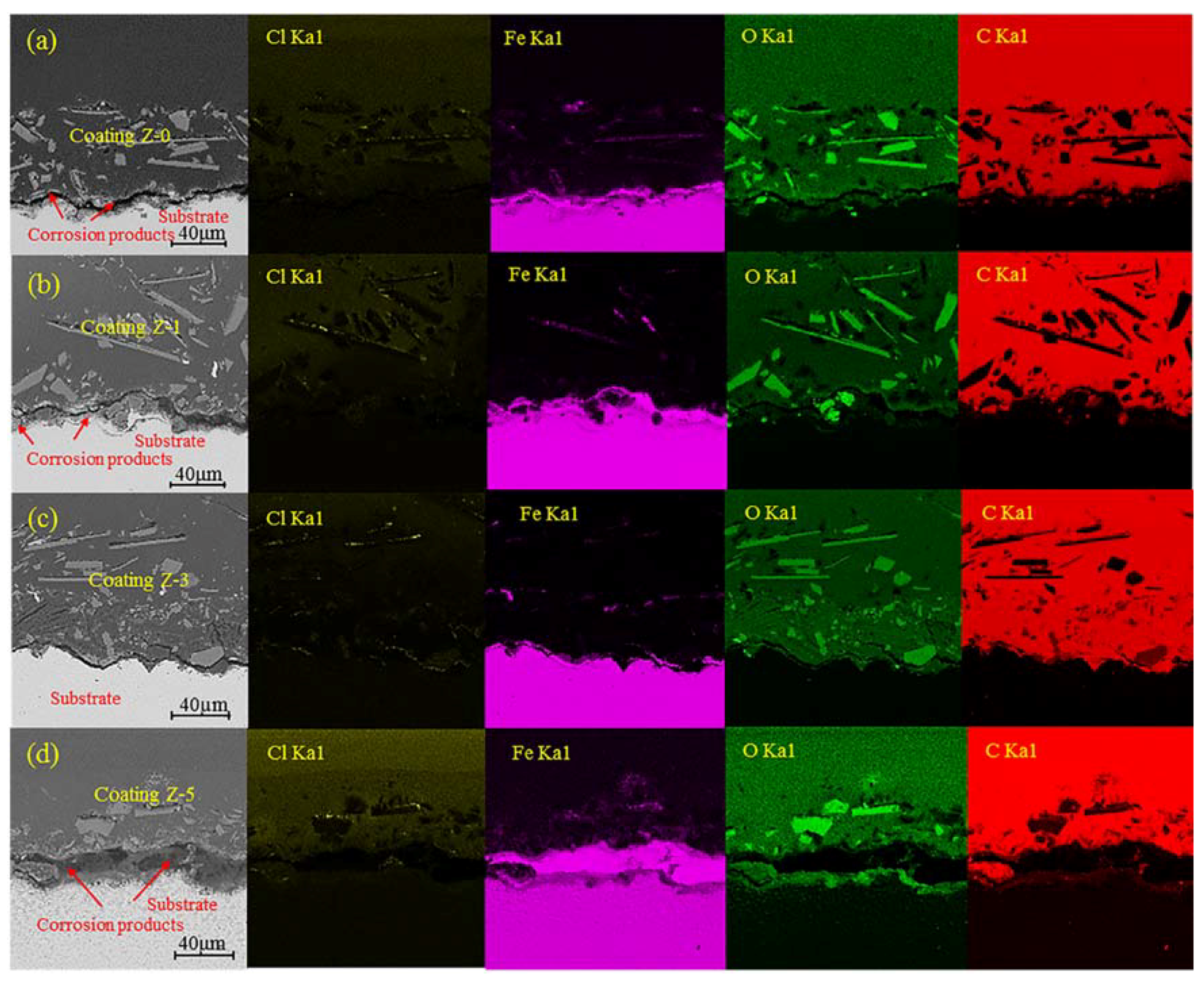

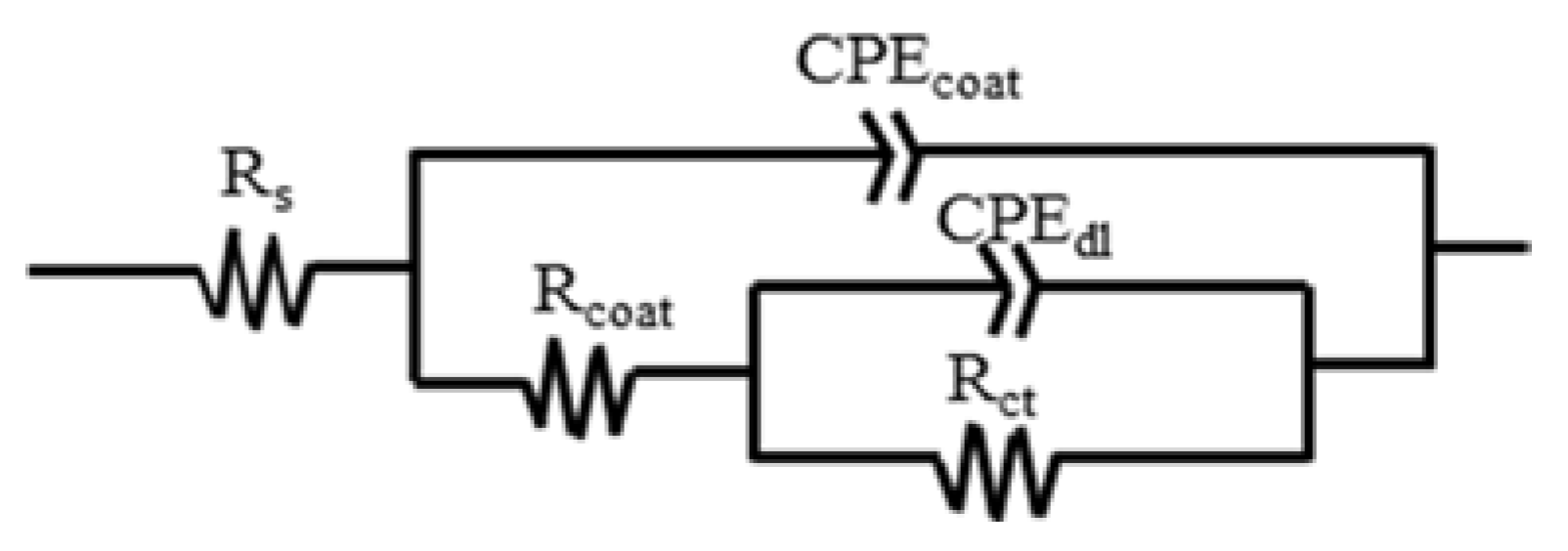

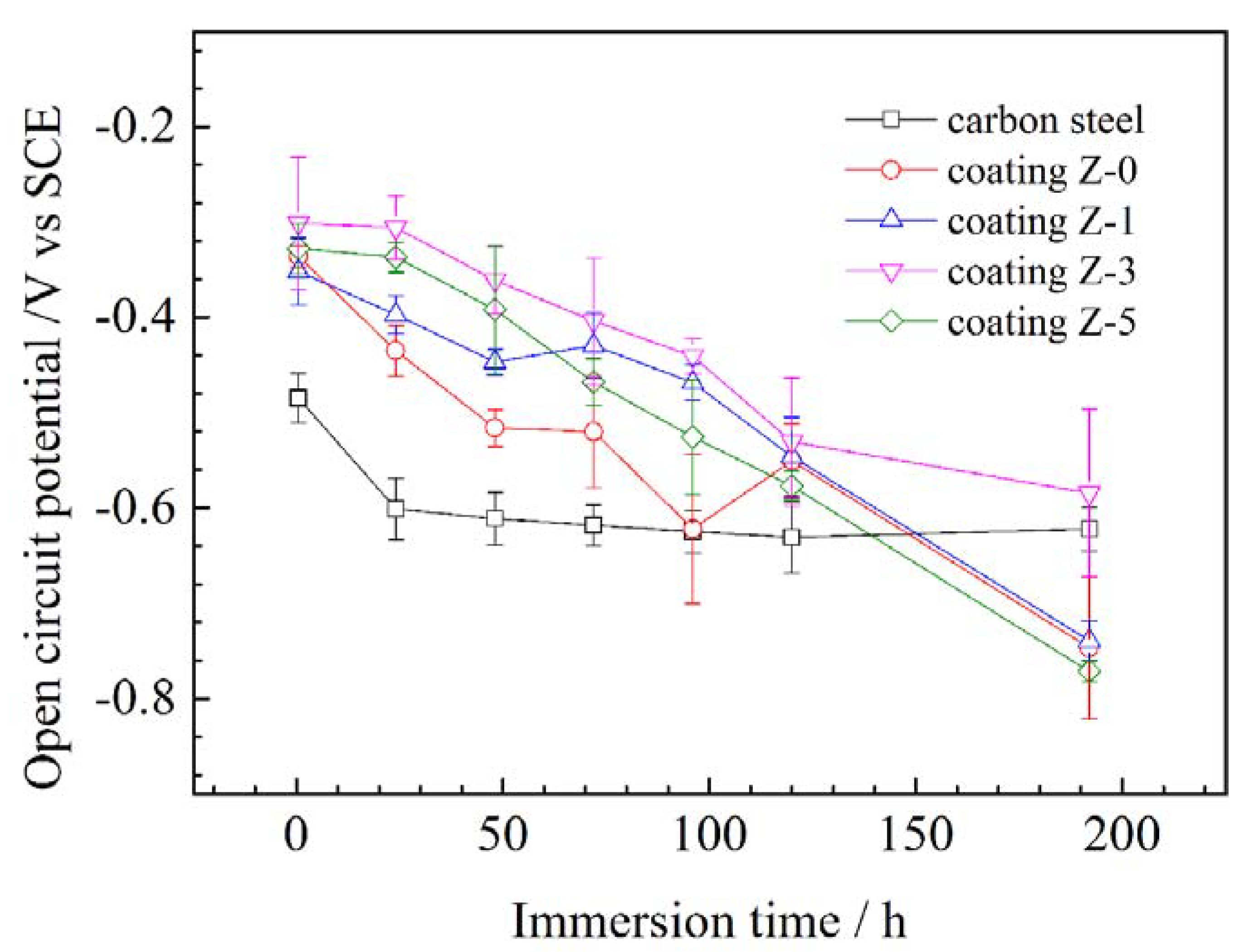

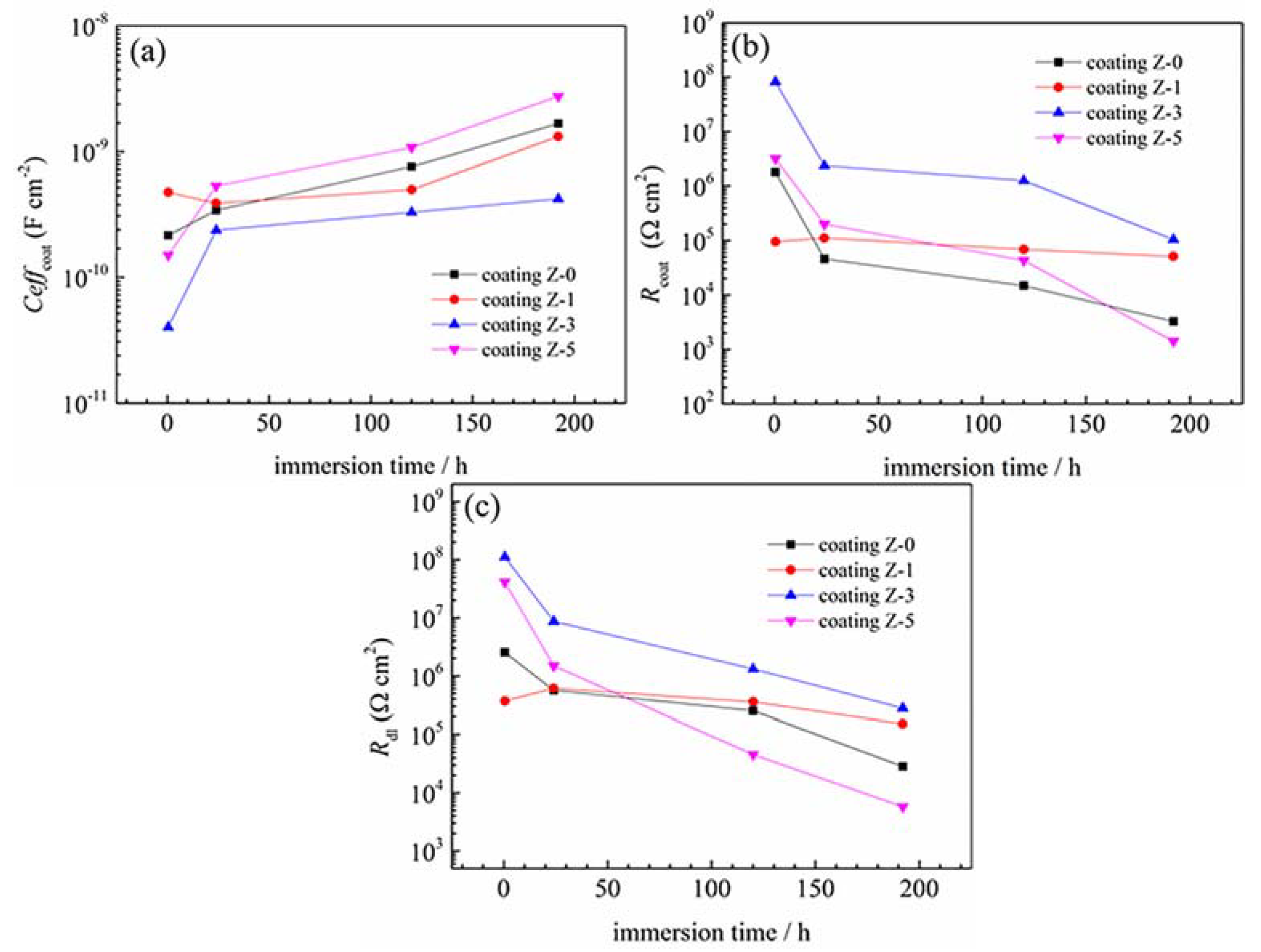

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Xu, W.; Wang, Z.; Han, E.-H.; Wang, S.; Liu, Q. Corrosion Performance of Nano-ZrO2 Modified Coatings in Hot Mixed Acid Solutions. Materials 2018, 11, 934.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
