Indentation Behavior and Mechanical Properties of Tungsten/Chromium co-Doped Bismuth Titanate Ceramics Sintered at Different Temperatures
Abstract
:1. Introduction
2. Experiment
2.1. Preparation of Ceramics
2.2. Characterization of Ceramics

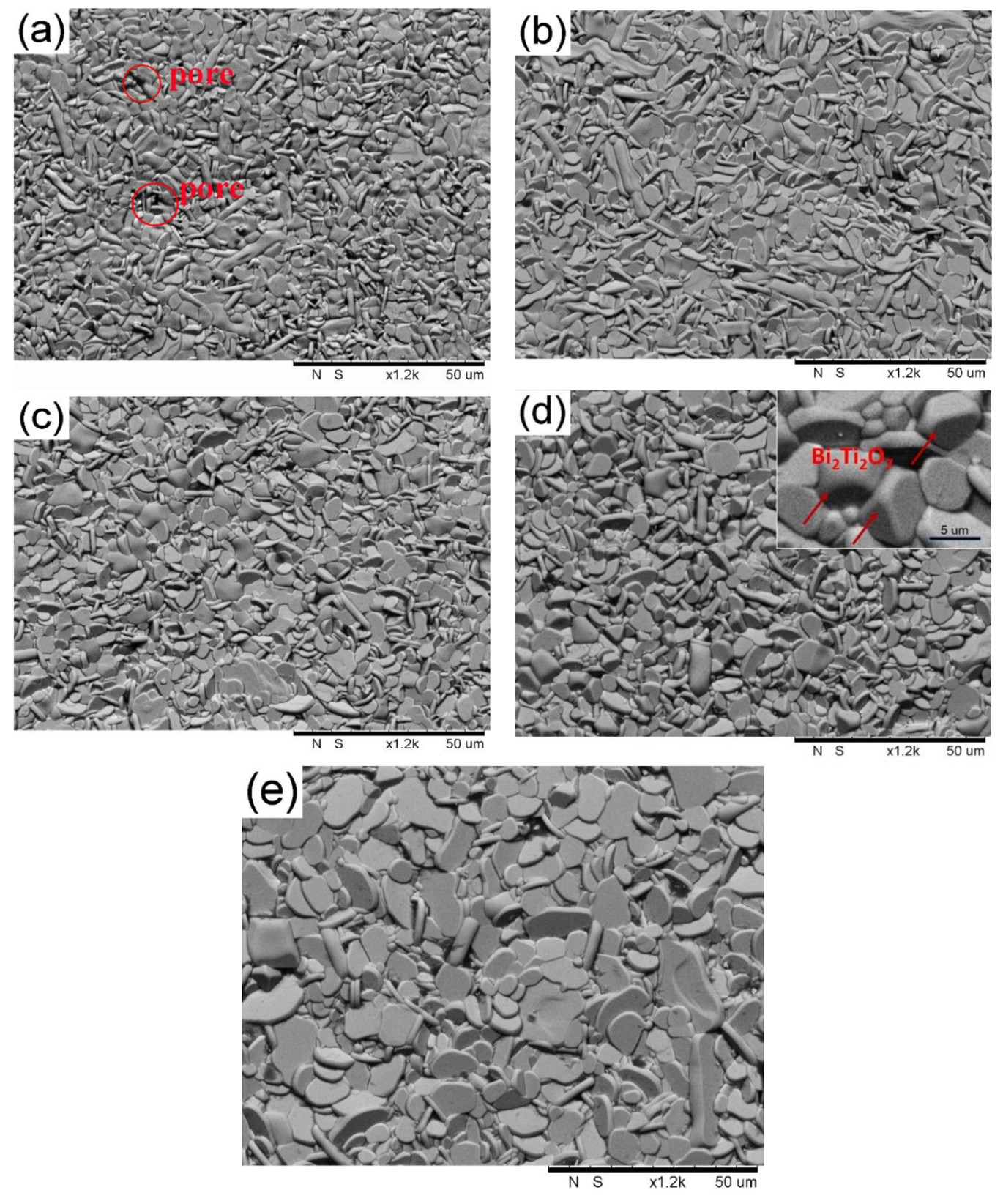

2.2.1. Microstructural Characteristics

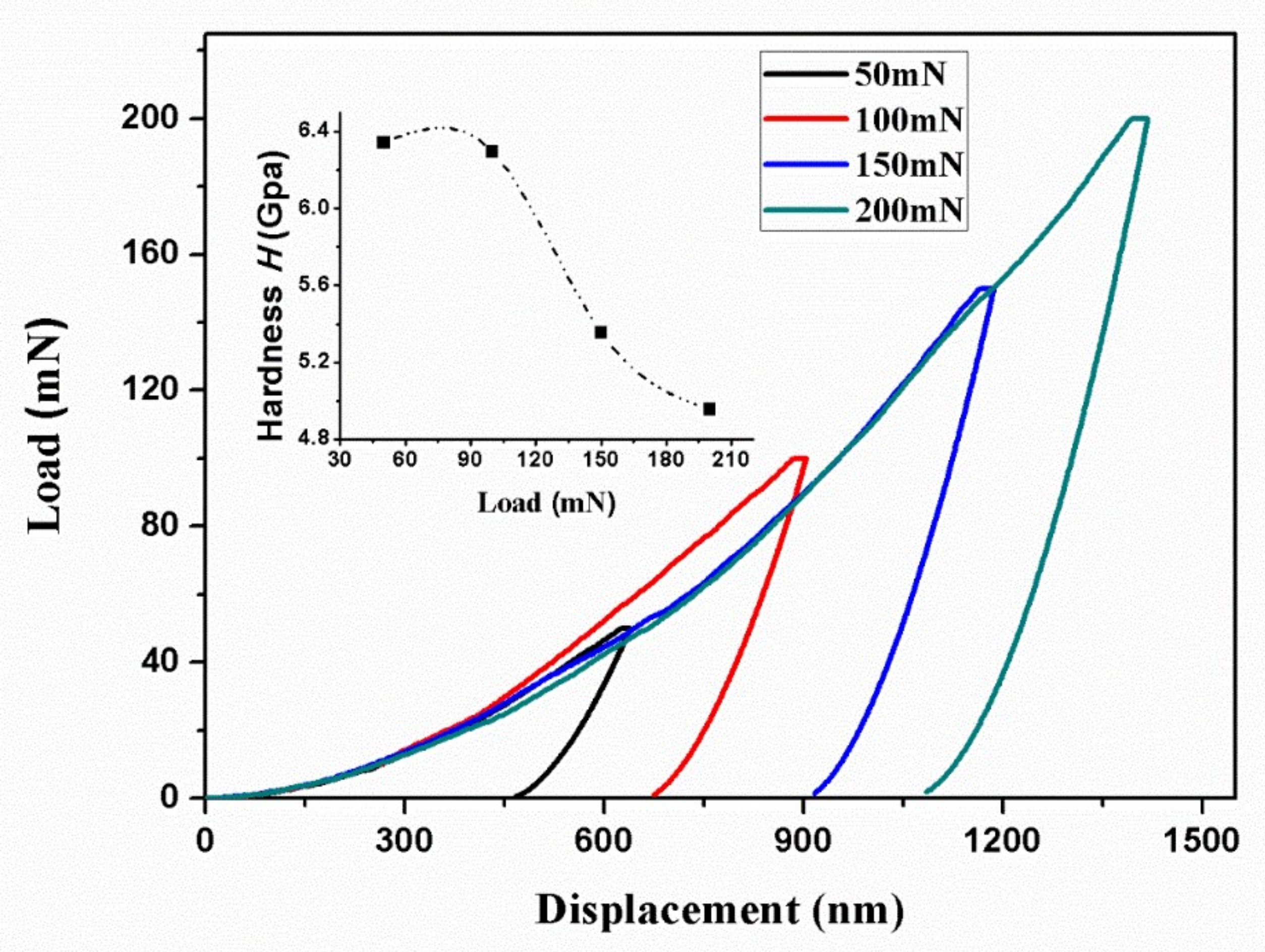

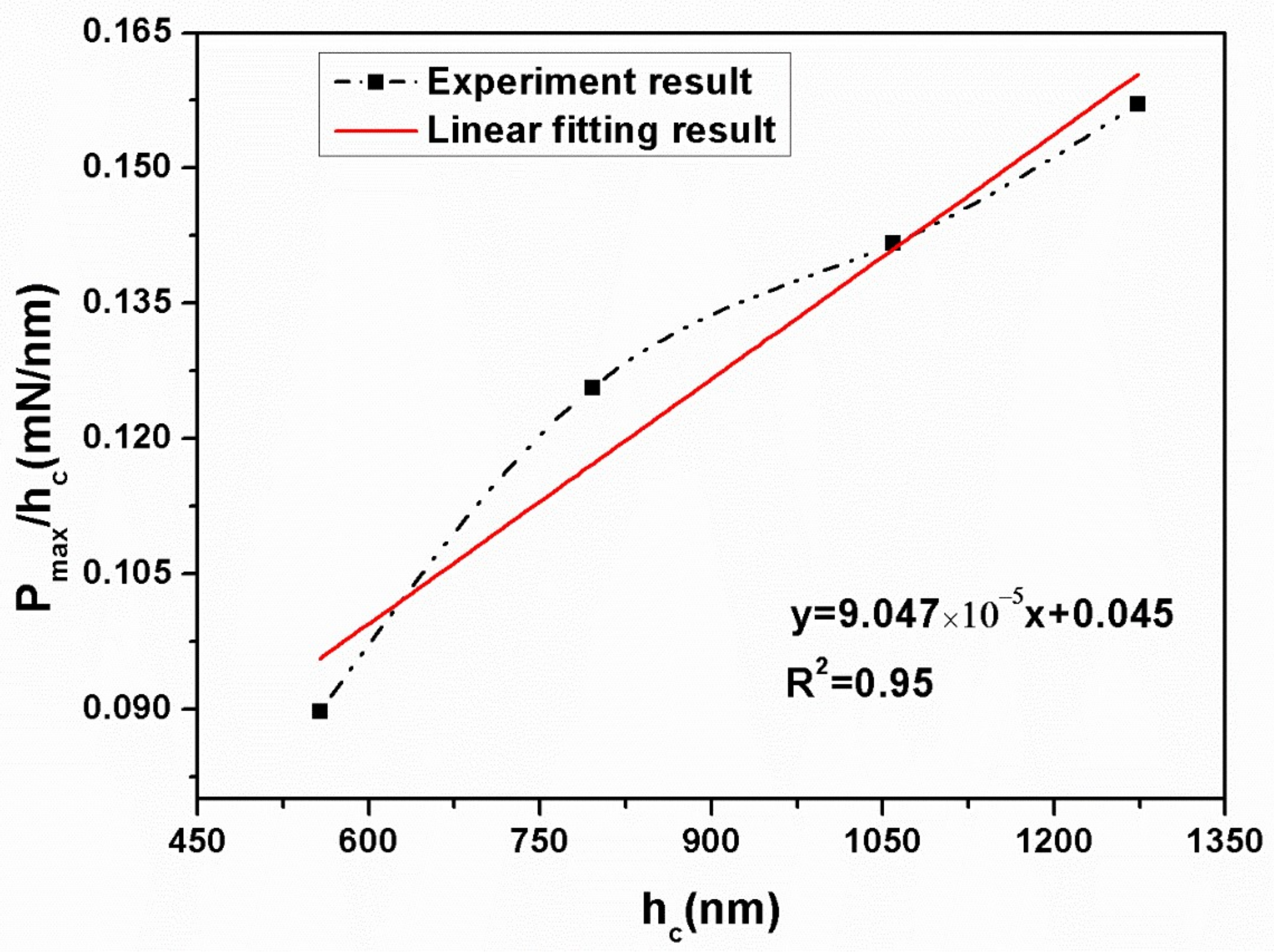

2.2.2. Nanoindentation Test

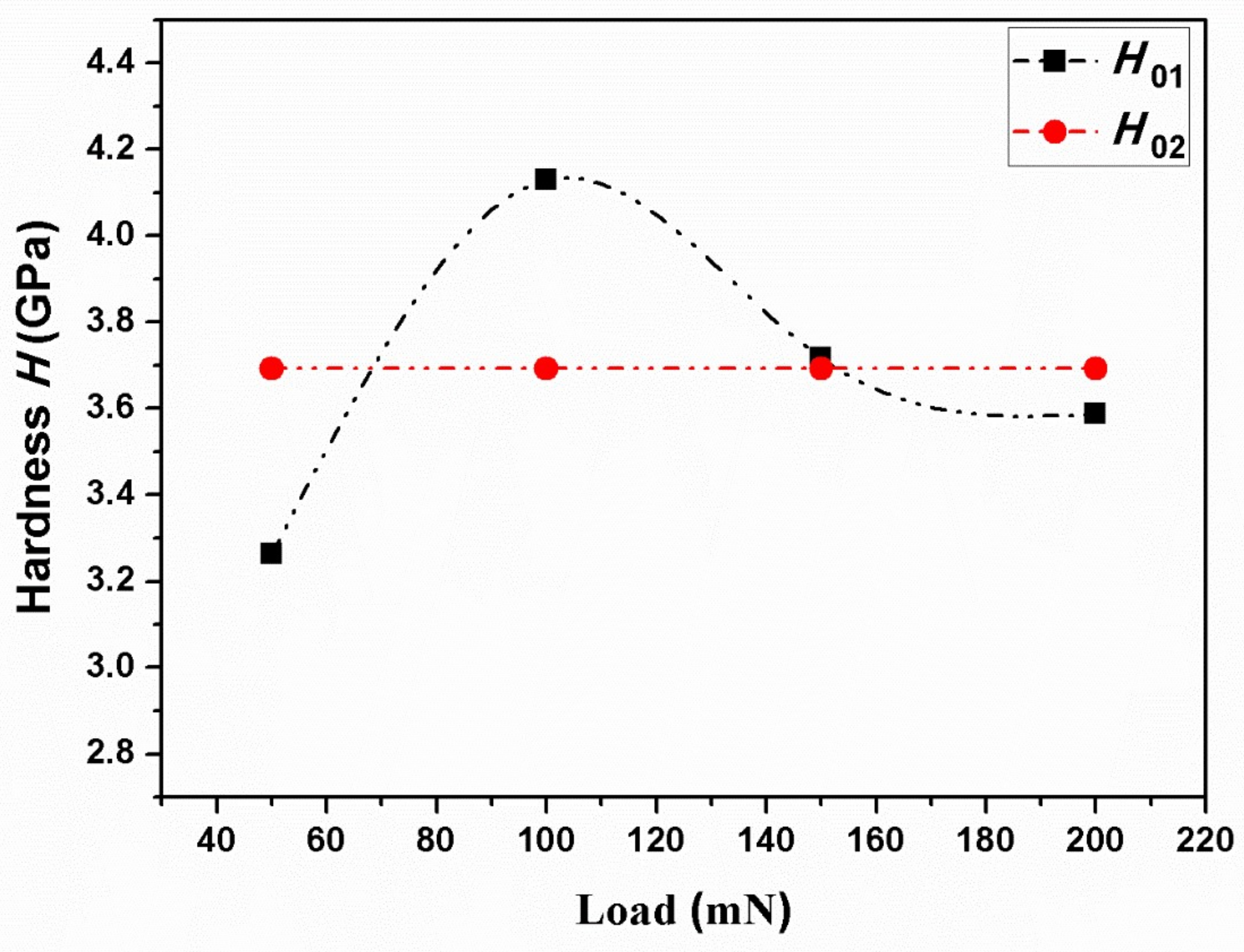

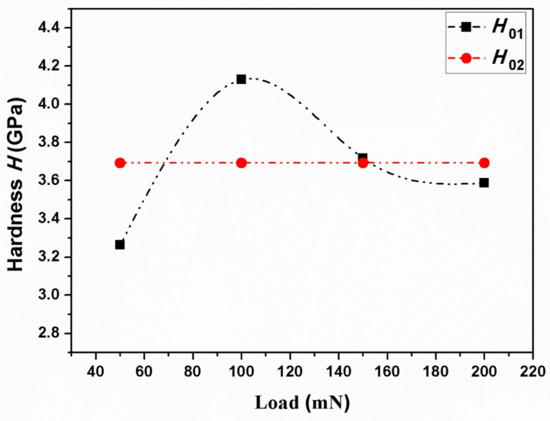

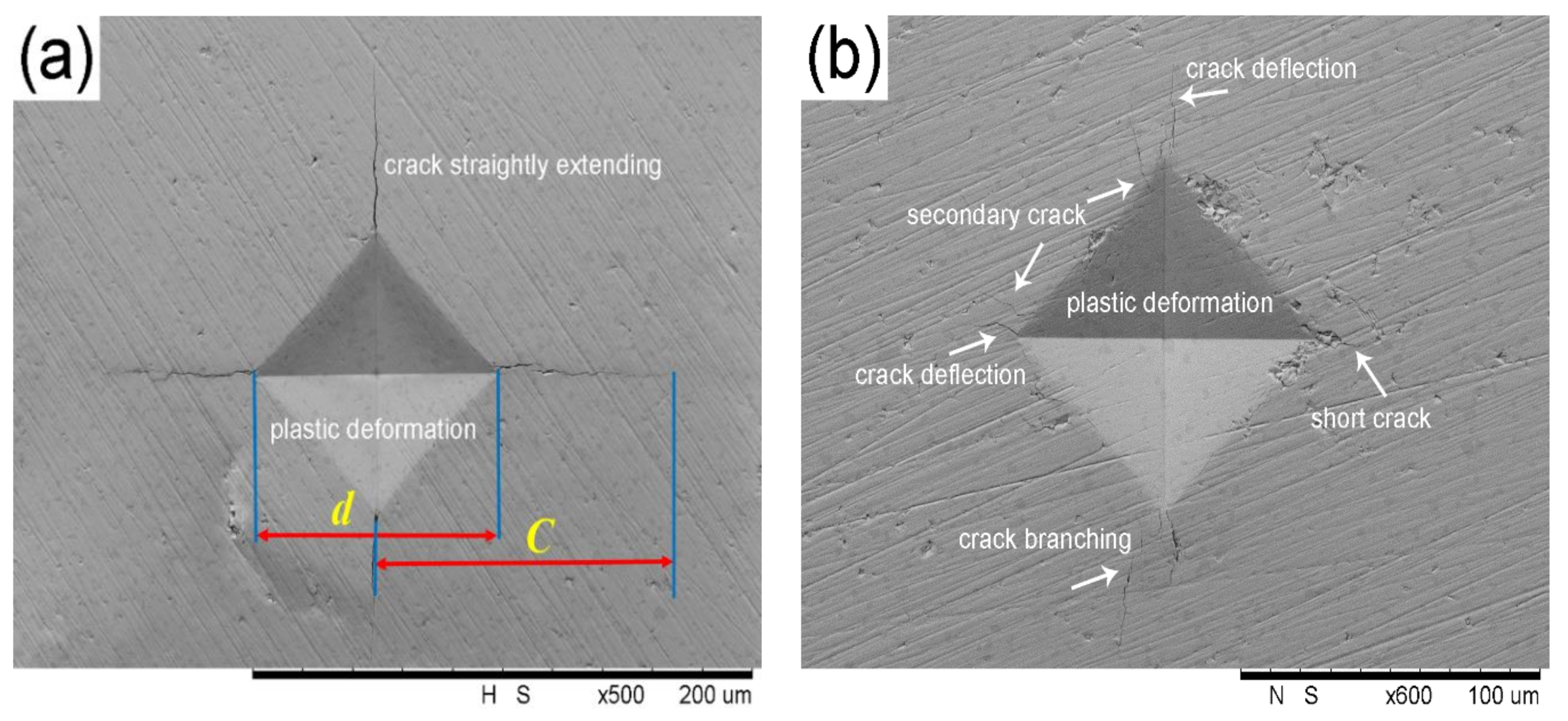

2.2.3. Vickers Indentation Test

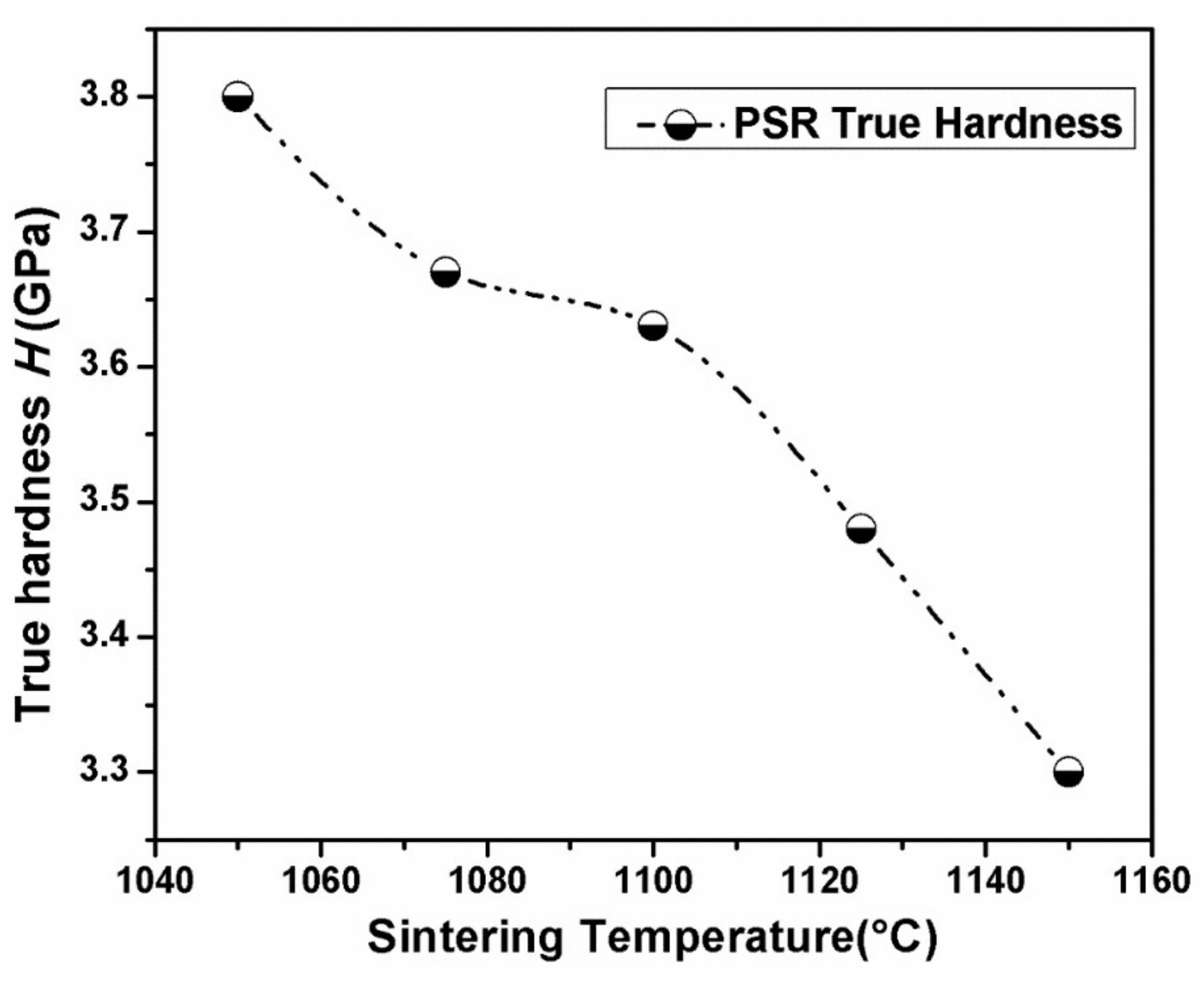

3. Result and Discussion
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Meetham, G.W. High-temperature materials—A general review. J. Mater. Sci. 1991, 26, 853–860. [Google Scholar] [CrossRef]
- Yan, H.; Zhang, H.; Ubic, R.; Reece, M.J.; Liu, J.; Shen, Z.; Zhang, Z. A Lead-Free High-Curie-Point Ferroelectric Ceramic, CaBi2Nb2O9. Adv. Mater. 2005, 17, 1261–1265. [Google Scholar] [CrossRef]
- Damjanovic, D. Materials for high temperature piezoelectric transducers. Curr. Oper. Solid State Mater. Sci. 1998, 3, 469–473. [Google Scholar] [CrossRef]
- Zhu, X.; Xu, J.; Meng, Z.; Zhu, J.; Zhou, S.; Li, Q.; Liu, Z.; Ming, N. Microdisplacement characteristics and microstructures of functionally graded piezoelectric ceramic actuator. Mater. Des. 2000, 21, 561–566. [Google Scholar] [CrossRef]
- Shen, Z.Y.; Li, J.F.; Chen, R.; Zhou, Q.; Shung, K.K. Microscale 1-3-Type (Na,K)NbO3-Based Pb-Free Piezocomposites for High-Frequency Ultrasonic Transducer Applications. J. Am. Ceram. Soc. 2011, 94, 1346–1349. [Google Scholar] [CrossRef] [PubMed]
- Song, K.; Xu, Y.; Zhao, N.; Zhong, L.; Shang, Z.; Shen, L.; Wang, J. Evaluation of Fracture Toughness of Tantalum Carbide Ceramic Layer: A Vickers Indentation Method. J. Mater. Eng. Perform. 2016, 25, 3057–3064. [Google Scholar] [CrossRef]
- Sebastiani, M.; Johanns, K.E.; Herbert, E.G.; Pharr, G.M. Measurement of fracture toughness by nanoindentation methods: Recent advances and future challenges. Curr. Oper. Solid State Mater. Sci. 2015, 19, 324–333. [Google Scholar] [CrossRef]
- Du, H.; Tang, F.; Luo, F.; Zhu, D.; Qu, S.; Pei, Z.; Zhou, W. Influence of sintering temperature on piezoelectric properties of (K0.5Na0.5) NbO3–LiNbO3 lead-free piezoelectric ceramics. Mater. Res. Bull. 2007, 42, 1594–1601. [Google Scholar] [CrossRef]
- Yan, H.; Li, C.; Zhou, J.; Zhu, W.; He, L.; Song, Y.; Yu, Y. Influence of sintering temperature on the properties of high Tc bismuth layer structure ceramics. Mater. Sci. Eng. B 2002, 88, 62–67. [Google Scholar] [CrossRef]
- Khokhar, A.; Mahesh, M.L.V.; James, A.R.; Goyal, P.K.; Sreenivas, K. Sintering characteristics and electrical properties of BaBi4Ti4O15 ferroelectric ceramics. J. Alloys Compd. 2013, 581, 150–159. [Google Scholar] [CrossRef]
- Liu, L.; Fan, H.; Ke, S.; Chen, X. Effect of sintering temperature on the structure and properties of cerium-doped 0.94 (Bi0.5Na0.5) TiO3–0.06BaTiO3 piezoelectric ceramics. J. Alloys Compd. 2008, 458, 504–508. [Google Scholar] [CrossRef]
- Hou, J.; Qu, Y.; Vaish, R.; Varma, K.B.R.; Krsmanovic, D.; Kumar, R.V. Crystallographic Evolution, Dielectric, and Piezoelectric Properties of Bi4Ti3O12:W/Cr Ceramics. J. Am. Ceram. Soc. 2010, 93, 1414–1421. [Google Scholar] [CrossRef]
- Chen, Y.; Pen, Z.; Wang, Q.; Zhu, J. Crystalline structure, ferroelectric properties, and electrical conduction characteristics of W/Cr co-doped Bi4Ti3O12 ceramics. J. Alloys Compd. 2014, 612, 120–125. [Google Scholar] [CrossRef]
- Oliver, W.C.; Pharr, G.M. An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments. J. Mater. Res. 1992, 7, 1564–1583. [Google Scholar] [CrossRef]
- Donnelly, E.; Baker, S.P.; Boskey, A.L.; van der Meulen, M.C. Effects of surface roughness and maximum load on the mechanical properties of cancellous bone measured by nanoindentation. J. Biomed. Mater. Res. Part A 2006, 77, 426–435. [Google Scholar] [CrossRef] [PubMed]
- Lawn, B.R.; Evans, A.G.; Marshall, D.B. Elastic/Plastic Indentation Damage in Ceramics: The Median/Radial Crack System. J. Am. Ceram. Soc. 1980, 63, 574–581. [Google Scholar] [CrossRef]
- Chen, Y.; Xie, S.; Wang, Q.; Zhu, J. Influence of Cr2O3 additive and sintering temperature on the structural characteristics and piezoelectric properties of Bi4Ti2.95W0.05O12.05 Aurivillius ceramics. Prog. Nat. Sci. Mater. Int. 2016, 26, 572–578. [Google Scholar] [CrossRef]
- Su, W.F.; Lu, Y.T. Synthesis, phase transformation and dielectric properties of sol-gel derived Bi2Ti2O7 ceramics. Mater. Chem. Phys. 2003, 80, 632–637. [Google Scholar] [CrossRef]
- Liu, J.; Bai, W.; Yang, J.; Xu, W.; Zhang, Y.; Lin, T.; Meng, X.; Duan, C.G.; Tang, X.; Chu, J. The Cr-substitution concentration dependence of the structural, electric and magnetic behaviors for Aurivillius Bi5Ti3FeO15 multiferroic ceramics. J. Appl. Phys. 2013, 114, 234101. [Google Scholar] [CrossRef]
- Villegas, M.; Caballero, A.C.; Fernandez, J.F. Modulation of Electrical Conductivity Through Microstructural Control in Bi4Ti3O12-Based Piezoelectric Ceramics. Ferroelectrics 2002, 267, 165–173. [Google Scholar] [CrossRef]
- Gu, M.; Xu, H.; Zhang, J.; Wei, Z.; Xu, A. Influence of hot pressing sintering temperature and time on microstructure and mechanical properties of TiB2/TiN tool material. Mater. Sci. Eng. A 2012, 545, 1–5. [Google Scholar] [CrossRef]
- Villegas, M.; Jardiel, T.; Caballero, A.C.; Fernández, J.F. Electrical Properties of Bismuth Titanate Based Ceramics with Secondary Phases. J. Electroceramics 2004, 13, 543–548. [Google Scholar] [CrossRef]
- Pande, C.S.; Cooper, K.P. Nanomechanics of Hall-Petch relationship in nanocrystalline materials. Prog. Mater. Sci. 2009, 54, 689–706. [Google Scholar] [CrossRef]
- Chen, Y.; Miao, C.; Xie, S.; Xu, L.; Wang, Q.; Zhu, J.; Guan, Z. Microstructural evolutions, elastic properties and mechanical behaviors of W/Cr Co-doped Bi4Ti3O12 ceramics. Mater. Des. 2016, 90, 628–634. [Google Scholar] [CrossRef]
- Fisher, E.S.; Manghnani, M.H. Effect of Axial Ratio Changes on the Elastic Moduli and Grüneisen γ for Lower Symmetry Crystals. J. Appl. Phys. 1970, 41, 5059–5062. [Google Scholar] [CrossRef]
- Peng, Z.; Gong, J.; Miao, H. On the description of indentation size effect in hardness testing for ceramics: Analysis of the nanoindentation data. J. Eur. Ceram. Soc. 2004, 24, 2193–2201. [Google Scholar] [CrossRef]
- Wang, H.; Huang, Z.; Lu, Z.; Wang, Q.; Jiang, J. Determination of the elastic and plastic deformation behaviors of Yb:Y3Al5O12 transparent ceramic by nanoindentation. J. Alloys Compd. 2016, 682 (Suppl. C), 35–41. [Google Scholar] [CrossRef]
- Li, H.; Bradt, R.C. The microhardness indentation load/size effect in rutile and cassiterite single crystals. J. Mater. Res. 1993, 28, 917–926. [Google Scholar] [CrossRef]
- Quinn, J.B.; Quinn, G.D. Indentation brittleness of ceramics: A fresh approach. J. Mater. Res. 1997, 32, 4331–4346. [Google Scholar]
- Anstis, G.R.; Chantikul, P.; Lawn, B.R.; Marshall, D.B. A Critical Evaluation of Indentation Techniques for Measuring Fracture Toughness: I, Direct Crack Measurements. J. Am. Ceram. Soc. 1981, 64, 533–538. [Google Scholar] [CrossRef]
- Wu, C.C.; Freiman, S.W.; Rice, R.W.; Mecholsky, J.J. Microstructural aspects of crack propagation in ceramics. J. Mater. Sci. 1978, 13, 2659–2670. [Google Scholar] [CrossRef]
- Cutler, R.A.; Virkar, A.V. The effect of binder thickness and residual stresses on the fracture toughness of cemented carbides. J. Mater. Sci. 1985, 20, 3557–3573. [Google Scholar] [CrossRef]

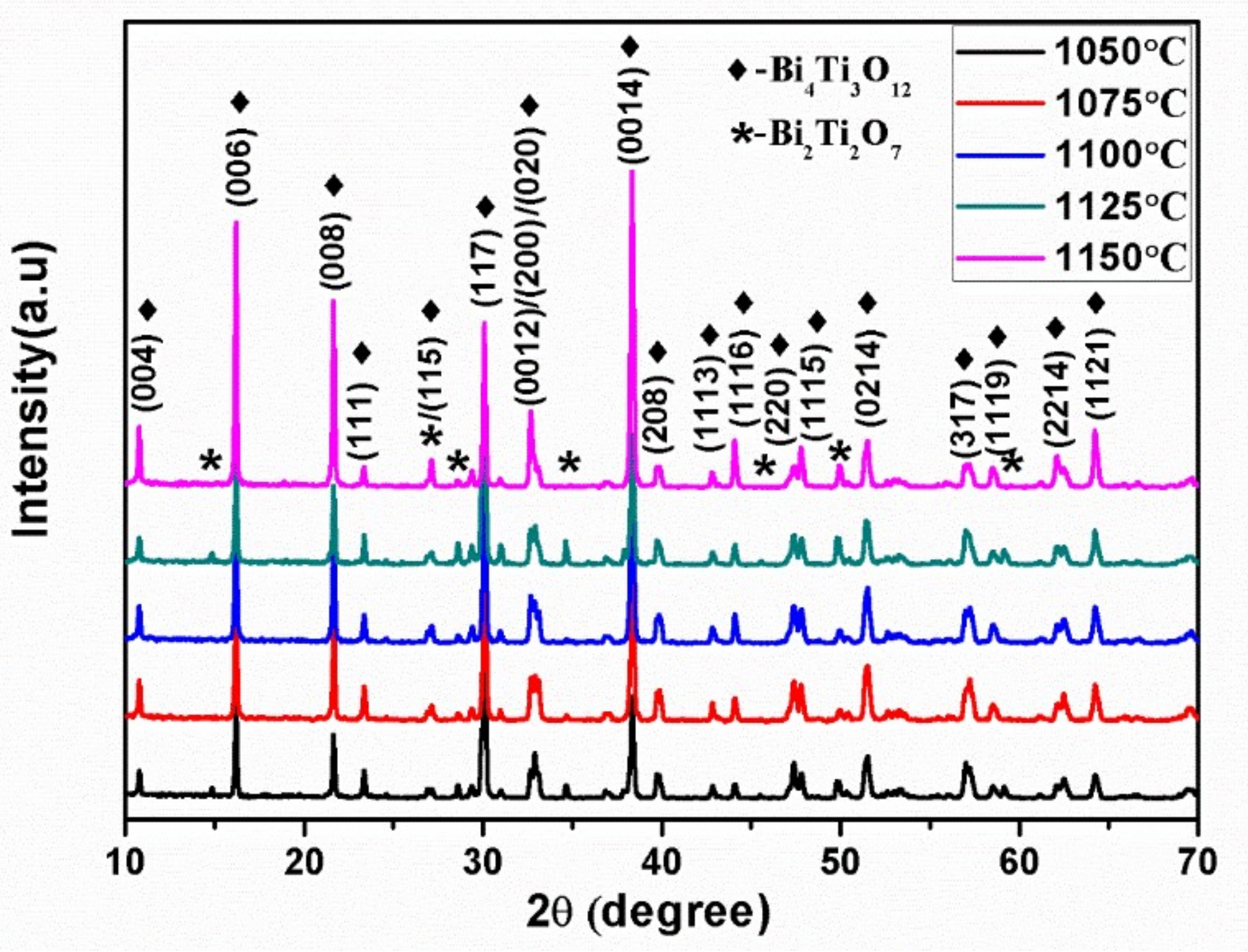

Sintering Temperature | 1050 °C | 1075 °C | 1100 °C | 1125 °C | 1150 °C |
---|---|---|---|---|---|
Phase content of Bi2Ti2O7 (%) | 6.63 | 2.52 | 2.46 | 10.18 | 3.27 |
Average grain size of Bi4Ti3O12 (μm) | 3.2 | 4.3 | 5.1 | 7.6 | 16.1 |
Relative density of ceramics (%) | 95.42 | 97.09 | 95.36 | 96.71 | 97.83 |

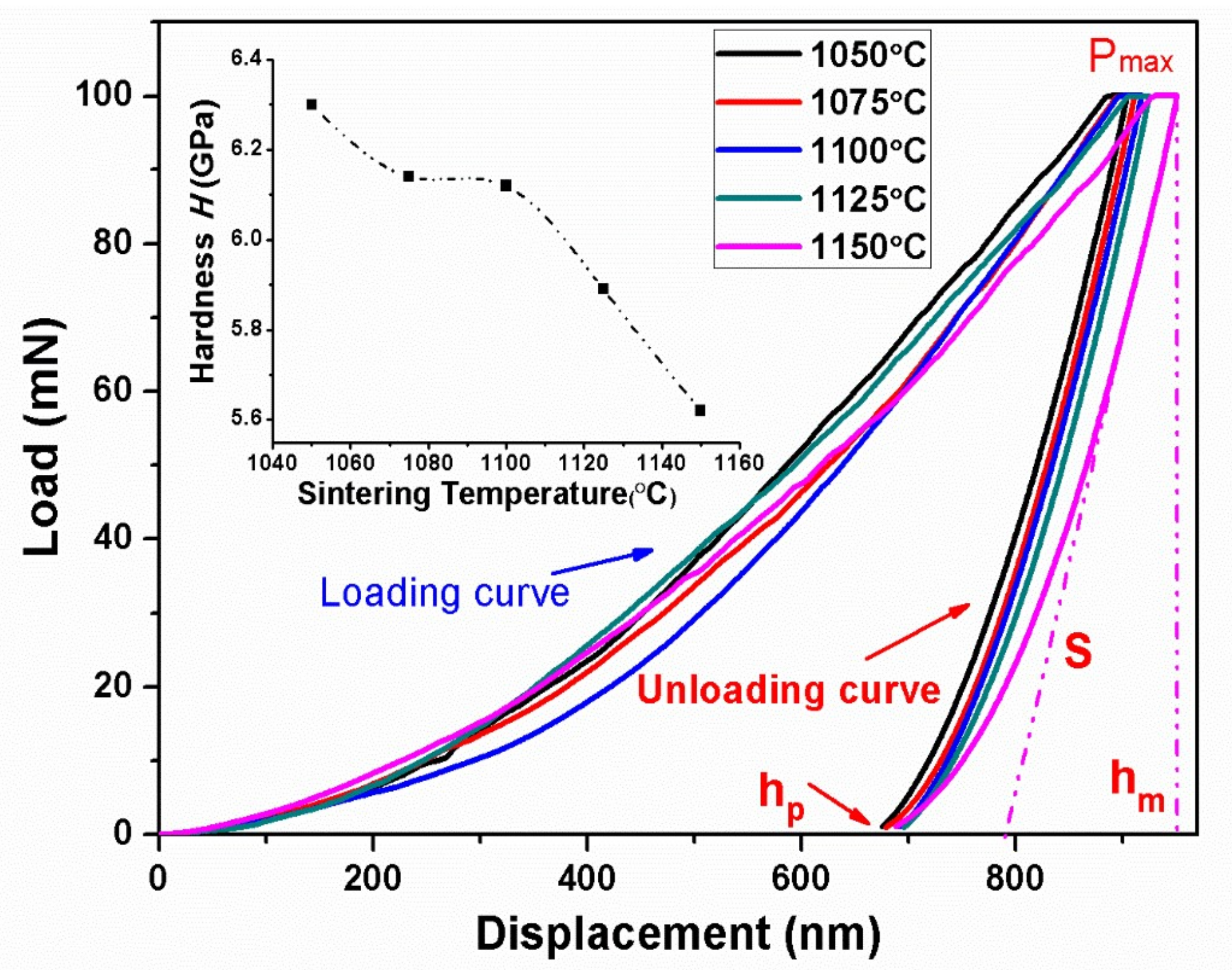

Sintering Temperature | H (GPa) | E (GPa) | h (nm) | hc (nm) | hp (nm) |
---|---|---|---|---|---|
1050 °C | 6.30 | 96.07 | 904.51 | 795.71 | 644.07 |
1075 °C | 6.14 | 98.13 | 911.15 | 805.44 | 663.29 |
1100 °C | 6.12 | 93.49 | 918.08 | 807.19 | 675.80 |
1125 °C | 5.89 | 98.57 | 924.91 | 822.58 | 662.88 |
1150 °C | 5.62 | 90.00 | 951.34 | 842.80 | 682.11 |

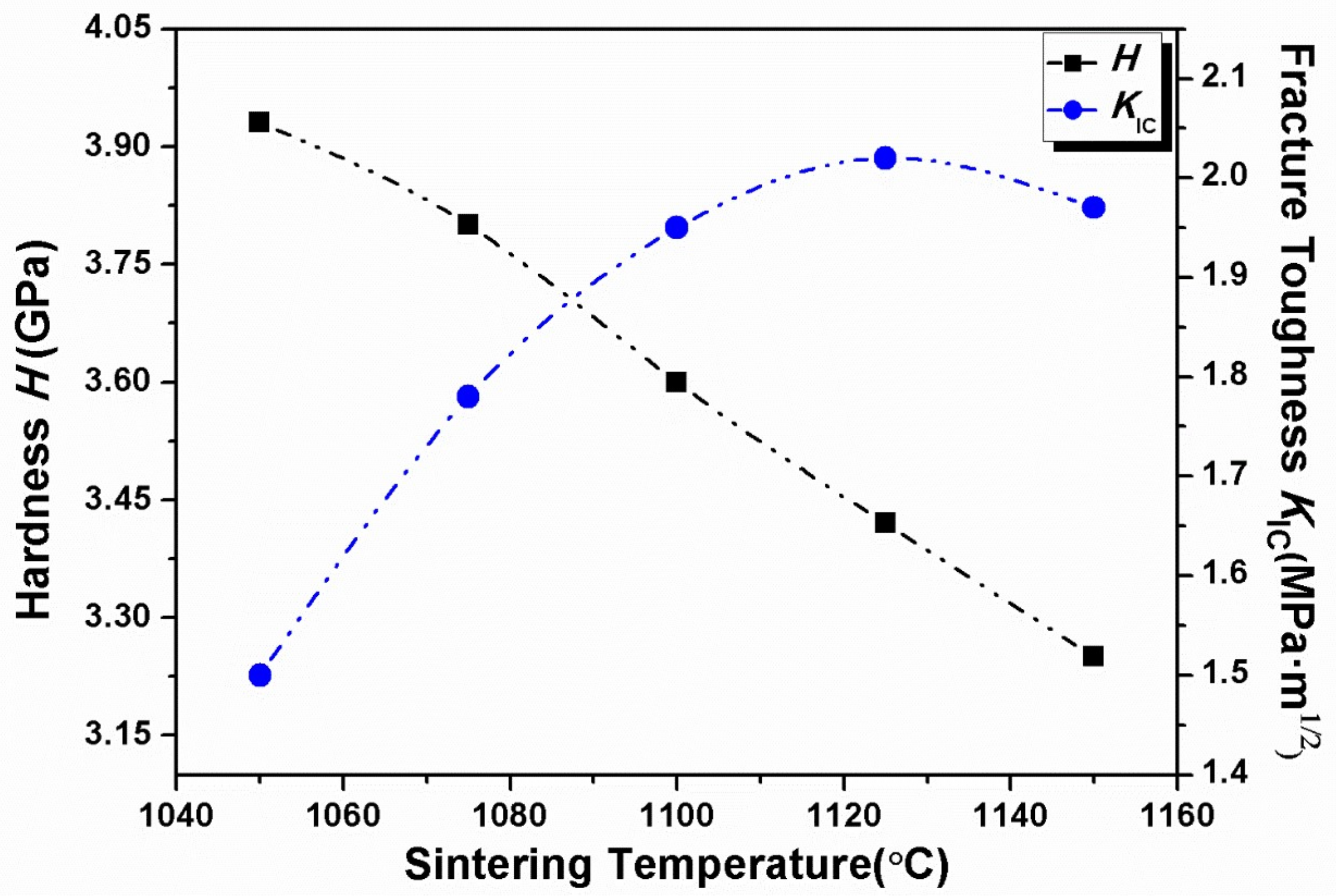

Sintering Temperature | d (μm) | H (Gpa) | P (N) | C (μm) | K (MPa·m1/2) |
---|---|---|---|---|---|
1050 °C | 96.19 | 3.93 | 19.6 | 102.16 | 1.50 |
1075 °C | 97.83 | 3.80 | 19.6 | 92.86 | 1.78 |
1100 °C | 100.59 | 3.59 | 19.6 | 87.69 | 1.95 |
1125 °C | 103.15 | 3.42 | 19.6 | 88.74 | 2.02 |
1150 °C | 105.83 | 3.25 | 19.6 | 88.83 | 1.97 |
