Simulation Study on Jet Formability and Damage Characteristics of a Low-Density Material Liner

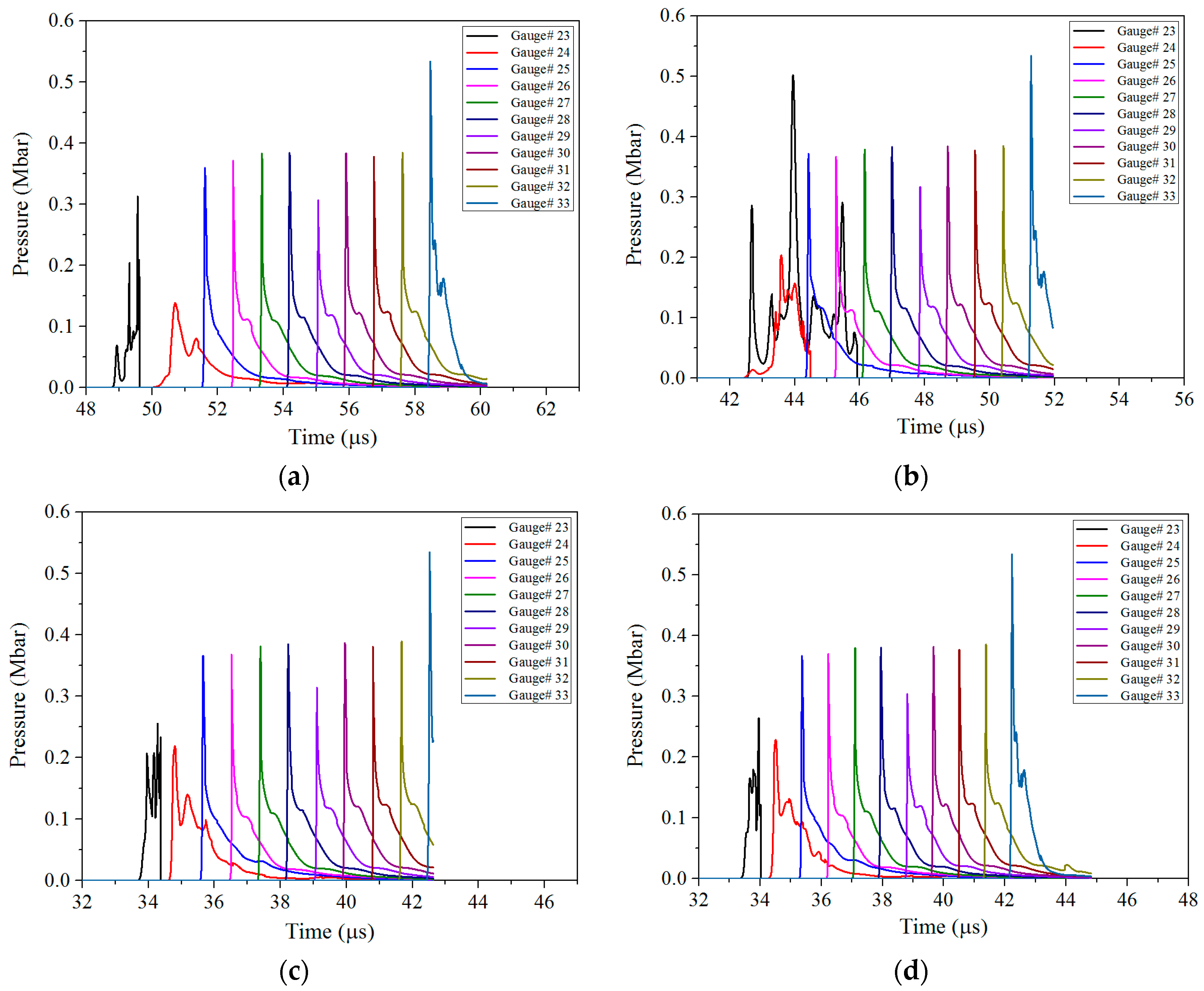

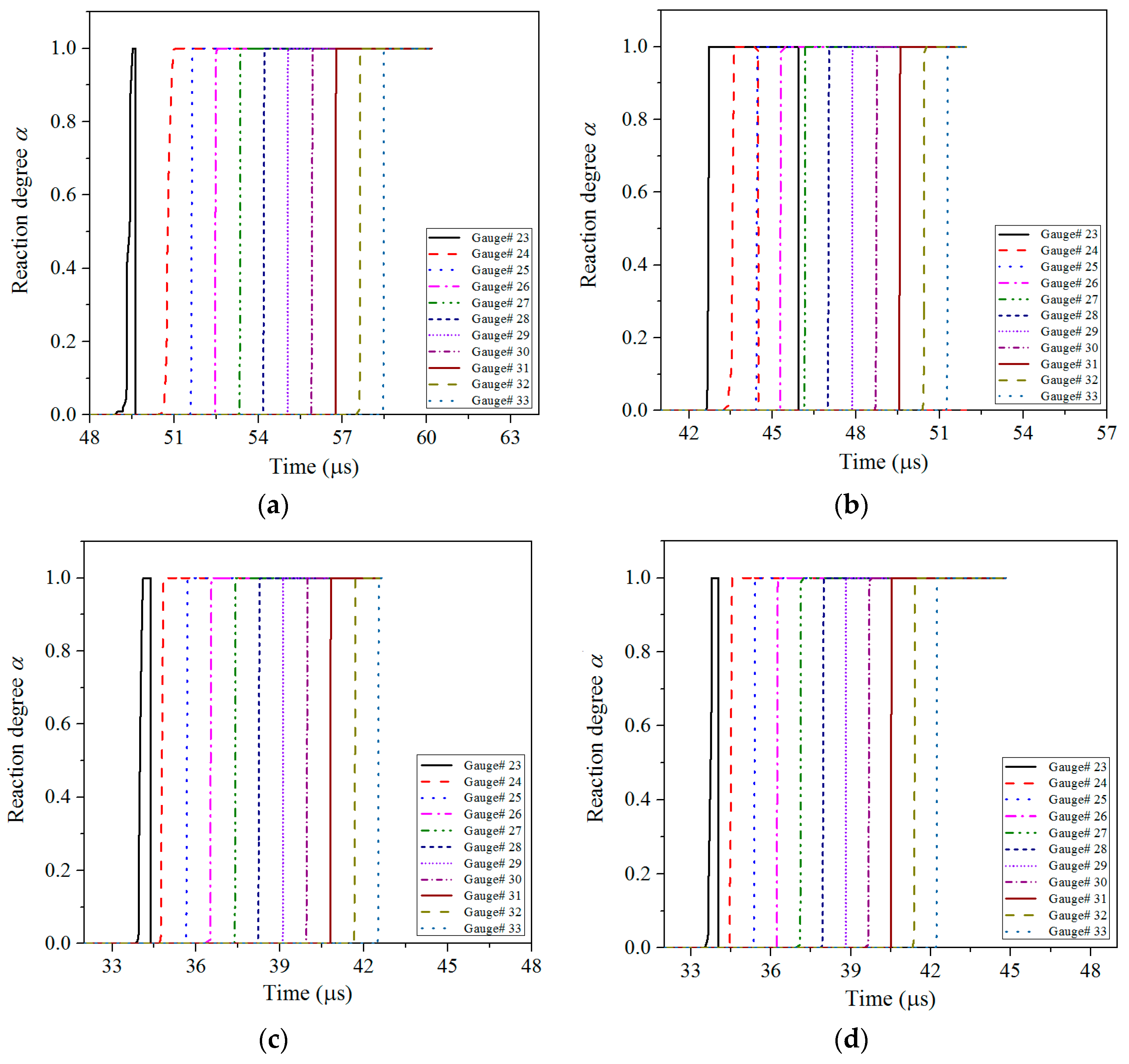

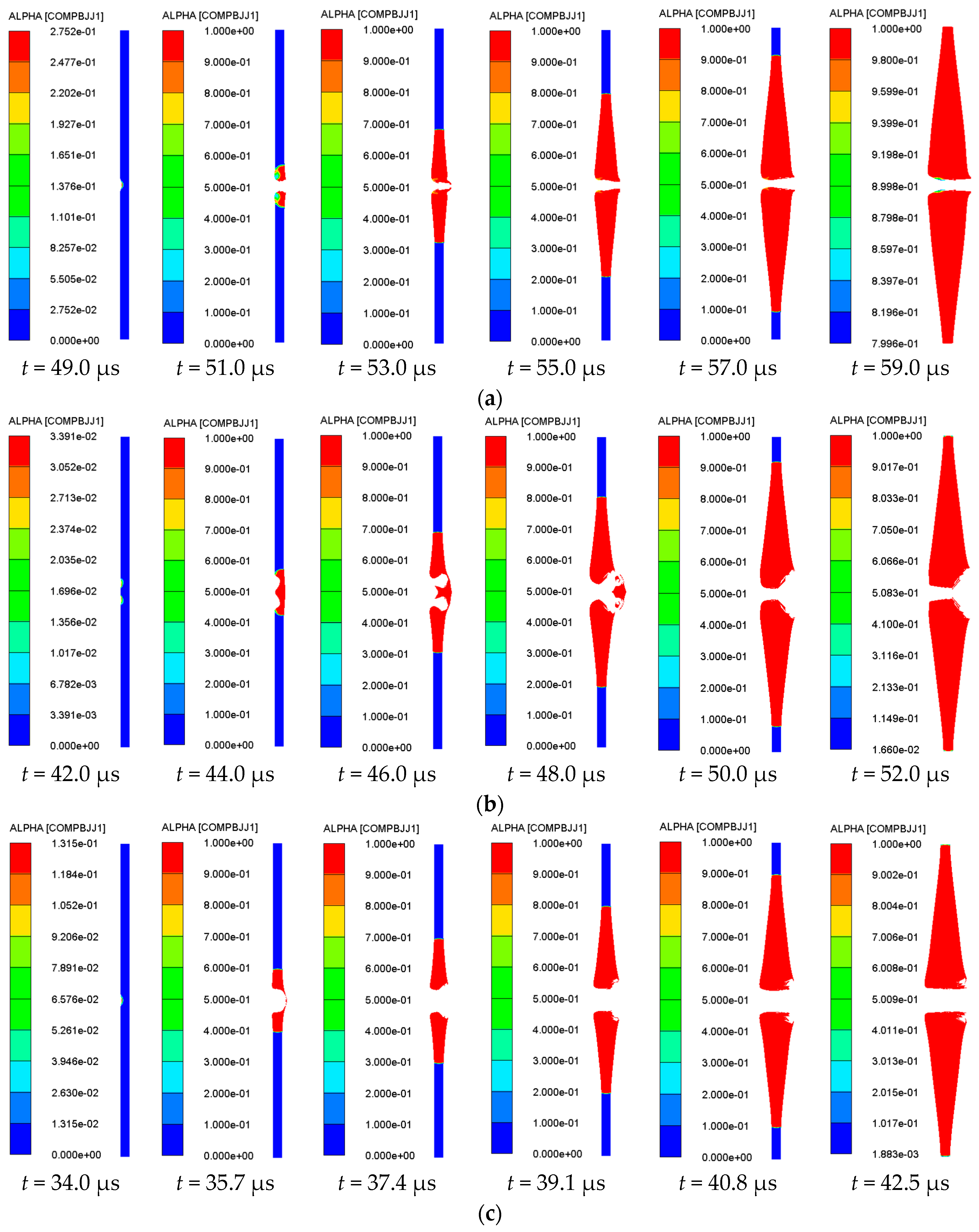

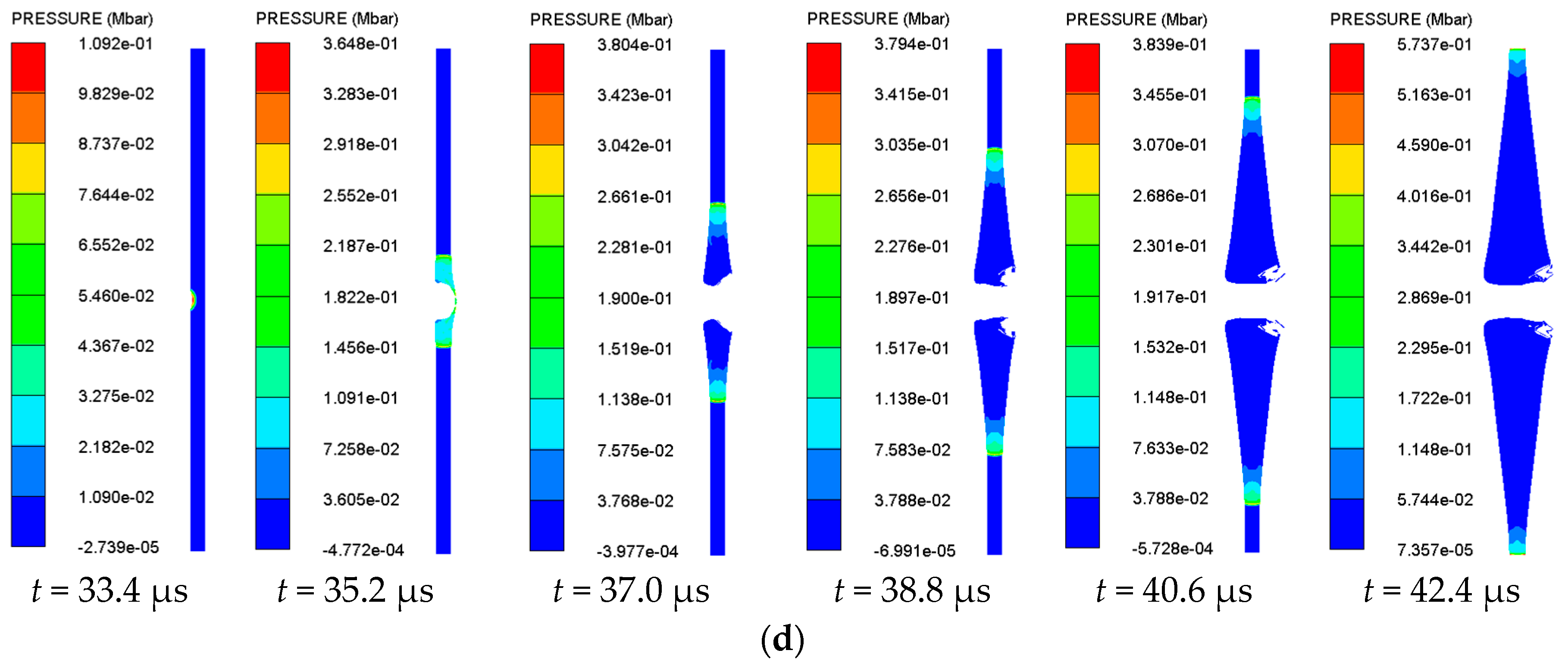

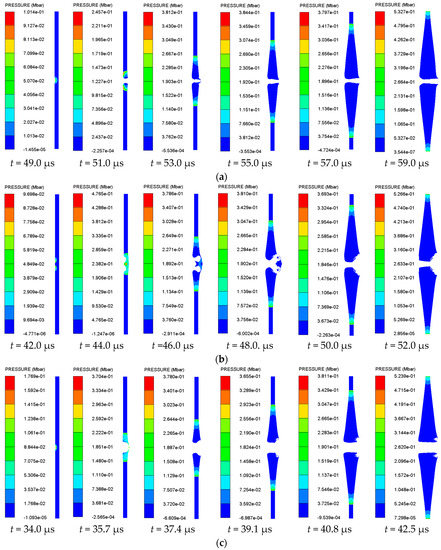

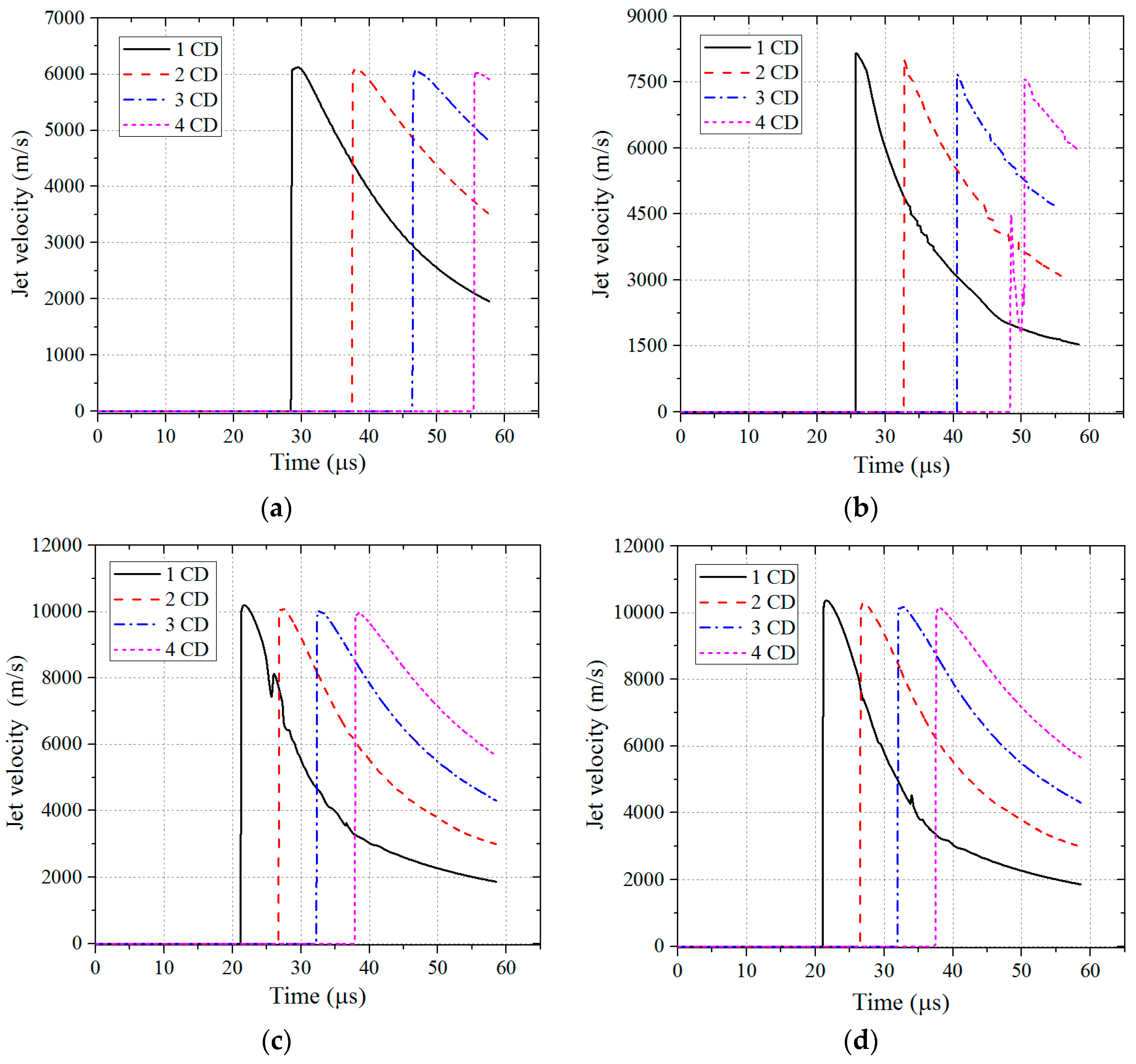

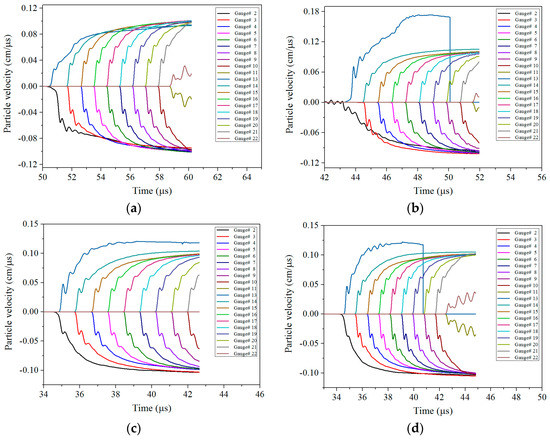

AbstractThe shaped charge tandem warhead is an effective weapon against the ERA (explosive reactive armor). Whether the pre-warhead can reliably initiate the ERA directly determines the entire performance of the tandem warhead. The existing shaped charge pre-warhead mostly adopts a metal shaped jet, which effectively initiates the ERA, but interferes the main shaped jet. This article, on the other hand, explores the possibility of producing a pre-warhead using a low-density material as the liner. The nonlinear dynamic analysis software Autodyn-2D is used to simulate and compare three kinds of low-density shaped jets, including floatglass, Lucite, and Plexiglas, to the copper shaped jet in the effectiveness of impacting ERA. Based on the integrative criteria (including u-d initiation criterion, explosive reactive degree, explosive pressure, and particle velocity of the panels), it can be determined whether the low-density shaped jet can reliably initiate the sandwich charge. The results show that the three kinds of low-density shaped jets can not only initiate the reaction armor, but are also superior to the existing copper shaped jet in ductility, jet tip velocity, jet tip diameter, and the mass; namely, it is feasible to use the low-density material shaped jet to destroy the ERA. View Full-Text
Share & Cite This Article
Ding, L.; Tang, W.; Ran, X. Simulation Study on Jet Formability and Damage Characteristics of a Low-Density Material Liner. Materials 2018, 11, 72.
Ding L, Tang W, Ran X. Simulation Study on Jet Formability and Damage Characteristics of a Low-Density Material Liner. Materials. 2018; 11(1):72.Chicago/Turabian Style
Ding, Liangliang; Tang, Wenhui; Ran, Xianwen. 2018. "Simulation Study on Jet Formability and Damage Characteristics of a Low-Density Material Liner." Materials 11, no. 1: 72.
