Materials 2018, 11(1), 106; https://doi.org/10.3390/ma11010106

Study of the Microstructure and Cracking Mechanisms of Hastelloy X Produced by Laser Powder Bed Fusion

Department of Applied Science and Technology, Politecnico di Torino, Corso Duca degli Abruzzi 24, 10129 Torino, Italy
*
Author to whom correspondence should be addressed.
Received: 23 December 2017 / Revised: 9 January 2018 / Accepted: 9 January 2018 / Published: 11 January 2018
(This article belongs to the Special Issue Laser Materials Processing)
View Full-Text   |   Download PDF [8075 KB, uploaded 12 January 2018]   |

Abstract

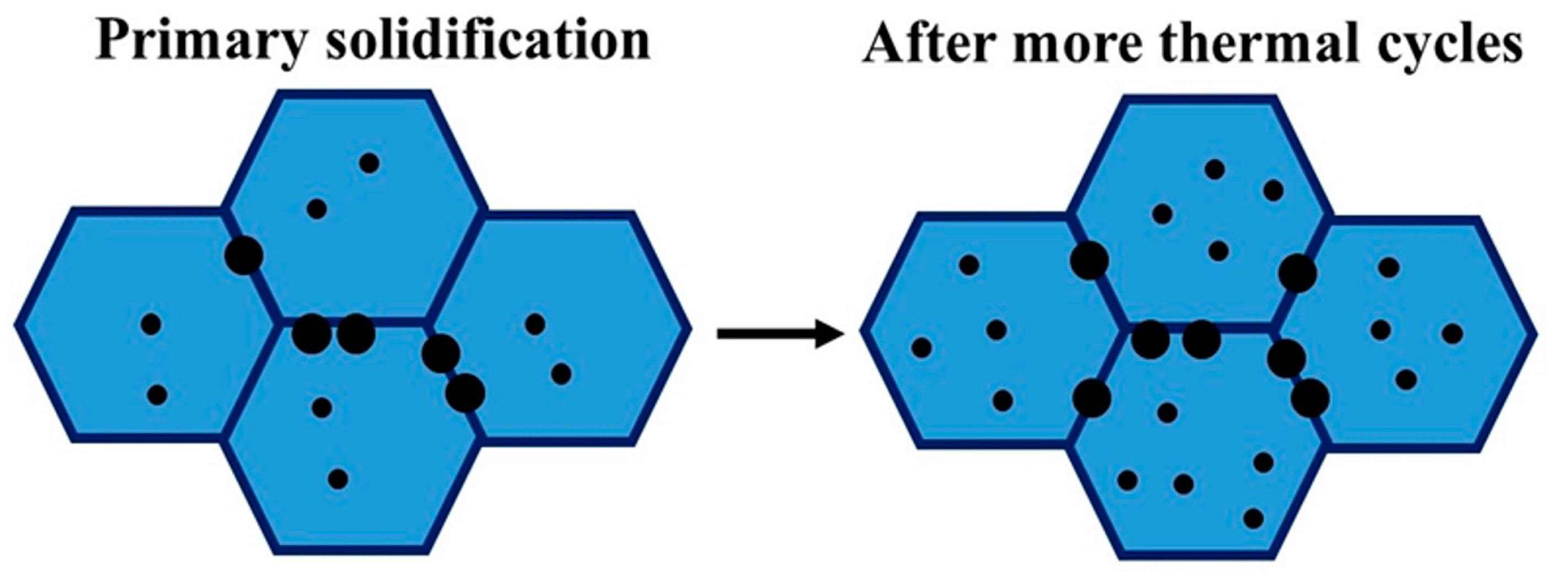

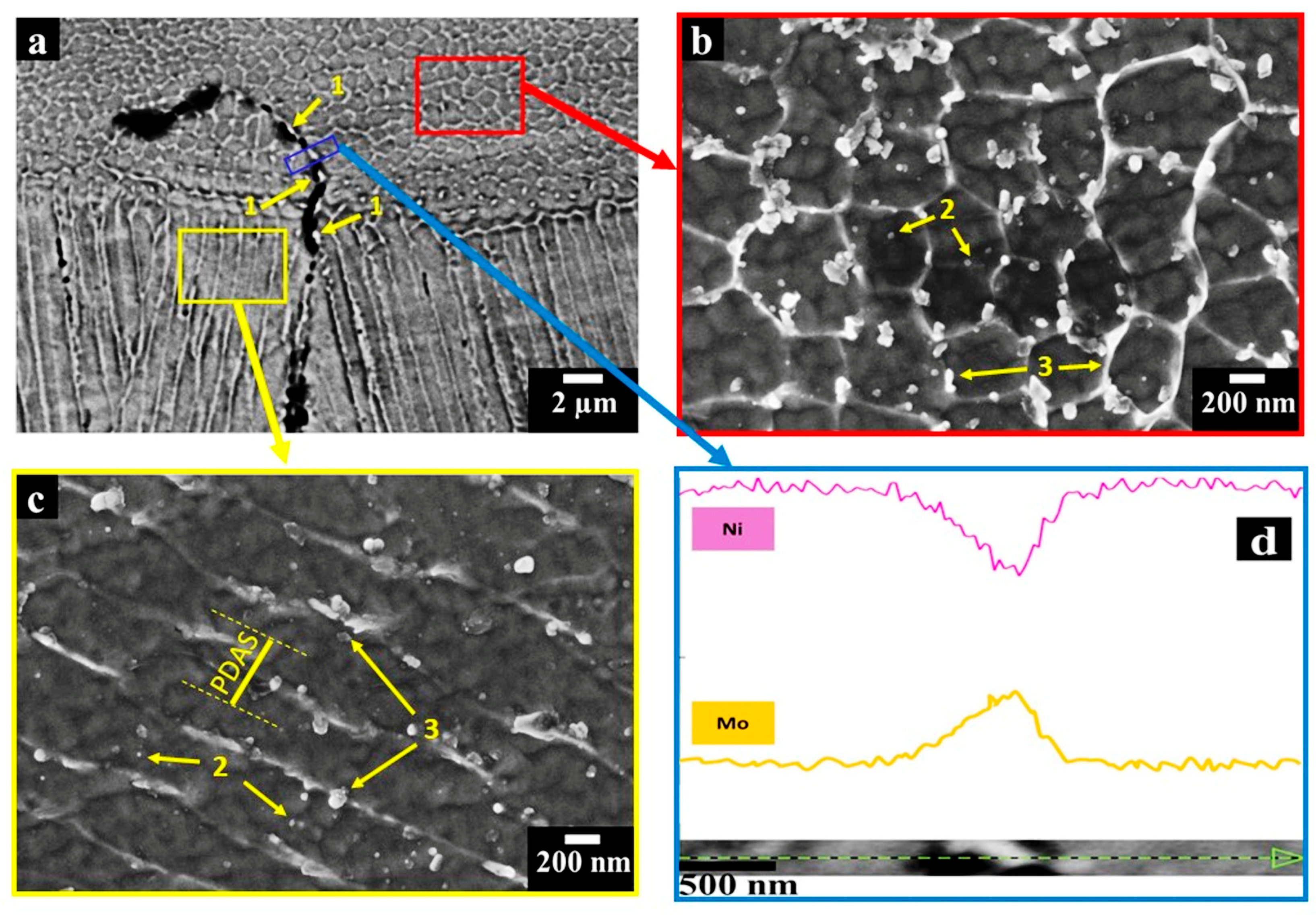

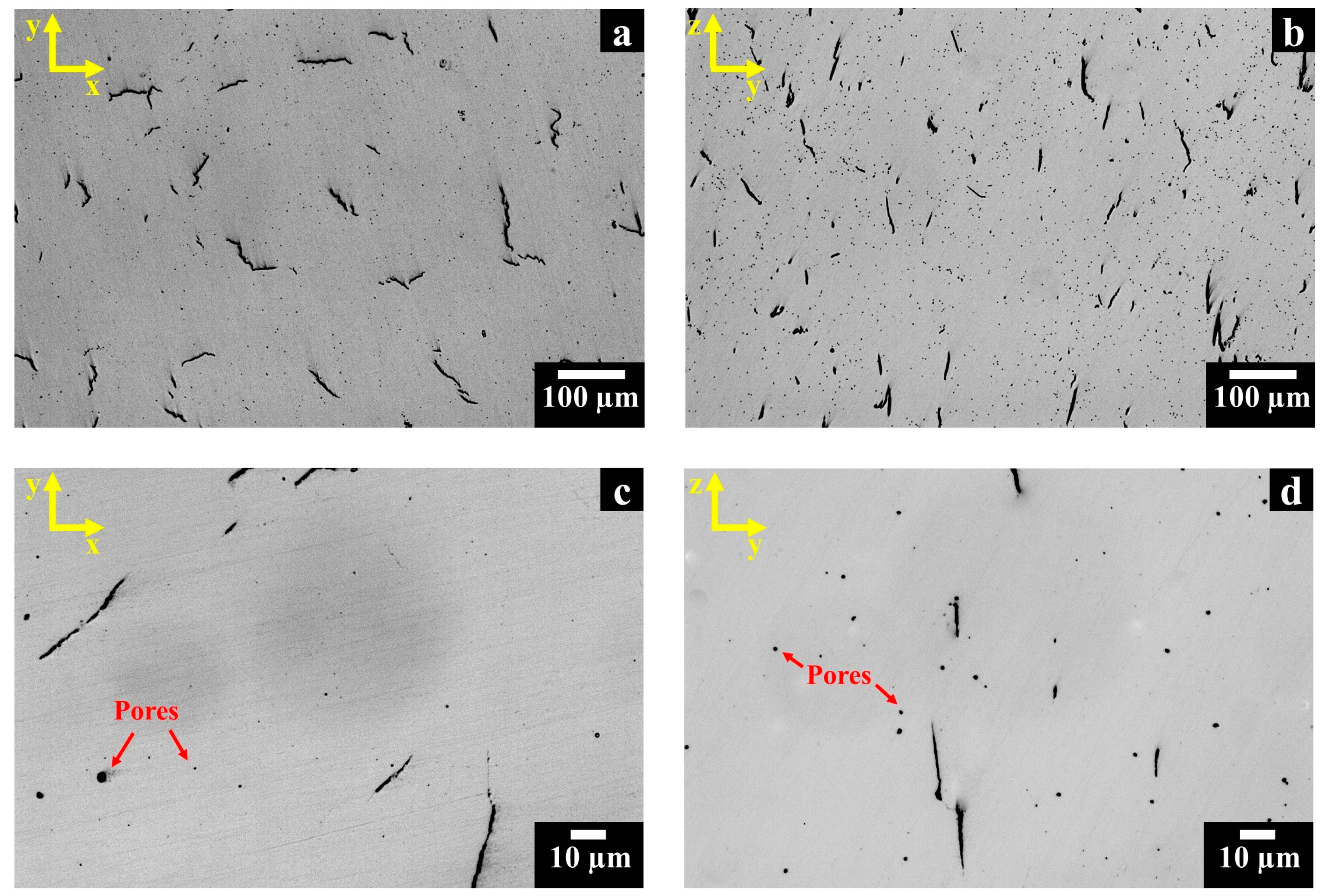

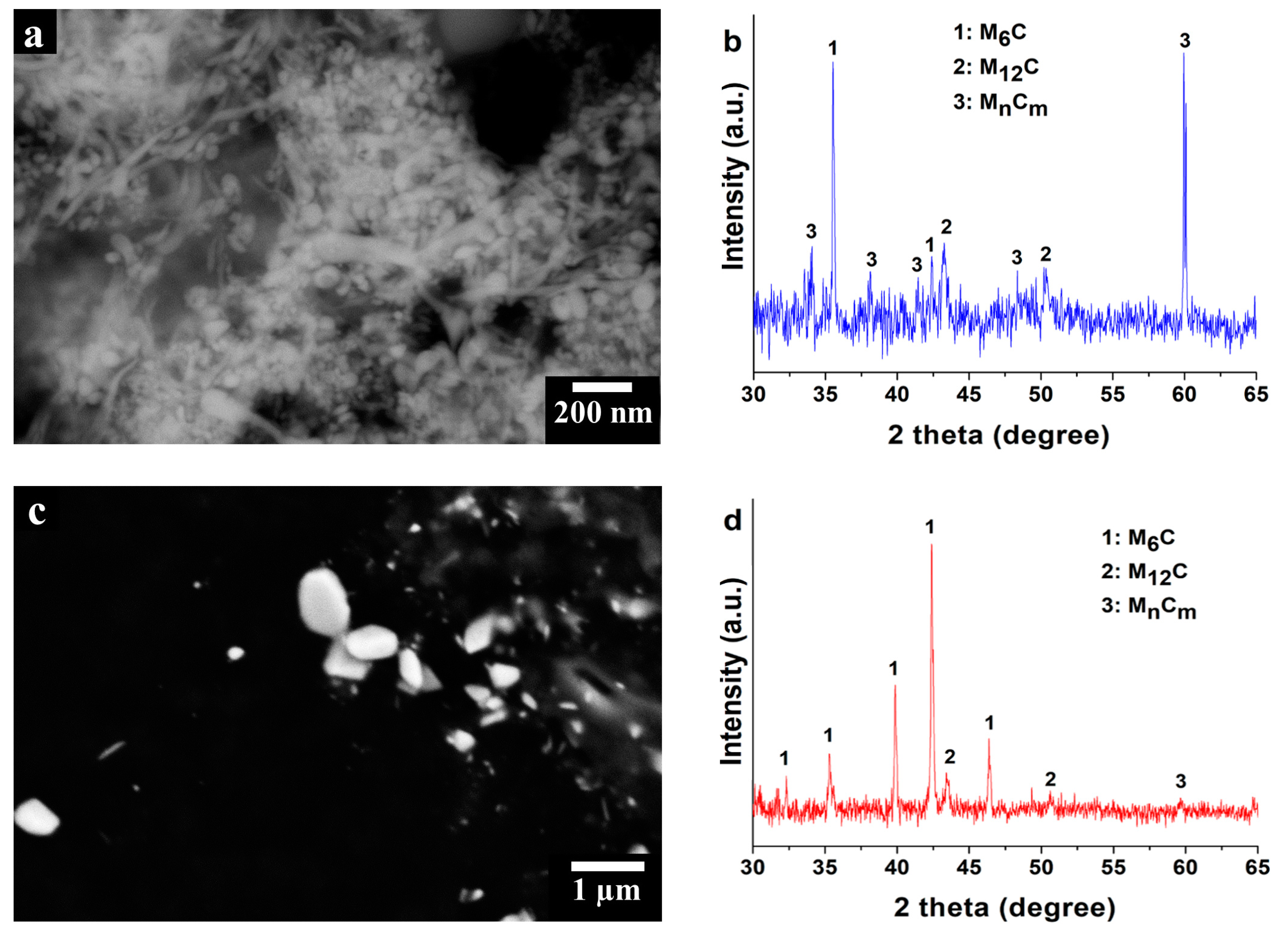

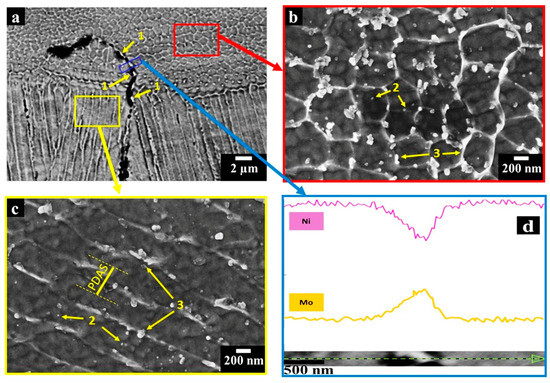

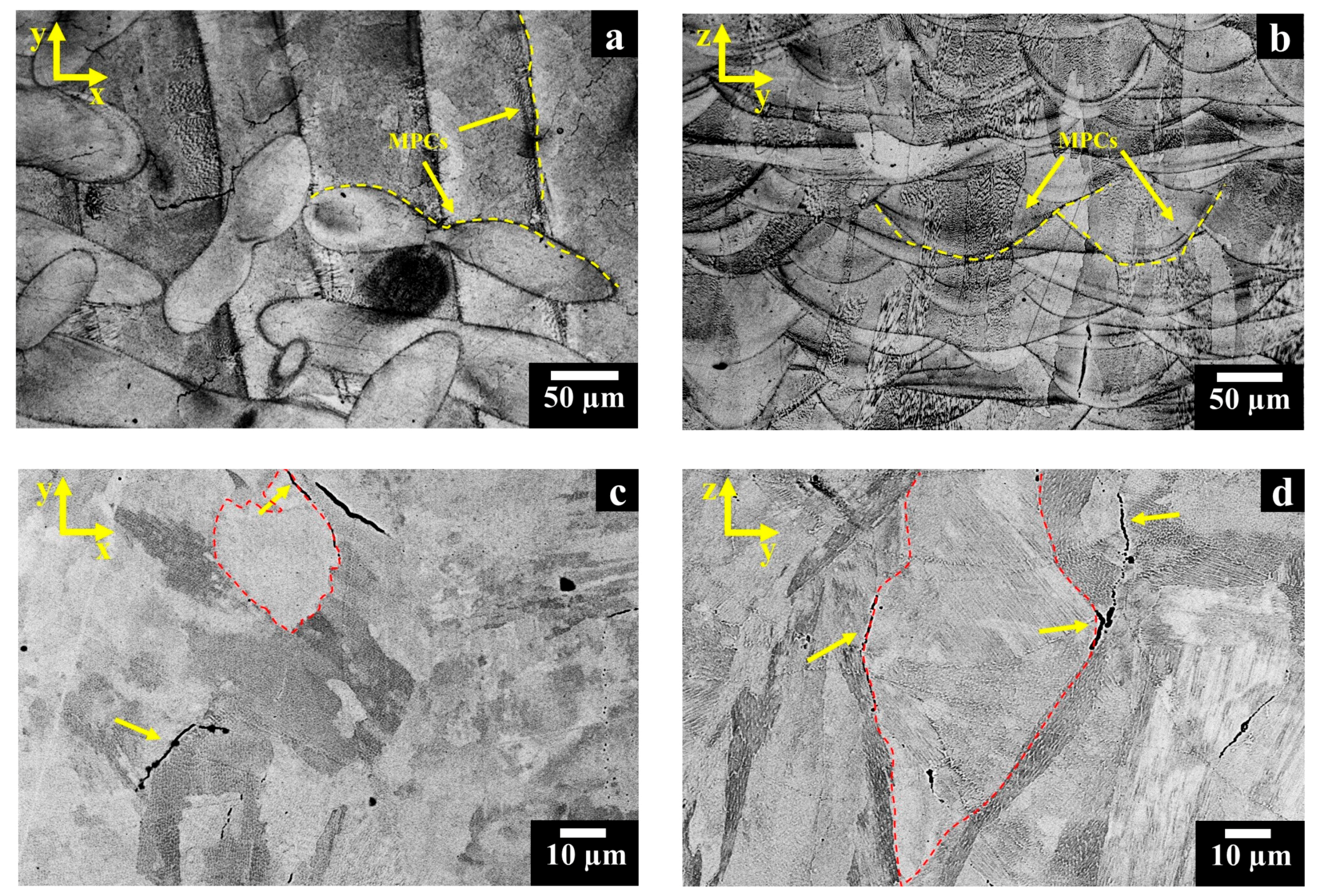

Hastelloy X (HX) is a Ni-based superalloy which suffers from high crack susceptibility during the laser powder bed fusion (LPBF) process. In this work, the microstructure of as-built HX samples was rigorously investigated to understand the main mechanisms leading to crack formation. The microstructural features of as-built HX samples consisted of very fine dendrite architectures with dimensions typically less than 1 µm, coupled with the formation of sub-micrometric carbides, the largest ones were mainly distributed along the interdendritic regions and grain boundaries. From the microstructural analyses, it appeared that the formation of intergranular carbides provided weaker zones, which combined with high thermal residual stresses resulted in hot cracks formation along the grain boundaries. The carbides were extracted from the austenitic matrix and characterized by combining different techniques, showing the formation of various types of Mo-rich carbides, classified as M6C, M12C and MnCm type. The first two types of carbides are typically found in HX alloy, whereas the last one is a metastable carbide probably generated by the very high cooling rates of the process. View Full-Text
Keywords: Ni-based superalloys; Hastelloy X alloy; laser powder bed fusion; electron microscopy; microstructure; XRD analysis; carbides Ni-based superalloys; Hastelloy X alloy; laser powder bed fusion; electron microscopy; microstructure; XRD analysis; carbides
Figures

Figure 1
