Materials 2017, 10(9), 1093; doi:10.3390/ma10091093

Article
Large Electrocaloric Effect in Lead-Free (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 Ceramics Prepared via Citrate Route
Jing Shi 1,2, Rongfeng Zhu 1, Xing Liu 3, Bijun Fang 1,*Orcid, Ningyi Yuan 1, Jianning Ding 1,4,* and Haosu Luo 5,*
1
School of Materials Science and Engineering, Jiangsu Collaborative Innovation Center of Photovolatic Science and Engineering, Jiangsu Province Cultivation Base for State Key Laboratory of Photovoltaic Science and Technology, National Experimental Demonstration Center for Materials Science and Engineering, Changzhou University, Changzhou 213164, China
2
Institute of Electronic and Electrical, Changzhou College of Information Technology, Changzhou 213164, China
3
School of Materials Science and Engineering, Tongji University, Shanghai 201804, China
4
School of Material Science and Engineering, Jiangsu University, Zhenjiang 212013, China
5
Key Laboratory of Inorganic Function Material and Device, Chinese Academy of Sciences, Shanghai 201800, China
*
Correspondence: Tel./Fax: +86-0519-8633-0095 (B.F.)
Received: 6 August 2017 / Accepted: 8 September 2017 / Published: 18 September 2017

Abstract

:
The 1 wt % Li-doped (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 (BCZT-Li) ceramics prepared by the citrate method exhibit improved phase purity, densification and electrical properties, which provide prospective possibility to develop high-performance electrocaloric materials. The electrocaloric effect was evaluated by phenomenological method, and the BCZT-Li ceramics present large electrocaloric temperature change ∆T, especially large electrocaloric responsibility ξ = ∆Tmax/∆Emax, which can be comparable to the largest values reported in the lead-free piezoelectric ceramics. The excellent electrocaloric effect is considered as correlating with the coexistence of polymorphic ferroelectric phases, which are detected by the Raman spectroscopy. The large ξ value accompanied by decreased Curie temperature (around 73 °C) of the BCZT-Li ceramics prepared by the citrate method presents potential applications as the next-generation solid-state cooling devices.
Keywords:
lead-free BCZT piezoceramics; citrate method; electrocaloric effect; Raman spectroscopy

1. Introduction

Facing increasingly serious energy crisis and environmental protection requirements, electrocaloric materials, using adiabatic entropy and temperature change in polar materials under external electric field and presenting promising versatile applications in energy-efficient microelectronic and solid-state cooling devices, have attracted intensive research attention [1,2]. Large electrocaloric effect can be obtained in the ferroelectric materials with perovskite structure since their polarization exhibits great dependency on temperature approaching to the ferroelectric phase transition temperature (TC) especially with the compositions around the morphotropic phase boundary (MPB) [3,4]. It is well known that the MPB compositions are formed typically by relaxor ferroelectrics combining with normal ferroelectrics in special composition region, which present giant dielectric and piezoelectric responses due to engineered domain configuration, polarization rotation mechanism, adaptive intermediate monoclinic/orthorhombic ferroelectric phase and/or polar nanoregion [5,6,7,8]. Therefore, ferroelectric materials with the MPB compositions provide prospective possibility to develop high-performance electrocaloric materials.
Recently Mischenko et al. discovered a magnitude higher electrocaloric effect in the PbZr0.95Ti0.05O3 thin films around the TC temperature [1], which ignited active research interest on various ferroelectric materials for commercial exploiting [9,10,11,12]. Although readily large electrocaloric effect was fulfilled in the Pb-containing ferroelectrics [13,14,15,16], their electrocaloric strength |∆T|/|∆E| reduced significantly due to the applied ultrahigh external electric field. Furthermore, such materials were restricted by the European Union regulation and by many countries due to the toxicity of lead [14,15,16], then, searching for environmental friendly lead-free electrocaloric ferroelectrics became extremely urgent.
Another existing dilemma ferroelectrics present is maximum electrocaloric response around the TC temperatures influenced by the conjugate applied electric field [11], which limits the lead-based ferroelectrics potential electrocaloric cooling applications since their TC is relatively high [14,15,16]. To meet the requirements of novel generation solid-state cooling devices, electrocaloric materials presenting large electrocaloric effect around room-temperatures are highly desirable for various applications [1,2,3,4,11].
The discovery of the ultrahigh piezoelectric performance lead-free Ba(Zr0.2Ti0.8)O3-x(Ba0.7Ca0.3)TiO3 (BZT-BCT) ceramics with relatively low TC (d33 = 620 pC/N and TC = 93 °C) provides potential candidates in practical electrocaloric applications [17]. However, significant investigations have been carried out on ceramics processing by the solid-state sintering method in order to increase TC and understand the mechanisms of ferroelectric phase transition and piezoelectric response origins rather than electrocaloric effects [18,19,20,21]. It is well-known that ceramics synthesis methods and processing conditions, and chemical doping influence phase structure formation and microstructure morphology [22,23], which exert great effects on the electrical properties of the synthesized ceramics via the intrinsic factors correlated with phase structure and lattice distortion and extrinsic factors correlated with microstructure morphology and domain configuration [24,25]. Therefore, 1 wt % Li-doped (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 (BCZT-Li) ceramics were prepared by the citrate method and the effects of Li doping and citrate method were reported [26,27]. The BCZT-Li ceramics with the MPB composition prepared by the citrate method exhibit enhanced ferroelectric property and relatively large ∆T with decreased TC temperature (around 73 °C) approaching to the room-temperature, presenting potential applications as the next-generation solid-state cooling devices. In this study, the electrocaloric performance of the BCZT-Li ceramics was investigated by the phenomenological model using the thermodynamic relation and the ferroelectric phase transition enhanced electrocaloric effect was discussed.

2. Materials and Methods

1 wt % Li-doped (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 (BCZT-Li) polycrystalline ceramics were prepared by the citrate method using LiNO3, Ba(NO3)2, Ca(NO3)2·4H2O, Zr(NO3)4·5H2O and C16H36O4·Ti as raw materials, and the detailed experimental procedures were described elsewhere [26,27]. Mass specific heat Cp was measured by a PerkinElmer Pyris DSC 8500 (PerkinElmer Inc., Akron, OH, USA) differential scanning calorimeter (DSC). Temperature dependence of polarization-electric field (P-E) hysteresis loops were tested by a Radiant Precision Premier LC ferroelectric material test system attached with a Sigma Model M10 chamber (Sigma Systems Corp., San Diego, CA, USA). Raman spectra upon heating were measured by a Horiba LabRAM HR Evolution Raman spectrometer (HORIBA Instruments Incorporated, Ann Arbor, MI, USA) equipped with a Linkam THMS600 heating/cooling stage [28].

3. Results and Discussion

The BCZT-Li ceramics prepared via the citrate method, i.e., calcined between 600 and 700 °C for the 300 °C self-combusted powder and sintered at 1490 and 1500 °C for the ceramics, exhibit phase-pure pseudo-cubic perovskite structure with rather homogenous microstructure morphology and high density [26,27]. All the sintered ceramics present excellent dielectric, ferroelectric and piezoelectric properties, which can be attributed to the MPB effect and the advantages induced by the Li-doping and the wet citrate method [26,27].
The citrate method synthesized BCZT-Li ceramics exhibit enhanced dielectric performance, in which the dielectric response peaks are relatively broad, whereas the frequency dispersion of the dielectric constant is not obvious, and no shift of the TC temperature occurs between 1 and 300 kHz [26,27]. The dielectric behavior of the BCZT-Li ceramics above TC can be fitted by both the Curie–Weiss law and the quadratic law [29] but all with slight deviation, presenting their complex dielectric nature correlating with the formation of complex perovskite solid solution [26,27]. The discussion below will use the BCZT-Li ceramics calcined at 675 °C and sintered at 1500 °C prepared via the citrate method due to their excellent comprehensive performance reported by our previous works [26,27].
Figure 1 shows the temperature dependent P-E hysteresis loops of the BCZT-Li ceramics, based on which their electrocaloric effect can be evaluated by the indirect phenomenological method [1,2,3,4]. The citrate method synthesized BCZT-Li ceramics present saturate and symmetric hysteresis loops accompanied by enhanced ferroelectricity as compared with those prepared by the solid-state sintering method [30]. The saturation and squareness of the P-E loops deteriorate greatly, and the loops become slimmer accompanied by the decrease of remnant polarization Pr and coercive field Ec with increasing temperature. Far above the Curie temperature (73 °C), the P-E loops do not show linear behavior, characteristic of pure para-electric phase, and slim loops appear in wide temperature range, implying the existence of ferroelectric clusters or polar nanoregions [31], which corresponds well with the complex perovskite nature (i.e., existence of partial relaxor nature) revealed by the dielectric characterization [26].
The change of polarization with temperature under different electric fields is shown in Figure 2 deduced from the first quadrant of the P-E loops of Figure 1. The polarization value decreases apparently with the increase of temperature, in which the Pr value decreases dramatically whereas the spontaneous polarization Ps decreases slowly. Furthermore, the decline magnitude of polarization decreases with the increase of electric field, which will influence the electrocaloric effect.
The electrocaloric effect under electric field was calculated by the thermodynamic relation [1,2,3,4]. Based on the Maxwell equation, the reversible adiabatic electrocaloric temperature change ∆T can be deduced indirectly by Δ T = 1 ρ C E 1 E 2 T ( P T ) E d E , where ρ is mass density and the C is heat capacity [1,2,3,4]. As for the BCZT-Li ceramics, the shape of the P-E hysteresis loops is rather narrow, indicating their small hysteresis loss, therefore, such indirect thermodynamic relation calculation is justified to determine the electrocaloric effect. In an isothermal process, the specific entropy change ∆S can be calculated by Δ S = 1 ρ E 1 E 2 T ( P T ) E d E , resulting from the domains rotation under external applied electric field [1,2,3,4]. It can be seen that large polarization gradient ( P / T ) will induce excellent electrocaloric effect, i.e., high ∆T and ∆S.
Detailed electrocaloric performance of the BCZT-Li ceramics are shown in Figure 3, in which their ε-T curve without poling is given to show the correlation between the TC temperature and the maximum electrocaloric effect temperature. The change of dP/dT depends on temperature and electric field, in which the maximum dP/dT value appears at zero bias electric filed and 25 °C, being −0.12 μC/cm2·K and favorable to obtain large electrocaloric temperature change ∆T and adiabatic entropy change ∆S.
Considering the temperature-dependent heat capacity, regarding the bulk density as constant, and ignoring the influence of electric field, the calculated ∆T and ∆S present similar change characteristics, which is useful for searching novel electrocaloric materials. The temperature of the maximum ∆T and ∆S under different electric fields increases gradually with increasing electric field, around the TC temperature, which corresponds well with the dielectric performance [26] and confirms that the ferroelectric phase transition can induce large electrocaloric effect. Furthermore, the reduction of the ∆T and ∆S values induced by the hysteresis loss is small, which can be seen from the area of the P-E hysteresis loops especially at elevated temperatures.
Although the maximum ∆T and ∆S values can increase further with applying higher external electric filed, the electrocaloric efficiency, representing as ξ = ∆Tmax/∆Emax [11], reaches maximum at rather low electric field. Therefore, the electrocaloric figure of merit depends mainly on the external applied electric field, which also induces the change of the ferroelectric phase transition type, i.e., from nearly first-order phase transition to almost second-order one, leading to the decrease of the ξ value [4,12]. Due to the small density and heat capacity of the BCZT-Li ceramics, their electrocaloric responsivity, being 0.164 K·mm/kV, can be comparable to the largest values reported of the lead-free piezoelectric ceramics [12,32]. The electrocaloric effect and responsivity values would be even larger if measured by the direct method, in which the discrepancy can be attributed to different polarization switching time needed measured by different methods and disequilibrium unsaturation polarized state for polycrystalline ceramics [32].
The excellent electrocaloric performance of the BCZT-Li ceramics can be attributed to the polymorphic ferroelectric phases coexistence and ferroelectric phase transition, which can be investigated by the Raman spectroscopy due to its sensitivity to crystal lattice vibration, domain configuration dynamics and ferroelectric phase transition [28,33,34] (Figure 4 and Figure 5). As shown in Figure 4a, the Raman modes around 150 cm−1 and 740 cm−1 wavenumbers weaken gradually, and the Raman mode peak around 520 cm−1 wavenumber broadens gradually with the increase of temperature, moreover the intensity of these Raman modes peaks decreases apparently when the temperature approaches to 120 °C.
To analyze the variation of different Raman modes more accurately, Lorentzian deconvolution fitting [35] is necessary as shown in Figure 5a,b using 0 and 120 °C Raman spectra as examples. Based on which the abnormal change of Raman modes peaks location, width, intensity, peak distance and so on can be determined, which provide efficient means to detect the occurrence of ferroelectric phase transition. The v4(LO) Raman mode disappears around 70 °C and the v3(LO) Raman mode disappears around 80 °C, which attributes to the tetragonal ferroelectric phase to cubic paraelectric phase transition (Figure 4b). At 120 °C, higher than the TC temperature, four Raman modes, i.e., the v3(TO), v2(LO,TO), v1(TO) and v1(LO) modes, still exist, which can be correlated with the existence of ferroelectric clusters or polar nanoregions [31], proving their slight relaxor ferroelectrics characteristic.
The polymorphic ferroelectric phases coexistence can be proven using the abnormal change of the Raman modes intensity as examples (Figure 5c–f). Around 30 °C, the intensity of the v3(TO), v2(LO,TO) and v1(TO) Raman modes increases abruptly, confirming the taking place of another ferroelectric phase transition, i.e., orthorhombic ferroelectric phase to tetragonal ferroelectric phase transition. Therefore, the BCZT-Li ceramics prepared by the citrate method exhibit enhanced electrical properties around room-temperature.
Based on the above discussion, the interplays between polarization, electric field and temperature determine the adiabatic temperature change. To obtain large temperature change, ferroelectric materials with large saturation polarization are desirable, and critical behavior, ferroelectric phase transition or domain transition that occur at operating temperatures will be helpful [36]. To improve the electrocaloric effect further, increasing breakdown electric filed, decreasing polarization fatigue via aliovalent doping, enhancing thermal conductivity via introducing crystallographic texture with low-angle grain boundaries, and lowering TC toward room-temperature are desired.

4. Conclusions

In conclusion, the citrate method synthesized BCZT-Li ceramics present high densification, pure perovskite structure and improved electrical performance, which provides possibility of obtaining large electrocaloric effect. The BCZT-Li ceramics exhibit enhanced ferroelectricity, which exists far above the TC temperature and can be attributed to the existence of ferroelectric clusters and polar nanoregions. Large ∆T and electrocaloric responsivity obtained in the BCZT-Li ceramics can be attributed to the polymorphic ferroelectric phases coexistence and ferroelectric phase transition, which are confirmed by the Raman spectroscopy study.

Acknowledgments

The authors thank the National Natural Science Foundation of China (No. 51577015), the Top-notch Academic Programs Project of Jiangsu Higher Education Institutions and the Priority Academic Program Development of Jiangsu Higher Education Institutions for financial support.

Author Contributions

Bijun Fang, Jianning Ding and Haosu Luo conceived and designed the experiments; Jing Shi and Xing Liu performed the experiments and collected the measurement data; Rongfeng Zhu analyzed the data, calculated the electrocaloric effects and plotted the figures; Ningyi Yuan contributed materials and analysis tools; Bijun Fang polished the figures and wrote the paper; Ningyi Yuan and Jianning Ding checked and polished the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mischenko, A.S.; Zhang, Q.; Scott, J.F.; Whatmore, R.W.; Mathur, N.D. Giant electrocaloric effect in thin-film PbZr0.95Ti0.05O3. Science 2006, 311, 1270–1271. [Google Scholar] [CrossRef] [PubMed]
  2. Lu, S.-G.; Zhang, Q. Electrocaloric materials for solid-state refrigeration. Adv. Mater. 2009, 21, 1983–1987. [Google Scholar] [CrossRef]
  3. Valant, M. Electrocaloric materials for future solid-state refrigeration technologies. Prog. Mater. Sci. 2012, 57, 980–1009. [Google Scholar] [CrossRef]
  4. Moya, X.; Kar-Narayan, S.; Mathur, N.D. Caloric materials near ferroic phase transitions. Nat. Mater. 2014, 13, 439–450. [Google Scholar] [CrossRef] [PubMed]
  5. Park, S.E.; Hackenberger, W. High performance single crystal piezoelectrics: Applications and issues. Curr. Opin. Solid State Mater. Sci. 2002, 6, 11–18. [Google Scholar] [CrossRef]
  6. Fu, H.; Cohen, R.E. Polarization rotation mechanism for ultrahigh electromechanical response in single-crystal piezoelectrics. Nature 2000, 403, 281–283. [Google Scholar] [PubMed]
  7. Keeble, D.S.; Benabdallah, F.; Thomas, P.A.; Maglione, M.; Kreisel, J. Revised structural phase diagram of (Ba0.7Ca0.3TiO3)-(BaZr0.2Ti0.8O3). Appl. Phys. Lett. 2013, 102, 092903. [Google Scholar] [CrossRef]
  8. Kutnjak, Z.; Petzelt, J.; Blinc, R. The giant electromechanical response in ferroelectric relaxors as a critical phenomenon. Nature 2006, 441, 956–959. [Google Scholar] [CrossRef] [PubMed]
  9. Lu, S.G.; Rozic, B.; Zhang, Q.M.; Kutnjak, Z.; Pirc, R. Electrocaloric effect in ferroelectric polymers. Appl. Phys. A 2012, 107, 559–566. [Google Scholar] [CrossRef]
  10. Moya, X.; Stern-Taulats, E.; Crossley, S.; González-Alonso, D.; Kar-Narayan, S.; Planes, A.; Mañosa, L.; Mathur, N.D. Giant electrocaloric strength in single-crystal BaTiO3. Adv. Mater. 2013, 25, 1360–1365. [Google Scholar] [CrossRef] [PubMed]
  11. Kriaa, I.; Maalej, A.; Khemakhem, H. Electrocaloric Study Effect in the Relaxor Ferroelectric Ceramic 0.9(0.75PMN-0.25PT)-0.1PS. J. Electron. Mater. 2017, 46, 2529–2532. [Google Scholar] [CrossRef]
  12. Li, F.; Chen, G.; Liu, X.; Zhai, J.; Shen, B.; Li, S.; Li, P.; Yang, K.; Zeng, H.; Yan, H. Type-I pseudo-first-order phase transition induced electrocaloric effect in lead-free Bi0.5Na0.5TiO3-0.06BaTiO3 ceramics. Appl. Phys. Lett. 2017, 110, 182904. [Google Scholar] [CrossRef]
  13. Zhao, Y.; Hao, X.; Zhang, Q. A giant electrocaloric effect of a Pb0.97La0.02(Zr0.75Sn0.18Ti0.07)O3 antiferroelectric thick film at room temperature. J. Mater. Chem. C 2015, 3, 1694–1699. [Google Scholar] [CrossRef]
  14. Jaffe, B.; Roth, R.S.; Marzullo, S. Piezoelectric properties of lead zirconate-lead titanate solid-solution ceramics. Appl. Phys. 1954, 25, 809–810. [Google Scholar] [CrossRef]
  15. Fang, B.; Qian, K.; Chen, Z.; Yuan, N.; Ding, J.; Zhao, X.; Xu, H.; Luo, H. Large strain and pyroelectric properties of Pb(Mg1/3Nb2/3)O3-PbTiO3 ceramics prepared by partial oxalate route. Funct. Mater. Lett. 2014, 7, 1450059. [Google Scholar] [CrossRef]
  16. Zhu, R.; Ji, W.; Fang, B.; Wu, D.; Chen, Z.; Ding, J.; Zhao, X.; Luo, H. Ferroelectric phase transition and electrical conduction mechanisms in high Curie-temperature PMN-PHT piezoelectric ceramics. Ceram. Int. 2017, 43, 6417–6424. [Google Scholar] [CrossRef]
  17. Liu, W.; Ren, X. Large piezoelectric effect in Pb-free ceramics. Phys. Rev. Lett. 2009, 103, 257602. [Google Scholar] [CrossRef] [PubMed]
  18. Bao, H.; Zhou, C.; Xue, D.; Gao, J.; Ren, X. A modified lead-free piezoelectric BZT-xBCT system with higher TC. J. Phys. D Appl. Phys. 2010, 43, 465401. [Google Scholar] [CrossRef]
  19. Fang, B.J.; Wang, W.W.; Ding, J.N.; Zhao, X.Y.; Xu, H.Q.; Luo, H.S. Preparation and electrical properties of pseudoternary BaTiO3-CaTiO3-BaZrO3 lead free piezoelectric ceramics. Adv. Appl. Ceram. 2013, 112, 257–262. [Google Scholar] [CrossRef]
  20. Zhang, L.; Zhang, M.; Wang, L.; Zhou, C.; Zhang, Z.; Yao, Y.; Zhang, L.; Xue, D.; Lou, X.; Ren, X. Phase transitions and the piezoelectricity around morphotropic phase boundary in Ba(Zr0.2Ti0.8)O3-x(Ba0.7Ca0.3)TiO3 lead-free solid solution. Appl. Phys. Lett. 2014, 105, 162908. [Google Scholar] [CrossRef]
  21. Gao, J.; Hu, X.; Zhang, L.; Li, F.; Zhang, L.; Wang, Y.; Hao, Y.; Zhong, L.; Ren, X. Major contributor to the large piezoelectric response in (1-x)Ba(Zr0.2Ti0.8)O3-x(Ba0.7Ca0.3)TiO3 ceramics: Domain wall motion. Appl. Phys. Lett. 2014, 104, 252909. [Google Scholar] [CrossRef]
  22. Qian, K.; Fang, B.; Du, Q.; Ding, J.; Zhao, X.; Luo, H. Phase development and electrical properties of Pb(Mg1/3Nb2/3)O3-PbTiO3 ceramics prepared by partial oxalate route. Phys. Status Solid A 2013, 210, 1149–1156. [Google Scholar] [CrossRef]
  23. Villafuerte-Castrejón, M.; Morán, E.; Reyes-Montero, A.; Vivar-Ocampo, R.; Peña-Jiménez, J.-A.; Rea-López, S.-O.; Pardo, L. Towards lead-free piezoceramics: Facing a synthesis challenge. Materials 2016, 9, 21. [Google Scholar] [CrossRef] [PubMed]
  24. Randall, C.A.; Kim, N.; Kucera, J.-P.; Cao, W.; Shrout, T.R. Intrinsic and extrinsic size effects in fine grained morphotropic phase boundary lead zirconate titanate ceramics. J. Am. Ceram. Soc. 1998, 81, 677–688. [Google Scholar] [CrossRef]
  25. Su, Y.-L.; Chen, X.-M.; Yu, Z.-D.; Lian, H.-L.; Zheng, D.-D.; Peng, J.-H. Comparative study on microstructure and electrical properties of (K0.5Na0.5)NbO3 lead-free ceramics prepared via two different sintering methods. J. Mater. Sci. 2017, 52, 2934–2943. [Google Scholar] [CrossRef]
  26. Liu, X.; Zhu, M.; Chen, Z.; Fang, B.; Ding, J.; Zhao, X.; Xu, H.; Luo, H. Structure and electrical properties of Li-doped BaTiO3-CaTiO3-BaZrO3 lead-free ceramics prepared by citrate method. J. Alloys Compd. 2014, 613, 219–225. [Google Scholar] [CrossRef]
  27. Liu, X.; Chen, Z.; Wu, D.; Fang, B.; Ding, J.; Zhao, X.; Xu, H.; Luo, H. Enhancing pyroelectric properties of Li-doped (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 lead-free ceramics by optimizing calcination temperature. Jpn. J. Appl. Phys. 2015, 54, 071501. [Google Scholar] [CrossRef]
  28. Fang, B.; Liu, X.; Li, X.; Ding, J.; Zhao, X.; Luo, H. Temperature-dependent Raman spectra and electrical properties of 0.69Pb(Mg1/3Nb2/3)O3-0.31PbTiO3 single crystals. Appl. Phys. A 2016, 122, 811. [Google Scholar] [CrossRef]
  29. Uchino, K.; Nomura, S. Critical exponents of the dielectric constants in diffused-phase-transition crystals. Ferroelectr. Lett. 1982, 44, 55–61. [Google Scholar] [CrossRef]
  30. Liu, C.; Liu, X.; Wang, D.; Chen, Z.; Fang, B.; Ding, J.; Zhao, X.; Xu, H.; Luo, H. Improving piezoelectric property of BaTiO3-CaTiO3-BaZrO3 lead-free ceramics by doping. Ceram. Int. 2014, 40, 9881–9887. [Google Scholar] [CrossRef]
  31. Ramesh, G.; Rao, M.S.R.; Sivasubramanian, V.; Subramanian, V. Electrocaloric effect in (1-x)PIN-xPT relaxor ferroelectrics. J. Alloys Compd. 2016, 663, 444–448. [Google Scholar] [CrossRef]
  32. Sanlialp, M.; Shvartsman, V.V.; Acosta, M.; Lupascu, D.C. Electrocaloric effect in Ba(Zr,Ti)O3-(Ba,Ca)TiO3 ceramics measured directly. J. Am. Ceram. Soc. 2016, 99, 4022–4030. [Google Scholar] [CrossRef]
  33. Pezzotti, G. Raman spectroscopy of piezoelectrics. J. Appl. Phys. 2013, 113, 211301. [Google Scholar] [CrossRef]
  34. Zhu, R.; Yang, L.; Fang, B.; Ding, J.; Zhao, X.; Luo, H. Ferroelectric phase transitions of the 0.32PIN-0.345PMN-0.335PT single crystals studied by temperature-dependent Raman spectroscopy, dielectric and ferroelectric performance. Phase Transit. 2017, 90, 500–508. [Google Scholar] [CrossRef]
  35. Perry, C.H.; Hall, D.B. Temperature dependence of the Raman spectrum of BaTiO3. Phys. Rev. B 1965, 15, 700–702. [Google Scholar] [CrossRef]
  36. Liu, Y.; Scott, J.F.; Dkhil, B. Some strategies for improving caloric responses with ferroelectrics. APL Mater. 2016, 4, 064109. [Google Scholar] [CrossRef]

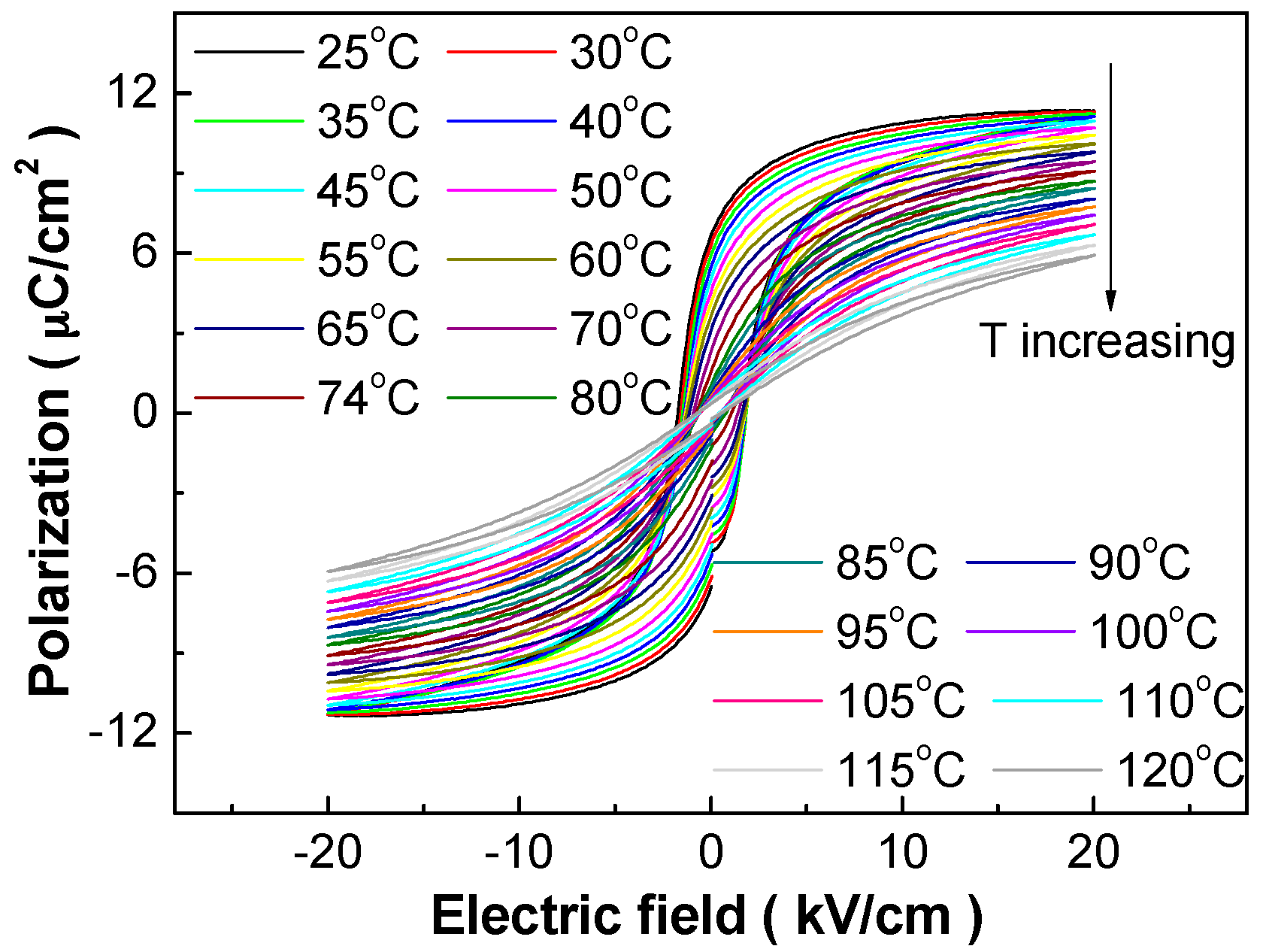

Figure 1. P-E hysteresis loops of the 1 wt % Li-doped (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 (BCZT-Li) ceramics measured upon heating between 25 and 120 °C at 1 Hz and maximum electric field of 20 kV/cm.
Figure 1. P-E hysteresis loops of the 1 wt % Li-doped (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 (BCZT-Li) ceramics measured upon heating between 25 and 120 °C at 1 Hz and maximum electric field of 20 kV/cm.
Materials 10 01093 g001

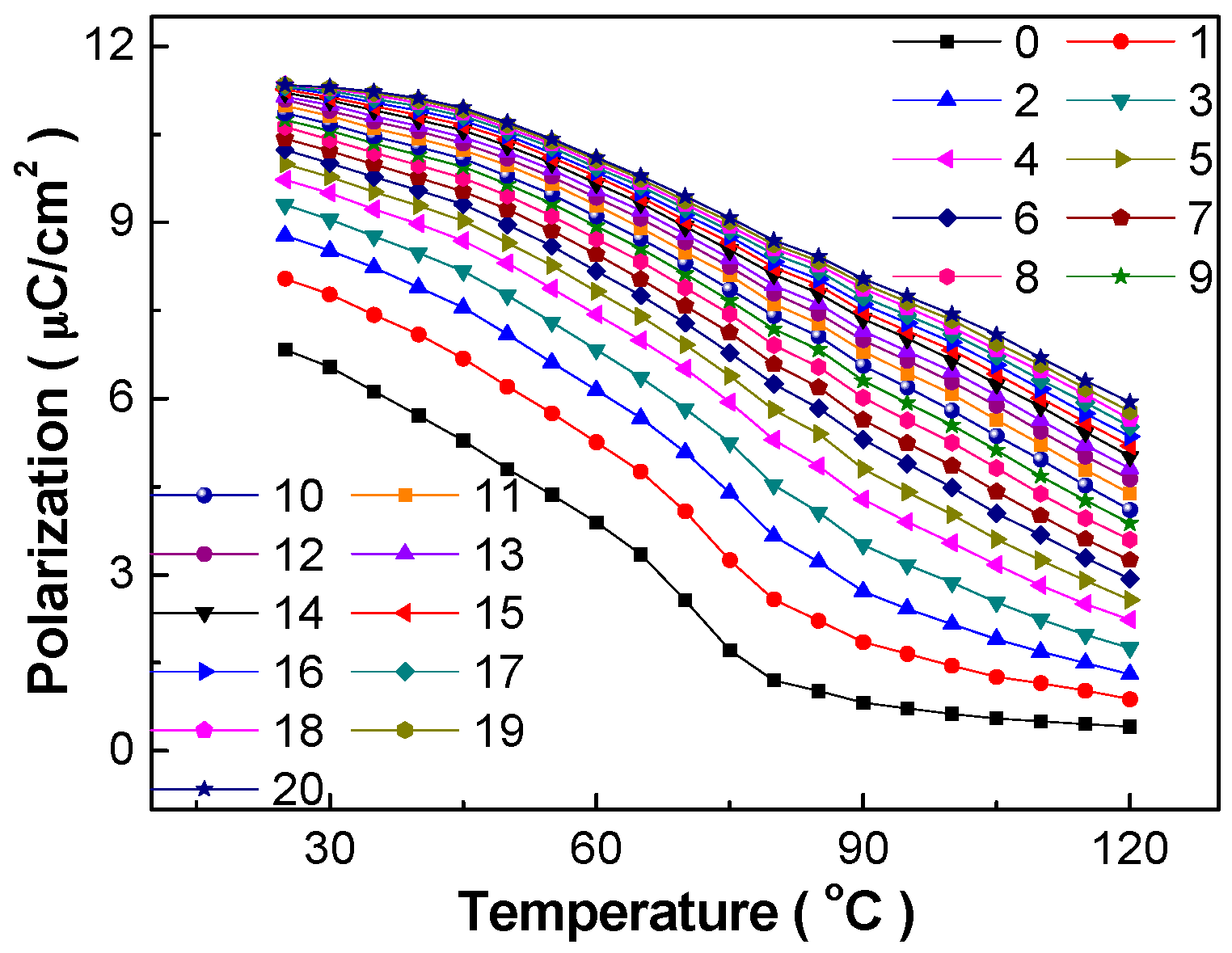

Figure 2. Temperature dependence of polarization of the BCZT-Li ceramics at different electric fields. The unit of the electric field shown by different lines and symbols in the figure is kV/cm.
Figure 2. Temperature dependence of polarization of the BCZT-Li ceramics at different electric fields. The unit of the electric field shown by different lines and symbols in the figure is kV/cm.
Materials 10 01093 g002

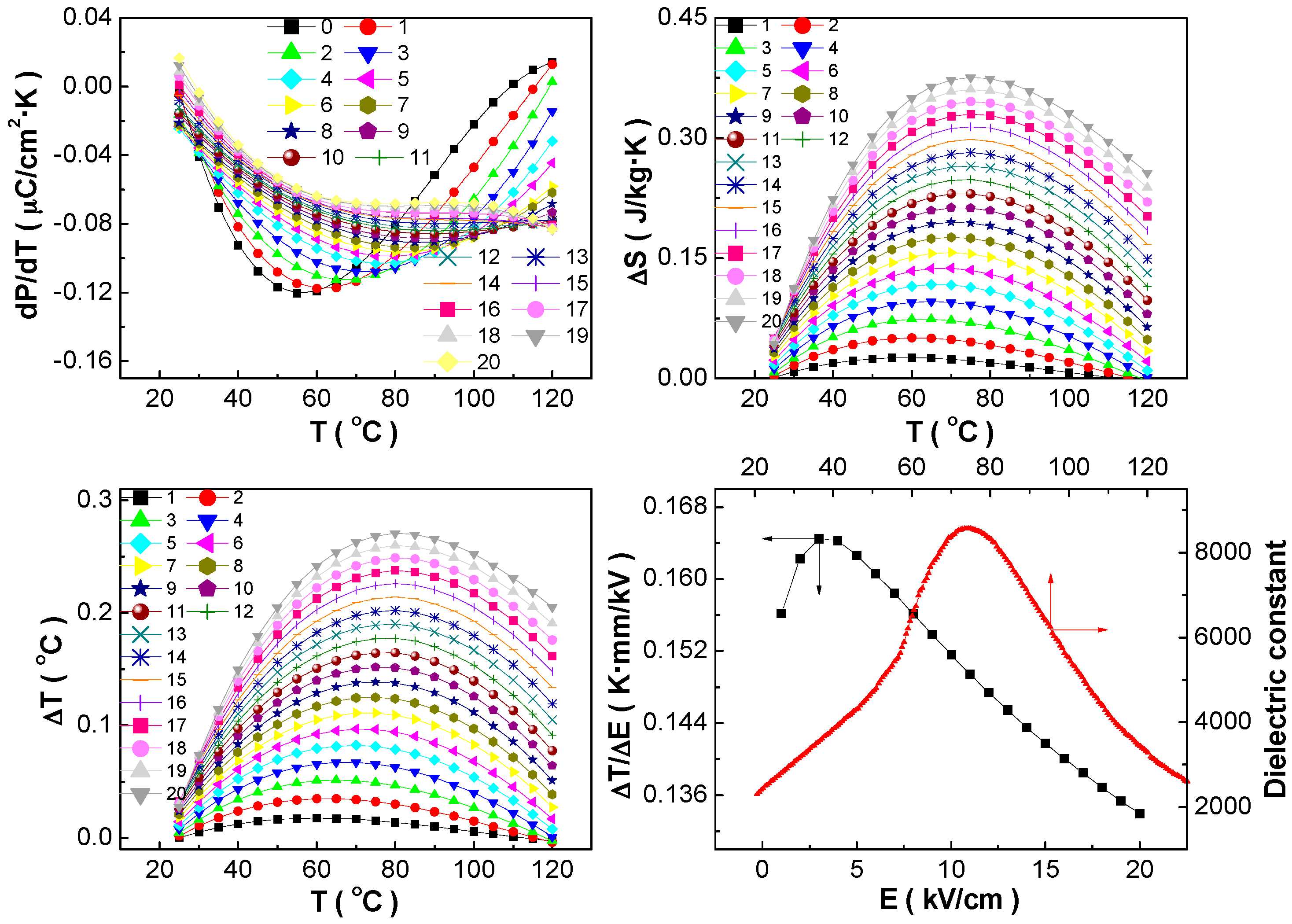

Figure 3. Temperature dependence of dP/dT, ∆S and ∆T at different electric fields, and dielectric constant shown the ferroelectric phase transition temperature; and electric field dependent electrocaloric responsivity of the BCZT-Li ceramics. The unit of the electric field shown by different lines and symbols in the figure is kV/cm.
Figure 3. Temperature dependence of dP/dT, ∆S and ∆T at different electric fields, and dielectric constant shown the ferroelectric phase transition temperature; and electric field dependent electrocaloric responsivity of the BCZT-Li ceramics. The unit of the electric field shown by different lines and symbols in the figure is kV/cm.
Materials 10 01093 g003
Figure 4. (a) Raman spectra of the BCZT-Li ceramics measured upon heating between 0 and 120 °C; (b) temperature dependence of wavenumber of different Raman vibration modes of the BCZT-Li ceramics.
Figure 4. (a) Raman spectra of the BCZT-Li ceramics measured upon heating between 0 and 120 °C; (b) temperature dependence of wavenumber of different Raman vibration modes of the BCZT-Li ceramics.
Materials 10 01093 g004
Figure 5. Lorentzian deconvolution peaks of Raman spectra using (a) 0 °C and (b) 120 °C as examples; (cf) temperature-dependent intensity of different Raman modes of the BCZT-Li ceramics upon heating.
Figure 5. Lorentzian deconvolution peaks of Raman spectra using (a) 0 °C and (b) 120 °C as examples; (cf) temperature-dependent intensity of different Raman modes of the BCZT-Li ceramics upon heating.
Materials 10 01093 g005
