Next Article in Journal
Selective Laser Sintering of Nano Al2O3 Infused Polyamide
Next Article in Special Issue
Monitoring Ion Track Formation Using In Situ RBS/c, ToF-ERDA, and HR-PIXE
Previous Article in Journal
Output-Based Structural Damage Detection by Using Correlation Analysis Together with Transmissibility
Previous Article in Special Issue
Ion-Beam-Induced Atomic Mixing in Ge, Si, and SiGe, Studied by Means of Isotope Multilayer Structures
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Materials 2017, 10(8), 860; doi:10.3390/ma10080860

Ion Beam Modification of Carbon Nanotube Yarn in Air and Vacuum

1
Department of Nuclear Engineering, Texas A&M University, College Station, TX 77843, USA
2
Department of Textile Engineering, Chemistry and Science, North Carolina State University, Raleigh, NC 27695, USA
*
Author to whom correspondence should be addressed.
Received: 20 June 2017 / Revised: 13 July 2017 / Accepted: 18 July 2017 / Published: 27 July 2017
(This article belongs to the Special Issue Ion Beam Analysis, Modification, and Irradiation of Materials)
View Full-Text   |   Download PDF [3685 KB, uploaded 27 July 2017]   |

Abstract

We studied the effects ion beam irradiation on carbon nanotube (CNT) yarns. CNT yarn was fabricated by drawing and spinning CNT sheets from a vertically aligned CNT forest. The yarn was irradiated by 2.5 MeV protons in either vacuum or air. Irradiation in air was achieved by directing the proton beam through a 0.025 mm thick Ti window. Irradiation in vacuum occurred at a pressure of <10−6 torr at room temperature and at an elevated temperature of 600 °C. Tensile testing revealed that CNT yarn irradiated in air increased in tensile strength with increasing proton fluence. For yarn irradiated in vacuum, however, the strength decreased with increasing fluence. We believe that irradiation-induced excitation and trapping/bonding of gas atoms between tubes may play a role for the mechanical property changes. View Full-Text
Keywords: ion-solid interaction; carbon nanotubes; ion beam welding; carbon nanotube yarn ion-solid interaction; carbon nanotubes; ion beam welding; carbon nanotube yarn
Figures

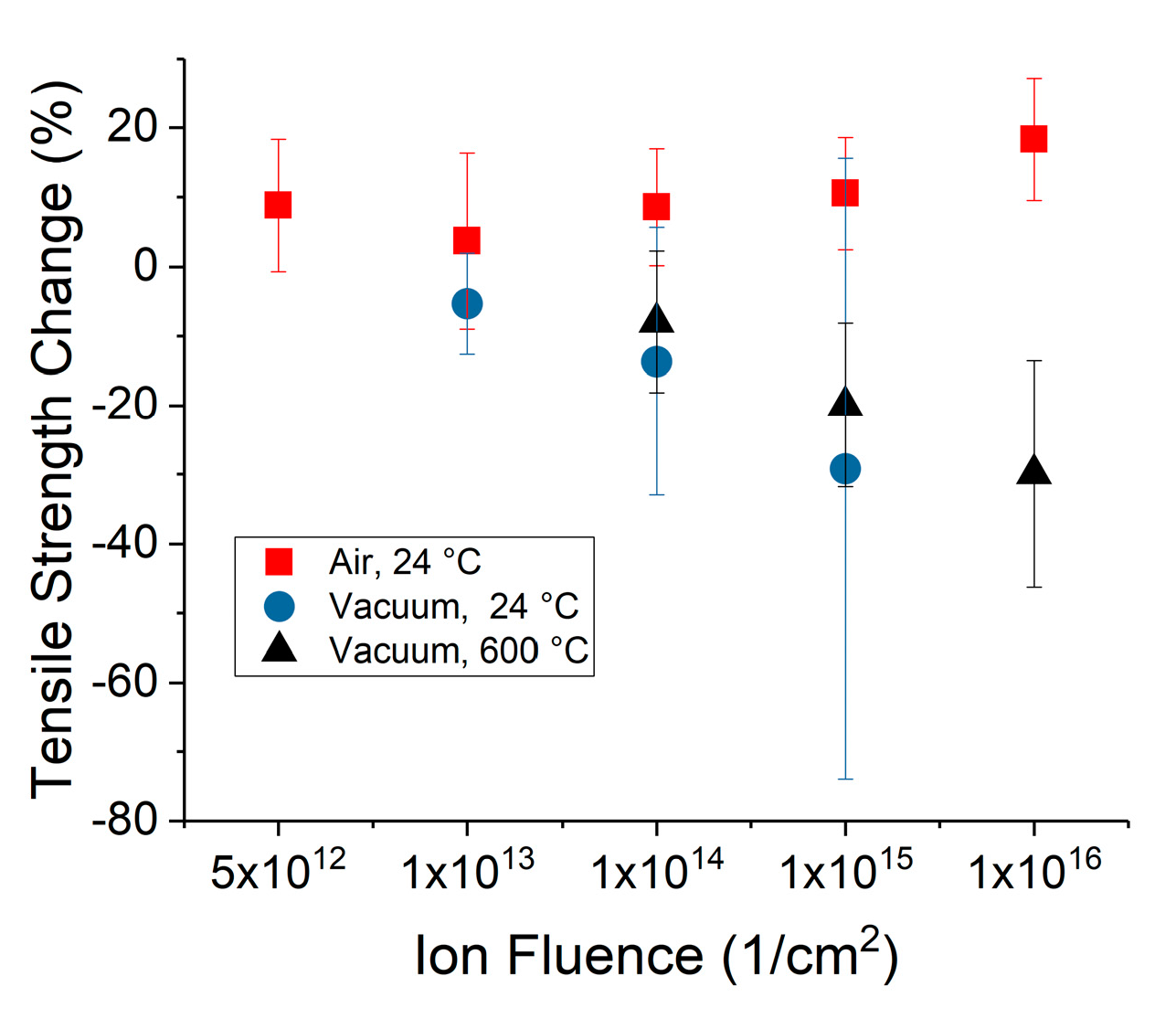

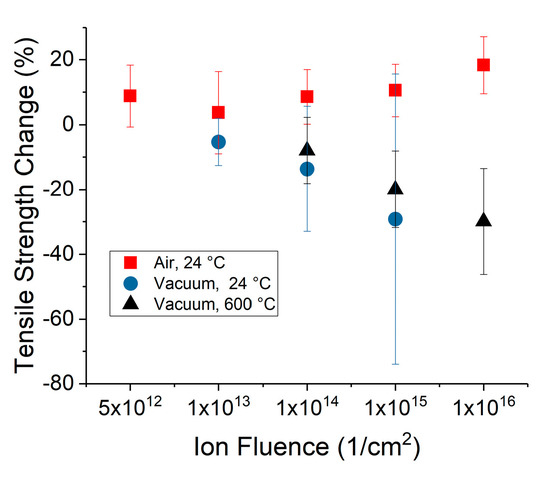

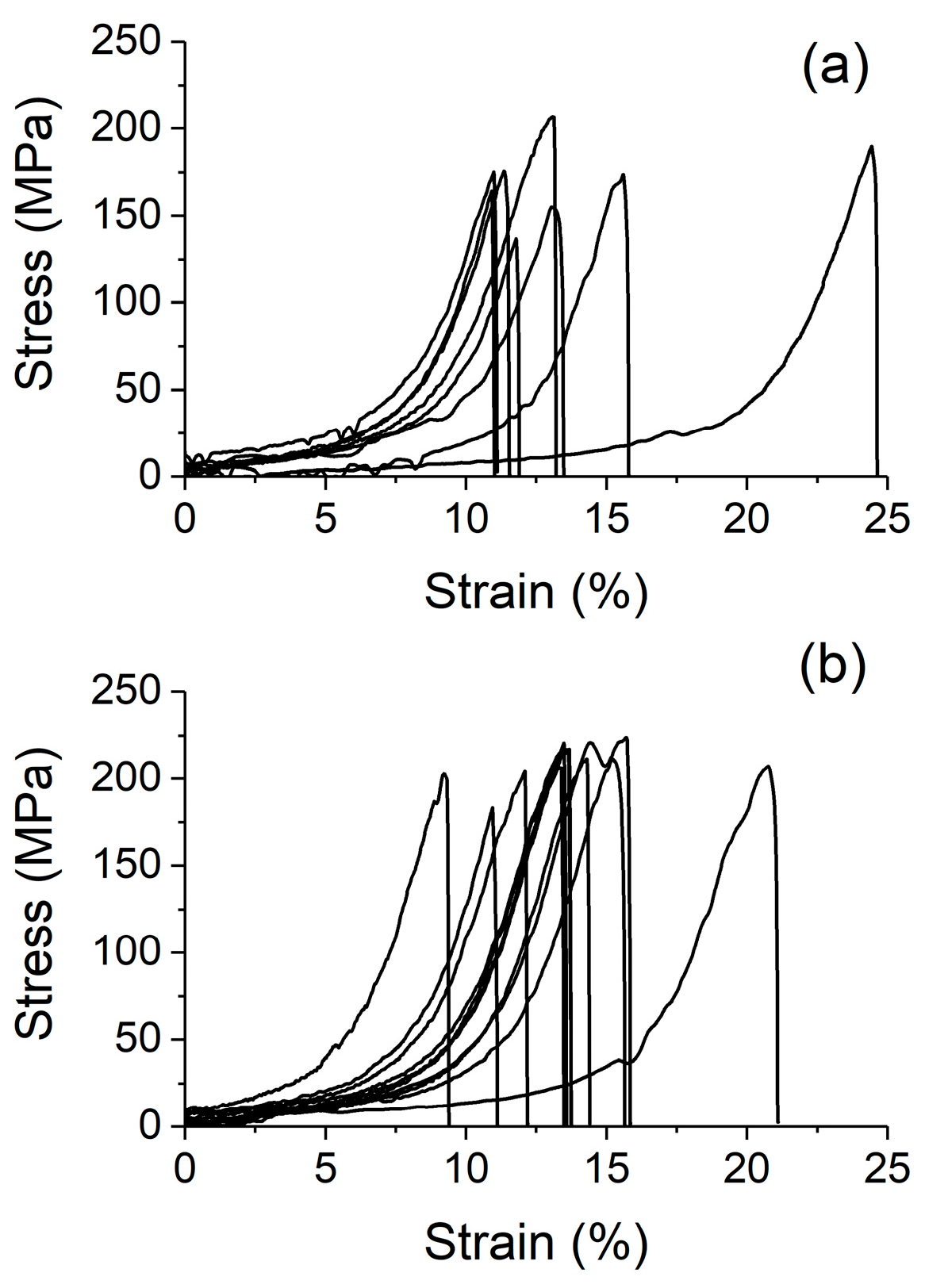

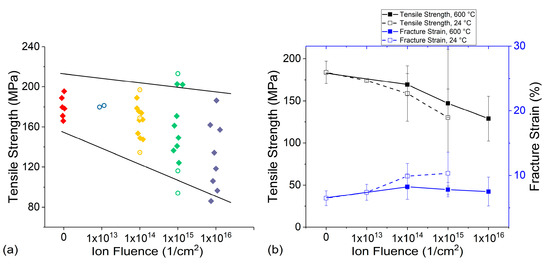

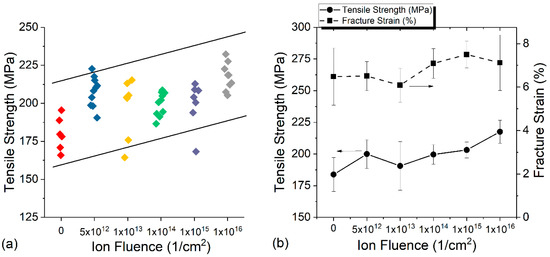

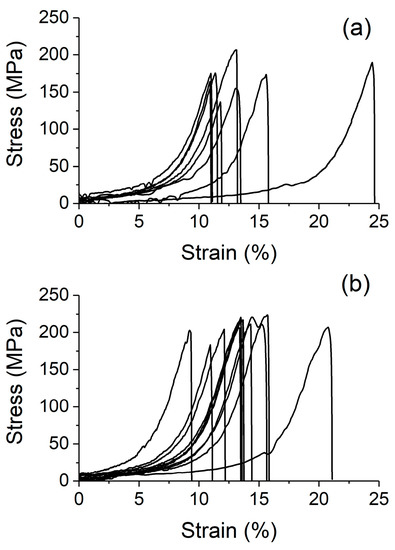

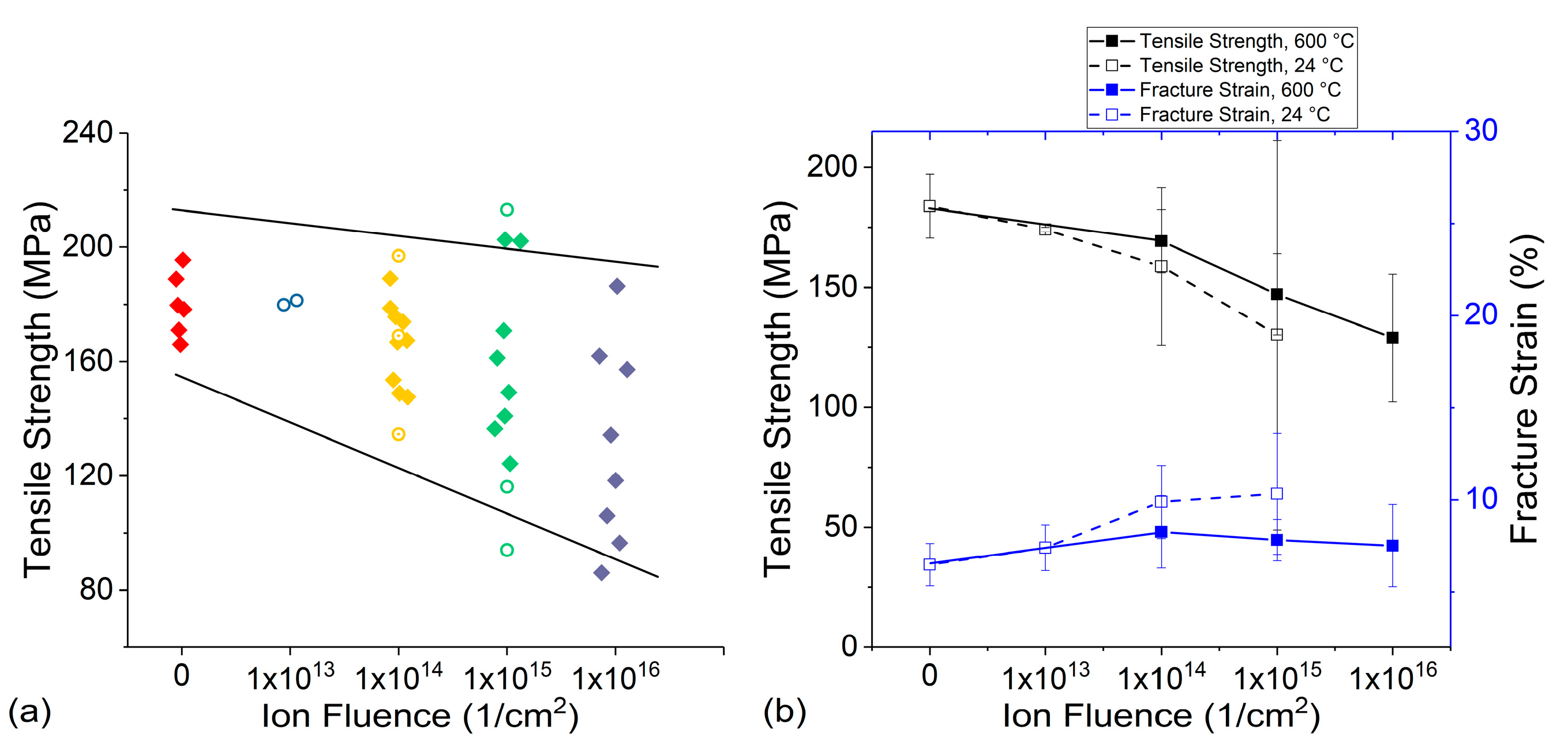

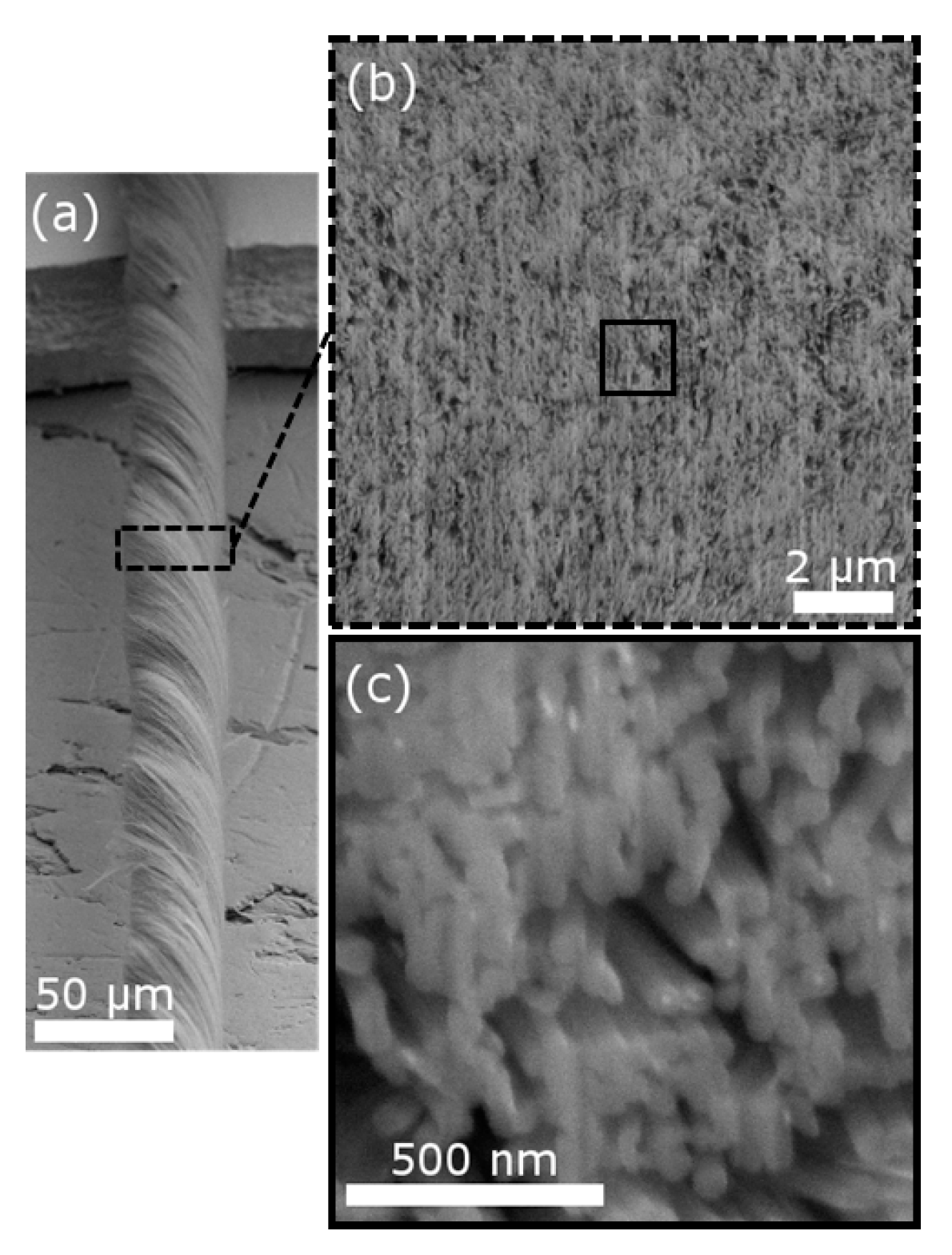

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Gigax, J.G.; Bradford, P.D.; Shao, L. Ion Beam Modification of Carbon Nanotube Yarn in Air and Vacuum. Materials 2017, 10, 860.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
