Energies 2016, 9(6), 460; doi:10.3390/en9060460

Combining Unsteady Blade Pressure Measurements and a Free-Wake Vortex Model to Investigate the Cycle-to-Cycle Variations in Wind Turbine Aerodynamic Blade Loads in Yaw

Department of Mechanical Engineering, University of Malta, Msida MSD 2080, Malta
*
Author to whom correspondence should be addressed.
Academic Editors: Lance Manuel and Rupp Carriveau
Received: 12 February 2016 / Revised: 3 June 2016 / Accepted: 8 June 2016 / Published: 16 June 2016
(This article belongs to the Special Issue Modeling and Simulation for Wind Turbine Loads Analysis)
View Full-Text   |   Download PDF [8576 KB, uploaded 16 June 2016]   |

Abstract

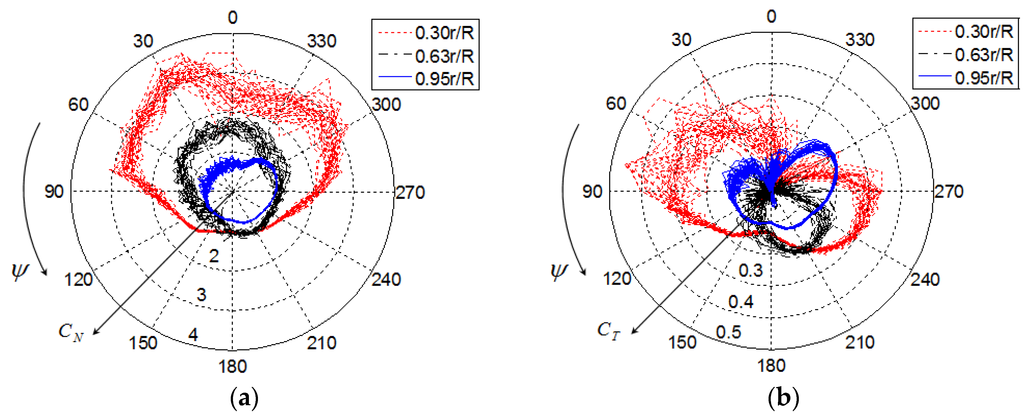

Prediction of the unsteady aerodynamic flow phenomenon on wind turbines is challenging and still subject to considerable uncertainty. Under yawed rotor conditions, the wind turbine blades are subjected to unsteady flow conditions as a result of the blade advancing and retreating effect and the development of a skewed vortical wake created downstream of the rotor plane. Blade surface pressure measurements conducted on the NREL Phase VI rotor in yawed conditions have shown that dynamic stall causes the wind turbine blades to experience significant cycle-to-cycle variations in aerodynamic loading. These effects were observed even though the rotor was subjected to a fixed speed and a uniform and steady wind flow. This phenomenon is not normally predicted by existing dynamic stall models integrated in wind turbine design codes. This paper couples blade pressure measurements from the NREL Phase VI rotor to a free-wake vortex model to derive the angle of attack time series at the different blade sections over multiple rotor rotations and three different yaw angles. Through the adopted approach it was possible to investigate how the rotor self-induced aerodynamic load fluctuations influence the unsteady variations in the blade angles of attack and induced velocities. The hysteresis loops for the normal and tangential load coefficients plotted against the angle of attack were plotted over multiple rotor revolutions. Although cycle-to-cycle variations in the angles of attack at the different blade radial locations and azimuth positions are found to be relatively small, the corresponding variations in the normal and tangential load coefficients may be significant. Following a statistical analysis, it was concluded that the load coefficients follow a normal distribution at the majority of blade azimuth angles and radial locations. The results of this study provide further insight on how existing engineering models for dynamic stall may be improved through the integration of stochastic models to be able to account for the cycle-to-cycle variability in the unsteady wind turbine blade loads under yawed conditions. View Full-Text
Keywords: wind turbine aerodynamics; NREL Phase VI rotor; yawed rotor; dynamic stall; free-wake vortex model; unsteady angle of attack wind turbine aerodynamics; NREL Phase VI rotor; yawed rotor; dynamic stall; free-wake vortex model; unsteady angle of attack
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
