Numerical Investigation of Influence of In-Situ Stress Ratio, Injection Rate and Fluid Viscosity on Hydraulic Fracture Propagation Using a Distinct Element Approach
Abstract
:1. Introduction
2. Numerical Model and Computational Scheme
2.1. Algorithms Introduction

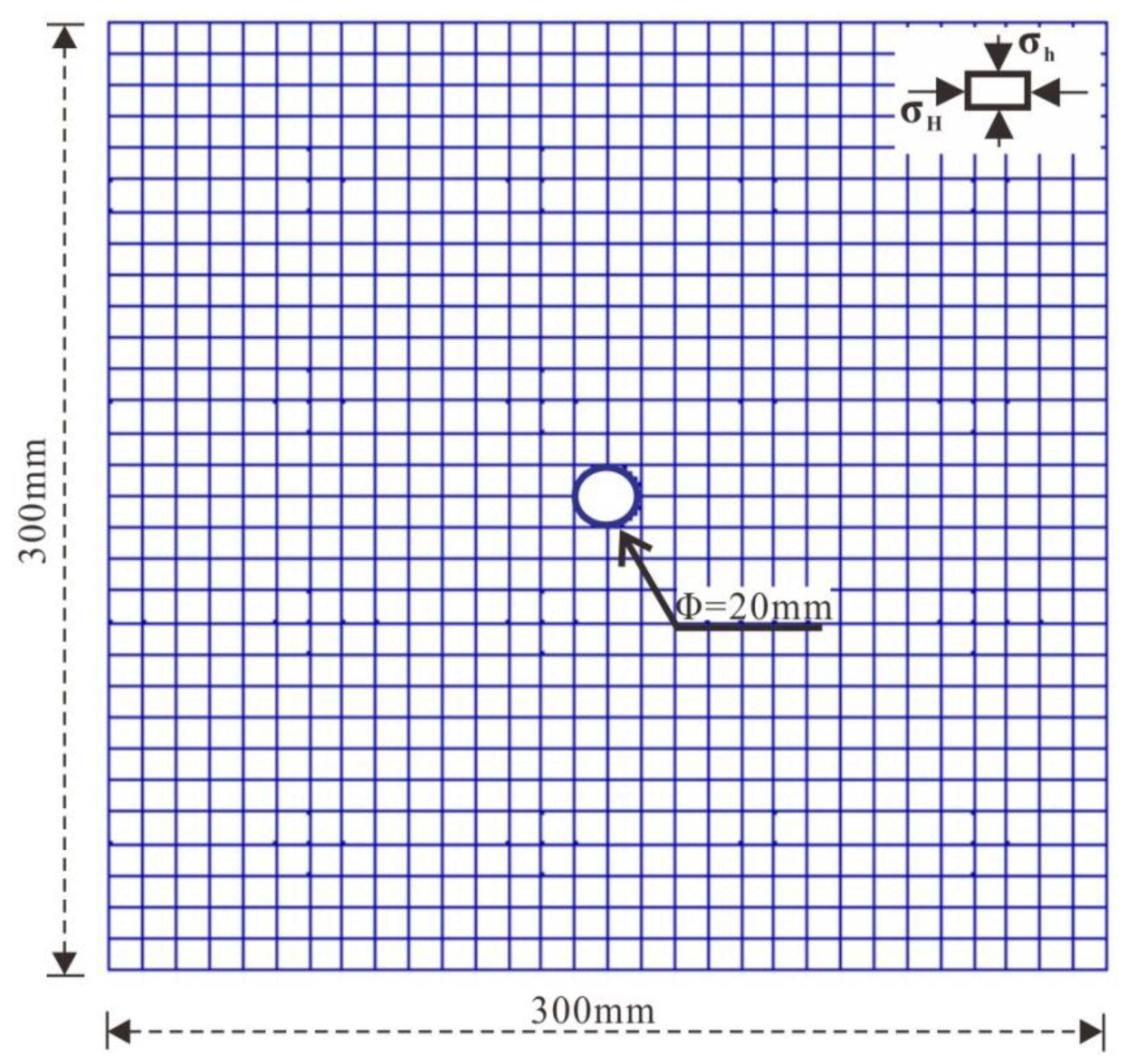

2.2. Model Setup and Parameters Acquisition
2.3. Simulation Schemes
3. Simulation and Verification

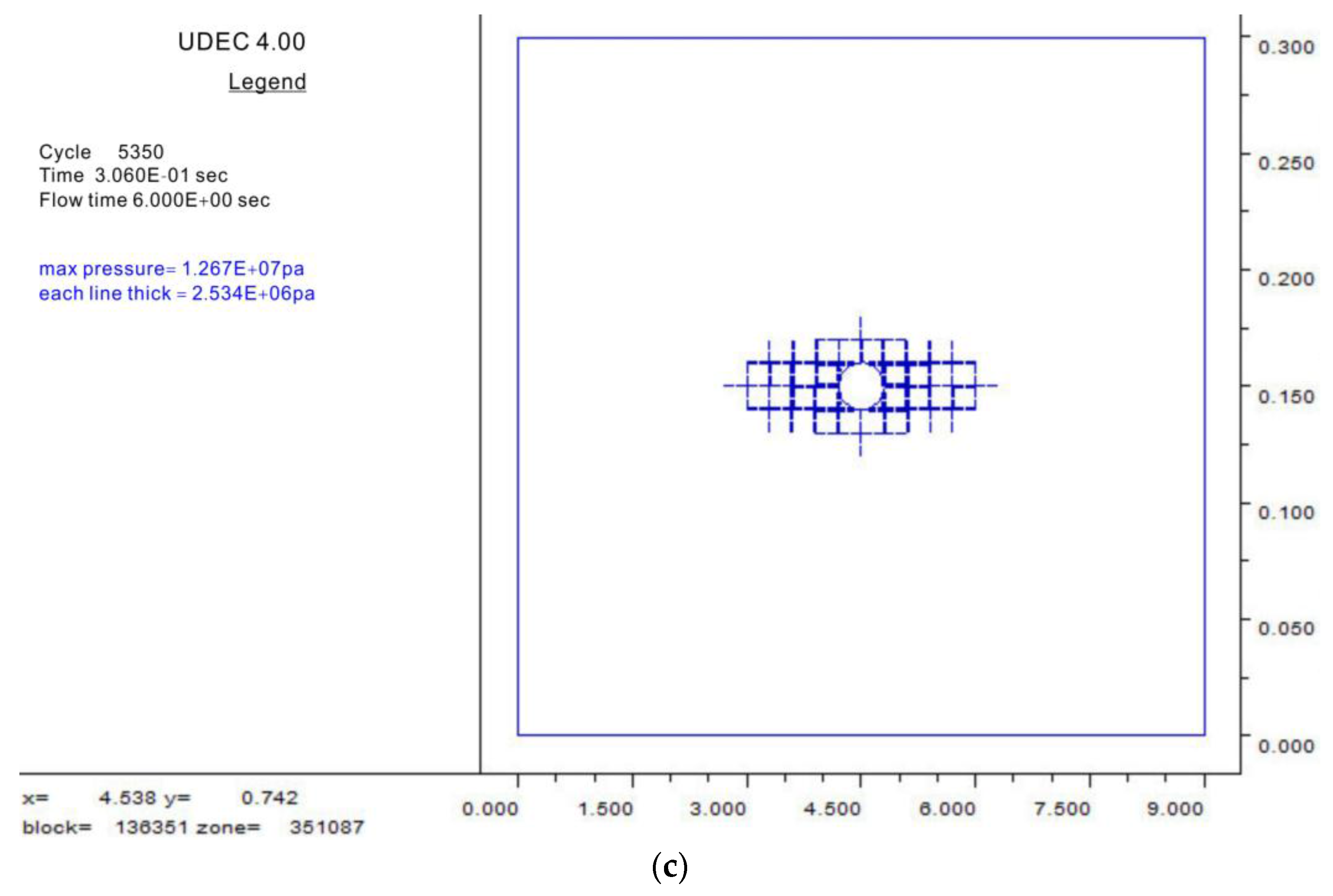

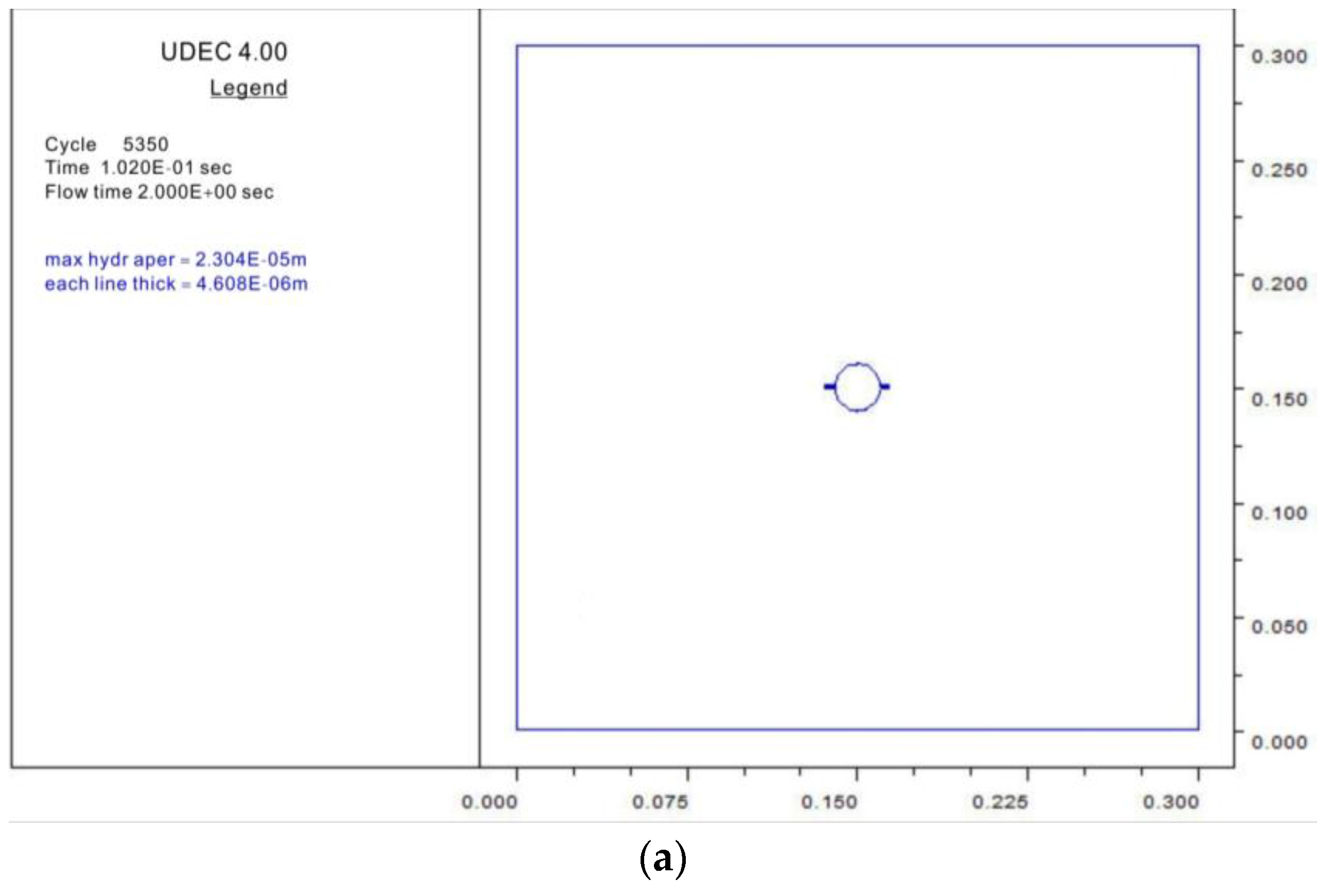

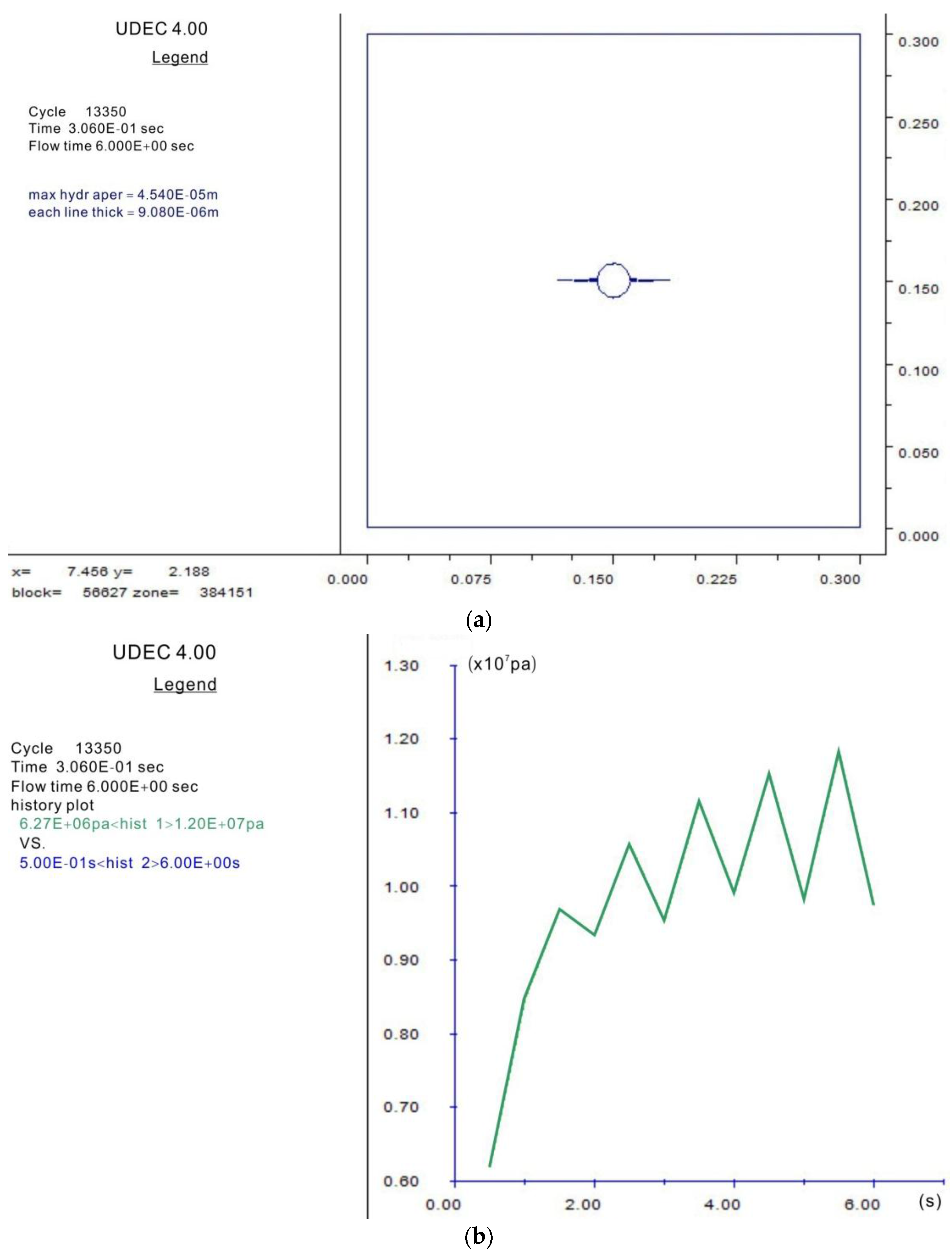

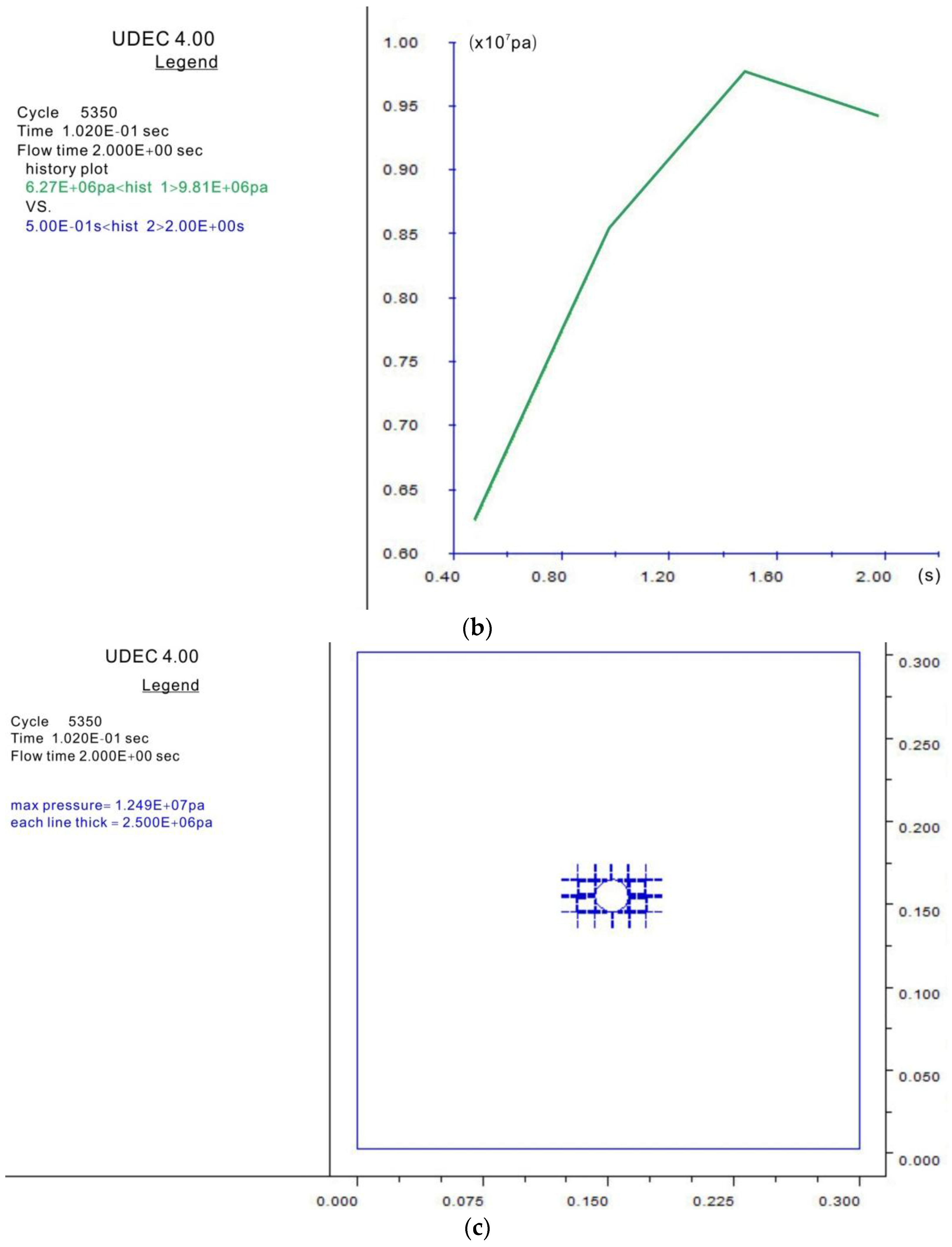

3.1. Initiation and Propagation of Hydraulic Fracture

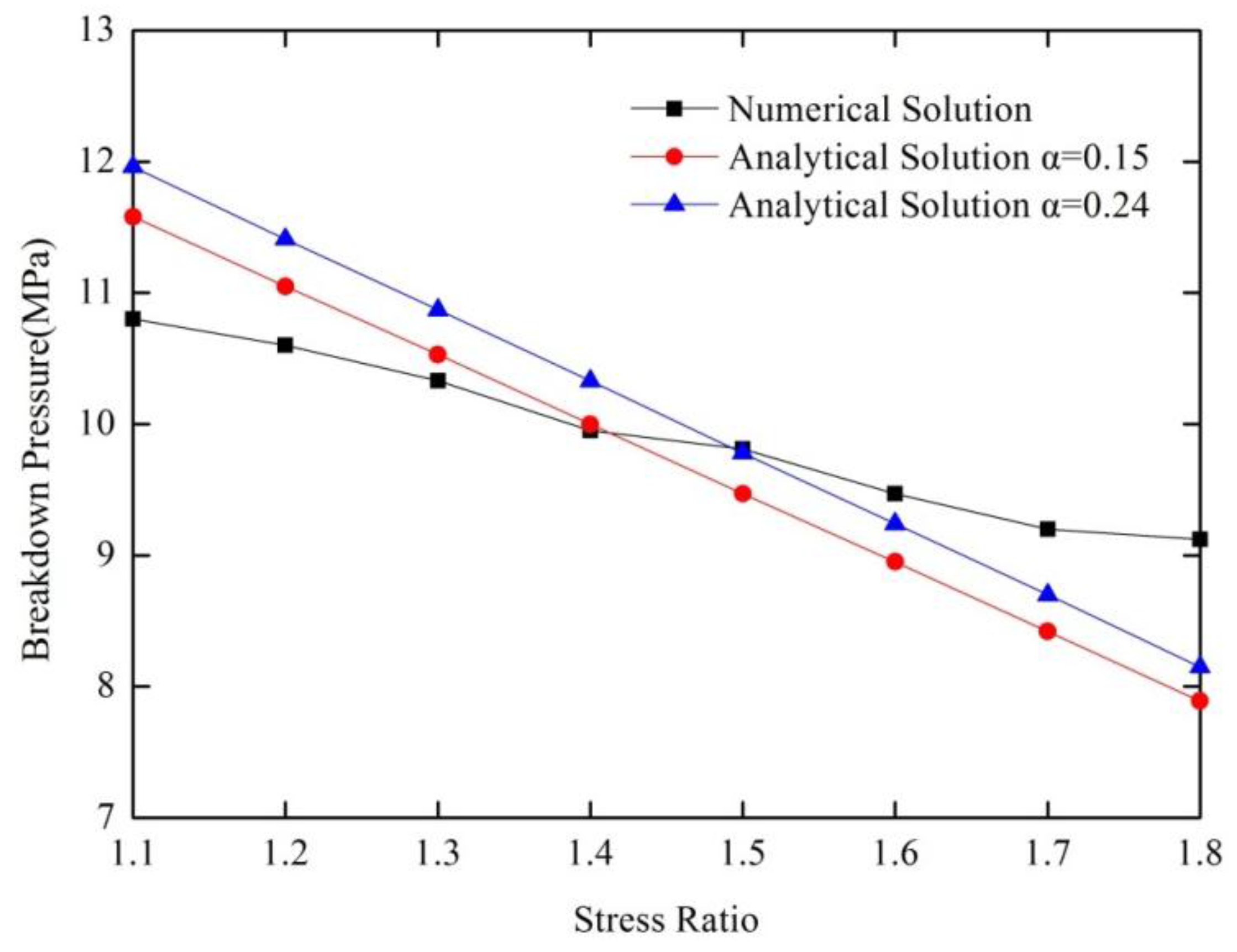

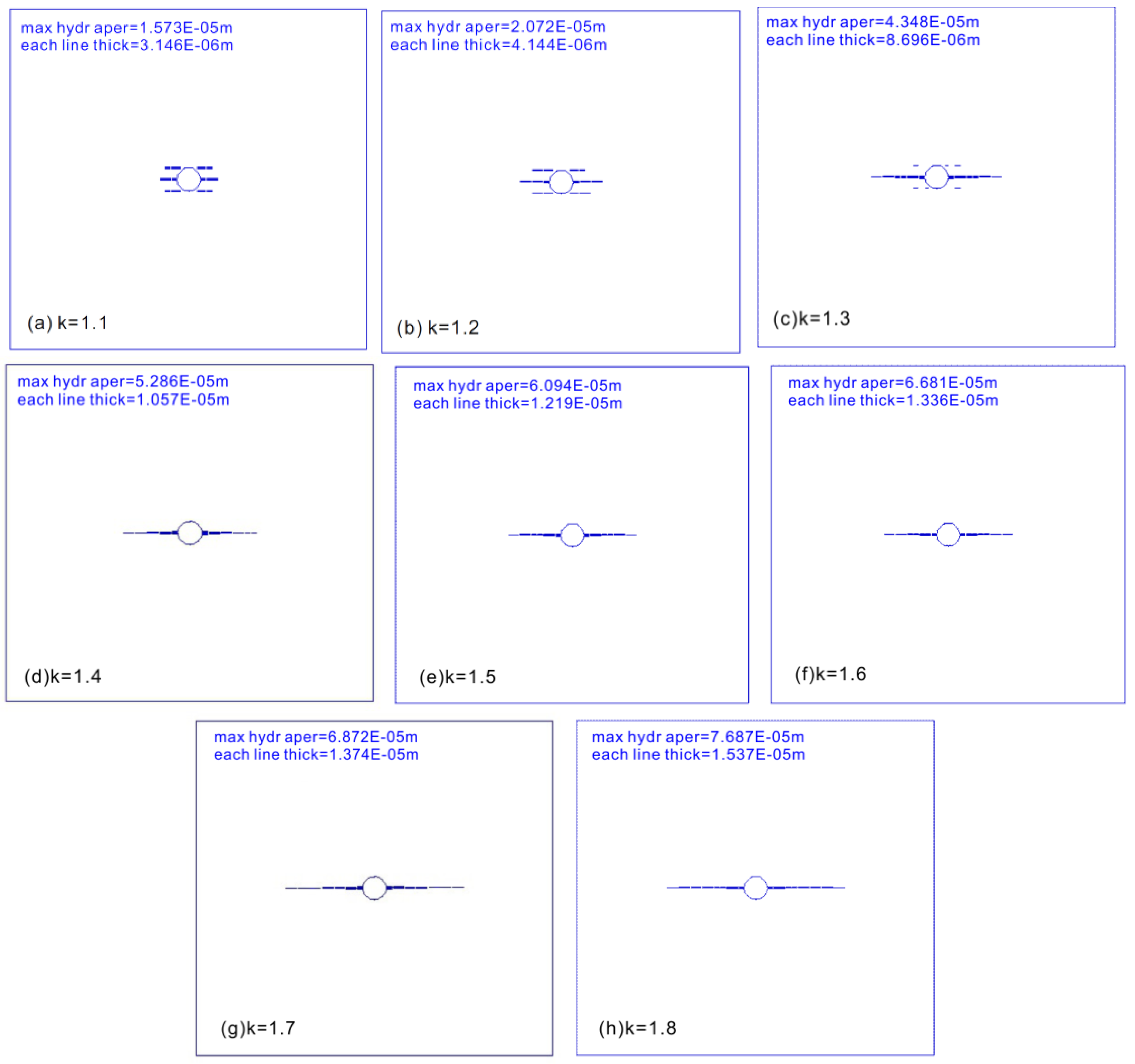

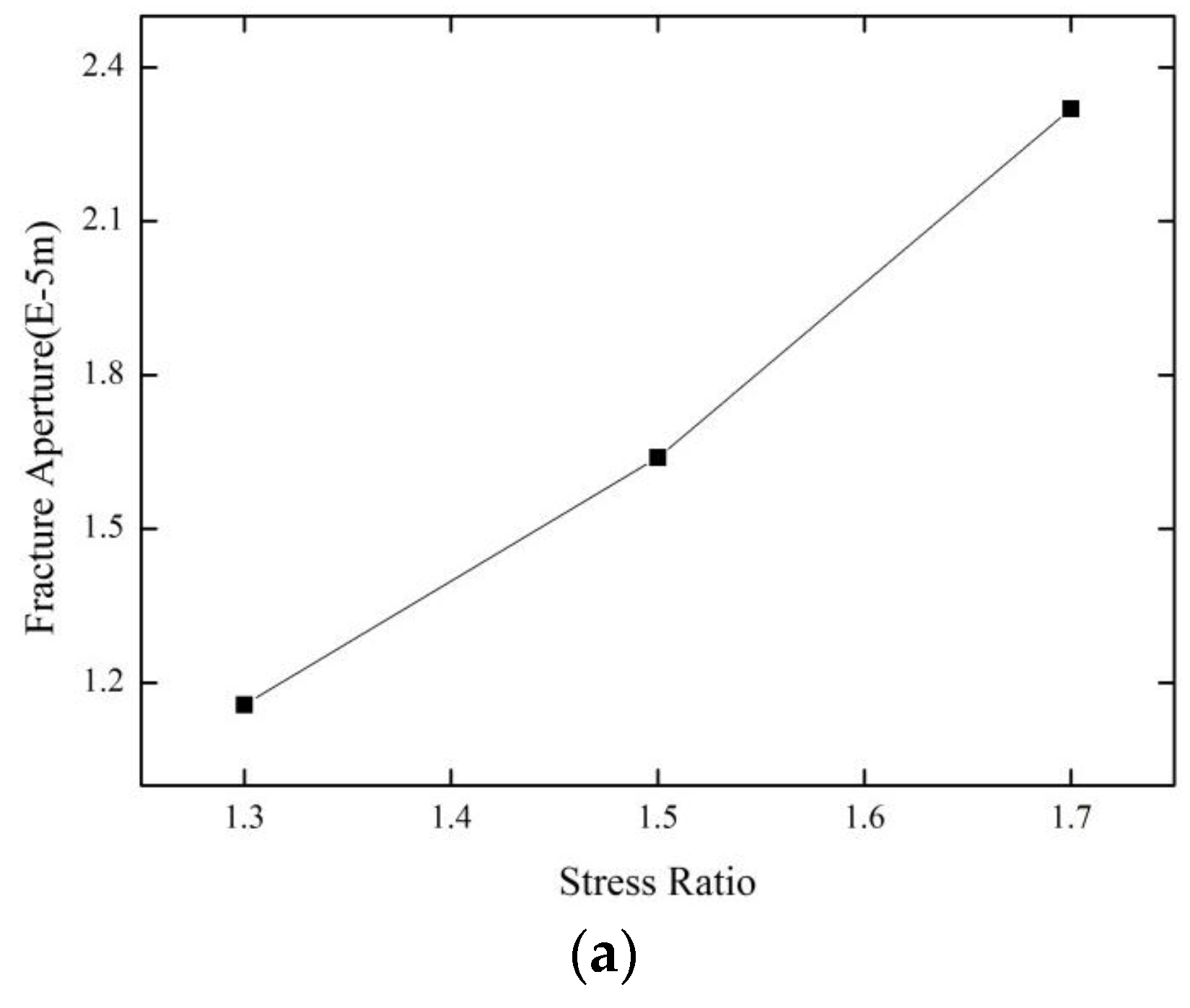

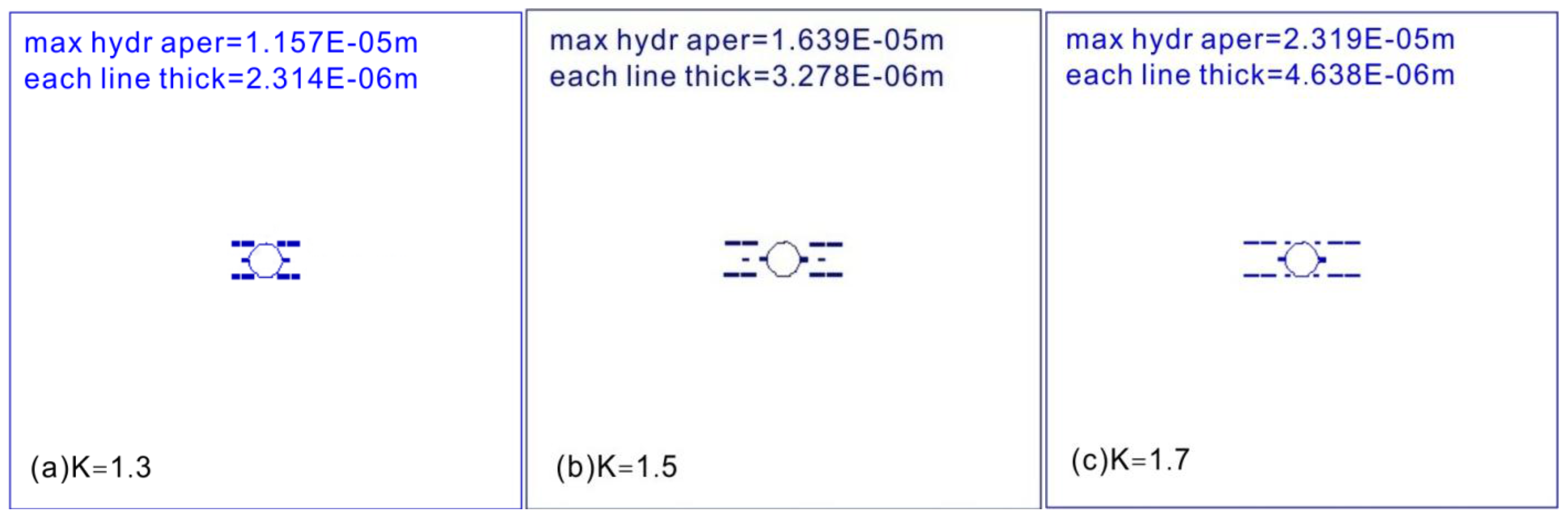

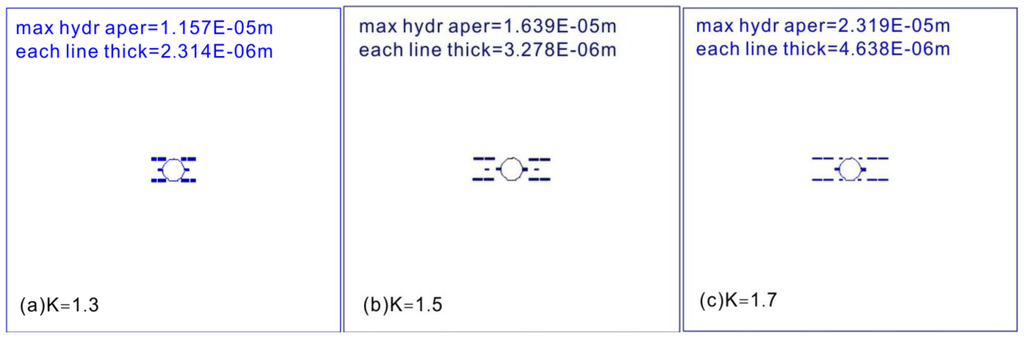

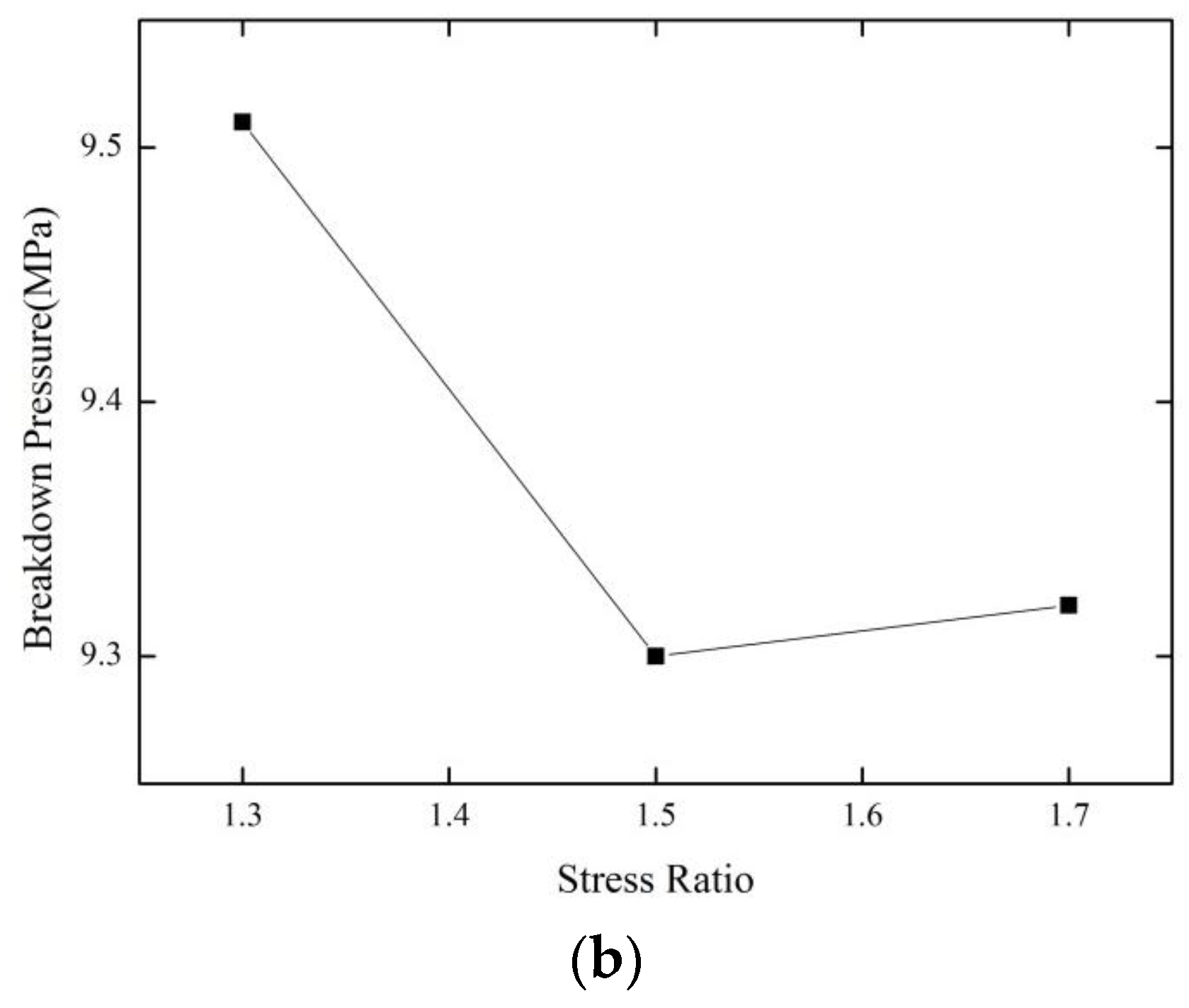

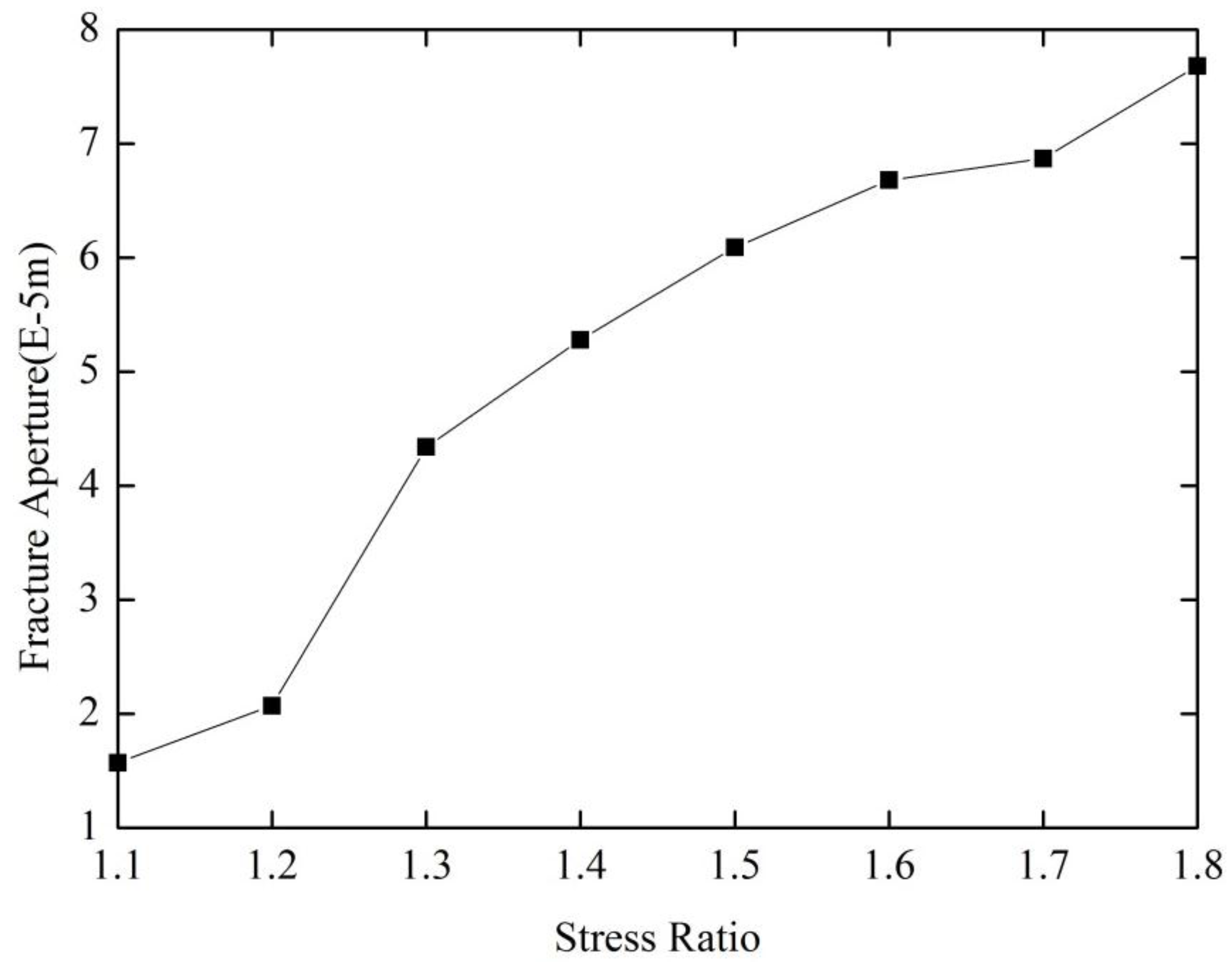

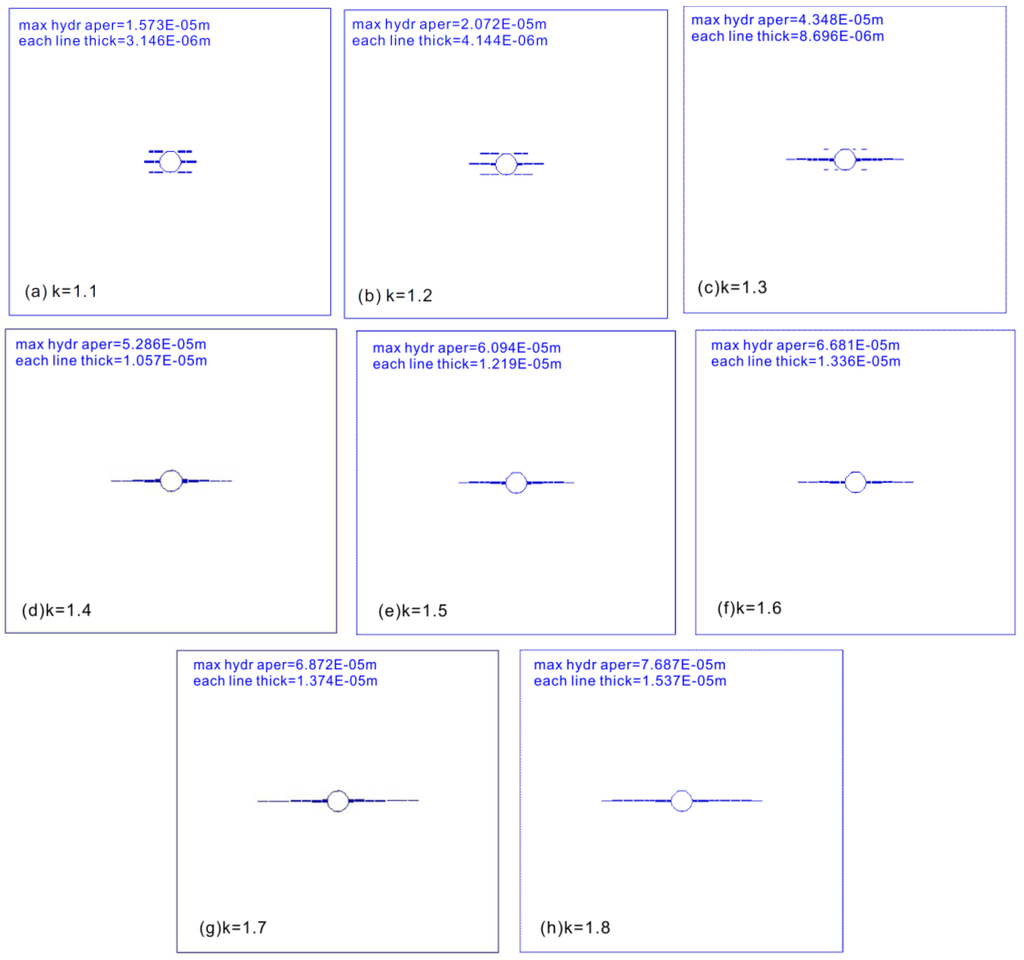

3.2. Influence of Stress Ratio

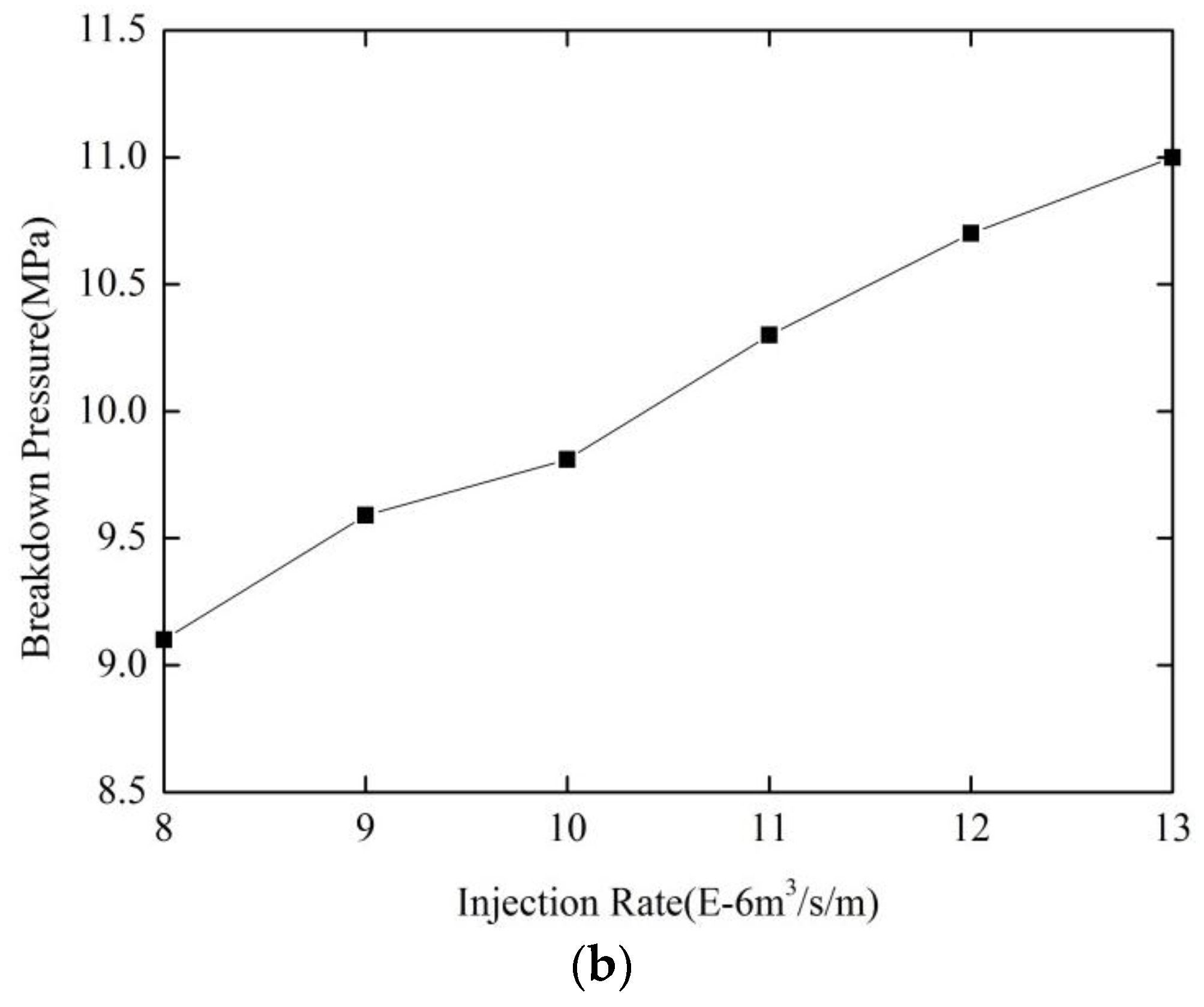

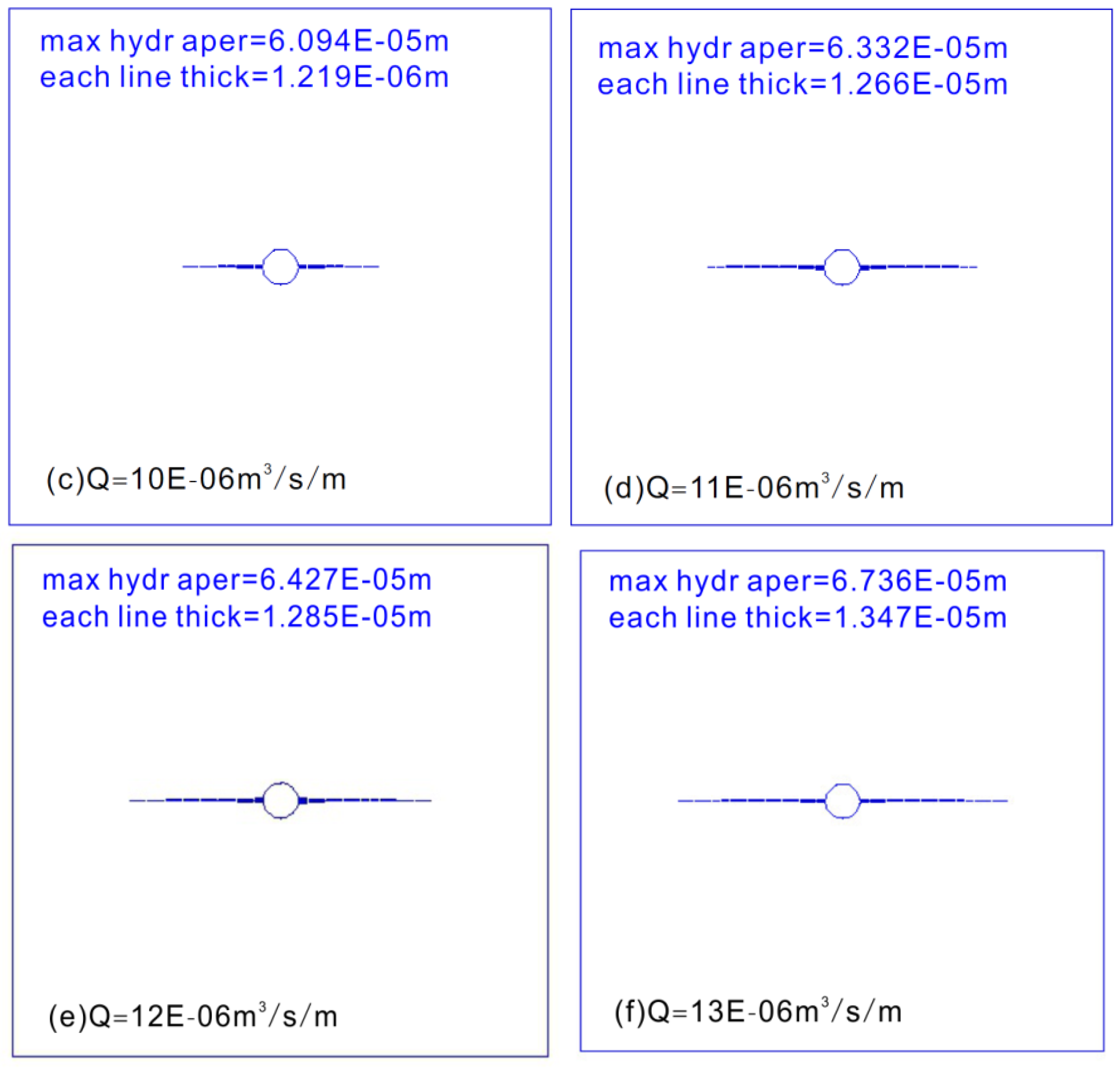

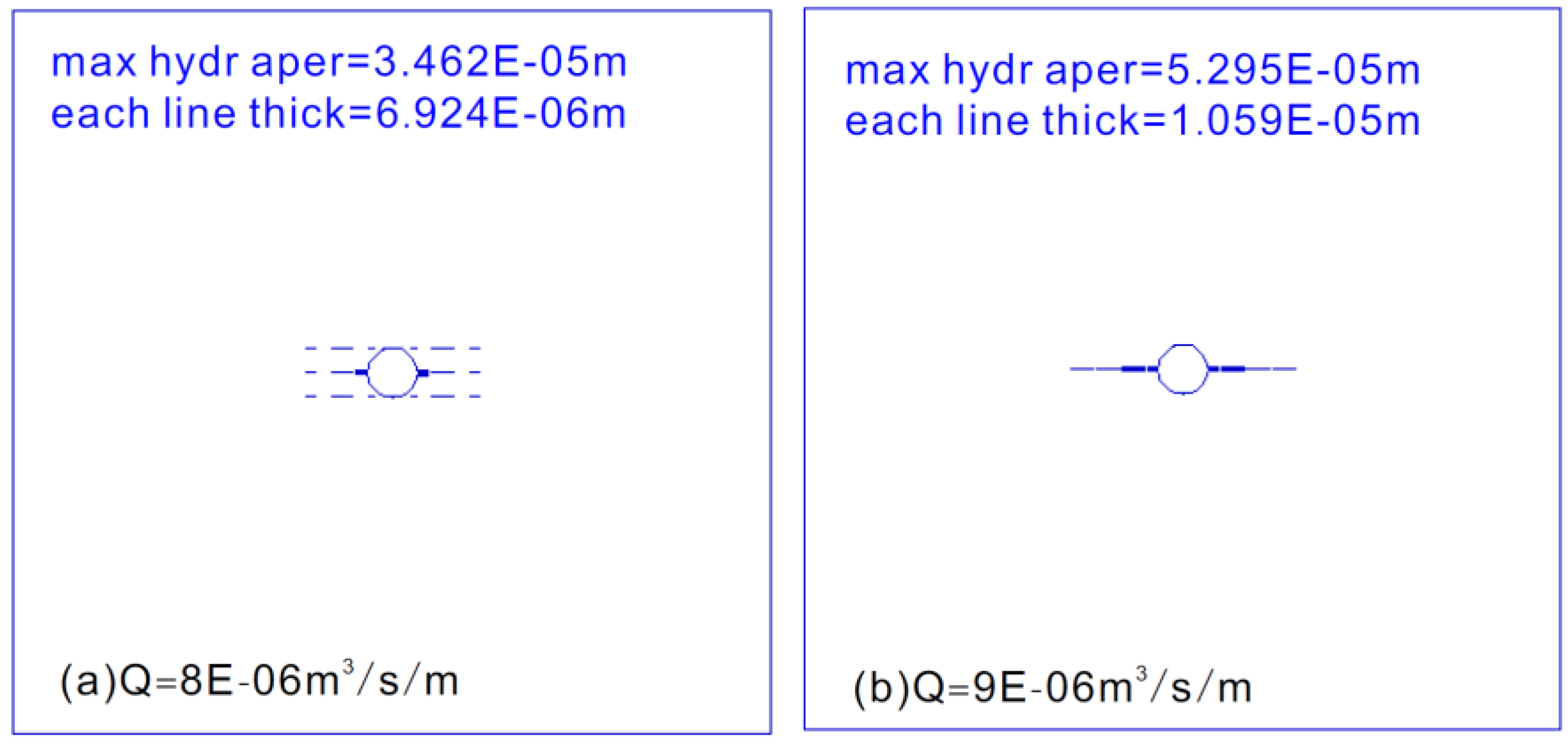

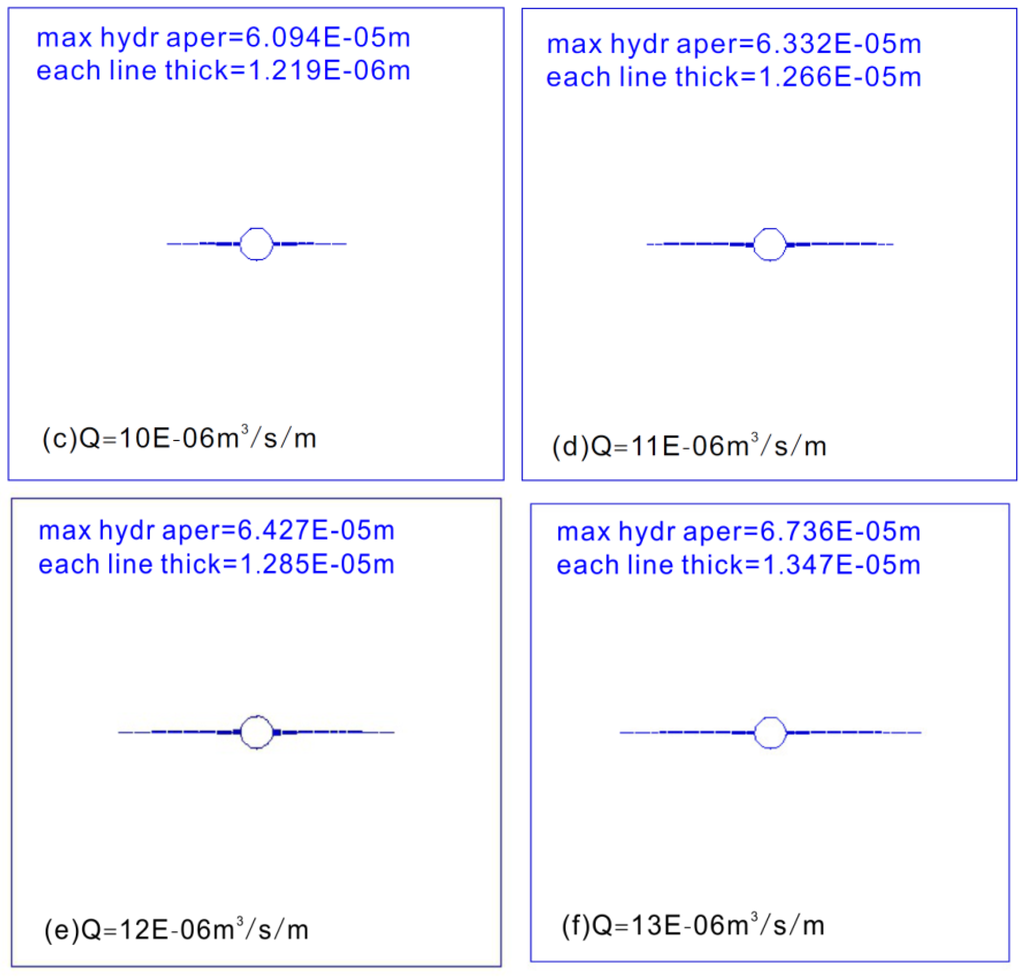

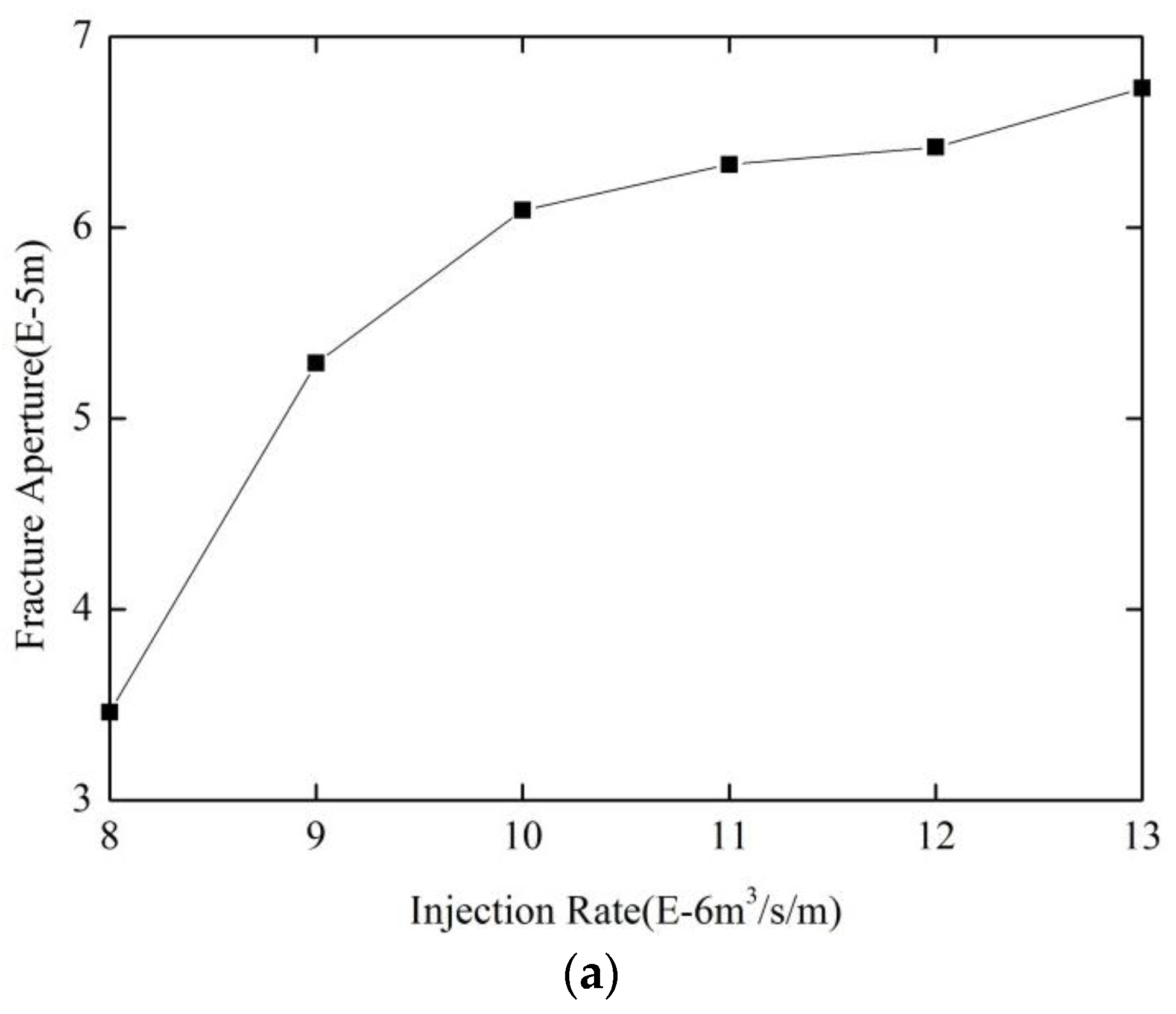

3.3. Influence of Injection Rate

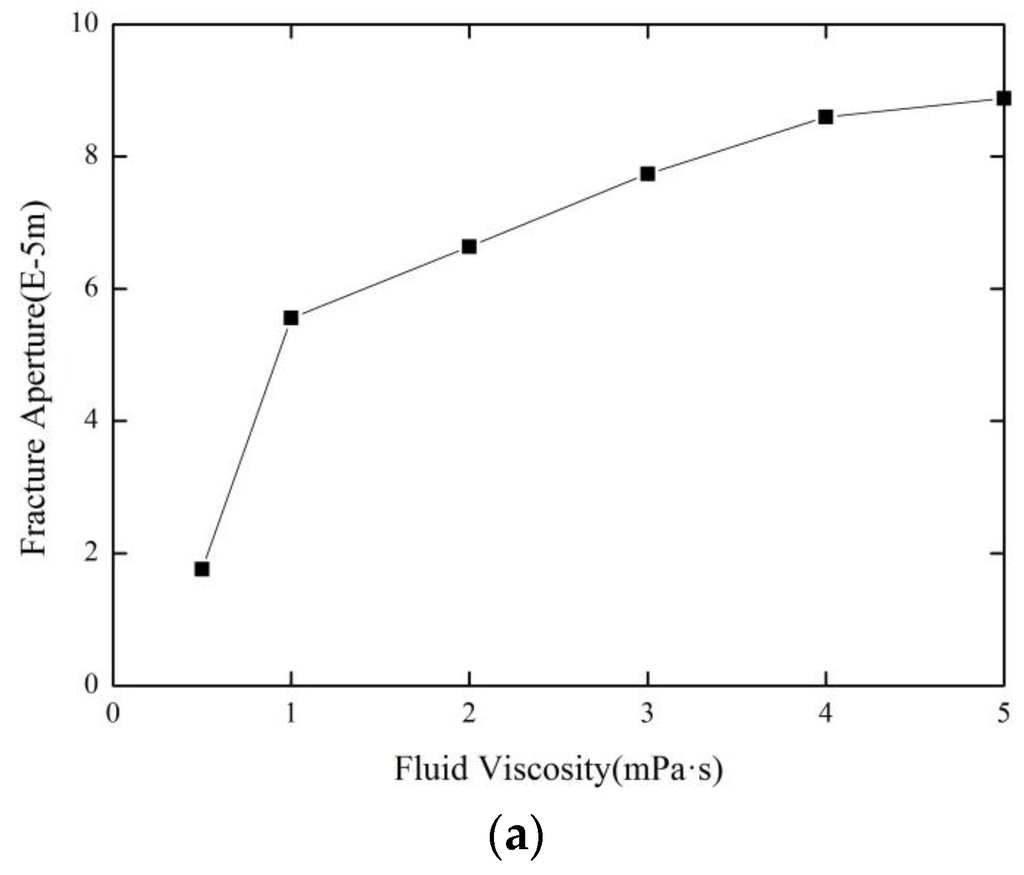

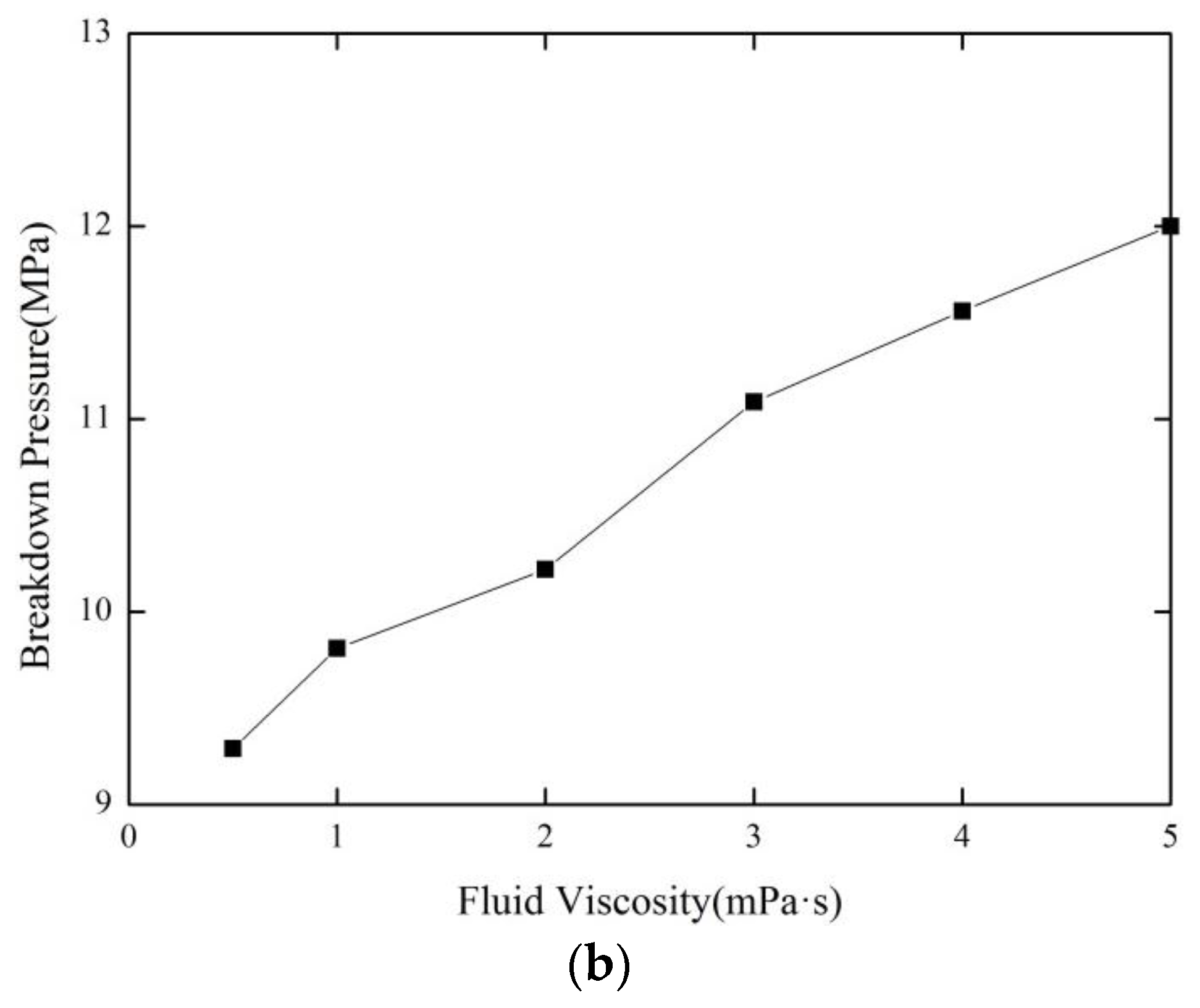

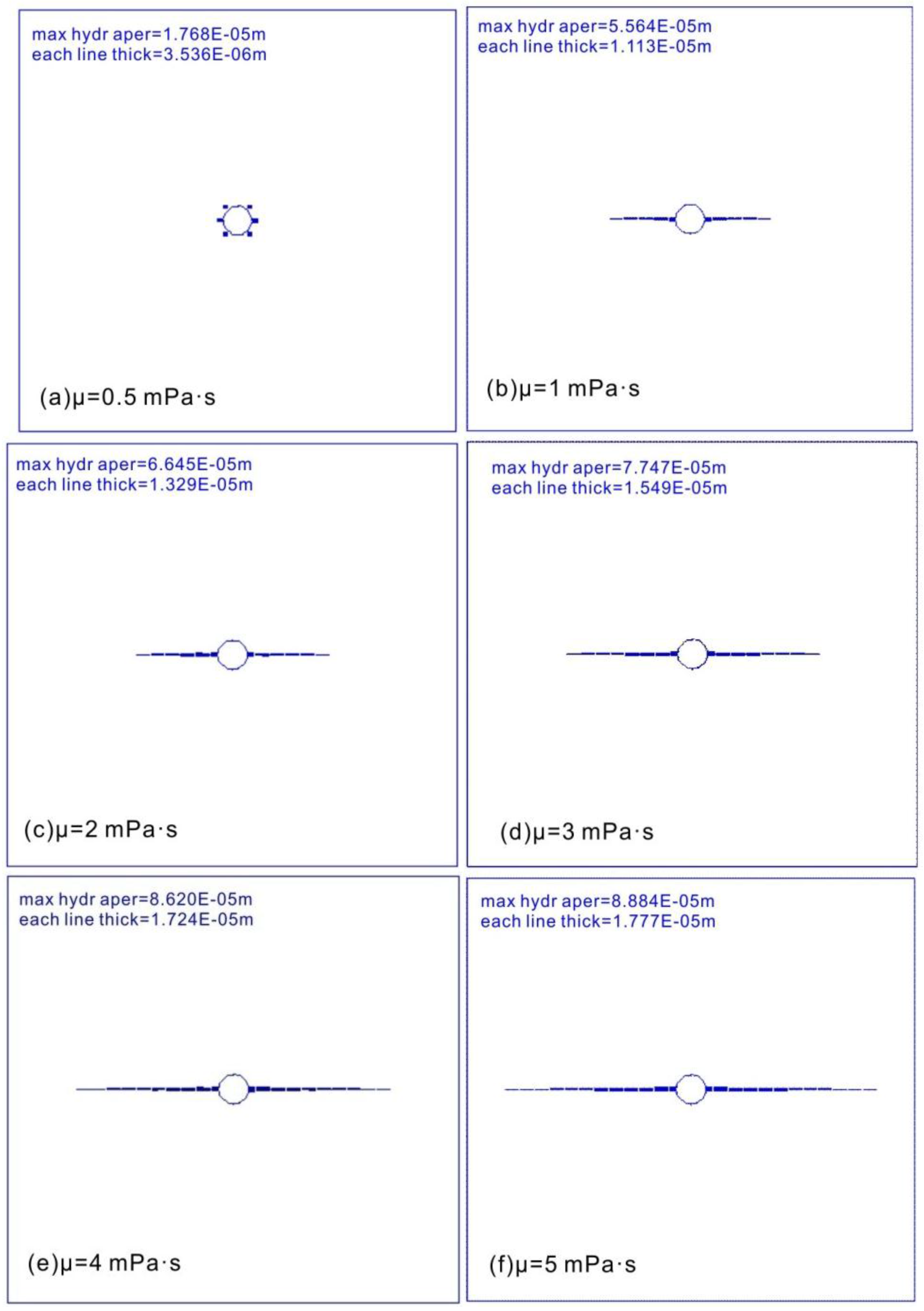

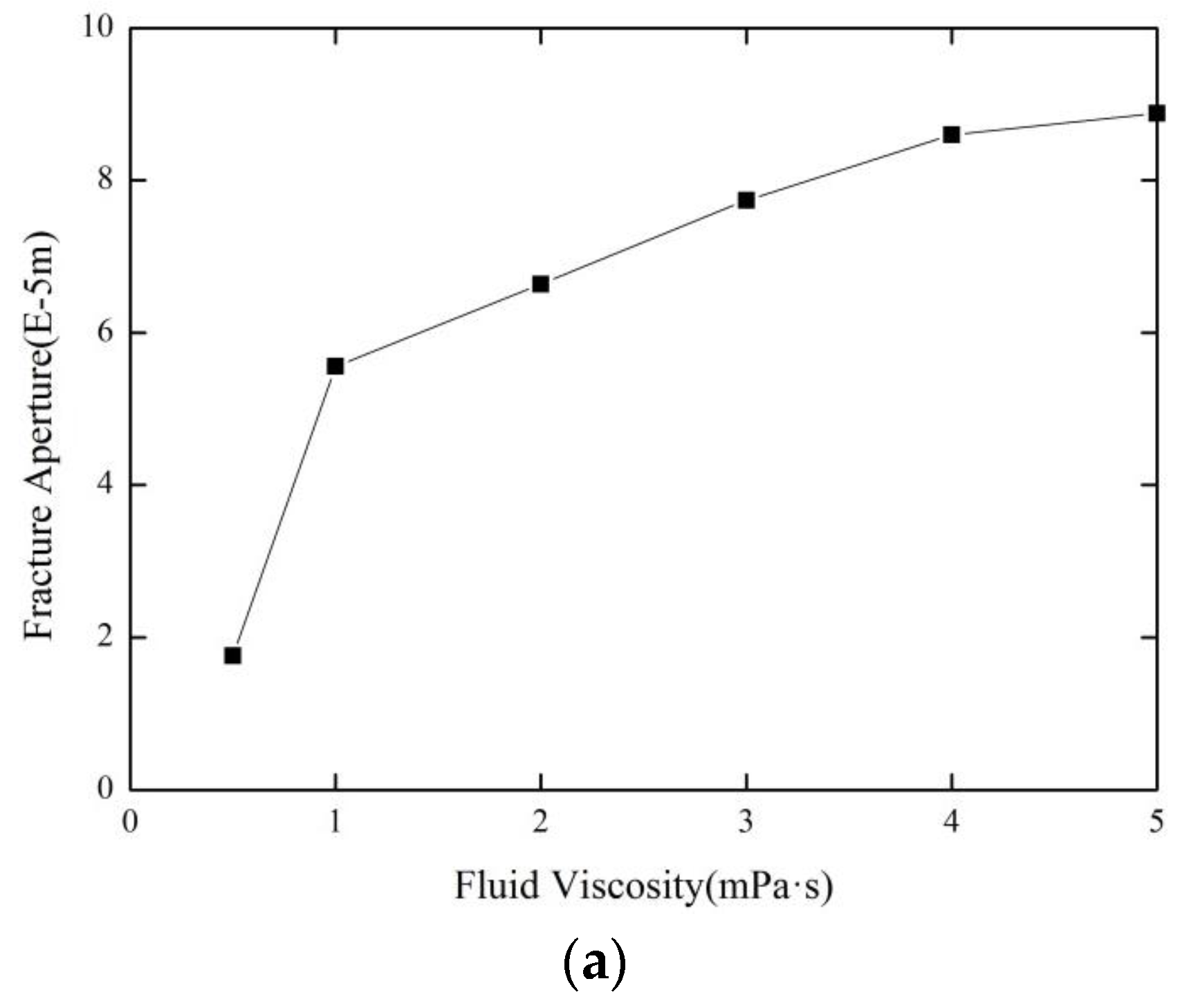

3.4. Influence of Fluid Viscosity

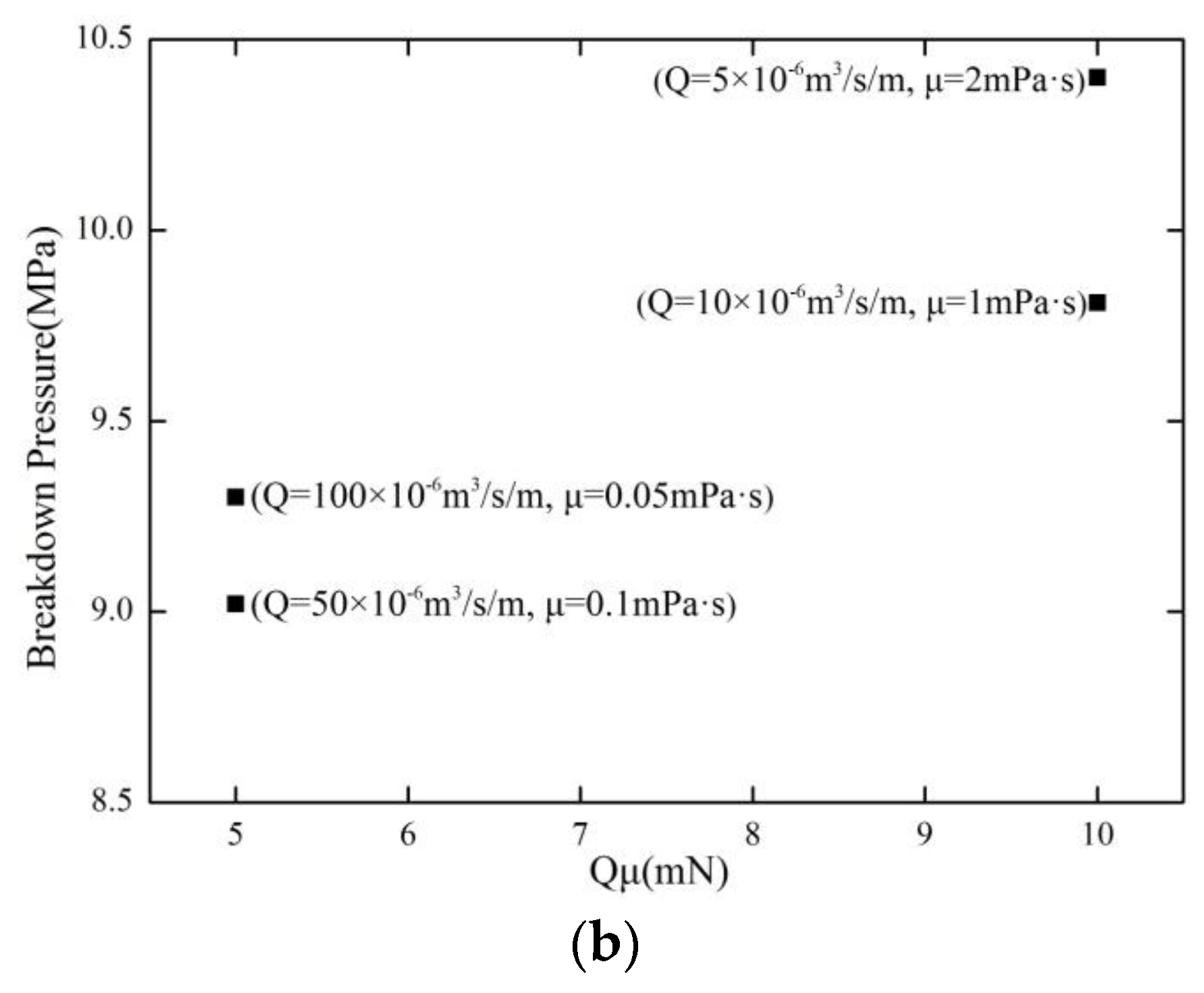

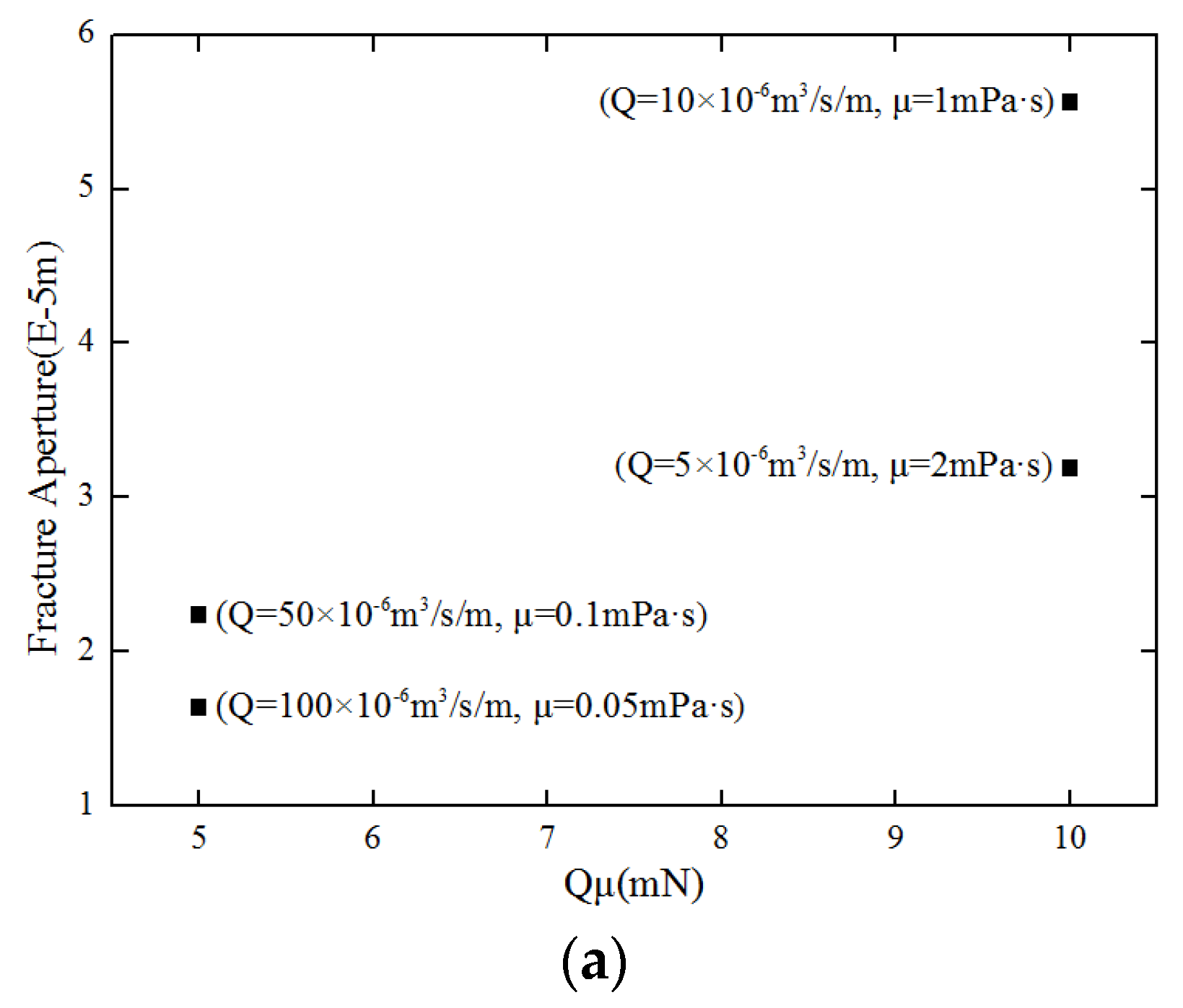

4. Relationship between in-situ Stress Ratio, Injection Rate and Fluid Viscosity

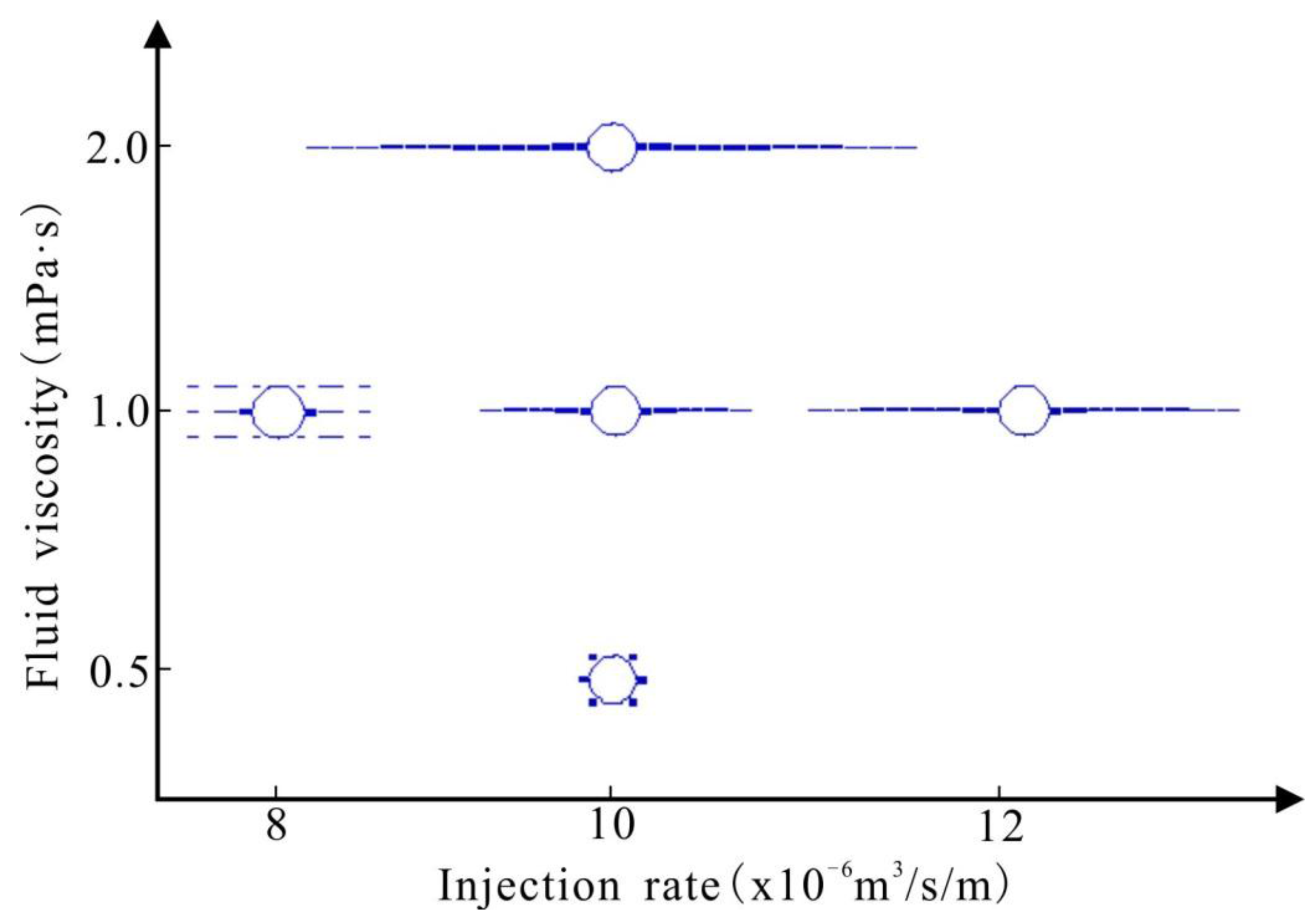

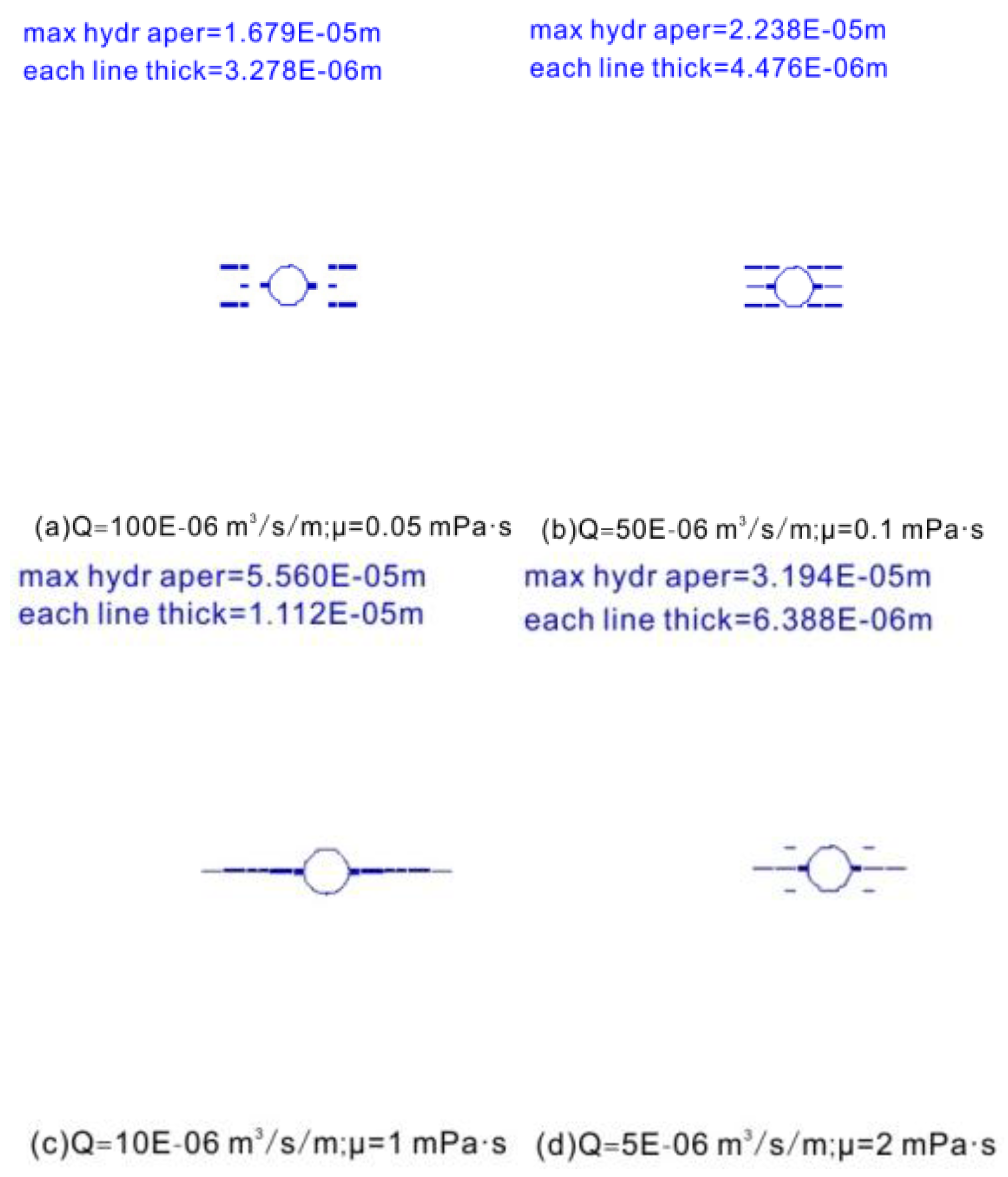

4.1. Relationship between Injection Rate and Fluid Viscosity
4.2. Relationship between Stress Ratio and Fluid Viscosity
5. Conclusions
- (1)
- The increasing injection rate and fluid viscosity have the same influence on hydraulic fracturing characteristics. With the increasing injection rate and fluid viscosity, fracture aperture and breakdown pressure obviously increase.
- (2)
- The hydraulic fracture becomes flexed and complex with multiple branches when the value of Qμ is low, and the corresponding fracture aperture as well as the breakdown pressure are small. In contrast, the branches disappear and hydraulic fracture becomes a simple wing shape, and the corresponding fracture aperture as well as the breakdown pressure are high.
- (3)
- With low viscosity fluid, the hydraulic fracture geometry is not sensitive to stress ratio, and becomes a complex fracture network.
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Legarth, B.; Huenges, E.; Zimmermann, G. Hydraulic fracturing in a sedimentary geothermal reservoir: Results and implications. Int. J. Rock Mech. Min. Sci. 2005, 42, 1028–1041. [Google Scholar] [CrossRef]
- Freeman, C.M.; Moridis, G.; Ilk, D.; Blasingame, T.A. A numerical study of performance for tight gas and shale gas reservoir systems. J. Petrol. Sci. Eng. 2013, 108, 22–39. [Google Scholar] [CrossRef]
- Zhou, F.D.; Chen, Z.X.; Rahman, S.S. Effect of hydraulic fracture extension into sandstone on coalbed methane production. J. Nat. Gas Sci. Eng. 2015, 22, 459–467. [Google Scholar] [CrossRef]
- Clark, C.; Burnham, A.; Harto, C.; Horner, R. Hydraulic Fracturing and Shale Gas Production: Technology, Impacts, and Regulation; Argonne National Laboratory: Chicago, IL, USA, 2013. [Google Scholar]
- Healy, D. Hydraulic Fracturing or “Fracking”: A Short Summary of Current Knowledge and Potential Environmental Impacts; University of Aberdeen: Aberdeen, UK, 2012. [Google Scholar]
- King, G.E. Thirty years of gas shale fracturing: What have we learned? In Proceedings of the SPE Annual Technical Conference and Exhibition, Florence, Italy, 19–22 September 2010.
- Guo, T.; Zhang, S.; Qu, Z.; Zhou, T.; Xiao, Y.; Gao, J. Experimental study of hydraulic fracturing for shale by stimulated reservoir volume. Fuel 2014, 128, 373–380. [Google Scholar] [CrossRef]
- De Pater, C.J.; Beugelsdijk, L.J.L. Experiments and numerical simulation of hydraulic fracturing in naturally fractured rock. In Proceedings of the 40th U.S. Symposium on Rock Mechanics, Anchorage, AK, USA, 25–29 June 2005.
- Fan, T.; Zhang, G. Influence of injection rate and fracturing fluid viscosity on hydraulic fracture geometry in coal. J. China Univ. Petrol. 2014, 38, 117–123. [Google Scholar]
- Ishida, T.; Aoyagi, K.; Niwa, T.; Chen, Y.; Murata, S.; Chen, Q.; Nakayama, Y. Acoustic emission monitoring of hydraulic fracturing laboratory experiment with supercritical and liquid CO2. J. Geophys. Res. 2012, 39. [Google Scholar] [CrossRef]
- Bennour, Z.; Ishida, T.; Nagaya, Y.; Nara, Y.; Chen, Y.; Chen, Q.; Nakayama, Y.; Sekine, K.; Nagano, Y. Fracture development and mechanism in shale cores by viscous oil, water and L-CO2 injection. In Proceedings of the 48th US Rock Mechanics/Geomechanics Symposium, Minneapolis, MN, USA, 1–4 June 2014.
- Chen, Y.; Nagaya, Y.; Ishida, T. Observations of fractures induced by hydraulic fracturing in anisotropic granite. Rock Mech. Rock Eng. 2015, 48, 1455–1461. [Google Scholar] [CrossRef]
- Bennour, Z.; Ishida, T.; Nagaya, Y.; Chen, Y.; Nara, Y.; Chen, Q.; Sekine, K.; Nagano, Y. Crack extension in hydraulic fracturing of shale cores using viscous oil, water, and liquid carbon dioxide. Rock Mech. Rock Eng. 2015, 48, 1463–1473. [Google Scholar] [CrossRef] [Green Version]
- Hou, B.; Chen, M.; Li, Z.; Wang, Y.; Diao, C. Propagation area evaluation of hydraulic fracture networks in shale gas reservoirs. Pet. Explor. Dev. 2014, 41, 833–838. [Google Scholar] [CrossRef]
- Warpinski, N.R.; Kramm, R.C.; Heinze, J.R.; Kennedy, C. Microseismic mapping techniques in the Barnett Shale. In Proceedings of the SPE Annual Technical Conference and Exhibition, Dallas, TX, USA, 9–12 October 2005.
- Middleton, R.; Carey, J.; Currier, R.; Hyman, J.; Kang, Q.; Karra, S.; Jiménez-Martínez, J.; Porter, M.; Viswanathan, H. Shale gas and non-aqueous fracturing fluids: Opportunities and challenges for supercritical CO2. Appl. Energy 2015, 147, 500–509. [Google Scholar] [CrossRef]
- Areias, P.; Rabczuk, T.; Dias-da-Costa, D. Element-wise fracture algorithm based on rotation of edges. Eng. Fract. Mech. 2013, 110, 113–137. [Google Scholar] [CrossRef]
- Areias, P.; Rabczuk, T. Finite strain fracture of plates and shells with configurational forces and edge rotation. Int. J. Numer. Meth. Eng. 2013, 94, 1099–1122. [Google Scholar] [CrossRef]
- Zhuang, X.; Augarde, C.; Mathisen, K. Fracture modelling using meshless methods and level sets in 3D: Framework and modelling. Int. J. Numer. Meth. Eng. 2012, 92, 969–998. [Google Scholar] [CrossRef]
- Zhuang, X.; Cai, Y.; Augarde, C. A meshless sub-region radial point interpolation method for accurate calculation of crack tip fields. Theor. Appl. Fract. Mech. 2014, 69, 118–125. [Google Scholar] [CrossRef] [Green Version]
- Rabczuk, T.; Belytschko, T. Cracking particles: A simplified meshfree method for arbitrary evolving cracks. Int. J. Numer. Meth. Eng. 2004, 61, 2316–2343. [Google Scholar] [CrossRef]
- Rabczuk, T.; Belytschko, T. A three dimensional large deformation meshfree method for arbitrary evolving cracks. Comput. Methods Appl. Mech. Eng. 2007, 196, 2777–2799. [Google Scholar] [CrossRef]
- Chau-Dinh, T.; Zi, G.; Lee, P.S.; Song, J.H.; Rabczuk, T. Phantom-node method for shell models with arbitrary cracks. Comput. Struct. 2012, 92–93, 242–256. [Google Scholar] [CrossRef]
- Vu-Bac, N.; Nguyen-Xuan, H.; Chen, L.; Lee, C.K.; Zi, G.; Zhuang, X.; Liu, G.R.; Rabczuk, T. A phantom-node method with edge-based strain smoothing for linear elastic fracture mechanics. J. Appl. Math. 2013, 2013. [Google Scholar] [CrossRef]
- Ghorashi, S.; Valizadeh, N.; Mohammadi, S.; Rabczuk, T. T-spline based XIGA for fracture analysis of orthotropic media. Comput. Struct. 2015, 147, 138–146. [Google Scholar] [CrossRef]
- Nguyen-Thanh, N.; Valizadeh, N.; Nguyen, M.N.; Nguyen-Xuan, H.; Zhuang, X.; Areias, P.; Zi, G.; Bazilevs, Y.; de Lorenzis, L.; Rabczuk, T. An extended isogeometric thin shell analysis based on Kirchho-Love theory. Comput. Methods Appl. Mech. Eng. 2015, 284, 265–291. [Google Scholar] [CrossRef]
- Rabczuk, T.; Gracie, R.; Song, J.H.; Belytschko, T. Immersed particle method for fluid-structure interaction. Int. J. Numer. Meth. Eng. 2010, 81, 48–71. [Google Scholar] [CrossRef]
- Zhuang, X.; Huang, R.; Rabczuk, T.; Liang, C. A coupled thermo-hydro-mechanical model of jointed hard rock for compressed air energy storage. Math. Probl. Eng. 2014, 2014. [Google Scholar] [CrossRef]
- Wangen, M. Finite element modeling of hydraulic fracturing on a reservoir scale in 2D. J. Pet. Sci. Eng. 2011, 77, 274–285. [Google Scholar] [CrossRef]
- Carrier, B.; Granet, S. Numerical modeling of hydraulic fracture problem in permeable medium using cohesive zone model. Eng. Fract. Mech. 2012, 79, 312–328. [Google Scholar] [CrossRef] [Green Version]
- Zhang, G.M.; Liu, H.; Zhang, J.; Wu, H.A.; Wang, X.X. Three-dimensional finite element simulation and parametric study for horizontal well hydraulic fracture. J. Pet. Sci. Eng. 2010, 72, 310–317. [Google Scholar] [CrossRef]
- Zhou, L.; Hou, M.Z. A numerical simulation on rules of crack extension during hydraulic fracturing in shale gas reservoir. Int. J. Rock Mech. Min. Sci. 2012, 60, 370–380. [Google Scholar]
- Itasca Consulting Group, Inc. UDEC (Universal Distinct Element Code), Version 4.0; Itasca Consulting Group, Inc.: Minneapolis, MN, USA, 2004. [Google Scholar]
- Cundall, P.A. A computer model for simulating progressive large scale movements in blocky rock systems. In Proceedings of the Symposium of the International Society of Rock Mechanics, Nancy, France, 1971.
- Nagel, N.; Gil, I.; Sanchez-nagel, M. Simulating hydraulic fracturing in real fractured rock-overcoming the limits of pseudo3D models. In Proceedings of the SPE Hydraulic Fracturing Technology Conference and Exhibition, The Woodlands, TX, USA, 24–26 January 2011.
- Al-Busaidi, A.; Hazzard, J.F.; Young, R.P. Distinct element modeling of hydraulically fractured Lac du Bonnet granite. J. Geophys. Res. 2005, 110. [Google Scholar] [CrossRef]
- Gil, I.; Damjanac, B.; Nagel, N.; Guo, Q.X. Geomechanical evaluation of solids injection. In Proceedings of the 44th US Rock Mechanics symposium, Salt Lake City, UT, USA, 27–30 June 2010.
- Damjanac, B.; Gil, I.; Pierce, M.; Sanchez-Nagel, M.A.; Van, A.A.; McLennan, J. A new approach to hydraulic fracturing modeling in naturally fractured reservoirs. In Proceedings of the 44th US Rock Mechanics symposium, Salt Lake City, UT, USA, 27–30 June 2010.
- Sarmadivaleh, M. Experimental and Numerical Study of Interaction of a Pre-Existing Natural Interface and an Induced Hydraulic Fracture. Ph.D. Thesis, Curtin University, Perth, Australia, 2012. [Google Scholar]
- Choi, S. Interpretation of shut-in pressure in hydrofracturing pressure-time records using numerical modeling. Int. J. Rock Mech. Min. Sci. 2012, 50, 29–39. [Google Scholar] [CrossRef]
- Zangeneh, N.; Eberhardt, E.; Bustin, R. Investigation of the influence of natural fractures and in situ stress on hydraulic fracture propagation using a distinct-element approach. Can. Geotech. J. 2015, 52, 926–946. [Google Scholar] [CrossRef]
- Li, Y.P.; Wang, Y.H.; Dingm, Y.H.; Wang, X. Physical and numerical simulation of hydraulic fracture initiation and propagation in gas shale. In Proceedings of the SPE Unconventional Resources Conference and Exhibition-Asia Pacific, Brisbane, Australia, 11–13 November 2013.
- Bahorich, B.; Olson, J.E.; Holder, J. Examining the effect of cemented natural fractures on hydraulic fracture propagation in hydrostone block experiments. In Proceedings of the SPE Annual Technical Conference and Exhibition, San Antonio, TX, USA, 8–10 October 2012.
- Cho, N.; Martin, C.D.; Sego, D.C. A clumped particle model for rock. Int. J. Rock Mech. Min. Sci. 2007, 44, 997–1010. [Google Scholar] [CrossRef]
- Fjær, E.; Holt, R.M.; Horsrud, P. Petroleum Related Rock Mechanics; Elsevier: Amsterdam, The Netherlands, 2008; p. 374. [Google Scholar]
Block and Contact Parameters | |||
---|---|---|---|
Cohesion/MPa | 30 | Normal stiffness/GPa | 2500 |
Friction angle/° | 30 | Shear stiffness/GPa | 1000 |

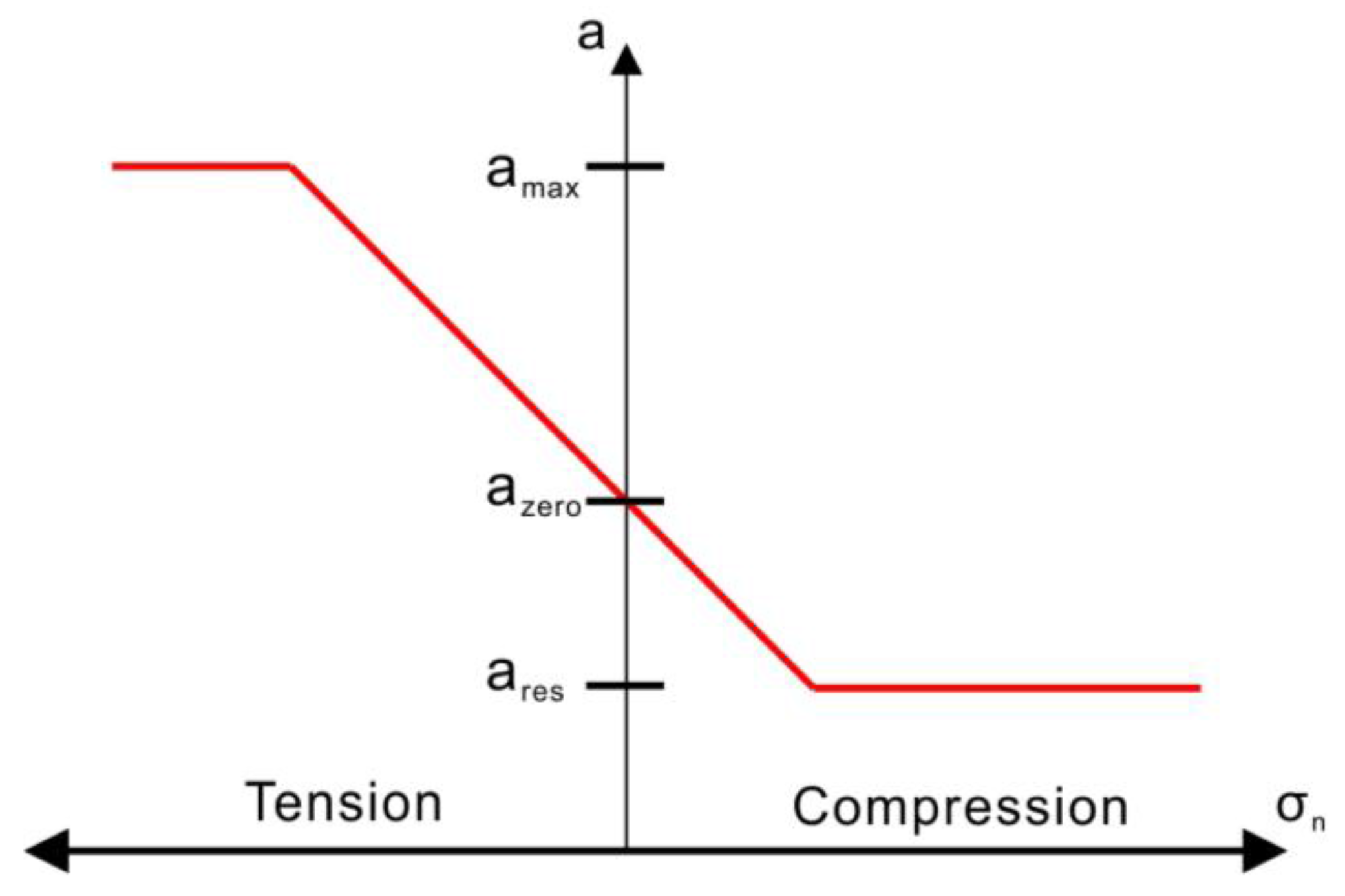

Tensile strength/MPa | 3 | Minimum allowable aperture/m | 2 × 10−6 |
Elastic modulus/GPa | 27 | Zero normal stress aperture/m | 1 × 10−5 |
Poisson rate | 0.25 | Maximum allowable aperture/m | 2 × 10−4 |
Density/(g/cm3) | 2.6 |
Injection Rate/10−6 m3/s/m | Fluid Viscosity/mPa·s |
---|---|
10 | 1 |
Qμ/10−6mN | Injection Rate, Q/10−6 m3/s/m | Fluid Viscosity, μ/mPa·s |
---|---|---|
5 | 100 | 0.05 |
5 | 50 | 0.1 |
10 | 10 | 1 |
10 | 5 | 2 |
