Energies 2016, 9(10), 779; doi:10.3390/en9100779

Thermal Characteristics of Tube Bundles in Ultra-Supercritical Boilers

1
Department of Mechanical Engineering, Yonsei University, Seoul 120-749, Korea
2
Department of Energy System Engineering, Korea National University of Transportation, Chungbuk 380-701, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Kamel Hooman
Received: 9 August 2016 / Revised: 1 September 2016 / Accepted: 23 September 2016 / Published: 27 September 2016
View Full-Text   |   Download PDF [5106 KB, uploaded 27 September 2016]   |

Abstract

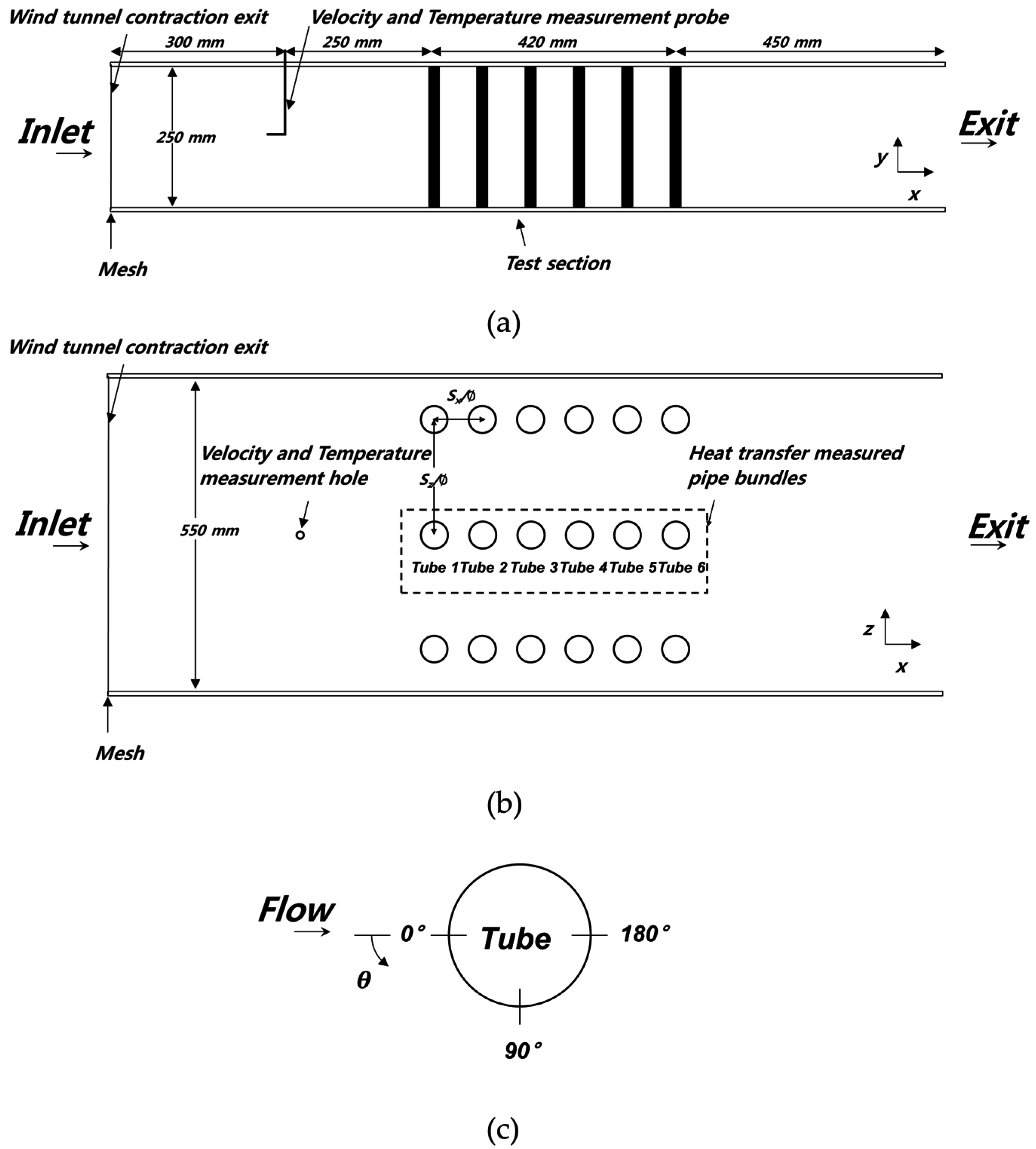

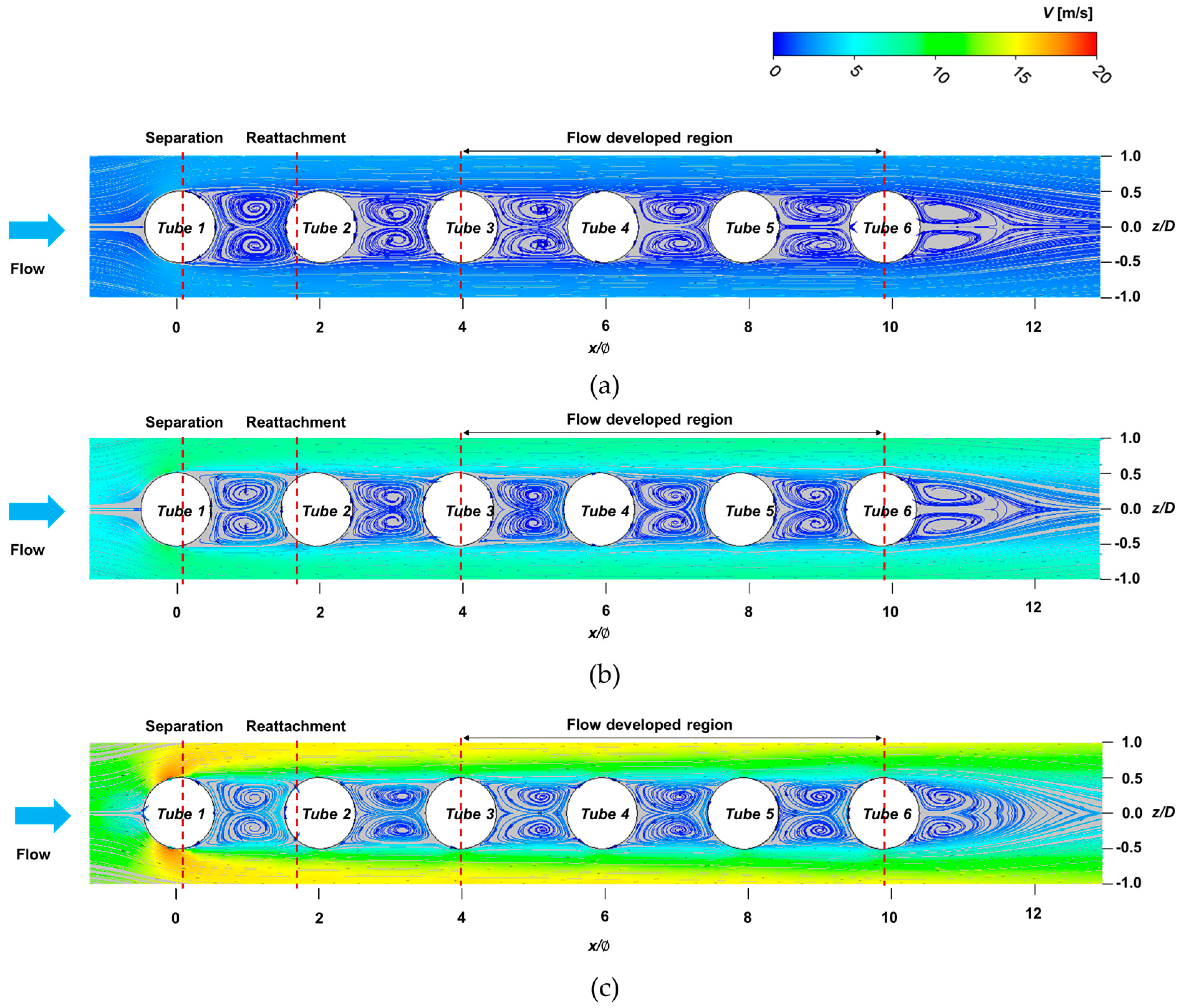

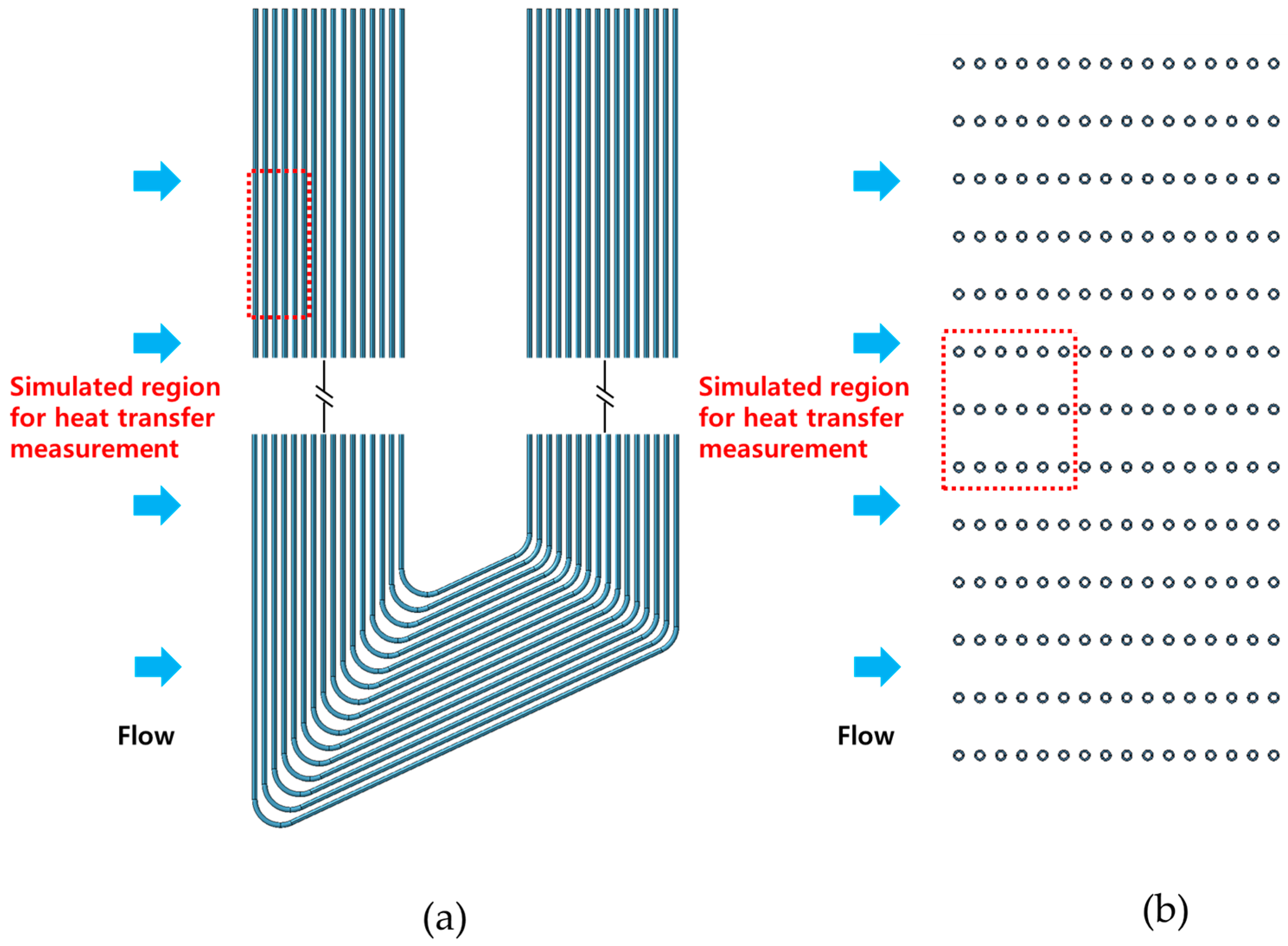

In this study, flow and thermal characteristics of tube bundles in ultra-supercritical boilers were analyzed. The local heat transfer around the tube bundles was measured to predict the local temperature distribution and vulnerable positions of the superheated tube bundles. The maximally superheated tube bundles were simulated in the laboratory and local heat transfer was measured by using the naphthalene sublimation method. The experiment was conducted on three lines of tube bundles, all with in-line arrangements. Each line consist of six tubes. The distance in the streamwise direction (Sx/∅) was 1.99 and that in the spanwise direction (Sz/∅) was 5.45. The Reynolds number varied from 5000 to 30,000, which covers a range of different operating conditions. Thermal and stress analyses were conducted numerically, based on the experimental data. The results showed that the flow characteristic changes the local heat transfer of the tube bundles. The flow impinged on the stagnation point of Tube 1 and reattached at 60° of Tube 2. The high heat transfer occurred at those positions of the tube bundles. The temperature and stress distributions on the surface of each tube bundle also varied. The reattachment point on Tube 2 had the highest heat transfer and temperature distribution. That position on Tube 2 was subjected to the highest stress due to the large temperature gradient. This result indicates that Tube 2 of the ultra-supercritical (USC) boiler is the weakest of the tube bundles, changing the pitch of the streamwise direction of Tube 2 is one method to reduce the highest stress in superheater tube bundles in the USC boiler. View Full-Text
Keywords: tube bundle; heat transfer; temperature; stress; boiler tube bundle; heat transfer; temperature; stress; boiler

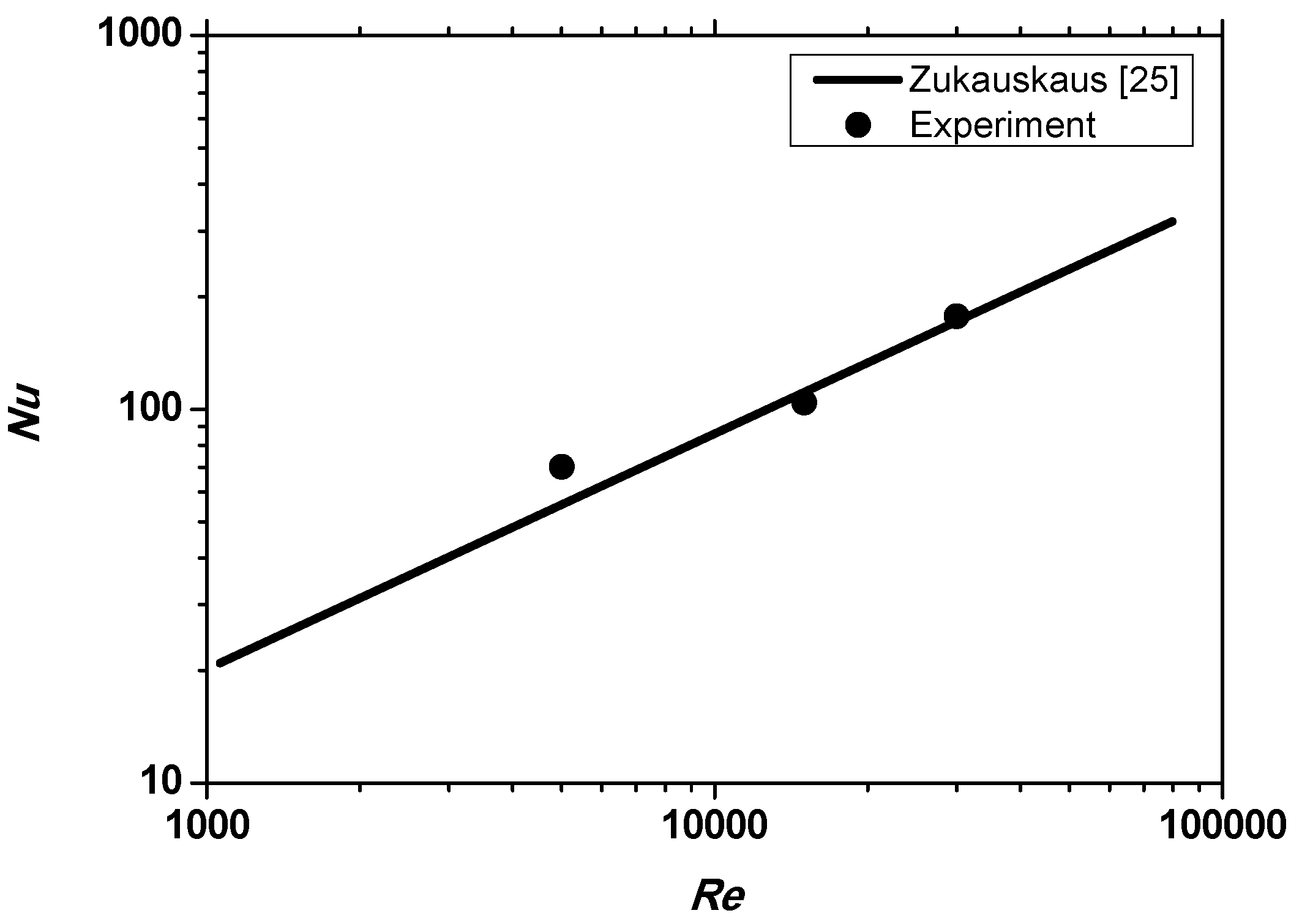

Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Choi, S.M.; Park, J.S.; Sohn, H.-S.; Kim, S.H.; Cho, H.H. Thermal Characteristics of Tube Bundles in Ultra-Supercritical Boilers. Energies 2016, 9, 779.
