Energies 2015, 8(6), 4920-4942; doi:10.3390/en8064920

Magnetic Field Equivalent Current Analysis-Based Radial Force Control for Bearingless Permanent Magnet Synchronous Motors

School of Electrical and Information Engineering, Jiangsu University, Zhenjiang 212013, China
*
Author to whom correspondence should be addressed.
Academic Editor: Enrico Sciubba
Received: 22 December 2014 / Revised: 8 May 2015 / Accepted: 22 May 2015 / Published: 27 May 2015

Abstract

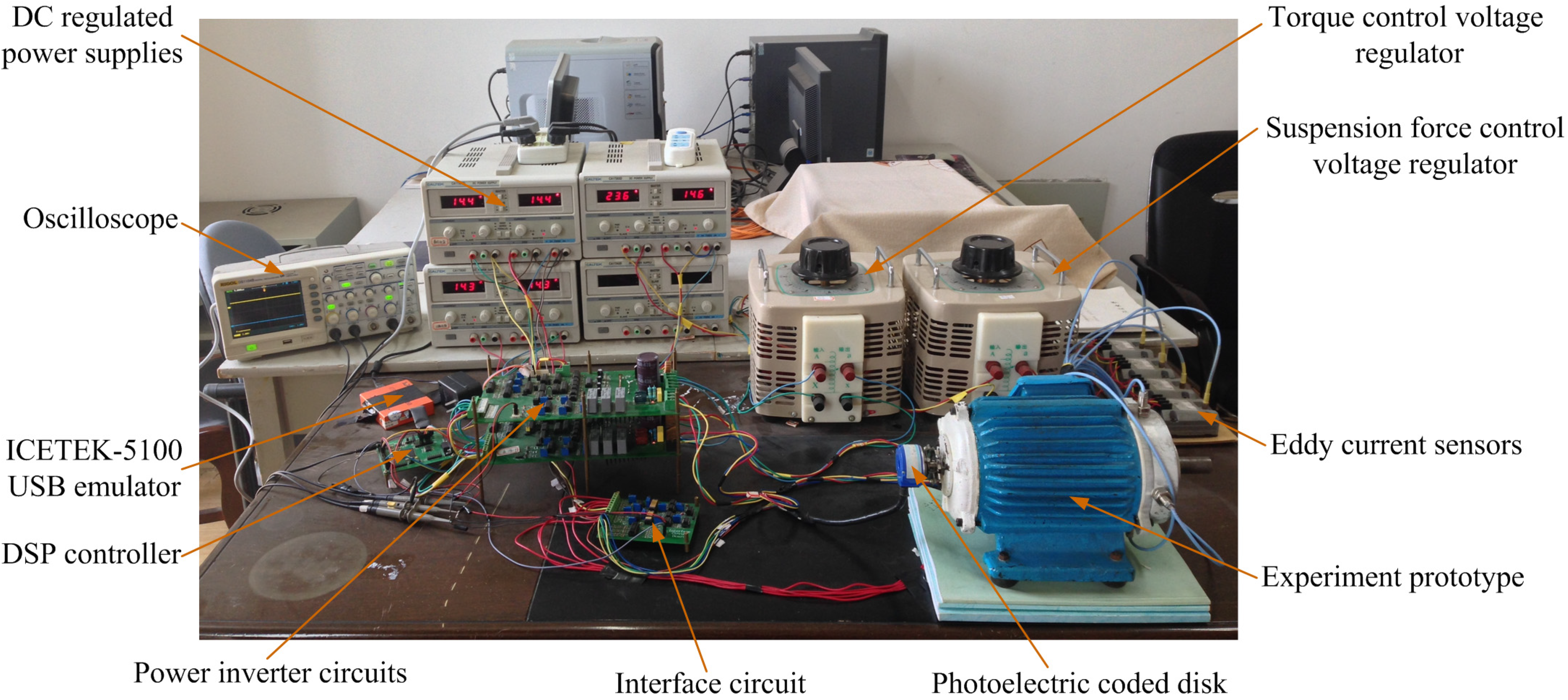

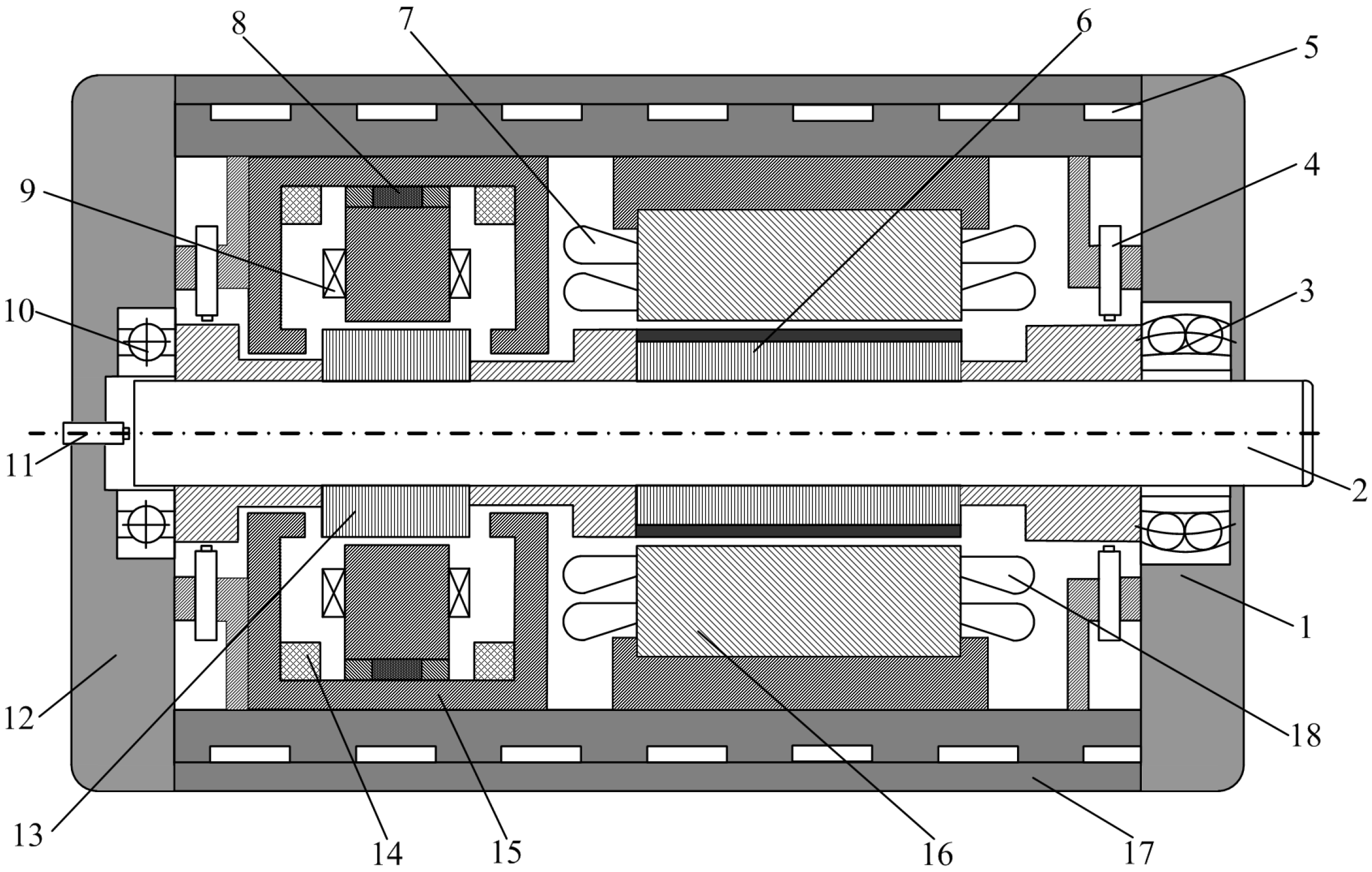

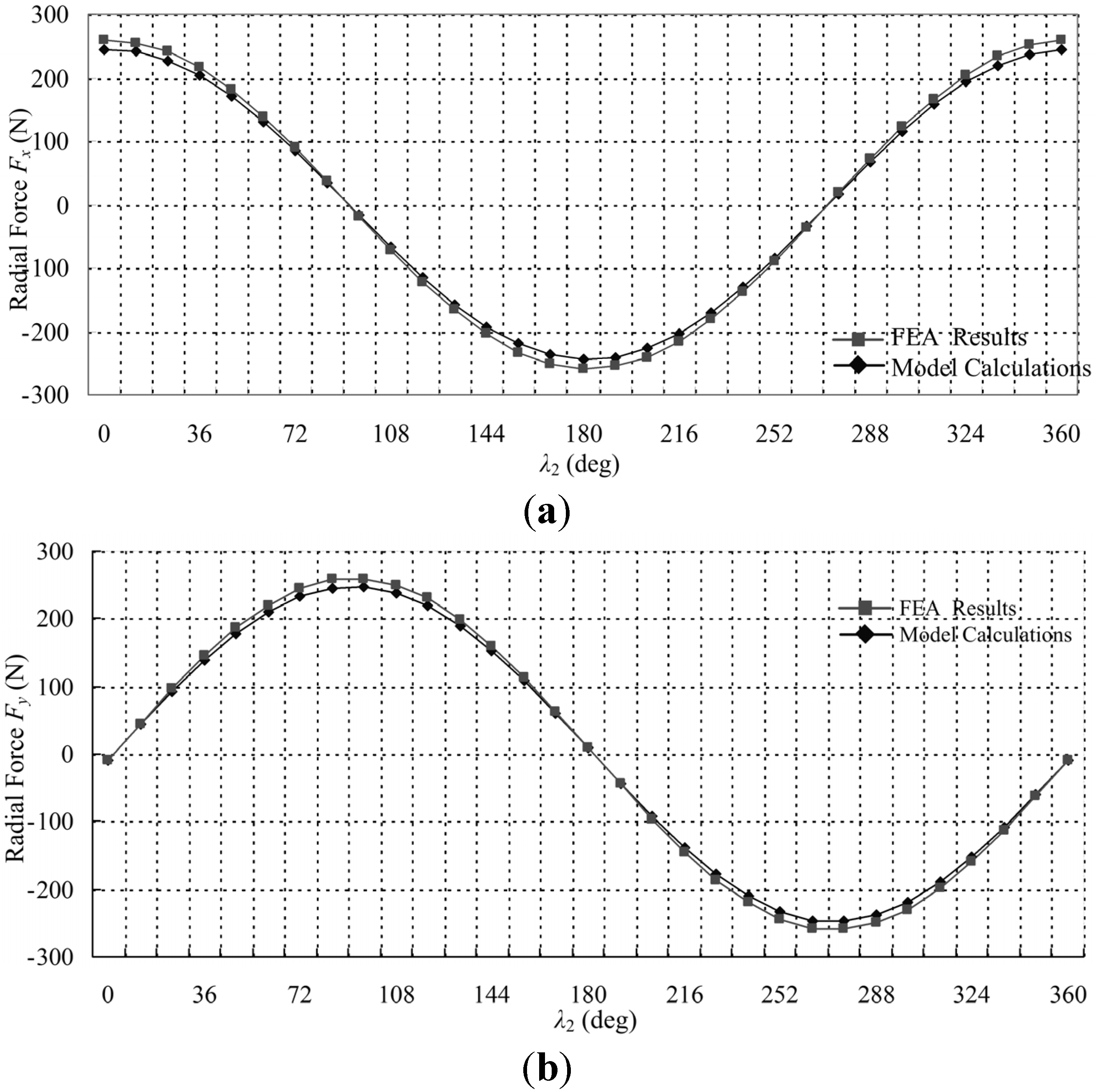

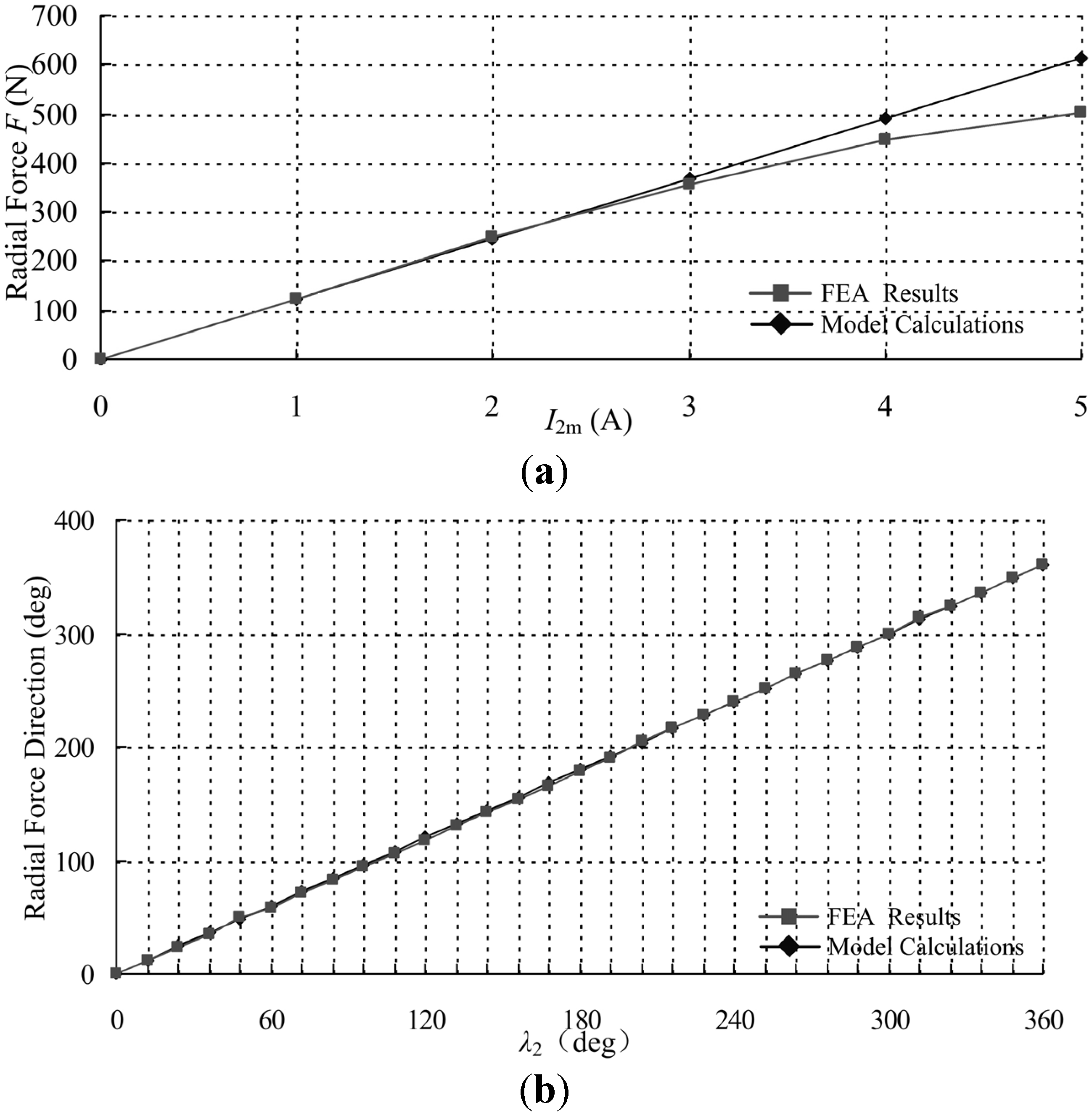

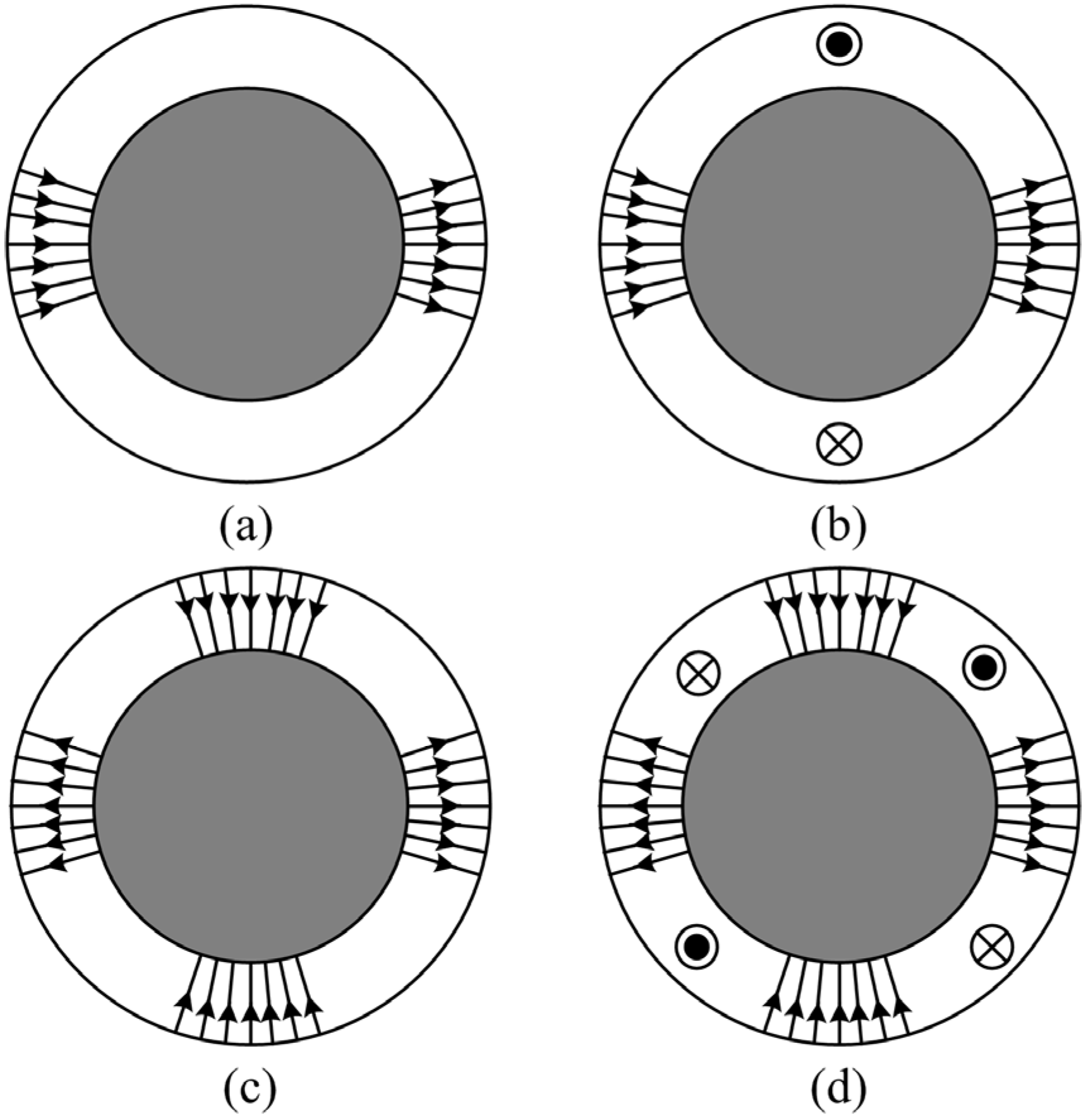

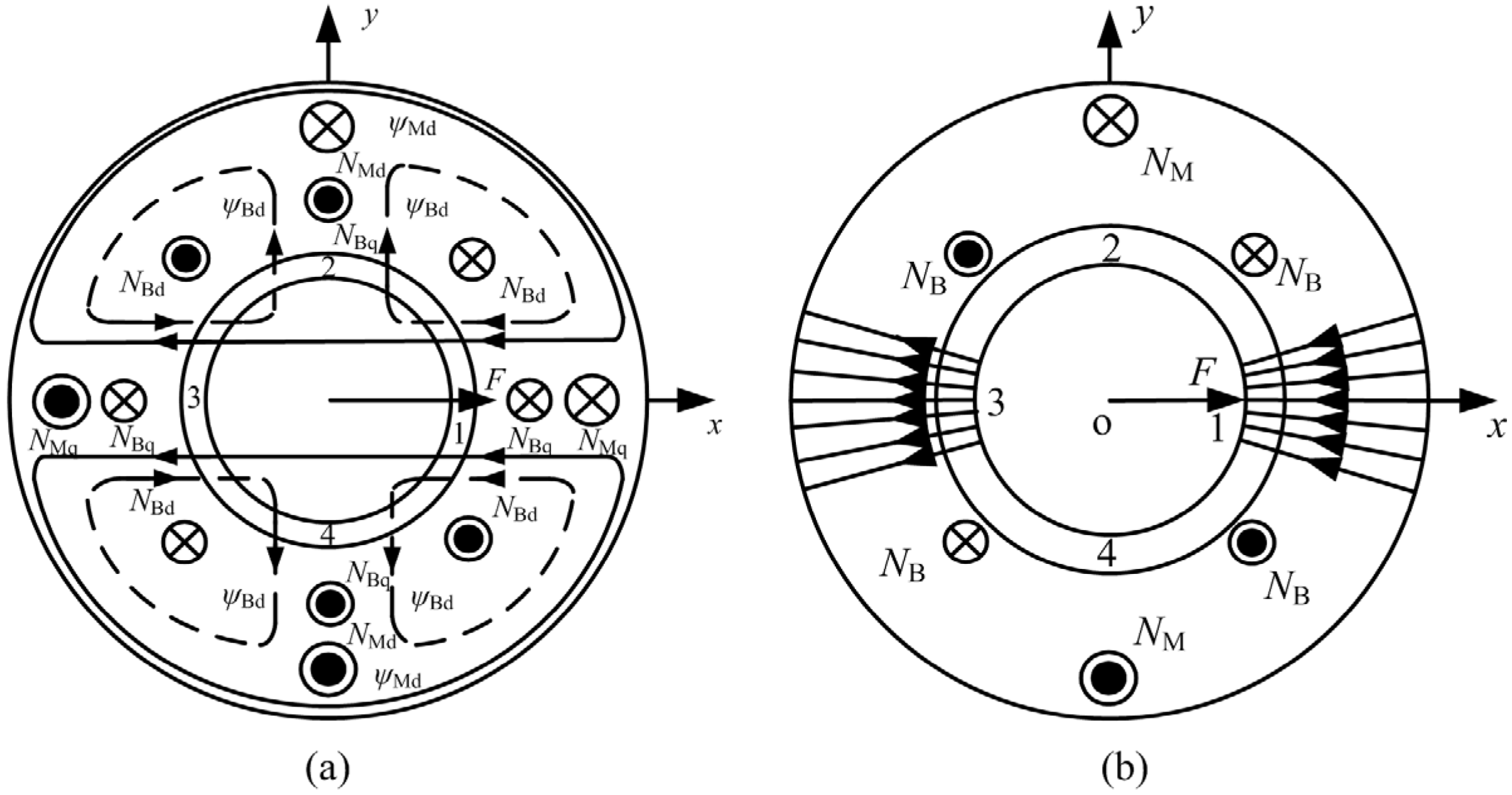

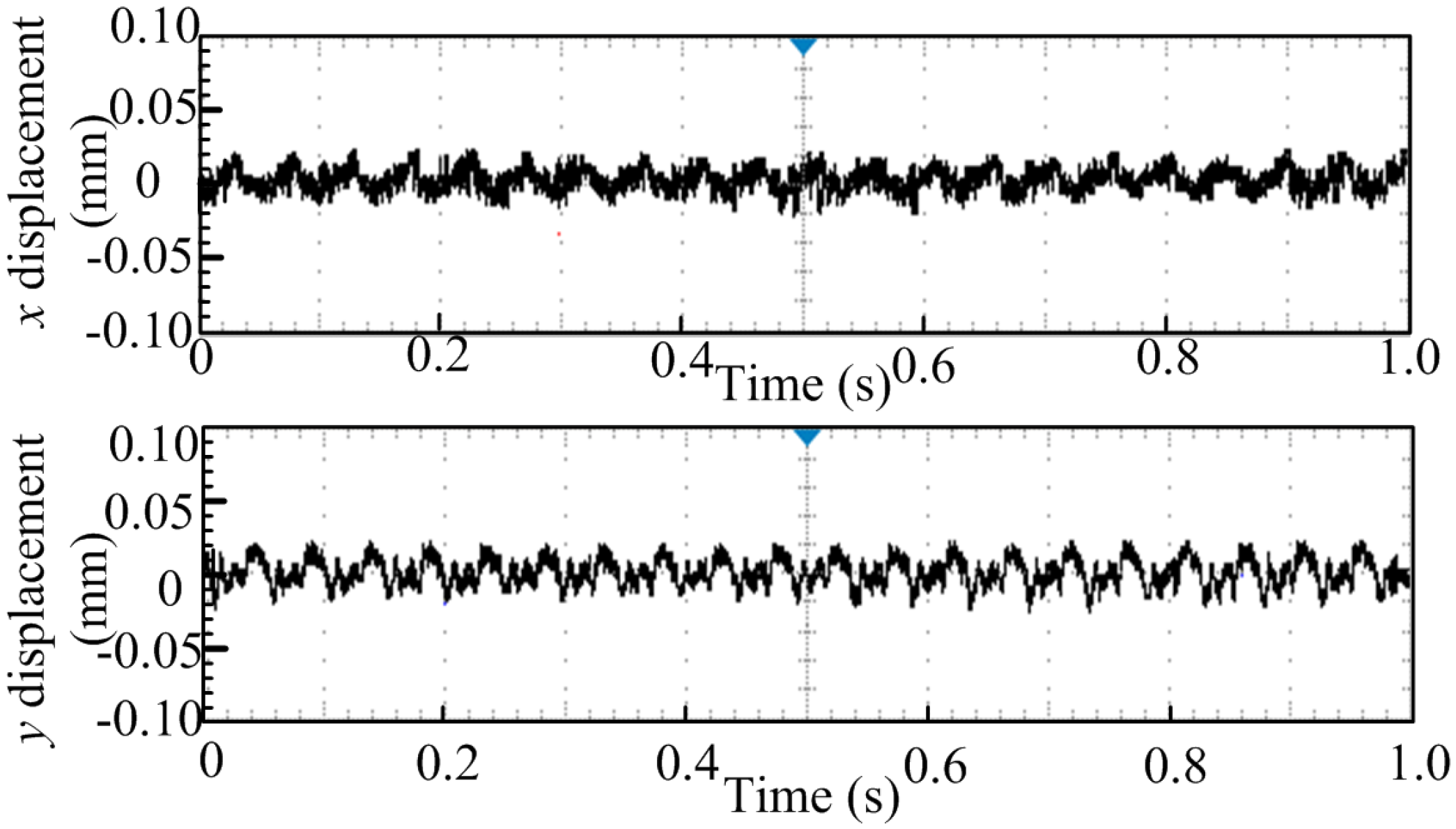

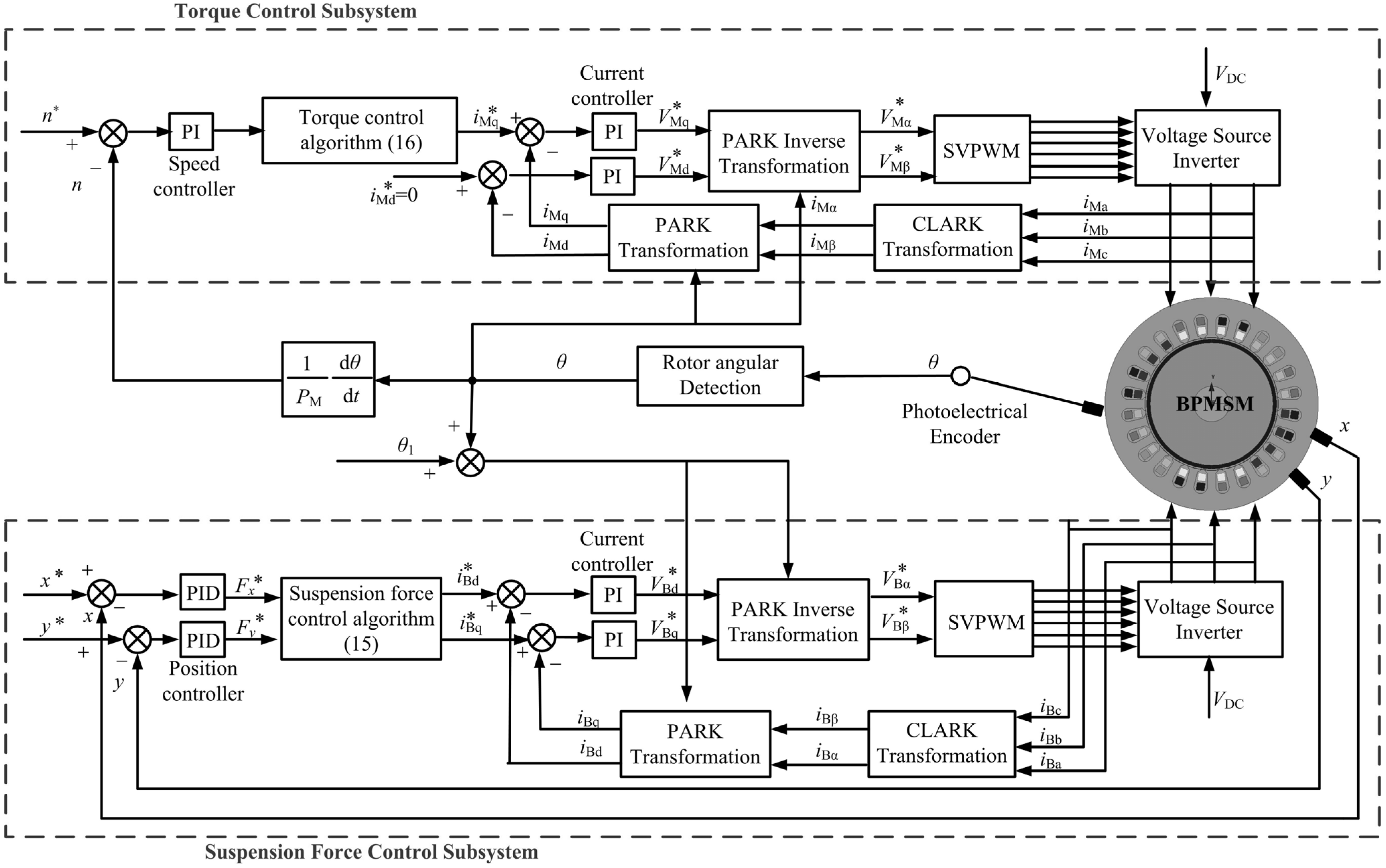

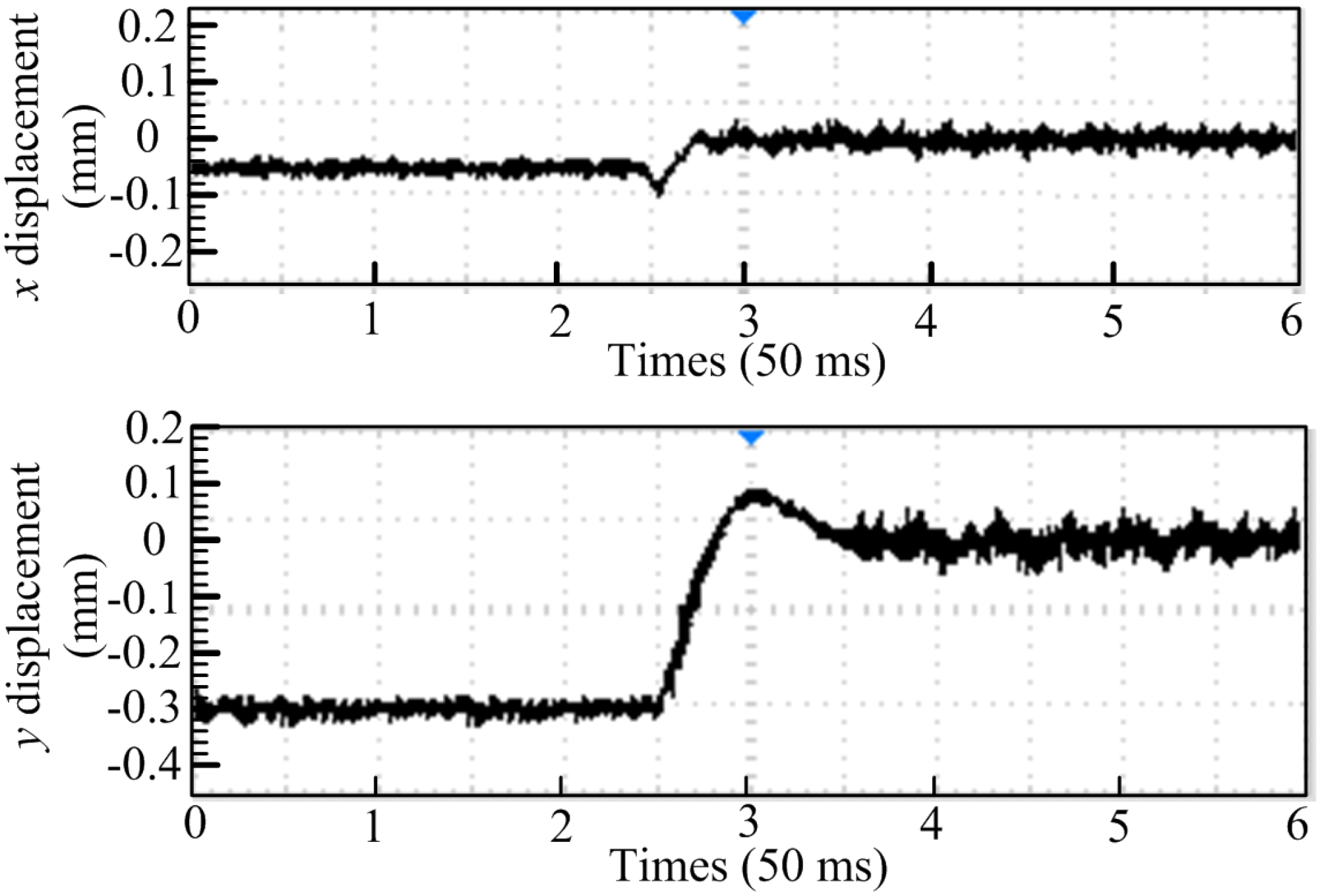

Bearingless permanent magnet synchronous motors (BPMSMs), with all advantages of permanent magnet motors (PMSMs) and magnetic bearings, have become an important research direction in the bearingless motor field. To realize a stable suspension for the BPMSM, accurate decoupling control between the electromagnetic torque and radial suspension force is indispensable. In this paper, a concise and reliable analysis method based on a magnetic field equivalent current is presented. By this analysis method, the operation principle is analyzed theoretically, and the necessary conditions to produce a stable radial suspension force are confirmed. In addition, mathematical models of the torque and radial suspension force are established which is verified by the finite element analysis (FEA) software ANSYS. Finally, an experimental prototype of a 2-4 poles surface-mounted BPMSM is tested with the customized control strategy. The simulation and experimental results have shown that the motor has good rotation and suspension performance, and validated the accuracy of the proposed analysis method and the feasibility of the control strategy. View Full-Text
Keywords: bearingless permanent magnet synchronous motor; magnetic field equivalent current; decoupling control; radial suspension force bearingless permanent magnet synchronous motor; magnetic field equivalent current; decoupling control; radial suspension force
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
