Effects of Biomass Feedstocks and Gasification Conditions on the Physiochemical Properties of Char
Department of Biosystems and Agricultural Department, and the Biobased Products and Energy Center, Oklahoma State University, Stillwater, OK 74078, USA
Department of Biological and Agricultural Engineering, Kansas State University, Manhattan, KS 66506, USA
Department of Biological and Agricultural Engineering, North Carolina State University, Raleigh, NC 27695, USA
* Author to whom correspondence should be addressed.
Received: 19 June 2013; in revised form: 11 July 2013 / Accepted: 22 July 2013 / Published: 6 August 2013

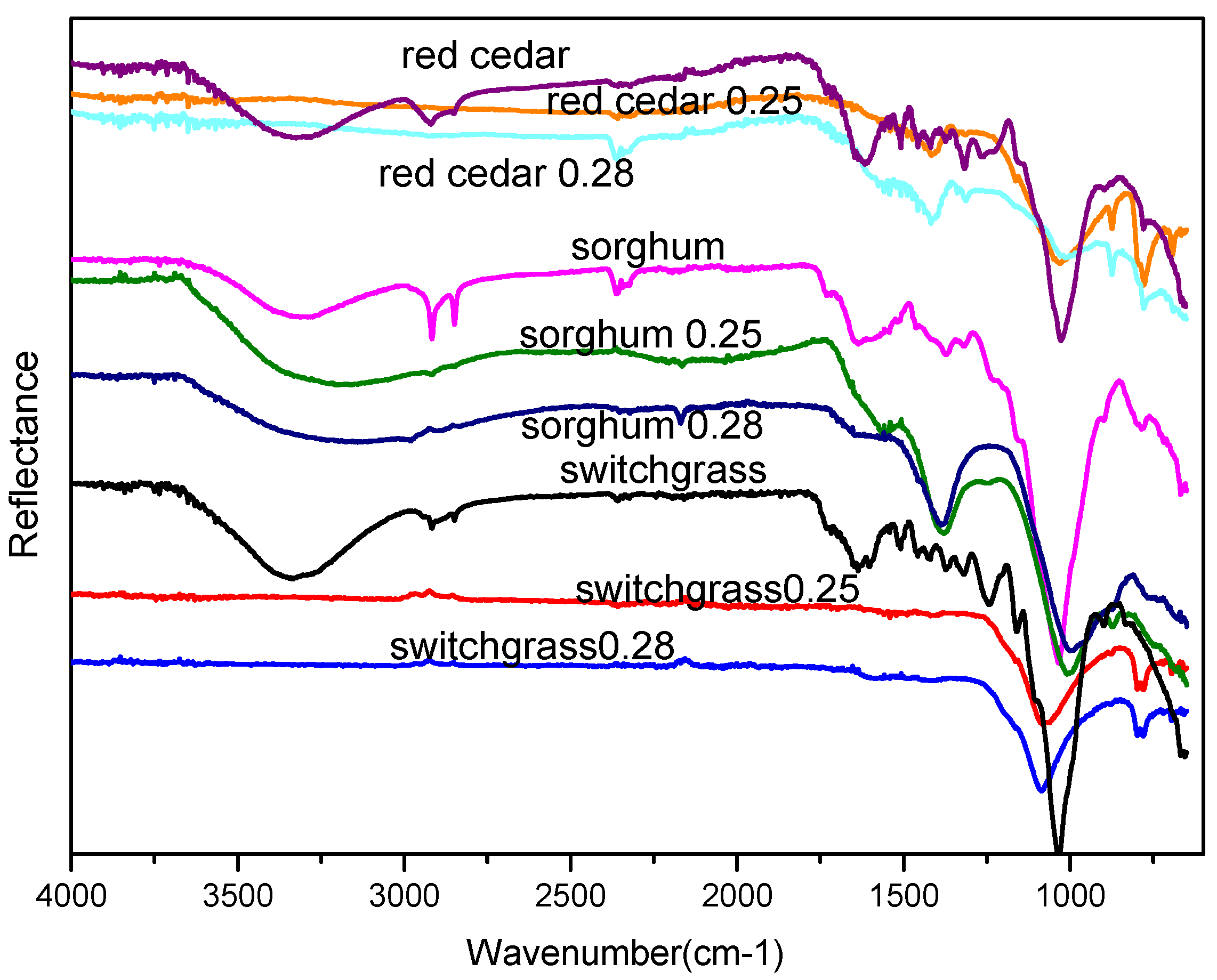

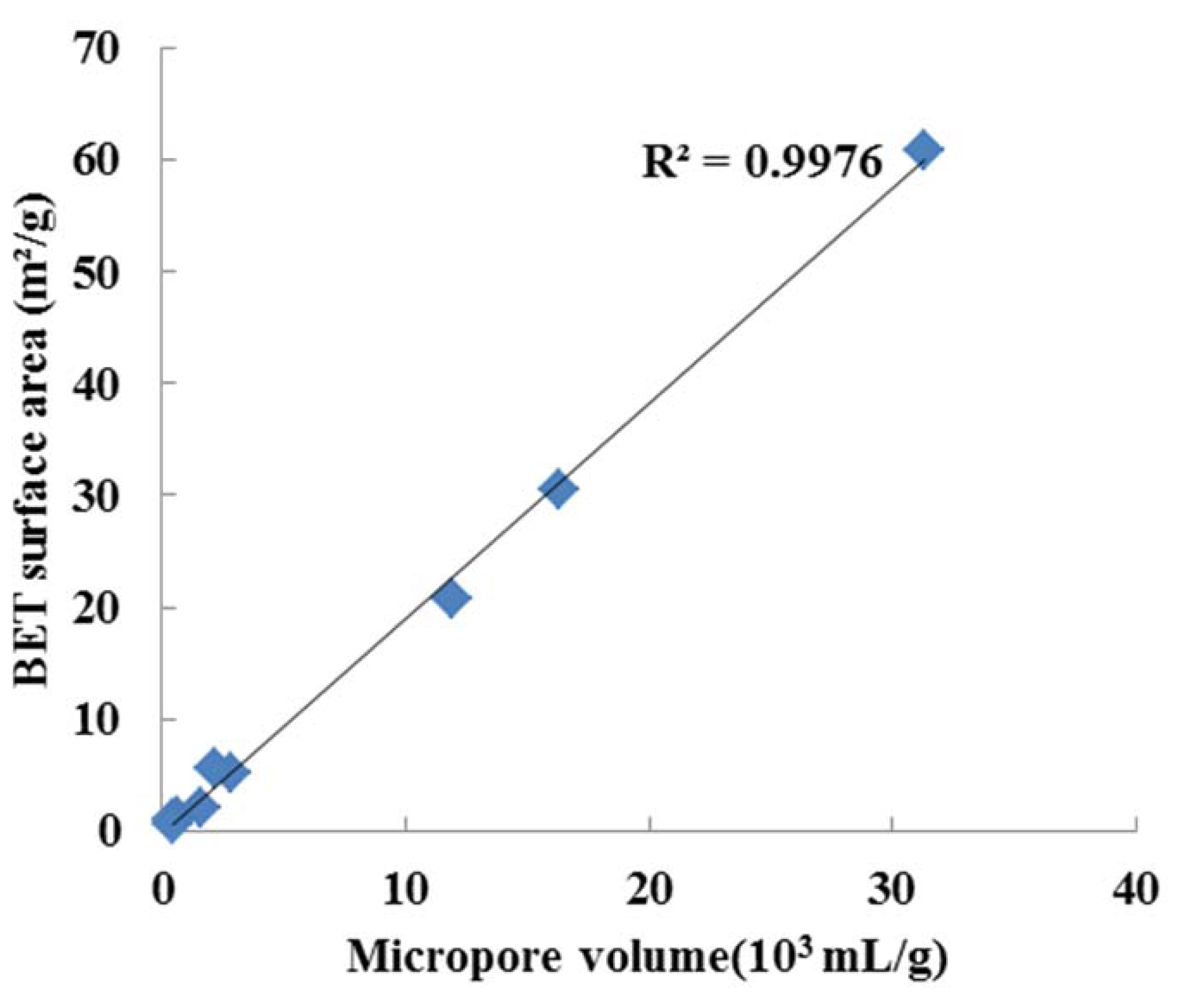

Abstract: Char is a low-value byproduct of biomass gasification and pyrolysis with many potential applications, such as soil amendment and the synthesis of activated carbon and carbon-based catalysts. Considering these high-value applications, char could provide economic benefits to a biorefinery utilizing gasification or pyrolysis technologies. However, the properties of char depend heavily on biomass feedstock, gasifier design and operating conditions. This paper reports the effects of biomass type (switchgrass, sorghum straw and red cedar) and equivalence ratio (0.20, 0.25 and 0.28), i.e., the ratio of air supply relative to the air that is required for stoichiometric combustion of biomass, on the physiochemical properties of char derived from gasification. Results show that the Brunauer-Emmett-Teller (BET) surface areas of most of the char were 1–10 m2/g and increased as the equivalence ratio increased. Char moisture and fixed carbon contents decreased while ash content increased as equivalence ratio increased. The corresponding Fourier Transform Infrared spectra showed that the surface functional groups of char differed between biomass types but remained similar with change in equivalence ratio.
Keywords: biomass char; biochar; gasification; fluidized bed; switchgrass; sorghum; eastern red cedar
Citations to this Article
Cite This Article
MDPI and ACS Style
Qian, K.; Kumar, A.; Patil, K.; Bellmer, D.; Wang, D.; Yuan, W.; Huhnke, R.L. Effects of Biomass Feedstocks and Gasification Conditions on the Physiochemical Properties of Char. Energies 2013, 6, 3972-3986.
Qian K, Kumar A, Patil K, Bellmer D, Wang D, Yuan W, Huhnke RL. Effects of Biomass Feedstocks and Gasification Conditions on the Physiochemical Properties of Char. Energies. 2013; 6(8):3972-3986.
Qian, Kezhen; Kumar, Ajay; Patil, Krushna; Bellmer, Danielle; Wang, Donghai; Yuan, Wenqiao; Huhnke, Raymond L. 2013. "Effects of Biomass Feedstocks and Gasification Conditions on the Physiochemical Properties of Char." Energies 6, no. 8: 3972-3986.
