Thermodynamic Efficiency Maximum of Simple Organic Rankine Cycles

Abstract

The increase of the maximal cycle temperature is considered as one of the best tools to increase cycle efficiency for all thermodynamic cycles, including Organic Rankine Cycles (ORC). Technically, this can be done in various ways, but probably the best solution is the use of hybrid systems, i.e., using an added high-temperature heat source to the existing low-temperature heat source. Obviously, this kind of improvement has technical difficulties and added costs; therefore, the increase of efficiency by increasing the maximal temperature sometimes has technical and/or financial limits. In this paper, we would like to show that for an ideal, simple-layout ORC system, a thermodynamic efficiency-maximum can also exist. It means that for several working fluids, the thermodynamic efficiency vs. maximal cycle temperature function has a maximum, located in the sub-critical temperature range. A proof will be given by comparing ORC efficiencies with TFC (Trilateral Flash Cycle) efficiencies; for wet working fluids, further theoretical evidence can be given. The group of working fluids with this kind of maximum will be defined. Generalization for normal (steam) Rankine cycles and CO₂ subcritical Rankine cycles will also be shown. Based on these results, one can conclude that the increase of the maximal cycle temperature is not always a useful tool for efficiency-increase; this result can be especially important for hybrid systems.

1. Introduction

Organic Rankine cycle-based processes are popular and effective methods to utilize heat sources with a wide range of temperature to utilize for electricity production. Most of the heat sources (like geothermal heat, industrial heat) are localized. Sometimes, there is a possibility to use an additional, non-localized heat source (like solar heat) to increase the maximal cycle temperature. For the basic thermodynamic cycle (Carnot-cycle), the first law efficiency is increasing by increasing the maximal cycle temperature while minimal cycle temperature is constant [1]. For other cycles, a similar law can be used, only in that case, maximal and minimal cycle temperatures have to be replaced by mean temperatures of heat addition and removal [2]. Using the assumption, that mean temperature of heat addition is increased when maximal cycle temperature is increased [2], a thumb-rule can be deducted, that by increasing the maximal cycle temperature, the cycle efficiency is always increased. Therefore, the increase of the temperature is always desirable in simple thermodynamic cycles, when the goal is the better performance, although other constraints (like the cost of the utilization of this added heal source) can overshadow the gain caused by the efficiency increase.

The design of an ORC-based power plant has at least four different layers [3]. The first one is about the thermodynamic cycle itself; one can design and optimize the Rankine-cycle using various working fluids and various constraints (like defining the “ideality” or “reality” of the cycle by defining the irreversibility-induced entropy-production during expansion). The second layer is the technical/engineering layer; the designed Rankine-cycle should be realized, the constraints of the previous steps have to be associated with various hardware components or process properties (like expander internal efficiency, pressure loss within the heat exchanger, etc.). An optimal second layer design might require several successive approximation steps, where the first step design has to be re-calculate due to various points (for example inaccessibility of expander with the desired internal efficiency), and the new result has to be used for the next iteration. The third layer is the economical one. One should realize that investors built power plants not to generate electricity but to generate profit. Therefore, even the most brilliant thermodynamic cycle or ORC layout might be rejected upon financial points. The fourth layer is the environmental one; it is strongly connected to the third one [4].

With a bit of oversimplification, one can say that in the first layer, the thermodynamic properties of the working fluids, especially the shape of their T-s diagram are the most important factor [5,6], involving even molecular properties [7,8], while in the second layer already having the working fluid, the proper choice of technological components (most often the expander) plays the leading role [9,10]. However, sometimes these two steps are very much interlocked [11]. Obviously, the final vote is always for the economic side [4].

To have successful optimization in the second layer, one should clarify the problems raised in the first layer. Although most people assume that thermodynamics already solved all related problem and no further study is necessary concerning basic cycles, it is not a valid assumption. Here, we are going to show a clear example to disprove this assumption.

ORCs are supposed to be used to utilize heat sources not utilizable with traditional steam Rankine cycle; these heat sources are most often low-enthalpy ones with relatively low temperature and sometimes with low heat flow. For this reason, ORC-based power plants have limited financial viability; investment, operational and maintenance cost should be kept as low as possible. One of the ways to do that is the use of the basic ORC layout, namely one with a heater (liquid heater plus evaporator), an expander, a condenser and a pump, without using superheater or regenerative/recuperative heat exchanges [12]. Addition of any extra component can increase investment cost and decrease the “robustness” of the design. Therefore, our goal is to solve the thermodynamic problems without the involvement of any new part, i.e., using only the basic ORC design.

In this paper, we would like to show, that using the simplest ORC (or even traditional, water/steam-based RC) layout, a thermodynamic efficiency maximum should be found in all ideal cycles using wet and in several ideal cycles using dry working fluids. To prove this statement, the efficiencies of simple ideal ORC and TFC (Trilateral Flash Cycles) processes will be studied, using working fluids from various classes. The exact location of these maxima depends on the working fluid, as well as on the minimal cycle temperature. The existence of this kind of maximum shows that the increase of the maximum cycle temperature is not always a proper tool to increase cycle efficiency; sometimes it can be contra-productive.

2. Hybrid Systems

The temperature of the heat source is an important factor for ORC applications, even though this technology can utilize sources with relatively low temperature. Geothermal energy is often considered as a low-grade energy-source; therefore, it cannot independently support high load applications. This is true even for countries with quite good geothermal potentials (like Hungary), where the well-head temperature of most of the existing geothermal wells are below 90 °C [13]. These kinds of sources are usually excluded from the pool of potential sources for electricity generation, although they can be numerous and some of them have very impressive heat-flux. In this case, one might apply hybrid systems (using secondary heat sources with a smaller heat flux but with higher temperature) to overcome the inherent weakness of the low-temperature sources.

Probably the most frequently used double-source design is the hybrid solar-geothermal installation [14,15,16]. For interested readers, a short overview of these kinds of systems is given in Appendix A. In hybrid solar-geothermal systems, the initial heating can be done by the low-temperature geothermal source, and then the solar heat is used to increase the maximal temperature. This can be done in two different ways. In the first solution, the solar heat can be used to “superheat” the already evaporated vapor [17]; this solution can be easily applied in retrofitted systems because only minor modifications of the existing geothermal power plant are required. In the second solution, the geothermal heat is used to preheat the compressed liquid, while the solar heat would be used to reach the maximal temperature and for evaporation. In this case, the pressure in the evaporator, as well as the input pressure of the expander, will be higher than for the same systems without solar heat; therefore, this method is not ideal for retrofitting of existing systems, but might be better for novel units [18]. The choice between the two options depends not only on the temperature values of the two sources but also on the available heat flows; in case of very small secondary heat flow, only the first case could be a plausible choice. Here, we prefer the second method, because our simple layouts would not consist of superheating units, i.e., the ORC design would remain simple.

Maximal cycle temperature, which is an important factor of the efficiency, can be increased in three ways in solar or hybrid solar systems:

-

It is possible to keep the original solar collectors (i.e., total heat flux and heat source temperature remain the same), while the mass flow of the working fluid could be reduced. A small increase in the maximal cycle temperature can be obtained, but the simultaneous decrease of the pinch temperature (the minimal temperature gap in the heat exchanger) does not allow the significant increase. In this case, the investment cost of the retrofit would be minimal or zero, but the decrease of mass flow might decrease the power; therefore, relative (power-normalized) investment cost can increase.

-

The number of solar collectors can be increased, increasing the collected heat but keeping the source temperature. In this way, one can keep the mass-flow of the working fluid, but pinch temperature can be slightly decreased while the maximal cycle temperature can be increased (only on a small extent). This solution, due to the extra collectors, increases the investment cost.

-

The quality of solar collector system can also be improved (for example by changing the simple flat collectors to a focused system). With this solution, not only the amount of collected heat but also the temperature can be higher. In this way, because the source temperature is higher, keeping the mass-flow, the maximal cycle temperature can be remarkably increased. This solution, due to the use of better, i.e., more expensive collectors increases the investment cost.

One might expect, that just like for the ideal Carnot-cycle [1]; increasing the maximal cycle temperature for ORC or similar cycles would increase the thermal efficiency at least up to the critical point and therefore the application of an additional heat source would be limited only by technical or economic constraints [3]. Here, we are going to show that by using a basic ORC cycle, thermodynamic efficiency can have a maximum, associated with a sub-critical temperature, which depends on the material and the minimal cycle temperature.

3. Method

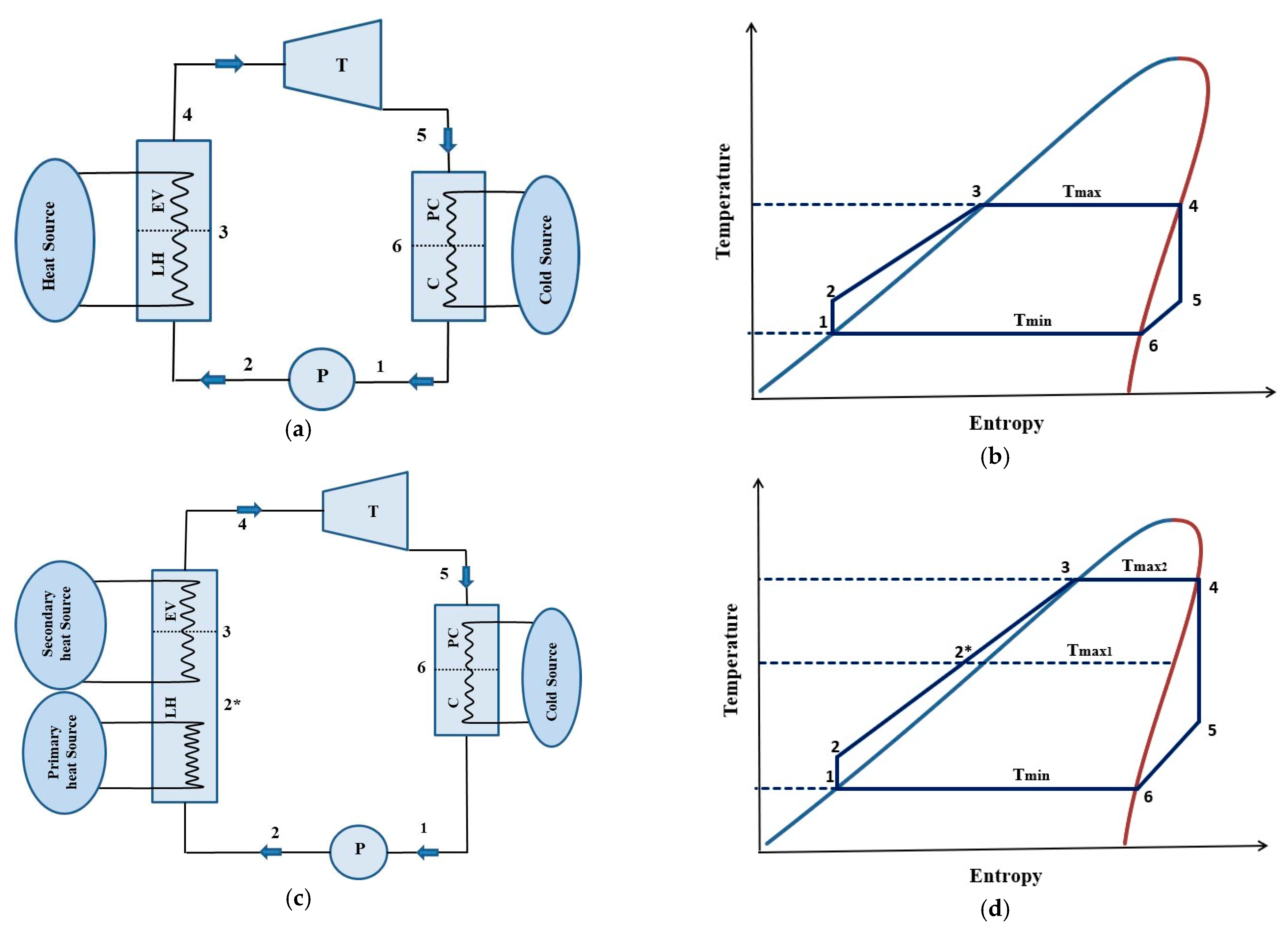

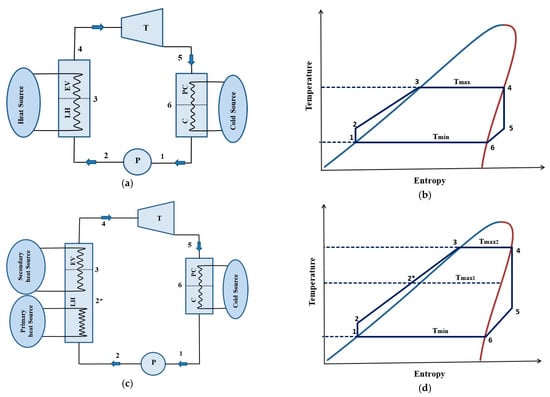

Concerning the basic ORC system, we are using the most straightforward and simplest layout to minimize the installation and maintenance costs for the system. The layout assuming a hypothetical dry working fluid can be seen in Figure 1a. It contains a pump, used to compress the working fluid from the low-pressure liquid state (1) to high pressure one (2). The first heat exchanger is for heating the compressed working fluid. It has two parts, the liquid heater (LH) to heat up the compressed liquid to the saturated state (2→3) and the evaporator (EV), to evaporate the saturated liquid to saturated vapor state (3→4). Cost minimization comes here first; no superheater is included, not even for wet working fluids. The fluid expands directly from this saturated vapor state (4) through the expander (E) to cold, dry vapor state (5). It will be cooled down in the condenser (C) in two steps, first by pre-cooling the vapor down to the saturated state (5→6), then by condensing it to the saturated liquid state (1). The heat extracted by the pre-cooler is lost here; for the sake of simplicity, recuperative or regenerative heat exchangers are omitted. Corresponding T-s diagram can be seen in Figure 1b. Using wet working fluid, the expansion line (4→5) would run in the two-phase region (wet vapor) and points 5 and 6 would be identical; therefore, pre-cooling would not be necessary.

For the hybrid system, we have a second heat source; corresponding figures are Figure 1c,d. In this case, higher initial compression (from point 1 to 2) is used, so the pressure ratio p₂/p₁ will be higher. Pressurized working fluid (in liquid state) will be preheated by the primary heat source of the maximal temperature provided by the primary source (from point 2 to point 2*; this was the point corresponding to maximal temperature in the single source cycle). Then the secondary heat source (for example the solar one) is heating the fluid up to the maximal cycle temperature (from point 2* to point 3), and also the heat of this source is used to evaporate it (from point 3 to 4). Expansion and cooling steps (the 4-5-6-1 sequence) would be similar to the previous case, although the expansion part (from point 4 to 5) will be more significant and the cooling of the dry vapor (5–6) would start at a higher temperature.

As it has been already stated, we are discussing only the thermodynamic cycle here; therefore, all steps are considered to be ideal. Compression and expansion steps are isentropic, while for the heating and cooling steps, pressure drops are omitted, and strict isobaric heat exchange processes are assumed. Because for first-law efficiency, the knowledge of the intermediate temperature (T_max1) is not needed, only the effect maximal cycle temperature (T_max2) will be investigated.

Although wet working fluids are considered as not suitable ones for ORC applications [19], due to their unfavorable behavior (most remarkably the ones related to the appearance of droplets), in this paper we are studying the thermodynamic, rather than technical aspects of ORC. Therefore, both dry and wet working fluids were checked.

Efficiencies are going to be calculated for six different materials (see

Table 1. Working fluids used in this study with some of their relevant properties.

Name	Type	Class (Absolute/at 20 °C)	Tcr [K]	pcr [MPa]
Water	Wet	ACZ/ACZ	647.1	22.06
Carbon dioxide	Wet	ACZ/ACZ	304.13	7.38
Hexafluoroethane (R116)	isentropic	ACNMZ/ACZ	293.03	3.05
Butane	Dry	ACNMZ/ACZM	425.12	3.8
Neopentane	Dry	AZCM/AZCM	433.74	3.2
Dodecane	Dry	AZCM/AZCM	658.09	1.82

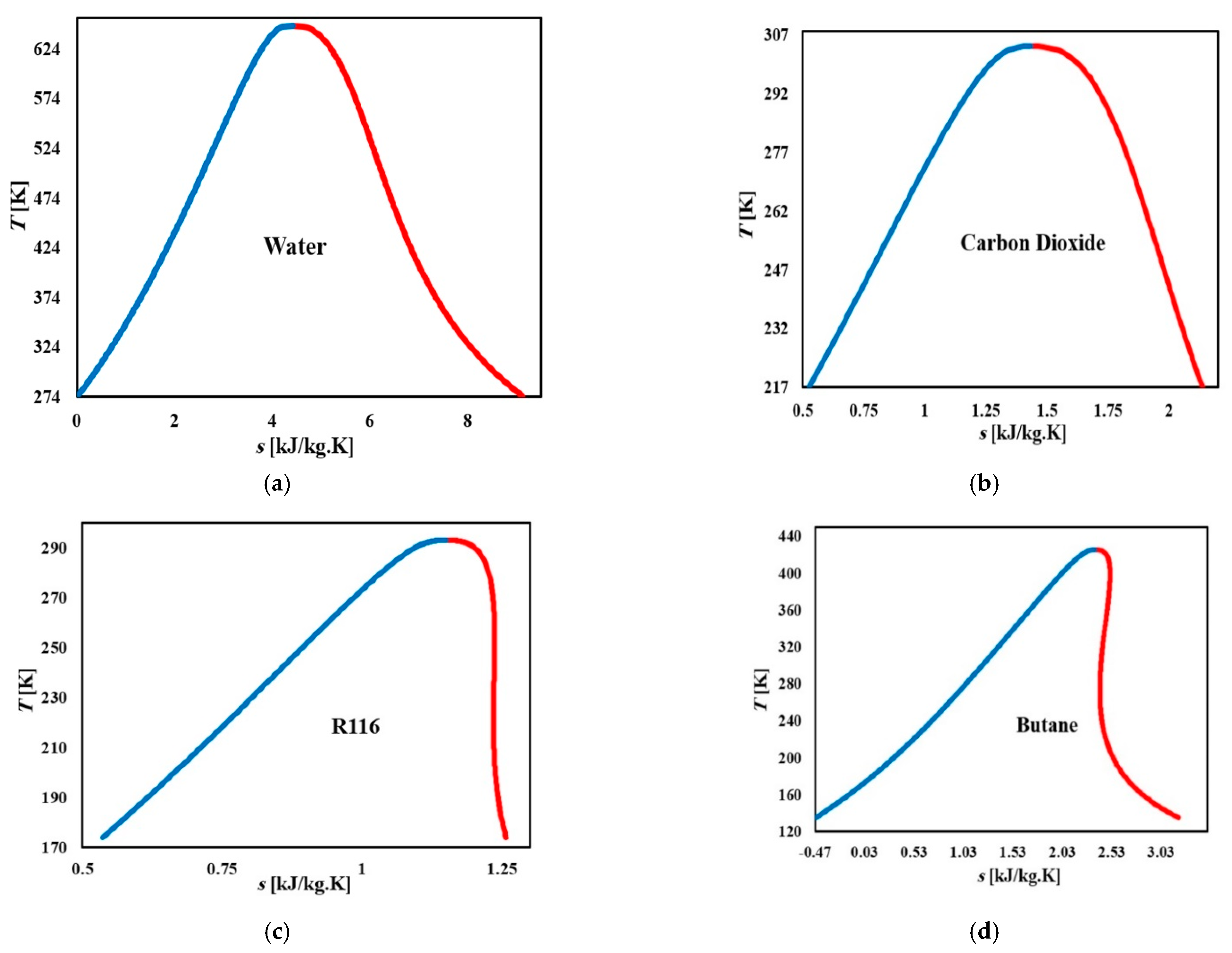

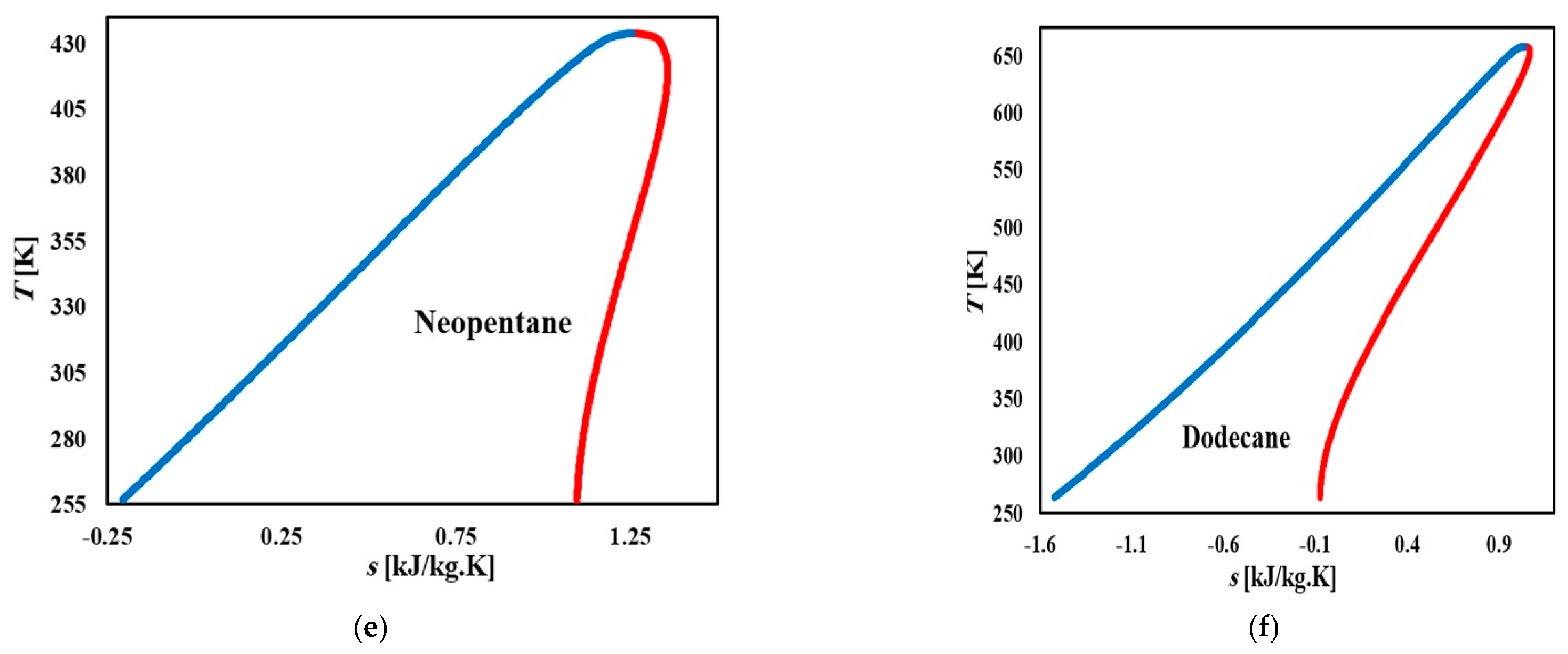

), representing a wide range of working fluids from wet ones (almost symmetrical, bell-shaped T-s diagrams) to very dry ones (with very skewed T-s diagrams), see Figure 2. Four of them might be used for hybrid geothermal/solar ORC or RC while the other two having very low critical temperature might be used in cryogenic cycles [20,21,22]. Therefore here—when the heat source is solar heat, presumably providing source temperatures exceeding the critical temperatures of these two materials—they are only used for demonstration purpose. Two of them are wet working fluids (using the traditional classification), or class ACZ working fluids [23]. The other four are dry working fluids. Concerning the sequence-based classification [23], dry working fluids can be divided into two classes; ACZM and AZCM types. Letters represent the special point on the T-s diagrams; A is the initial point of the T-s saturation curve, Z is the final one, C is the critical point and M is the point corresponding to maximal entropy. From these points, four-letter sequences can be built, based on the entropy values of these points. Initial point A always has the smallest entropy, while M has the highest one; therefore, only sequences starting with A and ending with M are possible. Having only two intermediate points, these are the ACZM and AMCZ. Liquid states are located in the A-C part of the curve, while vapor ones are stretching in the C-M-Z part. The crucial difference is that for ACZM, the entropy values for liquid states are always below the entropies of any of the saturated vapor states; while for AZCM, there are liquid states with entropies higher than for some vapor states. This means that for AZCM-type fluids, isentropic expansion starting from some saturated liquid states can reach the fully vaporized dry-vapor region. The ACZM-ones are closer to the wet-ones (ACZ), as it is shown in Ref. [21]. Three of the working fluids represented here are ACZM, and one for AZCM. In several fluids, a local entropy minimum (N) also can be seen; these fluids can also be classified as dry ones, or alternatively as “real isentropic ones” because, for them, it is possible to have an isentropic expansion step from saturated vapor state into another saturated vapor state [21,23,24]. In this paper, this fifth point will not be relevant.

One more piece of information is needed concerning the use of this working fluid classification [23]. The ultimate initial and final points of the saturation curve in T-s diagrams are related to the triple points (the last point of the liquid/vapor equilibrium; solid-phase appears at that point). The corresponding entropy values are material properties, and therefore the classification (being the location of C and M points also material-dependent) is also a material property. However, in several cases, triple points are located in technically irrelevant, low temperatures (like for butane, where it is located at 134.6 K, which is −138.5 °C). Therefore, it might be better to terminate the T-s curve in a technologically more relevant minimal temperature, for example, at the minimum cycle temperature. In ORC applications (with air cooling) this should be done somewhere around (or exactly at) 20 °C (293.15 K). The relevant part of the curve (relevant means that the one above 20 °C) might mimic a novel class; for example, the vicinity of the top of all the T-s diagrams (above point M) looks like a wet, ACZ type curve. For the sake of clarity, sometimes these “relative” classes are distinguished by marking the related points with an upper-case star (*), like A*CZ*M. Since for hybrid solar/geothermal case, usually, 20 °C can be taken as minimum temperature; therefore, both absolute and relative classes are shown in Table 1.

The efficiency values for various maximal and minimal temperature pairs were calculated with MATLAB software; working fluid data were taken from the NIST Chemistry Webbook [25]. On the schematic T-s diagram of a wet working fluid, the blue part represents the saturated liquid state, and the red part represents the saturated vapor state.

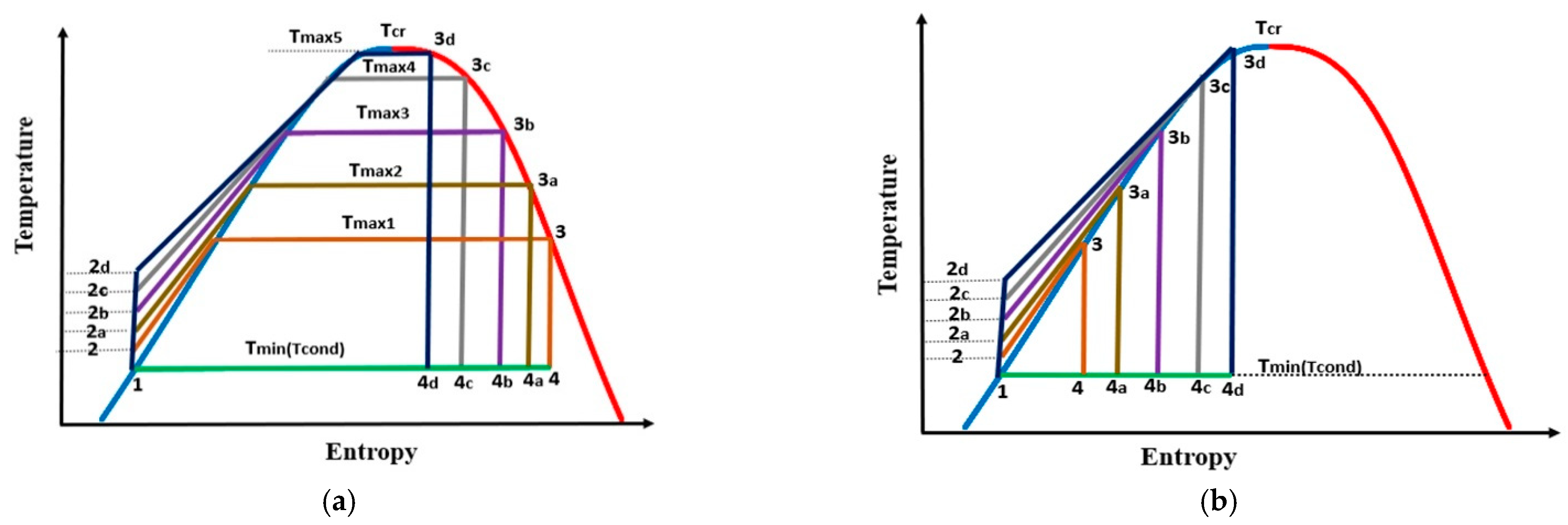

The efficiency calculation for ORC and TFC were done in the manner shown in Figure 3. First, a minimal cycle temperature was chosen (represented by the light green line) and used as condenser temperature. For this given condenser temperature, various maximal temperature values were chosen, up to the critical temperature. For each calculation, the temperature interval between the condenser and maximal temperature was divided into 500 equal part; efficiency values were calculated for all of these 500 points, using them as maximal cycle temperatures. Some of them are shown in Figure 3a, corresponding to the evaporation plateau (ORC) and on Figure 3b, corresponding to the topmost point of the “triangle” (TFC). In this way, the efficiency of the first cycle (1-2-3-4-1) were calculated. After finishing one run, a new minimal temperature was chosen slightly above the previous one (by shifting the green base-line a bit higher), and the calculation was repeated for the cycle (1-2a-3a-4a-1) up to the last one, just one step below the critical temperature, to cycle (1-2d-3d-4d-1). In this way, separate curves representing the Tmax dependence of efficiencies were obtained for different condenser temperature.

Concerning efficiency, the actual values were calculated by using the following equation:

$$\eta =\frac{Q_{in}-Q_{out}}{Q_{in}},$$

(1)

where (concerning the isobaric heat exchanges) the heat added to the system is Q_in = h₃ − h₂ and the heat taken from the system is Q_out = h₄ − h₁; numerical enthalpy values were taken from the NIST Chemistry Webbook [25] as a function of temperature and entropy.

4. Results

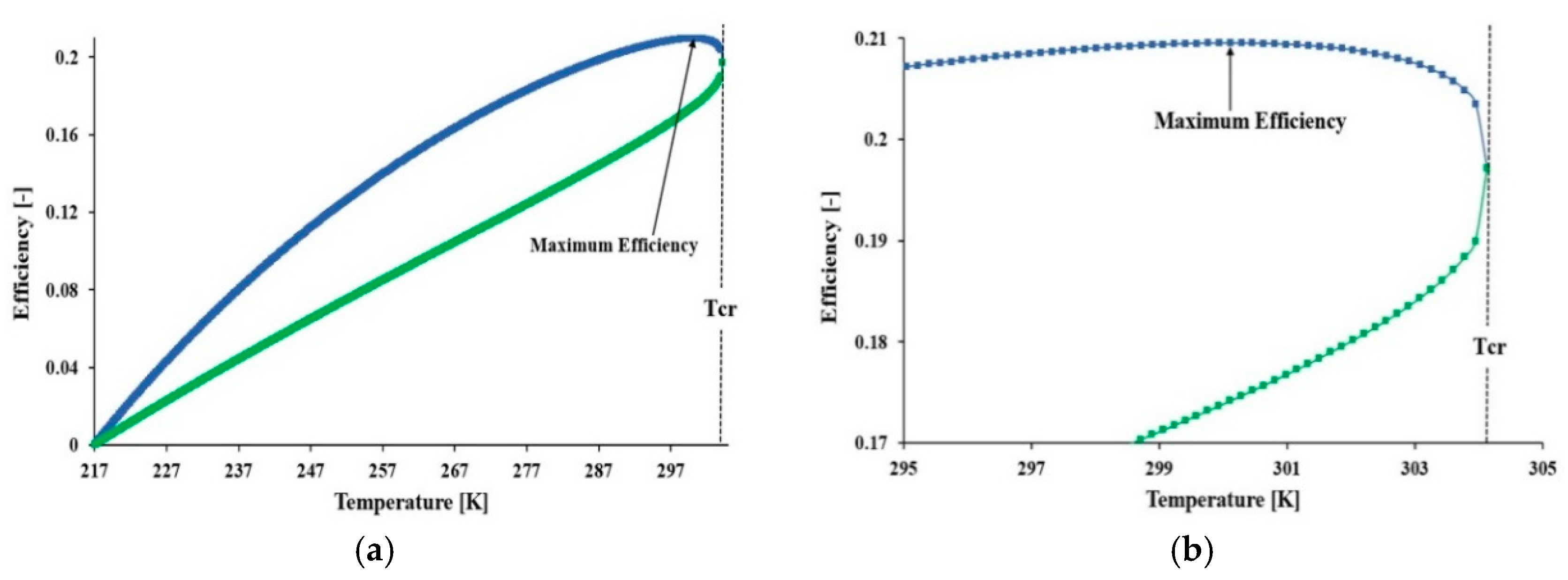

On Figure 4, one can see two efficiency lines for CO₂; upper one (blue) represents the efficiency of the Rankine-like subcritical CO₂ power cycle, while the lower one (green) represents its TFC counterpart. The minimal temperature (condenser temperature) were chosen as the triple-point temperature of the CO₂ (216.6 K), and the efficiencies were calculated up to the critical point (304.13 K). On Figure 4, the whole curve can be seen, while on Figure 4b, the high-temperature region can be seen, showing the well-developed maximum on the upper curve, 4 degrees below the critical point.

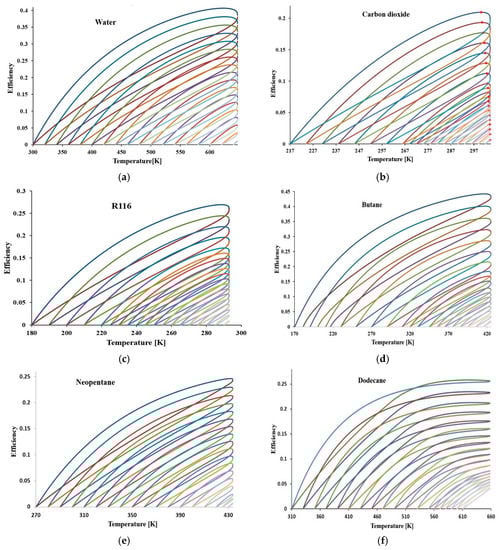

On Figure 5, a set of these curves (approximately 20 for each material) can be seen for all materials listed in Table 1. The first sign of this maximum was found earlier in butane [26]. For water (5a) and carbon dioxide (5b) (two typical wet working fluids), the maxima on all ORC curves are very characteristic. For CO₂, red dots are marking these maxima for better visualization; these points are omitted for the other materials to avoid them to distort the shape of the curves. The increase of the maximal cycle temperature (with a fixed minimal cycle temperature) causes an increase of the efficiency for both cycles (the Rankine and the flash-types, represented by the upper and lower curves). Reaching higher maximal temperatures, the speed of this increase will be lower and lower, and finally a maximum, then a decreasing part can be seen. It means that with a fixed condenser temperature, the increase of maximal temperature has an initially positive effect of the first-law efficiency, but when it is reaching the vicinity of the critical point, this positive effect disappears, and the further increase would be contra-productive. On the contrary, for the TFC-like cycles, the increase holds up to the critical point, i.e., having a TFC-like cycle with a wet working fluid, the increase of maximal cycle temperature always increases the efficiency. In this way, the two curves are forming an elongated rain-drop form; the pointed end is located at the condenser temperature (with η = 0). Increasing the condenser temperature, one can obtain smaller efficiencies; both the upper and lower curves are shifting down, while the location of the maximum (with smaller and smaller value) shift closer to the critical temperature (see the location of the red dots for CO₂), but always remains below that value. The rain-drop shape formed by the upper and lower curves remains, but it will be smaller and smaller. For the sake of the better visibility, the location of the maxima are marked by red dots for the CO₂ curves (Figure 5b); its movement can be clearly seen.

Hexafluoroethane (R116) is originally an almost isentropic working fluid. The T-s diagram has an inverse S-shaped saturated vapor part, which is very narrow, i.e., the entropy value for the vapor phase (except in the vicinity of the critical temperature) is almost constant. In the novel classification system, it is a type ACNMZ. From the mapping of various working fluid types [21], this is an almost wet isentropic fluid. The point M located at 253.5 K, i.e., choosing condenser temperature above this value, R116 acts like a wet working fluid. Point N is located at 220.9 K, i.e., choosing condenser temperature between 220.9 K and 253.5 K, this fluid can mimic a moderately dry working fluid. Efficiency-curves can be seen in Figure 5c. The curves are very similar to the ones seen for water and CO₂; the maxima are still well-developed (although these points are closer to the critical point than for the two wet ones), and the joint ORC-TFC curves are also raindrop-shaped. For this material, one can also say that increasing the maximal cycle temperature has a positive effect on the first-law efficiency, but in the vicinity of the critical point, this effect disappears and changes to negative.

Butane is a moderately dry working fluid; it means that although the T-s diagram is not bell-shaped, but tilted, the titling is not very strong. ORC-TFC efficiency curves can be seen in Figure 5d. Although maxima can be still noticed, they are remarkably less developed than for the previous three materials.

For neopentane (Figure 5e), which has a more tilted T-s diagram that butane (i.e., it is drier), the rain-drop shape is already very distorted, and even the flat end is almost pointed (although the transition from ORC to TFC is still smooth). Very small, nearly diminished maxima can be seen, located very close to the critical temperature. In this case, one can assume, that increase of the maximal cycle temperature is always good or almost neutral for the efficiency. For the uppermost curve, the location of the maximum is only 1.97 K from the critical temperature, and even above this point, the decrease of efficiency is very small, so, one can consider it almost temperature-independent.

Finally, a very dry (on T-s diagram, represented by a very tilted T-s curve) material, dodecane (Figure 5f) were analyzed. One can see, that at low evaporation temperatures, ORC efficiency exceed TFC one, as it happened before, but increasing this temperature further, the difference will be smaller and smaller, and at a given temperature (which depend on the condenser temperature, i.e., different for each pair of curves) it disappears at the crossing of the two curves. Passing that crossing temperature, the efficiency of TFC is higher than for ORC; finally, they will join smoothly at the critical point. In this case, the efficiencies of TFC can form a shallow maximum, close to the critical curve, while the efficiency of ORC increases continuously. Therefore one can conclude, that by using very dry working fluid for an ideal (strictly isobaric heat exchanges and strictly isentropic expansion/compression) basic-layout (recuperator and superheater-free) ORC-system, the increase of maximal cycle temperature can always increase cycle efficiency, even in the vicinity of the critical temperature; additionally, small maxima might be expected for the efficiency of TFC.

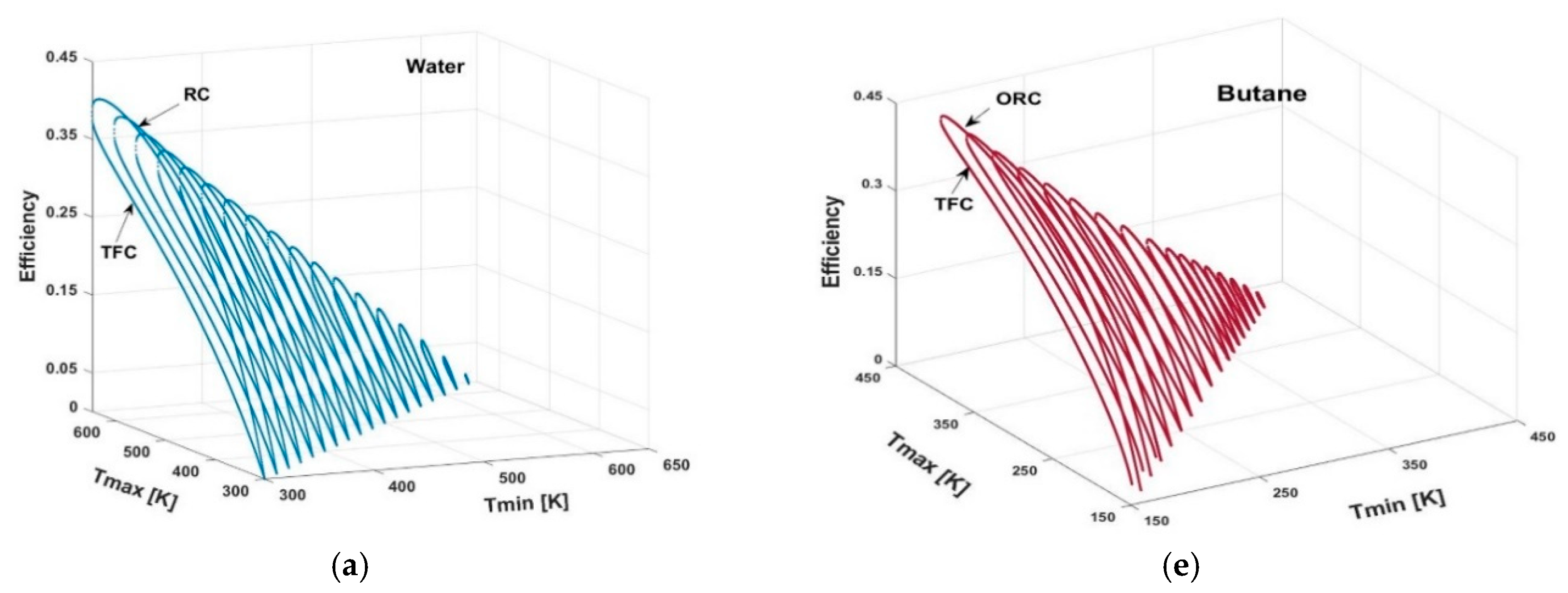

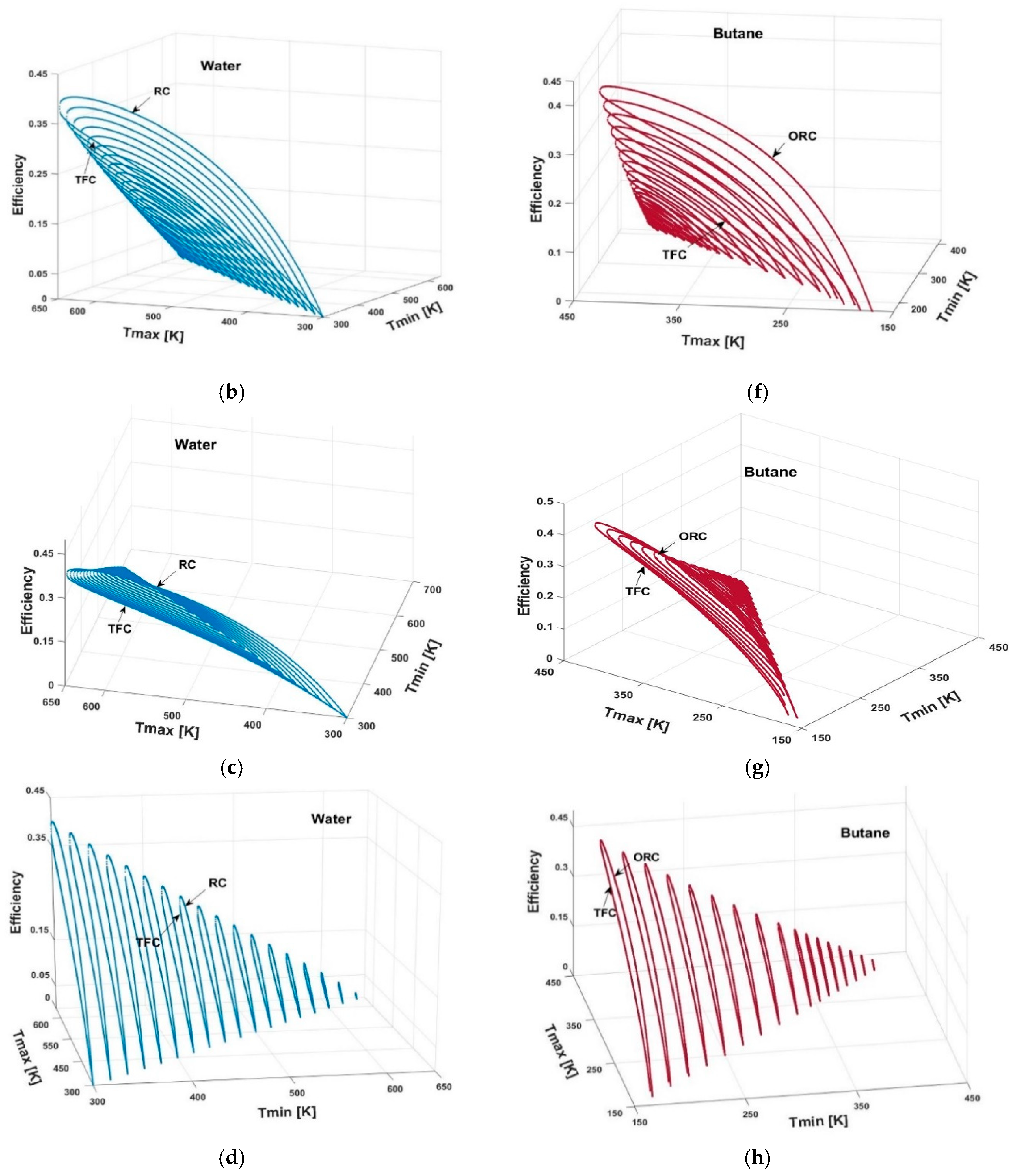

3-D version of these lines for water (Figure 6a–d) and butane (Figure 6e–h) are also shown Rotating animated gif version of these figures are provided as Supplementary Material. The distortion of the initial rain-drop shape can be clearly seen.

5. Theoretical Reason for the Existence and Disappearance of the Maximum

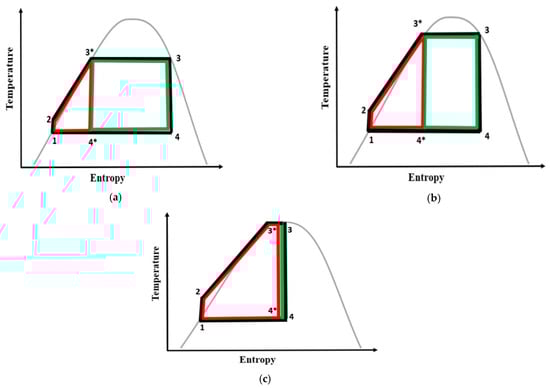

A simple geometrical explanation can be given for the appearance of efficiency maximum in wet working fluids. It can be seen in Figure 7 that the ORC or any other Rankine-like cycle (steam Rankine or CO₂ power cycles) can be seen as a superposition of a TFC-like and a Carnot-like cycles, although this superposition is not simply a summing of efficiencies. The TFC-like part is the one at lower entropies, resembling a triangle, while the Carnot-part (located on higher entropies) is the rectangular one. Considering that the Carnot-cycle is the best potential cycle between the given maximal and minimal temperature, adding it to a TFC, the Carnot-like part always has a positive contribution to efficiency. In this way, for wet working fluids, η_ORC is always bigger, than η_TFC. One can see, that by increasing the maximal cycle temperature (compare Figure 7a,b), the rectangular part will be smaller and smaller, almost diminishing in the vicinity of the critical temperature (Figure 7c), and when T_max = T_cr, it disappears, and the TFC and ORC cycles will be indistinguishable. Therefore, at T_max = T_cr, η_ORC = η_TFC, and the transition will be smooth and continuous.

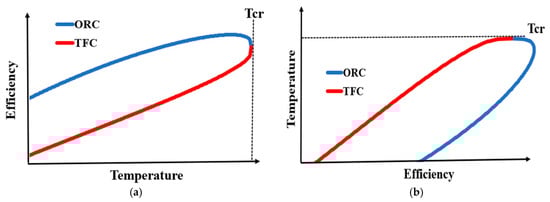

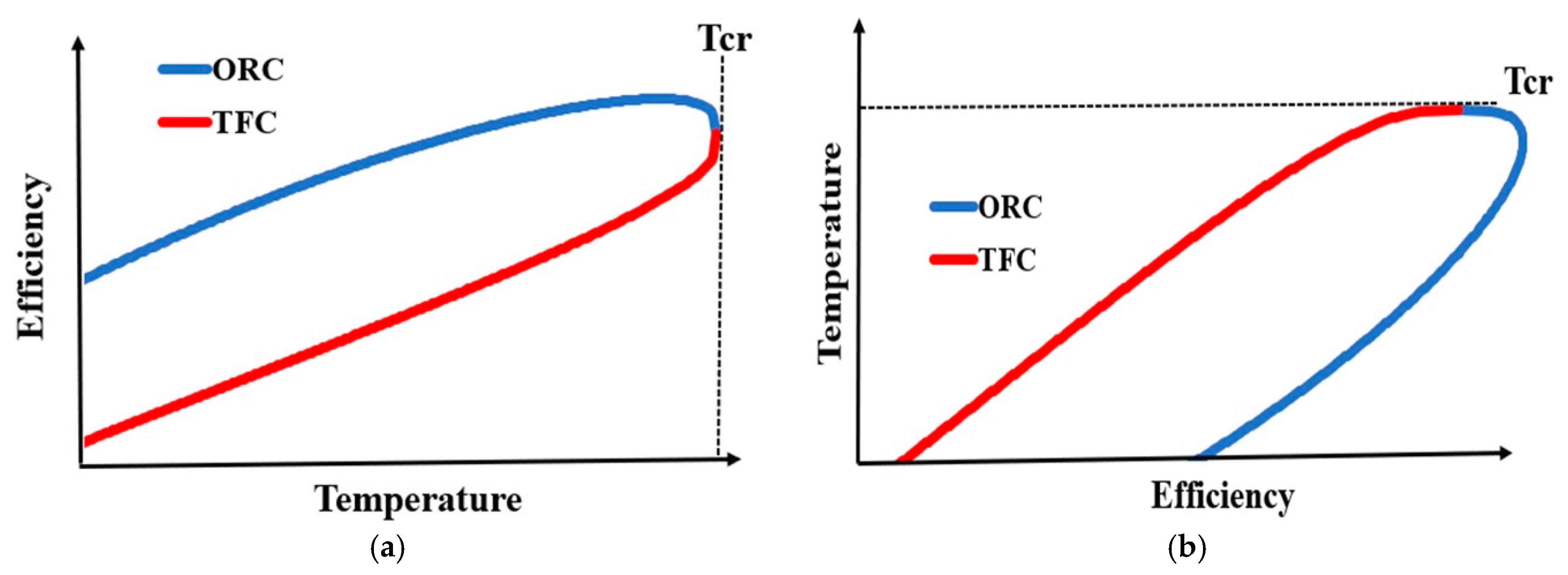

This smoothness and continuity affect the shape of the efficiency-temperature curve. Previously we used T-η curves, here, for a short time, the inverse should be used, the η-T one (see Figure 8). Being η_ORC > η_TFC for wet working fluids at every temperature, except T_cr, the low-entropy part (left side) represents the TFC, and the high-entropy part (right side) represents the ORC. In this representation, the two curves have to have end-points at the maximal temperature (T_cr). Continuity causes the equality of the two efficiencies at T_cr, i.e., the two curves have to join in this point, i.e., instead of two end-points, they will have one common end-point. Due to the smoothness, the derivative dT/dη will be zero in this point; therefore, this will be a smooth maximum with positive dT/dη on the left side and negative dT/dη on the right one. It should be recalled, that the left side represents the efficiency of ORC; being dT/dη positive on the original, T-η representation, this part would show negative slope. Therefore, in the vicinity of T_cr, the smooth and continuous transition between ORC and TFC cycles would cause a part, where efficiency decreases with increasing temperature. Contrary, at lower temperatures, one can see an increasing part; this can be possible only by assuming a maximum on the η(T) curve of the ORC.

One should remember that a strong point of this reasoning was to handle ORC as a superposition of a TFC-like and a Carnot-like part. While this is true for the wet working fluid (Figure 9a), in a dry one, a third part, resembling a distorted, upside-down, inverse TFC, can also be defined, see Figure 9b–d. This part is also less efficient, that a Carnot-like one. Increasing the “dryness”, i.e., having more and more tilted T-s diagrams and going from ACZM to AZCM class [23], the weight of the middle Carnot-like part will be smaller and smaller. Finally, this part can completely disappear.

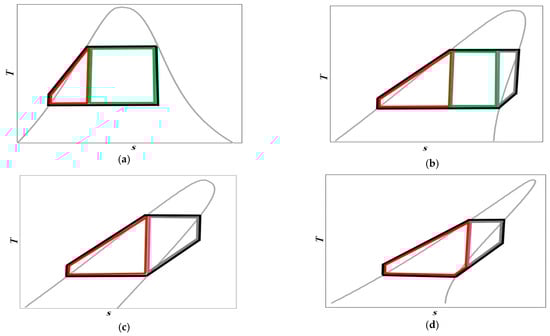

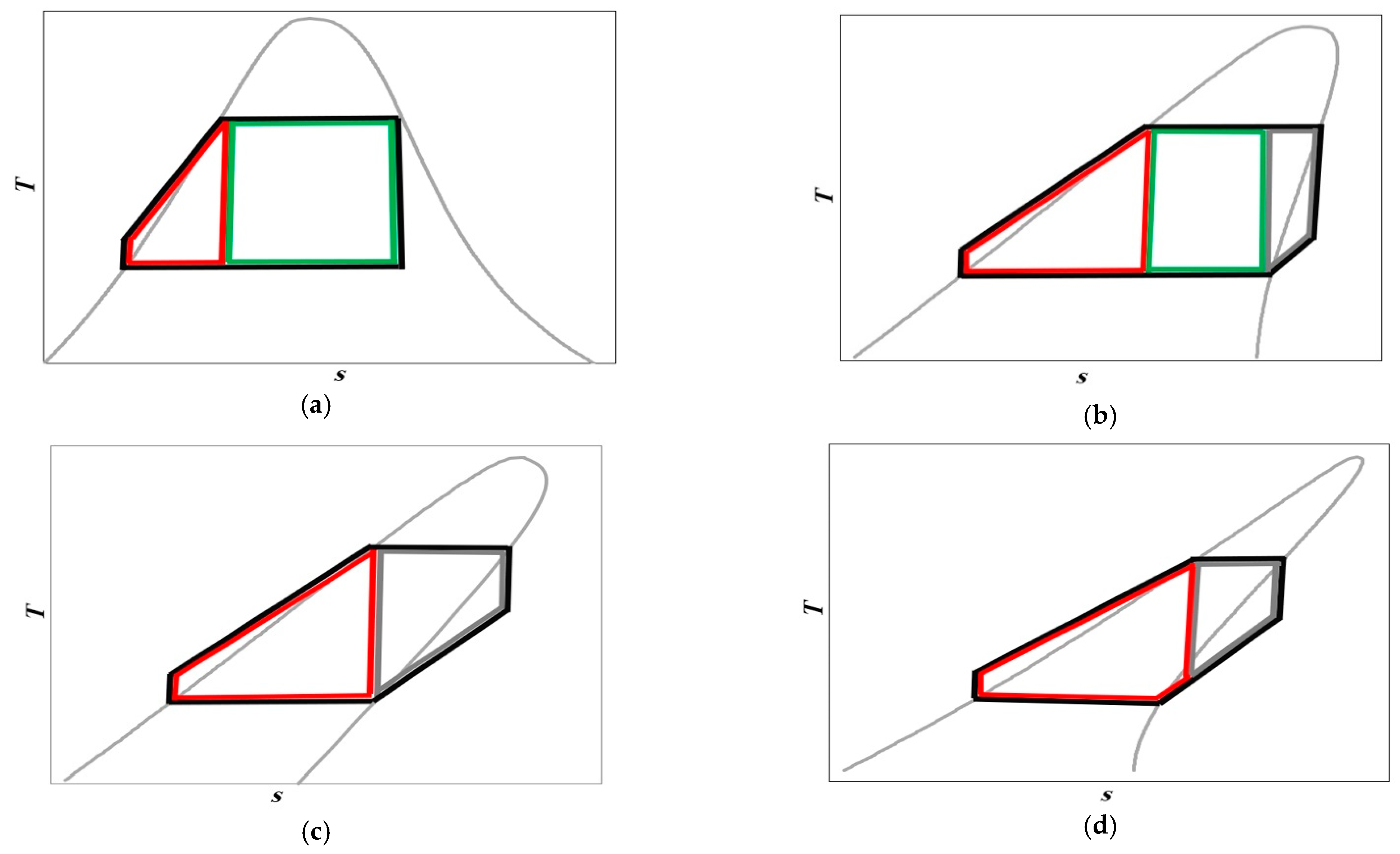

This process can be seen in detail in Figure 9a–c. With wet working fluid (a), the ORC can be seen as a superposition of an almost perfectly triangular TFC (red) and an ideal Carnot (green) cycles, as it has been shown before (Figure 7). For moderately dry one (b), a third part (grey) appears, located at higher entropies, resembling a distorted upside-down TFC. The appearance of this part makes the Carnot-like part narrower, decreasing its superficial contribution to net first-law efficiency. For medium dry one (c) the isobaric, but not isothermal part of the heat removal is already so significant, that the Carnot-like part totally disappears and the cycle will be the superposition of an almost triangular TFC-like and an upside-down TFC-like part; because the Carnot-part disappeared, one might expect that net efficiency might be smaller than previously. Finally, with a very dry working fluid, the isobaric heat removal part preceding the condensation will be so huge, that it will reach the initial TFC-like part, cutting down the corner and terminating the “triangularity” (Figure 9d).

Because this transition happens with increasing dryness, one can expect to see the similar process by going from wet (water, CO₂) through isentropic (R116), moderately dry (butane) and dry (neopentane) working fluids to very dry one (dodecane). Upon this transition, the maximum will be less and less significant, and finally, it can disappear, as it is shown for dodecane.

6. Discussion and Conclusions

The increase of the maximal cycle temperature (which is equal to the evaporator temperature in ideal, simple, superheater-free systems) is thought to be a good way to increase the first-law efficiency in simple cycles, like steam Rankine, Organic Rankine and CO₂ power cycles, although there are signs, that problems might arise when this increase reaches the vicinity of the critical point. Some of the problems related to the properties of the materials in this region; there are significant density fluctuations, causing strong local anomalies; also, the accuracy of the Equation of States can be reduced in this region [27,28]; this can also produce problems during design and in the operational phases. Also, from the technical point of view, high evaporation temperatures, especially for dry working fluids, are also not very favorable [29,30]. For example, choosing the evaporation temperature above the temperature of local entropy maximum (the so-called point M), expansion starts in the wet region, even in dry fluids; therefore, droplets can be formed during the early stage of the expansion, causing troubles in the special “dry” expanders.

Here, we approached the problem of the increase of maximal cycle temperature from a purely thermodynamic side, by determining its effect (with fixed condenser temperature) on the first-law efficiency. Efficiencies for six different materials with increasing dryness (water, CO₂, R116, butane, neopentane and dodecane) were evaluated. Although anomalies were expected to be seen for dry working fluids [29,30], surprisingly, a very strange effect was seen for wet working fluids, namely the appearance of an efficiency maximum on the efficiency of the Rankine-like cycle (first seen for butane [26]), located close to the critical temperature. The location of the maximum depends on the condenser temperature as well as on the material. For water, taking the smallest possible condenser temperature (the triple point temperature, 273.16 K), the maximum appears 24.6 K below the critical point, while increasing the condenser temperature, it can approach the critical point. For CO₂, R116 and butane, the biggest distance between the location of the maximum from the critical point is in the order of 5–10 K (8.68 K for butane, 4.01 K for CO₂ and 4.53 K for R116); for neopentane, it is 1.97 K, and finally, for dodecane, no maximum can be seen. Concerning reduced temperatures, the biggest distances between the entropy maximum and the critical points are 0.038 (water), 0.013 (CO₂), 0.015 (R116), 0.020 (butane) and 0.005 (neopentane). Since for most real ORC and RC power plants, the operational temperature is not very near to the critical temperature; therefore, technologically, the existence of the maxima are relevant only for two cases (for water, where the maximal distance between the critical temperature end efficiency maximum is almost 25 K, and for butane, where this difference is almost 9 K). For the rest of the presented working fluids, the relevance is rather theoretical than technical. However, one might assume that the temperature differences will be sufficient to have technological importance for some of the not presented wet working fluids.

The presence of these maxima can be clearly shown for several systems by comparing the efficiency of a Rankine-like cycle with a Trilateral Flash-like Cycle (TFC). Some theoretical explanation is also given to see, that for very dry working fluids (like dodecane), the disappearance of this maximum can always be expected for simple, Rankine-like cycles, using only the basic Rankine-layout (pump, liquid heater with evaporator, expander and condenser), without recuperative unit.

The existence of the efficiency maximum for various working fluids is a disproof of the common misconception that the increase of the maximal cycle temperature always has a positive effect on first law efficiency for simple thermodynamic cycles. This disproof is interesting itself, as a strange thermodynamic fact, but also, it can give a new tool for engineers to find optimal cycle temperature for an ORC (or similar) power plant, by designating a temperature range, where a further increase of the evaporation temperature would be contra-productive.
