Thermal Analysis of Energy Storage Capacity According to Thickness of Nickel/Chromium Alloy Layer

Abstract

This paper examines a microconstruction consisting of nickel (Ni)/chromium (Cr) alloy thin-film. The total length of the microconstruction was 28 mm, the width was 0.2 mm, and the height was designed to be 1 μm. A thin-film of Ni/Cr alloy was co-sputtered on a silicon dioxide wafer patterned with photoresist via a RF magnetron sputtering system. The RF power ratios applied to the 4 inch target of Ni and Cr were 300 W:100 W (3:1), 300 W:150 W (2:1), and 150 W:150 W (1:1). The electrical resistance of the manufactured microconstruction was calculated and measured through Hall measurements. The temperature generated by applying 1–10 V to the microconstruction electrode was observed by using an infrared camera, and was summarized using a linear equation according to the power applied to each sample.

1. Introduction

Device miniaturization through microfabrication leads to the development of new functions and performance [1,2,3]. Microconstruction, which is the aggregate of microfabrication, is frequently used in applications such as gas sensors, biosensors, micro explosive boiling, and flow rate sensors [4,5,6,7,8]. Acquiring the target temperature generated by a Joule heating-based microconstruction requires materials that have low resistivity, a low coefficient of thermal expansion, and homogenous temperature distribution [9,10,11]. Microconstructions of platinum (Pt) or gold (Au) are robust, stable and can provide a wide temperature range because they have a low coefficient of thermal expansion (Pt: 8.8 ppm/K, Au: 16.5 ppm/K) and resistivity (Pt: 10.9 μΩcm, Au: 2.40 μΩcm) [12,13,14,15]. However, these materials are too expensive to be used as targets for sputtering systems, which is an important part of the microfabrication process [16]. Nickel (Ni) and chromium (Cr) are relatively low-cost targets that could replace these metals. The Ni thin-film has lower resistivity (6.84 μΩcm) than Pt and a lower coefficient of thermal expansion than Au (Ni: 13 ppm/K) [15]. The Cr thin-film has higher resistivity (12.9 μΩcm) but a lower coefficient of thermal expansion (6 ppm/K) than Pt and Au [15]. A composite of these two materials, which both have good properties, Ni/Cr alloy thin-film, could have several useful resistivity and mechanical properties. A microconstruction based on Ni/Cr alloy thin-film by co-sputtering could be an excellent alternative to expensive Pt or Au.

In this paper, a microconstruction consisting of Ni/Cr alloy thin-film was fabricated. First, photoresist (PR) was applied as a meander-shaped pattern on a cleaned silicon dioxide (SiO₂) wafer. After that, Ni and Cr were co-sputtered on the PR-patterned SiO₂ wafer by applying different RF power. Ni/Cr alloy thin-films deposited on the PR were lifted-off in acetone solution. The surface properties of the fabricated Ni/Cr alloy thin-films were observed. The resistivity of the prepared samples was confirmed through Hall measurements, and the calculated resistance was compared with the actual resistance. The heating characteristics were confirmed by applying 1–10 V to the microconstruction electrode and these were expressed as a linear regression equation.

2. Experiment

2.1. Microconstruction Design

Ni/Cr alloy, which is low-cost, stable, and robust, was selected as the electrode material for microconstruction. The microconstruction by Joule heating follows Equation (1).

P = V ∙ I

(1)

where V is the voltage applied to the microconstruction electrode, I is the current according to the voltage, and P is the heating power. The I changes according to the resistance (R) of the thin-film microconstruction and the V applied thereto. Therefore, by employing Ohm’s Law, Equation (1) can be reorganized into Equation (2).

P = V ∙ I = V²/R

(2)

From Equation (2), it can be inferred that the lower R, the higher P. Since R depends on the design of the microconstruction, the power consumption can be induced through the intentional R. The R of the thin-film microconstruction is as follows:

R = ρL/wt

(3)

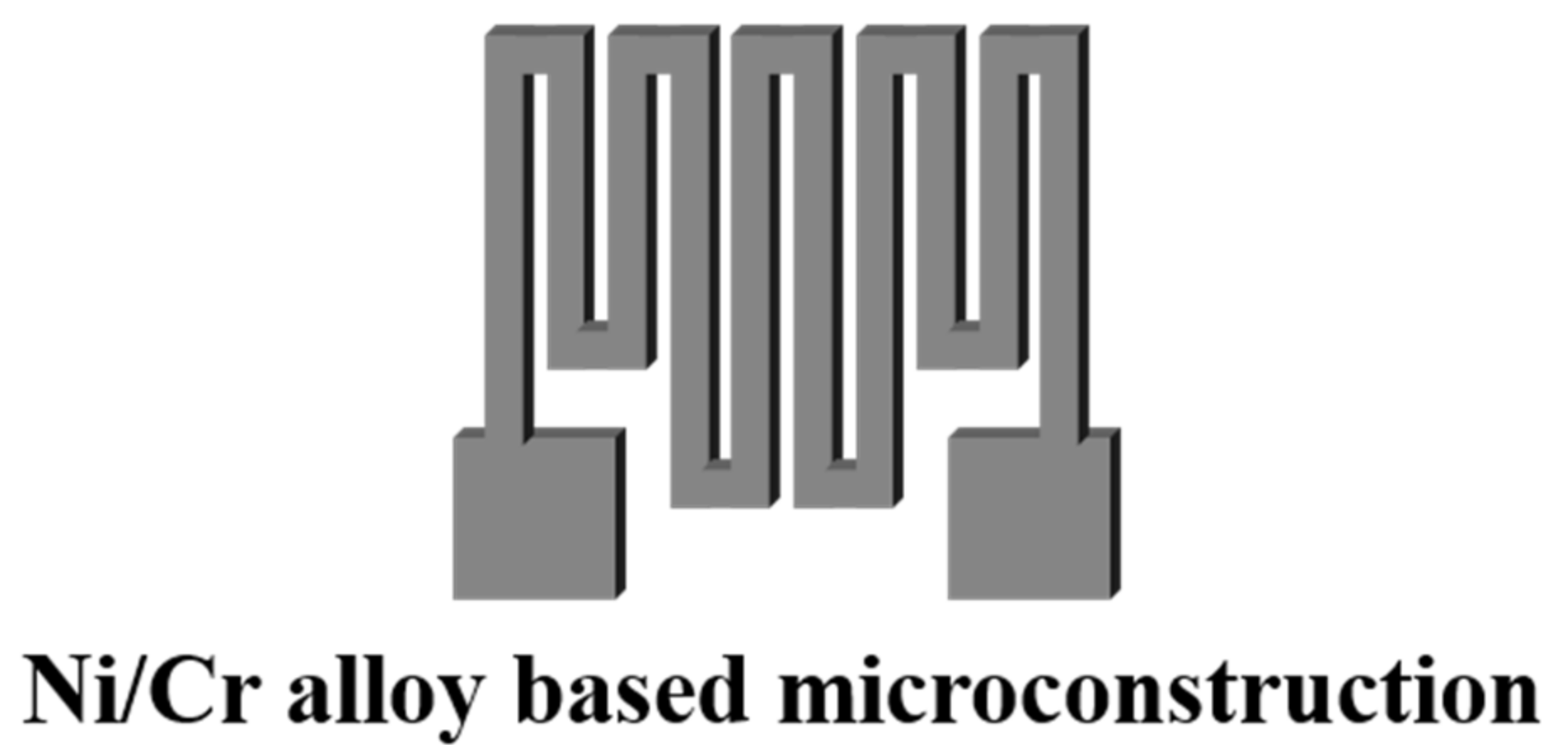

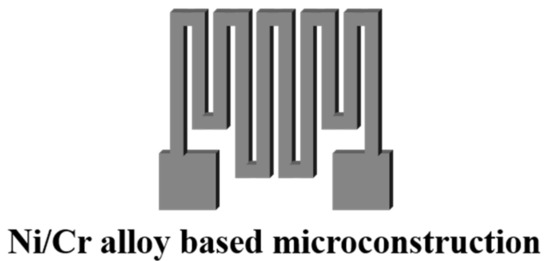

where ρ is the resistivity of the materials, and L, w and t are the total length, width, and thickness of the thin-film microconstruction, respectively. Several R-values can be obtained by adjusting these parameters. Figure 1 shows the structure of the patterned microconstruction used in this paper, and the designed L, w and t were 28 mm, 0.2 mm, and 1 μm, respectively.

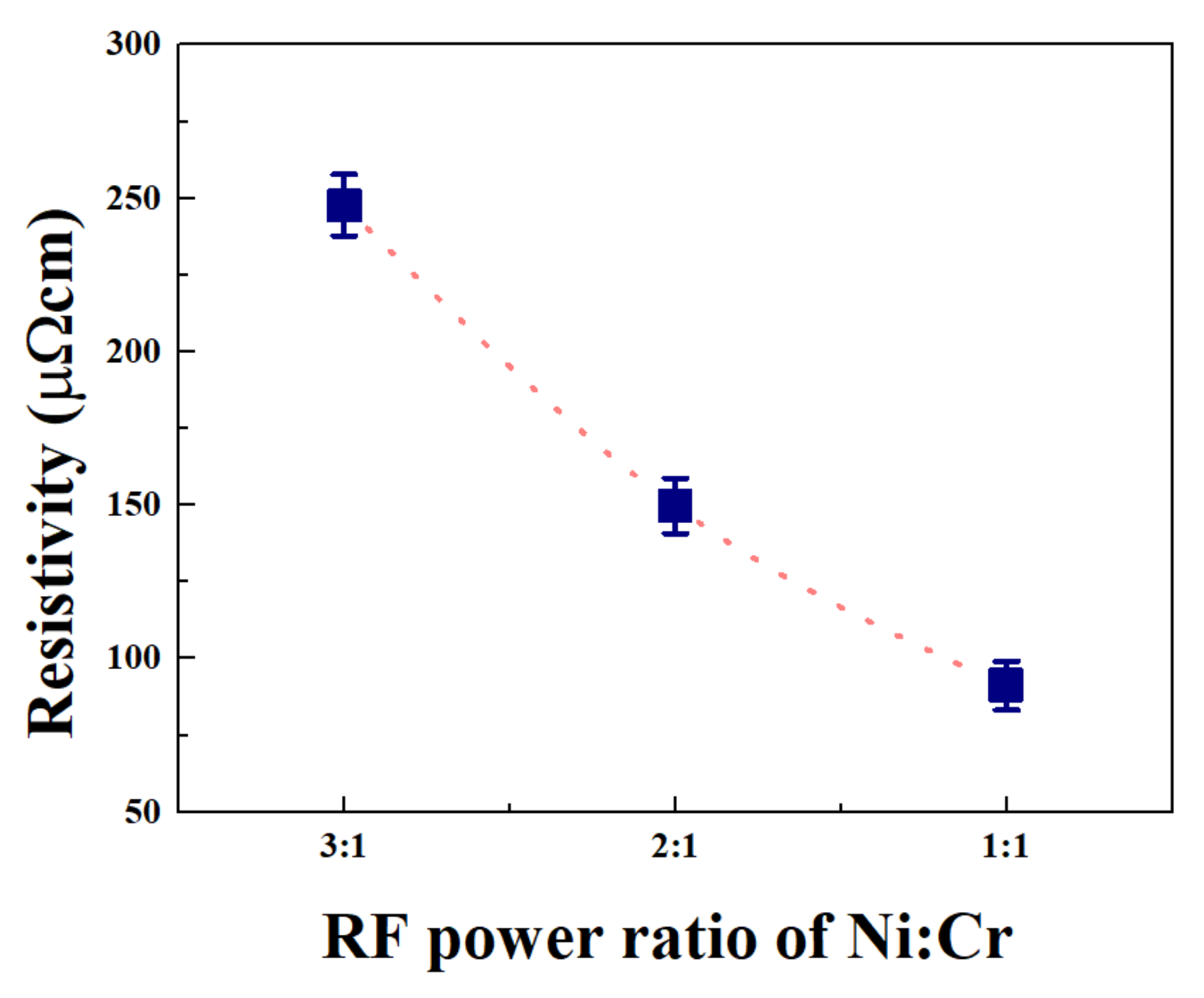

As shown in Figure 2, the ρ of the samples was observed through Hall measurements. When the RF power ratio applied to the 4 inch Ni and Cr targets was 3:1, 2:1, and 1:1, the ρ values were 247, 150, and 91 μΩcm, respectively. It was observed that ρ decreased as the RF power applied to the Cr target increased [17]. The R of the samples was obtained by substituting the designed L, t, and w in Figure 1 and the ρ values of each material in Figure 2 into Equation (3). The calculated R values are summarized in

Table 1. Characteristics of the designed microconstruction.

RF Power Ratio (Ni:Cr)	L (mm)	w (mm)	t (μm)	ρ (μΩcm)	R (Ω)
3:1	28	0.2	1	247	346
2:1	28	0.2	1	150	210
1:1	28	0.2	1	91	127

.

2.2. Microconstruction Fabrication

The starting material, a 4 inch SiO₂ wafer (100, wet-3000 Å) was sonicated in the following order: trichloroethylene (purity of ≥99.5%), acetone (purity of ≥99.5%), methanol (purity of ≥99.8%), and deionized water (≥18.2 MΩ∙cm @25 °C) for 10 min each. PR (AZ GXR-601 46cp) was patterned on the cleaned SiO₂ wafer through a photolithography process. The Ni/Cr alloy thin-film was deposited on the PR patterned wafer through a RF magnetron sputtering system.

Table 2. RF magnetron sputtering system conditions for co-sputtered Ni/Cr alloy thin-film.

Parameter	3:1 Sample	2:1 Sample	1:1 Sample
RF power (W)	300 W:100 W	300 W:150 W	150 W:150 W
Deposition time	38 min 20 s	22 min 30 s	50 min

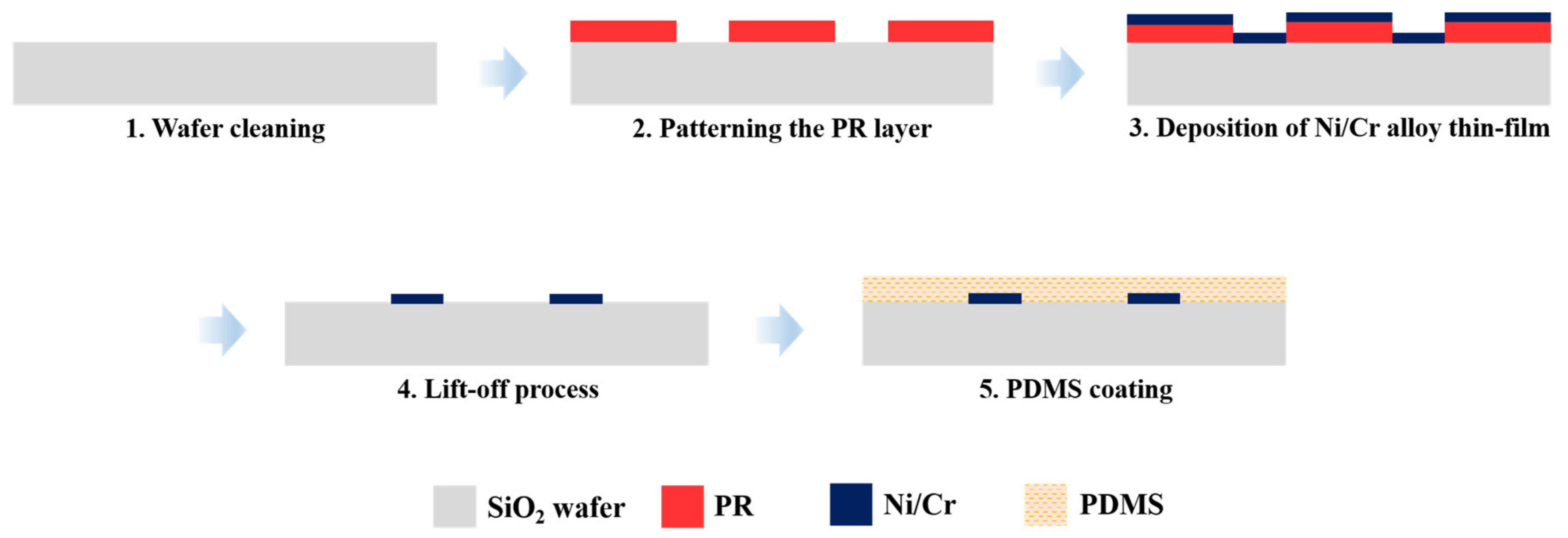

shows the specific deposition conditions for the Ni/Cr alloy thin-film samples. All samples were deposited at room temperature with a working vacuum of 1.5 × 10⁻² Torr by injecting 60 sccm of argon gas. The reason for the different deposition times is to obtain t of 1 μm. After the deposition of the Ni/Cr alloy thin-film was completed, the designed microconstruction was obtained through the lift-off process. Finally, polydimethylsiloxane (PDMS), which is used as a protective film, was spin-coated. Figure 3 shows the fabrication process of a Ni/Cr alloy thin-film based microconstruction.

2.3. Characterization and Measurement

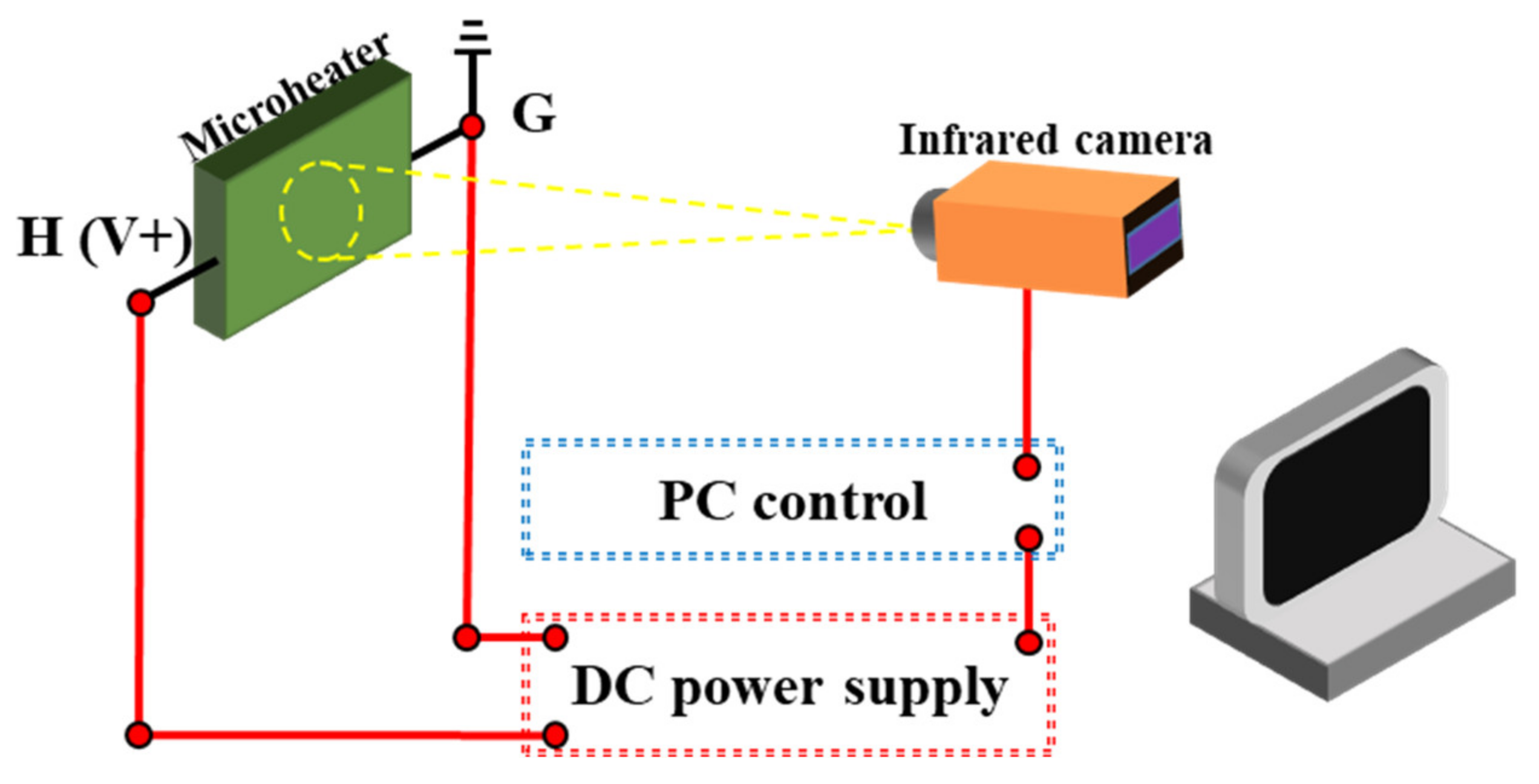

The prepared samples were cut into samples measuring 2 × 2 cm². The surface characteristics of the manufactured microconstruction were observed through field emission scanning electron microscope (FESEM, HITACHI, S-4800) with a 10 kV accelerating voltage. The heating characteristics of the microconstruction were confirmed by applying 1–10 V as shown in Figure 4. The temperature according to the applied power was obtained through the infrared camera. The relationship between the heating temperature (y) and the applied power (x) was summarized. The ambient temperature was about 15 °C and the humidity was 70% during the measuring process.

3. Results and Discussion

3.1. Surface Characterization of Microconstruction

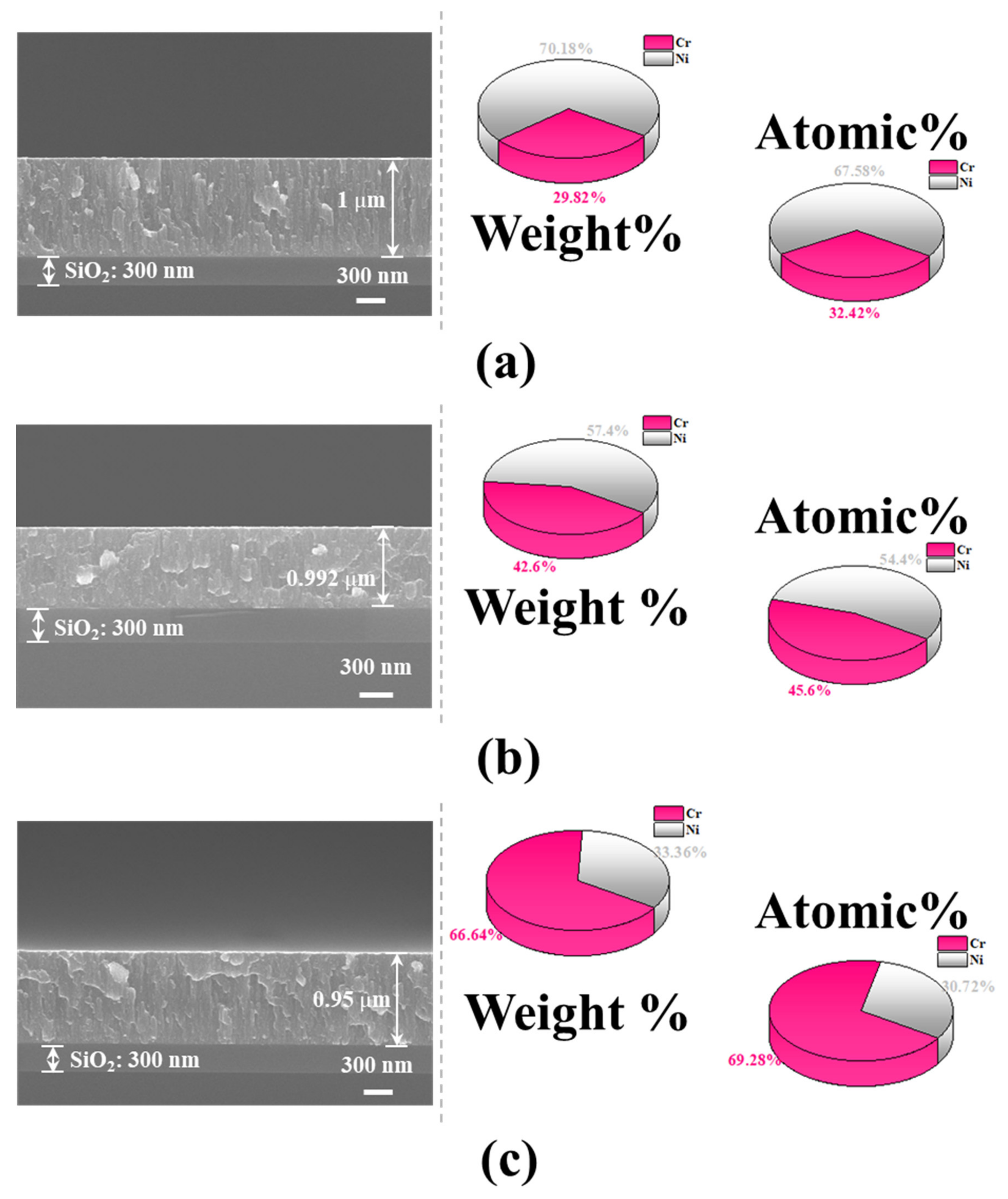

The FE-SEM cross-sectional image and EDS analysis were used to investigate the surface characteristics of the fabricated microconstruction with various components of Ni/Cr. Figure 5a shows the surface characteristics of the 3:1 sample. It was observed that the height of the 3:1 sample coincides with the thickness (1 μm) required. The result of EDS analysis, independent of the determination of the RF power as 3:1, showed that the composition ratio of Ni and Cr atoms was close to 2:1 (Ni/Cr: 70.18 wt%/29.82 wt%; Ni/Cr: 67.58 at%/32.42 at%). Figure 5b displays the surface properties of the 2:1 sample. The height of the Ni/Cr thin-film in the 2:1 sample (0.992 μm) differs from our desired height by about 8 nm, so, the measured actual resistance is 211.69 Ω with an error rate (Err) of 0.8%. According to the results of EDS analysis, its composition ratio was 57.4 wt% (54.4 at%) for Ni atoms and 42.6 wt% (45.6 at%) for Cr atoms. The 1:1 sample exhibits the largest Err (5%) because the measured thickness (t_mea) was about 950 nm and through the surface characteristics, as shown in Figure 5c. The composition ratio of Ni and Cr atoms in the 1:1 sample was 1:2 (Ni/Cr: 33.36 wt%/66.64 wt%; Ni/Cr: 30.72 at%/69.28 at%). Overall, the thickness of the SiO₂ layer, which is under the Ni/Cr thin-film, was 300 nm. In addition, as the RF power applied to the Cr target increases compared to Ni, the composition ratio of Cr atoms in the sample increases. When the same RF power is applied to both targets (1:1 sample), the composition ratio of Cr atoms was higher.

Table 3. Characteristics of measured Ni/Cr alloy thin-film microconstruction.

RF Power Ratio (Ni:Cr)	tmea (μm)	Rreq (Ω)	Rmea (Ω)	Err (%)
3:1	1	346	346	0
2:1	0.992	210	211.69	0.8
1:1	0.95	127	133.68	5

summarizes the Err from the height difference between the designed microconstruction and the measured samples.

3.2. Heating Characteristics of Microconstruction

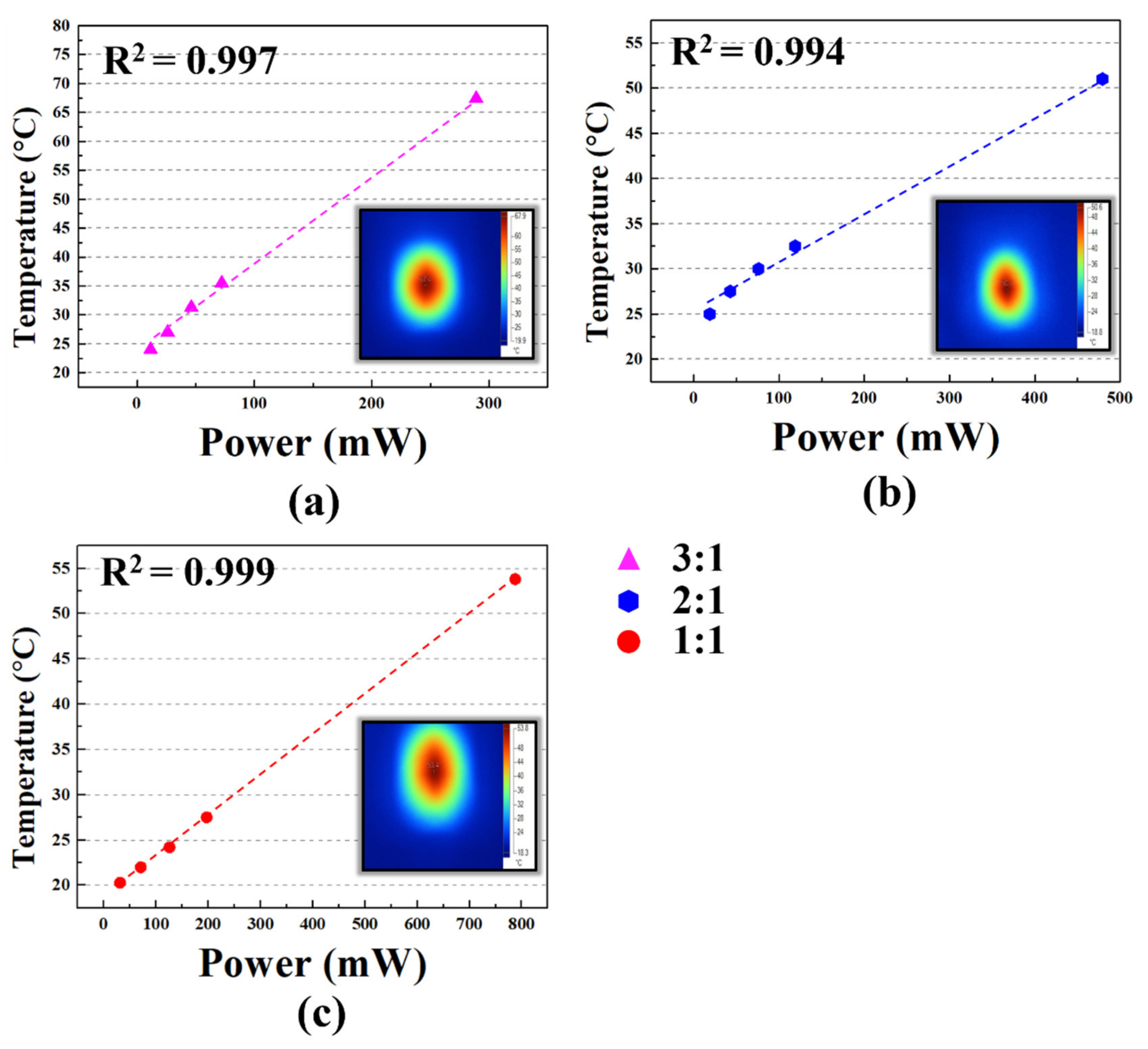

The heating temperature in Joule heat-based microconstructions can be inferred according to the resistance of the material and the applied voltage. Figure 6 shows the heating characteristics of the samples. The heating characteristics of the 3:1 sample (Figure 6a) appear to have the highest heating temperature even though it has the lowest conductivity among the samples, as summarized by the following equation:

y(°C) = 0.1533x(mW) + 23.39

(4)

where y is the generated temperature (°C) and x is the applied power (mW). When 10 V (289 mW) was applied to the microconstruction electrode, the obtained temperature was 67.4 °C. Figure 6b displays the heating characteristics of the 2:1 sample. The infrared camera inset image shows that it is 50.3 °C at an applied voltage of 10 V (472.4 mW). The exothermic characteristics of the 2:1 sample is as follows:

y(°C) = 0.0544x(mW) + 25.185

(5)

Figure 6c shows the heating characteristics of a 1:1 sample, which was 53.4 °C when the applied voltage was 10 V. The heating characteristics of a 1:1 sample can be summarized in the following equation:

y(°C) = 0.0444x(mW) + 18.781

(6)

All samples had a linear temperature according to the applied power, and the accuracy of linear regression lines (Equations (4)–(6)) was high because the coefficient of determination (R²) was distributed in the range of 0.993 to 0.999. In addition, the slope of the linear regression was reduced as the ratio of Cr in the Ni/Cr alloy thin-film microconstruction increased.

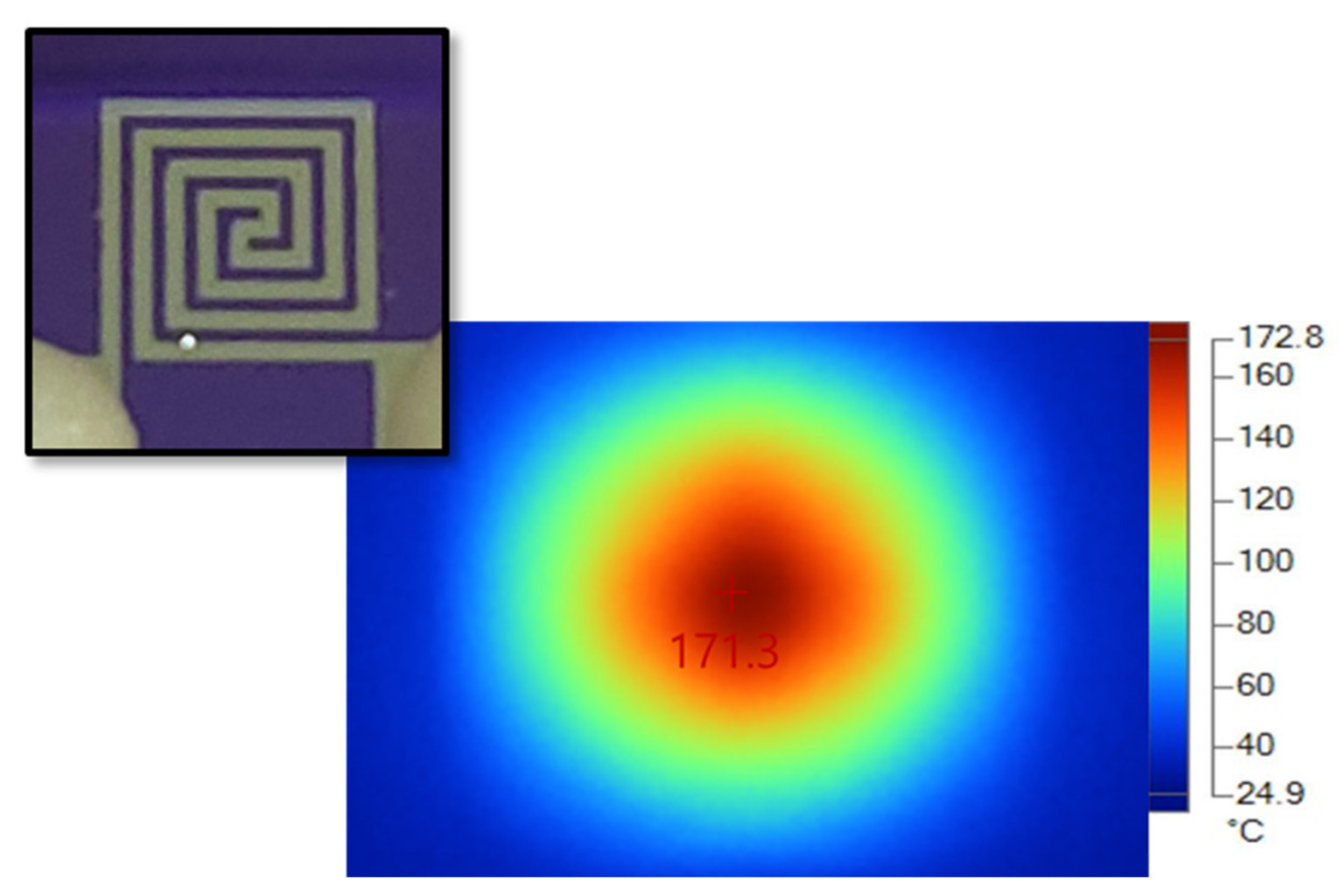

We redesigned the 3:1 sample to fabricate a microconstruction with a resistance of 100 Ω. Figure 7 shows the actual image of the manufactured microconstruction and the infrared camera image of the temperature (171.3 °C) when 10 V was applied. The manufactured microconstruction was designed with total length of l, thickness of t, and width of W. The actual resistance of the microconstruction measured with a multimeter was 103.63 Ω. When the measured resistance was substituted in Equations (2) and (4), the temperature was 171.2 °C. Therefore, there was no significant difference between the measured and calculated temperature. It is expected that the desired target temperature can be obtained by designing the RF and applied power because of the high R² of the samples. Kang et al. reported that the electrical resistances of a Pt-based microconstruction were 127 and 171 Ω at 25 °C and 150 °C in the temperature oven, respectively [13]. Compared to Pt-based microconstruction, nickel–chromium alloy-based microconstruction have lower resistance and higher temperatures were confirmed. Therefore, it is more advantageous to use a cheaper nickel–chromium alloy-based microconstruction to achieve a higher temperature.

4. Conclusions

Pt and Au are high-cost materials that are used as targets for sputtering systems, which are important in microfabrication processes. We studied whether Ni and Cr could be used as alternative targets to lower the costs. In order to fabricate the Joule heat-based microconstruction, thin-film composed of Ni/Cr alloy was co-sputtered on a SiO₂ wafer via a RF magnetron sputtering system. The ratio (Ni:Cr) of RF power applied to both targets was 3:1, 2:1, and 1:1. As a result of co-sputtering, it was observed through EDS analysis that when the same RF power was applied, more Cr atoms were deposited than Ni atoms. In addition, electrical conductivity improved as the RF power applied to the Cr target increased, compared to the Ni target. However, the 3:1 sample, which had the lowest electrical conductivity, had the best heat generation characteristics. The 3:1 sample was redesigned to generate high temperatures (171.3 °C) when 10 V was applied. Surprisingly, the desired temperature was achieved with the designed resistance due to the high accuracy the linear regression equation. The co-sputtered Ni/Cr alloy thin-film microconstruction fabricated through a RF magnetron sputtering system can be designed to achieve target temperatures. Ni/Cr alloy thin-film manufactured through co-sputtering could be an excellent replacement for expensive Pt or Au.
