Study of Enhanced Oil Recovery and Adsorption Using Glycerol in Surfactant Solution

Abstract

Over time, oil production in a reservoir tends to decrease, which makes it difficult to flow through the reservoir to the well, making its production increasingly difficult and costly. Due to their physical properties, such as reducing the water/oil interfacial tension, surfactants have been used in enhanced oil recovery (EOR) processes, however, their adsorption presents as an undesirable and inevitable factor and can decrease the efficiency of the method. This work’s main objective is to evaluate the effect of glycerol in the adsorption of surfactants in sandstones, as well as in the recovery factor during EOR. Brine solutions containing the nonionic surfactant saponified coconut oil (SCO), with and without glycerol, were used in the adsorption and oil recovery tests in sandstone. Adsorption, recovery, rheological, and thermogravimetric analysis were carried out. Regarding the surfactant/glycerol/brine solution, there was an improvement in the oil mobility, as the glycerol contributed to an increase in the viscosity of the solution, thereby increasing the sweep efficiency. The recovery factor obtained for the surfactant solution with glycerol was satisfactory, being 53% higher than without glycerol, because it simultaneously provided an increase in viscosity and a decrease in interfacial tension, both of which are beneficial for the efficiency of the process.

1. Introduction

The oil reservoir’s production time is divided in conventional recovery and enhanced recovery. In conventional recovery, it is observed that the formation’s own energy, combined with the pumping of fluids without any chemical reaction with the reservoir’s oil, is applied in extraction. While, in enhanced oil recovery, particular mechanisms take place, in order to partially maintain the formation’s energy. Enhanced oil recovery (EOR) aims to further increase the recovery factor by injecting displacing fluids to modify the formation’s conditions and displacement mechanism [1,2,3].

In conventional oil recovery processes, water or natural gas is used as the injection fluid. The injected water can be aquifer water, collected in subsurface springs through wells drilled for this purpose; surface water, collected in rivers, lakes, etc.; seawater; or water that is a naturally occurring byproduct in extraction. However, before being injected, the water must be subjected to a treatment, in order to make it more suitable for the reservoir and the fluids in it [4,5].

In studies done to increase oil recovery (enhanced oil recovery (EOR)), several methods of advanced oil recovery are used. In some, only the formation’s pressure is used to increase recovery, others use the water injection process, and, in others, miscible techniques are the most used.

The EOR methods aim to improve two limiting aspects of recovery: the viscosity of the injected fluid and the high interfacial tension between the reservoir’s fluids [5]. If there is a high discrepancy between the viscosities of the injected and displaced fluids, the first will be automatically moved more easily, generating preferential paths in the porous medium and moving quickly into the production wells. Therefore, the injected fluid does not properly sweep the reservoir, leaving large volumes of the porous medium, where the displacement is not processed [3,5].

In the case of high interfacial tension, the potential of the injected fluid to remove reservoir oil from the porous medium is very low, leaving large amounts of oil where the injected fluid has already been in contact, thus resulting in low displacement efficiencies. The interfacial tension, of physical–chemical nature plays an important role in the interactions between rock and fluids, having variable intensity, according to the type of the components [5].

The application of surfactants in EOR has been widely used, since it presupposes a certain chemical reaction between the injected fluids and the reservoir’s fluids. The surfactant has the purpose of reducing the interfacial tensions between water (brine) and oil, which is a thermodynamically fundamental property of an interface, increasing the displacement efficiency, due to the fact that the interfacial tension is a measure of miscibility [4,5]. Unlike the injection of immiscible fluids, which present a purely mechanical displacement behavior with fewer recovery factors, due to the presence of high interfacial tensions.

One way to solve the problems of low sweep efficiencies—due to the difference in viscosity of the injected and displaced fluids—and of the high interfacial tensions found in EOR processes, can be the use of surfactant solutions and viscosifying agents as displacing fluids.

Polymer flooding is an enhanced oil recovery method that uses polymer solutions in the displacement of water to decrease the water/oil mobility ratio [6], however, they only act on the viscosity of the displacing fluid. The combined use of surfactant and glycerol represents an attractive method because they can simultaneously provide an increase in water viscosity, and a decrease in interfacial tension, both of which are beneficial for the efficiency of the process.

Surfactants interact among themselves through the formation of micelles in the solution, and their adsorption in the reservoir is a problematic situation, because a reduction in their concentration could lead to a decrease in the EOR efficiency [7,8,9,10,11].

Glycerol, IUPAC name Propane- 1, 2, 3 triol, has been integrated in industrial processes like foods and beverages, cosmetics, medicines, oil, and as lubricants for the maintenance of equipment in industrial plants. In oil reservoirs, especially in EOR, its viscosity can help to obtain higher production factor [12,13,14]. Hence, the addition of glycerol in surfactant solution presents as a technological strategy to achieve better enhanced oil recovery, causing the injected fluid to move in the porous medium with the same mobility as the oil [15,16]. The glycerol acts as a viscosifier agent and the surfactant ensures low interfacial (IFT) and superficial (ST) tension.

This work proposes to study the effect of glycerol in surfactant solutions, on adsorption, and in enhanced oil recovery. For this, saponified coconut oil surfactant solutions with and without glycerol were used.

2. Materials and Methods

Saponified coconut oil was used as the surfactant, due to its better adsorption/recovery results compared to nonionic and cationic surfactants studied by [17]. The ionic surfactant was synthesized in the laboratory, following the methodology described by [18]. The solutions were prepared with distilled water, at a concentration of 2 wt. % KCl (P. A. Alphatec Ltd.a), with and without glycerol (Neon Comercial Ltd.a, purity 99.70%).

2.1. Surfactant Solutions Properties

In order to determine the critical micelle concentration (CMC) of the surfactants, surface tension (τ) measurements were taken of different concentrations of surfactant solutions, with and without glycerol, at room temperature of 26 °C [19] by the Superficial Tension apparatus, SensaDyne/QC6000. The surfactant and KCl (2 wt. %) solution was used for both the glycerol-free and glycerol solutions (20% w/v).

The 2 wt. % KCl concentration was used to verify the better interaction of the displacing fluid solution with the reservoir’s rock, since the reservoir water presents salinity, and this interferes with the CMC value of the surfactant by the competition of salt with the hydrophilic group of surfactants in water solubility, as well as rock wettability [10,20,21,22,23].

The concentration of 20% by volume of glycerol was used, so that the solution presented a viscosity close to oil viscosity, guaranteeing a favorable mobility ratio for EOR.

2.2. Adsorption Test

The adsorbent used was the crushed sandstone, from Botucatu region, Paraná/Brazil. The average porosity of the Botucatu formation is 33%, and the permeability ranges from 2 to 8 mD. The particle size analysis of crushed core (adsorbent) was performed by sifting in sieves of Tyler series. The samples passed through sieve, in which the meshes varied between 10 and 28 mesh. The particles retained in the −10 + 14 mesh sieves were used for the adsorption experiments. The average particle diameter was 1.4 mm, which was calculated by the arithmetic average of the sieve diameter of 10 and 14 mesh.

The specific surface area of adsorbent by Brunauer–Emmett–Teller (BET) analysis was determined by Micromeritics ASAP 2020, by applying N₂ physic adsorption at −195.15 °C. Posteriorly, the samples were degassed at 300 °C for 30 min [24]. The chemical analysis of the sandstone samples was carried out by X-ray fluorescence (XRF), Shimadzu, EDX-720.

The experiments concerning the dynamic adsorption were carried out in 200 mL Erlenmeyer flasks at 28 °C, 40 °C and 60 °C, on a continuously stirred Dubnoff shaker bath for 24 h to reach equilibrium [20]. Each batch was performed with 8 sample flasks, with constant adsorbent mass of 1 g and constant volume of 90 mL of solution, with varying concentrations of surfactant solution and glycerol. Then, after equilibrium had been reached, the mixtures were centrifuged at 3500 rpm for 10 min, then, the limpid solutions above the adsorbent (supernatant) were collected and analyzed.

The adsorption capacity (q, mg/g) was calculated using Equation (1) by the difference between initial (C₀) and final (equilibrium) concentration (Ce).

q = (C₀ − Ce) V/W

(1)

where C₀ is the initial concentration (mg/L), Ce is the concentration at equilibrium (mg/L), V is the volume of solution used (L), and W is the weight of adsorbent used (g).

The concentration of surfactant at equilibrium (Ce) was verified using spectrophotometer UV1240, Shimadzu instrument [24]. Wavelength for surfactant in the range of 202–206 nm was initially established through the maximum absorbance found for different concentrations of surfactant used. A calibration curve was primarily established. All tests were performed in pure sandstone, without residual oil in porous media, in conditions that correspond to maximum surfactant adsorption.

In addition, the adsorption tests were carried out under surface conditions, and not subsurface, to ensure that the saponified coconut oil (SCO) ionic surfactant is in maximum adsorption condition, since it is influenced by the increase in temperature (in subsurface).

2.3. Recovery Test

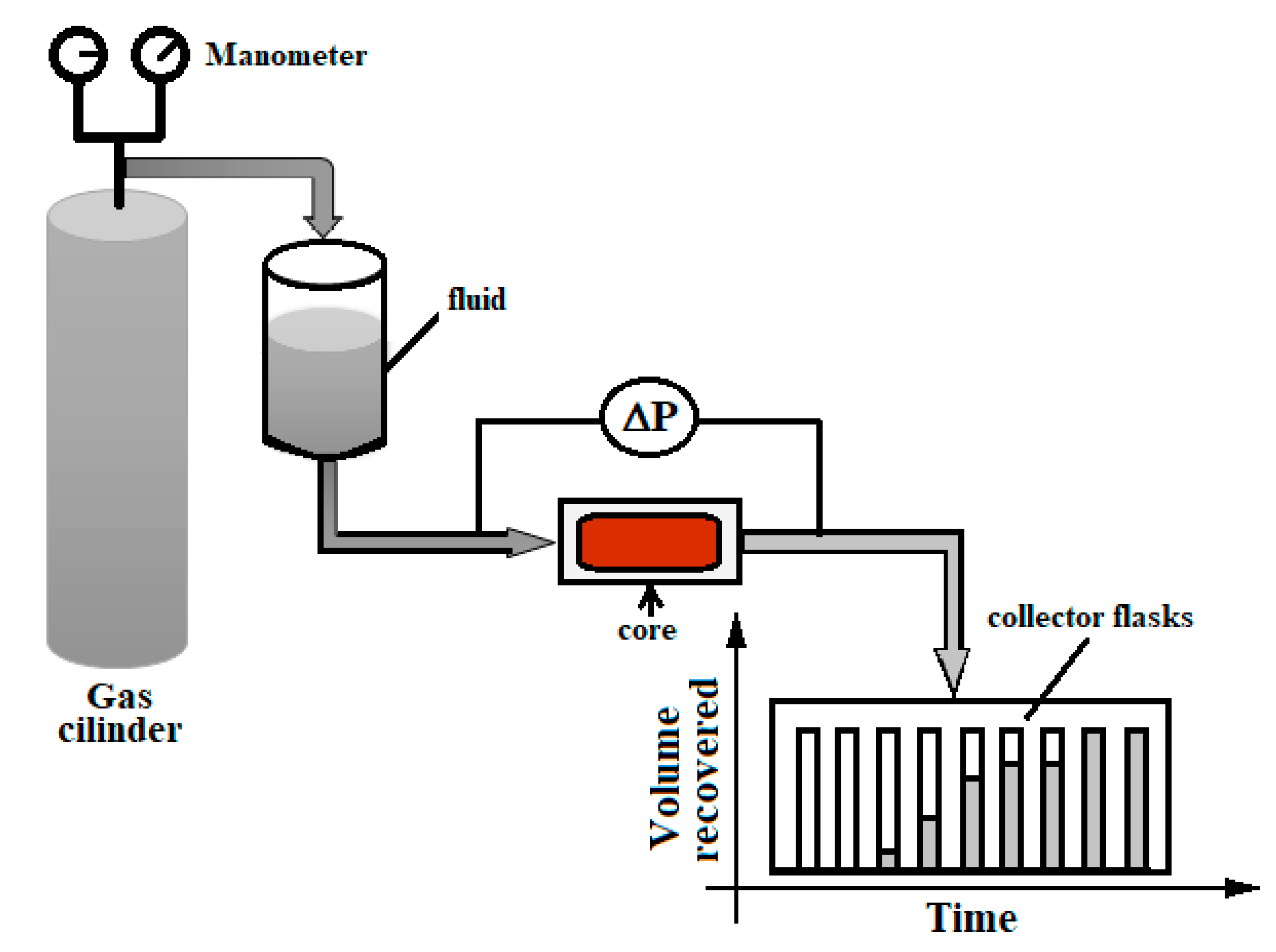

Oil recovery tests were performed by fluid flowing into the core-adsorbent (Figure 1). Before the recovery tests, the colors were calcinated at 700 °C for 18 h to remove moisture. The surfactant concentration with and without glycerol used in the recovery tests was 80% above the CMC, in order to guarantee the injection of the solution in the micellar form.

Oil recovery was performed by brine injection (at 30 psi) in the counter-current way of oil production, up to reaching the total saturation. After the oil injection phase (60/40 weight kerosene/petroleum solution), in the same pressure, viscosity of 3.0 cP and density 0.81 g/mL, at 25 °C was injected in the current direction of production. The core was flooded with oil until no brine was produced (irreducible water saturation). Residual oil volume in the core was calculated by mass balance. The injection of displaced fluid (EOR method) aimed at recovering residual oil (RO) adhered in the porous media, by decreasing interfacial tensions and applying glycerol/surfactant solution.

The oil recovery factor (RF) was determined by mass balance, shown in Equation (2).

RF_total = (V_inj − V_prod) ∗ 100/V_inj

(2)

where RF_total is the total recovery factor (%); and V_inj and V_prod are the volume injected (mL) and the volume produced (mL), respectively.

Oil samples used in recovery tests were collected from the Ubarana field, Petrobras, located in Guamare, Rio Grande do Norte, Brazil.

3. Results

3.1. Crushed Core Analysis

The BET surface area of the sandstone sample ranged from 0.0914 to 0.110 m²/g. The chemical composition of Botucatu sandstone is shown in

Table 1. Chemical composition of Botucatu Sandstone.

Composition	Concentration (wt. %)
SiO2	84.06
FeO3	11.72
Al2O3	2.46
TiO2	1.27
ZrO2	0.34
CaO	0.15

. The highest observed concentration was silica (SiO₂), followed by iron oxide (FeO₃). These components promote interactions with surfactants molecules and consequently, adsorption on the solid surface.

Thus, this rock has a cationic character, meaning that the anionic surfactants have a greater interaction with this type of sandstone. Cationic surfactants, however, would not present good interaction results with this type of rock [17].

The presence of alumina promotes an interaction of rock with water; hence, there is a need to perform the calcination prior to the water and surfactant solutions injection into the plugs. This substance will enable the formation of the sandstone since it is considered as the cement of the silica grains of the rock.

The presence of the metal oxides in the rock can also justify a tendency of adsorption of the anionic surfactants in the rock, thus providing the possibility of greater loss of the surfactant from the solution to the rock in the injection process [18].

3.2. Critical Micelle Concentration (CMC)

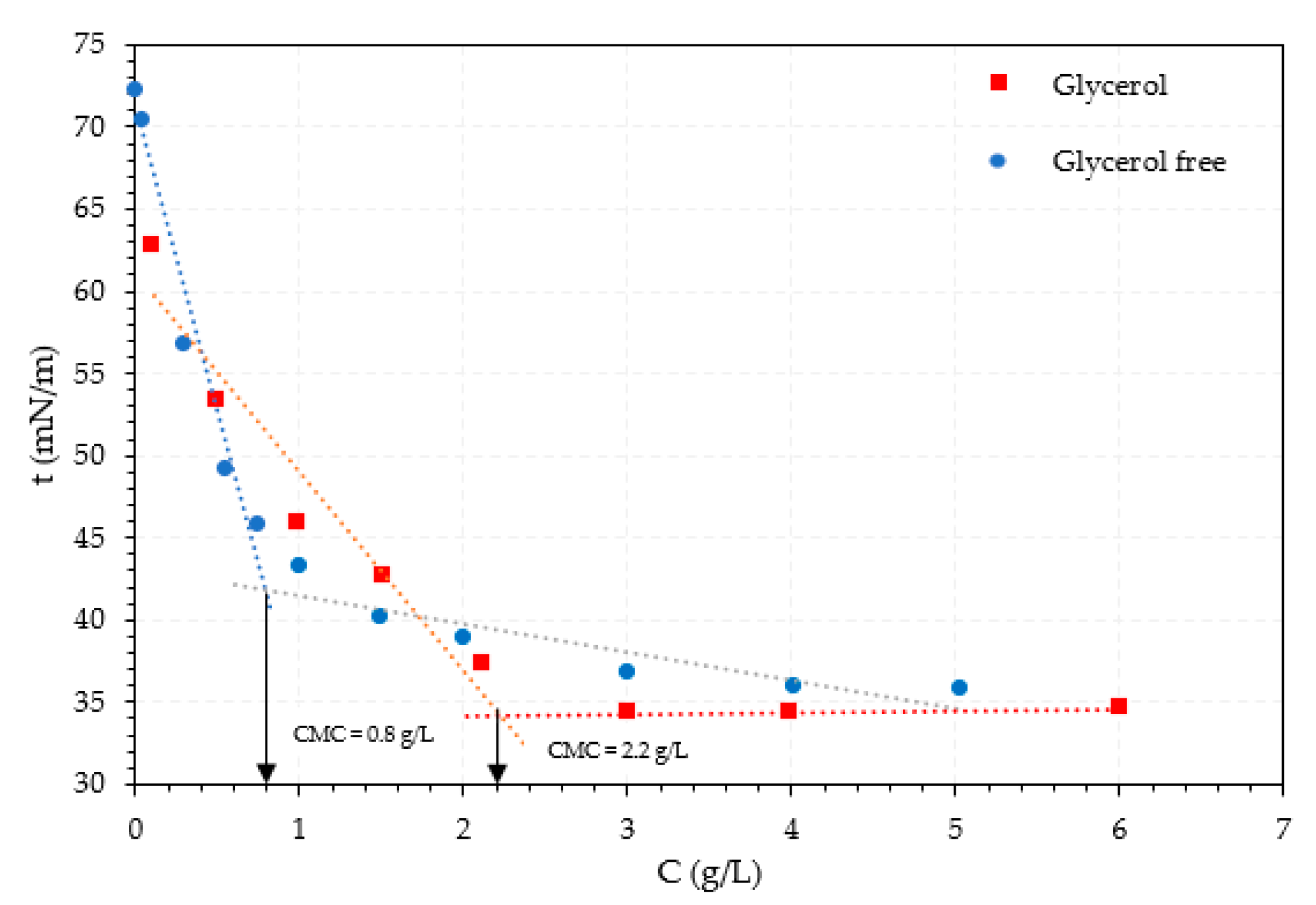

The CMC is an important feature of surfactants, from which it is possible to understand the applications of each surfactant for many uses in the industry. Figure 2 shows the surface tension as a function of the different surfactant concentration for two evaluated solutions, and the CMC can be indicated based on it.

The critical micelle concentration can be observed at the inflection point of the curve determined by linear fit, according to the Superficial Tension apparatus manual. The lowest tension value of SCO was approximately 35 mN/m, which is much lower than the water surface tension value (71.99 ± 0.05 mN/m). The CMC of the SCO, with and without glycerol, are found to be 0.8 g/L and 2.2 g/L, respectively.

When the molecules of the surfactant achieve the CMC, micellar aggregates are formed within the solution, and could decrease the number of hydrated surfactant molecules. However, some molecules, which do not form micelles in the system, will have a higher probability to adsorb in the porous medium. When CMC is achieved, the adsorption of surfactant decreases. Some factors—like electrolytes and additional components in solution and surface type—influence the adsorption form, making different curve shapes of adsorption isotherm [25].

3.3. Adsorption

The rock adsorption assays were carried out with the objective of estimating the loss of surfactant in the rock during its injection into the recovery processes. The experiments to evaluate the amount of surfactant adsorbed were led at 28 °C, 40 °C and 60 °C, for a particle average size of −10 +14 mesh (1.4 mm). The adsorption test lasted 24 h. Subsequently, the absorbance values were read before and after the test, and the calibration curves were done.

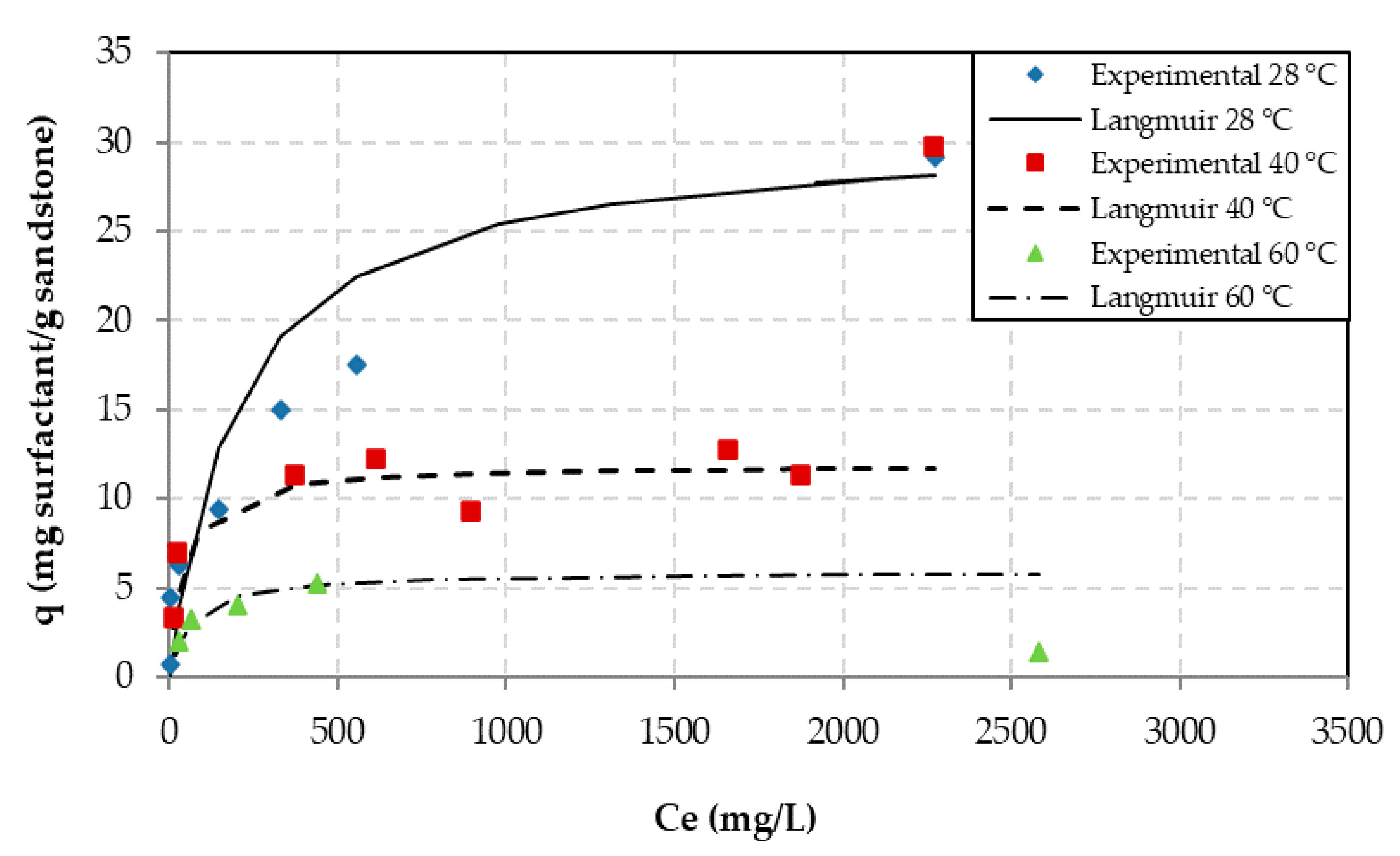

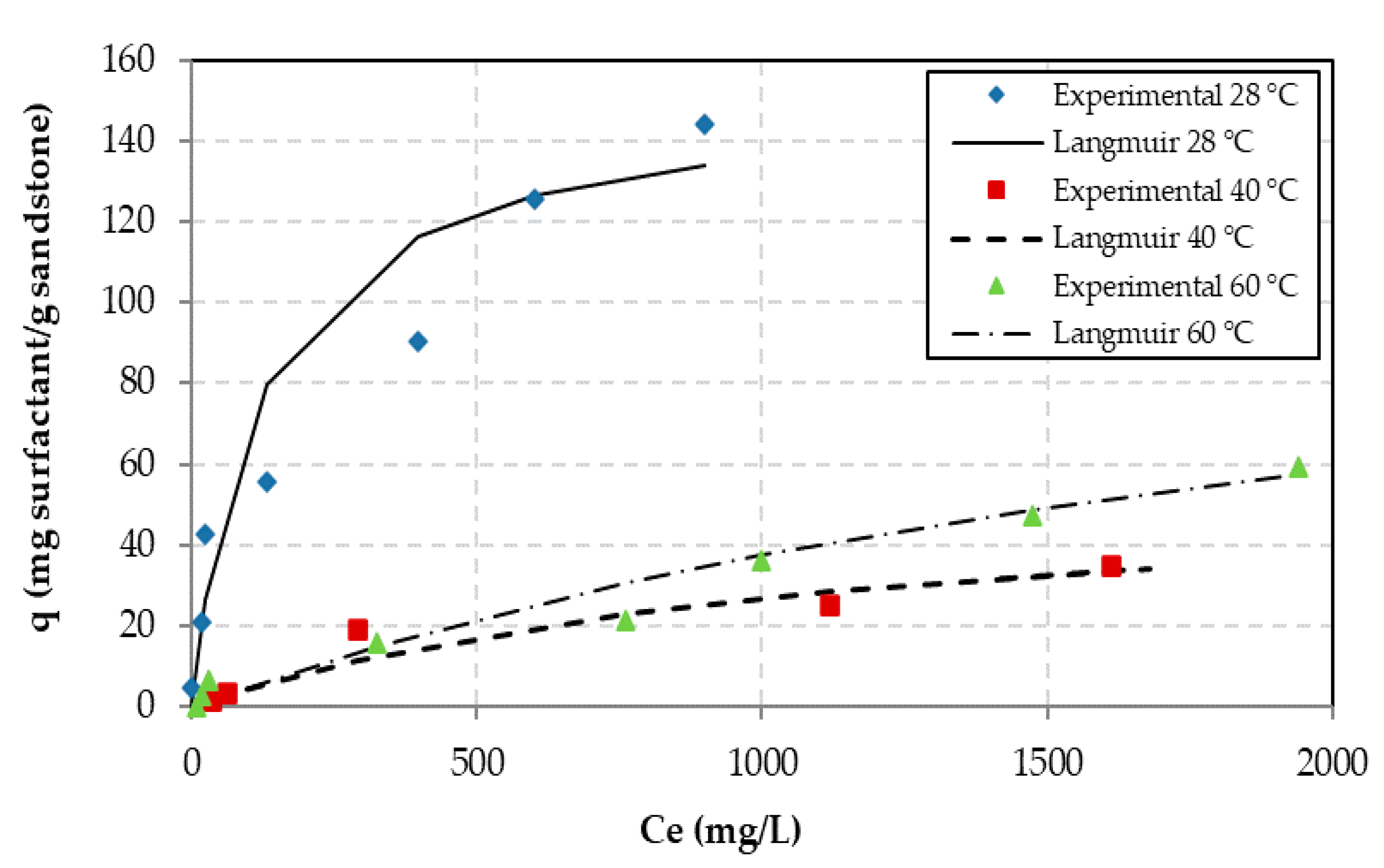

Data equilibrium was obtained, which show the variation of equilibrium concentration of the adsorbed phase, q (mg surfactant/g sandstone), with the concentration of the fluid phase, Ce (mg/L), for the surfactant SCO with glycerol (Figure 3) and without glycerol (Figure 4).

The isotherms indicated favorable adsorption, because they are an ionic surfactant (anionic) that is charged the opposite to the ions of the sandstone. The electrostatic interactions between the surfactant and the substrate create strong interactions between the surfactant molecules and rock. At a temperature of 28 °C, the highest adsorptive capacity values were observed (Figure 3 and Figure 4), which is, among other factors, due to the exothermic character of the adsorption process.

The addition of the glycerol to the solution, with the purpose of giving viscosity to the solution and improving the sweep efficiency, increased the adsorption of the adsorbate in the rock, probably due to the increase in the CMC of the solution.

Table 2. Langmuir model parameters.

Solution SCO/Glycerol Free
Parameters	28 °C	40 °C	60 °C
KL (L/mg)	200.00	40.00	65.20
qm (mg/g)	30.58	11.90	5.89
R2	0.96	0.97	0.98
Solution SCO/Glycerol
Parameters	28 °C	40 °C	60 °C
KL (L/mg)	120.48	1250.00	2500.00
qm (mg/g)	151.51	52.82	133.33
R2	0.93	0.72	0.95

shows the models’ parameters Equation (3) for the SCO, with and without glycerol at the studied temperatures.

q_L = (k_L Ce q_m)/(1 + k_L Ce)

(3)

where q_L is the mass of adsorbate adsorbed (mg/g); q_m is the maximum mass adsorbed (mg/g); k_L is the equilibrium constant (L.m/g); Ce is the equilibrium concentration (mg/L).

From the Langmuir model parameters (Table 2), it is possible to estimate the amount of surfactant adsorbed, knowing the value of Ce (mg/L) of the surfactant in the solution, q_L (mg/g) can be calculated using Equation (3), and knowing the amount of sandstone (adsorbent), the amount of adsorbed surfactant is consequently estimated.

The Langmuir isotherm is most recommended for monolayer adsorption. Thereby, a significant constant of this model is the parameter R_L, which is a no dimensional constant known as separation factor [26]. The R_L values obtained for the adsorption study with and without glycerol are shown in

Table 3. Data R_L (separation factor) for adsorption with and without glycerol.

Temperature (°C)	(RL) without Glycerol	(RL) Glycerol
28	0.0712–0.9522	0.0459–0.9232
40	0.0152–0.4445	0.4015–0.9918
60	0.0235–0.8621	0.6466–0.9961

.

Table 3 shows that the values obtained for the separation factor at temperatures of 28 °C, 40 °C and 60 °C, mainly at 28 °C, indicate a favorable adsorption (0 < R_L < 1), proving the exothermic nature of the process of adsorption.

3.4. Recovery and Estimating Loss of Surfactant

The amount of adsorbate (surfactant) adsorbed per mass of sandstone until reaching bed saturation was obtained from Equation (3), data from Figure 3 and Figure 4, and Table 2 at a temperature of 28 °C. Results show that, for 1 g of sandstone, 30.58 mg and 151.51 mg of surfactant were lost to the SCO/glycerol free and SCO/glycerol systems, respectively. The bed column was composed by 22 g of sandstone, whereby approximately 0.7 g and 3.3 g of surfactant were lost by adsorption during the tests. In addition, the value of q_L found in Figure 3 and Figure 4, at the concentrations of 720 mg/L (with and without glycerol) are close to those of 24 mg and 136 mg of surfactant/g of sandstone, showing that the fit is consistent.

The volume of original oil in place (OOIP) for glycerol-free/surfactant and glycerol/surfactant solutions were 6.8 mL and 6.9 mL, respectively. The volume of 1.2 mL and 2.3 mL of oil were recovered from those solutions, respectively. Surfactant loss by adsorption in the recovery test for the glycerol-free/surfactant solution was low, approximately 12.3% of surfactant, presenting low oil recovered of 18%. Concerning the recovery in the glycerol/surfactant solution, the surfactant adsorption was approximately 49% higher, however, it recovered 33% more, according to Borges [27], who obtained an oil recovery factor for glycerol of 35%. These results refer only to the EOR method. This represents a good percentage, since about 30% of oil recovery can be obtained in the conventional method [28].

The higher adsorption for the solution of surfactant with glycerol is due to the increase of the amount of surfactant in the solution to reach the CMC. Consequently, the adsorbed surfactant took the place of the oil present in the sandstone (wettability inversion), recovering a larger quantity of oil, which was also due to improving oil sweep efficiency caused by the presence of the glycerol that acted as a viscosifier of the solution.

The estimated loss of surfactant (adsorption) was measured at the temperature of 28 °C, where the highest losses occurred. The reservoir temperature was approximately 55 °C, and it could be possible to minimize the adsorption and increase the recovery factor using surfactant/glycerol solution.

Finally, the surfactant solution with glycerol may prove to be a good chemical agent (mixture) to the EOR method. In addition, the SCO surfactant is available at a low cost, and it is biodegradable, as is the glycerol, a byproduct of biodiesel.

3.5. Viscosity

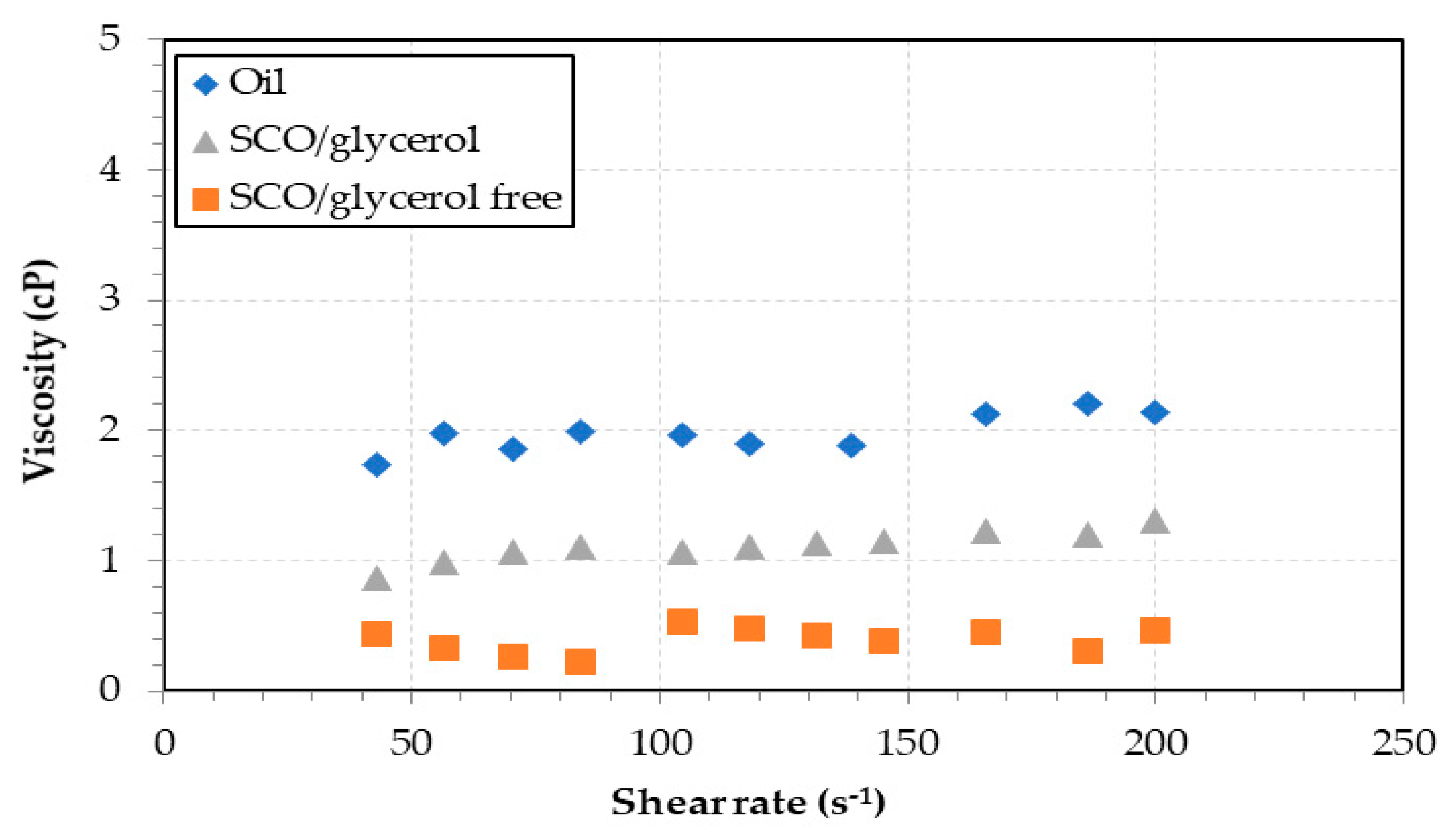

To obtain good sweeping and displacement efficiencies, a low mobility ratio, which is a rate between oil viscosity and injected solution (M = µ_oil/µ_solution), is required, i.e., close to one, considering that the relative permeabilities of each fluid (oil and solution) are almost equal. In this case, the injected fluid (displacement phase) will develop viscous fingering (displaced fluid), and will create preferential paths between the injecting and producing wells.

The use of polymer to provide viscosity to the displacing fluid or steam injection to reduce oil viscosity is a common enough activity for the process to be controlled [6]. Figure 5 shows that the average viscosity of the surfactant solution increased from 0.5 cP to 1.5 cP by incorporating glycerol in the solution, approaching oil viscosity (average value of 1.9 cP). The solution showed Newtonian fluid behavior, according to Qiu [29], and a mobility ratio of 1.26.

3.6. Thermal Study

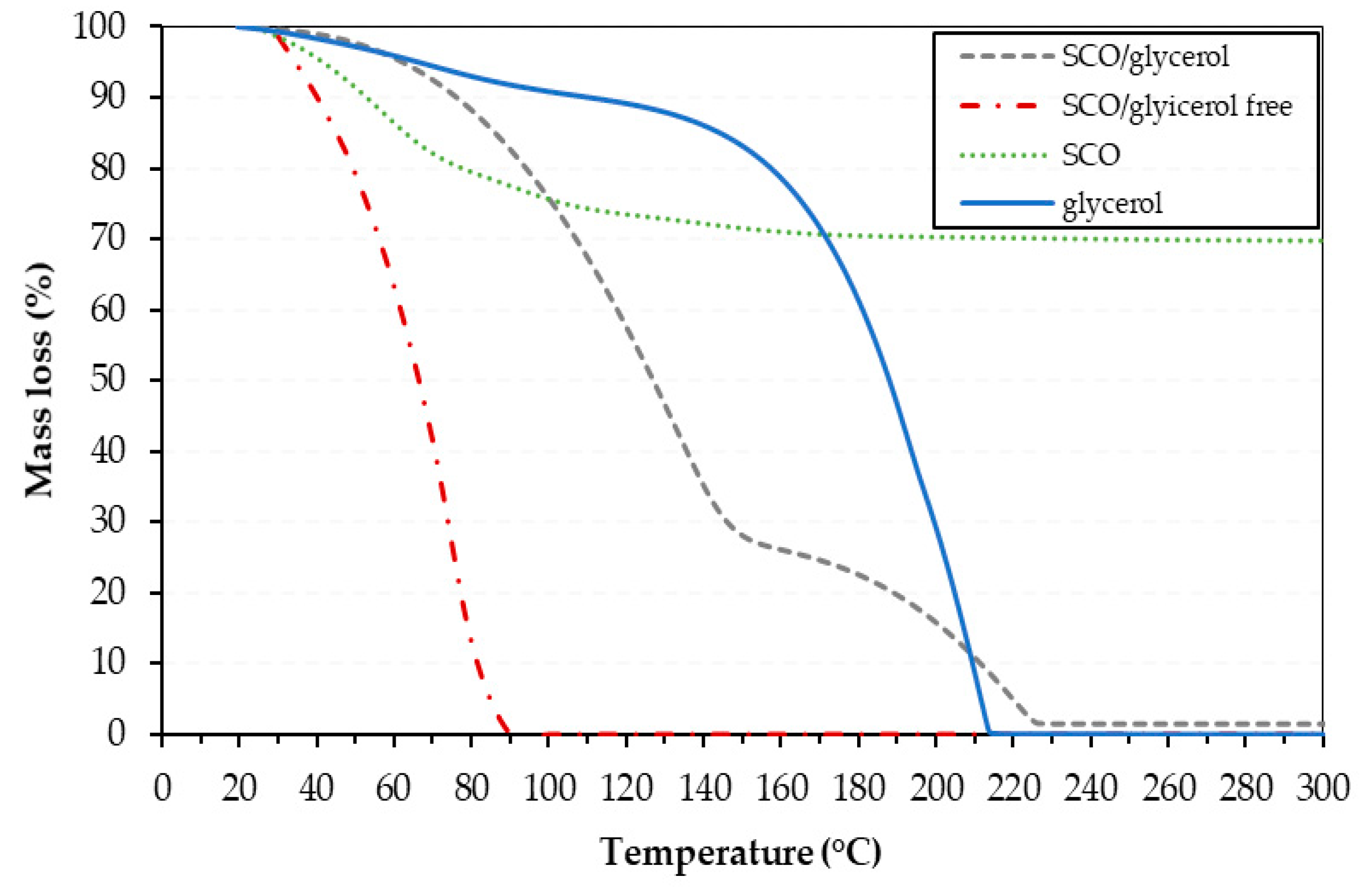

Figure 6 shows the thermogravimetric curves (TG) of the studied samples: SCO, glycerol, surfactant solution with and without glycerol.

Little mass loss of glycerol and glycerol/SCO solution were observed for the adopted temperature range (55–60 °C) (Figure 6), approximately 3.6%, for both. For SCO, at the same temperature, the loss was approximately 11.3%, and glycerol-free/SCO solution, 28%. This is because the surfactant/glycerol free solution presents in its composition plenty of water.

4. Conclusions

The main objective of this work was to study the effect of glycerol on surfactant adsorption in sandstones and on EOR in SCO ionic surfactant solution. From the results it was concluded that: (1) the Langmuir adsorption model represented adequate equilibrium data, showing monolayer adsorption; (2) the viscosity of the SCO surfactant/glycerol solution was close to oil, and good mobility ratios could be obtained, with good sweeping and displacement efficiencies, due to the presence of glycerol; (3) glycerol increased surfactant adsorption, however higher recovery factors were obtained for the glycerol/SCO solution, being 53% higher than the glycerol free surfactant solution. The surfactant loss was slightly higher for the glycerol surfactant solution (49%), but recovered more oil (33%); (4) higher oil removal (displaced fluid) was achieved when glycerol was added to the surfactant solution (displacing fluid), because of better sweep efficiencies caused by increasing the solution’s viscosity.

5. Patents

This research work generated an invention patent entitled: Glycerol and saponified coconut oil (ionic surfactant) as a displacing fluid to increase oil recovery (In Portuguese). Registration number: BR1020170214435, Registration at INPI-Instituto Nacional da Propriedade Industrial. Deposite date: 10/06/2017.
