An Analysis of Non-Isolated DC-DC Converter Topologies with Energy Transfer Media

Abstract

As miniaturized mobile devices with various functionalities are highly desired, the current requirement for loading blocks is gradually increasing. Accordingly, the efficiency of the power converter that supports the current to the loading bocks is a critical specification to prolong the battery time. Unfortunately, when using a small inductor for the miniaturization of mobile devices, the efficiency of the power converter is limited due to a large parasitic DC resistance (R_DCR) of the inductor. To achieve high power efficiency, this paper proposes an energy transfer media (ETM) that can make a switched inductor capacitor (SIC) converter easier to design, maintaining the advantages of both a conventional switched capacitor (SC) converter and a switched inductive (SI) converter. This paper shows various examples of SIC converters as buck, boost, and buck-boost topologies by simply cascading the ETM with conventional non-isolated converter topologies without requiring a sophisticated controller. The topologies with the ETM offer a major advantage compared to the conventional topologies by reducing the inductor current, resulting in low conduction loss dissipated at R_DCR. Additionally, the proposed topologies have a secondary benefit of a small output voltage ripple owing to the continuous current delivered to the load. Extensions to a multi-phase converter and single-inductor multiple-output converter are also discussed. Furthermore, a detailed theoretical analysis of the total conduction loss and the inductor current reduction is presented. Finally, the proposed topologies were simulated in PSIM, and the simulation results are discussed and compared with conventional non-isolated converter topologies.

1. Introduction

The use of high-performance, power-hungry mobile devices has increased recently, prompting the need for longer battery life [1,2]. Accordingly, power management integrated circuits (PMICs) for mobile devices are becoming important. PMICs consist of a linear regulator, a switched capacitor (SC) converter, and a switched inductor (SI) converter [3,4]. Although linear regulators offer the advantage of low output voltage ripple, they have low power efficiency [5,6,7,8]. In contrast, SC converters have high power density with better power efficiency than linear regulators, but they suffer from severe degradation of efficiency when the conversion ratio of the SC converter differs from a pre-defined value [9,10,11,12]. Furthermore, when the load current (I_LOAD) increases, which is referred to as a heavy load condition, SC converters require many large external capacitors. Therefore, neither linear regulators nor SC converters are good candidates for powering high performance loading blocks that require a large I_LOAD. On the other hand, a SI converter with an external inductor is an efficient solution in heavy load conditions [13,14,15,16]. Buck, boost, and buck-boost SI converters exist for generating lower, higher, and lower or higher output voltage (V_O), respectively, compared with the battery voltage (V_IN).

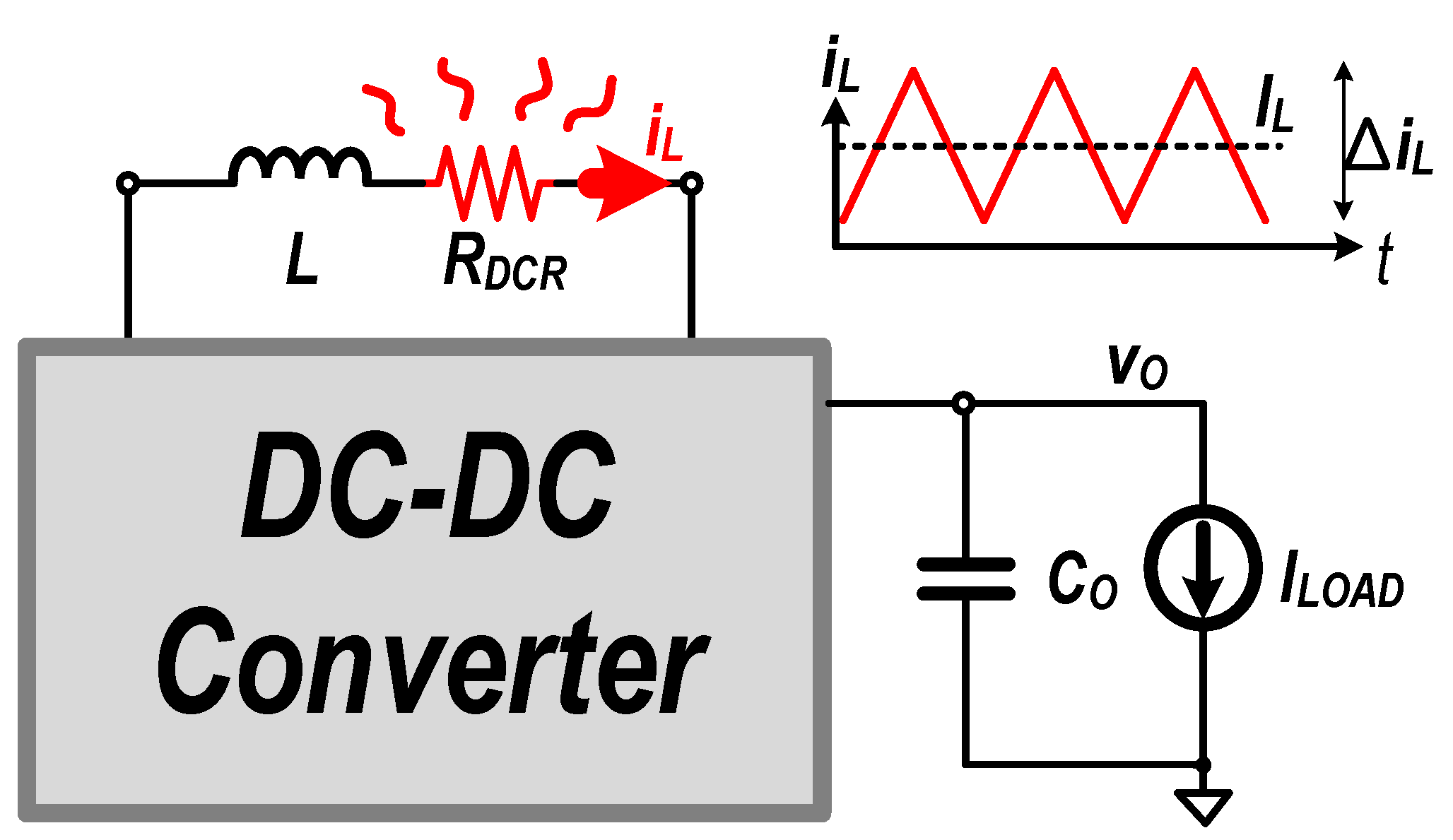

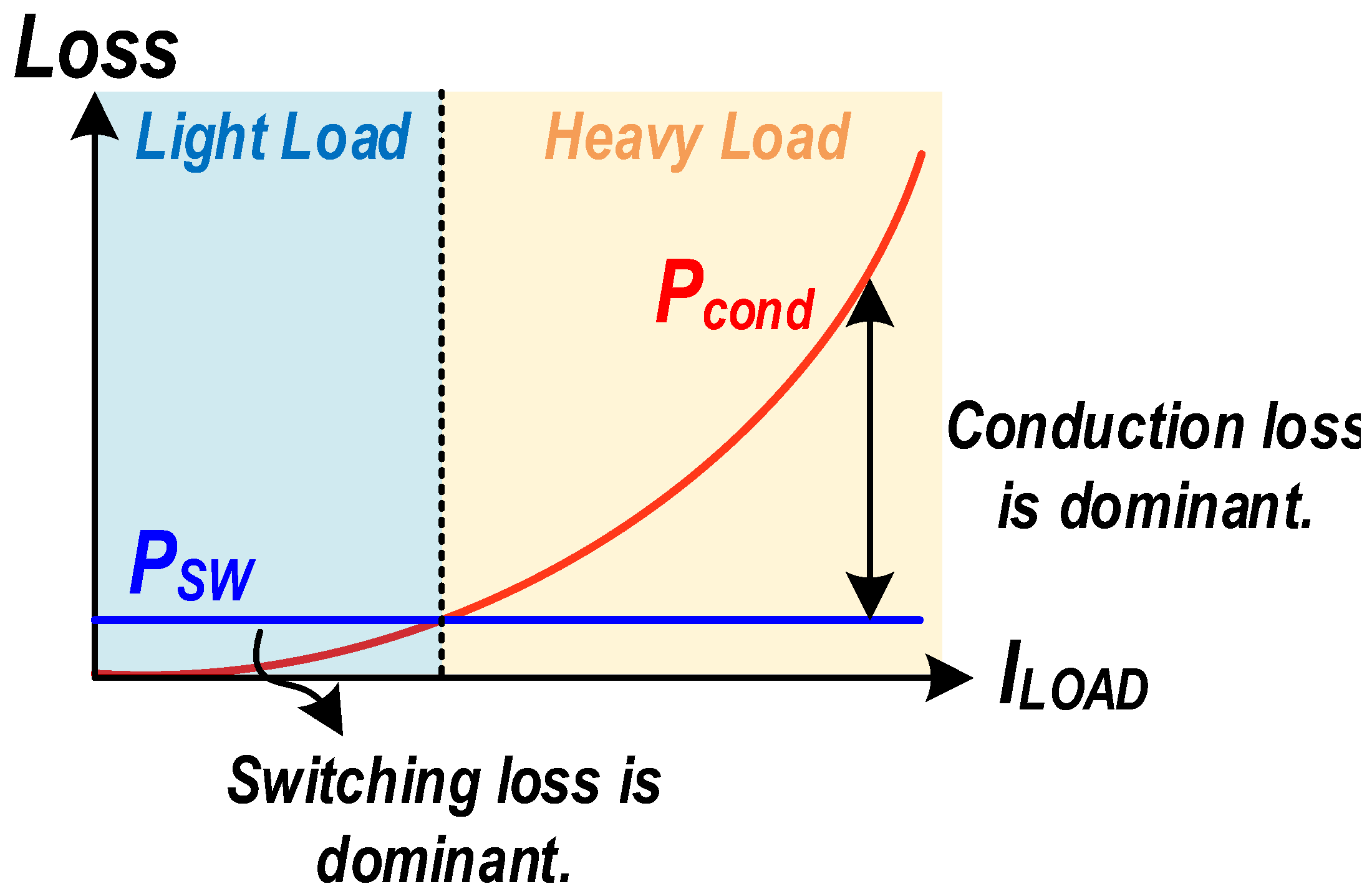

In the SI converter, there are two representative power losses, as shown in Figure 1. One is the switching loss (P_SW) which is proportional to the switching frequency. When the switching frequency is fixed, the P_SW is a constant independent of the I_LOAD. The other is the conduction loss (P_cond). Since the P_cond is proportional to the square of the current, the P_cond is dominant in heavy load conditions. Therefore, reducing P_cond is important for improving power efficiency when I_LOAD is large.

However, due to a large inductor current (i_L), under heavy load conditions, these efficient SI converters also suffer from significant conduction loss (P_DCR) dissipated at a parasitic DC resistance (R_DCR) of a small inductor for size-limited mobile devices as shown in Figure 2. This large P_DCR causes a severe thermal problem as well as low power efficiency in heavy load conditions. P_DCR is expressed as follows:

$$P_{DCR}=i_{L,RMS}{}^2{R}_{DCR}=(I_L{}^2+\frac{\Delta i_L{}^2}{12})R_{DCR}$$

(1)

where i_L,RMS, I_L, and Δi_L are the root-mean-square value, the DC value, and the ripple of the i_L, respectively. Since the small inductor for the miniaturized mobile device can have much larger R_DCR than the on-resistance of switches, reducing P_DCR can achieve a significant improvement in power efficiency. To minimize the P_DCR, reducing i_L,RMS is the only solution when a large R_DCR of the small inductor is used as shown in Equation (1). In particular, as the inductor with larger R_DCR than the on-resistance of the switch is adopted, the efficiency improvement due to low i_L,RMS is significantly increased.

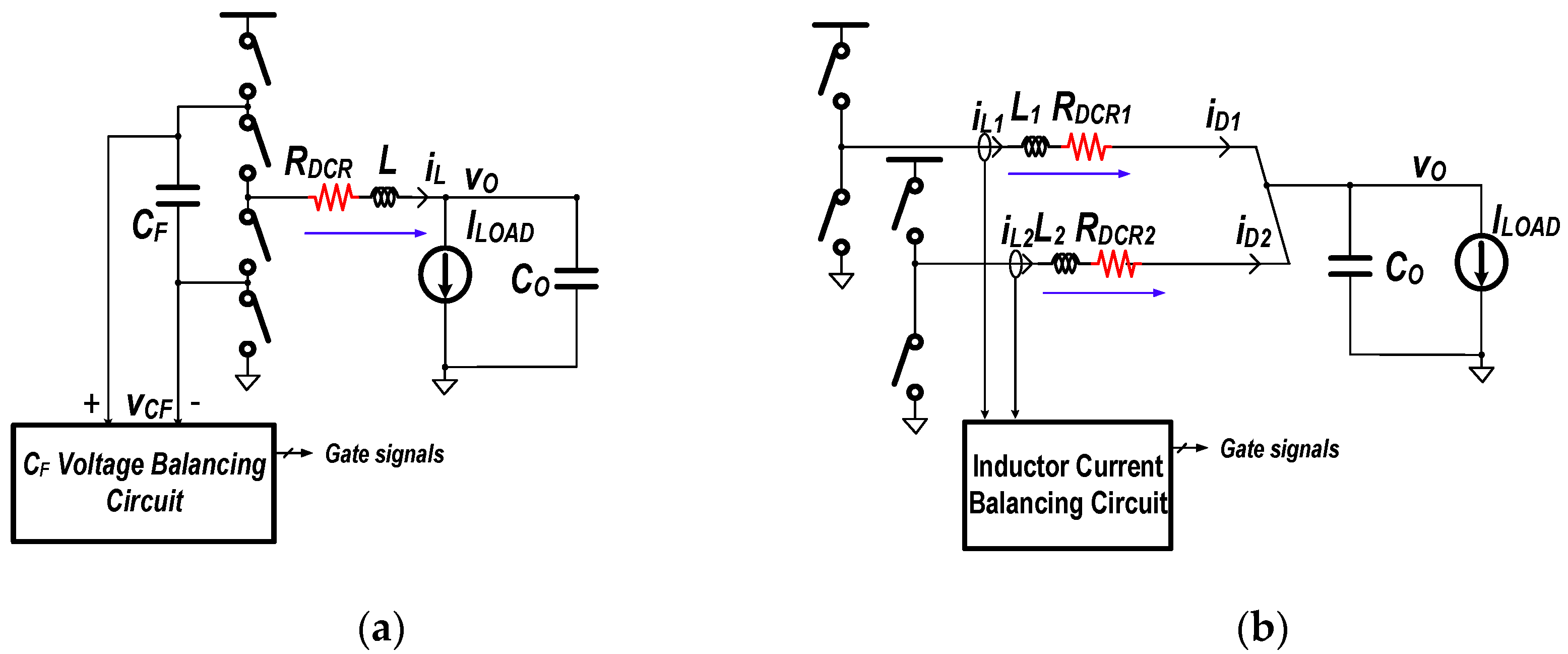

There are some alternative topologies that can reduce i_L,RMS in a SI converter. For example, Figure 3a shows a multi-level structure with an additional flying capacitor that reduces Δi_L, thereby improving power efficiency in light or medium load conditions [17,18]. However, under heavy loads, since I_L is much larger than Δi_L, the reduction of P_DCR is limited. Alternatively, Figure 3b shows a multi-phase structure that can reduce I_L and can result in increased power efficiency compared with the multi-level structure in heavy load conditions. However, it requires an additional inductor that is larger and more expensive than other passive components [19,20,21]. Furthermore, both the multi-level and the multi-phase structures require complex balancing circuits, as shown in Figure 3.

To resolve these issues, this paper proposes and analyzes a new type of hybrid switched inductor capacitor (SIC) converter with energy transfer media (ETM) using an additional flying capacitor. The topologies with the ETM provide improved efficiency by lowering I_L owing to an additional current path in heavy load conditions.

The topologies with the proposed ETM are introduced in Section 2. In Section 3 and Section 4, the operation principle and a detailed conduction loss analysis of both the buck and buck-boost topologies are provided. In Section 5, different examples of extension to other topologies are explained and discussed. The simulation results for verification are presented in Section 6. Finally, a brief concluding summary is given in Section 7.

2. Energy Transfer Media

A hybrid SIC converter that possesses the advantages of both a SC converter and a SI converter is an attractive solution [22,23,24,25,26,27,28,29,30]. However, it is complicated to design because of the many complex combinations of power switches and flying capacitors. Also, various factors such as conversion ratios, balancing circuits, and power loss should be considered. To make it easy to design, and to reduce P_DCR at the same time, this paper proposes an ETM that can be easily implemented with all types of non-isolated converters, such as buck, boost, and buck-boost topologies, with high efficiency under heavy load conditions. An ETM has been used previously to reduce only Δi_L [29,30]. However, similar to a multi-level converter, this structure is not effective at improving power efficiency under heavy load conditions. Therefore, we propose an ETM that uses an additional flying capacitor to obtain high efficiency in heavy load conditions, as shown in Figure 4.

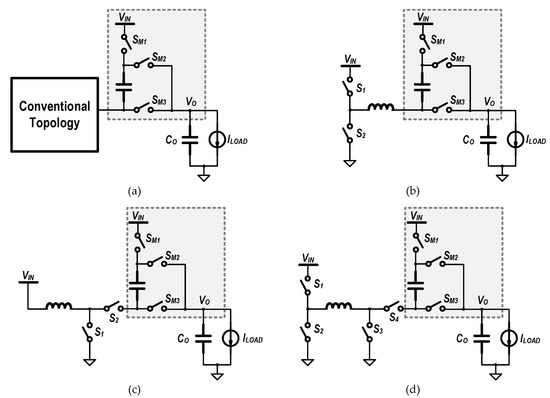

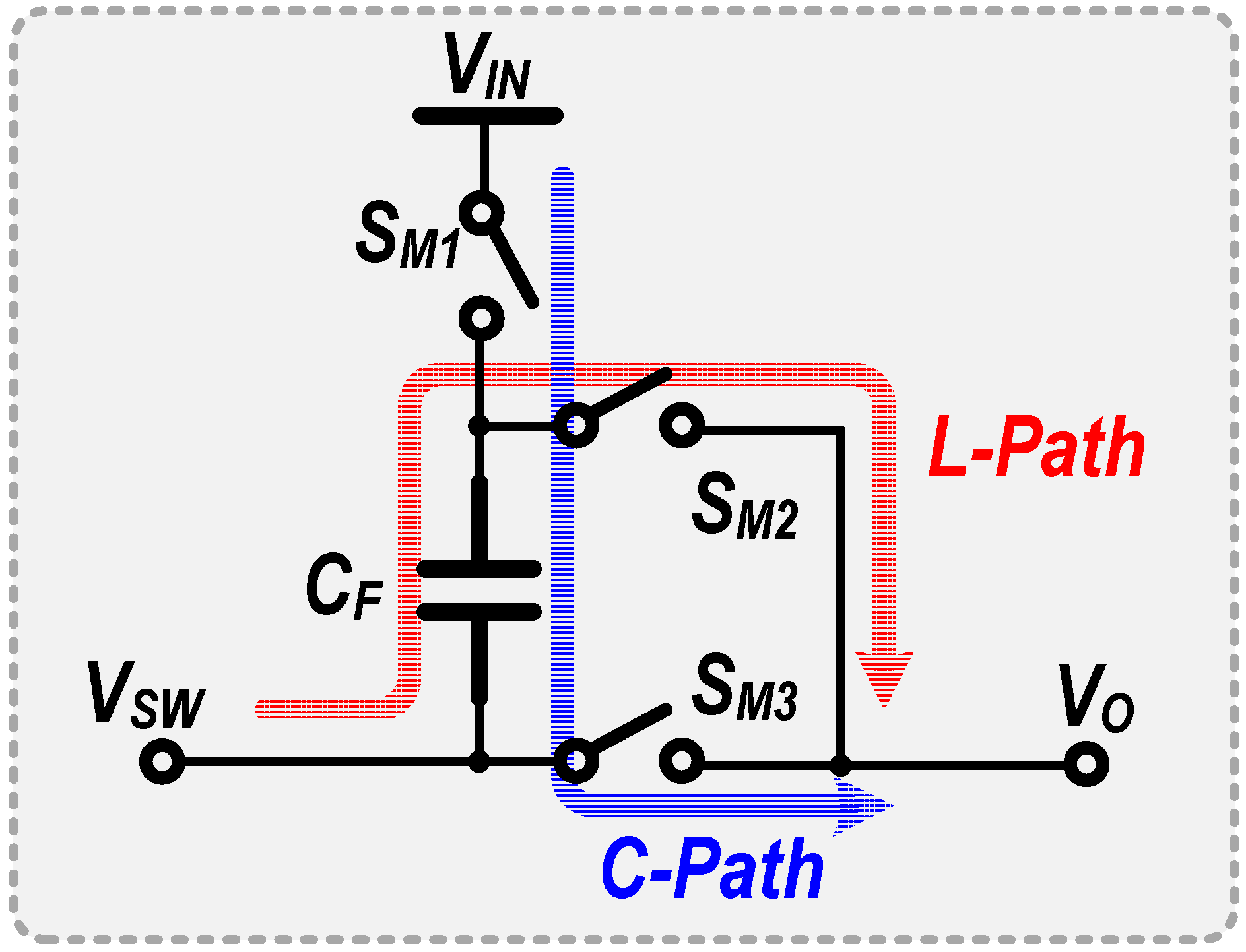

The ETM uses one external flying capacitor (C_F) and three power switches (S_M1–S_M3). This approach offers the advantage of inserting the capacitor current path into the output current path (C-path) as well as the inductor current path (L-path). This ETM with dual current paths can be applied to conventional non-isolated topologies by simply cascading the ETM, as shown in Figure 5. Figure 5a is a conceptual structure showing that the ETM can be applied to conventional converter topologies. Figure 5b–d show examples of applying the ETM to buck, boost, and buck-boost converters, respectively. This paper analyzes buck type and buck-boost type topologies with ETMs as examples and discusses possible extensions to other topologies.

3. Buck Converter with Energy Transfer Media

Figure 5b shows a buck converter with ETM (BKETM), which is composed of power switches S₁–S₂ and S_M1–S_M3, one inductor (L), one flying capacitor (C_F), and one output capacitor (C_O). The BKETM uses two operating modes (Φ₁, Φ₂), as shown in Figure 6a. The operation waveforms of the BKETM are shown in Figure 6b.

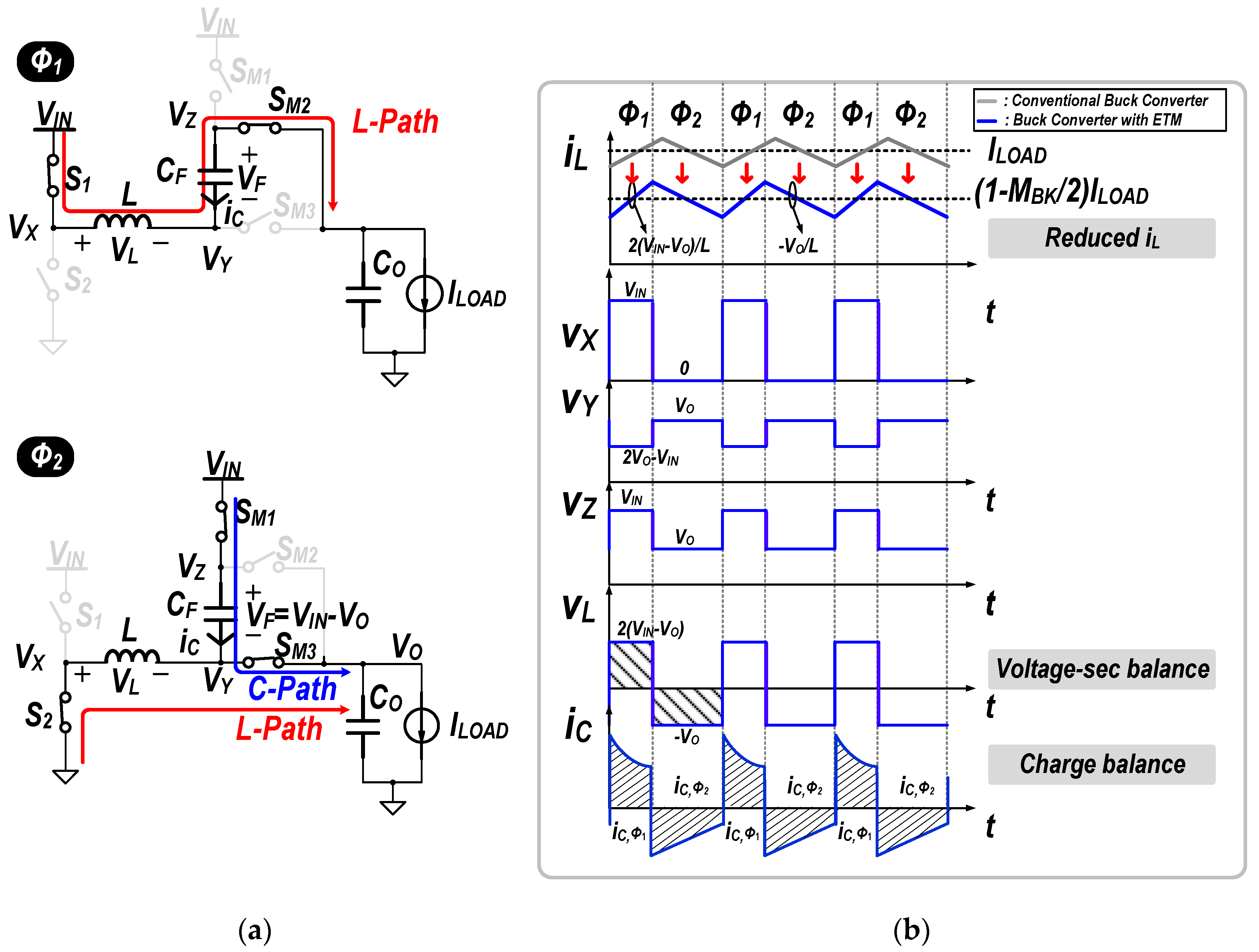

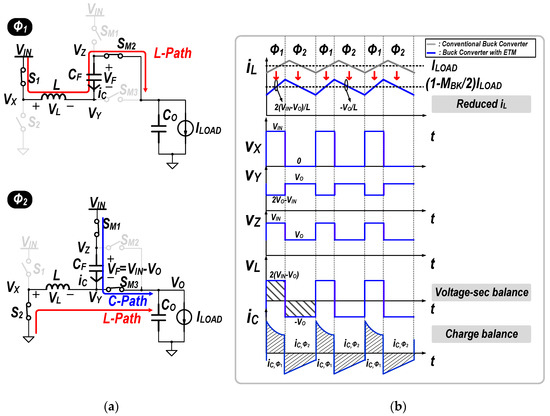

In Φ₁, S₁ and S_M2 are turned on, and S₂, S_M1, and S_M3 are turned off. At this time, i_L is built up with a slope of 2(V_IN − V_O)/L and is delivered to the output. In Φ₂, S₂, S_M1, and S_M3 are turned on, and S₁ and S_M2 are turned off. While i_L is de-energized with a slope of −V_O/L, it is also delivered to the output. In the meantime, the capacitor current i_C of C_F flows to the output, while the voltage of C_F is charged to V_IN − V_O. To derive a conversion ratio (M_BK), applying the voltage sec balance to the inductor with duty cycle D is expressed as follows:

$$D(2V_{IN}-2V_O)-(1-D)V_O=0.$$

(2)

Simplifying Equation (2), M_BK is given by:

$$M_{BK}=\frac{V_O}{V_{IN}}=\frac{2D}{1+D}\hspace{1em}\hspace{1em}\hspace{1em}0<D<1.$$

(3)

The M_BK of the BKETM from Equation (3) has a value between 0 and 1 as D varies from 0 to 1, which is the same as the range of a conventional buck converter (CBK). Therefore, in spite of the SIC converter, the BKETM behaves like a CBK without the limit of the conversion ratio.

To obtain the average value of the C-path current (I_C,Φ2) delivered to the output in Φ₂, we also apply charge balance to C_F as shown below:

$$D{I}_L-(1-D)I_{C,\mathsf{\Phi }2}=0.$$

(4)

Simplifying Equation (4), I_C,Φ2 is given by

$$I_{C,\mathsf{\Phi }2}=\frac{D}{1-D}{I}_L.$$

(5)

Applying the charge balance to the output capacitor C_O,

$$D(I_L-I_{LOAD})+(1-D)(I_L+I_{C,\mathsf{\Phi }2}-I_{LOAD})=0.$$

(6)

Substituting Equation (5) into Equation (6), I_L can be expressed with I_LOAD as shown below:

$$I_L=\frac{1}{1+D}{I}_{LOAD}=(1-\frac{M_{BK}}{2})I_{LOAD}.$$

(7)

For the CBK, I_L is always the same as I_LOAD [3,4,13,14,15,16]. In contrast, for the proposed BKETM, I_L is I_LOAD divided by (1 + D). As M_BK increases, I_L decreases. Therefore, I_L always has a smaller value than I_LOAD due to the two current paths (L-path and C-path). As I_L decreases, P_DCR also is reduced compared to that of the CBK. To compare the total conduction loss with that of the CBK, we assume that since the parasitic resistance (R_ESR) of the flying capacitors is typically much smaller than other resistances, the loss of R_ESR can be ignored for simplicity. Also, the on-resistance of each switch is assumed to be the same as R_ON. Thus, the total conduction loss (P_cond,CBK) of the CBK is expressed as follows:

$$P_{cond,CB}{}_K=D{I}_L{}^2{R}_{ON}+(1-D)I_L{}^2{R}_{ON}+I_L{}^2{R}_{DCR}=I_L{}^2(R_{ON}+R_{DCR})=I_{LOAD}{}^2(R_{ON}+R_{DCR}).$$

(8)

On the other hand, the total conduction loss (P_cond,BKETM) of the BKETM is as follows:

$$P_{cond,BKETM}=2D{R}_{ON}{I}_L{}^2+(1-D)R_{ON}(I_L{}^2+I_{C,\mathsf{\Phi }2}{}^2+{(I_L+I_{C,\mathsf{\Phi }2})}^2)+I_L{}^2{R}_{DCR}$$

(9)

$$=I_L{}^2[(1+D+\frac{1}{1-D}+\frac{D^2}{1-D})R_{ON}+R_{DCR}]$$

(10)

$$=I_L{}^2(\frac{2-M_{BK}}{1-M_{BK}}{R}_{ON}+R_{DCR})$$

(11)

$$=\frac{{(2-M_{BK})}^2}{4}{I}_{LOAD}{}^2(\frac{2-M_{BK}}{1-M_{BK}}{R}_{ON}+R_{DCR}).$$

(12)

For the relative comparison with CBK, the ratio between P_cond,CBK and P_cond,BKETM is expressed as:

$$\frac{P_{cond,proposed}}{P_{cond,conv}}=\frac{\frac{{(2-M_{BK})}^2}{4}(\frac{2-M_{BK}}{1-M_{BK}}{R}_{ON}+R_{DCR})}{R_{ON}+R_{DCR}}.$$

(13)

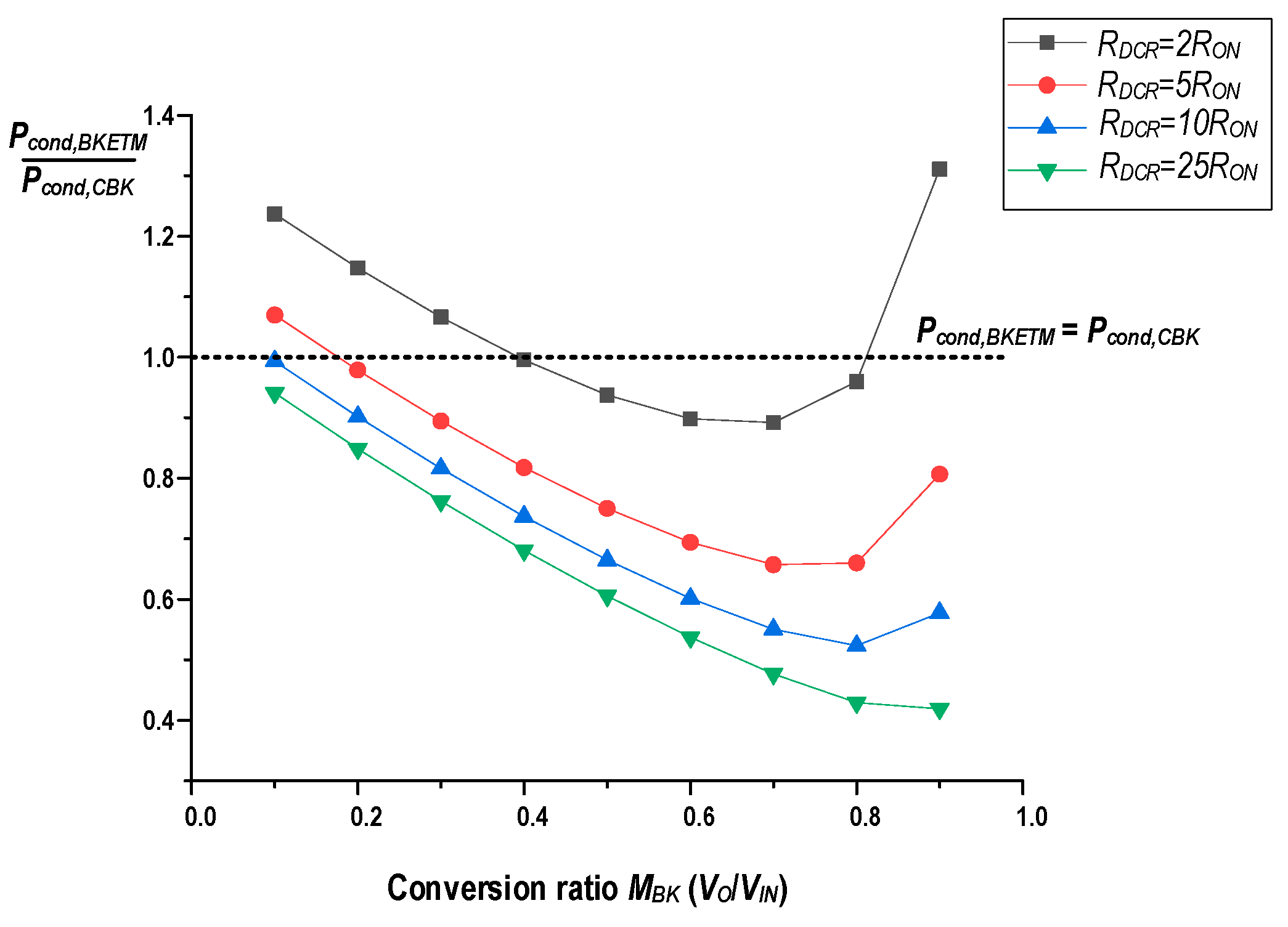

Figure 7 depicts the value calculated by Equation (13) versus the conversion ratio M_BK for different R_DCR. It shows that P_cond,BKETM is lower than P_cond,CBK across a wide range of M_BK values. As described by Equation (7), the total conduction loss decreases because I_L is reduced as M_BK increases. Also, the larger the R_DCR, the lower the P_cond,BKETM is compared with P_cond,CBK. Therefore, BKETM is a useful topology for step-down when a small inductor with a large R_DCR is used in heavy load conditions.

4. Buck-Boost Converter with Energy Transfer Media

Since the boost converter with the ETM shown in Figure 5c has been previously described in detail in [27], this paper focuses on the buck-boost converter with ETM (BBETM) shown in Figure 5d. It is composed of power switches S₁–S₄, S_M1–S_M3, one inductor (L), one flying capacitor (C_F), and one output capacitor (C_O). The BBETM also uses two operating modes (Φ₁, Φ₂), as shown in Figure 8a. Its operation waveforms are shown in Figure 8b.

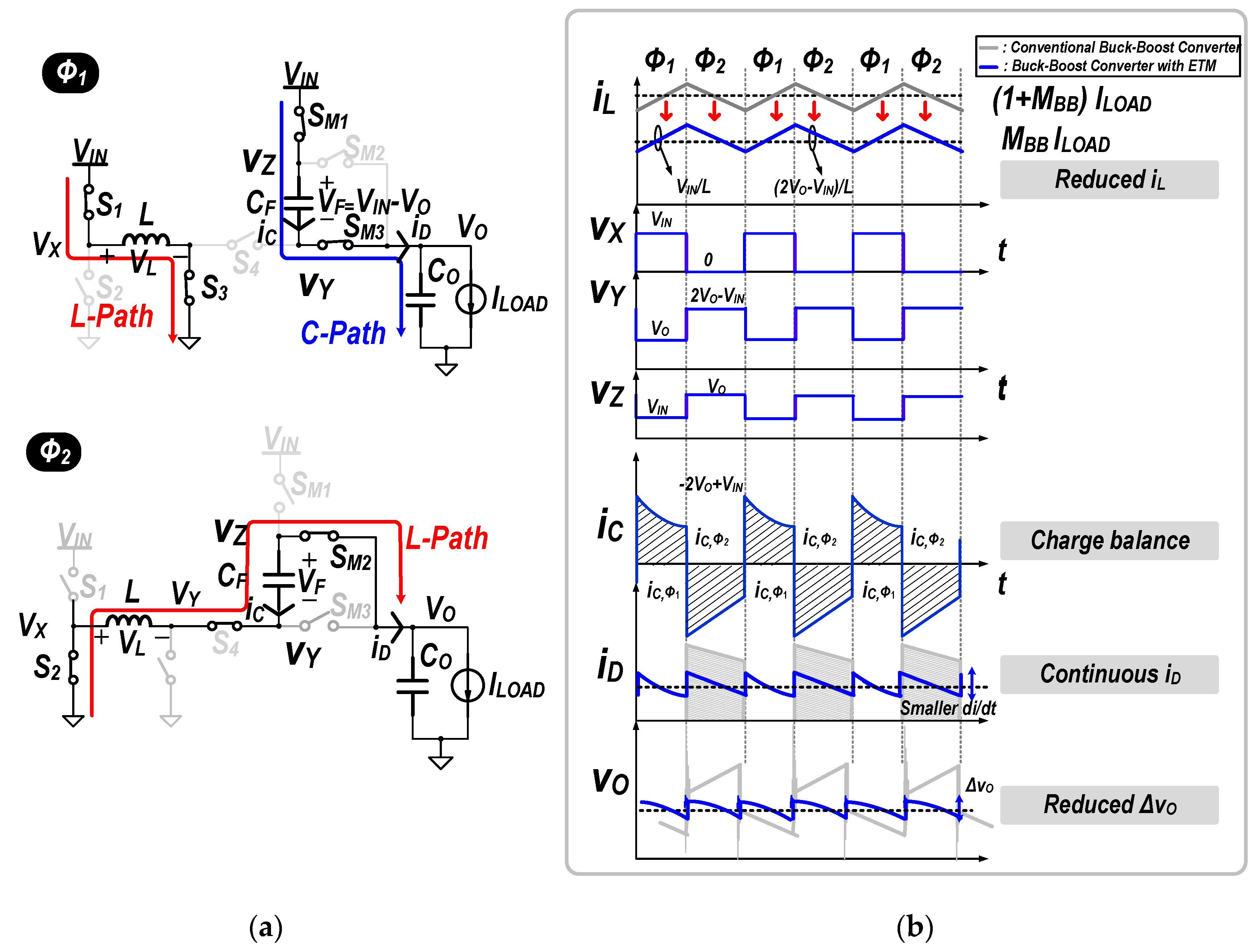

In Φ₁, S₁ and S₃ are turned on while i_L increases with a slope of V_IN/L and is delivered to the output. At the same time, S_M1 and S_M3 turn on, and i_C flows to the output through the C-path, while the voltage of C_F is charged to V_IN − V_O. With a conventional buck-boost (CBB) converter, current cannot be delivered to the output while i_L is building up. The ability of the BBETM to transfer the energy to the output during i_L build-up is one of the main differences between the BBETM and a CBB converter. Owing to this operation, the output delivery current (i_D) in the BBETM is continuous, resulting in a small output voltage ripple (∆V_O). In Φ₂, S₂, S_M2, and S_M3 turn on, and i_L is delivered to the output.

For the BBETM conversion ratio (M_BB), applying the voltage sec balance to the inductor based on the operation is expressed as follows:

$$D{V}_{IN}+(1-D)(-2V_O+V_{IN})=0.$$

(14)

Simplifying Equation (14), M_BB is given by:

$$M_{BB}=\frac{V_{OUT}}{V_{IN}}=\frac{1}{2(1-D)}\hspace{1em}\hspace{1em}\hspace{1em}0<D<1.$$

(15)

M_BB of the BBETM from Equation (15) has a value between 0.5 and infinity as D varies from 0 to 1. This means that the BBETM can operate for step-up and step-down output voltages. Since the conversion ratio is limited to less than 0.5, this approach is not appropriate for applications with a low conversion ratio. However, it offers several advantages compared with a CBB converter.

First, similar to the buck type converter, the BBETM I_L is reduced compared with that of a CBB converter. To analyze this, the average value of the C-path current (I_C,Φ1) in Φ₁ can be obtained by applying charge balance to the C_F as shown below:

$$D{I}_{C,\mathsf{\Phi }1}-(1-D)I_L=0.$$

(16)

Simplifying Equation (16), I_C,Φ1 is given by

$$I_{C,\mathsf{\Phi }1}=\frac{1-D}{D}{I}_L.$$

(17)

Applying the charge balance to C_O,

$$D(I_{C,\mathsf{\Phi }1}-I_{LOAD})+(1-D)(I_L-I_{LOAD})=0.$$

(18)

Substituting Equation (17) into Equation (18), I_L can be expressed with load current (I_LOAD) as shown below:

$$I_L=\frac{1}{2(1-D)}{I}_{LOAD}=M_{BB}{I}_{LOAD}.$$

(19)

Due to the two current paths in the ETM, the BBETM I_L is as low as M_BBI_LOAD, while the CBB I_L is (1 + M_BB) I_LOAD [4]. Therefore, the BBETM P_DCR can be reduced. To compare the total conduction loss with that of the CBB, the on-resistance of each switch is assumed to be the same as R_ON, and the total conduction loss (P_cond,CBB) of the CBB is expressed as follows:

$$P_{cond,CBB}=2I_L{}^2{R}_{ON}+I_L{}^2{R}_{DCR}={(1+M_{BB})}^2{I}_{LOAD}{}^2(2R_{ON}+R_{DCR}).$$

(20)

In contrast, the total conduction loss (P_cond,BBETM) of the BBETM is expressed as

$$P_{cond,BBETM}=I_L{}^2{R}_{ON}+I_L{}^{2}D{R}_{ON}+2I_{C,\mathsf{\Phi }1}{}^{2}D{R}_{ON}+2I_L{}^2(1-D)R_{ON}+I_L{}^2{R}_{DCR}$$

(21)

$$=I_L{}^2[(3-D+\frac{2{(1-D)}^2}{D})R_{ON}+R_{DCR}]$$

(22)

$$=M_{BB}{}^2{I}_{LOAD}{}^2[(\frac{1}{M_{BB}(2M_{BB}-1)}-\frac{2M_{BB}-1}{2M_{BB}}+3)R_{ON}+R_{DCR}].$$

(23)

For the relative comparison with the CBB, the ratio between P_cond,CBB and P_cond,BBETM for the BBETM is expressed as

$$\frac{P_{cond,BBETM}}{P_{cond,CBB}}=\frac{M_{BB}{}^2[(\frac{1}{M_{BB}(2M_{BB}-1)}-\frac{2M_{BB}-1}{2M_{BB}}+3)R_{ON}+R_{DCR}]}{{(1+M_{BB})}^2(2R_{ON}+R_{DCR})}.$$

(24)

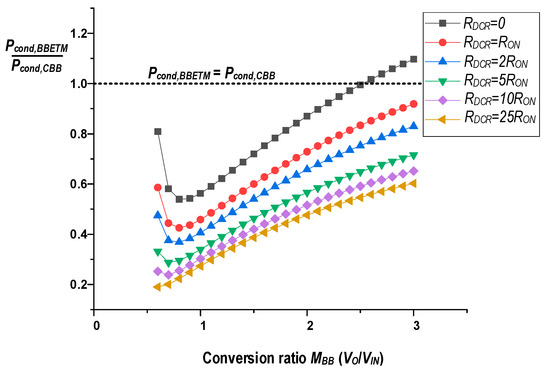

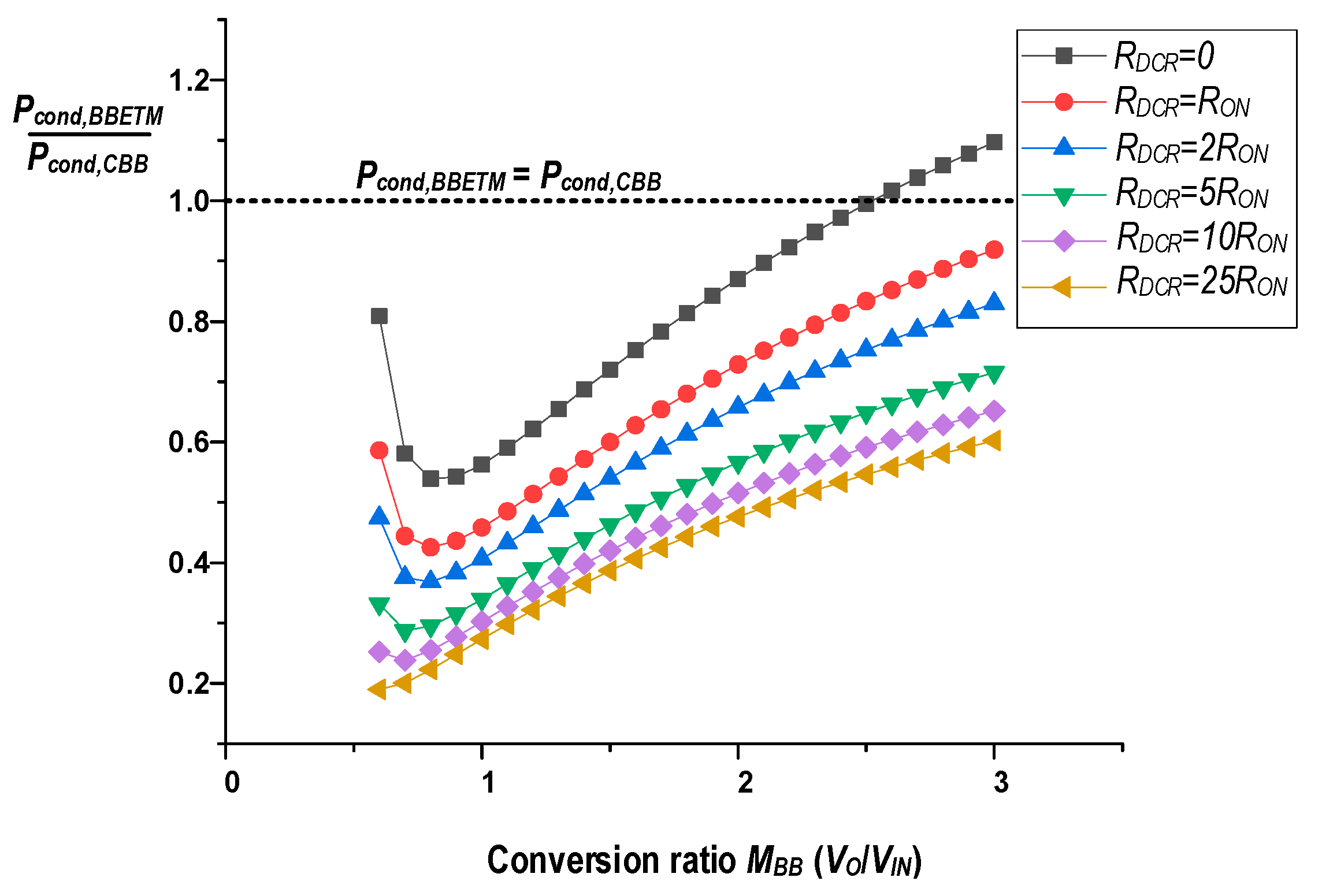

Figure 9 depicts the values of Equation (24) versus the conversion ratio M_BB for different R_DCR values, showing that the P_cond,BBETM is lower than the P_cond,CBB for a wide range of M_BB values. This finding demonstrates that the BBETM is more efficient than CBB due to the dual current paths. Also, it shows that the larger the R_DCR, the lower P_cond,BBETM is, compared with P_cond,CBB. Therefore, the BBETM is useful for step-up and step-down applications when a small inductor with a large R_DCR is used in heavy load conditions.

5. Extension to Other Topologies

5.1. Multi-Phase Buck Converter with ETM

The multi-phase converter is a structure that allows multiple inductors to transfer energy to the output when it is difficult to support sufficient energy for the output with only a single converter. The proposed ETM can also easily implement a SIC converter with a multi-phase structure. As shown in Figure 10a, the multi-phase buck converter can be designed with two ETMs for a single output with heavy I_LOAD. The proposed multi-phase buck converter with ETM (MBKETM) consists of one inductor and two flying capacitors, because two ETMs are used. Figure 10b shows the operation principle of the MBKETM. The advantage of the MBKETM over other topologies with an ETM is that the input frequency (f_IN) for the input duty (Φ₁, Φ₂) and the output switching frequency (f_OUT) for the output duty (Φ_O1, Φ_O2) can be independently controlled. As an example, in this paper, the input duty is controlled to regulate the output voltage, and the output duty is always fixed at 0.5 so that the C-path currents (I_C,ΦO1, I_C,ΦO2) can be maintained at the inductor current I_L. Then, applying charge balance to the output capacitor C_O in this condition,

$$I_L=I_{C,\mathsf{\Phi }O1}=I_{C,\mathsf{\Phi }O2}=\frac{1}{2}{I}_{LOAD}.$$

(25)

From Equation (25), I_L can also be maintained at half of I_LOAD, the same value as I_L of the conventional multi-phase buck converter (CMBK) with two inductors [19]. Thus, the MBKETM can generate triple current paths (one L-path, two C-paths) with a single inductor and two low-cost, small flying capacitors, thus reducing cost and size compared with a CMBK. Moreover, owing to these triple current paths, the ripple of the output delivery current i_D is reduced such that the output voltage ripple ∆V_O is smaller than that of the BKETM. Furthermore, by adopting a higher output frequency (f_OUT) for the output duty (Φ_O1, Φ_O2) than the input frequency (f_IN) for the input duty (Φ₁, Φ₂), ∆V_O can be further reduced. These characteristics are verified with simulation results in the next section.

5.2. Single-Inductor Multiple-Output Buck Converter with ETM

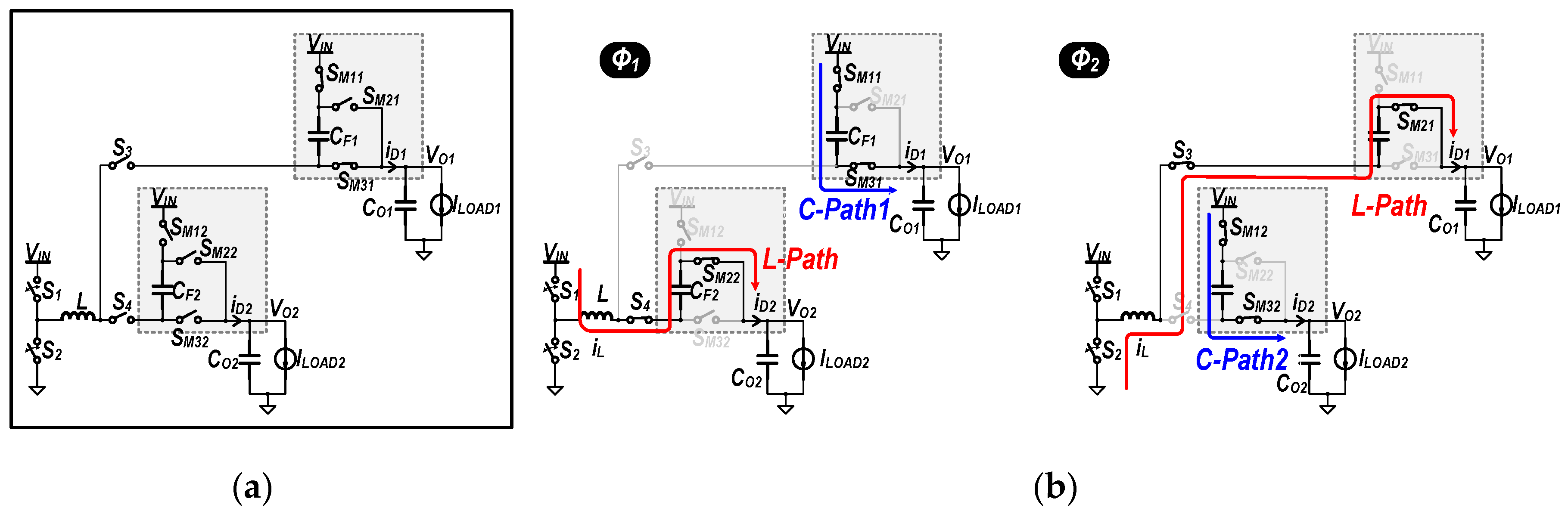

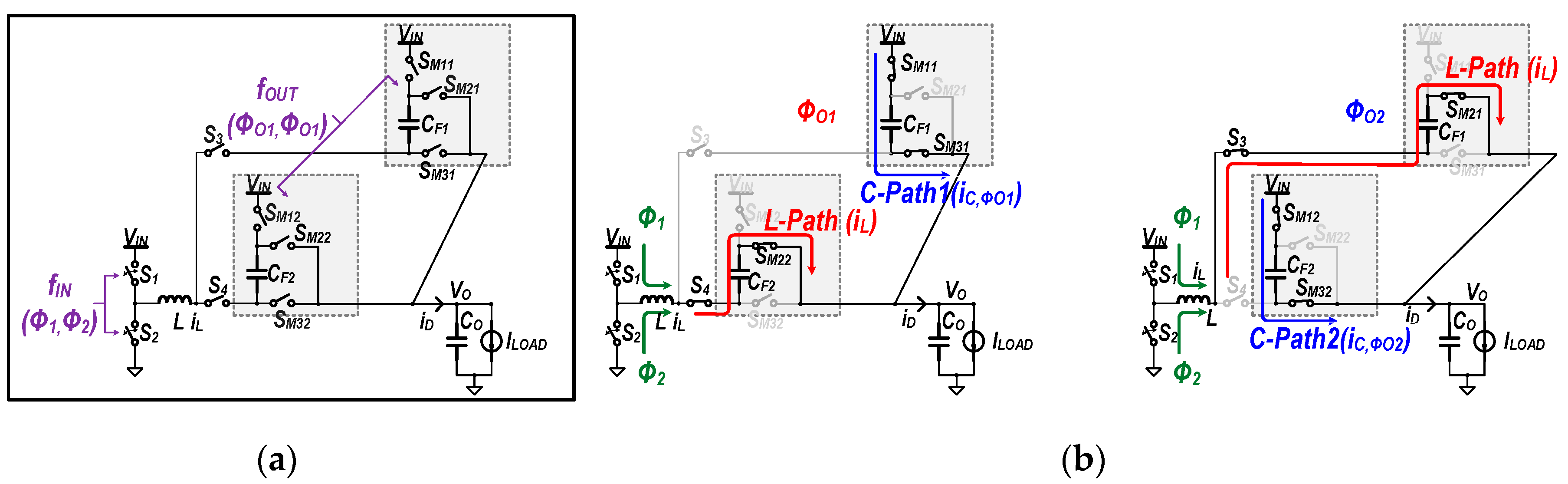

As the name suggests, a single-inductor multiple-output (SIMO) converter can regulate many outputs with one inductor [31,32,33]. As shown in Figure 11a as an example, it is also easy to make a dual-output structure with two ETMs. More outputs can be generated by increasing the number of ETMs. Figure 11b shows the operation of a single-inductor dual-output (SIDO) buck converter with two ETMs (SIDOETM). Because of the ETMs, I_L is reduced compared with that of a conventional SIMO converter (CSIMO). Moreover, since the SIDOETM has triple paths (one L-path and two C-paths), the currents (i_D1, i_D2) delivered to each output (V_O1, V_O2) are continuous. In contrast, with the CSIMO, the currents delivered to the output are discontinuous because a single inductor must be used to distribute the energy to each output during different time slots. Therefore, the CSIMO has the disadvantage of significant large voltage ripple at each output. In contrast, since the proposed SIDOETM has continuous i_D1 and i_D2, the output voltage ripples (∆V_O1, ∆V_O2) can be significantly reduced. Also, the CSIMO typically uses a comparator-based control for regulation of the outputs, which is very vulnerable to spike noise at the outputs [32,33]. Because the discontinuous output delivery currents can generate large spikes at every output due to the parasitic inductance that is connected to the output capacitors in series, it can cause a malfunction on the regulation control of the CSIMO. Therefore, the SIDOETM has an additional advantage of being able to alleviate the spike noise due to continuous output delivery current.

6. Simulation Results and Discussion

6.1. Buck Converter with ETM

Table 1. Simulation conditions for buck converter with ETM.

VIN	VOUT	ILOAD	fIN	L	RDCR
5 V	2.8 V	1 A	1 MHz	4.7 μH	0.2 Ω
CF	CO	RON	RESR	Cgate	Coss
4.7 μF	4.7 μF	50 mΩ	20 mΩ	250 pF	100 pF

shows the simulation conditions for the proposed BKETM. To obtain accurate simulation results, the switching loss model is included as well as the conduction loss in the simulation. C_gate and C_oss in Table 1 are the gate capacitance and the output capacitance of the power switch, respectively, for considering the switching loss. Figure 12 shows the simulated waveforms to confirm the operation of the converter.

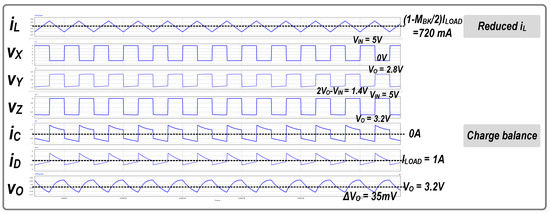

The results show a I_L of 720 mA, lower than the I_LOAD of 1 A. Also, the charge balance of the capacitor is satisfied through ic, and the voltage and current values of each node match the calculation in Section 3. Owing to the lowered I_L, high efficiency can be achieved even when using a small inductor, reducing P_DCR. This type of converter can also solve the heat problems associated with high performance mobile devices. However, since the BKETM has a pulsating i_D due to the C-path, a large ∆V_O of 35 mV is observed, as shown in Figure 12.

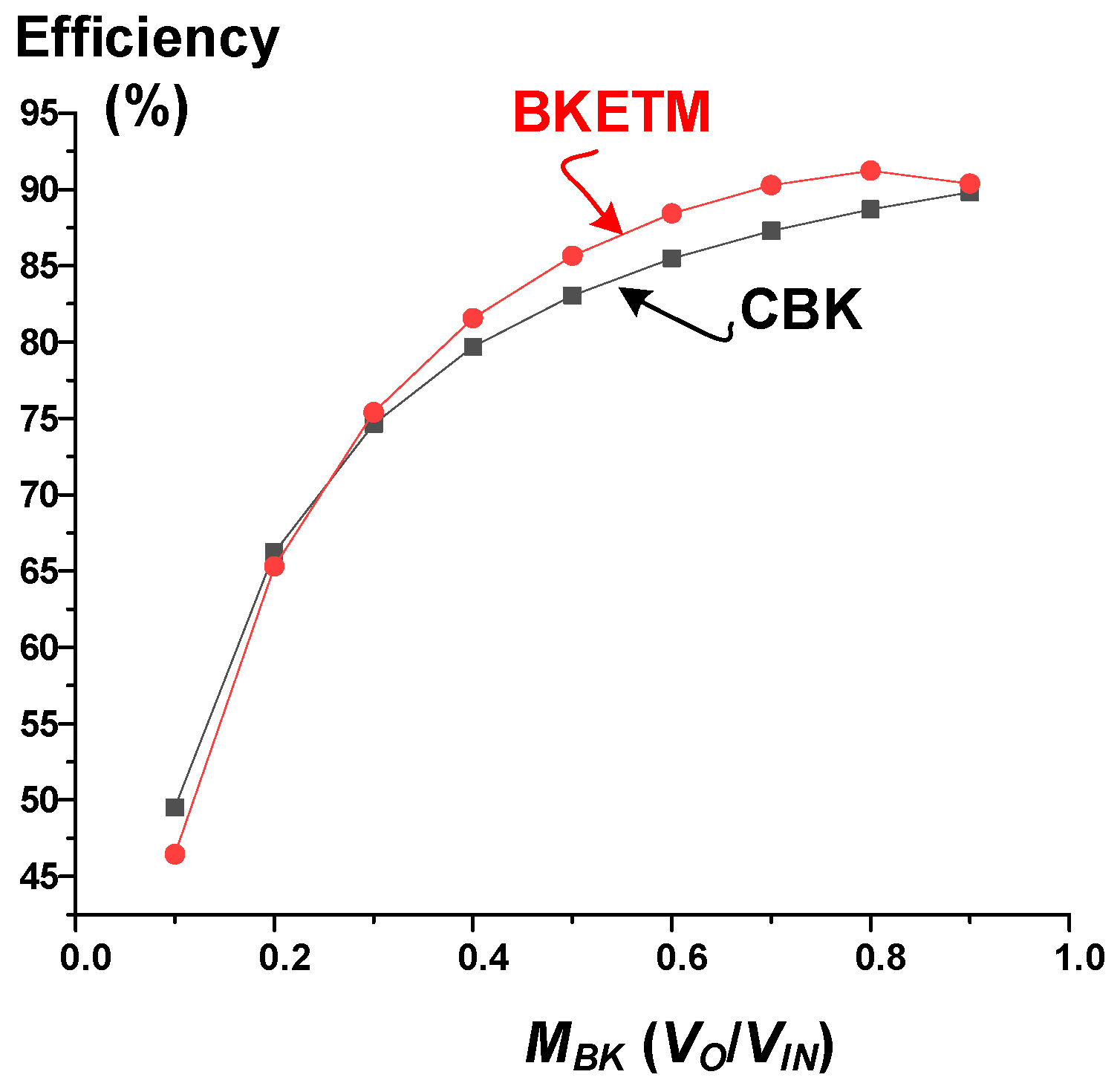

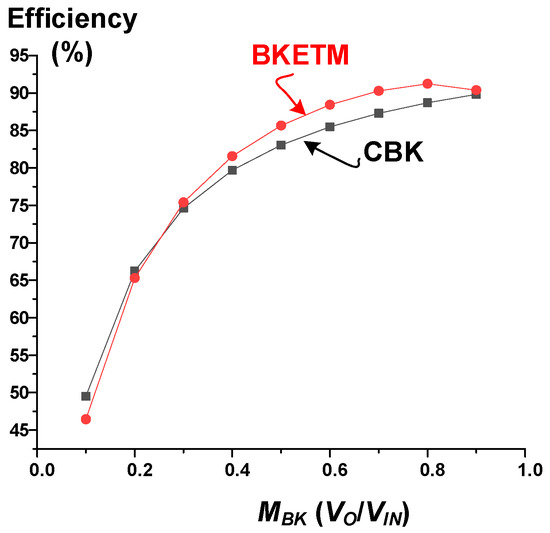

Figure 13 shows the simulated efficiency plots for both the BKETM and CBK with different conversion ratios (M_BK). From Equation (7), the larger the value of M_BK, the larger the reduction in I_L. Thus, the efficiency of the BKETM is higher than that of the CBK when M_BK is high. However, as M_BK approaches 1, the C-path current, I_C,Φ2, rapidly increases according to Equation (5). Then, the total conduction loss increases again, resulting in the degradation of the efficiency of the BKETM.

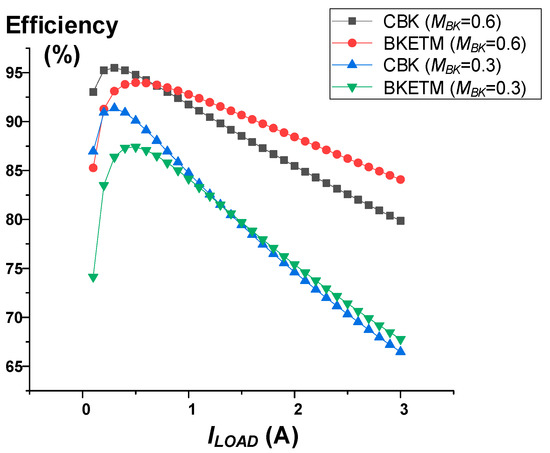

Figure 14 shows the efficiency plots with different values of I_LOAD when M_BK is 0.6 or 0.3. When M_BK is high, as I_LOAD increases, the efficiency improves compared with that of the CBK. However, when M_BK is low, the reduction effect of I_L is not significant. Then, even if I_LOAD becomes large, the increment in efficiency is negligible. Therefore, the BKETM is an efficient topology when M_BK is high under heavy load conditions.

6.2. Buck-Boost Converter with ETM

Table 2. Simulation conditions for buck-boost converter with ETM.

VIN	VOUT	ILOAD	fIN	L	RDCR
5 V	6 V	1 A	1 MHz	4.7 μH	0.2 Ω
CF	CO	RON	RESR	Cgate	Coss
4.7 μF	4.7 μF	50 mΩ	20 mΩ	250 pF	100 pF

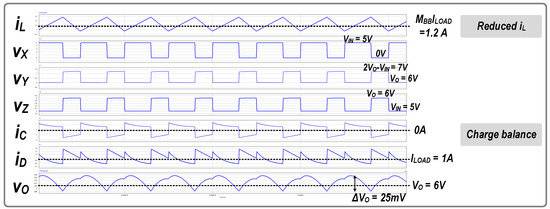

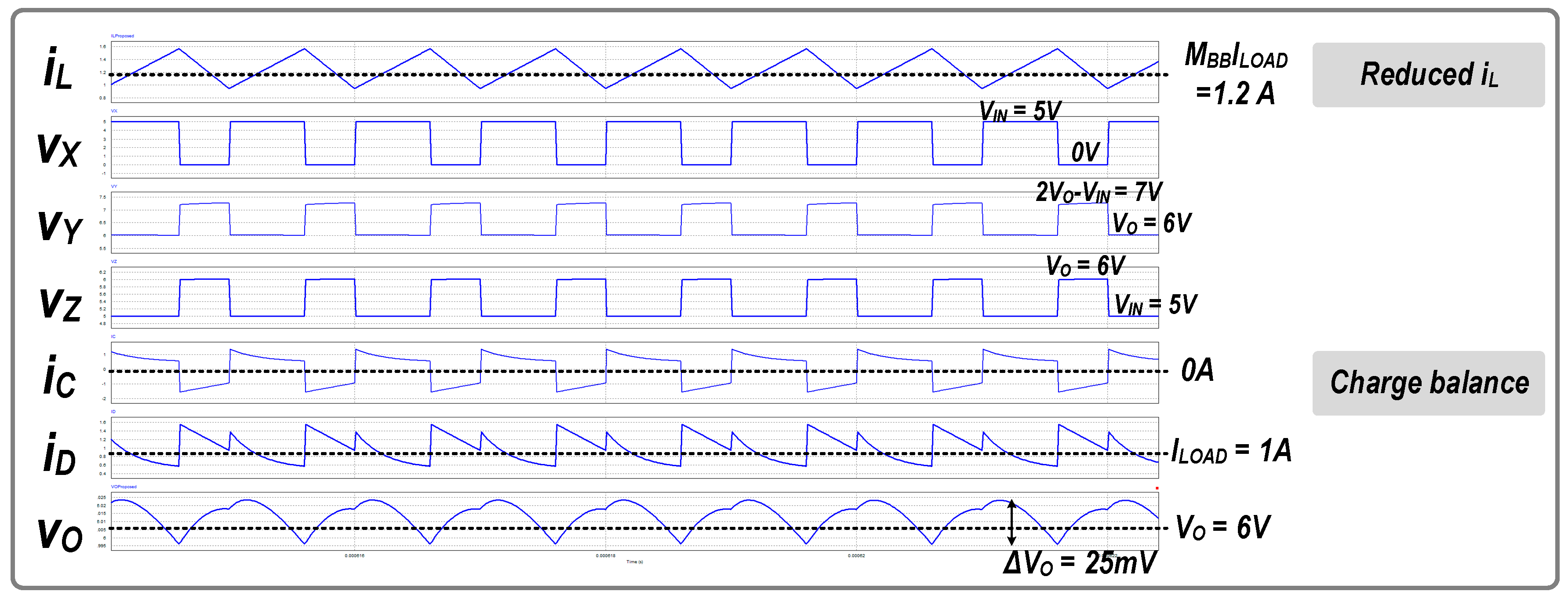

shows the simulation conditions for the proposed BBETM. Figure 15 shows the simulation results to confirm the operation of the converter.

The simulation results show that the BBETM achieves a lower I_L (1.2 A) than that of the CBB (2.2 A). Also, the charge balance of C_F is satisfied through ic, and the voltage and current values of each node are matched with the calculation in Section 4. Due to reduced inductor current, the conduction loss can be decreased even when a small inductor is used. Moreover, in contrast to the CBB i_D, the BBTEM i_D is continuous due to the addition of the C-path, resulting in a smaller ∆V_O of 25 mV compared with the 130 mV observed for the CBB under the same operating conditions, as shown in Figure 16.

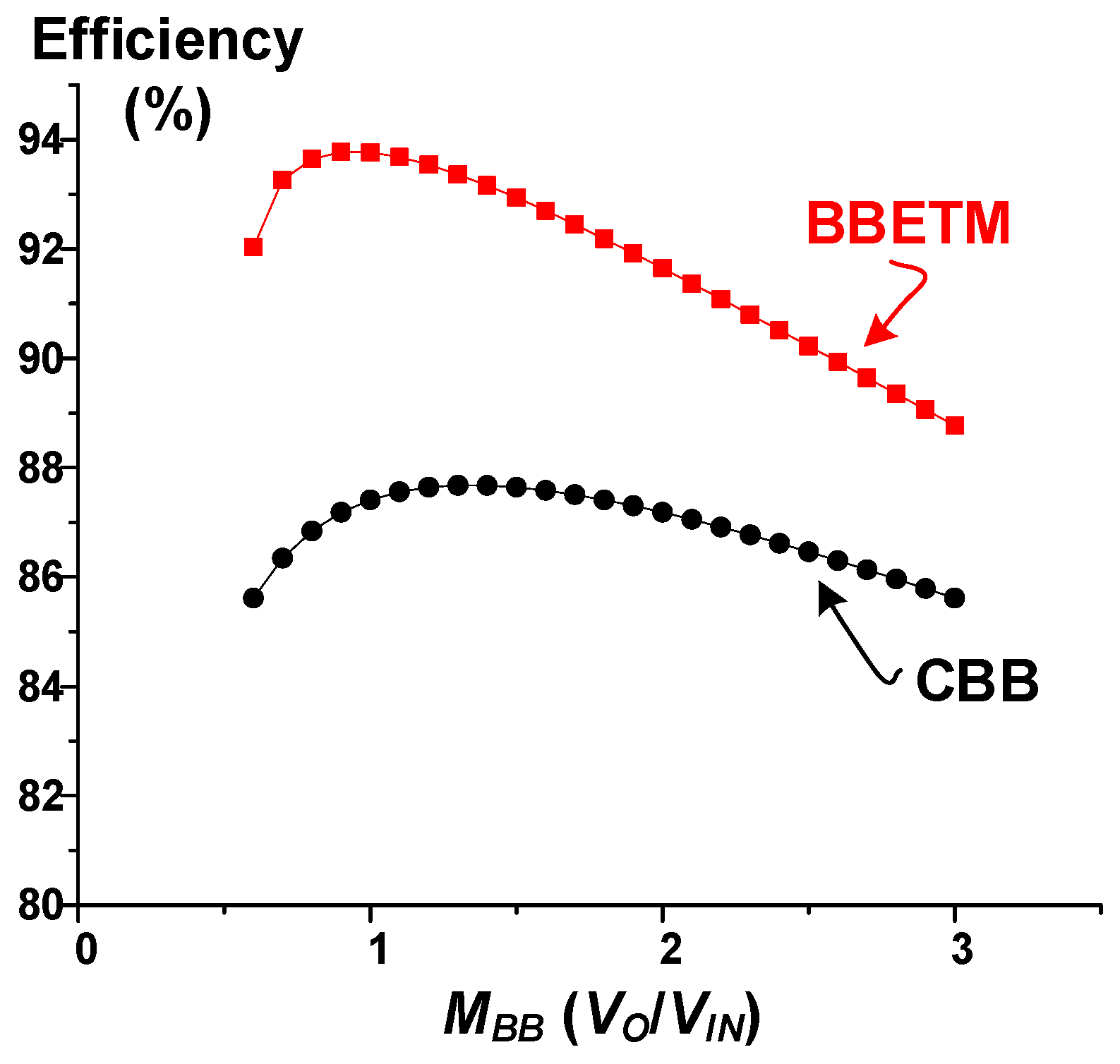

Figure 17 shows the simulated efficiency plots for both the BBETM and CBB with different conversion ratio values, M_BB. The BBETM has a much higher efficiency than the CBB across a wide range of M_BB values because the buck-boost topology generates a much larger I_L than the buck-type topology due to a structural characteristic.

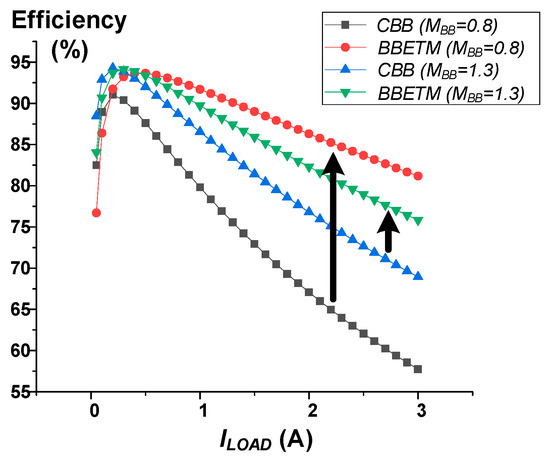

Figure 18 shows the efficiency plots with different I_LOAD values when M_BB is 0.8 or 1.3. Based on Equation (19), a lower M_BB is associated with a larger reduction in I_L for the BBETM compared to the CBB. Thus, with a low M_BB, as I_LOAD increases, the increment in efficiency for BBETM compared with CBB becomes significant.

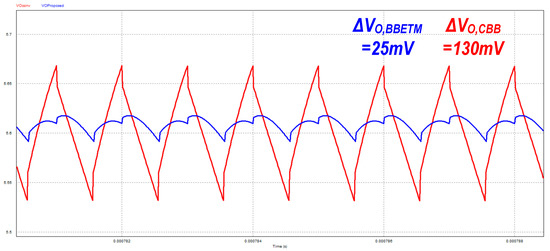

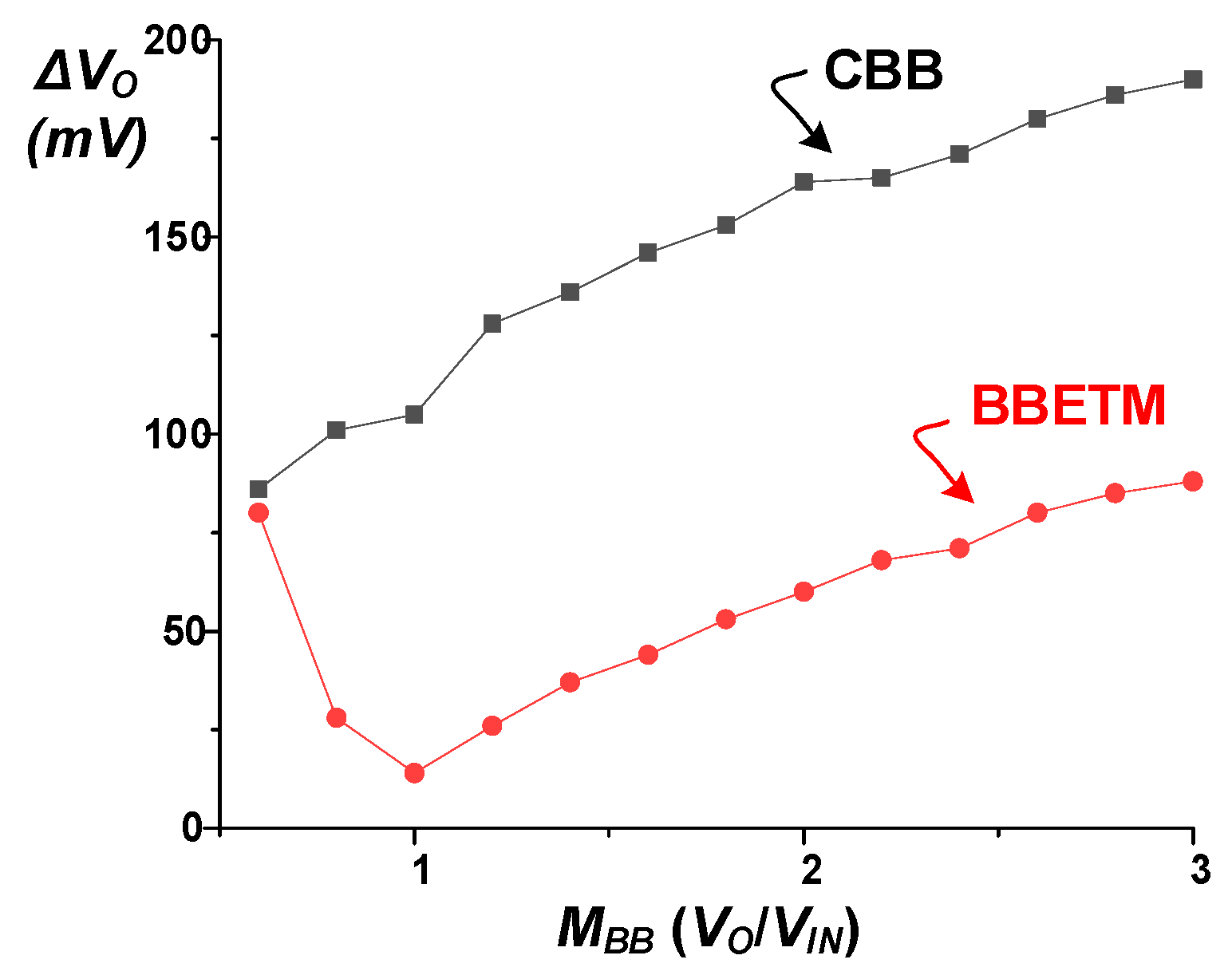

The BBETM has another benefit of a small ∆V_O. Figure 19 is a plot comparing the ∆V_O of the proposed BBETM and the CBB under the same operating conditions. The BBETM ∆V_O is lower than that of the CBB across a wide range of M_BB values. However, when M_BB is very low, which means there is a small duty cycle D, the C-path current rapidly increases as shown in Equation (17), resulting in a large ∆V_O again.

6.3. Multi-Phase Buck Converter with ETM

The MBKETM is simulated under the operating conditions as shown in

Table 3. Simulation conditions for multi-phase buck converter with ETM.

VIN	VOUT	ILOAD	fIN	L	RDCR
5 V	3.7 V	1 A	1 MHz	4.7 μH	0.2 Ω
CF	CO	RON	RESR	Cgate	Coss
4.7 μF	4.7 μF	50 mΩ	20 mΩ	250 pF	100 pF

.

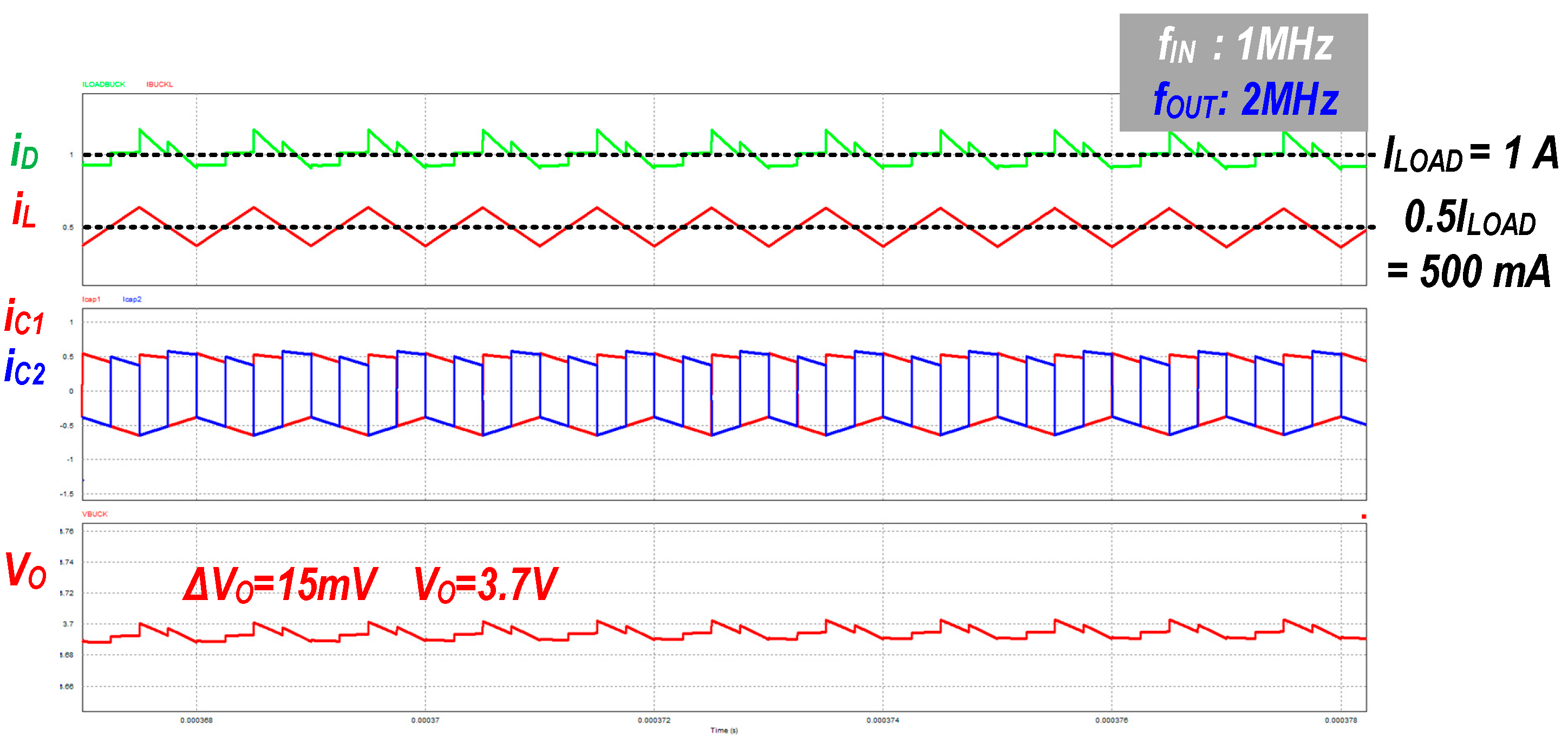

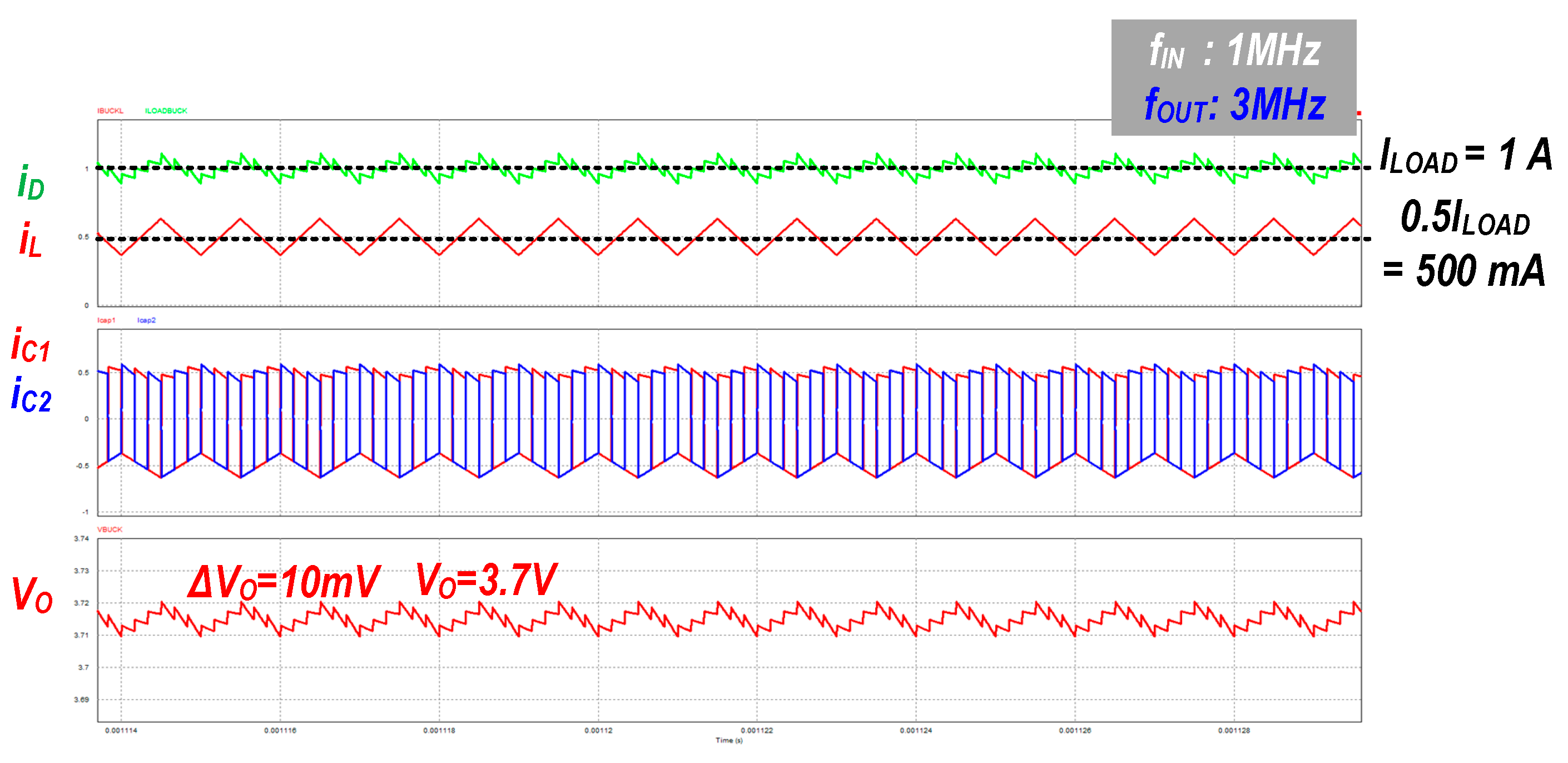

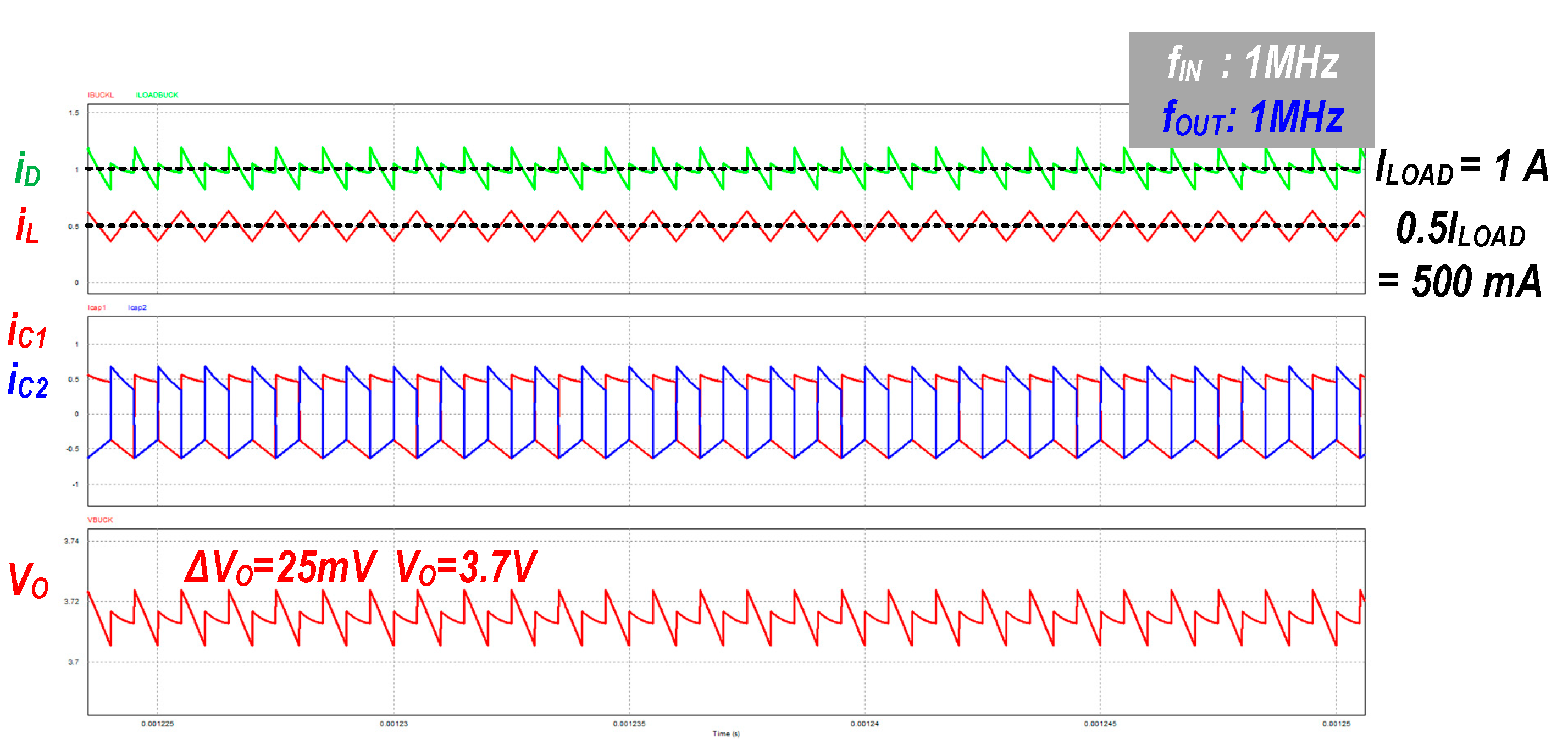

It is possible to separate f_IN and f_OUT as mentioned in Section 5. Figure 20, Figure 21 and Figure 22 show the simulation waveforms of the MBKETM with different values of f_OUT. Figure 20 shows the waveforms when f_IN and f_OUT are both equal to 1 MHz. I_L is reduced to half of I_LOAD because the output duty is fixed at 0.5, as shown in Equation (25). Moreover, ∆V_O is as small as 25 mV because i_D is continuous due to the presence of both the L-path and the C-path. Figure 21 shows the waveforms when f_OUT is two times higher than f_IN. Under these conditions, ∆V_O is further reduced to 15 mV because the effective frequency seen at the output is increased. Figure 22 shows the waveforms when f_OUT is triple the value of f_IN. Under these conditions, ∆V_O is further reduced to 10 mV. However, since high f_OUT can increase the switching loss in the converter, causing degradation of efficiency, there is a trade-off between ∆V_O and power efficiency.

In summary, the proposed MBKETM, using one inductor and two flying capacitors, achieves a similar reduction of I_L to half of I_LOAD as the CMBK does with two large, expensive inductors, thereby reducing P_DCR significantly. Furthermore, because f_IN and f_OUT can be controlled independently, ∆V_O can be further reduced. Also, unlike the CMBK, the proposed MBKETM does not require a complex current balancing controller in spite of the multi-phase operation.

6.4. Single-Inductor Multiple-Output Buck Converter with ETM

Table 4. Simulation conditions for single-inductor multiple-output (SIDO) converter with ETM.

VIN	VOUT1/VOUT2	ILOAD1/ILOAD2	fIN	L	RDCR
5 V	2.8 V/2 V	0.7 A/0.5 A	1 MHz	4.7 μH	0.2 Ω
CF	CO	RON	RESR	Cgate	Coss
4.7 μF	4.7 μF	50 mΩ	20 mΩ	250 pF	100 pF

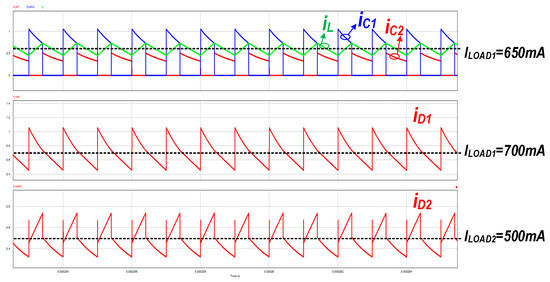

shows the simulation conditions of the proposed SIDOETM. Figure 23 shows the simulated i_L, i_C1, i_C2, i_D1, and i_D2 of the proposed converter. Due to the dual current paths, I_L is lower than the sum of I_LOAD1 and I_LOAD2.

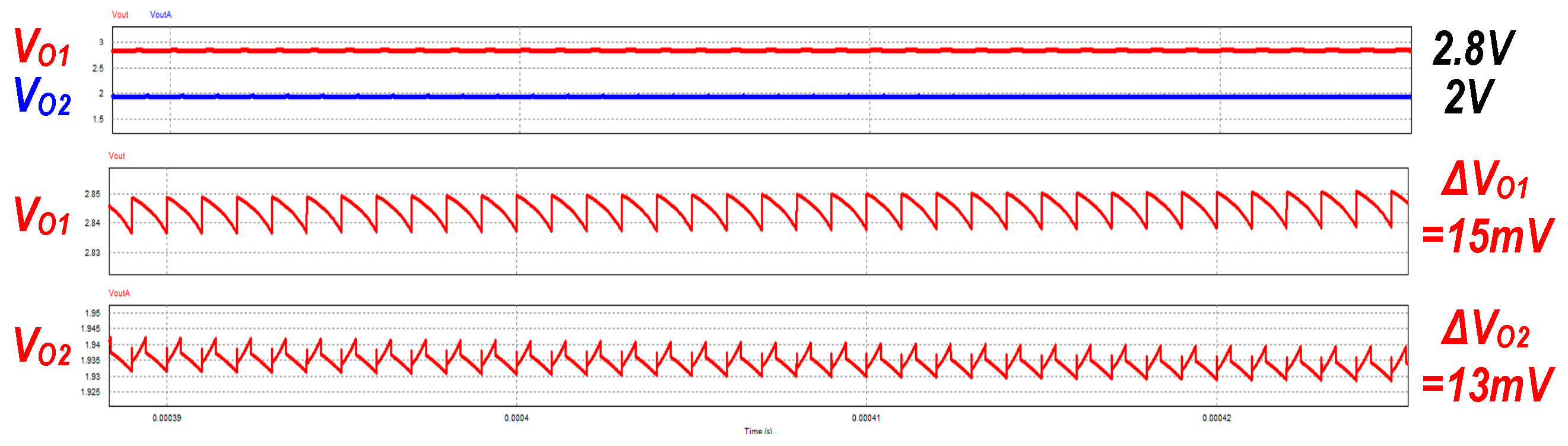

Moreover, since i_D1 and i_D2 do not drop to zero, the continuous current (i_D1, i_D2) flows to the respective output (V_O1, V_O2). Figure 24 shows that the output voltage is well regulated to 2.8 V and 2 V. The ripples of each output are 15 mV and 13 mV, respectively. It has a lower ∆V_O than the CSIMO [31,32,33].

Table 5. Summary table with buck and buck-boost type converters.

Advantages	BKETM	CBK	BBETM	CBB
Reduction of IL	O	×	O	×
Reduction of ∆VO	×	×	O	×
Continuous iD	O	O	O	×

O: Yes; ×: No.

and

Table 6. Summary table with multi-phase buck and single-inductor dual-output (SIDO) buck type converters.

Advantages	MBKETM	CMBK	SIDOETM	CSIMO
Reduction of IL	O	×	O	×
Reduction of VO	O	×	O	×
Continuous iD	O	O	O	×
Separated frequency	O	×	×	×

O: Yes; ×: No.

summarize the advantages of the proposed topologies with the ETM. The common advantage is the reduction of I_L, resulting in low total conduction loss in heavy load conditions. Moreover, unlike conventional topologies that have discontinuous i_D, such as the CBB and CSIMO topologies, the proposed ETM topologies have very low ∆V_O because of the continuous i_D. The MBKETM can control f_IN and f_OUT independently, resulting in further reduction of ∆V_O.

7. Conclusions

In this paper, an ETM was proposed to make a promising hybrid switched inductor capacitor converter easier to design for heavy load conditions. New topologies with ETM, which generate dual current paths, were analyzed and compared with conventional topologies that have a single current path. Owing to the dual current paths (L-path and C-path), all of the topologies with the ETM shared the common advantage of reduced inductor current. Since it significantly decreases conduction loss dissipated at a considerable parasitic DC resistance of the inductor, the heating issue can be resolved at the same time as the power efficiency is improved, which was discussed with buck and buck-boost converters with ETMs as examples. Moreover, the buck-boost converter with ETM has continuous output delivery current, resulting in much smaller output voltage ripple than that of a conventional buck-boost converter. Also, a multi-phase converter and single-inductor multiple-output converter with several ETMs were proposed and simulated. The multi-phase converter with ETM offered the additional advantage of separating the switching frequency between the input frequency and the output frequency to further reduce the output ripple voltage. Additionally, the SIMO converter with ETM achieved a small output voltage ripple, similar to that of a buck-boost converter with ETM, due to the continuous output delivery current. In summary, the ETM can be implemented easily by combining with conventional topologies, and it has several merits such as reduced inductor current, small output voltage ripple, and independent frequency control. The proposed ETM can be applied to various non-isolated topologies as a promising solution for use in heavy load conditions with a small inductor.
