A Theoretical Study on Performance and Design Optimization of Linear Dielectric Compound Parabolic Concentrating Photovoltaic Systems
Abstract
:1. Introduction
2. Three-Dimensional Radiation Transfer Model

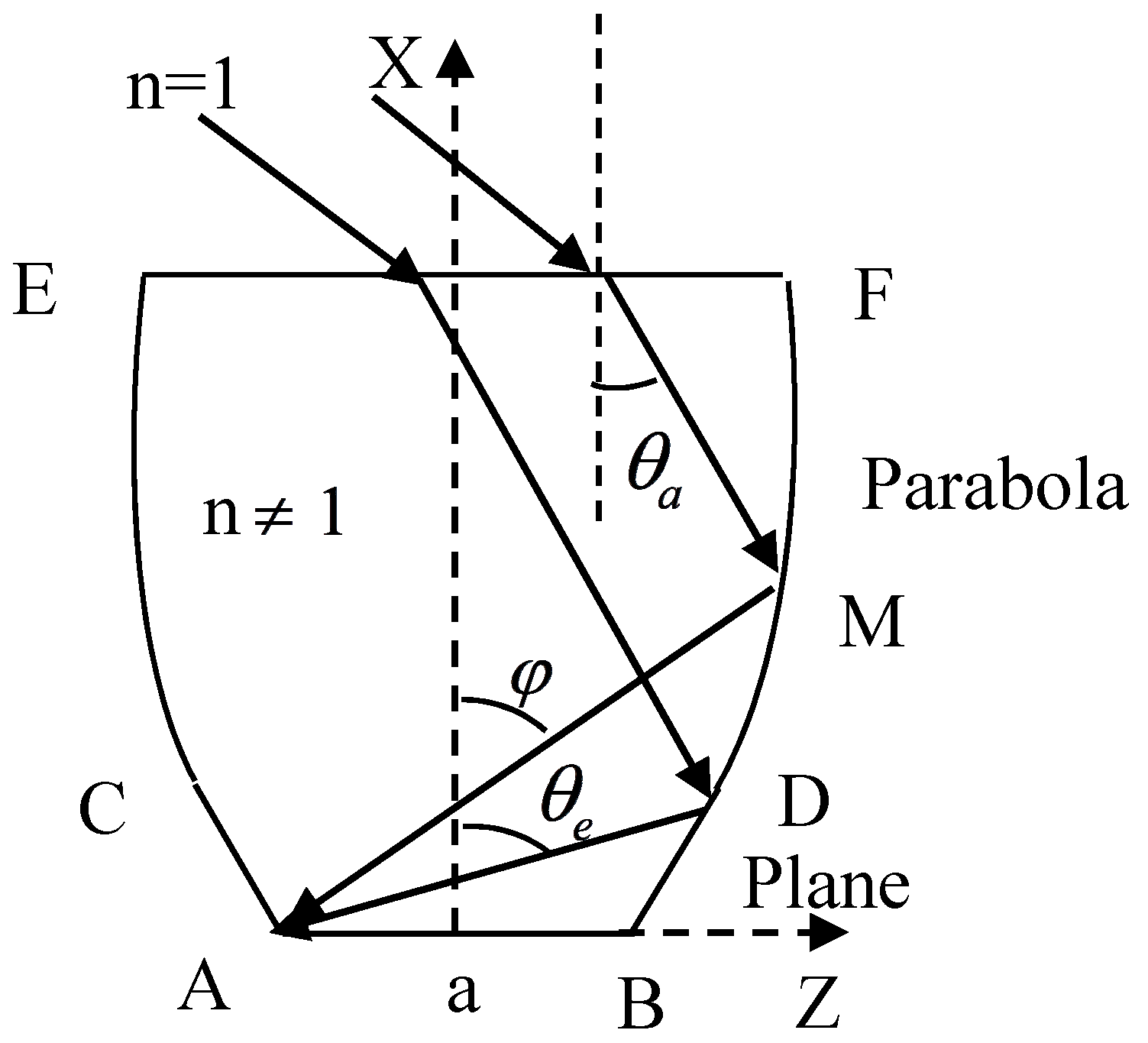

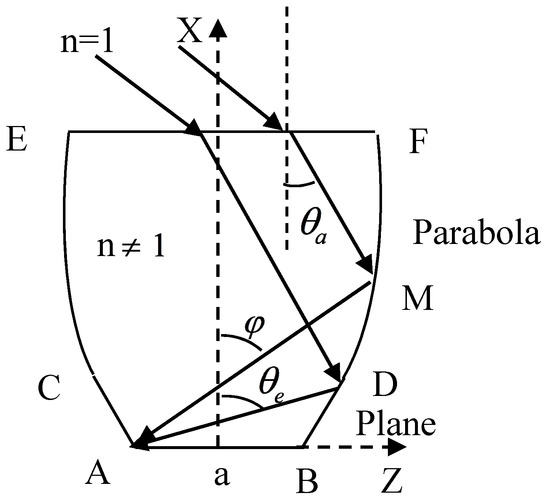

2.1. Equation of Linear DCPC’s Walls

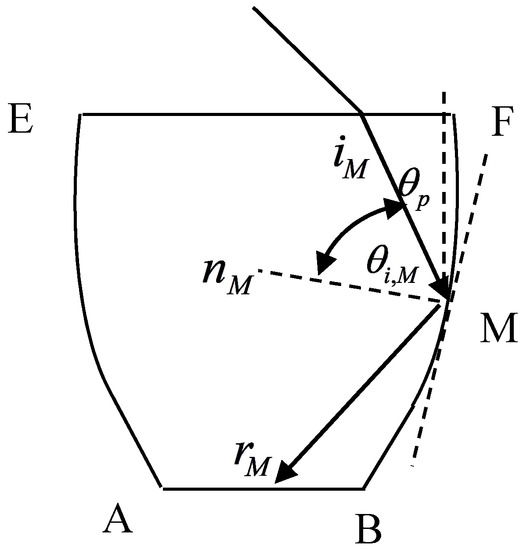

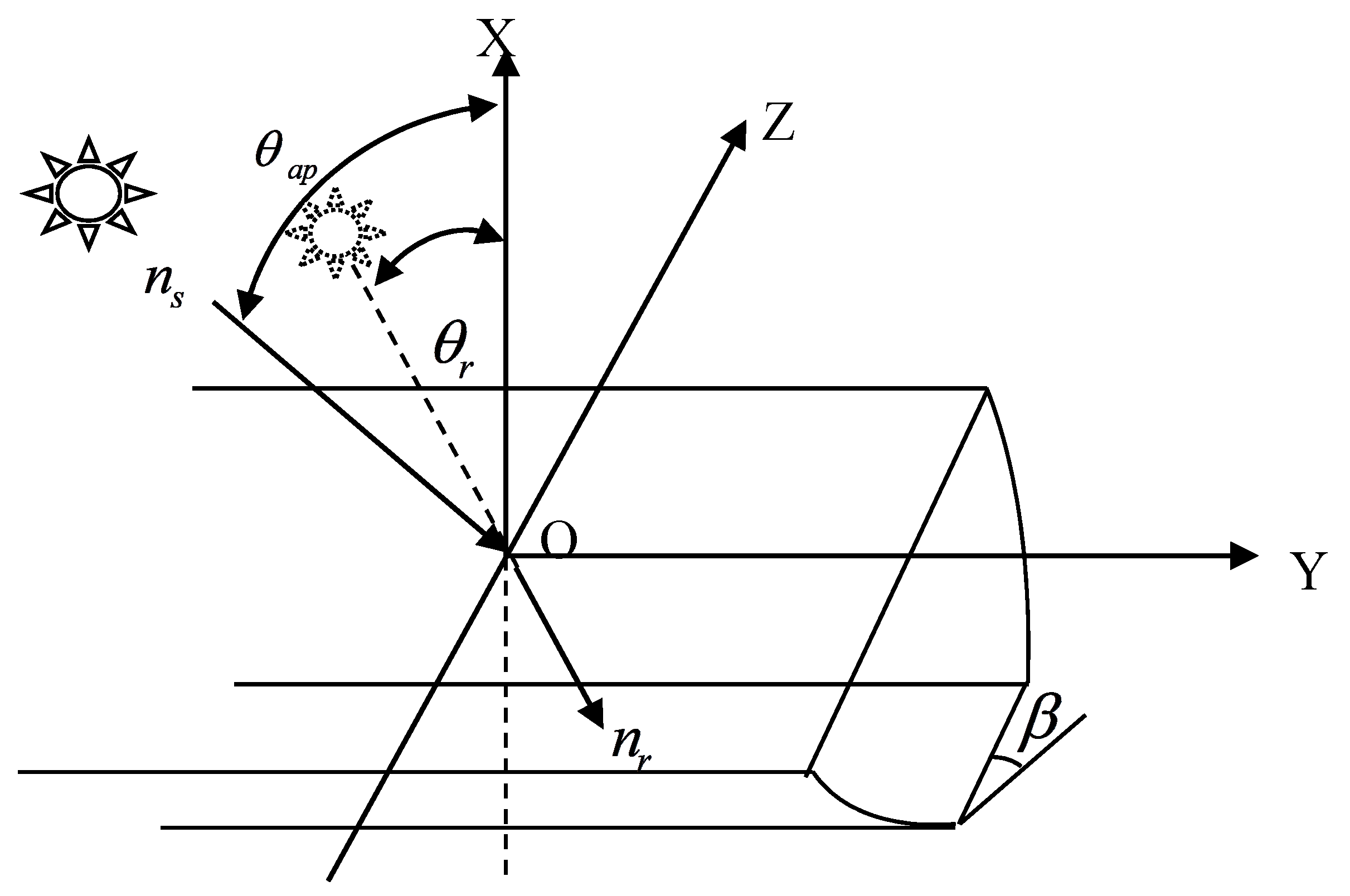

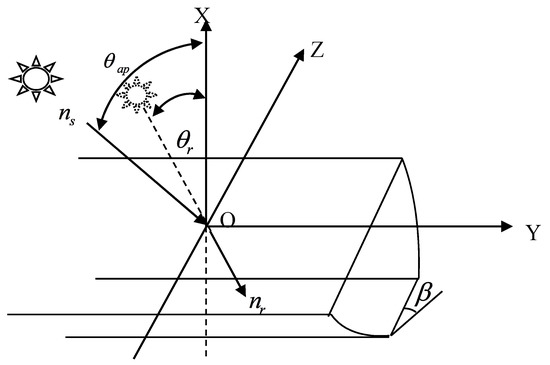

2.2. Vectors of Incident and Refractive Rays
2.3. Transmittance of Solar Rays at Air-Dielectric Aperture
2.4. Optical and Photovoltaic Performance of Linear DCPVs

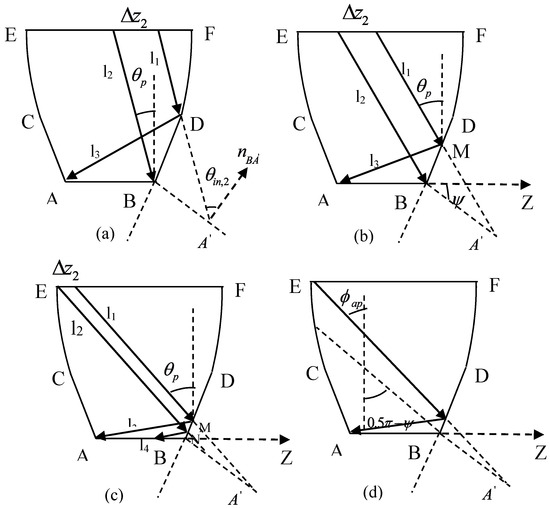

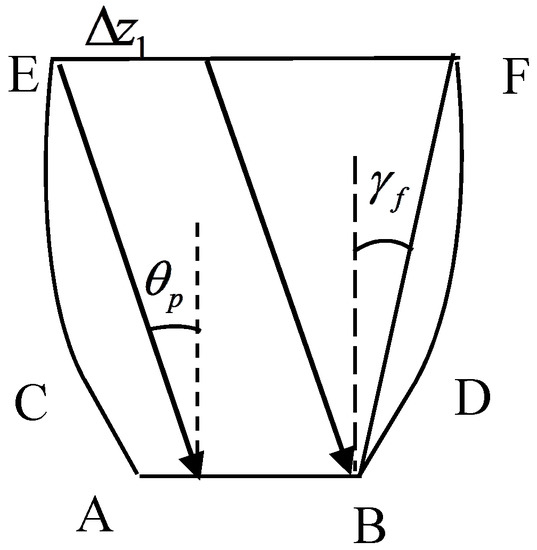

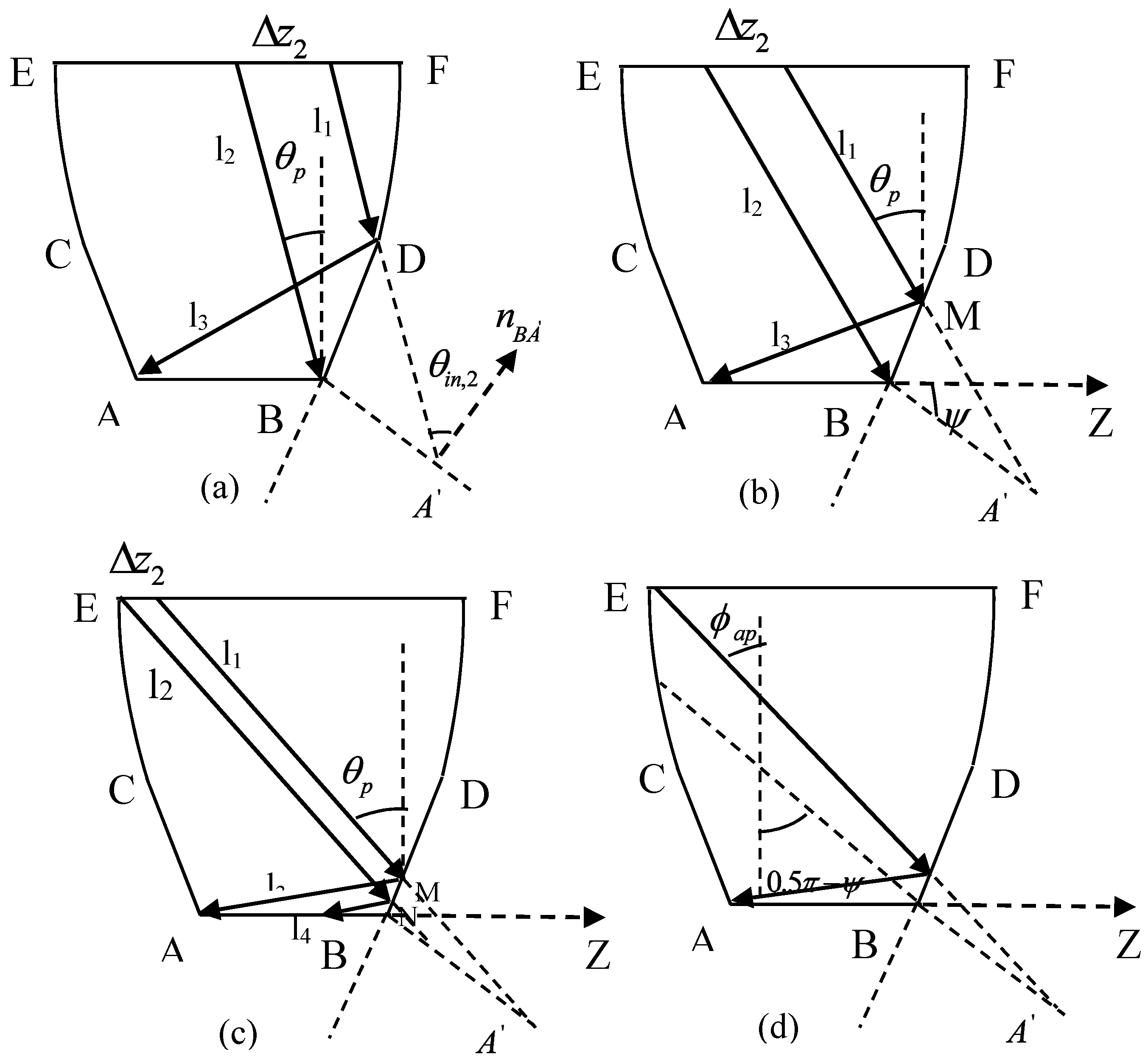

2.4.1. Calculation of and

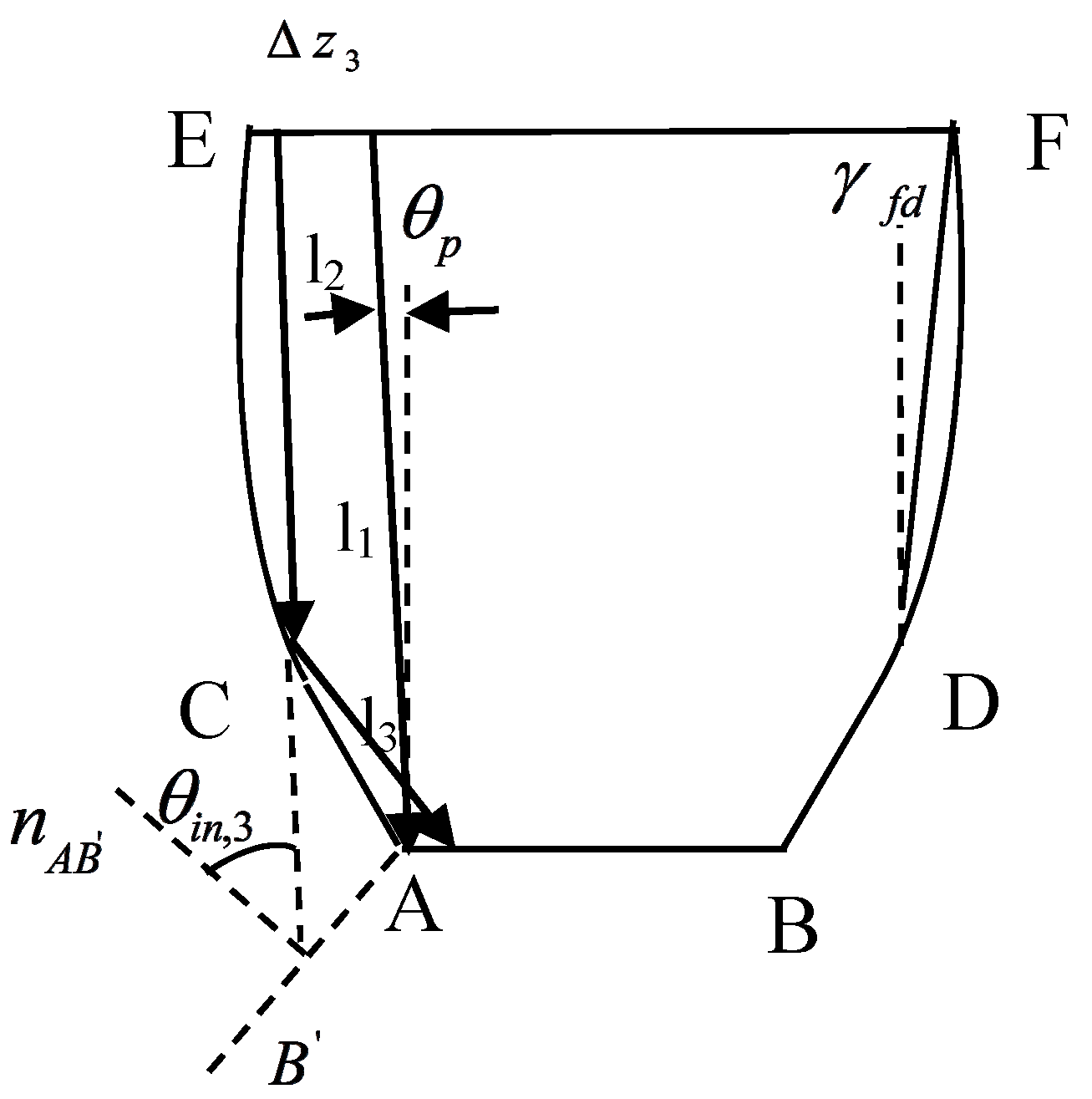

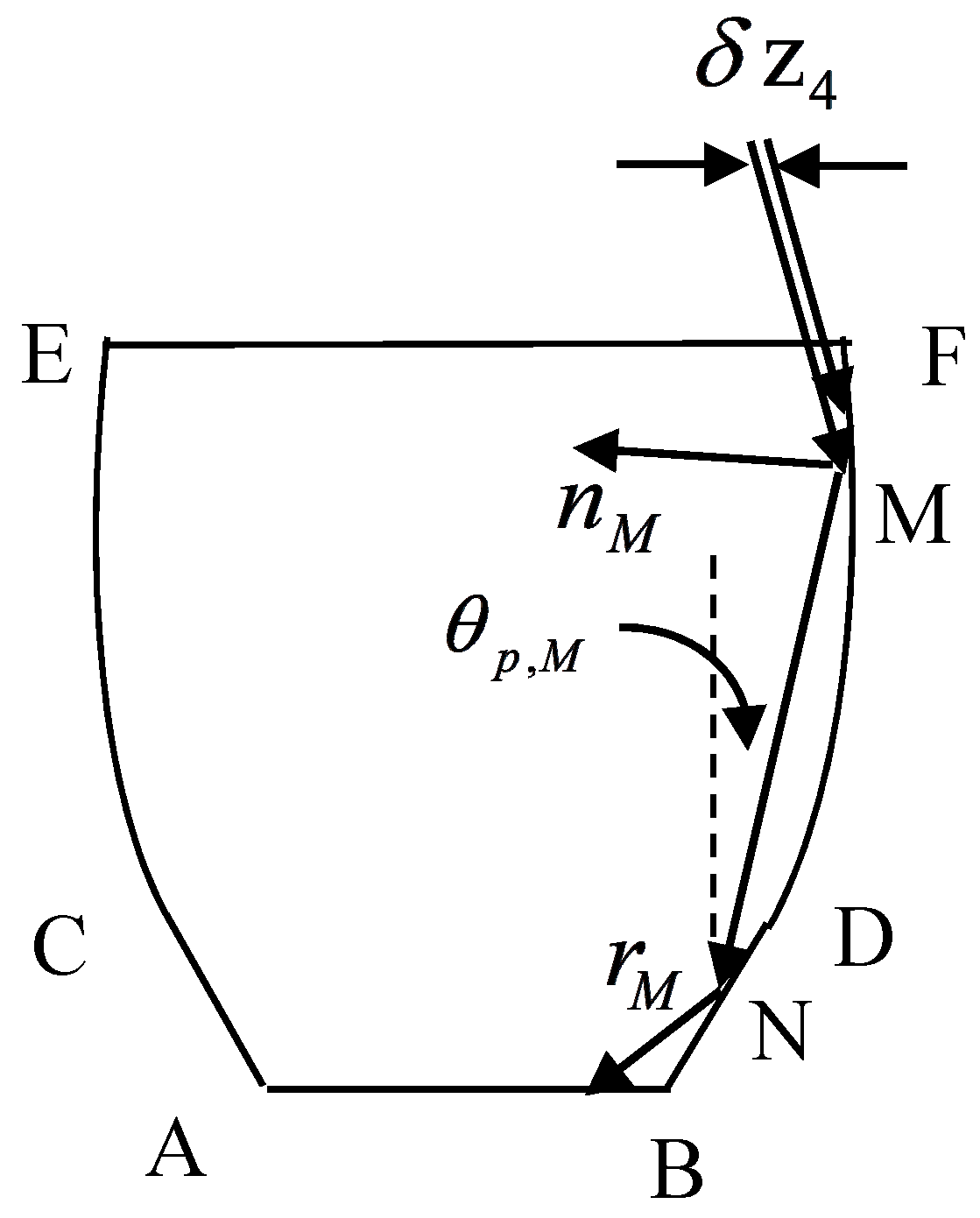

2.4.2. Calculation of and

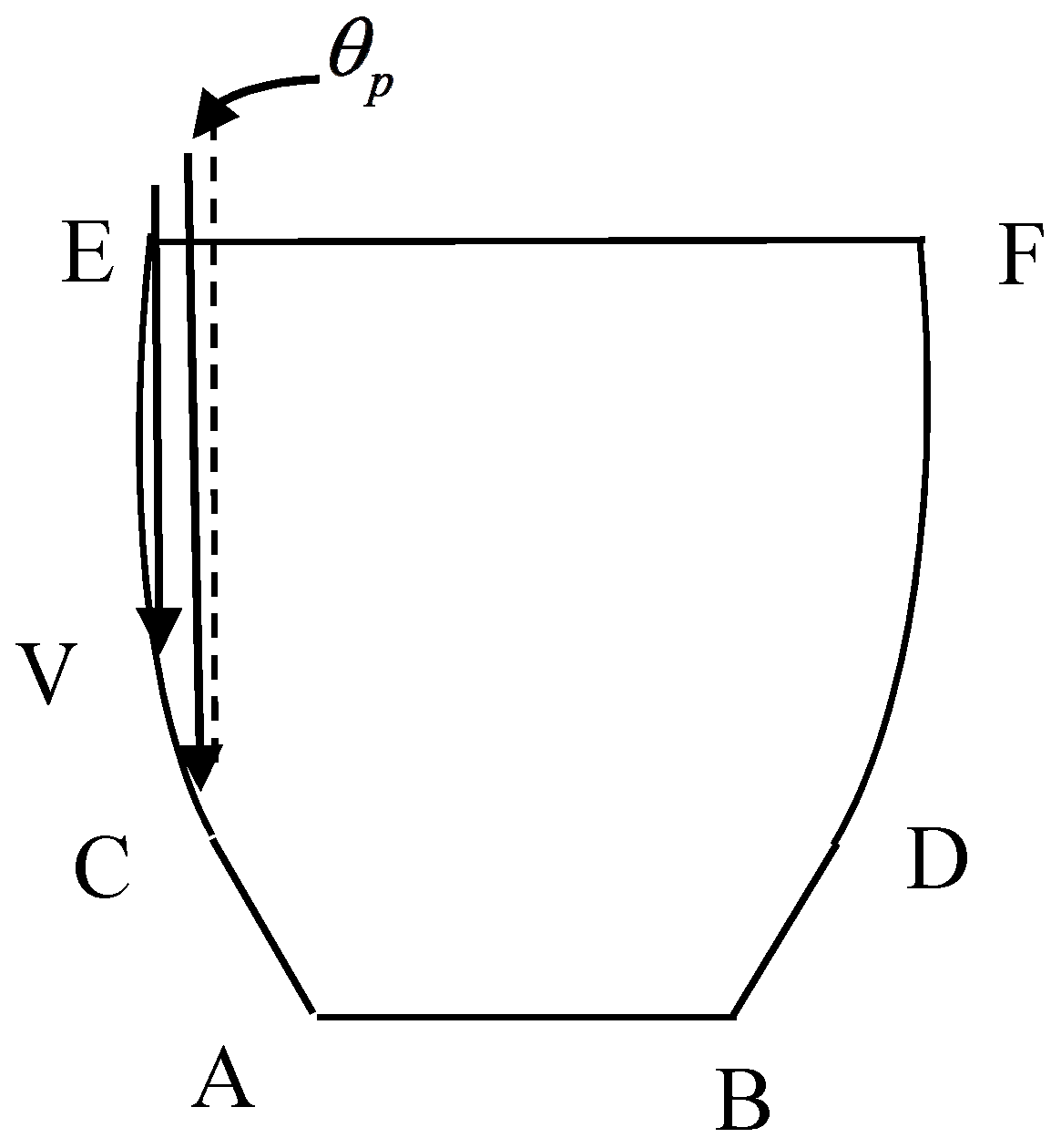

2.4.3. Calculation of and

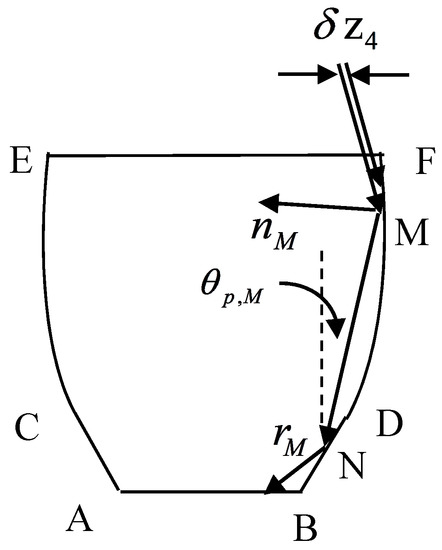

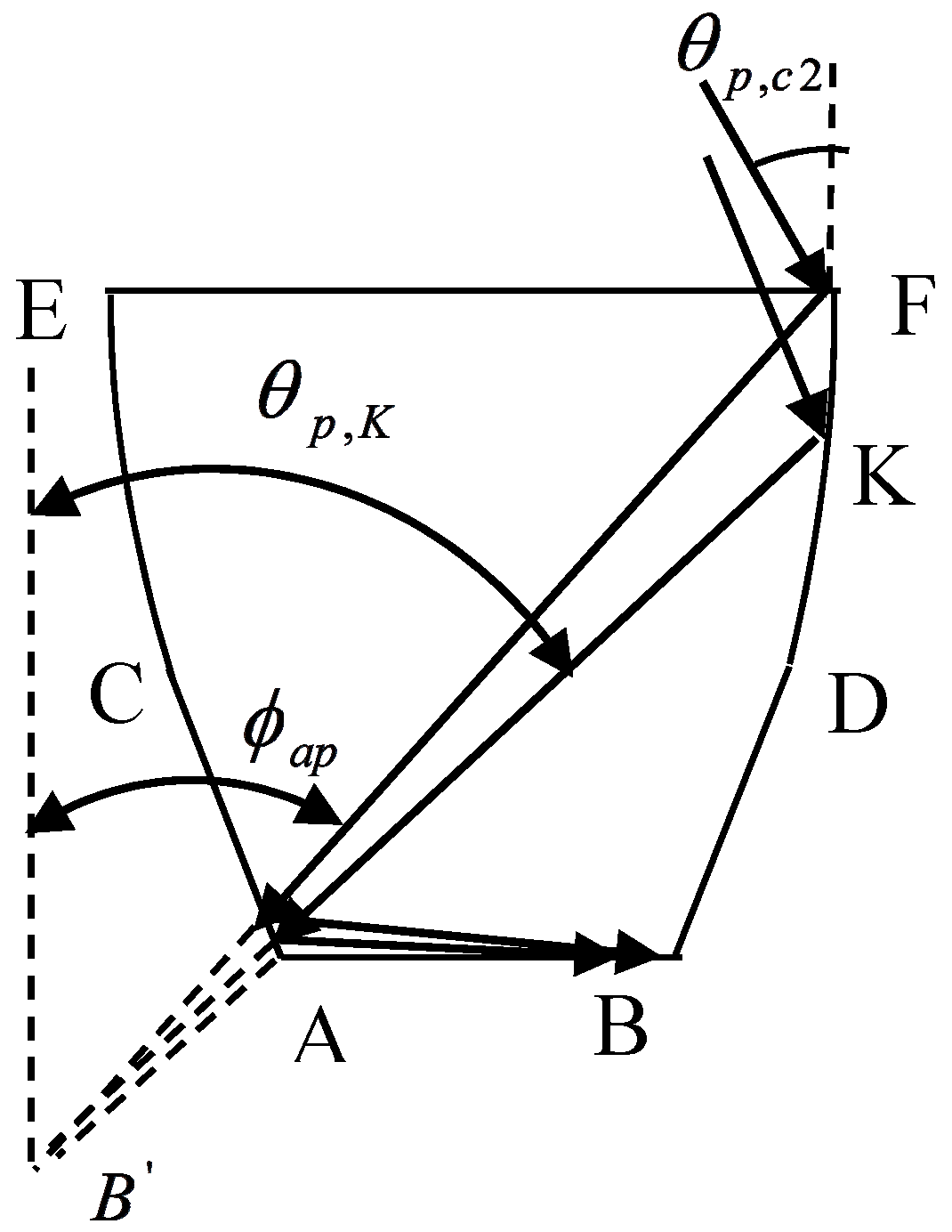

2.4.4. Method for calculating and
2.4.5. Calculation of and

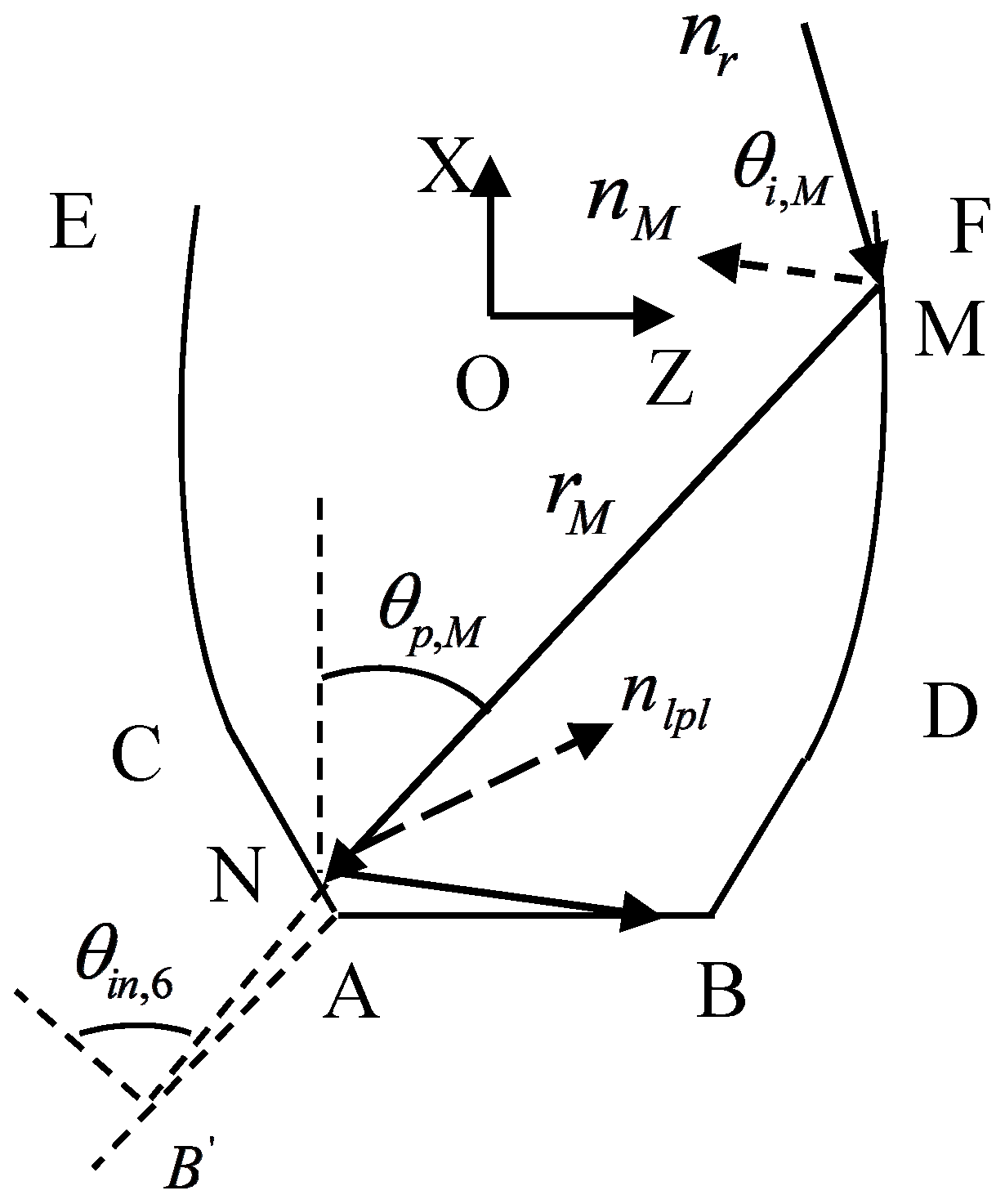

2.4.6. Calculation of and
3. Annual Optical and Photovoltaic Performance of DCPVs
4. Results and Discussions

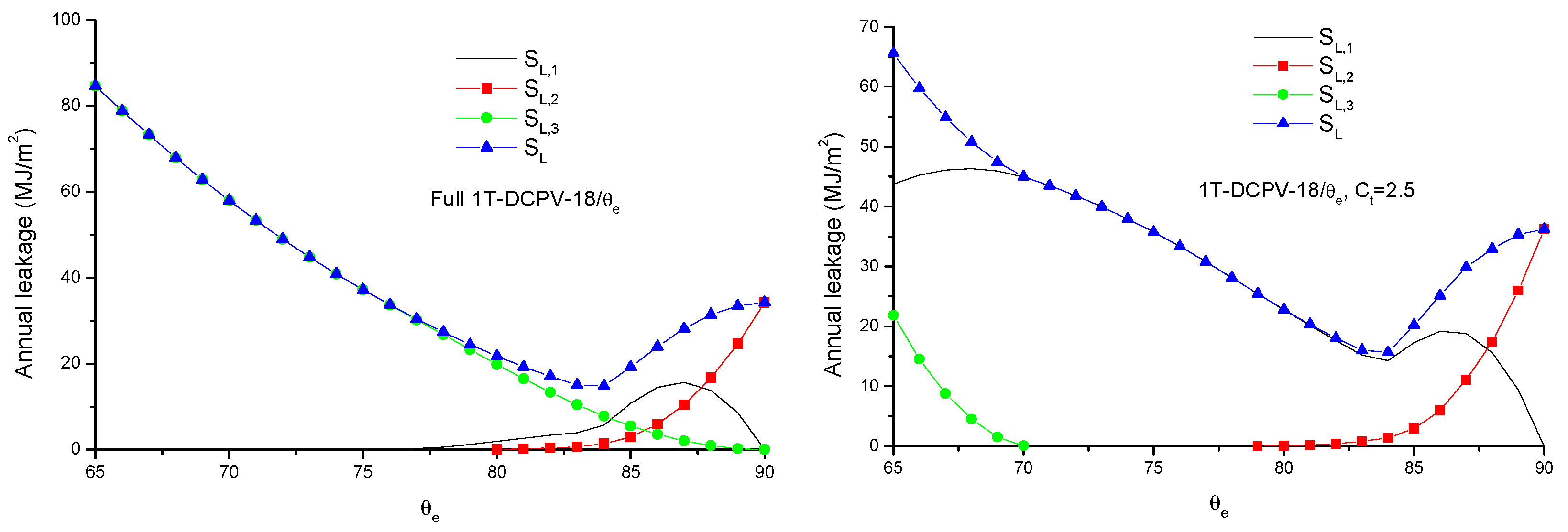

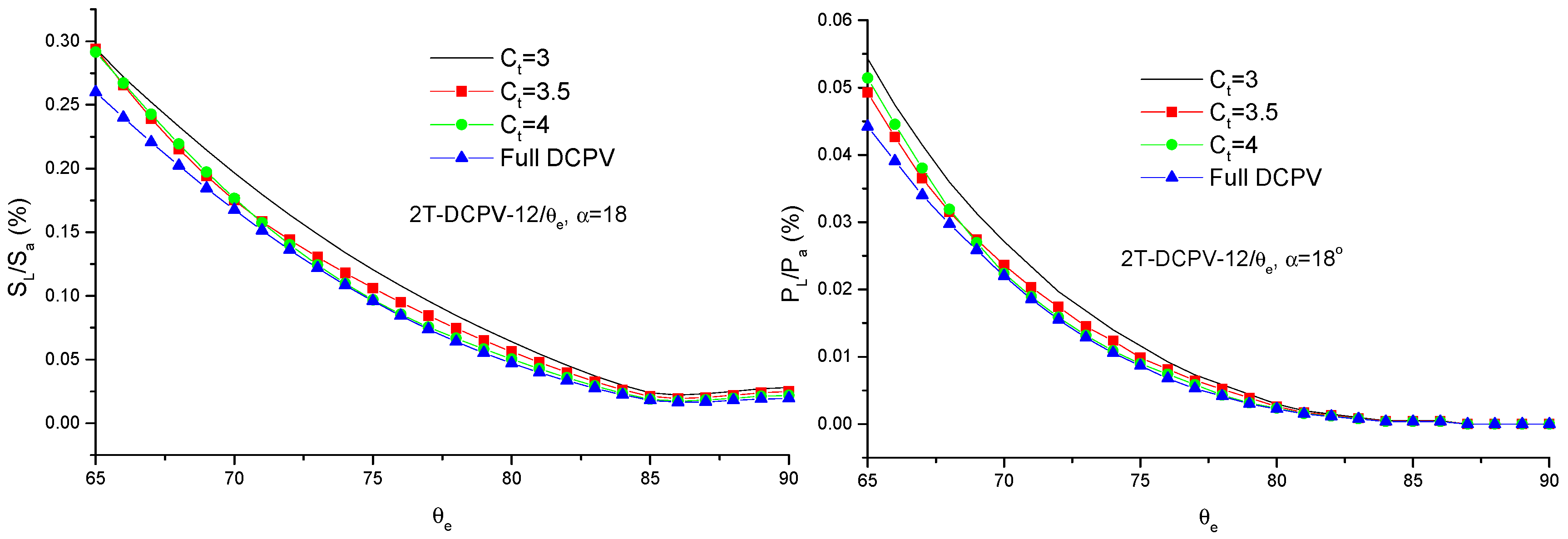

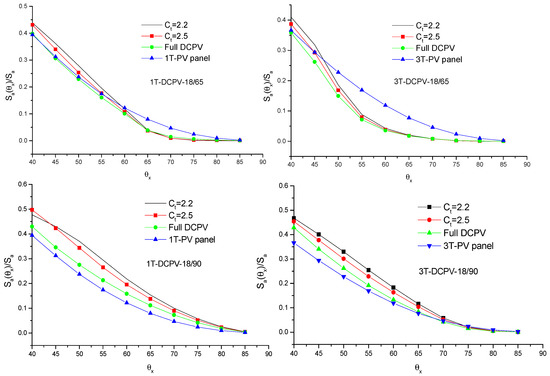

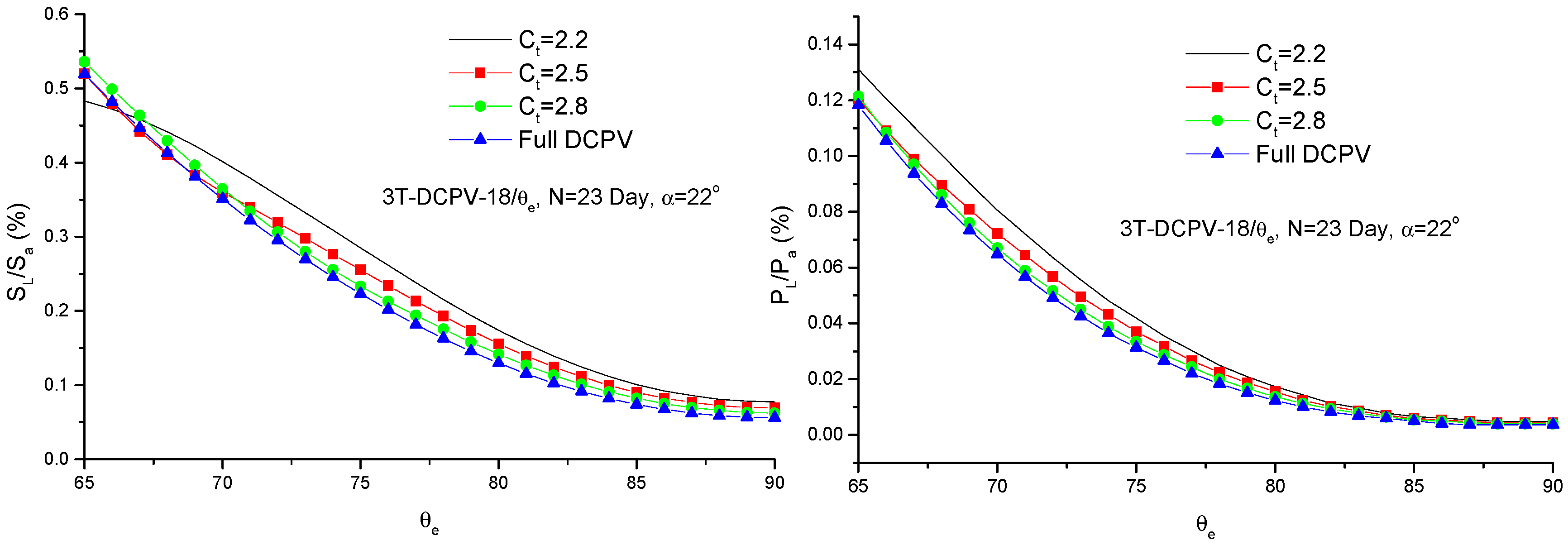

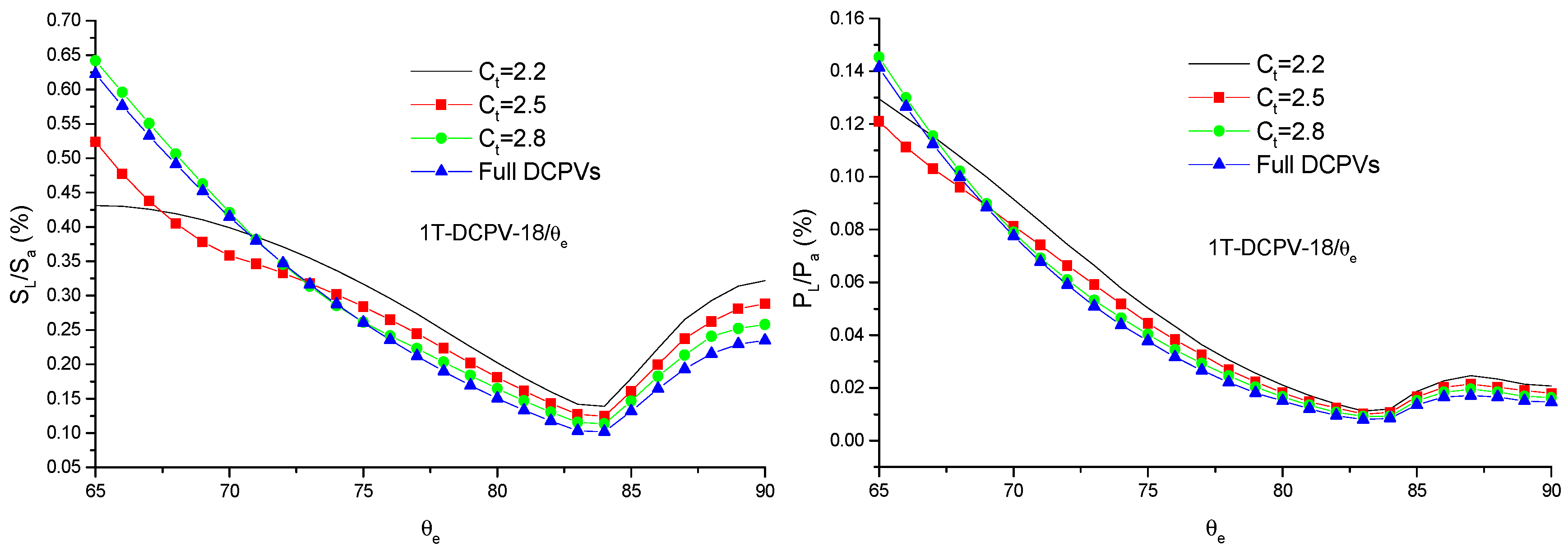

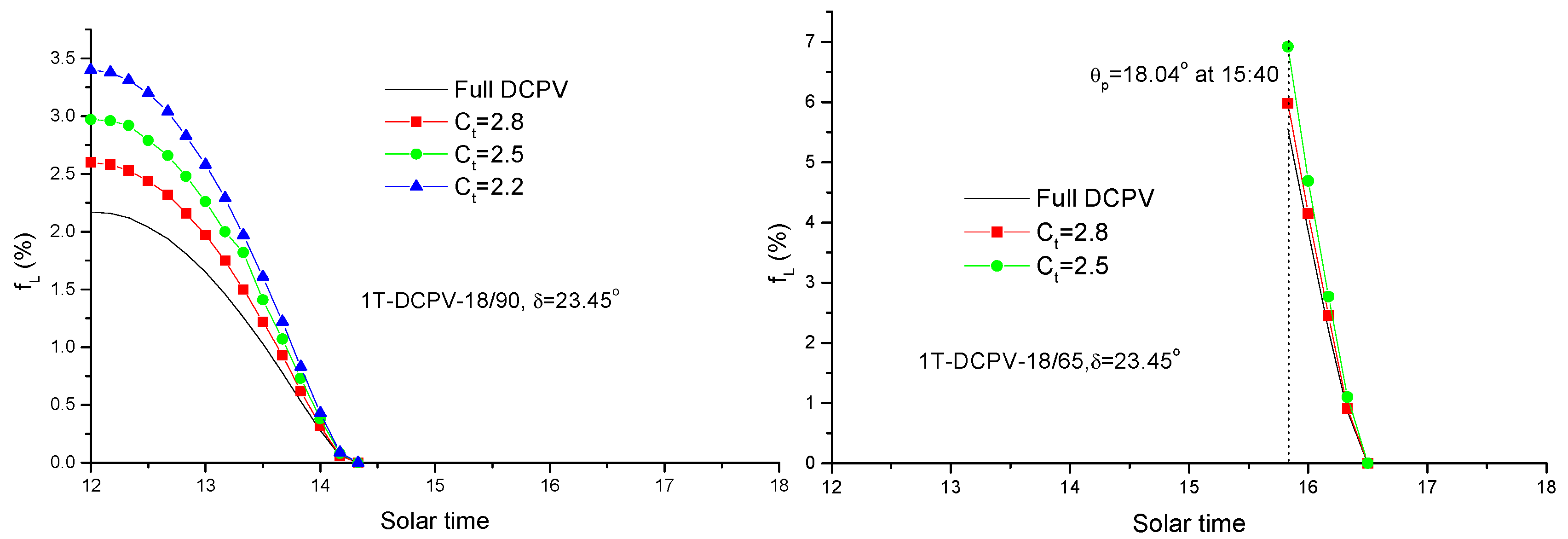

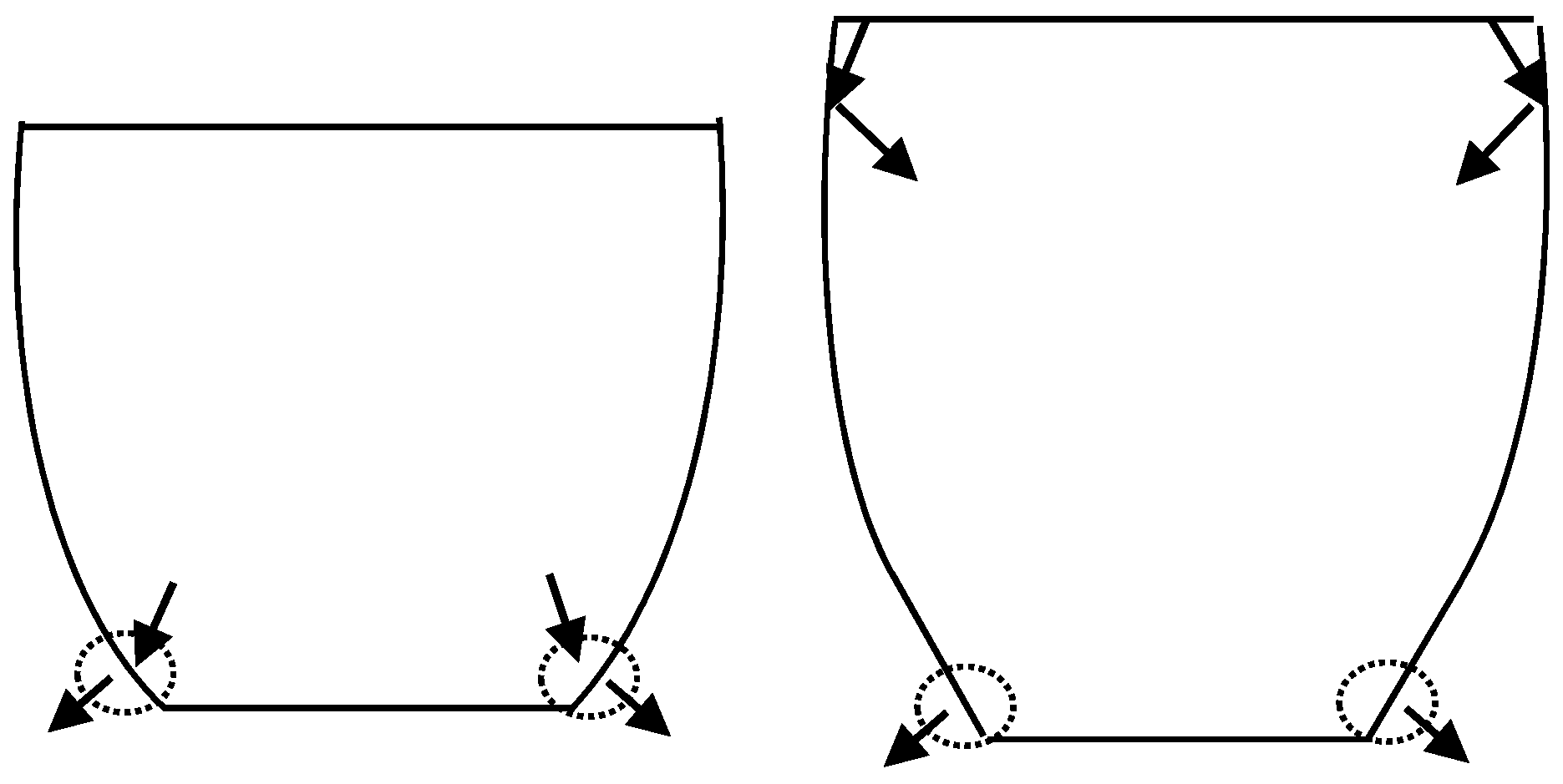

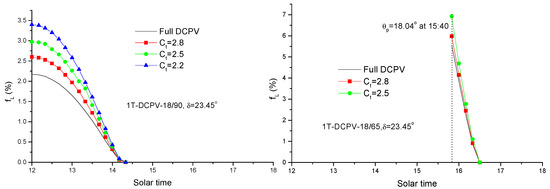

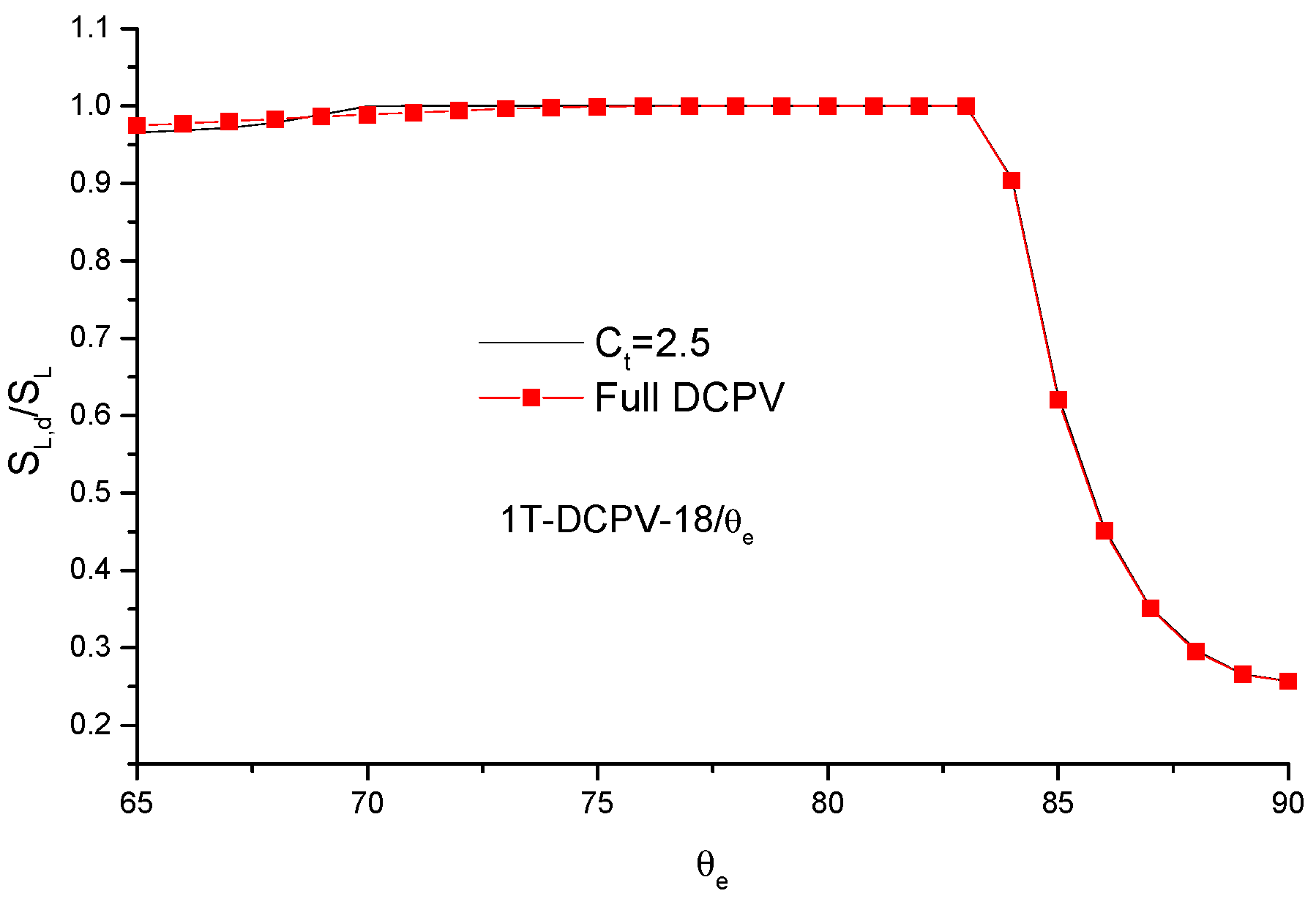

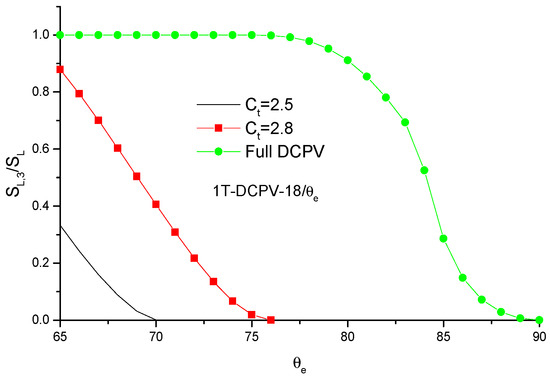

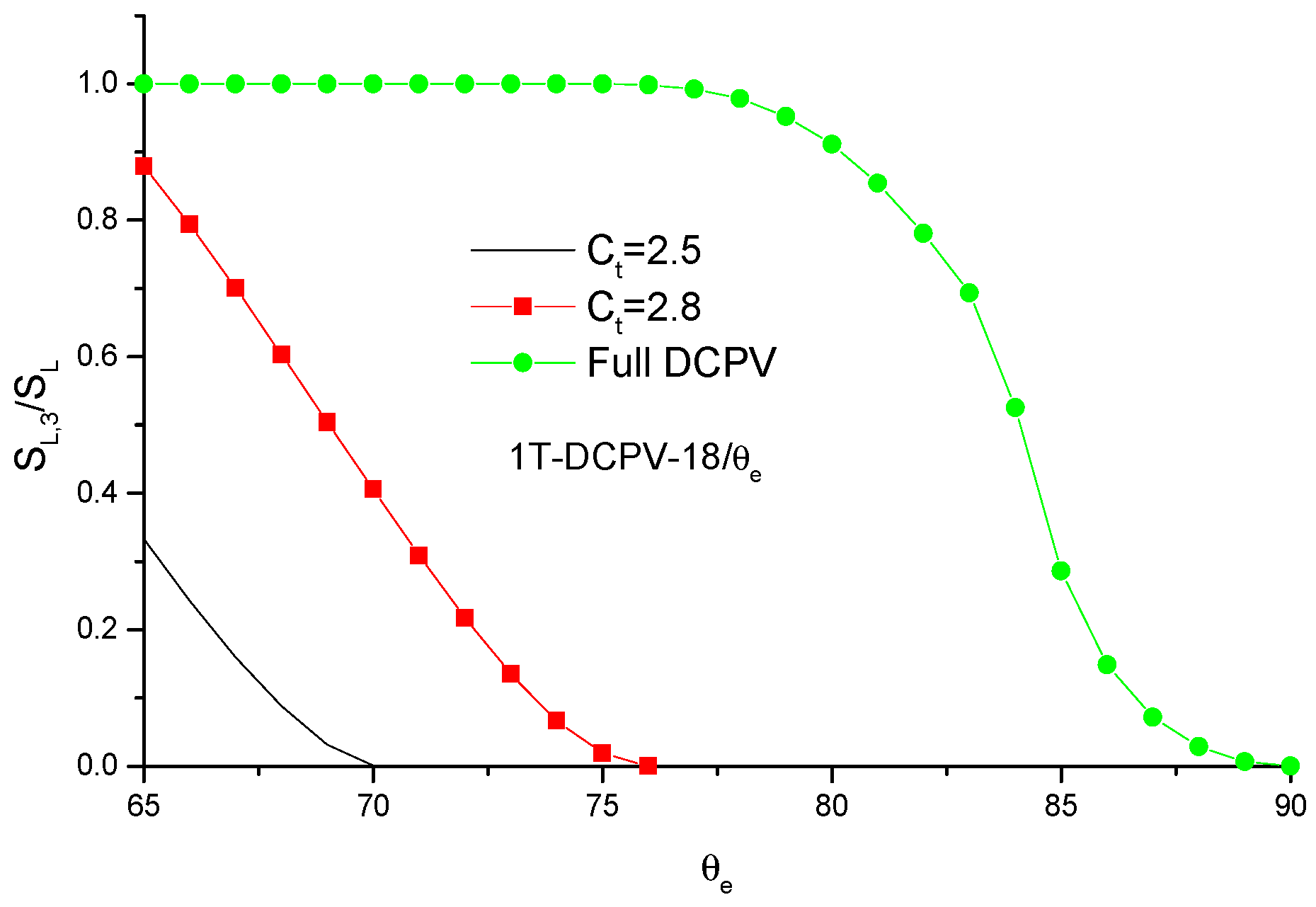

4.1. Radiation Leakage from Walls

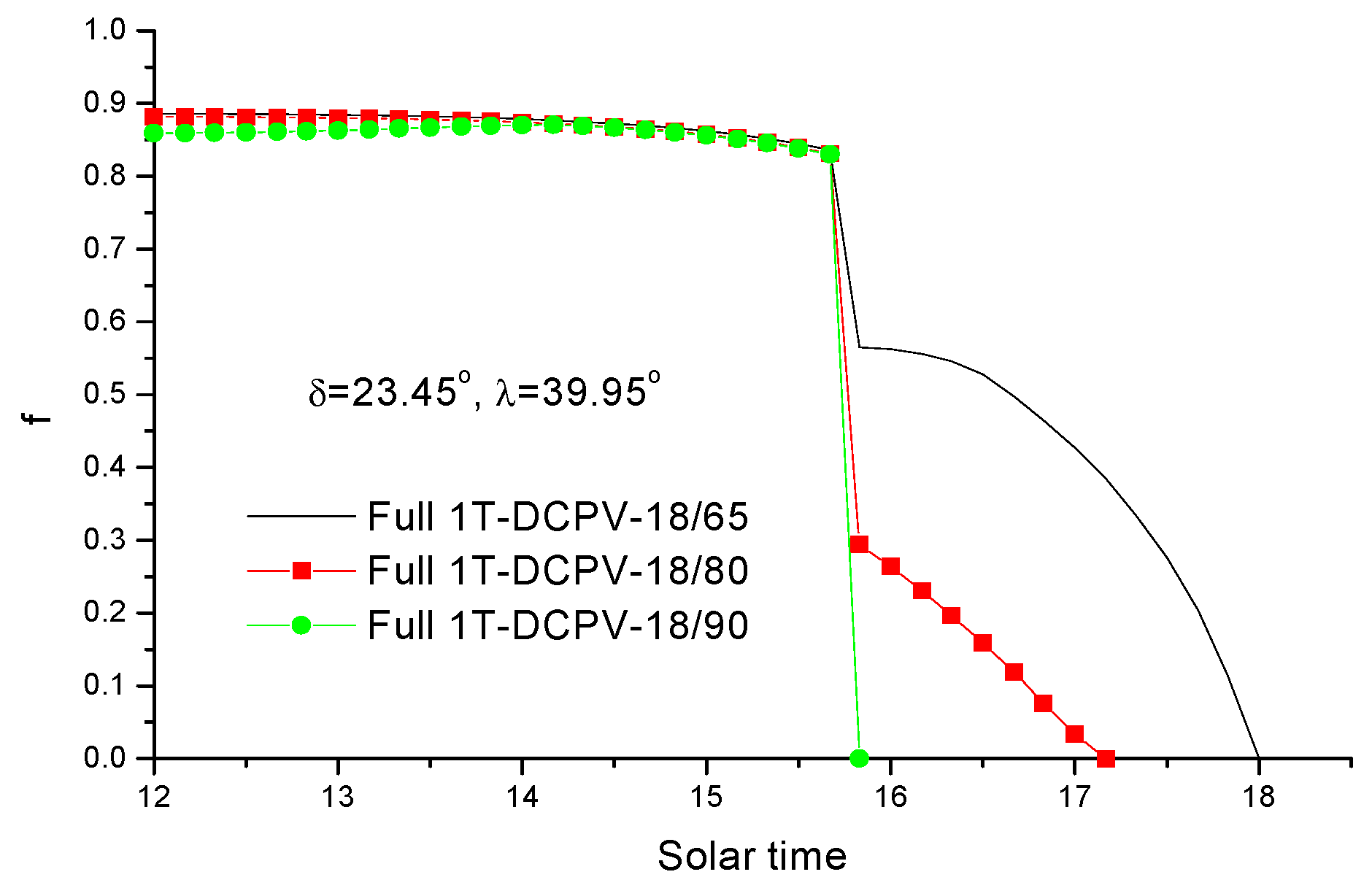

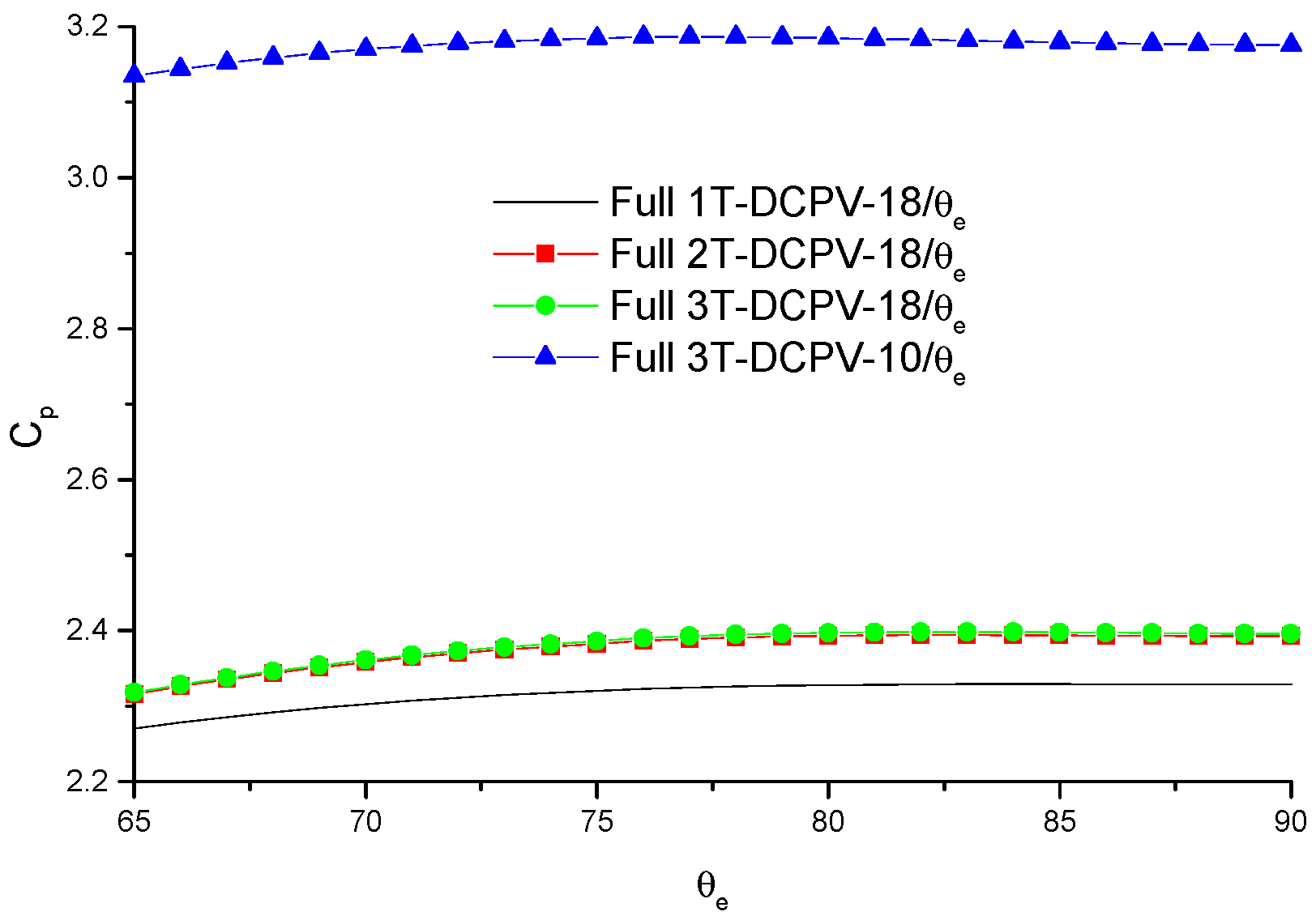

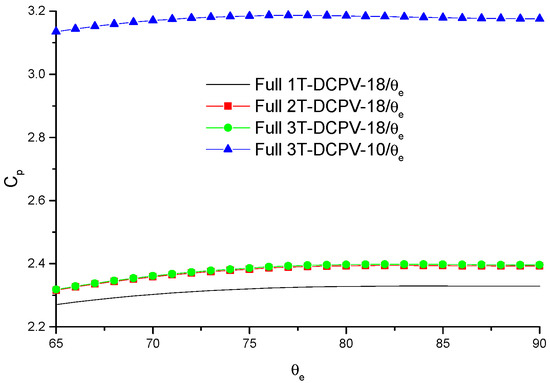

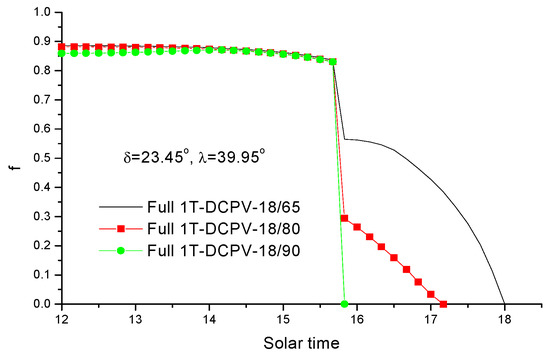

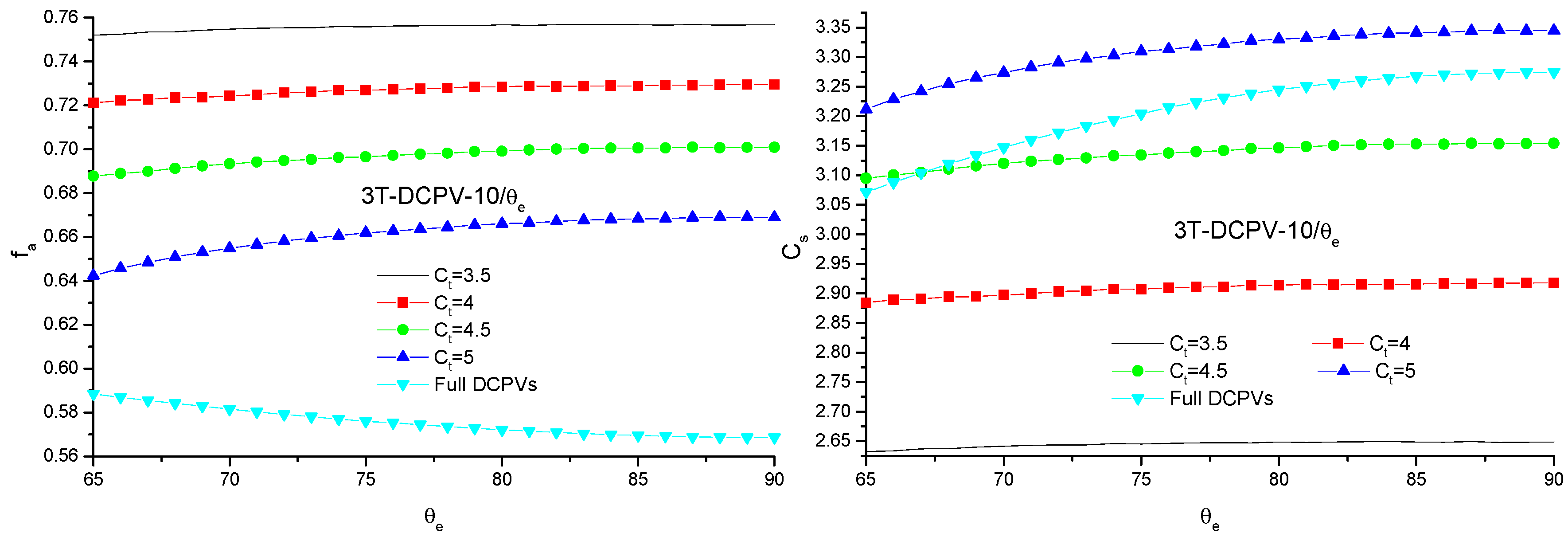

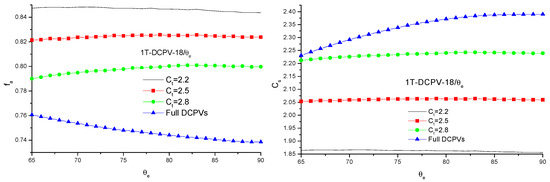

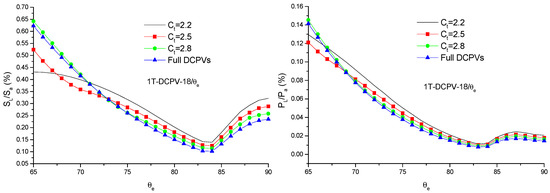

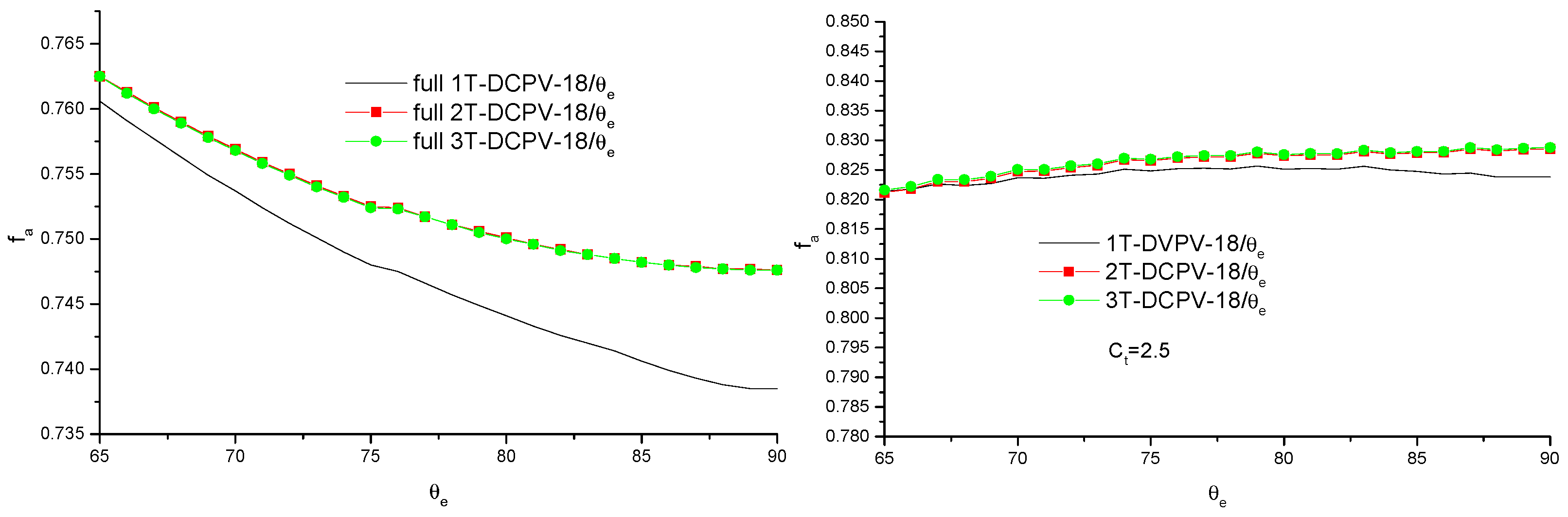

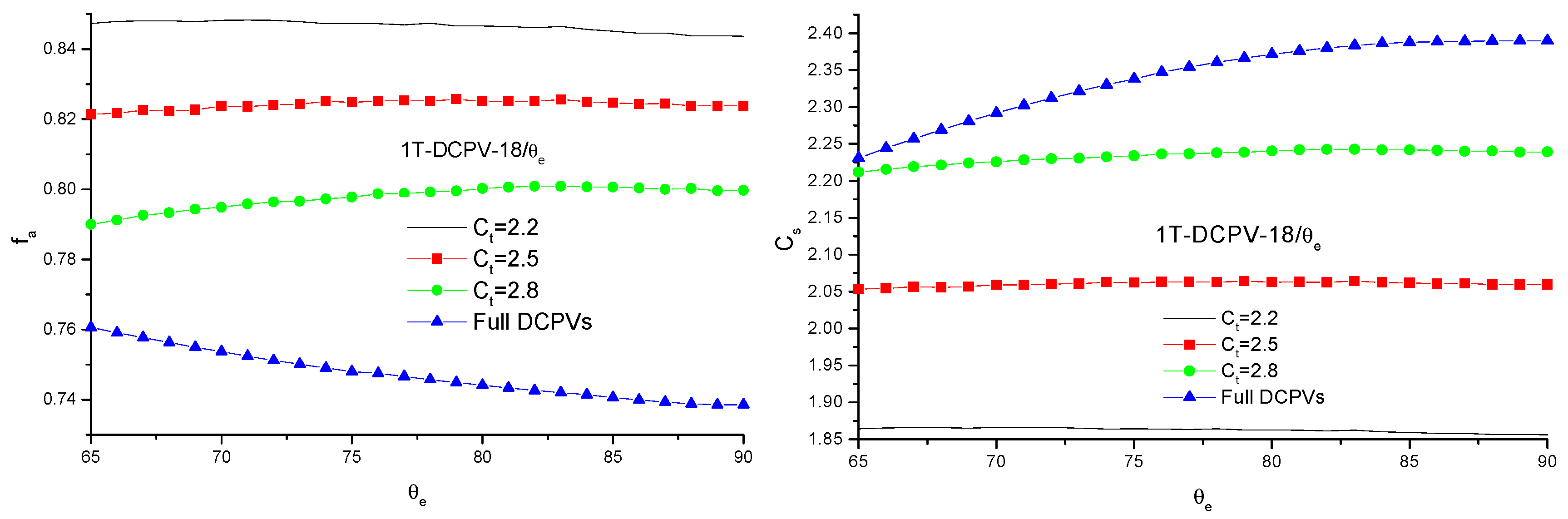

4.2. Optical Performance of DCPVs

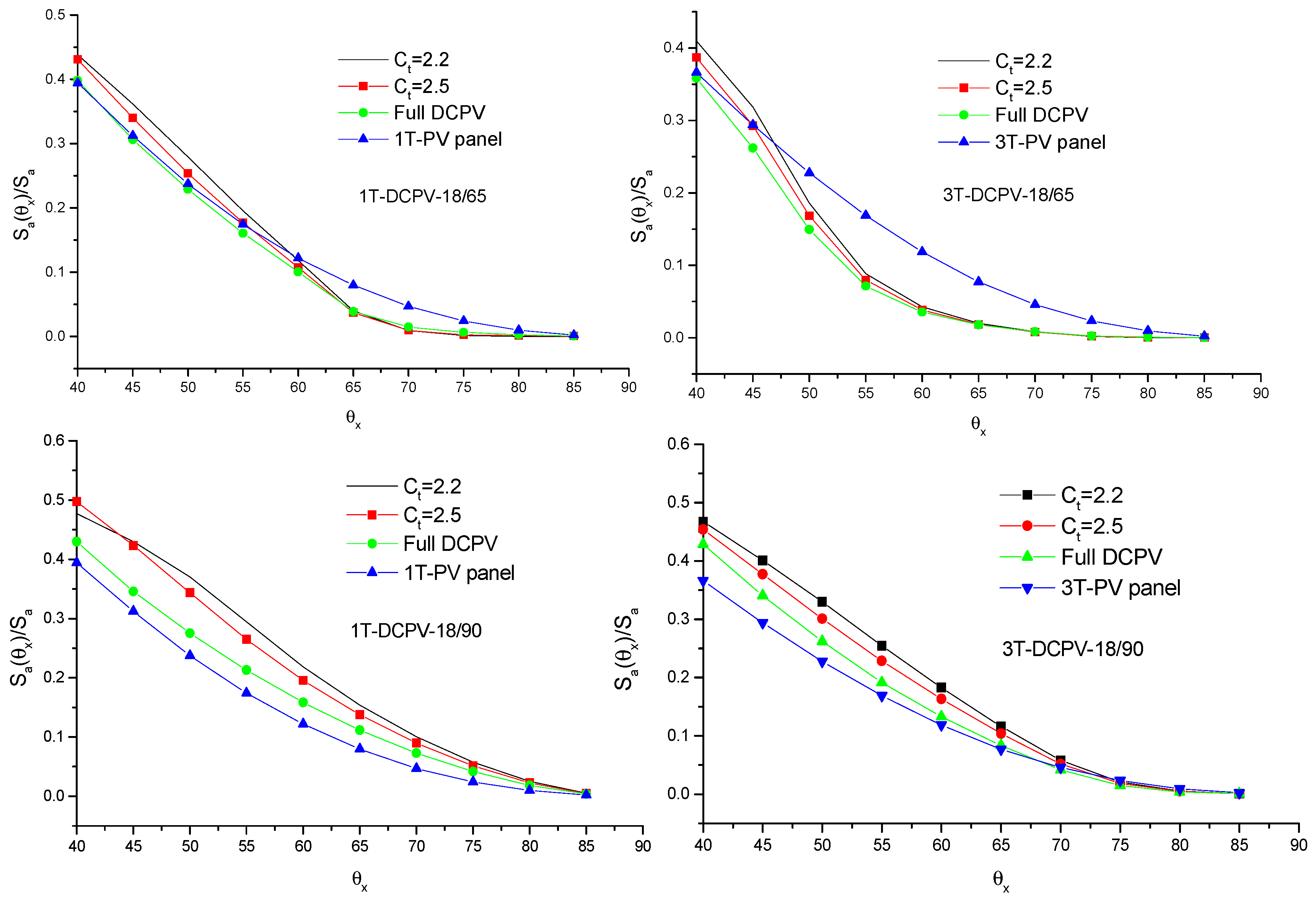

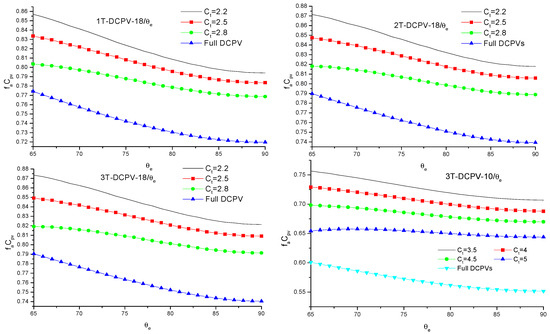

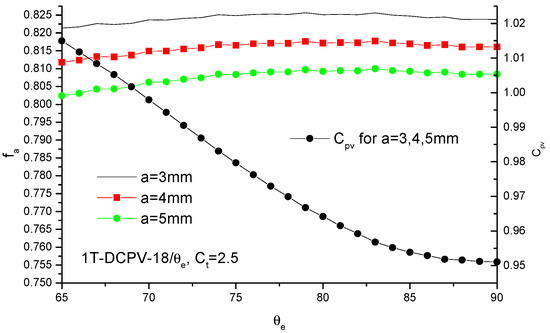

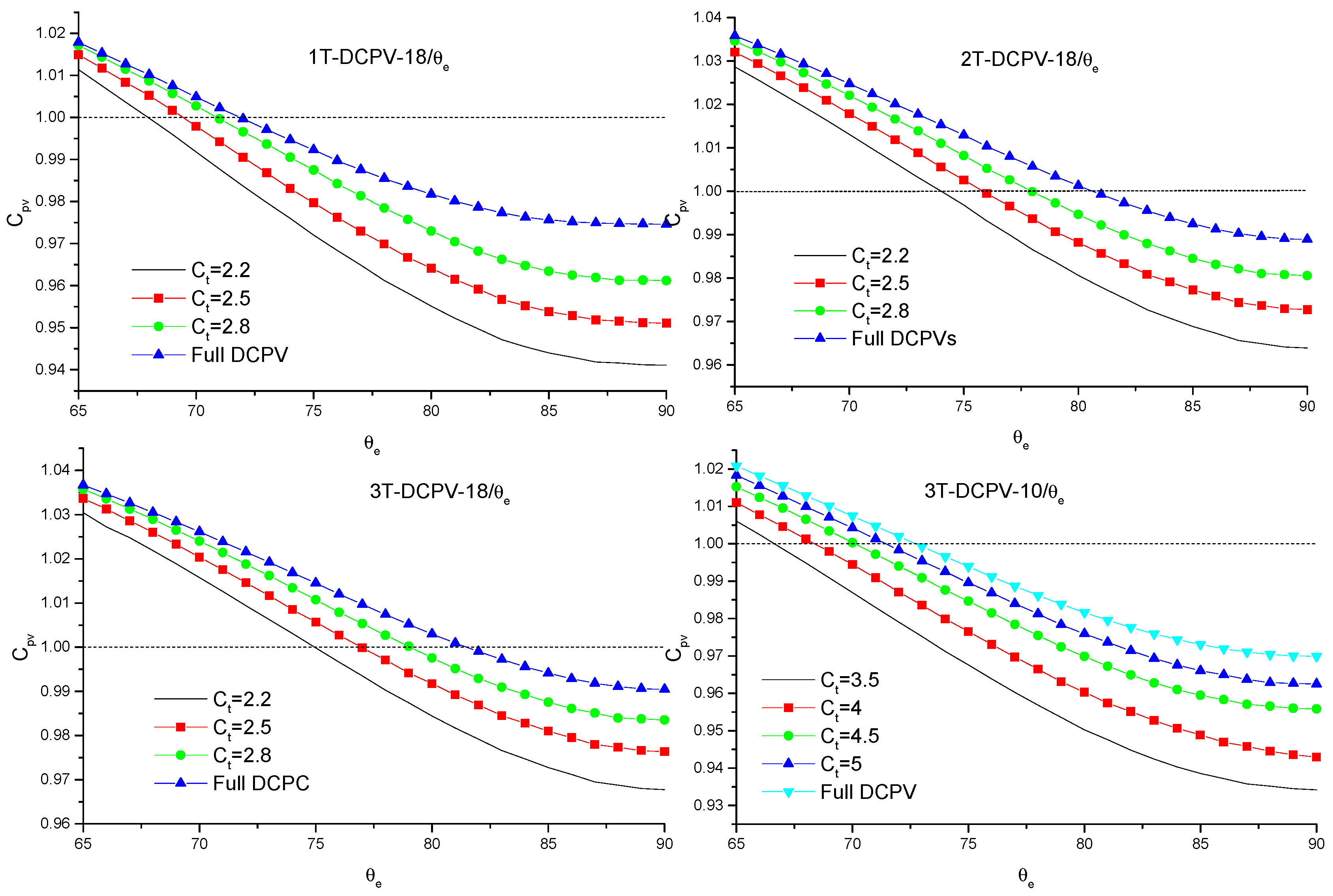

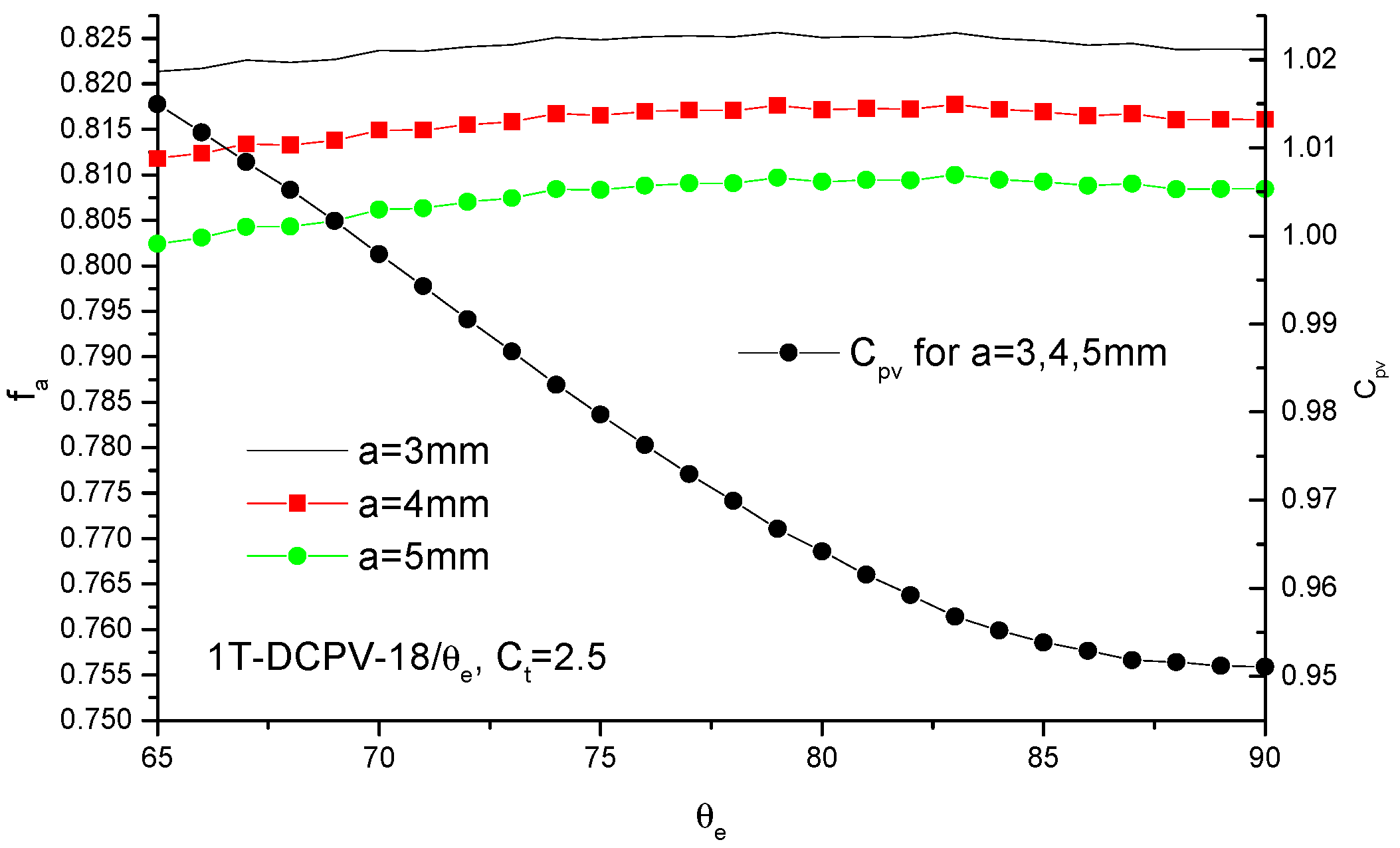

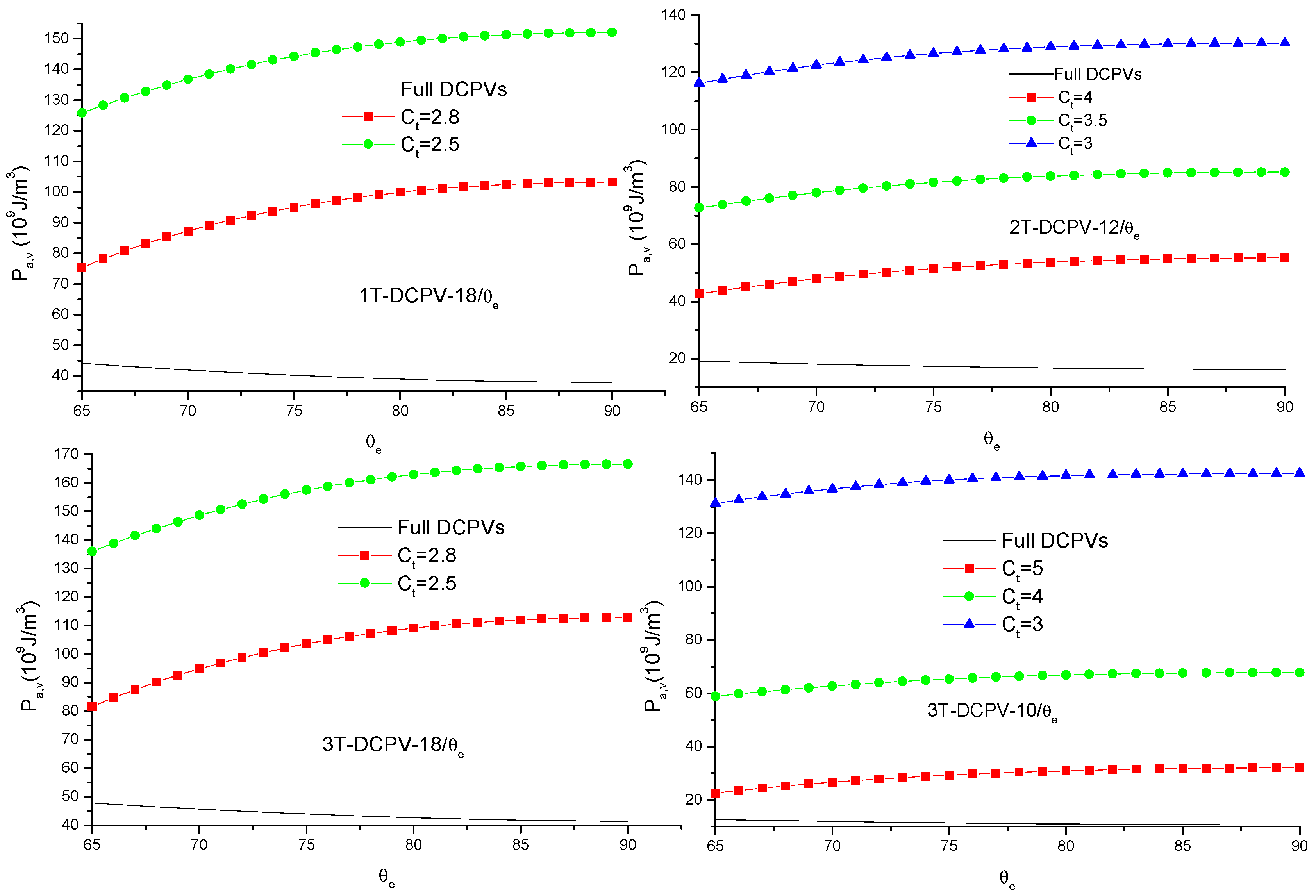

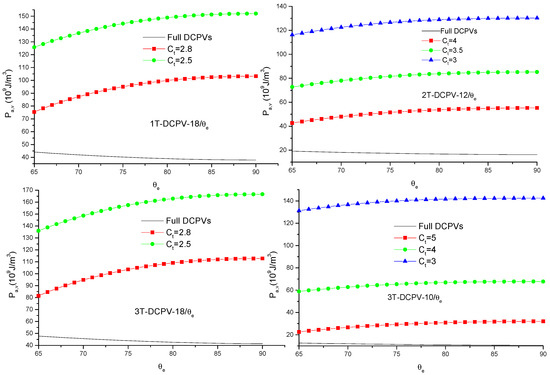

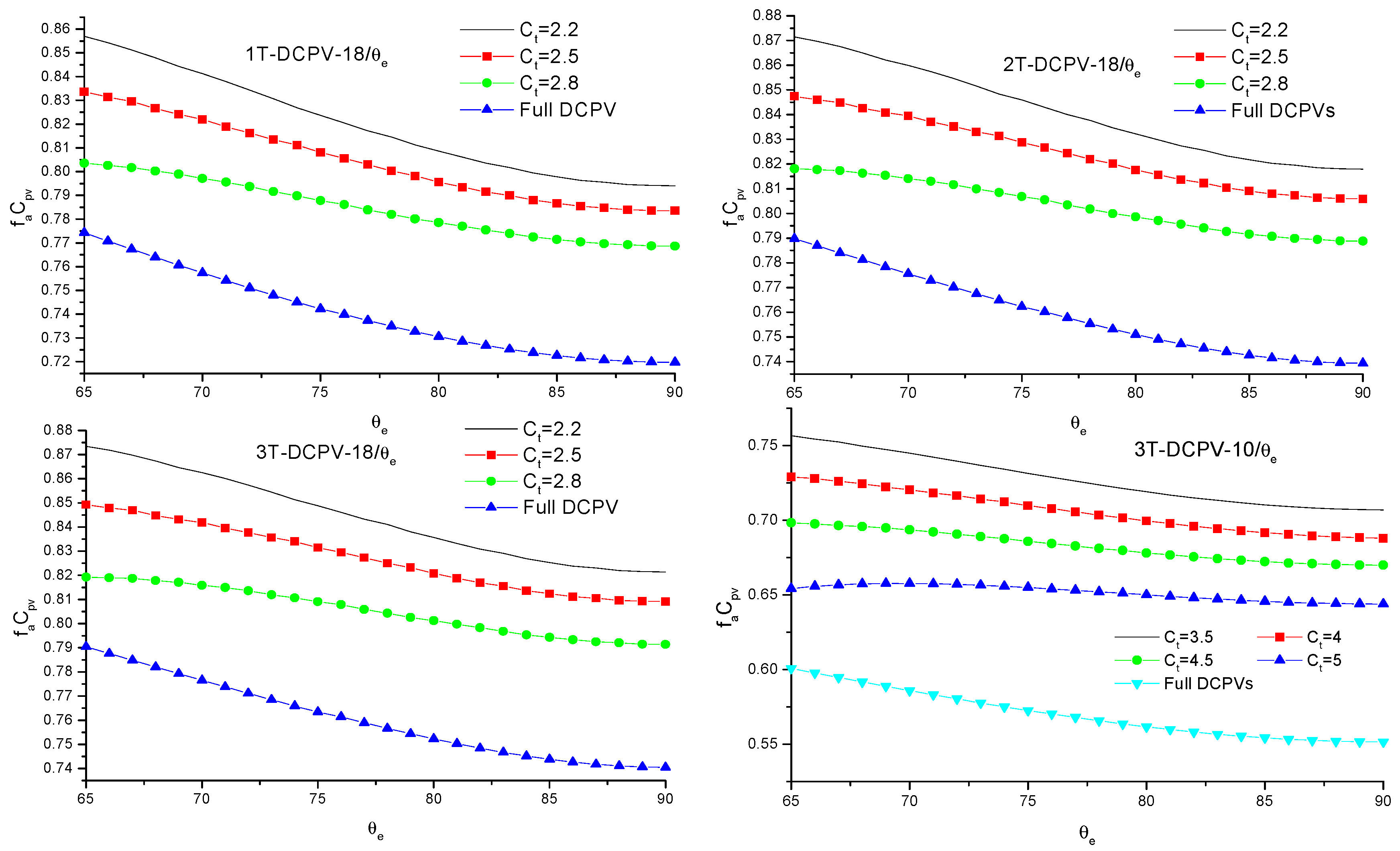

4.3. Photovoltaic Performance of DCPVs
5. Conclusions
