Hydrothermal Disintegration and Extraction of Different Microalgae Species
1
Deutsches Biomasseforschungszentrum gemeinnützige GmbH, Biorefineries Department, Torgauer Straße 116, 04347 Leipzig, Germany
2
Faculty of Agricultural and Environmental Sciences, Chair ofWaste Management, University of Rostock, Justus-von-Liebig-Weg 6, 18059 Rostock, Germany
*
Author to whom correspondence should be addressed.
Received: 17 December 2017 / Accepted: 11 February 2018 / Published: 20 February 2018

Abstract

:
For the disintegration and extraction of microalgae to produce lipids and biofuels, a novel processing technology was investigated. The utilization of a hydrothermal treatment was tested on four different microalgae species (Scenedesmus rubescens, Chlorella vulgaris, Nannochloropsis oculata and Arthorspira platensis (Spirulina)) to determine whether it has an advantage in comparison to other disintegration methods for lipid extraction. It was shown, that hydrothermal treatment is a reasonable opportunity to utilize microalgae without drying and increase the lipid yield of an algae extraction process. For three of the four microalgae species, the extraction yield with a prior hydrothermal treatment elevated the lipid yield up to six times in comparison to direct extraction. Only Scenedesmus rubescens showed a different behaviour. Reason can be found in the different cell wall of the species. The investigation of the differences in cell wall composition of the used species indicate that the existence of algaenan as a cell wall compound plays a major role in stability.
Keywords:
microalgae extraction; lipids; microalgal oils; biofuel; cell wall disruption; hydrothermal disintegration; algaenan

1. Introduction

For the production of algal biofuels several obstacles have to be overcome. A major problem that has to be considered for algae biorefinery and biofuel processes is the break-up of cell walls. The majority of algae species has a very robust cell wall in order to withstand any environmental stress. Therefore, it is mandatory to have a pre-treatment, which breaks down the cell walls and disintegrates the membrane structure. Without this, it is not possible to reach a high extraction yield for lipids and economic feasibility cannot be achieved.
Several different disintegration processes are known [1,2] but most of them have not been applied yet to algae in an industrial sized environment. Among a variety of processes hydrothermal treatment is a promising possibility. As a great difference to many biomass processing technologies considered today in research and development hydrothermal treatment uses water as reaction medium. Besides the hydrothermal liquefaction and gasification (temperatures of 300 °C and above) of algae [3,4,5,6,7], there also have been publications on the utilization of mild hydrothermal conditions (180 °C–250 °C). Besides References [8,9,10], which focused on the liquefaction of the algae, there are some publications by Heilmann's group, which investigated the possibilities of the so-called hydrothermal carbonization (HTC) of microalgae [11,12]. Besides the features of the process and the coal produced, Heilmann et al. also showed that the hydrothermal treated algal product gives a higher extraction yield in comparison to non-treated algae. In consequence, the mild hydrothermal treatment of algae has to be considered a disintegration step. When comparing this process with other disintegrating processes utilized for algae, hydrothermal treatment has several advantages. As only water is used as reaction medium, no further potentially toxic substance is needed in this step. Hydrothermal treatment can be operated with low energy costs, when a heat exchange system is applied [13]. Furthermore the solid products can be dewatered more efficiently than the original cell structure [14].
Therefore, hydrothermal treatment of microalgae for disintegration and subsequent extraction could be an efficient and low-cost way for future algae biofuel production. As only little information on this topic can be found in literature [11,12,15,16] the aim of this work was to study the described effect for several different algae species, as the morphologic variation between different microalgae species and strains can be great. In order to evaluate if the extraction of hydrothermal treated algae is efficient the obtained results are compared with yields and qualities of conventional extraction methods.

2. Results

As an extraction procedure with a defined solvent system always has a different selectivity for different lipid classes (neutral lipids, polar lipids, glycolipids, polyunsaturated fatty acids…) there is no possibility to determine an absolute lipid content in general [17], it can only be compared when applying the same extraction method. Therefore, an extraction process always only extracts a subset of a theoretical total lipid content. For this study, the algae samples were processed by three different ways (Figure 1), which always include the same last extraction step with n-hexane. First was direct extraction of the samples without any pre-treatment. This was used as a base line and to determine if direct extraction without pre-treatment is a feasible way. Second was the extraction with prior acidic hydrolysis as it is often done for determination of the lipid fraction of any kind of biomass. This is a mature pre-treatment process. Third is the extraction with prior hydrothermal carbonization as a novel pre-treatment process. Hydrothermal treatment was always conducted for 90 min at 200 °C.
After conducting the different pre-treatment (no pre-treatment, acidic hydrolysis, hydrothermal treatment) and extraction on the different microalgae species, the microalgae and the products were analysed.
The elemental composition of the different algae species (Table 1) shows that there are similarities concerning Nitrogen content (always above 9 wt %) but some variance for the Carbon content, especially for N. oculata. In general, the elemental composition is in a normal range.
The greatest variance between the different algae species lies in the ash content with 4.58 wt % to 23.10 wt %, originating from several ash-forming elements contained inside the algal cell. The high ash content of N. oculata can be explained by its growth medium (salt water). Main fractions of these are alkali metals like Potassium and Sodium. These are known for their catalytic impact [18,19,20,21] and might change the proportion of liquefied and solid products and thereby the yield of extractable lipids from the HTC char. The influence of this for the given experiments remains a subject to further research.
The Carbon and Hydrogen content of the lipid obtained from direct extraction consistently differed from the contents of the lipid extracted from the HTC-char (Figure 2 and Figure 3). Interestingly S. rubescens has the lowest differences between direct extracted and HTC pre-treated extracts.
Therefore, not only the quantity of the lipid yield differs but also the quality of the extract is different between the pre-treated microalgae and the not pre-treated.
A correlation with the fatty acid distribution analysed by GC-MS could not be found but the low sums of recognized fatty acids (between 25 wt % and 45 wt %, see Figure 6) indicate that there are a lot of extracted substances which might influence the elemental composition.
The content of Sulphur and Nitrogen is always higher in comparison to other vegetable oils (Figure 4). This is due to the relative high Nitrogen and Sulphur content of the microalgae and the incorporation of these elements into lipid structures of the cell walls.
The heating value of all extracted lipids (as far as it was measured) varied in a small range from 37.6 to 39.0 MJ/kg, which is in accordance with standard values for vegetable oils.
Besides the higher HTC char yield of S. rubescens and C. vulgaris (Table 1), and the proportionate variation of the lipid yield according to the treatment procedures (direct, acidic hydrolysis, HTC treatment did change (Figure 5).
For C. vulgaris, N. oculata and A. platensis the yield changes between the different pre-treatment methods is the same (Figure 5). Direct extraction gives the lowest yield, acidic hydrolysis improves the yield and the HTC pre-treatment again improves the yield in comparison to acidic hydrolysis. For C. vulgaris the yield was more than six times higher with HTC then direct extracted. For N. oculata the yield doubled and for A. platensis it increased for 50%. S. rubescens did show a different behaviour then the other species. Acidic hydrolysis gave the highest result for S. rubescens. The yield from the HTC treatment did slightly improve the yield of the direct extraction (~14%) but the yield of acidic hydrolysis did nearly double the yield.
Fatty acids (FA) ranging from C14 to C22 contained in the extracted lipids were measured by GC-MS. In Figure 6 the main FA fractions (C16:0, C18:0, C18:1, C18:3) of the different extracts of C. vulgaris, N. oculata, A. platensis and S. rubescens are displayed.
Besides the differences in the total quantity (sum) of recognized fatty acids (from 25 wt % to 45 wt %) the comparison of the different algae showed great differences in the FA profiles. Nonetheless the qualitative composition of the fatty acids is according to the one usually found in the Chlorella strain [22]. Also for N. oculata [23] and A. platensis [24] the composition of fatty acids resembles the known composition. The FA profile of the S. rubescens samples is in accordance with FA profiles published in literature [25].
Regarding the differences of the FA profiles of the different disintegration processes, for C. vulgaris and A. platensis the FA C16:0 has a higher selectivity when utilizing acidic hydrolysis and HTC treatment but for the rest of the FA it is hard to find a correlation. For N. oculata the yield of FA C18:0 is reduced for acidic hydrolysis and HTC in comparison to direct extraction, meanwhile the yield of FA C18:1 increased.

3. Discussion

The analysis of the different lipid yields shows that there are differences between the used species. These differences originate from the type of biomass. The degree of disruption of the cell wall has a great influence on the yield of the extraction. Therefore, the differences in the behaviour of the used species under different pre-treatments need to originate from the morphology of the microalgae. The cell wall of microalgae can be composed of many different molecules. The structural components can (or may not) include crystalline or amorphous cellulose, hemicellulose, laminarin, sulphated polysaccharides (agar, carrageenan, alginate, fucoidan or ulvan), glycoproteins, CaCO3, (silica) [26]. In the literature, several experiments found a correlation of degree of disruption and cell wall composition.
In [27] Scenedesmus sp. were thermally treated at 70 °C and 90 °C for up to one hour (at no pressure). Anaerobic digestion tests showed, that the methane yield doubled for 90 °C treated algae. In Reference [26], for Chlorella sp. and Nannochloropsis sp., the cell walls kept intact when hydrothermally treated at 120 °C for 30 min. The treatment also had no effect on T. weissflogi, which has a silica based cell wall. In contrast to that, the species Pavlova_cf sp. and Tetraselmis sp. were solubilized into lower molecular weight components. These species have a glycoprotein based cell wall. This shows that even at much lower temperatures then used for this work, a rupture of the cell wall can be achieved when it is of the “right” components.
In Reference [28], the three microalgal species Scenedesmus obliquus, Chlorella sorokiniana and Arthrospira maxima were tested at five temperatures (105 °C, 120 °C, 145 °C, 155 °C, 165 °C) with two kinds of processes ((hydro-)thermal degradation and (hydro-)thermal hydrolysis with steam injection). It was concluded that the temperature was identified as the main driver of the cell wall breakage [28]. It was also concluded that, for single cell algae that have carbohydrates polymers/matrix and acetolysis resistance biopolymers (algaenan) included in their cell walls (Scenedesmus obliquus, Chlorella sorokiniana), the rapid change of temperature/pressure caused by steam injection was only effective at pressures and temperatures higher than 4 bar and 150 °C respectively, while for cellulose free filamentous algae (Arthrospira maxima), lower temperature/pressure combinations were sufficient to produce cell damage [28]. This is generally in accordance with the results of this work, as S. rubescens, C. vulgaris and N. oculata (which all have an algaenan layer) have a higher increase of the lipid yield from direct to pre-treated extraction in contrast to A. platensis, which only has a small increase as the cell wall is already ruptured by freeze drying.
In Reference [29], for the hydrothermal treatment (HTT) of Desmodesmus sp. from 175 °C to around 250 °C and short reaction time, hydrolysis into smaller fragments (soluble in water) dominated, as indicated by the increase in water-soluble organics and the low oil yields obtained. In the 250 °C to 375 °C range, oil production—biocrude—increased and reached a maximum, while the organic content in the water decreased. After the hydrothermal treatment, the algae liquids and solids were extracted with DCM (Dichloromethane). The quality of the extract did change over the temperature range of hydrothermal treatment [29]. This is also in accordance with the results of this work. The elemental analysis and also the GC-MS analysis of the extracted lipids showed that the quality of the extracts changes with the utilized pre-treatment. Reasons for this can be on the one hand side the different kind of damage to the cell wall, which leads to different extractable membrane lipids, whereas other lipids keep connected to the debris of the cell wall. On the other hand, there might already be chemical alterations of the lipids, changing the FA profile, induced by the different pre-treatment methods. In [29] it is noted, that at elevated temperature not only more and different lipids are extracted due to a cell wall breakage but also the lipids are already degraded, esterified and hydrolysed because of the increased temperature.
It is remarkable that also in the conducted experiments of [29] there was a high increase in oil yield between 225 °C and 250 °C. It was anticipated that this could be related to a change in morphology of the algal cells, considering that intracellular compounds are more accessible when the structure of the cell wall is broken. This was confirmed by a visual inspection of the cell walls. After a hydrothermal treatment at 225 °C the cell wall still was visually unbroken but at a temperature of 250 °C and higher no individual cells were recognizable and only a compact mass of cell debris was visible. The authors conclude that this thermal resistance could be related to the presence of biomarcomolecules named algaenans.
For C. vulgaris and A. platensis in a continuous reactor [30] it was also shown that at 250 °C with 3 min residence time the structure of Chlorella cell wall was still given but to a great extent not functional anymore. At temperatures of 275 °C and 300 °C the structure of the cell wall itself was destroyed.
All these results lead to the conclusion that the compounds of the cell wall play a major role for the disintegration of it. As the focus of this work was not the biology of microalgae, there were no examinations of the cell wall of the microalgae used. Also in literature only little information is available for most species [31], the determination is complicated and literature shows that over the last 30 years assumptions on what strain or class specific microalgae cell walls are composed of, had to be revised sometimes [32]. Nonetheless, there can be found class and strain specific definitions of algal cell wall structures. In Figure 7 the cell wall structure of the four strains according to the examined species is schematically described (modified from [33]).
In general, the inner cell wall layer is composed of a rigid microfibrillar structure embedded into a continuous matrix. This layer has a high cellulose content and chitin-like glycan is a predominant amino sugar in the cell wall. Other components embedded within the cell wall matrix are composed of uronic acids, rhamnose, arabinose, fucose, xylose, mannose, galactose, glucose and pectin. The outer cell wall of different species may include a trilaminar algaenan or form a thin homogeneous monolayer [33].
Chlorella cell walls are generally known for their stability. They have a cell wall composed of fibrillar polysaccharides (cellulose/hemicellulose/pectin) and glucosamine (Chitin; Cellulose and chitin are very similar: cellulose is poly-ß(1,4)-d-glucose and chitin is its 2-acetamido derivative [32].
Nannochloropsis species possess a thick and multilayered cell wall composed of polysaccharides and also has non-hydrolysable biopolymers—algaenan-included [34]. The inner layer of the cell wall is porous with a slender fibrous substructure and struts connecting the cellulose-based layer to the cell membrane. This layer is primarily composed of cellulose and glucose; amino acids represent an integral cell wall constituent. Small amounts of other sugars (rhamnose, mannose, ribose, xylose, fucose and galactose) are present. Algaenan layers comprise a thin trilaminar sheath in the cell periphery [33].
Arthrospira cell walls have four layers. The peptidoglycan layer—also known as murein—provides rigidity and is located between two fibrillary layers. The outer membrane is tightly connected with the peptidoglycan layer and is covered with a sheath of acidic polysaccharides [33].
Scenedesmus species generally have a rigid cell wall constituted of glucose, mannose and galactose, [35]. It consists of three layers: an inner cellulosic layer delimiting individual cells, a thin middle algaenan-based layer and an outer pectic layer joining the cells into coenobium. Based on scanning microscopy, pectic layers consist of a hexagonal network of electron-dense material on the surface and a system of tubules radiating out from the middle layer [33].
Three of the four investigated species therefore have an algaenan layer. Many microalgae of the chlorophyte division (green algae) have this layer of biomacromolecules incorporated in their cell wall. There is still discussion upon the exact structure and carbon chain length of algaenan [36] but it is clear that algaenan is a recalcitrant substance that is insoluble and non-hydrolysable. It is supposed to be the part of the aquatic biomass which is preserved in sediments and converted into fossil oil as it matures over geological time frames [37]. Algaenan consists of highly resistant aliphatic polymers [31] and therefore a high effort is required for cell wall disruption. In Reference [38], a very low conversion by means of temperatures between 200 °C and 300 °C (for 9 h) of algaenan isolated from Botryococcus braunii was reported. In [37] a Scenedesmus species and also its extracted algaenan were hydrothermally treated. They showed that the algaenan polymethylenic structure can resist cracking at temperatures up to 310 °C. Therefore, algaenan seems to have a particular resistance to temperature. Although these biomolecules all are named algaenan, they can be of several different structures. For Nannochloropsis and others they are comprised of linear C22 to C34 even numbered carbon chains with functional groups cross-linking the monomers with ether and ester bonds. For a specific Scenedesmus species (S. communis) it is assumed to consist of very long-chain (up to C120) monomeric (di)carboxylic acids [33]. This makes Scenedesmus special in comparison to the other strains with algaenan incorporated.
In general, its existence and its composition seem to be the explanation for the different extraction yields of the different algae species at different pre-treatments. The microalgae with no algaenan (Arthrospira) showed a good extraction yield already with no pre-treatment and the increase of lipid yield after the different pre-treatments was lower than for the other species. The difference in the algaenan of Scenedesmus communis might be a hint towards the different extraction behaviour of S. rubescens in contrast to C. vulgaris and N. oculata.
As Scenedesmus also is the only strain which has a pectin layer on the outside, pectin as a part of the cell wall also was further investigated.
As pectin is a product for the food industry which is used for example as a gelling agent it is quite well examined as a raw material. Usually it is extracted from the remainders of citrus fruits or apples.
In an overview on pectin [39] the following procedure for pectin extraction from citrus and apple remainders can be found: “Independently of the raw material, however, the current manufacturing process is based on extraction via acid hydrolysis in hot water. Careful processing is needed with regard to both the pH and hydrolysis time, as polymeric degradation can otherwise rapidly take place. In detail, manufacturers use a dilute mineral acid (HCI or HNO3 or H2SO4) between 50 °C and 100 °C and at pH 2–3 for several hours to solubilize the protopectin.” If pectin is one of the cell wall components which makes the cell wall rigid, the acidic hydrolysis extraction process is a good explanation for the very good extraction results for acidic hydrolysed S. rubescens in contrast to the hydrothermal treatment.
Concerning the hydrothermal treatment only a few papers are published. (On the influence of pectin on the stability of a cell wall nothing is known to the author). Pectin was hydrothermally treated in Reference [40], the focus was on HTC to achieve nanoporous carbon. Raw pectin from citrus fruits was utilized as feed. It was heated to 230 °C for two hours. No more temperatures were tested. At this temperature, the original fibrous structure disappeared and smooth and quite regular clustered microspheres having a diameter around 7 µm were formed. Therefore, a pectin layer of a cell wall might have already been ruptured. In [41] HTC also was used to produce nanoporous material from pectin. Although several temperatures were tested (200 °C, 400 °C, 600 °C) there was no assumption on its degradation. An acid-free micro-wave assisted hydrothermal extraction of pectin from mango peel waste was investigated in [42]. It was compared to a conventional acid assisted extraction. The optimum yield of 11.63 wt % was achieved at 110 °C. Temperatures from 120 to 200 in 20° steps were also conducted. At 120 °C (10.37 wt %), 140 °C (11.22 wt %) and 160 °C (9.23 wt %) the yield was still quite high. But at 180 °C the yield dropped to 0.65 wt % (and 0.16 wt % at 200 °C). It is concluded that this is the point the degradation process of pectin becomes dominant and faster than the extraction.
Therefore, although S. rubescens was the species with the most differing behaviour and was the only one with a pectin layer, the investigation showed, that the thermal and acid stability of pectin is too low to have an influence on the rigidity of the cell wall.

4. Materials and Methods

4.1. Material

The species used in this study; Scenedesmus rubescens (S. rubescens), Chlorella vulgaris (C. vulgaris), Nannochloropsis oculata (N. oculata) and Arthrospira platensis (A. platensis, the platensis species was classified as genus Spirulina in the past. Now it is classified as Arthrospira [43]); were kindly provided by the IGV GmbH, Germany. S. rubescens and C. vulgaris are green microalgae which grow in freshwater. N. oculata belongs to the class of Eustigmatophyceae, which have only chlorophyll a and can grow both in fresh and salt water. A. platensis is a blue microalga or a cyanobacteria, which grows in saltwater. About 1 to 2 kg (dw) of each species biomass were obtained. The biomass was freeze dried after harvesting. This was conducted at the IGV GmbH. The freeze-dried biomass had a residual water content of approx. 6 wt %. Like this the microalgae can be stored at room temperature for several months.

4.2. Properties

The raw material was dried in a Laboratory Drying Oven at 105 °C for 24 h to determine the water content. The water content of the HTC product was determined by headspace-Karl-Fisher-Titration (Aqua 40.0, Elektrochemie Halle GmbH, Halle, Germany) based on DIN EN 14774-1. Carbon, nitrogen, hydrogen and sulphur content were measured according to standard methods (DIN EN 15104) using an Elementar Vario Macro Cube (Elementar Analysensysteme GmbH, Hanau, Germany). C, H, N and S were reported in weight percentage on a dry basis and higher heating value (HHV) in kJ/kg on dry basis. Determination of the HHV was done by CEN method (DIN EN 14918) using a Parr oxygen bomb calorimeter 6400 (Parr Instrument (Frankfurt, Germany)). The ash content was determined by heating the dried material in a muffle furnace at 550 °C (DIN EN 14775).

4.3. Acidic Hydrolysis

For comparison and as an example for possible disintegration methods the microalgae were hydrolysed by hydrochloric acid prior to the solvent extraction. In accordance to DIN 10342:1992-09 approximately 18 g of the homogenized algae sample, 135 mL water and 65 mL hydrochloric acid (37%) were stirred thoroughly and heated slowly until boiling. Smooth boiling was maintained for 1 hour, followed by filtration and repeated rinsing of the residue and filter paper with distilled water. The filter residue was dried at 105 °C for 24 h and weighed, yielding 61% hydrolysed product.

4.4. Hydrothermal Treatment

The hydrothermal experiments were conducted in a 500 mL batch autoclave (Berghof, Highpreactor BR-500) with a data logger, a magnetic agitator and a BTC 3000 temperature controller. Temperature and pressure were recorded online. The system was stirred with 100 rpm to increase the heat transfer and avoid hot spots. Reaction temperature typically was 200 °C. Heating time was 90 min (2 K/min rate) Holding time was in general 120 min. Concentration of algae was 20 wt %, as the algae had a water content of approx. 5.5 to 7 wt % although being freeze dried, the corrected dry weight was considered when calculating the yields of HTC char and lipids. The cooling was carried out without external cooling over a period of several hours. After cooling, the resulting solid matter was separated by means of vacuum filtration and dried at 105 °C until a constant weight was attained. The gaseous phase was expanded via a gas sampling valve. The volume of the gaseous phase was measured. As the produced gas mainly consisted of CO2 and the volume produced is low in general at these process conditions [44] a further examination of the gaseous phase was neglected.

4.5. Extraction of Algae Oil

Extraction of the algae oil was done by soxhlet extraction of the algae sample (freeze dried or hydrolysed) or the HTC product. The solid was pulverized and homogenized in a porcelain mortar. The sample was transferred to a fat free extraction thimble and extracted continuously for 7 h. As extraction agent n-hexane was used, as hexane extraction is presently seen as the most economical method for algae extraction [45].

4.6. Determination of Fatty Acid Profile by GC-MS

Analysis was performed on a 7890A gas chromatograph coupled with a mass-selective detector (5975C; Agilent Technologies, Santa Clara, CA, USA). The injection mode was split 1:15. A deactivated liner was inserted into the injection chamber, which was kept at 300 °C. 1 µL of the sample was injected for separation by an ionic liquid phase (1,12-Di(tripropylphosphonium)dodecane bis(trifluoromethylsulfonyl)imide; SPB-IL 60 30 m × 0.25 mm × 0.20 µm, Sigma Aldrich, Taufkirchen, Germany). The gas chromatography (GC) system was operated in programmed-temperature mode: initial temperature 160 °C, first linear ramp 1 °C min–1 until 165 °C, 15 min hold, second linear ramp 5 °C min–1 until 250 °C final temperature, 1 min hold. Data acquisition was performed on the mass-selective detector in scan mode (40–450 amu). Due to changes in laboratory workflow, some of the measurements were done on a Polyethylenglycole phase (HP-INNOWax, 30 m × 0.25 mm × 0.25 µm; Agilent Technologies) The injection mode was split 1:15, the deactivated liner was kept at a temperature of 260 °C. When using the HP-INNOWax-column the gas chromatography (GC) system was operated in programmed-temperature mode as well: initial temperature 150 °C, 0.5 min hold, linear ramp 4 °C min–1 until 260 °C final temperature, 7 min hold. Data acquisition was performed on the mass-selective detector in scan mode (40–380 amu). An external calibration was done for both of the capillary columns separately.
Samples for GC-MS determination were prepared as follows: 100 mg of the extracted algae oil was dissolved in 5 mL tert-butyl methyl ether (MTBE). 100 µL of the MTBE solution were transferred to a GC-Vial equipped with a 0.2 mL micro-insert. To this solution, 50 µL trimethylsulfonium hydroxide (TMSH) was added. The mixture was shaken shortly and measured immediately. The formed fatty acid methyl esters (FAME) were identified by mass spectral data (National Institute of Standards and Technology (NIST) 2008 Mass Spectral Library) and matching of retention times with FAME standard substances. Quantitative determination was carried out by serial dilution of Grain Fatty Acids Methyl Ester Mix (Sigma Aldrich, Taufkirchen, Germany) and applying an external linear calibration function.
All experiments were conducted only twice because of the limited amount of algae. It was not possible to obtain more microalgae of the same charge. More repetitions of the experiments by using smaller amounts for each run would have led to less products for analysing and less data. For all educts, intermediates and products, elemental composition, heating value and if possible ash content were analysed. The extracted lipid yields were measured and put in relation to the input material.

5. Conclusions

For algae the disintegration process may have an important influence on the fraction of lipids that can be extracted [46]. The grade of influence depends on the cell morphology. For algae with rigid cell walls disintegration process have a greater influence on the possible yield then for algae with less rigid cell walls. As the cell wall of A. platensis is already broken by the harvesting and drying process the yield of lipid did not increase that much for both treatment options in comparison to the other three species. C. vulgaris is known for its very rigid cell wall. It also has the highest increase of the yields from direct extraction to acidic hydrolysis and hydrothermal treatment. This confirms that the grade of influence on the lipid yield and quality is driven by the cell wall structure.
Concerning the specific components of the cell walls and its importance for the rigidity of it, the existence of algaenan plays a major role. Its long chain polymeric structure is hard to destroy at high temperatures and is also acid resistant. Still both pre-treatments did disrupt the cell walls of the algaenan containing species. For C. vulgaris, N. oculata and also A. platensis the hydrothermal treatment gave the best results. For C. vulgaris the lipid yield was more than six times higher with HT pre-treatment then direct extracted. For N. oculata the yield doubled and for Spirulina platensis it increased for 50%. Only for S. rubescens acidic hydrolysis gave the highest yield. This exceptional behaviour did lead to a more detailed investigation of the cell wall structure. One difference to the other species was the pectin layer of the Scenedesmus strain. It obviously was a differentiator. But when taking a closer look at the thermal and acidic characterization of pectin, there is not much reason left to think that pectin can save a cell wall from disruption. It can be obtained by acidic hydrolysis and its thermal stability is only given up to ca. 160 °C. Another possible reason might be the different structure of the algaenan incorporated in the different strains. If the utilized S. rubescens species has algaenan with a different chain length (120 °C instead of 30 °C) this could be a reason for the different behaviour. Unfortunately, it was not possible to check the algaenan composition in this work.
Generally, it can be concluded that the components of the cell wall have a strong influence on the extractability of the algae and that the existence of algaenan plays a major role. A first indicator for proposing a good pre-treatment therefore is the question if the species has algaenan incorporated. Also, it was shown that a hydrothermal treatment can give a better extraction yield than an acidic hydrolysis. Question for further investigations would be, if an increase in temperature for the S. rubescens species, also would lead to this result.

Author Contributions

All authors contributed substantially to all aspects of this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kampen, I. Einfluss der Zellaufschlussmethode auf Die Expanded-Bed-Chromatographie/Von Ingo Kampen; 1. Aufl.; Cuvillier: Göttingen, Germany, 2006; ISBN 3-86537-791-2. [Google Scholar]
  2. Kröger, M.; Beckert, T.; Petrick, I.; Dombrowski, L.; Kuchling, T.; Kureti, S. Algae Biorefinery—Material and energy use of algae. In Algae Biorefinery—Material and Energy Use of Algae; Deutsches Biomasseforschungszentrum gemeinnützige GmbH (DBFZ): Leipzig, Germany, 2013. [Google Scholar]
  3. Chakinala, A.G.; Brilman, D.W.F.; van Swaaij, W.P.M.; Kersten, S.R.A. Catalytic and Non-catalytic Supercritical Water Gasification of Microalgae and Glycerol. Ind. Eng. Chem. Res. 2009, 49, 1113–1122. [Google Scholar] [CrossRef]
  4. Elliott, D.C.; Santosa, D.M.; Neuenschwander, G.G.; Valkenburg, C.; Hart, T.R.; Jones, S.B.; Rotness, L.J., Jr.; Rahardjo, S.A.T.; Zacher, A.H. Catalytic Hydrothermal Gasification of Lignin-Rich Biorefinery Residues and Algae Final Report; Pacific Northwest National Laboratory (PNNL): Richland, WA, USA, 2009.
  5. Shuping, Z.; Yulong, W.; Mingde, Y.; Kaleem, I.; Chun, L.; Tong, J. Production and characterization of bio-oil from hydrothermal liquefaction of microalgae Dunaliella tertiolecta cake. Energy 2010, 35, 5406–5411. [Google Scholar] [CrossRef]
  6. Stucki, S.; Vogel, F.; Ludwig, C.; Haiduc, A.G.; Brandenberger, M. Catalytic gasification of algae in supercritical water for biofuel production and carbon capture. Energy Environ. Sci. 2009, 2, 535. [Google Scholar] [CrossRef]
  7. Yu, G.; Zhang, Y.; Schideman, L.; Funk, T.L.; Wang, Z. Hydrothermal liquefaction of low lipid content microalgae into bio-crude oil. Trans. ASABE 2011, 54, 239–246. [Google Scholar] [CrossRef]
  8. Brown, T.M.; Duan, P.; Savage, P.E. Hydrothermal Liquefaction and Gasification of Nannochloropsis sp. Energy Fuels 2010, 24, 3639–3646. [Google Scholar] [CrossRef]
  9. Jena, U.; Das, K.C.; Kastner, J.R. Effect of operating conditions of thermochemical liquefaction on biocrude production from Spirulina platensis. Bioresour. Technol. 2011, 102, 6221–6229. [Google Scholar] [CrossRef] [PubMed]
  10. Jena, U.; Vaidyanathan, N.; Chinnasamy, S.; Das, K.C. Evaluation of microalgae cultivation using recovered aqueous co-product from thermochemical liquefaction of algal biomass. Bioresour. Technol. 2011, 102, 3380–3387. [Google Scholar] [CrossRef] [PubMed]
  11. Heilmann, S.M.; Davis, H.T.; Jader, L.R.; Lefebvre, P.A.; Sadowsky, M.J.; Schendel, F.J.; von Keitz, M.G.; Valentas, K.J. Hydrothermal carbonization of microalgae. Biomass Bioenergy 2010, 34, 875–882. [Google Scholar] [CrossRef]
  12. Heilmann, S.M.; Jader, L.R.; Harned, L.A.; Sadowsky, M.J.; Schendel, F.J.; Lefebvre, P.A.; von Keitz, M.G.; Valentas, K.J. Hydrothermal carbonization of microalgae II. Fatty acid, char, and algal nutrient products. Appl. Energy 2011, 88, 3286–3290. [Google Scholar] [CrossRef]
  13. Stemann, J. Hydrothermal Carbonization: Material and Energy Recirculation. Ph.D. Thesis, Technische Universität Berlin, Berlin, Germany, 2013. [Google Scholar]
  14. Saveyn, H.; Curvers, D.; Schoutteten, M.; Krott, E.; Van Der Meeren, P. Improved dewatering by hydrothermal conversion of sludge. J. Residuals Sci. Technol. 2009, 6, 51–56. [Google Scholar]
  15. Levine, R.B.; Pinnarat, T.; Savage, P.E. Biodiesel Production from Wet Algal Biomass through in Situ Lipid Hydrolysis and Supercritical Transesterification. Energy Fuels 2010, 24, 5235–5243. [Google Scholar] [CrossRef]
  16. Roussis, S.G.; Cranford, R.; Sytkovetskiy, N. Thermal Treatment of Crude Algae Oils Prepared Under Hydrothermal Extraction Conditions. Energy Fuels 2012, 26, 5294–5299. [Google Scholar] [CrossRef]
  17. Guckert, J.B.; Cooksey, K.E.; Jackson, L.L. Lipid sovent systems are not equivalent for analysis of lipid classes in the microeukaryotic green alga, Chlorella. J. Microbiol. Methods 1988, 8, 139–149. [Google Scholar] [CrossRef]
  18. Kruse, A.; Dinjus, E. Influence of salts during hydrothermal biomass gasification: The role of the catalysed water-gas shift reaction. Z. Phys. Chem. 2005, 219, 341–366. [Google Scholar] [CrossRef]
  19. Song, C.; Hu, H.; Zhu, S.; Wang, G.; Chen, G. Nonisothermal Catalytic Liquefaction of Corn Stalk in Subcritical and Supercritical Water. Energy Fuels 2004, 18, 90–96. [Google Scholar] [CrossRef]
  20. Karagöz, S.; Bhaskar, T.; Muto, A.; Sakata, Y. Comparative studies of oil compositions produced from sawdust, rice husk, lignin and cellulose by hydrothermal treatment. Fuel 2005, 84, 875–884. [Google Scholar] [CrossRef]
  21. Sınag, A.; Kruse, A.; Rathert, J. Influence of the Heating Rate and the Type of Catalyst on the Formation of Key Intermediates and on the Generation of Gases During Hydropyrolysis of Glucose in Supercritical Water in a Batch Reactor. Ind. Eng. Chem. Res. 2004, 43, 502–508. [Google Scholar] [CrossRef]
  22. Petkov, G.; Garcia, G. Which are fatty acids of the green alga Chlorella? Biochem. Syst. Ecol. 2007, 35, 281–285. [Google Scholar] [CrossRef]
  23. Renaud, S.M.; Parry, D.L.; Thinh, L.-V.; Kuo, C.; Padovan, A.; Sammy, N. Effect of light intensity on the proximate biochemical and fatty acid composition of Isochrysis sp. and Nannochloropsis oculata for use in tropical aquaculture. J. Appl. Phycol. 1991, 3, 43–53. [Google Scholar] [CrossRef]
  24. Cohen, Z.; Vonshak, A.; Richmond, A. Fatty acid composition of Spirulina strains grown under various environmental conditions. Phytochemistry 1987, 26, 2255–2258. [Google Scholar] [CrossRef]
  25. Tang, D.; Han, W.; Li, P.; Miao, X.; Zhong, J. CO2 biofixation and fatty acid composition of Scenedesmus obliquus and Chlorella pyrenoidosa in response to different CO2 levels. Bioresour. Technol. 2011, 102, 3071–3076. [Google Scholar] [CrossRef] [PubMed]
  26. Bohutskyi, P.; Betenbaugh, M.J.; Bouwer, E.J. The effects of alternative pretreatment strategies on anaerobic digestion and methane production from different algal strains. Bioresour. Technol. 2014, 155, 366–372. [Google Scholar] [CrossRef] [PubMed]
  27. González-Fernández, C.; Sialve, B.; Bernet, N.; Steyer, J.P. Thermal pretreatment to improve methane production of Scenedesmus biomass. Biomass Bioenergy 2012, 40, 105–111. [Google Scholar] [CrossRef]
  28. Ometto, F.; Quiroga, G.; Pšenička, P.; Whitton, R.; Jefferson, B.; Villa, R. Impacts of microalgae pre-treatments for improved anaerobic digestion: Thermal treatment, thermal hydrolysis, ultrasound and enzymatic hydrolysis. Water Res. 2014, 65, 350–361. [Google Scholar] [CrossRef] [PubMed]
  29. Garcia Alba, L.; Torri, C.; Samorì, C.; van der Spek, J.; Fabbri, D.; Kersten, S.R.A.; Brilman, D.W.F. Hydrothermal Treatment (HTT) of Microalgae: Evaluation of the Process As Conversion Method in an Algae Biorefinery Concept. Energy Fuels 2012, 26, 642–657. [Google Scholar] [CrossRef]
  30. Jazrawi, C.; Biller, P.; Ross, A.B.; Montoya, A.; Maschmeyer, T.; Haynes, B.S. Pilot plant testing of continuous hydrothermal liquefaction of microalgae. Algal Res. 2013, 2, 268–277. [Google Scholar] [CrossRef]
  31. Scholz, M.J.; Weiss, T.L.; Jinkerson, R.E.; Jing, J.; Roth, R.; Goodenough, U.; Posewitz, M.C.; Gerken, H.G. Ultrastructure and Composition of the Nannochloropsis gaditana Cell Wall. Eukaryot. Cell 2014, 13, 1450–1464. [Google Scholar] [CrossRef] [PubMed]
  32. Nĕmcová, Y. Detection of cell wall structural polysaccharides by cellulase-gold and chitinase-gold complexes. Czech Phycol. Olomouc 2003, 3, 31–36. [Google Scholar]
  33. Muñoz, R.; Gonzalez-Fernandez, C. Microalgae-Based Biofuels and Bioproducts: From Feedstock Cultivation to End-Products; Woodhead Publishing: Cambridge, UK, 2017; ISBN 978-0-08-101027-3. [Google Scholar]
  34. Grossi, V.; Blokker, P.; Sinninghe Damsté, J.S. Anaerobic biodegradation of lipids of the marine microalga Nannochloropsis salina. Org. Geochem. 2001, 32, 795–808. [Google Scholar] [CrossRef]
  35. Takeda, H. Cell wall sugars of some Scenedesmus species. Phytochemistry 1996, 42, 673–675. [Google Scholar] [CrossRef]
  36. Allard, B.; Rager, M.-N.; Templier, J. Occurrence of high molecular weight lipids (C80+) in the trilaminar outer cell walls of some freshwater microalgae. A reappraisal of algaenan structure. Org. Geochem. 2002, 33, 789–801. [Google Scholar] [CrossRef]
  37. Obeid, W.; Salmon, E.; Lewan, M.D.; Hatcher, P.G. Hydrous pyrolysis of Scenedesmus algae and algaenan-like residue. Org. Geochem. 2015, 85, 89–101. [Google Scholar] [CrossRef]
  38. Salmon, E.; Behar, F.; Lorant, F.; Hatcher, P.G.; Metzger, P.; Marquaire, P.-M. Thermal decomposition processes in algaenan of Botryococcus braunii race L. Part 1: Experimental data and structural evolution. Org. Geochem. 2009, 40, 400–415. [Google Scholar] [CrossRef]
  39. Ciriminna, R.; Chavarría-Hernández, N.; Inés Rodríguez Hernández, A.; Pagliaro, M. Pectin: A new perspective from the biorefinery standpoint. Biofuels Bioprod. Biorefin. 2015, 9, 368–377. [Google Scholar] [CrossRef]
  40. Lagazzo, A.; Finocchio, E.; Petrini, P.; Ruggiero, C.; Pastorino, L. Hydrothermal synthesis of pectin derived nanoporous carbon material. Mater. Lett. 2016, 171, 212–215. [Google Scholar] [CrossRef]
  41. White, R.J.; Budarin, V.L.; Clark, J.H. Pectin-Derived Porous Materials. Chem. Eur. J. 2010, 16, 1326–1335. [Google Scholar] [CrossRef] [PubMed]
  42. Matharu, A.S.; Houghton, J.A.; Lucas-Torres, C.; Moreno, A. Acid-free microwave-assisted hydrothermal extraction of pectin and porous cellulose from mango peel waste—Towards a zero waste mango biorefinery. Green Chem. 2016, 18, 5280–5287. [Google Scholar] [CrossRef]
  43. Muhling, M. Characterization of Arthrospira (Spirulina) Strains. Ph.D. Thesis, Durham University, Durham, UK, 2000. [Google Scholar]
  44. Hoekman, S.K.; Broch, A.; Robbins, C. Hydrothermal Carbonization (HTC) of Lignocellulosic Biomass. Energy Fuels 2011, 25, 1802–1810. [Google Scholar] [CrossRef]
  45. Kannan, D.C.; Pattarkine, V.M. Recovery of Lipids from Algae. In Algal Biorefineries; Bajpai, R., Prokop, A., Zappi, M., Eds.; Springer: Dordrecht, The Netherlands, 2014; pp. 297–310. ISBN 978-94-007-7493-3. Available online: http://www.springer.com/de/book/9789400774933 (accessed on 1 February 2018).
  46. Cooney, M.; Young, G.; Nagle, N. Extraction of Bio-oils from Microalgae. Sep. Purif. Rev. 2009, 38, 291–325. [Google Scholar] [CrossRef]

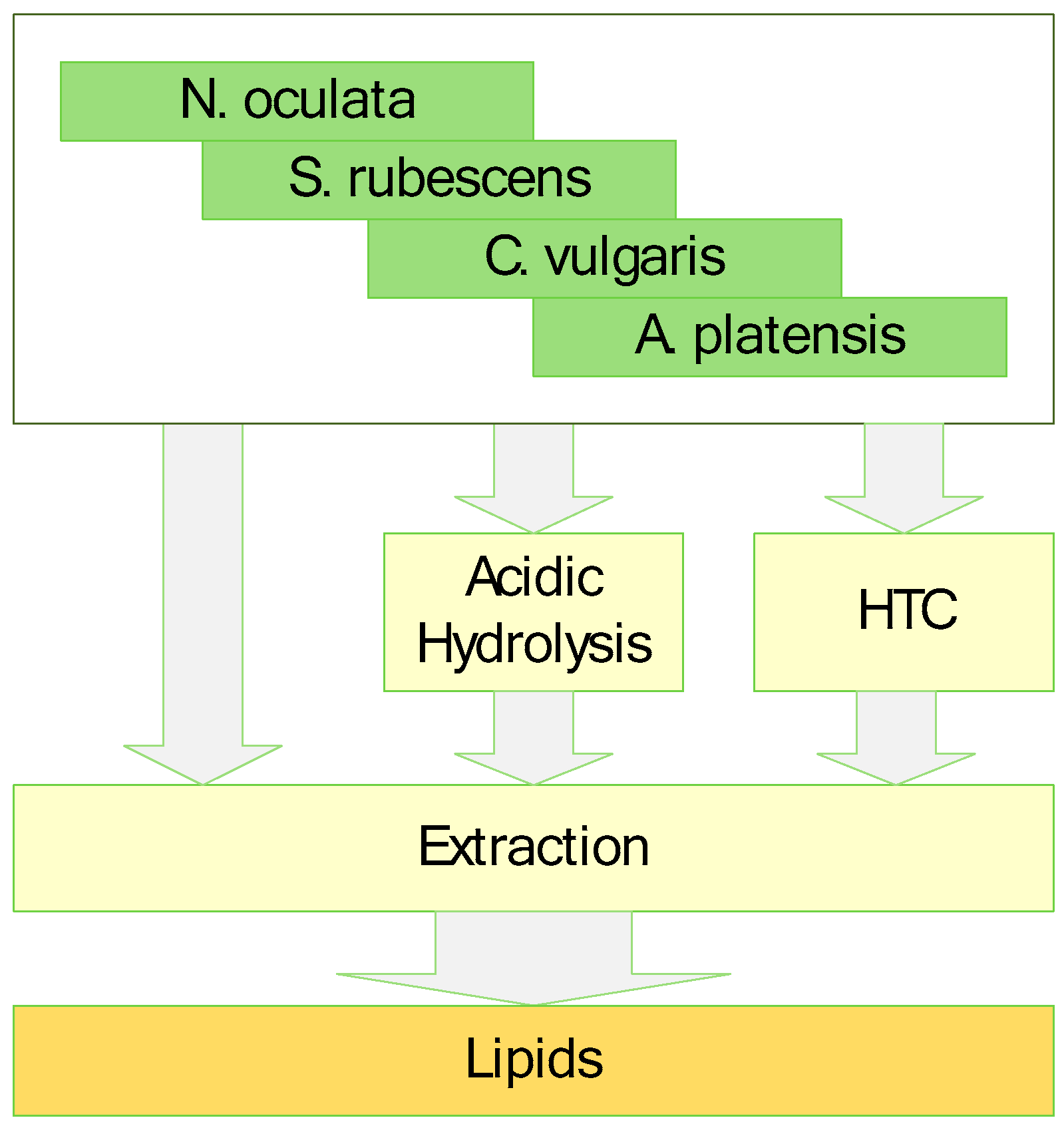

Figure 1. Processing scheme for the comparison of different species.
Figure 1. Processing scheme for the comparison of different species.
Energies 11 00450 g001

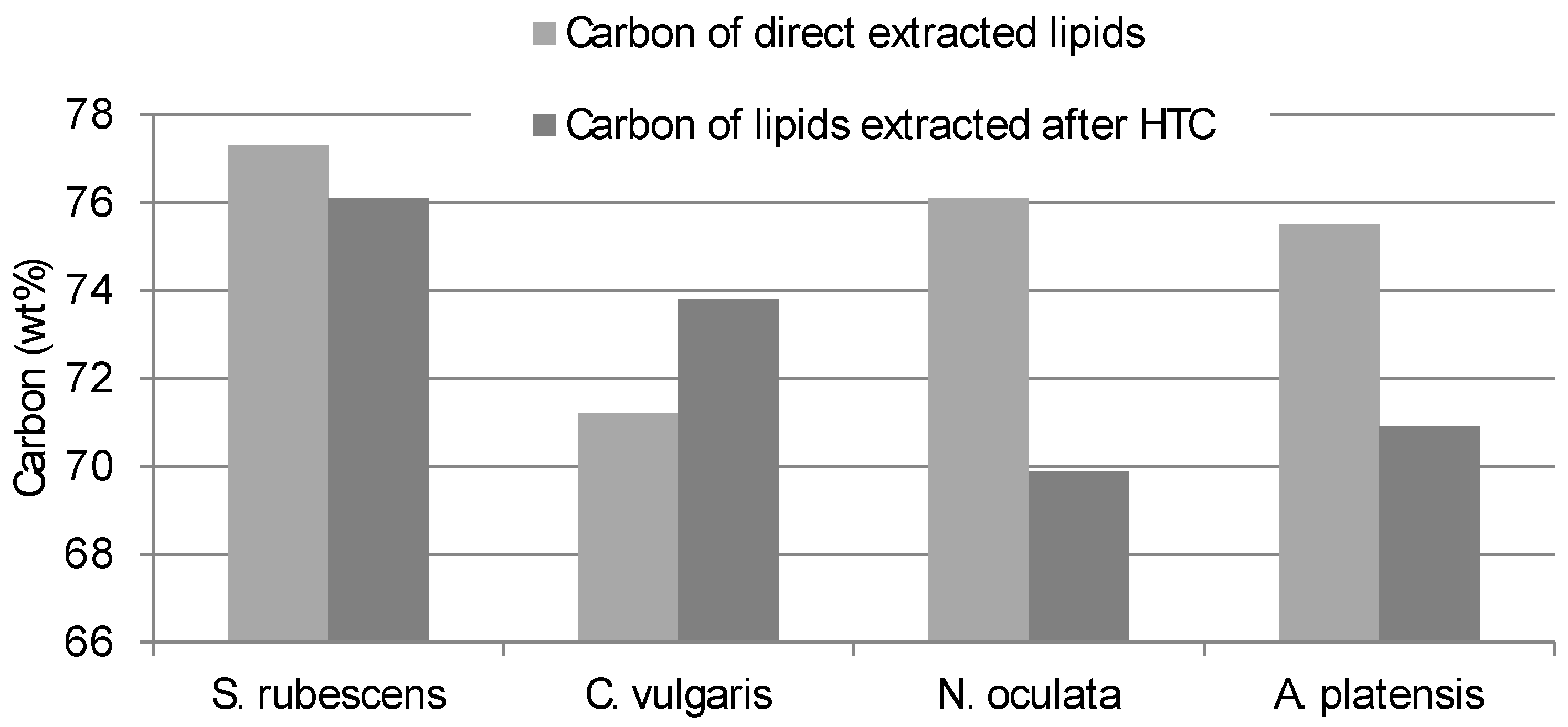

Figure 2. Carbon content of direct and after HTC extracted lipids.
Figure 2. Carbon content of direct and after HTC extracted lipids.
Energies 11 00450 g002

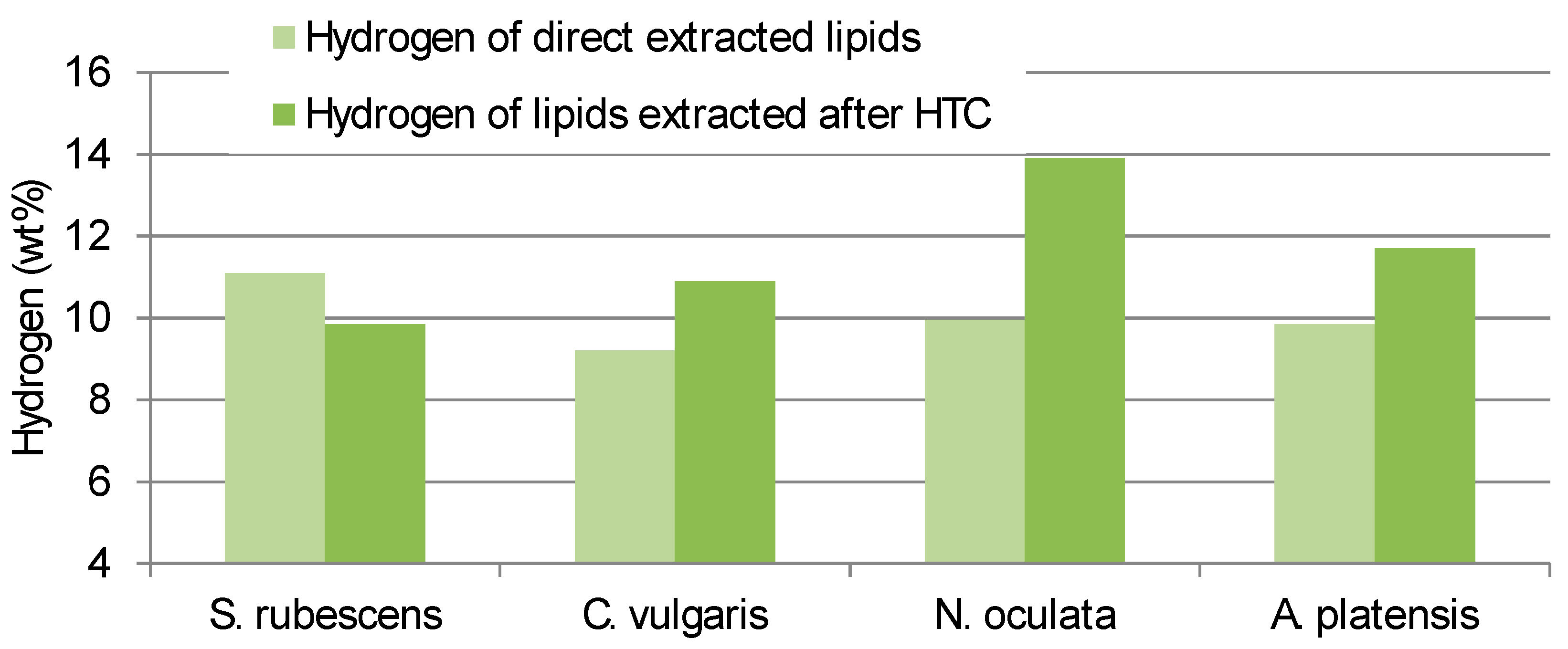

Figure 3. Hydrogen content of direct and after HTC extracted lipids.
Figure 3. Hydrogen content of direct and after HTC extracted lipids.
Energies 11 00450 g003

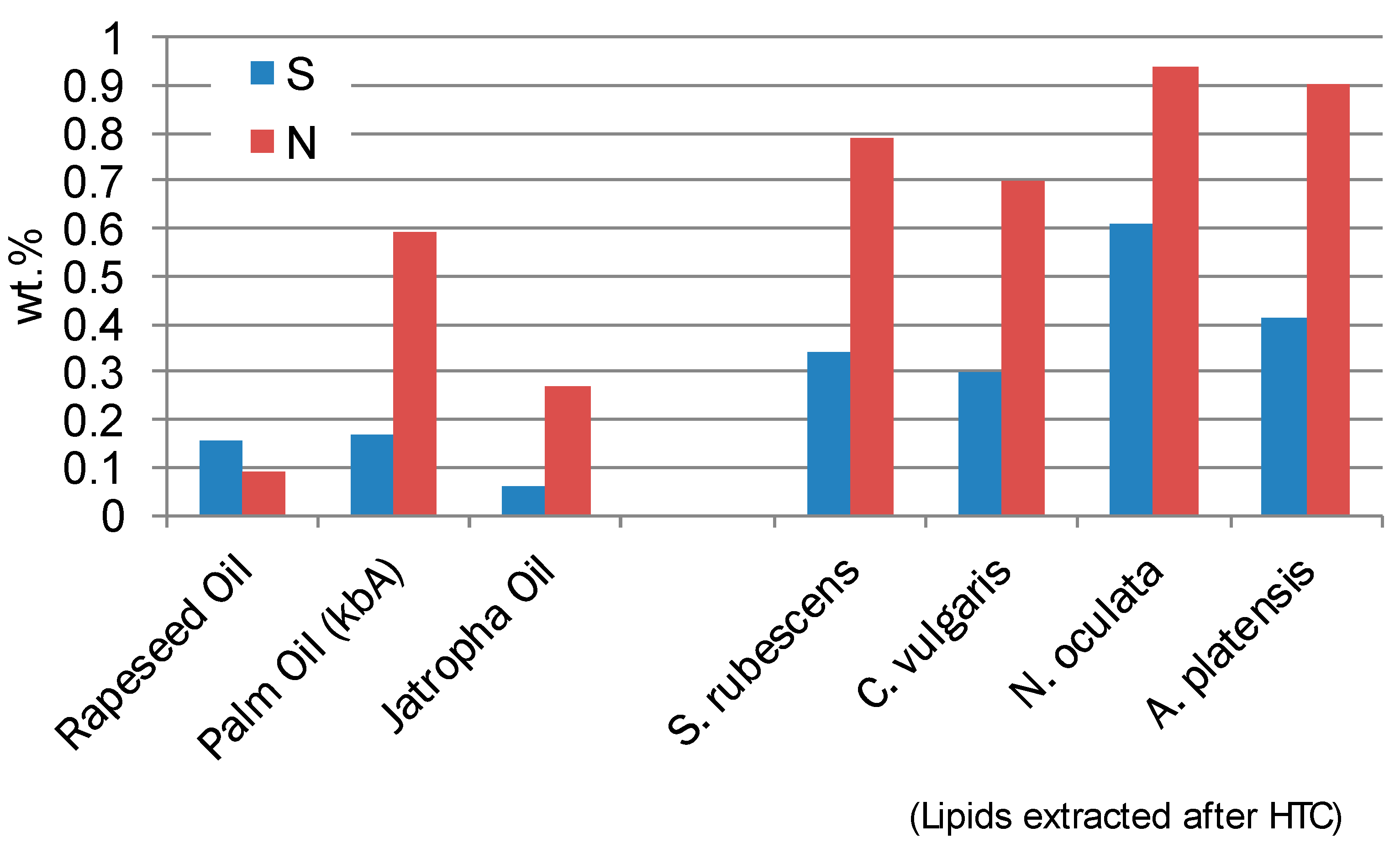

Figure 4. Sulphur and Nitrogen content of extracted lipids after HTC in comparison to vegetable oils (unpublished data).
Figure 4. Sulphur and Nitrogen content of extracted lipids after HTC in comparison to vegetable oils (unpublished data).
Energies 11 00450 g004
Figure 5. Extraction yields for the different species at different pre-treatments.
Figure 5. Extraction yields for the different species at different pre-treatments.
Energies 11 00450 g005

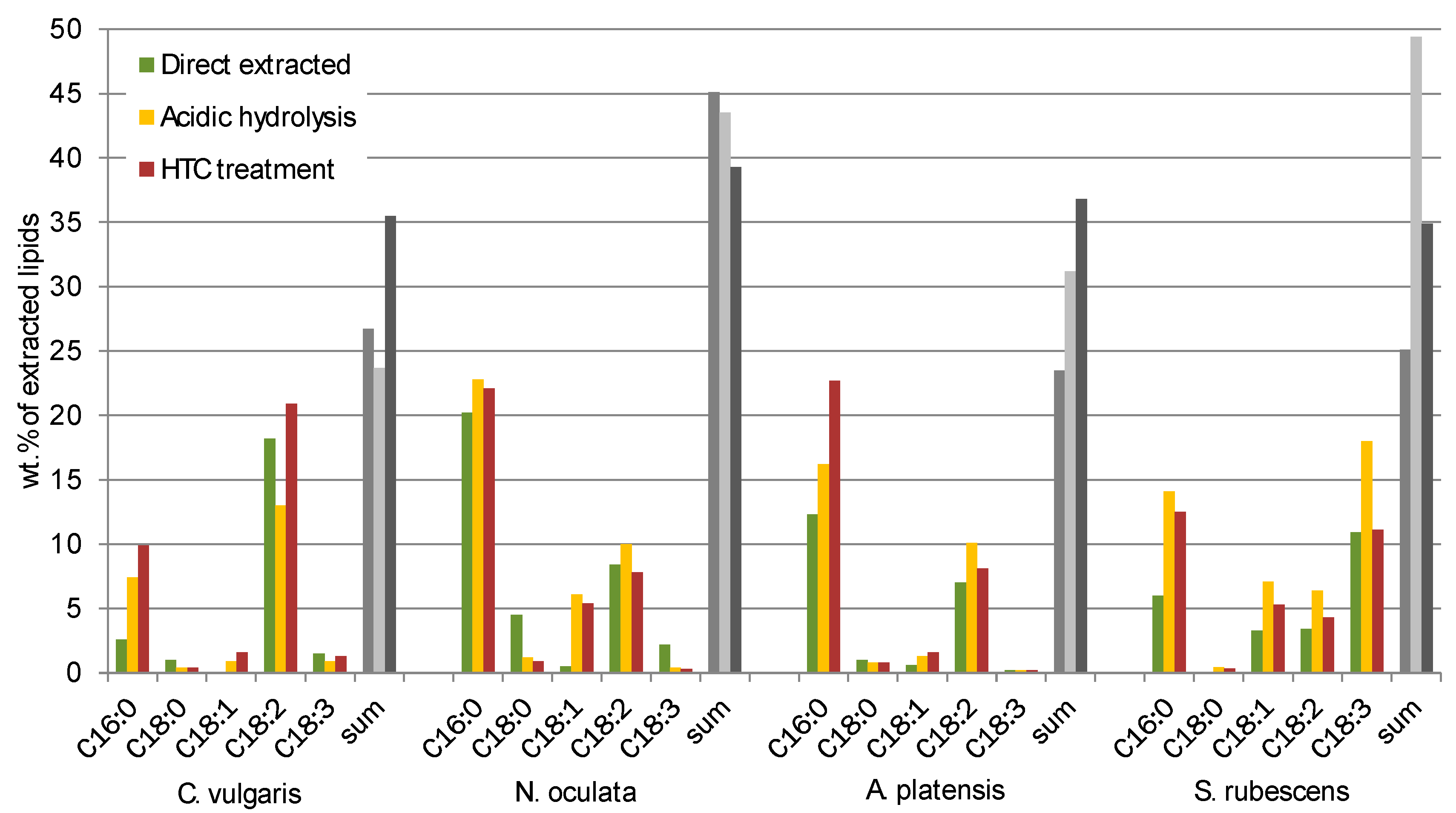

Figure 6. wt % of main fatty acids and percentage of recognized fraction of the different algae species.
Figure 6. wt % of main fatty acids and percentage of recognized fraction of the different algae species.
Energies 11 00450 g006

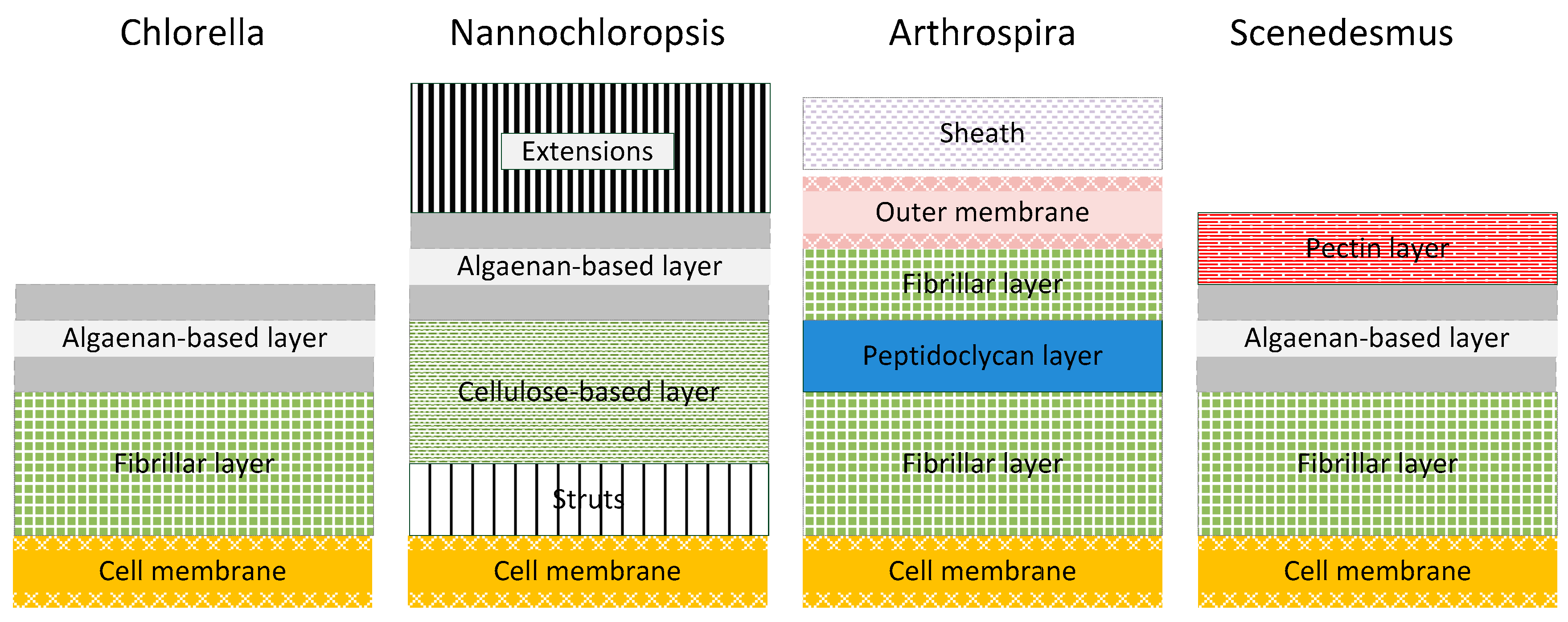

Figure 7. Schematic view of cell wall structures, modified from [33].
Figure 7. Schematic view of cell wall structures, modified from [33].
Energies 11 00450 g007
Table 1. Elemental composition of the algae species and products.
Table 1. Elemental composition of the algae species and products.
Algae SpeciesCHSNHHVAshH2O
wt % (dw)wt % (dw)wt % (dw)wt % (dw)kJ/kg (dw)550 °C wt % (dw)wt % (dw)
C. vulgaris
Algae (freeze dried)52.509.340.3511.1023,5104.586.26
HTC product62.906.920.6813.7029,1003.31
Lipid from direct extraction71.209.200.330.96NVNV
Lipid HTC pre-treated extraction73.8010.900.300.7038,760NV
N. oculata
Algae (freeze dried)41.507.500.529.9218,43023.106.18
HTC product57.006.910.8012.8026,07012.60
Lipid from direct extraction76.109.960.350.72NVNV
Lipid HTC pre-treated extraction69.9013.900.610.9437,900NV
A. platensis
Algae (freeze dried)51.009.460.4413.1022,6505.727.02
HTC product60.706.480.7514.3028,3705.26
Lipid from direct extraction75.509.850.340.7037,620NV
Lipid HTC pre-treated extraction70.9011.700.410.9038,030NV
S. rubescens
Algae (freeze dried)48.408.610.379.3021,67011.705.62
HTC product54.205.390.5611.3025,10013.70
Lipid from direct extraction77.3011.100.320.8339,310NV
Lipid HTC pre-treated extraction76.109.840.340.7938,960NV
