Energies 2018, 11(2), 440; https://doi.org/10.3390/en11020440

Adaptive Stabilization and Dynamic Performance Preservation of Cascaded DC-DC Systems by Incorporating Low Pass Filters

Department of Electrical and Computer Engineering, The George Washington University, Washington, DC 20052, USA
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Received: 18 January 2018 / Revised: 11 February 2018 / Accepted: 12 February 2018 / Published: 15 February 2018
Full-Text   |   PDF [1989 KB, uploaded 24 February 2018]   |

Abstract

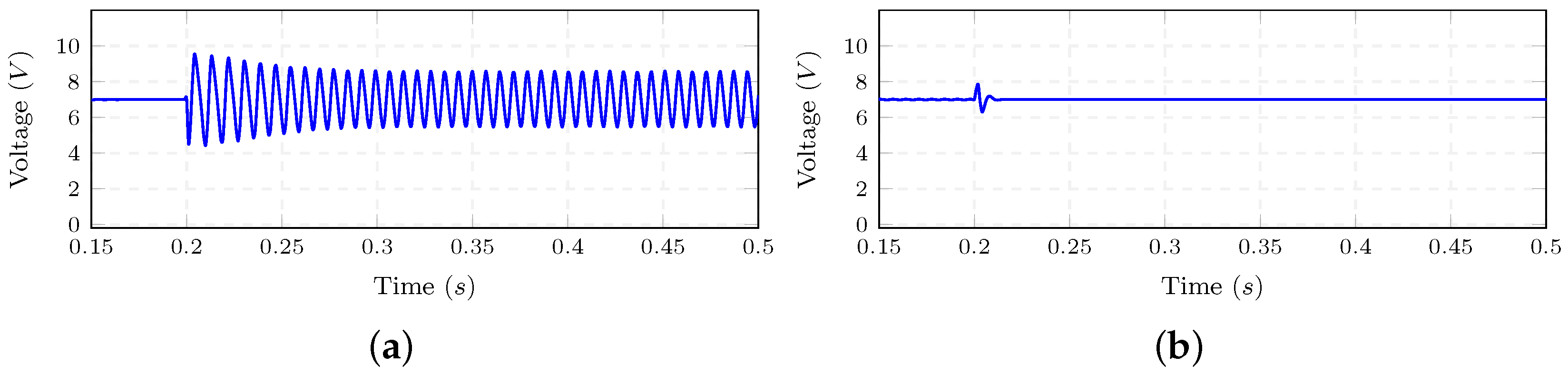

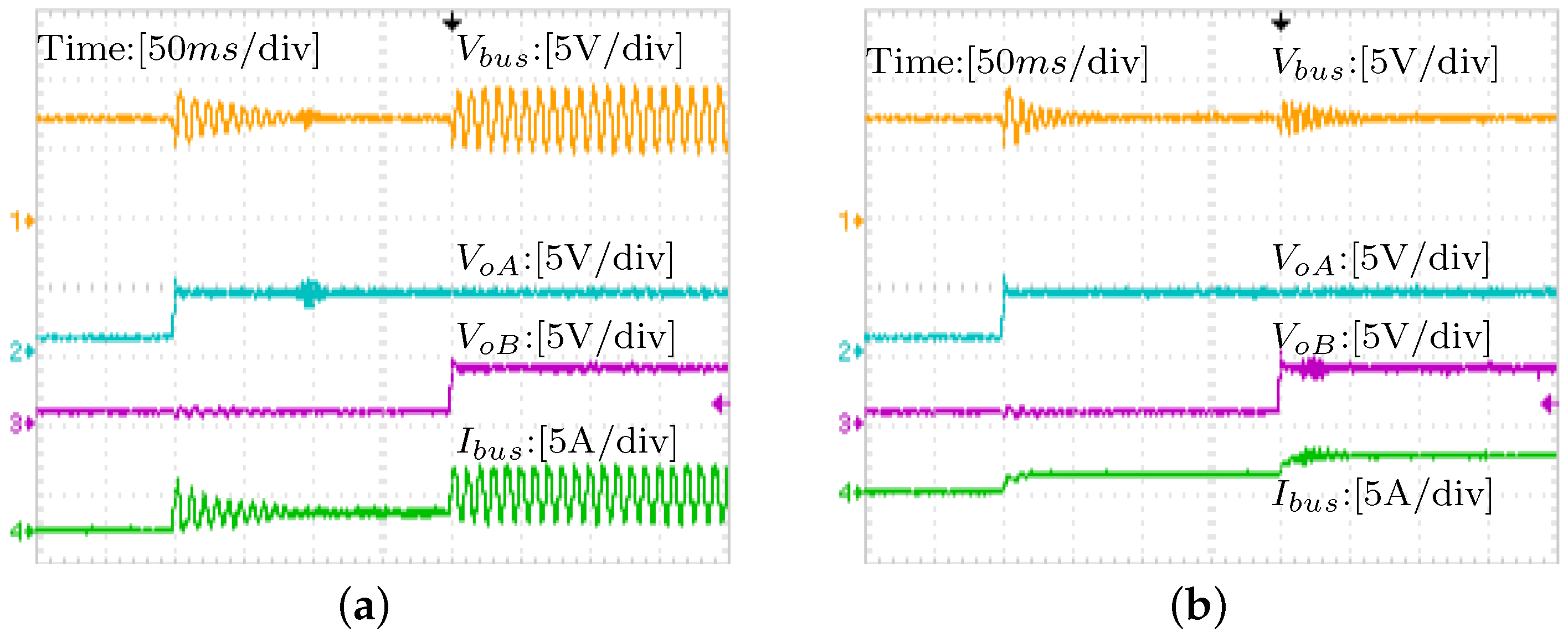

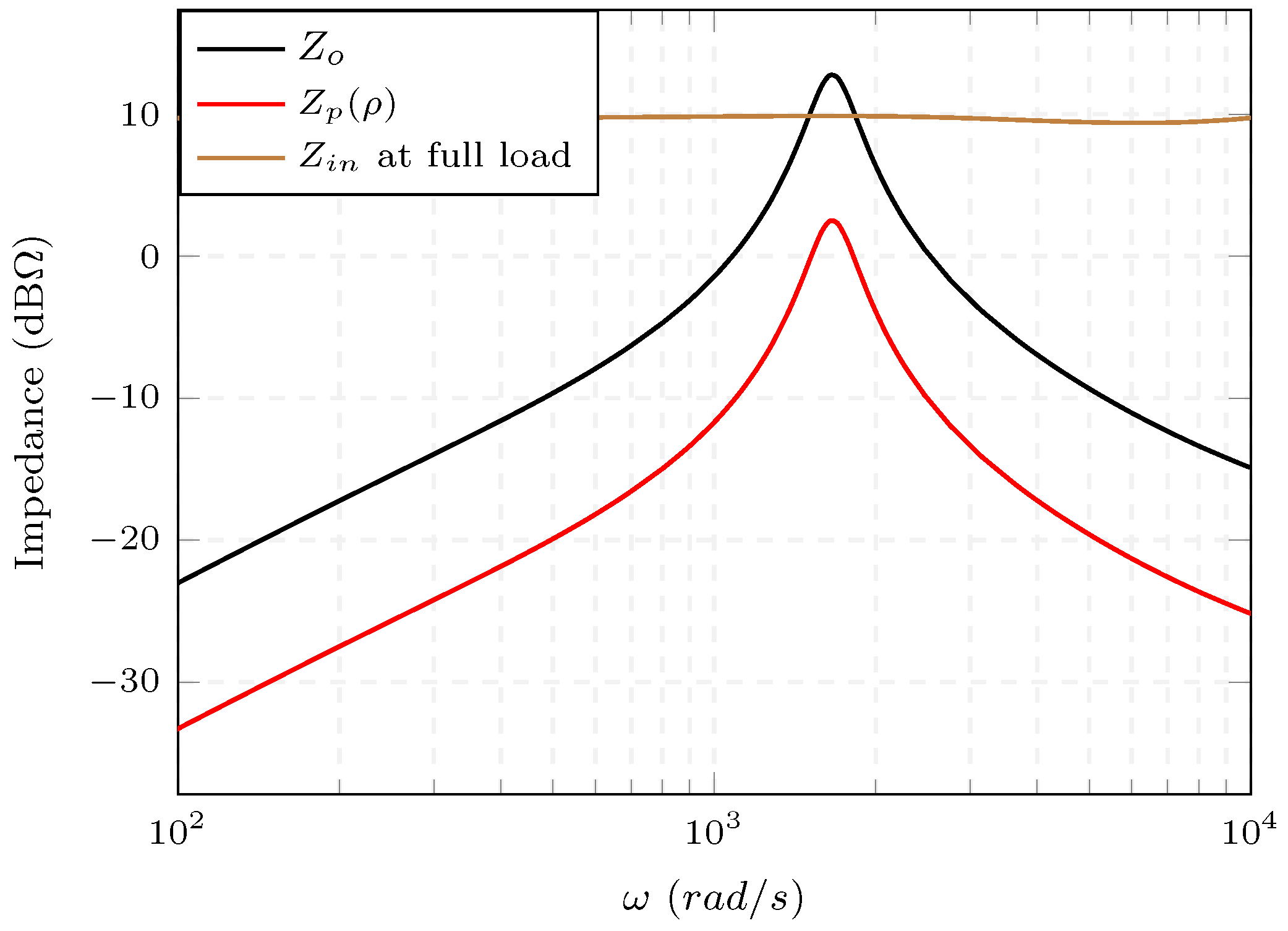

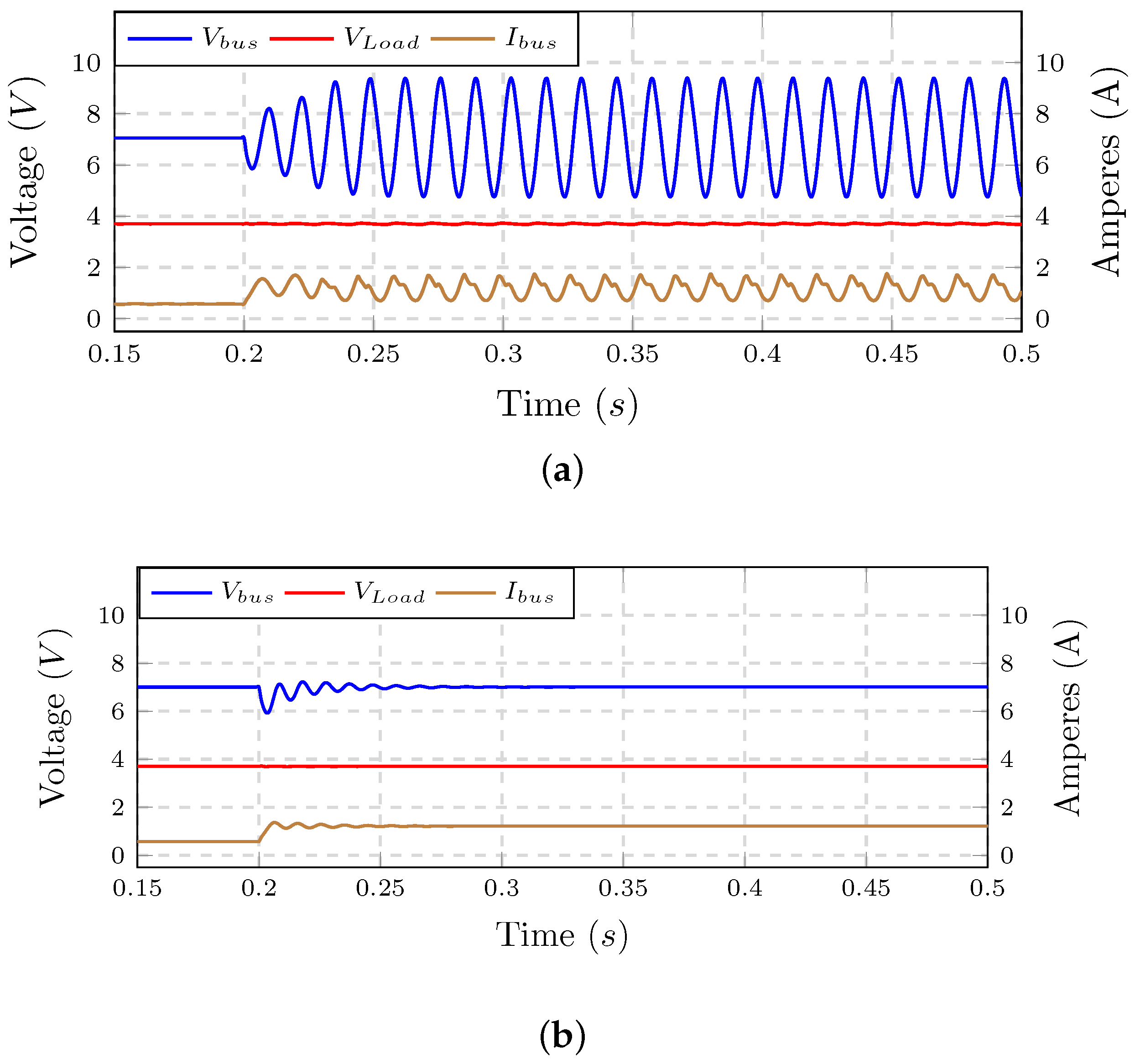

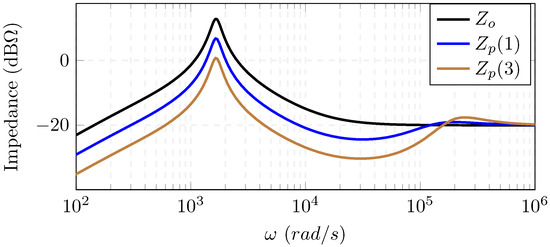

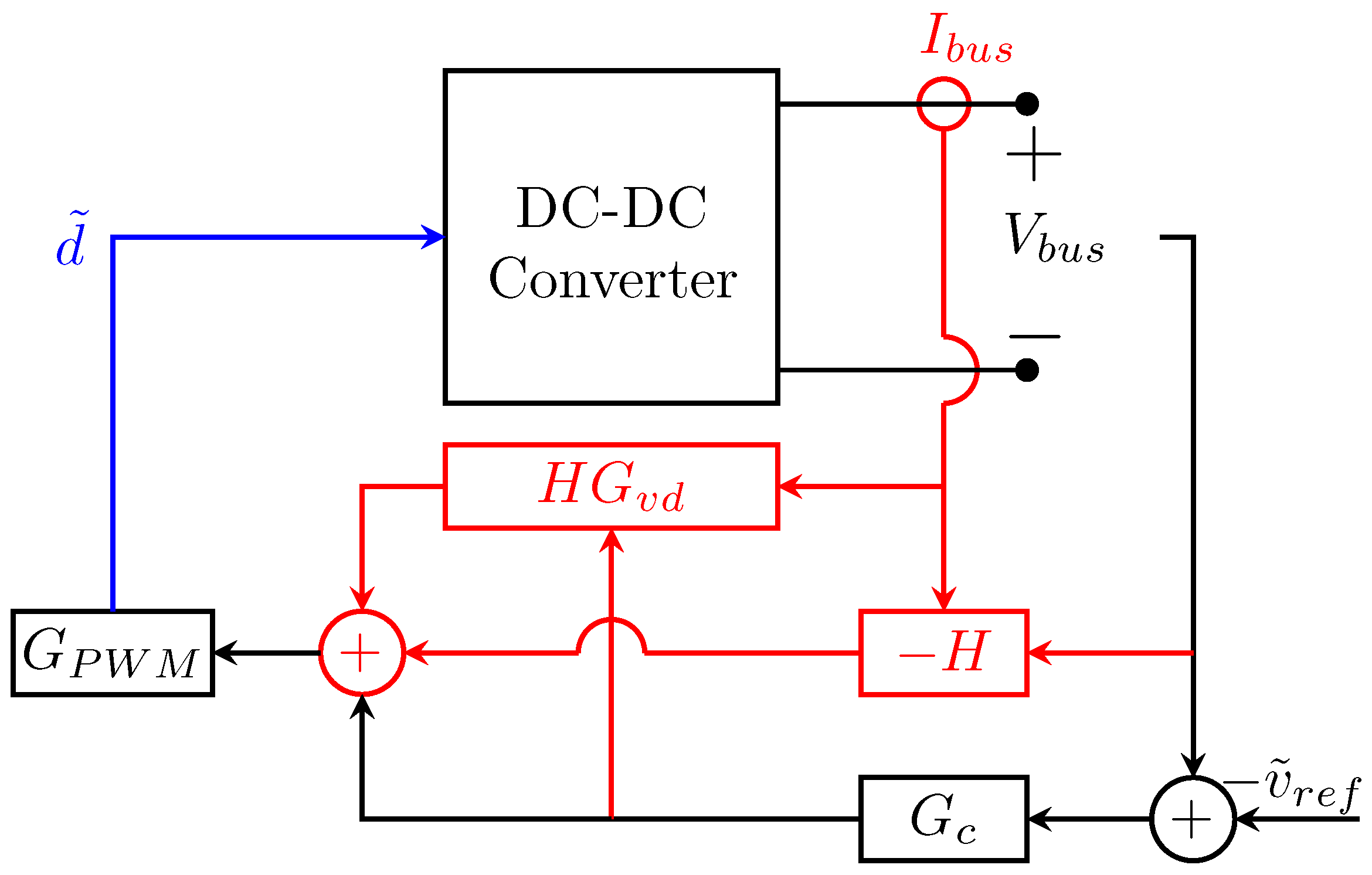

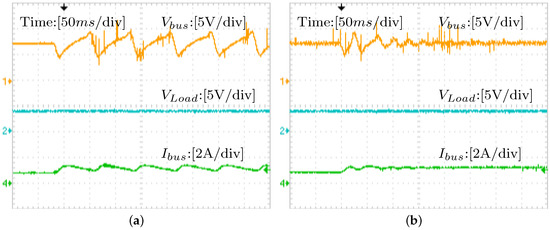

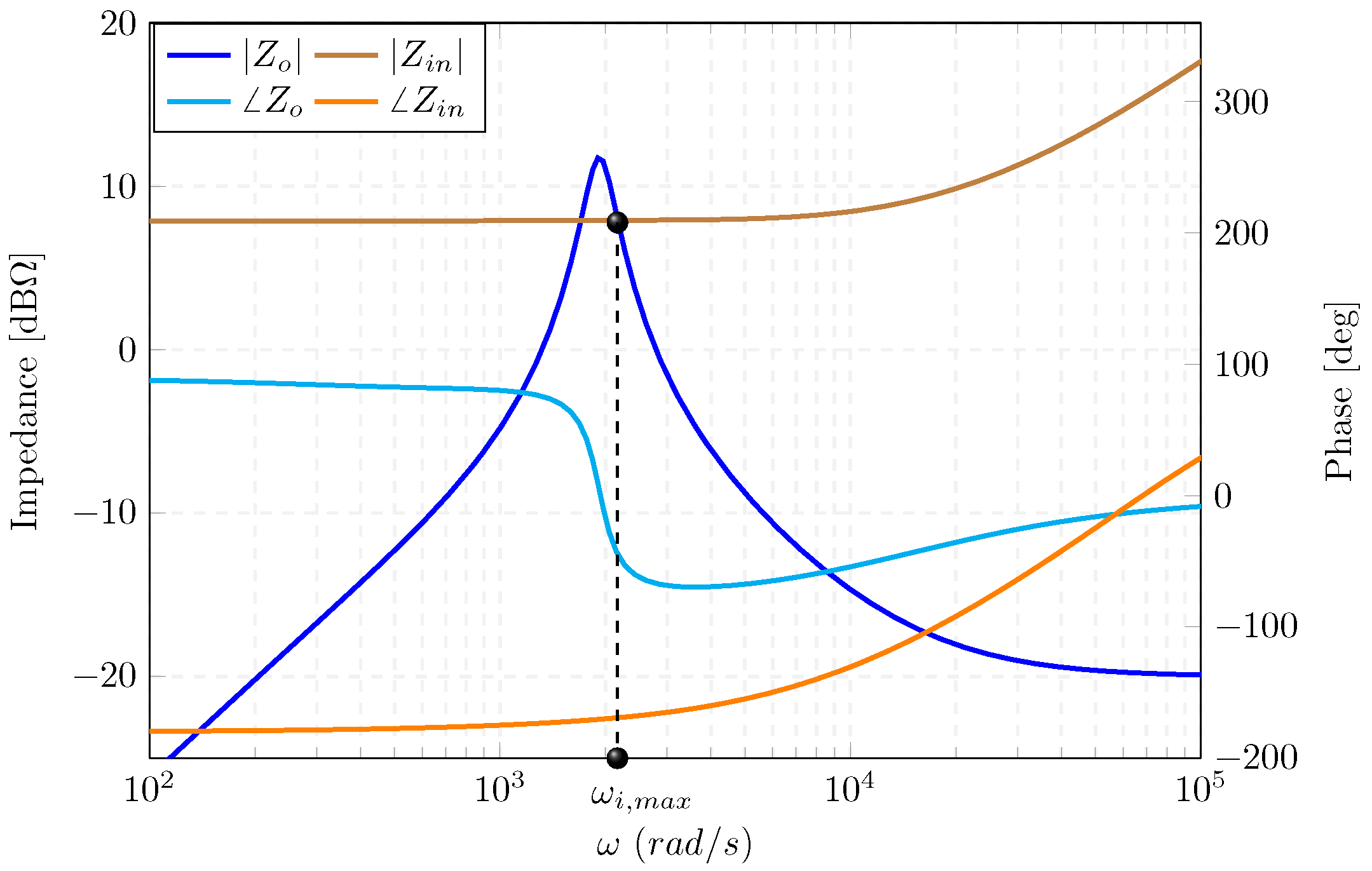

This paper proposes a method to stabilize and enhance the dynamic performance of a cascaded DC-DC system by adaptively reshaping the source output impedance. The method aims to reduce the ratio of the source output impedance to the load input impedance, referred to as the minor loop gain, to eliminate the interaction between the load and the source systems. This interaction can deteriorate the dynamic performance or might lead to instability. Thus, the bus current is used to improve the dynamic performance by reducing the magnitude of the source’s output impedance adaptively according to the loading condition such that the dynamic performance is consistently improved. Utilizing the bus current facilitates the compatibility between the proposed controller and most widely used DC-DC converters controlled in voltage mode, including non-minimum phase converters. In addition to the flexibility the bus current provides to embed the proposed solution with conventional control schemes. Experimental results have validated the effectiveness of the proposed controller along with time-based simulation and theoretical analysis, for minimum and non-minimum phase converters. View Full-Text
Keywords: adaptive reshaping; cascaded systems; constant power load (CPL); dynamic performance improvement; loaded loop gain; minimum-phase converters; negative impedance; non-minimum phase converters; output Impedance adaptive reshaping; cascaded systems; constant power load (CPL); dynamic performance improvement; loaded loop gain; minimum-phase converters; negative impedance; non-minimum phase converters; output Impedance
Figures

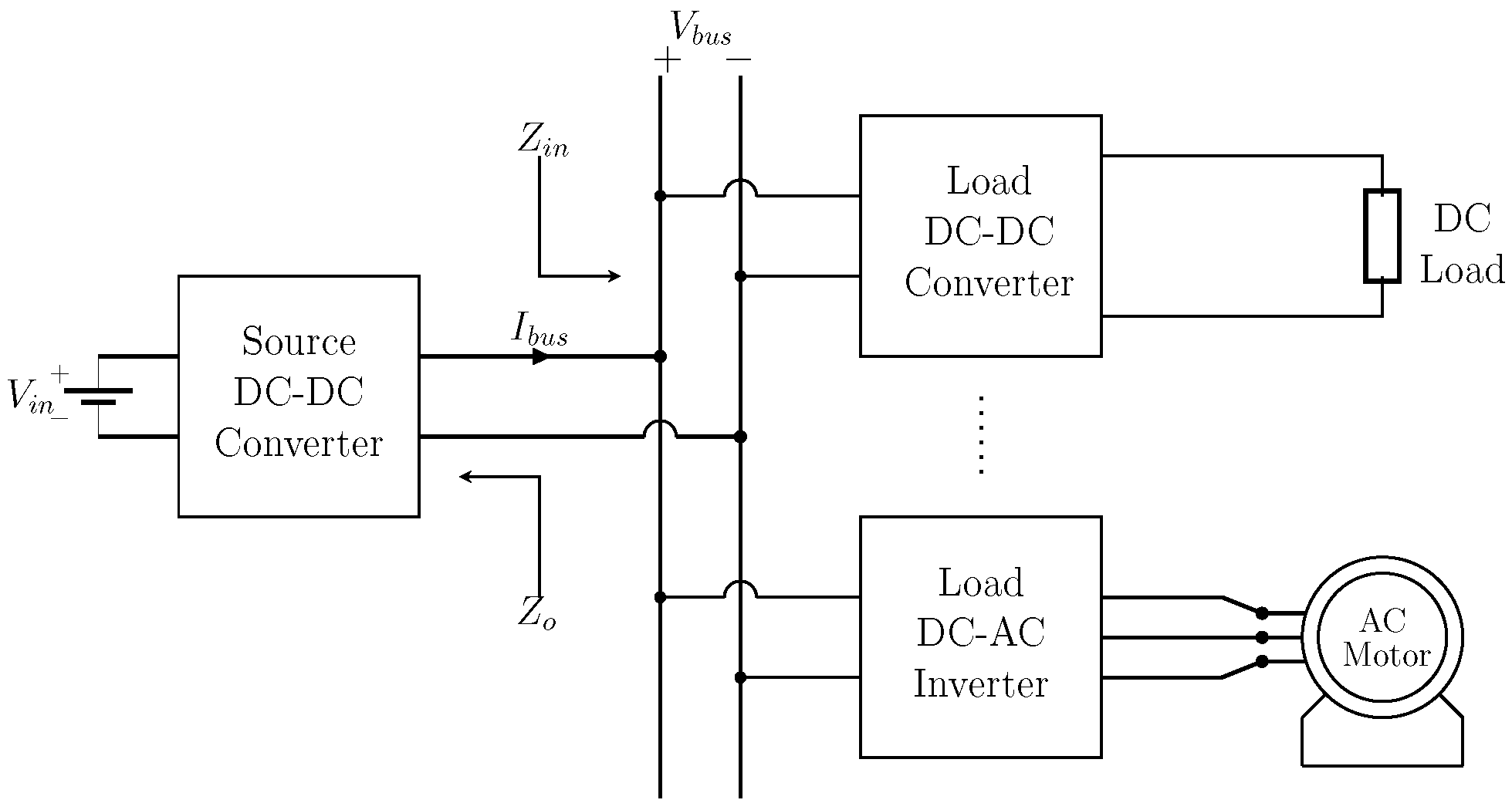

Figure 1
