Observations of Partial Discharge Echo in Dielectric Void by Applying a Voltage Chopped Sequence

Abstract

This paper describes a novel observation on partial discharges (PDs), which occur despite the absence of an applied voltage, within a chopped sequence. It was found that additional discharge pulses occur when a specimen is subjected to chopped sequences rather than a continuous sinusoid. The discharge pulses, called Partial Discharge Echoes (PDE), appeared in time intervals (where no voltage was being applied), immediately after the specimen had been exposed to a base waveform (e.g., sinusoidal) above a partial discharge inception level. The chopped timing is composed of a multiple series of packets consisting of base waveforms, with each packet being separated in time by a defined delay period. The presented experiments were performed on specimens with an embedded gaseous void, in thermosetting insulation and glass as a non-polar material, for comparison. Acquisition of the echo signal was performed in the phase-resolved mode, modifying the synchronization path and the settings. In contrast to continuous sinusoidal PD measurements, the chopped approach might provide a deeper insight into key PD phenomena, such as inception, propagation, time lag, post-discharge time decay, and effective surface area. Special focus was paid to the transition point between sinusoidal phase and the echo interval. The various scenarios of an echo mechanism, depending on the coincidence of remnant polarization field and the field accumulated on void walls, are discussed.

1. Introduction

Partial discharges (PDs) being one of the main assessment indicators of high-voltage insulation integrity, still offer a potential for new approaches in detection, mechanism interpretation, and analysis. This paper describes a novel observation related to partial discharges which occur despite the absence of an applied voltage, within a chopped sequence. The discharge pulses, called Partial Discharge Echoes (PDE), appeared in time intervals where no voltage was being applied, immediately after the specimen had been exposed to a base waveform (for example sinusoidal) voltage above the partial discharge inception level.

The chopped PD sequence opens new opportunities for analysis of dynamic phenomena inside dielectric materials, such as charge accumulation, the build-up of an internal field, including the role of the remnant field (due to dielectric polarization) that remains after the external voltage has been removed, space charge, time lag, as well as the processes of charge decay, related to the surface material conductivity [1,2]. The chopped timing is composed of a multiple series of packets consisting of base waveforms, with each packet being separated in time by a defined delay period. Whole epochs are repeated periodically throughout the measurement period [1]. The presented experiments were performed on specimens with an embedded gaseous void in thermosetting insulation, and glass as a non-polar material for reference. In polar dielectrics, the remnant electric field plays an important role within the PD Echo voltage-less period. Additionally, the purpose of this paper is to analyze various scenarios of PDE mechanism, including multiple PD Echo (dependent on the coincidence of remnant polarization field), and the accumulated field from previous discharges, which is completely new with respect to the echo phenomena and have not been published before this.

Comparison of the PD, in polar and non-polar dielectric material, was also performed around the transition point from the high-voltage driven phase to the chopped period. The occurrence of discharges in this phase range requires special attention since they impact the PD Echo mechanism and the timing.

Acquisition of the echo signal was carried-out in a phase-resolved mode, modifying the synchronization path and the settings. The controlled high-voltage source could be implemented with Trek HV amplifier. In contrast to the continuous sinusoidal PD measurements, the chopped approach may provide deeper insight to key PD phenomena, such as inception, propagation, time lag, neutralization, post-discharge time decay, effective surface area, etc. [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20].

This paper contains examples of the PD echo obtained in specimens composed of a void, in both a thermosetting material and in glass. The various events of echo mechanism, such as late (even tens of milliseconds after transition point) or multiple echoes, resulting from the interplay of remnant polarization field and accumulated field, have been discussed.

2. Partial Discharge Echo in Chopped Sequence

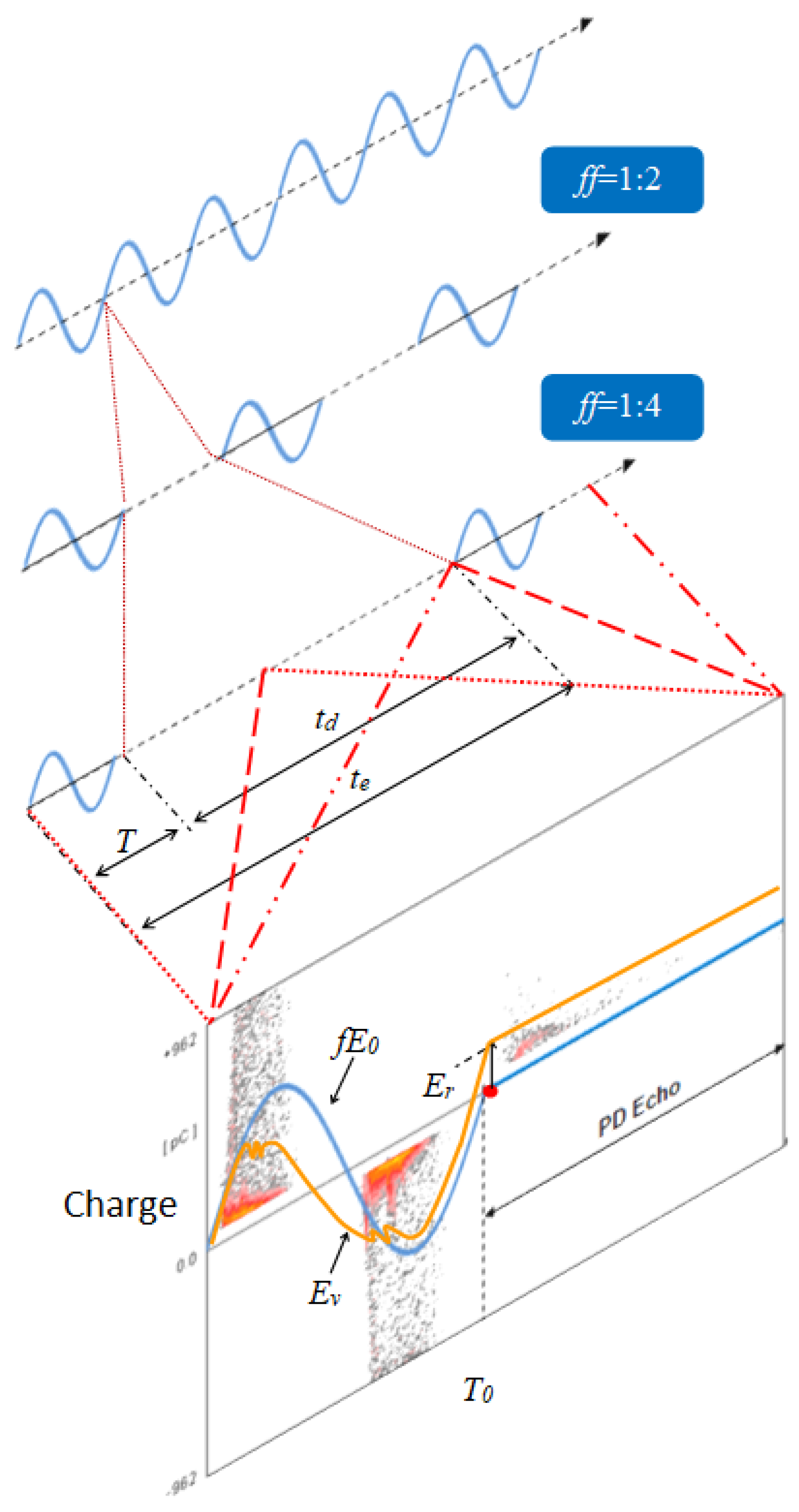

By applying a chopped sequence, aspects of the partial discharge process, not measurable via traditional methods, might be observed. An illustration of a chopped sequence is given in Figure 1. In contrast to a standard continuous sinusoidal run, a discontinuous approach is characterized by time intervals of duration t_d where no voltage is applied [1]. The base waveform with a period T (sinusoidal in the presented experiments, however, other shapes of a base waveform may also be applied) and the time delay, together form an epoch lasting for time t_e. Each epoch may contain multiple base packets. The proportion of the duration of active waveforms to the duration of the whole epoch is called the fill factor ff. The transition point from the sinusoidal part to the echo interval is extremely important and denoted as T₀ (red dot), in Figure 1. For clarity, the time interval, between consecutive sinusoidal periods is denoted in the patterns, in time units, in contrast to the phase units of the sinusoidal part [21].

Dielectric properties are determined by free and bounded charges. Free charges in the form of ions and carriers can move in the electric field. The mobility, whilst very small, is sufficient to observe the current flow, which is measured by the conductivity. Bounded charges are defined by the polar groups of atoms found in the main and the side chains of the polymer. These groups can rotate in the applied external electric field, which is equivalent to the flow of electric current, called displacement in the dielectric. In the electric field, dipoles subject a partial orientation that is the result of the equilibrium of the orientation, and a focusing on the external field, as well as, the confusing influence of thermasl movements. The relaxation time between different solid dielectric materials differs by a few orders of magnitude [22]. The effective electric field inside the void E_v is a superposition of applied external field E₀ (corresponding to the test voltage), which is transposed according to the field distribution and the shape of the void, by the factor f, and the internal field E_q, created by the charges accumulated on the void surface, during a previous discharge event:

$$E_v=f·E_0+E_q\left({\tau }_q\right)$$

(1)

where τ_q represents the cumulative decay time constant of the E_q field in the void, due to surface recombination, deeper trapping, and bulk conduction, neutralization, and other drifts. The E_q field can be expressed as a decaying function of time:

$$E_q\left(t\right)=E_{q_0}·\exp \left(\frac{-t}{{\tau }_q}\right)$$

(2)

where E_q0 is the initial field value.

As illustrated in Figure 1, at the transition moment T₀, at the beginning of the echo part, there would be a “quasi-DC” remnant field E_r, present in the void, due to the capacitive polarization of the dielectric E_p, superimposed with the charge accumulated E_q field (Figure 2a). Hence, in the echo interval, E_r would coexist with the decaying E_q field, as shown in Figure 2b, assuming there is a much slower decay of the polarization field E_p. As a result, both E_r and E_q fields would be present in the voltage-less time interval, due to the fact that the driving field fE₀ will stop abruptly at the transition point T₀. In addition, the E_r field is related to polar dielectrics. After transition moment T₀, the void field would be a superposition of the remnant field and the accumulated field, taking into account their polarity:

$$E_v(t)=E_r(t)+po{l}_{Eq}(t)E_{q0}{e}^{-t/{\tau }_q}$$

(3)

where function pol_Eq controls the polarity of E_q field at PD events.

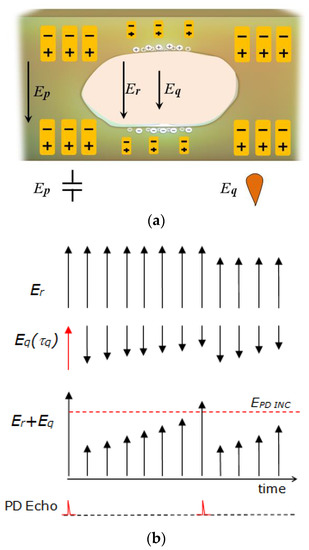

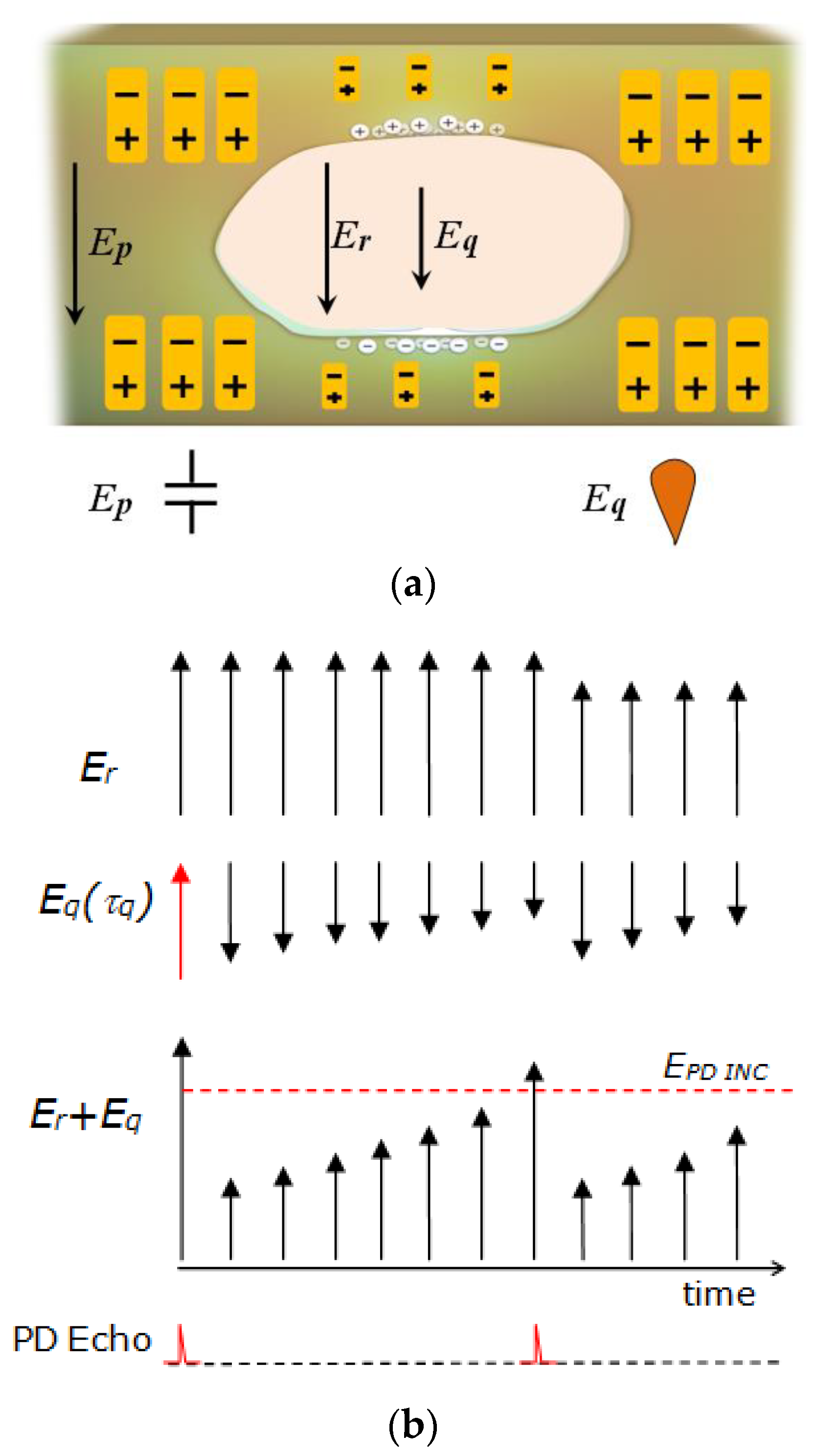

A demonstrative illustration of this situation is presented in Figure 2a. Just before the transition T₀₋, the polarization field E_p, based on the fE₀ but phase-shifted due to the discharges, would polarize and positively orient the dipoles in the dielectric. This is indicated by the yellow waveform, in Figure 1 (the void field “frozen” as a remnant, quasi-DC field, is also marked in the chopped part, where the PDE signal appears).

Hence at T₀₊, the void sees the remaining field that is memorized in dipoles and the field from the accumulated past events, which have compatible directions only once, after the polarity reversal (marked by a red arrow in Figure 2b). The remnant field, except for the depolarization, is quasi-stable. After the first discharge, the directions of the E_r and E_q field are opposite to each other, thus, E_q is a weakening remnant field. However, a post-discharge decay of the accumulated field E_q leads to the restoration, and an increase, of the resultant field, until a subsequent discharge event occurs, as is illustrated in Figure 2b. The various scenarios and polarizations of this field are analyzed in Section 5 of this paper. The presented experiments were carried out on a void, in a thermosetting material and, for comparison of non-polar behavior, on a void encapsulated in glass.

3. Measurement Setup and Dielectric Specimens

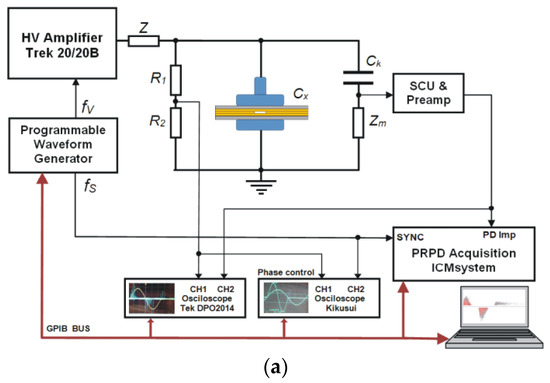

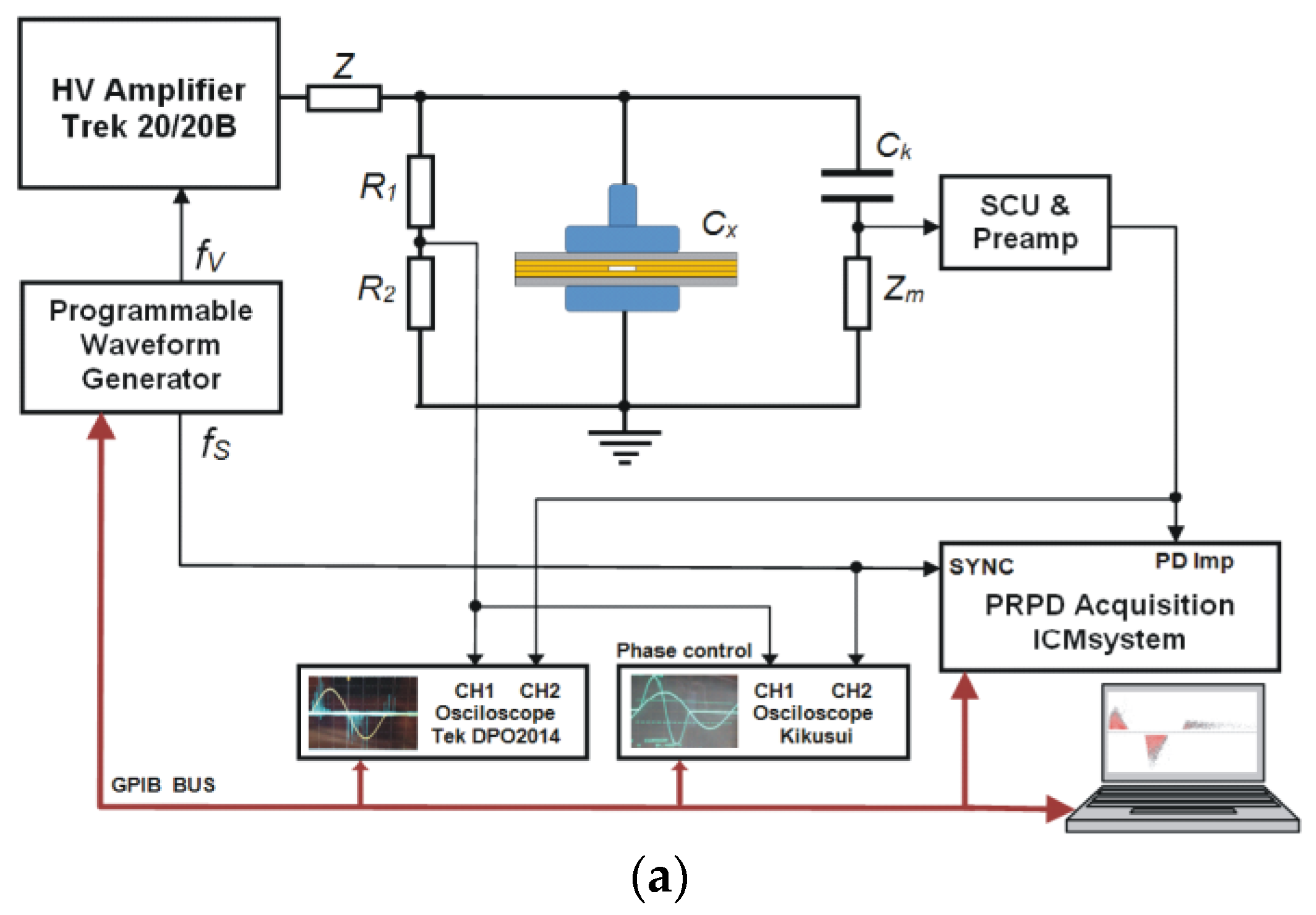

The experimental setup for a PD Echo measurement in a phase-resolved mode is presented in Figure 3a. The partial discharge signal was detected using a measuring impedance Z_m, connected in series with a coupling capacitor C_k = 1100 pF, then filtered and preamplified in the signal-conditioning unit SCU (signal conditioning unit and preamplifier). The acquisition was synchronized with the zero phase angle of the testing voltage and discharge pulses were accumulated, in a 256 × 256 matrix, in an ICM system (Power Diagnostix, Germany) connected to a host computer via GPIB (General Purpose Interface Bus) bus, during a t_m = 60 s measurement period. Thus, for the base period equal to T = 20 ms (50 Hz), the total number of periods, within the measuring time t_m, was 3000. Depending on the fill factor in the chopped sequence, the number of active periods would be reduced accordingly.

The main difference in instrumentation and acquisition of the chopped patterns was related to the necessity of a high-voltage source and synchronization modes. The measurements were performed in a phase-resolved, wideband PD acquisition system. The chopped pattern was defined in a waveform generator driving the Trek Model 20/20B (Trek Inc., New York, NY, USA) high-voltage amplifier. The period of the sinusoidal base waveform was 20 ms. The synchronization was obtained from a compensated voltage divider connected to a high-voltage terminal. The measurement time for all experiments presented in this paper was 60 seconds. Partial discharge detection was provided from coupling impedance, followed by a filter and a preamplifier. The PD pattern including the echo was stored in a 256 × 256 matrix.

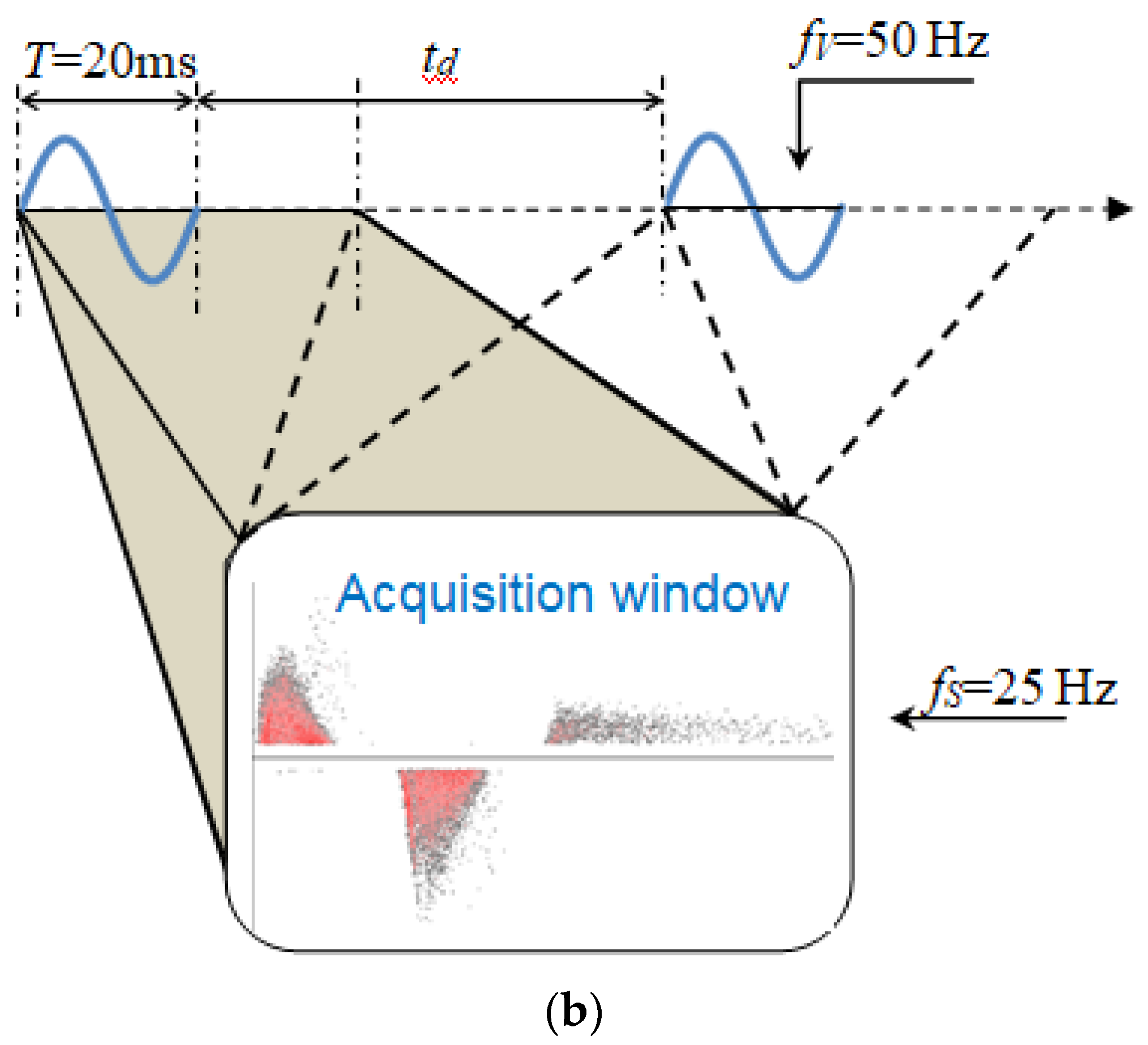

Following the frequency of the base waveform, at 50 Hz, the synchronization was adjusted to 25 Hz to visualize both the PD sinusoidal part and the echo interval. The position-ing of an acquisition window is illustrated in Figure 3b. The two synchronization frequencies f_V and f_S are also marked. The first 128 channels in the acquisition matrix were devoted to recording the sinusoidal excitation and the remaining 128 channels were dedicated to recording the PD echoes [1,2].

One specimen contained an artificial void filled with air at atmospheric pressure. The thermosetting embedded void had a radius of 15 mm and a thickness of 0.1 mm. The thermosetting material was a composition of mica, estrofol foil, and epoxy resin. For comparison, a void (radius 15 mm, thickness 0.1 mm) placed between the two glass plates, each 2 mm thick, was used. On both sides, plain stainless steel electrodes were used. The electrodes were 40 mm in diameter, with an end curvature of 8 mm radius. During the experiments, the specimen was placed in an oil tank. Furthermore, the measurements were performed at room temperature.

4. Results and Discussion

4.1. Chopped Sequence

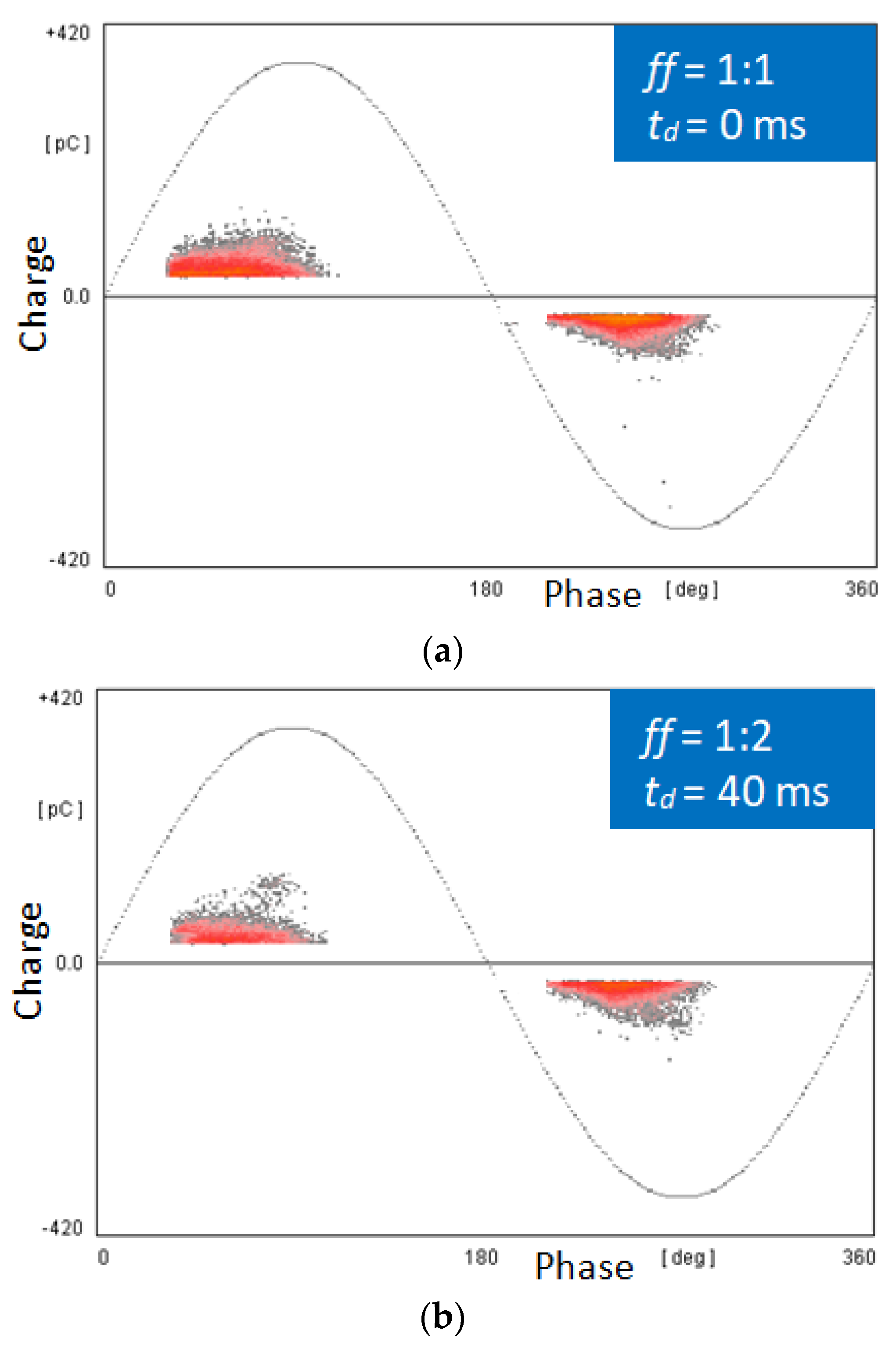

The application of the chopped sequences to the specimen, resulted in additional observations when a continuous sinusoid was applied. The following two configurations were considered; the first refers to the void embedded in the glass and the second to when the void was embedded in thermosetting insulation. Glass was selected as a non-polar, electrically insulating material, for comparison. In the 17th century, it was already in use, as an insulation material in the Leyden jar, and later, for example, it was used in glass capacitors introduced by Prof. Mościcki [23]. Glass is made of SiO₂ molecules. Oxygen has a high affinity for attracting electrons of other atoms. In this case, after a discharge event, electrons on one void wall created relatively stable negative ions. In the non-polar glass, the polarization field was not present. Figure 4 shows the PD phase-resolved measurements obtained in the case of a continuous (Figure 4a) and a chopped sequence, in a void embedded in glass, at a voltage of 7.5 kV, which equaled to 1.2 U₀ (U₀ is the PD inception voltage). The non-continuous part reflected measurement at the delay times of 40 ms and 320 ms, corresponding respectively, to a fill factor of 1:2 and 1:16.

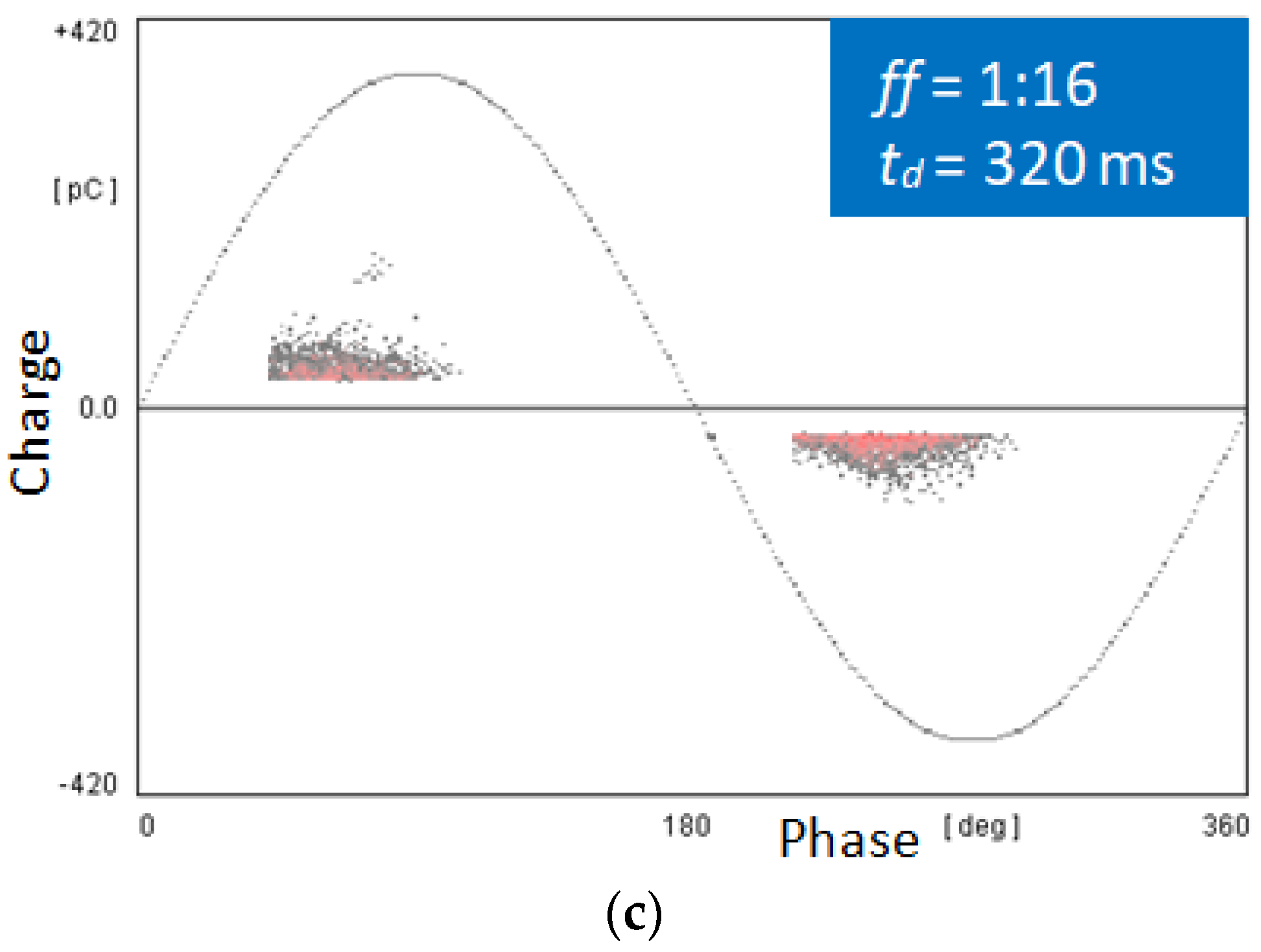

Initially, no phase shifts of PD groups could be observed between the continuous and the chopped (ff = 1:2) sequence. Thus, both positive and negative discharge groups were stable, despite the introduced 20 ms delay, after the first period of high-voltage. It might be observed that both the continuous sinusoidal and the chopped patterns were invariant. This confirmed that the E_q field created by the post-discharges on the void walls was stable (Δϕ(t_d) = 0), in this case; no decay was observed. However, when the delay time was prolonged to 320 ms, the decay effect of E_q (e.g., due to surface processes) emerged in the form of a phase-shift, by 10°, of the positive PD group (Figure 4b vs. Figure 4c). The maximum charge Q_max was stable and was not influenced by the delay time in both PD groups.

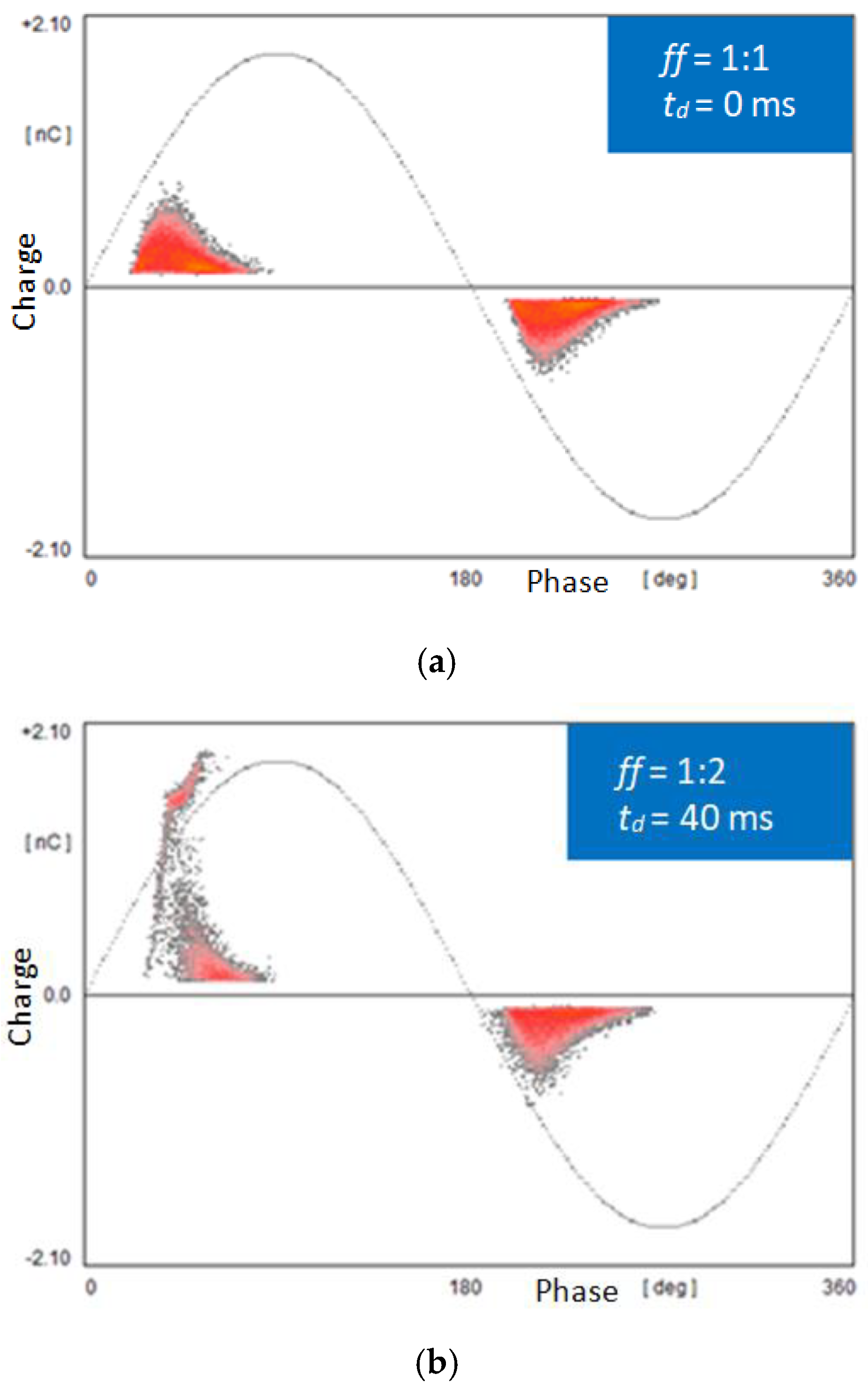

For comparison, a second experiment was performed on a void embedded in a thermosetting material, at a voltage of 7.5 kV (Figure 5). Contrary to the glass void, in this case, significant differences might be observed between the PD pattern obtained in the case of chopped sequence and that which was obtained for the continuous run. It was evident that the introduced gap in the form of the predefined delay time had impacted the PD inception voltage, of the first period, in the sequence.

The inception phase had shifted to the right, from 20° to 35°, and the maximum charge magnitude of the PD pulses had increased, greatly, from 0.7 to 1.8 nC. A shift of the positive discharge group might be noted, which was related to a slightly higher inception voltage, that was used to for compensate the loss of internal E_q field. This quite significant increase in the front pattern in the maximum charge, after the delay time, reflected the incoming overvoltage, which might be a result of the decay of E_q, as well as a decrease of the remnant polarization field E_r.

4.2. Partial Discharge Echo

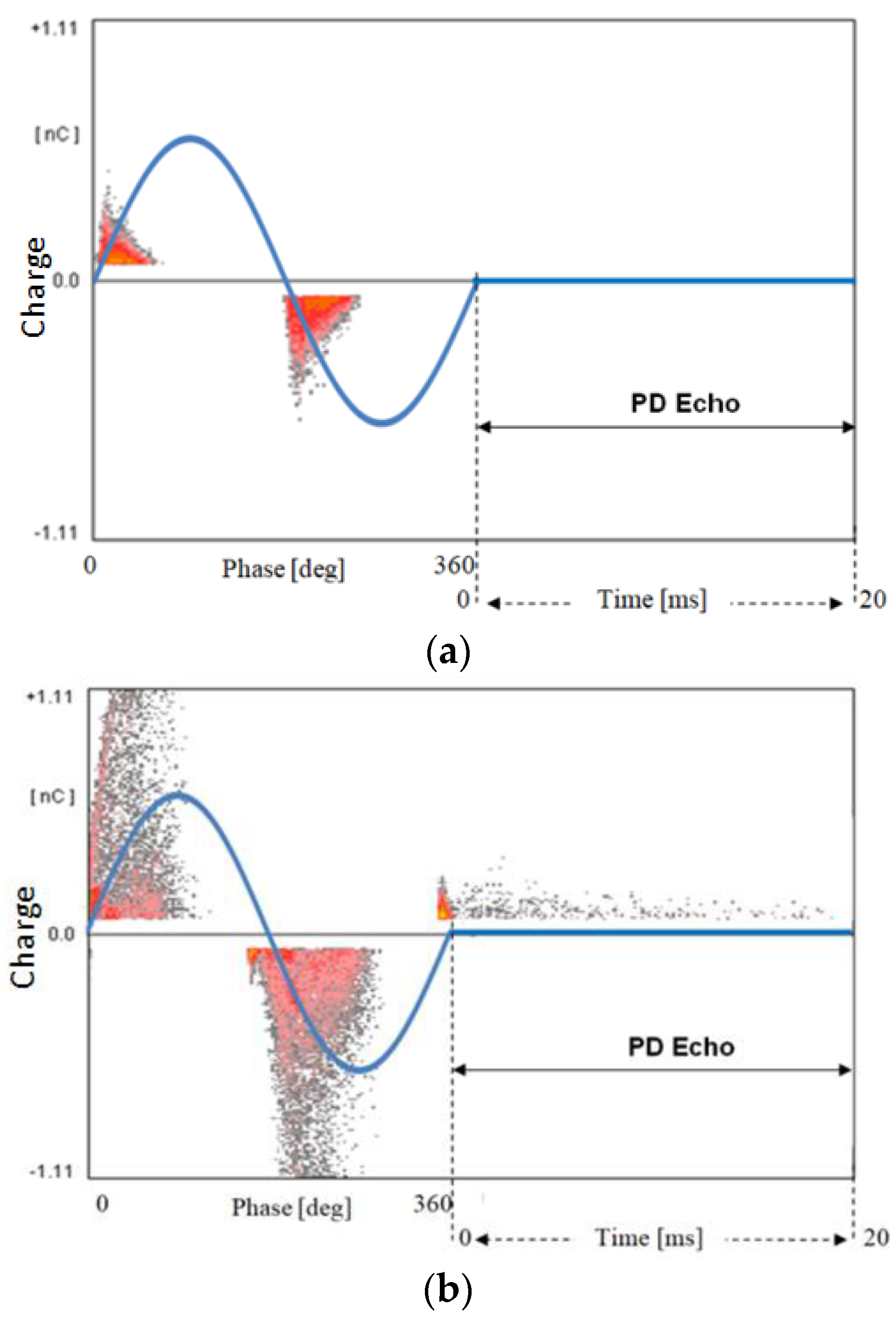

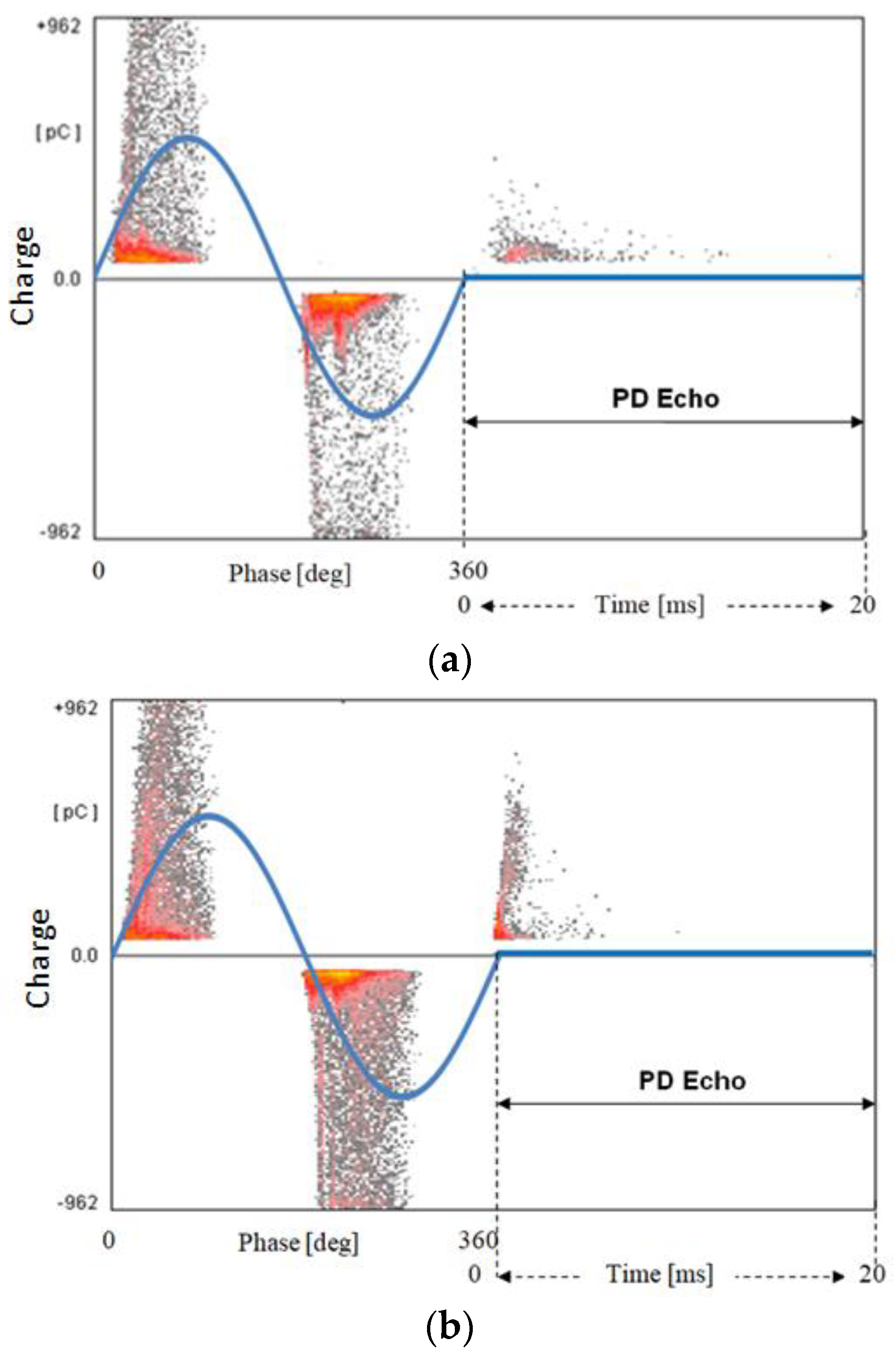

The application of the chopped sequence led to the additional observation of the partial discharge echo phenomena in the voltage-less time interval. The PD pattern was recorded in the chopped sequence with the delay time t_d = 20 ms (ff = 1:2), in void embedded in glass, at 7.5 kV 1.2 U₀ (Figure 6a), and with PDE at 2.4 U₀, as is shown in Figure 6b. It could be observed from these patterns that PD Echo appears at a significantly high-voltage of 15 kV, which is equal to 2.4 U₀. This could be attributed to a lack of remnant field. From previous observations, it could be stated that the echo effect started to appear in various dielectric specimens at voltage levels around 1.2 U₀. However, with glass, which was the non-polar specimen, it was not the case and the echo started at a higher voltage. In Figure 7b, the characteristic phase shift towards left might be observed, in the positive PD group, with the classic split into two parts, one in the positive half-period and the second seen at the end of the negative period. These PD pulses have a positive polarity, due to the internal phase shift in the dielectric material, between the external field and the internal void field, in the presence of discharges.

An interesting result may be observed around the transition point T₀. Prior to the polarity change of the external voltage and the transition point T₀, there was already a group of partial discharge pulses, which could be considered to be a classical PD. However, these classical pulses also had a significant impact on the echo mechanism. Following T₀, there was a long spread of the PDE pulses, almost over the entire 20 ms-long delay-period.

In the case of the void in the thermosetting insulation, the corresponding PDE patterns are presented in Figure 7. A non-continuous sequence with a delay time of 160 ms (ff = 1:4) was presented. The PD Echo started to appear at voltage 11 kV, equal to 1.7 U₀ (Figure 7a). By further increasing the voltage, one could identify a more focused PDE group and a strong increase in the maximum charge (Figure 7b). At lower voltages, echo pulses started, individually, in the voltage-less part. By further increasing the voltage, the positive group just prior to the transition point T₀ arose, which had an impact on the subsequent PD development. These two mechanisms are explained in the next section.

5. Selected Scenarios of PD Echo Mechanism

Depending on the dielectric material (polar/non-polar) and the interplay of the remnant E_r field with the field from accumulated charges E_q, inside the void, various PD Echo scenarios could be considered. Additionally, the time lag was also taken into account. This could last from hundreds of milliseconds for the low frequency (1 Hz), to individual milliseconds at a power frequency of 50/60 Hz [2,24,25].

The internal remnant field E_r was obtained due to the polarization effect of the external field, in a polar dielectric. The dipoles were oriented partly along the field as an effect of the balance of orienting the action of the external electric field and disorienting the effect of thermal movements. Due to the voltage-less part of the sequence, the dipoles returned to a statistical average of disordered placement (the equilibrium state), which is usually described as an exponential relaxation process (in solid dielectrics, in the range 10⁻⁴–10⁴ second) [18,23]. In the presented experiments, the E_r relaxation time in a solid dielectric was assumed to be long, relative to the high-voltage period. The PD pulses, prior to the transition point T₀ and the PD Echo pulses in the voltage-less part, were observed in both cases of the void being embedded in glass and that of it being embedded in the thermosetting insulation. Following is an explanation of the potential mechanisms and scenarios for this behavior, depending on the presence and interactions of the remnant and the accumulated internal field, in the void.

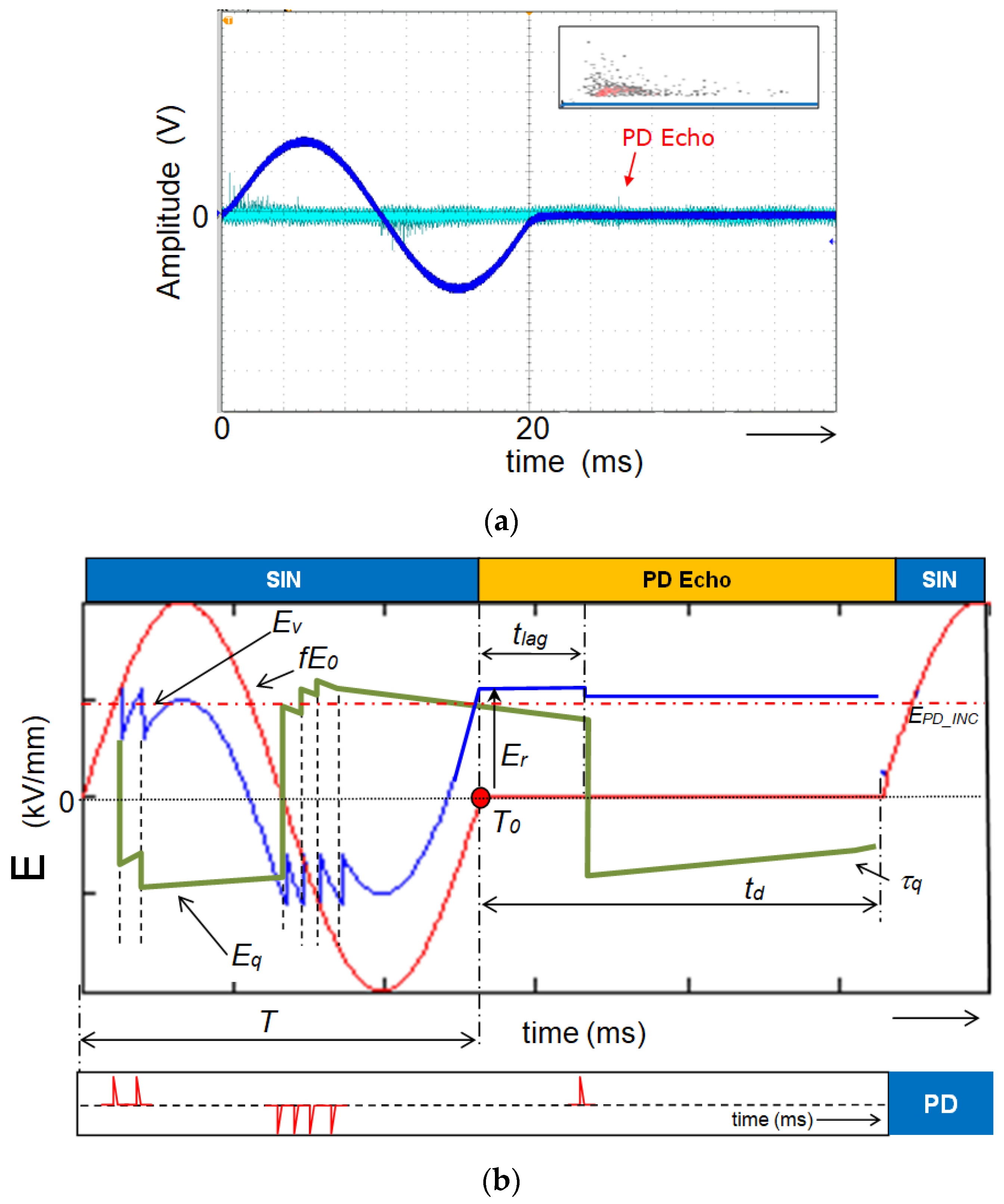

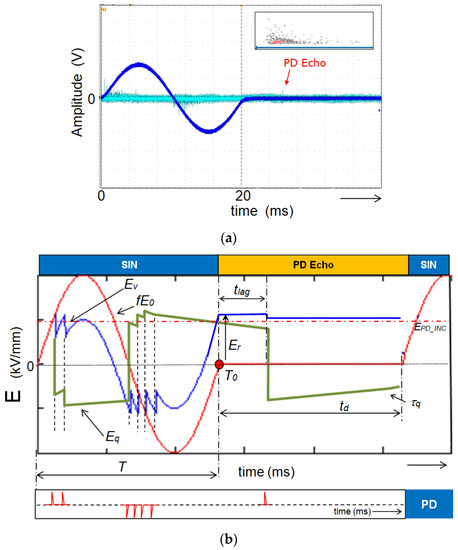

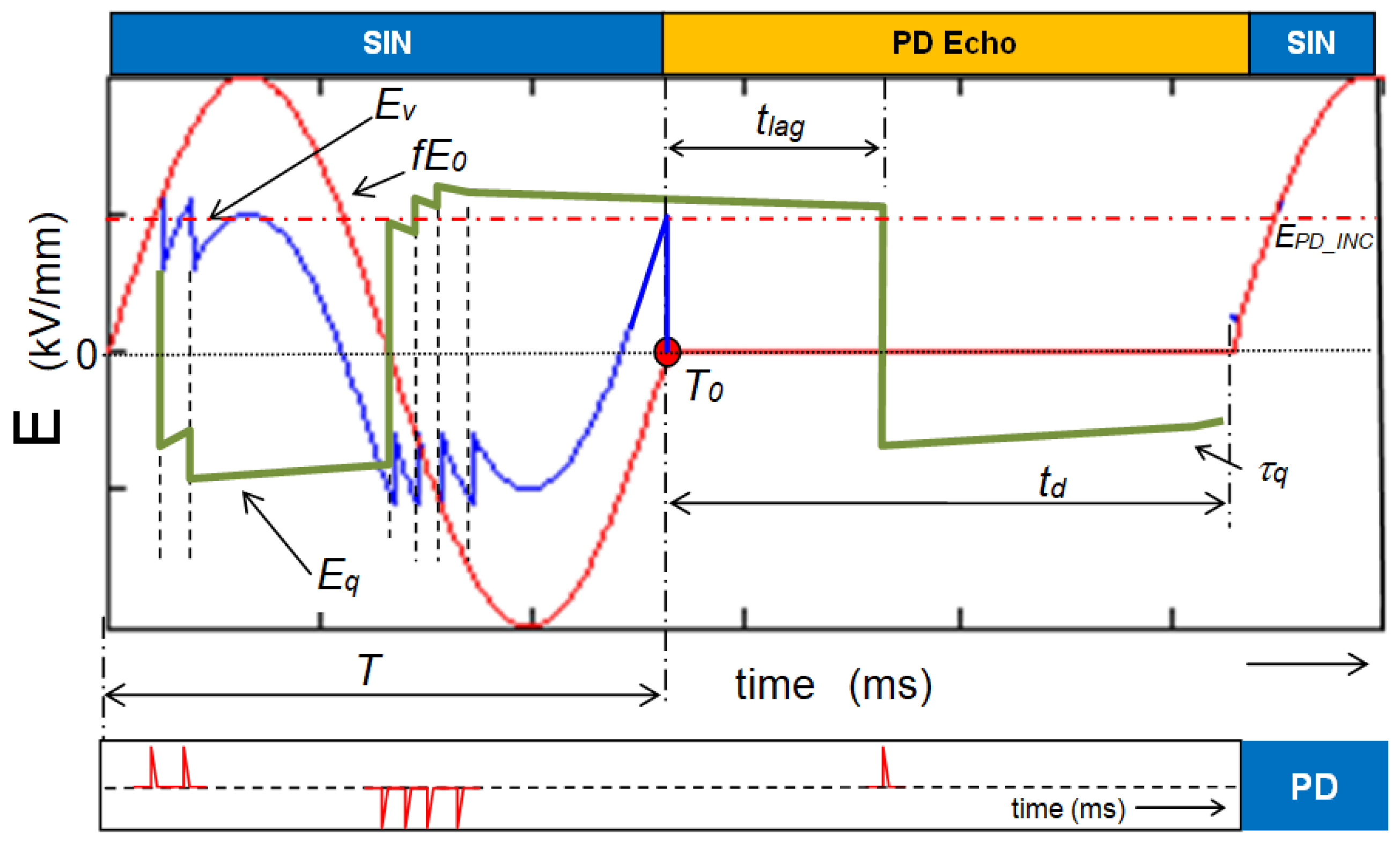

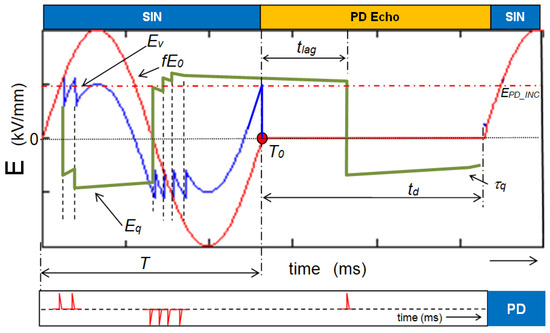

First, consider the case, visualized in Figure 8a, where an individual PDE pulse was recorded. This PD echo impulse was triggered due to the coinciding of both E_r and E_q fields, after passing the inception level. The time delay was due to the time lag (Figure 8a). The E_q accumulated field is represented by a green curve in Figure 8b, and the field inside the void is given in blue.

In the sinusoidal phase, the PDE mechanism was related to the difference of the external and the accumulated field, whereas, in the echo interval it was primarily related to the remnant field. The waveforms of the corresponding electric field components are shown in Figure 8b. Visualization in the plot has not been done to scale, to pinpoint the discharge mechanism.

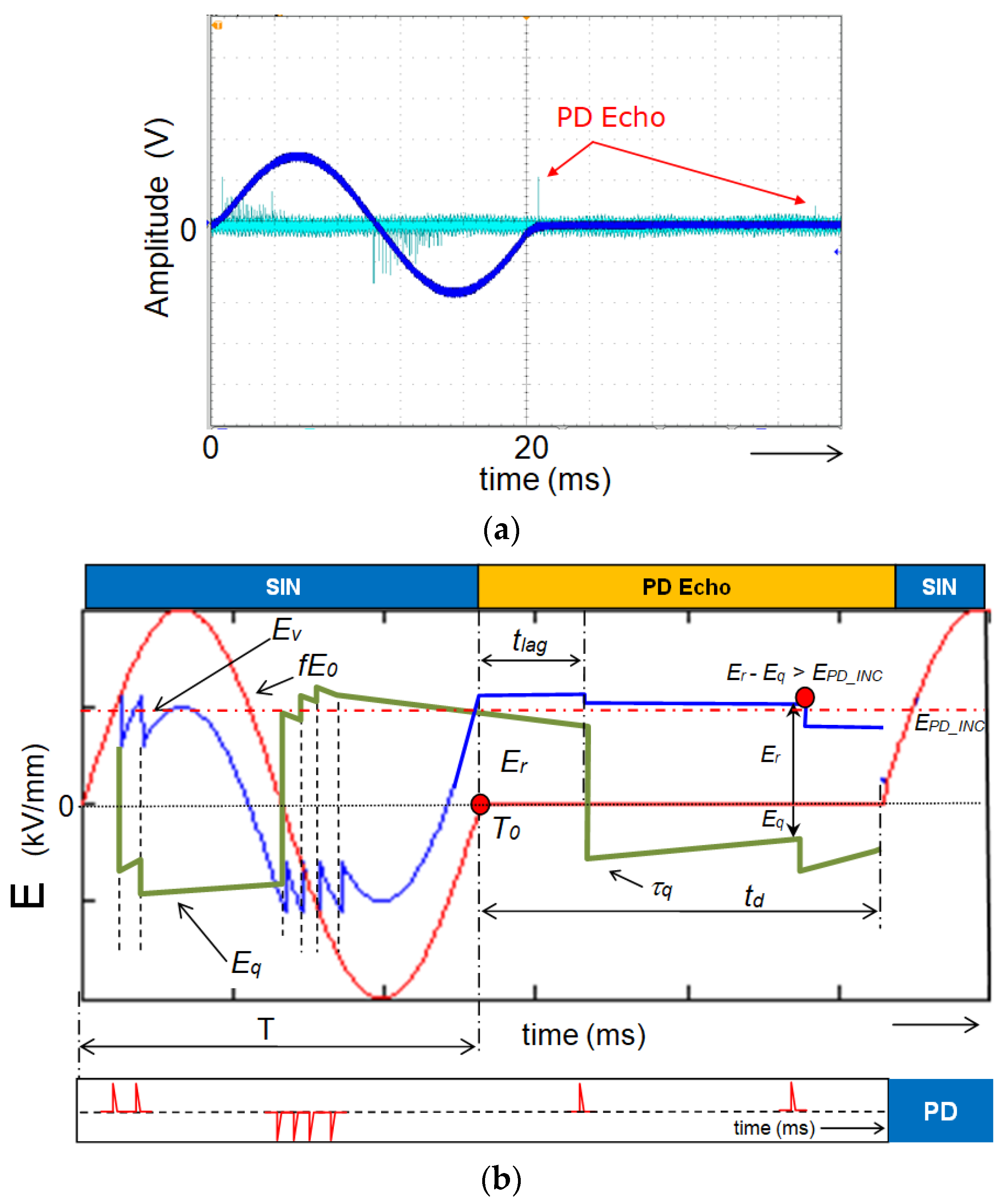

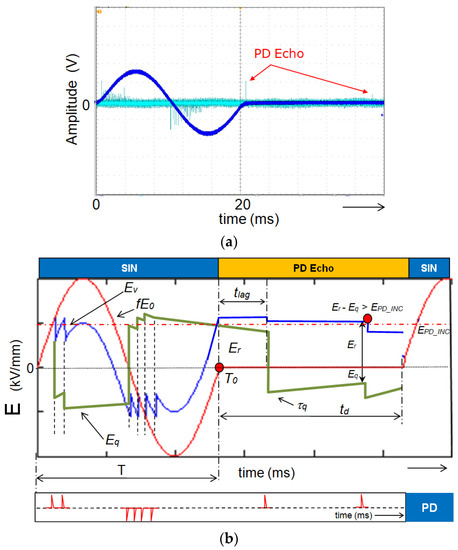

Cases where multiple echo pulses followed each other in a sequence, were also observed, as shown in Figure 9a. In this case, after the first PDE pulse, as described above, the second one would be triggered, when the following condition was full filed: E_r − E_q > E_{PD_INC}. After the first PDE pulse, the E_q field had an opposite direction to the E_r field counteraction. E_q field was found to decay with the time constant τ_q, as indicated in Figure 9b, and the moment when superposition of those fields exceeded the inception level (marked by a red dot in Figure 9b), the subsequent echo pulse appeared. This was called a “late” echo, because it was observed often after tens of milliseconds, from the transition point T₀, depending on the decay time constant of the E_q field. The visualization of this process is shown in Figure 2b. In a positive polarity sequence, the PD Echo pulses also had a positive polarity. Thus, the second PDE pulse must have been caused by the E_r field as the E_q field had flipped, and hence would result in a negative PDE, which was not observed.

Another scenario refers to the case when prior to the transition point T₀, PD pulses occur at the end of the sinusoidal part. Here we can distinguish between the two cases observed in our experiments for polar dielectric (thermosetting specimen) and non-polar material (glass specimen).

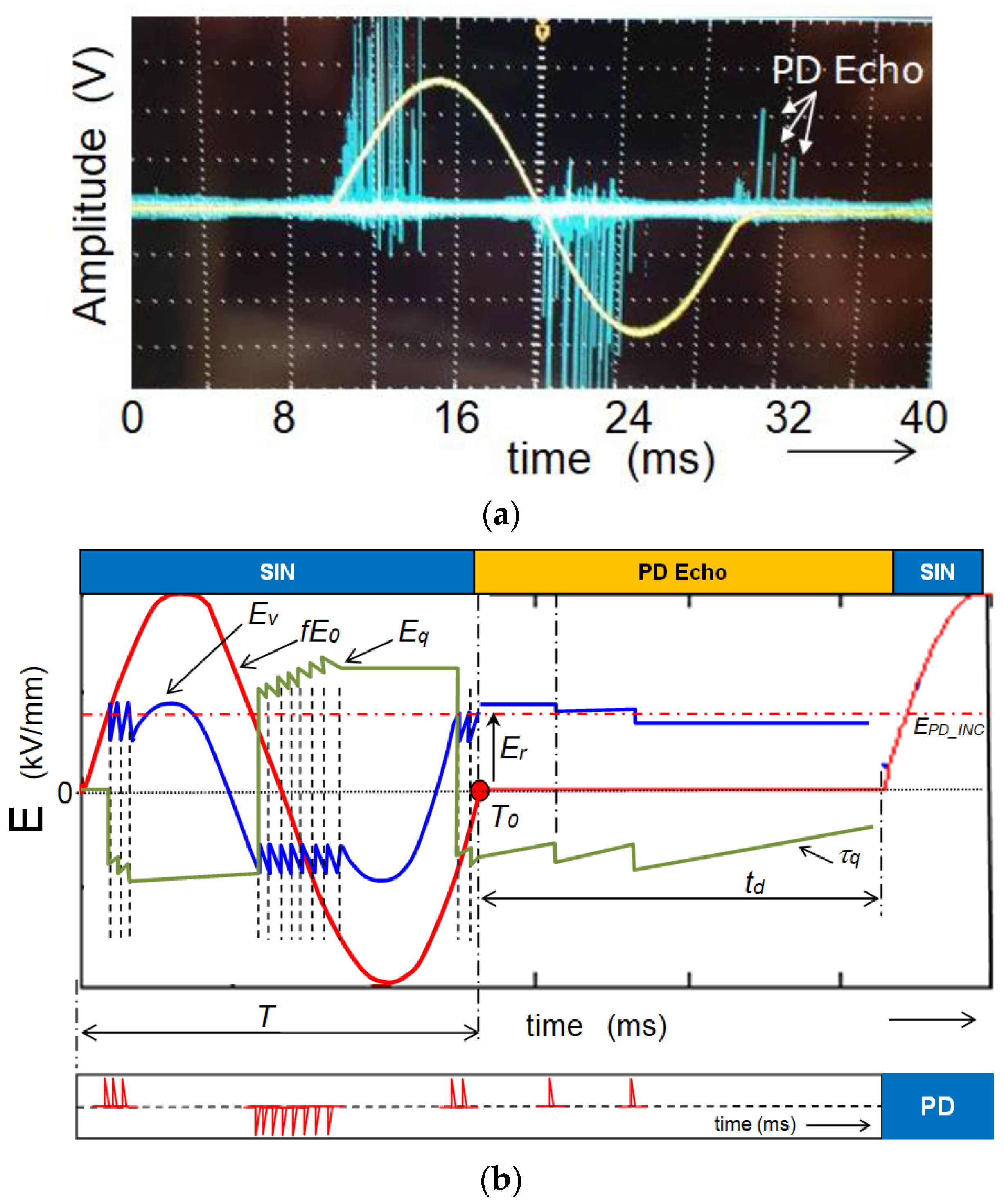

First consider the case with a polar dielectric, where the remnant field E_r was maintained. A time snapshot of such an instance is shown in Figure 10a, where three partial discharge echo pulses with positive polarity could be recognized. Prior to the transition moment T₀, the internal conditions in the void acted to support the discharge event (sufficient E_r + E_q field above inception threshold, initial electron available). After the first discharge E_q, the field would flip, being in opposition to E_r for subsequent events. Hence at T₀, the remnant field was frozen and E_q had weakened the internal field in the void. The decaying accumulated field would restore the void field, as previously described, and the trigger the event in the case of the fulfilling discharge criteria. Depending on the E_q field decay time τ_q, multiple PDE pulses might have occurred. This time constant could have different origins such as ionic drift, neutralization, conduction along the void surface and recombination, and trapping into the dielectric or bulk conduction. Depending on the trapping level, some electrons might have been de-trapped, in this process, for a subsequent discharge. It should be noticed that in the presented scenarios it was assumed that the E_q field had always changed its polarity after the first discharge, when both E_r and E_q were coherent. One could imagine a situation, where the accumulated field was substantial and one discharge event was not able to change the polarity. In such a situation the process would be more gradual.

Now consider the PD echo observed in the glass specimen (Figure 6b) where discharges, both prior to T₀ and in the echo time interval, are recorded. In the case of non-polar dielectric, the PDE pulses were obtained at relatively high multiples of the PD inception voltage, for sinusoidal voltage (2.4 U₀), as the remnant field E_r, supporting the E_q field in the case of the first discharge after polarity reverse, was not present. This case could be split into two parts. The group before T₀ could be formed in a regular sinusoidal sequence, especially when the voltage was high, with respect to the inception level.

This did not address the question of how the echo pulses were generated. Since glass is a non-polar insulating material, no remnant electric field remained after T₀.

The observed echo pulses had a positive polarity, thus, they could not have been caused by a flipping of the E_q field. The intensity of the PDE versus prior T₀ discharges, whilst relatively low, was still significant and observable. Thus, a possible explanation (illustrated in Figure 11) might relate to the scenario when no prior T₀ discharges had happened, in some sequences, and there was an accumulated E_q field, including in the time lag condition, as this would have resulted in an intermittent echo discharges, spread along the entire delay time interval. However, in this case, less probable was the occurrence of multiple echoes in a single sequence. The measurement observation recorded in Figure 6b supported this hypothesis, as the partial discharge echo pulses covered the delay time period t_d. The mechanism visualized in Figure 11, also shows the interplay of the two effects, i.e., first related to the time lag and the electron availability, and the second one associated with the decay of the E_q field.

6. Conclusions

This paper reported a novel observation on partial discharges, which occurred despite the absence of an applied voltage, within a chopped sequence. The chopped sequence allowed to separate the consecutive periods of high-voltage and provide insight into the physical PD mechanism. The Partial Discharge Echoes pulses were recorded in the chopped sequence in time intervals where no voltage was applied. Experiments were performed on specimens with an embedded gaseous void in the thermosetting insulation and glass. They demonstrated a comparison of both the chopped effect and the PD Echo, in polar versus non-polar dielectric material, revealing the impact of a remnant field.

Various scenarios of PDE mechanisms, including multiple PD Echo, were analyzed, depending on the coinciding of the remnant polarization field (present only in polar dielectrics) and the field accumulated from previous discharges, which is a novel observation in the echo phenomena. It was shown that in the sinusoidal phase, the PD mechanism was related to the difference of external and accumulated field, whereas, in the PDE interval it was primarily related to the remnant field and accumulated field for polar dielectrics, and only to E_q field, in the case of non-polar insulating materials. In the case of polar dielectrics, multiple echo pulses were observed. A “late” echo, occurring after tens of milliseconds from the transition point was also observed. For the above-mentioned effects, the corresponding PD mechanisms and the interplay of electric fields, in the void, was explained and visualized.

It was detected that the PD pulses occurring just prior to the transition point T₀ influenced the PD Echo occurrence and timing. Acquisition of PDE was demonstrated and a mechanism based on the superposition of a remnant polarization field, and an accumulated internal field, was explained.

In contrast to the continuous sinusoidal PD measurements, the chopped approach might provide deeper insight into key PD phenomena, such as inception, propagation, time lag, post-discharge time decay, and effective surface area. Special focus was paid to the transition point between the sinusoidal phase and the echo interval. The various scenarios of echo mechanisms, depending on the coinciding of the remnant polarization field and the accumulated field, on void walls, were analyzed and explained. The preliminary PD echo observations confirmed a high potential for research into its interpretation, further analysis, and application.
